Product Type	Citrus Juicer
Brand	KORONA
Model	27001
Power Consumption	40 W
Voltage	220-240 V ~ 50/60 Hz
Protection Class	II
Continuous Operation Time (CO-Time)	5 minutes
Color	White and green
Material	Plastic, stainless steel spout
Accessories Included	Dust lid, pressure cones (A and B), sieve, container with spout, driving shaft
Special Features	Automatic rotation on pressure, spout up/down for flow control, cable storage
Intended Use	Extracting juice from citrus fruits, not for commercial use
Cleaning Recommendation	Removable parts clean with water and mild detergent; engine block only with damp cloth
Safety Features	Do not immerse in water, do not use outdoors or with wet hands, automatic shutdown after 5 minutes (cool-down required)
Guarantee	2 years against defects, subject to conditions
Country of Origin / Manufacturer	KORONA electric GmbH, Sundern/Germany

Frequently Asked Questions - 27001 KORONA

How do I assemble the citrus juicer?

First, plug the shorter end of the driving shaft into the engine block. Then install the container with spout, followed by the sieve, and finally the pressure cone (A or B).

How do I use the juicer?

Cut the fruit in half, press one half onto the pressure cone to start the motor. The cone rotates automatically to extract juice. Place a container under the spout. To stop juice flow, flip the spout up until it clicks. Do not operate for more than 5 minutes continuously.

Can I juice fruits other than citrus?

No, this juicer is intended only for citrus fruits (oranges, lemons, grapefruits, etc.). Other fruits may damage the appliance.

How do I clean the juicer?

Always unplug first. The engine block must never be immersed; wipe with a damp cloth. All other parts (dust lid, pressure cones, sieve, container, spout) can be washed with water and mild detergent.

What is the CO-time and why is it important?

CO-time (Continuous Operation Time) is 5 minutes. After that, let the motor cool for at least 5 minutes before using again to prevent overheating.

What should I do if the juicer doesn't start?

Check that the power cord is fully unwound and plugged into a working outlet. Ensure the driving shaft is correctly inserted. If it still doesn't start, contact customer service.

Is the juicer dishwasher safe?

The removable parts are not explicitly labeled dishwasher safe. It is recommended to wash them by hand with warm water and mild detergent.

What safety precautions should I take?

Never immerse the appliance in water, do not use outdoors or with wet hands, and keep away from children. Always unplug when not in use or before cleaning.

How do I store the power cord?

The cord can be wound into the cable storage compartment under the engine block. Do not bend or wrap it tightly around the appliance.

What is the warranty period and how do I claim?

The product has a 2-year warranty against defects. To claim, provide proof of purchase (receipt) and contact KORONA Service at [phone] or [e-mail].

USER MANUAL 27001 KORONA

Close-up of a glass of yellow juice next to a halved cut of lemon fruit (no text or symbols visible)

White and green KORONA brand juice brush with a spool, no visible text or symbols on the device itself.

CE

Zitruspresse

27001

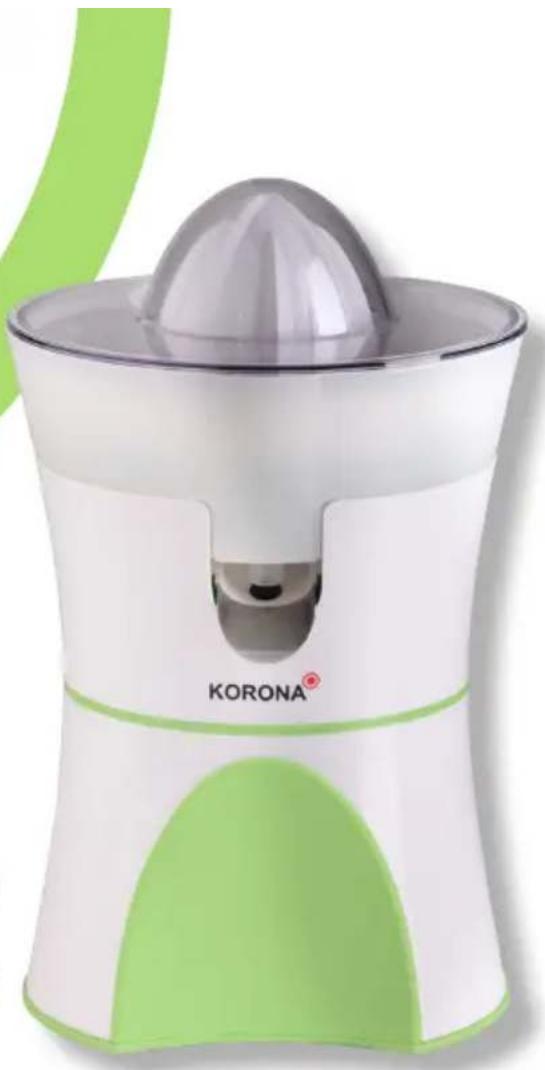

White and green KORONA brand juicer with a dome-shaped top, no visible text or symbols on the device itself.

Produktbeschreibung

White Korona brand juice shaver with a glass lid and central knob (no text or symbols visible on the device itself)

Product Description

1 Dust lid
2 Pressure cone A
3 Pressure cone B
4 Sieve
5 Container with spout
6 Driving shaft
7 Engine housing
8 Cable storage
9 Power cord and plug
10 Stainless steel spout

Intended Use

This appliance is intended and suitable for extracting juice from citrus fruits. This appliance is not intended for commercial use.

All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. Please follow the safety instructions to prevent any risk or danger caused by the use of electric appliances.

General Safety Instructions

- Manufacturer takes no responsibility for any damage caused by incorrect use.

- Incorrect or improper use can damage the appliance and cause injuries to the user.

- Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
  • Always unplug (9) your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.

• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.

• Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord (9) is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise.

• Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!

Operation

Hint: Before first use, clean all the removable accessories (apart from the engine block) as specified under “Cleaning and Care”.

1. Fully unwind the cord (9), which is in the cable storage (8) under the engine block.
2. Plug the shorter end of the driving shaft (6) into the engine block (7). Then install the other accessories in the following order: Container (5), sieve (4), pressure cone (2) or (3).
3. Cut the fruit in two halves. By easily pressing one half of the fruit on the pressure cone, you start the engine and the extraction of juice begins. By reducing the pressure on the cone, the cone will automatically rotate so that all the juice of the fruit will be extracted.

Attention: In order to prevent damage, do not put too much pressure on the cone.

1. Place a suitable container under the spout (10) and pay attention that the spout (10) is facing the right direction. In order to stop the flow of juice, press the spout (10) up until it clicks. By pressing it back down, the process is being continued.
2. After the extraction is finished, disconnect the appliance from the mains and disassemble the citrus juicer as described in step 2 in reverse order.
3. Now clean all removable accessories as specified under "Cleaning and Care".

Suggestion: Never operate the appliance for more than 5 minutes. Afterwards, the appliance has to cool down for 5 minutes before operation can be continued.

Cleaning and Care

Caution! Disconnect from the mains (9) before cleaning!

Never immerse the engine block into water. The engine block may be cleaned with a damp cloth.

Dust lid, pressure cones, sieve, container and spout may be cleaned with water or a non-aggressive dishwashing detergent.

For risk of food poisoning, pay attention that all fruit has been removed during cleaning.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your citrus juicer 27001 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data

Voltage: 220-240 V \~ 50/60 Hz

Rated Power: 40 W

CO-Time*: 5 minutes

Protection Class: II

Subject to change without notice.

* CO-Time: The CO-Time (Continuous Time) describes the time how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany

Service Adress:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline: Mail: web:

[phone] [e-mail] www.korona-electric.de

Twithin 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
