Product type	Electric citrus juicer
Brand	Korona
Model	27020
Supply voltage	220-240 V ~ 50/60 Hz
Rated power	40 W
Protection class	II
Number of pressure cones	2 (small and large)
Pulp filter	Yes, adjustable
Juice collector	Removable, max capacity not specified
Automatic operation	On/off by pressing on the cone
Bidirectional rotation	Yes, automatic direction change
Housing material	Plastic
Cord length	Approximately 1 m
Washable removable parts	Yes: cones, filter, collector, lid
Cleaning	By hand, warm water and mild detergent
Safety	Automatic shut-off, do not immerse motor
Intended use	Citrus fruits: oranges, grapefruits, lemons
Warranty	2 years
After-sales service	KORONA Service, Germany

Frequently Asked Questions - 27020 KORONA

Which fruits can I juice with the Korona 27020?

This appliance is designed for citrus fruits: oranges, grapefruits, yellow and green lemons. Do not use other fruits or vegetables.

How to assemble the juicer?

Place the juice collector on the motor unit, insert the pulp filter, then press the pressure cone onto the drive shaft. For large fruits, use the large cone over the small one.

How to adjust the amount of pulp in the juice?

The pulp filter is adjustable: turn it to choose between more or less pulp. Adjust according to your taste before juicing.

What to do if the appliance does not start?

Check that the cone is properly pushed in and that you are applying sufficient pressure. If the problem persists, unplug and check the power supply. Never force the start.

Can I wash the parts in the dishwasher?

No. Wash the removable parts (cones, filter, collector, lid) by hand in warm water with a mild detergent. Never immerse the motor unit.

Does the motor heat up normally?

A slight warmth is normal during prolonged use. If the appliance becomes very hot, turn it off and let it cool down. Do not exceed the capacity of the collector.

How to change the rotation direction?

The rotation direction changes automatically when you reduce the pressure on the cone. This allows maximum juice extraction without effort.

Can I use the large cone for lemons?

Yes, but the small cone is more suitable for green and yellow lemons. The large cone is ideal for oranges and grapefruits.

Where can I find spare parts?

Contact Korona after-sales service: KORONA Service, Am Steinbach 9, 59872 Meschede, Germany. Phone: [phone], email: [e-mail].

How to clean the motor unit?

Unplug the appliance before any cleaning. Wipe the motor unit with a damp cloth. Never immerse it in water and do not use abrasive products.

USER MANUAL 27020 KORONA

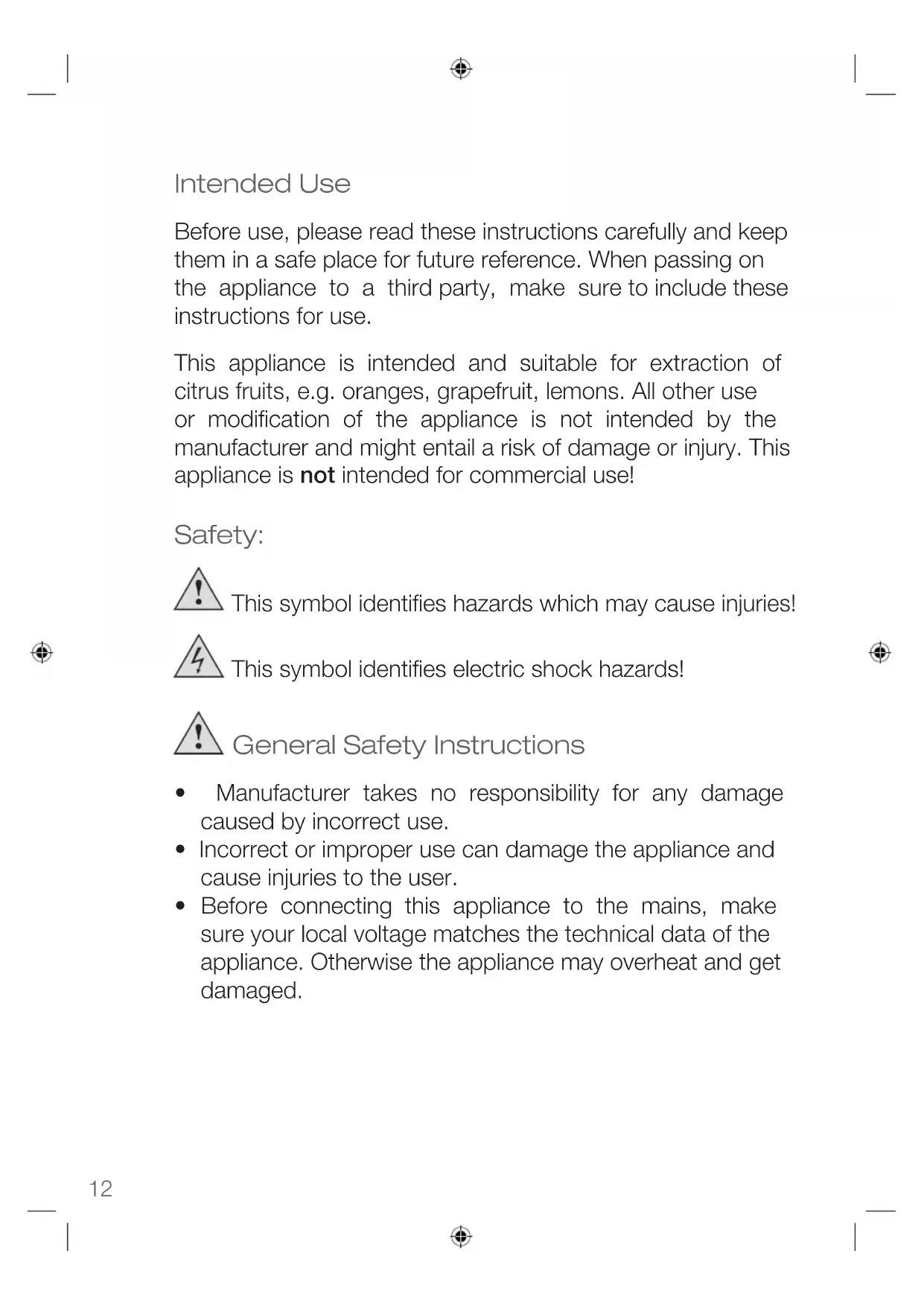

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for extraction of citrus fruits, e.g. oranges, grapefruit, lemons. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

if the cord is damaged.
in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person. Never attempt to make any modifications to repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.
- Never attempt to open the housing yourself!

Special Safety Instructions

1 3

Warning! To avoid the possibility of injury/damage to the appliance and electric shock!

• Only use the appliance for its intended purpose (extraction of juice) and as described in this manual.
• If the appliance should experience any problems during operation, switch off the appliance and disconnect it from the mains.
• Never process any other foods.
• Do not apply too much pressure on the cone.
• When exchanging accessories always disconnect it from the mains.

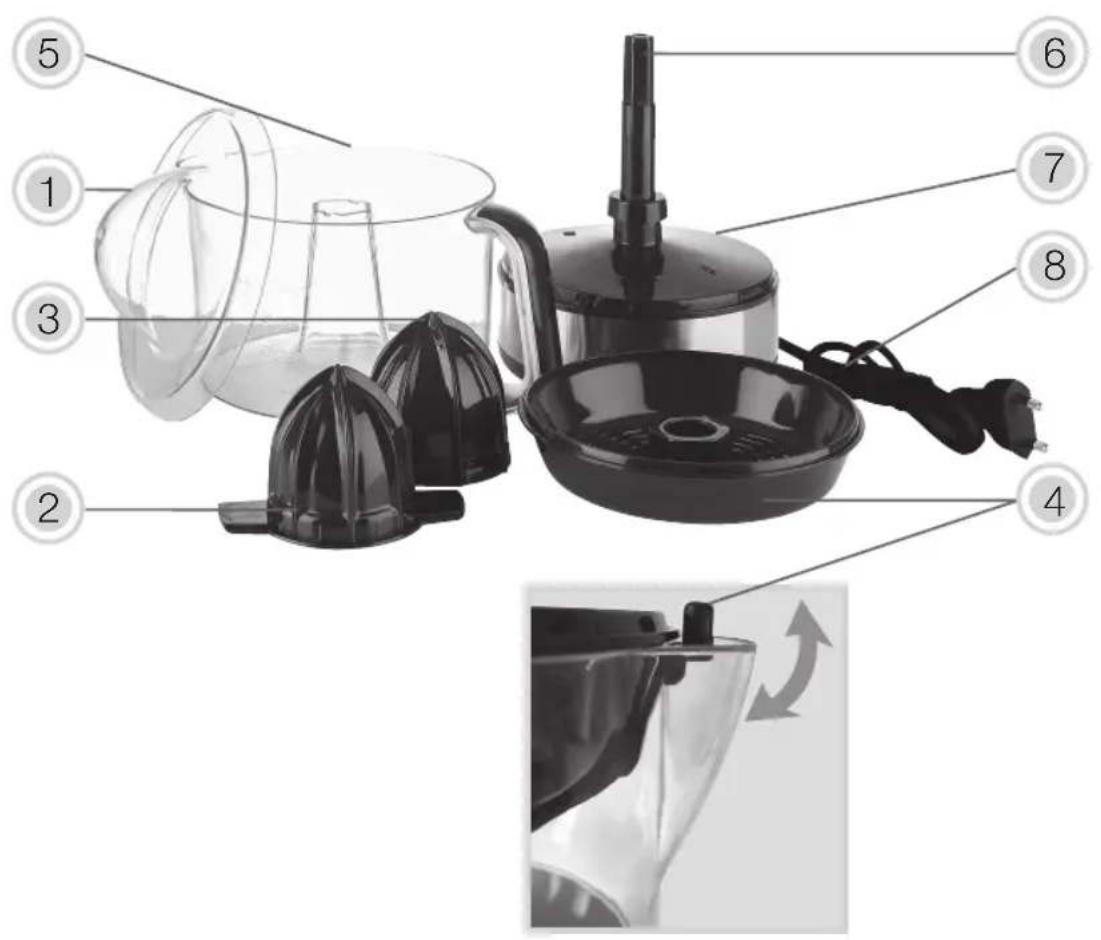

Product Description

1. Dust lid
2. Small pressure cone
3. Big pressure cone
4. Adjustable fruit pulp strainer
5. Juice collector
6. Driving shaft
7. Motor unit
8. Power cord and plug

Before First Use

• Remove all packaging material and check whether appliance is complete and undamaged.
• Fully unwind the power cord (8).
• Clean the appliance as specified under "Cleaning Care".

Warning: Plastic bags are a danger to toddlers and, as they, therefore keep them away to avoid suffocation.

Operation

Extract juice with two different sized pressure cones which rotate both ways. The small pressure cone squeezes juice from limes and lemons, whereas the big pressure cone is perfect for oranges and grapefruits.

Assembly of the citrus juicer

1. Place the appliance on an even and heat resistant surface.
2. Place the juice collector (5) onto the driving shaft (6) of the motor unit (7).
3. Insert the fruit pulp strainer (4).
4. Attach the small pressure cone (2) to the driving shaft (6) by pressing it slightly down. Make sure that it is properly engaged.

Note: If you wish to extract juice from oranges or grapefruits fit the big pressure cone onto the small one.

1. Connect the appliance to a properly installed wall socket.

Extracting Juice

1. Follow the assembly instructions.
2. Cut the lemons, oranges, etc. into half. Depending on your taste, adjust the strainer to avoid fruit pulp ending up in your juice.
3. Press one half of the fruit onto the pressure cone (2/3). The appliance switches on automatically, as soon as pressure is applied onto the cone and the extracting process begins. By reducing the pressure on the cone, the cone automatically switches directions and the extraction process continues.

Note: Never exceed the max. capacity of the juice collector.

1. Once the extracting process is complete, disconnect the appliance from the mains.
   Note: To avoid damage to the appliance, never apply too much pressure on the pressure cones.
2. Lift the juice collector (5) off the appliance, remove strainer (4) and pour yourself a glass of freshly squeezed juice.

Cleaning and Care

Due to hygienic reasons clean your citrus juicer after each use to remove fruit pulp residues

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the motor unit (7) in water. Danger! Electric Shock!

Disassemble the appliance in reverse order as explained under assembly of the citrus juicer and clean it as soon as possible after use with a damp cloth. Do not use any aggressive cleaning agents. Clean the dust lid (1), pressure cones (2/3), strainer (4) and the fruit collector (5) in water using some dishwashing detergent.

Store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your citrus juicer 27020 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V ~ 50 / 60 Hz

Rated Power: 40 W

Protection Class: I I

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
