USER MANUAL RR 5020 Karcher Audio

Portable CD Player with Radio

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

SEHEN SIE NIEMALS DIREKT IN DEN LASERSTRAHL!

Batterien und Akkus

Exploded view diagram of a kerberos washing machine with numbered parts for identification

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.
15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
18. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

19. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

20. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

21. Headphones (if applicable) – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
  • What seems normal to you can be already for long time too loud and unhealthy.
  • To protect yourself from this, set the volume to a low level.
• Increase the volume slowly.
• Damage to your hearing can be extensive and cannot be reversed.
• If you notice a hearing problem, please consult a doctor.

Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is

moisture inside the player, it may not operate properly. Don't turn on the device and wait about one hour for the moisture to evaporate.

EN

Saving energy

• If the unit is not used for a long period of time, it should be unplugged from the AC socket.
- If there is no sound in CD mode the unit will switch into standby after about 10 minutes. To turn the unit back on, set the Function Switch to "OFF" and then to the desired mode.

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.
- Carefully remove possible protection cardboards and slipcovers.

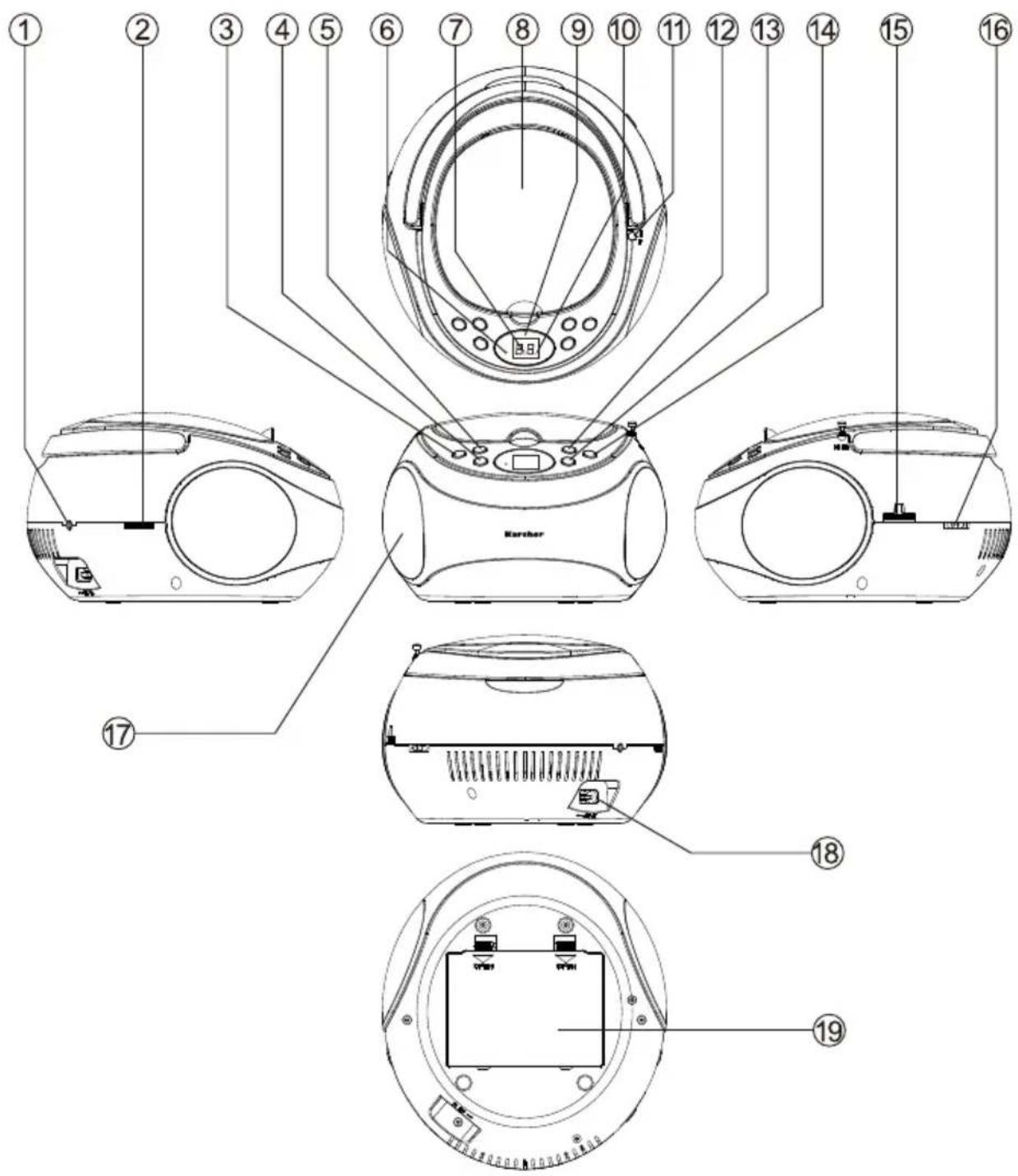

Location of Controls

Exploded view diagram of a Kerber air purifier with numbered parts for identification

1. AUX In
2. Volume Control
3. REPEAT button
4. ■ STOP button
5. PROG button
6. Program Indicator

7. Repeat Indicator

8. CD Door

9. LED Display
10. Play Indicator
11. FM Antenna
12. REW button
13. PLAY/PAUSE button

14. F button

15. Tuning Control

16. Function Switch (OFF / AM / FM / CD)
17. Speakers
18. AC Power Jack
19. Battery Compartment

Power Supply

EN

AC Power

You can power your portable system by plugging the detachable AC power cord into the AC power jack at the back of the unit and into a wall power outlet. Make sure that the output power of the wall outlet matches the power requirement of the unit as indicated on the rating label located at the back of the unit. Make sure that the AC power cord is fully inserted into the appliance.

Note:

- If the unit is not used for a longer period of time disconnect it from the power supply.

Battery Power

Insert 6x 1.5V size UM-2/C batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Pay attention to the safety information on page 12.
• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

Basic Functions

Switching the Unit On & Off

1. Power the unit as described above.
2. To switch the unit on, set the Function Switch to the desired function ("AM", "FM" or "CD").
3. To switch the unit off, set the Function Switch to "OFF".

Volume Control

Increase or decrease the volume by turning the Volume Control.

Radio

1. Switch the unit on into the desired band by setting the Function Switch to either "AM" or "FM".
2. Tune to your desired radio station by turning the Tuning Control.
3. Set the volume as described previously.
4. To switch the radio off, set the Function Switch to "OFF".

For a better reception:

• AM: The AM antenna is located inside the cabinet of the unit. If the AM reception is weak, change the position of unit until the internal antenna picks up the strongest signal.
• FM: Fully extended the telescopic antenna for best performance. However, if FM reception is weak, try repositioning the unit near a window until you get the best reception.

CD Player

Playing Discs

1. Switch the unit on into CD mode by setting the Function Switch to "CD".
2. Open the CD door carefully and insert a disc with the printed side facing up. Close the CD door again carefully.
3. The disc is being read and the total number of tracks will then be shown in the display.
4. To start playback press the ▶I PLAY/PAUSE button. The Play Indicator will be lit steadily.
5. To temporarily stop the playback (pause), press the ▶I PLAY/PAUSE button once. The Play Indicator will be flashing. Press the button again to resume playback.
6. To stop playback, press the ■ STOP button.
7. To switch the unit off, set the Function Switch to "OFF".

Fast Forward / Fast Rewind & Skipping Tracks

• To jump to the beginning of the currently playing track, press the ◀ REW button once. Press it a second time to skip to the previous track.
  • To skip to the next track, press the ▶▶F.F button once.
• To fast forward the currently playing track, press and hold the ▶▶ F.F button. Once you reach the desired section of the track, release the button to resume normal playback.
• To fast rewind the currently playing track, press and hold the I← REW button. Once you reach the desired section of the track, release the button to resume normal playback.

Repeat Modes

At any time during playback,

• press the REPEAT button once to repeat the current track. The Repeat Indicator will be flashing.
• press the REPEAT button a second time to repeat all tracks. The Repeat Indicator will be lit steadily.
• press the REPEAT button a third time to deactivate the repeat function. The Repeat Indicator will disappear from the display.

Programming Track Order

You can store up to 20 tracks in a desired sequence.

1. While in CD stop mode, press the PROG button. The Program Indicator will be flashing in the display together with "01".
2. Using the REW / F.F buttons, select the track to be played first in the sequence.
3. Press the PROG button again. "02" will be flashing in the display.
4. Repeat the steps 2 - 3 to select up to 20 tracks for your sequence.
5. Press the ▶II PLAY/PAUSE button to start the playback of your sequence.
6. Fast Forward, Fast Rewind, Skipping Tracks and Repeat Modes can be used as described above.
7. To stop playback, press the ■ STOP button. To delete your sequence press this button a second time.

AUX Input

You can connect the audio output of an external device such as an MP3 player to this unit to listen to the sound of that device through the amplifier of this music system.

1. To connect the external device please use a standard stereo audio cable (3.5 mm to 3.5 mm plugs) (not included) to connect the headphone out or audio line out of the external device to the AUX input socket of this unit.
2. Turn on the unit by setting the Function Switch to "AM", "FM" or "CD". Once the external device is connected, the unit will automatically switch to AUX mode.
3. Switch the external device (e.g. MP3 player) on.

4. Start playback of the external device and adjust the volume control of the main unit to the desired level.

5. To return to CD or radio mode, unplug the AUX cable from the unit and set the Function Switch to the desired function.

6. Remember to switch off the unit when you are finished using the external device.

EN

Specifications

Power Supply: AC 230V \~ 50Hz

Batteries: DC 9V (6x 1.5V UM-2/C-size, not included)

Radio Frequency Range: FM 88 - 108 MHz

AM 530 - 1600 kHz

Dimensions (WxDxH) ca.: 207 x 229 x 136 mm

Technical specifications and design may change without notice.
