USER MANUAL RR 5061 Karcher Audio

Black and white photo of a Karcher portable radio with speaker grille and control knobs (no visible text or symbols on device body)

RR 5060 / RR 5061

Stereo Radio with CD/MP3-Player, USB & SD | User Manual

Vorwort

PROGRAM ▶ 08 DISC

▶ REP. 00 MP3 DISC

REP. DISC ALBUM MP3

REP₃ DISC 00 MP3 1

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
4. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss or damage (headphones are not supplied).

CAUTION RISK OF ELECTRO SHOCK DO NOT OPEN WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT LASER KLASSE1 APPAREIL A LASER DE CLASS 1 LUOKAN 1 CLASSLAITE KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Simple line drawing of a stylized rocket or missile with a pointed nose cone and tail (no text or symbols)

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

Power Supply

AC OPERATION

Before operation please ensure voltage on the set corresponds to voltage of your local area. Unravel AC line cord; insert one end into AC jack on the set while the other end into a standard AC outlet.

Remarks:

• In case of malfunction due to electrostatic discharge (ESD), reset the unit by reconnecting AC cord again to resume to normal operation.

- When not in use unplug the AC power cord completely from AC socket.

- In case of malfunction due to electrostatic discharge (ESD), reset the unit by reconnecting AC cord again to resume to normal operation. - When not in use unplug the AC power cord completely from AC socket.

BATTERY OPERATION

Disconnect AC cord set completely. Open the BATTERY DOOR and insert UM-2/ "C" size x 8 batteries (not supplied) making sure the indicated battery polarity is observed.

Remark:

- Remove all batteries if the unit will not be used for a longer period of time.

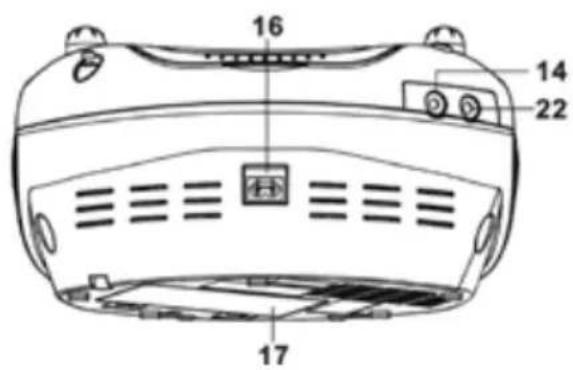

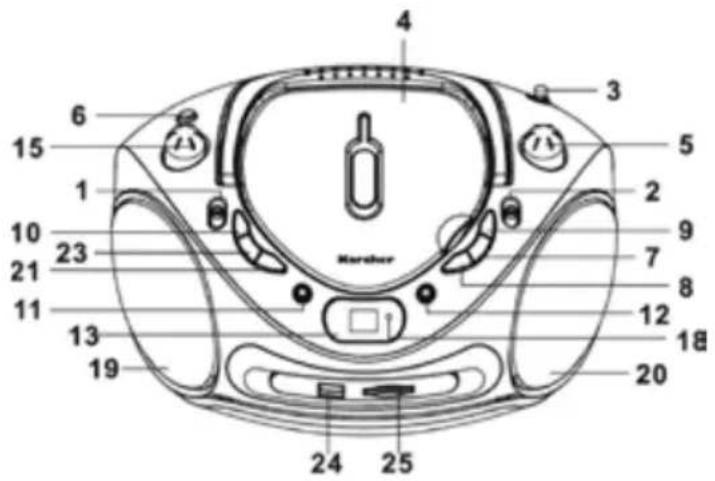

4 3 5 6 15 1 23 10 7 9 21 8 11 12 18 13 20 19 24 25

16 14 22 17

1. Function Switch AUX/CD/OFF/RADIO
2. Band Switch
3. FM Antenna
4. CD Door
5. Tuning Knob
6. Bass Boost Button
7. SKIP/SEARCH FORWARD Button ▶▶
8. SKIP/SEARCH BACKWARD Button |
9. Program Button
10. Mode Button
11. Stop Button
12. Play/Pause Button

13. LCD Display

14. Stereo Headphone Jack (3.5 mm)

15. Volume Control Knob
16. AC Socket
17. Battery Door
18. FM Stereo LED Indicator
19. Speaker Left
20. Speaker Right
21. Folder Button
22. AUX-IN Jack
23. CD /SD/USB Button
24. USB Port
25. SD/MMC Card Reader

Radio

RADIO OPERATION

1. Slide FUNCTION SWITCH to "RADIO" position.
2. Slide BAND SWITCH to the desired waveband.
3. Turn the TUNING KNOB to your desired radio station.
4. Adjust sound level by rotating VOLUME CONTROL KNOB.
5. To turn off radio, simply slide FUNCTION SWITCH to "OFF" position.

FM STEREO INDICATOR

When tune to a FM Stereo broadcast the "FM ST. LED INDICATOR" will light up. In weak signal areas where FM Stereo signal may not be strong enough and can cause excessive background noise. In this case, slide the BAND SWITCH to "FM" position.

ANTENNA

For best reception, fully extend FM ANTENNA to receive FM stations.

For AM reception, the unit has a built-in antenna; turn the whole unit for best reception.

Bass Boost & Connectors

BASS BOOST

To increase bass at all volume levels, press BASS BOOST BUTTON to "ON" position to boost the low frequency tone for an emphasized bass sound.

To release super bass, simply slide the button to "OFF" position.

STEREO HEADPHONE JACK

For private listening, insert the plug of a stereo headphone into STEREO HEADPHONE JACK and adjust the VOLUME CONTROL KNOB accordingly. During the use of a headphone, speakers are automatically disconnected.

AUXILIARY (AUX) MODE

1. Slide FUNCTION SWITCH to "AUX" position.
2. Connect the earphone socket from an Auxiliary unit (e.g. MP3 Player or MD Player) into AUX-IN JACK on the rear of this product via an Audio Line Cord (3.5mm plug on both ends; not supplied).
3. Play the Auxiliary unit. Music from Auxiliary unit can be listened through speaker of this product.

CD-Player

CD OPERATION

PLAYING COMPACT DISC (CD-R/RW/MP3 PLAYBACK COMPATIBLE)

Getting started

Note:

• Should skipping of tracks occur during CD playing, try reduce the volume. When CD is playing, do not open CD DOOR.

• Pull up the CD DOOR. Put a CD disc into CD Compartment and close the door. Set the FUNCTION SWITCH to "CD" position.

Note: Ensure CD DOOR is closed properly and locked in place.

1. When CD DOOR is closed with a disc inside, total number of the tracks will be shown on CD LCD DISPLAY and go to stop mode. (Ex. Total 17 tracks inside the disc). The "DISC" indicator will always be shown on LCD DISPLAY.

2. If there is no disc inside, LCD DISPLAY will show and go to stop mode.

3. If CD DOOR is not closed, LCD DISPLAY will show “---”.

Total tracks DISC

DISC NO

DISC

Play/Pause mode

1. When PLAY/PAUSE BUTTON is pressed during CD stop mode, first track will be played. The Play indicator “▶” and specific number of track is being played will be shown on LCD DISPLAY.

Play Indicator First Track DISC 01

First Track DISC 01

1. For interruption while CD is playing, press CD PLAY/PAUSE BUTTON once. The Play indicator “▶” will blink continuously on LCD DISPLAY.

2. Though the sound stops, the disc will continue to spin. To re-start playback, press CD PLAY/PAUSE BUTTON again, music will start from the exact position where it was interrupted.

3. To stop CD playback, press CD STOP BUTTON once whether CD is in Play or Pause mode; LCD DISPLAY will show total track number of the disc.
4. To turn off the unit, slide FUNCTION SWITCH to "OFF" position.

Skip and search mode

1. During play or pause mode, when CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀ BUTTON is pressed once, it will go to next track or go back to the beginning of the track.
2. During play mode, when CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀ BUTTON is pressed and held, it will search the track with audible high-speed forward or backward playback.

Repeat mode

1. Repeat 1:

When MODE BUTTON is pressed once, Repeat indicator "REP." will be shown on LCD DISPLAY. This single track of music will be repeated.

1. Repeat All:

When MODE BUTTON is pressed twice, Repeat All indicator "REF" will be shown on LCD DISPLAY. The whole disc can be played continuously.

1. To cancel repeat function:

Press the MODE BUTTON repeatedly until Repeat indicator disappears from LCD DISPLAY.

Track 8 is to be repeated

REP. DISC 08

REP₃ DISC 0:1 Repeat All Indicator

Random play mode

This feature allows tracks on the disc to be played in a random order.

1. During CD stop mode, press the MODE BUTTON three times, "RAN-DOM" indicator will be shown on LCD DISPLAY and all music will be played in random order automatically.
2. To cancel random play function, press the MODE BUTTON again, "RAN- DOM" indicator will disappear from LCD DISPLAY.

RANDOM DISC 12

Program mode

1. During CD stop mode, press PROGRAM BUTTON once. The "PROGRAM" indicator and number of Program to be memorized starts from the first program PO I will light up and blink continuously.

Press CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀ BUTTON to your desired musical track, LCD DISPLAY will show this appropriate track number. Press the PROGRAM BUTTON to store this track in memory.

1. Repeat above procedure until all desired tracks have been programmed. A total of 20 tracks can be stored into memory.

PROGRAM PO DISC

Remarks:

Whenever CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀ BUTTON is pressed, it will always show the last programmed track first to recall your memory.

After complete programming, LCD DISPLAY will show "PROGRAM____" and flash continuously.

PROGRAM DISC

1. Press CD PLAY/PAUSE BUTTON once to start program playback; CD Play indicator "▶" will light up.
2. To check the program you have stored after complete programming, press PROGRAM BUTTON once during CD stop mode; then press CD SKIP/SEARCH FORWARD ▶▶▶ BUTTON once, LCD DISPLAY will show

PROGRAM ▶ 08 DISC

the first programmed track number. Repeat above procedure to read all programmed memory.

1. To cancel programmed memory:

- During CD stop mode, press CD STOP BUTTON once.

or

- Open CD DOOR during CD stop mode.

The "PROGRAM" indicator will disappear from LCD DISPLAY.

PLAYING MP3 DISC

Getting Started

Note:

Should skipping of tracks occur during MP3 Disc playing, try reduce the volume. When MP3 disc is playing, do not open CD DOOR.

1. Pull up the CD DOOR. Put a MP3 disc into CD compartment and close the door. Set the FUNCTION SWITCH to "CD" position.

Note: Ensure CD DOOR is closed properly and locked in place.

1. When CD DOOR is closed with a MP3 disc inside, total track number in the disc will be shown on LCD DISPLAY and go to stop mode. The "DISC" indicator will always be shown on LCD DISPLAY.

2. If there is no disc inside, LCD DISPLAY will show and go to stop mode.

3. If CD DOOR is not closed, LCD DISPLAY will show “---”.

Total Track Number 103 DISC

Play/Pause mode

1. When PLAY/PAUSE BUTTON is pressed during CD stop mode, the first track will be played. The Play indicator “▶” will be lighted while “MP3” indicator will be shown as well to indicate MP3 disc is being played; LCD DISPLAY will show the specific track number is being played.

MP3 001 DISC

1. To select specific musical track inside MP3 disc: MP3 music can be stored into CD disc with or without folder according to your "MP3 burning method".

68 Tracks MP3 068 DISC

ALBUM MP3 001 DISC

a. If MP3 disc is downloaded without dividing

into folder, all track number will be shown directly in the LCD DISPLAY. The Album number will only show 001 after pressing FOLDER BUTTON.

b. If music is stored into different folders, you've to select the specific Album number first by pressing FOLDER BUTTON; afterwards press CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀ BUTTON to select the specific track number inside this Album.

Example: To select Album # 4, track # 3

STEP - 1: Press FOLDER BUTTON to select Album # 4

ALBUM MP3 004 DISC

STEP - 2: Press CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀◀ BUTTON to select Track # 3 inside this Album # 4

MP3 0.03 DISC

1. For interruption while MP3 disc is playing press CD PLAY/PAUSE BUTTON once. The Play indicator “▶” will blink continuously on LCD DISPLAY.

2. Though the sound stops, the disc will continue to spin. To re-start playback, press CD PLAY/ PAUSE BUTTON once again; music will start from the exact position where it was interrupted.

3. To stop MP3 disc playback, press CD STOP BUTTON once whether MP3 disc is in Play or Pause

mode.

1. To turn off the unit, slide FUNCTION SWITCH to "OFF" position.

Repeat mode

1. Repeat 1:

When MODE BUTTON is pressed once, Repeat indicator REP. will light. This single track of music will be repeated.

1. Repeat Folder:

When MODE BUTTON is pressed twice, the R and ALBUM indicator will be shown. This specific folder will be played repeatedly.

Remark:

The folder and track number will be shown every 2 seconds alternatively.

1. Repeat All:

When MODE BUTTON is pressed three times, Repeat All indicator will be shown. The whole disc can be played continuously.

1. To cancel repeat function

Press the MODE BUTTON repeatedly until Repeat indicator disappears from LCD DISPLAY.

▶ REP. 00 MP3 DISC

▶ REP. DISC ALBUM MP3

▶ REP₃ MP3 DISC 00 1

Random play mode

This feature allows tracks on the disc to be played in a random order.

1. During CD stop mode, press MODE BUTTON four times; the RANDOM indicator will show on LCD DISPLAY and all music will be played in random order automatically.

2. To cancel random play function, press MODE BUTTON again, RANDOM indicator will disappear from LCD DISPLAY.

RANDOM MP3 DISC 00 1

Program mode

1. During CD stop mode, press PROGRAM BUTTON once. The PROGRAM indicator and number of Program to be memorized starts from the first program PO I will light and blink continuously. Press the FOLDER BUTTON, then press CD SKIP/SEARCH FORWARD ▶▶ or BACKWARD ◀◀

PROGRAM P01 DISC

BUTTON to select your desired musical track; LCD DISPLAY will show the track number of this specific Album to be programmed. Press PROGRAM BUTTON to store this track in memory.

1. Repeat above procedure until all desired tracks have been programmed.

Remarks: Whenever FOLDER BUTTON is pressed it will always show the last programmed Album number first to recall your memory.

A total of 20 tracks can be stored in memory. After complete programming, LCD DISPLAY will show "PROGRAM ____" and blink continuously.

1. To start programmed playback, press CD PLAY/PAUSE BUTTON once and CD Play indicator "▶", "PROGRAM" and the track number of the specific Album will light up.

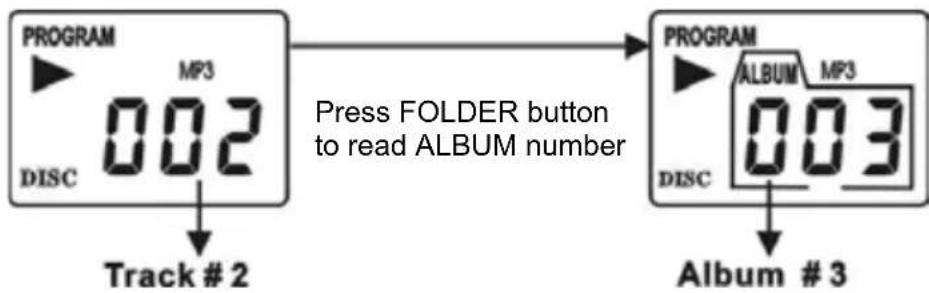

Example: Album #3, Track #2

1. To check the program you have stored after complete programming, press PROGRAM BUTTON once during CD stop mode; LCD DISPLAY will show POI and blink continuously. Press

FOLDER BUTTON to read Album number; press CD SKIP/SEARCH FORWARD ▶▶| or BACK-WARD ◀◀BUTTON to read the specific track number of said Album. Press PROGRAM BUTTON again, LCD DISPLAY will show PO2 and blink continuously. Repeat above procedure to check all programs being stored.

1. To cancel programmed memory:

- During CD stop mode, press CD STOP BUTTON once.

or

Open CD Door during CD stop mode.

The "PROGRAM" indicator will disappear from LCD DISPLAY.

SD & USB Operation

SD/MMC CARD PLAYBACK IMPORTANT NOTE:

This unit supports most of the common SD interface but not 100% because there are too many different formats keep on changing in the market.

1. Slide FUNCTION SWITCH to "CD" position.
2. Press CD/SD/USB BUTTON once, LCD DISPLAY will show "CARD" indicator.
   Remark: When there is no SD/MMC card inside CARD SLOT, LCD DISPLAY will show no
3. Insert a SD/MMC card into SD/MMC CARD SLOT, total number of music will be shown on LCD DISPLAY.
4. Press CD PLAY/PAUSE BUTTON to start playing the music.
5. Operate all CD control buttons same as above mentioned in section "PLAYING MP3 DISC"; they have same function and operational method.
6. To exit from SD/MMC CARD playback mode, press CD/SD/USB BUTTON twice. It will go back to CD disc mode again.

CARD 0.0 CARD 0.18 Total # of music

USB OPERATION IMPORTANT NOTE:

This unit supports most of the common USB interface but not 100% because there are too many different formats keep on changing in the market.

1. Slide FUNCTION SWITCH to "CD" position.

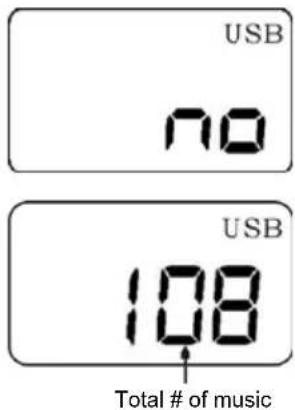

2. Press CD/SD/USB BUTTON twice, LCD DISPLAY will show "USB" indicator.
   Remark: When there has no MP3 Player or Flash drive connecting to USB PORT, LCD DISPLAY will show

3. Insert USB plug of an Auxiliary unit (e.g.: Portable MP3 Player or Flash Drive) into USB PORT in this unit, total number of music will be shown on LCD DISPLAY.

4. Press CD PLAY/PAUSE BUTTON to start playing the music.

5. Operate all CD control buttons same as above mentioned in section "PLAYING MP3 DISC"; they have same function and operational method.

6. To exit from USB playback mode, press CD/SD/USB BUTTON again. It will go back to CD disc mode again.

USB no USB 108 Total # of music

NOTE: A USB device must always be connected directly to the USB port of this product. The use of a USB extension cord is not supported by this product. The USB port of this product cannot communicate with a computer directly.

GENERAL

Power requirement AC 230V \~ 50Hz

DC = 12V (8x batteries size „UM2“)

Power consumption 10W

Dimensions (WxDxH) ca.: 280 x 220 x 142 mm

Weight (ca.): 1,8 kg

RECEIVER

Receiving bands AM (MW) / FM (UKW)

Tuning range / Sensitivity AM 540 - 1600 kHz

FM 88 - 108 MHz

Technical specifications and design may change without notice.

Karcher

www.karcher-products.de
