Product Type	Juice Extraction Top (accessory for auto-preserving cooker)
Brand	Rommelsbacher
Model	EA 1803
Compatibility	Auto-preserving cooker with juice-making setting (e.g., Rommelsbacher cooker)
Material (Fruit Basket)	High-quality synthetic, BGA-approved for food contact, lead- and cadmium-free
Material (Fitting Ring & Lid)	Synthetic, food-safe
Capacity (Fruit Container)	Fill max 3/4 full (specific weight not specified)
Water Requirement	At least 6 liters in the cooker
Function	Steam juice extraction; juices fruits, vegetables, and herbs
Preheating Time	Approx. 25 minutes with 6L cold water; shorter with hot water or subsequent runs
Bottling Temperature	Juice must be above 75°C for germ-free bottling
Included Components	Lid, fruit container, juice collection container, outlet tube, tube fastener, fitting ring
Average Steaming Times (Examples)	Apples 90 min, berries 45-60 min, stone fruits 75 min, rhubarb 90 min
Cleaning	Smooth surface; avoid scouring agents; hand wash recommended
Safety Notes	Always ensure sufficient water in cooker; never operate without water
Storage of Juice	Bottles stored upright in cool room; label after filling
Disposal	Fruit basket has recycling mark; non-problematic disposal

Frequently Asked Questions - EA 1803 Rommelsbacher

How do I use the EA 1803 Juice Extraction Top?

Place the fitting ring on the auto-preserving cooker, then add the juice collection container and fruit container. Fill the fruit container with prepared fruit (max 3/4), close the lid, and fill the cooker with at least 6 liters of water. Set the cooker to continuous juice extraction mode. Preheat for about 25 minutes, then the juice will flow through the outlet tube.

Can I use any auto-preserving cooker with this accessory?

No, it requires a compatible auto-preserving cooker with a dedicated juice-making setting. Rommelsbacher cookers are recommended.

What fruits can I juice with the EA 1803?

Various fruits like apples, pears, berries (strawberries, raspberries, etc.), stone fruits (peaches, plums), rhubarb, and grapes. Refer to the average steaming times in the manual.

Do I need to add sugar?

Add 100-150g sugar per kg of sweet fruits, and 200-250g per kg of sour fruits. For jelly-making, do not add sugar. For juices that will be diluted later, use more sugar.

How do I bottle the juice?

Fill preheated bottles immediately. Tempoerature must be above 75°C for germ-free bottling. Use the outlet tube and tube fastener to fill bottles to the brim. Close immediately and cool upright in a non-draughty place.

How do I clean the juice extraction top?

The fruit basket has a smooth surface. Avoid scouring agents as they can roughen the surface. Hand wash with mild detergent and rinse thoroughly.

Is the material safe for food?

Yes, the fruit basket is made of a synthetic material assessed as completely harmless for food by the German Federal Public Health Department (BGA). Colorings are free of lead and cadmium.

Why are there no dimensions or weight in the manual?

The EA 1803 is an accessory designed to fit specific cookers. Dimensions and weight are not critical for operation. Actual measurements can be obtained from the manufacturer.

What should I do if the juice is not flowing?

Check that the cooker has sufficient water, the outlet tube is open, and the fruit container is not overfilled. Ensure the cooker is set to continuous juice extraction mode and is heating properly.

How should I store the juice?

Store full bottles upright in a cool, dark room. Label each bottle with the content and date. The juice can be pasteurized during bottling for longer shelf life.

USER MANUAL EA 1803 Rommelsbacher

Abstract geometric pattern with vertical lines inside a circle (no text or symbols)

ROMMELSBACHER

White plastic water filter or filter device with a lid and metal clip, placed on a plain surface (no text or symbols visible)

EA 1803

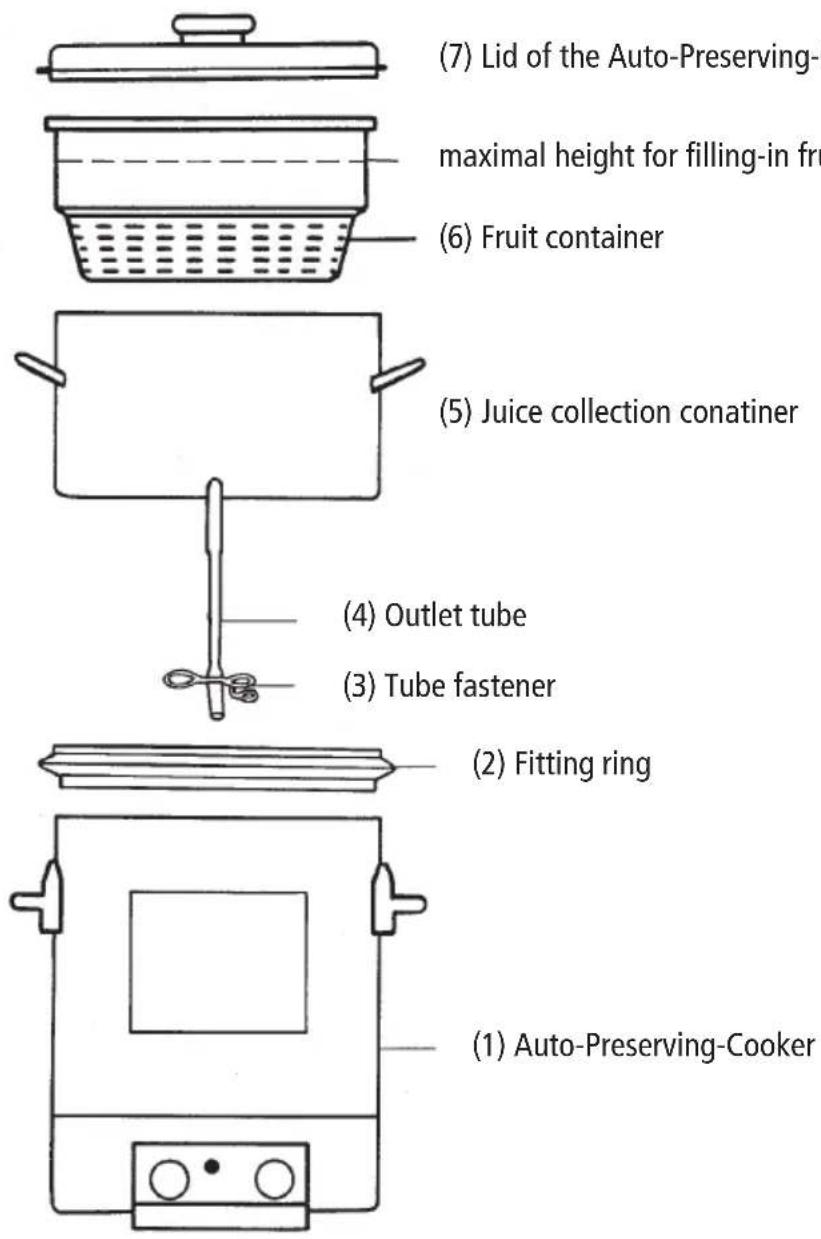

(7) Lid of the Auto-Preserving-Cooker
maximal height for filling-in fruit
(6) Fruit container
(5) Juice collection conatiner
(4) Outlet tube
(3) Tube fastener
(2) Fitting ring
(1) Auto-Preserving-Cooker

Introduction

We are very pleased that you chose this ROMMELSBACHER product and would like to thank you for your confidence. To make sure you will have lots of pleasure with your new Juice Extraction Top please observe the following notes carefully, keep this instruction manual for future reference and pass it on to any user.

Important notes

The Juice Extraction Top is no independent appliance. It can only be operated in combination with an auto-preserving cooker to match, which has a juice-making setting.

Please observe the respective notes in the instruction manual of your auto-preserving cooker.

Make sure there is always sufficient water in the cooker during the entire process of juice making.

Preparations

Preparing fruits

The riper the fruits are the more juice you will obtain and the more aromatic it will be.

• Wash fruits quickly and thoroughly.
• Add the amount of sugar (depending on the recipe) into the fruit container before making juice.
• Fruit juices which are to be processed to jelly, should be extracted without adding any sugar.
• Fruit juices which are to be diluted must receive a larger quantity of sugar.
  • The following is approximate:

add 100 - 150 g of sugar to 1 kg of sweet fruits

add 200 - 250 g of sugar to 1 kg of sour fruits

Preparing the bottles

• Clean the bottles thoroughly and rinse in hot and clear water.
• We recommend preheating the bottles in hot water or in the oven at 75^ , prior to filling.
• Boil the corks and rubber caps needed and put them into clear water until capping the bottles.

Juice making

1. For one juice-making run, fill at least 6 litres of water into your auto-cooker (1).
2. Place the fitting ring (2) on the cooker so that the gap for the outlet tube is up at the front side.
3. Place the juice collection container (5) on the fitting ring with the outlet tube (4) pointing to the front.
4. Insert the fruit container (6) into the juice collection container and fill in the food prepared for juice making. Fill the fruit basket no more than 3/4, independent of the weight, and close the lid (7). Both walls and the bottom of the fruit container have holes so that steam can infiltrate from all sides. This releases the juice from the fruits, vegetables or herbs, so that it runs through the holes of the fruit basket, collects in the juice collection container and can easily be filled into bottles by means of the outlet tube and the tube fastener (3).
5. After these preparations, you just need to set your auto-cooker to the continuous operation 'Entsaften' (juice extraction).
6. At first, the entire system needs to be preheated. With a content of 6 litres of cold water, it will take about 25 minutes for the appliance to heat up.

Note: The preheating time is shorter in the second juice making process or when filling in hot water.

Bottling the juice

• Fill the juice into the prepared bottles immediately. Juice it will be germfree only when above a temperature of 75 °C.
• Lead the outlet tube into the neck of the bottle and open the tube fastener so that the fruit juice can run into the bottle.
• Keep the tube fastener open until the bottle is full to the brim, the developing froth may spill over.
• Close the bottles immediately upon filling. They should cool in upright position in a non-draughty place.
• Finally, label the bottles and store them in upright position in a cool room.

Further notes

The material used for the fruit basket is composed of an excellently qualified synthetic. It is a material, assessed as completely harmless for food by the Federal German Public Health Department (BGA). The colourings used in the synthetic are also free from lead and cadmium. This also applies to the fitting ring and the lid.

The fruit basket has the recycling mark for materials and is non-problematic in disposal. Due to the food's colour agents and the fruit acids, the surface of the fruit basket may get a slightly different tone, but this is no quality flaw.

The surface of the fruit basket is smooth and can therefore be cleaned without any problems. Do absolutely avoid scouring agents, as they will make the surface rough and prone to getting dirty.

Average cooking times

Fruit steaming time
apples ripe / unripe 90 min.
pears ripe / unripe 90 min.
blackberries 45 min.
strawberries 45 min.
blueberries 60 min.
raspberries 45 min.
elderberries 45 min.
redcurrants 60 min.
blackcurrants 60 min.
peaches 75 min.

Fruit steaming time
plums 75 min.
cranberries 75 min.
quinces ripe / unripe 90 min.
rhubarb 90 min.
sour cherries 60 min.
sweet cherries 60 min.
gooseberries ripe / unripe	60 min.
grapes	60 min.
damsons	75 min.
