USER MANUAL EFLG110 E-flite

10- to 15-Size Electric Retract Instructions

Thank you for purchasing the E-flite® 10- to 15-Size Electric Retracts. These self-contained units are powered from your model's receiver and do not require separate servos.

The retracts are supplied with coil struts installed, plus adjustable axles, wheel collars, Allen wrenches and a 3-into-1 wire harness (for the tricycle set) or 2-into-1 wire harness (for main gear set). The nose gear unit is steerable and has a slot in the sliding steering arm to prevent binding of the steering cable when retracted.

EFLG100

Collection of mechanical sensors and cables with no visible text or symbols

EFLG110

Collection of electronic components including thermometers, wires, and connectors (no visible text or symbols)

Specifications

Current draw

Idle 5mA

Operating 150mA (maximum)

Pulse width trigger points

Down 1.331ms

Up 1.690ms

Operation with FM and DSM

FM 22ms frame rate, 5V signal

DSM 20ms frame rate, 3.3V signal

Sequence time

@ 4.8V 1.25sec

@ 6.0V 1sec

@7.4V 0.8sec

Operating voltage range 4.8 - 7.4V

Aircraft weight: 2.0 - 4.5 lb (0.9 - 2.0 kg)

Unit weight: Nose gear 1.6 oz (45 g)

Main gear 1.3 oz (37 g) each

Parts Available

EFLG101 10 - 15 Main Electric Retract Unit

EFLG102 10 - 15 Left Main Wire Strut

EFLG103 10 - 15 Right Main Wire Strut

EFLG104 10 - 15 Adjustable Axles

EFLRYH9 10 - 15 Dual Plug Y-harness

EFLG111 10 - 15 Nose Electric Retract Unit

EFLG112 10 - 15 Nose Gear Wire Strut

EFLG113 10 - 15 Nose Gear Steering Arm

EFLRYH9TR 10 - 15 Triple Plug Y-harness

Tools Required

Pencil

Screwdriver

1.5mm hex wrench

2.5mm hex wrench

Flat file

Threadlock

Rotary tool with cutoff wheel

Installation

1. Test fit the retract unit in the wing or fuselage to determine the strut length and axle location. Cut the strut to length using a cutoff wheel in a rotary tool.

Close-up of a hand holding a black dial with 'JHEME' and 'REFINERFORCE' markings, no readable text or symbols beyond the label.

1. Make two flat spots on the end of the strut with a file and use a 2.5mm hex wrench to secure the axle to the strut. Apply threadlock to the threads of the retaining screws so they do not loosen from vibration.

Close-up of a hand holding a small mechanical component with a metal rod inserted, against a plain background (no text or symbols visible)

Close-up of a mechanical clamp or tool with metal rods and a handle, no visible text or symbols

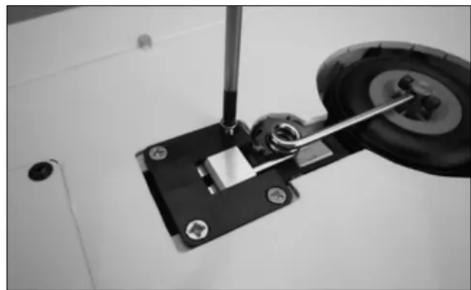

1. Install the wheels on the axles. Slide the brass wheel collar onto the axle and secure it using a 1.5mm hex wrench. Apply threadlock to the setscrew to prevent it loosening due to vibration.

Close-up of a mechanical component with a circular dial labeled 'HANGAR 9 PRO-LITE' and a metal rod inserted into it (no additional text or symbols visible)

1. Mark the retract mounting hole locations on the rails using a pencil and drill appropriately sized holes for the hardware you intend to use.

Close-up of a mechanical assembly with a screwdriver inserted into a housing component (no visible text or symbols)

Close-up of a metalworking machine tool in operation, showing a drill bit and mounting bracket (no text or symbols visible)

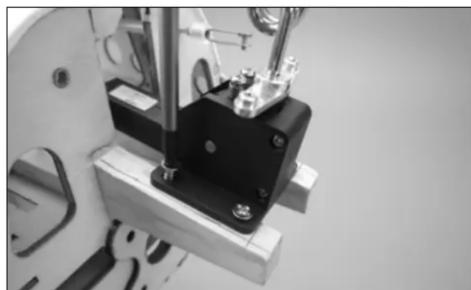

1. Install the retracts in the model using the screws provided with the kit or those of your own choice. A #4 x 1/2-inch wood screw works well. You will find the main unit require the use of a 100 degree countersunk woodscrew while the nose unit requires a button head woodscrew.

Mechanical assembly with a wheel and mechanical components (no visible text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Nosegear Steering

Connect the steering pushrod to the steering arm on the nosegear.

Close-up of a mechanical device with a spring and connecting rod (no visible text or symbols)

Radio Connections and Operation

1. Plug the connector from each of the retract units into the 3-into-1 wire harness supplied with the retracts.

Close-up of electronic devices with black connectors and wires (no visible text or symbols)

1. Plug the single lead from the wire harness into the gear channel of your receiver. An auxiliary channel can be used if the gear channel is occupied.

Close-up of an AR1000 sensor module mounted on a metal frame, no visible text or symbols

1. Before operating the retracts in the model for the first time check that there are no obstructions in the wheel wells that could impede operation of the gear.
2. Turn on your transmitter and receiver. Use the gear or other assigned switch to activate the landing gear and check that it operates correctly.
3. If the switch direction is opposite of that desired, use the reversing function in the transmitter to change the retraction direction.
4. If using a 2.4GHz radio, once you have set the correct servo direction be sure to rebind the system before flight.
