Instruction Manual

Bedienungsanleitung

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the act before operating. Failure to operate the product correctly can result in damage to the product,onal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).
  • Always keep all chemicals, small parts and anything electrical out of the reach of children.
• Always avoid water exposure to all equipment not specifically designed and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.
  • Always use fully charged batteries.
• Always keep the transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
  • Always keep moving parts clean.
  • Always keep parts dry.
  • Always let parts cool after use before touching.
  • Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.

Table of Contents

Charger Warnings ....4

Battery Charging ....4

Transmitter and Receiver Binding 5

Low Voltage Cutoff (LVC) 5

Flight Battery Installation and ESC Arming......6

Center of Gravity (CG) 6

Control Direction Tests ....7

Control Centering 8

Control Horn Settings 8

Dual Rates ....8

Flying Tips and Repairs ......9

Post Flight Checklist 9

Power Components Service ....10

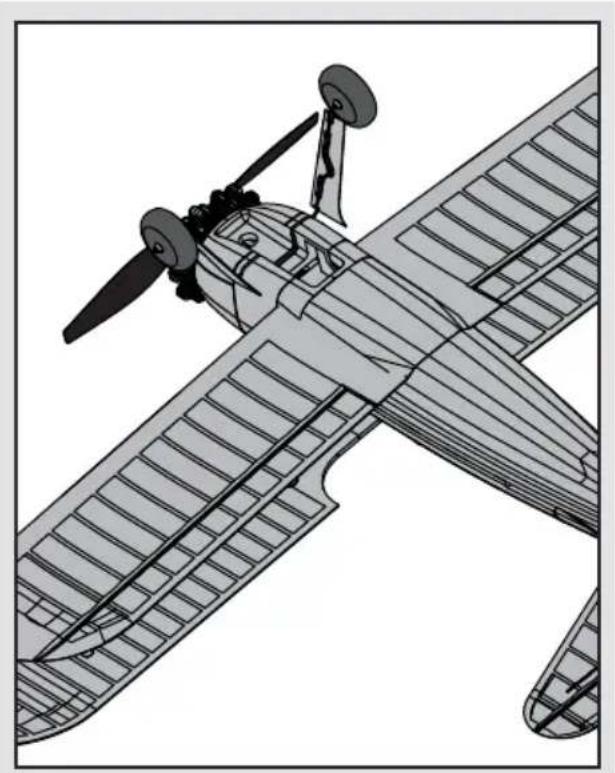

Installing the Landing Gear ....11

Troubleshooting Guide ......12

Limited Warranty 13

Warranty and Service Information ....15

Compliance Information for the European Union ...15

Replacement Parts ....58

Optional Parts and Accessories ....59

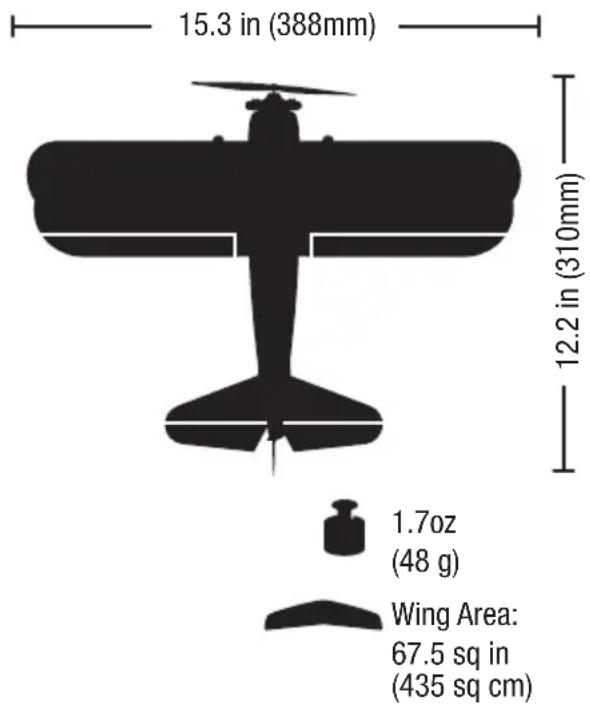

Specifications

Installed

Motor: 8.5mm Brushed Motor

Receiver: Spektrum™ AS6410

DSMX® 6Ch UM AS3X® Receiver ESC (SPMAR6410L)

Servo: (2) 2.3-Gram Performance Linear Long Throw Servo (SPMSA2030L)

(1) 1.8-Gram Linear Servo (SPMSA2005)

Included

Battery: 150mAh 1S 3.7V 25C Li-Po (EFLB1501S25)

Battery Charger:

E-fl ite ^® 1S USB Li-Po Charger, 300mA (EFLC1008)

Needed to Complete

Recommended Transmitter:

Spektrum ^™ DSM2 ^® /DSMX ^® full range with dual-rates (DX4e and up)

Preflight Checklist

√
	1. Charge fl ight battery.
	2. Install fl ight battery in aircraft (once it has been fully charged).
	3. Bind aircraft to transmitter.
	4. Make sure linkages move freely.
	5. Perform Control Direction Test with transmitter.
	6. Perform AS3X Control Direction Test with aircraft.

√
	7. Set dual rates.
	8. Adjust center of gravity.
	9. Perform a radio system Range Check.
	10. Find a safe and open area.
	11. Plan fl ight for fl ying fi eld conditions.
	12. Set fl ight timer for 5 minutes for fi rst fl ight.

Charger Warnings

The battery charger (EFLC1008) included with your aircraft has been designed to safely charge the Li-Po battery.

CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a fi re, personal injury and/or property damage.

• Never leave charging batteries unattended.
• Never charge batteries overnight.
• By handling, charging or using the included Li-Po battery, you assume all risks associated with lithium batteries.
• If at any time the battery begins to balloon or swell, discontinue use immediately. If charging or discharging, discontinue and disconnect. Continuing to use, charge or discharge a battery that is ballooning or swelling can result in fire.
• Always store the battery at room temperature in a dry area for best results.

• Always transport or temporarily store the battery in a temperature range of 40–120°F (5–49°C). Do not store the battery or model in a car or direct sunlight. If stored in a hot car, the battery can be damaged or even catch fire.

• Always charge batteries away from fl ammable materials.
  • Always inspect the battery before charging.

• Always disconnect the battery after charging, and let the charger cool between charges.
• Always constantly monitor the temperature of the battery pack while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-PO BATTERIES. Failure to charge the battery with a compatible charger may cause a fi re resulting in personal injury and/or property damage.
• Never discharge Li-Po cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never charge batteries outside recommended levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow minors to charge battery packs.
• Never charge batteries in extremely hot or cold places (recommended between 40–120° F (5–49° C)) or place in direct sunlight.

Battery Charging

LED Indications

CHARGING (Solid Red) ......

MAX CHARGE (off)

CAUTION: Never exceed the recommended e rate.

CAUTION: Charge only batteries that are cool, touch and are not damaged. Look at the way to make sure it is not damaged e.g., en, bent, broken or punctured.

CAUTION: Always disconnect the flight by from the charger immediately upon letion of charging.

Charging a fully discharged (not over-discharged) 150mAh battery takes approximately 45 minutes at the charger's 300mA charge rate.

USB ELite USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger USB U/R Charger 45 MIN. 45 MIN.

Transmitter and Receiver Binding

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to 'bind' your chosen Spektrum™ DSM2/DSMX technology equipped aircraft transmitter to the receiver for proper operation.

Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. Please visit www.bindnfl.y.com for a complete list of compatible transmitters.

✓ Binding Procedure
CAUTION: When using a Futaba transmitter with a Spektrum DSM® module, you must reverse the throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.
	1. Refer to your transmitter's unique instructions for binding to a receiver (location of transmitter's Bind control).
	2. Make sure the fl ight battery is disconnected from the aircraft.
	3. Power off your transmitter.
	4. Connect the fl ight battery in the aircraft. The receiver LED will begin to fl ash rapidly (typically after 5 seconds).
	5. Make sure the transmitter controls are neutral and the throttle and throttle trim are in low position.
	6. Put your transmitter into bind mode. Refer to your transmitter's manual for binding button or switch instructions.
	7. After 5 to 10 seconds, the receiver status LED will turn solid, indicating that the receiver is bound to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the back of the manual.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft's ESC protects the flight battery from over-discharge using Low Voltage Cutoff (LVC). Once the battery discharges to 3V per cell, the LVC will reduce the power to the motor in order to leave adequate power to the receiver and servos to land the airplane.

When the motor power decreases, land the aircraft immediately and replace or recharge the flight battery.

Always disconnect and remove the Li-Po battery

from the aircraft after each flight. Charge your Li-Po battery to about half capacity before storage. Make sure the battery charge does not fall below 3V per cell. Failure to unplug a connected battery will result in trickle discharge.

For your first lights, set your transmitter timer or a stopwatch to 5 minutes. Adjust your timer for longer or shorter lights once you have flown the model.

NOTICE: Repeated fl ying to LVC will damage the battery.

Flight Battery Installation and ESC Arming

Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl light battery requires the following steps.

It is normal for linear servos to make noise. Noise is not an indication of a faulty servo.

The AS3X® system will not activate until the throttle stick or trim is increased for the first time. Once active, the control surfaces may move rapidly and noisily on the aircraft. This is normal. AS3X technology will remain active until the battery is disconnected.

CAUTION: Always keep hands away

from the propeller. When armed, the motor will turn the propeller in response to any throttle movement.

CAUTION: Always disconnect the Li-Po battery from the aircraft receiver when not flying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential fi re when batteries are charged.

1

Lower throttle and throttle trim to lowest settings.

Power ON the transmitter, then wait 5 seconds.

Cross-sectional diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

2

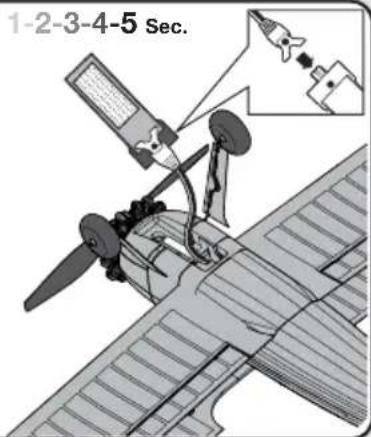

Connect the battery to the ESC, noting proper polarity.

Keep the plane immobile and away from wind for 5 seconds.

Continuous LED

1-2-3-4-5 Sec.

3

Secure the battery to the hook and loop strip on the battery holder.

Refer to the Center of Gravity Adjustment instructions for the battery's position.

FLY...

Technical line drawings of a biplane showing front and side views (no text or symbols)

Center of Gravity (CG)

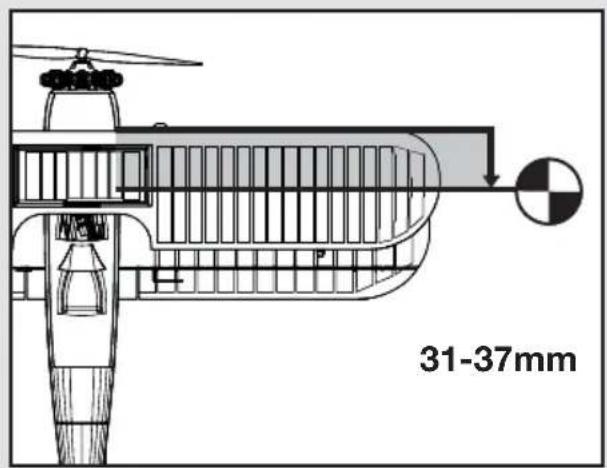

The CG location is 31-37mm back from the leading edge of the top wing.

This CG location has been determined with the included 1S 150mAh 3.7V Li-Po battery installed in the battery cavity located on the bottom of the aircraft.

Balance the model on the edge of a metal ruler to find the Center of Gravity. Place the ruler on the underside of the airframe at the CG location shown in the image to the right. Move the battery forward or aft until the model closely balances at this location.

31-37mm

Control Direction Tests

Traditional Control Direction Test

Bind your aircraft and transmitter before doing these tests.

Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them.

AS3X® Control Direction Test

This test ensures that the AS3X® control system is functioning properly.

	Aircraft movement	AS3X Reaction
1. Advance the throttle to 25% to activate the AS3X system.2. Fully lower the throttle.3. Move the entire aircraft as shown and ensure the control surfaces move in the direction indicated in the graphic. If the control surfaces do not respond as shown, do not fly the aircraft. Refer to the receiver manual for more information.Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X is active until the battery is disconnected.

Control Centering

Before the first flights, or in the event of an accident, make sure the flight control surfaces are centered. Adjust the linkages mechanically if the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos.

1. Make sure the control surfaces are neutral when the transmitter controls and trims are centered. The transmitter sub-trim must always be set to zero.
2. When needed, use a pair of pliers to carefully bend the metal linkage (see illustration).
3. Make the U-shape narrower to make the connector shorter. Make the U-shape wider to make the linkage longer.

Diagram of a cable being inserted into a clamp or clip, showing wire and clasp (no text or symbols)

Centering Controls After First Flights

For best performance with AS3X, it is important that excessive trim is not used. If the aircraft requires excessive transmitter trim (4 or more clicks of trim per channel), return the transmitter trim to zero and adjust the linkages mechanically so that the control surfaces are in the flight trimmed position.

Control Horn Settings

The table to the right shows the factory settings for the control horns. Fly the aircraft at factory settings before making changes.

After fl ying, you may choose to adjust the linkage positions for the desired control response.

CAUTION: When these are incorrectly

connected for the pilot's skill level, unexpected aircraft response to controls can result. This can cause damage to the aircraft and personal injury.

Elevator Rudder

Dual Rates

To obtain the best fl ight performance, we recommend using a DSM2/DSMX radio capable of adjustable Dual Rates. The suggested settings shown here are the recommended starting settings. Adjust according to the individual preferences after the initial fl ight.

NOTICE: Do not set your transmitter travel adjust over 100%. If the TRAVEL ADJUST is set over 100%, it will not result in more control movement, it will overdrive the servo and cause damage.

It is normal for linear servos to make signifi cant noise. The noise is not an indication of a faulty servo.

	Dual Rate
	High Low
Aileron 100%	70%
Elevator 100%	70%
Rudder 100%	70%

Tip: For the first flight, fly the model in low rate.

Flying Tips and Repairs

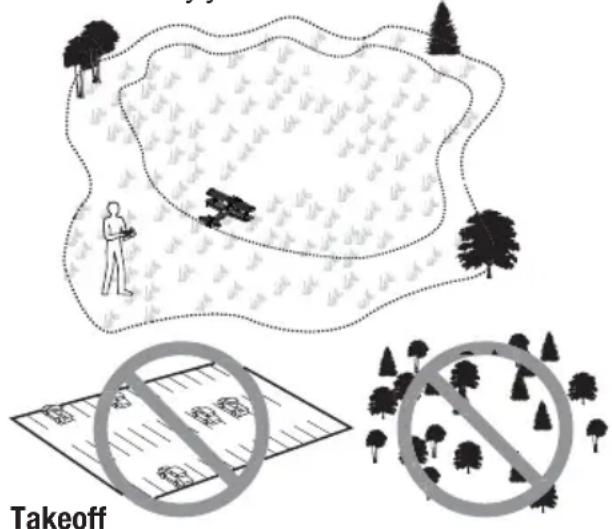

We recommend fl ying your aircraft outside in calm conditions. Always avoid fl ying near houses, trees, wires and buildings. You should also be careful to avoid fl ying in areas where there are many people, such as busy parks, schoolyards or soccer fi elds. Consult local laws and ordinances before choosing a location to fl y your aircraft.

Place the aircraft in position for takeoff (facing into the wind if fl ying outdoors). Set dual rates to low position and gradually increase the throttle to 34 to full and steer with the rudder. Pull back gently on the elevator and climb to check trim. Once the trim is adjusted, begin exploring the fl ight envelope of the aircraft.

Landing

Land into the wind. This is very important for this model. Fly the aircraft to approximately 6 inches (15cm) or less above the runway, using a small amount of throttle for the entire descent. Keep the throttle on until the aircraft is ready to fl are. During fl are, keep the wings level and the airplane pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on all three wheels.

Failure to lower the throttle stick and trim to the lowest possible positions during a crash could result in damage to the ESC in the receiver unit, which may require replacement.

This aircraft is equipped with Over Current Protection (OCP). This feature protects the ESC from overheating. OCP stops the motor when the transmitter throttle is set too high and the propeller cannot turn. The OCP will only activate when the throttle stick is positioned just above 1/2 throttle. After the ESC stops the motor, fully lower the throttle to re-arm the ESC.

NOTICE: Crash damage is not covered under the warranty.

Repairs

Repair the aircraft using foam-compatible CA (cyanoacrylate adhesive) or clear tape. Only use foam-compatible CA, as other types of glue can damage the foam. When parts are not repairable, see the Replacement Parts List for ordering by item number.

For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of foam-compatible CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until the accelerant fully dries.

NOTICE: When you are fi nished fl ying, never leave the aircraft in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the foam.

NOTICE: Always decrease throttle at propeller strike.

Illustration of a mechanical device with a jagged handle and base, no visible text or symbols

Post Flight Checklist

√
	1. Disconnect the fl ight battery from the ESC (Required for safety and battery life).
	2. Power OFF the transmitter.
	3. Remove the fl ight battery from the aircraft.

√
	4. Recharge the fl ight battery.
	5. Store the fl ight battery apart from the aircraft and monitor the battery charge.
	6. Make note of the fl ight conditions and fl ight plan results, planning for future fl ights.

Power Components Service

CAUTION: DO NOT handle propeller parts while the flight battery is connected. Personal injury could result.

Disassembly

1. Disconnect the battery from the ESC/receiver.

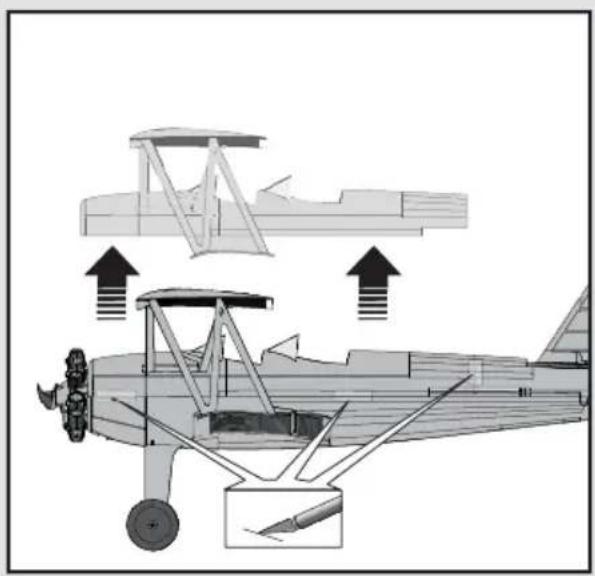

2. Carefully cut free each wing strut from the bottom wing without damaging the wing.
3. Carefully cut the tape and/or decals on the side of the fuselage and behind the canopy to remove the top half of the fuselage.

IMPORTANT: Removing tape and/or decals can remove paint from the fuselage.

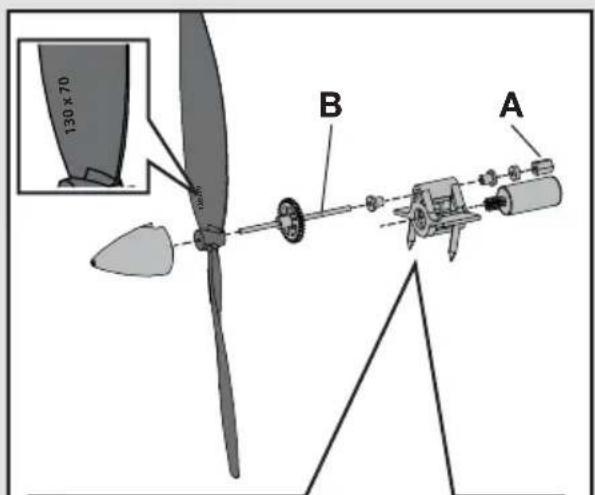

1. Hold the prop shaft using needle-nose pliers or hemostats.

2. Turn the propeller counterclockwise (facing the front of the model) to remove. Turn the propeller clockwise to install.

3. Hold the nut (A) on the end of the prop shaft using needle-nose pliers or hemostats.

4. Turn the gear on the shaft clockwise (facing the front of the model) to remove the nut.

5. Gently pull the shaft (B) from the gearbox (C) and make sure the washer (D) and two bushings (E) are not lost.

6. Disconnect the motor from the ESC/receiver.

7. Gently push the motor out of the gearbox and remove the motor through the top of the fuselage behind the ESC/receiver.

NOTICE: DO NOT remove the gearbox from the aircraft. Damage to the aircraft could result.

Assembly

Assemble the aircraft using the instructions above in reverse order.

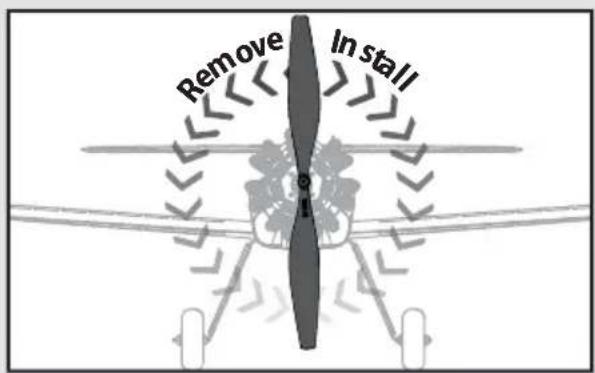

• Correctly align the prop shaft gear with the pinion gear on the motor.
• Connect the motor to the ESC/receiver so that the powered motor turns the propeller counterclockwise (facing the front of the model).
• Make sure the propeller size numbers (130 x 70) face away from the motor (see illustration).
• Assemble the fuselage using clear tape.

Illustration of a vintage biplane with structural components and directional arrows indicating flight or movement (no text or symbols present)

Remove Install

130 x 70 B A

E D C

Installing the Landing Gear

To install the included landing gear:

1. Gently squeeze the gear assembly and insert the landing gear strut wire into the retaining slot of the fuselage as shown.

Technical line drawing of an aircraft fuselage with propeller and rotor assembly (no text or symbols)

Line drawing of a vintage biplane with propeller and fuselage (no text or symbols)

Troubleshooting Guide

AS3X

Problem Possible Cause Solution
Control surfaces not at neutral position when transmitter controls are at neutral	Control surfaces may not have been mechanically centered from factory	Center control surfaces mechanically by adjusting the U-bends on control linkages
	Aircraft was moved after the fl ight battery was connected and before sensors initialized	Disconnect and reconnect the fl ight battery while keeping the aircraft still for 5 seconds
Model flies inconsistently from fl ight to fl ight	Aircraft was not kept immobile for 5 seconds after battery was plugged in	Keep the aircraft immobile for 5 seconds after plugging in the battery
	Trims are moved too far from neutral position	Neutralize trims and mechanically adjust linkages to center control surfaces
Controls oscillate in fl ight, (model rapidly jumps or moves)	Propeller is unbalanced, causing excessive vibration	Remove propeller and rebalance or replace it if damaged
	Nut on prop shaft is too loose, causing excessive vibration	Tighten the prop shaft nut 1/2 turn

Problem Possible Cause Solution
Aircraft will not respond to throttle but responds to other controls	Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting
	Throttle channel is reversed Reverse throttle channel on transmitter
	Motor disconnected from receiver Open fuselage and make sure motor is connected to the receiver
Extra propeller noise or extra vibration	Damaged propeller, spinner or motor Replace damaged parts
	Prop is out of balance Remove and balance propeller, or replace with a balanced propeller
Reduced fl ight time or aircraft underpowered	Flight battery charge is low Completely recharge fl ight battery
	Propeller installed backwards Install propeller with numbers facing forward
	Flight battery damaged	Replace fl ight battery and follow fl ight battery instructions
	Flight conditions may be too cold	Make sure battery is warm before use
	Battery capacity too low for fl ight conditions	Replace battery or use a larger capacity battery
LED on receiver fl ashes and aircraft will not bind to transmitter (during binding)	Transmitter too near aircraft during binding process	Power off transmitter, move transmitter a larger distance from aircraft, disconnect and reconnect fl ight battery to aircraft and follow binding instructions
	Bind switch or button not held long enough during bind process	Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound
	Aircraft or transmitter is too close to large metal object, wireless source or another transmitter	Move aircraft and transmitter to another location and attempt binding again

Troubleshooting Guide (Continued)

Problem Possible Cause Solution
LED on receiver fl ashes rapidly and aircraft will not respond to transmit-ter (after binding)	Less than a 5-second wait between fi rst powering on transmitter and connecting fl ight battery to aircraft	Leaving transmitter on, disconnect and reconnect fl ight battery to aircraft
	Aircraft bound to different model memory (ModelMatchTM radios only)	Select correct model memory on transmitter and disconnect and reconnect fl ight battery to aircraft
	Flight battery/transmitter battery charge is too low	Replace/recharge batteries
	Transmitter may have been bound to a different model (or with a different DSM Protocol)	Select the right transmitter or bind to the new one
	Aircraft or transmitter is too close to large metal object, wireless source or another transmitter	Move aircraft and transmitter to another location and attempt linking again
Control surface does not move	Control surface, control horn, linkage or servo damage	Replace or repair damaged parts and adjust controls
	Wire damaged or connections loose Do a check of wires and connections, con-nect or replace as needed
	Flight battery charge is low Fully recharge fl ight battery
	Control linkage does not move freely Make sure control linkage moves freely
Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately
Motor loses power Damage	to motor or power components Do a check of motor and power components for damage (replace as needed)
	Nut on prop shaft is too tight Loosen prop shaft nut until propeller shaft turns freely
Motor power quickly decreases and in-creases then motor loses power	Battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC)	Recharge fl ight battery or replace battery that is no longer performing
Motor/ESC is not armed after landing	Over Current Protection (OCP) stops the motor when the transmitter throttle is set high and the propeller cannot turn	Fully lower throttle and throttle trim to arm ESC
Servo locks or freezes at full travel	Travel adjust value is set above 100%, overdriving the servo	Set Travel adjust to 100% or less and/or set sub-trims to Zero and adjust linkages mechanically

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC. ("Horizon") warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or

(vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and

exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support offi ce.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notifi cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notifi cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of 12 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

Warranty and Service Information

Country of Purchase Horizon Hobby Phone Number/Email Address Address
United States of America	Horizon Service Center (Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/	4105 Fieldstone RdChampaign, Illinois, 61822 USA
	Horizon Product Support (Product Technical Assistance)	www.quickbase.com/db/bghj7ey8c?a=GenNewRecord888-959-2305
	Sales	[e-mail]888-959-2305
United Kingdom	Service/Parts/Sales: Horizon Hobby Limited	[e-mail] Units 1–4 , Ployters Rd,[phone]
Germany	Horizon Technischer Service [e-mail]: Horizon Hobby GmbH [phone]		Christian-Junge-Straße 125337 Elmshorn, Germany
France	Service/Parts/Sales: Horizon Hobby SAS	[e-mail][phone]	11 Rue Georges Charpak77127 Lieusaint, France
China	Service/Parts/Sales: Horizon Hobby – China	[e-mail] Room 506,[phone]	No. 97 Changshou Rd.Shanghai, China 200060

FCC Information

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

ICC Information

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Information for the European Union

EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directives.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more

information about where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste disposal service or where you purchased the product.

© 2015 Horizon Hobby, LLC.

E-fl ite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.

All other trademarks, service marks and logos are property of their respective owners.

US 7,898,130. US D578,146. PRC ZL 200720069025. PRC ZL 2007001249.

Other patents pending.

www.e-fl iterc.com
