| Product Type | Video Projector |
| Brand | BenQ |
| Model | MW732 |
| Display Technology | DLP (1-CHIP DMD) |
| Native Resolution | 1280 x 800 (WXGA) |
| Lens | F = 2.59 - 2.87, f = 16.88 - 21.88 mm |
| Lamp Type | 240 W lamp |
| Power Consumption | 355 W (Max); < 0.5 W (Standby); < 2 W (Network Standby) |
| Weight | 2.5 kg ± 100 g |
| Dimensions (W x H) | 296 mm x 120 mm |
| Input Ports | RGB D-Sub 15-pin (x1), HDMI (x1), HDMI/MHL (x1), Audio In (PC audio jack x1), USB Mini-B (x1), USB Type-A (x2), RS-232 (x1), RJ-45 LAN (x1) |
| Output Ports | RGB D-Sub 15-pin (x1), Audio Out (PC audio jack x1) |
| Built-in Speaker | 10 W x 1 (mono) |
| Keystone Correction | 2D Keystone, Auto Vertical Keystone, Corner Fit |
| 3D Capability | Yes (supports Frame Sequential, Top Bottom, Side by Side) |
| Network Connectivity | Wired LAN (RJ-45), Wireless via optional USB dongle (WDRT8192) |
| Security Features | Kensington lock slot, password protection, panel key lock, web control lock |
| Operating Temperature | 0°C to 40°C at sea level |
| Operating Humidity | 10% - 90% (non-condensing) |
| High Altitude Mode | Up to 3000 m (with High Altitude Mode on) |
| Accessories Included | Remote control with batteries, Power cord, VGA cable, User manual CD, Quick start guide, Warranty card (in some regions) |
| Optional Accessories | Spare lamp kit, 3D glasses, Wireless dongle (QCast, QCast Mirror), Dust filter |
| Mounting | Ceiling/Wall mountable (requires BenQ mounting kit, screws M4) |
Frequently Asked Questions - MW732 BENQ
User questions about MW732 BENQ
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Projector in PDF format for free! Find your manual MW732 - BENQ and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MW732 by BENQ.
USER MANUAL MW732 BENQ
Warranty and Copyright information
Limited warranty
BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.
Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.
Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.
For other information, please visit www.BenQ.com.
Copyright
Copyright © 2017 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.
Patents
Please go to http://patmarking.benq.com/ for the details on BenQ projector patent coverage.
Table of Contents
Warranty and Copyright information 2
Important safety instructions 4
Introduction 7
Shipping contents 7
Projector exterior view 8
Controls and functions.... 9
Positioning your projector 12
Choosing a location 12

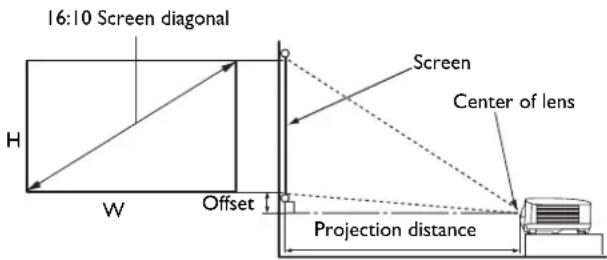

Obtaining a preferred projected image size.... 13
Mounting the projector 16

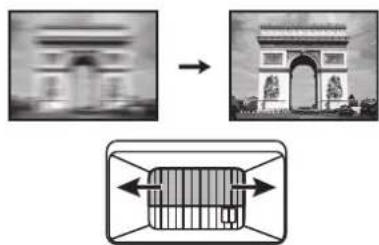

Adjusting the projected image 17

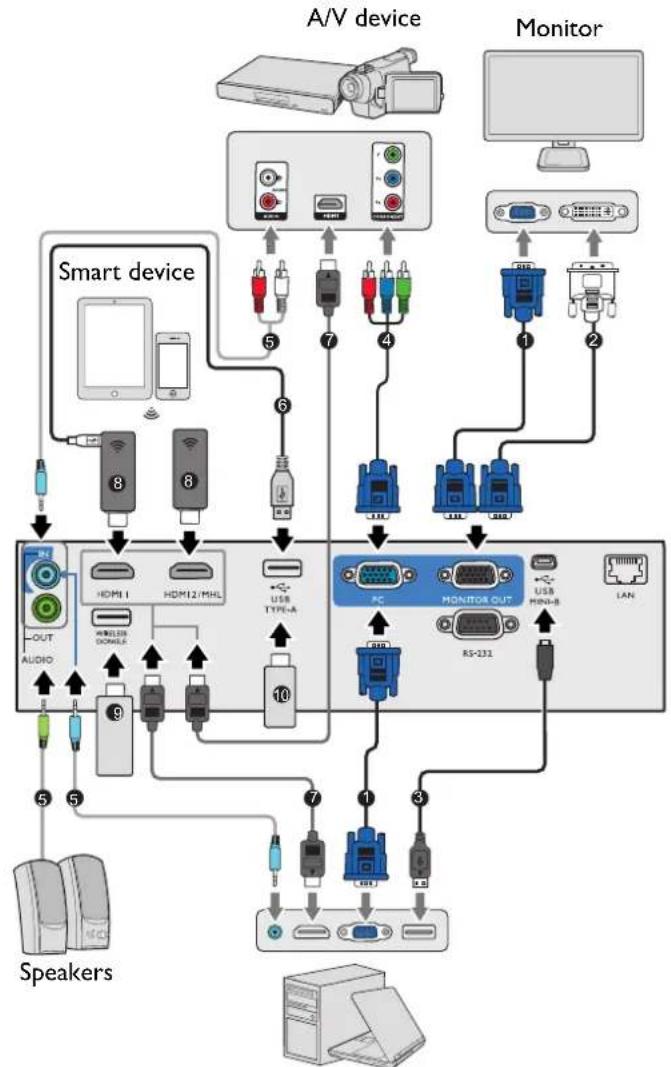

Connection 19
Connecting video source devices 20
Connecting smart devices 21
Connecting a USB flash drive 22
Operation 23
Starting up the projector 23

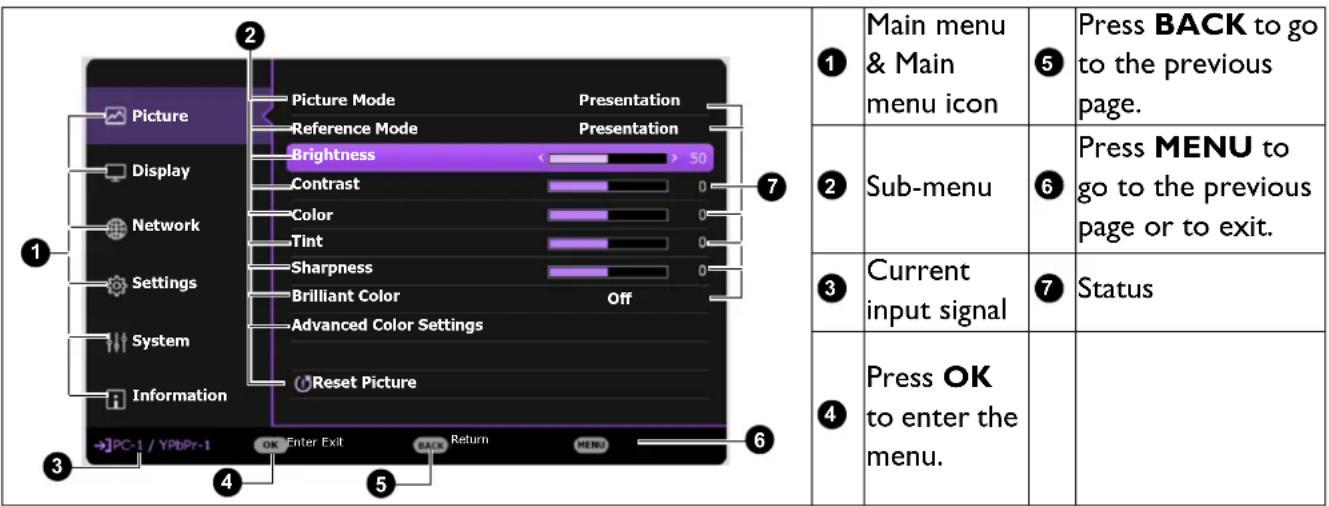

Using the menus 24
Securing the projector 25
Switching input signal 26
Controlling the projector through a LAN environment 27
Using web control lock 27
Displaying image via QCast application through a LAN environment 27

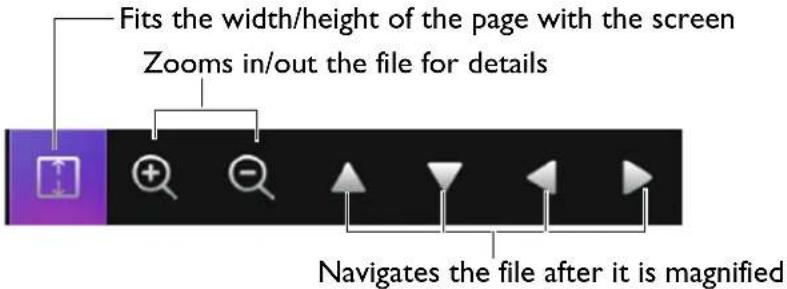

Presenting from a USB Reader 27
Shutting down the projector 29
Direct power off 29
Menu operation 30
Basic menu 30
Advanced menu 32
Maintenance 41
Care of the projector 41
Lamp information 41
Troubleshooting 47
Specifications 48
Projector specifications 48

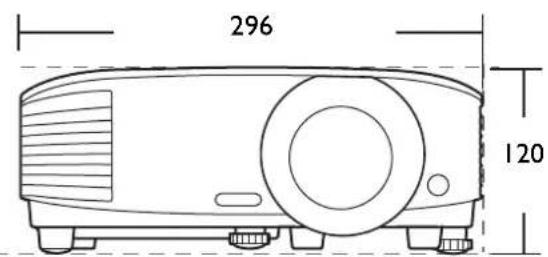

Dimensions 49
Timing chart.... 50
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.
- Please read this manual before you operate your projector. Save it for future reference.
Always open the lens shutter (if any) or remove the lens cap (if any) when the projector lamp is on.
-
The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.
Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.
Do not block the ventilation holes.
-
Do not place this projector on a blanket, bedding or any other soft surface.
- Do not cover this projector with a cloth or any other item.
- Do not place inflammables near the projector.
- Always place the projector on a level, horizontal surface during operation.
- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.
When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.
-
Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's power outlet and call BenQ to have the projector serviced.
This apparatus must be earthed.
-
Do not place this projector in any of the following environments.
- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.
- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector's life span and darken the image.
- Locations with an ambient temperature above 40°C / 104°F

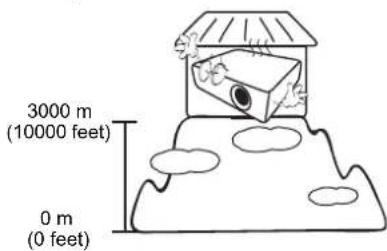

- Locations where the altitudes are higher than 3000 m (10000 feet).
Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.
Introduction
Shipping contents
Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.
Standard accessories
 |  |  |  |
| Projector | Remote control with batteries | User manual CD Quick start guide | |
 |  |  | |
| Warranty card* Power cord VGA cable | |||
- The supplied accessories will be suitable for your region, and may differ from those illustrated.
• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.
Optional accessories
I. Spare lamp kit
2. 3D glasses
- Wireless Dongle: WDRT8192 USB Dongle, QCast (QP01), QCast mirror (QP20)
- Dust filter

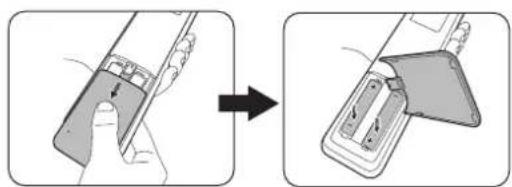

Replacing the remote control batteries
I. Press and slide off the battery cover, as illustrated.
2. Remove the old batteries (if applicable) and install two AAA batteries. Make sure that the positive and negative ends are positioned correctly, as illustrated.
- Slide the battery cover in until it clicks into place.
- Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen, bathroom, sauna, sunroom or in a closed car.
- Replace only with the same or equivalent type recommended by the battery manufacturer.
- Dispose of the used batteries according to the manufacturer's instructions and local environment regulations for your region.
- Never throw the batteries into a fire. There may be danger of an explosion.
- If the batteries are dead or if you will not be using the remote control for an extended period of time, remove the batteries to avoid damage to the remote control from possible battery leakage.

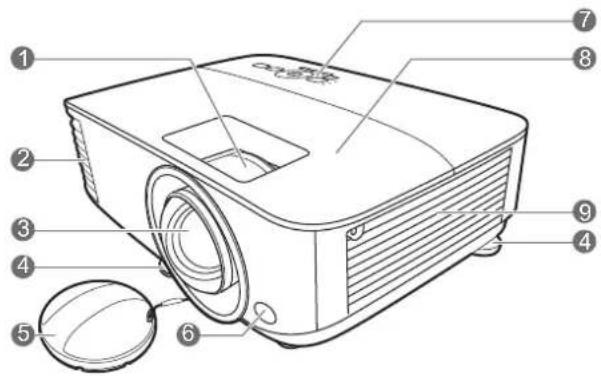

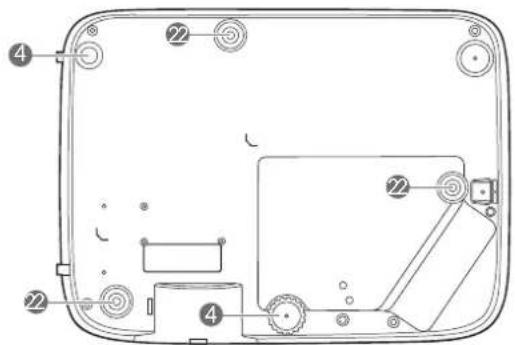

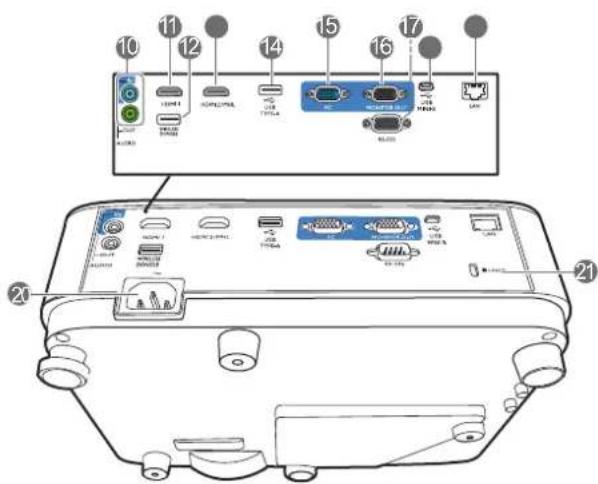

Projector exterior view
I. Focus ring
2. Vent (air exhaust)
3. Projection lens
4. Adjuster feet
5. Lens cap
6. IR remote sensor
7. External control panel
(See Controls and functions on page 9.)
8. Lamp cover
9. Vent (air inlet)
10. Audio input jacks
Audio output jack

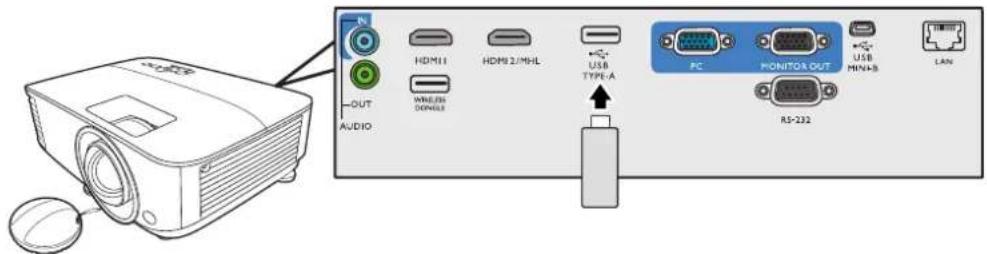

11. HDMI input port
- USB Type A port (for USB wireless dongle)
- HDMI/MHL-input port
- USB Type A port (for USB flash drive / power for HDMI dongle)
- RGB (PC) signal input jacks
- RGB (PC) signal output jack
- RS-232 control port
- USB Mini-B port
- RJ-45 LAN input jack
- AC power jack
- Kensington anti-theft lock slot
- Ceiling mount holes

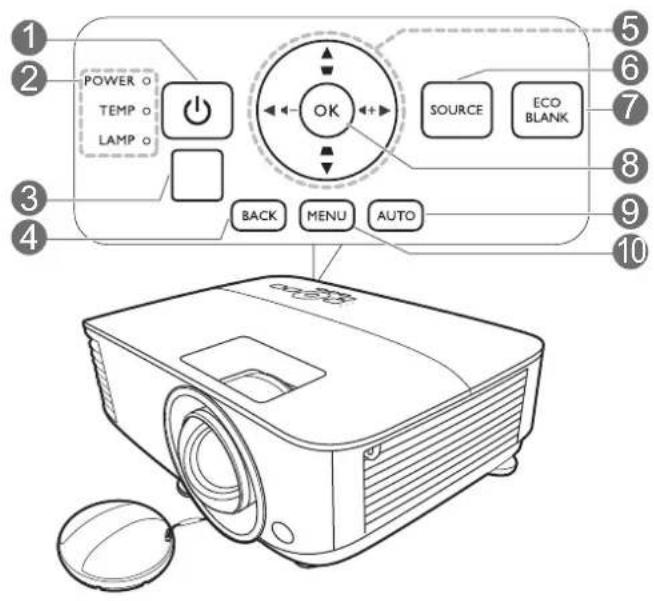

Controls and functions

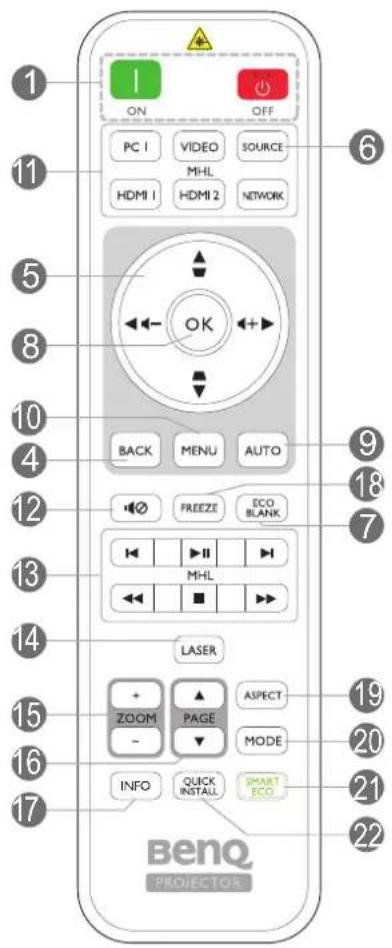

Projector & Remote control
- All the key presses described in this document are available on the remote control or projector.
• The remote control is without laser pointer in Japan
1.
POWER
Toggles the projector between standby mode and on.
Toggles the projector between standby mode and on.
2. POWER indicator light/TEMPerture warning light/LAMP indicator light
(See Indicators on page 46.)
- IR remote sensor
4. BACK
Goes back to previous OSD menu, exits and saves menu settings.
5. Arrow keys (▲, ▼)◀ ▶
When the On-Screen Display (OSD) menu is activated, these keys are used as directional arrows to select the desired menu items and to make adjustments.

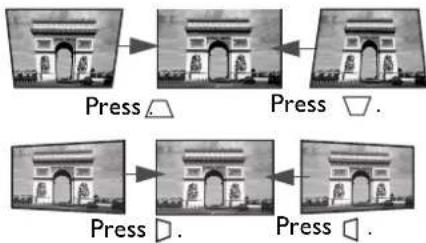

Keystone keys ( □) ▽
Displays the keystone correction page.
Volume keys / ← - ← +
Decreases or increase the projector volume.
6. SOURCE
Displays the source selection bar.
7. ECO BLANK
Used to hide the screen picture.
Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.
8. OK
Confirms the selected On-Screen Display (OSD) menu item.
9. AUTO
Automatically determines the best picture timings for the displayed image when PC signal (analog RGB) is selected.
10. MENU
Turns on the On-Screen Display (OSD) menu.
- Source selection buttons: PC I, VIDEO, HDMI 1, MHL/HDMI 2, NETWORK
Selects an input source for display.
12.
Toggles projector audio between on and off.
- MHL control buttons
(◀ Previous, □ Play/Pause, Next, ◀ Rewind, ■ Stop, ▶ Fast-forward)
Goes to the previous file/Plays/Pauses/Goes to the next file/Rewinds/Stops/Fast-forwards during media playback.
Only available when controlling your smart device in MHL mode.
14. LASER
Emits visible laser pointer light for presentation purposes.
15. ZOOM+/ZOOM-
Magnifies or reduces the projected picture size.
16. PAGE/RAGE ▼
Operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint).
17. INFO
Displays the projector information.
18. FREEZE
Freezes the projected image.
19. ASPECT
Selects the display aspect ratio.
20. MODE
Selects an available picture setup mode.
21. SMART ECO
Displays the Lamp Mode menu for selecting a suitable lamp operating mode.
22. QUICK INSTALL
Quickly selects several functions to adjust the projected image and displays the test pattern.
Operating the LASER pointer
The Laser Pointer is a presentation aid for professionals. It emits red colored light when you press it. The laser beam is visible. It is necessary to press and hold LASER for continuous output.
The laser pointer is not a toy. Parents should be mindful of the dangers of laser energy and keep this remote control out of the reach of children.
Do not look into the laser light window or shine the laser light beam on yourself or others. See the warning messages on the back of the remote control prior to using it.

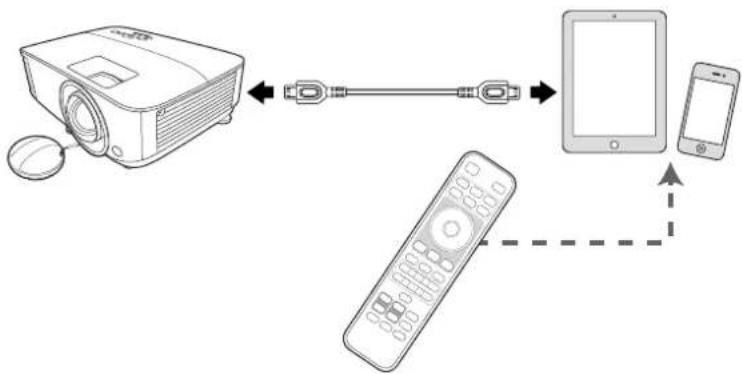

Controlling your smart device with the remote control
When the projector projects the content from your MHL compatible smart device, you can use the remote control to control your smart device.
To enter the MHL mode, press and hold AUTO for 3 seconds. The following buttons are available for controlling your smart device: Arrow keys (▲ ▼ ◀ ▶), MENU, BACK, OK, MHL control buttons.
To leave the MHL mode, press and hold AUTO for 3 seconds.
When the projector is under MHL mode, the keypad on the projector should be with the same definition of the keys on the remote control.

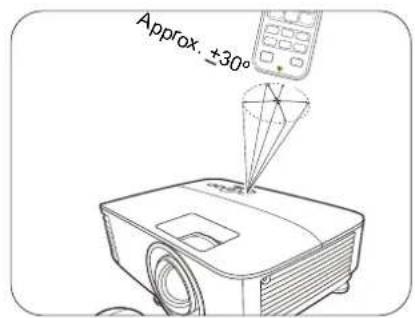

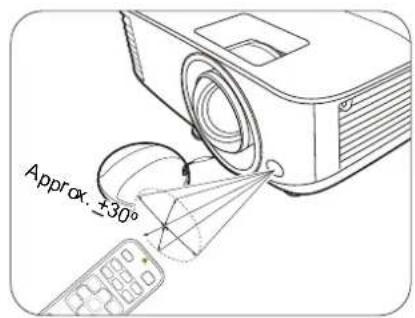

Remote control effective range
The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor(s) to function correctly. The distance between the remote control and the sensor(s) should not exceed 8 meters (\~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor(s) on the projector that might obstruct the infra-red beam.
- Operating the projector from the front • Operating the projector from the top
Positioning your projector
Choosing a location
Before choosing an installation location for your projector, take the following factors into consideration:
- Size and position of your screen
• Electrical outlet location - Location and distance between the projector and the rest of your equipment
You can install your projector in the following ways.
1. Front Table
Select this location with the projector placed on the table in front of the screen. This is the most common way to position the projector for quick setup and portability.
2. Rear Table
Select this location with the projector placed on the table behind the screen. Note that a special rear projection screen is required.
Select this location with the projector suspended upside-down from the ceiling in front of the screen. Purchase the BenQ Projector Ceiling Mount Kit from your dealer to mount your projector on the ceiling.
Select this location with the projector suspended upside-down from the ceiling behind the screen. Note that a special rear projection screen and the BenQ Projector Ceiling Mount Kit are required for this installation location.
You can also use QUICK INSTALL on the remote control to access this menu.
Obtaining a preferred projected image size
The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

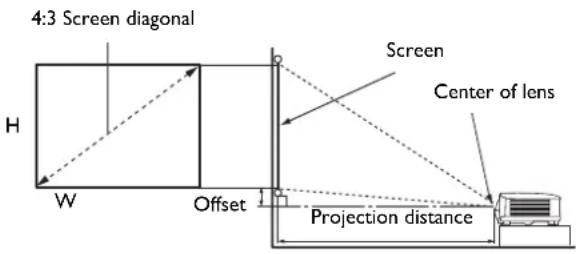

Projection dimensions
MX731
- The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio
| Screen size Projection distance | Min distance | Average | Max distance | Offset (mm)Diagonal | |||
| H (mm) | W (mm) | ||||||
| Inch mm (max. zoom) (min. zoom) | |||||||
| 30 762 | 457 610 920 | 1061 1201 34 | |||||
| 35 | 889 | 533 | 711 | 1074 | 1237 | 1401 | 40 |
| 40 | 1016 | 610 | 813 | 1227 | 1414 | 1601 | 46 |
| 50 | 1270 | 762 | 1016 | 1534 | 1768 | 2002 | 57 |
| 60 | 1524 | 914 | 1219 | 1841 | 2121 | 2402 | 69 |
| 70 | 1778 | 1067 | 1422 | 2148 | 2475 | 2802 | 80 |
| 80 | 2032 | 1219 | 1626 | 2455 | 2829 | 3202 | 91 |
| 90 | 2286 | 1372 | 1829 | 2761 | 3182 | 3603 | 103 |
| 100 | 2540 | 1524 | 2032 | 3068 | 3536 | 4003 | 114 |
| 110 | 2794 | 1676 | 2235 | 3375 | 3889 | 4403 | 126 |
| 120 | 3048 | 1829 | 2438 | 3682 | 4243 | 4804 | 137 |
| 130 | 3302 | 1981 | 2642 | 3989 | 4596 | 5204 | 149 |
| 140 | 3556 | 2134 | 2845 | 4296 | 4950 | 5604 | 160 |
| 150 | 3810 | 2286 | 3048 | 4602 | 5304 | 6005 | 171 |
| 160 | 4064 | 2438 | 3251 | 4909 | 5657 | 6405 | 183 |
| 170 | 4318 | 2591 | 3454 | 5216 | 6011 | 6805 | 194 |
| 180 | 4572 | 2743 | 3658 | 5523 | 6364 | 7205 | 206 |
| 200 | 5080 | 3048 | 4064 | 6137 | 7071 | 8006 | 229 |
| 250 | 6350 | 3810 | 5080 | 7671 | 8839 | 10008 | 286 |
| 300 | 7620 | 4572 | 6096 | 9205 | 10607 | 12009 | 343 |
For example, if you are using a 120-inch screen, the recommended projection distance is 4243 mm.
If your measured projection distance is 5000 mm, the closest match in the "Projection distance (mm)" column is 4950 mm. Looking across this row shows that a 140" (about 3.6 m) screen is required.
To optimize your projection quality, we suggest you do the projection within non-gray area.
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
MW732
- The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio
| Screen size Projection distance (mm) | Offset (mm)Dia | ||||||
| H (mm) W (mm) zoom (min. zoom) | Min distance | Average | Max distance | ||||
| Inch mm (max. zoom) | |||||||
| 30 762 | 404 646 782 | 898 | 1014 | 40 | |||
| 35 | 889 | 471 | 754 | 912 | 1048 | 1184 | 47 |
| 40 | 1016 | 538 | 862 | 1042 | 1198 | 1353 | 54 |
| 50 | 1270 | 673 | 1077 | 1303 | 1497 | 1691 | 67 |
| 60 | 1524 | 808 | 1292 | 1564 | 1796 | 2029 | 81 |
| 70 | 1778 | 942 | 1508 | 1824 | 2096 | 2367 | 94 |
| 80 | 2032 | 1077 | 1723 | 2085 | 2395 | 2705 | 108 |
| 90 | 2286 | 1212 | 1939 | 2346 | 2695 | 3043 | 121 |
| 100 | 2540 | 1346 | 2154 | 2606 | 2994 | 3382 | 135 |
| 110 | 2794 | 1481 | 2369 | 2867 | 3293 | 3720 | 148 |
| 120 | 3048 | 1615 | 2585 | 3127 | 3593 | 4058 | 162 |
| 130 | 3302 | 1750 | 2800 | 3388 | 3892 | 4396 | 175 |
| 140 | 3556 | 1885 | 3015 | 3649 | 4192 | 4734 | 188 |
| 150 | 3810 | 2019 | 3231 | 3909 | 4491 | 5072 | 202 |
| 160 | 4064 | 2154 | 3446 | 4170 | 4790 | 5411 | 215 |
| 170 | 4318 | 2289 | 3662 | 4431 | 5090 | 5749 | 229 |
| 180 | 4572 | 2423 | 3877 | 4691 | 5389 | 6087 | 242 |
| 200 | 5080 | 2692 | 4308 | 5212 | 5988 | 6763 | 269 |
| 250 | 6350 | 3365 | 5385 | 6516 | 7485 | 8454 | 337 |
| 300 | 7620 | 4039 | 6462 | 7819 | 8982 | 10145 | 404 |
For example, if you are using a 120-inch screen, the recommended projection distance is 3593 mm.
If your measured projection distance is 5000 mm, the closest match in the "Projection distance (mm)" column is 5090 mm. Looking across this row shows that a 170" (about 4.3 m) screen is required.
To optimize your projection quality, we suggest you do the projection within non-gray area.
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

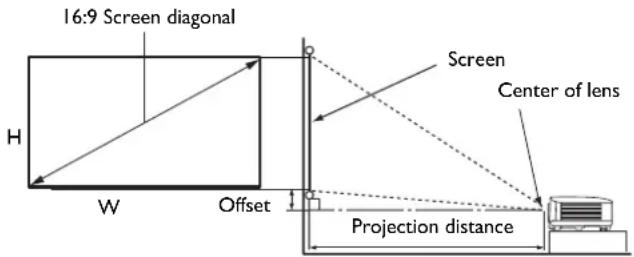

MH733
- The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio
| Screen size Projection distance | Min distance | Average | Max distance | Offset (mm)Diagonal | |||
| H (mm) | W (mm) | ||||||
| Inch mm (max. zoom) (min. zoom) | |||||||
| 30 762 | 374 664 764 | 880 996 | 19 | ||||
| 35 | 889 | 436 | 775 | 891 | 1027 | 1162 | 22 |
| 40 | 1016 | 498 | 886 | 1018 | 1173 | 1328 | 25 |
| 50 | 1270 | 623 | 1107 | 1273 | 1467 | 1660 | 31 |
| 60 | 1524 | 747 | 1328 | 1528 | 1760 | 1992 | 37 |
| 70 | 1778 | 872 | 1550 | 1782 | 2053 | 2324 | 44 |
| 80 | 2032 | 996 | 1771 | 2037 | 2347 | 2657 | 50 |
| 90 | 2286 | 1121 | 1992 | 2291 | 2640 | 2989 | 56 |
| 100 | 2540 | 1245 | 2214 | 2546 | 2933 | 3321 | 62 |
| 110 | 2794 | 1370 | 2435 | 2800 | 3227 | 3653 | 68 |
| 120 | 3048 | 1494 | 2657 | 3055 | 3520 | 3985 | 75 |
| 130 | 3302 | 1619 | 2878 | 3310 | 3813 | 4317 | 81 |
| 140 | 3556 | 1743 | 3099 | 3564 | 4107 | 4649 | 87 |
| 150 | 3810 | 1868 | 3321 | 3819 | 4400 | 4981 | 93 |
| 160 | 4064 | 1992 | 3542 | 4073 | 4693 | 5313 | 100 |
| 170 | 4318 | 2117 | 3763 | 4328 | 4987 | 5645 | 106 |
| 180 | 4572 | 2241 | 3985 | 4583 | 5280 | 5977 | 112 |
| 200 | 5080 | 2491 | 4428 | 5092 | 5867 | 6641 | 125 |
| 250 | 6350 | 3113 | 5535 | 6365 | 7333 | 8302 | 156 |
| 300 | 7620 | 3736 | 6641 | 7638 | 8800 | 9962 | 187 |
For example, if you are using a 120-inch screen, the recommended projection distance is 3520 mm.
If your measured projection distance is 5000 mm, the closest match in the "Projection distance (mm)" column is 4987 mm. Looking across this row shows that a 170" (about 4.3 m) screen is required.
To optimize your projection quality, we suggest you do the projection within non-gray area.
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
Mounting the projector
If you intend to mount your projector, we strongly recommend that you use a proper fitting BenQ projector mounting kit and that you ensure it is securely and safely installed.
If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws.
Before mounting the projector
- Purchase a BenQ projector mounting kit from the place you purchased your BenQ projector.
- BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the mounting bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.
- Ask your dealer to install the projector for you. Installing the projector on your own may cause it to fall and result in injury.
• Take necessary procedures to prevent the projector from falling off such as during an earthquake. - The warranty doesn't cover any product damage caused by mounting the projector with a non-BenQ brand projector mounting kit.
- Consider the surrounding temperature where the projector is ceiling/wall mounted. If a heater is used, the temperature around the ceiling may be higher than expected.
- Read the user manual for the mounting kit about the range of torque. Tightening with torque exceeding the recommended range may cause damage to the projector and subsequently falling off.
- Make sure the power outlet is at an accessible height so that you can easily shut down the projector.

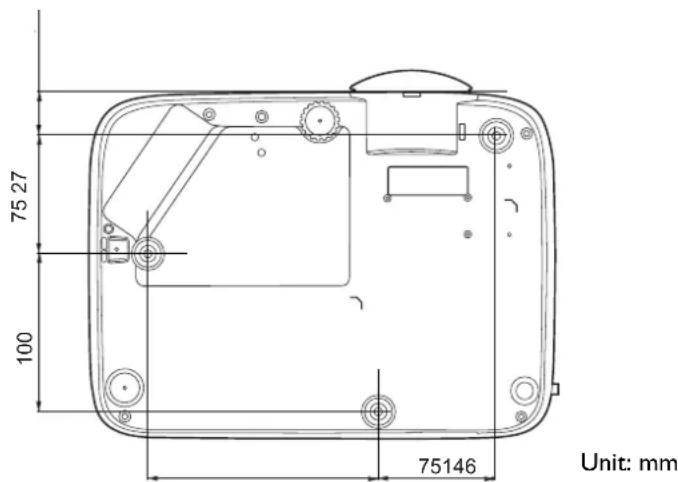

Ceiling/Wall mount installation diagram
Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
Adjusting the projected image

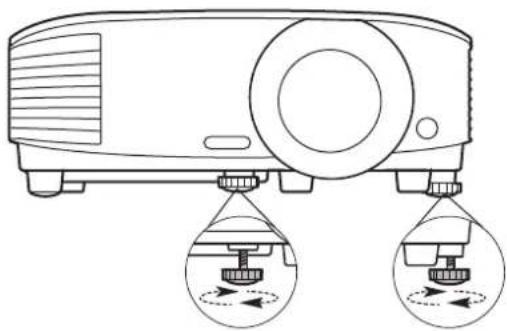

Adjusting the projection angle
If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. You can screw the adjuster feet to fine-tune the horizontal angle.
To retract the feet, screw the adjuster feet in a reverse direction.
Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press AUTO. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.
The current source information will be displayed in the corner of the screen for 3 seconds.
This function is only available when PC signal (analog RGB) is selected.
Fine-tuning the image size and clarity
Adjust the projected image to the size that you need using the zoom ring.
Sharpen the image by rotating the focus ring.
Correcting keystone
This function is not available when there is no input signal. If you wish to use this function when there is no input signal, activate Test Pattern first.
Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection.
To correct this, you will need to manually correct it following these steps.
I. Do one of the following steps to display the keystone correction page.
- Press / on the projector or remote control.
- Press QUICK INSTALL on the remote control. Press ▼ to highlight 2D Keystone and press OK.
- Go to Advanced Menu - Display > 2D Keystone and press OK.
-
After the 2D Keystone correction page displays. Press △ to correct keystoning at the top of the image. Press ▽ to correct keystoning at the bottom of the image. Press ▶ on the projector to correct keystoning at the right side of the image. Press ▽ on the projector to correct keystoning at the left side of the image.
-
When 2D Keystone correction page displays, you can also do the following settings:
- Press AUTO to reset the keystone values.
- Press ▲ ▽ disable the auto vertical keystone function.
Auto Vertical Keystone function
- Go to Advanced Menu - Display > Auto Vertical Keystone and press OK to turn on the auto vertical keystone function. The image keystoning is corrected automatically and the keystone value displays.
- Press ▲ ▽ disable the function.
Adjusting Corner Fit
This function is not available when there is no input signal. If you wish to use this function when there is no input signal, activate Test Pattern first.
You can manually adjust four corners of the image by setting the horizontal and vertical values.
I. Do one of the following steps to display the corner fit correction page.
- Press QUICK INSTALL on the remote control. Press ▼ to highlight Corner Fit and press OK.
- Go to Advanced Menu - Display > Corner Fit and press OK.
-
Press ▲/▼/◄/► to select one corner and press OK.
-
Press ▲ t▼ adjust vertical values.
-
Press ◀t▶adjust horizontal values.

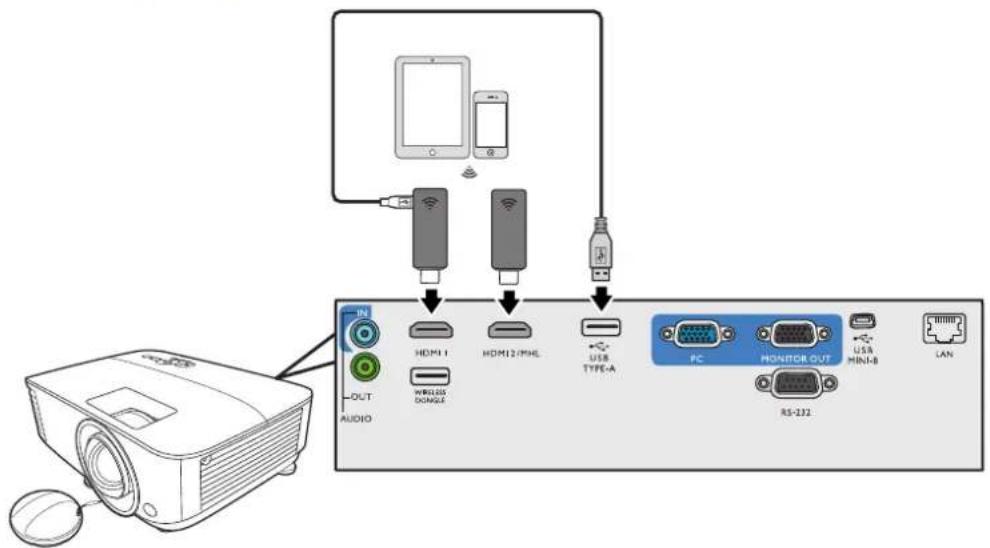

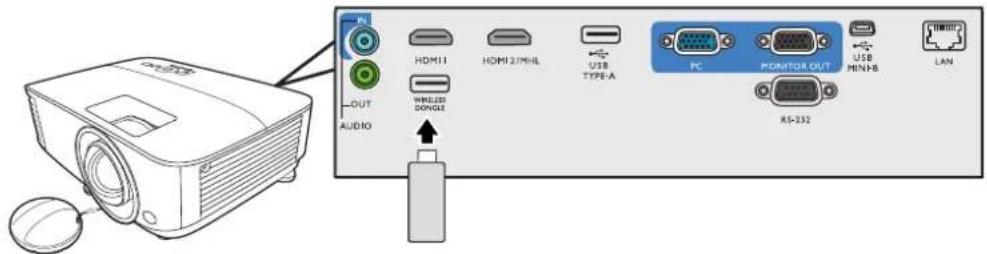

Connection
When connecting a signal source to the projector, be sure to:
I. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
Notebook or desktop computer
| 1 | VGA cable |
| 2 | VGA to DVI-A cable |
| 3 | USB cable |
| 4 | Component Video to VGA (D-Sub) adapter cable |
| 5 | Audio cable |
| 6 | USB cable (A to micro B type) connect to HDMI dongle for power supply |
| 7 | HDMI cable |
| 8 | HDMI dongle (QCast, QCast Mirror, etc.) |
| 9 | USB Wireless dongle |
| 10 | USB flash drive |
• To ensure a stable power supply, do not connect both USB Type A ports simultaneously.
- The HDMI2/MHL and USB TYPE-A port cannot provide power supply simultaneously. The power output is either through HDMI2/MHL or USB TYPE-A port. Note that the default power output is through the USB TYPE-A port. When connecting to HDMI2/MHL port, set MHL Power Switch to On in the OSD menu to ensure the dongle is powered, see MHL Power Switch on page 38. After that, when connecting to USB TYPE-A port (including WIRELESS DONGLE), remember to set MHL Power Switch to Off in the OSD menu.
- In the connections above, some cables may not be included with the projector (see Shipping contents on page 7). They are commercially available from electronics stores.
- The connection illustrations are for reference only. The rear connecting jacks available on the projector vary with each projector model.
- Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + function key with a monitor symbol turns the external display on/off. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.
- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
Connecting video source devices
You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality.
| TerminalPicture quality | ||
| HDMI |  | Best |
| HDMI2/MHL |  | Best |
| Component Video (through RGB input) |  | Better |
Connecting audio
The projector has built-in mono speaker(s) which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker(s).
The built-in speaker(s) will be muted when the AUDIO OUT jack is connected.
- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected.
- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
Connecting smart devices
The projector can project the content directly from a smart device by using a wireless dongle.
HDMI wireless dongle (e.g. BenQ QCastMirror, QCast)
- Connect the dongle to HDMI and USB TYPE-A ports on the projector and switch the input signal to HDMI-I.
- Connect the dongle to HDMI2/MHL port on the projector and switch the input signal to HDMI-2/MHL.
Set MHL Power Switch to On in the OSD menu to ensure the dongle is powered, see MHL Power Switch on page 38.
USB wireless dongle (e.g. WDRT8192 USB Dongle)
Connect the USB wireless dongle to WIRELESS DONGLE port on the projector and switch the input signal to Network Display.
For details, see BenQ Network Projector Operation Guide, which can be downloaded from BenQ product webpage.
Connecting a USB flash drive
I. Plug the USB flash drive into the USB TYPE-A port of the projector.
- A dialog is shown for quick source switching. Select Yes to enter USB Reader source. Or you can manually select USB Reader from the source selection bar.
For details, see Presenting from a USB Reader on page 27.
Operation
Starting up the projector

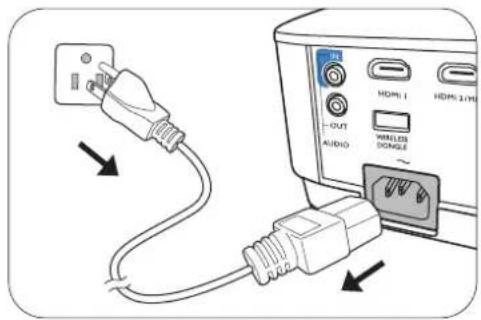

I. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied.
-
Press on the projector or on the remote control to start the projector. The power indicator flashes green and stays green when the projector is on. The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected. (If necessary) Rotate the focus ring to adjust the image clearness.
-

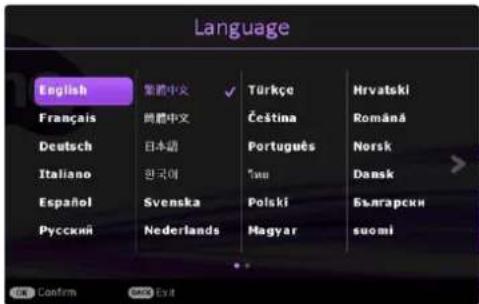

If the projector is activated for the first time, select your OSD language following the on-screen instructions.
-
If you are prompted for a password, press the arrow keys to enter a 6-digit password. See Utilizing the password function on page 25.
-
Switch all of the connected equipment on.
-
The projector will search for input signals. The current input signal being scanned appears. If the projector does not detect a valid signal, the message "No Signal" will continue displaying until an input signal is found.
You can also press SOURCE to select your desired input signal. See Switching input signal on page 26.
- Please use the original accessories (e.g. power cord) to avoid possible dangers such as electric shock and fire.
- If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.
- The Setup Wizard screenshots are for reference only and may differ from the actual design.
- If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message "Out of Range" displayed on the background screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See Timing chart on page 50.
- If no signal is detected for 3 minutes, the projector automatically enters saving mode.
Using the menus
The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings.
- Basic OSD menu: provides primary menu functions. (See Basic menu on page 30)
- Advanced OSD menu: provides full menu functions. (See Advanced menu on page 32)
To access the OSD menu, press MENU on the projector or remote control.
- Use the arrow keys ( /// ) on the projector or remote control to move through the menu items.
- Use OK on the projector or remote control to confirm the selected menu item.
The first time you use the projector (after finishing the initial setup), Basic OSD menu displays.
The OSD screenshots below are for reference only, and may differ from the actual design.

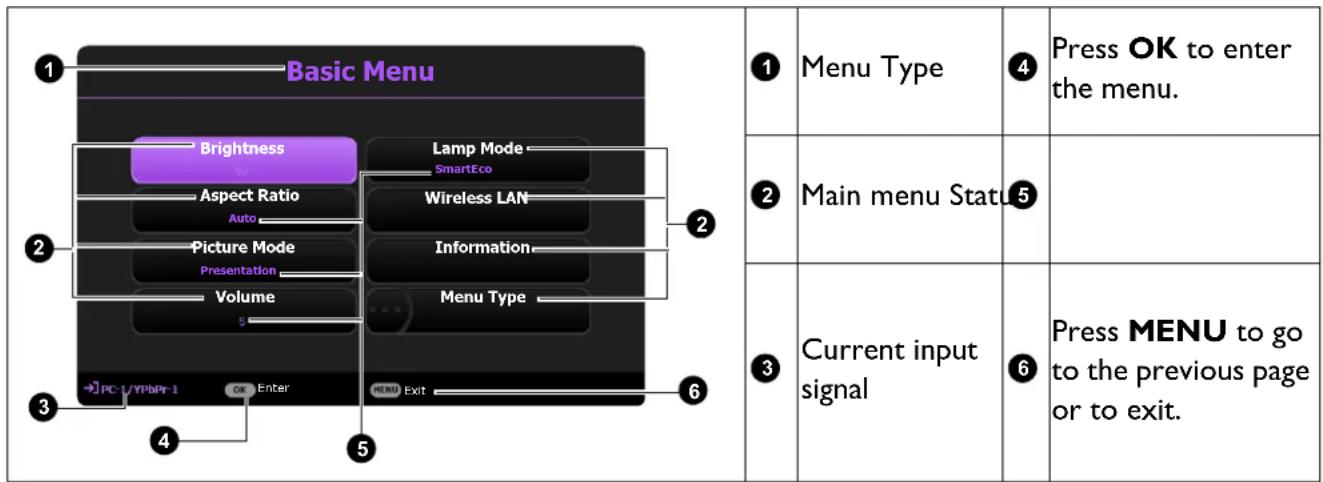

Below is the overview of the Basic OSD menu.
If you intend to switch from the Basic OSD menu to the Advanced OSD menu, follow the instructions below:
I. Go to Basic Menu > Menu Type.
2. Press OK and press ▲/▼ to select Advanced. Next time when you turn on the projector, you may access the Advanced OSD menu by pressing MENU.
Below is the overview of the Advanced OSD menu.
Likewise, when you wish to switch from the Advanced OSD menu to the Basic OSD menu, follow the instructions below:
I. Go to Advanced Menu - System > Menu Settings and press OK.
2. Select Menu Type and OK.
3. Press ▲/▼ to select Basic. Next time when you turn on the projector, you may access the Basic OSD menu by pressing MENU.
Securing the projector
Using a security cable lock
The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the rear side of the projector. See item 21 on page 8.
A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock's documentation for finding out how to use it.
Utilizing the password function
Setting a password
I. Go to Advanced Menu - Settings > Security Settings. Press OK. The Security Settings page appears.
2. Highlight Change Password and press OK.
3. The four arrow keys (▲, ▶, ▼, ◀) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.
4. Confirm the new password by re-entering the new password.
Once the password is set, the OSD menu returns to the Security Settings page.
5. To activate the Power On Lock function, press ▲▼o
highlight Power On Lock and press ◀/▶ to select On. Input the password again.
- The digits being input will display as asterisks on-screen. Make a note of your selected password and keep it in a safe place in advance or right after the password is entered so that it is available to you should you ever forget it.
- Once a password has been set and the power on lock is activated, the projector cannot be used unless the correct password is entered every time the projector is started.
If you forget the password
If you enter the wrong password, the password error message will appear, and the Input Current Password message follows. If you absolutely do not remember the password, you can use the password recall procedure. See Entering the password recall procedure on page 26.
If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.
Entering the password recall procedure

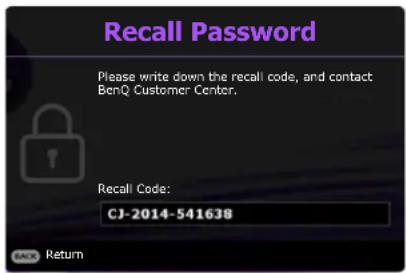

I. Press and hold AUTO for 3 seconds. The projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.
Changing the password
I. Go to Advanced Menu - Settings > Security Settings > Change Password.
2. Press OK. The message "Input Current Password" appears.
3. Enter the old password.
- If the password is correct, another message "Input New Password" appears.
- If the password is incorrect, the password error message will appear; and the message “Input Current Password” appears for your retry. You can press BACK to cancel the change or try another password.
- Enter a new password.
- Confirm the new password by re-entering the new password.
Disabling the password function
To disable password protection, go to Advanced Menu - Settings > Security Settings > Power On Lock and press ◀/▶ to select Off. The message “Input Current Password” appears. Enter the current password.
- If the password is correct, the OSD menu returns to the Security Settings page. You will not have to enter the password next time turning on the projector.
- If the password is incorrect, the password error message will appear; and the message “Input Current Password” appears for your retry. You can press BACK to cancel the change or try another password.
Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.
Switching input signal
The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. When starting up, the projector automatically searches for the available signals.
Be sure the Advanced Menu - Settings > Auto Source Search menu is On if you want the projector to automatically search for the signals.
To select the source:
I. Press SOURCE. A source selection bar appears.
2. Press ▲/▼ until your desired signal is selected and press OK.
Once detected, the selected source information will appear at the corner of the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.
- The brightness level of the projected image will change accordingly when you switch between different input signals.
- For best display picture results, you should select and use an input signal which outputs at the projector's native resolution. Any other resolutions will be scaled by the projector depending upon the “aspect ratio” setting, which may cause some image distortion or loss of picture clarity. See Aspect Ratio on page 30.
Controlling the projector through a LAN environment
You can remotely control the projector from a computer by using a Web browser when the computer and the projector are properly connected to the same local area network. There are 2 ways of connection: Wired connection and Wireless connection. Go to Advanced Menu - Network for LAN settings.
Once the projector and your computer are on the same local area network, you can access “BenQ Projector Control System” through Web browser and start to control the projector. See BenQ Network Projector Operation Guide for more details.
BenQ Network Projector Operation Guide can be downloaded from BenQ product webpage.
Using web control lock
This function is designed to prevent unauthorized people from maliciously changing the projector settings through Web browser.
Go to Advanced Menu - Settings > Security Settings > Web Control Lock, and press ◀/▶ to select On. Once enabled, it is required to enter the correct Account/ Password for changing the projector settings through “BenQ Projector Control System” by a web browser.
For security reasons, the setting cannot be adjusted after it is set to On. The only way to disable it is enter "BenQ Projector Control System" by a web browser and set Web Control Lock to Off.
Displaying image via QCast application through a LAN environment
The QCast is an application running on the computer or your smart device. It helps to display your content to the projector via a local network connection. See BenQ Network Projector Operation Guide for more details.
BenQ Network Projector Operation Guide can be downloaded from BenQ product webpage.
Presenting from a USB Reader
This feature allows you to browse the image and document files stored on a USB flash drive connected to the projector. It can eliminate the need for a computer source.
Supported file formats
- Photo
| Image format Size limitation | |
| JPEG 8000 x 6000 |
- BMP resolution supports up to 1600x1200(3.2 seconds).
- JPEG progressive resolution supports up to 1600 x 120.
- BMP and JPEG progressive (SW decode) only show icon.
-
Unsupported BMP and JPGE file will show unsupported icon.
-
Document
| Image format Support version Size limitation | ||
| Adobe PDF | PDF 1.3 | Up to 75MB |
| PDF 1.4 | ||
| PDF 1.5 | ||
| PDF 1.6 | ||
| MS Word | Word 97, 2000, 2002, 2003. | Up to 100MB |
| Word 2007 (.docx), 2010 (.docx) | ||
| MS Excel | Excel 97, 2000, 2002, 2003. | Up to 15MB |
| Excel 2007 (.xlsx), 2010 (.xlsx). | ||
| MS PowerPoint | British PowerPoint 97. | Up to 19MB |
| PowerPoint 2000, 2002, 2003. | ||
| PowerPoint 2007 (.pptx). | ||
| PowerPoint 2010 (.pptx). | ||
- MS Word does not support Bold Text in Simplified Chinese front.
- MS Excel does not support password-protected sheets.
- MS PowerPoint does not support SlideShow order.
Viewing the files
I. Plug the USB flash drive into the USB TYPE-A port of the projector.
2. A dialog is shown for quick source switching. Select Yes to enter USB Reader source.
3. Main menu will show up. Storages are classified as Photo and Document.
4. Choose Photo or Document and press OK to view files or folders.
5. Press ▲/▶/▼/◀ to select and press OK to enter the subfolder or display a file.
6. After a file is displayed, press OK to call out the function bar. You can press ◀/▶ select the function and press OK to enact the selected item in the function bar.
The storage limit on the USB flash drive is 64GB.

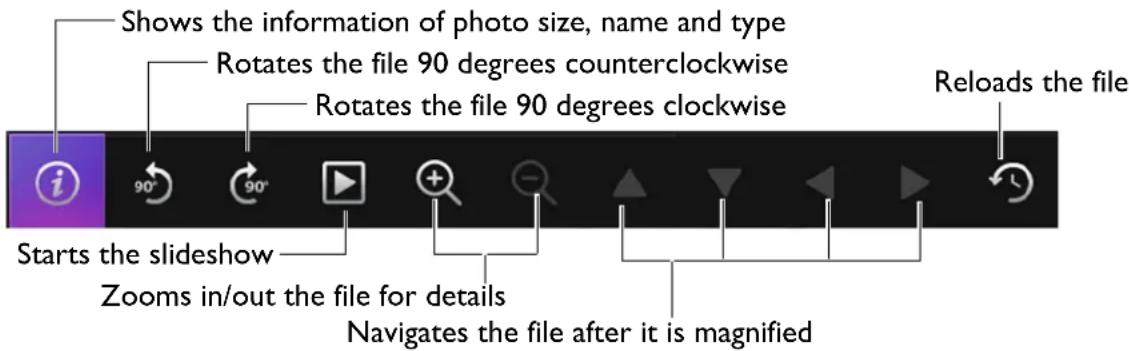

• Function bar for viewing photos
• Function bar for viewing documents
Shutting down the projector
I. Press ☐ on the projector or on the remote control and a confirmation message will appear prompting you. If you don't respond in a few seconds, the message will disappear.
-
Press ☐ a second time. The power indicator flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.
-
Once the cooling process finishes, the power indicator becomes a steady orange and fans stop. Disconnect the power cord from the power outlet.
• To protect the lamp, the projector will not respond to any commands during the cooling process.
• To shorten the cooling time, you can also activate the Quick cooling function. See Quick Cooling on page 36.
- Avoid turning on the projector immediately after turning it off as excessive heat may shorten lamp life.
- Lamp life results will vary depending on environmental conditions and usage.
Direct power off
The AC power cord can be pulled out right after the projector is turned off. To protect the lamp, wait about 10 minutes before re-starting the projector. If you attempt to re-start the projector, the fans may run for a few minutes to cool down. In such cases, press ⏻ or 📁 again to start the projector after the fans stop and the power indicator turns orange.
Menu operation
Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.
The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.
Basic menu
| Brightness | The higher the value, the brighter the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible. | ||||
| Aspect Ratio | There are several options to set the image's aspect ratio depending on your input signal source. | ||||
| • Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. |  16:9 picture | (MX731) | (MW732) (MH733) |  | |
| • Real: Projects an image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size. |  4:3 picture |  |  |  | |
 16:9 picture |  |  |  | ||
| • 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. |  4:3 picture |  |  |  | |
| • 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. |  16:9 picture |  |  |  | |
| • 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. |  16:10 picture |  |  |  | |
| Picture Mode | The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.Bright:Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.Presentation:Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.sRGB:Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.Infographic:Is perfect for presentations with the mixture of text and graphics due to its high color brightness and better color gradation to see the details clearly.3D:Is appropriate for playing 3D images and 3D video clips.User I/User 2:Recalls the settings customized based on the current available picture modes. See Reference Mode on page 32. |
| Volume Adjusts | the sound level. |
| Lamp Mode See | Setting the Lamp Mode on page 42. |
| Wireless LAN | See BenQ Network Projector Operation Guide, which can be downloaded from BenQ product webpage. |
| Information | Native Resolution:Shows the native resolution of the projector.Detected Resolution:Shows the native resolution of the input signal.Source:Shows the current signal source.Picture Mode:Shows the selected mode in the Picture menu.Lamp Mode:Shows the selected mode in the Lamp Settings menu.3D Format:Shows the current 3D mode.Color System:Shows input system format.Lamp Usage Time:Shows the number of hours the lamp has been used.Firmware Version:Shows the firmware version of your projector. |
| Menu Type | Switches to the Advanced OSD menu. See Using the menus on page 24. |
Advanced menu
| Picture Mode | The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.·Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.·Presentation: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.Infographic: Is perfect for presentations with the mixture of text and graphics due to its high color brightness and better color gradation to see the details clearly.3D: Is appropriate for playing 3D images and 3D video clips.User I/User 2: Recalls the settings customized based on the current available picture modes. See Reference Mode on page 32. |
| Reference Mode | There are 2 user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User I/User 2) as a starting point and customize the settings.1. Go to Picture > Picture Mode.2. Press ◀/► to select User I or User 2.3. Press ▼ to highlight Reference Mode, and press ◀/► to select a picture mode that is closest to your need.4. Press ▼o select a menu item to be changed and adjust the value. The adjustments define the selected user mode. |
| Brightness | The higher the value, the brighter the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible. |
| Contrast | The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment. |
| Color | Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic. |
| Sharpness | The higher the value, the sharper the picture becomes. |
| Brilliant Color | This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On.When Off is selected, the Color Temperature function is not available.Color TemperatureThere are several preset color temperature settings available. The available settings may vary according to the signal type selected.Normal:Maintains normal colorings for white.Cool:Makes images appear bluish white.Warm:Makes images appear reddish white. |
| Color Temperature TuningYou can also set a preferred color temperature by adjusting the following options.R Gain/G Gain/B Gain:Adjusts the contrast levels of Red, Green, and Blue.R Offset/G Offset/B Offset:Adjusts the brightness levels of Red, Green, and Blue. | |
Color ManagementThis function provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.Primary Color:Selects a color from among R (Red), G (Green), B (Blue), C (Cyan), M (Magenta), or Y (Yellow).Hue:Increase in the range will include colors consisted of more proportions of its two adjacent colors. Please refer to the illustration for how the colors relate to each other.For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.Saturation:Adjusts the values to your preference. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected. Saturationis the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.Gain:Adjusts the values to your preference. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately. | |
| Advanced Color Settings | Wall ColorCorrects the projected picture’s color when the projection surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures. There are several precalibrated colors to choose from:Light Yellow, Pink, Light Green, Blue, and Blackboard. |
| Reset Picture | Returns all of the adjustments you’ve made for thePicturemenu to the factory preset values. |
Display
| Aspect Ratio | There are several options to set the image's aspect ratio depending on your input signal source. | |||
| • Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. | (MX731) | (MW732) (MH733) | ||
 |  |  | ||
| 16:9 picture | ||||
| • Real: Projects an image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size. |  |  |  | |
| 4:3 picture | ||||
 |  |  | ||
| 16:9 picture | ||||
| • 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. |  |  |  | |
| 4:3 picture | ||||
| • 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. |  |  |  | |
| 16:9 picture | ||||
| • 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. |  |  |  | |
| 16:10 picture | ||||
| 2D Keystone | See Correcting keystone on page 17. | |||
| Auto Vertical Keystone | ||||
| Corner Fit See Adjusting Corner Fit on page 18. | ||||
| Test Pattern | Adjusts the image size and focus and check that the projected image is free from distortion.  | |||
| PC & Component YPbPr Tuning | • Phase: Adjusts the clock phase to reduce image distortion. This function is only available when a PC signal (analog RGB) or YPbPr signal is selected.  | |||
| • H. Size: Adjusts the horizontal width of the image. This function is only available when a PC signal (analog RGB) is selected. | ||||
| Position | Displays the position adjustment page. To move the projected image, use the directional arrow keys. This function is only available when a PC signal (analog RGB) is selected. | |||
| 3D | This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.3D Mode: The default setting is Off. If you want the projector to automatically choose an appropriate 3D format when detecting 3D contents, select Auto. If the projector cannot recognize the 3D format, press ▲ to choose a 3D mode from among Top Bottom, Frame Sequential, Frame Packing and Side by Side. When 3D function is activated:The brightness level of the projected image will decrease.The following settings cannot be adjusted: Picture Mode, Reference Mode.The 2D Keystone can only be adjusted within limited degrees.3D Sync Invert: When you discover the inversion of the image depth, enable this function to correct the problem.Apply 3D Settings: After the 3D settings are saved, you can decide if you would like to apply them by choosing a set of 3D settings that you have saved. Once applied, the projector will automatically play the incoming 3D contents if it matches the 3D settings saved. Only the set(s) of 3D settings with memorized data is available.Save 3D Settings: When you have successfully displayed the 3D contents after making the appropriate adjustments, you can enable this function and choose a set of 3D settings to memorize current 3D settings. | |||
| HDMI Format | Selects a suitable color format to optimize display quality.Auto: Automatically selects a suitable color space and gray level for the incoming HDMI signal.RGB Limited: Utilizes the Limited range RGB 16-235.RGB Full: Utilizes the Full range RGB 0-255.YUV Limited: Utilizes the Limited range YUV 16-235.YUV Full: Utilizes the Full range YUV 0-255. | |||
| Digital Zoom | Magnifies or reduces the projected image.After the Zoom bar displays, press ▲ repeatedly to magnify the picture to a desired size.To navigate the picture, press OK to switch to the panning mode and press the directional arrows (▲ ,▼ ) ▲ on the projector or remote control to navigate the picture.To reduce size of the picture, press OK to switch back to the zoom in/out function, and press AUTO to restore the picture to its original size. You can also press repeatedly until it is restored to the original size. The picture can only be navigated after it is magnified. You can further magnify the picture while searching for details. | |||
| Reset Display | Returns all of the adjustments you’ve made for the Display menu to the factory preset values. | |||
Network
| Wireless LAN | See BenQ Network Projector Operation Guide, which can be downloaded from BenQ product webpage. |
| Wired LAN | |
| AMX Device Discovery | When this function is On, the projector can be detected by AMX controller. |
| MAC Address (Wireless) | Displays the mac address for this projector. |
| MAC Address (Wired) |
Settings
| Projector Installation | The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See Choosing a location on page 12. |
| Remote Receiver | Allows you to enable all the remote receivers or one specific remote receiver on the projector. |
| Auto Source Search | • Allows the projector to automatically search for a signal. The following signal source(s) will not be automatically detected by the projector, and you'll have to manually select it from the source selection bar: Network Display, USB Reader. |
| Auto Signal Adjustment | • On: Allows the projector to automatically determines the best picture timings for the displayed image when PC signal (analog RGB) is selected and AUTO is pressed.• Off: The projector will not respond when AUTO is pressed. |
| Lamp Settings | • Lamp Mode: See Setting the Lamp Mode on page 42.• Reset Lamp Timer: See Resetting the lamp timer on page 45.• Lamp Timer: Displays the number of hours the lamp has been used. |
| Operation Settings | Quick Cooling:Selecting On enables the function and projector cooling time will be shortened from a normal 90-second duration to approximately 15 seconds. |
| Blank TimerSets the image blank time when there is no action taken on the blank screen, once elapsed the image will return to the screen. If the preset time spans are not suitable for your need, select Disable. No matter Blank Timer is activated or not, you can press most of the keys on the projector or remote control to restore the picture. | |
| Operation Settings | Reminder MessageSets the reminder messages on or off. |
| High Altitude ModeWe recommend you use the High Altitude Mode when your environment is between 1500 m -3000 m above sea level, and ambient temperature is between 0°C-30°C.Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and ambient temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition. | |
| Power On/Off Settings• Direct Power On: Allows the projector to turn on automatically once the power is fed through the power cord.• Signal Power On: Sets whether to turn the projector directly on without pressing POWER or ON when the projector is in standby mode and detects a VGA signal.• Auto Power Off: Allows the projector to turn off automatically if no input signal is detected after a set period of time to prevent unnecessary waste of lamp life.• Power Off Timer: Sets the auto-shutdown timer. | |
| Instant RestartAllows you to restart the projector immediately within 90 seconds after turning it off. | |
| Security Settings | Panel Key LockWith the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except ⏻ POWER.To release panel key lock, press and hold ▶(the right key) for 3 seconds on the projector or turn this function off using the remote control. If you turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.Change PasswordSee Utilizing the password function on page 25.Power On LockSee Utilizing the password function on page 25.Web Control LockSee Using web control lock on page 27. |
| Baud Rate | Selects a baud rate that is identical with your computer's so that you can connect the projector using a suitable RS-232 cable and update or download the projector's firmware. This function is intended for qualified service personnel. |
| HDMI Equalizer | Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the stronger the gain value. If there are more than one HDMI port on the projector, select the HDMI port first before adjusting the value. |
| MHL Power Switch | Disables or enables 5V power output for HDMI2/MHL port. When selecting Off, the projector provides 5V power through the USB TYPE-A port. |
| Reset Settings | Returns all of the adjustments you've made for the Settings menu to the factory preset values. |
System
| Language Sets the language for the On-Screen Display (OSD) menus. | ||
| Standby Settings | Network: Allows you to make following settings: | |
| Enable Network Standby Mode | Allows the projector to provide the network function in standby mode whenMonitor OutorAudio Pass Throughis activated. | |
| Switch to Normal Standby Mode | Allows the projector to disable the network function after a set period of time after it enters standby mode. For instance, if 20 min is selected, the projector is able to provide the network function for 20 minutes after it enters standby mode. When 20 minutes is up, the projector enters normal standby mode. | |
| Monitor Out: Allows the projector to output a VGA signal when it is in standby mode and thePC I jack and theMONITOR OUTjack are correctly connected to devices.Audio Pass Through:The projector can play sound when it is in standby mode and the corresponding jacks are correctly connected to devices. Presschoose the source that you wish to use. SeeConnection on page 19for how to make the connection. | ||
| Background Settings | Background: Sets the background color for the projector.Splash Screen: Allows you to select which logo screen will be displayed during projector start-up. | |
| Menu Settings | Menu Type: Switches to theBasic OSD menu.Menu Display Time: Sets the length of time the OSD will remain active after your last key press. | |
| Audio Settings | Mute: Temporarily turns off the sound.Volume: Adjusts the sound level.Power On/Off Ring Tone: Turns on or off the ring tone when the projector is in startup and shutdown process. The only way to changePower On/Off Ring Toneis settingOn or Offhere. Setting the sound mute or changing the sound level will not affect thePower On/Off Ring Tone. | |
| Factory Default | Returns all settings to the factory preset values. The following settings will still remain: 2D Keystone, Auto Vertical Keystone, Corner Fit, Wireless LAN, Wired LAN, Projector Installation, Lamp Timer, High Altitude Mode, Security Settings, Baud Rate. | |
| Reset System | Returns all of the adjustments you’ve made for theSystemmenu to the factory preset values. | |
Information
| Information | Native Resolution: Shows the native resolution of the projector.Detected Resolution: Shows the native resolution of the input signal.Source: Shows the current signal source.Picture Mode: Shows the selected mode in the Picture menu.Lamp Mode: Shows the selected mode in the Lamp Settings menu.3D Format: Shows the current 3D mode.Color System: Shows input system format.Lamp Usage Time: Shows the number of hours the lamp has been used.Firmware Version: Shows the firmware version of your projector. |
Maintenance
Care of the projector
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens.
- Use a canister of compressed air to remove dust.
- If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.
- Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as described in Shutting down the projector on page 29 and unplug the power cord.
- To remove dirt or dust, wipe the case with a soft, lint-free cloth.
- To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions below:
- Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to Specifications on page 48 or consult your dealer about the range.
- Retract the adjuster feet.
- Remove the battery from the remote control.
- Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
Lamp information
Getting to know the lamp hour
When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:
Lamp Usage Time = (hours used in Normal mode) + (hours used in Economic mode) + (hours used in SmartEco mode) + (hours used in LampSave mode)
Total (equivalent) lamp hour = 3.75 x (hours used in Normal mode) + 1.875 x (hours used in Economic mode) + 1.875 x (hours used in SmartEco mode) + 1 x (hours used in LampSave mode)
To obtain the lamp hour information:
I. Go to Advanced Menu - Settings > Lamp Settings and press OK. The Lamp Settings page appears.
2. Press ▼ to select Lamp Timer and press OK. The Lamp Timer information is displayed.
You can also get the lamp hour information on the Information menu.
Extending lamp life
- Setting the Lamp Mode
Go to Advanced Menu - Settings > Lamp Settings > Lamp Mode and select a suitable lamp power from among the provided modes.
Setting the projector in Economic, SmartEco or LampSave mode extends lamp life.
| Lamp mode Description | |
| Normal Provides full lamp brightness | |
| Economic | Lowers brightness to extend the lamp life and decreases the fan noise |
| SmartEco | Adjusts the lamp power automatically depending on the content brightness level while optimizing display quality |
| LampSave | Adjusts the lamp power automatically depending on the content brightness level while offering a longer lamp life |
- Setting Auto Power Off
This function allows the projector to turn off automatically if no input signal is detected after a set period of time to prevent unnecessary waste of lamp life.
To set Auto Power Off, go to Advanced Menu - Settings > Power On/Off Settings > Auto Power Off and press ◀.
Timing of replacing the lamp
When the Lamp indicator lights up or a message appears suggesting it is time to replace the lamp, please consult your dealer or go to http://www.BenQ.com before installing a new lamp. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.
- The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.
- The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This is normal and expected behavior.
- The LAMP indicator light and TEMPerature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See Indicators on page 46.
The following Lamp warning displays will remind you to change the lamp.
Notice
Order a replacement lamp
Equivalent lamp hour >XXXX hours
Order a new lamp at www.BenQ.com
OK | Install a new lamp for optimal performance. Press OK to dismiss the message.It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.Press OK to dismiss the message. |
 | The lamp MUST be replaced before the projector will operate normally.Press OK to dismiss the message. |
 |
"XXXX" shown in the above messages are numbers that vary depending on different models.
Replacing the lamp
- To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.
- To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
- To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.
- To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.
- This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.
- To assure optimal performance from the projector, it is recommended that you purchase a qualified projector lamp for lamp replacement.
- If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.
-
Ensure good ventilation when handling broken lamps. We recommend that you use respirators, safety glasses, goggles or face shield and wear protective clothing such as gloves.
-
Turn the power off and disconnect the projector from the power outlet. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.
- Loosen the screw(s) that secure the lamp cover on the side of the projector until the lamp cover loosens.
- Do not turn the power on with the lamp cover open.
-
Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries
-

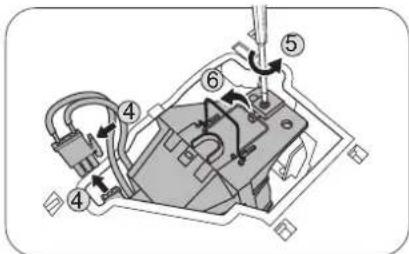

Disconnect the lamp connector.
- Loosen the screw(s) that secure the inner lamp.
-
Lift the handle so that it stands up.
-

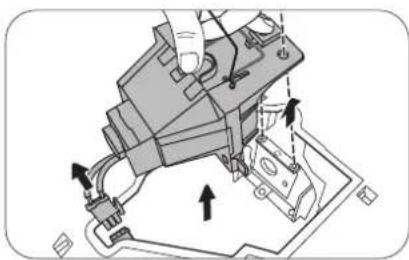

Use the handle to slowly pull the lamp out of the projector.
- Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.
- Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
-
Do not insert your hands into the projector after the lamp is removed. The sharp edges inside the projector may cause injuries. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.
-

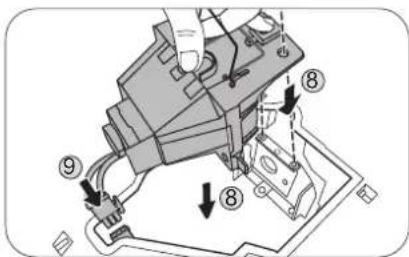

As shown in the figure, insert the new lamp. Align the lamp connector and 2 sharp points with the projector and push the lamp a bit into the locked position.
-
Insert the lamp connector.
-

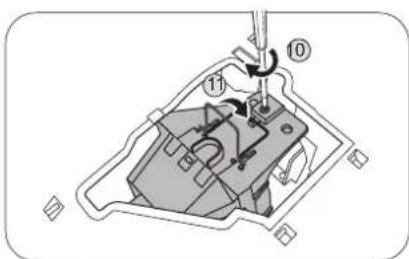

Tighten the screw(s) that secures the lamp.
II. Ensure the handle is fully laid flat and locked in place.
- Loose screw may cause a bad connection, which could result in malfunction.
-
Do not over tighten the screw.
-
Replace the lamp cover on the projector.
- Loose screw may cause a bad connection, which could result in malfunction.
-
Do not over tighten the screw.
-
.Connect the power and restart the projector.
Resetting the lamp timer
(OSD) menu. Go to Advanced Menu - Settings > Lamp Settings and press OK. The Lamp Settings page appears. Highlight Reset Lamp Timer and press OK. A warning message is displayed asking if you want to reset the lamp timer. Highlight Reset and press OK. The lamp time will be reset to "0".
Do not reset if the lamp is not new or replaced as this could cause damage.
Indicators
| Light | Status & Description | ||
| POWER o | TEMP o | LAMP o | |
| Power events | |||
| ○ | ○ | Stand-by mode | |
| ○ | ○ | Powering up | |
| ○ | ○ | Normal operation | |
| ○ | ○ | Normal power-down cooling | |
| Download | |||
| ○ | ● | CW start fail | |
| Lamp events | |||
| ○ | ○ | ● | Lamp error in normal operation |
| ○ | ○ | ● | Lamp is not lit up |
| ○ | ● | Lamp life exhausted | |
| Thermal events | |||
| ● | ○ | Fan 1 error (the actual fan speed is outside the desired speed) | |
| ● | ○ | Fan 2 error (the actual fan speed is outside the desired speed) | |
| ● | ○ | Fan 3 error (the actual fan speed is outside the desired speed) | |
| ● | ○ | Temperature 1 error (over limited temperature) | |
| ● | ○ | Thermal sensor 1 open error | |
| ● | ○ | Thermal sensor short error | |
| ● | ○ | Thermal IC #1 12C connection error | |
| ● | ○ | Thermal IC #2 12C connection error | |
| ● | ● | Thermal break error | |
| ● | ○ | Ambient temperature above 40 °C* | |
*The projector will initiate a self-security mechanism from full power stand-by mode to low power stand-by mode when the environment temperature is over 40 degrees. Please note that the projector's Wake On LAN function will be limited. We suggest you to turn on the projector manually if needed.
 |  |  | [F48X8] | [2A2A] |
Troubleshooting
The projector does not turn on.
| Cause Remedy | |
| There is no power from the power cord. | Plug the power cord into the AC power jack on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on. |
| Attempting to turn the projector on again during the cooling process. | Wait until the cooling down process has completed. |
No picture
| Cause Remedy | |
| The video source is not turned on or connected correctly. | Turn the video source on and check that the signal cable is connected correctly. |
| The projector is not correctly connected to the input signal device. | Check the connection. |
| The input signal has not been correctly selected. | Select the correct input signal with the SOURCE key. |
| The lens cover is still closed. Open the lens cover. |
Blurred image
| Cause Remedy | |
| The projection lens is not correctly focused. | Adjust the focus of the lens using the focus ring. |
| The projector and the screen are not aligned properly. | Adjust the projection angle and direction as well as the height of the projector if necessary. |
| The lens cover is still closed. Open the lens cover. |
Remote control does not work.
| Cause Remedy | |
| The batteries are out of power. Replace both of the batteries with new ones. | |
| There is an obstacle between the remote control and the projector. | Remove the obstacle. |
| You are too far away from the projector. Stand within 8 meters (26 feet) of the projector. | |
The password is incorrect.
| Cause | Remedy |
| You do not remember the password. | See Entering the password recall procedure on page 26. |
Specifications
Projector specifications
All specifications are subject to change without notice.
Optical
Resolution
1024 x 768 XGA (MX731)
1280 x 800 WXGA (MW732)
1920 (H) x 1080 (V) (MH733)
Display system
1-CHIP DMD
Lens
F = 2.59 2.87,f = 16.88 21.88mm
Lamp
240 W lamp
Electrical
Power supply
AC100–240V, 3.5 A, 50–60 Hz (Automatic)
Power consumption
355 W (Max); < 0.5 W (Standby);
< 2 W (when the Network function in the Standby
Settings is on)
Mechanical
Weight
2.5 Kg ± 100 g
Output terminals
RGB output
D-Sub 15-pin (female) x 1
Speaker
10 watt x 1
Audio signal output
PC audio jack x 1
Control
RS-232 serial control
9 pin x 1
LAN control
RJ45 x 1
IR receiver x 2
Input terminals
Computer input
RGB input
D-Sub 15-pin (female) x 1
Video signal input
SD/HDTV signal input
Analog - Component
(through RGB input)
Digital - HDMI x 1;
HDMI/MHL x 1
Audio signal input
Audio in
PC audio jack x 1
USB
Mini-B x 1
Type-A x 1 (optional for USB wireless dongle)
Type-A (power supply 5V /1A, optional for USB flash drive)
Environmental Requirements
Operating temperature
0^-40^ at sea level
Operating relative humidity
10%-90% (without condensation)
Operating altitude
0–1499 m at 0°C–35°C
1500–3000 m at 0°C–30°C (with
High Altitude Mode on)
Storage temperature
-20°C–60°C at sea level
Storage humidity
10%-90% RH (without condensation)
Storage altitude
30°C@ 0\~12,200m above sea level
Transporting
Original packing or equivalent is recommended
Repairing
Please visit below website and choose your country to find your service contact window.
http://www.benq.com/welcome
Dimensions
Unit: mm
Timing chart
Supported timing for PC input
| Resolution Mode | Vertical Frequency (Hz) | Horizontal Frequency (kHz) | Pixel Frequency (MHz) | Supported 3D format | |||
| Frame Sequential | Top Bottom | Side by Side | |||||
| 640 x 480 | VGA_60 59.94 | 31.469 25.17 | 5 V V V | ||||
| VGA_72 72.80 | 37.861 31.500 | ||||||
| VGA_75 75.00 | 37.500 31.500 | ||||||
| VGA_85 85.00 | 43.269 36.000 | ||||||
| 720 x 400 720 x 400_70 70.087 31.469 28.3221 | |||||||
| 800 x 600 | SVGA_60 60.3 | 17 37.879 40.00 | 0 V V V | ||||
| SVGA_72 72.1 | 88 48.077 50.000 | ||||||
| SVGA_75 75.00 | 00 46.875 49.500 | ||||||
| SVGA_85 85.00 | 61 53.674 56.250 | ||||||
| SVGA_120 (Reduce Blanking) | 119.854 77.425 | 83.000 | V | ||||
| 1024 x 768 | XGA_60 60.00 | 48.363 65.00 | 0 V V V | ||||
| XGA_70 70.06 | 9 56.476 75.000 | ||||||
| XGA_75 75.02 | 9 60.023 78.750 | ||||||
| XGA_85 84.99 | 7 68.667 94.500 | ||||||
| XGA_120 (Reduce Blanking) | 119.989 97.551 | 115.5 | V | ||||
| 1152 x 864 | 1152 x 864_75 75 | 67.5 | 108 | ||||
| 1024 x 576 | BenQ Notebook_timing | 60.0 | 35.820 46.966 | ||||
| 1024 x 600 | BenQ Notebook_timing | 64.995 41.467 | 51.419 | ||||
| 1280 x 720 1280 x 720_60 60 | 45.000 74.25 | 0 V V V | |||||
| 1280 x 768 | 1280 x 768_60 | 59.87 | 47.776 | 79.5 | V | V | V |
| 1280 x 800 | WXGA_60 59.8 | 10 49.702 83.5 | 0 V V V | ||||
| WXGA_75 74.9 | 34 62.795 | 106.500 | |||||
| WXGA_85 84.8 | 80 71.554 | 122.500 | |||||
| WXGA_120 (Reduce Blanking) | 119.909 | 101.563 | 146.25 V | ||||
| 1280 x 1024 | SXGA_60 60.0 | 20 63.981 | 108.000 | V V | |||
| SXGA_75 75.0 | 25 79.976 | 135.000 | |||||
| SXGA_85 85.0 | 24 91.146 | 157.500 | |||||
| 1280 x 960 | 1280 x 960_60 | 60.000 60.000 | 108.000 | V V | |||
| 1280 x 960_85 | 85.002 85.938 | 148.500 | |||||
| 1360 x 768 1360 x 768_60 60.015 47.712 85.5 | V V | ||||||
| 1400 x 1050 | SXGA+_60 | 59.978 | 65.317 | 121.750 | V | V | |
| 1440 x 900 | WXGA+_60 | 59.887 | 55.935 | 106.500 | V | V | |
| 1600 x 1200 | UXGA | 60.000 | 75.000 | 162.000 | V | V | |
| 1680 x 1050 | 1680 x 1050_60 | 59.954 | 65.290 | 146.250 | V | V | |
| 640 x 480@67Hz | MAC13 | 66.667 35.00 | 30.240 | ||||
| 832 x 624@75Hz | MAC16 | 74.546 49.72 | 25.7280 | ||||
| 1024 x 768@75Hz | MAC19 | 74.93 | 60.241 | 80.000 | |||
| 1152 x 870@75Hz MAC21 75.060 68.680 | 100.000 | ||||||
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.
Supported timing for HDMI (HDCP) input
- PC timings
| Resolution Mode | Vertical Frequency (Hz) | Horizontal Frequency (kHz) | Pixel Frequency (MHz) | Supported 3D format | |||
| Frame Sequential | Top Bottom | Side by Side | |||||
| 640 x 480 | VGA_60 | 59.940 | 31.469 | 25.175 | V | V | V |
| VGA_72 | 72.809 | 37.861 | 31.500 | ||||
| VGA_75 | 75.000 | 37.500 | 31.500 | ||||
| VGA_85 | 85.008 | 43.269 | 36.000 | ||||
| 720 x 400 720 x 400_70 70.087 31.469 28.3221 | |||||||
| 800 x 600 | SVGA_60 | 60.317 | 37.879 | 40.000 | V | V | V |
| SVGA_72 | 72.188 | 48.077 | 50.000 | ||||
| SVGA_75 | 75.000 | 46.875 | 49.500 | ||||
| SVGA_85 | 85.061 | 53.674 | 56.250 | ||||
| SVGA_120 (Reduce Blanking) | 119.854 77.425 83.000 V | ||||||
| 1024 x 768 | XGA_60 | 60.004 | 48.363 | 65.000 | V | V | V |
| XGA_70 | 70.069 | 56.476 | 75.000 | ||||
| XGA_75 | 75.029 | 60.023 | 78.750 | ||||
| XGA_85 | 84.997 | 68.667 | 94.500 | ||||
| XGA_120 (Reduce Blanking) | 119.989 97.551 115.5 V | ||||||
| 1152 x 864 | 1152 x 864_75 | 75 | 67.5 | 108 | |||
| 1280 x 768 1280 x 768_60 59.87 | 47.776 | 79.5 | |||||
| 1024 x 576@60Hz | BenQ Notebook Timing | 60.00 | 35.820 46.996 | ||||
| 1024 x 600@65Hz | BenQ Notebook Timing | 64.995 41.467 51.419 | |||||
| 1280 x 720 1280 x 720_60 60 45.000 74.250 V V V | |||||||
| 1280 x 768 | 1280 x 768_60 | 59.870 | 47.776 | 79.5 | V | V | V |
| 1280 x 800 | WXGA_60 | 59.810 | 49.702 | 83.500 | V | V | V |
| WXGA_75 | 74.934 | 62.795 | 106.500 | ||||
| WXGA_85 | 84.880 | 71.554 | 122.500 | ||||
| WXGA_120 (Reduce Blanking) | 119.909 | 101.563 146.25 V | |||||
| 1280 x 1024 | SXGA_60 | 60.020 | 63.981 | 108.000 | V | V | |
| SXGA_75 75.025 79.976 135.000 | |||||||
| SXGA_85 85.024 91.146 157.500 | |||||||
| 1280 x 960 | 1280 x 960_60 | 60.000 60.000 108 | V V | ||||
| 1280 x 960_85 | 85.002 85.938 148.500 | ||||||
| 1360 x 768 1360 x 768_60 60.015 47.712 85.500 V V | |||||||
| 1440 x 900 | WXGA+_60 | 59.887 | 55.935 | 106.500 | V | V | |
| 1400 x 1050 SXGA+_60 59.978 65.317 121.750 V V | |||||||
| 1600 x 1200 | UXGA | 60.000 | 75.000 | 162.000 | V | V | |
| 1680 x 1050 | 1680 x 1050_60 | 59.954 | 65.290 | 146.250 | V | V | |
| 1920 x 1080@60Hz | 1920 x 1080_60 | 60 | 67.5 | 148.5 | V | V | |
| 1920 x 1200 | 1920 x 1200_60 (Reduce Blanking) | 59.950 74.038 154.0000 V V | |||||
| 640 x 480@67Hz | MAC13 | 66.667 35.000 30.240 | |||||
| 832 x 624@75Hz | MAC16 | 74.546 49.722 57.280 | |||||
| 1024 x 768@75Hz | MAC19 | 75.020 60.241 80.000 | |||||
| 1152 x 870@75Hz MAC21 75.06 68.68 100.00 | |||||||
The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.
- Video timings
| Timing Resolution | Vertical Frequency (Hz) | Horizontal Frequency (kHz) | Pixel Frequency (MHz) | Supported 3D format | ||||
| Frame Sequential | Frame Packing | Top Bottom | Side by Side | |||||
| 480i 720 | x 480 59.94 | 15.73 27 V | ||||||
| 480p 720 | x 480 59.94 | 31.47 27 V | ||||||
| 576i 720 | x 576 50 15.6 | 3 27 | ||||||
| 576p 720 | x 576 50 31.2 | 25 27 | ||||||
| 720/50p 12 | 80 x 720 50 3 | 7.5 74.25 | V V | V | ||||
| 720/60p | 1280 x 720 | 60 | 45.00 | 74.25 | V | V | V | V |
| 1080/50i | 1920 x 1080 | 50 | 28.13 | 74.25 | V | |||
| 1080/60i | 1920 x 1080 | 60 | 33.75 | 74.25 | V | |||
| 1080/24P | 1920 x 1080 | 24 | 27 | 74.25 | V | V | V | |
| 1080/25P | 1920 x 1080 | 25 28.13 | 74.25 | |||||
| 1080/30P | 1920 x 1080 | 30 33.75 | 74.25 | |||||
| 1080/50P | 1920 x 1080 | 50 | 56.25 | 148.5 | V | V | ||
| 1080/60P | 1920 x 1080 | 60 | 67.5 | 148.5 | V | V | ||
Supported timing for MHL input
| Timing | Resolution | Vertical Frequency (Hz) | Horizontal Frequency (kHz) | Pixel Frequency (MHz) |
| 480i | 720 (1440) x 480 | 59.94 | 15.73 | 27 |
| 480p | 720 x 480 | 59.94 | 31.47 | 27 |
| 576i | 720 (1440) x 576 | 50 | 15.63 | 27 |
| 576p | 720 x 576 | 50 | 31.25 | 27 |
| 720/50p | 1280 x 720 | 50 | 37.5 | 74.25 |
| 720/60p | 1280 x 720 | 60 | 45.00 | 74.25 |
| 1080/24P | 1920 x 1080 | 24 | 27 | 74.25 |
| 1080/25P | 1920 x 1080 | 25 | 28.13 | 74.25 |
| 1080/30P | 1920 x 1080 | 30 | 33.75 | 74.25 |
| 1080/50i | 1920 x 1080 | 50 | 28.13 | 74.25 |
| 1080/60i | 1920 x 1080 | 60 | 33.75 | 74.25 |
| 1080/50p | 1920 x 1080 | 50 | 56.25 | 148.5 |
| 1080/60p | 1920 x 1080 | 60 | 67.5 | 148.5 |
Supported timing for Component-YPbPr input
| Timing | Resolution | Vertical Frequency (Hz) | Horizontal Frequency (kHz) | Pixel Frequency (MHz) | Supported 3D format |
| Frame Sequential | |||||
| 480i | 720 x 480 | 59.94 | 15.73 | 13.5 | V |
| 480p | 720 x 480 | 59.94 | 31.47 | 27 | V |
| 576i | 720 x 576 | 50 | 15.63 | 13.5 | |
| 576p | 720 x 576 | 50 | 31.25 | 27 | |
| 720/50p | 1280 x 720 | 50 | 37.5 | 74.25 | |
| 720/60p | 1280 x 720 | 60 | 45.00 | 74.25 | V |
| 1080/50i | 1920 x 1080 | 50 | 28.13 | 74.25 | |
| 1080/60i | 1920 x 1080 | 60 | 33.75 | 74.25 | |
| 1080/24P | 1920 x 1080 | 24 | 27 | 74.25 | |
| 1080/25P | 1920 x 1080 | 25 | 28.13 | 74.25 | |
| 1080/30P | 1920 x 1080 | 30 | 33.75 | 74.25 | |
| 1080/50P | 1920 x 1080 | 50 | 56.25 | 148.5 | |
| 1080/60P | 1920 x 1080 | 60 | 67.5 | 148.5 |
Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.
- Warranty and Copyright information
- Limited warranty
- Copyright
- Disclaimer
- Patents
- Table of Contents
- Warranty and Copyright information 2
- Important safety instructions 4
- Introduction 7
- Positioning your projector 12
- Connection 19
- Operation 23
- Menu operation 30
- Maintenance 41
- Troubleshooting 47
- Specifications 48
- Important safety instructions
- Introduction
- Shipping contents
- Optional accessories
- Replacing the remote control batteries
- Projector exterior view
- Controls and functions
- Projector & Remote control
- 1.
- POWER
- POWER indicator light/TEMPerture warning light/LAMP indicator light
- BACK
- Arrow keys (▲, ▼)◀ ▶
- SOURCE
- ECO BLANK
- OK
- AUTO
- MENU
- 12.
- LASER
- ZOOM+/ZOOM-
- PAGE/RAGE ▼
- INFO
- FREEZE
- ASPECT
- MODE
- SMART ECO
- QUICK INSTALL
- Operating the LASER pointer
- Controlling your smart device with the remote control
- Remote control effective range
- Positioning your projector
- Choosing a location
- Front Table
- Rear Table
- Front Ceiling
- Rear Ceiling
- Obtaining a preferred projected image size
- Projection dimensions
- MW732
- MH733
- Mounting the projector
- Before mounting the projector
- Ceiling/Wall mount installation diagram
- Adjusting the projected image
- Adjusting the projection angle
- Auto-adjusting the image
- Fine-tuning the image size and clarity
- Correcting keystone
- Auto Vertical Keystone function
- Adjusting Corner Fit
- Connection
- Connecting video source devices
- Connecting audio
- Connecting smart devices
- Connecting a USB flash drive
- Operation
- Starting up the projector
- Using the menus
- Securing the projector
- Using a security cable lock
- Utilizing the password function
- Setting a password
- If you forget the password
- Entering the password recall procedure
- Changing the password
- Disabling the password function
- Switching input signal
- Controlling the projector through a LAN environment
- Using web control lock
- Displaying image via QCast application through a LAN environment
- Presenting from a USB Reader
- Supported file formats
- Viewing the files
- Shutting down the projector
- Direct power off
- Menu operation
- Advanced menu
- Picture
- Information
- Maintenance
- Care of the projector
- Cleaning the lens
- Cleaning the projector case
- Storing the projector
- Transporting the projector
- Lamp information
- Getting to know the lamp hour
- Extending lamp life
- Timing of replacing the lamp
- Replacing the lamp
- Resetting the lamp timer
- Troubleshooting
- Specifications
- Projector specifications
- Optical
- Electrical
- Mechanical
- Output terminals
- Control
- Input terminals
- Environmental Requirements
- Dimensions
- Timing chart
- Supported timing for HDMI (HDCP) input
Brand : BENQ
Model : MW732
Category : Projector
