USER MANUAL KA4002W Home Electric

White modern coffee maker with clear glass lid and red control panel (no visible text or symbols)

Diagram of a portable electric kettle with labeled parts including power outlet, plug, and indicator lights

KNOW YOUR APPLIANCE 11

USER INSTRUCTION 12

CLEANING, MAINTENANCE 13

WARRANTY 14-15

Do not dispose of this appliance with household litter. Please bring it to the public collection centres of your city or return it to the retailer where you bought this appliance.

Power Supply AC 230V, 50Hz

Rated Input 1200 W

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Please enter here the serial number of your appliance:

9

IMPORTANT SAFEGUARDS

IMPORTANT

Before you start using the appliance please read this user manual. Keep the manual for future reference and transfer together with the appliance.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The mains supply voltage shall match the rating of your appliance.
4. Do not operate by means of an external timer or separate remote-control system.
5. Pull the plug if you don't use the appliance or if there is a malfunction. Also pull the plug in the event of a power cut.
6. Do not place this appliance on or near a hot gas cooker or a heated oven. Keep the power cord away from hot surfaces.
7. Do not immerse any part of this appliance in water or any other liquid.
8. The coffee maker shall not be used if it has been dropped or if there are visible signs of damage.
9. The appliance shall be cleaned after use to avoid cultures of fungi growing on it.
10. Pull the plug only by using the plug, not by pulling the cable.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
12. When you don't use the appliance according to these instructions we reject any liability.
13. Do not drop the glass jug. Do not grab for falling glass containers. Cullets can bounce and cause serious injury.
14. Provide for sufficient moving space. Spilled coffee can cause burns. Children are especially vulnerable as their skin surface is smaller.
15. Do not set down the hot glass jug into cold water puddles. The jug could crack and spill the hot coffee.

KNOW YOUR APPLIANCE

ENGLISH

1 2

Diagram of a portable electric heater with labeled parts including power outlet, plug, and indicator lights

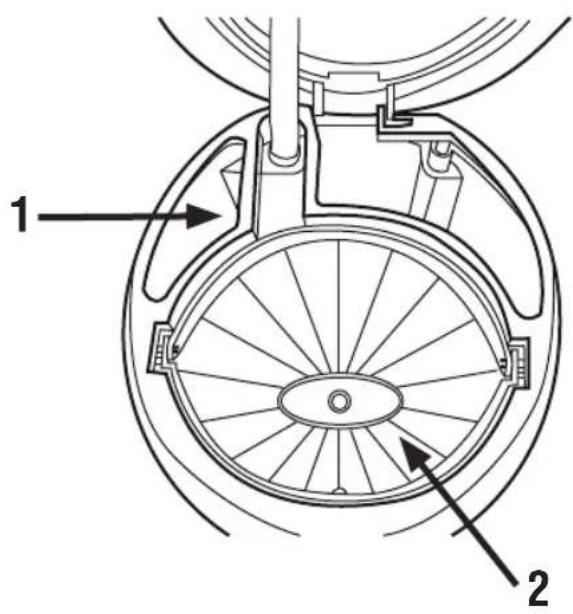

1 Water Container
2 Funnel

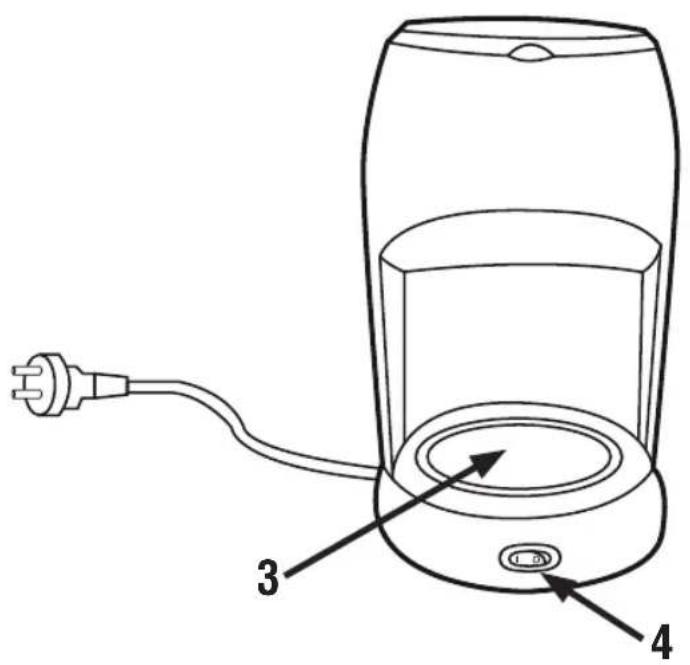

3 Warming Tray
4 Switch

USER INSTRUCTION

Unpack and Check

After unpacking please investigate the coffee maker for damage. Check the glass jug for cracks. Do not use the appliance if it is damaged in any way. Bring it back to the dealership immediately.

Remove all packing material, and keep it away from children.

Fill the water container with cold water and boil one or two cycles to remove production residue. Do not drink this water.

Making Coffee

Fill cold (!) water into the water container behind the funnel. On the right side of the appliance you can see the water level. Do not fill over max. Since cups and pots have non-standard sizes the markings can only serve as reference. You can determine the right amount when you take your favourite cups or pots, fill them with water in fill it then into the water container. For later use you can use a plastic container for filling to save the glass jug from accidents.

Take filter paper, fold it according to instruction of the filter packing and insert it into the funnel. Fill the coffee powder into the filter. The correct amount is a matter of taste. If this is your first coffee, try one teaspoon per cup at first. You can also add other ingredients to improve the taste of the coffee, such as cardamom, nutmeg, salt, etc. DO NOT add anything to the water in the water tank.

The funnel has an anti-drip function. This only works when the lid of the glass jar is closed.

Warming Tray

The warming tray under the glass jug helps to keep the coffee warm during the coffee making process. It is not suitable to keep the coffee warm afterwards. The coffee will cook and the taste will deteriorate. After a few hours the coffee residue will be burnt and the jug will be difficult to clean.

Instead switch off the appliance and use a thermos jug after the coffee is brewed.

CLEANING, MAINTENANCE

• Pull the plug before cleaning. let the appliance cool down.
• The filter with the used coffee ground can be composted.
• Rinse the jug and the funnel in warm soapy water.
• If coffee is burnt-in in the jug, put in soapy water and let it soak for a while.
• Use a damp cloth on the enclosure.
• When you live in an area with hard water, let a solution of water and vinegar run through the appliance once a month. This will dissolve the limescale.
• Clean the main appliance only with a damp cloth. Don't use a sponge and make sure that no water enters the appliance.
• NEVER immerse the appliance in water or other liquids.
• Do not use paint thinner, gasoline, or abrasive cleaners. Abrasive cleaners or utensils make scratches which provide excellent hiding places for fungi and other pests.
• Do not use chemical water softeners for brewing coffee.

Customer Info Manufacturer's Warranty

HOME ELECTRIC

We are pleased that you decided purchasing a product of our house and wish you a lot of fun and joy with this high quality product. Our strict production control ensures the high quality of our equipment. In case you still have a legitimate complaint, we provide a warranty for the duration of

3 Years

from the date of purchase to the following conditions:

This warranty declaration does not limit your statutory warranty rights as a consumer against the seller of the device. Our warranty is only valid for the private use of the device and is limited to the territory of the Federal Republic of Germany.

The warranty period is 3 years from date of purchase.

At the discretion of HOME ELECTRIC, the device will be repaired or replaced or defective parts are replaced. Other claims are excluded.

If you have questions about HOME ELECTRIC products, save yourself the time-consuming way to the retailer and turn directly to our service hotline or our Service Center. A team of highly qualified product consultants and technicians is available to you Monday through Friday from 10am - 6pm.

Service-Telefon: 01805 / 22 17 84 (€ 0,14 per Min)

If you send in your device add a brief description of your complaint to support the rapid settlement. Send your device without exception only to our authorized service partners and please use the enclosed return label.

Should the return label be missing, please contact the above Service hotline.

CAUTION: We don't accept not prepaid items.

Customer Info

Manufacturer's Warranty

HOME

ELECTRIC

To effect a warranty repair our service partner needs Proof of purchase, either as an original invoice from the dealer or the cash-register printed document. Furthermore, the serial number must be legible on the appliance. Without Proof of purchase unfortunately, we can not guarantee free services.

We recommend that you keep the original packaging in order to ensure a safe transportation of the equipment.

Warranty repairs may be performed only by the E2 Servicecenter GmbH. or from their authorized subcontractors or partners.

For other repairs all warranty becomes null and void and no reimbursement is possible.

No warranty is provided for:

improper treatment

mechanical damage to the enclosure

damage during transport

wear and tear

for improper and inappropriate use

for installation of the device in damp rooms or outdoors

for damages caused by force majeure, wars, water, lightning, overvoltage and other cases for

which HOME ELECTRIC is not responsible

in case of excessive use, especially when other than private use

disregarding the instruction manual and installation errors

if the device has no technical defect

for transport and travel cost, as well as setting up and dismantling costs

The warranty does not cover any further liability on our part, particularly not for damages which are not on the device itself or those costs caused by the absence of the device until the return of the repaired or replaced appliance (e.g. transport costs, handling costs, etc.).

However, our legal liability, especially according to the Product Liability Act, is not limited or excluded.

Our repairs do not extend the warranty period of 3 years not even with regard to possibly exchanged Components.

Have fun with your new device and hope that your next product is again a HOME ELECTRIC product.
