USER MANUAL Air Wave S 200 FAKIR

Operating instructions Vacuum cleaner

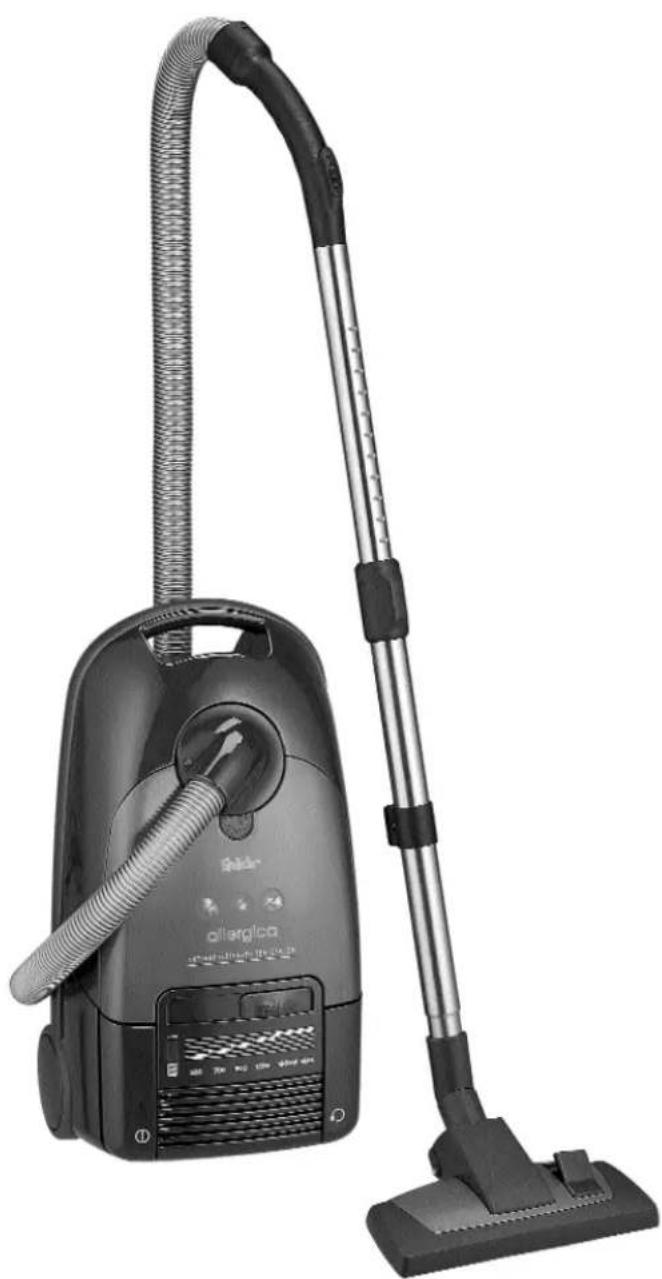

Black and white photo of a vacuum cleaner with coiled hose and control panel (no visible text or symbols)

Inhaltsverzeichnis

Allgemeines....4

Sicherheit 8

Überblick 12

Montage....15

Düsen....17

Bedienung 21

* HEPA = High Efficiency Particulate Air Filter

Auspacken

Simple line drawing of an open box with a black upward arrow indicating motion (no text or symbols)

Close-up of a hand inserting a hose into a car fuel nozzle (no text or symbols visible)

WARNUNG!

Close-up of hands tying a rope knot with a black arrow indicating the knot's direction (no text or symbols present)

Hand holding a black tool with a handle, no visible text or symbols

Instructional images showing hand pressing a component with an arrow, labeled parts 1 and 2, indicating step-by-step installation or repair.

Modell Air Wave:

Close-up of hands holding a vacuum cleaner with a black arrow indicating direction (no text or symbols visible)

Close-up of a mechanical component with labeled parts (1 and 2), no readable text or symbols beyond labels

Close-up of a dark, elongated object with an arrow pointing to a smaller, textured object (no text or symbols visible)

Fugendüse

Close-up of a vacuum cleaner component with labeled part '1' (no text or symbols on the device itself)

Bodensaugdüse

Close-up of a hand holding a small electronic device with a labeled component (no visible text or symbols)

Close-up of a black vacuum cleaner handle with metal clip (no text or symbols visible)

Hartbodendüse

Black 3D T-shaped object with smooth surface and no visible text or symbols

Close-up of a black plastic mechanical component with cylindrical ends and a handle (no text or symbols visible)

Close-up of a mechanical component with a curved cutout and directional arrow (no text or symbols visible)

Close-up of a mechanical component with a labeled arrow pointing to a circular feature (no text or symbols present)

Close-up of a mechanical component with a numbered arrow indicating direction (no visible text or symbols)

Two views of a black mechanical component, one showing a handle and the other showing a tool inserted into a slot (no text or symbols visible)

Close-up of a black rectangular electronic device with a metallic cable and connector (no visible text or symbols)

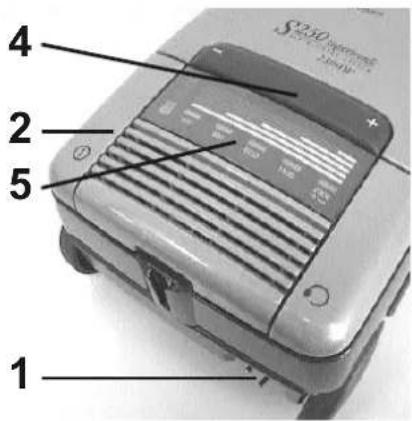

1 2 4 5 S230 portable S230+

HINWEIS!

Close-up of a hand holding a black handheld device with a black arrow indicating motion (no text or symbols visible)

Close-up of a black vacuum cleaner with a labeled component '1' (no visible text or symbols on the device itself)

Close-up of a black vacuum cleaner with attached lever and handle, showing mechanical components and a close-up inset (no text or symbols visible)

ACHTUNG!

Close-up of a hand holding a white plastic object with a circular inset, next to a device labeled '1' (no readable text or symbols on the object itself)

VARI 2

Close-up of a mechanical component with a highlighted circular area, showing no visible text or symbols.

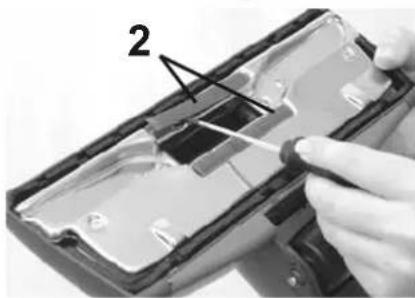

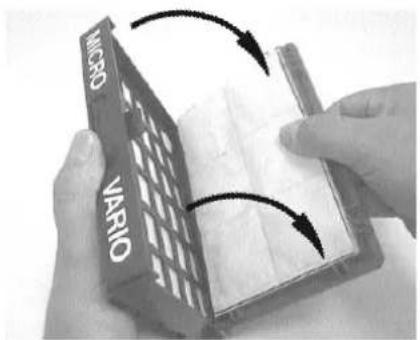

HINWEIS!

Close-up of hands holding a grid-patterned device with a tool, no visible text or symbols

Close-up of hands holding a grid-patterned device with a knife (no visible text or symbols)

Hand holding a closed notebook with visible paper and grid lines (no text or symbols)

V380 VARIO

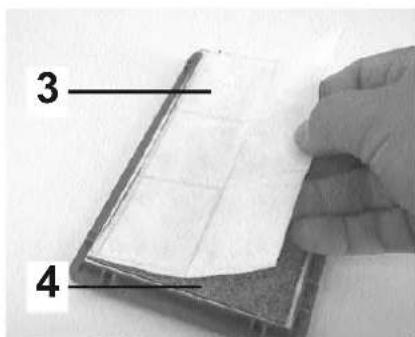

Modell Air Wave:

dilergica PRAVING CARD NET FLOW 100%

Reinigen

HINWEIS!

Table of contents General 30

Table of contents 30

Air Wave 31

Allergica....31

Information about the operating instructions ....33

Liability....33

Information in the operating instructions ....33

Safety....34

CE-declaration of conformity ....34

Intended use....34

Unauthorized use 34

Electrical power 36

In case of danger....36

In case of a defect....37

Shipping....37

Overview....38

Description of the device ....38

Delivery scope ....38

Parts and functions....39

Technical data....39

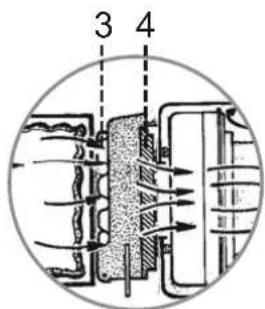

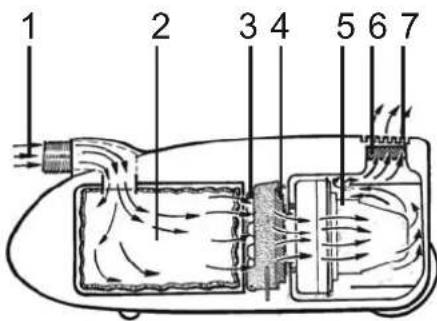

The filter system ....40

Assembly....41

Unpacking....41

Assembly 41

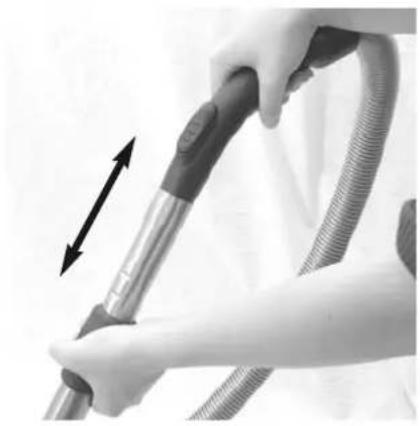

Setting the length of the suction pipe....43

Nozzles 43

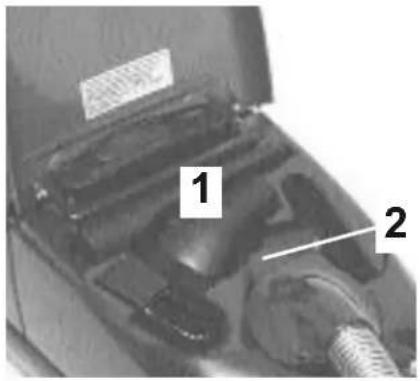

Storage 43

Use 43

Operation....47

Vacuum cleaning 47

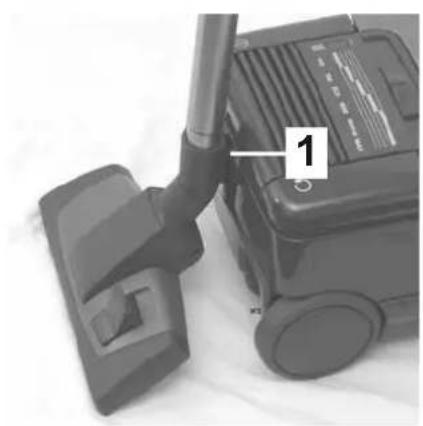

Work breaks 48

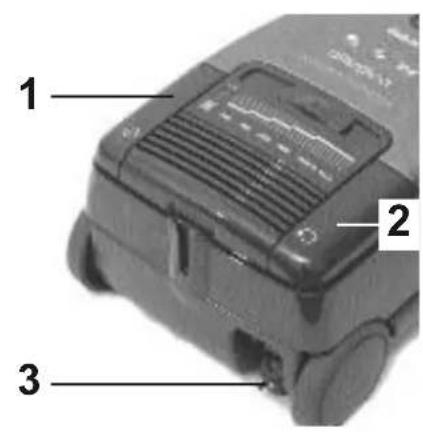

After vacuum cleaning....48

After use 49

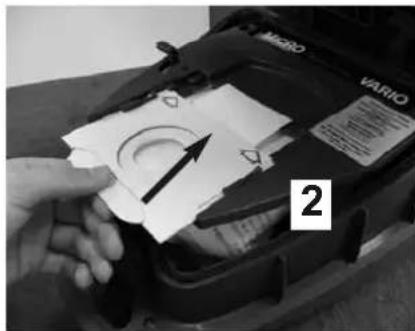

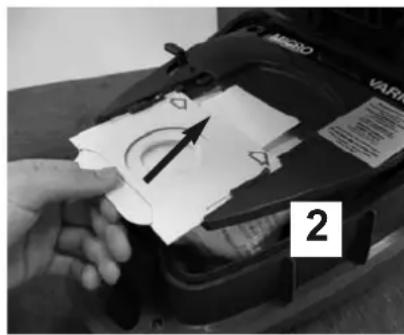

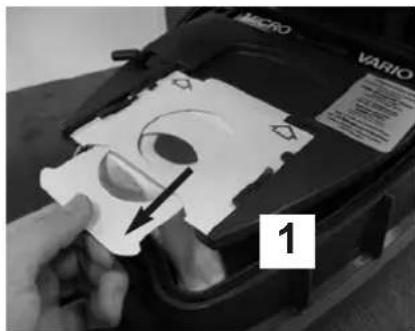

Changing the bag 49

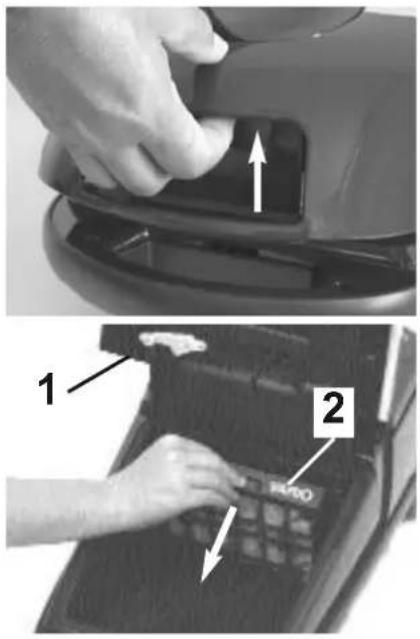

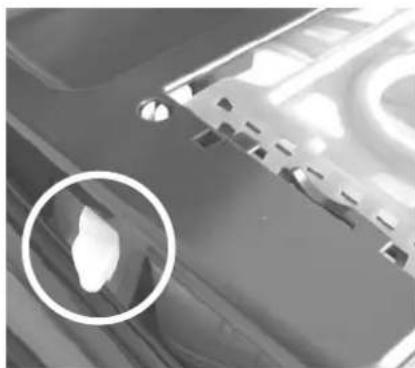

Filter chamber lid lock 49

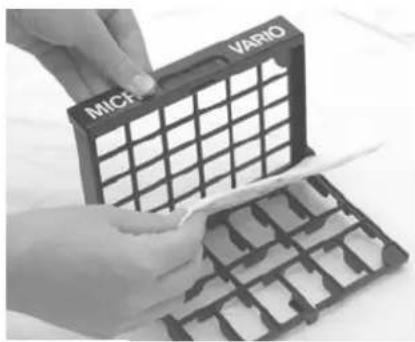

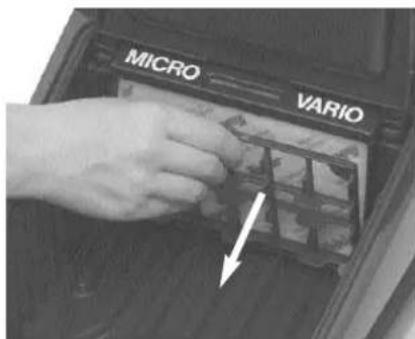

Changing the micro main filter....50

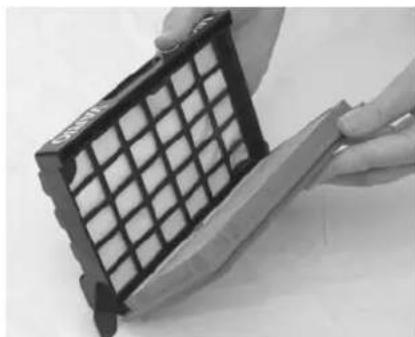

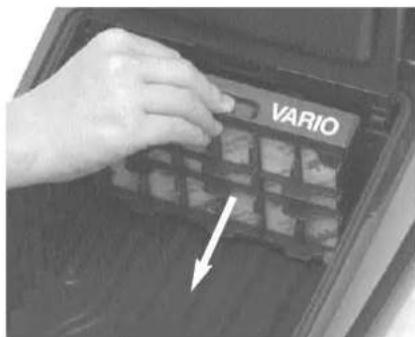

Changing the HEPA/Activated carbon combined filter .....50

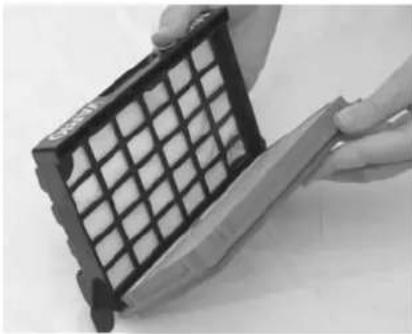

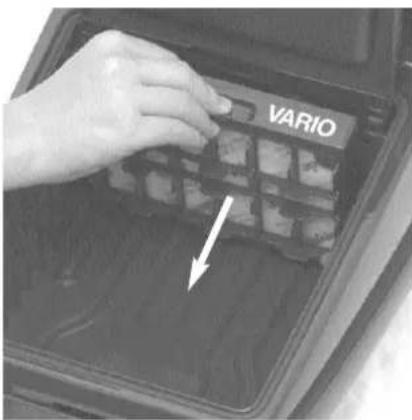

Changing the HEPA filter....51

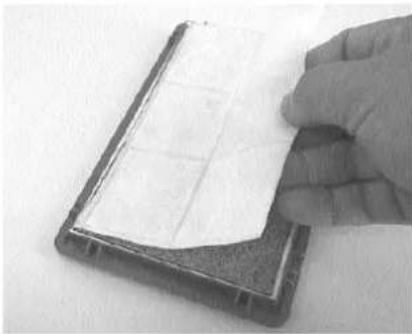

Changing the Fresh Wave bag....51

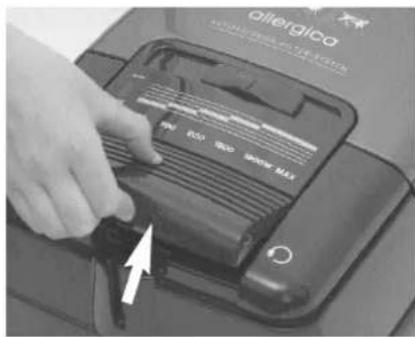

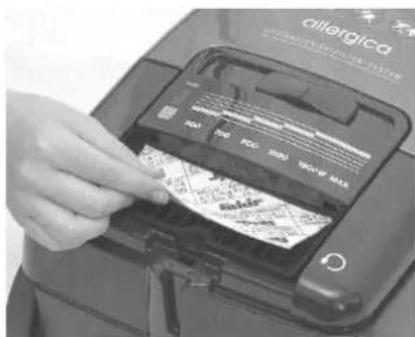

Changing the micro waste air filter....52

Cleaning....52

Disposal....53

Troubleshooting....54

Guarantee....55

Air Wave

The floor vacuum cleaner Air Wave has a steplessly adjustable electronic output of max. 2300 W. It has a vario-filter system: 5-layer micro-fleece filter with removal catch, micro main filters, HEPA-filter, micro waste air filter, electrical filter change display, dust chamber lid lock.

The odour-free vacuum cleaner Air Wave stands out thanks to its Fakir FRESH WAVE SYSTEM which attracts even the must pungent of smells and retains them permanently in special little balls. The essential oils inside these balls are a natural product and not only ensure that the system is completely safe for humans, pets and the environment but also for perfect odour neutralisation.

FRESH WAVE SYSTEM

A fleece bag into which special balls are sown is inserted into the filter cassette. These contain concentrated extracts of essential oils with top quality extracts from plants such as limes, pine needles, carnations and soya. The unique method means that the odour particles are not simply masked, they are actually withdrawn from the atmosphere, permanently bound into the balls and converted into completely odour-free gases. The natural oils that are used make FRESH WAVE SYSTEM completely biodegradable and therefore environmentally friendly, and are also more durable as they last for 4 - 8 weeks per bag.

Allergica

The Fakir Allergica is a vacuum cleaner with a complex 4-step concept that was specially developed for allergy-sufferers: A 5-layer Allergo® micro-fleece filter in HEPA H10 quality with a dustproof removal catch, a large micro main filter, a high-performance particulate matter (HEPA) / active carbon filter and a micro waste air filter all interact to the optimum to work in conjunction with the dustproof housing to ensure a total filter output of 99,999 %.

Allergo®-filter: The HEPA-filter technology retains microscopically small particles including pollen, mites and fine dust particles larger than 0.0001 mm. Thanks to the special 5-layer material structure, full suction power is guaranteed. The Allergica has a steplessly adjustable electronic output of max. 1900 Watt. This allows allergy sufferers to clean more efficiently with less swirling dust than is possible at higher watt figures.

S 200 und S 250

Thanks to an all-round brush head, no dust is swirled at the sides. The Wellness turbo mattress brush ensures thorough cleaning of the bed for a relaxing sleep with no allergy symptoms. The dustproof vacuum cleaner housing satisfies the dust protection requirements as specified in DIN EN 60312.

The floor vacuum cleaners of the S-class serve to vacuum clean large carpeted areas, hard flooring, laminate, upholstery and to remove fluff and animal hairs. They stand out thanks to their great motor suction power of 2300 W with a steplessly adjustable electronic control. The S 200 has a slide control for adjusting the output. The S 250 has a plus/minus touch key instead and an output display with LEDs.

Both appliances stand out thanks to the fact that they operates very quietly due to special sound insulation. Optimised air channels ensure that the filters can be used for longer. In the Vario-filter system you can choose from a number of different filters to create the filter system you require:

1. Active carbon odour filter to minimise odours.
2. HEPA/Activated carbon combined filter, a combination of an odour and HEPA-filter, the latter not only retains household dust but also pollen and other microscopically small particles.

The individual filters can be exchanged with each other at any time.

information about the operation instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Information in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE-declaration of conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”.

The appliance bears the CE mark on the rating plate.

Intended use

The appliance may only be used in households. It is not suitable for commercial use.

It may be used only for dry cleaning hard floors and textile coverings, carpets, upholstery furniture, mattresses, furniture, radiators and curtains.

Check if all filters have been inserted properly before using the appliance. The appliance must not be used without filters.

Use only original Fakir filters and accessories.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

- This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

- Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

- Keep packaging films away from children - danger of suffocation!

WARNING!

Danger of injury from the vacuuming:

• Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body..
• Nozzles and tube ends must never be brought close to the eyes or ears.
• Never use the appliance to vacuum human beings or animals. The manufacturer is not responsible for any damages caused by unauthorized use or improper operation.
• Danger of injury! Never reach into the rotating brush roller when working with the turbo suction brush.

WARNING of health hazard!

- Never vacuum hazardous materials, such as toner used in laser printers or copiers.

WARNING of fire or explosion!

• Never vacuum hot ashes or burning objects, such as cigarettes or matches.
• Never use the appliance close to explosive or easily ignitable substances.
• Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

• ATTENTION risk of short circuits! Never vacuum water and other liquids, such as damp carpet cleaning solutions.
• Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.
• Damage to appliance from rain and dirt! Never use or store the appliance outdoors..
• Danger from overheating! Always keep the openings in the appliance free.

Electrical power

ATTENTION!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The socket must be protected with a 16 A automatic circuit breaker.
• Use only extension cords designed for the power input of the appliance.

WARNING! Danger of electrical shocks!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our customer service, check whether you can remedy the fault yourself first.

Please refer to the chapter "Troubleshooting".

If you were not able to eliminate the problem yourself, please contact our:

Service-Hotline

01805 325474

12 cents / minute

from the wire-line network of Deutsche Telekom

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

WARNUNG!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

Shipping

Send the appliance in the original packaging or a similarly protected packaging so that it cannot be damaged during transportation.

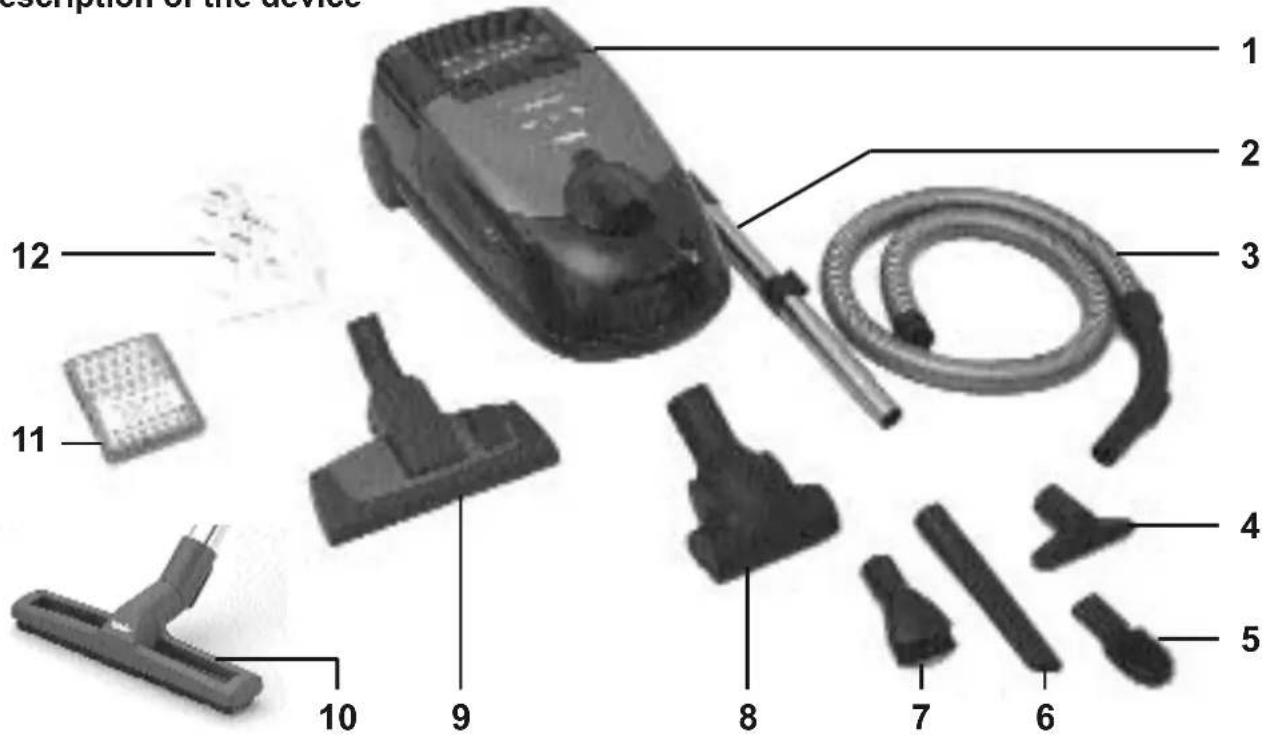

Description of the device

1 2 3 4 5 6 7 8 9 10 11 12

Delivery scope

Model Air Wave Allergica S 200 S250

1 Floor vacuum cleaner	● ● ● ●
2 Telescope suction tube	● ● ● ●
3 Suction hose	● ● ● ●
4 Upholstery nozzle	● ● ● ●
5 Radiator brush	● ● ● ●
6 Crevice nozzle	● ● ● ●
7 Furniture brush	● ● ● ●
8 Hand-Turbo brush	● ● — —
9 Floor suction nozzle	● ● ● ●
10 Hard floor nozzle	● ● ● —
11 HEPA/Activated carbon combined filter	— — ● ●
HEPA-filter	● — — —
12 Bag set* (3 pcs.)	— ● — —
13 Spare Fresh Wave bags (no picture.)	● — — —
Inserted into the appliance (not shown):
1 bag ● ● ● ●
1 micro main filter ● ● ● ●
1 micro exhaust filter ● ● ● ●

* Set comprises 4 Allergo-bags, 1 micro main filter, 1 micro waste air filter

8 7 6 5 4 3 2 1 18 17 16 15 9 10 11 12 13 14

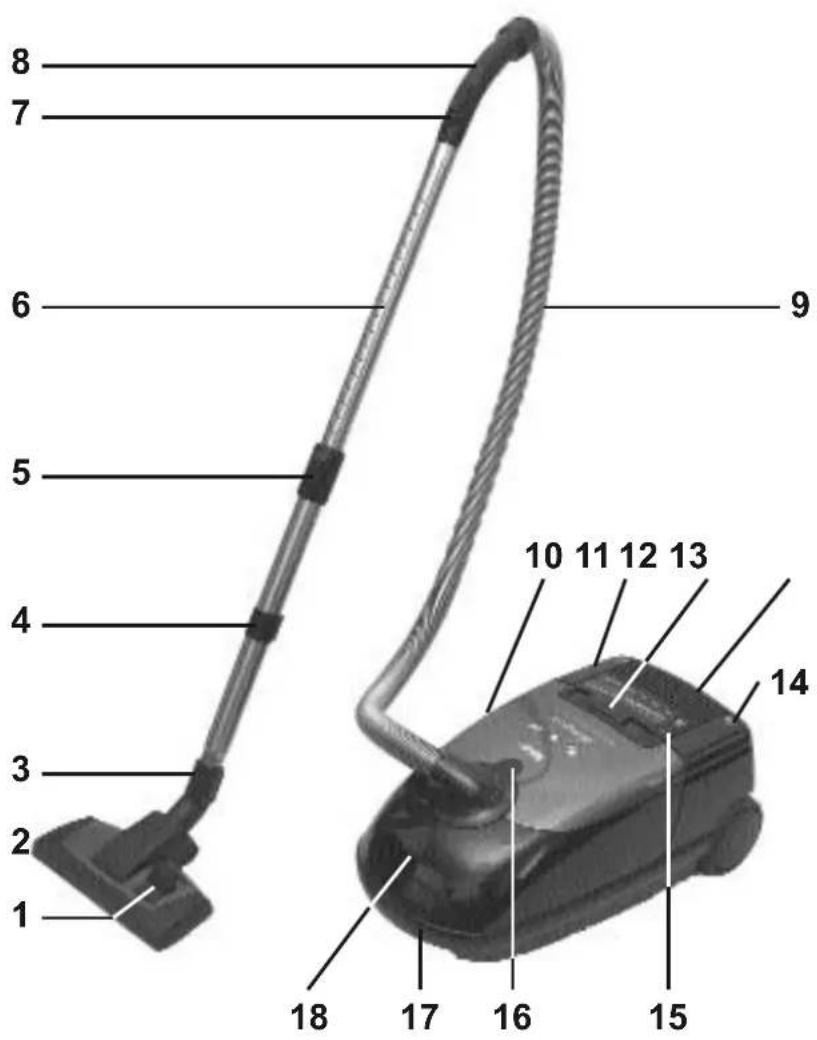

Parts and function

1 Switch carpet/hard floor
2 Floor suction nozzle
3 Adapter with park holder
4 Suction pipe holder
5 Collar for setting the length of the suction tube
6 Telescope-suction tube
7 Suction control
8 Handle
9 Suction hose
10 Unlocking button for the suction hose
11 Foot button cable rewind
12 Suction powers control
13 Air slit
14 Foot button On/Off
15 Filter change display
16 Release key for the accessory depot
17 Carrying handle
18 Release key for the filter chamber

Technical data

Model Air Wave Allergica S 200 S 250

Mains voltage 230 V AC 230 V AC 230 V AC 230 V AC
Nominal frequency 50 Hz 50 Hz 50 Hz 50 Hz
Power IEC / max.	1900/2300 W	1500/1900 W	1900/2300 W	1900/2300 W
Sound pressure level max.	66 dB(A)	66 dB(A)	66 dB(A)	66 dB(A)
Vacuum max.	32 kPa	30 kPa	32 kPa	32 kPa
Air flow max.	40 l/s 38 l/s 40 l/s 40 l/s
Dust emission max.	0,0055 mg/m3	0,0021 mg/m3	0,0055 mg/m3	0,0055 mg/m3
Dust retention properties 0,1 - 0,3 μm	99,9 %	99,99 %	99,9 %	99,9 %
Size approx. H×B×T	24×30×55 cm	24×30×55 cm	24×30×55 cm	24×30×55 cm
Weight approx.	8,4 kg	8,4 kg	8,4 kg	8,4 kg

The filter system

7 6

1 2 3 4 5 6 7

3 4

The Fakir Vario filter system allows you to adapt the quality of the dust filtration to your needs. Your floor vacuum cleaner will only achieve the excellent filter effect so important for allergy sufferers when all filters are used. Pollen, mites and fine dust are almost completely filtered off from a size of 0.1 m. The filter effect is so good that the waste air produced by the appliance contains less dust than the air in the room.

The air is cleaned as follows:

1 The air with the dirt particles is suctioned up via a suction hose. Inside the bag the dirt is retained in a multi-layered fleece filter.

2 The Allergica model has a 5-layer Allergo® micro fleece filter in HEPA-H10 quality with a dustproof removal catch.

3 The micro main filter serves as the pre-filter and as a protection element for the following filter part.

4 TheHEPA/Activated carbon combined filter serves as an active odour filter that uses the active carbon to bind the odours from the dust and dirt. In addition, it is also a particle matter HEPA*-filter that completely filters almost all fine particles.

The HEPA*-filter is a pure particle matter filter, that completely filters almost all fine particles.

5 The air is suctioned via the motor. As all particle matter has already been filtered off, no dust deposits can collect here.

6 The micro waste air filter only filters the dust-like wear from the carbon brushes of the motor.

7 Clean air is sent into the room via the waste air slits

* HEPA = High Efficiency Particulate Air Filter

Unpacking

Simple line drawing of an open box with a black upward arrow indicating motion (no text or symbols)

Unpack the appliance and check the contents for completeness (see "Scope of delivery")

If you detect damage from transport, contact your retail dealer immediately.

WARNUNG!

Never use a defective appliance.

NOTE!

Keep the packaging for storage purposes and for subsequent transportation (e.g. moves, service).

Assembly

Close-up of a hand inserting a hose into a car fuel nozzle (no text or symbols visible)

WARNING!

Before assembling, check that the mains plug is disconnected. If the mains plug is connected, the appliance could be accidentally switched on and this could lead to injury.

- Insert the end of the suction hose into the suction adapter. You will hear it click into place.

NOTE!

To release the suction hose, press the unlocking button [1].

- Insert the handle tightly into the suction pipe with a slight twist.

Close-up of hands tying a knot with a black bandage, no text or symbols visible

- Insert the suction pipe tightly into the floor nozzle with a slight twist.

Hand holding a black tool with a handle, no visible text or symbols

Close-up of a hand pressing a button on a car's side panel, with an arrow indicating the action (no text or symbols visible)

1 2

Model Air Wave:

- Lift the release key for the dust chamber lid and fold the lid open.

You will hear it click into place.

• Fold the bag holder [1] down again.
• Remove the filter cassette MICRO VARIO[2].

3 4

MICRO VARIO

• Open the Fresh Wave pack of bags and take one bag out. Remove the foil from this bag. Close the Fresh Wave pack of bags again tightly.
• Place the Fresh Wave bag [3] exactly onto the HEPA-filter [4].
• Place the HEPA-filter with the Fresh Wave bag into the filter cassette.
• Replace the filter cassette and the HEPA filter into the vacuum cleaner.
• Fold the bag holder down again.
• Close the filter chamber.

Setting the length of the suction tube

Close-up of a hand holding a vacuum cleaner with a coiled hose and black adjustment arrows indicating movement (no text or symbols)

Storage

Close-up of a mechanical device with labeled parts 1 and 2, showing internal components and a threaded cable.

Use

Close-up of a dark cylindrical object with an arrow pointing to a small textured object (no text or symbols visible)

• Hold the handle with one hand.
• With the other hand, hold the collar.
• Pull or press the suction pipe to the required length.
  Your vacuum cleaner is now operational.

Most of the supplied nozzles (crack nozzle, radiator brush, furniture brush and upholstery nozzle) can be stored in the accessories compartment [1].

- To open the accessories compartment, press the release key[2].

WARNING!

Switch the appliance off before changing the nozzle.

Crevice nozzle

Use the crevice nozzle to vacuum clean dirt from deep gaps in upholstery furniture, corners, skirting boards, etc.

Radiator brush

You can attach the radiator brush to the crack nozzle to clean the ribs of the radiators.

With the approx. 60 cm long flexible crevice nozzle (accessory no picture), you can even reach dirt in hard to access slits, corners etc.

NOTE!

The suction power should be at a medium setting.

Close-up of a gray vacuum cleaner with a labeled component (1), no visible text or symbols on the device itself.

Close-up of a hand holding a small electronic device with a labeled component (no visible text or symbols)

Close-up of a black vacuum cleaner handle with metal clip (no text or symbols visible)

Furniture brush

Use the furniture brush to vacuum clean dust from furniture, pictures, window sills, books, etc.

Upholstery nozzle

Use the upholstery nozzle to vacuum clean curtains, upholstery furniture, etc. It has an extra thread comb which removes fluff and threads from textiles.

NOTE!

The suction power should be at a low setting.

Floor suction nozzle

Use the floor suction nozzle with the switch [1] to vacuum clean either carpets (brush head retracted) or hard flooring (brush head extended).

The two thread pick-ups pick up threads, hairs, fluff etc. from the carpet. If necessary, these can be easily replaced as they are simply inserted to the left and right of the suction opening in the base plate.

NOTE!

The suction power should be at a medium to high setting.

Hard floor nozzle

Specially suitable for hard floors such as tiles, parquet or laminate. The soft brushes allow the nozzle to glide easily over the floor and even pick up the finest of dirt without exception.

NOTE!

The suction power should be at a medium setting.

Black 3D T-shaped object with smooth surface and no visible text or symbols

Hand turbo brush (for model Allergica):

The hand turbo brush / mattress brush has a powerful brush head that is driven by the air flow of the floor vacuum cleaner.

Use this for thorough cleaning of mattresses, upholstery furniture or car seats.

If long threads, hairs etc. have become wrapped around the brush head, cut them with scissors and remove or suction them off.

Hand turbo brush (for models Air Wave, S 200, S 250):

The hand turbo brush / wellness brush has a powerful brush head that is driven by the air flow of the floor vacuum cleaner.

Use this for thorough cleaning of mattresses, upholstery furniture or car seats.

If long threads, hairs etc. have become wrapped around the brush head, cut them with scissors and remove or suction them off.

Close-up of a black plastic mechanical component with no visible text or symbols

NOTE!

The suction power should be at a high setting.

Close-up of a mechanical component with a curved cutout and directional arrow (no text or symbols visible)

1 Set the swivel adapter to the middle marking.

Close-up of a mechanical component with a labeled arrow pointing to a circular feature (no text or symbols present)

2 Press the lock button and pull the adapter to the outside.

Close-up of a mechanical component with a numbered arrow indicating a specific part (no text or symbols present)

3 Fold the housing part upwards.

After cleaning the brush head, turbine wheel and the belt, close the turbo brush again in reverse order.

Two views of a black mechanical component, one showing a handle and the other showing a tool inserted into a slot (no text or symbols visible)

Special accessoriesr

Turbo-suction brush - Order no. 2414820

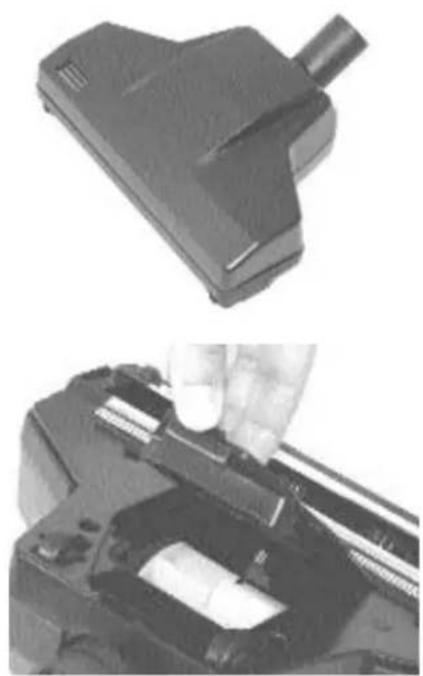

The optionally available turbo-suction brush has a powerful brush head that is driven by the air flow of the floor vacuum cleaner. It brushes the dirt from the carpet pile and suctions it up at the same time.

If the brush head is blocked by clogged dirt, it needs to be cleaned. To do this, open the lid underneath and remove the dirt.

NOTE!

The suction power should be at a high setting.

Close-up of a black vacuum cleaner with a metallic handle and cable (no visible text or symbols)

Electro-suction brush - Order no. 2414810

(only for model S 250)

Releases even the deepest of dirt from all kinds of carpet pile by means of the motor-driven powerfully rotating brush head.

NOTE!

The suction power should be at a low setting.

Vacuum cleaning

Before using the appliance, check that all the filters and the bag have been correctly inserted and that they are not damaged. The excellent filter quality is only achieved when the filters are intact and correctly inserted.

WARNING!

Check the appliance and the power cable before use. A damaged appliance may cause injury and may not be used.

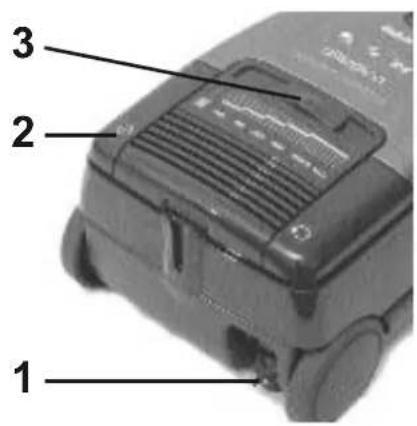

1 2 3

• Attach the required nozzle.
• Pull out the cable using the plug [1] to the required length.
• Press the foot button "On/Off" [2] to switch on the floor vacuum cleaner.
• Set the required suction power:

Model Allergica, Air Wave, S 200:

with suction power control [3] on.

Model S 250:

with the plus/minus touch button [4] the 5 levels are shown by means of LED lamps [5].

1 2 4 5 S230 portable S230+

NOTE!

The filter change display will shine when the bag or filter is full or when the accessories are blocked (hose, tube, nozzle).

In this case, change the bag or the clogged filter (see page 14) or remove the blockage.

When using the turbo-mattress brush or the crack nozzle, it is possible that the filter change display lights up before the bag or filter are full.

This is a technical feature and does not indicate that the function is impaired.

Close-up of a hand holding a handheld device with a black handle and a white lever, showing a double-headed arrow indicating motion (no text or symbols visible)

The suction power can be regulated with the suction control. Use this control (slide) for short-term reductions of the suction power.

For normal vacuum cleaning, you should keep this closed. Use the suction power control for permanent reduction of the suction power. This will allow you to save energy.

Work breaks

Close-up of a black vacuum cleaner with a labeled component (1) and part number 32 visible, no readable text or symbols beyond the label.

Use the park holder to securely attach the suction pipe during a work break.

To do this, insert the park holder of the floor suction nozzle into the nozzle holder [1].

After vacuum cleaning

1 2 3

WARNING!

Perform the following steps as soon as you stop vacuum cleaning. Never leave the appliance unattended.

• Press the foot button "On/Off" [1] to switch off the floor vacuum cleaner.
• Disconnect the plug from the mains socket.
• Press the foot button "cable rewind" [2] to retract the cable. Guide the cable with your hand until the cable has been completely wound up and the plug is in the opening [3].

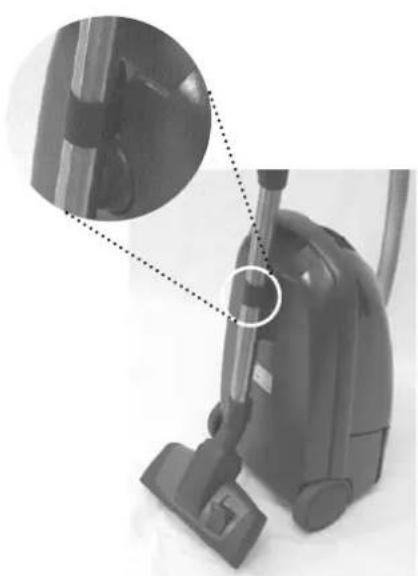

• Use the suction pipe holder to carry and position the appliance. To do this, insert the suction pipe holder of the telescopic pipe into the holder on the underneath of the appliances.
• Store the floor vacuum cleaner in a place out of the reach of children.

Close-up of a black vacuum cleaner with a close-up inset showing the handle and clasp detail (no text or symbols visible)

CAUTION!

Do not place the appliance next to heat sources and avoid direct sunshine. Heat can damage the floor vacuum cleaner.

Changing the bag

MICRO VARIO 1

VARIO VARIO 2

Filter chamber lid lock

Close-up of a mechanical component with a highlighted circular area, showing internal structure and mounting holes (no text or symbols visible)

WARNING!

Before starting to service or clean the appliance, switch it off and disconnect the mains plug. If the mains plug is connected, the appliance could be switched on accidentally and cause injury.

NOTE!

Only use original Fakir filters. This is the only way to maintain the excellent filter properties of the floor vacuum cleaners.

• Lift the catch [1] of the filter chamber lid and open the lid – you will hear it click into place.
• Lift the dust bag holder [2] and remove the dust bag by means of the hygiene closure part (pull out in the direction shown by the arrow) – the opening on the bag is automatically closed.
• Insert the new bag in fully and close the filter chamber.
• Then fold the dust bag holder [2] together with the dust bag back down again.

- Press down the filter chamber lid again until it clicks into place.

NOTE!

The filter chamber lid lock prevents the appliance from being used if there is no bag inside or the bag has been inserted incorrectly.

Change micro main filters

MICRO VARIO

MICR VARIO

Change the HEPA/Activated carbon combined filter

VARIO

Close-up of hands holding a black grid-patterned device with a flat blade, no visible text or symbols

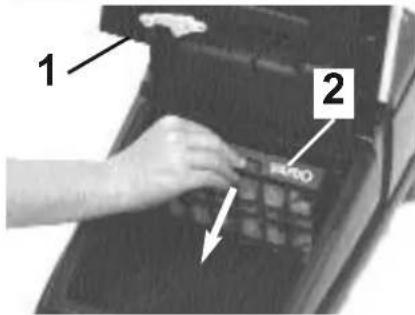

• Press the release key for the filter chamber, open the filter chamber and remove the bag.
• Fold the bag holder upwards.
• Fold up the web of the filter cassette MICRO VARIO.
• Replace the micro main filter and fold the web down tightly again. Alternatively you can also take the filter cassette from the dust chamber and then replace the micro main filter.
• Place the bag inside again and close the filter chamber.

NOTE!

Change the micro main filter at the latest after using 5 bags.

Model Allergica, S 200, S 250:

1. Press the release key for the filter chamber, open the filter chamber and remove the bag.
2. Fold the bag holder upwardsn.
3. Remove the filter cassette MICRO VARIO.
4. Remove the old HEPA/Activated carbon combined filter from the filter cassette and insert the new one.
5. Place the filter cassette MICRO VARIO with the HEPA/Activated carbon combined filter back into the vacuum cleaner.
6. Fold the bag holder down again.

NOTE!

Change the HEPA/Activated carbon combined filter at least every 6 - 12 months.

1. Place the bag inside again and close the filter chamber.

Changing the HEPA filter

VARIO

Close-up of hands holding a grid-patterned device with a flat base (no visible text or symbols)

Change the Fresh Wave bag

Hand holding a flat notebook with visible paper lines, no text or symbols present

V203 VARIO

Model Air Wave:

1. Press the release key for the filter chamber, open the filter chamber and remove the bag.
2. Fold the bag holder upwards.
3. Remove the filter cassette MICRO VARI.
4. Remove the old HEPA-filter from the filter cassette and insert the new one.
5. Place the filter cassette with the HEPA-filter back into the vacuum cleaner.
6. Fold the bag holder down again.
7. Place the bag inside again and close the filter chamber.

NOTE!

Change the HEPA-filter after 18 months.

1. to 3. as described above.
2. Remove the HEPA-filter from the MICRO VARIO-filter cassette.
3. Open the Fresh Wave pack of bags and take one bag out. Remove the foil from this bag and insert the bag into the HEPA-filter.
4. Insert the HEPA-filter with the Fresh Wave bag back into the MICRO VARIO-filter cassette.
5. Place the MICRO VARIO-filter cassette with the HEPA-filter and Fresh Wave bag back into the vacuum cleaner.
6. Fold the bag holder down again.
7. Place the bag inside again and close the filter chamber.

NOTE!

Change the Fresh Wave bag after 4 - 8 weeks.

Change the micro waste air filter

allergica HUA U50 1000 3000x MAX

allergica www.allergica.org

Cleaning

NOTE!

Change the micro main filters at the latest after using 5 bags.

1. Open the filter cover.
2. Remove the old micro waste air filter and insert the new one.
3. Close the filter cover.

WARNING!

Switch the floor vacuum cleaner off and disconnect the mains plug before starting to clean. In this way you will avoid the appliance from being switched on accidentally.

CAUTION!

Do not use any cleaning agents or scouring agents that contain alcohol as this will damage the housing.

Only clean the appliance with a dry or damp cloth.

If necessary, you can also clean the filter chamber with a damp cloth.

Vacuum cleaning accessories such as the hose, pipes and nozzles should be regularly checked for blockages and cleaned, wiped out and dried.

If the appliance stops working satisfactorily (reduced suction power, unusual noises or failure), check first to see if the filter is full or soiled or if the suction channels are blocked.

Disposal

When the appliance has reached the end of its service life, in particular when malfunctions start occurring render the appliance unserviceable by pulling the mains plug out of the socket and cutting off the mains lead.

Dispose of the appliance in accordance with the environmental regulations that apply in your country. Electrical waste may not be disposed of in the household waste system. Dispose of the unserviceable appliance at a central collection point.

The appliance's packaging comprises recyclable materials. Please sort this packaging accordingly and place in the correct recycling containers so that they can be recycled.

Please contact your local council or your dealer for advice about recycling.

Dispose of the old bags and filters in the household waste system.

If you have a problem ...

Dear Customer,

Our products have been subject to strict quality inspections. We apologize sincerely if despite this, the appliance does not work properly.

Before you contact the customer service, first see if you can remedy the fault yourself.

WARNING!

Turn the appliance off and disconnect the mains plug before starting to look for the fault. In this way you will avoid the appliance from being switched on accidentally.

Fault Possible cause Remedy
Appliance does not work. P	Plug is not connected.Appliance is not switched on.Mains socket has no power.The power cable is damaged	Insert plug.Switch on the appliance.Use a different mains socket.Send the appliance in for re-pair
Appliance does not suction.	Bag / filter is full or soiled.Hose, pipes, nozzles are clogged.	Change the bag / filter,Remove clogging.
Appliance is unusually loud.	Suctioned particles have become.	Remove particles.caught.

If you cannot remedy the fault yourself, please contact our:

Service-Hotline

01805 325474

12 cent / minute

from the German landline network

Before placing the call, please have your article no. and appliance/model name to hand. This information is stated on the type plate of the appliance.

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free of charge, including free shipping, if it becomes defective due to a material or assembly error within 24 months (within 12 months if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   A pre-condition of our warranty is that the appliance always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters) do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances. When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If the repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the appliance and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008
