Cerberus P6331-6 - Router Pentagram - Free user manual and instructions

Product Type	ADSL2+ Modem/Router with 4-Port Switch and Wireless Access Point
ADSL Standards	ANSI T1.413, ITU-T G.992.1, G.992.2, G.992.3, G.992.5, G.994.1, RE ADSL
Wireless Standard	IEEE 802.11b/g
Wireless Security	WEP (64/128-bit), WPA/WPA2 Pre-Shared Key, WDS
Ethernet Ports	4 x 10/100 Mbps Fast Ethernet with Auto-MDI/MDI-X
WAN Connection	ADSL line via RJ-11 connector
LAN Ports	4 x RJ-45
Antenna	External with RP-SMA connector
Power Supply	12V DC, 1A (included adapter)
Default IP Address	192.168.1.100
Default Username	admin
Default Password	pentagram
Default SSID	Pentagram P 6331-6
DHCP Server	Enabled, IP pool: 192.168.1.101 - 192.168.1.200, lease time 43200 sec

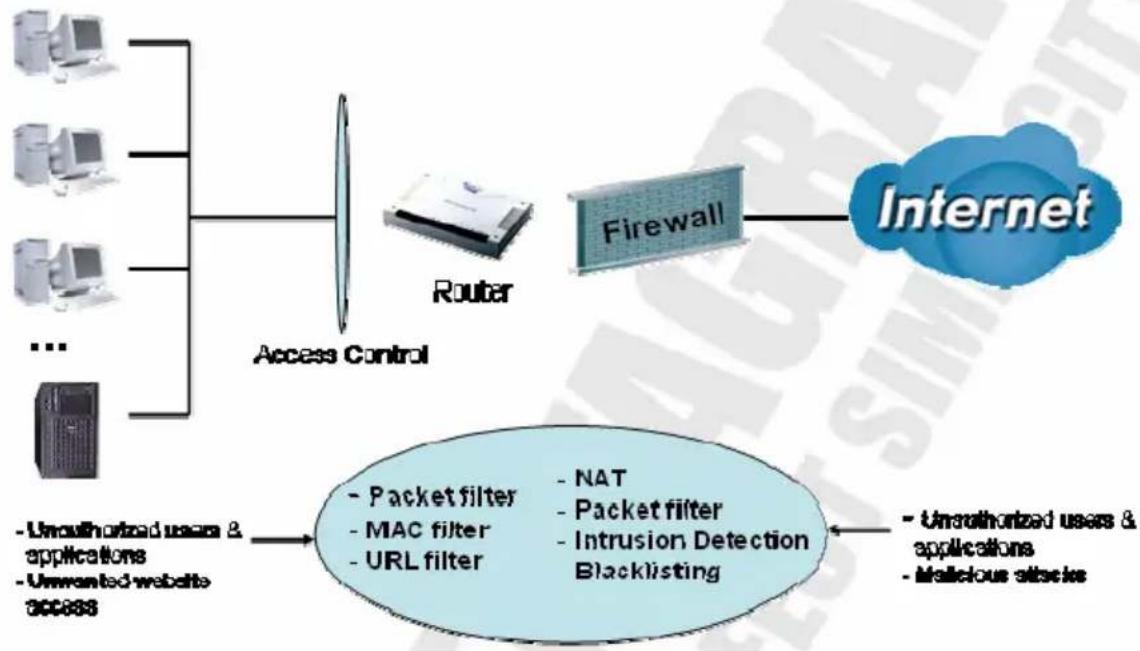

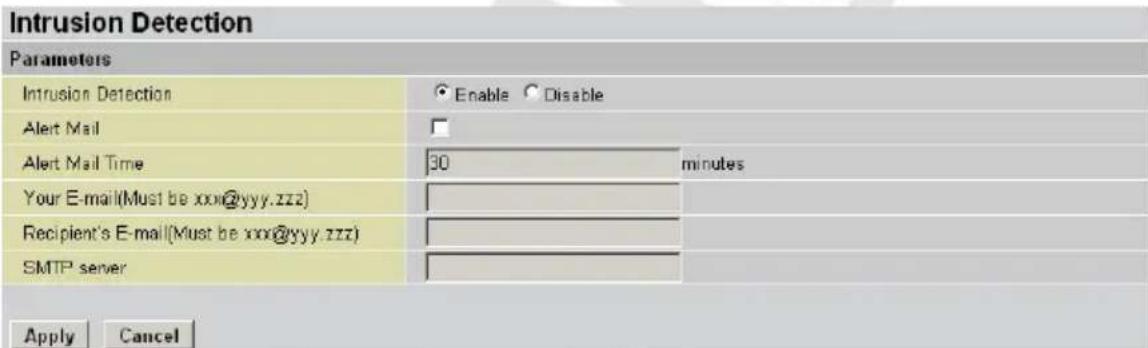

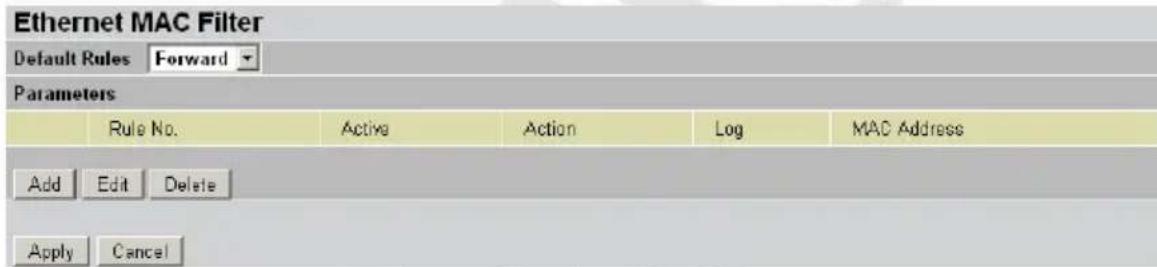

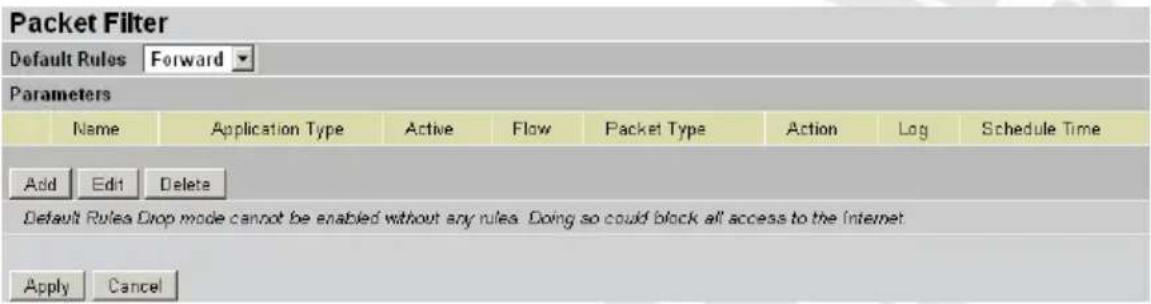

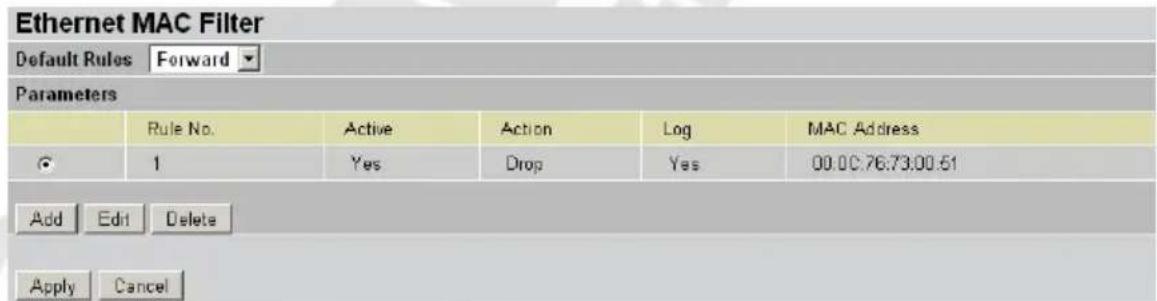

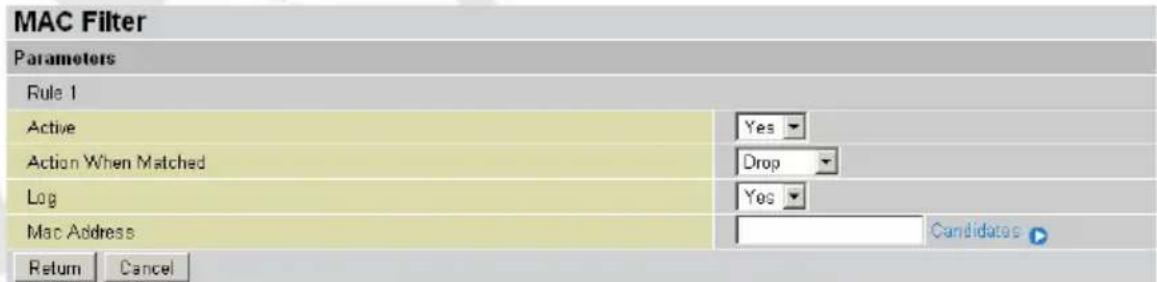

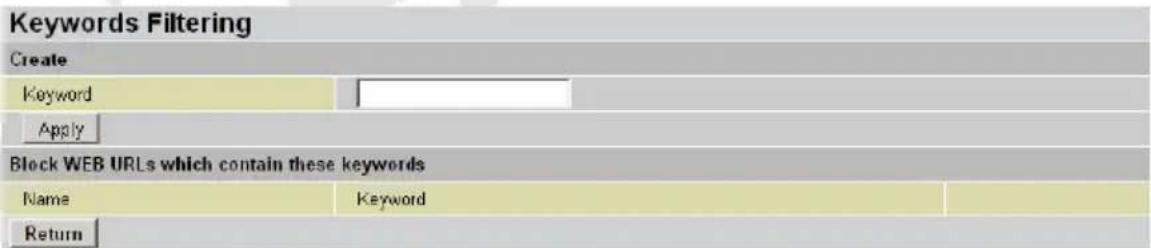

Firewall	SPI, NAT, Packet Filter, MAC Filter, URL Filter, Intrusion Detection, Block WAN Request

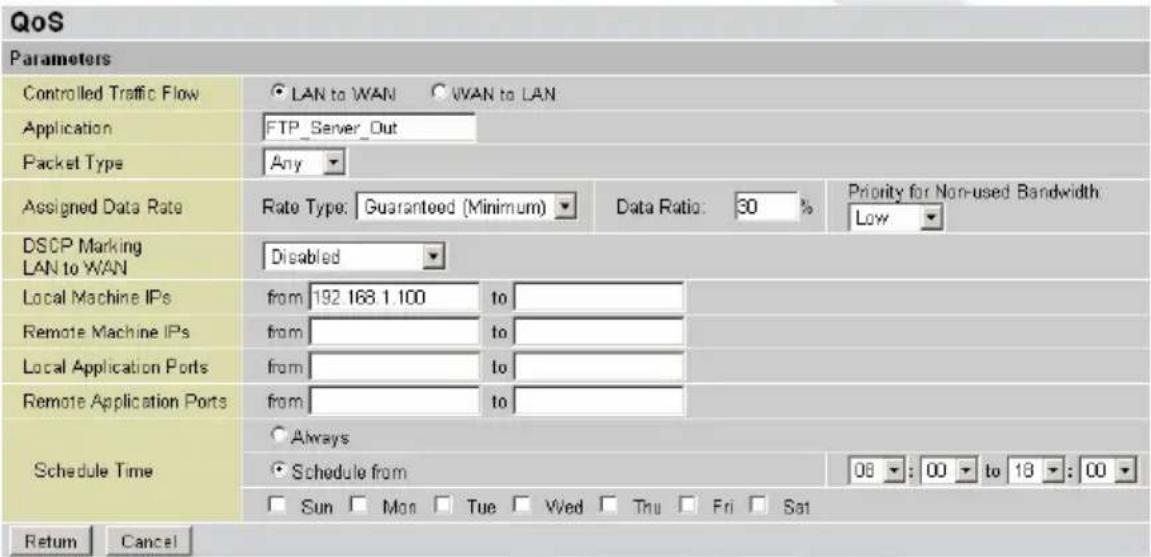

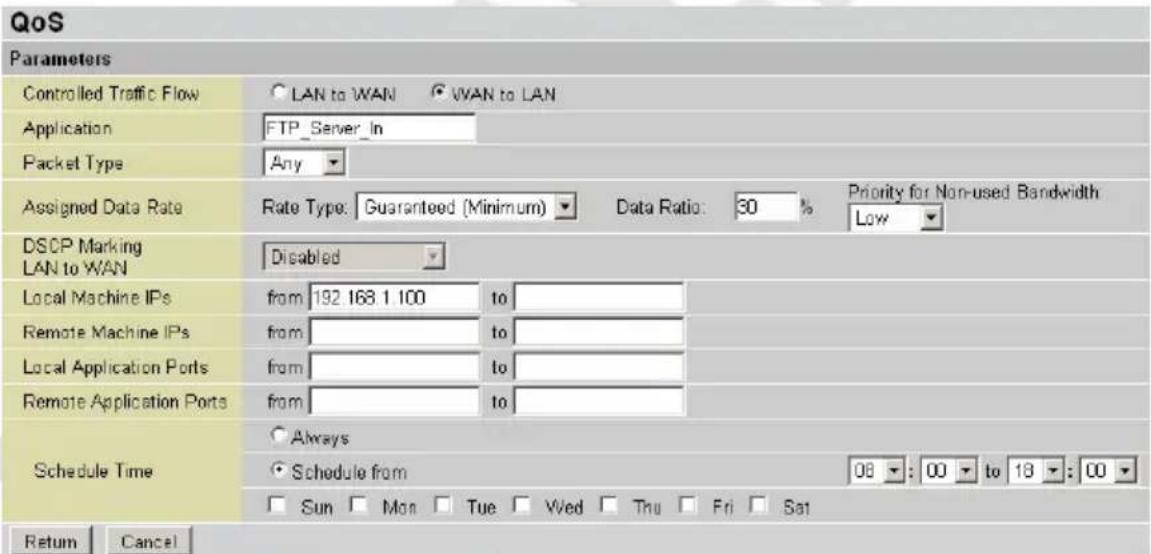

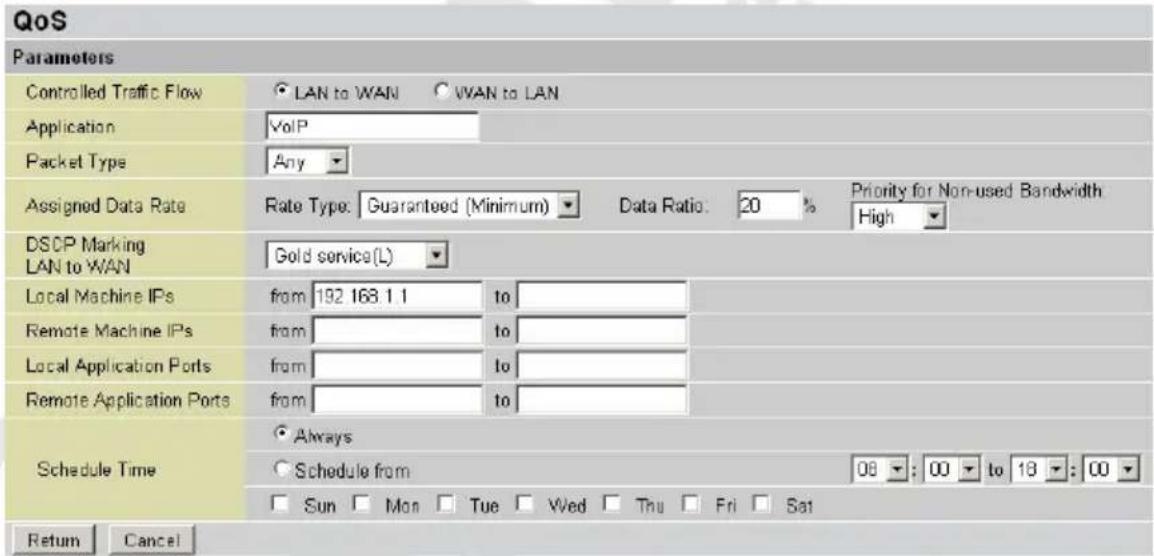

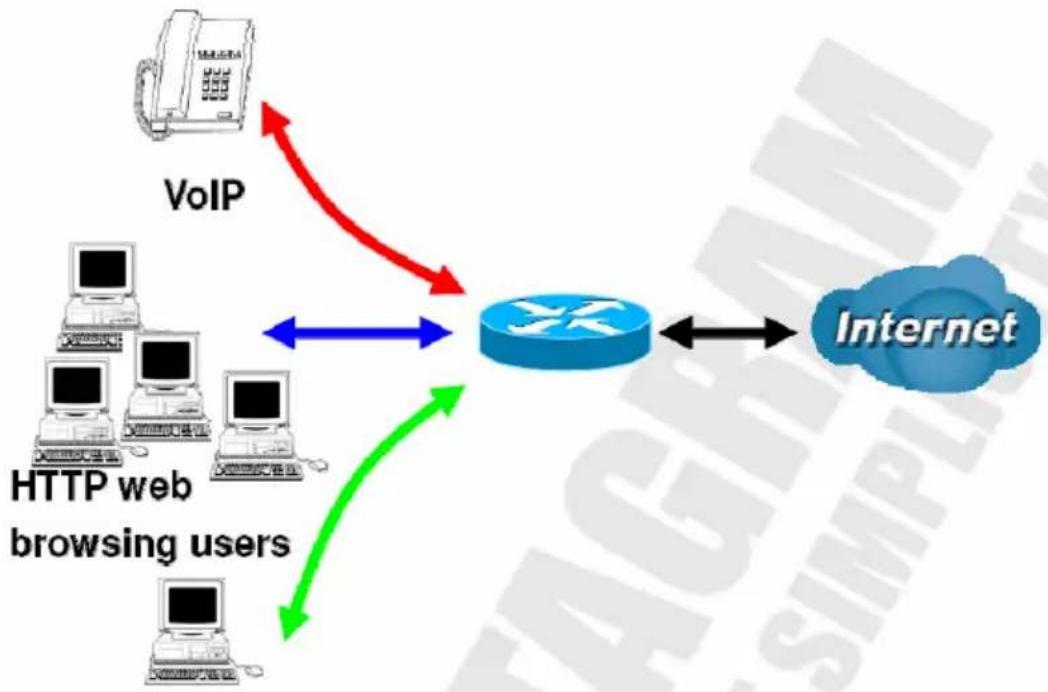

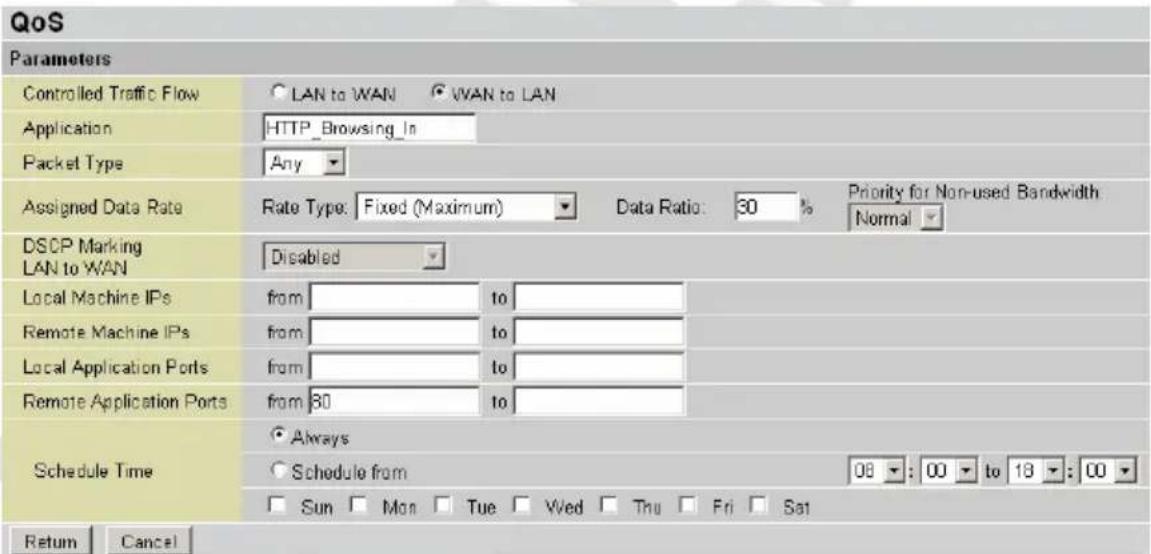

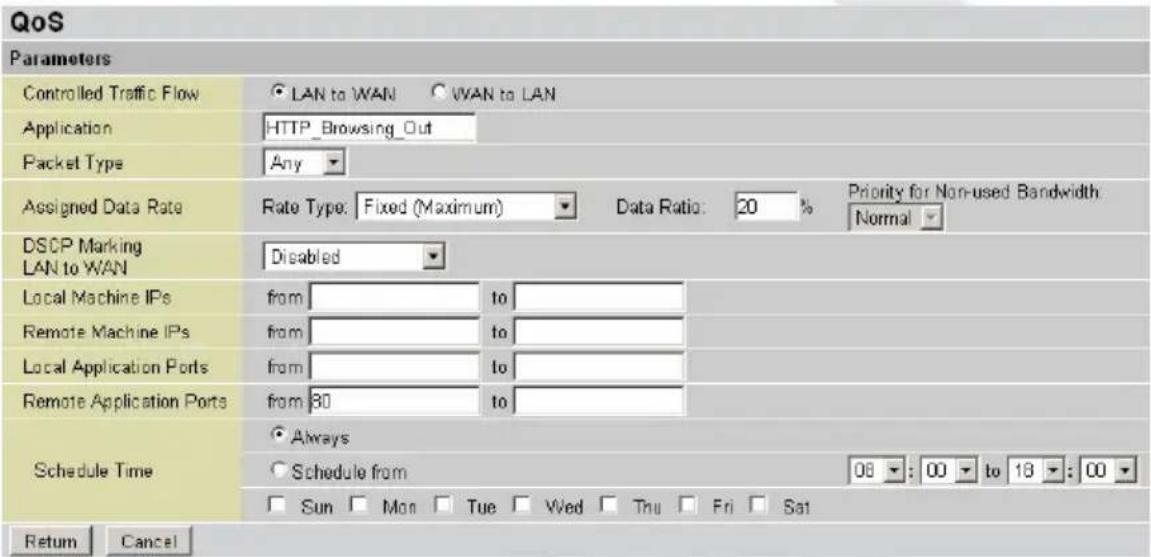

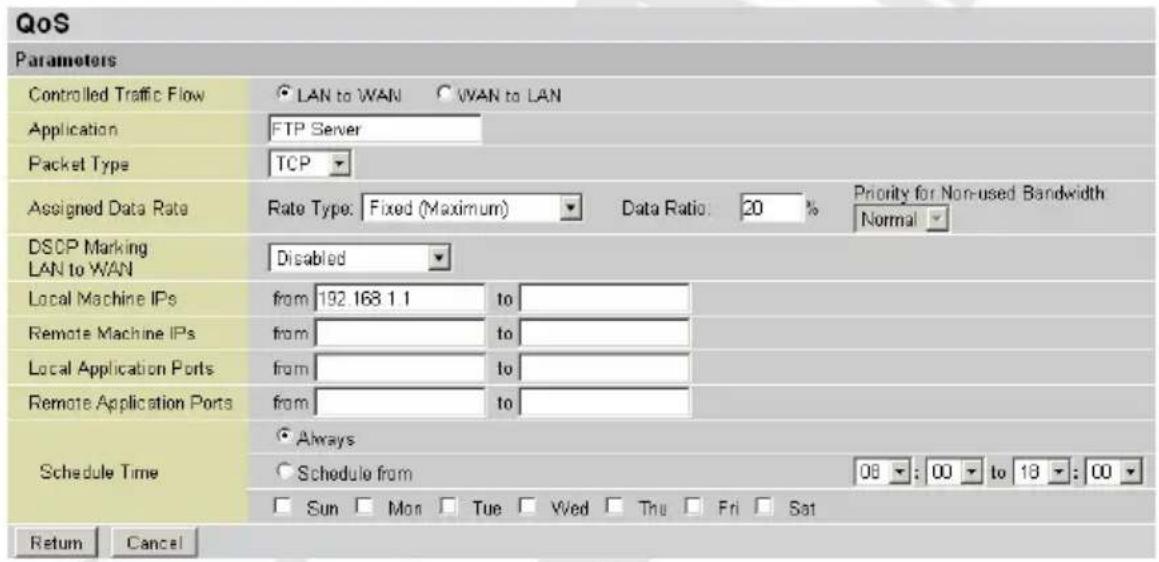

Quality of Service (QoS)	Configurable by source/destination IP, protocol, port; guaranteed and fixed rate
VPN Passthrough	PPTP, L2TP, IPSec

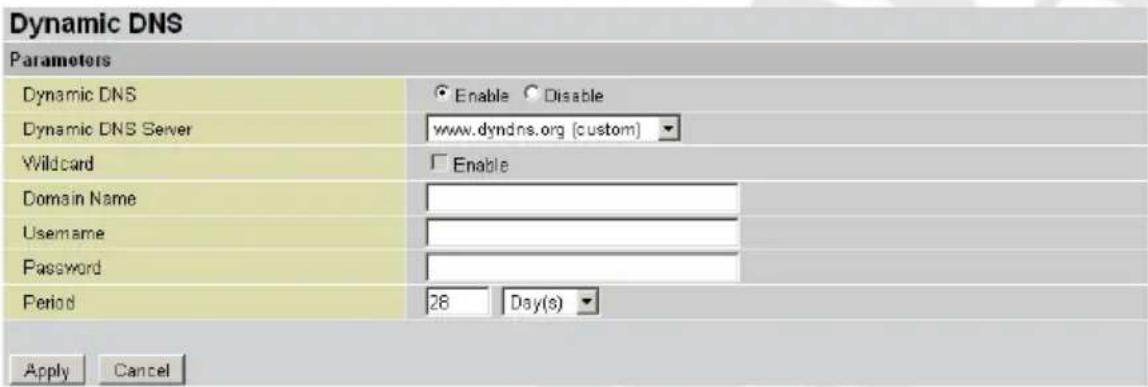

Dynamic DNS	Supports multiple DDNS providers (e.g., dyndns.org)
Management	Web-based GUI, SNMP (v1/v2c/v3), Telnet, UPnP
Firmware Upgrade	Via Web GUI, supports restore to factory defaults
Package Contents	Router, power adapter, Ethernet cable, telephone cable, CD, Quick Installation Guide
Maintenance	Clean with dry cloth; avoid humidity and high temperatures; do not open case
Safety	Use only supplied power adapter; do not use outdoors; place on stable surface

Frequently Asked Questions - Cerberus P6331-6 Pentagram

How do I reset the router to factory defaults?

Press and hold the RESET button on the back panel for 10-12 seconds while the router is powered on. All LEDs will turn off, on, and off again, then the router reboots with factory settings. The default IP is 192.168.1.100, username admin, password pentagram.

I forgot the login password. What should I do?

Perform a factory reset as described above. After reset, use the default credentials: username admin and password pentagram. It is recommended to change the password immediately after logging in.

Cannot access the web interface. What could be wrong?

Ensure your computer is on the same subnet as the router (default 192.168.1.x). Check the Ethernet connection and that the LAN LED is lit. Try pinging 192.168.1.100. If you changed the router's IP, use the new address. Disable any firewall software temporarily.

The ADSL LED is off. How can I fix it?

Check the telephone cable connection between the router's LINE port and the wall jack. Ensure your phone line is activated for ADSL service. Verify VPI/VCI settings match your ISP. If the LED remains off, restart the router.

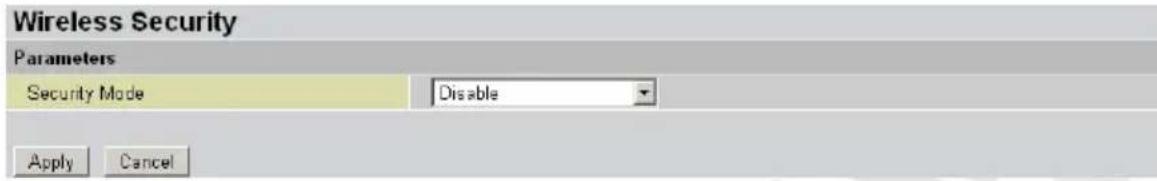

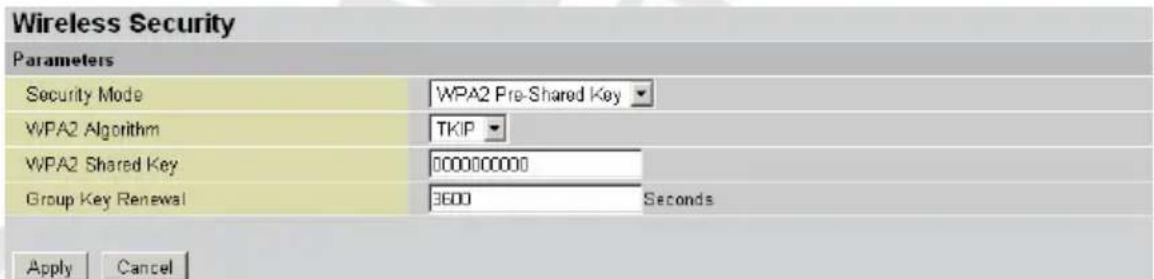

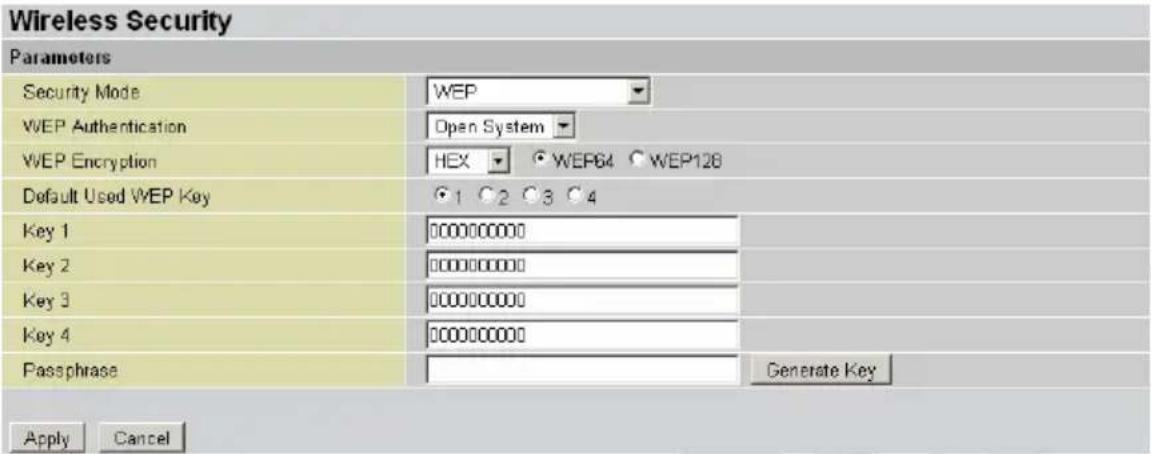

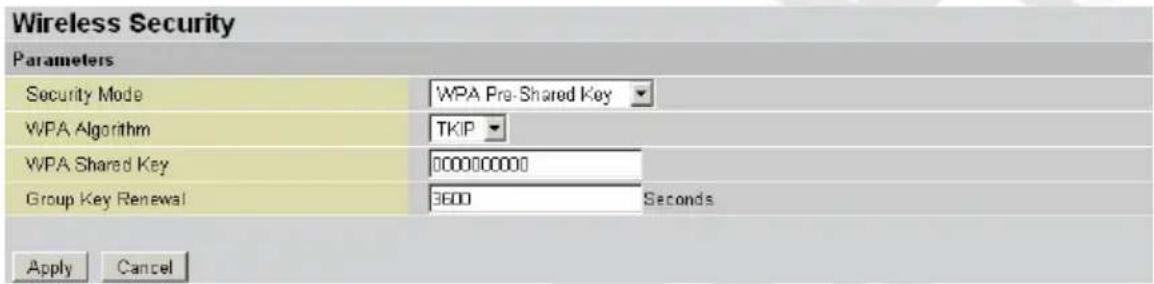

How do I configure wireless security?

Log in to the web GUI, go to Configuration > LAN > Wireless Security. Choose a security mode (e.g., WPA2-PSK), set a strong passphrase (8-63 characters), and click Apply. Ensure your wireless clients use the same settings.

What are the default wireless settings?

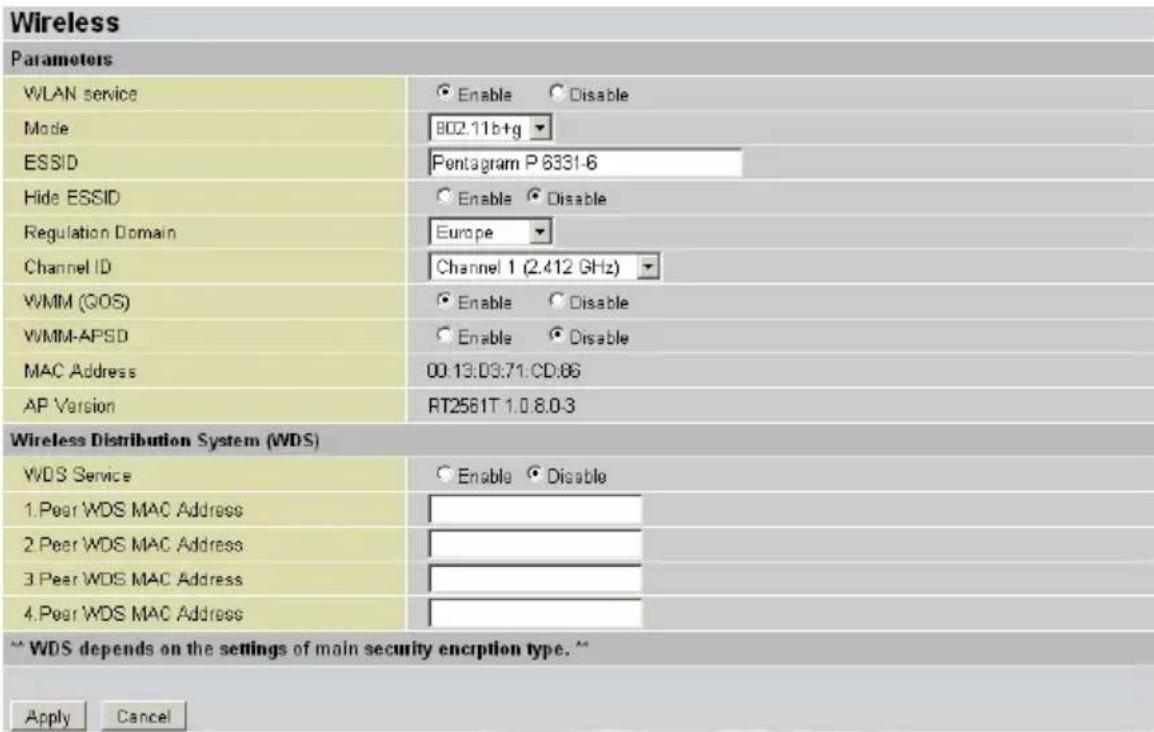

Default SSID is Pentagram P 6331-6, wireless mode is 802.11b+g, channel is 1 (2.412 GHz), security is disabled. Default regulation domain is Europe.

My Internet connection keeps disconnecting. What can I do?

Check the idle timeout setting in WAN configuration. For PPPoE/PPPoA connections, set Connection to Always On. Also verify your ADSL line quality (noise margin, attenuation) via the ADSL status page. Contact your ISP if issues persist.

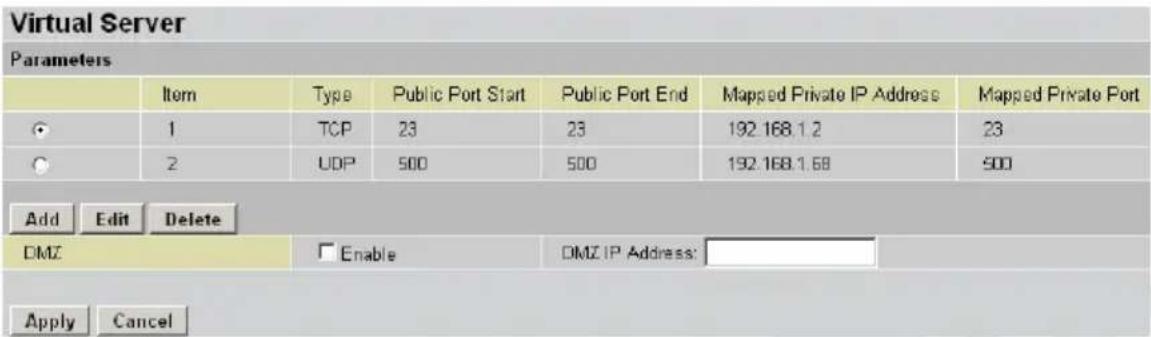

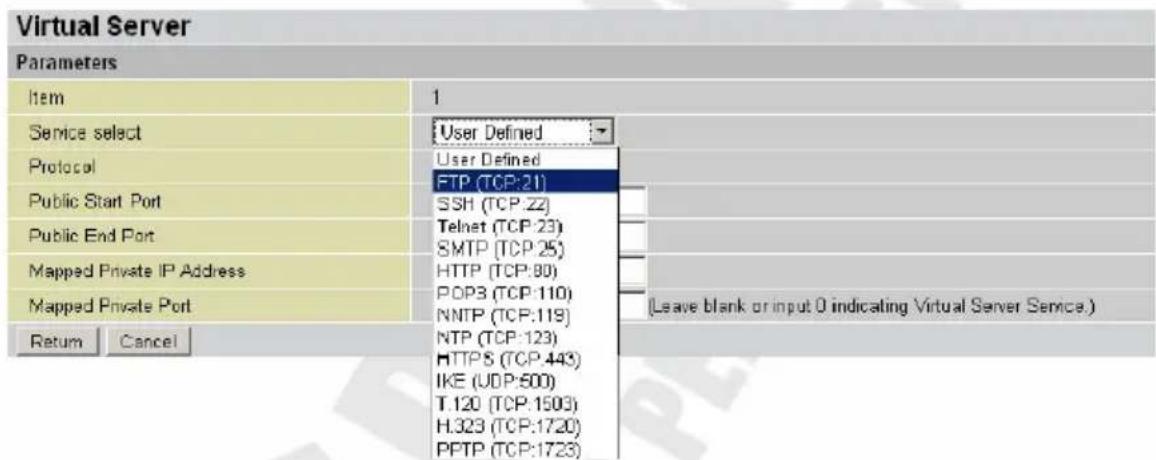

How do I set up port forwarding for a game server?

Go to Configuration > Virtual Server. Click Add, select the service (or enter custom port range), specify the protocol (TCP/UDP), and enter the local IP address of the server. For example, to host a web server, forward port 80 to 192.168.1.2. Ensure NAT is enabled.

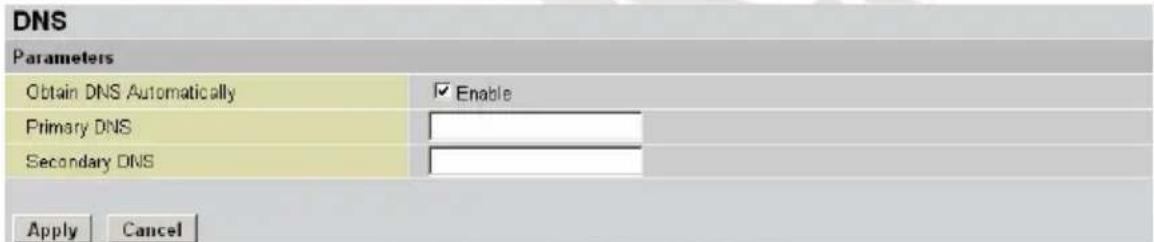

Can I use the router with a different DNS server?

Yes. Go to Configuration > WAN > DNS. Uncheck 'Obtain DNS automatically' and enter the primary and secondary DNS addresses provided by your ISP or a public DNS like Google (8.8.8.8). Click Apply.

How do I upgrade the firmware?

Download the latest firmware from www.pentagram.eu. Log in to the web GUI, go to Configuration > System > Firmware Upgrade. Click Browse to select the .afw file, then click Upgrade. Do not power off the router during the process. After upgrade, restart with factory defaults or current settings.

USER MANUAL Cerberus P6331-6 Pentagram

The latest versions of manual, drivers and applications are available on www.pentagram.eu

NOTE! Any information and technical data are subject to change without prior notification and/or indication in this manual.

INDEX

INTRODUCTION 5

FEATURES 5

PACKAGE CONTENTS....7

PRODUCT OVERVIEW....7

IMPORTANT NOTES....7

FRONT PANEL....7

BACK PANEL 8

DEFAULT SETTINGS....8

RESETTING ROUTER 9

CONNECTING CERBERUS TO COMPUTER....9

CONFIGURE TCP/IP 9

CONFIGURE ROUTER VIA WEB BROWSER....14

LOGIN....14

NAVIGATION....15

STATUS TAB 16

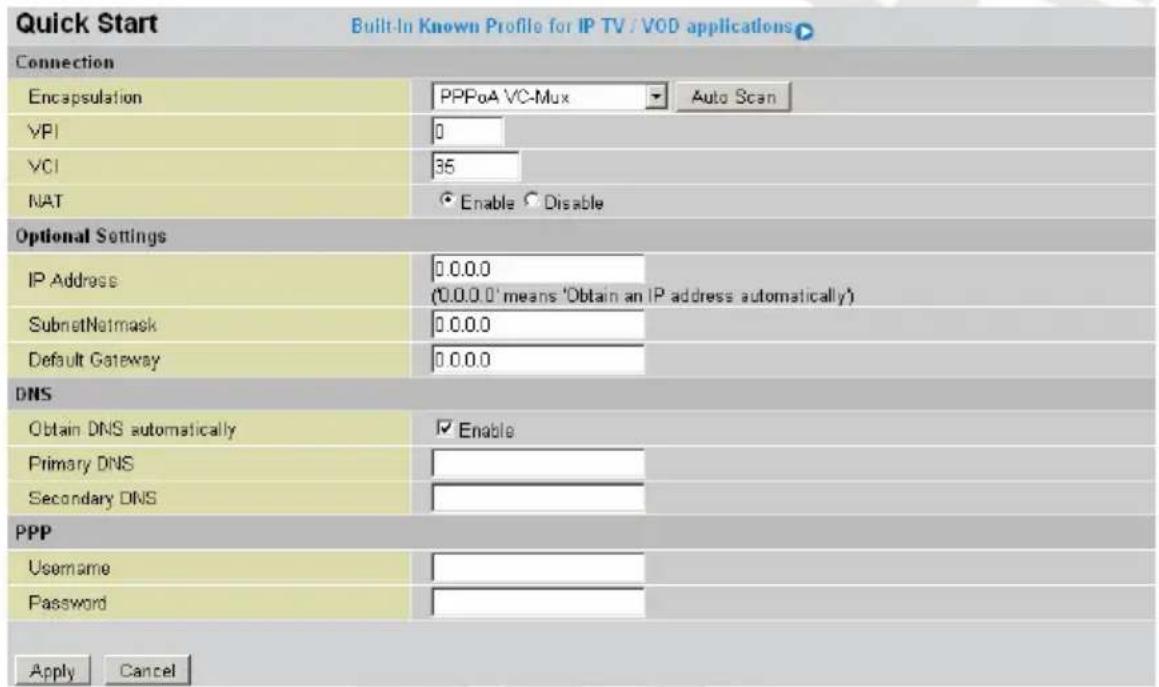

QUICK START TAB....20

CONFIGURATON TAB 22

SAVE CONFIGURATION TO FLASH TAB 60

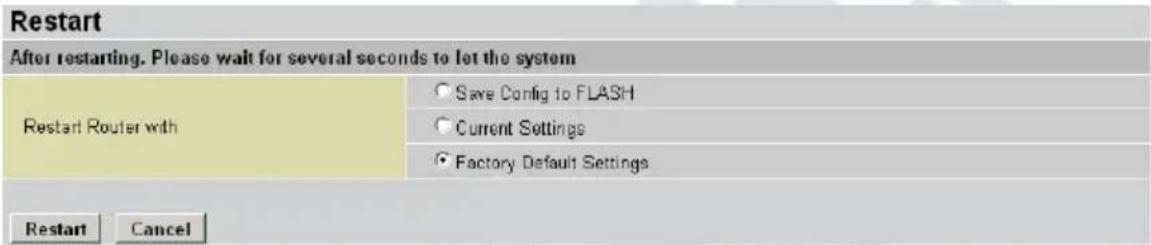

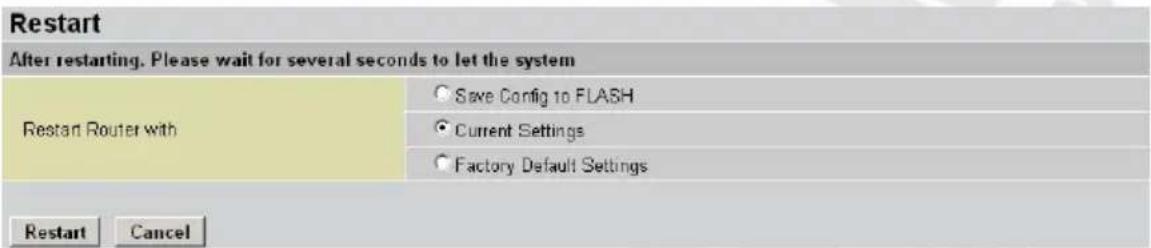

RESTART TAB 60

TROUBLESHOOTING....61

USING LEDS TO DIAGNOSE PROBLEMS....61

PROBLEMS WITH THE WEB INTERFACE 61

PROBLEMS WITH THE LOGIN USERNAME AND PASSWORD 62

PROBLEMS WITH LAN INTERFACE....62

PROBLEMS WITH WAN INTERFACE 62

PROBLEMS WITH THE INTERNET ACCESS 63

Introduction

Thank you for purchasing the Cerberus ADSL2 Wi-Fi Plus (P 6331-6) ADSL2+ Modem/Router by PENTAGRAM. Your new router is an all-in-one unit that combines an ADSL modem, ADSL router, Ethernet network switch and wireless Access Point to provide everything you need to get the machines on your network connected to the Internet over an ADSL broadband connection.

The Cerberus ADSL2 Wi-Fi Plus (P 6331-6) router complies with ADSL2+ standards for deployment worldwide and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. Designed for small office, home office and residential users, the router enables even faster Internet connections. You can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before.

Features

• A 4-port 10/100Mbps fast Ethernet switch is built-in with automatic switching between MDI and MDI-X for 10Base-T and 100Base-TX ports, with auto detection allowing you to use either straight or cross-over Ethernet cables.
• With built-in 802.11g access point for extending the communication media to WLAN while providing the WEP, WPA/WPA2 and WDS for securing your wireless networks.
• Network Address Translation (NAT) allows multiple users to access outside resources such as the Internet simultaneously with one IP address/one Internet access account. Many application layer gateways (ALG) are supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and others.
• This protocol is used to enable simple and robust connectivity among stand-alone devices and PCs from many different vendors, and it makes setting up a network simple and affordable. UPnP architecture leverages TCP/IP and the Web to enable proximity networking in addition to control and data transfer among networked devices. With this feature enabled, you can seamlessly connect to Net Meeting or MSN Messenger.
• The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN IP address. To use the service, you must first apply for an account from a DDNS service such as http://www.dyndns.org/.
• The Cerberus ADSL2 Wi-Fi Plus (P6311-6) provides an embedded PPPoE client function to establish a connection. You get greater access speed without changing the operation concept, while sharing the same ISP account and paying for one access account. No PPPoE client software is required for the local computer. Automatic Reconnect and Disconnect Timeout (Idle Timer) functions are also provided.
• Virtual Server: You can specify which services are visible to outside users. The router detects an incoming service request and forwards it to the specific local computer for handling. For example, you can assign a PC in a LAN to act as a Web server inside and expose it to the outside network. Outside users can browse inside the web server directly while it is protected by NAT. A DMZ host setting is also provided for local computers exposed to the outside Internet network.

- Dynamic Host Configuration Protocol (DHCP) Client and Server: On a WAN site, the DHCP client obtains an IP address from the Internet Service Provider (ISP) automatically. On a LAN site, the DHCP server allocates a range of client IP addresses, including subnet masks and DNS IP addresses and distributes them to local computers. This provides an easy way to manage the local IP network.

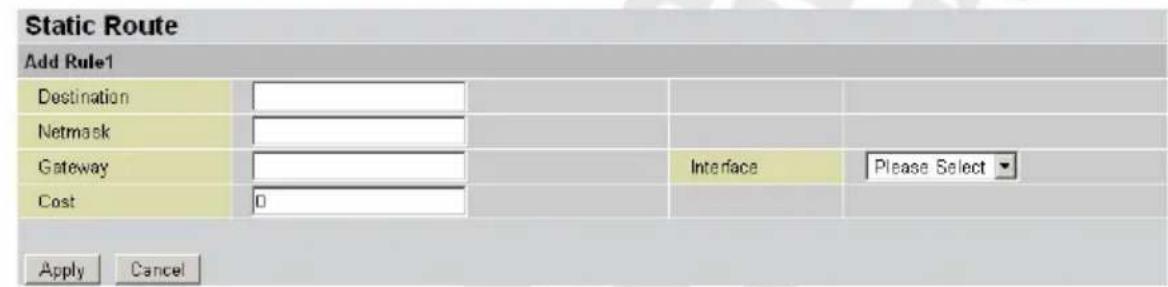

- Static and RIP1/2 Routing: An easy static routing table or RIP1/2 routing protocol supports routing capability.

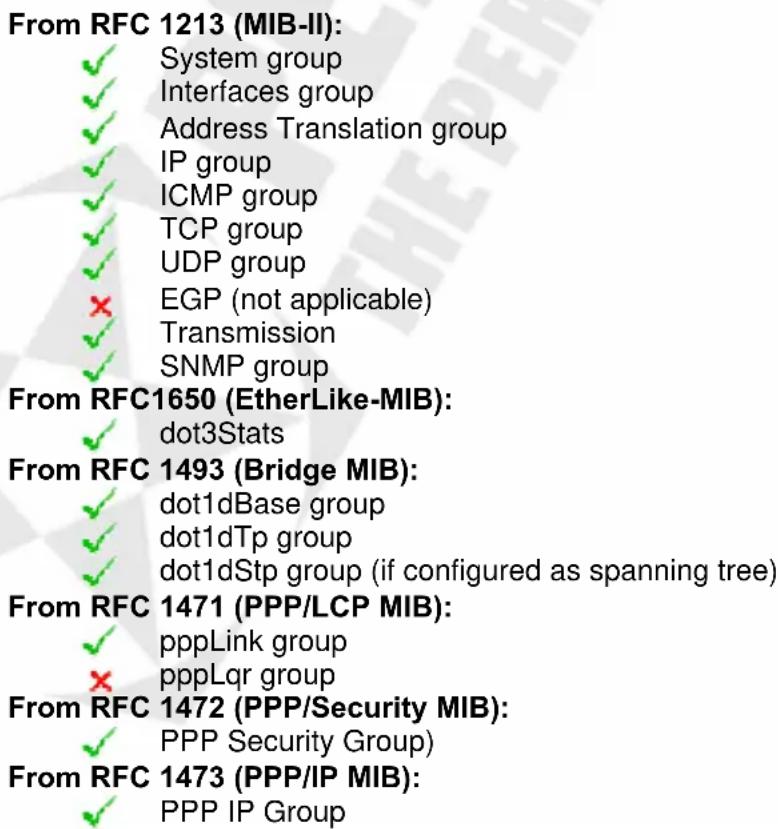

- SNMP (Simple Network Management Protocol): SNMP allows convenient remote management of the router.

- Web-based GUI: A web-based GUI offers easy configuration and management. User-friendly and with on-line help, it also supports remote management capability for remote users to configure and manage this product.

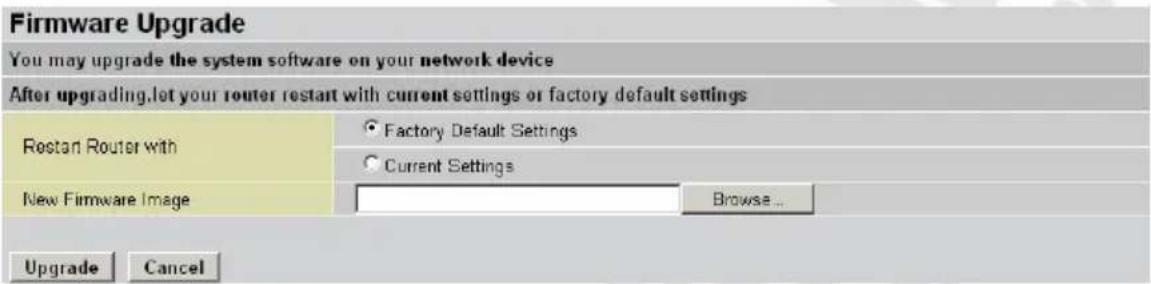

- Firmware Upgradeable: You can upgrade the router with the latest firmware through its web-based GUI.

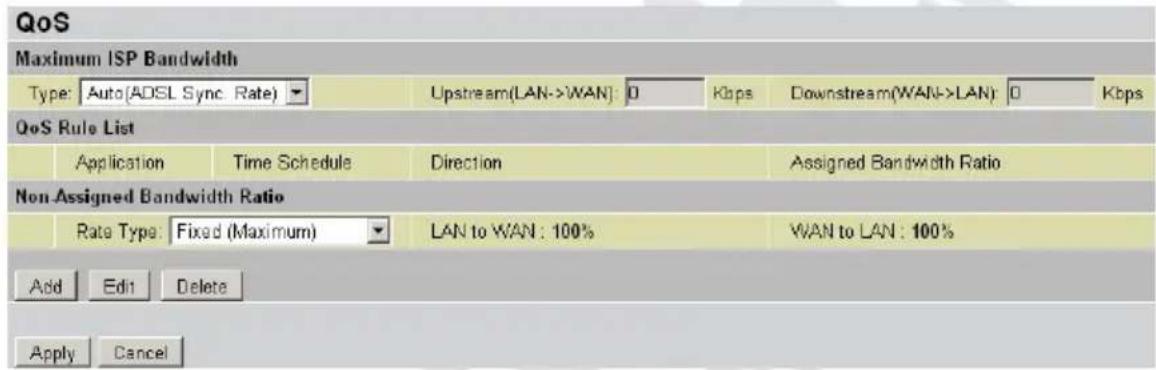

- Quality of Service (QoS) gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring important data like gaming packets, customer information, or management information move through the router ay lightning speed, even under heavy load. The QoS features are configurable by source IP address, destination IP address, protocol, and port. You can throttle the speed at which different types of outgoing data pass through the router, to ensure P2P users don't saturate upload bandwidth, or office browsing doesn't bring client web serving to a halt. In addition, or alternatively, you can simply change the priority of different types of upload data and let the router sort out the actual speeds.

- High Speed Internet Access: downstream rates of up to 24Mbps and upstream rates of up to 1Mbps. Cerberus ADSL2 Wi-Fi Plus (P6311-6) is compliant with the following standards:

ANSI T1.413 issue 2,
ITU-T G.992.1 (G.dmt),
ITU-T G.992.2 (G.lite),
ITU-T G.992.3 (ADSL2 G.dmt.bis),
ITU-T G.992.5 (ADSL2+),
ITU-T G.994.1 (G.hs),
Reach Extended ADSL (RE ADSL).

- Multi-Protocol to Establish a Connection: The router supports following protocols to establish a connection with an ISP:

PPPoA (PPP over ATM Adaptation Layer 5 – RFC 2364),

PPPoE (PPP over Ethernet – RFC 2516)

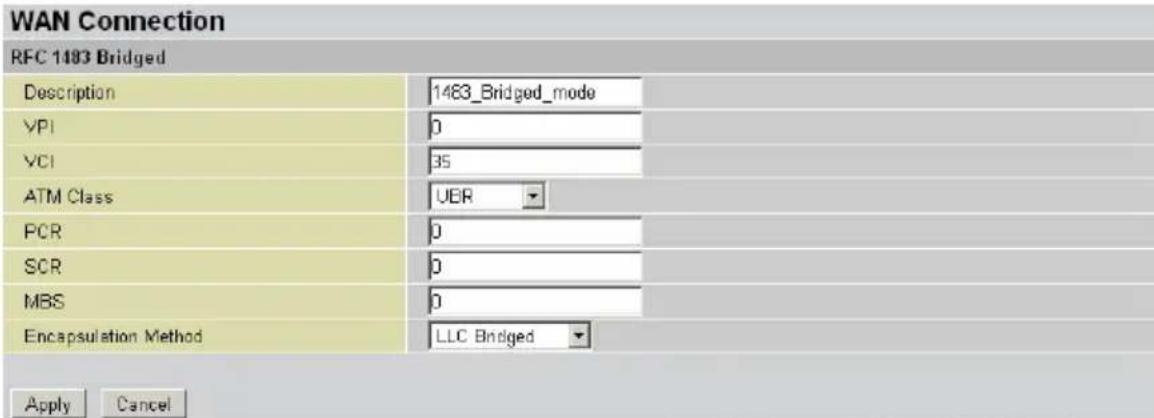

RFC 1483/2684 encapsulation over ATM (bridged or routed),

The router also supports VC-based and LLC-based multiplexing.

Package Contents

1. PENTAGRAM Cerberus ADSL2 Wi-Fi Plus (P6331-6)
2. Power adapter 12 V, 1 A
3. Ethernet cable (RJ-45)
4. Telephone cable (RJ-11)
5. CD
6. Quick Installation Guide

Product Overview

Important Notes

• Do not use the router in high humidity or high temperatures.
• Do not use the same power source for the router as other equipment.
• Do not open or repair the case yourself. If the router is too hot, turn off the power immediately and have it repaired at a qualified service center.
• Avoid using this product and all accessories outdoors.
• Place the router on a stable surface.
• Only use the power adapter that comes with the package. Using a different voltage rating power adaptor may damage the router.

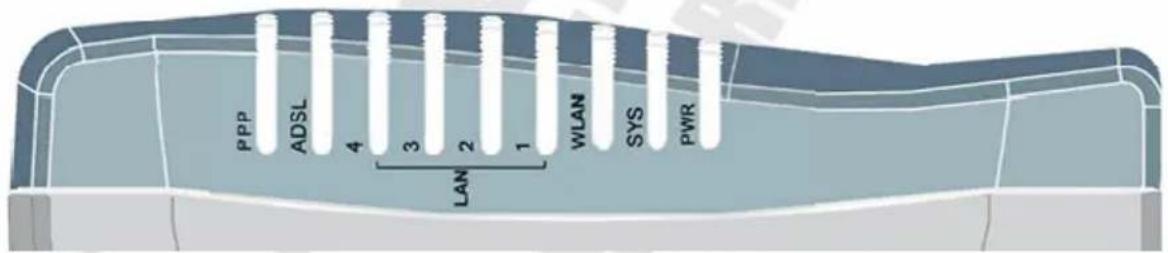

Front Panel

LED Action Description
PWR Off No power is supplied to the device
Steady light Connected to an AC power supply
SYS Steady light System is ready
WLAN Off Access point is disabled
Steady light Access point is enabled
Blinking light Transmitting/Receiving data
LAN (1-4) Off No Ethernet connection
Steady light Connected to an Ethernet port
Blinking light Transmitting/Receiving data
ADSL Off No ADSL signal
Steady light ADSL signal is established
Blinking Light Establishing ADSL signal
PPP Steady light PPPoA / PPPoE connection		established

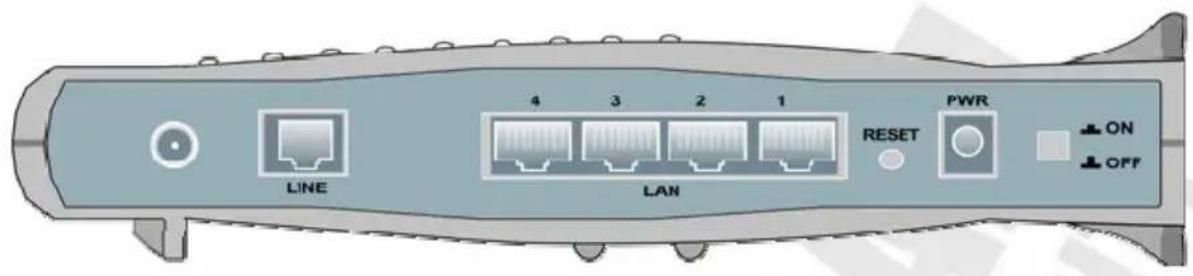

Back Panel

Label Used for...

RP-SMA Connector Connecting the external antenna

LINE (RJ-11) Connecting the telephone cable

LAN 1-4 (RJ-45) Connecting with computers/devices through Ethernet cable

RESET Resetting the device.

PWR Connecting with supplied power adapter

ON/OFF Switching the device on/off

Default Settings

Before changing configuration familiarize yourself with these default settings.

IP Address 192.168.1.100
Subnet Mask 255.255.255.0
SSID Pentagram P 6331-6
DHCP Server Enabled
DHCP Server IP Address Pool	100 IP addresses from 192.168.1.101
IP Address Lease Time 43200 seconds (12 hours)
User Name admin
Password pentagram

It is recommended to set username and password as soon as possible.

If you ever forget the password to log in, you may need to reset router to restore the factory default settings. This procedure is described on the next page.

Resetting router

• Turn router on and wait about 2 minutes for router initialization.
• Hold the RESET button until the LEDs all turn Off, turn On and then turn Off. The router performs configuration factory reset and the router reboots. You can then access the router from the web GUI.

Connecting Cerberus to Computer.

Cerberus can be connected to computer via Ethernet or WLAN:

Connecting via Ethernet Port (Ethernet Card)

All Ethernet ports of router are made in the technology, which automatically activates Crossover if necessary. Thanks to autonegotiation of connection speed the router will automatically select the maximum available speed rate. Transfer at 10/100 Mbit/s rate requires the category 5 cable wired with RJ-45 connectors. In case of "straight" cable both connectors must be crimped in standard EIA/TIA 568B. In case of Crossover cable one connector must be in standard EIA/TIA 56A, and the second in EIA/TIA 568B. After connecting the device to one of the ports, corresponding LED will begin to blink. That signals the process of the auto-checking of port and the negotiation of connection speed rate.

Connecting via WLAN Interface (Wireless Card)

To connect PC to Cerberus via WLAN, Wireless Adapter must be properly installed and configured and both router and PC must be in the same subnet.

Configure TCP/IP

After connecting the computer to the router (by LAN adapter or WLAN interface) the TCP/IP protocol should be configured. The protocol should be automatically installed together with Network card drivers. It is advised that TCP/IP should be configured to receive IP address and all the necessary network parameters from DHCP server automatically. You can find step-by-step configuration for different Windows systems below.

Note: In some cases computer with Windows Vista or Windows XP SP3 cannot obtain an IP address from router's DHCP server. If you encounter this, follow this steps to resolve this problem (Microsoft Support page) http://support.microsoft.com/kb/928233/en-us (this article may be not available in user language).

Windows Vista

Note: Network configuration require administrator privileges. When User Account Control window pops up, either click Continue (Administrator user) or select Administrator user and enter valid password (Standard user).

1. Click Start → Control Panel.
2. Click View network status and tasks.

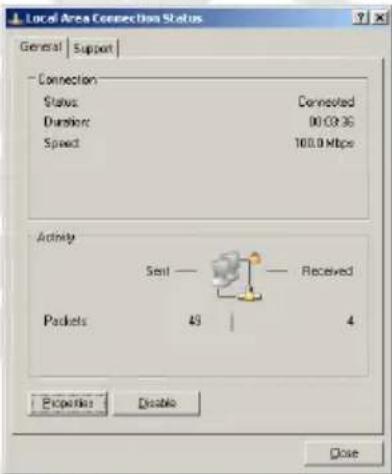

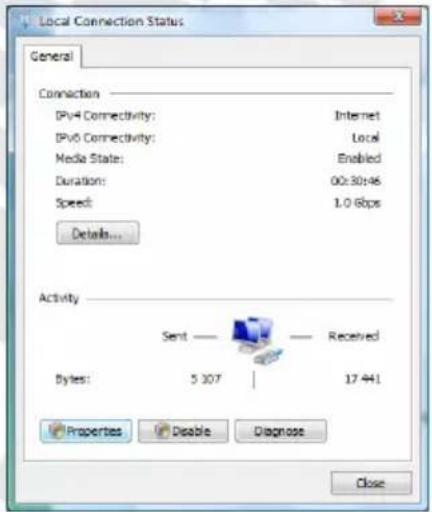

3. Click View status for appropriate connection.

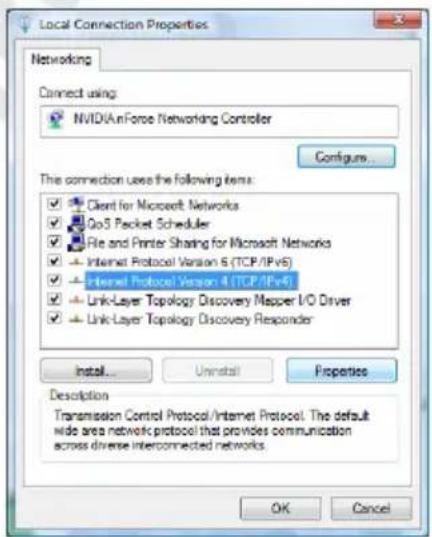

4. On General tab, Click the Properties button.

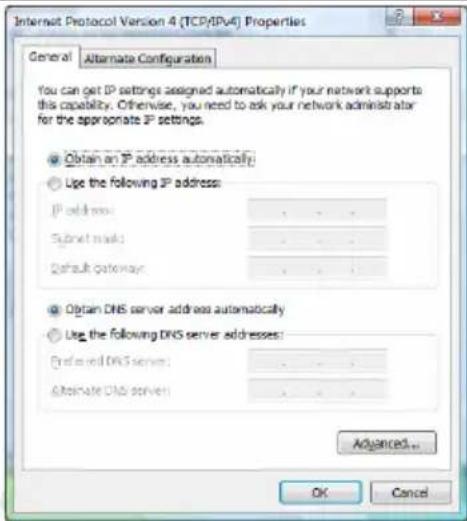

5. On General tab, select Internet Protocol Version 4 (TCP/IPv4) and click Properties.

Network and Internet View network status and tasks Set up file sharing

1. On General tab, select Obtain an IP address automatically and Obtain DNS server address automatically.
2. Click OK to save settings and close Internet Protocol Version 4 (TCP/IPv4) Properties window.

Windows 2000/XP

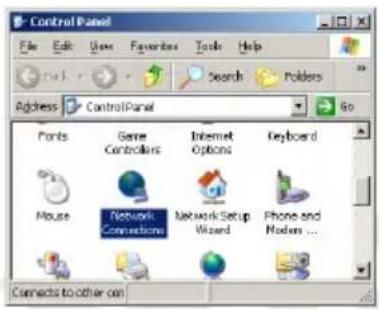

1. Click Start → Settings → Control Panel. Double-click the Network Connections icon (2000/XP Classic view) or click Network and Internet Connections icon and then Network Connections icon (XP Default view).
2. Double-click the Local Area Connection icon.

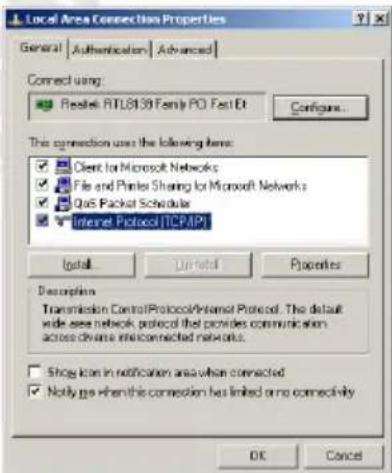

3. On General tab, Click the Properties button.

4. On General tab, select Internet Protocol (TCP/IP) and click Properties.

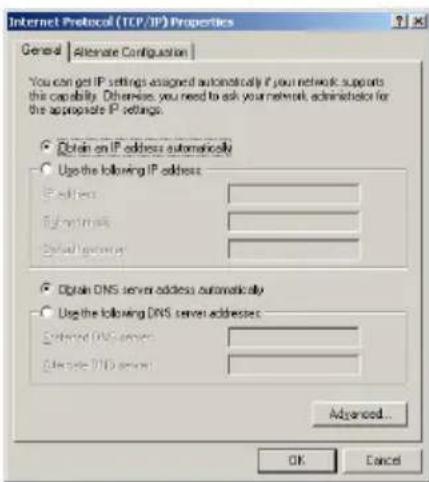

5. On General tab, select Obtain an IP address automatically and DNS server address automatically.

6. Click OK to save settings and close Internet Protocol (TCP/IP) Properties window.

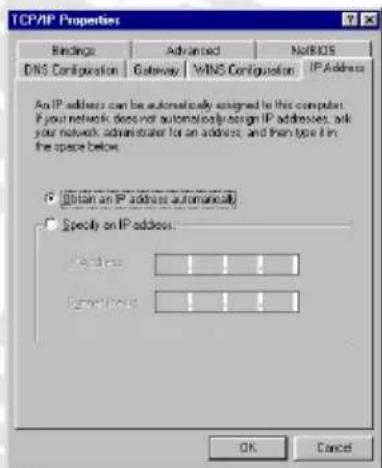

Windows 95/98/Me

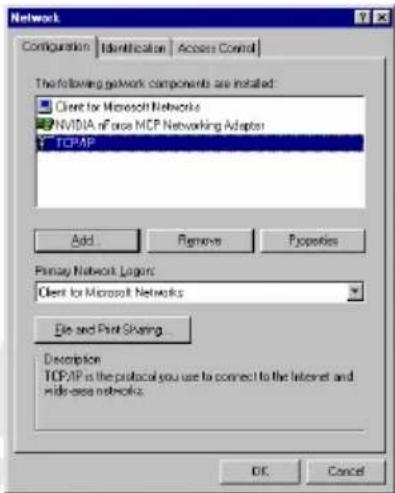

1. Click Start → Settings → Control Panel. Double-click the Network icon.

2. On Configuration tab, select TCP/IP for appropriate network adapter and click Properties.

3. On IP Address tab, select Obtain an IP address automatically.

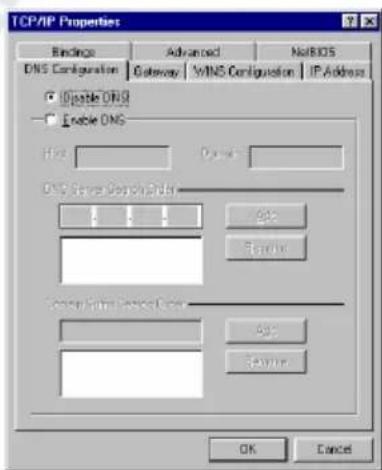

4. On DNS Configuration tab, select Disable DNS

5. Click OK to save settings and close TCP/IP Properties window.

To make sure that network adapter properly obtained an IP address from router's DHCP server:

1. click Start > Run
2. type cmd (Win 2000/XP) or command (Win 95/98/ME) and press Enter
3. in command line type ipconfig /all and press Enter
4. check if the IP Address is 192.168.1.x

Configure router via web browser

Cerberus ADSL2 Wi-Fi Plus (P6331-6) router can be configured via web browser, which is usually integrated with operating system. Router offers clear and simple interface.

Login

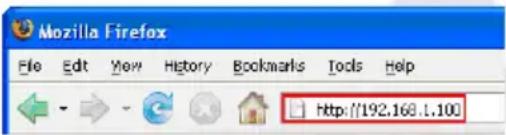

1. Launch the Web browser
2. In address bar enter the default IP address: http://192.168.1.100

1. Enter username and password – default admin / pentagram

Navigation

Buttons

• Save Settings – Opens Save Config to FLASH page.
• Restart Router – Opens Restart page.

Tabs

The web interface includes the following tabs:

• Status (ARP Table, Wireless Association, Routing Table, DHCP Table, System Log, Security Log)
• Quick Start
• Configuration (LAN, WAN, System, Firewall, QoS, Virtual Server, Advanced)
• Save Config to FLASH

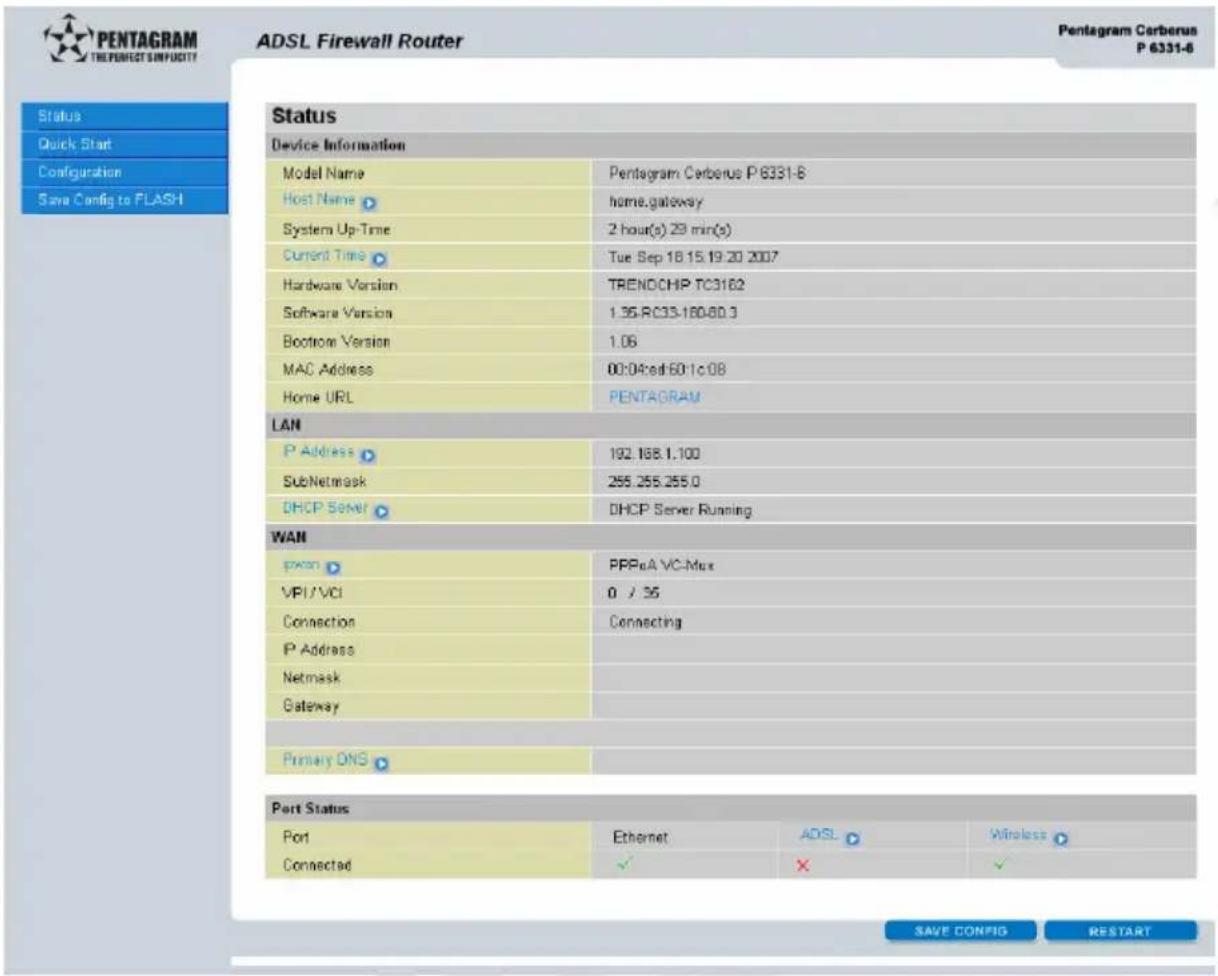

Status Tab

Status
Device Information
Model Name	Pentagram Carberus P 6331-6
Host Name	home.gateway
System Up-Time	2 hour(s) 29 min(s)
Current Time	Tue Sep 18 15:19:20 2007
Hardware Version	TREND CHIP TC3162
Software Version	1.35-RC33-180-80.3
Bootrom Version	1.06
MAC Address	00:04 ed:60:1c:08
Home URL	PENTAGRAM
LAN
IP Address	192.168.1.100
SubNetmask	255.255.255.0
DHCP Server	DHCP Server Running
WAN
ipwan	PPPoA VC-Mux
VPI / VCI	0 / 35
Connection	Connecting
IP Address
Netmask
Gateway
Primary DNS
Port Status
Port	Ethernet	ADSL	Wireless
Connected	√	×	√

Device Information

- Host Name – Provide a name for the router for identification purposes. Host Name lets you change the router name.

Host Name
Device Host Name
Host Name	home gateway
Apply

• System Up-Time – Records system up-time.

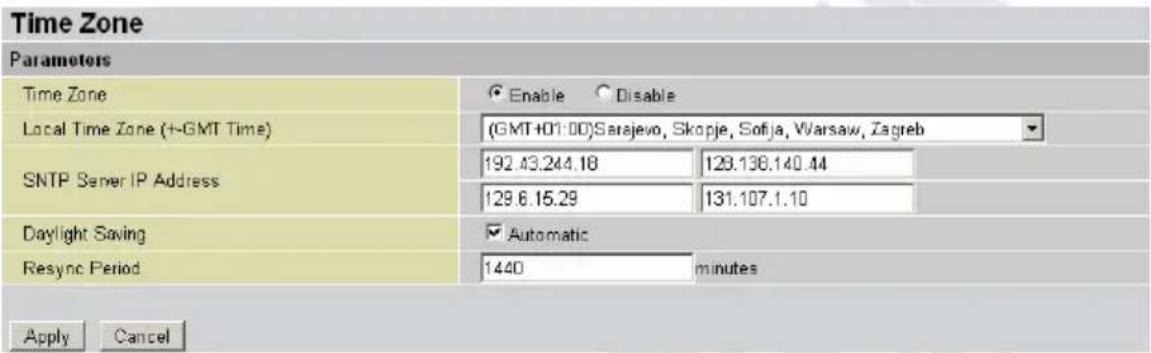

- Current Time – Set the current time. See the Time Zone section for more information.
• Hardware Version – Chipset version
- Software Version – Firmware version
• LAN MAC Address – The LAN MAC address
• WAN MAC Address – The WAN MAC address
• Home URL – Connects to the Home Website.

LAN

• IP Address – LAN port IP address.
- Sub Net Mask – LAN port IP subnet mask.

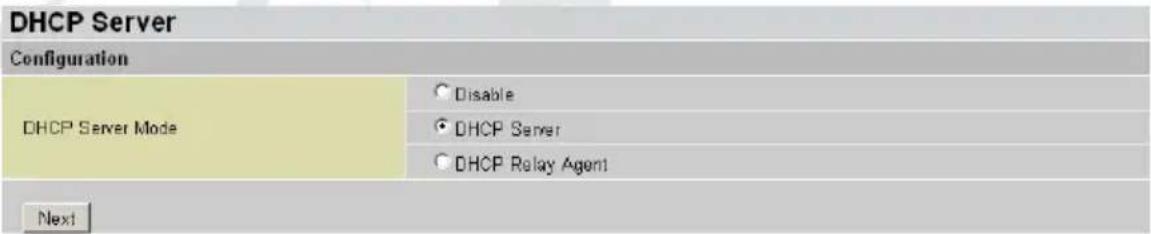

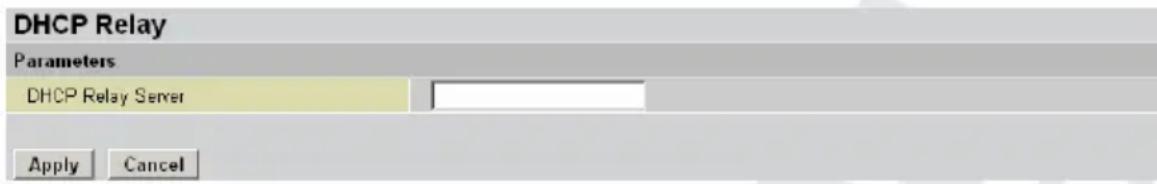

- DHCP Server – LAN port DHCP role - Server, Relay or None.

WAN

• IP WAN – Name of the WAN connection.
• VPI/VCI – Virtual Path Identifier and Virtual Channel Identifier
- Connection – Selects “Disconnected” or “Connected”
- IP Address – WAN port IP address.
• Net mask – WAN port IP subnet mask.
• Gateway – The IP address of the default gateway.

Port Status

User can look up for your connected condition

Status / ARP Table

The router's ARP (Address Resolution Protocol) Table shows the mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is a quick way to determine the MAC address of the network interface of your PCs to use with the router's Firewall – MAC Address Filter function. See the Firewall section of this manual for more information.

ARP Table
IP <> MAC List
IP Address	MAC Address	Interface	Static
192.168 1.101	00:0E:2E:00:11:5F	iplan	No
192.168 1.102	00:0C:76:73:00:51	iplan	No

• IP Address – A list of IP addresses of devices on your LAN (Local Area Network).
• MAC Address – MAC (Media Access Control) address for each device on your LAN.
- Interface – The interface name (on the router) that this IP Address connects to.
- Static – Static status of the ARP table entry: no for dynamically-generated ARP table entries yes for static ARP table entries added by the user

Status / Wireless Association

Wireless Association Table
Wireless client's MAC address and the corresponding IP address
IP Address	MAC
192.168.1.101	00:0E:2E:00:11:5F

IP Address – It is IP Address of wireless client that join this network.

MAC – The MAC address of wireless client.

Status / Routing Table

Routing Table

Routing Table
#	Destination	Netmask	Gateway/Interface	Cost
1	239.255.255.250	255.255.255.255	0.0.0.0/plan	0	Edit ▶	Delete ▶
2	192.168.1.0	255.255.255.0	0.0.0.0/plan	0	Edit ▶	Delete ▶
Create ▶

Static Route

Add Rule3
Destination
Netmask
Gateway			Interface	Please Select ▼
Cost	0

# - Item number

Destination – IP address of the destination network.

Netmask – The destination netmask address.

Gateway/Interface – IP address of the gateway or existing interface that this route uses.

Cost - The cost of transmission for routing purposes. The number need not be precise, but it must be between 0 and 65535.

Interface – Select the interface through which packets are forwarded.

Status / DHCP Table

DHCP Table

IP Address	MAC Address	Client Host Name	Register Time
192.168.1.101	00.0e:2e:00:11:5f	PENTLAB_05	2000/01/01 02:29:32 - 2000/01/01 14:29:32
192.168.1.102	00.0e:76:73:00:51	PENTLAB_02	2000/01/01 00:49:25 - 2000/01/01 12:49:25

Leased – DHCP assigned IP addresses information.

IP Address – IP addresses of devices on your LAN (Local Area Network).

MAC Address – The MAC Address that you want to assign the fixed IP address

Client Host Name – Expired IP addresses information

Register Time – Register time information

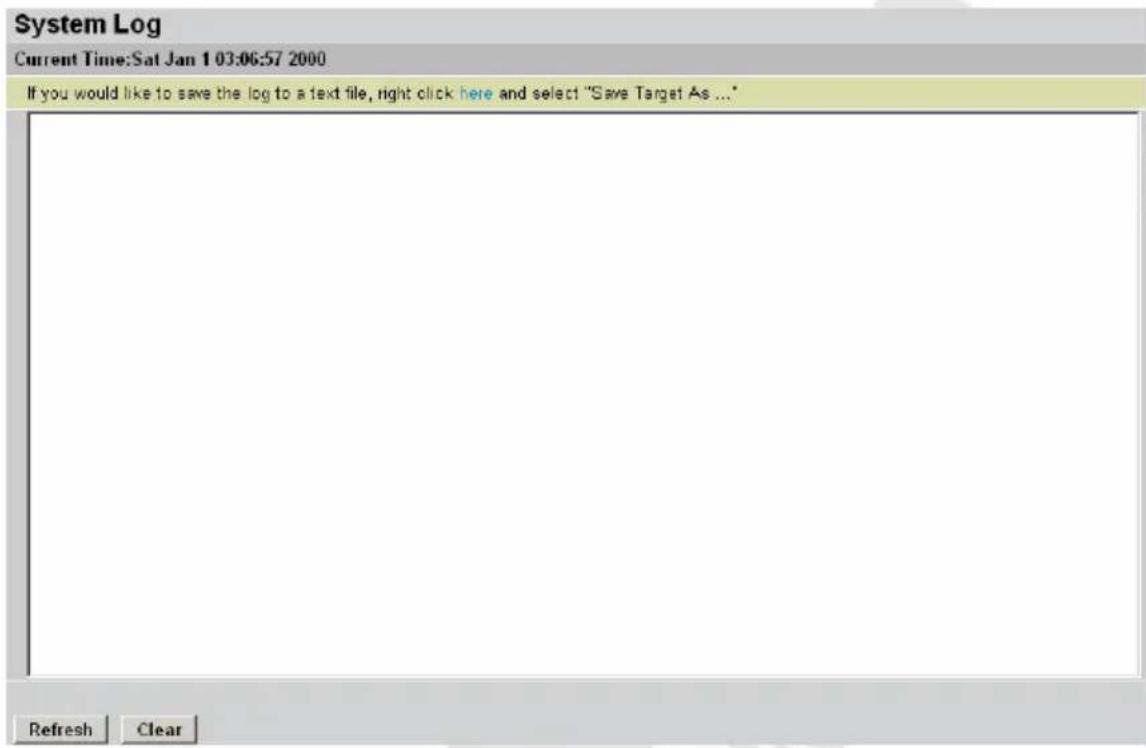

Status / System Log

Display system logs accumulated up to the present time. You can trace historical information with this function.

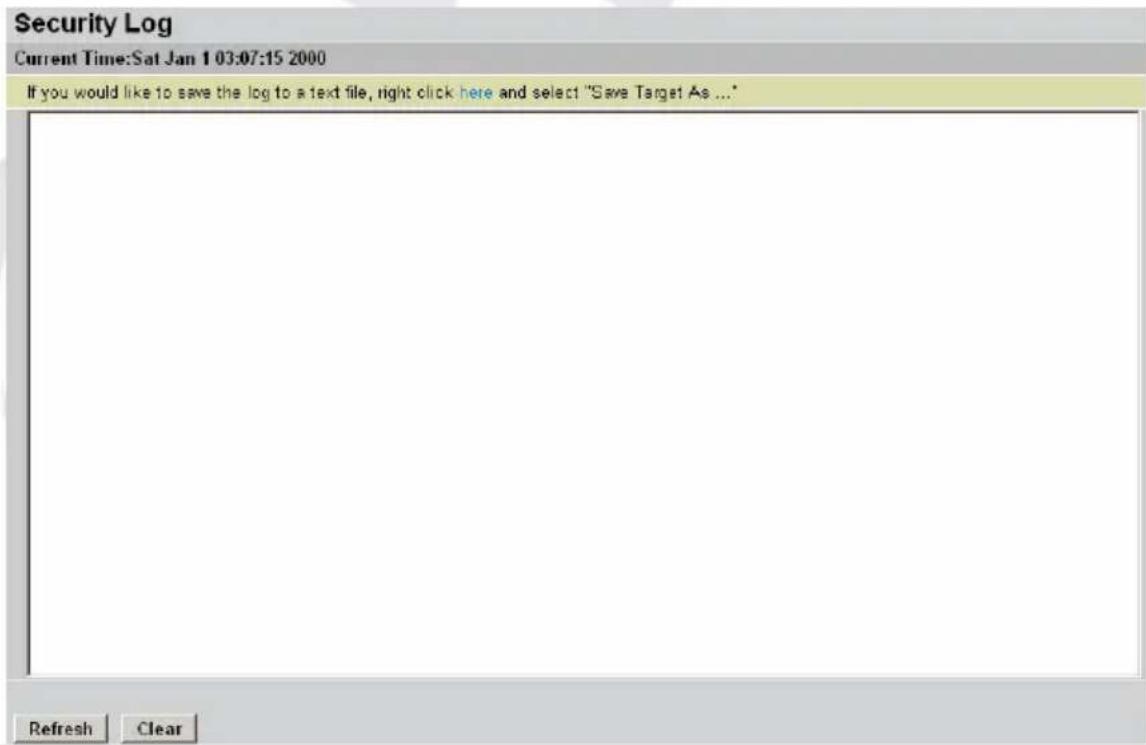

Status / Security Log

This screen displays security log information. If a hacker attacks your server, he is isolated by the firewall function and the router records related information. This helps you know where the hacker comes from.

Quick Start Tab

For detailed instructions on configuring WAN settings, see the WAN section of this manual.

The information you need for the Quick Start wizard to get you online are your login (often in the form of username@ispname), your password, and the encapsulation type.

Your ISP can supply all the details you need. Alternatively, if you have deleted the current WAN Connection in the WAN – ISP section of the interface, you can use the router's PVC Scan feature to determine the Encapsulation types offered by your ISP.

Connection

Encapsulation – Select the encapsulation type your ISP uses or choose Auto Scan.

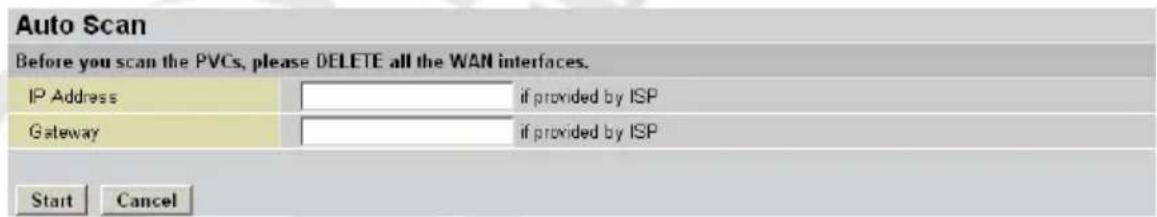

Click Start to begin scanning for encapsulation types offered by your ISP. If the scan is successful, you are presented with a list of supported options.

VCI – Enter the VCI assigned to you. This field may already be configured.

VPI – Enter the VPI assigned to you. This field may already be configured.

NAT – Select "Enabled" or "Disabled".

Optional Setting

IP Address – Type your ISP assigned IP address in the IP Address text box.

Subnet Mask – Enter a subnet mask in dotted decimal notation.

Default Gateway – You must specify a gateway IP address (supplied by your ISP)

DNS

Obtain DNS automatically – Select this check box to use DNS.

Primary DNS – Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.

Secondary DNS – Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.

PPP

Username – Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive). This is usually in the format of “username@ispname” instead of simply “username”.

Password – Enter the password provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).

Configuraton Tab

Click this item to access the following sub-items that configure the ADSL router: LAN, WAN, System, Firewall, QoS, Virtual Server and Advanced. These functions are described in the following sections.

Configuration / LAN (Local Area Network)

A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. There are four items within the LAN section: Ethernet, Wireless, Wireless Security and DHCP Server.

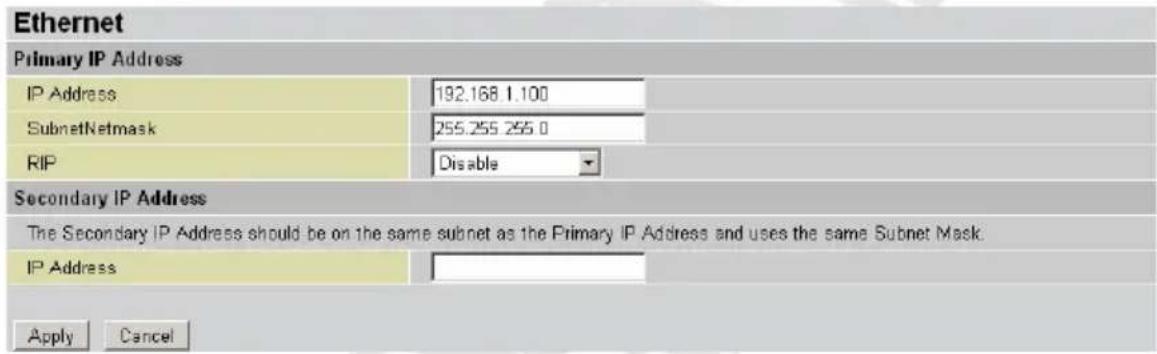

- Ethernet

The router supports two Ethernet IP addresses in the LAN, and two different LAN subnets through which you can access the Internet at the same time. Users usually only have one subnet in their LAN, so there is no need to configure a Secondary IP address. The default IP address for the router is 192.168.1.254.

RIP – RIP v1, RIP v2, RIP v1+v2 and RIP v2 Multicast.

Note: The Subnet mask of the Secondary IP Address depends on the setting of the Primary IP Address.

- Wireless

Mode - 802.11b+g (Mixed mode), 802.11b and 802.11g. The factory default is 802.11b+g.

ESSID – Enter the unique ID given to the Access Point (AP), which is already built-in to the router's wireless interface. To connect to this device, your wireless clients must have the same ESSID as the device.

Regulation Domain – There are five Regulation Domains for you to choose from, including North America (N.America), Europe, France, etc. The Channel ID will be different based on this setting.

Channel ID – Select the ID channel that you would like to use.

MAC Address – The AP's MAC Address

AP Version – The Access Point firmware version.

Wireless Distribution System (WDS)

It is a wireless access point mode that enables wireless link and communication with other access point. It is easy to be installed simply define peer's MAC address of the connected AP. WDS takes advantages of cost saving and flexibility which no extra wireless client device is required to bridge between two access points and extending an existing wired or wireless infrastructure network to create a larger network.

In addition, WDS enhances its link connection security in WEP mode, WEP key encryption must be the same for both access points.

WDS Service – The default setting is Disable. Check Enable radio button to activate this function.

Peer WDS MAC Address – It is the associated AP's MAC Address. It is important that your peer's AP must include your MAC address in order to acknowledge and communicate with each other.

Note: For MAC Address, Semicolon (:) must be included

- Wireless Security

You can disable or enable with WPA or WEP for protecting wireless network. The default mode of wireless security is disabled.

WPA Pre-Shared Key

WPA Algorithms – TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

WPA Shared Key – The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters.

Group Key Renewal – The period of renewal time for changing the security key automatically between wireless client and Access Point (AP).

WPA2 Pre-Shared Key

WPA2 Algorithms – TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

WPA2 Shared Key – The key for network authentication. The input format is in character style and key size should be in the range between 8 and 63 characters.

Group Key Renewal – The period of renewal time for changing the security key automatically between wireless client and Access Point (AP).

WEP

WEP Encryption – To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers highly secure data encryption, known as WEP. If you require high security for transmissions, there are two alternatives to select from: WEP 64 and WEP 128. WEP 128 will offer increased security over WEP 64.

Passphrase – This is used to generate WEP keys automatically based upon the input string and a pre-defined algorithm in WEP64 or WEP128. You can input the same string in both the AP and Client card settings to generate the same WEP keys. Please note that you do not have to enter Key (1-4) as below when the Passphrase is enabled..

Key (1-4) – Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for WEP64 and WEP128 respectively, the separator is “-”. For example, using WEP64, 11-22-33-44-55 is a valid key, whilst 1122334455 is invalid.

Hide ESSID – User can select Enable or Disable to hide ESSID.

- DHCP Server

You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or enable the router's DHCP relay functions. The DHCP protocol allows your router to dynamically assign IP addresses to PCs on your network if they are configured to obtain IP addresses automatically.

DHCP Server Status
Status	DHCP Server Running
Subnet Definitions
Subnet Value	192.168.1.0
SubnetNetmask	255.255.255.0
Domain Name	home.gateway
DNS Server	192.168.1.100
Maximum/Default Lease Time	86400 / 43200 seconds
IP Range	192.168.1.100 - 192.168.1.199

To disable the router's DHCP Server, check Disabled and click Next then click Apply. When the DHCP Server is disabled you need to manually assign a fixed IP address to each PC on your network, and set the default gateway for each PC to the IP address of the router (the default is 192.168.1.254).

DHCP

Disable server and relay agent

The DHCP server and relay agent will be disabled.

Apply Cancel

To configure the router's DHCP Server, check DHCP Server and click Next. You can then configure parameters of the DHCP Server including the IP pool (starting IP address and ending IP address to be allocated to PCs on your network), lease time for each assigned IP address (the period of time the IP address assigned will be valid), DNS IP address and the gateway IP address. These details are sent to the DHCP client (i.e. your PC) when it requests an IP address from the DHCP server. Click Apply to enable this function. If you check Use Router as a DNS Server, the ADSL Router performs the domain name lookup, finds the IP address from the outside network automatically and forwards it back to the requesting PC in the LAN (your Local Area Network).

DHCP SERVER

Parameters

Domain Name	home.gateway
Use Router as DNS Server	☑
Primary DNS Server Address	192.168.1.100
Secondary DNS Server Address
Default Lease Time	43200	seconds
Maximum Lease Time	86400	seconds
Range Start	192.168.1.101
Range End	192.168.1.200
TFTP Server Name(Option 66)

Specify fixed Mac Address Mapping to fixed IP Address (optional)

"Please note that the IP Address can only be set within the IP Range Start and IP Range End specified above in the DHCP SERVER Parameters

	Host Name	MAC Address	IP Address
1
2
3
4
5
6
7
8
9
10

The MAC address is represented as a string of 2 digit hexadecimal numbers separated by colons (:) - (eg. 00:11:22:33:44:55)

Apply Cancel

If you check DHCP Relay Agent and click Next then you must enter the IP address of the DHCP server which assigns an IP address back to the DHCP client in the LAN. Use this function only if advised to do so by your network administrator or ISP. Click Apply to enable this function.

Configuration / WAN (Wide Area Network)

A WAN (Wide Area Network) is an outside connection to another network or the Internet. There are three items within the WAN section: ISP, DNS and ADSL.

- ISP

The factory default is PPPoA. If your ISP uses this access protocol, click Edit to input other parameters as below. If your ISP does not use PPPoA, you can change the default WAN connection entry by clicking Change.

A simpler alternative is to select Quick Start from the main menu on the left. See the Quick Start section of the manual for more information.

Main WAN Connection
Main WAN Connection Configuration
Name	Description	Creator	VPI	VCI
PPPoA Routed	PPPoA	admin	0	35	Edit ▶	Change ▶

Changing wan service will save your configuration to flash and immediately restart the router.

Other WAN Bridge Connection
Bridged WAN connection List
Name	Description	Creator	VPI	VCI
Creates

Built-In Known Profile for IP TV / VOD applications
0: Standard Default, Auto PVC, WAN-DHCP, LAN NAT-DHCP
Apply	Cancel
Changing IP TV / VOD type will save your configuration to flash and immediately restart the router.

RFC 1483 Routed Connections

WAN Connection
RFC 1483 Routed
Description	1483_Routed_mode
VPI	0
VCI	35
NAT	● Enable ○ Disable
Encapsulation Method	LLC Bridged ▼
IP Assignment	● Obtain an IP address automatically via DHCP client
	○ Use the following IP address
	IP Address
	Netmask
	Gateway
RIP	Disable ▼

Description – Your description of this connection.

VPI / VCI – Enter the information provided by your ISP.

NAT – The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing the single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

Encapsulation method – Select the encapsulation format, the default is LLC Bridged. Select the one provided by your ISP.

DHCP client – Enable or disable the DHCP client, specify if the router can get an IP address from the Internet Service Provider (ISP) automatically or not.

Obtain an IP address automatically via DHCP client to enable the DHCP client function or click Specify an IP address to disable the DHCP client function, and specify the IP address manually. The setting of this item is specified by your ISP.

RIP – RIP v1, RIP v2, RIP v1+v2 and RIP v2 Multicast.

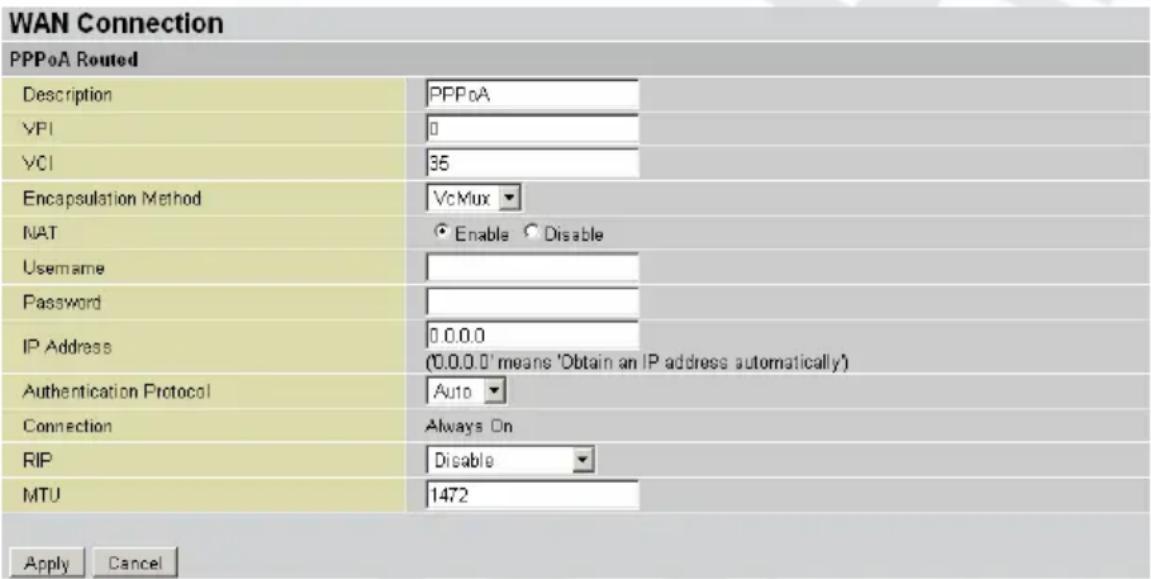

PPPoA Routed Connections

PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). It provides access control and billing functionality in a manner similar to dial-up services using PPP.

Description – User-definable name for the connection.

VPI / VCI – Enter the information provided by your ISP.

NAT – The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single IP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

Username – Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive). This is in the format of “username@ispname” instead of simply “username”.

Password – Enter the password provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).

IP Address – Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP.

Authentication Protocol Type – Default is Chap (Auto). Your ISP advises you whether to use Chap or Pap.

Connection – If you want the router to establish a PPPoA session when starting up and to automatically re-establish the PPPoA session when disconnected by the ISP.

RIP – RIP v1, RIP v2, RIP v1+v2 and RIP v2 Multicast.

MTU – Maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) that the IP attempts to send through the interface.

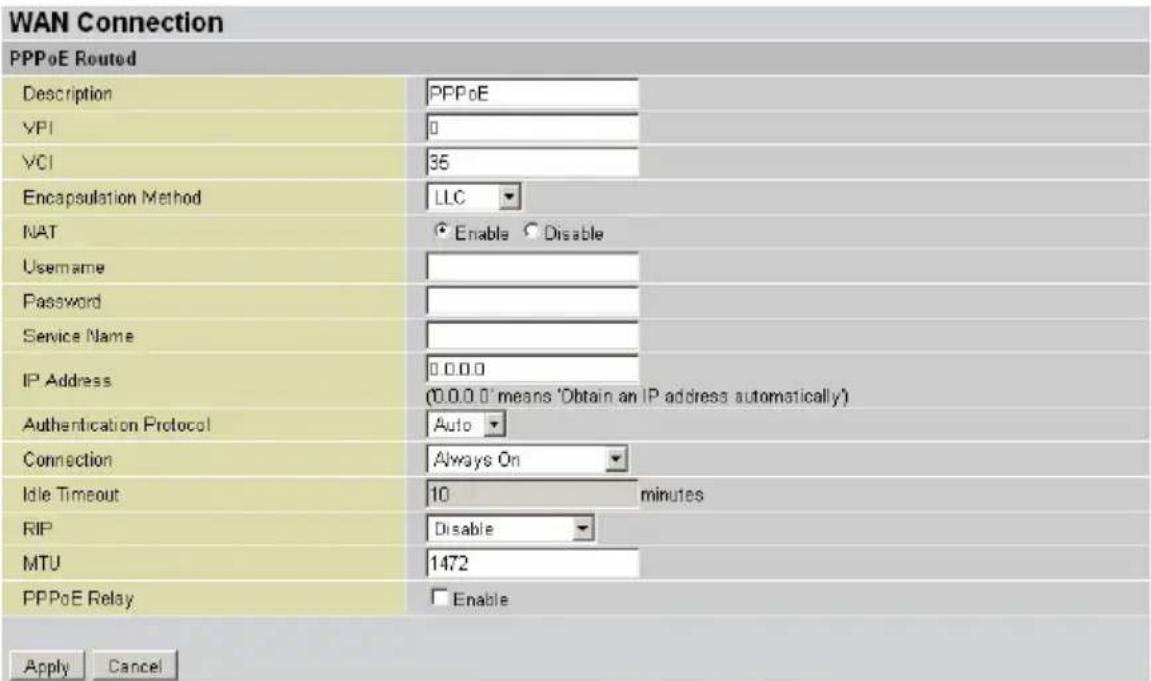

PPPoE Routed Connections

PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services using PPP.

Description – A user-definable name for this connection.

VPI / VCI – Enter the information provided by your ISP.

NAT – The NAT (Network Address Translation) feature allows multiple users to access the Internet through a single ISP account, sharing a single IP address. If users on your LAN have public IP addresses and can access the Internet directly, the NAT function can be disabled.

Username – Enter the username provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive). This is in the format of "username@ispname" instead of simply "username".

Password – Enter the password provided by your ISP. You can input up to 128 alphanumeric characters (case sensitive).

Service Name – This item is for identification purposes. If it is required, your ISP provides you the information. Maximum input is 20 alphanumeric characters.

IP Address – Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP address from your ISP.

Authentication Protocol – Default is Chap. Your ISP advises on using Chap or Pap.

Connection:

• Always on – If you want the router to establish a PPPoE session when starting up and to automatically re-establish the PPPoE session when disconnected by the ISP.
• Connect on Demand – If you want to establish a PPPoE session only when there is a packet requesting access to the Internet (i.e. when a program on your computer attempts to access the Internet).

Idle Timeout – Auto-disconnect the broadband firewall gateway when there is no activity on the line for a predetermined period of time.

RIP – RIP v1, RIP v2, RIP v1+v2 and RIP v2 Multicast.

MTU – Maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) an IP attempts to send through the interface.

RFC 1483 Bridged Connections

Description – A user-definable name for this connection.

VPI / VCI – Enter the information provided by your ISP.

Encapsulation method – Select the encapsulation format, this is provided by your ISP.

• DNS

A Domain Name System (DNS) contains a mapping table for domain name and IP addresses. On the Internet, every host has a unique and user-friendly name (domain name) such as www.pentagram.eu and an IP address. An IP address is a 32-bit number in the form of xxx.xxx.xxx.xxx, for example 192.168.1.254. You can think of an IP address as a telephone number for devices on the Internet, and the DNS allows you to find the telephone number for any particular domain name. Since an IP Address is hard to remember, the DNS converts the friendly name into its equivalent IP Address.

You can obtain a Domain Name System (DNS) IP address automatically if your ISP has provided it when you logon. Usually when you choose PPPoE or PPPoA as your WAN – ISP protocol, the ISP provides the DNS IP address automatically. You may leave the configuration field blank. Alternatively, your ISP may provide you with an IP address of their DNS. If this is the case, you must enter the DNS IP address.

If you choose one of the other protocols, RFC1483 Routed or Bridged, check with your ISP, as it may provide you with an IP address for their DNS server. You must enter the DNS IP address if you set the DNS Server address on your PC to the LAN IP address of this router.

• ADSL

ADSL
Parameters
ADSL Mode	Annex A
Modulator	ADSL Multimode
DSP FirmwareVersion	DMT FwVer: 3.5 18.0_A_TC, HwVer T14F7_1.0
DMT Status	Down
Operational Mode	----
Upstream	0 kbps
Downstream	0 kbps
Noise Margin (Upstream)	N/A (ADSL is not UP)
Noise Margin (Downstream)	N/A (ADSL is not UP)
Attenuation (Upstream)	N/A (ADSL is not UP)
Attenuation (Downstream)	N/A (ADSL is not UP)

ADSL Mode – There are four modes Open Annex Type and Follow DSLAM's Setting, Annex A, Annex L, Annex M and Annex J that user can select for this connection.

Modulator – There are four modes AUTO, ADSL multimode, ADSL2 and ADSL2+ that user can select for this connection.

DSP Firmware Version – DSP code version

DMT Status – DMT Status

Operational Mode – To show the state when user select "AUTO" on connect mode.

Annex Type – To show the router's type, e.g. Annex A, Annex B

Upstream – Upstream rate

Downstream – Downstream rate

Noise Margin / Attenuation – Characteristics of ADSL line.

Configuration / System

There are six items within the System section: Time Zone, Remote Access, Firmware Upgrade, Backup/Restore, Restart and User Management.

- Time Zone

The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone, click Enable and click the Apply button. After a successful connection to the Internet, the router retrieves the correct local time from the SNTP server you have specified. If you prefer to specify an SNTP server other than those in the drop-down list, simply enter its IP address as shown above. Your ISP may provide an SNTP server for you to use.

Resync Period (in minutes) is the periodic interval the router waits before it resynchronizes the router's time with that of the specified SNTP server. To avoid unnecessarily increasing the load on your specified SNTP server you should keep the poll interval as high as possible – at the absolute minimum every few hours or even days.

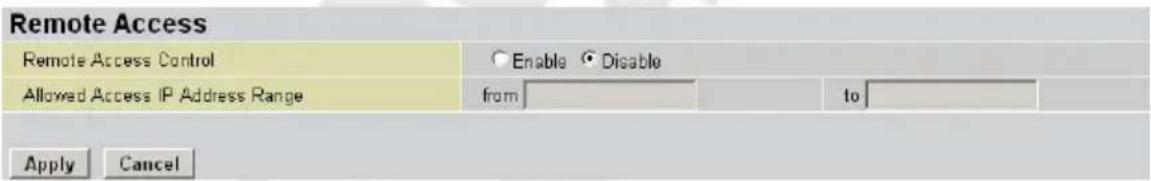

- Remote Access

To temporarily permit remote administration of the router (i.e. from outside your LAN), select a time period the router permits remote access for and click Enable. You may change other configuration options for the web administration interface using Device Management options in the Advanced section of the GUI.

- Firmware Upgrade

Your router's "firmware" is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified. Your router allows you to upgrade the software it runs to take advantage of these changes.

Clicking on Browse allows you to select the new firmware image file you have downloaded to your PC. Once the correct file is selected, click Upgrade to update the firmware in your router.

Restart Router with – To choose Factory Default Setting or Current Settings that user want.

New Firmware Image – Type in the location of the file you wish to upload in this field or click Browse... to find it.

Browse... – Click Browse... to find the .afw file you wish to upload. Remember that you must decompress compressed (.zip) files before you can upload them.

Upgrade – Click upgrade to begin the upload process. This process may take up to two minutes.

Warning: DO NOT power down the router or interrupt the firmware upgrade while it is still in process. Improper operation may damage the router.

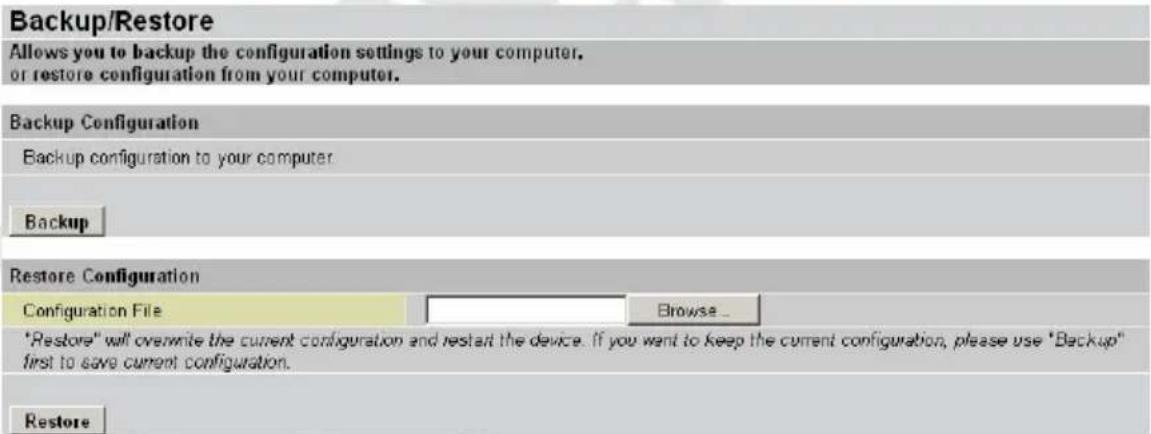

- Backup / Restore

These functions allow you to save and backup your router's current settings to a file on your PC, or to restore a previously saved backup. This is useful if you wish to experiment with different settings, knowing that you have a backup handy in the case of any mistakes. It is advisable to backup your router's settings before making any significant changes to your router's configuration.

Press Backup to select where on your local PC to save the settings file. You may also change the name of the file when saving if you wish to keep multiple backups.

Press Browse to select a file from your PC to restore. You should only restore settings files that have been generated by the Backup function, and that were created when using

the current version of the router's firmware. Settings files saved to your PC should not be manually edited in any way.

Select the settings files you wish to use, and press Restore to load those settings into the router.

- Restart Router

Click Restart with option Current Settings to reboot your router and restore your last saved configuration.

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

You may also reset your router to factory settings by pressing in the small Reset pinhole button on the back of your router for 10-12 seconds while the router is turned on.

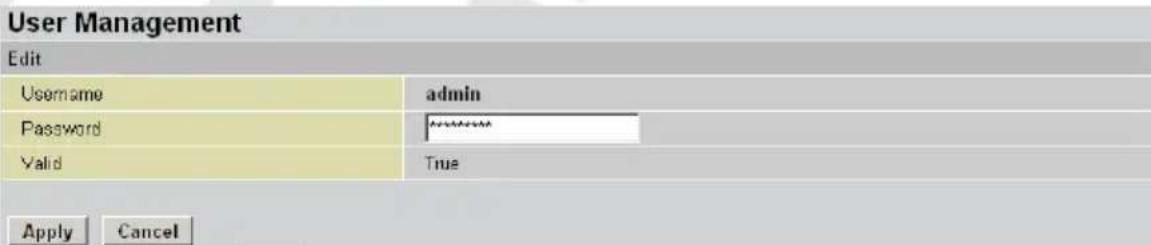

- User Management

User Management
Current Defined Users
Valid	User
True	admin	Edit:
Create

To prevent unauthorized access to your router's configuration interface, all users are required to login with a password. You can set up multiple user accounts, each with their own password.

You are able to Edit existing users and Create new users who are able to access the device's configuration interface. Once you have clicked on Edit, you are shown the following options:

You can change the user's password, whether their account is active and Valid, as well as add a comment to each user account. These options are the same when creating a user account, with the exception that once created you cannot change the username. You cannot delete the default admin account; however you can delete any other created accounts by clicking Cancel when editing the user.

You are strongly advised to change the password on the default "admin" account when you receive your router, and any time you reset your configuration to Factory Defaults.

Configuration / Firewall

Firewall and Access Control

Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet access from your LAN, as well as helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet. See the WAN configuration section for more details on NAT.

Firewall & Filter

Firewall – Prevents access from outside your network. The router provides three levels of security support:

NAT natural firewall – This masks LAN users' IP addresses, which are invisible to outside users on the Internet, making it much more difficult for a hacker to target a machine on your network. This natural firewall is on when the NAT function is enabled.

Note: When using Virtual Servers (port forwarding) your PCs are exposed to the degree specified in your Virtual Server settings provided the ports specified are opened in your firewall packet filter settings.

Firewall Security and Policy (General Settings) – Inbound direction of Packet Filter rules prevent unauthorized computers or applications accessing your local network from the Internet.

Intrusion Detection – Enable Intrusion Detection to detect, prevent, and log malicious attacks.

MAC Filter rules – Prevents unauthorized computers accessing the Internet.

URL Filter – Blocks PCs on your local network from unwanted websites.

A detailed explanation of each of the following five items appears in the Firewall section below: Packet Filter, Ethernet MAC Filter, Wireless MAC Filter, Intrusion Detection, Block WAN Request and URL Filter.

- Packet Filter

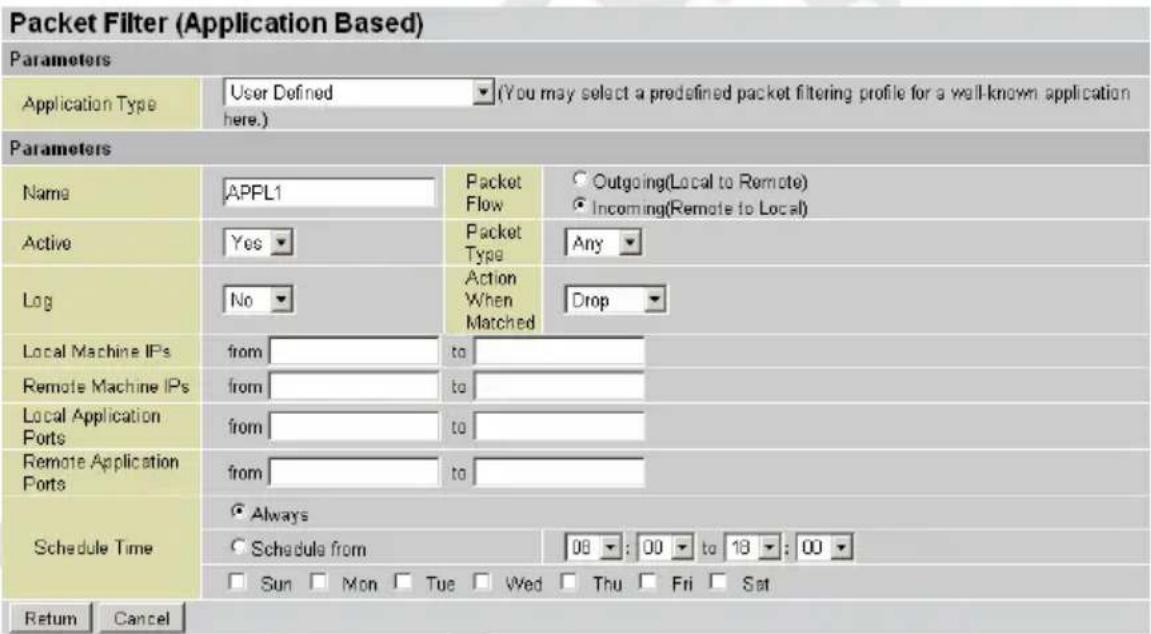

Packet filtering enables you to configure your router to block specified internal/external users (IP address) from Internet access, or you can disable specific service requests (Port number) to /from Internet. This configuration program allows you to set up to 6 different filter rules for different users based on their IP addresses or their network Port number. The relationship among all filters is "or" operation, which means that the router checks these different filter rules one by one, starting from the first rule. As long as one of the rules is satisfied, the specified action is taken.

Add – Click this button to add a new packet filter rule and the next figure appears.

Edit – Check the Rule No. you wish to edit, and then click "Edit".

Delete – Check the Rule No. you wish to delete, and then click "Delete".

Application – User can choose they want.

Packet Flow – Determine whether the rule is for outgoing packets or for incoming packets.

Active – Choose Yes to enable the rule, or choose No to disable the rule.

Packet Type – Specify the packet type (TCP, UDP, ICMP or any) that the rule applies to. Select TCP if you wish to search for the connection-based application service on the remote server using the port number. Or select UDP if you want to search for the connectionless application service on the remote server using the port number.

Log – Choose Yes if you wish to generate logs when the filer rule is applied to a packet.

Action When Matched – If a packet matches this filter rule, Forward or Drop this packet.

Source IP Address – Enter the incoming or outgoing packet's source IP address(es).

Source Port – Check the TCP or UDP packet's source port number(s).

Destination IP Address – Enter the incoming or outgoing packet's destination IP address(es).

Destination Port – Check the TCP or UDP packet's destination port number(s).

Schedule time – User can setup the time to use the packet filter.

Attention: If the DHCP server option is enabled, you must be very careful in assigning IP addresses of a filtered private IP range to avoid conflicts because you do not know which PC in the LAN is assigned which IP address. The easiest and safest way is that the filtered IP address is assigned to a specific PC that is not allowed to access an outside resource such as the Internet. You configure the filtered IP address manually for this PC, but it stays in the same subnet with the router.

- Ethernet MAC Filter

A Ethernet MAC (Media Access Control) address is the unique network hardware identifier for each PC on your network's interface (i.e. its Network Interface Card or Ethernet card). Using your router's MAC Address Filter function, you can configure the switch to only accept traffic from specified machines, or else to block specific machines from accessing your LAN.

There are no pre-defined MAC address filter rules; you can add the filter rules to meet your requirements.

Active – Select Yes from the drop down list box to enable MAC address filtering.

Action When Matched – Select Drop or Forward.

Log – Choose Yes if you wish to generate logs when the filer rule is applied to a packet.

MAC Address – Enter the MAC addresses you wish to manage.

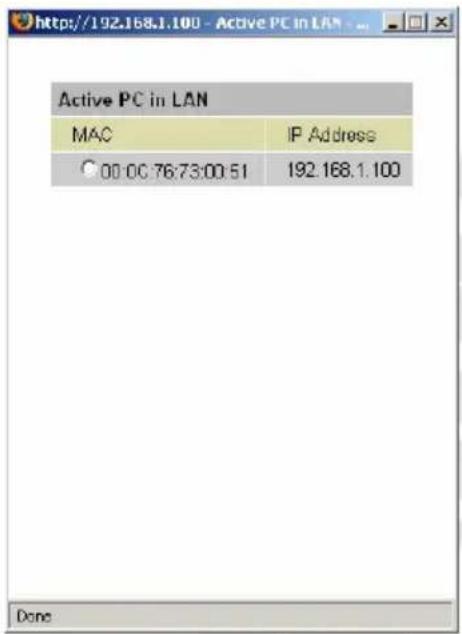

Candidates – it automatically detects devices connected to the router through the Ethernet.

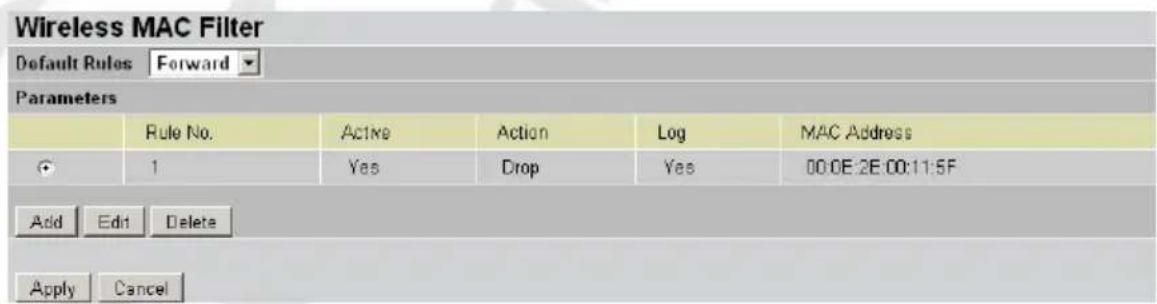

- Wireless MAC Filter

The MAC Address supports up to 30 wireless network machines and helps you to manage your network control to accept traffic from specific authorized machines or to restrict unwanted machine(s) to access your LAN.

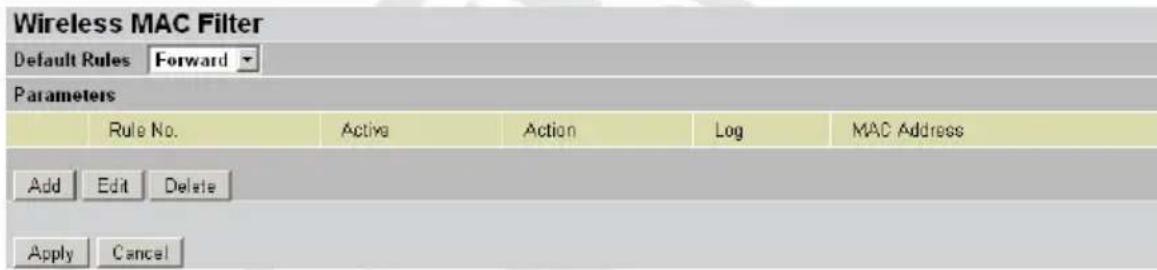

There are no pre-define MAC Address filter rules; you can add the filter rules to meet your requirements

Active – Select Yes from the drop down list box to enable MAC address filtering.

Action When Matched – Select Drop or Forward.

Log – Choose Yes if you wish to generate logs when the filer rule is applied to a packet.

MAC Address – Enter the MAC addresses you wish to manage.

Candidates – it automatically detects devices connected to the router through the Ethernet.

• Intrusion Detection

Check Enable if you wish to detect intruders accessing your computer without permission. The router automatically detects and blocks a DoS (Denial of Service) attack if a user enables this function. This kind of attack is not to access confidential data on the network; instead, it aims to disrupt specific equipment or the entire network. If this happens, users are not able to access network resources.

Intrusion Detection – Check Enable if you wish to detect intruders accessing your computer without permission.

Alert Mail – Select this check box to use Alert Mail.

Alert Mail Time – Set the time for receiving Alert mail.

Your E-Mail – Set your email address.

Recipient's E-mail – Set the Recipient's email address to which the e-mail notification is sent.

SMTP server – Set the SMTP (mail) server address.

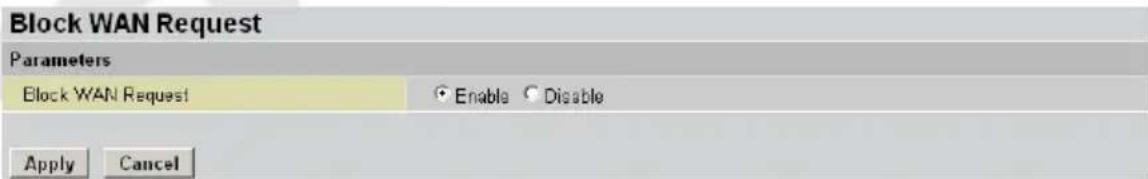

- Block WAN Request

Check Enable if you wish to exclude outside PING requests from reaching this router.

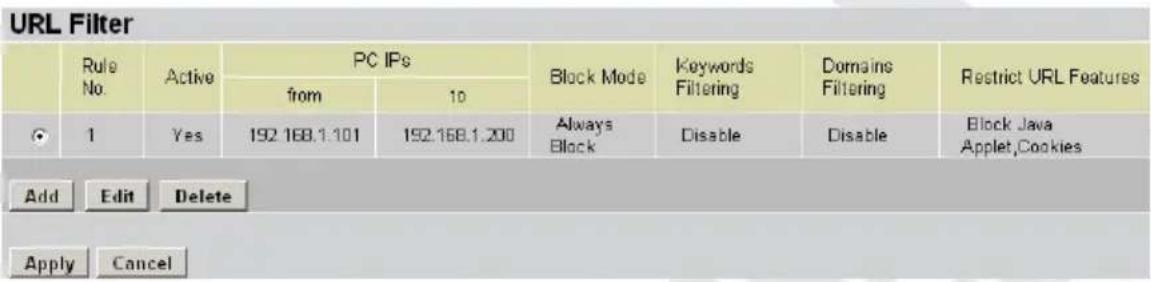

- URL Filter

URL (Uniform Resource Locator – e.g. an address in the form of http://www.pentagram.eu or http://www.example.com) filter rules allow you to prevent users on your network from accessing particular websites from their URL. There are no pre-defined URL filter rules; you can add filter rules to meet your requirements.

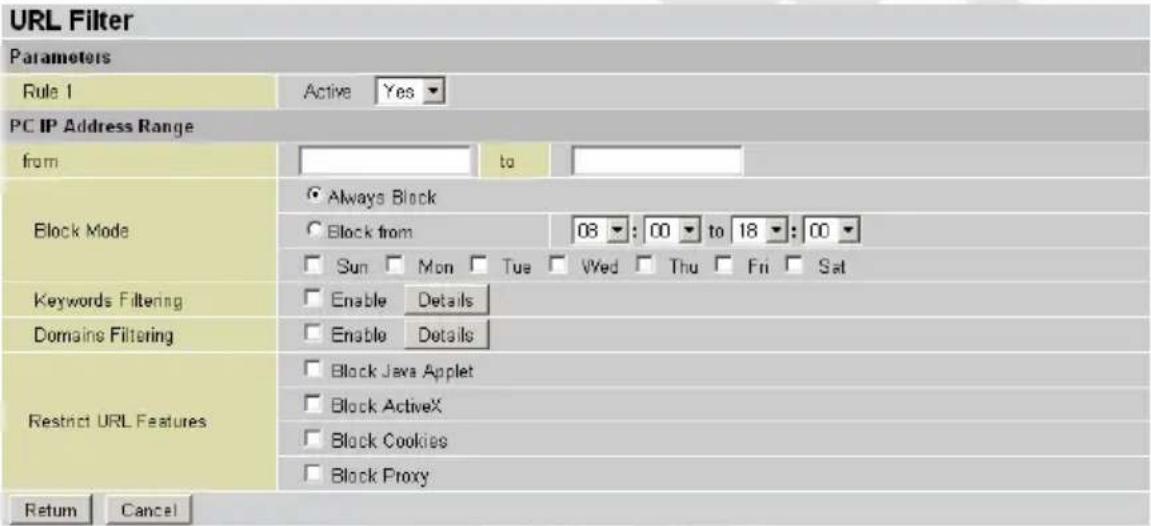

Active – Select Yes from the drop down list box to enable or disable the URL Filter feature.

Always Block – Select to always check URL filter rules (i.e. at all hours of the day).

Block from – Specify the time period to check URL filter rules (e.g. during work hours).

Keywords Filtering – Allows blocking by specific keywords within a particular URL rather than having to specify a complete URL (e.g. to block any image called "advertisement.gif"). When enabled, your specified keywords list is checked to see if any keywords are present in URLs accessed to determine if the connection attempt should be blocked. Note that the URL filter blocks web browser (HTTP) connection attempts using port 80 only. For example, the URL http://www.abc.com/abcde.html would be dropped since the keyword "abcde" occurs in the URL.

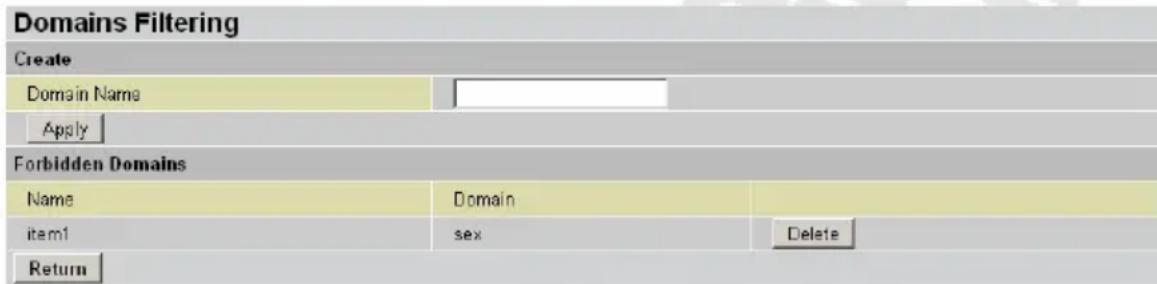

Domains Filtering – Checks the domain name in URLs accessed against your list of domains to block or allow. If it matches, the URL request is sent (Trusted) or dropped (Forbidden). The checking procedure is:

1. Check the domain in the URL to determine if it is in the trusted list. If yes, the connection attempt is sent to the remote web server.
2. If not, it is checked with the forbidden list. If present, the connection attempt is dropped.
3. If the packet matches neither of the above, it is sent to the remote web server.
4. Please note that only the domain is specified, not the full URL. For example to block traffic to www.sex.com, enter "sex" or "sex.com" instead of "www.sex.com". In the example below, the URL request for www.abc.com is sent to the remote web server because it is listed in the trusted list, while the URL request for www.sex or www.sex.com is dropped because sex.com is in the forbidden list.

Restrict URL Features

• Block Java Applet – Blocks Web content which includes the Java Applet to prevent someone who wants to damage your system via the standard HTTP protocol.
  • Block ActiveX – Blocks ActiveX
  • Block Cookies – Blocks Cookies
• Block Proxy – Blocks Proxy

Configuration / QoS (Quality of Service)

Quality of Service Introduction

If you've ever found your 'net' speed has slowed to a crawl because another family member is using a P2P file sharing program, you'll understand why the Quality of Service features in PENTAGRAM's routers is such a breakthrough for home users and office users.

QOS: Keeping Your Net Connection Fast and Responsive

Configurable by source IP address, destination IP address, protocol, and port, the Quality of Service (QOS) gives you full control over which types of outgoing data traffic should be given priority by the router, ensuring bandwidth-consumption data like gaming packets, latency-sensitive application like voice, or even mission critical files, move through the router at lightning speed, even under heavy load. You can throttle the speed at which different types of outgoing data pass through the router. In addition, you can simply change the priority of different types of upload data and let the router sort out the actual speeds.

QOS Setup

Please choose the QOS in the Configuration item of the left window as depicted below.

After clicking the QOS item, you can Add/Edit/Delete a QOS policy. This page will show the brief information for policies you have added or edited. This page will also display the total available (Non-assigned) bandwidth, in percentage, can be assigned.

QoS
Maximum ISP Bandwidth
Type: Auto(ADSL Sync. Rate)			Upstream(LAN->WAN): 0 Kbps	Downstream(WAN->LAN): 0 Kbps
QoS Rule List
	Application	Time Schedule	Direction	Assigned Bandwidth Ratio
○	PPTP	Always On	LAN to WAN	20% Minimum Guaranteed Rate with High priority
○	VoIP	Always On	LAN to WAN	20% Minimum Guaranteed Rate with High priority
○	FTP Server	Always On	LAN to WAN	20% Fixed Rate
Non-Assigned Bandwidth Ratio
	Rate Type: Fixed (Maximum)		LAN to WAN : 40%	WAN to LAN : 100%
Add Edit Delete
Apply Cancel

Application – A name that identifies an existing policy.

Time Schedule – Scheduling your QOS policy to be applied.

Direction – The traffic flow direction to be controlled by the QOS policy.

There are two settings to be provided in the Router:

• LAN to WAN – You want to control the traffic flow from the local network to the outside world. E.g., you have a FTP server inside the local network and you want to have a limited traffic rate controlled by the QOS policy. So, you need to add a policy with LAN to WAN direction setting.
• WAN to LAN – Control Traffic flow from the WAN to LAN. The connection maybe either issued from LAN to WAN or WAN to LAN.)

Assigned Bandwidth Ratio – This field shows the assigned bandwidth ratio in percentage for a QOS policy. If WAN connection to internet is established, the estimated transfer rate will be shown in kbps. You may specify a fixed transfer rate or Minimum Guaranteed Rate with priority for non-used bandwidth.

Non-Assigned Bandwidth Ratio – This field shows the available bandwidth ratio, for LAN to WAN and WAN to LAN, that has not yet assigned.

Add – Press this button to add a new QOS policy.

Edit / Delete – Before using these buttons to edit or delete a policy, please select one policy you want to edit/delete from the radio option.

Apply – After you have configured the policies, you can press this button to apply the configuration. If you want to make the change persistent in flash, choose Save Config to Flashin the left windows to save it into flash.

When you press Add or Edit buttons described above, the following page will show up in your browser. You can use it to define a QOS policy.

Controlled Traffic Flow – Specify the traffic flow you want to control. For GRE protocol, there is no need to specify the IP addresses or Application ports in this page. For other protocols, at least one value shall be given.

Packet type – The packet type will be controlled. For GRE protocol, there is no need to specify the IP addresses or Application ports in this page. For other protocols, at least one value shall be given.

• ANY – No specified protocol type is specified.
- TCP
• UDP
- ICMP
• GRE – For PPTP VPN Connections.

Assigned Data rate – Assign the data ratio for this policy to be controlled. For examples, we want to only allow 20% of the total data transfer rate for the LAN-to-WAN direction to be used for FTP server. Then we can specify here with data ratio = 20. If you have ADSL LINE with 256K/bps.rate, the estimated data rate, in kbps, for this rule is 20%*256*0.9 = 46kbps. (For 0.9

is an estimated factor for the effective data transfer rate for a ADSL LINE from LAN to WAN. For WAN-to-LAN, it is 0.85 to 0.8).

Data Ratio - percentage for the data rate to be controlled by this policy. As above FTP server examples, it is 20.

Rate Type – We provide 2 types here:

• Fixed (Maximum): specify a fixed data rate for this policy. It also is the maximal rate for this policy. As above FTP server example, you may want to “throttle” the outgoing FTP speed to 20% of 256K and limit to it, you may use this type.
• Guaranteed (Minimum): specify a minimal data rate for this policy. For example, you want to provide a guaranteed data rate for your outside customers to access your internal FTP server with, say at least, 20% of your total bandwidth. You can use this type. Then, if there is available bandwidth that is not used, it will be given to this policy by following priority assignment.

Priority for Non-used Bandwidth – Specify the priority for the bandwidth that is not used. For examples, you may specify two different QOS policies for different applications. Both applications need a minimal bandwidth and need more bandwidth, beside the assigned one, if there is any available/non-used one available. So, you may specify which application can have higher priority to acquire the non-used bandwidth.

• High
  • Normal – The default is normal priority.
• Low

For the sample priority assignment for different policies, it is seved in a First-In-First-Out way.

DSCP Marking – Differentiated Services Code Point (DSCP), it is the first 6 bits in the ToS byte. DSCP Marking allows users to classify traffic based on DSCP value and send packets to next Router.

DSCP Mapping Table
Disabled	None
Best Effort Best Effort (000000)
Premium Express Forwarding (101110)
Gold service (L) Class 1, Gold (001010)
Gold service (M) Class 1, Silver (001100)
Gold service (H) Class 1, Bronze (001110)
Silver service (L) Class 2, Gold (010010)
Silver service (M) Class 2, Silver (010100)
Silver service (H) Class 2, Bronze (010110)
Bronze service (L) Class 3, Gold (011010)
Bronze service (M) Class 3, Silver (011100)
Bronze service (H) Class 3, Bronze (011110)

Local Machine IPs – The IP address values for Local LAN machines you want to control. (For IP packets from LAN to WAN, it is the source IP address. For IP packages from WAN to LAN, it is the destination IP address.)

Remote Machine IPs – The IP address values for Remote WAN machines you want to control. (For IP packets from LAN to WAN, it is the destination IP address. For IP packages from WAN to LAN, it is the source IP address.)

Local Application Ports – The Application port values for local LAN machines you want to control. (For TCP/UDP packets from LAN to WAN, it is the source port value. For TCP/UDP packets from WAN to LAN, it is the destination port value.)

Remote Application Ports – The Application port values for remote machines you want to control. (For TCP/UDP packets from LAN to WAN, it is the destination port value. For TCP/UDP packets from WAN to LAN, it is the source port value.)

Schedule Time – Schedule your QOS policy.

QOS example for your Network Connection Diagram

FTP Server

ADSL Subscription Rate

Upstream: 256 kbps

Downstream: 2048 Mbps

Example QOS Plan

Application	IP or Ports	Control Flow	Data Rate	Time Schedule
VoIP User	192.168.1.1	Outgoing	Minimal 20% with high priority for non-used bandwidth with SDCP marking Class 1 Gold Service	Always
FTP Sever 1	92.168.1.100	Incoming and Outgoing		Outgoing: minimal 30%. Data rate. Incoming: minimal 30%. Data rate. Both with low priority for non-used bandwidth.	Only Working Hours 9:00 to 17:00 Monday to Friday.
HTTP web browsing users	80		Incoming Outgoing	Outgoingd limited 20%. Data rate. Incoming: limited 30%. Data rate.	Always

Example QOS Setup

Maximum ISP Bandwidth
Type: Auto(ADSL Sync. Rate)			Upstream(LAN->WAN): 0 Kbps	Downstream(WAN->LAN). 0 Kbps
QoS Rule List
	Application	Time Schedule	Direction	Assigned Bandwidth Ratio
○	VoIP	Always On	LAN to WAN	20% Minimum Guaranteed Rate with High priority
○	FTP_Server_Out	Day Time	LAN to WAN	30% Minimum Guaranteed Rate with Low priority
○	FTP_Server_In	Day Time	WAN to LAN	30% Minimum Guaranteed Rate with Low priority
○	HTTP_Browsing_Out	Always On	LAN to WAN	20% Fixed Rate
○	HTTP_Browsing_In	Always On	WAN to LAN	30% Fixed Rate
Non-Assigned Bandwidth Ratio
	Rate Type: Fixed (Maximum)		LAN to WAN : 30%	WAN to LAN : 40%
Add Edit Delete
Apply Cancel

• VoIP application

Voice is latency-sensitive application. Most VoIP devices are use SIP protocol and the port number will be assigned by SIP module automatically. Better to use fixed IP address for catching VoIP packets as high priority.

Above settings will help to improve quality of your VoIP service when traffic is full loading.

• FTP Server Application

Some of companies will setup FTP server for customer downloading or home user sharing their files by using FTP.

LAN to WAN direction:

WAN to LAN direction:

With above settings that help to limit utilization of upstream of FTP. Time schedule also help you to only limit utilization at day time.

- HTTP Web Browsing

You can control the internet web browsing by specify the HTTP 80 (8080 for some proxy server).

LAN to WAN direction:

WAN to LAN direction:

Configuration / Virtual Server

In TCP/IP and UDP networks a port is a 16-bit number used to identify which application program (usually a server) incoming connections should be delivered to. Some ports have numbers that are pre-assigned to them by the IANA (the Internet Assigned Numbers Authority), and these are referred to as “well-known ports”. Servers follow the well-known port assignments so clients can locate them.

If you wish to run a server on your network that can be accessed from the WAN (i.e. from other machines on the Internet that are outside your local network), or any application that can accept incoming connections (e.g. Peer-to-peer/P2P software such as instant messaging applications and P2P file-sharing applications) and are using NAT (Network Address Translation), then you need to configure your router to forward these incoming connection attempts using specific ports to the PC on your network running the application. You also need to use port forwarding if you wish to host an online game server.

The reason is that when using NAT, your publicly accessible IP address is used by and points to your router, which needs to deliver all traffic to the private IP addresses used by your PCs. Please see the WAN configuration section of this manual for information on NAT.

The Internet Assigned Numbers Authority (IANA) is the central coordinator for the assignment of unique parameter values for Internet protocols. Port numbers range from 0 to 65535, but only port numbers 0 to 1023 are reserved for privileged services and are designated as “well-known ports”. The registered ports are numbered from 1024 through 49151. The remaining ports, referred to as dynamic ports, or private ports, are numbered from 49152 through 65535.

Examples of well-known and registered port numbers are shown below, for further information, please see IANA's website at: http://www.iana.org/assignments/port-numbers

Well-known and Registered Ports

Port Number	Protocol	Description
20	TCP	FTP	Data
21	TCP	FTP	Control
22 TCP &	UDP SSH Remote Login Protocol
23	TCP	Telnet
25 TCP $MTP (Simple Mail Transfer Protocol)
53 TCP &	UDP DNS (Domain Name Server)
69 UDP TFTP (Trivial File Transfer Protocol)
80 TCP World Wide Web HTTP
110 TCP	POP3 (Post Office Protocol Version 3)
119 TCP	NEWS (Network News Transfer Protocol)
123 UDP	NTP (Network Time Protocol)
161	TCP	SNMP
443 TCP & UDP HTTPS
1503	TCP	T.120
1720	TCP	H.323
4000	TCP	ICQ
7070	UDP	RealAudio

Item – Item number

Type – Select TCP if you wish to search for connection-based application services on the remote server using the port number.

Port Start & Port End – Enter the public port number & range you wish to configure. IP Address: Enter the IP address of a specific internal server to which requests from the specified port is forwarded.

Add – Click to add a new virtual server rule. Click again and the next figure appears.

Edit – Check the Rule No. you wish to edit and then click "Edit".

Delete – Check the Rule No. you wish to delete, then click "Delete".

Item – Item number

Service select – Select the service you wish to configure

Protocol – Automatic when you choose Service select

Start Port & End Port – Enter the public port number & range you wish to configure.

IP Address – Enter the IP address of a specific internal server to which requests from the specified port is forwarded.

Since NAT acts as a “natural” Internet firewall, your router protects your network from access by outside users, as all incoming connection attempts point to your router unless you specifically create Virtual Server entries to forward those ports to a PC on your network. When your router needs to allow outside users to access internal servers, e.g. a web server, FTP server, Email server or game server, the router can act as a “virtual server”. You can set up a local server with a specific port number for the service to use, e.g. web/HTTP (port 80), FTP (port 21), Telnet (port 23), SMTP (port 25), or POP3 (port 110). When an incoming access request to the router for a specified port is received, it is forwarded to the corresponding internal server.

For example, if you set the port number 80 (Web/HTTP) to be mapped to the IP Address 192.168.1.2, then all incoming HTTP requests from outside users are forwarded to the local server (PC) with the IP address of 192.168.1.2. If the port is not listed as a predefined application, you need to add it manually.

Virtual Server
Parameters
	Item	Type	Public Port Stan	Public Port End	Mapped Private IP Address	Mapped Private Port
◎	1	TCP	80	80	192.168.1.2	80

In addition to specifying the port number used, you also need to specify the protocol used. The protocol is determined by the particular application. Most applications use TCP or UDP, however you can specify other protocols using the drop-down Protocol menu. Setting the protocol to "all" causes all incoming connection attempts using all protocols on all port numbers to be forwarded to the specified IP address.

DMZ – The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets are checked by the Firewall and NAT algorithms, then passed to the DMZ host when a packet received does not use a port number in use by any other Virtual Server entries.

Note: Using port forwarding does have security implications, since outside users are able to connect to PCs on your network. For this reason you are advised to use specific Virtual Server entries just for the ports your application requires instead of simply using DMZ or creating a Virtual Server entry for “All” protocols, as doing so results in all connection attempts to your public IP address accessing the specified PC.

Attention: If you disable the NAT option in the WAN-ISP section, the Virtual Server function becomes invalid.

Attention: If the DHCP server option is enabled, you have to be very careful in assigning the IP addresses of the virtual servers in order to avoid conflicts. The easiest way of configuring Virtual Servers is to manually assign a static IP address to each virtual server PC, with an address that does not fall into the range of IP addresses that are issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router.

Configuration / Advanced

Configuration options within the Advanced section are for users who wish to take advantage of the more advanced features of the router. Users who do not understand the features should not attempt to reconfigure their router, unless advised to do so by support staff.

There are six items within the Advanced section: Static Route, Static ARP, Dynamic DNS, VLAN Control, Device Management and IGMP.

- Static Route

Click on Static Route and then choose Create to add a routing table.

Static Route
Static Routing
#	Valid	Destination	Netmask	Gateway/Interface
Create ▶

Destination – The destination subnet IP address.

Netmask – Subnet mask of the destination IP addresses based on above destination.

Gateway – The gateway IP address to which packets are forwarded.

Interface – Select the interface through which packets are forwarded.

Cost - Represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 0 and 65535.

- Static ARP

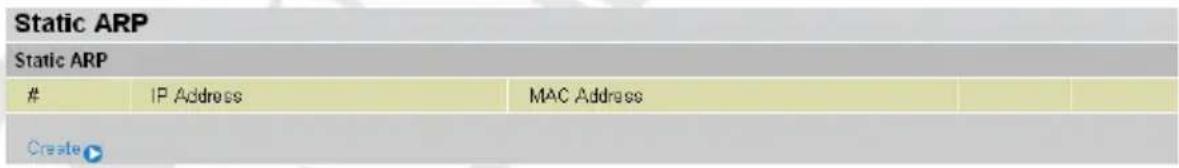

Click on Static ARP and then choose Create to add a static ARP table.

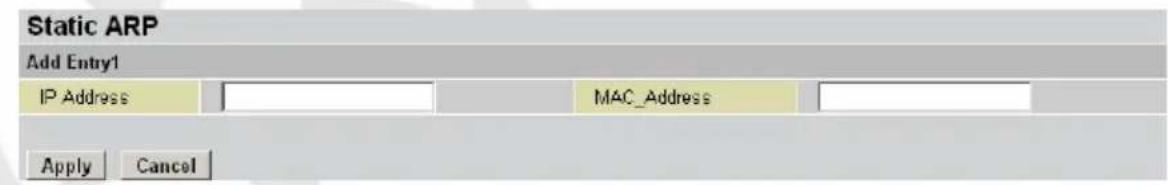

Enter IP Address and MAC_Address of host which will be added to static ARP table.

• Dynamic DNS

The Dynamic DNS function lets you alias a dynamic IP address to a static hostname, so if your ISP does not assign you a static IP address you can still use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your ISP.

You first need to register and establish an account with the Dynamic DNS provider using their website, for example http://www.dyndns.org/

There are more than 5 DDNS services supported.

Disable – Check to disable the Dynamic DNS function.

Enable – Check to enable the Dynamic DNS function. The fields following are activated and required.

Dynamic DNS Server – Select the DDNS service you have established an account with.

Host – Enter one domain name you have registered.

Domain Name, Username and Password – Enter your registered domain name and your username and password for this service.

Period – Set the time period between updates, for the router to exchange information with the DDNS server. In addition to updating periodically as per your settings, the router performs an update when your dynamic IP address changes.

Wildcard – Select this check box to enable the DYNDNS Wildcard.

• VLAN Control

VLAN (Virtual Local Area Network) is a group of devices on different physical LAN segments that can communicate with each other as if they were all on the same physical LAN segment. While clients and servers may be located anywhere on a network, they are grouped together by VLAN technology, and broadcasts are sent to devices within the VLAN.

VLAN Group Control
Parameters
	VLAN Group Name	VLAN ID	Ethernet port #1	Ethernet port #2	Ethernet port #3	Ethernet port #4	wireless LAN	Link VLAN Group to WAN Connection interface	WAN Tagging
1	VLAN_GROUP1	2	☐	☐	☐	☐	☐	No	☐
2	VLAN_GROUP2	3	☐	☐	☐	☐	☐	No	☐
3	VLAN_GROUP3	4	☐	☐	☐	☐	☐	No	☐
4	VLAN_GROUP4	5	☐	☐	☐	☐	☐	No	☐
5	VLAN_GROUP5	6	☐	☐	☐	☐	☐	No	☐
6	VLAN_GROUP6	7	☐	☐	☐	☐	☐	No	☐
7	VLAN_GROUP7	8	☐	☐	☐	☐	☐	No	☐
8	VLAN_GROUP8	9	☐	☐	☐	☐	☐	No	☐
LAN Tagging
			☐	☐	☐	☐	☐

LAN Tagging: Insert or keep VLAN tag of the packets flow through the specific ethernet port. WAN Tagging: Insert or keep VLAN tag of the packets flow through the specific Bridged WAN interface (Only for Bridge)

VLAN Group Name – There are eight groups that user can setup by themselves.

VLAN ID – Group name ID

LAN Tagging – Tagging VLAN ID to the specific VLAN group for Ethernet interface.

Ethernet port – Port name of Router

Link VLAN Group to WAN connection Interface – Select the WAN connection interface that VLAN group link.

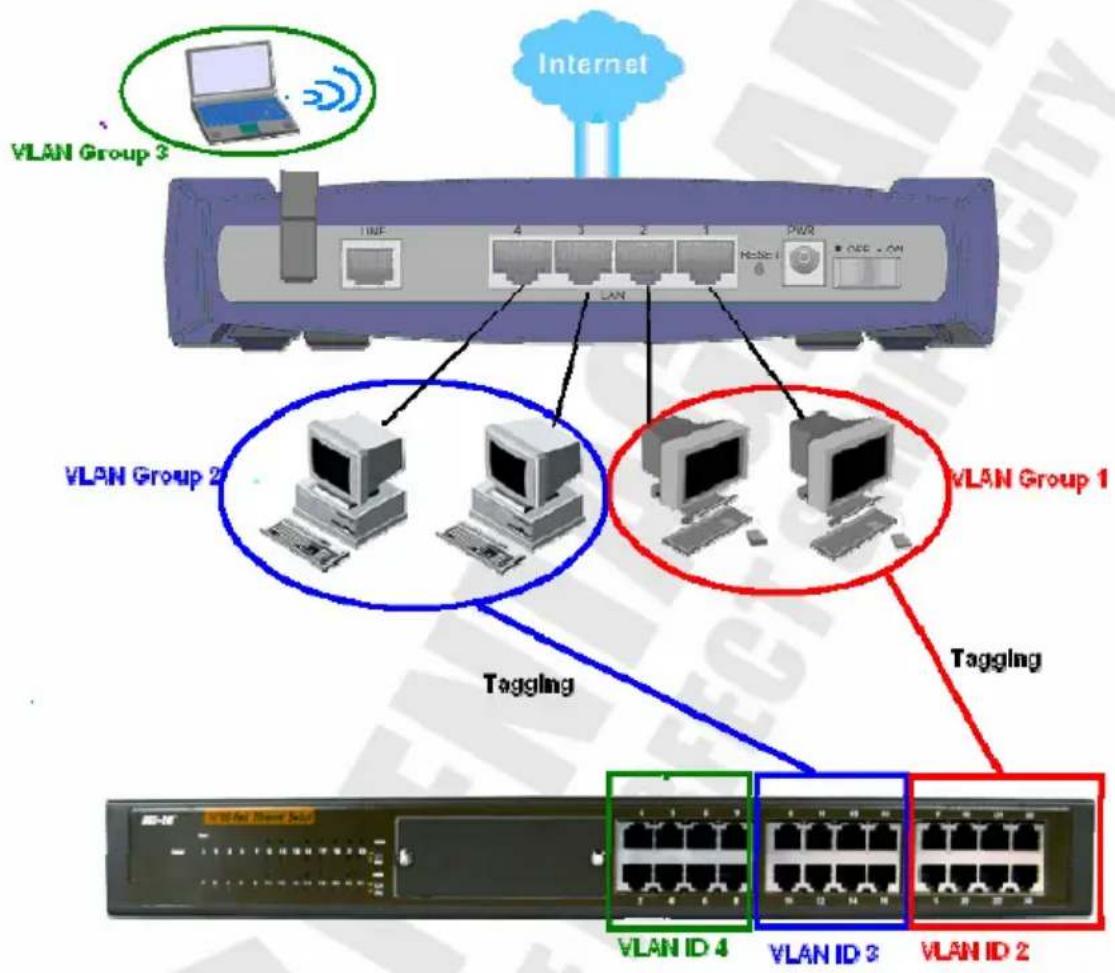

VLAN function provides you a very convenient way to manage hosts by grouping them based on the physical port. Please refer to the following example.

1. If VLAN Group 1 is consisted of hosts linked to port1 and port2, VLAN Group 2 is consisted of hosts linked port3 and port4, and VLAN Group 3 is consisted wireless LAN.

1. After checking the box to enable VLAN function, you will check the table according to the needs as show below.

VLAN Group Control
Parameters
	VLAN Group Name	VLAN ID	Ethernet port #1	Ethernet port #2	Ethernet port #3	Ethernet port #4	wireless LAN	Link VLAN Group to WAN Connection interface	WAN Tagging
1	VLAN_GROUP1	2	✓	✓	✓	☐	☐	Main WAN connection(Management)	☐
2	VLAN_GROUP2	3	✓	☐	☐	✓	☐	WAN Bridge Connection #1 (0/101)	☐
3	VLAN_GROUP3	4	☐	☐	☐	☐	✓	WAN Bridge Connection #1 (0/101)	☐
4	VLAN_GROUP4	5	☐	☐	☐	☐	☐	No	☐
5	VLAN_GROUP5	6	☐	☐	☐	☐	☐	No	☐
6	VLAN_GROUP6	7	☐	☐	☐	☐	☐	No	☐
7	VLAN_GROUP7	8	☐	☐	☐	☐	☐	No	☐
8	VLAN_GROUP8	9	☐	☐	☐	☐	☐	No	☐
LAN Tagging
			☐	☐	☐	☐	☐

LAN Tagging: Insert or keep VLAN tag of the packets flow through the specific ethernet port. WAN Tagging: Insert or keep VLAN tag of the packets flow through the specific Bridged WAN interface. (Only for Bridge)

• Device Management

The Device Management advanced configuration settings allow you to control your router's security options and device monitoring features.

Device Management
Embedded Web Server
HTTP Port	80	(80 is default HTTP port)
Universal Plug and Play (UPnP)
UPnP	○ Enable ○ Disable
UPnP Port	2800
Telnet Configuration
Telnet	○ Enable ○ Disable
SNMP Access Control
SNMP	○ Enable ○ Disable
SNMP V1 and V2
Read Community	public	IP Address	0.0 0.0
Write Community	password	IP Address	0.0 0.0
Trap Community		IP Address
SNMP V3
Username		Password
Access Right	○ Read ○ Read/Write

Embedded Web Server:

HTTP Port – The port number of the router's embedded web server (for web-based configuration uses. The default value is the standard HTTP port, 80. You may specify an alternative if, for example, you are running a web server on a PC within your LAN.

For Example: User A changes HTTP port number to 100, specifies their own IP address of 192.168.1.55, and sets the logout time to be 100 seconds. The router only allows User A access from the IP address 192.168.1.55 to logon to the Web GUI by typing: http://192.168.1.254:100 in their web browser. After 100 seconds, the device automatically logs out User A.

Universal Plug and Play (UPnP):

UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through UPnP NAT Traversal, and on supported systems makes tasks such as port forwarding much easier by letting the application control the required settings, removing the need for the user to control advanced configuration of their device. Both the user's Operating System and the relevant application must support UPnP in addition to the router. Windows XP and Windows Me natively support UPnP (when the component is installed), and Windows 98 users may install the Internet Connection Sharing client from Windows XP in order to support UPnP. Windows 2000 does not support UPnP.

Disable – Check to disable the router's UPnP functionality.

Enable – Check to enable the router's UPnP functionality.

UPnP Port – The default setting is 2800. It is highly recommended that you use this port value. If the value conflicts with other ports already in use you may wish to change the port.

SNMP Access Control:

Simple Network Management Protocol—software on a PC within the LAN is required to use this function.

SNMP V1 and V2:

Read Community – Specify a name to be identified as the Read Community, and an IP address. This community string is checked against the string entered in the configuration file. Once the string name is matched, you can obtain this IP address and are able to view the data.

Write Community – Specify a name to be identified as the Write Community, and an IP address. This community string is checked against the string entered in the configuration file. Once a string name is matched, users from this IP address are able to view and modify data.

Trap Community – Specify a name and an IP address. This community string is checked against the string entered in the configuration file. Once a string name is matched, users from this IP address are sent SNMP Traps.

SNMP V3:

Specify a name and password for authentication, and define access rights from the identified IP address. Once authentication has succeeded, users from this IP address are able to view and modify data.

SNMP Version: SNMPv2c and SNMPv3

SNMPv2c is the combination of the enhanced protocol features of SNMPv2 without the SNMPv2 security. The "c" comes from the fact that SNMPv2c uses the SNMPv1 community string paradigm for "security" but is widely accepted as the SNMPv2 standard.

SNMPv3 is a strong authentication mechanism with fine granularity for remote monitoring.

Traps supported: Cold Start, Authentication Failure.

The following MIBs are supported:

From RFC 1474 (PPP/Bridge MIB):

PPP Bridge Group

From RFC1573 (IfMIB):

ifMIBObjects Group

From RFC1695 (atmMIB):

atmMIBObjects

From RFC 1907 (SNMPv2):

only snmpSetSerialNo OID

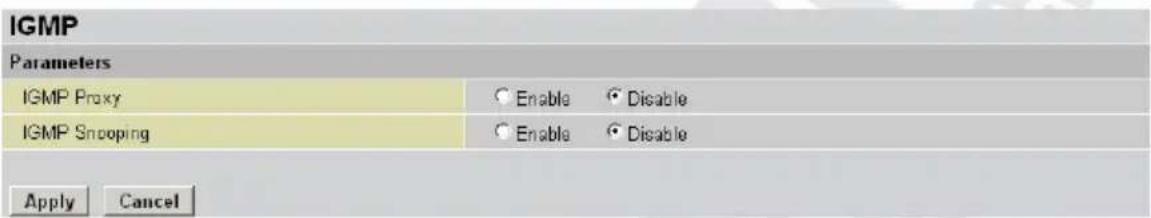

IGMP

IGMP, known as Internet Group Management Protocol, is used to management hosts from multicast group.

IGMP Proxy – Accepting multicast packet. Default is set to Disable.

IGMP Snooping – Allowing switched Ethernet to check and make correct forwarding decisions. Default is set to Enable

Save Configuration to Flash Tab

After changing the router's configuration settings, you must save all of the configuration parameters to FLASH to avoid losing them after turning off or resetting your router. Click Save to write your new configuration to FLASH.

Restart Tab

Click Restart with option Current Settings to reboot your router (and restore your last saved configuration).

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

You may also reset your router to factory settings by holding in the small Reset pinhole button on the back of your router for 10-12 seconds while the router is turned on.

Troubleshooting

If the router is not function properly, first check this session for simple troubleshooting before contacting your Internet service provider (ISP) for support.

Using LEDs to Diagnose Problems

The LEDs are useful aides for finding possible problem causes.

Power LED

The POWER LED on the front panel does not light up.:

1. Make sure that the power adaptor is connected to the router and plugged in to an appropriate power source. Use only the supplied power adaptor;
2. Check that the router and the power source are both turned on and the router is receiving sufficient power;
3. Turn the router off and on;
4. If the error persists, you may have a hardware problem. In this case, you should contact your vendor.

LAN LED

The LAN LED on the front panel does not light up.:

1. Check the Ethernet cable connections between your router and the computer or hub;
2. Check for faulty Ethernet cables;
3. Make sure your computer's Ethernet card is working properly;
4. If these steps fail to correct the problem, contact your local distributor for assistance.

ADSL LED

The ADSL LED on the front panel does not light up:

1. Check the telephone wire and connections between the router ADSL port and the wall jack;
2. Make sure that the telephone company has checked your phone line and set it up for ADSL service;
3. Reset your ADSL line to reinitialize your link to the DSLAM;
4. If these steps fail to correct the problem, contact your local distributor for assistance.

Problems with the Web Interface

I cannot access the web Interface:

1. Make sure you are using the correct IP address of the router. Check the IP address of the router;
2. Your computer's and the router's IP addresses must be on the same subnet for LAN access;
3. If you changed the router's LAN IP address, then enter the new one as the URL;
4. Remove any filters in LAN or WAN that block web service.

Problems with the Login Username and Password

I forgot my login username and/or password:

1. The default username is "admin". The default password is "pentagram". The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing;
2. Press the RESET button for 10-12 seconds, and then release it - the defaults have been restored and the router restarts;

Problems with LAN Interface

I cannot access the router from the LAN or ping any computer on the LAN:

1. Check the Ethernet LEDs on the front panel. A LAN LED should be on for a port that has a PC connected. If it is off, check the cables between your router and the PC. Make sure you have uninstalled any software firewall for troubleshooting;
2. Make sure that the IP address and the subnet mask is consistent between the router and the workstation.
3. In some cases computer with Windows Vista or Windows XP SP3 cannot obtain an IP address from router's DHCP server. If you encounter this, follow this steps to resolve this problem (Microsoft Support page) http://support.microsoft.com/kb/928233/en-us (this article may be not available in user language).

Problems with WAN Interface

Initialization of the ADSL connection failed:

1. Check the cable connections between the ADSL port and the wall jack. The ADSL LED on the front panel of the router should be on;
2. Check that your VPI, VCI and type of encapsulation settings are the same as what you collected from your telephone company and ISP;
3. Restart the router. If you still have problems, you may need to verify your VPI, VCI and type of encapsulation settings with the telephone company and ISP.

I cannot get a WAN IP address from the ISP:

1. Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and the wall socket (unless your are using a Central Splitter or Central Filter installed by the qualified and licensed electrician), and ensure that all line filters are correctly installed and right way around;

2. Missing line filters or line filters installed the wrong way around can cause problems with your ADSL connection, including causing frequent disconnects.

Frequent loss of ADSL line sync (disconnections):

1. The ISP provides the WAN IP address after authenticating you. Authentication may be through the user name and password, the MAC address or the host name;
2. The username and password apply to PPPoE and PPPoA connections only. Make sure that you have entered the correct Service Name, Username and Password (be sure to use the correct casing).

Problems with the Internet Access

I cannot access the Internet:

1. Make sure the router is turned on and connected to the network;
2. If the ADSL LED is off, refer to Section ADSL LED of this troubleshooting;
3. Verify your WAN settings;
4. Make sure you entered the correct user name and password;
5. For wireless stations, check that both the router and wireless station(s) are using the same ESSID, channel and encryption keys (if encryption is activated).

Internet connection disconnects:

1. If you use PPPoA or PPPoE encapsulation, check the idle time-out setting;
2. Contact your ISP.

If you have any troubles to configure or setup this ADSL Ethernet Router, please feel free to contact us.
