Product Type	Microwave oven
Brand	Home Electric
Model	MW 3002
Capacity	20 liters
Dimensions (W x D x H)	45 x 35 x 30 cm
Weight	11 kg
Power Supply	230 V ~ 50 Hz, 1200 W
Microwave Power	800 W
Grill Function	Yes, 1000 W
Convection Function	No
Defrost Function	Yes, by weight or time
Control Type	Digital with LED display
Number of Power Levels	5
Timer	Up to 95 minutes
Interior Light	Yes
Turntable	Yes, glass plate
Child Lock	Yes
Automatic Shut-off	Yes
Maintenance and Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Spare Parts	Turntable, roller ring, mica sheet available
Repairability Index	7.5 / 10

Frequently Asked Questions - MW 3002 Home Electric

How do I set the clock on the MW 3002?

Press the 'Clock' button, then use the number pad or dial to set the hour and minute. Confirm with 'Clock' again.

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the oven. Use microwave-safe glass, ceramic, or plastic.

What is the maximum cooking time?

The timer allows up to 95 minutes for cooking.

How do I defrost food?

Press 'Defrost', enter the weight of the food, and the microwave automatically sets the time and power.

Why does the turntable not rotate?

Ensure the glass tray and roller ring are properly placed. The turntable motor may be faulty if it still doesn't rotate.

How do I clean the microwave interior?

Wipe with a damp cloth and mild soap. Avoid harsh chemicals. For odors, heat a bowl of water with lemon slices.

What does the child lock do and how to activate it?

The child lock disables the control panel. Press and hold 'Stop/Clear' for 3 seconds to activate.

Can I use the grill and microwave together?

Yes, select 'Combi' mode to combine microwave and grill for crispier results.

The display shows 'E-01', what does it mean?

Error code 'E-01' indicates a sensor issue. Unplug the oven for 10 minutes and try again. If persists, contact support.

Where can I find spare parts like a turntable?

Spare parts are available through authorized Home Electric service centers or online retailers using the model number MW 3002.

USER MANUAL MW 3002 Home Electric

Exterior view of a white electric microwave oven with power and time control knobs (no text or symbols on the main body)

MIKROWELLE / GRILLKOMBINATION MICROWAVE / GRILL COMBINATION OVEN

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

SCHEMAIL DIAGRAM NOTE: Door is opened Unit is not operated

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY 14

IMPORTANT SAFETY INSTRUCTIONS 15

INSTALLATION 16

MICROWAVE COOKING PRINCIPLES 17

UTENSILS GUIDE 17

PART NAMES 17

CONTROL PANEL

Power / Action Selector 18

Timer Knob 18

Microwave Cooking 18

Grill 18

Combination Cooking 19

OPERATION 19

CLEANING AND CARE 20

SPECIFICATIONS 21

SERVICE & SUPPORT 22

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

• Door (bent),
  – Hinges and latches (broken or loosened),

• Door seals and sealing surfaces.

The oven must not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using this electric appliance, the following basic safety precautions have to be followed, to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy.

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance.
3. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
4. Do not operate the oven when empty.
5. CAUTION: Do not use the appliance if the door or its seals have been damaged.
6. CAUTION: Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it can only be replaced by the manufacturer or its service agent to avoid a hazard, as special tools are required.
7. CAUTION: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
8. CAUTION: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
9. CAUTION: Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
10. CAUTION: Liquid or other food must not be heated in sealed containers as they are liable to explode.
11. CAUTION: Microwave heating of beverage can result in delayed eruptive boiling, be careful when handling the container.
12. CAUTION: Operating this appliance in Grill or Combination mode can result in high temperatures.

13. CAUTION: Removal of safety measures and protection features will result in exposure to hazardous microwave radiation

14. To reduce the risk of fire in the oven cavity:

15. Remove wire twist-ties from paper or plastic bags before placing a bag in the oven.

16. When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
17. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
18. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
19. Use the metal tray in grill mode only. do NOT use the metal tray in microwave or combination mode, as electric discharges will occur from the metal tray, which will damage the appliance.

20. Do not use metal plates, foil or similar in microwave or combination mode, as electric discharges will occur from the metal objects, which will damage the appliance.

21. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

22. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

23. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

24. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

25. Utensils should be checked to ensure that they are suitable for use in microwave oven.

26. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

27. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

INSTALLATION

• Make sure that all the packing materials are removed from the inside of the door.
- WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
- This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
- Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
- For correct operation, the oven must have sufficient airflow. Allow 20 cm of space above the oven, 10 cm at back and 5 cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
- Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
• Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
- The socket must be readily accessible so that it can be easily unplugged in an emergency.
- Do not use the oven outdoors.

GUIDE

1. The ideal material for a microwave utensil is 3. transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should be used.

Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

ot Round /oval dishes rather than sq ones are recommend, as food in corners tends to overcook.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE	GRILL	C
Heat-Resistant Glass YES YES YES
Non Heat-Resistant Glass NO NO NO
Heat-Resistant Ceramics	YES YES	YES
Macrowave-Safe Plastic Dish	YES	NO NO
Kitchen Paper	YES	NO NO
Metal Tray	NO	YES	NO
Metal Rack	NO	YES	NO
Aluminium Foil & Container	NO	YES	NO

COMBINATION

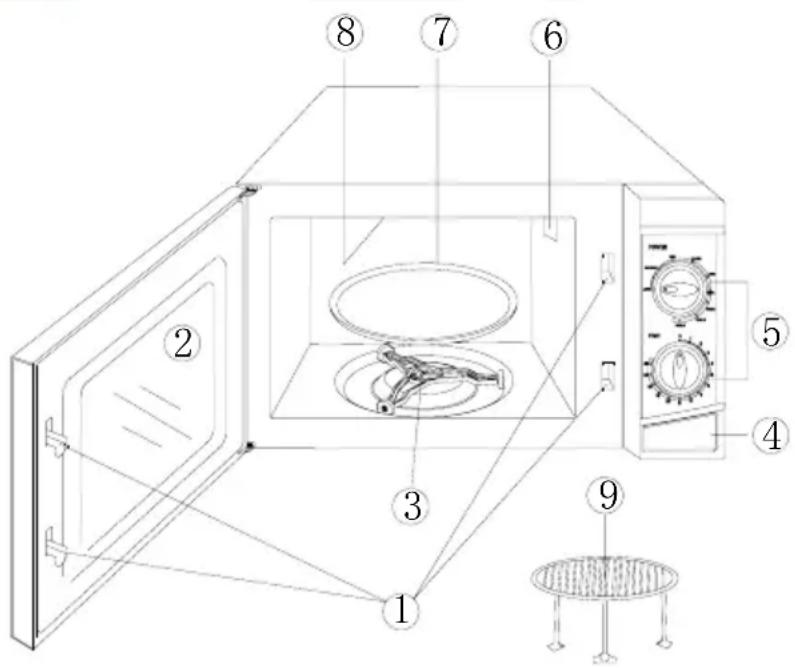

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Door Release
5. Control Panel
6. Wave Guide
7. Glass Tray
8. Grill Heater
9. Metal Rack

CAUTION:

Do not remove the protection cover of the wave guide inlet(6).

Removal of the protection can result in damaging the microwave and warranty will be void by this.

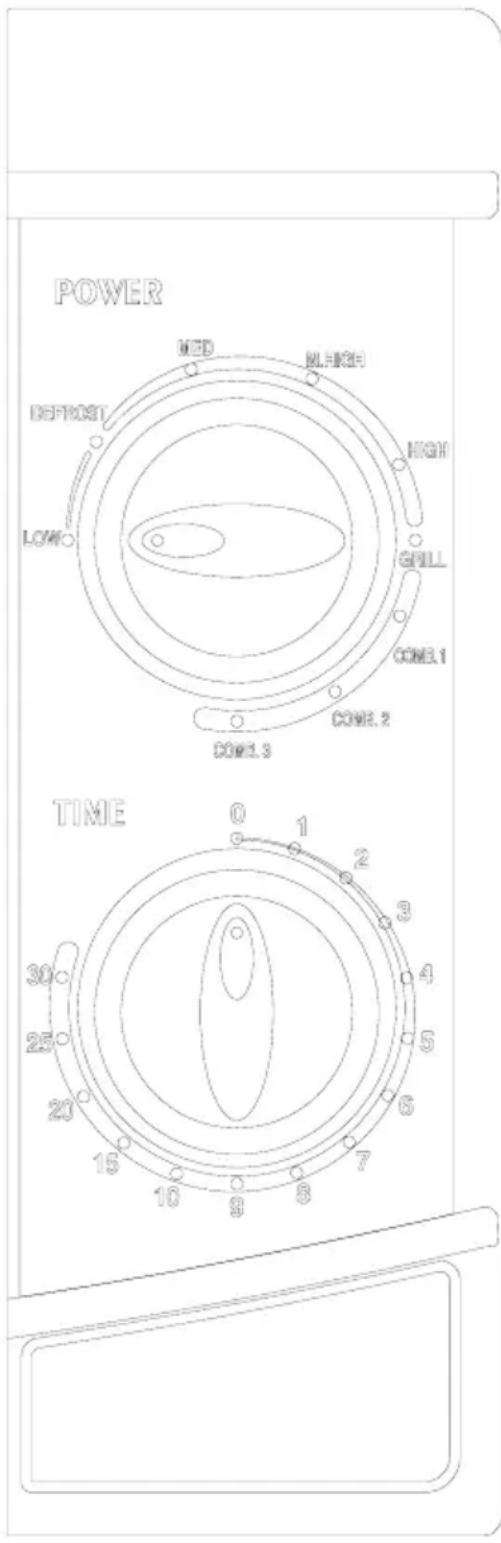

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

Power Selector

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

Timer Knob

Offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

Microwave Cooking

For pure microwave cooking, there are five power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise.

The power levels can be classified as the following:

Power output Description
18% of total Low (NIEDRIG)
36	Defrost (AUFTAUE)
58	Medium (MITTEL)
81	M. High
100	High (MAXIMUM)

Grill

With the knob turning clockwise passing the highest microwave power level, the oven come to the grill cooking function which is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for cooking hot sandwiches and au gratin dishes.

COMBINATION

By its name, this cooking operation combines microwave power with that of grill cooking. The operation is categorized into three levels with different combination power settings as you can see from the following table. These are particularly suitable for certain foods and culinary operations. As well as for keeping the much desired crispness of certain foods.

The following table shows 3 different power settings for combination programs.

Program	Microwave Power level	Grill Power	Suitable for
1	Medium-low (30%)	High (70%)	Fish, potatoes, au grain
2	Medium (49%)	Medium (51%)	Pudding, omelets, baked potatoes
3	Medium-high (67%)	Low (33%)	Poultry

OPERATION

To set a cooking program

1. Place food in oven and close the door.
2. Turn power/action selector to select a power level or cooking function.
3. Use timer knob to set a cooking time.

NOTE:

• As soon as the timer is turned, oven starts cooking.
• When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION:

ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use.

To stop oven during cooking process, push the door release button or open the door by the handle.

Cooking hints:

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

CLEANING & CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. This is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by

combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

1. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

2. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

SPECIFICATIONS

Power Consumption:	AC 230-240V 50Hz, 1200W(Microwave)
	AC 230-240V 50Hz, 900W(Grill)
Rated microwave power output:	700W
Operation Frequency:	2450MHz
Outside Dimensions:	262mm(H)×452mm(W)×322mm(D)
Oven Cavity Dimensions:	220mm(H)×315mm(W)×279mm(D)
Oven Capacity:	27 Litres
Cooking Uniformity:	Turntable System {Φ245mm}
Net Weight:	Approx.11,3 kg

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out ‘wheeled bin’ symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

For this HOME ELECTRIC product we grant a warranty of 2 years

For this appliance we grant a warranty of 24 months, starting with the date of sale regarding defects due to faulty manufacture or material. Your legal warranty claims according to §439 ff. BGB-E are not affected by this. This warranty does not accept defects due to inappropriate treatment or use as well as defects which do not influence the function or the value of the product essentially. Further on we do not grant a warranty for wear parts or damage in transit as well as for defects due to repairs which have not been effected by us. In case of legitimate claims we will decide whether to repair the device or to send you a new one. Apparent defects have to be indicated within 14 days after delivery. Additional claims will not be accepted.

In order to assert your warranty claims please send the device together with the sales slip carriage paid to the below address.

Please contact us before sending the device to us as any sending which is not prepaid will not be accepted.

Service hotline:

0180 5 - 22 17 84 (€ 0,14 / Min.) (Germany only)

If the product needs to be sent to the servicecenter, please call service & support to obtain a return sticker.
