| Product Type | Outdoor Waterproof Monitor |
| Brand | Peerless-AV |
| Model | CL-49PLC68-OB-EUK |
| Screen Size | 49 inches (diagonal) |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 2500 nits (typical) |
| Contrast Ratio | 4000:1 (typical) |
| Waterproof Rating | IP65 (weatherproof) |
| Dimensions (W x H x D) | Approx. 44.1 x 25.9 x 3.5 inches (1120 x 658 x 89 mm) |
| Weight | Approx. 66 lbs (30 kg) |
| Power Supply | AC 100-240V, 50/60 Hz |
| Power Consumption (max) | 350 W |
| Inputs | HDMI, DVI, VGA, USB, RS232 |
| Remote Control | Waterproof universal remote, pre-programmed with code 195 for Peerless-AV display |
| Battery Type for Remote | 2 x AAA 1.5V |
| Main Functions | Power, Source, Volume, Channel, Menu, Navigation, Info, Guide, Playback controls |
| Placement | Indoor and outdoor use; mount using compatible Peerless-AV mount |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Certifications | FCC, CE, UL |
| Spare Parts Available | Remote control, batteries, power cable, mounting hardware |
| Repairability | Serviceable by authorized technicians; contact Peerless-AV for support |
| Maintenance | Clean with a soft damp cloth; use mild soap if needed; avoid solvents |
| Safety | Install securely; ensure proper ventilation; use with grounded outlet |
Frequently Asked Questions - CL-49PLC68-OB-EUK Peerless-AV
User questions about CL-49PLC68-OB-EUK Peerless-AV
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Monitor in PDF format for free! Find your manual CL-49PLC68-OB-EUK - Peerless-AV and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CL-49PLC68-OB-EUK by Peerless-AV.
USER MANUAL CL-49PLC68-OB-EUK Peerless-AV
Xtreme™/UV™ – Series Displays
Peerless-AV® Waterproof Programmable Remote Control

The Peerless-AV® Waterproof Universal Remote Control is pre-programmed with the latest library of codes, and designed to operate the Peerless-AV Xtreme™/UV™ Displays, as well as third-party Satellite and Cable Boxes, Blu-ray Players and DVD Players, VCR's, Audio Equipment and various Automation Equipment.
CONTENTS
Universal Remote Control Button Guide ....3
Battery Installation and Replacement ....4
Device Table 5
Programming the Remote using Device Codes ....5
Programming the Remote by Searching for Codes....6
Manufacturer's Codes ....6
Setup Codes for Cable Box....6
Setup Codes for Satellite Receivers....8
Setup Codes for TV's 9
Setup Codes for VCR & TV/VCR 13
Setup Codes for TV/VCR....16
Setup Codes for DVD, DVR & Blu-ray 17
Setup Codes for DVR....19
Setup Codes for CD, LD, Home Automation, & PVR....19

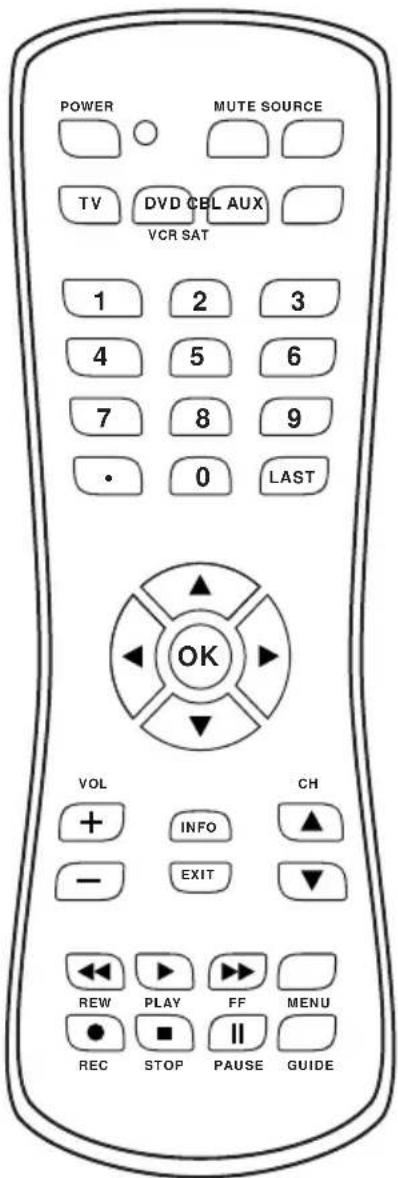

POWER - Toggles Power On and Off
MUTE - Toggles Audio On and Off
SOURCE - Toggles through the available source inputs
TV - Press to control TV
DVD - Press to control DVD player
CBL - Press to control satellite or cable box functions
AUX - Press to control auxiliary equipment
NUMBERS - Discrete number commands
LAST - Press to return to previous channel
ARROWS - Press to navigate through menus and settings
OK - Press to select items in the menu or guide
VOL +/- - Press to increase or decrease volume
INFO - Press to display content information
EXIT - Press to exit the on-screen display menu
CH +/- - Press to change the channel up or down
REW - Rewind skips backward in content
PLAY - Press to start content play
FF - Press to Fast Forward & skip content ahead
MENU - Press to access the On-Screen Display Menu
REC - Press to Record content
STOP - Press to Stop content Play
PAUSE - Toggles between content Pause and Play
GUIDE - Press to access Guide information
Note: The Peerless-AV Waterproof Universal Remote Control is supplied with batteries already installed.

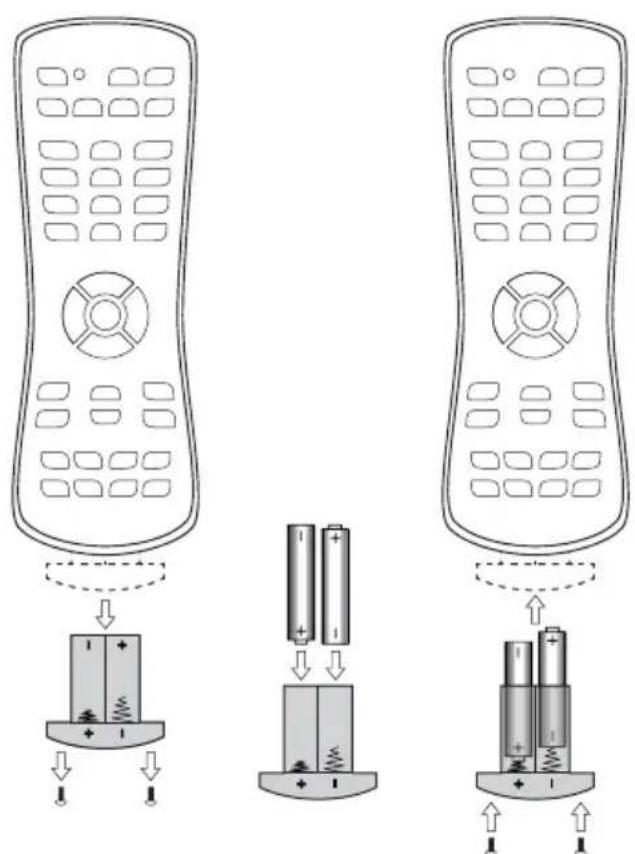

If the Red LED light on the remote fails to illuminate when a button is pressed, the batteries may need to be replaced. Follow the directions below to replace the batteries.

Remove the two screws from the battery holder as shown. Pull the battery holder out of the bottom of the remote control and remove the batteries.
Insert two new 1.5V AAA batteries into the battery holder as shown. Ensure the positive and negative marks on the batteries are correctly oriented with the markings on the inside of the remove control's battery compartment.
Insert the battery holder back into the battery compartment of the remote control. Tighten both battery holder screws, making sure the screws are tightened all the way to maintain a waterproof seal (do not over tighten).
NOTE:
Please refer to Table 1a when in the "PROGRAMMING THE REMOTE USING DEVICE CODES" section. After programming is complete, the Universal Remote Control will be able to control the following types of devices:
NOTE:
If Peerless-AV Display is unresponsive to commands being sent, press the TV button and send the commands again.
Table1a
| TV Controls the Peerless-AV Display | |
| DVD Blu-ray, DVD, DVR, VCR, TV/VCR | |
| CBL Cable Box, Satellite Box | |
| AUX CD, LD, Home Automation, PVR Device |
Programming the Remote using Device Codes
To have universal control of your devices through the Peerless-AV Programmable Remote, perform the following steps; otherwise skip this section. Fully read and understand the process before attempting to program the remote.
- Turn on the device that you would like to program into your remote using the power button the the device.
- On the Peerless-AV Universal remote control, press and hold the button that you are trying to program (TV, DVD, CBL, or AUX) and the OK button simultaneously for 2 seconds. The Red LED on the remote will illuminate.
- In the "MANUFACTURER'S CODES" section (page 6), locate the type and brand name of the device you are trying to program into the remote. Once you have located it, enter the first 3-digit code for your device. If the device that you are trying to control turns off, press the Device button that you were trying to program (TV, DVD, CBL, or AUX). The Red LED will blink two times.
- To confirm the code works properly, press the Device button again then press the Power button. The device should turn on; however, if the device did not turn on, please repeat step 1-3 above with the next code in the list for that manufacturer.
If none of the listed codes work with your device, proceed to the "PROGRAMMING THE REMOTE BY SEARCHING FOR CODES" section (page 6).
- Turn on the device that you would like to program into your remote using the power button the the device.
- On the Peerless-AV Universal remote control, press and hold the button that you are trying to program (TV, DVD, CBL, or AUX) and the OK button simultaneously for 2 seconds. The Red LED on the remote will illuminate.
- Press and release the CH Up button once to start the code search through the list of available codes. Each time the CH Up button is pressed, the remote will send an Off command to the device using the next code on the list. Each time the CH Up button is pressed, the Red LED on the remote control will illuminate for verification.
- Continue pressing the CH up button until the device you are trying to control turns off. Then press the Device button that you were trying to program (TV, DVD, CBL, or AUX). The Red LED will blink two times.
- To confirm the code will work properly, press the Device button again. Then press the power button. The device should turn on; However, if the device did not turn on, please repeat steps 1-4 above.
Manufacturer's Codes
CABLE BOX Codes
| Brand Codes | ||||||||||
| ABC 107 109 113 117 131 135 144 | ||||||||||
| ALLEGRO 112 | ||||||||||
| ANTRONIX 045 121 | ||||||||||
| ARCHER 045 121 130 132 | ||||||||||
| CABLE TENNA 121 | ||||||||||
| CABLE VIEW | 121 | |||||||||
| CENTURY | 132 | |||||||||
| COLOUR VOICE | 002 003 | |||||||||
| COMTRONICS | 039 110 | |||||||||
| CONTEC 114 | ||||||||||
| DIRECTOR | 202 | |||||||||
| GARRARD | 132 | |||||||||
| GC ELECTRONICS | 045 | |||||||||
| GEMINI | 045 048 | |||||||||
| GENERAL INSTRUMENT | 202 092 099 100 125 126 127 131 135 | |||||||||
| HAMLIN | 139 142 145 | |||||||||
| HITACHI | 135 | |||||||||
| HYTEX | 144 | |||||||||
| JASCO | 132 | |||||||||
| JERROLD | 202 048 107 109 117 125 126 127 131 135 | |||||||||
| MAGNAVOX | 111 | |||||||||
| MEMOREX 106 | ||||||||||
| MOTOROLA | 201 202 | |||||||||
| MOVIE TIME 033 144 | ||||||||||
| NSC 033 144 | ||||||||||
| OAK 006 114 144 | ||||||||||
| PANASONIC 123 129 | ||||||||||
| PHILIPS 002 003 048 111 132 | ||||||||||
| PIONEER 204 005 091 093 102 | 22 | |||||||||
| PULSAR 106 | ||||||||||
| RADIOSHACK 112 | ||||||||||
| RCA 129 | ||||||||||
| REALISTIC 045 | ||||||||||
| REGAL 145 | ||||||||||
| REMBRANDT 135 | ||||||||||
| RUNCO 106 | ||||||||||
| SAMSUNG | 005 039 | |||||||||
| SCIENTIFIC-ATLANTA | 204 205 091 096 097 098 113 115 122 | |||||||||
| SIGNAL 039 048 | ||||||||||
| SIGNATURE | 135 | |||||||||
| SL MARX | 039 | |||||||||
| SPRUCER | 129 | |||||||||
| STANDARD COMPONENTS | 086 | |||||||||
| STARCOM | 048 117 131 | |||||||||
| STARGATE | 039 048 | |||||||||
| STARSIGHT CABLE SERVICE | 119 | |||||||||
| STARQUEST | 048 | |||||||||
| TANDY | 047 | |||||||||
| TELEVIEW | 039 | |||||||||
| TEXSCAN | 086 | |||||||||
| TOCOM | 101 107 | |||||||||
| TOSHIBA | 106 | |||||||||
| TUSA | 048 | |||||||||
| TV 86 | 033 | |||||||||
| UNIKA | 045 121 132 | |||||||||
| UNITED ARTISTS | 144 | |||||||||
| UNITED CABLE | 131 | |||||||||
| UNIVERSAL | 045 121 130 132 136 | |||||||||
| VIDEOWAY | 037 | |||||||||
| VIEWSTAR 033 047 110 111 | ||||||||||
| VIDEO TECH | 036 | |||||||||
| ZENITH | 038 103 104 106 112 138 200 | |||||||||
| NEW MODEL | 105 | |||||||||
SATELLITE RECEIVER Codes
| Brand Codes | ||||||||||
| CHANNEL MASTER 155 159 164 | ||||||||||
| CHAPPARAL 168 170 174 | ||||||||||
| CHEYENNE 174 | ||||||||||
| DISH NETWORK 192 | ||||||||||
| DARKE 069 070 072 | ||||||||||
| DX ANTENNA 156 158 | ||||||||||
| ECHOSPHERE 192 | ||||||||||
| ECHOSTAR 160 165 171 192 | ||||||||||
| FUJITSU 176 182 | ||||||||||
| GE 152 184 | ||||||||||
| GENERAL INSTRUMENTS 016 | 147 149 | 188 191 | 195 198 | |||||||
| HITACHI DBS 180 185 | ||||||||||
| HUGHES SATELLITE DBS | 163 167 | 173 | 185 197 | |||||||
| JERROLD | 050 | |||||||||
| KENWOOD | 161 | |||||||||
| LUXOR 165 | ||||||||||
| MACOM STATE | 172 | |||||||||
| MAGNAVOX DBS | 194 | |||||||||
| MEMOREX | 199 | |||||||||
| NORSTAT | 177 183 | |||||||||
| PANASONIC DBS | 151 | |||||||||
| PRIMESTAR | 053 | |||||||||
| PHILIPS | 194 | |||||||||
| PROSCAN | 152 184 | |||||||||
| RCA DBS | 152 184 | |||||||||
| REALISTIC | 154 196 | |||||||||
| SCIENTIFIC ATLANTA | 157 | |||||||||
| SIERRA I, II, III | 174 | |||||||||
| SONY DBS | 189 | |||||||||
| STARSIGHT | 197 | |||||||||
| STAR TRAK | 162 | |||||||||
| STS | 158 169 | 175 | ||||||||
| SUPER GUIDE | 166 | |||||||||
| TOSHIBA | 181 | |||||||||
| TOSHIBA DBS | 148 150 | 179 | ||||||||
| UNIDEN | 178 187 | |||||||||
| UNIDEN DBS | 197 | |||||||||
| VIDEO CHPHER II | 070 | |||||||||
| ZENITH | 063 069 | 070 071 | 072 153 | 186 | ||||||
TV Codes
| Brand Codes | ||||||||||
| ADMIRAL 068 119 120 147 149 | 55 | |||||||||
| AIKO 185 | ||||||||||
| AKAI 001 006 067 | ||||||||||
| ALARON 139 | ||||||||||
| AMARK 012 020 096 100 | ||||||||||
| AMERICA ACTION 190 | ||||||||||
| AMPRO 121 170 | ||||||||||
| ANAM 008 012 013 107 128 129 | ||||||||||
| AOC 001 002 006 012 022 | ||||||||||
| ARCHER 187 | ||||||||||
| AUDIOVOX 047 | ||||||||||
| BAYSONIC 190 | ||||||||||
| BELCOR 183 | ||||||||||
| BELL & HOWELL | 120 | |||||||||
| BRADFORD | 190 | |||||||||
| BROCKWOOD | 183 | |||||||||
| BROCKSONIC | 042 044 | |||||||||
| CANDLE | 001 002 079 106 183 | |||||||||
| CAPEHART | 022 | |||||||||
| CARNIVALE | 183 | |||||||||
| CARVER | 188 | |||||||||
| CETRONIC | 035 | |||||||||
| CINERAL | 185 186 | |||||||||
| CITIZEN | 001 0002 034 035 076 079 096 106 | |||||||||
| CLASSIC | 035 | |||||||||
| CONCERTO | 002 | |||||||||
| CONTEC 032 035 | ||||||||||
| CORONADO | 081 096 | |||||||||
| CRAIG | 035 107 | |||||||||
| CROSLEY | 188 | |||||||||
| CROWN | 035 096 100 190 | |||||||||
| CURTIS MATHES | 001 002 076 096 120 155 | |||||||||
| CXC | 035 | |||||||||
| DAEWOO | 000 002 013 016 033 034 035 040 047 055 | |||||||||
| 074 075 083 096 098 124 142 | ||||||||||
| DAYTRON | 002 096 | |||||||||
| DENON | 189 | |||||||||
| DUMONT | 183 | |||||||||
| DYNASTY | 035 | |||||||||
| DYNATECH | 162 | |||||||||
| EARTHWALK 194 | ||||||||||
| ELECTROBAND 047 096 133 | ||||||||||
| EMERSON 002 006 007 023 031 | 032 035 | 038 041 | 042 | |||||||
| 044 047 | 096 | 100 | 173 | |||||||
| ENVISION 183 | ||||||||||
| FISHER 025 026 | ||||||||||
| FUJITSU 193 | ||||||||||
| FUNAI 007 035 | ||||||||||
| FUNAI TV/VCR 060 | ||||||||||
| FUTURETECH 035 | ||||||||||
| GENERAL ELECTRIC 001 002 031 | 080 | 081 | 082 | 112 | 116 | 117 | 121 | |||
| 129 | 147 | 147 | 149 | 155 | 156 | 167 | ||||
| GIBRALTER 183 | ||||||||||
| GOLDSTAR (LG) 002 003 006 009 | 010 | 011 | 012 | 019 | 087 | 096 | ||||
| 098 | 100 | |||||||||
| GRADIENTE | 183 | |||||||||
| GRUNPY | 190 | 193 | ||||||||
| HALLMARK | 002 | |||||||||
| HARLEY DAVIDSON | 193 | |||||||||
| HARMAN/KARDON | 188 | |||||||||
| HARVARD 190 | ||||||||||
| HITACHI | 002 | 089 | 090 | 094 | 096 | 100 | 119 | 139 | 161 | |
| INFINITY | 109 | 188 | ||||||||
| INKEL | 130 | |||||||||
| JBL | 109 | |||||||||
| JCPENNY | 001 | 002 | 006 | 052 | 076 | 080 | 082 | 096 | 112 | 122 |
| 133 | 149 | |||||||||
| JENSEN | 004 | |||||||||
| JVC | 054 | 056 | 065 | 088 | 092 | 116 | ||||
| KEC | 190 | |||||||||
| KENWOOD | 001 | 054 | ||||||||
| KLOSS | 079 | 097 | ||||||||
| KMC | 100 | |||||||||
| KTV | 001 | 006 | 023 | 035 | 096 | 100 | 115 | |||
| LODGENET | 119 | 120 | ||||||||
| LOGIK | 119 | 120 | ||||||||
| LUXMAN | 002 | |||||||||
| LXI | 053 | 068 | 069 | 070 | 099 | 109 | 149 | |||
| MAD | 057 | 099 | ||||||||
TV Codes (continued)
| Brand Codes | |||||||||
| MAGNAVOX 001 002 021 048 06 | 66 097 0 | 98 100 | 105 106 | ||||||
| 109 1 | 0 112 | 149 | |||||||
| MAJESTIC 006 120 | |||||||||
| MARANTZ 001 006 109 135 136 | |||||||||
| MATSUI 109 | |||||||||
| MEGATRON 020 | |||||||||
| MEMOREX 002 119 120 | |||||||||
| METZ 146 | |||||||||
| MGA 001 002 018 133 | |||||||||
| MGA/MITSUBISHI 006 007 017 | 35 136 | ||||||||
| MIDLAND 192 | |||||||||
| MINERVA 146 | |||||||||
| MONUTX 180 | |||||||||
| MITSUBISHI 002 007 008 018 06 | 7 133 | 134 | |||||||
| MONTGOMERY WARD 006 007 | 051 066 | 069 082 | 100 | 120 | |||||
| MOTOROLA 181 | |||||||||
| MTC | 001 002 | 076 | 162 | ||||||
| MULTITECH | 190 | ||||||||
| NAD | 182 | 183 | 184 | ||||||
| NEC | 001 006 | 008 | 049 | 129 | 133 | 144 | 167 | ||
| NIKEI | 035 | ||||||||
| NIKKO | 183 | 185 | |||||||
| NTC | 185 | ||||||||
| ONKING | 035 | ||||||||
| ONWA | 035 | ||||||||
| OPTIMUS | 183 | 184 | |||||||
| OPTONICA | 049 | 068 | |||||||
| ORION | 191 | 193 | |||||||
| PEERLESS-AV | 195 This is the code for our display | ||||||||
| PENNEY | 180 | 182 | 183 | 187 | 192 | ||||
| PHILCO 001 002 006 021 066 09 | 6 097 | 098 | 100 | 105 | |||||
| 106 | 109 | 110 | 129 | 133 | |||||
| PHILIPS | 001 | 002 | 066 | 088 | 097 | 098 | 106 | 109 | 110 |
| 173 | |||||||||
| PILOT | 183 | ||||||||
| PIONEER 001 002 057 058 059 | 064 | 104 | 139 | ||||||
| PORTLAND | 002 | 096 | 100 | ||||||
| PROSCAN 147 148 149 152 155 | 170 | ||||||||
| PROTON | 002 | 015 | 022 | 027 | 028 | 096 | |||
| PULSAR | 183 | ||||||||
TV Codes (continued)
| Brand Codes | ||||||||||
| QUASAR 081 116 117 129 | ||||||||||
| RADIOSHACK 002 035 049 096 | 098 | |||||||||
| RCA 001 002 006 122 123 129 1 | 33 139 | 140 147 | ||||||||
| 148 149 155 156 | ||||||||||
| REALISTIC 041 049 051 | ||||||||||
| RUNCO 119 121 137 166 167 168 | 171 | |||||||||
| SAMPO 001 002 022 | ||||||||||
| SAMSUNG 002 076 078 096 098 | 100 114 149 | |||||||||
| SANSEI 186 | ||||||||||
| SANSUI 191 | ||||||||||
| SANYO 025 026 030 036 037 103 | 145 169 | |||||||||
| SCIMITSU 183 | ||||||||||
| SCOTCH 183 | ||||||||||
| SCOTT 002 007 035 042 096 | ||||||||||
| SEARS 002 007 025 026 030 052 | 078 096 099 100 | |||||||||
| 145 149 | ||||||||||
| SELECO 160 | ||||||||||
| SEMP | 182 | |||||||||
| SHARP | 002 007 048 049 050 | 051 068 069 070 071 | ||||||||
| 096 100 137 164 165 | ||||||||||
| SHOGUN | 183 | |||||||||
| SIGNATURE | 006 007 051 066 069 | 082 100 119 120 | ||||||||
| SMIVOX | 190 | |||||||||
| SONY | 018 024 061 062 125 | 173 | ||||||||
| SOUNDESIGN | 002 007 035 106 | |||||||||
| SPECTRICON | 012 | |||||||||
| SSS | 002 035 183 190 | |||||||||
| STARLITE | 190 | |||||||||
| SUPREMACY | 079 | |||||||||
| SYLVANIA 001 021 066 074 097 | 098 105 106 109 110 | |||||||||
| 112 149 | ||||||||||
| SYMPHONIC | 053 | |||||||||
| TANDY | 068 | |||||||||
| TATUNG | 081 129 162 | |||||||||
| TECHNICS | 116 128 | |||||||||
| TECHNOL ACE | 193 | |||||||||
| TECHWOOD | 002 | |||||||||
| TEKNIKA | 002 007 035 041 076 | 079 096 100 106 110 | ||||||||
| 119 120 133 | ||||||||||
| TELEFUNKEN 183 | ||||||||||
| TELERENT 100 119 120 | ||||||||||
| TERA 014 | ||||||||||
| TMK 002 | ||||||||||
| TOSHIBA 008 052 076 078 099 | 62 | |||||||||
| TOTEVISION 096 | ||||||||||
| UNIVERSAL 080 082 | ||||||||||
| VECTOR RESEARCH 183 | ||||||||||
| VIDEO CONCEPTS 067 | ||||||||||
| VIDIKRON 108 163 | ||||||||||
| VIDTECH 002 | ||||||||||
| WARDS 002 007 021 049 066 08 | 0 082 096 105 | 109 | ||||||||
| 119 156 | ||||||||||
| WESTINGHOUSE | 047 | |||||||||
| WHITE WESTING HOUSE | 191 | |||||||||
| YAMAHA | 001 002 | |||||||||
| YORK | 002 | |||||||||
| YUPITERU | 035 | |||||||||
| ZENITH | 034 040 119 121 131 | |||||||||
| ZENITH TV/VCR | 060 087 | |||||||||
| ZONDA | 012 | |||||||||
VCR & TV/VCD Codes
| Brand Codes | ||||||||||
| ADMIRAL | 074 | |||||||||
| AIWA | 000 090 | |||||||||
| AKAI | 030 049 050 051 055 060 | |||||||||
| AMPRO 099 | ||||||||||
| ANAM | 088 089 | |||||||||
| AUDIO DYNAMICS | 016 020 030 | |||||||||
| BELL & HOWELL | 005 109 | |||||||||
| BROKSONIC | 053 054 059 105 122 | |||||||||
| CANON | 057 087 089 | |||||||||
| CAPEHART | 019 | |||||||||
| CITIZEN | 063 | |||||||||
| CRAIG | 001 012 | |||||||||
| CURTIS MATHES | 087 089 092 | |||||||||
| DAEWOO | 018 019 025 048 064 065 070 109 | |||||||||
| DAX | 016 020 030 | |||||||||
| DAYTRON 018 019 | ||||||||||
| DBX | 020 030 | |||||||||
| DYNATECH 075 090 | ||||||||||
| ELECTROHOME 010 | ||||||||||
| EMERSON 017 021 041 045 046 | 048 051 053 054 058 | |||||||||
| 059 060 062 089 090 | 104 105 | 122 | ||||||||
| FISHER 038 039 109 | ||||||||||
| FUNAI 090 | ||||||||||
| GENERAL ELECTRIC 012 087 089 096 | 097 099 | 108 112 | 114 116 | |||||||
| 143 144 | ||||||||||
| GO VIDEO 003 004 012 014 | ||||||||||
| GOLSTAR (LG) 020 062 063 078 | ||||||||||
| HARMAN KARDON 020 052 | ||||||||||
| HITACHI 022 030 069 077 078 079 090 | 12 | |||||||||
| INSTANT REPLAY 087 088 089 | ||||||||||
| J.C. PENNEY | 012 020 062 078 079 | 087 088 | 089 | |||||||
| JCL | 089 | |||||||||
| JENSEN 030 | ||||||||||
| JVC | 006 010 020 022 024 | 026 027 | 029 030 | 089 | ||||||
| KENWOOD | 005 022 029 030 090 | |||||||||
| LLOYD'S | 090 | |||||||||
| LOGIK | 015 | |||||||||
| LXI | 038 048 062 063 078 | 090 | ||||||||
| MAGNIN | 012 | |||||||||
| MAGNAVOX | 031 032 034 035 087 | 089 090 | 092 100 | |||||||
| MARANTZ | 020 031 033 034 089 | |||||||||
| MARTA | 062 063 | |||||||||
| MATSUI | 045 056 | |||||||||
| MEI | 089 | |||||||||
| MEMOREX | 005 012 013 062 075 | 086 087 | 089 090 | 099 | ||||||
| MGA | 010 051 052 | |||||||||
| MINOLTA | 078 | |||||||||
| MITSUBISHI | 009 010 051 052 076 | 078 091 | 111 | |||||||
| MONTGOMERY WARD | 037 074 087 090 108 | 110 | ||||||||
| MTC | 012 090 | |||||||||
| MULTITECH | 015 090 | |||||||||
| NEC | 016 020 029 030 | |||||||||
| NORDMENDE | 030 | |||||||||
| OPTONICA | 036 075 | |||||||||
| ORION | 041 | |||||||||
| PANASONIC 080 085 087 089 101 102 | ||||||||||
| PENTAX 078 079 089 112 | ||||||||||
| PHILCO 031 087 089 090 | ||||||||||
| PHILIPS 022 031 036 062 087 088 089 090 | ||||||||||
| PILOT 062 | ||||||||||
| PINOER 029 078 079 082 083 | ||||||||||
| PORTLAND 018 019 | ||||||||||
| PULSAR 099 | ||||||||||
| QUARTZ 005 | ||||||||||
| QUASAR 005 080 085 087 089 101 102 | ||||||||||
| RADIO SHACK 062 | ||||||||||
| RCA 012 078 079 080 088 089 090 092 096 097 | ||||||||||
| 108 113 114 115 116 118 | ||||||||||
| REALISTIC | 005 012 036 039 062 074 075 087 089 090 | |||||||||
| 109 | ||||||||||
| RICO | 071 | |||||||||
| RUNCO | 099 | |||||||||
| SALORA | 005 | |||||||||
| SAMSUNG | 008 012 048 049 081 114 116 | |||||||||
| SANSUI 001 029 030 | ||||||||||
| SANYO | 005 012 013 | |||||||||
| SCOTT | 009 046 048 054 122 | |||||||||
| SEARS | 005 038 039 048 062 063 078 079 109 117 | |||||||||
| SHARP | 036 073 074 075 089 | |||||||||
| SHINTOM | 015 | |||||||||
| SIGNATURE | 037 074 087 090 108 110 | |||||||||
| SONY | 038 068 071 072 075 089 | |||||||||
| SOUNDESIGN | 090 | |||||||||
| STS | 078 | |||||||||
| SYLVANIA | 010 031 034 087 088 089 090 | |||||||||
| SYMPHONIC | 090 | |||||||||
| TANDY | 090 109 | |||||||||
| TASHIKO | 063 | |||||||||
| TATUNG 030 | ||||||||||
| TEAC | 030 090 | |||||||||
| TECHNICS | 089 101 | |||||||||
| TEKNIKA | 047 062 089 090 | |||||||||
| THOMAS | 090 | |||||||||
| TMK 017 | ||||||||||
| TOSHIBA | 010 022 039 044 048 078 079 | |||||||||
| TOTEVISION 012 062 | ||||||||||
| UNITECH 012 | ||||||||||
| VECTOR RESEARCH 009 020 | ||||||||||
| VICTOR 029 | ||||||||||
| VIDEO CONCEPTS 020 051 090 | ||||||||||
| VIDEO SONIC 012 | ||||||||||
| WARDS 012 015 036 048 075 078 | 089 | 090 | ||||||||
| YAMAHA 020 030 090 | ||||||||||
| ZENITH 027 029 062 071 090 093 | 098 | 099 | 104 | |||||||
TV/VCR Codes
| Brand Codes | ||||||||||
| ADVENTURA 121 129 | ||||||||||
| BROKSONIC 136 137 | ||||||||||
| DAEWOO 124 125 | ||||||||||
| EMERSON | 122 123 133 | |||||||||
| FUNAI | 121 129 | |||||||||
| GOLDSTAR (LG) | 132 135 138 139 | |||||||||
| HITACHI | 121 129 | |||||||||
| LXI | 121 129 | |||||||||
| MAGNAVOX | 120 128 130 | |||||||||
| PANASONIC | 126 127 | |||||||||
| RCA | 120 | |||||||||
| RS | 126 127 | |||||||||
| SAMSUNG | 131 | |||||||||
| SANSUI | 136 137 | |||||||||
| SHARP | 119 120 | |||||||||
| SYLVANIA | 121 129 | |||||||||
| SYMPHONIC 121 129 | ||||||||||
| XR-1000 | 121 129 | |||||||||
| ZENITH 121 124 129 132 135 136 | 137 138 139 | |||||||||
DVD, DVR, & Blu-Ray Codes
| Brand Codes | ||||||||||
| ADVENT 200 | ||||||||||
| ALLEGRO 194 | ||||||||||
| APEX DIGITAL 167 172 173 177 | 178 179 | 187 206 | 209 217 | |||||||
| AUDIOVOX 176 | ||||||||||
| BLAUPUNKT 172 | ||||||||||
| BLUE PARADE 157 | ||||||||||
| BROKSONIC 169 193 | ||||||||||
| CINEVISION 196 | ||||||||||
| CURTIS MATHES 208 | ||||||||||
| CYBERHOME 183 | ||||||||||
| DAEWOO 175 188 | ||||||||||
| DENON 147 222 | ||||||||||
| DVD2000 149 | ||||||||||
| EMERSON 160 168 185 | ||||||||||
| ENTERPRISE | 160 | |||||||||
| FISHER | 166 | |||||||||
| FUNAI | 168 | |||||||||
| GE | 150 172 | 182 223 | 224 | |||||||
| GO VIDEO | 171 174 | |||||||||
| GPX | 170 | |||||||||
| GREENHILL | 172 | |||||||||
| HARMAN/KARDON | 159 | |||||||||
| HITACHI | 145 146 | 158 | ||||||||
| HITEKER 167 | ||||||||||
| INITIAL | 172 | |||||||||
| JENSEN | 200 | |||||||||
| JVC | 156 161 | 192 213 | ||||||||
| KENWOOD 147 153 | ||||||||||
| KLH | 172 176 | 201 | ||||||||
| KOSS | 165 | |||||||||
| LASONIC | 180 | |||||||||
| LITE-ON | 205 | |||||||||
| LG | 225 | |||||||||
| MAGNAVOX | 148 168 | 220 226 | ||||||||
| MARANTZ | 154 | |||||||||
| MEMOREX | 169 | |||||||||
| MICROSOFT 150 | ||||||||||
| MINTEX | 172 189 | |||||||||
| MITSUBISHI | 149 21 | 227 | ||||||||
| MOTOROLA | 203 | |||||||||
| MOXELL 203 | ||||||||||
DVD, DVR, & Blu-Ray Codes (continued)
| Brand Codes | |||||||||
| NESA 172 | |||||||||
| NORCENT 199 | |||||||||
| ONKYO 148 | |||||||||
| ORITRON 165 | |||||||||
| PANASONIC 147 163 210 212 216 228 | |||||||||
| PHILIPS 148 154 164 190 197 | |||||||||
| PIONEER 151 157 163 214 229 | |||||||||
| POLK AUDIO 154 | |||||||||
| PRIMA 200 | |||||||||
| PROSCAN 150 | |||||||||
| PROVIEW 203 | |||||||||
| QWESTAR 165 | |||||||||
| RCA 150 157 172 176 186 202 | |||||||||
| RIO 194 | |||||||||
| ROTEL | 161 | ||||||||
| SAMSUNG | 158 184 198 207 218 230 233 | ||||||||
| SANSUI | 169 | ||||||||
| SANYO | 166 169 195 | ||||||||
| SHARP | 162 | ||||||||
| SHINSONIC | 152 189 | ||||||||
| SONIC BLUE 194 | |||||||||
| SONY | 152 191 215 219 231 | ||||||||
| SYLVANIA 168 185 | |||||||||
| SYMPHONIC 168 | |||||||||
| TEAC | 176 | ||||||||
| TECHNICS | 147 | ||||||||
| THETA DIGITAL | 157 | ||||||||
| TOSHIBA | 148 169 204 | ||||||||
| TREDEX | 181 | ||||||||
| URBAN/CONCEPTS | 148 | ||||||||
| VENTURER | 176 | ||||||||
| XBOX | 150 | ||||||||
| YAMAHA | 147 154 155 232 | ||||||||
| ZENITH 148 160 194 232 | |||||||||
DVR Codes
| Brand Codes | ||||||||||
| PANASONIC 140 | ||||||||||
| PHILIPS 141 | ||||||||||
| REPLAY TV 140 221 | ||||||||||
| SONIC BLUE 140 221 | ||||||||||
| SONY 142 | ||||||||||
| TIVO 141 142 | ||||||||||
CD, LD, HOME AUTOMATION & PVR Codes
| Brand Codes | ||||||||||
| AKAI 000 001 | ||||||||||
| CROWN 001 | ||||||||||
| DENON 002 | ||||||||||
| FISHER 003 025 | ||||||||||
| GOLDSTAR (LG) 037 | ||||||||||
| HAMAN/KARDON 004 | ||||||||||
| JVC 005 | ||||||||||
| KENWOOD | 006 028 055 | |||||||||
| MAGNAVOX | 009 | |||||||||
| MITSUBISHI | 010 | |||||||||
| NAD | 012 013 034 | |||||||||
| NAKAMICHI | 014 015 | |||||||||
| NEC | 016 | |||||||||
| ONKYO 017 | ||||||||||
| PANASONIC 018 019 | ||||||||||
| PHILIPS 008 020 021 041 | ||||||||||
| PIONEER | 022 042 | |||||||||
| RADIOSHACK | 023 026 027 | |||||||||
| RCA | 024 | |||||||||
| SANYO | 043 | |||||||||
| SHARP | 030 | |||||||||
| SONY 030 031 032 044 | ||||||||||
| SOUNDESIGN | 038 046 | |||||||||
| TEAC | 033 | |||||||||
| TECHNICS | 036 | |||||||||
| YAMAHA | 035 048 049 050 051 052 053 054 | |||||||||
| ZENITH 045 047 | ||||||||||
LASER DISC Codes
| Brand Codes | ||||||||||
| DENON 067 | ||||||||||
| PIONEER 067 | ||||||||||
| PROSCAN 068 | ||||||||||
| RCA 068 | ||||||||||
| SANYO 065 | ||||||||||
| SONY 066 | ||||||||||
| ZENITH 065 | ||||||||||
HOME AUTOMATION Codes
| Brand Codes | ||||||||||
| GE (AUX 3601) 069 | ||||||||||
| RADIOSHACK (AUX 3600) 071 | ||||||||||
| PHILIPS (VCR2039) 070 | ||||||||||
| ECHO STAR (VCR2040) 072 | ||||||||||
peerless-AV®
Peerless-AV
2300 White Oak Circle
Aurora, IL 60502
Email: tech@peerlessmounts.com
Ph: (800) 865-2112
Fax: (800) 359-6500
www.peerless-av.com
Peerless-AV Europe
Unit 3 Watford Interchange,
Colonial Way, Watford, Herts,
WD24 4WP, United Kingdom
Customer Care
44 (0) 1923 200 100
www.peerless-av.com
Peerless-AV de Mexico
