Product Type	Outdoor Monitor
Brand	Peerless-AV
Model	Xtreme XHB652-EUK
Power Supply	100-240V AC, 50/60 Hz
Mounting Hole Pattern	600x400 mm, 600x600 mm
Mounting Screws	4x M8 (16 mm length)
Width (with bezel)	58.68 in (1491 mm)
Height (with bezel)	34.08 in (866 mm)
Depth (with bezel)	5.14 in (131 mm)
Input Ports	HDMI 1 (ARC), HDMI 2, HDMI 3 (MHL), DisplayPort, VGA, USB 2.0, 3.5mm AV, 3.5mm Component, Antenna, LAN
Output Ports	S/PDIF Optical, 3.5mm Analog Audio Out, 3.5mm IR Out
Control Ports	RS-232C (3.5mm), IR Extender, ALS Extender, USB 2.0 Data
DC Power Output	12 VDC @ 2.5 A (2.5mm port), 5 VDC @ 2.4 A (USB port)
Remote Control	IR remote with AAA batteries
OSD Languages	English, Spanish, French, German, Italian, Russian
Safety Standards	FCC Class A, UL listed external surge protection required
Operating Temperature	Not specified in manual; typical outdoor monitor: -20°C to 50°C
Screen Care	Use approved screen cleaner; avoid ammonia; unplug before cleaning
Warranty	See www.peerless-av.com/warranty

Frequently Asked Questions - Xtreme XHB652-EUK Peerless-AV

What power source does the Xtreme XHB652-EUK monitor require?

The monitor operates on 100-240V AC, 50-60 Hz. It must be connected to a GFCI outlet with a protective grounding connection. A UL listed external surge protector rated 2500 Vpk or less is recommended.

What mounting options are available for this monitor?

The monitor supports 600x400 mm and 600x600 mm VESA mounting hole patterns. Use 4 M8 screws (16 mm long). An outdoor-rated mount (sold separately) is recommended.

How do I install the IR extender?

Insert the 3.5mm end of the included 5V IR extender into the IR Extender port on the input panel. This allows flexible placement of the IR receiver.

Can I control the monitor via RS-232?

Yes, use the 3.5mm RS-232C port with a straight-through cable. A 3.5mm to DB9 female adapter (ACCD-DB9, sold separately) is required. Commands are sent at 38400 baud, 8 data bits, no parity, 1 stop bit.

What is the purpose of the ALS extender?

The Ambient Light Sensor (ALS) extender automatically adjusts display brightness based on ambient light. It overrides the built-in ALS when connected, allowing placement in a location representative of actual light conditions. ACCD-ALS is sold separately.

How do I clean the screen safely?

Unplug the power cord first. Use a soft, clean cloth to dust. For stubborn dirt, use a damp cloth. Never use ammonia or aerosol cleaners as they damage the anti-glare coating.

What inputs does the monitor support?

It supports HDMI 1 (ARC), HDMI 2, HDMI 3 (MHL), DisplayPort, VGA, 3.5mm AV (composite), 3.5mm Component, Antenna/Cable, and USB 2.0 for media playback.

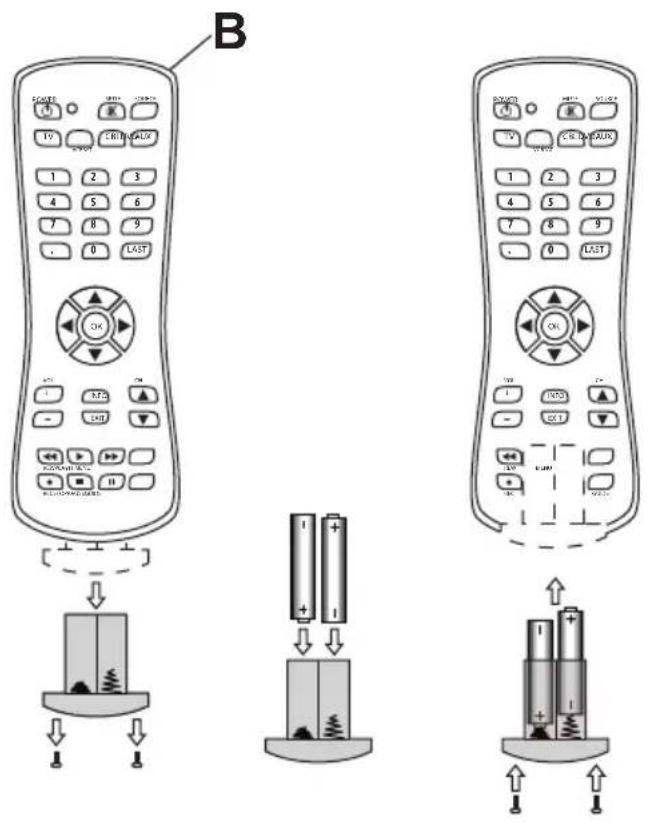

How do I replace the remote control batteries?

Remove the two screws on the battery module end, slide it out, and replace with two AAA batteries. Do not mix old/new batteries or brands. Tighten screws to maintain ingress protection.

What is the recommended installation clearance for ventilation?

Maintain at least 2 inches of airflow around the display. If installed in an enclosure, ensure proper ventilation to prevent overheating.

Can I use the USB port for power?

The USB 2.0 Data port is for service and media only. For 5 VDC power, use the dedicated 5VDC power port (2.4 A). Accessory kits are sold separately.

USER MANUAL Xtreme XHB652-EUK Peerless-AV

SYSTEM INSTALLATION AND ELECTRICAL REQUIREMENTS

Electrical Code

Note: To the display system installer: This reminder is provided to call attention to Article 820-44 of the National Electric Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the facility. Outlet shall be installed near the equipment and shall be easily accessible.

Note: Installation shall incorporate UL Listed external surge protection rated 2500 Vpk or less, for 150 to 300 Vac mains, installed in accordance with Article 285 of ANSI/NFPA 70 or applicable local codes.

Power Source

The display must be connected to a mains socket outlet with a protective grounding connection.

The mains plug is used as the disconnect device and shall remain readily accessible.

Electrical installation shall be in accordance with the applicable parts of Chapter 8 of ANSI/NFPA70.

An outdoor antenna should not be located near overhead electrical lines or any electrical circuits.

If an outside antenna is connected to the receiver, confirm that the antenna system is grounded to protect against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

This display operates on 100-240 volts 50-60 Hz, AC current. Insert the power cord into a 120 volt 60 Hz outlet. Never connect the display to direct current or anything other than the specified voltage.

To prevent electric shock from the display, do not use with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

All secondary lines must be routed through grounded conduit and kept separate from AC line.

FCC CAUTION

To assure continued compliance and possible undesirable interference, ferrite cores may be used when connecting this display to video equipment; maintain at least 400mm (15.75 inches) spacing to other peripheral devices.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications; however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/display technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

Relevant Information

Record your display's model and serial number here for future reference. Keep this user manual in an accessible location in the event service is required.

Note: Your display's serial number can be found on the box and underneath the rear cover plate.

Model Number

Serial Number ____

GENERAL SAFETY PRECAUTIONS

Read before operating equipment

Thank you for purchasing our product. Before using it, please read this user guide carefully and follow the instructions for safe operation. Please keep this manual for future reference and always include it when transferring or transporting this product to a different location.

WARNING

In case of emergency such as fire or electric shock caused by the product, immediately contact 911 or proper emergency police/fire service agencies in your country.

To reduce the risk of electric shock or fire, heed the following:

• In case of product malfunction or unusual events such as electrical burning smell, smoke, or loss of content signals due to internal overheating, immediately turn off, unplug the electrical cord and contact the manufacturer.
• Do NOT disassemble, modify or service product in any way other than that contained in this instruction. Any unauthorized modifications made to the product automatically void product warranty.
• Do NOT touch antenna lines or wires, electrical cables or plugs when lightning or thunder is present or with wet hands
• Do NOT submerge in water.
• Do NOT destroy, process, or place close to any heat source.
• Do NOT install near poisonous gas or chemically unstable atmosphere.
• Do NOT install near strong magnetic or electrical current field.
• Do NOT install the product in unstable locations or near moving objects, constantly vibrating equipment, or uneven surfaces.
• Do NOT leave any fire source, such as candles, close to or on the product.
• Do NOT operate the product if it has been dropped or struck. Severe physical impact to the product may cause components to fall out of place within and break.
• Do NOT bend or twist electrical cords, electrical plugs, cables, or wires with excessive force.
• Do NOT block ventilation slots or place any heavy object on the product.
• Use properly rated electrical voltage.
• Do NOT use any electrical sockets or power strips with many other devices jointly plugged in. Use a single, directly dedicated and rated GFCI electrical outlet for the product for safe operation.
• Do NOT move or transport with any cables (electrical, content connectivity) plugged in to the source devices.
• Always connect the electrical plug firmly and completely. When disconnecting any cables, always pull on the plug and not the cord.
• Always leave the power off when plugging or unplugging the electrical cords or connection cables.
• Do not defeat the safety purpose of the polarized or grounding type electrical plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the electrical cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

WARNING

• Never apply pressure to the exterior of the LCD screen.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Do NOT climb on the product.
• Do NOT install within five feet from a body of water.
• Do NOT use if ambient air temperature exceeds the operating limits.
• Do NOT install in enclosure or recessed cavity with less than 2 inches of airflow around the display. Air inside fully encased display must be ventilated.
• The product is to be secured to building before operation.
• Product must be carried and supported by at least two persons.
• Periodically clean dust off the electrical plug to keep it clean and dry, ensuring proper and safe operation.
• Only use attachments/accessories specified by the manufacturer.

CONTENTS

System Installation And Electrical Requirements 2

Electrical Code 2

Power Source 2

FCC Caution....3

FCC Statement....3

Relevant Information ....3

General Safety Precautions 4

Set Up Instructions....7

Parts List ....7

Removing Cord Cover....8

Installing Power Cord 9

Installing IR Extender 9

Installing ALS Extender 9

Connecting Cords....10

Replacing Cord Cover 12

Removing Handle Hardware 13

Connect To The Power Source....13

Prepare The Display For Mounting ....14

Remote Control Battery Installation And Replacement 16

Operating Instructions ....17

Power On/Off the Display....17

Onboard Controls....17

Navigating The On-Screen Menu ....18

Channel 18

Picture 18

Audio 18

Time 19

Setup 19

Lock 20

USB Functionality 21

(RS-232C) Serial Control Of The Display 23

Maintenance 24

Care Of The Screen 24

Mobile Telephone Caution 24

End Of Life Directives ....24

Warranty 28

SET UP INSTRUCTIONS

Parts List

Description Qty

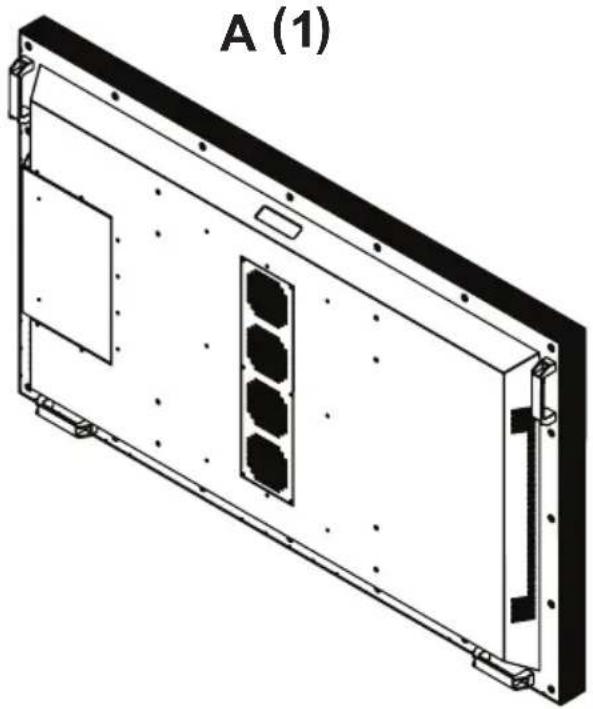

A display 1
B remote (batteries included) 1
C IR extender 1

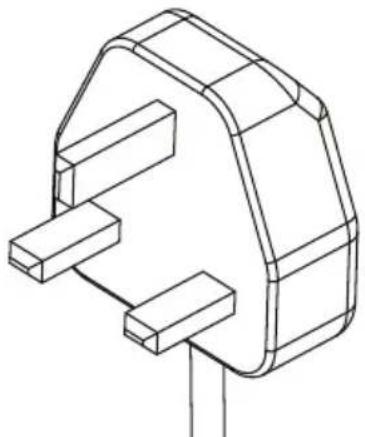

D regional power cord 1
E 3mm allen wrench 1
F user guide (not shown) 1
G monitoring addendum (not shown) 1
H technical support insert (not shown) 1

Technical line drawing of a rectangular electronic device with mounting brackets and internal compartments (no text or symbols)

B (1)
remotedisplay

C (1)
IR extender

Simple line drawing of two electronic components: a cylindrical device with a top and a circular component labeled 'IR' (no text or symbols beyond labels)

E (1)
3mm allen wrench

D (1)
regional power cord

Technical line drawing of a three-pin electrical plug with coiled base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a plug with two cylindrical pins (no text or symbols)

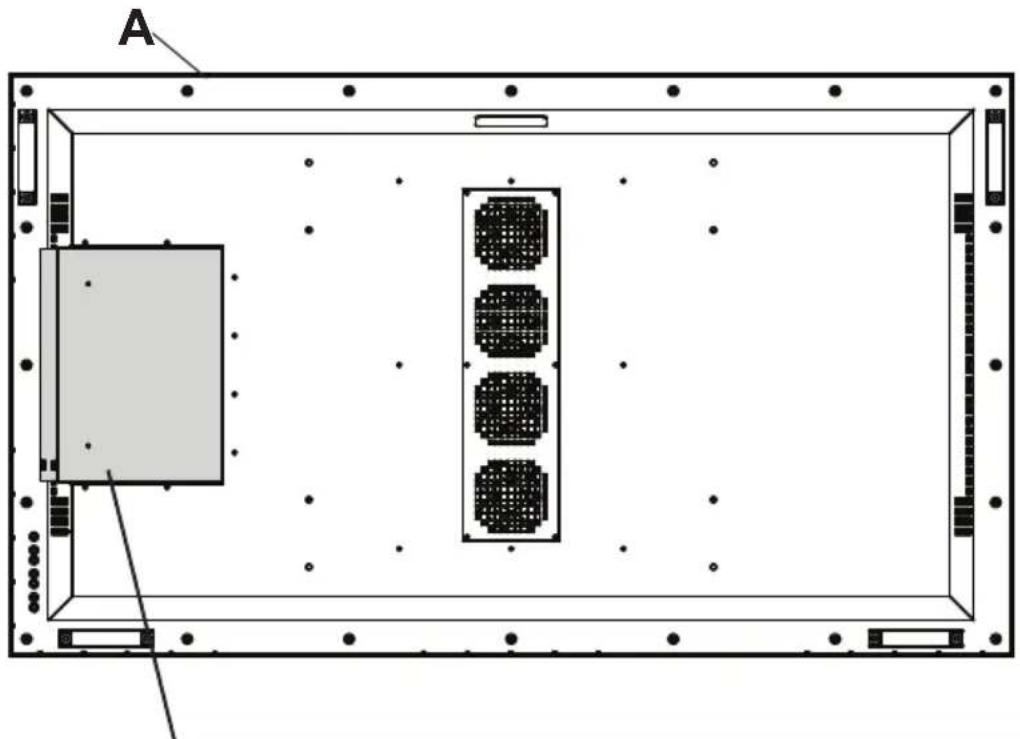

Removing Cord Cover

1. Remove (2) M5 low-profile hex screws and rear cover plate using 3mm allen wrench (E). Do not disconnect lanyard.
2. Remove (6) M5 hex screws and cord cover using 3mm allen wrench (E).

Technical diagram of a rectangular device with internal components and labeled section A (no text or symbols beyond label)

Technical diagram of an electronic device with internal components and mounting holes (no text or symbols)

Installing Power Cord

Insert female end of power cord into power port located inside the input compartment.

Technical diagram showing a mechanical assembly with a component labeled 'D' and an inset view of its internal structure (no text or symbols present)

Installing IR Extender (Optional)

Insert the 3.5mm end of the included 5V IR extender into the IR Extender port on the input panel of the display. IR extender port may not be compatible with other 3 ^rd party extenders.

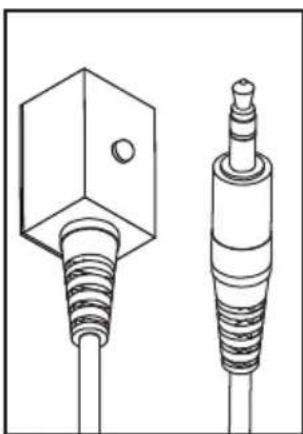

Installing Ambient Light Sensor (ALS) Extender (Optional)

Insert the 3.5mm end of the ALS Extender (ACCD-ALS sold separately) into the ALS Extender port on the input panel of the display. Connecting the ALS Extender will disable the ALS that is built into the display.

Technical line drawing of two electrical insulator components (no text or symbols)

Technical line drawing of two mechanical components with threaded ends and a hexagonal base (no text or symbols)

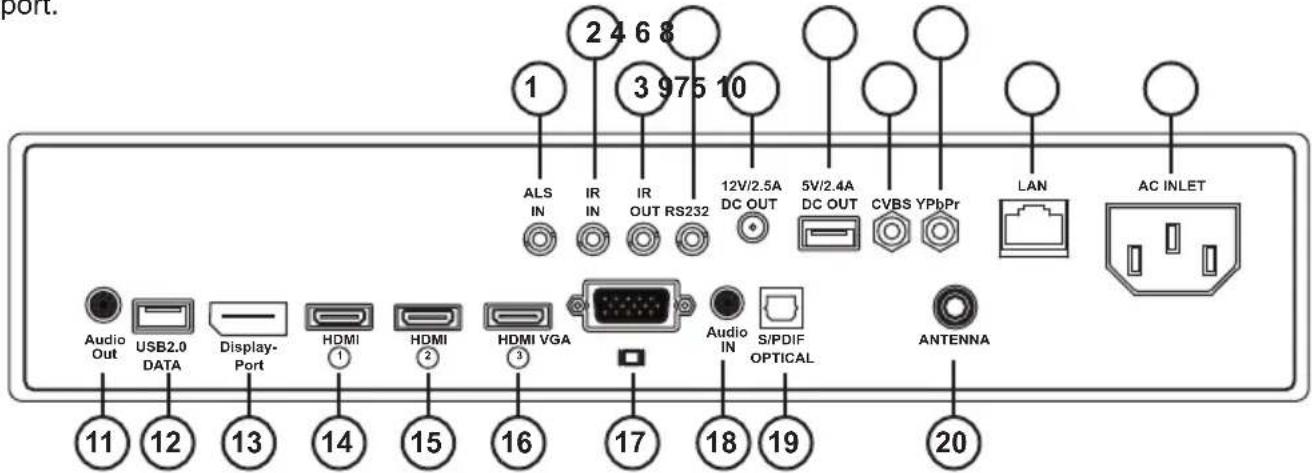

Connecting Cords

Connect source devices to appropriate display input. Make all connections prior to powering on the display. The USB 2.0 Data port is for service and media only. For 5VDC power, use the 5VDC power port.

1. 3.5mm Ambient Light Sensor (ALS) Extender – Automatically adjusts the brightness of the display based on ambient lighting conditions. The ALS extender overrides the built-in ambient light sensor when it is connected allowing flexibility for installations where the built-in ALS may have shadows being cast on it by surrounding structures or vegetation. The ALS extender can be placed in a location that is more representative of the actual ambient light conditions. ALS Extenders (ACCD-ALS) are sold separately from Peerless-AV by contacting Customer Care at 800-865-2112.
2. 3.5mm IR Extender Port – Allows flexibility for integration with controls systems. The IR extender can be used to position the IR receiver in a convenient position in the event the IR receiver on the front of the display is obscured.
3. 3.5mm IR Out - Allows for IR control of 3rd party devices utilizing the display's built-in IR receiver or external IR extender.
4. 3.5mm RS232C – Allows for control of the display using RS232 commands from a connected PC or control system. 3.5mm to DB9 Female (ACCD-DB9) accessory dongle is sold separately by contacting Customer Care at 800-865-2112.
5. 2.5mm DC Power Port – Provides 12 VDC @ 2.5 A for powering locally stored extenders and source devices. 12 VDC accessory kits (ACCD-12K) are sold separately from Peerless-AV by contacting Customer Care at 800-865-2112. Accessory DC outputs are only active when display is on.
6. USB DC Power Port – Provides 5 VDC @ 2.4 A for powering locally stored extenders and source devices. 5 VDC accessory kits (ACCD-05K) are sold separately from Peerless-AV by contacting Customer Care at 800-865-2112. Accessory DC outputs are only active when display is on.
7. 3.5mm Mini AV – Connects an analog source device with the display and allows for SD video and analog stereo audio signals to be output to the display. This connection also supports the audio portion of a connected component device. Requires a 3.5mm to RCA female composite accessory dongle. Analog accessory kits (ACCD-ALG) are sold separately from Peerless-AV by contacting Customer Care at 800-865-2112.
8. 3.5mm Mini Component – Connects an analog source device with the display and allows for HD video and analog stereo audio signals to be output to the display. Requires a 3.5mm to RCA female component accessory dongle for video signals. If audio is required when using the component connection, the stereo audio signal will need to connect to the red and white female RCA connectors on the composite accessory dongle. Analog accessory kits (ACCD-ALG) are sold separately from Peerless-AV by contacting Customer Care at 800-865-2112.
9. LAN Port – Health and Wellness monitoring of the display (see Monitoring Addendum).
10. AC In - Provides AC power to the display for operation.
11. 3.5mm Analog Audio Out Port – Provides analog stereo audio for soundbars, headphones, and amplifiers.

Connecting Cords

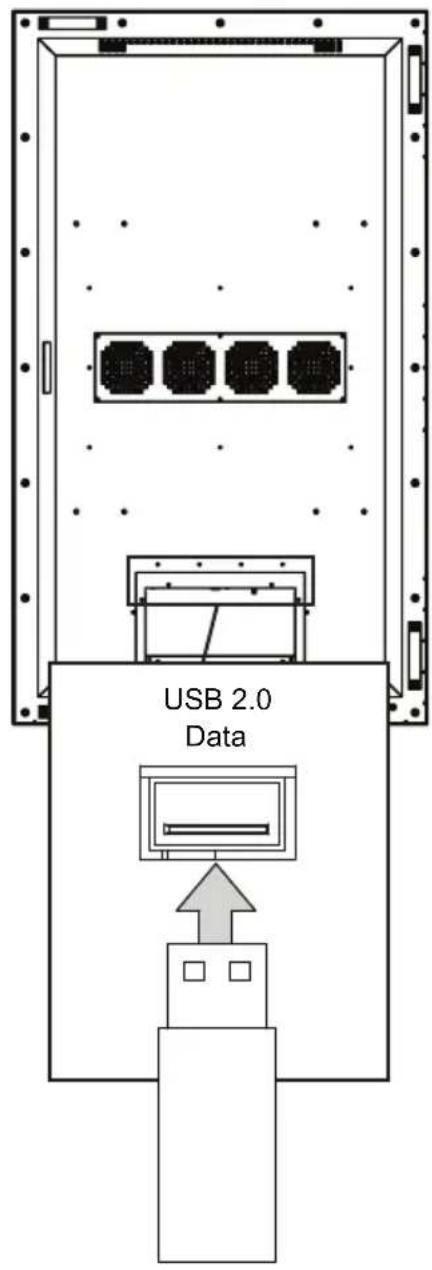

1. USB 2.0 Data Port – Allows content to be displayed using a USB flash drive. This feature supports text, photo, audio and video. This port also serves as a service port for firmware upgrades. This port should not be used for powering 5 VDC devices.
2. DisplayPort – Connects a digital source device with the display and allows for FHD video and digital audio to be output on the display. DisplayPort is version 1.2 and is HDCP 1.3 compliant.
3. HDMI 1 (ARC) - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. HDMI 1 is HDMI version 2.0 and is HDCP 2.2 compliant. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection. HDMI 1 also supports the audio return channel (ARC) allowing audio content from the display to be back-fed to an audio amplifier using a single HDMI connection.
4. HDMI 2 - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. HDMI 2 is HDMI version 2.0 and is HDCP 2.2 compliant. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection.
5. HDMI 3 - Connects a digital source device with the display and allows for FHD video and digital audio signal to be output to the display. All 3 of the HDMI inputs also support consumer electronics control (CEC). CEC allows for intelligent communication between CEC-enabled devices through the use of the HDMI connection. HDMI 3 is HDMI version 2.0 and is HDCP 2.2 compliant. HDMI 3 also supports mobile high definition link (MHL3.0) allowing MHL compatible mobile devices to output HD content to the display, transport control and charge the connected device.
6. VGA – Connects an analog source device with the display and allows FHD video signals to be output to the display. VGA does not support audio. When using a VGA connection the audio output from the source device will need to be connected to the 3.5mm Audio In port on the display.
7. 3.5mm Analog Audio In – Accepts the incoming stereo analog audio signal coming from a VGA connected source device.
8. S/PDIF Optical Output – Outputs uncompressed digital audio to a connected soundbar or AVR with an optical digital audio input.
9. Antenna/Cable Coaxial Input – Supports ATSC, NTSC and QAM256 signals. It can be used with an over-the-air antenna or in a distributed coaxial network. This connection supports both analog and digital signals.

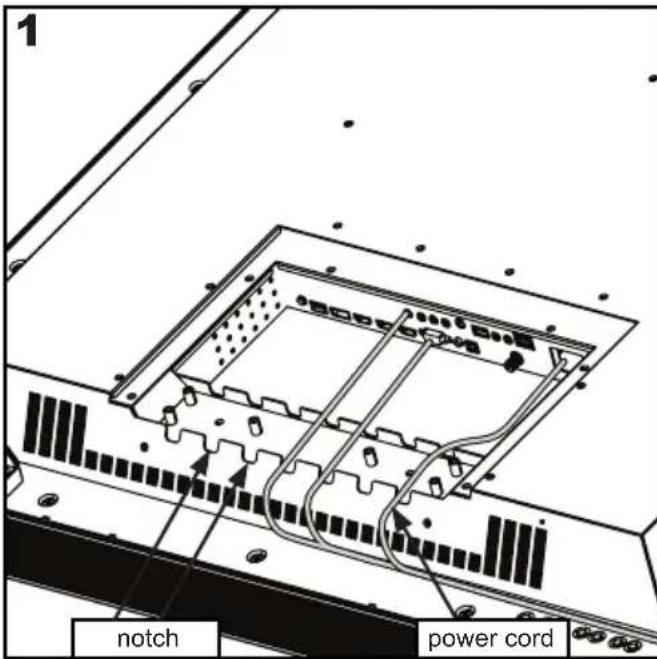

Replacing Cord Cover

1. Run power and signal cords through notches. To prevent unwanted interference, route the power cord through the right most notch (see image 1 below).
2. Place the cord cover over the cords being careful not to pinch any of the cords. Loosely install (6) M5 hex cap screws then tighten screws on the cord cover using 3mm allen wrench (E) until the gasket on the cover is fully compressed to the cord gasket.
3. Replace the rear cover plate ensuring that the cords are running through the notches on the display and not getting pinched. Fasten the (2) hex screws on the rear cover plate to secure it in place using 3mm allen wrench (E). Ensure that rear cover plate is fully compressed to the back of the display.

Technical diagram of an electronic device with labeled components and wiring (no readable text or symbols)

CAUTION

• Ensure cord bend radius does not exceed limits set by the manufacturer.
• Ensure cords are seated properly in the cable channels to avoid potential damage to cords when rear cover plate is installed.
• Do not remove lanyard that connects the rear cover plate to the display.
• Ensure cables exiting input compartment are routed downward when installing display in portrait orientation. If the installation requires the cabling to be routed upward, ensure that the cables are routed with a drip loop.

Removing Handle Hardware

Optional: If removing handles, do not replace hardware.

Technical diagram showing a mechanical component with arrows indicating direction, no text or symbols present

CAUTION

Failure to follow these instructions can result in the product being damaged or destroyed, voiding the warranty.

Connect To The Power Source

Connect power cord to GFCI outlet.

Diagram showing a device with an output cable connected to two separate electrical outlets (no text or symbols present)

Prepare The Display For Mounting

Install cords prior to mounting your display. Input panel may be obstructed once the display is mounted.

A mounting solution is sold separately. Contact your Peerless-AV representative for an outdoor rated mounting solution for your particular application.

For your safety, only install an outdoor-rated mount that is suitable for the application and supports the weight of the display. When mounting a display outdoors, use proper environmentally rated mounts to ensure longevity in harsh environments.

Examine the chart below to determine the mounting specifications for your display:

Part	Mounting Hole Pattern	Required Mounting Screws
XHB652	600x400mm, 600x600mm	(4) M8 screws (16mm long)

Part A	B C D E F
XHB652	23.62"(600mm)	15.75"(400mm)	17.53"(445mm)	9.17"(233mm)	23.62"(600mm)	5.14"(131mm)

Prepare The Display For Mounting

Part A	B C D E
XHB652	58.68"(1491mm)	34.08"(866mm)	56.24"(1429mm)	31.64"(804mm)	64.53"(1639mm)

FRONT VIEW

BEZEL / IR DETAIL VIEW

Remote Control Battery Installation And Replacement

The remote control is powered by two 1.5V AAA batteries installed at the factory.

To install or replace batteries:

1. To remove the battery module of the remote control, remove the two screws on the end of the battery module. Slide the battery module out of the remote control.
2. Insert two new "AAA" size batteries into the battery module.
3. Slide the battery module back into the remote control and reinsert the two screws in the end of the battery module.

CAUTION

Incorrect usage of batteries can result in leaks or bursting. Peerless-AV recommends the following battery use:

• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten the battery life or cause battery acid leaks.
• Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
• Do not touch exposed battery acid as it may injure skin.
• Remove the batteries if you do not intend to use the remote control for a long period of time.
• Do not expose the batteries to excessive heat from sunlight, fire or other heat sources or batteries could explode.
• Fully tighten screws to maintain the ingress protection rating of the remote.

OPERATING INSTRUCTIONS

Power On/Off The Display

Power on your display by using the remote control or the power button on the side of the display. The display will power on but image may not appear for several seconds as it completes its power up sequence.

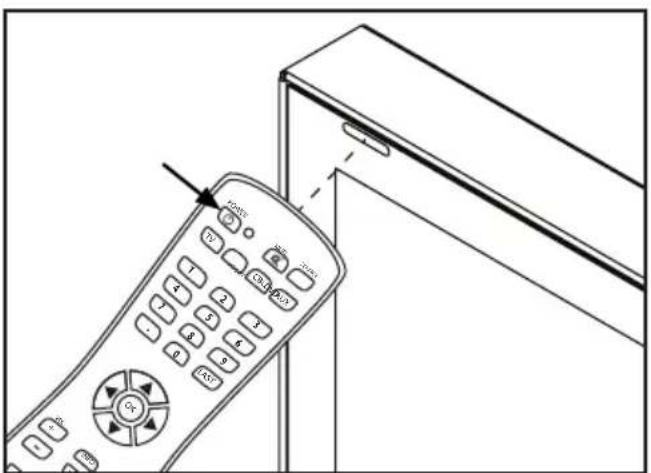

Point the remote control at the IR sensor located at the top, left-hand corner of the display when in landscape, or the top, right-hand corner when in portrait. Then, press the power button.

Line drawing of a remote control with keypad and door, no text or symbols present

LED Light TV Status
Solid Off
Blinking Boot up
Off On

Onboard Controls

Direct Mode: Allows for quick access to source selection, volume settings and channel selection.

Menu Mode: Press the Menu button to access Menu Mode and activate the On Screen Display (OSD). For a description of OSD operation refer to the next section.

The keypad buttons are assigned as indicated in the table below.

    I["○"] --> J["→"]
    K["∅"] --> L["→"]
    M["="] --> N["→"]
    O["∧"] --> P["→"]
    Q["V"] --> R["→"]
    S["+"] --> T["→"]
    U["-"] --> V["→"]

Channel

Air / Cable Choose between antenna and cable

Auto Scan Searches for available channels

Favorite Shows favorite channels

Show/Hide Show or hide channels

DTV Signal Displays channel info and signal strength


Picture Mode TheaterPersonalStandardDynamic

Color Temp. NormalWarmPersonalCool

HDMI Mode Video ModePC Mode

Screen (Only Visible in PC MODE) H Position V PositionClockPhaseAuto

Zoom Mode 4:316:9CinemaZoomPoint to Point

Backlight 0 - 100

DLC (Dynamic Backlight) On / Off

Color Range Auto0 - 25516 - 234

3DNR OffWeakMiddleStrong

ECO Internal ALS (Auto)External ALS (Auto using Extender)Low (Preset)Middle (Preset)High (Preset)Personal (0 -100 brightness)

Audio
Equalizer StandardMusicMovieSportsPersonal
Digital Output (Optical)	PCM / Raw / Off
Surround On / Off
AVC On / Off

Navigate Enter Exit Return

Time
Sleep Timer off	60 min
5 min	90 min
10 min	120 min
15 min	180 min
30 min	240 min
Time Zone Atlantic	Pacific
Eastern	Alaska
Central	Hawaii
Mountain	Korean
Time Format 12-hour / 24-hour
Auto Sync On / Off
Clock Year (User Define)
Month: 1 - 12
Day: 1 - 31
Hour: 12am - 11pm
Minute: 0 - 60
Wake Up Year (User Define)
Month (User Define)
Day (User Define)
Hour (User Define)
Minute (User Define)
Wake Up (Off, Once, Everyday)

Setup
Menu Languages	EnglishSpanishFrenchGermanItalianRussian
Transparent (Menu Transparency)	0% 25% 50%	75% 100%
Closed Caption CC OnCC On MuteCC Off
Restore Defaults Yes / No
Setup Wizard Enabled with antenna connected
Software Update Yes / No
CEC
CEC Control On / OffDevice Auto On / OffPower OffTV Auto On / OffPower OnAudio Receiver On / Off
No Signal Auto On / OffPower Off
Media Player OffMoviePhoto

Navigate Enter Exit Return

Lock
System LockEnter Password to enter System Lock settings Default Password: 0000
Change password	Allows the password to be changed
System Lock	On / Off
Input Block	TV, AV, Component, DP, HDMI 1, HDMI 2, HDMI 3, PC, USB
US TV, MPAA
Canada	Canadian English, Canadian French
RRT Setting	Unavailable
Reset RRT	Unavailable
Unrated	On /Off
Hotel ModeEnter password to enter hotel mode settings Default Password: 0000
Hotel Mode	On / Off
Change Password	Allows the password to be changed
Picture Mode	Standard, Dynamic, Theater, Personal
Sound Mode	Standard, Music, Movie, Sports, Personal
Key Lock	On / Off
Power On Source	TV, AV, Component, DP, HDMI 1, HDMI 2, HDMI 3, PC, USB
Air / Cable	Air, Cable
Power On Channel	Set channel that display will tune to when powered on
Power On Volume	Set volume that display will output when turned on

Navigate Enter Exit Return

1

ENG Insert USB flash drive into USB 2.0 Data port on the input panel of the display.

2

ENG Select USB source to access content.

Input Source

TV

AV

Component

DP

HDMI1

HDMI2

HDMI3

PC

USB ←

3

ENG Select media type and folder where content is stored.

4

Photos – To view a single photo, select photo and press play. To view a slide show, select multiple photos and press play. Use on screen menu to control slide show.

Movies – To view a single video, select video and press play. To view a playlist, select multiple videos and press play. Use on screen menu to control playlist.

Music – To listen to a single song, select song and press play. To listen to a playlist, select multiple songs and press play. Use on screen menu to control playlist.

Text – To view to a single text file, select file and press play. To view a playlist, select multiple files and press play. Use on screen menu to control playlist.

Simple curved arrow and square diagram without any text or symbols

Simple line drawing of a folder with a checkmark icon (no text or symbols)

Simple line drawing of a folder with a checkmark icon (no text or symbols)

Simple line drawing of a folder and a square (no text or symbols)

Navigate Enter Exit Hide Menu

(RS-232C) Serial Control Of The Display

Attach an RS-232C cable (straight through type) to the RS-232C input to utilize serial control function. Control via RS232 should only be utilized by experts familiar with RS232 programing.

Menu:	A0, F0, 55, FF, 4E, B1
Right:	A0, F0, 55, FF, 05, FA
OK:	A0, F0, 55, FF, 02, FD
Down:	A0, F0, 55, FF, 0D, F2
Up:	A0, F0, 55, FF, 17, E8
Left:	A0, F0, 55, FF, 0C, F3
Source:	A0, F0, 55, FF, 01, FE
(1):	A0, F0, 55, FF, 42, BD
(2):	A0, F0, 55, FF, 43, BC
(3):	A0, F0, 55, FF, 0F, F0
(4):	A0, F0, 55, FF, 1E, E1
(5):	A0, F0, 55, FF, 1D, E2
(6):	A0, F0, 55, FF, 1C, E3
(7):	A0, F0, 55, FF, 18, E7
(8):	A0, F0, 55, FF, 45, BA
(9):	A0, F0, 55, FF, 4C, B3
(0):	A0, F0, 55, FF, 56, A9
Exit:	A0, F0, 55, FF, 1B, E4
Power On:	A0, F0, 55, FF, AE, 51
Power Off:	A0, F0, 55, FF, AD, 52
Power On/Off:	A0, F0, 55, FF, 0B, F4
Volume +:	A0, F0, 55, FF, 0A, F5
Volume -:	A0, F0, 55, FF, 40, BF
Channel +:	A0, F0, 55, FF, 55, AA
Channel -:	A0, F0, 55, FF, 5A, A5
Surround:	A0, F0, 55, FF, C7, 38
CC:	A0, F0, 55, FF, 44, BB
EPG:	A0, F0, 55, FF, 49, B6
Info:	A0, F0, 55, FF, 50, AF
MTS:	A0, F0, 55, FF, 11, EE

Mute:	A0, F0, 55, FF, 14, EB
Sleep:	A0, F0, 55, FF, 53, AC
AV:	A0, F0, 55, FF, ED, 12
VGA:	A0, F0, 55, FF, EA, 15
HDMI Toggle:	A0, F0, 55, FF, EC, 13
HDMI1:	A0, F0, 55, FF, DE, 21
HDMI2:	A0, F0, 55, FF, DF, 20
HDMI3:	A0, F0, 55, FF, E0, 1F
DisplayPort:	A0, F0, 55, FF, E4, 1B
TV:	A0, F0, 55, FF, E8, 17
DTV:	A0, F0, 55, FF, E9, 16
Component:	A0, F0, 55, FF, E7, 18
USB:	A0, F0, 55, FF, 57, A8
PMODE:	A0, F0, 55, FF, 4B, B4
Zoom:	A0, F0, 55, FF, 51, AE
SMODE:	A0, F0, 55, FF, 5B, A4
VOL 0%:	A0, F0, 55, FF, 20, DF
VOL 25%:	A0, F0, 55, FF, 21, DE
VOL 50%:	A0, F0, 55, FF, 22, DD
VOL 75%:	A0, F0, 55, FF, 23, DC
VOL 100%:	A0, F0, 55, FF, 24, DB
Brightness 0%:	A0, F0, 55, FF, 25, DA
Brightness 25%:	A0, F0, 55, FF, 26, D9
Brightness 50%:	A0, F0, 55, FF, 27, D8
Brightness 75%:	A0, F0, 55, FF, 28, D7
Brightness 100%:	A0, F0, 55, FF, 29, D6
Dash:	A0, F0, 55, FF, 2E, D1
Channel Fav List:	A0, F0, 55, FF, 1A, E5
Channel List:	A0, F0, 55, FF, 59, A6
Channel Return:	A0, F0, 55, FF, 15, EA

COM Settings

Baud Rate 38400

Data Bits 8

Parity None

Stop Bits 1

MAINTENANCE

Care Of The Screen

Do not rub or strike the screen with anything hard as this may scratch, mark, or even damage the screen permanently. Ensure that the display is installed in a location where it will be safe from abrasives and flying debris, which could damage the LCD panel. Never use ammonia or any product containing ammonia, as it will damage the anti-glare coating on the face of the display. Only use an approved screen cleaner to clean the display face. Unplug the power cord before cleaning the screen. Dust the display by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use aerosol cleaners or solvents of any kind. Do not use any chemical such as paint thinner or benzene to clean the product's exterior. It may cause scratches on the surface, erasing proper indications, identification labels, or instructions on the exterior, which may cause misuse and improper operation of the product.

Mobile Telephone Caution

Keep your mobile telephone away from your display to avoid disturbances in the picture or sound, possibly causing permanent damage to your display.

End Of Life Directives

In an effort to produce environmentally friendly products, your new display contains materials that can be recycled and reused. At the end of your display's life, specialized companies can minimize display waste by separating reusable materials from non-reusable materials. Please ensure you dispose of your display according to local regulations.

Technical line drawing of a server rack with cooling fans and ventilation slots (no text or symbols)

Technical diagram of a solar panel assembly with cooling fins and heat sinks (no text or symbols)

Isometric view of a 3D grid-patterned panel or panel with no text or symbols

Technical diagram of a solar panel installation with cooling fans and cooling panels (no text or symbols)

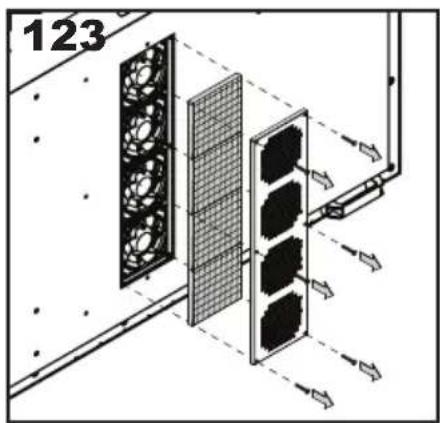

Clean fan filter by running under water until clean.
Replace filter and cover.Remove

ENG This page intentionally left blank.

ENG This page intentionally left blank.

www.peerless-av.com/warranty

peerless-AV®

Peerless-AV

2300 White Oak Circle

Aurora, IL 60502

Email: [e-mail]

Ph: [phone]

Fax: [phone]

www.peerless-av.com

Peerless-AV Europe

Unit 3 Watford Interchange,

Colonial Way, Watford, Herts,

WD24 4WP, United Kingdom

Customer Care

44 (0) 1923 200 100

www.peerless-av.com

Peerless-AV América Latina
