Product Type	Refrigerator with Freezer Compartment
Brand	Techwood
Model	KS 1201
Power Supply	220-240V or 200-230V, 50 Hz
Climate Class	T (16-43°C), ST (16-38°C), N (16-32°C), SN (10-32°C)
Refrigerant	R600a (isobutane)
Thermostat Control	Rotary knob with positions 0-5
Freezer Compartment	Short-term storage (1-3) and long-term storage (3-4) settings
Defrosting	Automatic in refrigerator compartment; manual defrosting not required
Interior Light	Max 15 W bulb, replaceable
Door Reversibility	Yes, with step-by-step instructions
Leveling Feet	Yes, adjustable
Condenser Cleaning	Recommended twice a year for energy saving
Safety Features	Keep ventilation clear; no mechanical defrosting; do not use electrical appliances inside
Minimum Distance from Heat Sources	50 cm from radiators, gas/coal stoves; 5 cm from electric stoves
Minimum Distance from Wall	15 cm top clearance; 2 cm from other refrigerators/freezers
Initial Operation Wait Time	3 hours before plugging in; 24 hours to reach sufficient cooling
Standby Time After Power Off	5 minutes before restarting to protect compressor
Cleaning	Bicarbonate of soda and lukewarm water; do not use abrasive products
Waste Disposal	Refrigerant and insulation must be disposed properly by local waste service

Frequently Asked Questions - KS 1201 TECHWOOD

What type of refrigerant does the Techwood KS 1201 use?

The Techwood KS 1201 uses R600a (isobutane), which is environmentally friendly but flammable. During transport and installation, ensure the refrigerant circuit is not damaged.

How do I adjust the temperature on my refrigerator?

You adjust the temperature by rotating the thermostat knob from position 1 (warmest) to 5 (coldest). Position 0 turns off cooling. For short-term freezer storage, set between 1-3; for long-term, set to 3-4.

What should I do if my refrigerator is not cooling enough?

Check for overloaded compartments, ensure doors are closed properly, clean dust from the condenser, and allow at least 15 cm clearance at the top and 2 cm from walls. Also verify the thermostat setting is not at 0.

How do I defrost the refrigerator?

The refrigerator compartment defrosts automatically. Defrost water collects in an evaporating tray and evaporates. Periodically clean the drain hole and tray with the defrost drain plug to prevent water buildup.

Can I change the door opening direction?

Yes, the door is reversible. Follow the step-by-step instructions in the manual: lay the appliance on its left side, remove bottom hinge and top hinge pin, then reassemble on the opposite side.

How do I replace the interior light bulb?

Unplug the unit, press the hooks on the light cover top to remove it, replace with a bulb of max 15 W, reattach the cover, and wait 5 minutes before plugging in.

What are the recommended climate class and ambient temperatures for this fridge?

The climate class is indicated on the nameplate. Typically, T (16-43°C), ST (16-38°C), N (16-32°C), or SN (10-32°C). Operating outside these ranges may affect cooling performance.

Is it safe to store gassy liquids or alcohol in the freezer?

No, do not place glass bottles or containers of gassy liquids in the freezer as they may burst. High-alcohol bottles must be sealed well and placed vertically in the refrigerator compartment.

What should I do if the refrigerator makes bubbling noises?

Bubbling sounds from the refrigerant circuit are normal. If unusual noises occur, check that the appliance is level, nothing touches the rear, and nothing on top is vibrating.

How should I clean the refrigerator?

Disconnect power. Clean the interior with a solution of bicarbonate of soda and lukewarm water. Clean accessories with soap and water, but not in a washing machine. Avoid abrasive products. Clean the condenser with a broom twice a year.

USER MANUAL KS 1201 TECHWOOD

Instruction booklet; 29-40

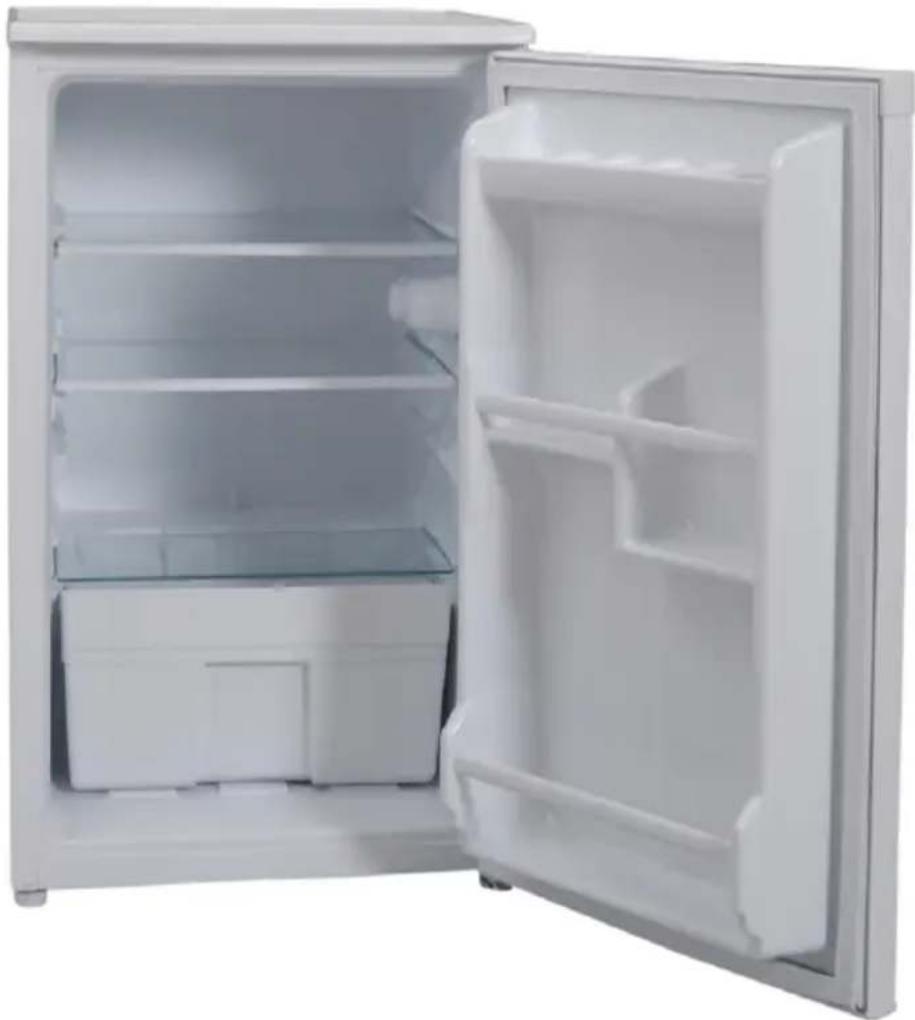

Interior view of a white refrigerator with open door and side compartments (no visible text or symbols)

Lieferumfang

Cartoon illustration of a distressed container, broken sheets with arrows and a smiling refrigerator (no text or symbols)

TEIL -2. BETRIEB

Temperaturregelung

Technical line drawing of a mechanical component with internal gear-like structure (no text or symbols)

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

Stromschlaggefahr!

Simple line drawing of two children playing a board game (no text or symbols)

Blank rectangular frame with a corner clip, no text or symbols present

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand holding a metal bracket with bolts, no text or symbols present

Line drawing of a hand holding a tool near a vertical panel, no text or symbols present

Line drawing of a hand holding a tool near a window frame (no text or symbols)

Diagram of a smartphone with a close-up view of its edge detail (no text or symbols)

Line drawing of a hand using a screwdriver to adjust a small component (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand pressing a button on a mechanical bracket (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Hinweis

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a person peeking out of a book (no text or symbols)

Cartoon illustration of a sad container with arms and legs, holding a paper labeled '长白' (no text or symbols on the container itself)

Cartoon illustration of a smiling refrigerator with a thumbs-up gesture and a bowl of food (no text or symbols)

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Simple line drawing of a hand reaching toward a box with a bird, no text or symbols present

Cartoon illustration of a smiling refrigerator with gloves, accompanied by a small bucket and a teapot (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

Ontdooien

Technical line drawing of a structural component and its magnified view showing internal components (no text or symbols)

Line drawing of a mechanical device with internal components and a circular feature (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Safety Instructions 30

Recommendations....31

Installation and Switching On The Appliance 32

Before Switching On 32

THE VARIOUS FUNCTION AND POSSIBILITIES ....33

Thermostat Setting 33

CLEANING AND MAINTENANCE ....34

Defrosting 34

Replacing The Light Bulb 35

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ....35

Changing door position 36

BEFORE CALLING YOUR AFTER SALES SERVICE 38

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....40

BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

- Do not use mechanical devices or other artificial means to accelerate the defrosting process.

- Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.

- If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.

- Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Conformity Information

- Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 15502 Standards.

- The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.
• Do not twist and bend the cables.

Illustration of three hands performing a rope knotting technique (no text or symbols present)

• Do not allow children to play with the appliance. Children must NEVER sit on drawers or hang from the door.
• Do not use sharp metal objects for removing ice on the freezer compartment; they could puncture the refrigerator circuit and cause unrepairable damage to the unit.
• Do not plug the power supply with wet hands.
• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.
• Bottles that contain a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.
• Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.
• Do not eat ice, which have just been removed from the freezer.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of a character peeking out of a door, no text or symbols present

Installation and Switching On The Appliance

- This appliance is connecting to 220-240V or 200-230V and 50 Hz. Please check nameneplate of appliance and be sure voltage range suitable to your mains voltage.

- You can offer help from the service to install and switching on the appliance.

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorised electrician for assistance.

- The plug should be accessible after the appliance is positioned.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight.

- Do not use in open air and shall not be exposed to the rain.

- Place the refrigerator far from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves.

- Keep the top free for at least 15 cm.

- Do not place heavy and lots of things on the appliance.

- If the appliance is installed next to another refrigerator or freezer, observe a minimum distance of 2 cm to prevent condensation.

- Do not put very (!) hot food or bowl on the top table. It can damage the toptable.

- Fit the plastic wall spacers to the condenser at the back of the refrigerator in order to prevent leaning to the wall for good performance.

- The appliance must be stand firmly and level on the floor Use levelling-feet to compensate for an even floor.

Cartoon illustration of a book character, a rolled-up document with a clock, and a smiling refrigerator with a hand gesture (no text or symbols)

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

Before Switching On

- Wait after 3 hours before plugging the appliance in to the power to ensure proper performance.

- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

Technical line drawing of a mechanical component with internal gears and housing (no text or symbols)

- Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1. to 5., colder temperatures can be obtained.

- « 0 » position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.(1-3)

- For long-term storage of food in the freezer compartment, you can set knop medium position.(3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.

- In this time do not open the door so often and place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

- Larders (coolers) have not any freezer compartment but can cool up to 4 - 6°C .

CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

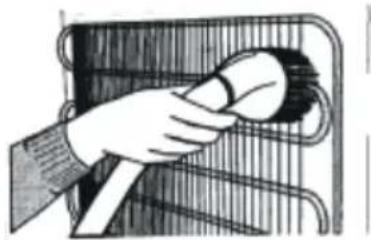

• You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of cash (no text or symbols)

Cartoon illustration of a smiling rectangular character and two smaller bottles (no text or symbols)

Illustration of a hand holding a cylindrical object over a rack (no text or symbols visible)

Defrosting

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface (no text or symbols)

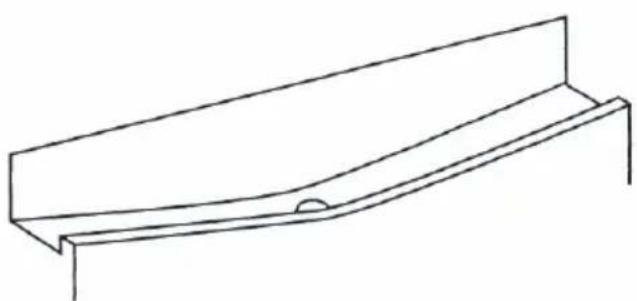

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 12 glass of the water to drain hole to clean inside.

Replacing The Light Bulb

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

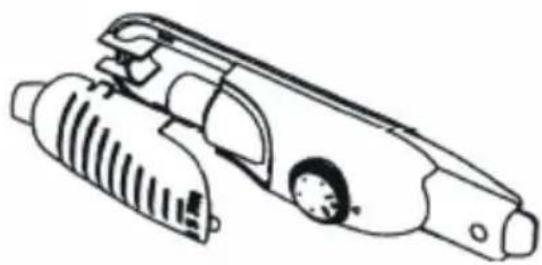

When replacing the light of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.

- Before transporting or changing old installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children playing a game with a board (no text or symbols)

Changing door position

Step-1: Lie down the appliance on it's left side put a piece of protective material under neath the appliance, i.e. card, towel, etc.

Blank rectangular frame with a thin vertical line on the left edge (no text or symbols)

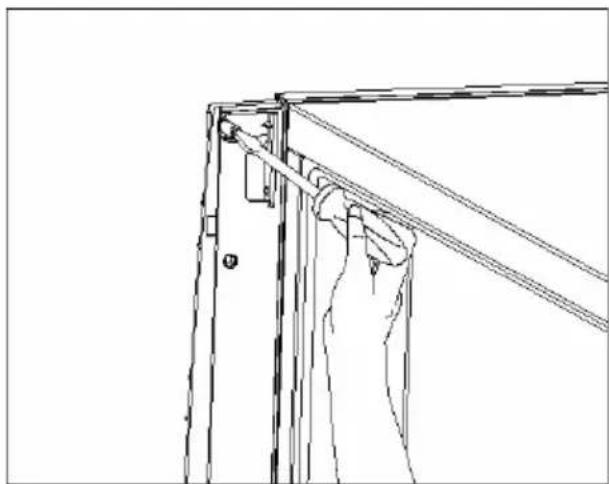

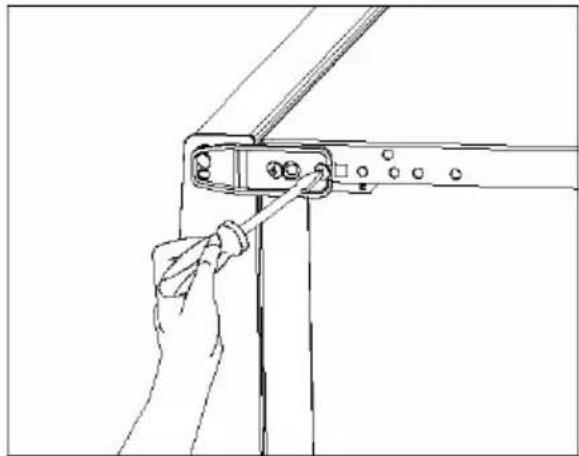

Step-3: Unscrew the two screws which are fixing the bottom hinge.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Step-5: After removing the door from the cabined and unscrew the pin of the right top hinge.

Line drawing of a hand holding a tool near a vertical panel, no text or symbols present

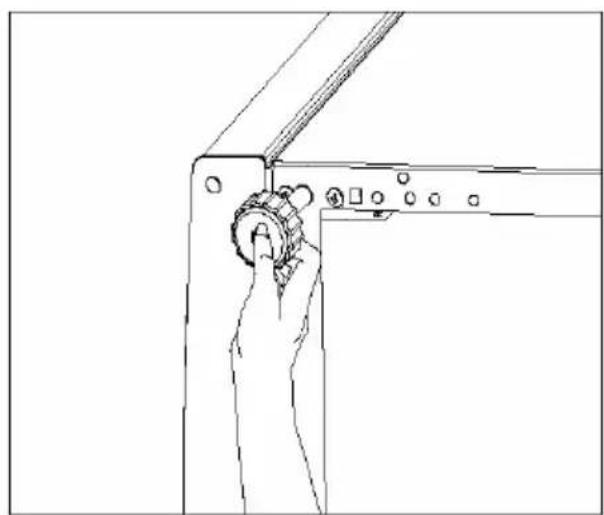

Step-2: Dismantle both levelling feet.

Line drawing of a hand adjusting a mechanical bracket (no text or symbols)

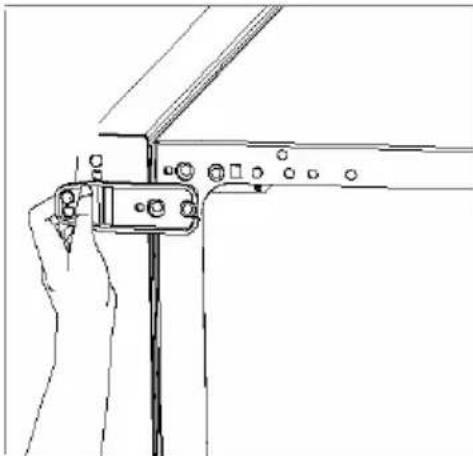

Step-4: Dismantle the bottom hinge.

Technical line drawing of a hand holding a bracket with bolts and a vertical rod (no text or symbols)

Step-6: Screw the pin on the left top hinge.

Line drawing of a door hinge with a hand adjusting the handle (no text or symbols)

Step-7: Replace the bushing and bushing caps on the door as shown.

Diagram of a smartphone with an inset showing a close-up of its edge detail (no text or symbols present)

Step-9: Assemble the door and the bottom hinge with two screw on the left side.

Step-8: Unscrew the pin of the bottom hinge and screw it on the other hole.

Line drawing of a hand using a screwdriver to adjust or install a small component (no text or symbols present)

Step-10: Assemble both levelling feet to their places.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand operating a mechanical component with a knob (no text or symbols)

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on « 0 » position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled,
- Nothing is touching the rear,
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays) set to thermostat knob to « 0 » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) REFRIGERATOR SHELF
2) CRISPER COVER
3) CRISPER
4) LEVELING FEET
5) FIXED DOOR SHELF
6) EGG SHELF
7) REFRIGERATOR LAMP BUTTON
8) REFRIGERATOR LAMP & THERMOSTAT BOX

Inverkehrbringer:

Vestel Germany GmbH

Parkring 6

D 85748 Garching b. München
