USER MANUAL 47FLSKR170LHCD Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

käyttöohje

bruksanvisning

owner's manual

Sisältö

Front view of a blank flat-screen monitor with stand (no text or symbols)

Top-down schematic of a computer monitor layout with no visible text or symbols

Diagram showing a vertical-mounted device with an arrow pointing to its left, alongside a labeled panel with numbered indicators.

Diagram of a remote control device with labeled buttons and function keys in Chinese

Close-up of a black plastic battery casing with a white arrow pointing to its side (no text or symbols visible)

Kytke virta & antenni/kaapeli

IDGO App1 App2 App3 App4 App5 App6 App7 App8 App9 App10 App11 App12 App13 App14 App15 App16 App17 App18 App19 App20 App21 App22 App23 App24 App25 App26 App27 App28 App29 App30 App31 App32 App33 Navigate Home Select BACK EXIT

nero MediaHome 4 Essentials Nero MediaHome 4 Essentials Color

Lisensssoptimus (EULA) Last Software License Agreement Software Requests: Object of the agreement in the New software units, comparing a version of components, that research with different units types, as well as standardise applications and programs. From the following list: New Software, New Express, iOS, iOS-Commerce, iOS-Data, New Data, New Web, New Web, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Satellite, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Pilot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Plot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pot, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol, New Web-Pol

Nero MediaHome 4 Essentials asennus on käynnissa Nero MediaHome 4 Essentials asennus on käynnissa The best selling multiconductors plus more than more amazing HDD capabilities Nero Multimedia Suite (3) Platinum HD gives creative orthosks to the professional subject in HD. Video editing, video creation, and audio, all developed mainly consists of this. The fully improved suite has everything introduced in Nero Multimedia Suite 2, plus the Platinum advantage of Sharray Data processors. Kindle video can provide transfer. Nero Creative Collective tools and one year of the Nero Online backpack. Check no app here's own for more admissions. 26%

1. Asennus päättyy.

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAALINEN VASTAANOTTO

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (vain Iso-Britannia)

DVB-C MPEG2

DVB-C MPEG4 HD

KANAVIEN VASTAANOTTO

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

ESIASETETTUJEN KANAVIEN MÄÄRÄ

10000

KANAVAILMAISIN

Ruutunäyttö

RF-ANTENNITULO

Reparationsinformation

Front view of a blank flat-screen monitor with stand (no text or symbols)

Top-down schematic of a computer monitor layout showing front, rear, and side views (no text or labels)

Diagram showing a vertical-mounted device with an arrow pointing to its left, alongside a series of labeled indicators (①–④) in a grid layout.

Diagram of a remote control device with numbered keys and function buttons for navigation and display.

Close-up of a black plastic battery casing with a white arrow pointing to its side panel (no text or symbols visible)

Anslut ström & antenn/kabel/satellit

Ange timer/Ta bort timer

3D AVAILABLE 3D Please wear your 3D glasses

3D-visning information

Three-panel illustration showing a spotlight beam projecting three different scenarios: cross, group photo, and person silhouette (no text or symbols)

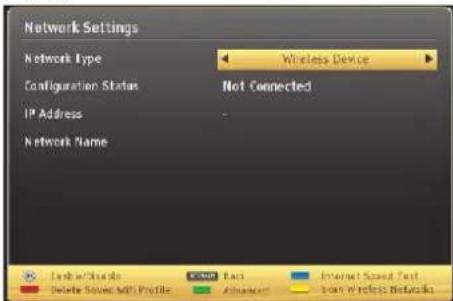

Network Settings Network Type Configuration Status IP Address Network Name Wireless Device Not Connected Card with Cards Delete Servers Will Profile Back Advanced Internet Speed Test Start Wireless Networks

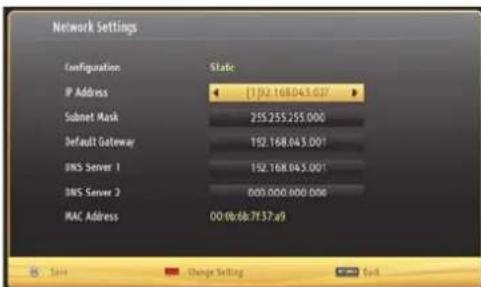

Network Settings Configuration State IP Address {152.168.043.027} Subnet Mask 255.255.255.000 Default Gateway 152.168.043.001 DNS Server 1 152.168.043.001 DNS Server 2 000.000.000.006 MAC Address 00:fb:6b:7f:37:a9

Radera sparade WiFi-profi ler

1960 App1 App2 App3 App4 App5 App6 App7 App10 App11 App12 App13 App14 App15 App16 App17 App18 App19 App20 App21 App22 App23 App24 App25 App26 App27 App28 App29 App30 App31 App32 App33 Navigate Home Select BACK EXIT

nero MuEilmInstaller nero MediaHome 4 Essentials Nero MediaHome 4 Essentials Cim

Nere Modellon 4 (Contract) Installer Licensvilkor (EULA) File & license written consent End Our License Agreement Software Products: (Used of the agreement in Networks software units, incorporating a selection of components, that will be with different name labels, as well as designated applications and purposes from the following list: New Burning (RIM, New Express, INC), Social Media, News Publishing, News Media, News Communications, News Media, News Telecomm, News Digital, News Publishing, News Online, News Live Gadget, News Waste, News Media, News Store, News Photography, News Phishing News, News Media News, News Publishing, News Digital Gadget, News Digital to Bus, CTR Plus, Myr's Internet Projects, Community Projects (Software) License: Yes/All (Yes) THIS IS A Cultural AGREEMENT BETWEEN YOU, THE TWO UBSY, AND MENSIC. PR STOCKSMED: 13.0% NOEMERIALS, JERIKAN CONCLUSION OF THE CONTRACT THIS AGREEMENT IS SPECIFIC © All Rights Reserved

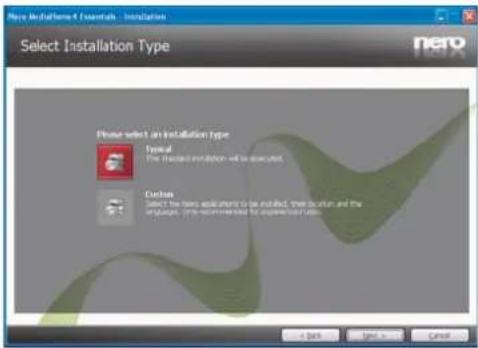

Valj installationstyp valj en installationstyp Normal Standard installation system at generation. Argument Valj is new program used in software, creating part of the system/normal design to define extension.

Nero MediaHome 4 Essentials installeras The best rolling multimedia suite has more important MBD capabilities Nero Multimedia Suite 23 Platinum HD gives creative enthusiasts the professional edge in HD video editing, video editing and story, all funded into new content creation. The NRC integrated suite has everything included in Nero Multimedia Suite 23, plus the Platinum advantage of Shivering One PlayStation mobile device to Nexia Imaker. Nero Creative CollectionPack and one year of free Nero Online Backup. Check out https://www.nero.com/ for more information. Nero Multimedia Installers 25%

1. Installationen avslutas.

Nero Modellhome & Essentials - Installation Hjälp oss att förbätra Neros programvara For all being issued in the Neros system, it is not to ensure information that is necessary. The Neros system will be installed on the Neros system. This system will also be installed on the Neros system. On all the Neros system, it is not to ensure information that is necessary. The Neros system will also be installed on the Neros system. ■ Is just the Neros system with the Neros system installed on the Neros system. Do you have been able to access Neros system with the Neros system installed on the Neros system. Neros system will be installed on the Neros system installed on the Neros system.

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL MOTTAGNING

DVB-T MPEG2

DVB-T MPEG2 HD

DVB-T MHEG-5 MOTOR (endast Storbritannien)

DVB-C MPEG2

DVB-C MPEG4 HD

MOTTAGNA KANALER

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

ANTAL FÖRINSTÄLLDA KANALER

10000

KANALINDIKATOR

OSD-system

RF ANTENNINGÅNG

75 ohm (obalanserad)

DRIFTSPÄNNING

220-240 V AC, 50 Hz.

LJUD

Safety Precautions 65

Environmental Information 66

TV - Features 67

Viewing the TV 67

TV Control Buttons & Operation 67

Operation with the Buttons on the TV 67

Operation with the Remote Control 67

Input Selection 67

Changing Channels and Volume 67

Viewing remote control 68

Accessories included 68

Installing the Batteries to the Remote.... 70

Connect Power & Antenna/Cable 70

Switching On/Off 70

To Switch the TV On 70

To Switch the TV Off 70

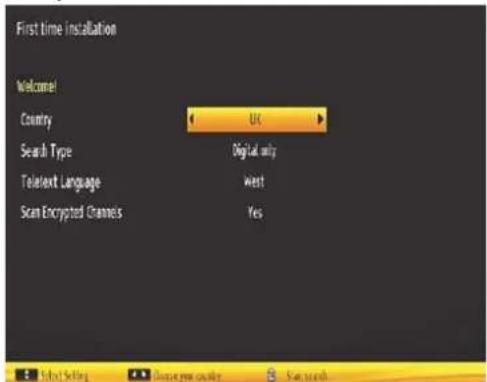

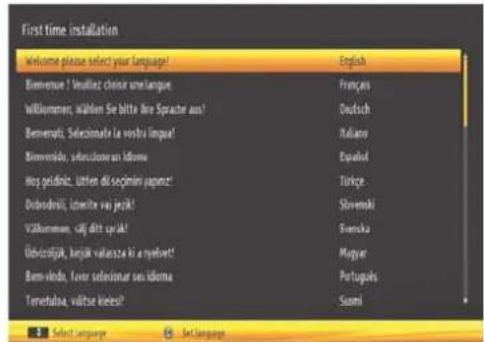

First Time Installation.... 70

Media Playback via USB Input 72

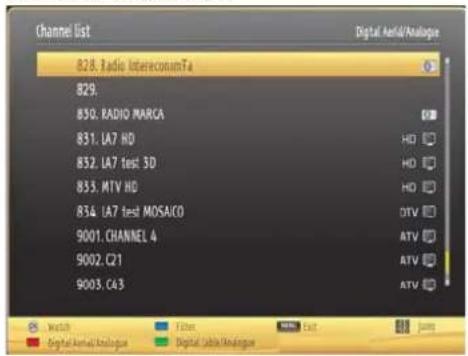

Using the Channel List 72

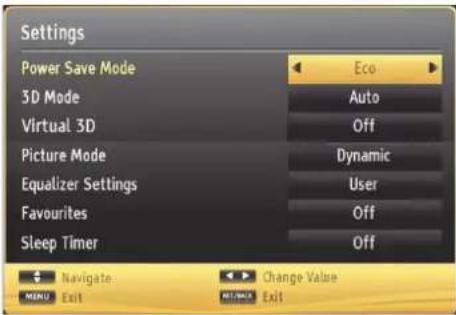

Quick Menu 73

Menu Features and Functions 74

Menu Features and Functions 75

Menu Features and Functions 76

Menu Features and Functions 77

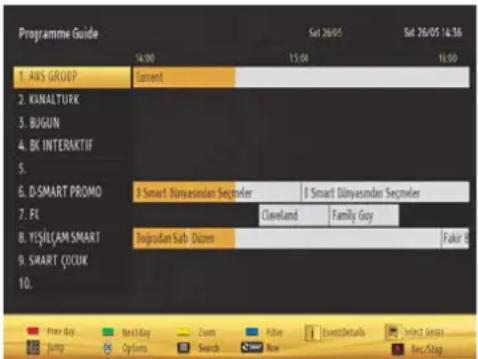

Electronic Programme Guide (EPG) 78

Programme Options....78

Recording a Programme 78

Timeshift Recording 79

Instant Recording 79

Watching Recorded Programmes 79

Recording Configuration....79

Using the 3D Mode 79

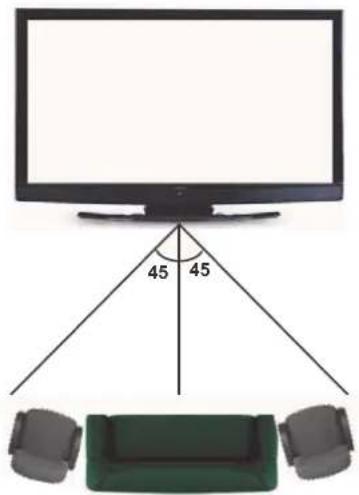

Horizontal Viewing Angle 82

Connectivity Functions 83

Teletext 88

Digital Teletext (for UK only) 88

Software Upgrade.... 88

Troubleshooting & Tips 89

USB Is too Slow 89

Internet Connection Not Available / DLNA Mode Not

Operating....89

Invalid Domain 89

Appendix A: PC Typical Display Modes 90

Appendix B: AV and HDMI Signal Compatibility .... 90

Appendix C: Supported File Formats for USB Media

Browser 91

Appendix D: Supported DVI Resolutions ..... 92

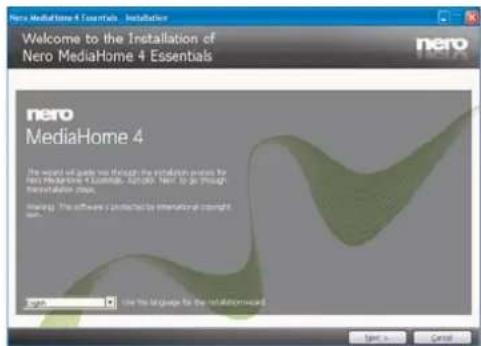

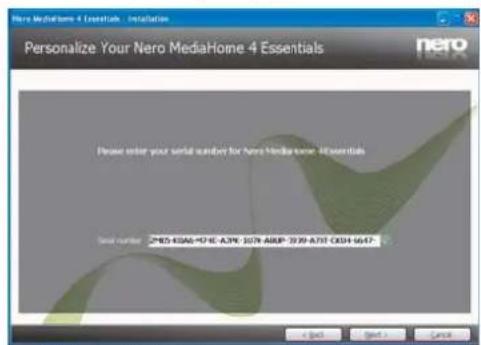

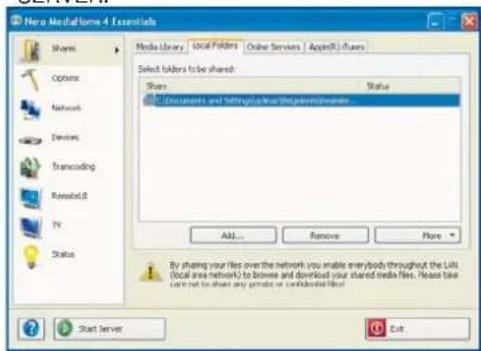

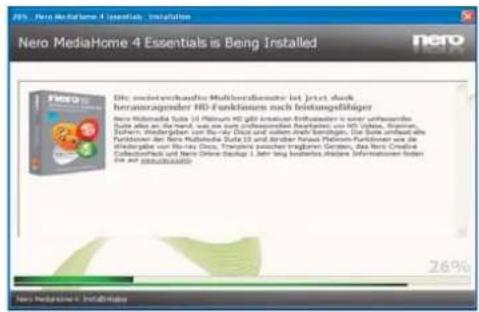

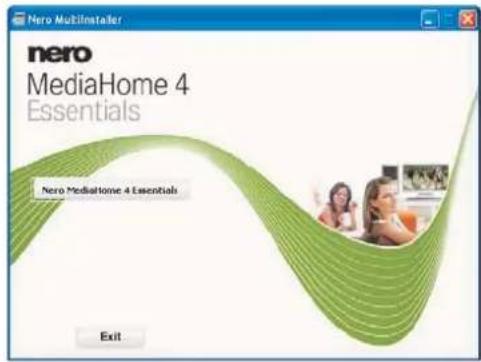

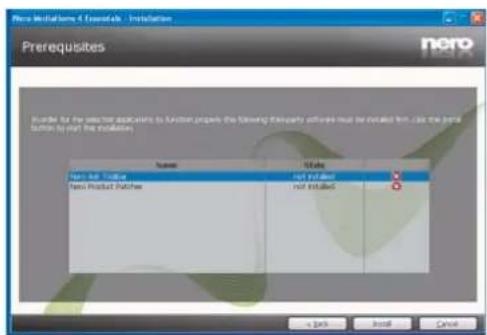

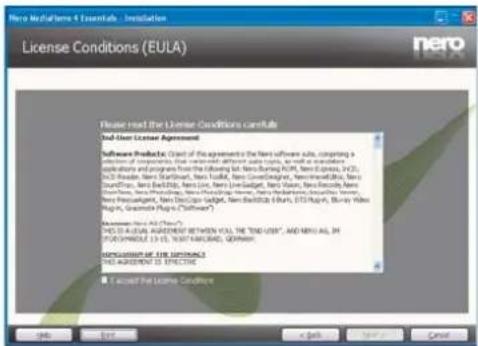

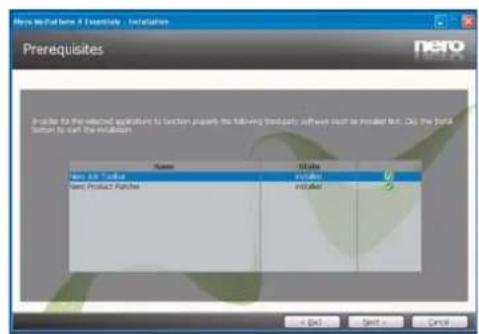

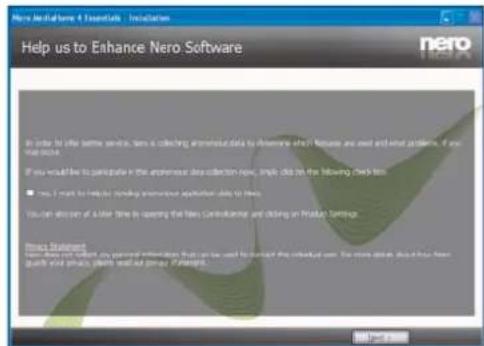

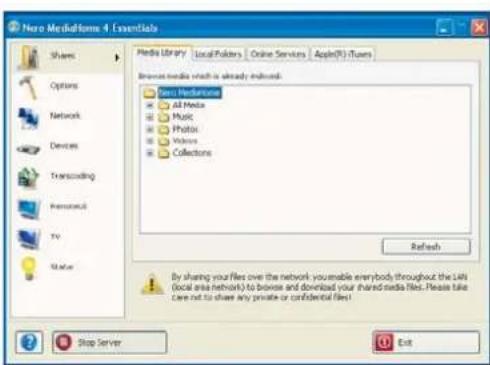

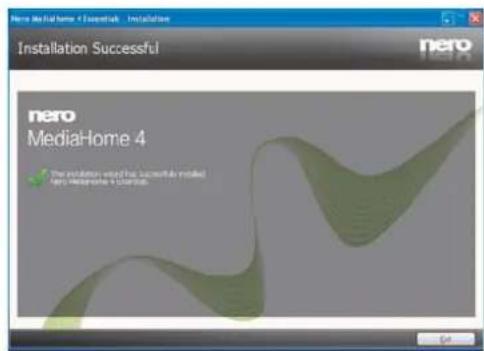

Appendix E: Nero MediaHome Installation ..... 93

Specifications 96

Licence Notifications....96

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 5°C up to 45°C, 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

WARNING: Never let people (including children) with physical, sensory or mental ties or lack of experience and/or knowledge supervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging fi lms out of reach of children. Risk of suffocation.

Power source

- The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or rating mode when you leave your house.

Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.
• Do not block the ventilation openings.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• To prevent damage to the TV, do not place any objects on top of the TV.
• Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.
• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).
• Do not expose this TV to rain or water, as this may be dangerous.
• Do not place objects filled with liquids, such as flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.
• Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Headphone Volume

- Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

- To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

• Occasionally, a few non-active pixels may appear on the screen as a fi xed blue, green or red point. Please note that this does not affect the performance of your product.
  • Take care not to scratch the screen with fingernails or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

TV - Features

• 3D Viewing: This product supports the 3D viewing function via an available broadcast or via HDMI, PC, YPBPR, USB source.
• Remote controlled colour LED TV.
  • Fully integrated digital/cable/satellite TV (DVB-T/C).
  • DVB-T2 Compliant.
• HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.
• USB input.
  • 10000 programmes.
• OSD menu system.
• Scart socket for external devices (such as video, video games, audio set, etc.).
• Stereo sound system.
• Teletext, fastext, TOP text.
  • Headphone connection.
  • Automatic programming system.
• Forward or backward manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
  • Game Mode (optional).
  • Picture off function.
• Ethernet (LAN) for Internet connectivity and service
  • 802.11n WIFI Support (Optional)
  • DLNA
  • 100Hz frequency scan.

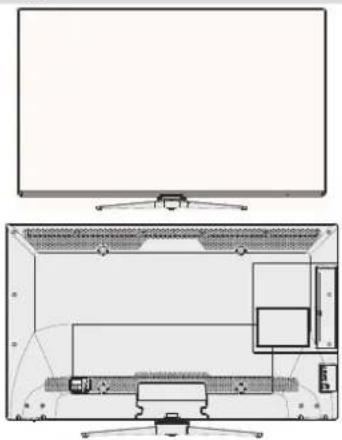

Viewing the TV

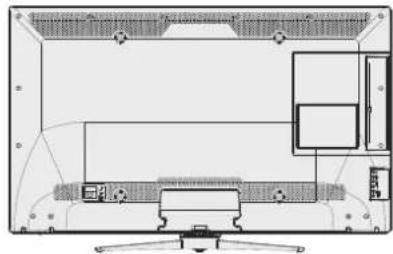

Top-down line drawing of a flat-screen TV with internal layout and control panel (no text or symbols)

TV Control Buttons & Operation

Diagram showing a vertical screen with an arrow pointing to a control panel labeled with icons and numbers ① through ④.

1. Standby/On button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons

Operation with the Buttons on the TV

Press button to decrease volume or

button to increase volume. Press P/CH + button to select the next programme or P/CH - button to select the previous programme.

Press the - or bch at the same time to

view main menu. In the Main menu select sub-menu using TV/AV button and set the sub-menu using

or buttons. To see what options are available

via the menu, refer to the menu system section of this manual. Press the TV/AV button in the control panel on the TV to switch between AV modes.

Note: Function indications of the buttons will be displayed on the screen when pressed.

Operation with the Remote Control

Press the MENU button on your remote control to display the main menu screen. Use the “◀” or “▶” buttons to select a menu tab and press the OK button to select option. Use the “◀” / “▶” or “ ”

"▲buttons to select or set an item. Press BACK or EXIT or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the

" - (SOURCE)" button on your remote control consecutively to select the different inputs.

Changing Channels and Volume

You can change the channel and adjust the volume using the V+/- and P+/- buttons on the remote.

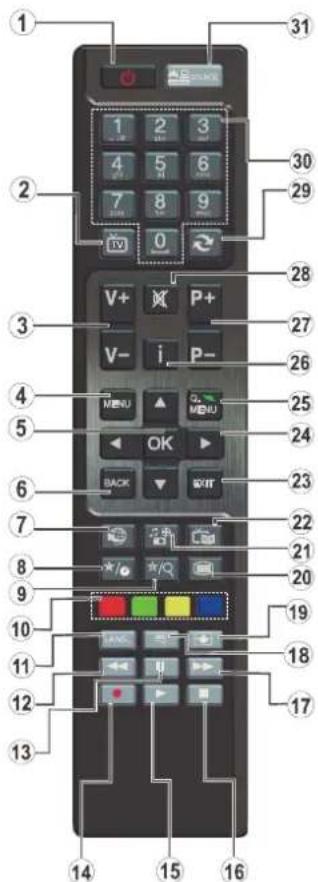

Viewing remote control

1. Standby / On
2. Channel list
3. Volume up-down
4. Menu on/off
5. OK / Channel list / Confirm
6. Return / Back
7. Internet Portal
8. My button 1 (*)
9. My button 2 (**)
10. Coloured buttons (Red, Green, Yellow, Blue)
11. Mono-Stereo Dual I-II / Current language
12. Fast rewind (in media browser mode)
13. Pause (in media browser mode) / Timeshift recording
14. Programme recording
15. Play (in media browser mode)
16. Stop (in media browser mode)
17. Fast forward (in media browser mode)
18. Subtitle on-off / Subtitle (in media browser mode)
19. Image size
20. Teletext - Mix
21. Media Browser
22. Electronic programme guide
23. Exit
24. Navigation buttons
25. Quick menu
26. Info / Reveal (in TXT mode)
27. Programme up/down
28. Mute
29. Previous programme / Now (in EPG mode)
30. Numeric buttons
31. AV / Source

NOTE: The Remote Control range is approximately 7m t.

Using My button 1 (\*)

This button's main function is to run Youtube link. However, if you want to change this function, you can press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Note that if you perform first time installation, MY BUTTON 1 will return to its default function.

Diagram of a remote control device with numbered keys and function buttons for navigation or system testing.

Using My Button 2 (**)

This button's main function is to switch to DVB-T, broadcasts. However, if you press MY BUTTON 2 for five seconds, you can set a function to it as described in My Button 1.

Note that if you perform a first time installation, MY BUTTON 2 will return to its default function.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Side AV Connection Cable

3D Glasses x4

Nero Media Home CD

Viewing the Connections

Connector	Type	Cables	Device
	Scart Connection (back)
	VGA Connection (back)
	PC/YPbPrAudio Connection (back)
	HDMI Connection (back&side)
	S/PDIFOpticalOut (back)
	SideAV Connection (side)
	Headphone Connection (side)
	YPbPrVideo Connection (back)
	USB Connection (side)
	CI Connection (side)
	Subwoofer Connection (back)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. To enable PC audio, you will need to use PC/YPBPR AUDIO CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV. The module should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.
2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.
3. Replace the cover.

Close-up of a black plastic electronic component with a white arrow pointing to a small internal component (no text or symbols visible)

Connect Power & Antenna/Cable

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

AerialorCable ART

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz. To switch on the TV from standby mode either:

Press the “☐” button, P+ / P- or a numeric button on the remote control or press the “☐” button on the TV.

To Switch the TV Off

Press the "button on the remote control or press the "button on the TV. The TV will now switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the fi rst time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

First time installation Welcome please select your Language! English Bemeneus! Visilizac chior une langue Français Willemeyer, wäcken Sie bitte Ihre Sprache aus! Deutsch Bemerefu, Selectinata la vintra inmue! Ralamo Siemendu, selekumen idoma Equid Hog gelöne, lüten di seçmini japonic! Tirige Obrsdroli, izmirte veu jeek! Svenendi Völlommen, cöl ditt sprük! Everska Ubristojak, körjik valosza ki a nyelvet! Muyar Bem-virda, lovor selekinar ses idoma Portuguis Temetulae, váltske kleesi! Sami Select Language SetLanguage

Press the “” or “” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “<” or “>” button to set the required country, and press “<” button to select Search Type. Use “<” or “>” to set the desired search type. Available search types are Digital and analog, digital only and analog only. When set, press “<” to select Teletext Language. Use “<” or “>” button to set the “Teletext Language” and select “Scan Encrypted” using “^” or “"” button. You can set Scan Encrypted as Yes if you want to scan coded stations.

First time installation Welcome! Country UC Search Type Digital only Toilext Language West Scan Encrypted Channels Yes

Press OK button on the remote control to continue and the following message will be displayed on the screen.

To use this TV for displaying in a store, please select Store Mode. Some Mode is recommended for normal home use. Home Mode Store Mode

You can activate Store mode option by using “<” or “>” button. If Store Mode is selected, Store mode option will be available in “Other settings” menu and your TV’s settings will be optimized for best display quality. A confirmation screen will be displayed after selecting the Store Mode. Select YES to proceed.

Store Mode Selected. Are You Sure? Yes No

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button on the remote control to continue and the following message will be displayed on the screen.

Please Select Digital Search Type Aerial Cable

You must select YES to search and store broadcasts. The television will search for digital terrestrial TV broadcasts.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Automatic channel scan (return) Please note, this will take a few minutes. Scanning digital channels: UNIT 50

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

Channel List 828. Radio InterecostumT4 829. 830. RADIO MARCA 831. LA7 HD 832. LA7 test 3D 833. MTV HD 834. LA7 test MOSAICO 9001. CHANNEL 4 9002. C21 9003. C43 Digital Aerial/Analogine Watch Digital Aerial/Analogine Filter Digital Cable/Analogine Auto

Press OK button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

Do you want to start network search? Yes No

To continue please select YES and press OK. To cancel operation, select NO and press OK.

Automatic channel scan (Returns) Start Frequency 1174.00 MHz Stop Frequency 858.00 MHz Search Step 9000 Network Other Other Start frequencies 36 Startcards 2nd Call

You can select frequency ranges from this screen. For highlighting lines you see, use "or" button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

(*) Network option will not be available for UK.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any fi le damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more fi le capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

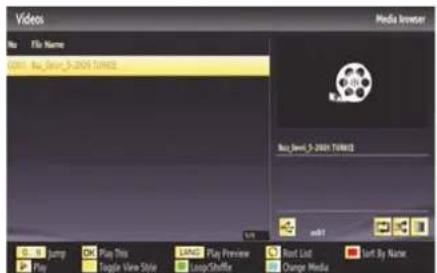

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using "√" or "▲" button and press OK.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features. You can set your Media Browser preferences by using the Settings dialog. With picture and movie playback, 3D settings button will be available. See the section 3D Settings for more information.

Using MENU button in Media Browser Mode

Pressing MENU button in Media Browser mode displays the following menu screen:

Options Picture Sound Settings Navigate MENU Exit

You can access Picture, Sound and Settings menu options using this screen. Press MENU again to exit from this screen.

Using the Channel List

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 7C C38C Channel 8C BBC NEWS 10S. BBQ OK Move Delete Edit name Lock Action Match Page ID/Color Ctrl Back Filter

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using "or" button. Press OK button to continue. You can select a network type option from the list by using "" and OK buttons.

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, 3D Mode, Virtual 3D, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

Settings Power Save Mode 3D Mode Virtual 3D Picture Mode Equalizer Settings Favourites Sleep Timer Eco Auto Off Dynamic User Off Off Navigate Change Value MENU Exit EXIT/EXIT Exit

Menu Features and Functions

Picture Menu Contents
3D Settings Press to view 3D settings.
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Sport, Dynamic and Natural.
Contrast Sets the lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode. If Picture Off is selected, “Screen will be off in 15 seconds” message will be displayed on the screen. Select PROCEED and press OK to continue. The screen will be off in 15 seconds. If you disable Power Save Mode, Picture mode will be automatically set to Dynamic.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp Sets the desired colour tone.
Picture Zoom Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
Movie Sense	Movie Sense: Press Use “Left” / “Right” to set Movie Sense Low, Med, High or Off. While Movie Sense is active, it will optimize the TV’s video settings for motional images to acquire a better quality and readability.When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen.
HDMI True Black	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Adjust the desired skin tone.
Colour Shift Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.

Menu Features and Functions

Advanced Settings
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Sound Menu Contents
Volume Adjusts volume level.
Equalizer	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets	headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Headphone/ Lineout (optional)	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
M an u a l Channel Scan	This feature can be used for direct broadcast entry.

Menu Features and Functions

Install and Retune Menu Contents
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process..
Clear Service List	(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.
Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language	Configures language settings.
Parental	Configures parental settings.
Timers Sets timers for selected programmes.
Recording Confi guration	Displays recording confi guration menu.
Date/Time	Sets date and time.Note:* The TV takes the time info via the broadcast. Correct time will be available on Date/Time Settings, if the time info is provided in the broadcast.If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual, Time Zone will be enabled.* If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other words, time information will be available according to these priorities: The TV first looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information.
Sources Enables or disables selected source options.
Network Settings Displays network settings.
Other Settings: Displays other setting options of the TV set
Menu Timeout Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature.After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.

Menu Features and Functions

Other Settings: Displays other setting options of the TV set
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.
Store Mode (optional)	If you are displaying the TV in a store, you can activate this mode. While Store Mode is enabled, some items in the TV menu may not be available to be set.
DLNA Renderer	DLNA Renderer feature allows you to share files stored on your smartphone. If you have a DLNA Renderer compatible smartphone and software installed, you can share/play photos with your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature.
Power Up Mode	This setting configures the power up mode preference. Always On: The TV always switches on when main on/off button is pressed. / Standby: The TV always powers up in Standby mode. / Last State: The TV always switches on with the last selected channel/source.
Virtual Remote (optional)	Enables or disables the virtual remote feature.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the 📄 button to view the EPG menu.

Programme Guide Sat 26/05 Sat 26/05 14:36 14:00 13:04 16:00 ANS GROUP Current KANALTURK BUGUN BK INTERAKTIF . D-SMART PROMO Smart Xünyasından Seçmeler Smart Ünlyesından Seçmeler CFI Bügrıdan Sab Düzim Family Guy Fakır B YİŞİLÇAM SMART SMART ÇOCUK Preview Day Next day Zoom Filter Event Details Stop2 Groups Jungy Options Searches New Rec Stop

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO(i): Displays, in detail information on programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: displays filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Note: Switching to a different broadcast or source is not available during the recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

For using recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these is less will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is not supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feaute may not be available.

Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD.

Multipartiton support is available. Maximum two different partitions are supported. If the disk have more than two partitions, crash may occur. First partition of the usb disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

Timeshift Recording

Press PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press PLAY) button again to watch the paused programme from the stopped moment. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press ■ (STOP) button to cancel instant recording. Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use "<" or ">buttons to select Media Browser. Highlight Recordings Library item by using "<" or ">button and press OK button to enter. Recordings Library will then be displayed. Select a recorded item from the list (if previously recorded) by using "^"/> " button. Press OK button to view Play Options. Select an option by using "^"/"or OK buttons.

Play Options Play from start Resume Play from offset

Available playback options:

• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Specific is a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press ■STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press ■ (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use ▶ button to slow forward. Pressing ▶ button consecutively will change slow forwarding speed.

Recordings Library

To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

(Resume): Recommences the recordings.

RED button (Delete) : Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

INFO (Details): Displays the short extended programmes in detail.

Recording Configuration

Select Recording Configuration item in the Settings menu to configure recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Using the 3D Mode

Precautions

Read and understand the following safety precautions carefully for your safety before using the 3D function.

• You may experience discomfort, headaches or dizziness while watching 3D images. If you experience such symptoms, you should remove 3D glasses and stop watching 3D mode.
  • Take regular breaks while watching 3D images. The length and frequency of breaks may change from person to person. You must decide what works best for you. If you experience discomforts such as eye

strain or nausea while watching 3D images for a long time, remove 3D glasses, stop watching 3D mode and rest. You should consult a doctor if you believe it is necessary.

- It is recommended that an adult should check on children if the children are using 3D function. If they experience symptoms such as dizziness, headaches or eye strain, you should have the children stop watching 3D TV and you should have the children rest.

- Do not use the 3D Glasses for other purposes such as sunglasses or general eyeglasses.

- Do not use the 3D mode or wear 3D Glasses while you are moving around. Using the 3D mode or 3D Glasses while moving may lead to injuries due to running into objects, and falling.

- Use only the supplied 3D glasses.

- If you experience screen flickering when watching 3D images in poor light conditions, you should turn the lamp off or dim the light.

- When using headphones, you should adjust the volume so as to avoid excessive levels, since hearing damage may result.

CAUTION - 3D Images

- Please read these safety instructions carefully to ensure your personal safety and to prevent damage.

- If you experience diffi culty while viewing 3D images with the 3D glasses, you may have some problems with your eyesight.

- You may experience headaches or fatigue when viewing 3D images through the glasses for too long.

- If you experience headaches, fatigue, or dizziness, stop watching immediately.

- The following people should not use 3D Mode:

- Pregnant women, inform persons, persons with heart issues, as well as persons that become nauseous easily.

- When watching 3D video, do not place anything nearby that can be easily broken. You may mistake a 3D image for an actual object and move your body, causing you to break nearby objects and hurt yourself.

- Use 3D Glasses for watching 3D video only. Do not use it for any other purpose.

- Do not use the 3D Glasses as sunglasses or reading glasses.

- Do not spray cleaner directly onto the surface of the 3D Glasses. This may result in discoloration and cracks and may cause the screen display to peel off.

• Make sure to clean the 3D glasses with a soft cloth. As the product may be scratched if there is any foreign material on the cloth, make sure to shake off any dust before using it.
• Do not drop or bend the 3D glasses.
• If the receiving range is out of the specified range, the screen may not be viewable as 3D video.

Health Warning! - 3D Images

• When watching 3D images, you should leave a distance of at least twice the screen width, and you should keep the screen at eye level.
• If you watch the 3D imaging too closely or for a long period of time, it is possible that it may harm your eyesight. Watching the TV or playing video games that incorporate 3D imaging with the 3D glasses for a long period of time can cause drowsiness, headaches or fatigue to you and/or your eyes. If you have a headache, or otherwise feel fatigued or drowsy, stop watching the TV and take a rest. Pregnant woman, seniors, persons with heart problems or persons who experience frequent drowsiness should refrain from watching 3D. Some 3D imaging may cause you to duck or dodge the image displayed in the video. Therefore, it is best if you do not watch 3D TV near fragile objects or near any objects that can be knocked over easily. Please prevent children under the age of 5 from watching 3D. It may affect their vision development.

Warning for photosensitization seizure

• If you or a member of your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV. It is possible that some viewers may experience a seizure or epilepsy when exposed to certain conditions, including flashing lights or images in TV or video games.
• Sometimes certain symptoms can occur in unspecified conditions even if you do not have any previous history. In such a case, if you experience any of the following symptoms, immediately stop watching the 3D TV and consult a doctor:
• altered vision, visual or facial instability, such as eye or muscle twitching, dizziness or light-headedness, visual transition or unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea.
• When watching 3D TV, monitor your children, including teenagers because they may be more sensitive to the effects of watching 3D such as these symptoms.

• You can reduce the risk of photosensitization seizure by taking the following actions:

• While watching the 3D TV, do take frequent breaks. If you have vision that is different in each eye, you should watch the TV after taking vision correction measures.

• When watching the TV, ensure that your eyes are on the same level with the screen and do not sit too closely to the TV. Do not watch the 3D TV when you are tired or sick. Avoid watching the 3D TV for a long period of time.
• Wear the 3D glasses only for viewing 3D imaging on the TV. Do not use for other purposes.
• Some viewers may feel disoriented after watching 3D. Therefore, after you watch 3D, take a moment to regain awareness of your situation before moving.
• You must use 3D glasses parallel to your TV. The picture may not be visible or may look dark if you do not stay within the viewing angle.
• Use 3D glasses only when watching 3D picture with the correct angle. Remove the glasses in any other case. The picture may not be visible or may be dark if you look down or if you lie on your side while watching 3D picture using 3D glasses.

Operating the 3D Mode

• 3D picture may not be visible or become distorted when watching under dense light conditions.
- You can enjoy viewing 3D images on your TV by wearing the supplied 3D Glasses. Note that this TV's 3D feature works only with its specific 3D glasses.
- Connect a 3D compatible player via an HDMI cable and play the 3D content. Refer to the manual of the player for the settings of the player.
- Press SOURCE button and select the connected input.
- You should select suitable 3D Mode before viewing.
• To view 3D contents or programmes in 3D mode (3-Dimensional) you must wear the supplied 3D Glasses.

3D Mode Press MENU button and select Picture icon by using “<” or “>” button and press OK. Use “” or “” to select 3D settings and press OK to view.

• 3D feature enables you to view 3D content using the supplied 3D glasses.
• To enable and customize 3D mode on the TV, perform the following:
- Press MENU button on the remote control and select Picture by using “<” or “>” button. Press OK button to view Picture Settings. Select 3D Settings option by using “^” or “^” button and press OK.

3D Settings 3D Mode Auto 2D Only Off Virtual 3D Off Left/Right Swap Left/Right 3D Depth Sense -10 0 10

3D Settings

Mode

You can customize 3D mode settings to provide best viewing experience. Select one of these modes to experience 3D image viewing:

Auto: Automatically switches to 3D mode if 3D information available in HDMI source.

Side by Side: Displays 3D content which is originally in a form of side by side.

Top bottom: Displays 3D content which is originally in a form of top and bottom.

Off: 3D function mode is turned off.

2D Only

If content is 3D but you want to watch it in 2D, you can switch to 2D only mode. There are 2 options (LEFT and RIGHT) to select which side of the content you want to watch in 2D.

NOTE: This item is available when TV is in 3D mode.

Virtual 3D

Conversion from 2D to 3D. There are 3 different levels of depth: Low – Medium – High.

NOTE: This item is available when TV is not in 3D.

Left/Right Swap

You can use this setting to shift the phase of the 3D left/right broadcast.

3D Depth Sense (optional)

This setting enables the control of 3D depth.

NOTE: If you select 3D modes, wear the supplied 3D uses when this message is displayed on the screen:

3D AVAILABLE 3D Please wear your 3D glasses

3D Viewing Information

Your 3D Viewing experience can be affected by the location of the viewer and the TV set. To maximise your enjoyment we recommend you follow the guidelines below:

Viewing Distance

Size (inch)	22 26	32 37 40
Viewing distance (m)	1,30 1	50 1,90	2,20 2,40

Size (inch)	42 46	47 55
Viewing distance (m)	2.50 2	75 2.80	3.25

Horizontal Viewing Angle

45 45

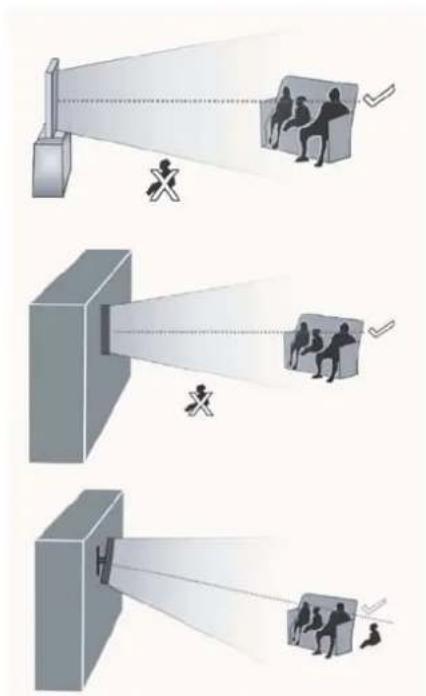

Vertical Viewing Angle

It is always recommended to place a TV at the correct seated eye height of the viewer. If the TV must be placed higher or lower it should be tilted accordingly in its stand or wall mount.

3D Viewing Information - continued

	HDMI MBV	MBP
1080p@24 FP	Supported Not	Supported Not Supported
720p@50 FP	Supported Not	Supported Not Supported
720p@60 FP	Supported Not	Supported Not Supported
1080p FC	SBS, TB SBS, TB	SBS, TB
720p FC	SBS, TB SBS, TB	SBS, TB
1080I FC	SBS SBS	SBS
OTHER	Not Supported	Not Supported (*)
	DTV ATV	OTHER
1080p@24FP	Not Supported	Not Supported	Not Supported
720p@50FP	Not Supported	Not Supported	Not Supported
720p@60FP	Not Supported	Not Supported	Not Supported
1080p FC	SBS, TB Not Supported SBS, TB
720p FC	SBS, TB Not Supported SBS, TB
1080i FC	SBS Not Supported SBS
OTHER	('') Not Supported	Not Supported

Please note that if you apply 720p FC TB input; the picture will be scaled smaller than the original size in the middle of the screen.

SBS: Side By Side

TB: Top Bottom

MBP: Media Browser Picture

MBV: Media Browser Video

FC: Frame Compatible

FP: Frame Pack

in MBP: Supported only when, the image's height is multiples of 2 and the image's width is multiples of 16 and if the image width is equal to the panel width or wider.

in DTV: Supported only when, the image's height is between 1700 and 1900 and the image's width is equal to 1280 or 720.

(*): Not supported if the image provides 1080i resolution.

Connectivity Functions

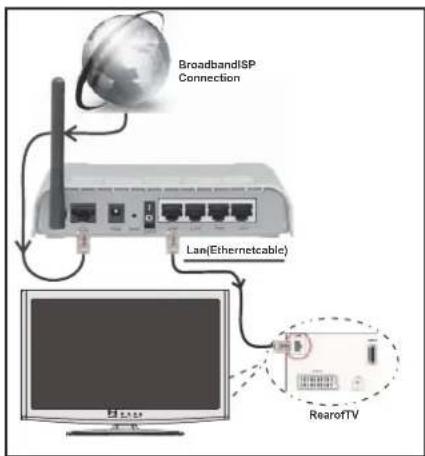

Connecting to a Wired Network

For connecting to a wired LAN network, you should perform the following steps:

- Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.

- Ensure that Nero Media Home software is installed to your PC.(for DLNA function). See Appendix E for more information on the installation process.

- Afterwards, you should connect your PC to the one of your modem's LAN connectors (e.g. LAN 1) by using a proper LAN cable.

- Use another LAN output of your modem (e.g. LAN 2) to enable the connection to your TV. You can add your TV to your LAN by connecting the LAN port at the rear of your TV to your modem's LAN connector as illustrated.

BroadbandISP Connection Lan(Ethernetcable) RearofTV

- To access and play shared fi les, you must Select Media Browser. Press Menu button and select Media Browser by using Left or Right button. Press OK to continue. Select the desired fi le type and press OK. You must always use the Media Browser screen to access and play shared network fi les.

• PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with wired connection for higher playback quality.

To configure wired settings please refer Network Settings section in Settings menu.

- You might be able to connect your TV to your LAN network depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Theromodomport onthewall RearofTV

Connecting to a Wireless Network

IMPORTANT: "Veezy 200" USB dongle (sold separately) is required to use wireless network feature.

- To use your TV with your wireless network, you need a Veezy 200 Wireless USB dongle. To make your modem's SSID visible, you should change your SSID settings via modem's software. The TV cannot connect to the networks with hidden SSID.

For connecting to a wireless LAN network, you should perform the following steps:

1. Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.
2. Ensure that Nero Media Home software is installed to your PC (for DLNA function).
3. Afterwards, you should connect wireless adaptor to one of the USB inputs of the TV.
4. To configure wireless settings please refer Network Settings section in the following sections.

BroadbandISP Connection USB Inputs (Side of the TV) WirelessLan Adaptor

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands designed to increase bandwidth. Optimized for smoother and faster HD video streaming, file transfers, and wireless gaming.
• Use LAN connection for quicker file sharing between other devices like computers.
• The frequency and channel differ depending on the area.
• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic, and the products that you use. The transmission may also be cut off or get disconnected depending on the radio wave conditions DECT phones, or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.
• The location where the transmission is most effective differs depending on the usage environment.

• Wireless LAN adaptor should be connected directly to the TV's USB port. USB hubs are not supported.

• To configure wireless settings please refer wifi section in Settings menu.

• Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• Use the other usb input, if you experience problems with audio/video performance.
• You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use wired connection instead if you experience problems with wireless connection.

Configuring Network Settings

Your TV's Network Settings include Wired and Wireless Connection options. However, if your TV does not have USB Wi-Fi dongle, you should use Wired Connection type. If you try to connect via Wireless Connection when your TV does not have a USB Wi-Fi dongle, a warning screen will appear and the TV will not get an IP address. Try connecting the LAN cable after this and then the TV will be able to get an IP address.

Configuring Wired Device Settings

If you are connecting the TV via ETHERNET INPUT, select Network Type as Wired Device to configure.

Network Settings Network Type Wired Device Configuration Status Not Connected IP Address Endline/Oracle Back Internet Speed Test Advanced

Network Type

Network type can be selected as Wired or Wireless device, in accordance with the active connection to the TV set. Select this as Wired if you have connected to the TV a LAN cable. Select as Wireless if you connect via the wireless USB dongle.

Confi guration Status

This section displays the status of the connection. Select Connected if you want to activate connection. Select as Not Connected to end an active connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure IP address preferences, press GREEN button and switch to the advanced mode.

Confi guring Wired Network Settings in Advanced Mode

After pressing GREEN button, Advanced mode will be available. While in Advanced Mode, press RED button to edit settings. When finished, press OK to save, Press RETURN/BACK to cancel.

Configuring Wireless Device Settings (Optional)

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network feature. To use your TV with your wireless network, you need a "Veezy 200" Wireless USB dongle.

Wi-Fi feature can be used for a wireless network connection. The feature is used for infrastructure purposes only, such as connecting to the web, hbb sites and connecting with DLNA servers (optional). If you have the Veezy 200 Wifi Dongle, select Network Type as Wireless Device to start connection process.

Network Settings Network Type Configuration Status IP Address Network Name Wireless Device Not Connected Carrier Clouds Delete Source WiFi Profile Back Advanced Internet Speed Test Loan Wireless Networks

To enable Wi-Fi feature, profiles should be configured properly. Please plug in the Wi-Fi dongle to one of the USB ports.

Press YELLOW button to scan wireless network from network settings menu. Afterwards, available network list will be displayed. Please select your desired network from the list.

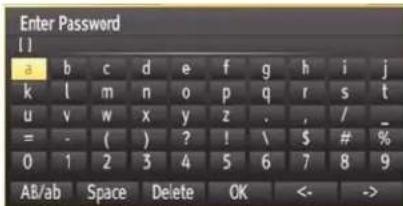

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via navigation buttons (Left/Right/Up/Down) and OK button on the remote control.

Enter Password a b c d e f g h i j k l m n o p q r s t u v w x y z . , / _ = - ( ) ? ! \ $ # % 0 1 2 3 4 5 6 7 8 9 AB/ab Space Delete OK <- ->

Wait until the IP the address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, you should highlight Configuration Status and press OK.

Network Settings Network Type < Wireless Device > Configuration Status Connected IP Address 192.168.1.100 Network Name error Enable/Disable Back Internet Speed Test Delete Speed With Profile Advanced Scan Wireless Networks

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press BLUE button to check your internet connection speed.

You can check the signal strength by using the network settings menu for the wireless device mode.

Information

Configuration Status: Displays wi-fi status as connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks' name will be displayed.

Press GREEN button to switch to advanced mode and then press OK button to edit settings.

Network Settings Configuration Static IP Address [192.168.043.027] Submit Mask 255.255.255.000 Default Gateway 152.168.043.001 DNS Server 1 152.168.043.001 DNS Server 2 000.000.000.000 MAC Address 00:06:68:76:37.a9

Delete Saved Wifi Profiles

Saved profi les will be deleted if you press red button while wireless device selection osd is on the screen.

Connecting to a Smartphone/Tablet (Optional)

• You can also play content from your smartphone/tablet device, located in your home network, using the DLNA/DLNA Renderer feature of your television.
• For this, your cell phone must have an appropriate sharing software.
• If the connection is established correctly, you should now access the shared files of your device.

- Enter Media Browser menu and playback device selection OSD will be displayed. Select your cell phone's ident and press OK to continue.

Note: This feature may not be supported by some cell phones.

Connectivity Troubleshooting

Wireless Network Not Available

Ensure that the firewalls of your network allows the TV wireless connection. "Veezy 200" usb wifi dongle should be plugged properly (if available). If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

If the Net TV does not function, check the modem (router) fi rst. If the router does not have a problem, check the internet connection of your modem.

Try searching for wireless networks again, using the Network Settings menu screen.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

Step 1: Nero Media Home Installation

DLNA function cannot be used if the server program is not install to your PC. Please prepare your PC with the provided Nero Media Home programme. For more information about the installation, please refer to appendix E.

Step 2: Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed configuration information.

Step 3: Play Shared Files via Media Browser

Select Media Browser by using Left or Right button from the main menu and press OK button. Media browser will be then displayed.

DLNA support is available only with Media Browser folder mode. To enable folder mode, go to Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using Left or Right button.

Please select desired media type and press OK.

Media Browser Video Music Clouds Library Settings

If sharing configurations are set properly, the following OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press GREEN button. You can press MENU to exit.

Device Selection dina iptvsrv02: TVersity Media Server dina Nero MediaHome 4 (IPTVSRV) dina IPTVSRV : TVersity Media Server Refresh OK Select MENU Exit

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect by using "√" or "▲" buttons and press OK button.

If you select media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen as below:

Video Media browser File Name 001 - Box Speed_5-2001 TIME03 Box Speed_5-2001 TIME03 m01 Play Play This Toggle View Style LPGG Play Preview Loop Shuffle Next List Change Media Left By Name

Select Videos from this screen to list all the available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select media type as desired and then perform the network selection again. Refer to Media Browser USB Playback section for further information on file playback.

Subtitle files do not work if you watch video from network through DLNA.

You can connect only one television with DLNA to same network. If a problem occurs with DLNA network, please switch on/off your television. Trick mode and jump are not supported with DLNA function.

CAUTION:

There may be some PC's which may not be able to utilize the DLNA function due to administrator and security settings. (such as business PC's).

For best home network streaming with this set, the supplied Nero software should be installed.

Internet Portal

You can access PORTAL mode using your TV. To do this, an active internet connection is required. Follow the steps on Connecting to a Wired/Wireless(optional) Network section to connect your TV to internet. After the connection is established, you can select or view portal options.

Note: Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of internet portal.

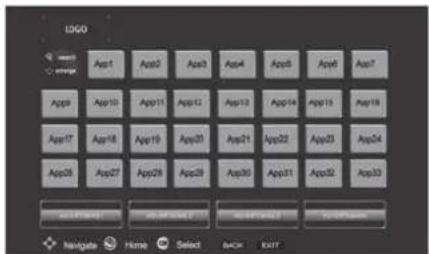

Press "①" button on your remote control and portal application options will be displayed. Application options will be displayed as the template below. Available applications' contents may change depending on the application content provider.

IDG0 Search Name App1 App2 App3 App4 App5 App6 App7 App8 App10 App11 App12 App13 App14 App15 App16 App17 App18 App19 App20 App21 App22 App23 App24 App25 App26 App27 App28 App29 App30 App31 App32 App33 Browse... Browse... Browse... Browse... Navigate Home Select BACK EXIT

Select a link or application using the Left and Right or Up or Down buttons and press OK to activate.

• Use Up/Down and Left/Right buttons to navigate between the items on Portal screen.

• Press OK button to confirm your selection.

• Press BACK to go to the previous screen.

• Press EXIT to quit internet portal mode.

Note: Possible application dependent problems may be caused by the content service provider.

Not: Virtual remote controller application could be available to be downloaded from your smartphone application provider.

Not all smartphones are supported by this application.

Teletext

“teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"BACK" Index: Selects the teletext index page.

"I" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“< "/">” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page. Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “√” or “^” commands will request the next or previous page respectively.

Digital Teletext (for UK only)

- Press the "button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "☐" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.

• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.

• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Manual Software Update

Ensure that the ethernet cable is connected to your TV. If the ethernet cable is connected to the TV, ensure that the TV is receiving. Check that the Good is present in the following menu path:

Menu -> Settings -> Network Settings -> Configuration Status -> Connected

Go to Settings tab from the main menu and select Other Settings. Highlight Software Upgrade and press OK.

Select Scan for Upgrade and press OK button.

An OSD screen including the progress bar will be visible under the Software upgrade" title.

A warning screen will be displayed on the screen, stating that the TV will be rebooted. Press OK button to finalize upgrade process and reboot TV.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "OK" button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.

2. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow

If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Internet Connection Not Available / DLNA Mode Not Operating

If the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet.

It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A rewall might be the reason of a connectivity and discovery problem while using the TV in DLNA mode or while browsing via DLNA.

Invalid Domain

Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your DLNA server program on your PC. If the domain is invalid, this might cause problems while browsing files in DLNA mode.

Appendix A: PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1200.

Index	Resolution	Frequency
1	0x400 70Hz
2	0x350 85Hz
3	0x400 85Hz
4	0x480 60Hz
5	0x480 66Hz
6	0x480 72Hz
7	0x480 75Hz
8	0x480 85Hz
9	0x600 56Hz
10	0x600 60Hz
11	0x600 70Hz
12	0x600 72Hz
13	0x600 75Hz
14	0x600 85Hz
15	32x624 75Hz
16	1024x768	60Hz
17	1024x768	66Hz
18	1024x768	70Hz
19	1024x768	72Hz
20	1024x768	75Hz
21	1024x768	85Hz
22	1152x864 60Hz
23	1152x864 70Hz
24	1152x864 75Hz
25	1152x864 85Hz
26	1152x870 75Hz
27	1280x768	60Hz
28	1360x768	60Hz
29	1280x768	75Hz
30	1280x768	85Hz
31	1280x960	60Hz
32	1280x960	75Hz
33	1280x960	85Hz
34	1280x1024	60Hz
35	1280x1024	75Hz
36	1280x1024	85Hz
37	1400x1050	60Hz
38	1400x1050	75Hz
39	1400x1050	85Hz
40	1440x900	60Hz
41	1440x900	75Hz
42	1600x1200	60Hz
43	1680x1050	60Hz
44	1920x1080	60Hz
45	1920x1200	60Hz

Appendix B: AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT-1(SCART1)	PAL		O
	NTSC 60 O
	RGB 50/60 O
	SECAM O
EXT-1(SCART2)	PAL		O
	NTSC 60 O
	SECAM O
Side AV	PAL 50/60 O
	NTSC 60 O
	SECAM O
YPbPr	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 60Hz O
	1080I 60Hz O
HDMI1HDMI2HDMI3HDMI4	480I 60Hz O
	480P 60Hz O
	576I 50Hz O
	576P 50Hz O
	720P 50Hz O
	720P 60Hz O
	1080I 60kHz O
	1080I 60kHz O
	1080P	24Hz25Hz30Hz50Hz60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported File Formats for USB Media Browser

Media Extension Format Notes
Movie	.dat, .mpg, .mpeg	Mpeg1,2 MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM		1080P@ 30fps 50Mbit/sec
	.dat, .mpg, .mpeg	MPEG2 ,H.264, VC1, AVS, MVC	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM	H.264:1080Px2@25fps 1080P@ 50fps MVC: 1080P@ 24fps Other: 1080P@ 30fps" 50Mbit/sec
	.vob MPEG2	MPEG1/2 Layer 1/2/3, AC3, LPCM 1080P@ 30fps 50Mbit/sec
	.mkv	MPEG1,2,4, XviD, H.264, VC1,WMV3, Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM,OGG	H.264:1080Px2@25fps 1080P@ 50fps Other:1080P@ 30fps 50Mbit/sec
	.mp4, .mov	MPEG1/2 Layer 3, AAC/HEAAC, Motion JPEG	AC3/EAC3, LPCM/ADPCM	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps 50Mbit/sec
	.avi MPEG1	2,4 Xvid H.264, VC1,WMV3, Sorenson H.263 Motion JPEG	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM/ADPCM, WMA	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps" 50Mbit/sec
	.n v H.264,	Sorenson H.263	MPEG1/2 Layer 3, AAC/HEAAC, LPCM/ADPCM	H.264: 1080Px2@25fps 1080P@ 50fps Other: 1080P@ 30fps" 50Mbit/sec
	.3gp, .3g2	MPEG4, H.264		1920x1080 @ 30P 20Mbit/sec
	.asf, .wmv	MPEG2,4, XviD, H.264, VC1,WMV3	MPEG1/2 Layer 1/2/3, AAC/HEAAC, AC3/EAC3, LPCM, WMA	1080P@ 30fps 50Mbit/sec
Music	3	- AAC, HEAAC	MPEG1 Layer 1/2/3 (MP3)
	.wav		LPCM
	WMA/ASF		WMA, WMA Pro
	.m4a/, .aac
Photo	.jpg, .jpeg	Baseline JPEG		max WxH = 14592x12288 Up to 8 MegaByte
	.png	Progressive JPEG
	.bmp	non-interlace
	.png	interlace
Subtitle	.sub -	-
	.srt	-	-

Appendix D: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	56Hz 60Hz 66Hz 70Hz 72Hz 75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑
1360x768		☑				☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑
1920x1200		☑

Appendix E: Nero MediaHome Installation

This software is compatible with Windows XP and Windows 7.

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Insert the Nero MediaHome installation disc in your optical disc drive.
2. The Nero MultiInstaller screen with a button to start the installation process will open automatically.
3. If below window is not displayed automatically, double-click on the file SetupX located on the Nero MediaHome installation disc.

nero MediaHome 4 Essentials Nero MediaHome 4 Essentials Exit

1. Click on the button labeled Nero MediaHome Essentials to start the installation process.

2. The Nero MediaHome installation wizard is displayed.

3. If necessary change installation language from the language selection menu before continuing.

Nero MediaHome 4 Essentials - Installations Welcome to the Installation of Nero MediaHome 4 Essentials NERO MediaHome 4 The record will be used through the installation process for NERO MediaHome 4 Essentials - Installations. Next, to go through Installation status. Making: The software is protected by international copyright doi.org Sign Use this language for the installation required Next >... Cancel...

1. Click the Next button.

• The integrated serial is displayed.

- Please do not change displayed serial.

Nero MediaHome 4 Essentials - Installations Personalize Your Nero MediaHome 4 Essentials Please enter your serial number for Nero MediaHome 4 Essentials Serial Number: CRED KSA6-PC16-A3W-107N A8UP-209-A5T-CXH-6647- < Back Next > Cancel

1. Click the Next button.

- The License Conditions (EULA) screen is displayed.

Nero Web Devices 4 Essentials - Implementation License Conditions (EULA) Please read the License Conditions available End User License Agreement Software Products: Accept of the agreement to the next software units, comprising a session of components, that was not allowed to use this tool, or will be used to expand the applications and programs from the following list: Nero Operating (NIR), Nero Express, (NOS), NOS-Board, Nero Starboard, Nero Dashlist, Nero Clearing/Regal, Nero Express/Bras, Nero Durcher, Nero BackUp, Nero Grid, Nero Live/Sadget, Nero Vaser, Nero Video, Nero Durcher, Nero Flashing, Nero Flashing/Regal, Nero Flashing/Bras, Nero Durcher, Nero Printers, Nero Digital Signal, Nero Blackbox (NVR), (NOS) Paper, Blue Ray Bigstar, GreenDash (Bigstar) ("Glother") Copyright: Nero Web Devices 4 Essentials THIS IS A LEGAL AGREEMENT BETWEEN VILL. THE "END-LOG", AND NERO AS. NOTES/PREVISED: 13.15. THIS PROCEDURE, COMPANY INSCRIBITION OF THIS COMPLIANCE THIS AGREEMENT TO EXERCISE ■ Account The License Condition Help OK Cancel Help

1. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

2. Click the Next button.

- The Select Installation Type screen is displayed. It is possible to choose between Typical, meaning standard installation, or Custom installation. User defined installation allows you to determine languages to be installed and to choose the installation path.

Nero Installation & Essentials - Installation Select Installation Type Please select an Installation type Typical The installed installation will be installed. Customs Select the new installation to be installed, tree size, and the version. The recommended for installation uses + Add Next Add Cancel

1. Use Typical installation and click the Next button.

• The Prerequisites screen is displayed.

The Nero MediaHome installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

Prerequisites Name Status File Edit Options Not installed File Product History Not installed OK Finish Install Cancel

1. Click the Install button.

- As soon as all prerequisites are installed, the Install button will change to a Next button.

Prerequisites Name Actions New Job Provider Installed New Product Provider Installed OK Cancel Cancel

1. Click the Next button.

- The Ready to Start Installation Process screen is displayed, installation begins and finishes automatically. A progress bar informs you of the progress of the installation process.

Nero MediaHome 4 Essentials Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installed Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert NeroMediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Essentials is Being Installiert Nero MediaHome 4 Assnabita 26%

1. Installation fi nishes.

The Help us to Enhance Nero Software screen is displayed. In order to offer a better service, Nero is collecting anonymous data to determine which features are used and what problems, if any, occur.

Help us to Enhance Nero Software In order to offer better services, then a collecting information data to Annexice who? Features are used and available problems. If any purpose. If you would like to participate in the announced data collection now, simple did it, the following: Check for: ■ Yes, I want to help you, pending announced application skills to help You can secret at a slower time in opening the files Controller and closing on Product Controller Phase Statement How does not check any personal information that can be used to change the product use. The more popular, but less than always quick your privacy, really useful for your use.

1. If you would like to help by participating in the anonymous collection of usage data, select the check box and click the Next button.
2. The final screen of the installation wizard is displayed.
3. Click the Exit button.

nero Media-Home 4 Installation Successful nero Media-Home 4 The installation would have successfully installed nero Media-Home 4 contains.

1. A shortcut called Nero MediaHome 4 is now

placed on your desktop

Congratulations! You successfully installed Nero MediaHome 4 on your PC.

1. Run Nero MediaHome by pressing shortcut icon.

- Click ADD icon from LOCAL FOLDERS to add the folder you want to share with the network. Select the folder that you want to share and click START SERVER.

New MediaForm 4 Essentials Media Library | Local Folders | Online Servers | Apps(R) iTunes Select folders to be shared: Share Status C:\Documents and Settings\otherms\otherm\windows... Add... Remove More By sharing your files over the network you enable everybody throughout the Lili (local area network) to browse and download your shared media files. Please take use not to share any private or cloudless files! Start Server Exit

1. You can display all media types from the library. Click Refresh icon to refresh. Click STOP SERVER icon to stop server.

Nero MediaHome 4 Essentials Media Library | Local Polders | Online Services | Apple(R) iTunes Browse media which is already installed. Nero MediaHome All Media Music Photex Video Collections Refresh By sharing your files over the network, you enable every body throughout the LAN (local area network) to browse and download your shared media files. Please take care not to drive any private or confidential files!

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-T MHEG-5 Engine (for UK only)

DVB-C MPEG2

DVB-C MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W _RMS ) (10% THD)

2×12

POWER CONSUMPTION (W)

160 W (max)

PANEL

16:9 display, 42" Screen Size

DxLxH (With foot): 220 x 964 x 617

Weight (Kg): 15.35

DxLxH (Without foot): 37 x 964 x 569

Weight (Kg): 14.30

Transmission Standards:

VHF (BAND I/III) UHF (BAND U) HYPERBAND DVB-T, MPEG2, DVB-T, MPEG4 HD, DVB-T2

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Licence Notifications

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY. DIGITAL PLUS

"DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance."

dlna® CERTIFIED

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."
