USER MANUAL TEL 05 AUDIOLINE

Operating Instructions 13

Technical diagram of a device internal structure with labeled parts and numbered annotations

- Inbetriebnahme -

3 Inbetriebnahme

VOLLVERANTWORTLICH, DASS DAS PRODUKT

MODEL: TEL5

Name: MANFRED ZINNOW

1 General information....14
2 User Controls ....16
3 Setting up ....17

3.1 Safety Information 17
3.2 Check contents of pack.... 17
3.3 Connecting the receiver 17
3.4 Connecting the telephone 17
3.5 Wall mounting 17

4 Operation ....18

4.1 Making a call ....18
4.2 Receiving calls 18
4.3 Adjusting the receiver volume.... 18
4.4 Redial facility 18
4.5 Adjustable ring tone ....18

5 T-NET mode / Private exchanges ....19

5.1 "R" Button on Private Exchanges 19
5.2 "R" Button and the Deutsche Telekom T-NET functions 19
5.3 Dialling telephone numbers when using on private exchanges 19

6 Important information ....20

6.1 Fault finding....20
6.2 Replacing the telephone cable ....20
6.3 Guarantee....21
6.4 Declaration of conformity 22

- General information -

1 General information

Please read these operating instructions carefully. If you should have any questions, please contact our Service Department on the Hotline number 0180 5 00 13 88. Under no circumstances open the unit yourself and do not try to carry out your own repairs. For any claims under the warranty, please refer to your dealer.

Intended use

This telephone has been designed for use on an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators. The telephone requires a TAE socket with F/N coding in common with other plug-in units such as fax machines, answering machines or modems. Connect the telephone cable to the phone socket intended for the purpose only. Do not change the plug on the connecting cable.

Private exchanges

The telephone can also be connected to a private exchange. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems. Due to the large number of different private exchanges, it is not possible to guarantee this function.

Temperature and Ambient Conditions

The telephone is designed for use in protected rooms with a temperature range of 10 °C to 30 °C . The base station must not be installed in damp rooms such as a bathroom or laundry room. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

- General information -

Position

Do not set up the telephone in the immediate vicinity of other electrical equipment such as microwaves or hi-fi systems, as this may result in mutual interference. The location has a decisive influence on the trouble-free operation of the telephone.

Place the telephone on a flat and non-slip surface. The feet of the telephone do not normally leave any marks on the surface. However, due to the large number of varnishes and surfaces in use, it may not be possible to prevent marks occurring on the surface due to the feet of the unit.

Do not use the telephone in areas where there is a risk of explosion.

Excessive exposure to smoke, dust, vibrations, chemicals, moisture, heat or the direct rays of the sun must be avoided.

Cleaning and care

The surface of the case can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents, particularly aggressive solvents. No attention is necessary apart from cleaning the case occasionally. The rubber feet of the base station are not resistant to all cleaning agents. The manufacturer can therefore not accept any liability for possible damage to furniture or the like.

CE mark

The telephone complies with the basic requirements of the R&TTE Directive This is confirmed by the CE mark.

- User Controls -

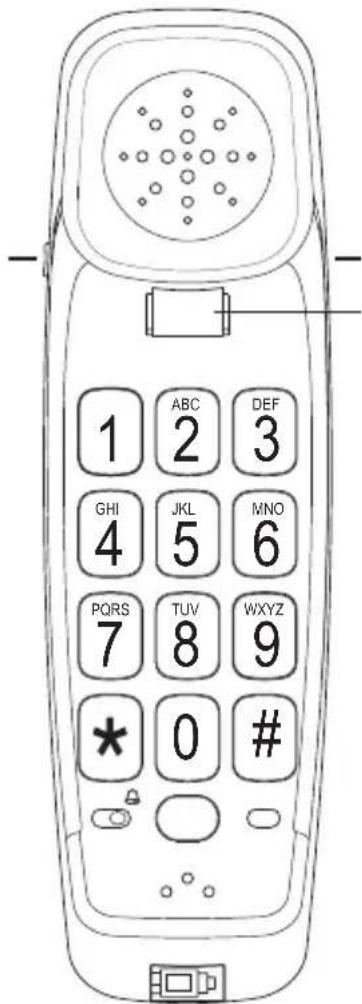

2 User Controls

1 Flash time selection 100/300ms
2 Disconnect button/receiver rest
3 R signal button
4 Redial/Pause
5 Connection to base unit
6 Ringer volume adjustment
7 Receiver volume adjustment

1 ABC DEF 2 3 GHI JKL MNO 4 5 6 PQRS TUV WXYZ 7 8 9 * 0 #

Underside of base unit

8 Fixing for wall mounting
9 Connection for telephone cable
10 Connection for spiral receiver cable

- Setting up -

3 Setting up

3.1 Safety Information

NOTE: Before setting up, it is essential that you read the General Information at the beginning of this manual.

3.2 Check contents of pack

The following items are supplied:

one telephone base one telephone receiver

one telephone connecting cable one spiral cable

one instruction manual

3.3 Connecting the receiver

After unpacking your telephone, you must first connect the telephone receiver to the telephone base. First take one end of the spiral cable and plug it into the socket at the bottom of the receiver. Turn the telephone over and plug the other end into the lower socket (see Chapter 2, Section entitled Underside of base unit, Item 3.). Bring the cable out via the cable duct.

3.4 Connecting the telephone

Connect the telephone cable supplied to the telephone socket and the telephone jack on the underside of the telephone base (see Chapter 2, Section entitled Underside of base unit, Item 2.). Then feed the cable out of the telephone housing through the cable guide either towards the top or the bottom. Secure the cable firmly in the cable duct.

The telephone works using the MF system (Tone Dialling).

3.5 Wall mounting

Your telephone is also suitable for wall mounting. Use two screws for fixing to the wall. Drill two holes 85 mm apart, vertically one above the other, and leave the screws protruding 5 mm from the wall. Now place the telephone base over the screws and push down slightly.

When the telephone is mounted on a wall, you can hang the receiver on the telephone without cutting off the call. A small hook is located at the top of the receiver rest for this purpose.

- Operation -

4 Operation

4.1 Making a call

Your telephone can be used like any conventional telephone.

Please follow the instructions:

Lift the receiver and wait until you hear the dialling tone.

Now dial the required telephone number.

To end the call, replace the receiver on the rest. You can end the current call by using the disconnect button and you will immediately obtain a new dialling tone.

4.2 Receiving calls

When a call comes through, you will hear the ringing tone. The call can now be accepted using the receiver.

4.3 Adjusting the receiver volume

If the receiver volume is too quiet or too loud for you, you can change this to suit your requirements.

You can adjust the volume from soft ● to loud ● using the VOL. slide switch on the receiver.

4.4 Redial facility

If a connection that you have dialled is engaged or you were unable to get through to anybody, simply replace the receiver. The last number dialled remains stored in the telephone automatically. To use the redial facility, proceed as follows:

Lift the receiver and press the redial button ⚙. The stored redial number will now be dialled.

4.5 Adjustable ring tone

By means of the slide switch ☒ on the receiver you can choose the settings ⏻ (loud) or ⏻ (soft) to match the volume of the ringing tone to your requirements. If at any time you do not want to be disturbed, use the ⏻ setting (off).

- T-NET/Private exchanges -

5 T-NET mode / Private exchanges

You can use the "R" signal button on your telephone on private exchanges and when using DEUTSCHE TELEKOM's T-Net functions.

5.1 "R" Button on Private Exchanges

If you have connected your telephone to a private exchange, you can use all the facilities such as call transfer, automatic recall, etc. The "R" signal button gives you access to these facilities. The FLASH time "100ms" will be required on a private exchange. Slide the R switch on the right-hand side of the receiver to the 100 ms position for this purpose. You can find out from the dealer from whom the equipment was purchased whether your telephone will work on your private exchange without any problems and what further facilities you will receive from this.

5.2 "R" Button and the Deutsche Telekom T-NET functions

Your telephone supports the most important DEUTSCHE TELEKOM added value functions (e.g. brokering, call waiting, three-way conference, etc.). The T-NET works using the "FLASH 300ms" setting. Slide the R switch on the right-hand side of the receiver to the 300 ms position for this purpose. Please contact DEUTSCHE TELEKOM to gain access to the T-NET functions (some of which are subject to charge).

5.3 Dialling telephone numbers when using on private exchanges

With private exchanges, it is necessary to dial a certain number (e.g. "9" or "0") in order to obtain a dialling tone for an outside line on the extension. With some, older private exchanges, it takes some time before the dialling tone can be heard. Especially for these private exchanges, an automatic pause can be inserted after connecting to the outside line so that you can dial directly without waiting for the dialling tone.

Press the redial button ⚙ once between the number for the outside line and the actual telephone number. After connecting to an outside line your telephone will wait for 3 seconds before dialling the actual telephone number.

- Important information -

6 Important information

6.1 Fault finding

Remove all extra telephone equipment and connect only the telephone directly to the telephone socket.

If the fault is still present, connect another telephone (if available) to the telephone socket. The results will show you whether the fault lies with the unit or with the telephone line.

In the case of technical problems you can also contact our Service Department on the Hotline number 0180 5 00 13 88.

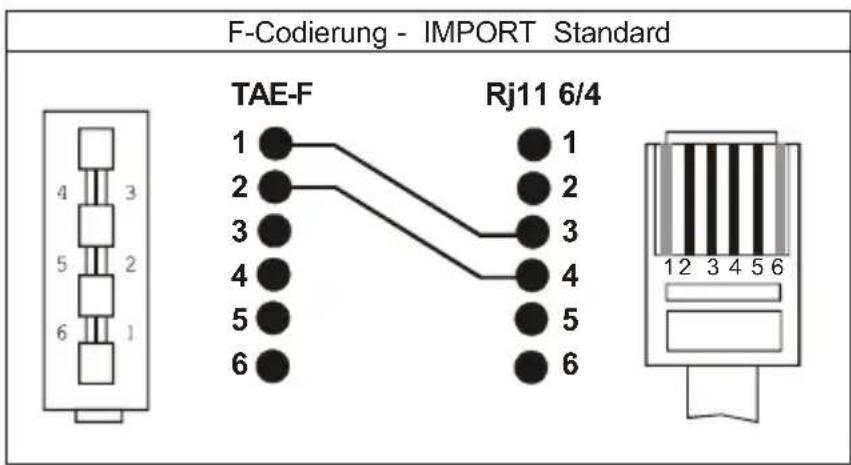

6.2 Replacing the telephone cable

If you have to replace your telephone cable, you can locate the appropriate cable at your dealer's with the help of the following diagram.

F-Codierung - IMPORT Standard TAE-F Rj11 6/4 1 2 3 4 5 6 1 2 3 4 5 6 12 3 4 5 6

- Important information -

6.3 Guarantee

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The warranty period is 24 months from the day of purchase. This warranty is not applicable to the batteries or battery packs used in the various products.

Warranty conditions: Within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of 24 months from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

- Important information -

6.4 Declaration of conformity

WE AUDIOLINE GmbH

OF HELLERSBERGSTRAße 2A

D-41460 NEUSS

GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: TEL5

DESCRIPTION: Cord connected telephone

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS

OF DIRECTIVE: 1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name:

Position in the company: MANAGING DIRECTOR

Date of issue : 14.09.2003

MYPICAL RED

ZINNC

A copy of this declaration will be retained for 10 years after cessation of production.

SUPPLIER: AUDIOLINE GmbH

RSBERGSTRAße 2A

PRODUCT:

D-41460

TEL5

NEUSS

This product has been developed for use with an analogue telephone line (PSTN) within Germany. However, no guarantee can be accepted for trouble-free operation on all telecommunications terminal equipment connections due to the differences between the different telecommunications network operators and inserted PABX systems.
