USER MANUAL DECT 8848 AUDIOLINE

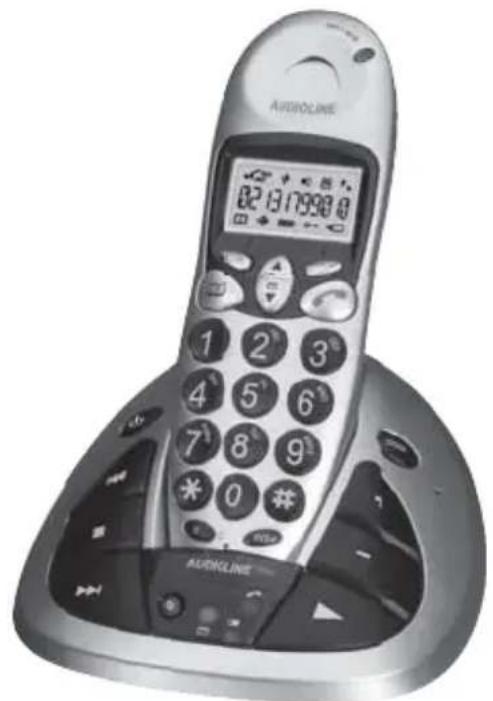

Cordless digital DECT telephone with answering machine

AUDIKLINE 02 13 7998 8 AUDIKLINE

Operating Instructions_31

D

Diagram showing connections between two electrical outlets and a network device with ports and cables

1 VMWI: Visual Message Waiting Indication
^2 CLIP: Calling Line Identification Presentation

8 Menüstruktur

TELEFONBUCH HINZUFUEGEN

	LOESCHEN
	AENDERN
EINSTELLUNG BASIS LAUTST LAUTST 1, 2, 3, TON AUS
	BASIS MELODY MELODIE 1, 2, 3
	MT ABMELDEN PIN?	5	MOBILTEIL?
	PIN CODE PIN?	5	NEUE PIN WIEDERH
	MFV-IWV MFV
		IWV
	FLASHZEIT FLASH	1 (100 ms)
		FLASH 2 (300 ms)
	WERKSEINST PIN?	5	BESTAETIGEN

Please read this operating instruction manual thoroughly.

Intended use

This telephone is designed for use when connected to a telephone network. Any other use is considered unintended use. Unauthorised modification and reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Installation location

Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Do not use the handset in potentially explosive areas.

Power supply

Caution: Only use the power adapter plug supplied because other power supplies could destroy the telephone. Access to the power adapter plug must not be obstructed by furniture or such.

Rechargeable batteries

Caution: Do not throw batteries into a fire or immerse them in water.

Power failure

The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in the case of emergency situations.

Medical equipment

Caution: Never use the telephone in the vicinity of medical equipment. It cannot be fully ruled out that equipment will not be affected.

Disposal

You are obliged to dispose of consumable goods in accordance with legal regulations. The adjacent symbol on the telephone indicates that electrical and electronic equipment and batteries no longer required must be disposed of separate from domestic waste.

Electrical or electronic equipment must be disposed of at collection points provided by the public waste authorities.

Batteries must be returned to the point of sale or appropriate collection points provided by the public waste authorities.

Packing material must be disposed of according to local regulations.

Putting the Telephone into Operation

2 Putting the Telephone into Operation

Safety note

Caution: It is essential to read the safety information in Chapter 1 before preparing the telephone for use.

Checking the package contents

The package contains:

• a base station with power adapter plug - a telephone connection cable
• a handset - two batteries

- an operating manual

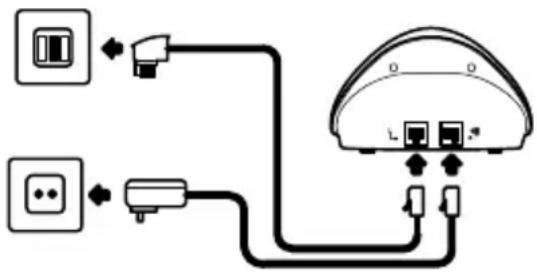

Connecting the base station

Caution: Position the base station with a minimum distance of at least 1 meter to other electronic equipment because it could lead to mutual disturbance.

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection cable supplied.

Telephone line socket

Mains power outlet

Diagram showing connections between two electrical outlets and a device with labeled ports and connections

Connecting the charging station

Plug the power adapter plug in a properly installed mains power outlet.

Inserting the batteries

Open the battery compartment and insert the batteries. Only use batteries of the type AAA Ni-MH 1.2 V. Pay attention to the correct polarity. Close the battery compartment cover.

- AAA + + AAA - ↓ AAA + + AAA -

GB

Putting the Telephone into Operation

Charging the batteries

Before using the handset for the first time, place it in the base station/charging station for at least 14 hours. When the handset is correctly inserted in the base station / charging station, an acoustic signal issued and the charge control lamp lights up. The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers. The current battery charge status is indicated in the display:

Full Half empty Weak Empty

Private branch exchanges

If you want to connect the telephone to a private branch exchange, more information is provided on Page 49.

3 Operating Elements

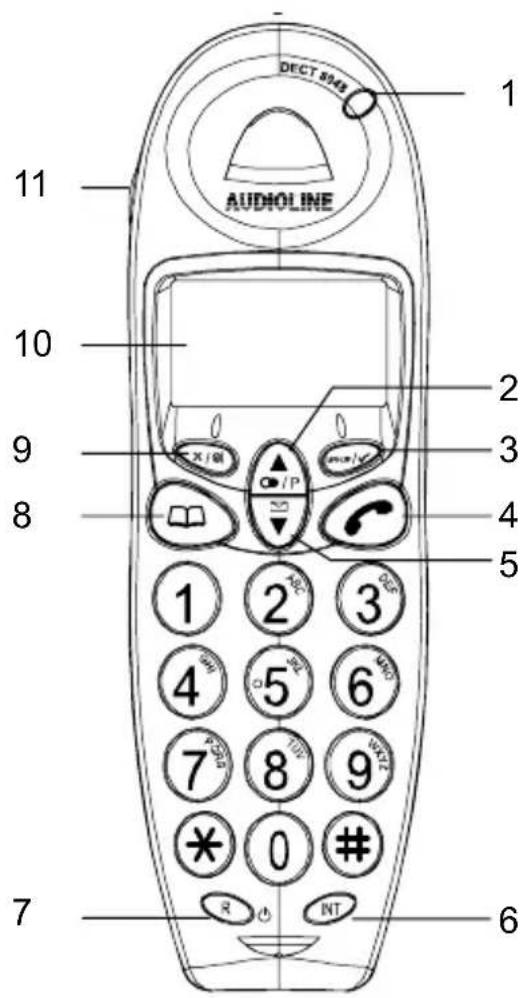

Handset

1. Call indicator
2. Scrolling button / Redialling button
3. Menu button
4. Call button
5. Scrolling button / Calls list CLIP
6. Internal calls
7. R button
8. Phone book / Exit menu
9. Muting button / Clear button
10. Display
11. Handsfree mode

DECT 8948 AUDIOLINE 1 11 10 2 3 4 5 9 8 1 2 3 4 5 6 7 8 9 * 0 # R INT 6

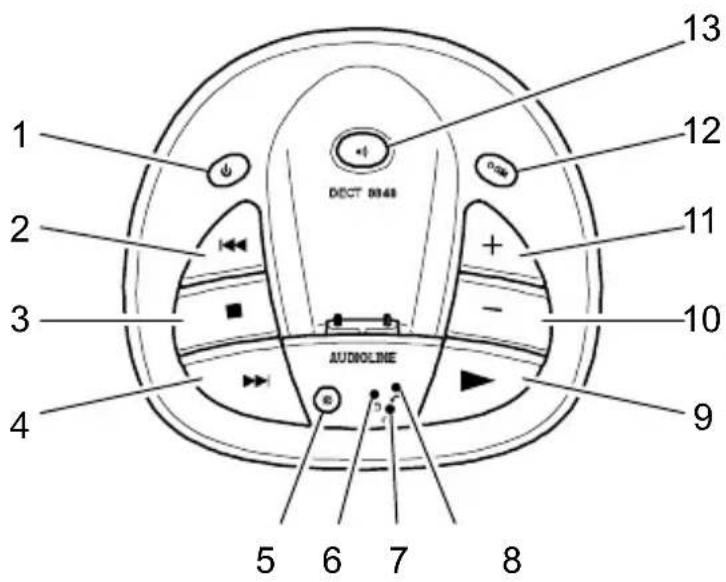

Base station

1. Answer On/Off
2. Skip Back / Memo
3. Stop
4. Skip Forward / Answer Delay
5. Delete
6. LED: Answering machine On/Off
7. LED: Charge control lamp
8. LED: Call and power indicator
9. Play
10. Volume Down
11. Volume Up
12. Outgoing Message (OGM)
13. Paging button (locate handset)

13 12 11 10 AUDIOLINE 9 7 6 5 4 3 2 1 DECT 0048

GB

Operating the Telephone

4 Operating the Telephone

Illustration and description of operations

Enter digits or letters
×/⊗	Press the button depicted briefly
2 sec ×/⊗	Press the button depicted for 2 seconds
Press and hold ×/⊗	Press and hold the button depicted
Release ×/⊗	Release the button depicted
(( ) Handset rings
(( ) Base station rings
▲ Remove the handset from the base station
▼ Place the handset in the base station
EXAMPLE or Y Text or icons in the display

Icons in the display

Icon Description
On: A	call is currently being made.
On: Handsfree mode has been switched on.
EXT	On: An external call is currently being made.Flashing: An external call has been received.
INT	On: An internal call is currently being made.Flashing: An internal call has been received.
	On: You have opened the caller list (CLIP) and the call has not been previously viewed.Flashing: New calls have been stored in the calls list (CLIP).
On: This phone number in the calls list was not answered.
On: This phone number in the calls list was answered.
	Flashing: Please charge the handset.On: Displays battery capacity.Runs through the segments: The handset is being recharged.
On: Appears when using the phone book.
On: Appears immediately programming mode has been activated.
	On: The key lock function is switched on.
	On: The connection to the base station is good.Flashing: The handset is out of range of the base station.
	On: The phone number is in excess of 12 digits.

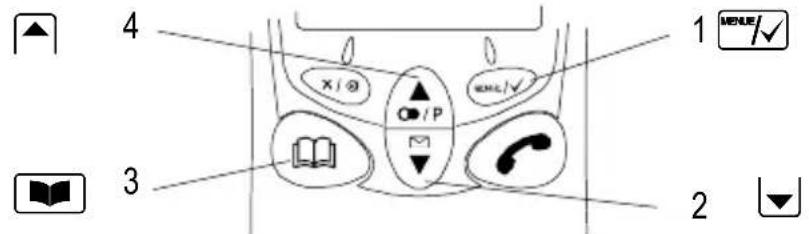

Navigation buttons

All descriptions in this operating manual assume that the handset is in Standby mode. Standby mode is activated by pressing the 📄 button.

4 X / Ø Ø / P MENL/√ 3 2 1 MENS/✓

The buttons depicted in the descriptive passages of this manual have a standard appearance, i.e. the contours and icons in the buttons could differ slightly from the actual appearance.

Button In Standby mode In the menu
1	- Opens the main menu - Opens the menu displayed
2	- Opens the calls list	- Scroll through the menu- Change the settings
3	- Opens the phone book - Skip one level back
4	- Opens the redialling list	- Scroll through the menu- Change the settings
R	- Switch the handset on /off	- No function

Navigation in the menu

All the functions can be accessed via the different menus.

Refer to Menu Structure ☐ Page 50 for information on how to access each respective function.

MENU/✓	Open the main menu
or	Select the required submenu
MENU/✓	Open the submenu
	Use the digit keys to enter numbers or letters
MENU/✓	Confirm the input
	Skip one level back
2 sec	Interrupt the programming and saving processes and return to Standby mode

Every process is automatically cancelled if there is no input within 16 seconds.

Operating the Telephone

Creating phone book entries - example

The example in Creating phone book entries explains how to navigate and make entries in the phone book. The phone book memory has a capacity of 30 entries.

Open the main menu

Select the function and confirm it

Enter the name and confirm it

Enter the phone number and confirm it

Proceed in the same way as in this example for all settings. Refer to Menu Structure ☐ Page 50.

5 Telephoning

Switching the handset on/off

R Switch the handset on

2 sec R Switch the handset off

Taking a call

(<<), ↗ or □ Take the call

Ending a call

or End the call

Making a call

Enter the phone number (max. 32 digits)

✗/⊗ Following incorrect input, press to delete the last digit

Dial the phone number

It is also possible to press the Call button first to obtain an outside line. The digits of the phone number entered are dialled immediately. It is not possible to correct any wrong digits in the phone number entered when using this dialling method.

Redialling

The telephone stores the last five numbers dialled in a redialling list.

▲ Open the redialling list

▲ or ▼, ↗ Select the entry required and dial the number

Calling back calls received

The telephone stores the last 20 calls received in a calls list.

▼ Open the calls list

▲ or ▼, Select the entry required and dial the number

Dialling phone numbers from the phone book

Phone numbers must have been stored in the phone book. Page 50.

Open the phone book

▲ or ▼, ↗ Select the entry required and dial the number

Internal calls

Making internal calls

In order to be able to make free internal calls, two or more handsets (HS1, HS2, ...) must be registered on a base station.

HS1: INT, e.g. 2 Dial the internal phone number of the handset required

HS2: Take the internal call on the other handset

HS1 / HS2: End the internal call

Telephoning

Transferring external calls internally

HS1: INT, e.g. 2 Dial the internal phone number during the external call

HS2: Take the internal call on the other handset

HS1: Transfer the call

If the handset called does not answer, take the external call back by pressing the INT button.

Holding a call / Brokering

While an external call is in progress, it is possible to dial another handset in order to consult with someone. The external caller is put on hold while you converse with the second, internal person called. You can switch between the two callers as often as necessary.

HS1: INT, e.g. 2 Dial the internal phone number during the external call

HS2: Take the internal call on the other handset

HS1: INT Switch between the callers

Conference calls

An external call can be transferred to another internal handset for a conference call.

HS1: INT, e.g. 2 Dial the internal phone number during the external call

HS2: Take the internal call on the other handset

HS1: 2 sec # Start the conference facility

HS1 / HS2: The conference call is ended when one of the internal callers ends the call

Setting the receiver volume

The volume can be adjusted to one of 5 levels during a call.

or Press the button during the call

Displaying the duration of a call

The duration of a call is displayed in hours, minutes and seconds during a call and for a short period after it has been ended.

Handsfree mode

Use this function to be able to listen to the caller through the loudspeaker.

Switch on handsfree mode

Switch off handsfree mode

Muting the microphone in the handset

The microphone in the handset can be activated and deactivated during a telephone conversation.

☒/⊗| Switch the microphone off (muting function)

×/⊗ Switch the microphone on

Key lock

Incoming calls can still be taken in the normal way even with the key lock activated.

3 sec *

Activate the key lock function

2x *

Deactivate the key lock function

Temporary tone dialling

Even if you can only operate the telephone using pulse dialling, you can switch to tone dialling temporarily during a call in order, for example, to access an answering machine.

* Activate temporary tone dialling

* Deactivate temporary tone dialling

Dialling pause

When the phone is integrated in a private branch exchange, it is necessary to dial a specific number (e.g. 0 or 9) in order to obtain the dialling tone for an outside line. In the case of older exchanges, it can take some time until the dialling tone can be heard. Insert a dial-ling pause in such cases.

The pause can also be entered with the phone numbers in the phone book.

0, 2 sec P, 1234... Insert the pause

Ringing melody

The ringing melody of the handset and/or base station can be deactivated ☐ Page 50.

In the event of an incoming call no ringing is heard.

Locating the handset (Paging)

If you have mislaid the handset, it can be located easily by means of an acoustic signal.

●) (") Activate the acoustic signal to locate the handset

or Stop the acoustic signal

Range

The handset has a range of approx. 50 meters indoors and approx. 300 meters outdoors. When the connection to the base station is good, the 1) icon appears in the display. If the handset is moved too far from the base station, the 1) icon flashes and acoustic warning signals are issued. Move nearer to the base station, otherwise the call will be disconnected.

Answering Machine

6 Answering Machine

Your answering machine is equipped with vocal operator guidance. Pay attention to the instructions and information.

Language setting

The answering machine “speaks” German and cannot be altered.

Setting the weekday and time on the answering machine

The weekday and time of receipt is announced when any of the messages is played back (24-hour format).

2 sec ■ Activate Setup mode

or, Set the weekday and confirm

or, Set the hour and confirm

or ▶▶, ■ Set the minute and confirm

Playing back the weekday and time

■ Playback the weekday and time

Switching the answering machine on/off

① Switch the telephone answering machine on/off

When the answering machine is switched on, the outgoing message which the caller hears is played. In addition, the 📧 LED flashes.

Recorded message indicator

If a new message or memo has been recorded, the symbol flashes in the handset display.

Maximum recording time

The maximum recording time of the answering machine (for outgoing message and incoming messages) is 12 minutes. The maximum length of a message is 3 minutes. When the memory capacity for incoming messages is used up, the recording of messages is automatically deactivated. No more calls are recorded. In this case, the caller receives a message indicating that no messages can be left.

If there is a pause in excess of 7 seconds during recording, the call is automatically ended.

Setting the volume

The volume can be set to one of 10 different levels.

Adjust the volume

Delay taking the call (number of rings)

It is possible to set the number of times the phone should ring before the answering machine takes the call. It can be set between 2 and 9 rings, and Toll-saver mode is also available to enable pre-remote access free of charge.

The toll-saving, pre-remote access feature can be used to check whether messages have

been received on your answering machine from an external telephone.

• If new messages have been left on the answering machine, your call is taken after just 2 rings of the phone.
• If no messages have been recorded, the call is taken after 6 rings. Place the receiver on-hook before the 6th ring. In this way, no call charges accrue.

Press and hold ▶▶▶

Press and hold the button until the required setting is announced. Then release the button.

The setting is saved and is played back.

Listening-in to incoming messages

When the answering machine is switched on, you can listen to incoming calls without actually taking the call.

If you do not want to listen to callers, simply set the answering machine volume to zero.

If you want to take the call as the outgoing message is being played or a message is being recorded, simply take the call in the normal way.

Taking a call

When the answering machine is already answering a call, you can take it personally at any time. Recording of the message is automatically stopped in this case.

or

Take the call

Selecting answering mode

The answering machine is provided with two, pre-recorded outgoing messages. After outgoing message 1 (OGM 1) has been played, the caller can leave a message. Outgoing message 2 (OGM 2) on the other hand is purely an announcement stating that no messages can be left. If the answering machine memory is full, outgoing message 2 is automatically played to callers. Both outgoing messages can be replaced by those of your own.

2 sec OGM Activate Setup mode

Activate outgoing message 1 (with recording)

▶▶▶ I Activate outgoing message 2 (without recording)

Recording, controlling and deleting outgoing message

Your answering machine is provided with two pre-recorded outgoing messages ☐ Select answering mode. Both outgoing messages can be replaced by ones of your own or the pre-recorded, default messages restored.

Answering Machine

Recording outgoing messages

An outgoing message must be at least 3 seconds long and a maximum of 3 minutes.

Please note: The longer the outgoing message, the less recording time is available for incoming messages!

2 sec OGM

Activate outgoing message mode.

Wait for the outgoing message.

Press and hold

Start OGM recording mode

To record outgoing message 1, press ◀◀◀. To record outgoing message 2, press ▶▶▶I

(( )

Speak your message after the acoustic signal.

Release

End recording mode.

The new outgoing message is played back.

Controlling the current outgoing message

OGM

Play the outgoing message

Stop playback

Deleting self-recorded OGM and restoring default OGM

After deleting your own outgoing message, the default message is automatically reactivated.

OGM

Play the outgoing message

⊗

Start the deleting process / Activate the default

outgoing message

Playing back and deleting recorded messages

The message indicator flashes when messages have been recorded.

Playing back messages

The recorded messages are played back in the sequence they were recorded. The weekday and time of recording are announced with each message.

2 sec ▶

Play the new messages

▶

Play all the messages

If you want to interrupt playback briefly (pause) press the ▶ button during playback. An acoustic signal is then issued every 10 seconds.

To resume playback, press ▶ again.

■

Stop playback

◀◀◀

Repeat playback of current message

2x

Play previous message

▶▶▶

Play next message

Deleting a message

Play the message to be deleted

Delete the message

Deleting all messages

All the messages and memos are deleted.

▶ Start playing back the messages

Often as necessary ▶▶▶I Skip to the end of all recorded messages

Delete all the messages

Recording, playing and deleting a memo

A memo is a message spoken directly on the answering machine, e.g. intended for other members of the family, and can be treated in the same way as other recorded messages.

Recording the memo

A memo cannot be longer than 3 minutes.

Press and hold ▶ Activate memo recording

(()) Speak your message after the acoustic signal.

Release ◀◀◀ End memo recording

Playing back the memo

A memo is played back in the same way as an incoming message.

Playing back messages Page 44

Deleting a memo

A memo is deleted in the same way as an incoming message.

Deleting a message and Deleting all messages Page 45

Remote access

It is possible to call your answering machine from a distant phone to listen to any messages recorded and execute other functions. A condition for this is that the telephone from which you make the call can be set to Tone dialling mode (DTMF).

If you want to contact another answering machine from your telephone using remote access, please observe the information in Section Temporary tone dialling on Page 41.

Security code for remote access

In order to use the remote access facility, you must enter the 3-digit security code. The default security code set at the factory is "000". It can be changed as follows:

2 sec ☒ Activate setting mode

or ▶, Change the 1st digit and confirm

or ▶, ☒ Change the 2nd digit and confirm

or ▶, Change the 3rd digit and confirm

The new security code is announced.

Answering Machine

Starting remote access

Dial your own phone number

Press the button during the outgoing message and enter the security code

Remote access is automatically cancelled if there is no input within 10 seconds.

If you make an incorrect entry, the answering machine's outgoing message is played again.

If the security code is entered incorrectly three times, the line is automatically disconnected.

2 Play all messages

or

3 Only play newly recorded messages

It is possible to activate other functions within ten seconds of the message playback ending.

Key function assignment table

End remote access / Place phone on-hook

Key function assignment for remote access

The following table provides an overview of the respective functions assigned to the individual buttons.

Pressing 8 opens a further menu with which to change the outgoing message on your answering machine via the remote access facility.

Listen to the entire menu announcement before pressing the relevant button to open the required submenu.

Level 1Key	Level 2Key	Functions
1	Call in information for the user (play main menu)
2	Play, stop messages, pause
3	Play new messages
4	Play current message again (corresponds to [◀◀])
5	Delete current message
6	Play next message (corresponds to ▶▶▶)
7	Switch the telephone answering machine on/off
8	Record, change, delete outgoing message
	1	Return to main menu (back to Level 1)
	2	Play outgoing message currently active
	3	Record OGM 1 [◀] Recording outgoing messages Page 43
	4	Record OGM 2 [◀] Recording outgoing messages Page 43
	5	Select OGM 1 [◀] Select answering mode Page 43
	6	Select OGM 2 [◀] Select answering mode Page 43
	8	Call in user information (play menu level 2)
9	Enter new security code
0	Enter day and time announcement
On-hook ends remote access

Remote activation of the answering machine

Dial your own phone number
	If you forgot to switch your answering machine on, your call is taken after 10 rings.
*, 隣	Press the Star button during the outgoing message and enter the security code
7	Activate the answering machine
	End remote access

Answering Machine

Remote programming of a new outgoing message

Dial your own phone number

* , Press the Star button during the outgoing message and enter the security code

8 3 Start recording OGM 1

Speak your message after the acoustic signal

# End recording of OGM 1 and save it

End remote access

Private Branch Exchanges / Supplementary Services

7 Private Branch Exchanges / Supplementary Services

R button with private branch exchanges

If the telephone is connected to a private branch exchange, all the functions associated with the R-button, such as transferring calls, automatic call back, etc., can be used.

Please refer to the operating manual provided with your private branch exchange to determine which Recall time must be set to be able to use the functions. The retailer where you purchased the exchange can provide information as to whether the telephone will work properly with the exchange. Setting the recall time Page 50.

Dialling pause

When using private branch exchanges, it is necessary to dial a specific number to obtain the dialling tone for an outside line. With some older private branch exchanges, it takes a little time before the dialling tone becomes audible. Enter a dialling pause in the case of such private branch exchanges. You can then dial the phone number without having to wait for the dialling tone. Setting the dialling pause Page 41.

The pause can also be entered with the phone numbers in the phone book.

R-button and supplementary services

The telephone supports the supplementary services offered by your telephone network provider, such as brokering, call waiting and conference calls. These supplementary services can be used in conjunction with the R-button. Please ask your telephone network provider which recall time must be set in order to use the supplementary services. Contact your telephone network provider with regard to enabling supplementary services. Setting the recall time Page 50.

Answering machine in the telephone network

If your telephone network provider includes an answering machine for you in the telephone network, the envelope icon (VMWI ^1 ) appears to indicate new messages have been recorded for you. The availability of an external answering machine and indication of new messages via the envelope icon are optional services offered by the telephone network provider. These functions can only be used when your telephone network provider actually offers the service. Contact your network provider for further information.

Caller number display (CLIP ^2 )

If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transfer of his phone number, the corresponding message appears in the display. The phone number is not displayed and, thus, cannot be stored in the calls list.

The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.

^1 VMWI: Visual Message Waiting Indication
^2 CLIP: Calling Line Identification Presentation

Menu Structure

8 Menu Structure

PHONE BOOK ADD ENTRY

	DELETE ENTRY
	MODIFY ENTRY
SETUP BASE VOLUME VOLUME 1, 2, 3, OFF
	BASE MELODY MELODY 1, 2, 3
	DEL HANDSET PIN?	5	HANDSET?
	PIN CODE	PIN? 5	NEW PIN? RETYPE
	DIAL MODE TONE
		PULSE
	RECALL RECALL 1	(100 ms)
		RECALL 2 (300 ms)
	DEFAULT PIN?	5	CONFIRM

HANDSET BEEP KEYTONE ON - OFF
	LOW BATTERY ON - OFF
	RANGE ON - OFF
INT RING VOL VOLUME 1, 2, 3, OFF
EXT RING VOL VOLUME 1, 2, 3, OFF
INT MELODY MELODY 1, 2, 3
EXT MELODY MELODY 1, 2, 3
AUTO ANSWER ON - OFF^2
NAME ......
LANGUAGE (7 LANGUAGES)
KEY LOCK ......

GB

REGISTER

SELECT BASE

BASE 1

REG BASE

BASE 1 2 3 4

^5 Default system PIN: 0000
2 If the function has been activated, an incoming call is automatically taken on removing the handset from the base station.

9 Expanding the Telephone System

The internationally recognised GAP ^1 standard ensures the compatibility of handsets and base stations from different manufacturers. This enables AUDIOLINE equipment and that from other manufacturers to be integrated in one telephone system.

Multiple handsets

Up to 4 handsets can be registered on the base station.

Registering handsets

Before beginning with the registration procedure for a handset, switch the relevant base station to Register mode.

3 sec ●) Activate Register mode

Complete the registration process for your handset ☐ Page 50. Use the PIN code currently set for the registration process ☐ Page 50.

After being registered, the handset is assigned an internal call number. This internal call number appears in the display.

To register handsets from other manufacturers, read the operating manual provided with the respective handset.

Deregistering handsets

A handset registered on a base station can only be deregistered by another handset registered to the same base station ☐ Page 50.

Multiple base stations

The handsets can be simultaneously registered on up to 4 different base stations. Each base station requires its own telephone line socket. Connections with the same or different call numbers can be used.

Calls in progress, however, cannot be transferred from one base station to another.

Increasing the range

Position the base stations so that the ranges of the individual base stations overlap. Test the range of your handsets because obstructions in buildings restrict the range. Register the handset on all the base stations. Activate the Select Base function on the base stations Page 50. The handset automatically searches for the nearest base station with the best connection.

Mobility through different installation locations

Register the handset on various base stations at different locations. Activate the Select Base function on the base stations ☐ Page 50. Regardless of your current location, the handset automatically searches for a base station in range.

If Problems Occur

10 If Problems Occur

Service hotline

Should problems arise with the telephone, please refer to the following information first of all. In the case of technical problems, contact our Service Hotline, tel. [phone] (Telekom costs at time of going to print: 12 ct/min). In the case of claims under the terms of guarantee, please contact your sales outlet. There is a 2 year period of guarantee.

Problems and solutions

Problems Solutions
No connection to base station possible	- Check that the handset has been registered on the base station with the correct PIN code. 50
No telephone calls possible -	The telephone line is not corrected properly or is defective. Only use the telephone connection cable supplied.- Test whether the telephone connection is in order by using another telephone.- The power adaptor plug is not plugged in or there is a complete power failure.- The rechargeable batteries are empty or defective.- The handset is too far from the base station.- The incorrect dialling mode is set. 50
Connection is disturbed or cut off	- The handset is too far from the base station.- The base station is in an unsuitable location.
The system no longer re-sponds	- Reset all the functions to their default settings. 50- Disconnect the power adapter plug briefly from the power socket.
The batteries are empty after a very short time	- The batteries are empty or defective.- Place the handset in the base station properly. Clean the contact surfaces on the handset and base station using a soft, dry cloth.- Insert the handset in the base station for 14 hours.
The caller number display (CLIP) does not function	- The caller number display function is an optional service offered by telephone network providers. Contact your network provider for further information.- The caller has suppressed the transmission of their phone number.

11 Technical Specifications

Technical data

Feature Value
Standard DECT-GAP	1
Power supply Input: 220/230 V, 50 Hz	Output: 6.5 V, 150 mA
Range Outdoors: Approx. 300 m	Indoors: Approx. 50 m
Standby Up to 150 h
Max. talk time Up to 11 h
Rechargeable batteries 2 x 1.2 V, size: AAA
Dialling mode Tone dialling mode (default)	Pulse dialling mode
Permissible ambient temperature 10°C to 30°C
Permissible relative humidity 20% to 75%
Flash function 100 ms, 300 ms
Handset name DECT 8048 (adjustable)
Phone book 30 entries
Calls list 30 entries
Redialling list	5 entries
Battery charge warning indicator	Yes
Key tone	On/Off
Out of range warning	Yes
Automatic answering	On/Off
Ringing volume, handset (internal and external)	3 levels and off
Receiver volume	5 levels

GB

^1 DECT: Digitally Enhanced Cordless Telecommunication = Standard for cordless telephones.

GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from other manufacturers.

Technical Specifications

Ringing melody, handset (internal and external)	3 melodies
Key lock Yes
Ringing volume, base station 3 levels and off
PIN code 0000 (default)
Handsfree mode Yes
RPAS Yes
No. of handsets per base station Max. 4
Languages 7
Access to phone book during call Yes
Conference facility Yes
Answering machine Yes
Outgoing Messages 2
Pre-recorded OGM Yes
Total Recording Time 11.5 Minutes
Recording Time per OGM	3 Minutes
Recording Time per ICM	3 Minutes
Maximum Number of ICM	59
Ring Delay Selector	2-9, Toll Saver

Hearing aid compatibility

The telephone is compatible with most popular hearing aids on the market. However, it cannot be guaranteed that all hearing aids will work perfectly.

If your hearing aid is not compatible with the telephone and interference occurs, try the following solutions:

• Do not switch the hearing aid to "T".
• Use the handsfree facility on the handset and set the volume as loud as possible.
• Hold the handset approx. 15 cm from the hearing aid.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directive:

1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the device.

To view the complete Declaration of Conformity, please refer to the free download available on our web site www.audioline.de.

12 Maintenance / Guarantee

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or powerpacks used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies resulting from material or production faults which occur during the period of guarantee will be eliminated free of charge. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties. Damage caused as a result of improper handling or operation, incorrect positioning or storing, improper connection or installation, Acts of God or other external influence are not covered by the terms of guarantee. In the case of complaints, we reserve the right to repair or replace defect parts or provide a replacement device. Replacement parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All rights to claims under the terms of guarantee in accordance with this agreement must be asserted exclusively with regard to your sales outlet. Two years after the purchase and transfer of our products, claims under the terms of guarantee can no longer be asserted.

GB

Index

13 Index

A

Answering machine, 42

Answering machine in the telephone network, 49

Answering machine language, 42

Answering machine LED, 42

Automatic dialling, 51

B

Base station, 35

Batteries, 32

Battery charge status, 34

Brokering, 40

C

Call and power indicator, 35

Call button, 35

Call indicator, 35

Caller number display, 49

Calling back missed calls, 39

Charge control lamp, 35

Charging the batteries, 34

Checking the package contents, 33

Conference calls, 40

Connecting the base station, 33

Connecting the charging station, 33

Controlling the current outgoing message, 44

Creating phone book entries, 38

D

Declaration of Conformity, 54

Delay taking the call, 42

Deleting a memo, 45

Deleting a message, 45

Deleting all messages, 45

Deleting messages, 44

Deleting outgoing message, 43

Deleting self-recorded OGM, 44

Deregistering handsets, 51

Descriptions, 36

Dialling pause, 41, 49

Dialling phone numbers from the phone book, 39

Display, 35

Disposal, 32

E

Ending a call, 39

Expanding the Telephone System, 51

F

Free of charge pre-remote access, 42

G

Guarantee, 55

H

Handset, 35

Handsfree mode, 35, 40

Holding a call, 40

|

Icons in the display, 36

Increasing the range, 51

Indication of recorded messages, 42

Inserting the batteries, 33

Installation location, 32

Intended use, 32

Internal calls, 35, 39

K

Key function assignment, 46

Key function assignment table, 47

Key lock, 41

L

Listening-in to incoming messages, 43

Locating the handset, 41

M

Maintenance, 55

Making a call, 39

Making internal calls, 39

Maximum recording time, 42

Medical equipment, 32

Menu button, 35

Mobility, 51

Multiple base stations, 51

Multiple handsets, 51

Muting the microphone, 40

Muting/Clear button, 35

N

Navigation, 37

Navigation buttons, 37

Number of rings, 42

0

Operating the Telephone, 36

P

Paging, 41

Paging button, 35

Phone book / Exit menu, 35

Playing a memo, 45

Playing back messages, 44

Playing back weekday and time on the answering machine, 42

Power failure, 32

Private branch exchanges, 49

Problems and solutions, 52

Putting the telephone into operation, 33

R

R button, 35

R button with private branch exchanges, 49

R-button and supplementary services, 49

Range, 41

Receiver volume, 40

Recording a memo, 45

S

Recording outgoing messages, 43, 44

Redialling, 39

Registering handsets, 51

Remote access, 45

Remote activation of the answering machine, 47

Remote programming of a new outgoing message, 48

Representations, 36

Restoring default OGM, 44

Ringing melody, 41

Safety information, 32

Scrolling button/Calls list CLIP, 35

Scrolling/Redialling button, 35

Security code for remote access, 45

Selecting answering mode, 43

Service Hotline, 52

Setting the volume of the answering machine, 42

Setting the weekday and time on the answering machine, 42

Starting remote access, 45

Supplementary services, 49

Switching the answering machine on/off, 42

T

Taking a call, 39, 43

Talk time, 40

Technical data, 53

Telephoning, 39

Temporary tone dialling, 41

Time announcement, 42

Toll-saver mode, 42

Transferring external calls internally, 40

V

VMWI, 49

GB
