RA 2040 - Alarm Clock Karcher Audio - Free user manual and instructions

Product Type	Alarm Clock Radio with CD Player
Power Supply	AC 230V ~ 50 Hz, 12W max
Backup Battery	2 x AAA 1.5V (not included)
Radio Band	FM stereo
Radio Presets	20 station memory
CD Playback	Audio CDs, supports Repeat and Random play
Display	LCD with backlight
Alarm	Dual alarms, wake to Buzzer, Radio, or CD
Snooze	9-minute snooze
Sleep Timer	Adjustable, turns unit off automatically
Remote Control	Included, full function remote
LED Downlight	Adjustable direction, on/off button
Mounting	Under-cabinet mountable with included hardware
AUX Input	3.5 mm stereo jack
Headphone Output	3.5 mm stereo jack
Speakers	Built-in stereo speakers
Cleaning	Wipe with dry cloth; no chemical cleaners
Safety	Keep away from water and heat; ensure ventilation

Frequently Asked Questions - RA 2040 Karcher Audio

How do I set the time?

While the unit is in standby mode, press and hold the PROG. button on the unit or TIME SET on the remote for 2 seconds. The hour will blink. Use the |◀◀/▶▶| buttons to adjust the hour, then press PROG./TIME SET again to set minutes. Press again to choose 12/24-hour format, then confirm.

How do I set an alarm?

In standby, press and hold AL. SET for 2 seconds. The alarm icon (Alarm 1) appears and the hour blinks. Set hour and minute using |◀◀/▶▶|, pressing AL. SET to confirm each. Then choose wake source: Buzzer (default), Radio (select FM), or CD (select CD icon). Press AL. SET to confirm. Repeat for Alarm 2. Activate alarms by pressing AL. SET repeatedly in standby.

How do I wake up to a CD?

Insert a CD, then set an alarm as described above. When selecting the wake source, press |◀◀/▶▶| until the CD icon appears on the display above the time. The CD will start playing at the alarm time. Ensure the CD is inserted and not damaged.

How do I mount the unit under a cabinet?

Use the included mounting template to mark three 1/4" holes on the underside of the cabinet. Drill holes, insert screws from inside the cabinet, add spacers if there is an overhang, then align the radio under the screws and tighten. See manual for detailed steps. Only a qualified technician should perform installation.

Why is there no sound from the speakers?

Check that the unit is powered on and not muted. Headphones plugged in will mute speakers. Ensure the function is not set to AUX without a device. Also check volume level. If using radio, ensure the station is broadcasting. For CD, ensure a CD is inserted properly.

How do I store radio presets?

Tune to the desired FM station. Press PROG. on the unit or MEM PROG on the remote. The display shows a blinking preset number (P01-P20). Use |◀◀/▶▶| to select the preset, then press PROG./MEM PROG again to store. Repeat for up to 20 stations.

How do I use the sleep timer?

When the unit is on, press the SLEEP button on the remote repeatedly to set a time (e.g., 90, 60, 30, 15 minutes). The display shows "SLEEP". The unit will automatically switch to standby after the selected time. To cancel, press SLEEP until "SLEEP" disappears.

How do I clean the unit?

Always unplug the unit before cleaning. Wipe the exterior with a dry, clean cloth. Do not use chemical cleaners, detergents, or abrasive materials. For the CD lens, use a soft lens cleaner if needed, but do not insert cleaning discs with rough brushes.

What kind of batteries does the backup use?

The backup battery compartment requires two AAA 1.5V batteries (not included). These maintain the clock and stored data during short power outages. Replace them if the backup function fails.

How do I program CD tracks?

While the CD is stopped, press PROG. on the unit or MEM PROG on the remote. The display shows "01" blinking. Use |◀◀/▶▶| to select the first track, then press PROG./MEM PROG to confirm. Repeat for up to 20 tracks. Press ▶/|| to start the programmed sequence. Press ■ STOP twice to clear the program.

USER MANUAL RA 2040 Karcher Audio

Under-Cabinet Kitchen Radio with CD Player | User Manual

Vorwort

Technical line drawing of a retro computer with labeled components and wiring (no text or symbols present)

Wichtig:

Line drawing of a simple cabinet or enclosure unit with no text or symbols

Line drawing of a simple rectangular box with a side panel and a small protrusion (no text or symbols)

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.
15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
18. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

19. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

20. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

21. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
  • What seems normal to you can be already for long time too loud and unhealthy.
  • To protect yourself from this, set the volume to a low level.
• Increase the volume slowly.
• Damage to your hearing can be extensive and cannot be reversed.
  • If you notice a hearing problem, please consult a doctor.

Condensation

EN

- Condensation may occur when moving the device from a cold to a warm environment. If there is moisture inside the player, it may not operate properly. Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

- If the unit is not used for a long period of time, it should be unplugged from the AC socket

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.

- Carefully remove possible protection cardboards and slipcovers.

Location of Controls

1. POWER button

2. FUNCTION button

3. AL.SET (alarm set) button

4. VOLUME buttons (VOL+/VOL-)

5. LIGHT ON/OFF button

6. MEMORY buttons (M+/M-)

7. LCD Display & Remote Sensor

8. CD Drawer

9. OPEN/CLOSE button

10. ↩ RANDOM/REPEAT button

11. ■ STOP button

12. ▶/|| PLAY/PAUSE button

13. PROGRAM button

14. |◀◀ SKIP-button

15. ▶▶| SKIP+ button

16. Screw holes for under-cabinet mounting

17. AC cord

18. AUX In 3,5 mm
19. Headphone Out 3,5 mm
20. Speakers
21. Backup Battery Compartment
22. LED Downlight

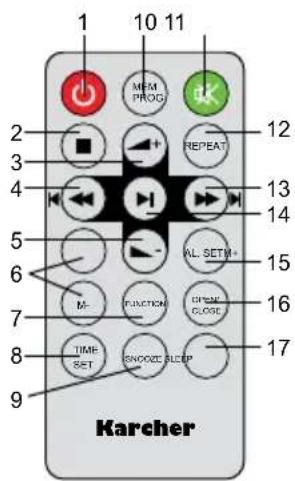

Remote Control

1. POWER button
2. ■ STOP button
3. VOLUME+ button
4. |◀◀ BACK button
5. VOLUME- button
6. MEMORY buttons (M+/M-)
7. FUNCTION button
8. TIME SET button
9. SNOOZE button
10. MEM PROG button
11. MUTE button
12. REPEAT button
13. ▶▶| FORWARD button
14. ▶/|| PLAY/PAUSE button
15. AL. SET button
16. OPEN/CLOSE button
17. SLEEP button

Cabinet Mounting

Tools required Included
Drill and 1/4” drill bitRuler or tape measureNailScissorsPhillips head screwdriverMasking tapeSafety glasses	3x Spacers3x Washers3x ScrewsMounting template

Before Mounting

Empty contents of the selected cabinet under which the unit will be mounted and thoroughly clean the underside of the cabinet to remove any grease residue which might be present. We recommend the unit be mounted at the front edge of the cabinet.

Diagram of a retro computer setup with labeled components and wiring, showing front panel and rear device (no text or symbols present)

Important:

• The installation of the unit under a cabinet should only be carried out by a qualified technician.
• For secure mounting, the screws must go into the radio to a depth of at least 3/8". If the overall length from the bottom of the cabinet shelf to the bottom of the over hand is more the 1-3/4". Then a wood shim will be necessary. A shim can be made from a sheet of plywood, using the Template to located the central lines for drilling the 1/4" mounting holes; the shim can be located between the cabinet shelf bottom and spacers. Make sure the wood is at least as thick as the

exces over 1-3/4" if a shim is necessary, longer screws are required. Longer screws (Type#10-32) are available at most local hardware stores Cut out the template on the line indicated. The template size and the screw hold positions are identical to the top of the clock radio.

EN

Step 1

If your cabinet does not have a overhang :

a) Position template in desired location on underside of cabinet, flush with front edge.

b) Then tape template in pace and go to step 2.

If your cabinet has overhang:

a) Measure the thickness of the overhang.

b) Fold front of the template downward along the printed guideline that is closet to the thickness of your cabinet.

c) Tape fold-down portion to backside of overhand, tape template to cabinet underside.

Note: If your cabinet has glue blocks or other obstructions, cut out corresponding areas on the template to clear them. Do not cut or cut through the screw holes indicated on the template.

CAUTION: It is recommended that safety glasses be worn while drilling screw holes to prevent the possibility of eye injury.

Line drawing of a simple 3D box or enclosure with a side panel and base (no text or symbols)

Fold template on dot- ted line

Line drawing of a simple rectangular box with a side panel and a small protrusion (no text or symbols)

Measure thickness of cabinet overhang

Step 2

Drill 1/4" inches diameter holes through the underside of the cabinet bottom shelf using the three points marked on the template.

Step 3

Remove template and clean drill shavings from inside and underside of cabinet.

Step 4

If your cabinet does not have an overhang. Go to Step 5.

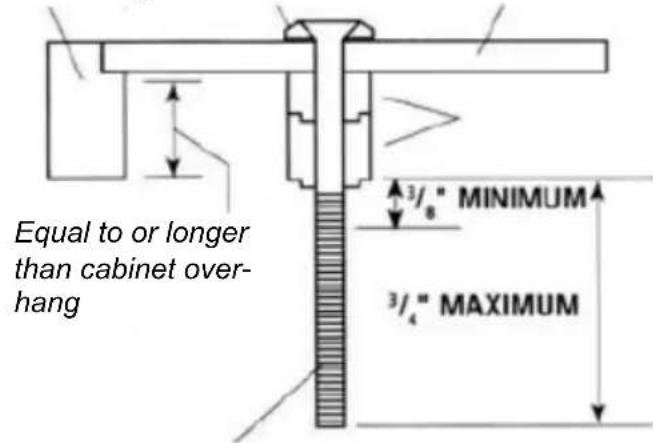

If your cabinet has an overhang. Select the spacer or combination of spacers that is equal to or longer than the cabinet overhang.

Cabinet overhang Washer Cabinet bottom

Selected screws which meet minimum, but do not exceed maximum length

Step 5

Insert screws from inside the cabinet. The washers must be used on metal cabinets, and on wood cabinets if you did not countersink the drilled holes. Position washers, flat side down, and place screws into the holes.

If your cabinet does not have an overhang, go to Step 7.

Step 6

Hold screw heads down while you push the selected spacers onto the screws under the cabinet. Be sure to push up spacers until they fully nested (if more then one is in used).

Step 7

Align radio under the screws. Hold the screw holes in the top of the clock radio against the mounting screws and partially tighten the screws.

Do not fully tighten until all 3 screws have been started (the top front edge of the clock radio should clear the overhang.).

First Installation

Power Supply

- Connect the AC plug into a suitable wall outlet. Make sure that the output power of the wall outlet matches the required power supply as indicated on the unit.

Inserting backup batteries (not included):

1. Open the battery compartment cover.

2. Insert 2 batteries "AAA" 1.5V into the battery compartment. These batteries keep at short power outages the clock and the data stored in the processor, but will not be shown in the display. Please observe the correct polarity marked inside the battery compartment ("+" and "-").

3. Place the cover again onto the battery compartment and press it carefully until it snaps in.

Notes:

- If the unit is not in use for a longer period of time, take out the batteries and disconnect the AC plug.

- If the batteries are low on power, the backup function might not work.

Setting the Clock

1. While the unit is in standby mode, press and hold for 2 seconds the PROG. button on the unit or the TIME SET button on the remote control. The hour will blink.
2. Set the desired hour by pressing the |◀◀ / ▶▶| buttons.
3. Press the PROG. button or TIME SET button again. The minutes will start blinking.
4. Set the desired minute by pressing the |◀◀/▶▶| buttons.
5. Press the PROG. button or TIME SET button again to select between 24 and 12 hour display.
6. Press the PROG. button or TIME SET button again to confirm all settings. The time is now set.

Setting an Alarm

1. While the unit is in standby mode, press and hold for 2 seconds the AL. SET button on the unit or on the remote control. The alarm icon (Alarm 1) appears and the hour is blinking.
2. Set the desired hour of Alarm 1 by pressing the |◀◀/▶▶| buttons.
3. Press the AL. SET button again. The minutes will start blinking.
4. Set the desired minutes of Alarm 1 by pressing the |◀◀ / ▶▶| buttons.
5. Press the AL. SET button again. You can now select whether the alarm should go on to Buzzer, Radio or CD:

Wake to Buzzer:

This is the default setting (no indication on the display above the time).

Wake to Radio:

Press the |◀◀/▶▶| buttons until "FM" is shown in the display (above the time). At the set time the alarm will go on at the radio station you last listened to.

Wake to CD:

Press the |◀◀/▶▶| buttons until the CD icon is shown in the display (above the time). This feature only works when you have a CD inserted in the CD drive. This CD will be played at the set alarm time.

1. Press the AL. SET button again to confirm your settings for Alarm 1.
2. The alarm icon (Alarm 2) appears and the hour is blinking.
3. Repeat steps 1 - 6 in order to set Alarm 2.

To select which of the 2 alarms should be active, press the AL. SET button repeatedly while the unit is in standby mode (clock display). The display will show consecutively the Alarm 1 icon, then Alarm 2 icon, then both Alarm icons. Press the AL. SET button once again to deacitvate the alarms (no alarm icon will be displayed).

Snooze Function:

The snooze function allows you to delay an active alarm for 9 minutes. To do so, press the SNOOZE button on the remote control once while the alarm is active. "SNOOZE" will appear in the display. The alarm will stop and come on again after 9 minutes. To turn off the snooze function and the alarm, press the POWER button.

Turning Off the Alarm:

To switch off an alarm while active, press the POWER button on the unit or on the remote control.

Adjusting the Volume

• To increase the volume, press the VOL+ button on the unit or on the remote control.
• To decrease the volume, press the VOL- button on the unit or on the remote control.

LED Downlight

This unit is equipped with an LED downlight for your workspace.

• To turn the light on, press the LIGHT ON/OFF button on the unit.
• The direction of the light can be adjusted. Only do this carefully.
• To turn the light off, press the LIGHT ON/OFF button once again.

Sleep Function

When the unit is switched on you can select a time intervall after which the unit switches itself automatically into standby mode.

• Press the SLEEP button on the remote control repeatedly until the desired time is reached. The display will show "SLEEP".
• With the sleep timer activated you can check how much time is left until the unit switches itself into standby by pressing the SLEEP button once.
• To deactivate the sleep timer, press the SLEEP button repeatedly until "SLEEP" disappears from the display.

Radio

Playing the Radio

1. Press the POWER button to switch the unit on.
2. Press the FUNCTION button to select the FM Radio function ("FM" is shown in the display).
3. To automatically tune to the previously/next available radio station, press and hold for 2 seconds the |◀◀ or ▶▶| button. The tuning will stop at the first station found.
4. To manually tune to a radio station, press the |◀◀ or ▶▶| button repeatedly until you reach the desired frequency.
5. This unit supports FM Stereo reception. If a station is found which broadcasts in stereo, the display will show the stereo symbol.

Station Memory

This unit enables you to store up to 20 radio channels.

1. Search for a desired radio station as described above.
2. To store this radio station in the memory, press the PROG. button on the unit or the MEM PROG button on the remote control. The first memory preset "P01" will blink in the display.
3. By pressing the |◀◀ / ▶▶| buttons, select the preset (P01 - P20) on which you would like to store the tuned in radio station.
4. Press the PROG. button the unit or the MEM PROG button on the remote control once again to confirm.
5. Repeat steps 1 - 4 to store up to 20 radio stations.

Note: A stored frequency can only be erased by storing another frequency in its place.

Selecting a Stored Radio Station

In order to recall a stored radio station, turn on the radio and press the M-/M+ buttons repeatedly until you reach the desired memory preset.

Note: When you disconnect the AC power or in case of a power outage, the preset stations will be lost and must be reset, unless you have backup batteries installed.

CD Player

CD Playback

1. Press the POWER button to switch the unit on.
2. Press the FUNCTION button to select the CD function (CD symbol is shown in the display).
3. Press the OPEN/CLOSE button to open the CD drawer.

4. Insert a disc with the printed side facing up. Ensure that the disc is inserted correctly.

5. Press the OPEN/CLOSE button again to close the CD drawer.

6. Press the ▶/|| PLAY/PAUSE button to start playback.
7. To pause playback temporarily, press the ▶/|| PLAY/PAUSE button. To resume playback, press it again.
8. To stop playback, press the ■ STOP button.

Fast Forward / Fast Rewind & Skipping Tracks

• To jump to the beginning of the currently playing track, press the |◀◀ SKIP- button once. Press it a second time to skip to the previous track.
  • To skip to the next track, press the ▶▶| SKIP+ button once.
• To fast forward the currently playing track, press and hold the ▶▶| SKIP+ button. Once you reach the desired section of the track, release the button to resume normal playback.
• To fast rewind the currently playing track, press and hold the |◀◀ SKIP- button. Once you reach the desired section of the track, release the button to resume normal playback.

Repeat Function & Random Play

This unit enables you to repeatedly play one track or the whole disc.

1. During CD playback, press the ☐ RANDOM/REPEAT button once to repeat the current track repeatedly. The display will show "REPEAT".
2. Press the ☐ RANDOM/REPEAT button a second time to repeat the complete disc. The display will show "REPEAT ALL".
3. When you press the 📄 RANDOM/REPEAT button a third time, the unit will switch to random playback: All tracks on the CD will now be played in random order and the display shows "RAND".
4. To exit Repeat and Random modes, press the ↩ RANDOM/REPEAT button a fourth time.

Program Function

You can select up to 20 tracks to be played in a specific order determined by you.

1. While in CD stop mode (with a disc inserted) press the PROG. button on the unit or the MEM PROG button on the remote control. The first memory preset "01" will blink in the display.
2. By pressing the |◀◀/▶▶| buttons, select the track to be played first. Press the PROG. button on the unit or the MEM PROG button on the remote control again to confirm your selection.
3. The second memory preset "02" will blink in the display. Repeat step 2 to select up to 20 tracks for your order.
4. To start playback of your programmed order, press the ▶/|| PLAY/PAUSE button.
5. To stop playback, press the ■ STOP button.
6. To clear your programmed order, press the ■ STOP button once again.

AUX Input

You can connect the audio output of an external device such as an MP3 player to this unit to listen to the sound of that device through the amplifier of this music system.

• To connect the external device please use a standard stereo audio cable (3.5 mm to 3.5 mm plugs) (not included) to connect the headphone out or audio line out of the external device to the AUX input socket of this unit.
• Press the FUNCTION button to select "AUX".
• Switch the external device (e.g. MP3 player) on.
• Start playback of the external device and adjust the volume control of the main unit to the desired level.
• Remember to switch off the unit when you are finished using the external device.

Headphone Connector

You can connect headphones to the 3,5 mm headphone jack on the unit.

Once the headphones are connected, the speakers will be turned off. To turn the speakers back on, unplug the headphones from the unit.

Please mind the safety instructions concerning the use of headphones.

Specifications

Power Supply: AC 230V \~ 50 Hz

Power Consumption (max.): 12W

Technical specifications and design may change without notice.

Karcher

www.karcher-products.de
