USER MANUAL 351.142 SKYTRONIC

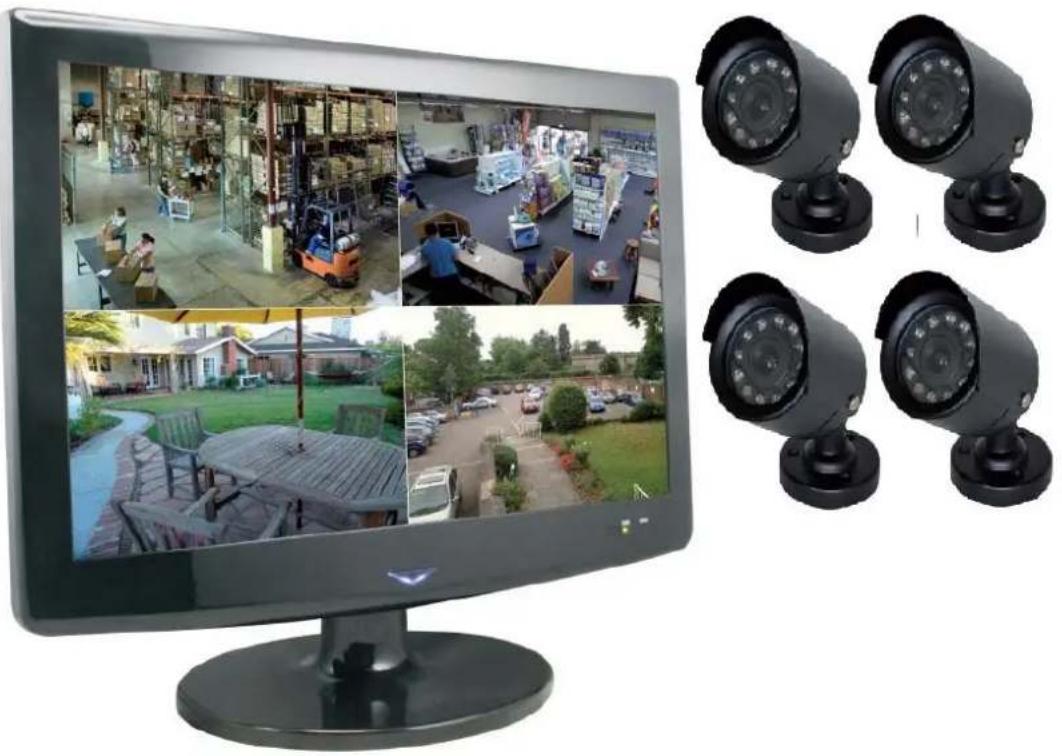

19" Touchscreen TFT DVR with 4 cams

DVR

Digital Video Recorder

Computer monitor displaying multiple security camera feeds in a warehouse setting, alongside four surveillance cameras (no text or symbols visible)

USER'S MANUAL

HANDLEIDING

GEBRAUCHSANLEITUNG

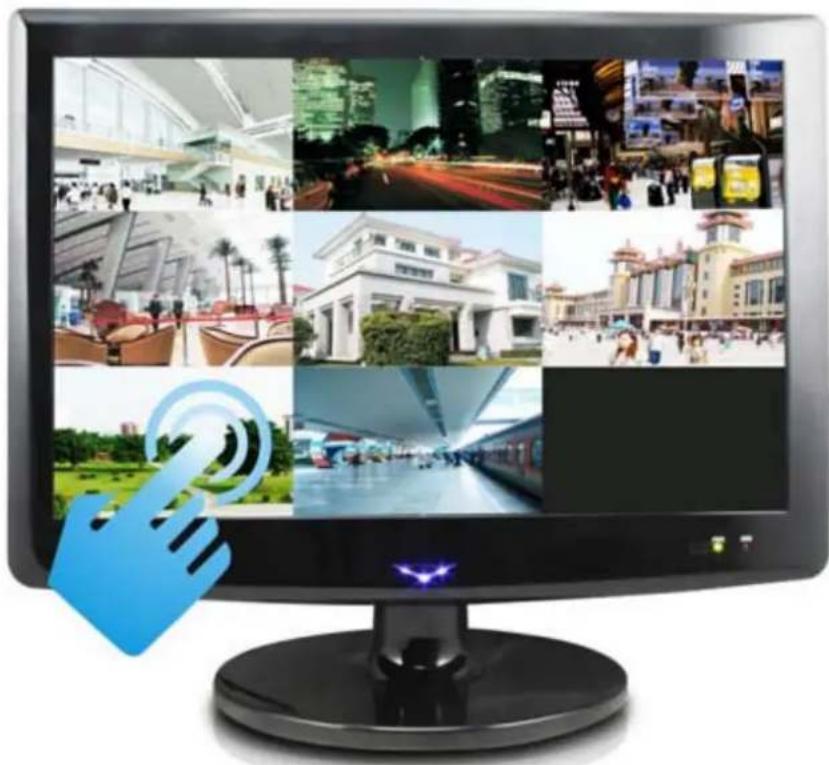

Touch Screen

Computer monitor displaying a grid of urban and transportation scenes with a blue cursor icon pointing at the bottom left (no visible text or symbols on the screens)

1. This 19" LCD DVR support Touch Screen, mouse ,remote control various operation ways.
2. This 19"LCD DVR is touch screen model, please use your finger or other object to touch the screen with a little pressure.
3. When the model is power on, please use your finger to touch any place 2-3 seconds, then it will have menu, and use same operation ways to do any parameter setting.
4. Double touch make single channel to full screen, then double touch return back multiple pictures.
5. Whatever you connect 4pcs cameras or 8pcs cameras, you can set the multiple screen in the menu, main menu→multiple picture.

Attention:

Please don't use sharp object to scratch the screen, don't use huge pressure to touch the screen or kick the screen.

Touch Screen

Computer monitor displaying a grid of urban and transportation scenes with a blue cursor icon pointing at the bottom (no visible text or symbols on the screens)

Computer monitor displaying a grid of urban and transportation scenes with a blue cursor icon pointing at the bottom (no visible text or symbols on the screens)

1. Use proper power source.

Do not use this product with a power source that applies more than specified voltage (100-240V AC).

1. Never insert anything metallic into the DVR case.

Putting something into the DVR case can be a source of dangerous electric shock.

1. Do not operate in wet & dusty area or use near water.

Avoid places like a damp basement or dusty hallway.

1. Do not expose this product to rain or use near water.

If this product accidentally gets wet, unplug it and contact an authorized dealer immediately.

1. Keep product surfaces clean and dry.

To clean the outside case of the DVR, use a cloth lightly dampened with water (no solvents).

1. Provide proper ventilation.

This DVR has a built in fan that properly ventilates the system.

1. Do not attempt to remove the top cover.

If there are any unusual sounds or smells coming from the DVR, unplug it immediately and contact an authorized dealer or service center.

1. Do not attempt to remove the top cover.

Warning: You may be subjected to severe electrical shock if you remove the cover of the DVR.

1. Handle DVR box carefully.

If you accidentally drop your DVR on any hard surface, it may cause a malfunction. If the DVR doesn't work properly due to physical damage, contact an authorized dealer for repair or exchange.

1. Use standard lithium cell battery. (NOTE: Manufacturer has preinstalled battery.)

The standard lithium cell 3v battery located on the mother board should be replaced if the time clock does not hold its time after the power is turned off. Warning: unplug the DVR before replacing battery or you may be subjected to severe electrical shock. Properly dispose of old batteries.

1. Make sure there is good air circulation around the unit.

This DVR system uses a hard drive for video storage, which generates heat during operation. Do not block air holes (bottom, upper, sides and back) of the DVR that cool down the system while running. Install or place this product in an area where there is good air circulation.

Chapter 1: DVR Features

Function Brief and Description
Real-time Monitoring	2 CH video output, support VGA virtual output, Net-viewer and Mobile Live monitor, and also support zoom in/out, auto sequence and PIP display.
Record Function	H.264 video compression format; record quality adjustable, multiple record modes (Always, Scheduled, Manual, Alarm, Motion detection and remote record)
Record storage	Support SATA large capacity HDD and save real-time record image to HDD.
Playback	Support DVR single CH and multiple CH Search/Playback of recorded files.
Backup	Support DVR backup via USB flash drive, removable drive, Recorder and network.
Alarm Setting Supports	HDD & video input alarm management.
Network operation	Supports remote surveillance by authority users to increase system security.
Mouse Operation	Supports Mouse operation for faster menu navigation.
PTZ Control Supports	PTZ camera operations through RS-485.

List 1-1

Other Features:

H. 264 video compression format, supports D1, HD1, CIF resolution

ADPCM audio compression format

Windows Graphical interface

BNC and VGA video out ports

Supports remote live viewing via 3G mobile networks

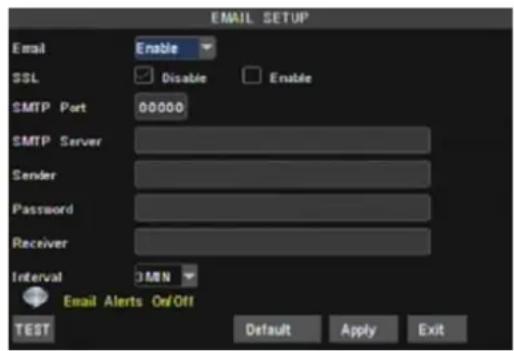

Supports sending email alerts when motion is detected by system

Triplex (recording, playback and net transmitting at the same time)

Supports USB mouse, IR remote control operation

Rear USB2.0 ports for backup, upgrade and mouse operation.

Supports Double Encode bit network transmission

The video package time is adjustable

Multiple alarm record mode

Multiple language OSD

Supports auto maintenance

Chapter 2: Layout

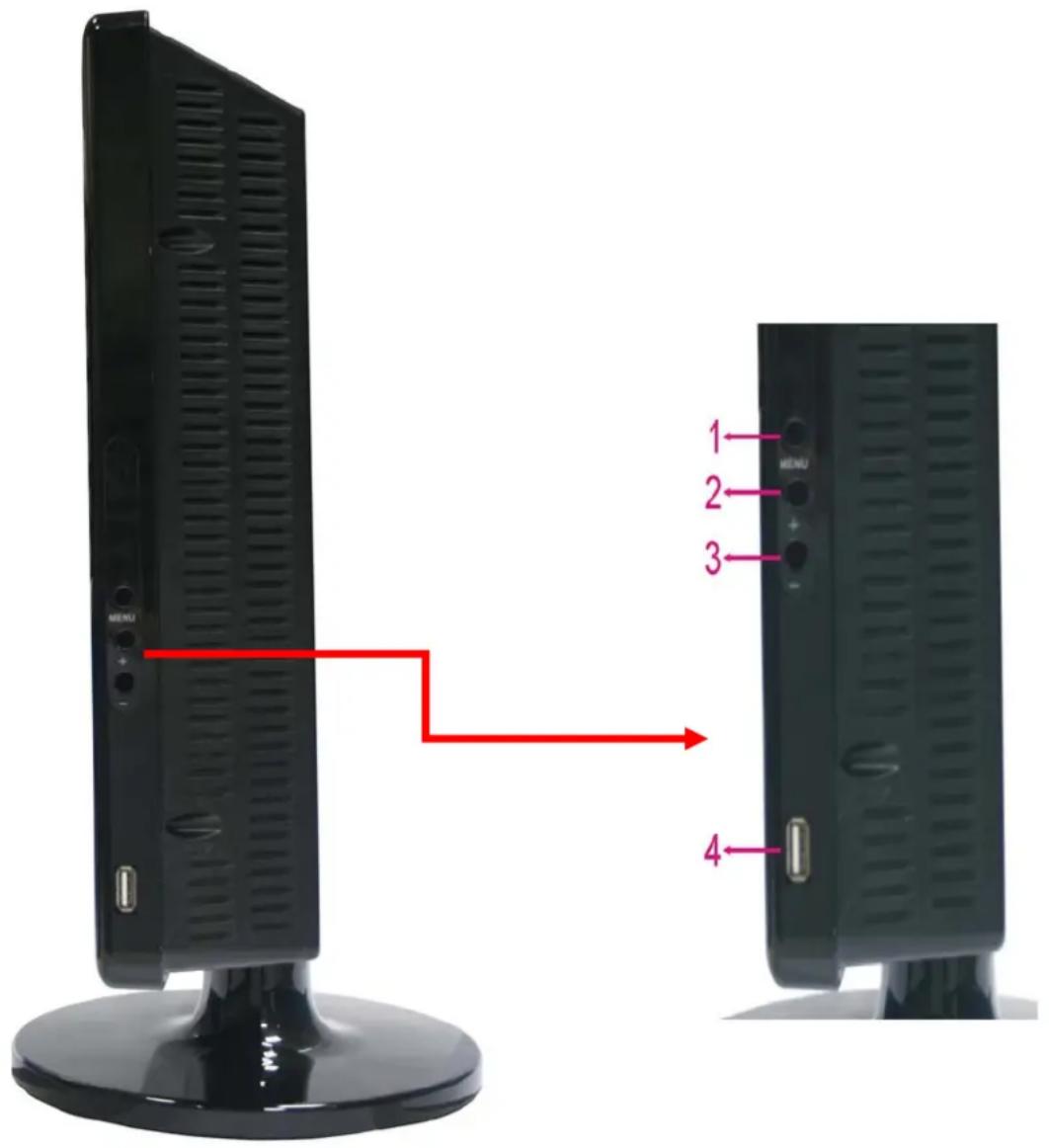

Side Panel

1 2 3 4

Item Physical port Connection method
1 MENU Opens MENU-Screen
2 + Increase
3 - Decrease
4 USB USB Port

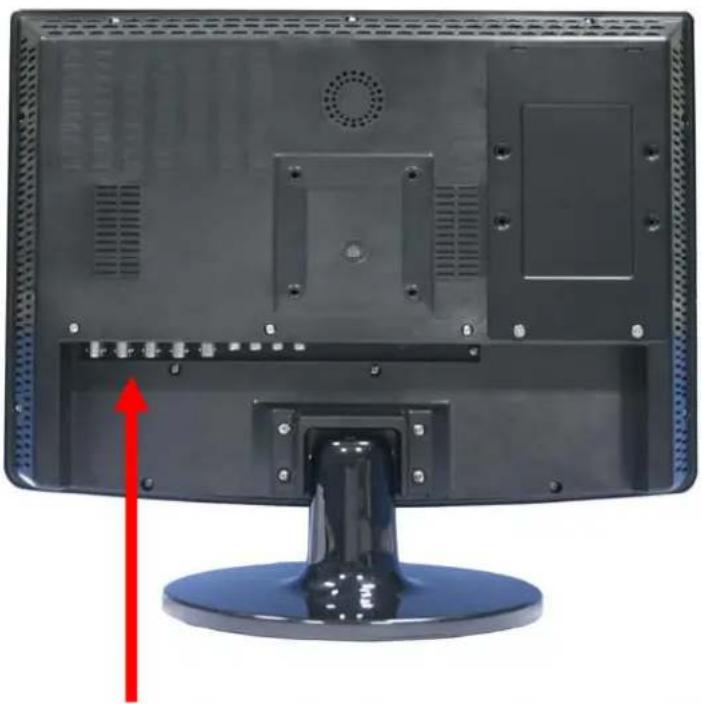

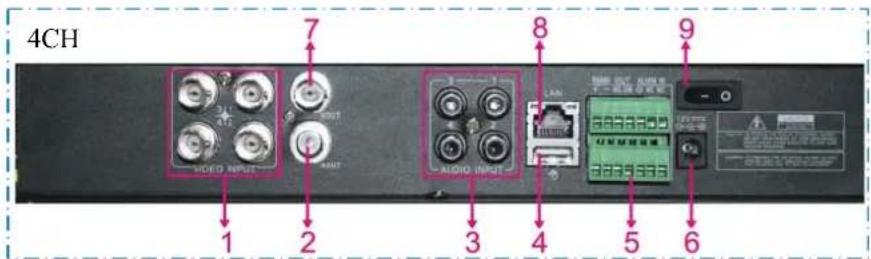

Rear Panel

Back view of a computer monitor with visible internal components and a red upward arrow indicating orientation (no text or symbols)

4CH 1 2 7 VIDEO INPUT OUTPUT INPUT AUDIO INPUT CAN 3 4 5 6 8 9

Item	Physical port Connection method
1	Video input	Connect CH1-4 video input device (BNC interface)
2	Audio Output Connect signal output(RCA interface)
3	Audio input	Connect CH1-4 audio signal input (RCA interface)
4	USB Port	Connect USB device (Flash Drive, Hard Drive and Recorder etc)
5	RS-485/Sensor/Alarm	RS485/Sensor/Alarm interface (see pin outs below)
6	Power Port Connect power supply - DC12V 3A
7	Video output Connect monitor output (BNC interface)
8	Ethernet: Port	Connect LAN, Ethernet (RJ45 interface)
9	Power on/off

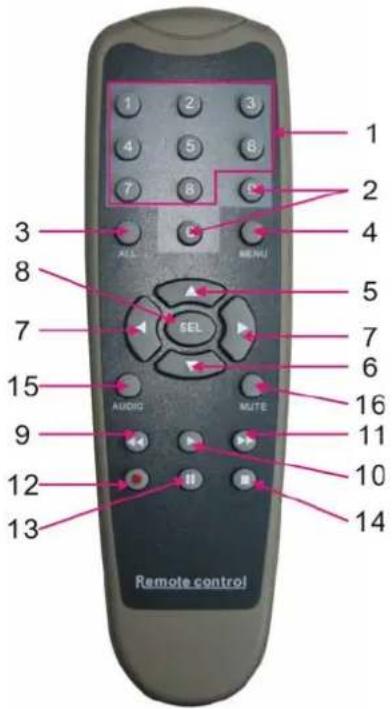

2.3 Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 ALL MENU SEL AUDIO MUTE Remote control

1 1-8		Channel Select 1-8 ; Numeric key
2	9、0	Numeric Key
3 ALL		Preview all Channel
4 Menu		Enter/Exit Main Menu
5 ▲		Up Key
6	▼ Down Key
7	◀ / ▶	Left / Right Key
8 SEL		Select Key/ Edit Key
9	◀◀	Rewind key
10	▶	Play Key, Enter to recording search menu
11	▶▶	Forward Key
12	●	Manual Recording
13	II	Pause / Frame Play
14	■	Stop manual recording; Stop Playback
15	Audio	Undefined
16	Mute	Undefined

Mouse Operation

You can use a mouse instead of front panel buttons or remote control.

Click left key of Mouse	In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up Log-in window; on menu unlock mode, enter into pop-up menu, and then clicking left key to enter into any sub menu directly.
	After entering main menu, clicking left key could enter into any sub menu; On[Detailed file] menu mode, clicking left key could playback one recording file.
	Change the status of check box and motion detection area.
	Clicking combo box to access pull-down menu
	By clicking left key you can adjust Color control bar and volume control bar.
	By clicking left key you can select values in edit boxes or pull-down menu and supports Chinese word input, special symbol, numeric and character input, use instead of [Enter- ] or [Backspace]
	In the [Detailed file] menu mode, clicking left key will playback one recording file.
Click right key of Mouse	In live display mode, clicking right key will display pop-up menu (shown as Picture 5-1).
	In Main menu or sub menu mode, clicking right key will exit current menu.
Double-click Left key of Mouse	In live display or playback mode, double-clicking left key will maximize the screen.
Moving Mouse Select menu item
Sliding Mouse On motion mode, sliding mouse will select motion area; On [Color set] menu mode, sliding mouse will adjust color control bar and volume control bar.

List 2-3

Chapter 3: DVR Installation

3.1 Hard Drive Installation

Caution: Please do not Install or take out hard drive when DVR is running!

(1) Remove screws on two sides of the body and open DVR upper cover carefully;
(2) Some models has a HDD Drawer; Use provided key to take out. Insert Power Cord and data cable into Pin of hard drive securely;
(3) Put the upper cover back carefully, re-attach screws.

3.2 Camera and Monitor Connection

Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector (Refer to section2.2-Rear Panel); or

If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR respectively (refer to system figuration on Chapter 8).

3.3 Power Supply connection

Please only use the power adapter supplied with the DVR.

Black rectangular electronic component with mounting holes and a red sensor on top (no visible text or symbols)

Laptop drive with attached hard disk and cable, showing internal components (no visible text or labels)

Close-up of a black electronic device casing with visible internal components and wiring (no text or symbols)

Close-up of a black electronic device with a screwdriver inserted, showing internal components and mounting holes (no text or symbols visible)

Chapter 4: DVR Boot up

4.1 System Initialization

System Initializing...

Picture 4-1

After connecting the power adapter and turning On the power button, the system will boot-up and start initializing.

4.2 Main Interface

12/03/2008 11:56:17 CH1 CH2 VIDEO LOSS VIDEO LOSS CH3 CH VIDEO LOSS VIDEO LOSS

Picture 4-2

After finishing system initialization the system will enter into main interface. Picture 4-2 is the main interface displayed by system, which is showing no video input status. Once there are video inputs, the interface will display live images from the cameras. In main interface mode, if you use the mouse to double-click the live image of any channel, the image will be maximized to full screen, by double-clicking again, the display will be come back to quad mode displaying all cameras; clicking the right button of the mouse, will enter into Pop-up Menu; by clicking the left button of the mouse, you select menu items; when clicking any area outside the menu, you will exit the Pop-up menu.

Note: When internal HDD is not connected or an error occurs, the character "H" will appear on the first channel of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter into [Device manage→Alarm setting] to set HDD loss and HDD space to "off".

Chapter 5: DVR Menu

5.1 Pop-up Menu

Main Menu PTZ PIP Zoom Rec Search Mute On Manual Rec Start SEQ Start Cruise GUI TO LCD

Picture 5-1a Picture 5-1b

Main Menu PTZ PIP Zoom Rec Search Mute On Manual Rec Start SEQ Start Cruise GUI TO LCD

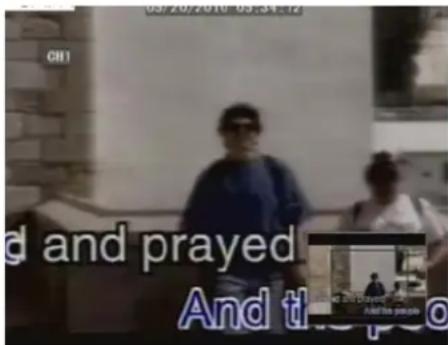

CH1 03/26/2010-05:34:17 and prayed And the people

Picture 5-1c

Note: options of the Pop-up menu will differ depending on different parameter setting and application environment.

After finishing system initialization, click right key of mouse on main interface mode to enter into Pop-up Menu. Now you could proceed parameter setting and operate for Main Menu, Multi Pics, PTZ, PIP, REC Scatch, Mutc, Manual REC, Start Rotate, Start Cruise and GUI to VGA etc.

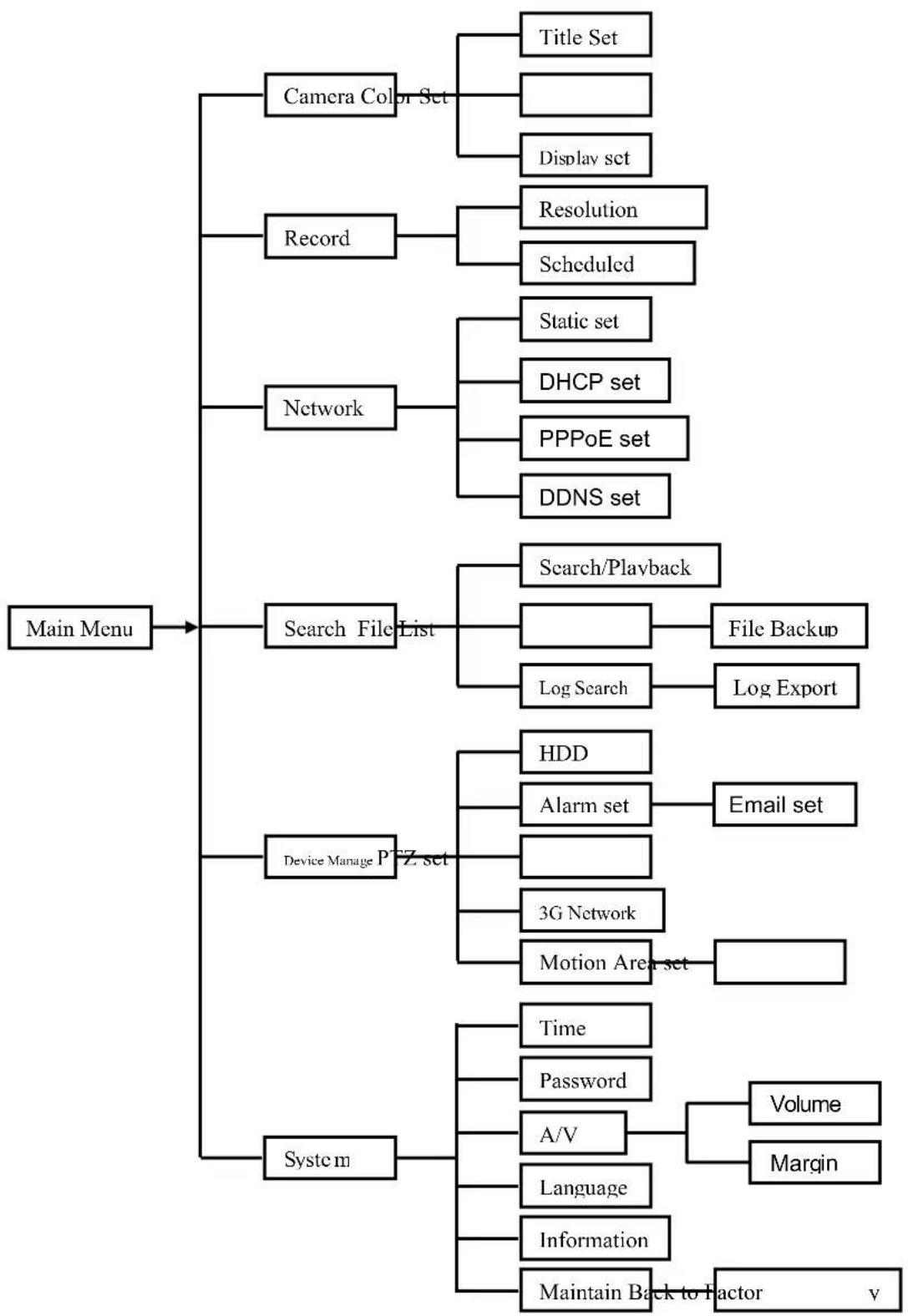

5.2 Main Menu Guide

    B --> H["Title Set"]
    B --> I["Display set"]

    C --> J["Resolution"]
    C --> K["Scheduled"]

    D --> L["Static set"]
    D --> M["DHCP set"]
    D --> N["PPPoE set"]
    D --> O["DDNS set"]

    E --> P["Search/Playback"]
    E --> Q["File Backup"]

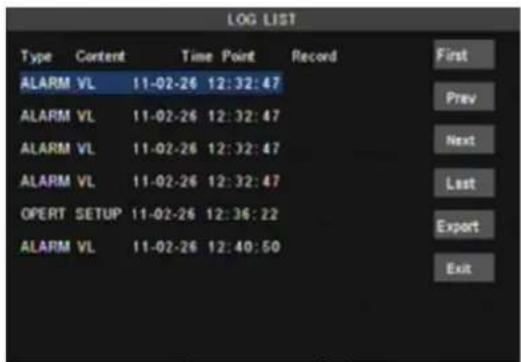

    E --> R["Log Search"]
    R --> S["Log Export"]

    F --> T["HDD"]
    F --> U["Alarm set"]
    U --> V["Email set"]

    G --> W["3G Network"]
    G --> X["Motion Area set"]

    G --> Y["Time"]
    G --> Z["Password"]
    G --> AA["A/V"]

    Y --> AB["Volume"]
    Y --> AC["Margin"]

    G --> AD["Information"]
    G --> AE["Maintain Back to Factor v"]

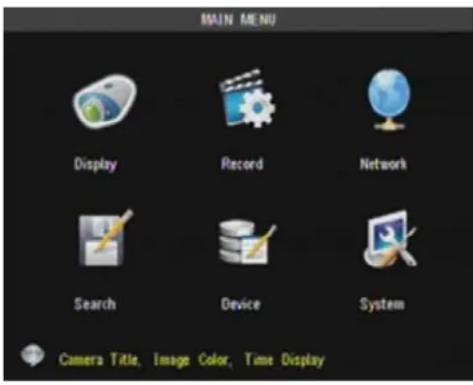

5.3 Main Menu

MAIN MENU Display Record Network Search Device System Camera Title, Image Color, Time Display

Picture 5-2

After clicking right button of mouse, pop-up menu will be displayed on the screen. You can click [main menu] button on pop-up menu to enter into Main menu interface (Shown as Picture 5-2). In Main Menu mode, you can control device management settings, such as Display, Recording, Network, Recording search, Device and System settings etc.

5.3.1 Display setup

DISPLAY SETUP Channel GH1 Name GH1 Position U-L Color Setup Live Enable Live Time Enable Record Time Enable Copy To All Copy Select Channel(s) Default Apply Exit

Picture 5-3

Go to [Main Menu → Camera] to set up the name display and position display of each channel CH (Shown as Picture 5-3), You can also adjust image brightness, saturation, contrast and hue settings of each channel after entering into [Color] Menu and set up whether each channel can be previewed or not under Live display and/or Recording mode.

Please note that the name of each channel supports up to eight characters.

Copy : This function allows you to copy all data of one channel to any other channel.

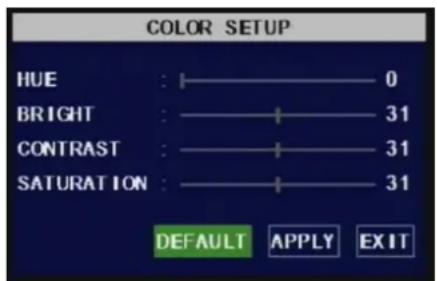

COLOR SETUP HUE : 0 BRIGHT : 31 CONTRAST : 31 SATURATION : 31 DEFAULT APPLY EXIT

Picture 5-4

The Color Menu, where you can adjust image brightness, saturation, contrast and hue parameters of each channel.(shown as picture 5-4)

DISPLAY SETUP Channel Name CH1 Position Remark Color Live Live Tin Record Copy To Saving parameter, Please wait.. All Copy Default Apply Exit

Picture 5-5

The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu windows and being prompted to save and then clicking [ok] button.

If you want to cancel the modification, click [Exit] button to exit the menu.

When clicking [DEFAULT] button, all system default values will be reset to default value.

System default value indicates the value pre-set at the factory.

5.3.2 Record setup

Click [Main Menu] →[Record] to enter into [Record Setup] menu (Shown as Picture 5-6).

➢ [Record] option allows you set up record status (Enable/Disable) of each channel.
➢ [Bit rate] include three options – Best, Good and Normal.
Pack Time : indicates max continuous rec. time (15, 30, 45 and 60minutes)

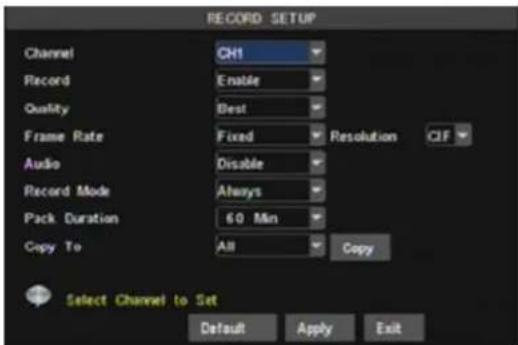

RECORD SETUP Channel CH1 Record Enable Quality Best Frame Rate Fixed Resolution CIF Audio Disable Record Mode Always Pack Duration 60 Min Copy To All Copy Select Channel to Set Default Apply Exit

Picture 5-6 Picture 5-7

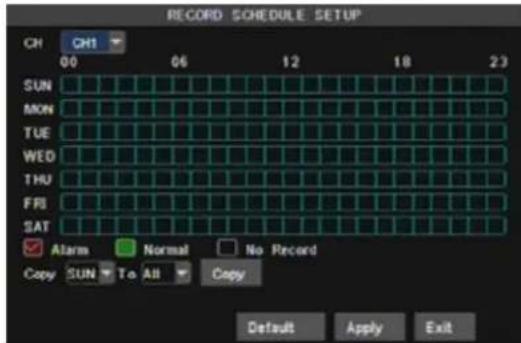

RECORD SCHEDULE SETUP CN QM1 00 06 12 18 23 SUN MON TUE WED THU FRI SAT Alarm Normal No Record Copy SUN To All Copy Default Apply Exit

The [Record Setup] menu allows you set up recording status (on/off) of each channel, it also allows you setup recording image resolution and quality, and turn audio on/off. This menu also allows you select recording mode (recording after power on and scheduled recording) and recording file length.

Once a channel is set to "on" the channel can record, if it is set to "off" the video from the channel will not be recorded. Resolution options are D1, HD1 and CIF; and Quality options are Best, Good and Normal.

When Audio is set to "On", system will also record audio from the channels and will have audio output on playback mode; if it is set to "off" you can not record audio and will have no audio output available on playback mode. To record 24 hours a day set the Rec Mode to Always. To record on motion or a set schedule, select Time Schedule Record and click the "Schedule" option, the Schedule interface will open as shown in (picture 5-7).

Recording options include All, CH-1, CH-2, CH-3, CH-4 respectively. Please click the channel you need, the channel you select will be highlighted in "Blue" unselected channels will be "Grey".

To setup weekly schedules, click on the box of the recording status you want (Alarm=Red, Normal=Green, or No Record=no Color) and then click on each box in the schedule time line that you want this method to apply to. You can use the [From - To] pull-down menus and Copy button to copy settings from one day to another day or all days. After you complete the schedule you activate it by clicking the [Apply] button. You can also click the Default button to use the system defaults.

5.3.3 Network Setup

NETWORK SETUP Type DHCP Media Port 01000 WEB Port 00080 UPNP Disable DONS Setup Default Apply Exit

Picture 5-8

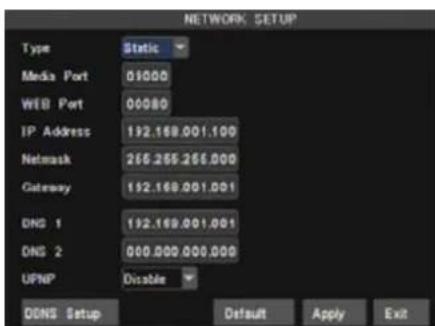

NETWORK SETUP Type Static Media Port 01000 WEB Port 00080 IP Address 192.169.001.100 Netmask 265.255.255.000 Gateway 192.169.001.001 DNS 1 192.169.001.001 DNS 2 000.000.000.000 UPNP Disable DONE Setup Default Apply Exit

Picture 5-9 Picture 5-10

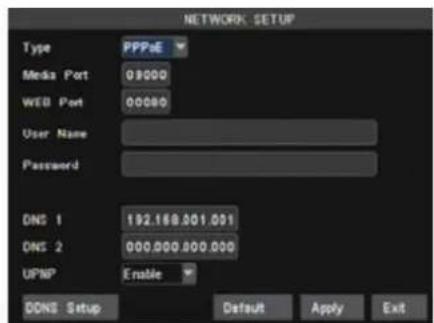

NETWORK SETUP Type PPPoE Media Port 09000 WEB Port 00080 User Name Password DNS 1 192.168.001.001 DNS 2 000.000.000.000 UPNP Enable DDNS Setup Default Apply Exit

Enter into [Main Menu→Network Set] to proceed network set (Shown as picture 5-8):

After selecting network mode - such as DHCP、PPPOE and static allocation and setup web ports, you could visit DVR remotely via network or internet.

UPnP (Universal Plug and Play) function: If router supports UPnP function and set to On, system will automatically forward port to router.

DNS: DNS server is generally provided by local ISP. Herein please enter the IP address of your DNS.

When selecting DHCP, DHCP server will allocate DVR IP address automatically after you exit the menu.

The IP address of the DVR might change whenever the unit is turn on. Therefore, you need to forward corresponding IP address and web port when you remotely visit the DVR each time.

Processing steps:

1、Select network type (DHCP);

2、Input media port and web port and media port is not equal to web port;
3、Click button and restart, now DVR will capture IP address automatically;
4、If function is set to "Off", you can forward IP address captured by DVR to router and set relative parameter shown as Picture 5-11; If your router support function and set to "on", you no need to perform this step 4;
5、You visit the DVR remotely.

http://internet IP: web port (such as 8080)

http:// intranet IP: web port (such as 8080 only available at the same intranet)

When selecting Static from the Type, user can directly set IP address, Subnet Mask, Gateway, Web Port and DNS shown as Picture 5-9.

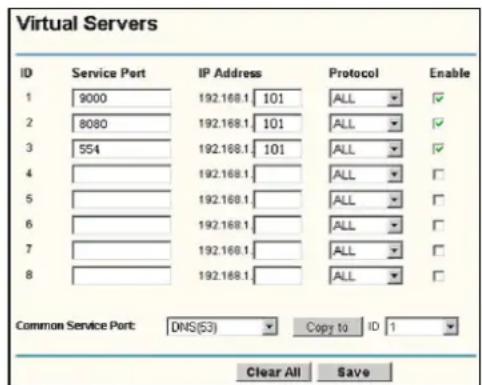

● Media Port: manually forward this port to router, details please refers to Picture 5-12.
- Web port: equal to Web Application Manager's web port no and manually forward this port to router.
- IP Address: Input a special IP address, and the IP address is unique in full service intranet.
- Net Mask: consistent with router's
● Gateway: consistent with router's
● DNS: Input DNS server

Click button and restart DVR, all above parameters will be effective. Now you visit the DVR remotely via below IP:

http://public IP: web port (such as 8080)

http://intranet IP: web port (such as 8080)

When selecting PPPoE form the Type, user can input user name and password provided by ISP and set Media and Web port (details please refer to the Picture 5-10). You can visit your DVR via public network without port forwarding when network type is set to "PPPoE" and web port is right.

DDNS (Dynamic DNS) is a service that register a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP address is changed in a dynamic IP system.

At the bottom of the NETWORK SETUP window there is an option to setup the DVR to be accessed through a DDNS service. When you click on the DDNS button it brings up the window displayed as Picture 5-11. You can access the DVR through a static or dynamic IP address; however a dynamic address can change from time to time. How often depends on your service provider When it changes you need to go to a website such as www.myipaddress.com from a computer attached to the same router as the DVR to find out what the new IP address is.

DONG SETUP DDNS Enable Server DYNDNG Host Name User Name Password Default Apply Exit

Picture 5-11

Virtual Servers ID Service Port IP Address Protocol Enable 1 9000 192.168.1 101 ALL ✓ 2 8080 192.168.1 101 ALL ✓ 3 554 192.168.1 101 ALL ✓ 4 192.168.1 ALL ✓ 5 192.168.1 ALL ✓ 6 192.168.1 ALL ✓ 7 192.168.1 ALL ✓ 8 192.168.1 ALL ✓ Common Service Port: DNS(53) Copy to ID 1 Clear All Save

Picture 5-12

• Server: select a Dynamic domain name server provided by ISP;
• Host Name: Input host name registered from Dynamic Domain Naming System, for example: DVR2009.3322.org;
• User Name: Input a user name registered before applying for a domain name;
• Password: Input a password you set when registering a user name.

User can enter below website or domain name as per current PC network environment to visit the remote DVR.

http://public IP: Web port (such as 0080)

http://intranet IP: Web port (such as 0080) (only available at the same LAN)

http://superdvr.3322.org: Web port (such as 0080)

Router's Port Forwarding

Port forwarding is required when you want to access the DVR connected to the router from outside of the router's network.

1. Input router's IP address from IE-based browser to open the Router configuration interface;
2. Click [Transmittal rule] option to take you to the port forwarding instructions for your router;
3. Set the corresponding parameters illustrated in Picture 5-11. When server port and web port forwarding the DVR IP address, user can visit the DVR remotely.

Friendly Reminder: The router's port forwarding interface may be different; however, when entering into virtual server,

user will always need forward port 8080 and port 9000 of router to IP address of DVR allocated or automatically captured, and select [All] or [Both] in corresponding protocol column and save the above setting.

Above steps may differ from the router device depending on the manufacturer.

5.3.4 Record Search

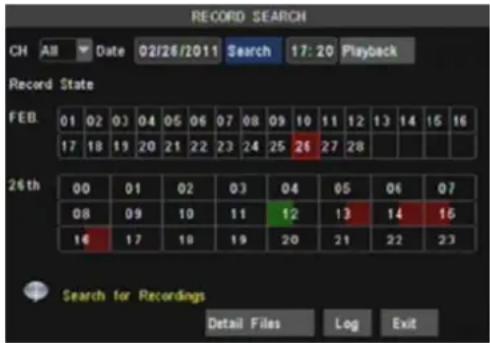

Click [Main Menu→Record Search] to enter into the interface shown as Picture 5-13.

RECORD SEARCH CH All Date 02/26/2011 Search 17:20 Playback Record State FEB 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 26th 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Search for Recordings Detail Files Log Exit

Picture 5-13

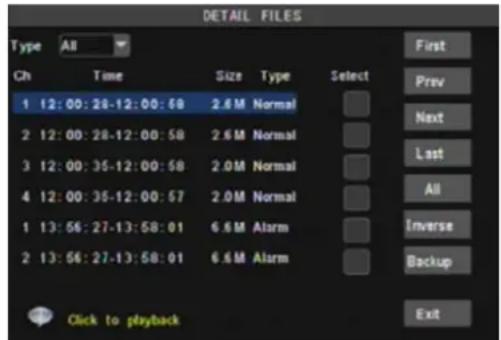

DETAIL FILES Type All Ch Time Size Type Select First 1 12:00:28-12:00:58 2.6M Normal 2 12:00:28-12:00:58 2.6M Normal 3 12:00:35-12:00:58 2.0M Normal 4 12:00:35-12:00:57 2.0M Normal 1 13:56:27-13:58:01 6.6M Alarm 2 13:56:27-13:58:01 6.6M Alarm Click to playback Exit Prev Next Last All Inverse Backup

Picture 5-14

Time Search: In the Video Search screen, user can search for a specific date and time for a record and view it in Playback mode. This is useful for hunting a specific recording of an incident if you know the date and time it occurred.
Date Search: In the Video Search screen, user can search for all the records in a specific date. To execute a video search, highlight and select the date numeric field, and then click a detailed time quantum of the specific date, system will start the playback from the first recoding of the time quantum.

File List: click [File list] button to enter into the [File List] screen shown as Picture 5-14, the video recordings for the time quantum will appear in the screen. Then highlight the record file and click [Playback] button.
Playback Mode: You can use the Playback Control bar to operate the Fast Forward (X2, X4, X8 and X16), Slow play (1/2, 1/4 and 1/8 speed), Play, Pause/Frame, Rewind(X2, X4, X8 and X16). When ending playback, DVR will return back to previous menu.

And you also can filter the records you want to view by the Channel or record mode based on date/time search.

First: Indicates the first page of recording history you have searched. When you view other pages, clicking [First] button brings you back to Page one.

PREV (Previous page): When viewing event list, clicking [Previous page] button will take you back to page before the one you are currently viewing (except the first page).

NEXT (Next page): When viewing event list, clicking [Next page] button will take you to the page after the one you are currently viewing (except the last page).

LAST (Last page): Indicates the last page of recording history you have searched. When you view other pages, clicking [Last page] button will take you to the Last page.

ALL (Select All): Allows you to select all the events on the current page.

INVERSE (Select Invert): Allows you to select other events on the current page except those you have currently selected.

Backup

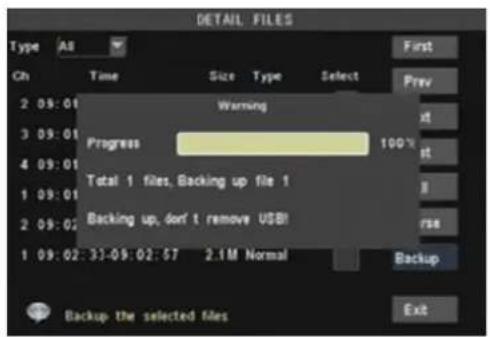

Backup: In [File List] mode, if you wish to backup records, please tick-select the [Select] check-boxes which corresponds to the records and click [Backup] button to enter into the below windows illustrated in Picture 5-15. When backup processing ends, system will prompt you "Backup finished!" shown as Picture 5-16.

DETAIL FILES Type All Ch Time Size Type Select First 2 05:01 Warning 3 09:01 Progress 100% 4 09:01 Total 1 files, Backing up file 1 1 09:01 Backing up, don't remove USB! 2 09:02 1 09:02:31-09:02:57 2.1M Normal Backup Backup the selected files Exit

Picture 5-15

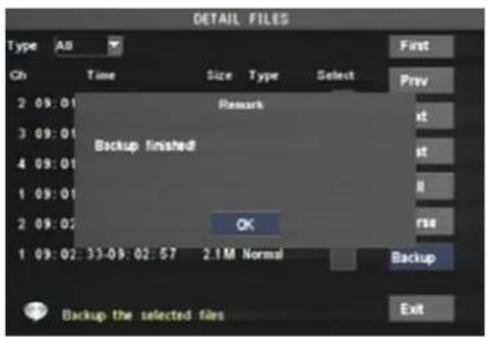

DETAIL FILES Type All Ch Time Size Type Select First 2 09:01 Remark 3 09:01 Backup finished? 4 09:01 1 09:01 2 09:02 OK Exit 1 09:02:33-09:02:57 2.1M Normal Backup Backup the selected files Exit

Picture 5-16

Note:

Backup file will be saved as H264 format; you can playback the recorded files using the Multimedia Player program that comes with the DVR.

Please make sure you have connected backup device, such as USB and DVD, well before backing-up.

Log Search

In the screen, Click [Log Search] to pop up the Log search screen shown as Picture 5-17(a).

Select log type, enter start date & end date, and then click the [Search] button on the bottom of the interface to search all the logs you need shown as Picture 5-17(b).

LOG SEARCH Log Type AB Start Time 02/26/2011 End Time 02/26/2011 Search Exit

Picture 5-17(a)

LOG LIST Type Costent Time Point Record First ALARM VL 11-02-26 12:32:47 Prev ALARM VL 11-02-26 12:32:47 None ALARM VL 11-02-26 12:32:47 Last ALARM VL 11-02-26 12:32:47 Export OPERT SETUP 11-02-26 12:36:22 Exit

Picture 5-17(b)

Export:

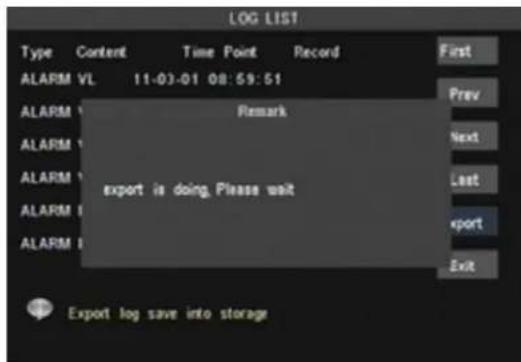

User can export all the logs which have been searched to U flash disk and save it as TXT format. Before exporting the logs, please make sure you have connected the U flash disk well. Detail operations please refer to Picture 5-18.

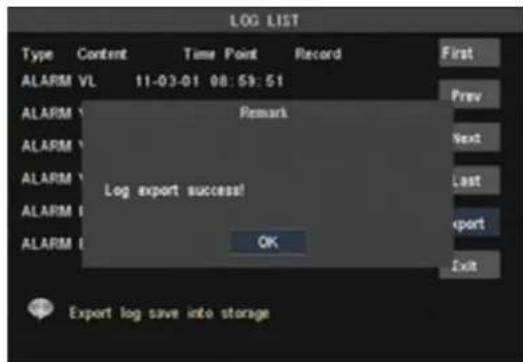

After Log export success, please click [OK] button shown as Picture 5-19.

LOG LIST Type Content Time Point Record First ALARM VL 11-03-01 08:59:51 ALARM Remark ALARM export is doing. Please wait Next ALARM ALARM ALARM Export log save into storage Exit

Picture 5-18

LOG LIST Type Content Time Point Record First ALARM VL 11-03-01 08:59:51 ALARM Remark ALARM Next ALARM Last ALARM Export ALARM OK Export log save into storage Export log save into storage

Picture 5-19

5.3.5 Playback Player

Copy backup file to your PC;

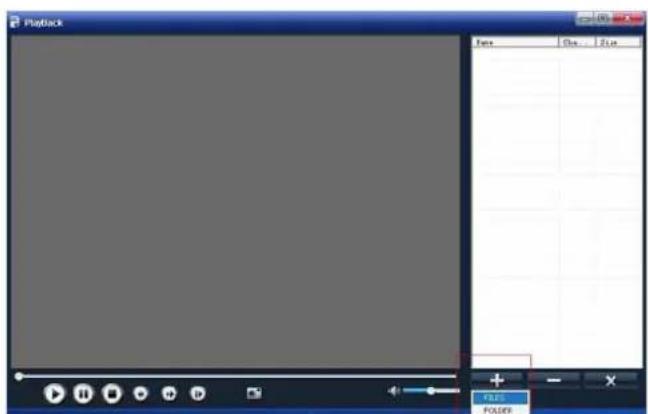

Open Playback Player, and then click [+] button to open the file shown as Picture 5-20

Note: Please select the file with *.264 or *.nvr format. The record file backed-up by U flash disk or removable disk is with *.264 format, and DVD Recorder with *.nvr format.

Playback File Plus... Plus + - + FETA FOLDER

Picture 5-20

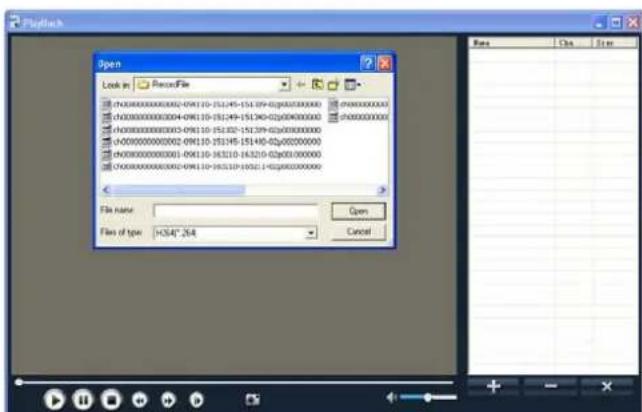

Playflash Open Look in: RescFile fx00000000000002-09F110-3514F5-1513F9-02p000300000 fx0000000000004-09F110-3514F9-1513F6-02p04000000 fx0000000000003-09F110-3513F2-1513F9-02p08000000 fx0000000000202-09F110-3514F5-1514F6-02p0220000 fx000000000203-09F110-36321D-16321D-02p0533333333333333333333333333333333333333333333333 File name: Flas of type: >54" 254 Open Cancel

Picture 5-20(a)

Select the playback file you desired from the file shown as Picture 5-20(a).

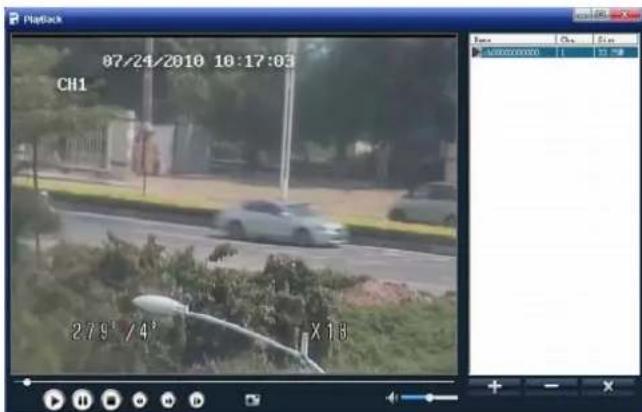

Double-click the record event at the right side of screen to start record file playback shown as Picture 5-21

07/24/2010 10:17:03 CH1 279°/4' X 16

Picture 5-21

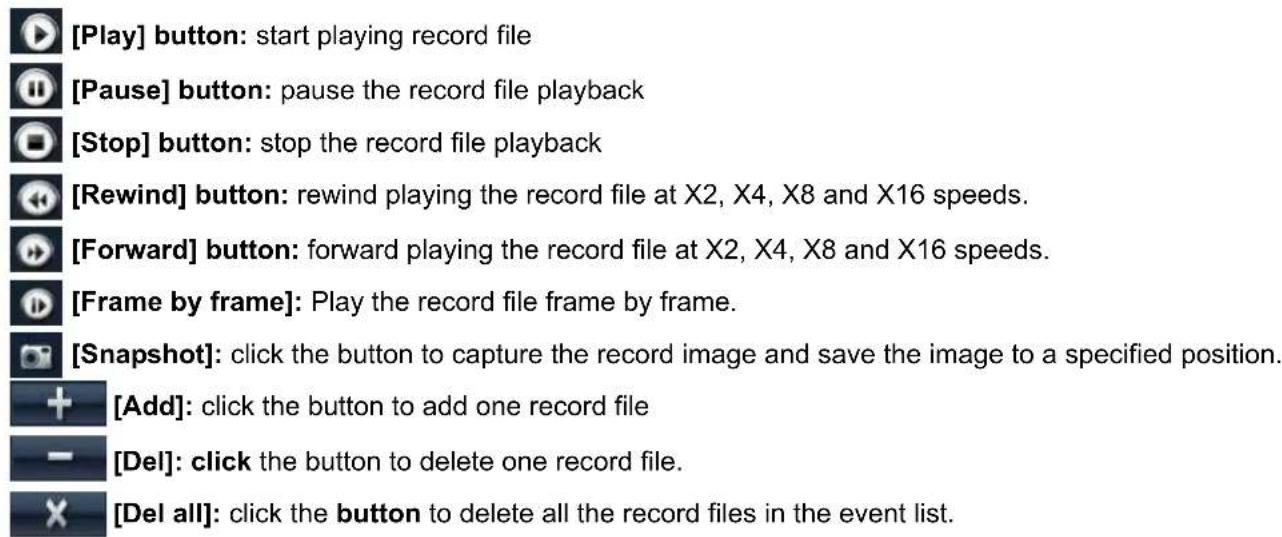

The button functions from left to right in turn are as follows:

Screenshot of a media player control bar with playback, pause, stop, refresh, play button, camera, and playback indicator

[Play] button: start playing record file [Pause] button: pause the record file playback [Stop] button: stop the record file playback [Rewind] button: rewind playing the record file at X2, X4, X8 and X16 speeds. [Forward] button: forward playing the record file at X2, X4, X8 and X16 speeds. [Frame by frame]: Play the record file frame by frame. [Snapshot]: click the button to capture the record image and save the image to a specified position. [Add]: click the button to add one record file [Del]: click the button to delete one record file. [Del all]: click the button to delete all the record files in the event list.

5.3.6 Device Management

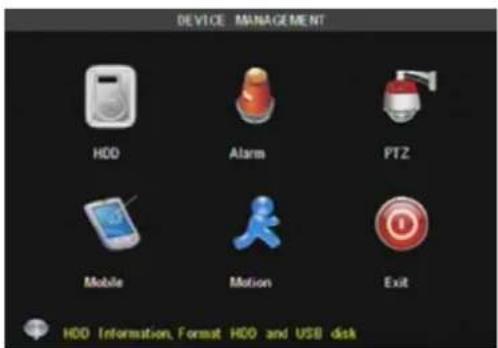

DEVICE MANAGEMENT HDD Alarm PTZ Mobile Motion Exit HDD Information, Format HDD and USB disk

Picture 5-22

Objects in include HDD, Alarm, PTZ, Mobile and Motion.

Click [Main Menu→Device Management] option to enter into the window shown as Picture 5-22.

5.3.6.1 HDD Management

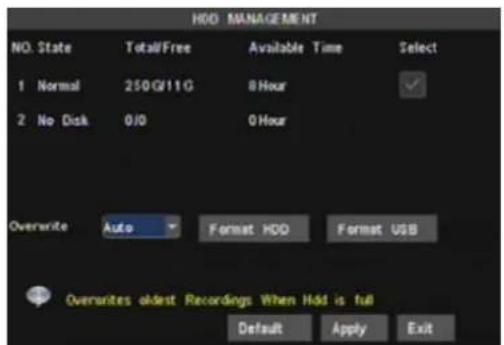

HDD MANAGEMENT NO. State Total/Free Available Time Select 1 Normal 250 GF11G 8 Hour 2 No Disk 0/0 0 Hour Overwrite Auto Format HDD Format USB Overwrites oldest Recordings When Hold is full Default Apply Exit

Picture 5-23 Picture 5-24

HDD MANAGEMENT NO. State Total/Free Available Time Select 1 Normal 250G/11G 8 Hour 2 No Data Warrang Format will remove all data from HDD Overwrite OK CANCEL Erase all video from HDD Default Apply Exit

Click [Main Menu→Device → HDD] to enter [HDD Management] menu (shown as Picture 5-23).

When you install a HDD, the system will automatically detect if HDD is formatted or not; If HDD needs to be formatted, HDD status will be shown as "Not format/No disk", otherwise, the HDD status will be shown as "Normal" (refer to Picture 5-24). NO: HDD number defaulted by system

State: Available Hard drive. You could use HDD only when formatting the HDD and inspect its status normal.

TOTAL SPACE: Indicates total space available on Hard Drive.

AVAIL SPACE: Indicates unused space available on the Hard Drive.

USEABLE REC TIME: Based on current image detail/quality and frame rate, system will show you how many Recording time you have left on the Hard Drive.

OVERWRITE: If you select "on" the system will automatically overwrite the oldest recordings once the hard drive is full; if you select "off", recording will stop once the hard drive is full.

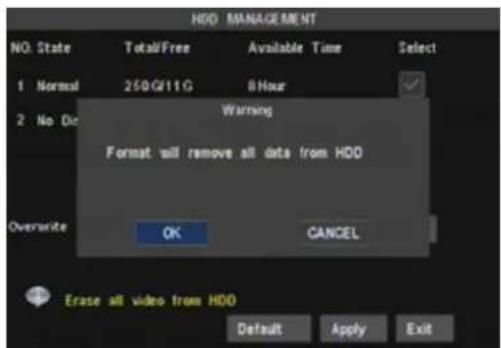

HDD FORMAT: You use this option to format the hard drive, you can not record files to the hard drive until it has been formatted. Click [Format HDD] button to start formatting. When selecting [Format HDD] option the system will prompt you – “Format HDD will loss all the data, do you confirm?”; click “OK”, system will prompt you – “Is formatting…” and “successful format”; and then system will restart automatically.

USB FORMAT: Use this option to format USB devices (Is strongly recommended).

5.3.6.2 Alarm Setup

Click [Main Menu→Device → Alarm] to enter into [Alarm setup] menu to setup Alarm warnings (shown as Picture 5-25a). Click [Alarm Config] on the bottom of the [Alarm setup] screen to enter into the interface shown as Picture 5-25(b). Now you are allowed to set detailed alarm parameters.

I/O STATUS: Options include NO (Normal-open), NC (Normal-close) and OFF. Set to "Normal-open" if you use external sensor alarms that are normally open, Set to "Normal-close" if you use external sensor alarms that are normally closed, set to "off" if you are not going to use external sensor alarms. You can use the DVRs internal motion detection to record when motion is detected; you do not external sensors to record on motion detection.

ALARM SETUP Channel CH1 I/O Status NO Copy To All Copy Select Channel(s) Alarm Config Default Apply Exit

Picture 5-25 (a)

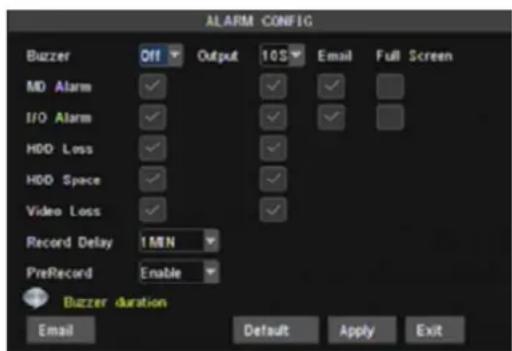

ALARM CONFIG Buzzer Off Output 10S Email Full Screen MD Alarm ✓ ✓ ✓ I/O Alarm ✓ ✓ ✓ HDD Loss ✓ ✓ HDD Space ✓ ✓ Video Loss ✓ ✓ Record Delay 1 MIN PreRecord Enable Buzzer duration Email Default Apply Exit

Picture 5-25 (b)

HDD LOSS: Options are On and Off. If you select On there will be a buzzer sound and "H" sign on screen when HDD is not detected or not formatted; on the contrary, if you close the function, there is only "H" sign to indicate HDD not found, but no alarm sound when HDD not found or not formatted.

HDD SPACE: Options are On and Off. When the alarm function is on, there are alarm sounds when the HDD is running out of space; when the function is off, there are no alarm sounds.

VIDEO LOSS: Options are On and Off. When the function is on, system will issue alarm sound and display video loss on the preview interface; when the function is off, system will have no alarm sound, but the preview interface will display video loss.

ALARM MANAGE: Alarm Output (0s,10s,20s,40s,60s)、Buzzer time (0s,10s,20,40s,60s) and alarm duration time (0s, 30s, 1minute, 2minute, 5minute)。

Pre-record time: you can set how long record will last before alarm occurs (Off, on).

Full screen Alarm: The function is defaulted to "On". When the motion detection or external alarm is triggered, the corresponding channel will be displayed on the full screen mode.
Email: The option allows you set the alarm images is issued to a specified email or not.

You could freely select buzzer alarm or not and alarm output time for all the alarm types, and for the MD alarm and I/O status alarm you could set email and full screen reminder.

Alarm Type Function
Video Loss	Sends alarm when DVR can’t receive video signal (such as camera damage, cable broken or damaged or power supply malfunction).
Motion Detection	When an object moves into motion detection area, alarm will be triggered. You can adjust sensitivity level to suit the needs of your actual application environment.
I/O Status	System can convert alarm signal triggered by external sensor into signal identified by system.
HDD loss	When Hard Drive is not detected (HDD damage, power supply malfunction), or HDD auto-overwrite is off, and free space is not enough, an alarm will be triggered.

EMAIL Setup

Click [Email Set] to enter into the interface shown as Picture 5-26.

On the [EMAIL] screen, when Enabling [Email] option, you can set its parameters shown as Picture 5-27.

SSL: is a security link transport protocol. You can encrypt your communication info (including your email) using SSL to prevent hackers from monitoring your email or communication info and even your password.

Generally Gmail.com server set SSL to [On], and other mail server to [Off]. If your setting is still not right, please contact the web site where you have applied for your email box to get SMTP port and SSL of mail box.

SMTP Port: indicates sender port of SMTP server. Generally the SMTP port value is 25, but there are exceptions, for example, SMTP port of G-mail server should be 465.

EMAIL SETUP Email Disable Email Alerts On/Off Default Apply Exit

Picture 5-26 Picture 5-27

EMAIL SETUP Email Enable SSL Disable Enable SMTP Port 00000 SMTP Server Sender Password Receiver Interval 0 MIN Email Alerts On/Off TEST Default Apply Exit

SMTP server: indicates server address you use.

Sender email: indicates sender's email address. The email address should be consistent with the server you use. That is to say, when you use email address – [e-mail], the according server should be smtp.gmail.com.
Receiver address: indicates receiver's email address. The email address is used to receive image transmitted from motion detection alarm of DVR. Please clear the images you have received as soon as possible to avoid overloading your email account.
Email Test: Click the button to check your SMTP port, server, sender and receiver address. Once the parameters are wrong, system will return misinformation back to inform user modified. Before you perform function, please make sure your email server support SMTP and SSL service.

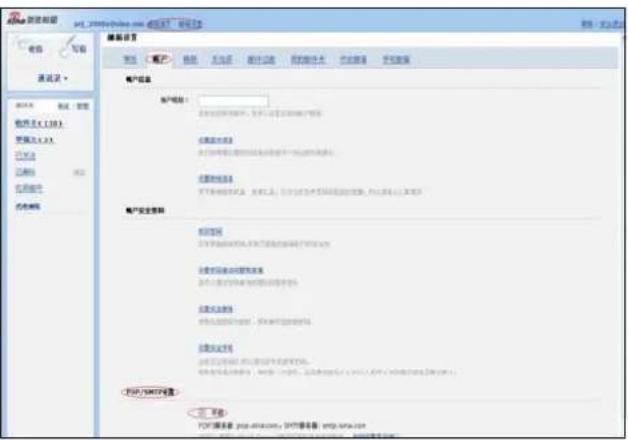

Note: Sender email is required to enable IMAP/POP3/SMTP function (details please refer to Picture 5-28 & Picture 5-29 (a & b), which show IMAP/POP3/SMTP Enable setting function for Gmail, QQ and SINA mail). Login your GMAIL ID and turn to Settings page. Find out Forwarding and POP/IMAP option and then tick-select [enable IMAP] option.

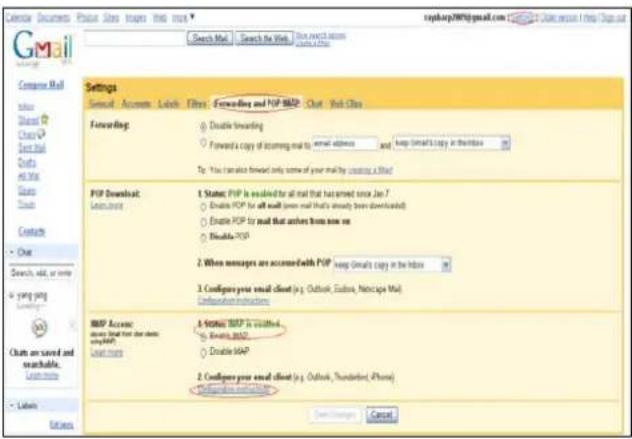

Gmail Settings Email Accounts Labels Filters Forwarding and POP SQL? Chat Web Sites Forwarding: Double trending Forward's copy of incoming mail to email address and keep Gmail's copy in the website To: You can also forward only some of your mail by creating a file? POP Download: Listed 1. Status: POP is enabled for all mail that has arrived since Jan 7 2. Create POP for all mail (new mail that's already been downloaded) 3. Enable POP for mail that author comes now on 4. Enable POP 2. When messages are accord with POP keep Gmail's copy in the website 3. Configure your email client (e.g. Outlook, Eudie, Netscape Mail) Confidence information BMP Access: downs Mail from other clients email more 4. Status: POP is enabled Enable: MAP Double MAP 2. Configure your email client (e.g. Outlook, Thunderbird, iPhone) Confidence information Save Change Cancel

Picture 5-28

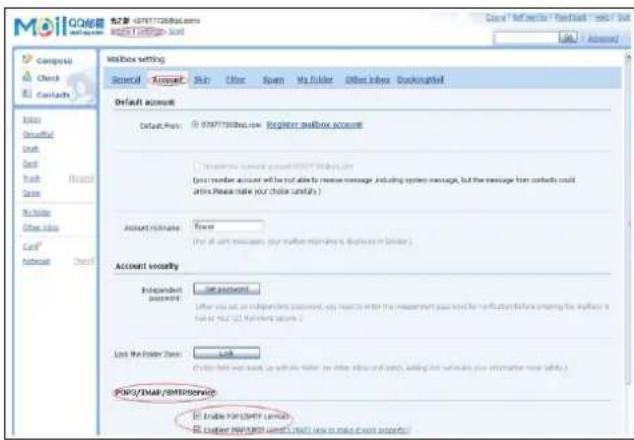

Mailbox setting General Account Skin Offer Swap My Folder Offset Index Bookings Default account Default Pass: © 07877308bus.com Register mailbox account Last number account will not be able to receive message, including system message, but the message from correctly could access. Please make your choice useful.) Account credentials: None (If all sort messages, your mailer remains any distance in location.) Account viscosity Independent password: Get password Offer you can an independent password, you have to enter the management program for further information entry into the interface or to your own account. Lost the Folder Zone: Work (If you call out with the link up with the folder, any other links and accounts, adding the link to send you to information more traffic.) POSTS/TIME/SMTP SERVICE If Enable Password limits If Customer Information used? Must help to make exact passwords? Cancel / Access

Picture 5-29a

If you can't receive email alarm information successfully, please check below points:

▶ DVR connection is normal or not;
The receiver and sender email support SMTP protocols or not;
- Emails account setting is correct or not;
➢ Email alarm parameters configuration is right or not;
➢ DVR is on the status of I/O alarm or Motion detection or not.

5.3.6.3 PTZ setup

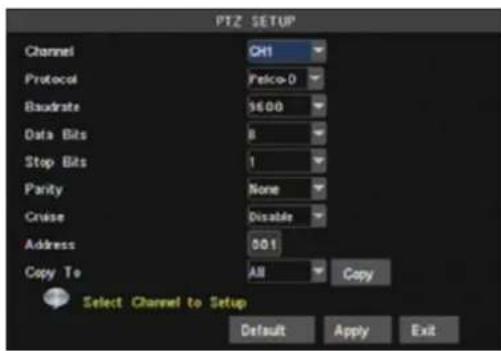

Enter into [Main menu→Device→PTZ Setup] to select the channel you desire to control and set PTZ protocol (Pelco-D or Pelco-P), Baud Rate (1200, 2400, 4800, 9600), Data bit (8, 7, 6, 5), Stop bit (1, 2), Parity Check (None, Odd, Even, Mark, Space), Address Code and Cruise status respectively.

PTZ SETUP Channel CH1 Protocol Feste-0 Baserate 9600 Data Bits 8 Stop Bits 1 Parity None Cruise Disable Address 50.1 Copy To All Copy Select Channel to Setup Default Apply Exit

MOBILE User Name admin Password ******** Service Port 18004 Default Apply Exit

Picture5-31 Picture5-30

5.3.6.4 Mobile setup

The DVR is currently compatible with mobile phones running Andriod, Windows Mobile, Symbian, Iphone and Blackberry operating systems on 3G networks. Details access methods please refer to separate Mobile phone Access Instructions.

Click [Main menu→Device→Mobile] to enter into [Mobile] menu shown as Picture 5-31.

• User Name: indicate user name of DVR, and system supports up to 15 characters.
• User password: indicate user password of DVR, and system supports up to 15 characters.
  ● Server port: Mobile monitoring port. Setting value is adjustable between 1024 and 65535.

Explanation: Please connect DVR to Internet before setting DVR port number and the server port no is not equal to network menus.

5.3.6.5 Motion Detection

Click [Main menu→Device→Motion] to enter into the [Motion Detection] menu shown as Picture 5-32.

The [Motion detection] Menu has three sections, including Channel Status, Sensitivity and Motion area.

Channel: This option allows you enable motion detection on any channel.
➢ SENSITIVITY: This option allows you to set sensitivity level of motion detection from higher to low with 8 being the most sensitive.
MD AREA: This option allows you select the area you want to be sensitive to motion.
➢ Copy to: allow you copy current channel parameters to any other channel or all channels.

MOTION DETECT SETUP Channel CH1 Motion Detect Enable Sensitivity 5 Area Setup Copy To All Copy Select Channel(s) Default Apply Exit

Picture 5-32

Grid background with a small square outline in the top-right corner (no text or symbols)

Picture 5-33

Each channel is separated into 15X12 grids for PAL system and 15X10 grids for NTSC system. When any object moves into the motion detection area, and the area where the object is located is displayed in red recording will be triggered. In the semi-transparent area the motion detection is off.

5.3.7 System

menu include the below sub-menu-Time set, User password, A/V set, Language, System Information and system maintain.

After entering into menu, you are allowed to set time/date, password, language and A/V, check system information and perform system maintenance.

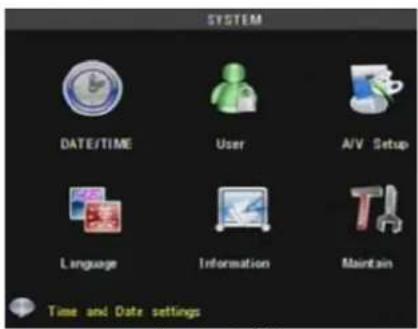

SYSTEM DATE/TIME User A/V Setup Language Information Maintain Time and Date settings

Picture 5-34

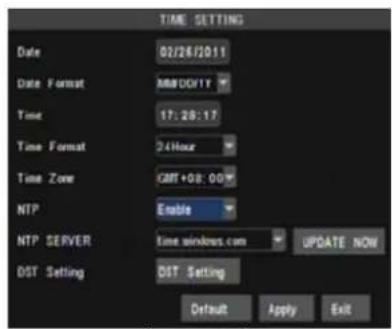

TIME SETTING Date 02/26/2011 Date Format MABDD/YY Time 17:28:17 Time Format 24Hour Time Zone GMT+08:00 NTP Enable NTP SERVER Time windows.com Update NOW DST Setting DST Setting Default Apply Exit

Picture 5-35

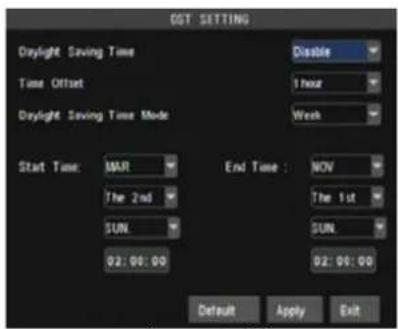

CGT SETTING Daylight Saving Time Disable Time Offset 1 hour Daylight Saving Time Mode Week Start Time: MAR End Time : NOV The 2nd The 1st SUN SUN 02:00:00 02:00:00 Default Apply Exit

Picture 5-36

5.3.7.1 Time Set

Click [Main menu→ system] and enter into the time set interface shown as Picture 5-35. Now you can adjust system date/time, date/time format and time zone.

NTP: the model provides NTP service. When NTP function is set to , select relative NTP server (include: time.windows.com; time.nist.gov or pool.ntp.org) and click , and system will check and adjust system time at every 23:50:00pm and/or each restart

DST: Click to set DST (day saving time) status and mode shown as Picture 5-36.

5.3.7.2 Password

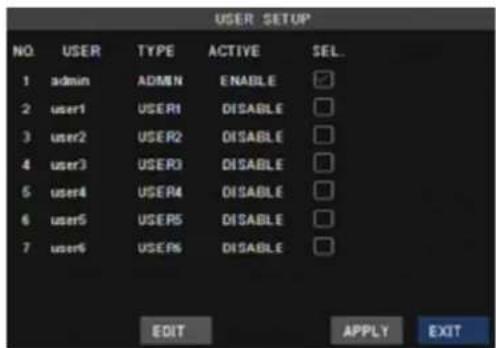

Click [Main menu→System→Password] to enter into [user manage] interface shown as Picture 5-37.

USER SETUP NO. USER TYPE ACTIVE SEL. 1 admin ADMIN ENABLE ✓ 2 user1 USER1 DISABLE ✓ 3 user2 USER2 DISABLE ✓ 4 user3 USER3 DISABLE ✓ 5 user4 USER4 DISABLE ✓ 6 user5 USERS DISABLE ✓ 7 user6 USERS6 DISABLE ✓ EDIT APPLY EXIT

Picture 5-37 Picture 5-39

USER PASSWORD SETUP USER NAME admin USER NAME admin PASSWORD ENABLE Disable PASSWORD CONFIRM DEFAULT APPLY EXIT

Picture 5-38

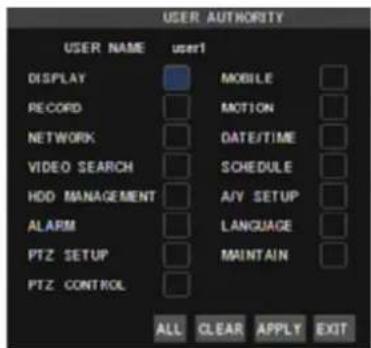

USER AUTHORITY USER NAME user1 DISPLAY MOBILE RECORD MOTION NETWORK DATE/TIME VIDEO SEARCH SCHEDULE HDD MANAGEMENT A/Y SETUP ALARM LANGUAGE PTZ SETUP MAINTAIN PTZ CONTROL ALL CLEAR APPLY EXIT

Click [Edit user] to enter into password set interface shown as Picture 5-38.

You can setup a user password and administrator password respectively shown as Picture 5-39. The password consist of numbers 0\~9 and supports up to 6 characters.

The password defaulted by system is 123456.

5.3.7.3 Video/Audio Setup

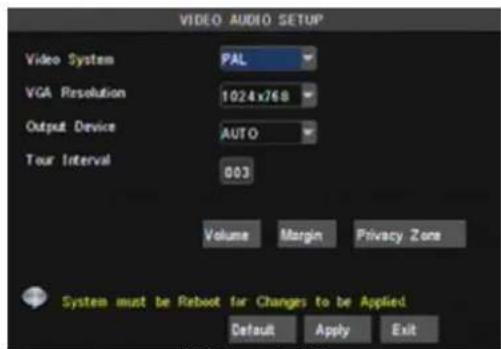

Click [Main Menu→System→Video/Audio] to setup Video and Audio parameters shown as Picture 5-39 (a).

Video System: allow you set Camera system (PAL, NTSC).
VGA Resolution: include four options - 1280×1024、1024×768、800×600 and 1440×900.
OSD Device: allow you select video output device, options include ,

and .
: When set to and connected to VGA and monitor simultaneously, video output will appear in VGA screen; and whatever connected to VGA or Monitor, video images will automatically appear in the device connected.

VIDEO AUDIO SETUP Video System PAL VGA Resolution 1024x748 Output Device AUTO Tour Interval 003 Volume Margin Privacy Zone System must be Reboot for Changes to be Applied Default Apply Exit

Picture 5-40

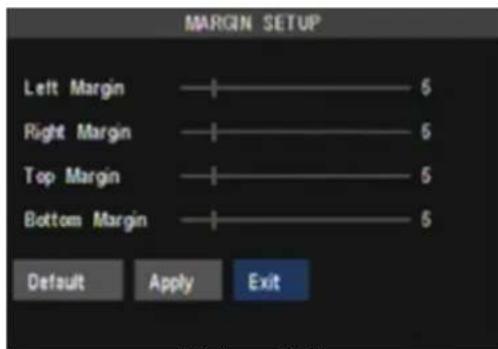

MARGIN SETUP Left Margin —— 5 Right Margin —— 5 Top Margin —— 5 Bottom Margin —— 5 Default Apply Exit

Picture 5-41

: When set to

, video output will appear in the monitor's screen. : When set to , video output will appear in the VGA's screen. User can hold pressing [Rew] button for 5 second on the front panel to convert output device quickly. ➢ Poll time: allow you select sequence time between from 5s and 300s. Click the [Volume] and/or [Margin] options on the right-bottom corner of the Video/Audio screen to adjust the volume and/or margin respectively. Details please kindly find the Picture 5-41. And you are allowed to set
