CMP4214E - Monitor HITACHI - Free user manual and instructions

Product Type	Color Plasma Display Monitor
Brand	Hitachi
Model	CMP4214E
Display Technology	Plasma
Screen Size	42 inches (diagonal)
Resolution	1024 x 768 pixels
Aspect Ratio	16:9
Brightness	1000 cd/m² (typical)
Contrast Ratio	3000:1 (typical)
Analog Input	RGB 1, RGB 2 (D-sub 15-pin)
Digital Input	DVI-D (RGB T)
Audio Input	Stereo audio (RCA) for each RGB
Power Consumption	280 W (typical)
Weight (without stand)	35 kg (77 lbs)
Dimensions (W x H x D)	1030 mm x 636 mm x 100 mm
VESA Mounting Pattern	300 mm x 400 mm
Energy Star Compliant	Yes (with VESA DPMS)
Features	TruBass by SRS, Digital Comb Filter, PIP (Picture-in-Picture)
Safety Certifications	ENERGY STAR, VESA DPMS
Cleaning Instructions	Use a soft dry cloth; do not use liquid cleaners or solvents
Operating Temperature	5°C to 35°C (41°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Accessories Included	Power cord, remote control, batteries, user manual

Frequently Asked Questions - CMP4214E HITACHI

How do I clean the screen of the Hitachi CMP4214E?

Use a soft, dry cloth to gently wipe the screen. Do not use any liquid cleaners, alcohol, or abrasive materials, as they may damage the anti-glare coating.

What is the VESA mount pattern for this monitor?

The VESA mount pattern is 300 mm x 400 mm. Use the wall-mount unit designed for this model (PWT001) or a compatible mount with adequate weight capacity.

How do I connect a computer to the CMP4214E?

Connect your computer's video output to the RGB 1 or RGB 2 analog input using a D-sub 15-pin cable, or use the DVI-D digital input if available. Also connect the audio output to the corresponding audio input on the monitor.

Is the CMP4214E Energy Star compliant?

Yes, this monitor is ENERGY STAR compliant when used with a computer equipped with VESA DPMS (Display Power Management Signaling). It meets energy efficiency guidelines.

What is the maximum resolution supported?

The native resolution is 1024 x 768 pixels. It can also display VGA (640x480), SVGA (800x600), and XGA (1024x768) resolutions properly.

Why is there no sound from the monitor?

Check that the audio cable is connected from your source to the correct audio input (RCA jacks) on the monitor. Also ensure the volume is turned up and not muted via the remote or on-screen menu.

Can I use this monitor as a TV?

The CMP4214E is a monitor, not a TV. It does not have a built-in tuner. You need an external source such as a cable box, satellite receiver, or streaming device to display video content.

How do I adjust the picture settings?

Use the remote control to access the on-screen display (OSD) menu. From there you can adjust brightness, contrast, color, sharpness, and other picture parameters.

What is the power consumption of the CMP4214E?

Typical power consumption is 280 W. In standby mode, it consumes less than 1 W. The monitor is Energy Star certified for low power usage when in DPMS mode.

How do I install the wall-mount unit safely?

The wall-mount installation must be done by a professional. Ensure the wall can support at least 37 kg (total weight of monitor and mount). Use the provided screws and follow the manual exactly. Always use at least two people.

USER MANUAL CMP4214E HITACHI

Colour Plasma Display Monitor

Model PW1

32PD5000

42PD5000

42PMA500

CMP4214E

USER'S MANUAL

MANUEL UTILISATEUR

BEDIENUNGSANLEITUNG

System Name

32PD5000 /42PD5000

32PD5100 /42PD5100

32PD5200 /42PD5200

READ THE INSTRUCTIONS INSIDE CAREFULLY. KEEP THIS USER'S MANUAL FOR FUTURE REFERENCE.

For future reference, record the serial number of your monitor.

SERIAL NO.

The serial number is located on the rear of the monitor.

This monitor is ENERGY STAR® compliant when used with a computer equipped with VESA DPMS.

The ENERGY STAR® emblem does not represent EPA endorsement of any product or service.

As an ENERGY STAR® Partner, Hitachi,Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

NOTE:

The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual.

TRADEMARK ACKNOWLEDGEMENT

VGA and XGA are registered trademarks of International Business Machines Corporation.

APPLE and Macintosh are registered trademarks of Apple Computer, Inc.

VESA is a trademark of a nonprofit organization, Video Electronics Standard Association.

All brand or product names are trademarks or registered trademarks of their respective holders.

REMARQUE:

TruBass TruBass by SRS(●)

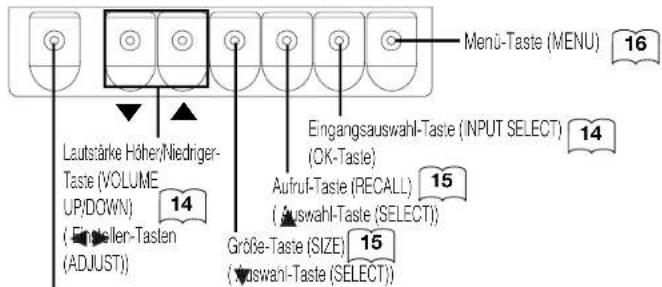

ANDERE MERKMALE ......21

Simple line drawing of a hand holding a horizontal bar with a labeled 'HITACHI' on the right side (no other text or symbols)

Line drawing of a hand holding a handheld electronic device (no text or symbols visible)

Technical line drawing of a remote control box with mounting holes and indicator lights (no text or symbols)

Line drawing of hands holding a handheld device (no text or symbols)

VORSICHT

【Abb. A】
【Abb. a】

Two abstract geometric shapes: a black rectangle with horizontal stripes and an open white rectangle with three horizontal stripes, both rotated by an arrow (no text or symbols)

【Abb. B】
【Abb. b】

Drücken Sie ▼

ACHTUNG

Automotive einstellung flowchart showing data entry, sorting, and end-of-time status across German states and regions.


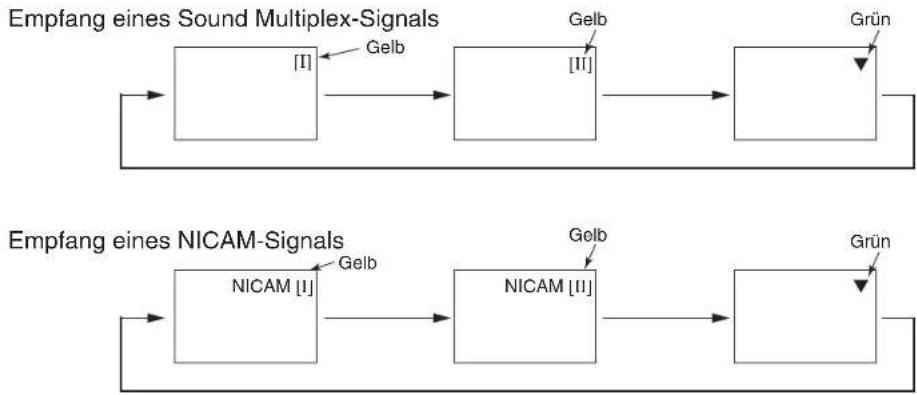

    A["Empfang eines Sound Multiplex-Signals"] --> B["["]]
    B --> C["Gelb"]
    C --> D["[II"]]
    D --> E["Grün"]
    F["Empfang eines NICAM-Signals"] --> G["NICAM [I"]]
    G --> H["Gelb"]
    H --> I["NICAM [II"]]
    I --> J["Grün"]
    J --> K["End"]

Simple diagram with two circles inside a rectangle, no text or symbols present

Empty white rectangle with a small black triangle symbol in the top-right corner (no text or labels)

HINWEIS

Hitachi Plasma TV Horizontal Wall-mount Unit

Model

PWT001

Installation Instructions

Thank you for purchasing the Hitachi Plasma TV Wall-mount Unit.

To ensure correct usage, please read this instruction manual thoroughly. After reading, please store this manual in a safe place for future reference.

This plasma TV wall-mount unit is for use with the following models:

HITACHI Plasma TV CL32-PD2100, CL37-PD2100, CL42-PD2100, 32PD5100, 42PD5100, 42PMA500

32PD5000, 32PD5200, 32PD5300, 37PD5200, 42PD5000, 42PD5200, 42PD5300, CMP4211/2, CMP4213/4

Special techniques are necessary for installation of the plasma TV.

■Do not attempt to perform this work by yourself.
■Request an installation specialist to install this unit.
This company assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the plasma TV set from the wall later, you will find the screw holes and anchor bolts for the mounting unit left on the wall. Also note that a long use of the plasma TV set may discolor the wall around it due to its heat and air flow.

To dealers and shops

● To ensure customer safety, be sure to design the installation location so that the strength is sufficient to withstand the weight of both the plasma TV and the wall-mount unit.
●Always use at least two persons for all installations.
● Fully tighten all of the mounting screws as specified in the installation instructions.

Parts Configuration Chart

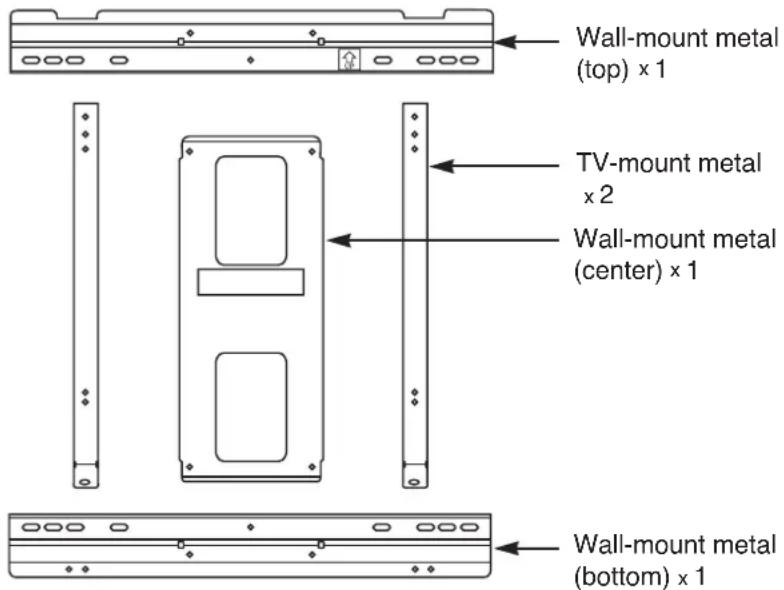

In the parts packing

M6 x 18 screw x 10

M5 - 6 flat washer × 8

Wire clamp × 2

Parts for CL37-PD2100 only

Bracket (R),(L) x1 each

M6 x 18 screw x 4

Usage cautions to ensure correct usage

Symbols

●The following symbols are used to ensure safe usage of the product, to prevent danger to yourself and other parties and to prevent damage to property.

WARNING

■This symbol indicates that incorrect handling due to ignoring this symbol can result in the possibility of personal injury or even death.

CAUTION

■This symbol indicates that incorrect handling due to ignoring this symbol can result in the possibility of personal injury and physical damage.

■This symbol indicates additional cautions (including warnings).

Caution (general)

■This symbol indicates forbidden actions.

Forbidden (general)

Disassembly prohibited

■This symbol indicates required actions.

Required (general)

Indicates that the power plug is to be disconnected from the power outlet.

Safety Cautions

WARNING

Disconnect the power plug from the power outlet.

Contact your local dealer.

Handling by other than professional contractors is prohibited.

■When a malfunction occurs, disconnect the power plug from the power outlet and take measures to prevent other people coming near the plasma TV.

In the cases such as

● The plasma TV is loose and vibrates to an extreme degree,
- Mounting screws or parts are loose or missing, failure to take appropriate actions can result in injury.
Perform the following actions immediately whenever a malfunction occurs.
①Turn off the plasma TV power switch.
② Disconnect the power plug from the power outlet.

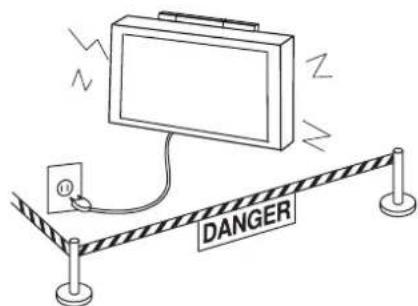

③Surround the area with rope, etc., to prevent other people coming near.
④Contact your local dealer.

■Ask your dealer to install, move or adjust the angle of the wall-mount unit.

Incorrect installation or adjustment can cause the plasma TV to fall.

WARNING

■The wall where the wall-mount unit is to be installed must be capable of long-term support of the total load of the plasma TV and wall-mount unit. Measures should also be taken to ensure sufficient strength to withstand the force of earthquakes, vibration and other external forces.

Incorrect installation can cause the plasma TV to fall and cause injury.

Total load of the (plasma TV + wall-mount unit)

= 26kg···CL32-PD2100

34kg···CL37-PD2100

37kg…CL42-PD2100

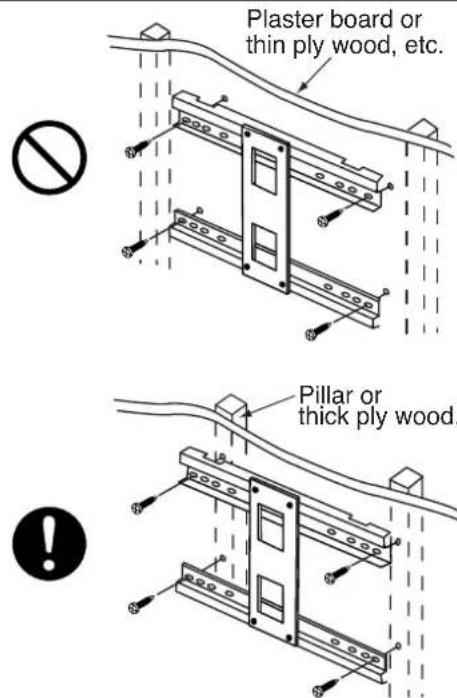

●Installation on a wooden wall

Always install so that the load is supported by a pillar. If the strength of the pillar is insufficient, add reinforcement. Do not install on decorative posts or plaster board.

●Installation on a concrete wall

Use commercially available anchors that are capable of fully supporting the load of the plasma TV.

CAUTION

Simple line drawing of a room with a window, air conditioner unit, and no text or symbols (no readable text or symbols)

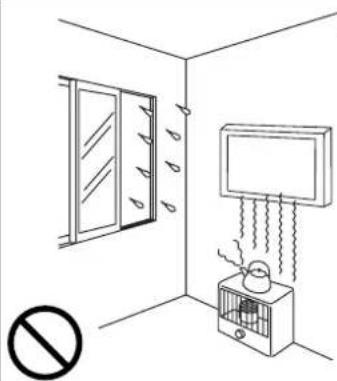

■Avoid installing in locations where the temperature and humidity are excessively high, and where contact with water is possible.

These can result in fire or electrical shock.

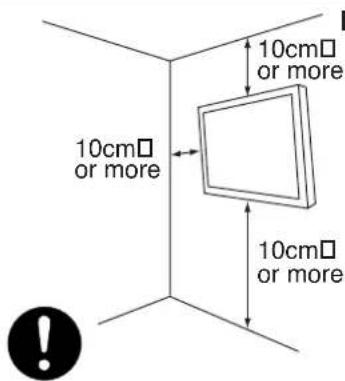

■Do not block the ventilation holes. Also provide sufficient clearance in regard to the surroundings to avoid blocking the ventilation.

The internal temperature could elevate and possibly result in fire.

Line drawing of a person sitting in a living room with a TV and cloud-like elements above, no text or symbols present.

■Do not install close to an air-conditioner intake or outlet.

Do not install in locations where there is excessive amounts of dust, oily smoke or tobacco smoke. Fire could result.

Pure technical line drawing of a Y-shaped structural joint with diagonal hatching (no text or symbols)

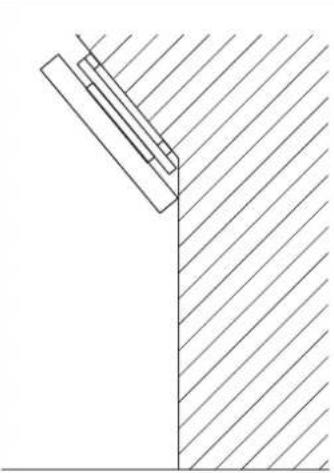

■Install only on a vertical surface. Avoid sloped surface. Also, do not install facing upward. The internal temperature could elevate and possibly result in fire. Injury or damage could also result from falling.

CAUTION
	■Do not install in locations where there is excessive vibration or impact.Injury and damage could result from falling.		■Do not install where there is direct sunlight and other strong light.Strong light could result in eye fatigue during usage.

Installing

WARNING
	■Use the specified bolts and screws in the specified places and tighten firmly.Failure to do this could cause injury if the plasma TV falls.		■Make sure the TV-mount metals and wall-mount metals are firmly engaged.Failure to do so could cause the plasma TV to fall.
	■Do not alter any of the parts. And do not use broken parts.This could result in injury due to the plasma TV falling.		■Always use at least two people to perform the installation work.Injury could result from dropping heavy objects.
			■Use care to prevent the fingers being caught.

Installation Method

Assembling the wall-mount metals

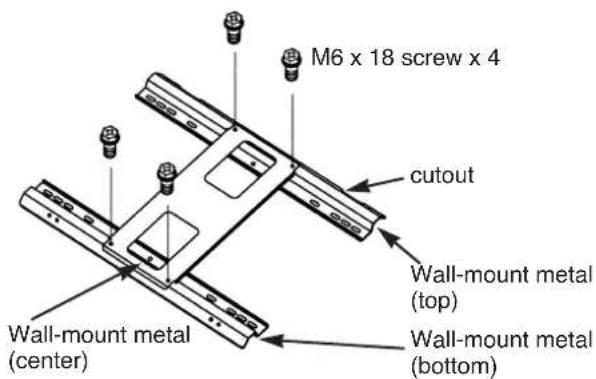

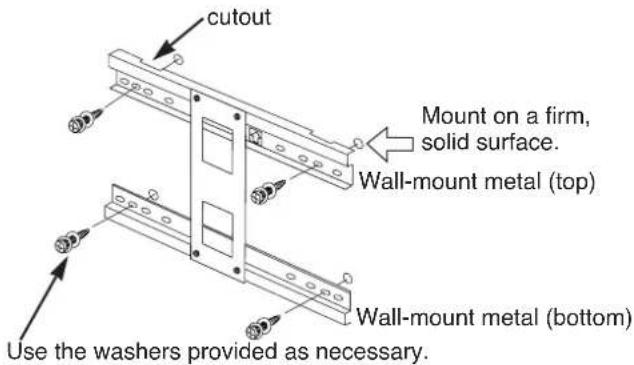

■ Assemble the wall-mount metal (Top), (Center) and (Bottom) with 4 M6 x 18 screws.

Mounting the wall-mount unit on the wall

1. Prepare at least four sets of commercially available anchors and screws, etc., for various types of walls.
2. Carefully read the safety cautions concerning installation locations as described in this instruction manual and then select a suitable location for installation.

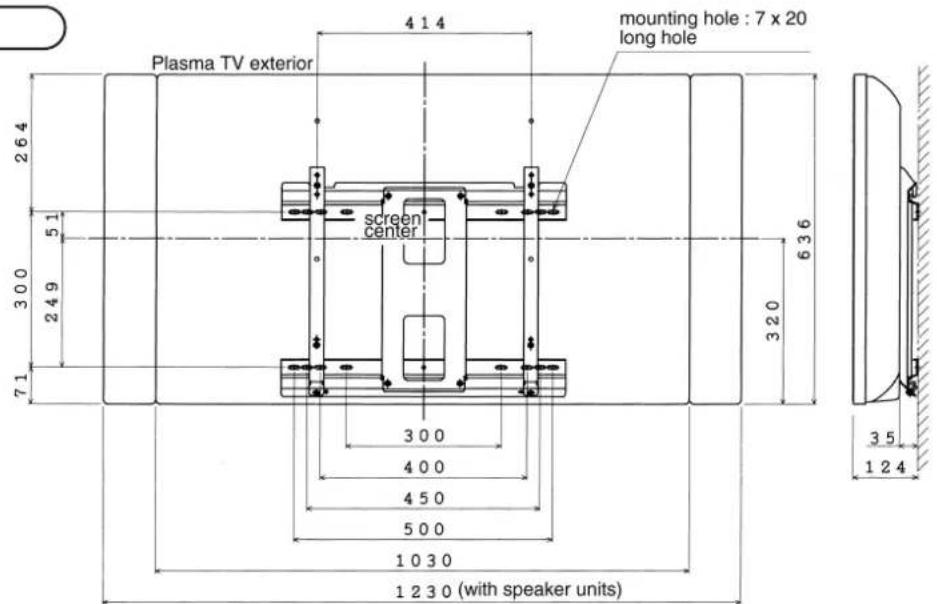

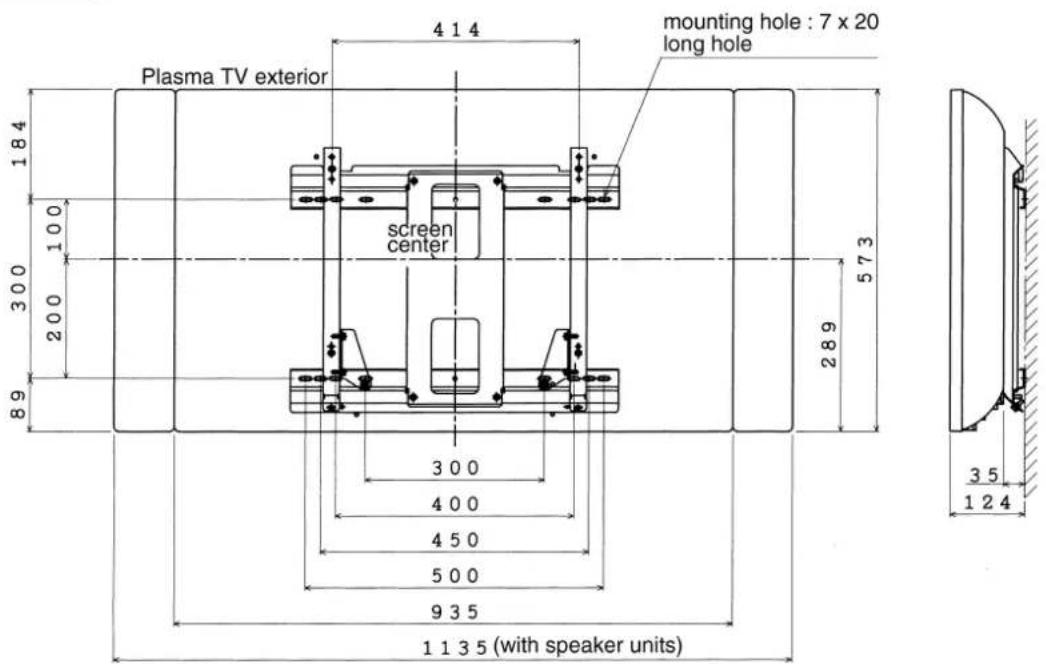

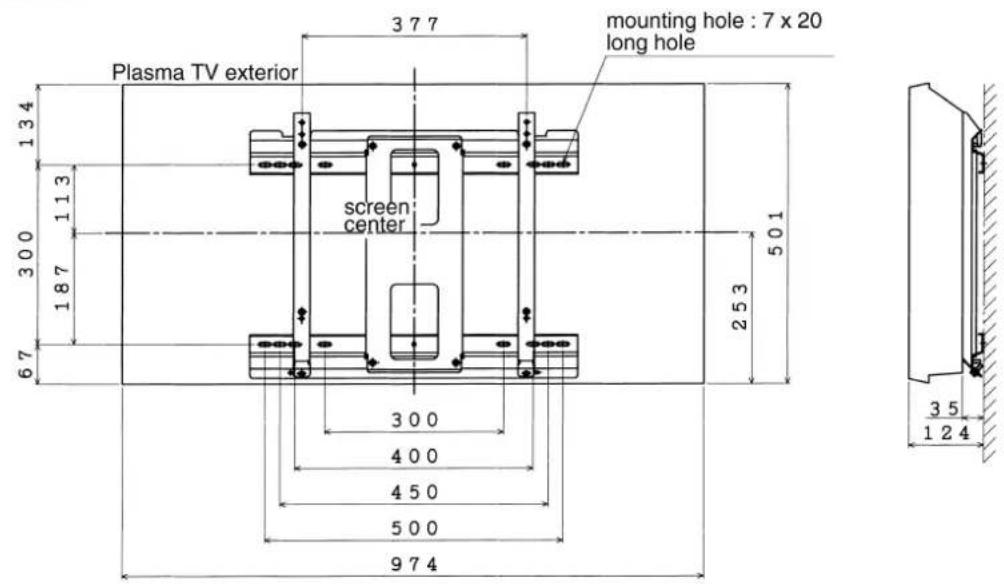

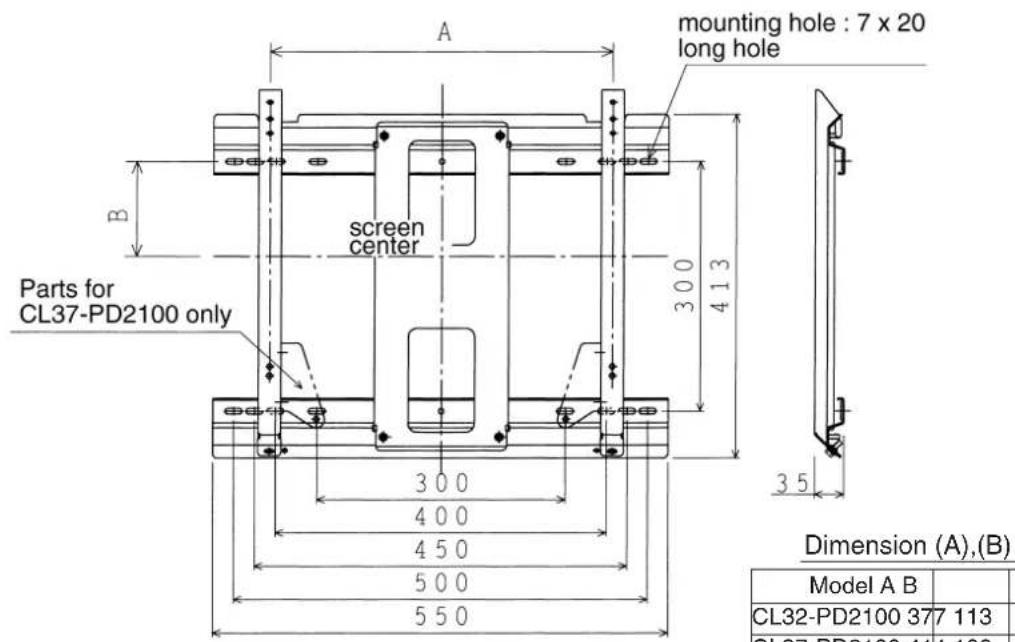

3. The relationship between the plasma TV exterior and center, and the positions of the wall-mount unit mounting holes is shown in the diagram for the various models. Install the anchors in the wall as shown in the diagram and process the holes as necessary.
   ●Make sure that the strengths of the wall and the screws are fully sufficient.

32 inch

37 inch

42 inch

1. Fasten the wall-mount unit securely to the wall.

●Clamp to two or more of the long slotted holes in the upper and lower parts of each wall-mounting metal in a well-balanced manner.

1. Dressing the cables

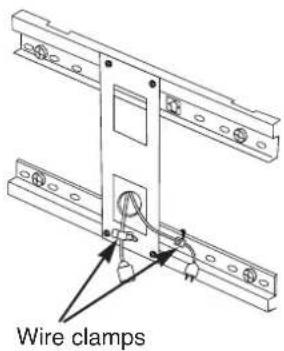

- When passing the plasma TV power cord and signal cables behind the plasma TV, use wire clamps, etc., to prevent cable damage.

Mounting the TV-mount metals on the plasma TV

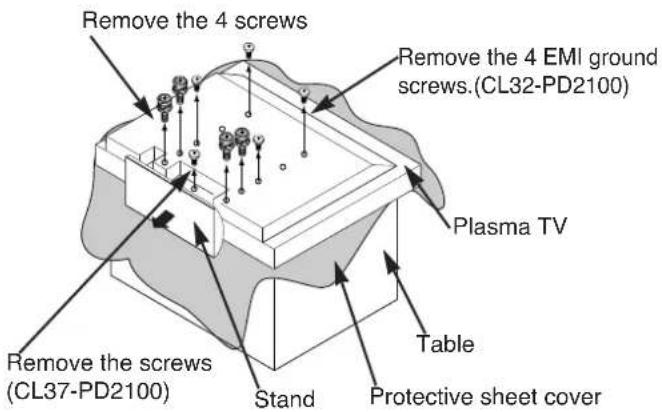

1. Remove the stand.

① Place a protective sheet cover on the top of a table and place the plasma TV on the cover with the back side upward.
② Remove the 4 EMI ground screws. (for CL32-PD2100 only.)
③ Remove the 4 or 5 (CL37-PD2100) screws fastening the stand and remove the stand in the direction indicated by the arrow mark.

2. Installing the TV-mount metals

CL32-PD2100

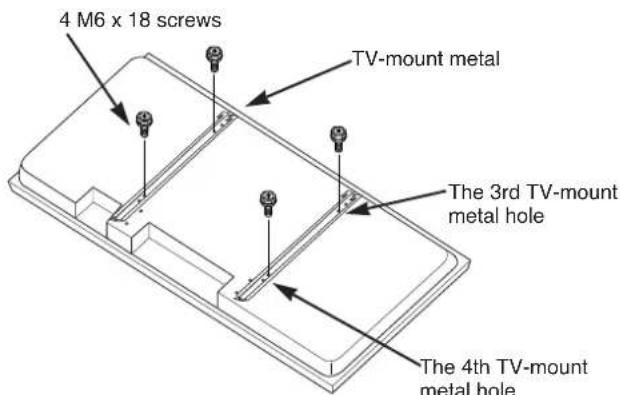

■Fasten the two TV-mount metals to the back of the plasma TV with 4 M6 x 18 screws.

CL37-PD2100

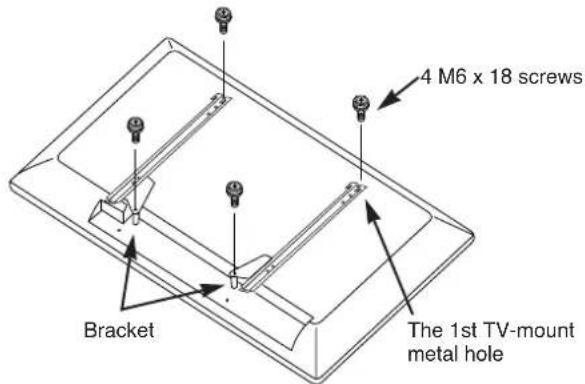

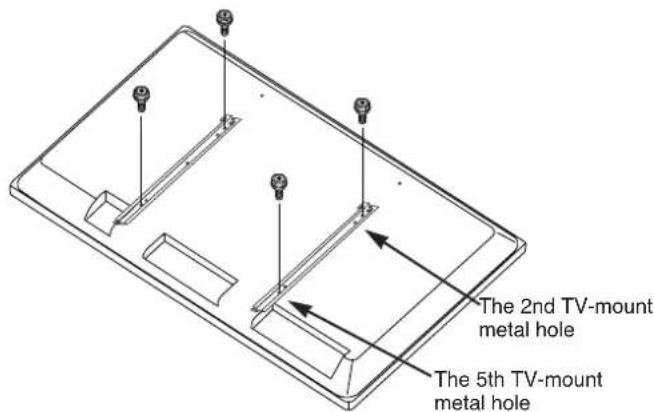

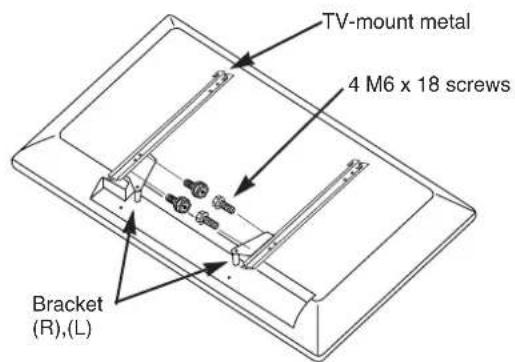

① Fasten the bracket (R), (L) to the TV mount metal with 4 M6 x 18 screws.

② Fasten the two TV-mount metals to the back of the plasma TV with 4 M6 x 18 screws.

CL42-PD2100

■Fasten the two TV-mount metals to the back of the plasma TV with 4 M6 x 18 screws.

Installing the plasma TV on the wall mount

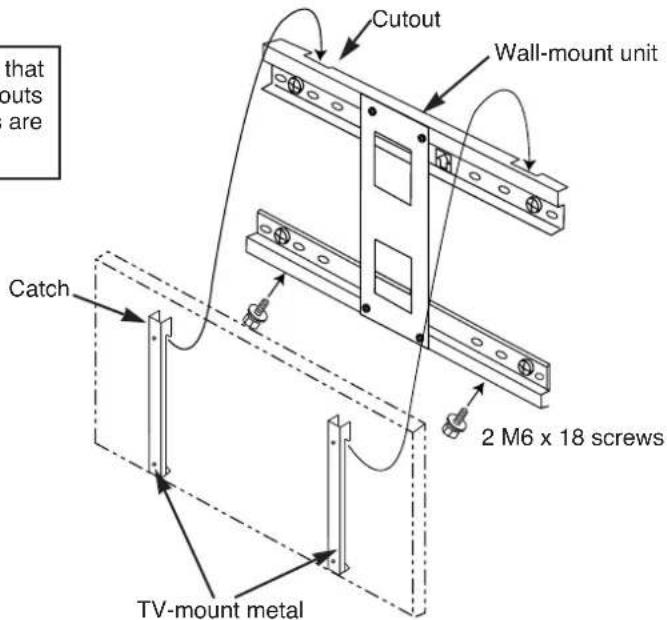

① Hang the TV-mount metal catches on the wall-mount unit cutouts.
② Fasten with 2 M6 x 18 screws from the bottom.
③ After make sure all mouting works are completely done, connect power cord and signal cables.

Make sure that the top cutouts and catches are engaged.

●The plasma TV should always be carried by at least two people.
●Disconnect the plasma TV power cord and all cables.

Product Specifications

External Dimensions

Mass 2.6kg
Main material Steel sheet
Surface treatment	Black electrodeposited baked paint
Angle adjustment	Vertical fix
Products mounted	Hitachi Plasma TV CL32-PD2100, CL37-PD2100, CL42-PD2100

Garantie

International Sales Division

THE HITACHI ATAGO BUILDING,

No. 15 –12 Nishi Shinbashi, 2 – Chome,

Minato – Ku, Tokyo 105-8430, Japan.

Tel: [phone]

HITACHI EUROPE LTD,

Whitebrook Park

Lower Cookham Road

Maidenhead

Berkshire

SL6 8YA

UNITED KINGDOM

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE S.A.

364 Kifissias Ave. & 1, Delfon Str.

152 33 Chalandri

Athens

GREECE

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE GmbH

Munich Office

Dornacher Strasse 3

Email: [e-mail]

HITACHI EUROPE S.A.

Gran Via Carlos III, 86, planta 5

Email: [e-mail]

HITACHI Europe AB

Box 77 S-164 94 Kista

SWEDEN

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE S.A.S

Lyon Office

B.P. 45, 69671 BRON CEDEX

FRANCE

Tel: [phone]

Fax: [phone]

HITACHI EUROPE LTD (Norway) AB

STRANDVEIEN 18

1366 Lysaker

NORWAY

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACH EUROPE AB

Egebækgård

Egebækvej 98

DK-2850 Nærum

DENMARK

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE AB

Neopoli / Niemenkatu 73

FIN-15140 Lahti

FINLAND
