Product type	Pedestal fan
Brand	DOMO
Model	DO8141
Power supply	220-240 V ~ 50 Hz
Rated power	50 W
Number of speeds	3 (low, medium, high)
Programmable timer	1 to 7 hours
Oscillation	Yes, activation via button or remote control
Remote control included	Yes
Adjustable height	Yes, by extendable tube (locking by ring)
Adjustable tilt	Yes, manually by pushing/pulling the grille
Dimensions (max height)	Approximately 130 cm
Base diameter	Approximately 35 cm
Net weight	Approximately 4 kg
Main material	ABS plastic, metal (tube)
Warranty	2 years (consumable parts: 6 months)
Safety	Automatic shut-off with timer, protective grille, not usable by children under 16 without supervision
Maintenance	Clean the exterior with a damp cloth and mild detergent; do not immerse
Included accessories	Remote control, screws, fixing clips
Intended use	Household, indoor only

Frequently Asked Questions - DO8141 DOMO

How to assemble the DO8141 fan?

Assemble the two base feet, place the retractable tube and fix it with 4 screws. Slide the cover plate. Loosen the locking ring, remove the upper part of the tube and lock at desired height. Attach the motor to the tube with the large screw. Mount the rear grille, blades, then the front grille. Tighten the clips.

How to adjust the fan height?

Turn the locking ring counterclockwise to unlock, adjust the height of the extendable tube, then retighten the ring to lock. Make sure it is tight before using the fan.

How to use the timer?

Press the TIMER button. The timer can be set from 1 to 7 hours in increments of 1h, 2h and 4h (combinations). The programmed delay appears on the LCD screen. The fan will automatically turn off after the selected delay.

How to activate oscillation?

Press the oscillation button on the control panel or remote control. The fan will pivot left to right for better air distribution.

How to clean the fan?

Unplug the device. Clean the exterior with a damp cloth and mild detergent. Dry thoroughly. Do not immerse and avoid water ingress into the motor. Do not disassemble the fan to clean the motor.

What to do if the remote does not work?

Check the remote batteries. Point it at the receiver. Make sure no obstacle blocks the signal. If the problem persists, use the control panel buttons.

Is the fan safe for children?

The device can be used by children over 16 under supervision. Children under 16 must not play with the device. Keep it out of their reach. The protective grille reduces risks.

How to change the fan speed?

Press the SPEED button (on the panel or remote) to cycle through 3 speeds: low, medium, high. The selected speed displays on the LED screen.

What is the warranty of the DO8141 fan?

The warranty is 2 years from the date of purchase, covering material and manufacturing defects. Accessories and consumable parts are warranted for 6 months. The warranty does not apply in case of misuse or unauthorized repair.

What to do in case of breakdown or malfunction?

Contact DOMO customer service: [phone] (Mon-Thu 8:30-17:00, Fri 8:30-16:30) or email [e-mail]. Do not attempt to repair yourself. Have the device serviced by a professional.

USER MANUAL DO8141 DOMO

White outdoor fan with three blades and a stand, no visible text or symbols

DO8141

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

MONTAGE

BEVESTIGING VAN DE VOET EN MOTORGEDEELTE

Technical line drawing of a mechanical assembly with four arms and a central vertical rod (no text or symbols)

BEVESTIGING GRILL EN VENTILATORBLADEN

Two technical diagrams showing circular components with internal grid patterns and directional arrows, no text or symbols present.

GEBRUIK

3D wireframe diagram of a turbine or impeller with rotational arrow indicating motion (no text or symbols)

HOOGTE INSTELLEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

MONTAGE

ASSEMBLAGE DU PIED ET DU MOTEUR

Technical line drawing of a mechanical assembly with four cross-shaped supports and a central vertical rod (no text or symbols)

ASSEMBLAGE DES GRILLES ET DES PALES DU VENTILATEUR

Two technical diagrams showing circular structures with internal grid patterns and a schematic diagram of a mechanical or structural component (no text or symbols present)

UTILISATION

3D wireframe diagram of a turbine or impeller with rotational arrow indicating motion (no text or symbols)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

MONTAGE

Technical line drawing of a mechanical assembly with four arms and a central vertical rod (no text or symbols)

Two technical diagrams showing circular structures with internal grid patterns and a schematic diagram of a mechanical or structural component (no text or symbols present)

GEBRAUCH

3D wireframe diagram of a mechanical component with rotational arrow (no text or symbols)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · All repairs should be carried out by the manufacturer or its aftersales service.
  · Never immerse the appliance, the cord or the plug in water or any other liquid.
  · Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
  · Before use, remove all packaging materials and any promotional stickers.
• Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

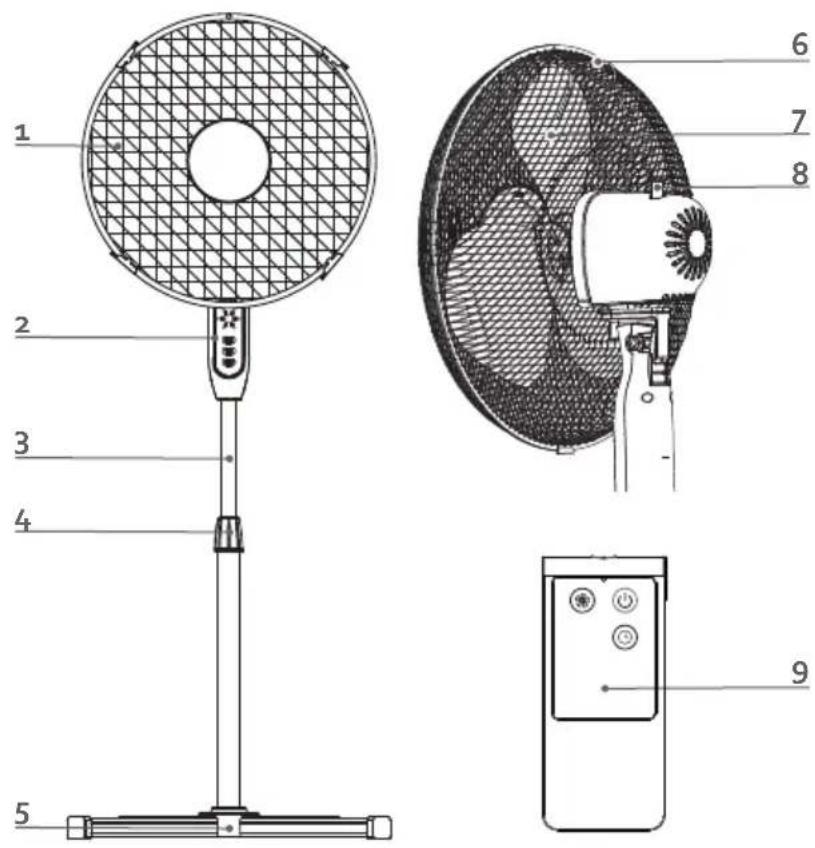

PARTS

1. Grill
2. Control Panel
3. Telescopic tube
4. Clamp
5. Base mount
6. Handle
7. Fan blades
8. Oscillation button
9. Remote control

ASSEMBLY

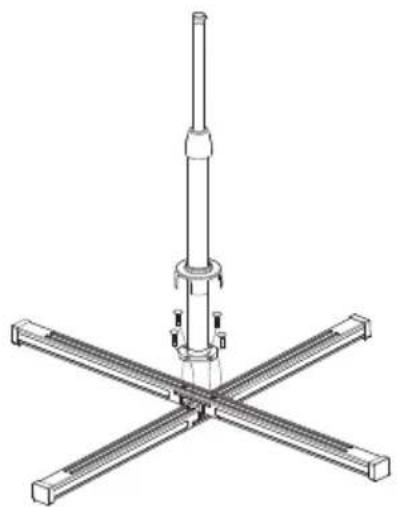

FASTENING THE BASE AND THE MOTOR

Assemble the 2 legs of the base. Place the retractable tube on the base and fix it with 4 screws.

Slide the cover over the base mount.

Technical line drawing of a mechanical assembly with four cross-shaped supports and a central vertical rod (no text or symbols)

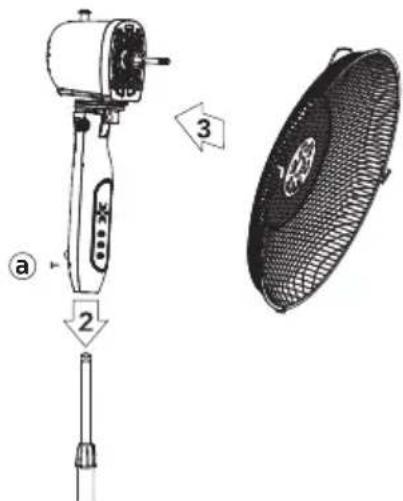

Loosen the clamp and extend the top part of the tube completely and block the tube at this height by tightening the clamp again.

Make sure that the clamp is tightened before mounting the motor. Loosen the large screw at the back of the control panel (a). Place the motor on the telescopic tube. Tighten the large screw again, making sure that the screw is aligned with the recess in the telescopic tube. The large screw must be fully tightened prior to using the fan.

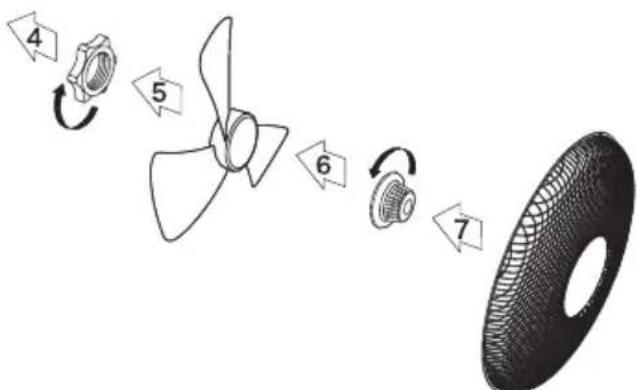

FASTENING THE GRILL AND THE FAN BLADES

Place the back of the grill on the motor drive. Secure it using the open plastic screw. Place the fan blades on the motor drive. Make sure the pin on the motor drive fits perfectly behind the fan blades. Secure the fan blades on the motor drive using the closed plastic screw.

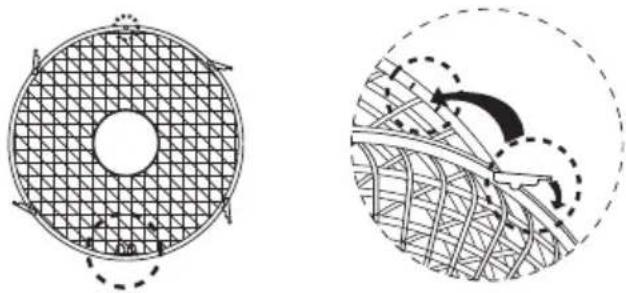

Place the grill at the front on the grill at the back. Pay attention to the hook at the bottom of the back grill. Place the supplied screw in the opening at the top and tighten with the supplied nut. Attach the unit using the mounting clips on the sides of the grill.

Two technical diagrams showing circular structural components with internal grid patterns and directional arrows (no text or symbols)

USE

Put the plug in the mains. Switch the fan on with the button: ON/OFF ON/OFF

CONTROL PANEL

1. Speed control
2. Timer
3. On-off button
4. Indicator light for speed
5. Indication light for timer

REMOTE CONTROL

1. Speed: speed control
2. ON/OFF: on-off button
3. Timer

SPEED

Select the desired air speed by pressing the SPEED button. The selected speed will be indicated on the LED display:

:low speed

✿ : medium speed

✿: high speed

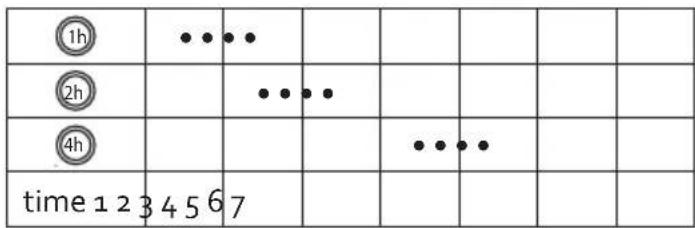

TIMER

You can set the timer from 1 hour upto 7 hours with the TIMER button. The set time is indicated on the LED display. It is the sum of the time indications next to which the red dot is lit. So:

The fan will automatically switch off when the set time has passed.

OSCILLATION

To allow the fan to oscillate, push in the oscillation button. To stop the fan from oscillating, pull the button up. When it is switched on, it will alternately turn to left and right to better spread the air.

DIRECT THE VENTILATION

To direct the ventilation up or down, push down or pull up gently on the grill to adjust the direction up or down.

3D wireframe model of a mechanical component with rotational arrow (no text or symbols)

HEIGHT OF THE FAN

The height of the fan can be adjusted by loosening the clamp and lengthening or shortening the telescopic tube. Then tighten the clamp firmly before turning the fan on.

CLEANING AND MAINTENANCE

· This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
· Prior to assembling the fan or cleaning it, remove the plug from the outlet.
- Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
- You may clean the exterior of the machine with a soft moist cloth and a mild detergent. Carefully dry the machine afterwards.
- Never use corrosive or abrasive products to clean the machine.
· Make sure that no water gets into the motor of the machine.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

MONTAJE

Technical line drawing of a mechanical support structure with four arms (no text or symbols)

Two technical diagrams showing circular components with internal grid patterns and a schematic diagram of a mechanical or structural component (no text or symbols present)

USO

Diagram of a mechanical component with mesh structure and rotational arrow (no text or symbols)

LA ALTURA DEL VENTILADOR

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

SESTAVENÍ

SESTAVENÍ PODSTAVCE A MOTORU

Technical line drawing of a mechanical assembly with four cross-shaped supports and a central cylindrical component (no text or symbols)

SESTAVENÍ OCHRANNÝCH MŘÍŽEK A VRTULE

Two technical diagrams showing circular structures with internal grid patterns and directional arrows, no text or symbols present.

POUŽITÍ

3D wireframe model of a mechanical component with rotational arrow (no text or symbols)

VÝŠKA VENTILÁTORU

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

ZOSTAVENIE

ZOSTAVENIE PODSTAVCA A MOTORA

Technical line drawing of a mechanical assembly with four cross-shaped supports and a central cylindrical component (no text or symbols)

Uvolnite aretovacie maticu a vysuňte si teleskopickú trubicu na požadovanú výšku. Potom opät utiahnite a zaaretujte. Skontrolujte či je matica dostatočne dotiahnutá.

ZOSTAVENIE OCHRANNÝCH MRIEŽOK A VRTULE

Two technical diagrams showing circular structures with internal grid patterns and directional arrows, no text or symbols present.

POUŽITIE

Prístroj zapojte do el. siete a zapnite stlačením tlačítka ON / OFF.

ON/OFF

OVLÁDACÍ PANEL

Illustration of a mechanical device with mesh mesh and hand tool (no text or symbols)

ČISTENIE A ÚDRŽBA

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
