Brand	Hifonics
Model	Zeus ZS42
Product Type	Car Speaker
Speaker Size	4 inches
Impedance	4 ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	150 Watts
Frequency Response	80 Hz - 20 kHz
Sensitivity	90 dB
Mounting Depth	45 mm
Mounting Diameter	100 mm
Cone Material	Polypropylene
Tweeter Size	1 inch soft dome
Magnet Type	Ferrite
Crossover	Included external crossover
Weight	0.5 kg
Connection Type	Spring terminals
Mounting Type	Flush mount
Polarity	Ensure correct polarity (+/-)
Maintenance	Clean with dry cloth
Safety	Do not expose to moisture
Warranty	1 year

Frequently Asked Questions - Zeus ZS42 Hifonics

What is the size of the Hifonics Zeus ZS42 speaker?

The Hifonics Zeus ZS42 is a 4-inch speaker, suitable for coaxial installation.

What is the impedance of this speaker?

The impedance is 4 ohms, standard for most car audio systems.

How much power can the ZS42 handle?

It handles 50 watts RMS and 150 watts peak power.

What is the frequency response?

The frequency response is 80 Hz to 20 kHz, covering bass to treble.

Does the ZS42 come with a crossover?

Yes, it includes an external crossover for optimal sound separation.

What is the mounting depth?

The mounting depth is 45 mm, ensure clearance behind the panel.

How do I connect the speaker?

Use spring terminals and ensure correct polarity (+/-) for proper phase.

Can I use the ZS42 in a marine environment?

No, it is not waterproof. Avoid moisture and install in a dry area.

How do I clean the speaker?

Clean gently with a dry cloth. Do not use liquids or abrasives.

What is the warranty period?

Hifonics offers a 1-year warranty against manufacturing defects.

USER MANUAL Zeus ZS42 Hifonics

Pure technical line drawing of concentric circular components without any text, numbers, or symbols

ZS42

ZS52

ZS62

ZSW4

ZSW5

ZSW6

ZX6.2W

EINBAUHINWEISE

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
2. Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
3. Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
4. Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
5. Please handle the components with care, otherwise they will get damaged.
6. Never connect the speakers to the electrical ground or with the body of the vehicle.

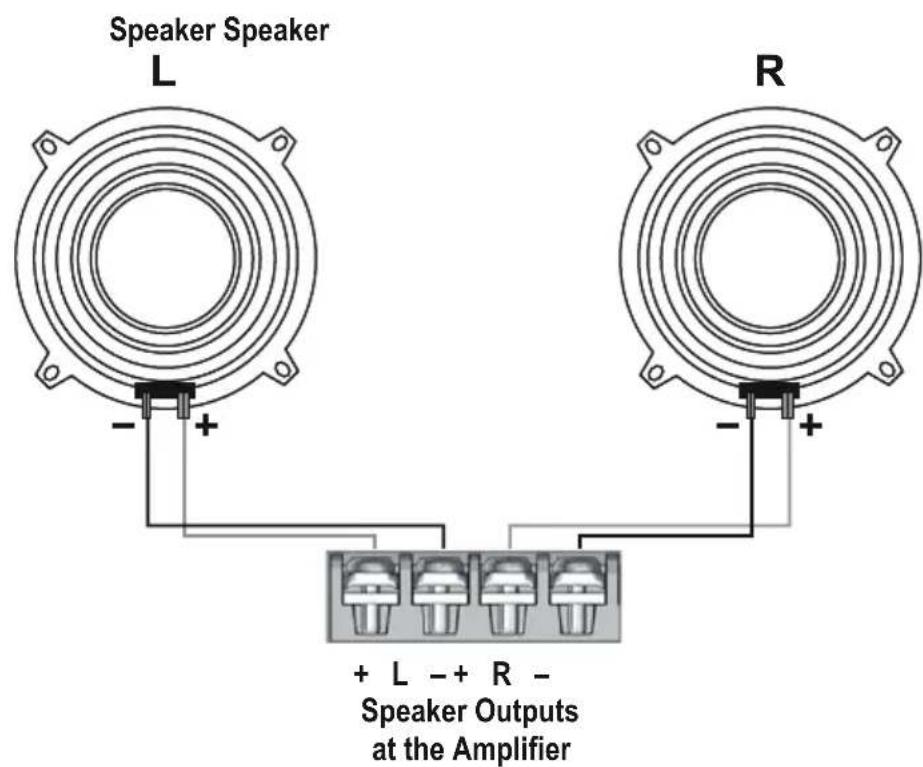

IMPORTANT: Please pay attention to the correct polarity (+ or -) for all connections.

HIFONICS

Zeus

SERIES

Audio Design GmbH

Am Breilingsweg 3 · D-76709 Kronau/Germany

Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510

www.audiodesign.de · www.hifonics.de
