Type	2-Way Component Speaker System
Model	ME6.2C
Brand	Musway
Midbass Driver Size	6.5 inches (165 mm)
Tweeter Driver Size	1 inch (25 mm)
Frequency Response	50 Hz - 20 kHz (estimated)
Impedance	4 ohms (typical)
Power Handling (RMS)	100 W (estimated)
Power Handling (Peak)	200 W (estimated)
Sensitivity	90 dB (estimated)
Recommended Amplifier Power	50 - 150 W RMS per channel
Installation Location	Door panels or rear speaker deck
Tweeter Attenuation	Optional -3 dB by cutting cable loop
Polarity Requirement	Ensure correct + and - connections
Safety Warning	Do not connect to ground or vehicle body
Maintenance	Clean with dry cloth; avoid moisture
Spare Parts	Contact dealer or manufacturer
Warranty	Contact dealer for details
Manufacturer Contact	Audio Design GmbH, www.musway.de

Frequently Asked Questions - ME6.2C Musway

What is the model of this speaker system?

The model is ME6.2C from Musway.

How should I connect the speaker system to the amplifier?

Refer to the interconnection diagram in the manual. Connect the amplifier's left and right speaker outputs to the corresponding crossover inputs (L and R). Then connect the woofer and tweeter to the crossover outputs, ensuring correct polarity (+ and -).

Why is correct polarity important?

Correct polarity ensures proper sound staging and prevents phase cancellation. Always match the + and - terminals consistently between the amplifier, crossover, and speakers.

How can I reduce tweeter output by -3 dB?

Cut the transparent cable loop on the tweeter crossover (as shown in the manual). This optional modification attenuates the tweeter by -3 dB for a balanced sound.

Where is the best place to install the midbass speakers?

Mount them in door panels or rear speaker decks for optimal sound imaging. Ensure there is no obstruction behind the mounting surface (e.g., window tracks, wiring) and that the speaker basket is securely sealed to the panel.

Can I mount the tweeter far from the midbass?

It is recommended to mount the tweeter as close as possible to the midbass to maintain coherent sound imaging. Avoid large separation distances.

What tools do I need for installation?

Basic tools such as screwdrivers, wire strippers, and a drill may be needed. Also have speaker wire, connectors, and mounting hardware. Refer to your vehicle-specific installation guide.

How do I ensure proper clearance behind the mounting location?

Before cutting or drilling, inspect behind the panel for obstacles like window mechanisms, wiring harnesses, or gas tanks. The speaker basket must have enough depth clearance without touching anything.

Is there a warranty for this product?

Warranty details are typically provided by the dealer. Contact your point of purchase or Musway via their website for specific warranty information.

How can I contact Musway for support?

Visit the official website www.musway.de or contact Audio Design GmbH, the parent company.

USER MANUAL ME6.2C Musway

Close-up of a black cylindrical electronic component with a metallic wire and a 3dB dB marker, no readable text or symbols beyond the label.

ANSCHLUSS ME32, ME42, ME52, ME62, ME6.2W, ME120, ME462, ME572, ME693

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
2. Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
3. The tweeter should always be installed as close as possible to the midbass speaker.
4. Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
5. Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
6. Please handle the components with care, otherwise they will get damaged.
7. Please pay attention to the correct polarity (+ or -) for all terminals and connections.
8. Never connect the speakers to the electrical ground or with the body of the vehicle.

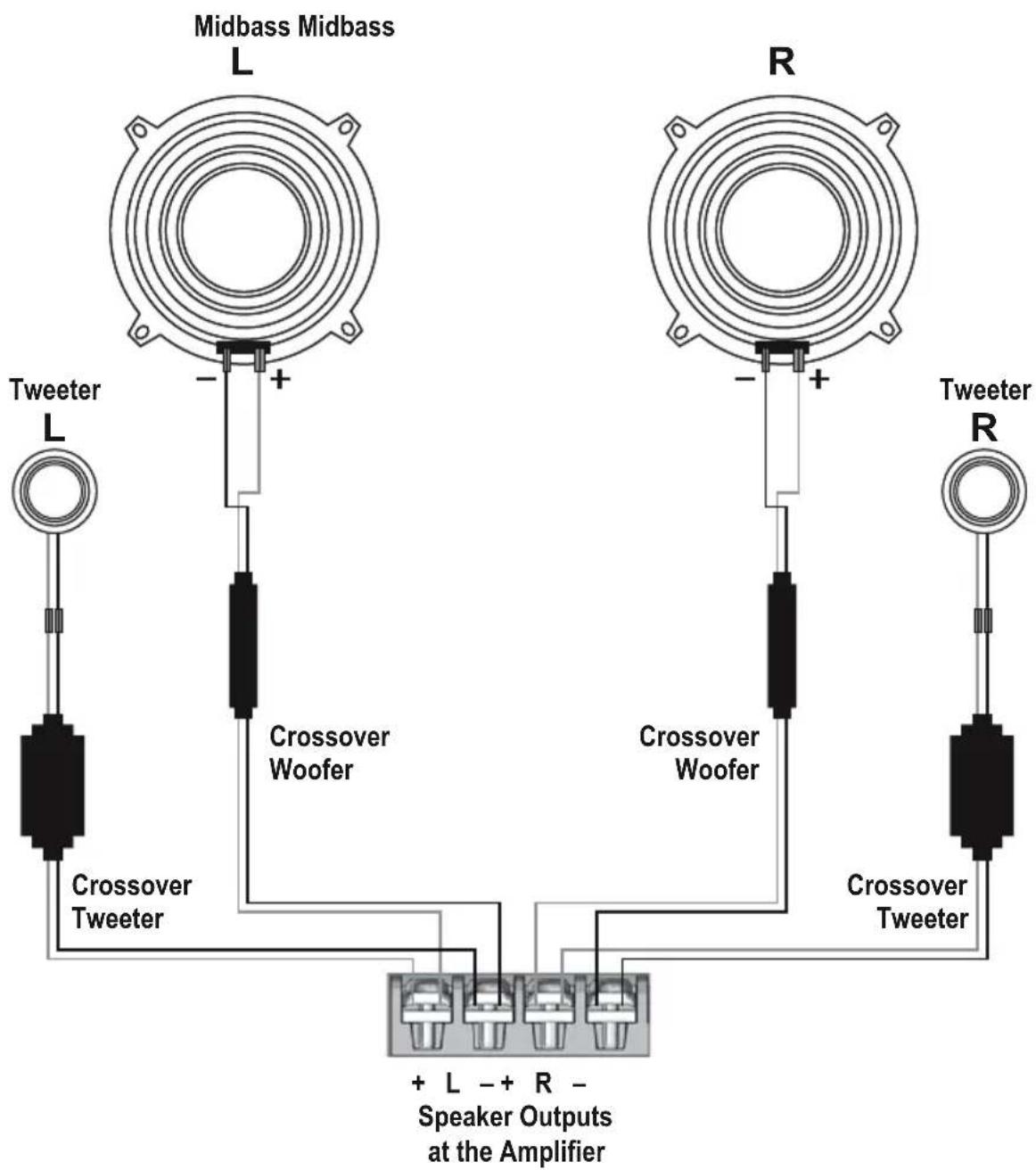

INTERCONNECTION ME5.2C, ME6.2C, ME6.2T

Midbass Midbass L R Tweeter L + - + - + - + - Crossover Woofer Crossover Woofer Crossover Tweeter Crossover Tweeter + L - + R - Speaker Outputs at the Amplifier Tweeter R

IMPORTANT:

Please pay attention to the correct polarity (+ or -)

for all terminals and connections.

TWEETER ATTENUATION ME5.2C, ME6.2C, ME6.2T

Close-up of a black electronic component with a 3dB signal marker and wire, no readable text or symbols beyond the label.

Optional:

Cut the transparent cable loop on the tweeter crossover for a tweeter attenuation of -3dB.

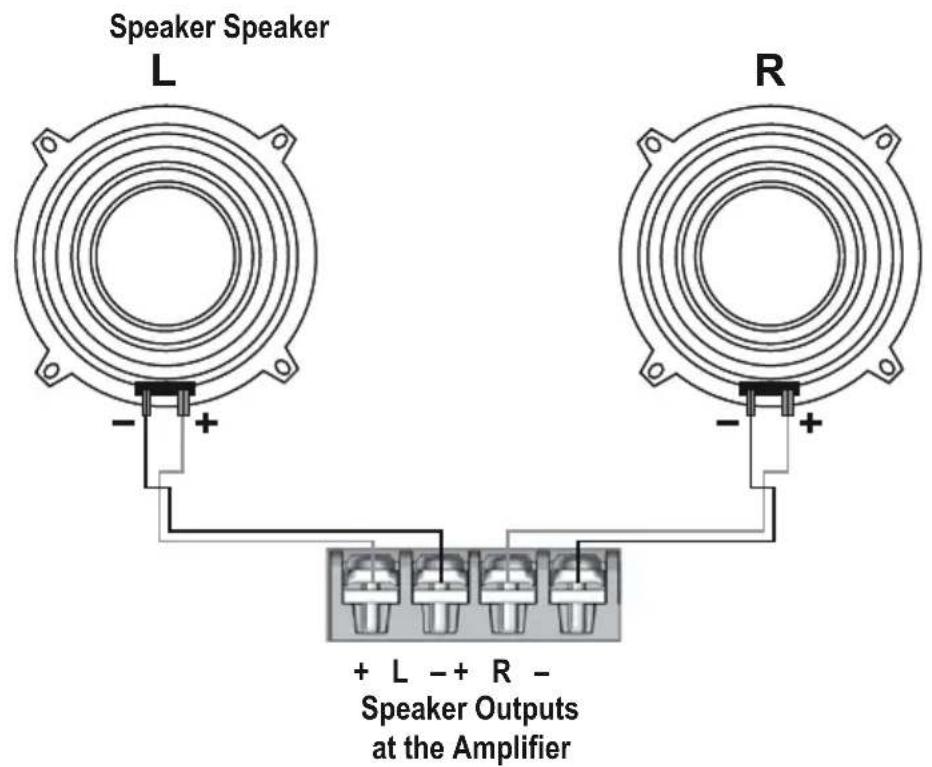

INTERCONNECTION ME32, ME42, ME52, ME62, ME6.2W, ME120, ME462, ME572, ME693

Speaker Speaker L R + L - + R - Speaker Outputs at the Amplifier

IMPORTANT:

Please pay attention to the correct polarity (+ or -) for all terminals and connections.
