USER MANUAL Aromo Eta

White ceramic coffee maker with 'eta - ARONO-' branding and a circular button (no additional text or symbols)

① A1 CLICK ② A2 A5 A6 A A4

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 3

II. POPIS VÝROBKU 4

III. POKYNY K OBSLUZE 4

IV. ÚDRŽBA 5

V. EKOLOGIE 5

Crossed diagram showing agricultural symbols including wheat, rice, and plant (no text or labels)

Close-up of a circular mechanical component with internal features and a labeled section A3 (no readable text or symbols)

Diagram showing four different types of household fixtures: a hand holding a triangular object, a triangular shape with a handle, a bucket with a brush, and a faucet with a cross.

Product images are for illustrative purposes only

Illusztratív képek

Electric coffee grinder

eta 0064, 0065

MAGICO, AROMO

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SECURITY ADVICE

- Consider the instructions in the user's manual as a part of the appliance and provide it to other users of the appliance.

- Check that the voltage on the type label corresponds to the voltage in your electric power socket.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the charger from the power socket!

- Do not leave the iron plugged in power supply without supervision!

- If the power cord of the charger is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if its power cord or charger is damaged, if it does not work properly, if it fell down and was damaged and it is leaking. In this case take the appliance to a special service to check its safety and proper function.

- Always unplug the appliance from charger if you leave it unattended and before assembly, disassembly or cleaning.

- This appliance must not be used by children.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Children must be kept out of reach of the appliance and its power cord.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- The product is intended to be used only and exclusively for grinding coffee Do not process other foodstuffs (e.g. cereals, flax and sesame seeds, corn, rice, buckwheat, dried mushrooms, herbs, spices, etc.).

- Never put your fingers or any other object between the rotating parts of the grinder.

- Never submerge any part of the grinder in water.

- The grinder must never be used near a source of heat.

- Correctly placing the lid on the appliance will release the safety lock and the appliance may be turned on.

• Do not insert or take the plug out of a socket with wet hands and do not pull the power cord!
• This appliance is not intended for outdoor use.
• The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).
• Always use the grinder only in places where there is no danger that it could overturn.
• Be careful to use only good quality coffee beans and check whether they are free of any articles which could damage the grinder.
• The grinder filler capacity is 50 grams of coffee.
• The maximum time of processing is 30 seconds. Then wait for 10 minutes, which is necessary for the drive unit to cool down.
• After use, unplug the grinder from the mains.
• To avoid danger in case of damage to the flex, a damaged flex must be repaired or replaced by the manufacturer, its service engineer or a similarly trained person.
• Do not wind the power cord around the appliance; this will extend life of the power cord.
• The power cord must not be damaged with sharp or hot objects, open fire; it must not be sunk into water or bent over sharp edges. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling over or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. food deterioration, injury caused, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

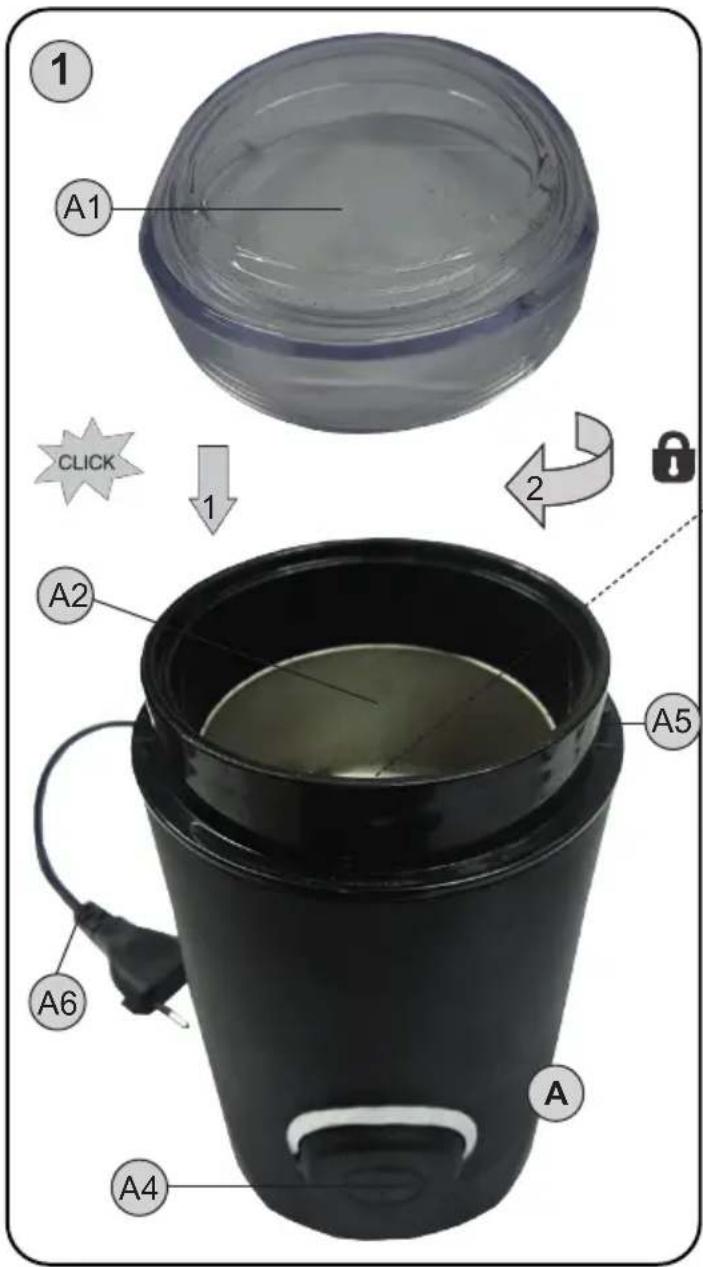

II. DESCRIPTION OF THE PRODUKT (Fig. 1)

A - Grinder

A1 - lid

A2 – grinding chamber

A3 - blades

A4 – ON/OFF push-button switch ☑ (the motor only for the time when the switch

A5 – safety lock A6power cord!

III. OPERATING INSTRUCTIONS

Plug power supply fork to the electric power. Disassembling the lid A1. Spill some coffee beans in the grinding chamber A2 (Figure 1) and close the lid so that turn the lid clockwise (you will hear a click and at the same time, safety lock is unlocked). Pay special attention to this operation. The grinder is switched ON and OFF by the ON/OFF switch A4. When processing coffee, apply operation pulses according to the required graininess of coffee. After the grinding has finished, remove the lid. Remove the lid and empty the coffee in a suitable jar. To install the lid in the grinder follow the above procedure in the reverse order. Wind the cord A6 in the bottom of the grinder.

Notice

- Ensure good quality of coffee. We recommend that you check coffees for presence of any foreign objects before milling (e.g. fragments of blades) which could damage the product (e.g. abrade the grinding discs). Possible complaints within the warranty period as a result of these impurities will not be taken into account.

Safety lock A5

• It prevents starting the appliance if lid is not properly mounted on grinder.
• It switches off the appliance if the lid becomes unsecured.

IV. MAINTENANCE

Never use abrasive or corrosive detergents to clean the grinder. Clean the grinder body with a piece of wet cloth. In case the grinder is used often, it is advisable to clean the grinding mechanism at least once a week with a suitable tool such as brush.

V. ENVIRONMENT

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VI. TECHNICAL DATA

Voltage (V) / Input (W) specified on the type label

Filler capacity 50 grams of coffee beans

Weight about (kg) 0.69

Appliance Protection class II.

Noise level: Acoustic noise level of 85 dB(A) re 1pW

Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

NOTICE: Pay maximum care when cleaning the cutting blades!
