Product Type	Wireless In-Ear Monitor Bodypack Receiver
Brand	CAD Audio
Model	GXLIEM (Bodypack Receiver)
Frequency Band	902 - 928 MHz (T Band)
Frequency Response	20 Hz - 20 kHz
Dynamic Range	>110 dB
Number of Channels	16 (Frequency Agile)
Display	High Contrast LCD with Battery Life Indicator
Audio Outputs	1/8" (3.5 mm) Earphone Jack and Line Out Jack
Power Source	2x AA Alkaline or Rechargeable Batteries
Battery Life	>10 Hours
Antenna Type	Advanced Dipole Antenna (Built-in)
Dimensions (L x W x H)	3.77" x 2.44" x 8.26" (96 x 62 x 210 mm)
Material	Durable Plastic Construction
Belt Clip	Included
Syncing Method	ScanLink™ IR Sync
RF Signal Strength Indicator	Yes
Low Battery Indicator	Yes (flashing)
Safety Warning	Use at Lowest Volume to Prevent Hearing Damage
Compliance	FCC Part 15
Warranty	2-Year Limited Warranty
Included Accessories	MEB1 Earbuds, Belt Clip, User Guide

Frequently Asked Questions - GXLIEM CAD Audio

What type of batteries does the GXLIEM bodypack receiver use?

The receiver uses 2x AA alkaline or rechargeable batteries. Insert them into the battery compartment observing polarity.

How do I sync the bodypack receiver with the transmitter?

Press and hold the DOWN and UP buttons simultaneously for one second on the receiver to enable ScanLink™. Hold the receiver's IR node towards the transmitter's flashing IR LED to set the frequency.

What is the operating range of the GXLIEM system?

The range depends on environmental conditions. Typically, you can expect up to 100 meters (300 feet) line-of-sight. Obstructions may reduce range.

Can I use rechargeable batteries?

Yes, Ni-MH rechargeable AA batteries are recommended. Battery life may be slightly less than alkaline, but still over 10 hours.

How do I know when the battery is low?

The low battery indicator on the LCD display will flash. Replace or recharge batteries promptly to avoid sudden shutdown.

What earbuds are included with the receiver?

The bodypack receiver comes with MEB1 high-performance earbuds. They provide a secure fit and good sound isolation.

Is the receiver compatible with other CAD Audio transmitters?

The GXLIEM receiver is designed to work specifically with the GXLIEM series transmitters (Single, Dual, Quad Mix). It is not compatible with other CAD wireless systems.

How do I clean the earbuds?

Use an antiseptic wipe to clean the earphones before and after use to avoid infections. Do not immerse in liquid.

What should I do if I experience interference?

Try changing the channel on both transmitter and receiver via the UP/DOWN buttons. Ensure no other wireless devices operate on the same frequency. Also check for physical obstructions.

How long is the warranty?

CAD Audio provides a 2-year limited warranty from the date of purchase covering defects in materials and workmanship. Retain proof of purchase.

USER MANUAL GXLIEM CAD Audio

Individuals with cardiac pacemakers and other similar medical devices should consult with their physician before using any RF devices. Though the output level of this wireless system is below 50 milliwatts, the proximity of the transmitter to the implant device could pose a threat.

As with any wireless product, environmental conditions can reduce or in some cases prohibit a successful connection between the transmitter and the receiver.

This device complies with Part 15 of the FCC Rules. Most users of CAD Audio wireless products in the United States do not need a license for operation. However, the rules for unlicensed operation state that this device must not operate in excess of 50 milliwatts and it must not cause harmful interference to other wireless devices, and must accept interference received from other devices. Wireless products meeting CAD factory standards adhere to these rules. The FCC reserves the right to change these rules at any time. For more information contact the FCC at 1-888 -CALL-FCC (TTY: 1-888 -TELL-FCC) or visit the FCC's wireless microphone website at:

www.fcc.gov/cgb/wirelessmicrophones

Two-Year Limited Warranty

CAD Audio hereby warrants that this product will be free of defects in material and workmanship for a period of two years from the date of purchase. In the unlikely event that a defect occurs CAD Audio will, at its option, either repair or replace with a new unit of equal or greater value. Retain proof of purchase to validate the purchase date and return it with any warranty claim.

This warranty excludes exterior finish or appearance, damage from abuse, misuse of the product, use contrary to CAD Audio's instructions or unauthorized repair. All implied warranties, merchantability, or fitness for a particular purpose is hereby disclaimed and CAD Audio hereby disclaims liability for incidental, special or consequential damages resulting from the use or unavailability of this product.

This warranty gives you specific legal rights and you may have other rights that vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions and limitations may not apply to you. Note: No other warranty, written or oral is authorized by CAD Audio.

CAD Audio Corporate Offices

6573 Cochran Rd., Bldg. I Solon, OH 44139 U.S.A.

Tel: [phone] Fax: [phone]

www.cadaudio.com

Distributed Worldwide by American Music and Sound

925 Broadbeck Drive, Suite 220

Newbury Park, CA 91320 U.S.A.

Tel: [phone] Fax: [phone]

©2020 CAD Audio Part No. 62278-04 -00 Sep2020

Wireless In-Ear Monitor System

Manual and

Quick Start-up Guide

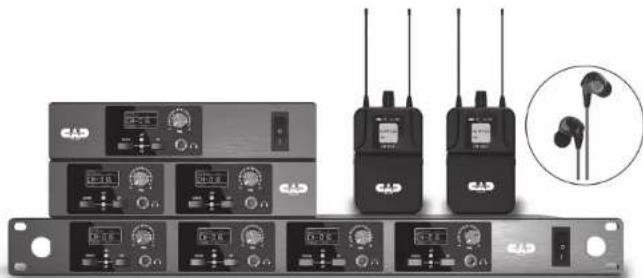

Exterior view of a multi-band audio recording equipment with multiple speakers and earbuds (no visible text or labels)

The GXLIEM Wireless IEM System is available in 3 configurations. A Single Mix transmitter, Dual Mix transmitter and Quad Mix transmitter base station that transmits discrete mixes to your performers. With near infinite bodypack receiver monitoring, this solution is the most flexible in the industry - useful when setting up multiple mixes with high bodypack receiver count. The systems' Frequency Agile design aids in the assurance of a clean, clear, channel plan. In addition, the bodypack receiver has a high contrast display, featuring a battery life indicator. The bodypack receiver is supplied with MEB1 high-performance earbuds. The robust, rack mountable, all-metal transmitter is supplied with rack ears and half wave antenna. Systems are supplied with equal quantity bodypack receivers to transmitters.

GXLIEM

Wireless In-Ear Monitor System

Introduction

Enjoy the easy and exciting performance that the GXLIEM™ Wireless In-Ear Monitor system provides for your next performance. CAD Audio has been creating valued product since 1931 and prides itself on developing and supporting the live performer. Our concept was straightforward. Develop a high value wireless IEM System that can cope with today's challenging RF environment and deliver superior audio quality.

The GXLIEM Wireless In-Ear Monitor System features:

• Available as a Single Mix (GXLIEM), Dual Mix (GXLIEM2) or Quad Mix (GXLIEM4) Transmitter Base Station System
• 16 Channel Frequency Agile performance
• High Dynamic Range for outstanding fidelity
• High Contrast LCD Display
- Battery Life Indicator on Bodypack Receiver
- Operates in 900 MHz band, free from TV and FCC regulatory issues
- Advanced dipole antenna technology on the bodypack receiver for increased operating distance
- All-Metal Transmitter Chassis for shielded operation, 1/2U or 1U.
• AA Battery Life of >10Hrs of operation
- 2-Year Warranty

System Components

All systems include:

• Transmitter
  • 1/4" (6.35mm) audio cable (1pc/2pcs /4pcs)
  • BNC antenna (1pc / 2pcs)
• Power supply
  • Bodypack Receiver (1pc / 2pcs /4pcs)
• Earbuds (1pc /2pcs/4pcs)
• Rack ears
• Antenna relocation cable
• User guide

Specifications GXLIEM Wireless In-Ear Monitor System

Frequency Response 20Hz - 20KHz
Frequency Band....T Band 902 - 928MHz
Dynamic Range.....>110dB
Channels....16 Channel Frequency Agile
Transmitting Power 30mW
Displays ....LCD
Receiver Output....Line out and earphone out
Receiver Power requirements .... 2x AA alkaline or rechargeable battery
Receiver Battery Life....>10hrs
Receiver Dimensions (LxWxH) ....3.77"x2.44"x8.26" (96mm x 62mm x 210mm)
Transmitter Dimensions (LxWxH)
4"x12"x12" (212mm x 177mm x 44mm) Single and Dual
4"x22"x12" (483mm x 177mm x 44mm) Quad
Transmitter Weight......5lbs (2.26Kg) : 7lbs (3.17Kg) : 12lbs (5.44Kg)

WARNING! USE AS LOW A VOLUME AS POSSIBLE.

PERMANENT HEARING DAMAGE CAN RESULT FROM USING THIS SYSTEM AT EXCESSIVE VOLUMES.

For safe operation of this in-ear monitor system, do not listen at excessive sound pressure levels. Most national safety and health administrations have established guidelines for maximum time being exposed to sound pressure levels before hearing damage occurs.

85 dB(A) SPL at 8 hours

88 dB(A) SPL at 4 hours

91 dB(A) SPL at 2 hours

94 dB(A) SPL at 1 hour

97 dB(A) SPL at 30 minutes

100 dB(A) SPL at 15 minutes

120 dB(A) SPL - avoid or hearing damage may occur

In live settings it is difficult to make exact measurements of Sound Pressure Levels (SPL) present at the eardrum, which is affected not only by the in-ear monitor volume, but by ambient sound on the stage and other factors.

To protect your ears from hearing damage:

• Use the in-ear monitor system at the lowest volume possible; turn up the volume only enough to hear.
• Be aware that ringing in your ears may indicate that the volume is set too high.
• Have your ears examined regularly by an audiologist.
• If wax builds up in your ears, stop using the in-ear monitor system until you have seen an audiologist.
• To avoid infections, use an antiseptic to wipe the earphones before and after using the system.
• Stop using the earphones if you experience ear discomfort or infection.

Bodypack GXLIEMBP Receiver

1. Antennas
2. LCD display
3. IR Node
4. Battery compartment
5. Power switch and volume control
6. Earphone jack
7. Line out jack
8. Belt clip
9. RF Signal indicator
10. Low battery indicator (flashes when low)

T Band 902-928MHz

CH	MHz
0	903.250
1	903.825
2	904.875
3	905.325
4	905.975
5	906.575
6	907.225
7	908.425
8	909.075
9	910.875
A	911.325
B	916.850
C	925.000
D	925.650
E	926.850
F	927.650

Operating Instructions/System Setup

1. Apply power and press the power switch. The following screen appears at power up.

Fb = Frequency Band

90 = 902 - 928MHz

1. Default display shows current transmitting channel.

Setting the transmitter frequency

1. Channel adjustment. A long press of the UP and DOWN button unlocks channel adjustment.

When the channel numbers are flashing, press the UP or DOWN button to select a channel.

Setting the bodypack receiver frequency

1. ScanLink ^™ is enabled by pressing the DOWN and UP buttons simultaneously for one second. Hold the receiver ScanLink interface towards the flashing LED to set receiver frequency.

Should you need to temporarily turn off the transmitter

Transmitter power enable/disable.

Transmitter power can be temporarily disabled by holding the DOWN and UP buttons for more than 3 seconds until the screen to the right appears. To enable, hold both the DOWN and UP buttons at the same time until default interfa

Transmitter GXLIEM/GXLIEM2/GXLIEM4

1. Power switch
2. LCD display
3. IR Node
4. Channel down button
5. Channel up button
6. Volume control. Adjust the headphone monitor volume.

Single channel front view

Dual channel front view

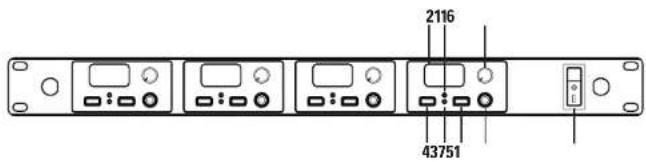

Quad channel front view

Transmitter GXLIEM/GXLIEM2/GXLIEM4

1. Headphone Jack. 1/4" (6.35mm) headphone monitor jack
2. Power jack
3. 1/4" (6.35mm) audio input jack. Connect to audio source, such as mixer monitor send.
4. BNC antenna connection
5. Audio signal level indicator

Single channel rear view

Dual channel rear view

Quad channel rear view
