USER MANUAL 3AF3-645N FAGOR

EN Kitchen extractor hood

DE Kaminhaube

EN- Table of contents

NOTES ON SAFETY 28

UNPACKING 31

DISPOSAL OF OLD APPLIANCE 31

OPERATION 32

COOKER HOOD CONTROLS 32

OFF-TIMER 32

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 33

CLEANING AND MAINTENANCE 34

MAINTENANCE 34

GREASE FILTER 34

ACTIVATED CHARCOAL FILTER 34

LIGHT 34

WARRANTY AND AFTER SALES SERVICE 35

WARRANTY 35

WARRANTY AND AFTER-SALES SERVICE 45

WARRANTY 45

CS- Contents

SAFETY INSTRUCTIONS 47

UNPACKING 50

DISPOSAL OF USED APPLIANCES 50

OPERATION 51

CONTROLLING THE EXTRACTOR HOOD 51

TIMER (DELAYED SHUT-OFF OF THE EXTRACTOR HOOD) 51

OTHER IMPORTANT INFORMATION ABOUT USING THE EXTRACTOR HOOD 52

CLEANING AND MAINTENANCE 53

MAINTENANCE 53

GREASE FILTER 53

CARBON FILTER 53

LIGHTING 53

WARRANTY, AFTER-SALES SERVICE 54

WARRANTY 54

SK - Contents

SAFETY INSTRUCTIONS FOR USE 56

UNPACKING 60

DISPOSAL OF APPLIANCES 60

OPERATION 61

CONTROLLING THE EXTRACTOR HOOD 61

TIMER (DELAYED SHUT-OFF OF EXTRACTION) 61

OTHER IMPORTANT INFORMATION REGARDING THE USE OF THE EXTRACTOR HOOD 62

CLEANING AND MAINTENANCE 63

STORAGE 63

GREASE FILTER 63

CARBON FILTER 63

LIGHTING 63

WARRANTY, AFTER-SALES SERVICE 64

WARRANTY 64

HU- Table of contents

SAFETY INSTRUCTIONS 66

UNPACKING

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

FAGOR

ELECTRODOMÉSTICO

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes that do not affect the operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow the instructions in this manual.
• The cooker hood is designed to remove cooking odours. Do not use the cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts that are in use). It requires installation of an air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• A cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required; however, it is recommended to install an air guide vane (mainly in chimney cooker hoods).
• The cooker hood features independent lighting and an exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); or on vertical built-in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to support the hood. Some hoods are very heavy.

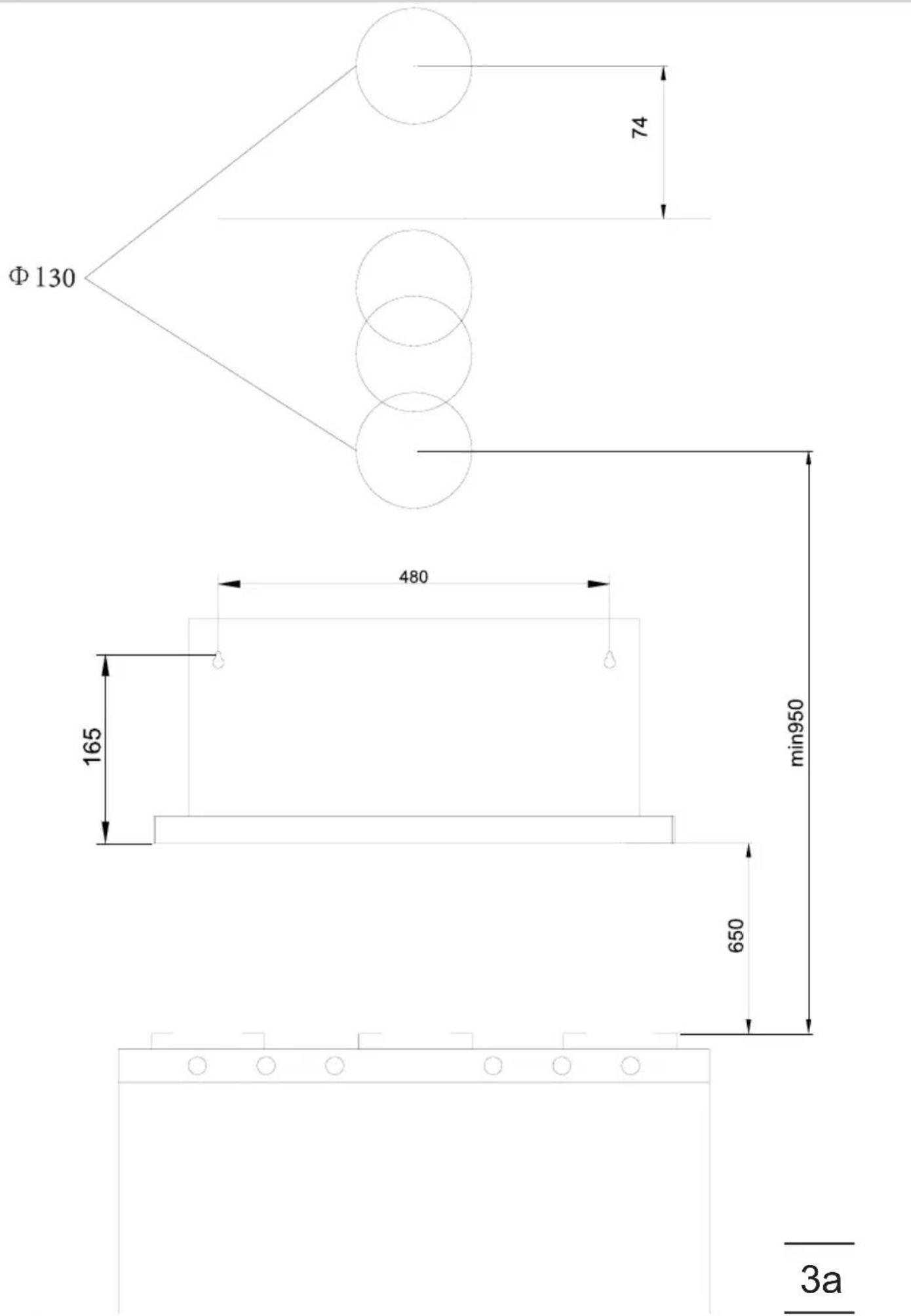

• For details of the installation distance above an electric hob, please refer to the product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When pots are removed from the burner, set the flame to minimum. Always make sure that the flame does not extend outside the pot, because it causes unwanted energy loss and a dangerous concentration of heat.

- When cooking with fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, filter replacement, or repair work.

- The cooker hood grease filter should be cleaned at least once a month, because a filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition to the cooker hood. When the cooker hood is operated simultaneously with burning appliances that require adequate fresh air from the room to work properly, their safe operation is possible if the underpressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter).

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual). Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

- Particular attention should be paid not to allow unaccompanied children to use the appliance.

• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.

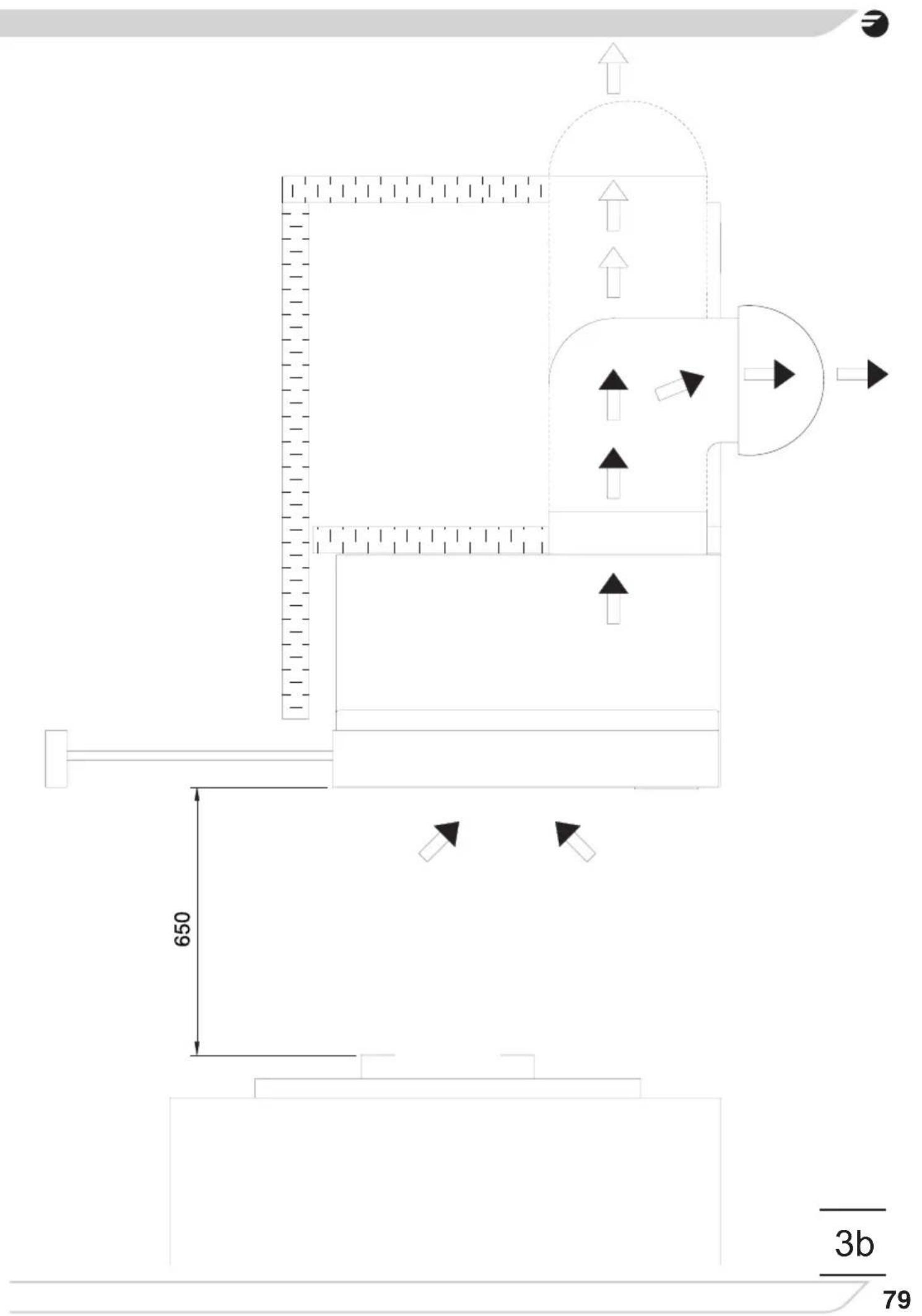

• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are

100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

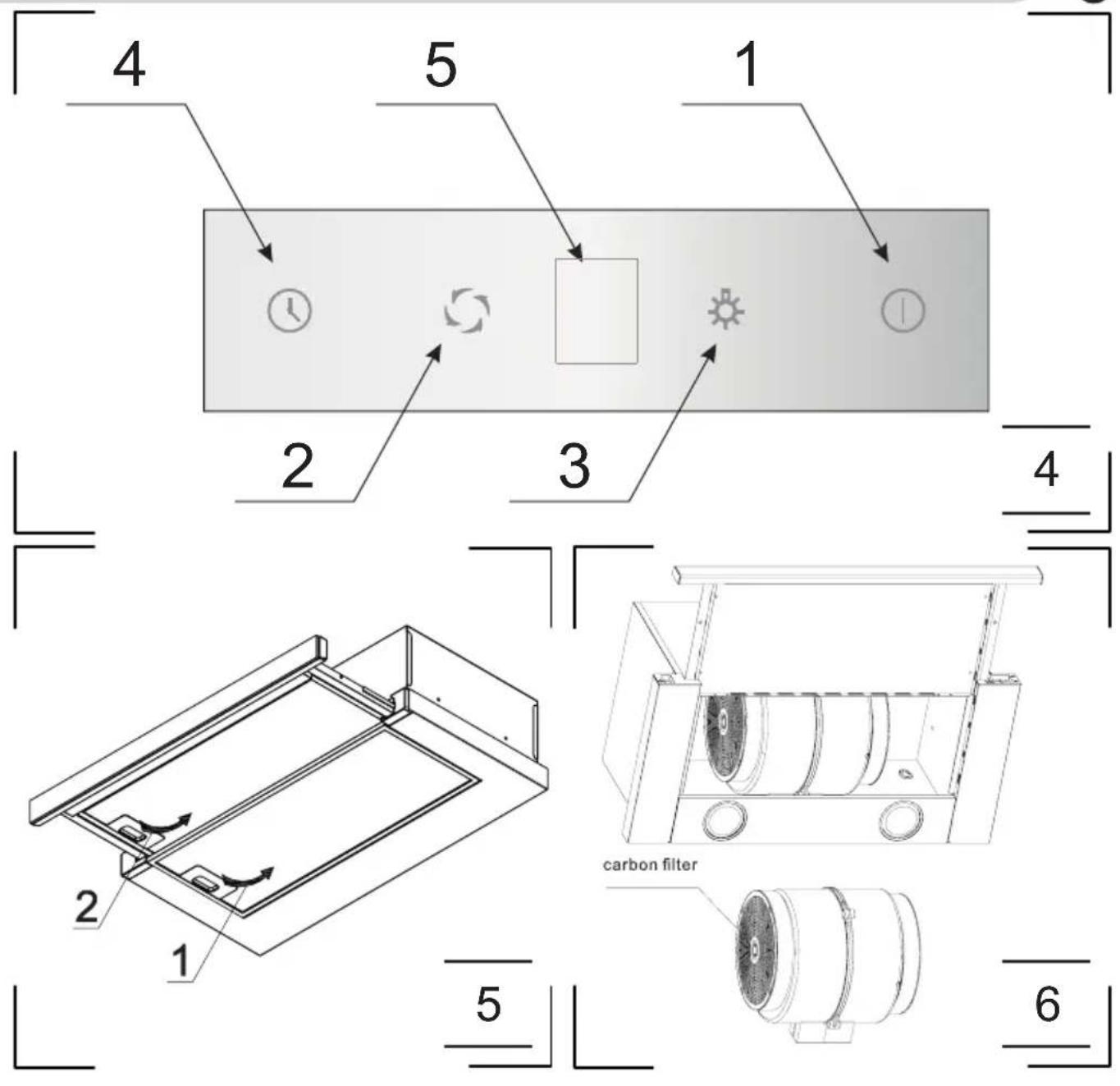

Control Panel is shown in Figure 4, for reference it is also shown below:

Note: Fan will operate only when you pull out the front panel. Your cooker hood features a limit switch, which turns off the fan when front panel is pushed back in.

The control panel is equipped with touch controls: Control functions are described below:

1- Use ☐ to turn Standby mode on/off. When you turn on Standby mode, you will hear a beep. 2- Touch repeatedly to increase the fan speed (1-3). 3- Touch * to turn light on/off. The lighting operates independently of the fan. The limit switch does not turn off the lighting. 4- Off-Timer (see below for details). 5- The display indicates the current fan speed or time to turn off the cooker hood.

Off-Timer

Use the Off-Timer to turn off the hood after a specified time. Use the Off-Timer to filter fumes out of the air after cooking. The Off-Timer can be set from 1 to 9 minutes. Touch ⑨ repeatedly to activate the Off-Timer at any time. The sensor will flash indicating the value set from 1 to 9 (delay time in minutes to turn off the fan). Flashing indicates that the Off-Timer has been enabled. To cancel the Off-Timer at any time, push the front panel back in. When you use the Off-Timer, the light turns off.

Note:

• When you touch any sensor, you will hear a beep.
• To turn off the fan, touch once or push the front panel back in.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install an activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

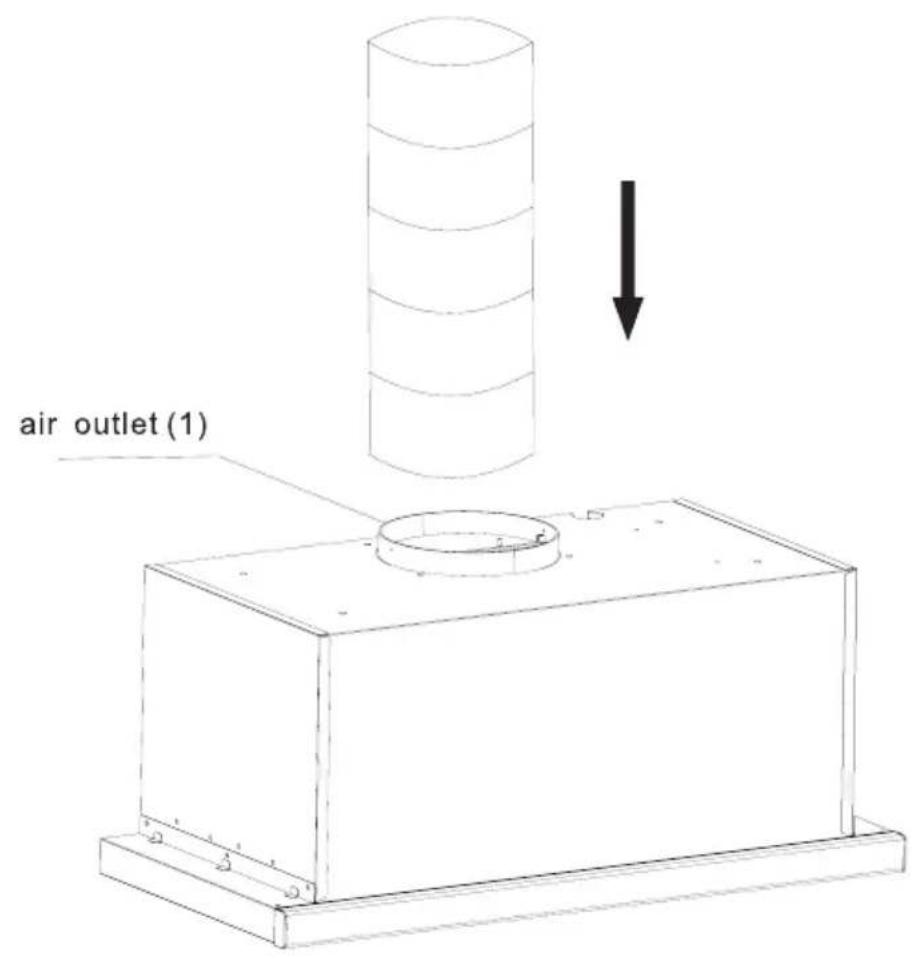

Air extraction operation: When the cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove the activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: The lowest and medium fan speeds are used in normal conditions and for less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods, you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode.

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommended to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every 2 months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every 3-4 months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details on how to replace lights. If there is no such figure in this manual, please contact authorized service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer, or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts, or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see the warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker. For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC • Electromagnetic Compatibility (EMC) Directive 2014/30/EC • ErP Directive 2009/125/EC • Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

WARRANTY, AFTER-SALES SERVICE

Warranty

	EN ES PT

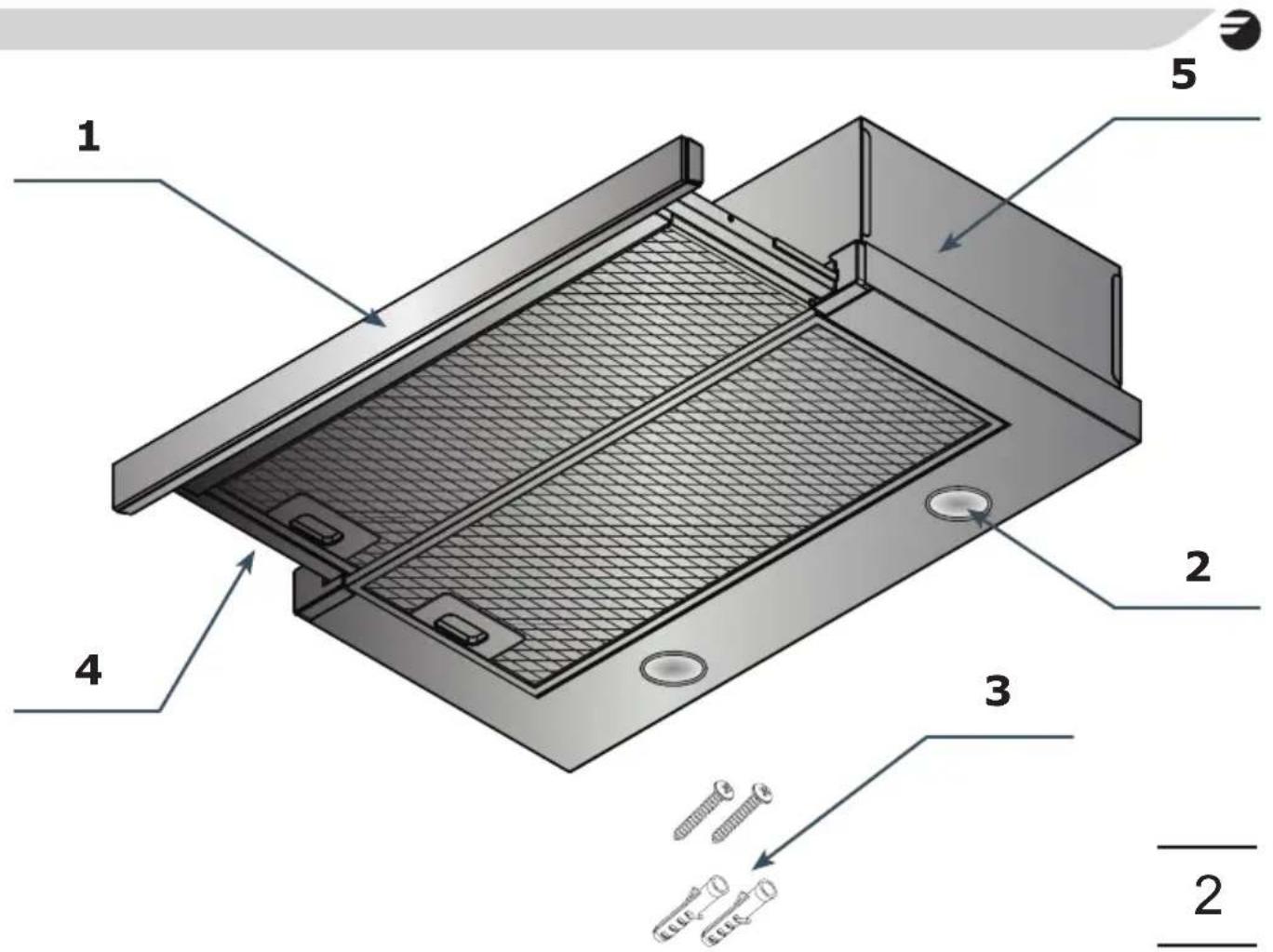

1	Control Panel Panel de control Painel de comando
2	Lighting Iluminación Iluminação
3	Screws and wall plugs Tornillos y tacos		Parafusos e buchas de fixação
4	Telescopic front Frente telescópica Frente telescópica
5	Hood body El cuerpo de la campana Corpo do exaustor

3c

FAGOR

ELECTRODOMÉSTICO

www.fagorelectrodomestico.com
