Brand	Electrolux
Model	ETG7286GKR
Product Type	Table Top Gas Cooker
Gas Type	LPG
Gas Pressure	30 mbar
Dimensions (L x W x H)	700 x 410 x 120 mm
Number of Burners	2
Left Burner Heat Input	4.2 kW
Right Burner Heat Input	4.2 kW
Left Injector Size	0.85+0.51 mm
Right Injector Size	0.85+0.51 mm
Ignition	Electric spark ignition
Flame Failure Device	Yes
Cooktop Material	Glass
Pan Support	Trivets (included)
Recommended Pot Diameter	120 mm - 280 mm
Installation Type	Freestanding with adjustable legs
Required Ventilation	Well-ventilated room
Cleaning Instructions	Glass top with mild cleaners; burner caps removable for cleaning
Safety Features	Flame failure device, gas leak detection (soap test)

Frequently Asked Questions - ETG7286GKR ELECTROLUX

How do I clean the glass top?

Use a nylon scourer or creamed powder cleanser for persistent stains. Avoid harsh abrasives, steel wool, or wax polishes. Do not use the glass top as a work surface.

What type of gas does the ETG7286GKR use?

It is designed for LPG (Liquefied Petroleum Gas) at a pressure of 30 mbar. Do not use other gases.

What are the dimensions of the cooker?

The product dimensions are 700 mm in length, 410 mm in width, and 120 mm in height (L x W x H).

How do I install the appliance?

Unpack and place on even ground. Attach the 4 hob support legs using the nuts provided. Assemble burner caps and trivets correctly. Connect the gas pipe and tighten the clamp. Check for leaks using soap solution. Ensure clearance from walls is at least 100 mm, or protect with non-combustible material.

Why won't the burner ignite?

Ensure the burner is correctly fitted. Press the control knob and turn to full flame while holding for a few seconds to purge air. If the burner cap is wet or blocked, clean and dry it. If the problem persists, check the gas supply.

Why does the flame go out when I release the knob?

This may be due to the flame failure device not engaging. Hold the knob in the 'Max' position for about 5 seconds after ignition. If it still goes out, clean the flame safeguard sensor tip.

How do I adjust the air door?

The air door is factory set and not intended for user adjustment. If needed, contact a qualified technician. Adjusting the air door changes the flame color; a normal flame is blue with a small yellow tip.

What pot sizes are recommended?

Use pots and pans with a bottom diameter between 120 mm and 280 mm for best efficiency. Ensure the flame does not spread beyond the pot bottom.

Does the cooker have a flame failure device?

Yes, the ETG7286GKR is equipped with a flame failure device that automatically cuts off gas if the flame goes out. When lighting, hold the knob down for 5 seconds to activate it.

How do I check for gas leaks?

Turn on the gas and apply a soap solution (soap and water) to all joints and connections. If bubbles appear, there is a leak. Tighten the connection or contact a professional. Never use a flame to check for leaks.

USER MANUAL ETG7286GKR ELECTROLUX

READ THIS MANUAL CAREFULLY BEFORE PUTTING THIS APPLIANCE INTO OPERATION.

Table Top Gas Cooker

User Manual

Enjoy peace of mind. Register your appliance today.

Stay updated on better living services, safety notices and shop for accessories.

1. Open the camera app on your smartphone and point at the QR code to scan.

Product Registration QR code is located on the top surface or underside of your appliance.

1. Tap the notification or link to open the registration form.
2. Complete your details and enjoy peace of mind.

CONGRATULATIONS

Dear customer,

Thanks for choosing and using Electrolux home appliances.

Electrolux Group of Sweden is one of the world's largest home appliance companies, with more than 65 million Electrolux products being used by millions of households worldwide each year. It is also the world's largest manufacturer of kitchen electrical appliances. The group has sold more than 56 million kitchen products, which is equivalent to the combined height of 5 Mount Everests. Besides that, more than 2/3 of the world's star hotels use Electrolux professional kitchen equipment.

Clearly, the excellent achievement of Electrolux over the last 80 years has been recognized by 450 million families all over the world. Now we are pleased to make some of the best products from this renowned brand available to consumers in Southeast Asia. To us, not only is Electrolux one of the most reliable brands in dealing with home appliances, it is also a brand that promises to bring innovative lifestyles to all families through its cutting-edge technologies and excellent designs. For not only to add a touch of elegance to your kitchen, but Electrolux products also make cooking easier, more enjoyable, and something to share with.

Enjoy happy cooking now with Electrolux kitchen appliances.

IMPORTANT INSTRUCTIONS

Before installing or using this appliance, please read this instruction book carefully and pay particular attention to the warnings on the following page.

To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

SAFE INSTRUCTIONS

Do not use gas other than that which is specified on the label attached.

Do not place anything (e.g. flame tamer or asbestos mat) between the pan and pan support, as serious damage to the appliance may result.

Do not remove the pan support and enclose the burner with a wok stand, as this will concentrate and deflect the heat onto the hotplate.

Do not use large pots or heavy weights that can bend the pan support or deflect flame onto the hotplate.

Locate pan centrally over the burner so that it is stable and does not overhang the appliance.

Use only a wok support supplied or recommended by the manufacturer of the appliance.

The unit is to be used for cooking only. Do not dry towels, clothes, etc., over it. If this is done, there is danger of fire.

If a gas leak is found, close stopcock, open up all windows and call your dealer. Do refrain from turning an electric switch on or off, lighting a match, smoking or using a lighter.

Use the appliance in a well-ventilated room.

Do not use vinyl gas hose. It is liable to be softened by heat. Use only a rubber hose.

Be sure to turn off the ignition knob and regulator of the cylinder after use.

Avoid touching the burner, pan stand, etc., immediately after use. Otherwise, you will get burnt.

Ensure that the rubber hose does not touch any part of the unit or lie underneath it.

Connect the rubber hose to the gas inlet and fasten it with a hose clamp.

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

The adjustment conditions for this appliance are stated on the label.

This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

CAUTION

In the event of the burner flames being accidentally extinguished, turn off the burner control knob and do not attempt to re-ignite the burner for at least 1 minute.

In case of hotplate glass breakage:

- Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.

- Do not touch the appliance surface.

- Do not use the appliance.

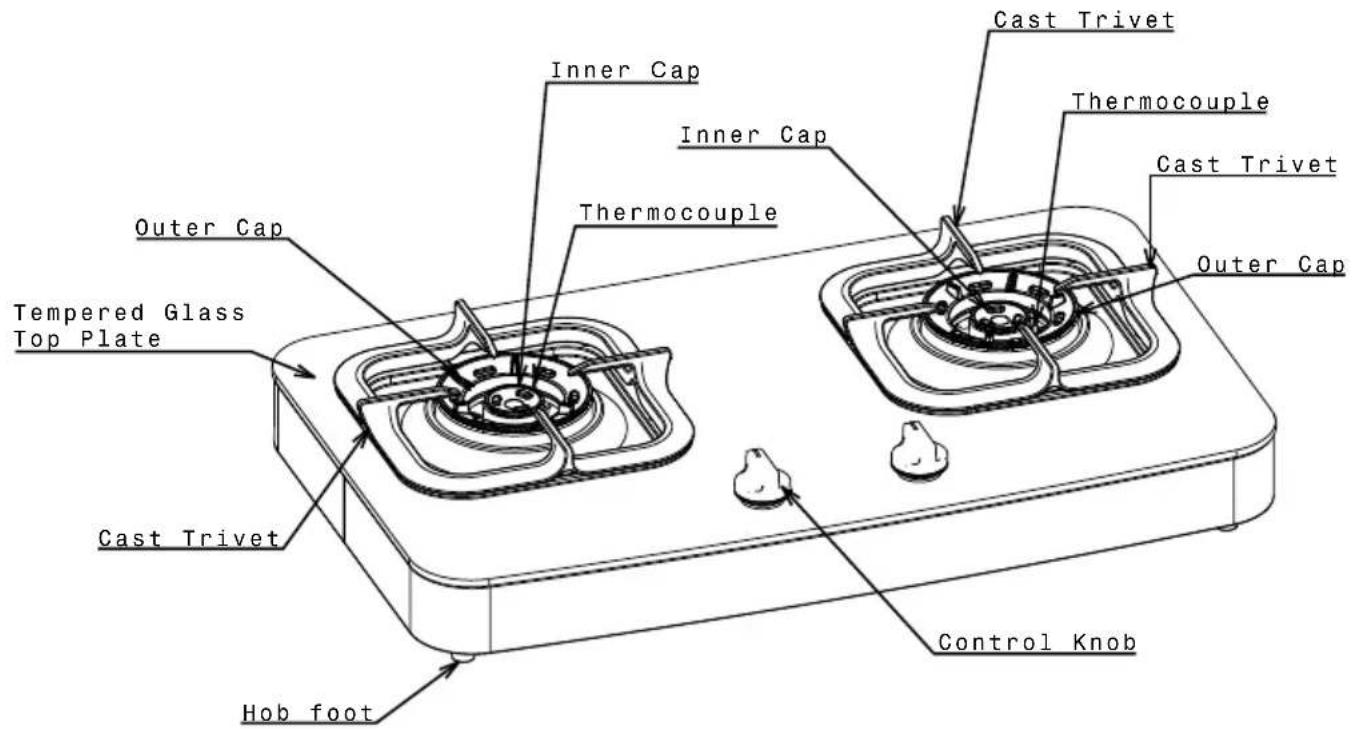

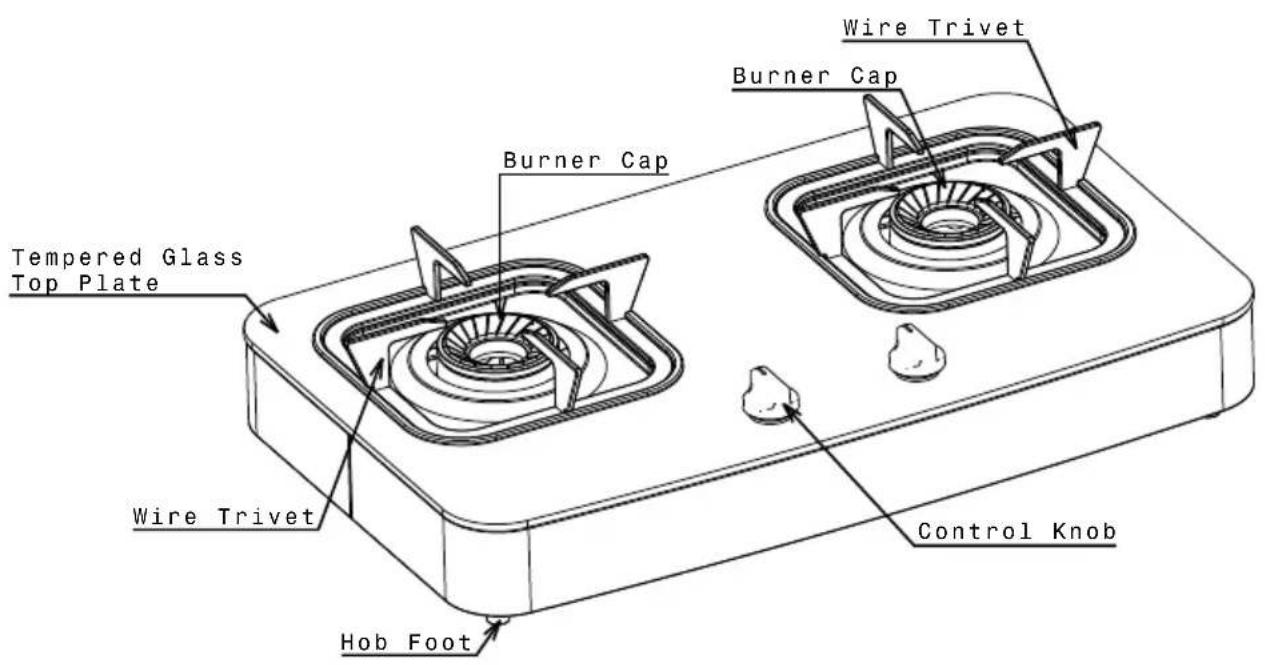

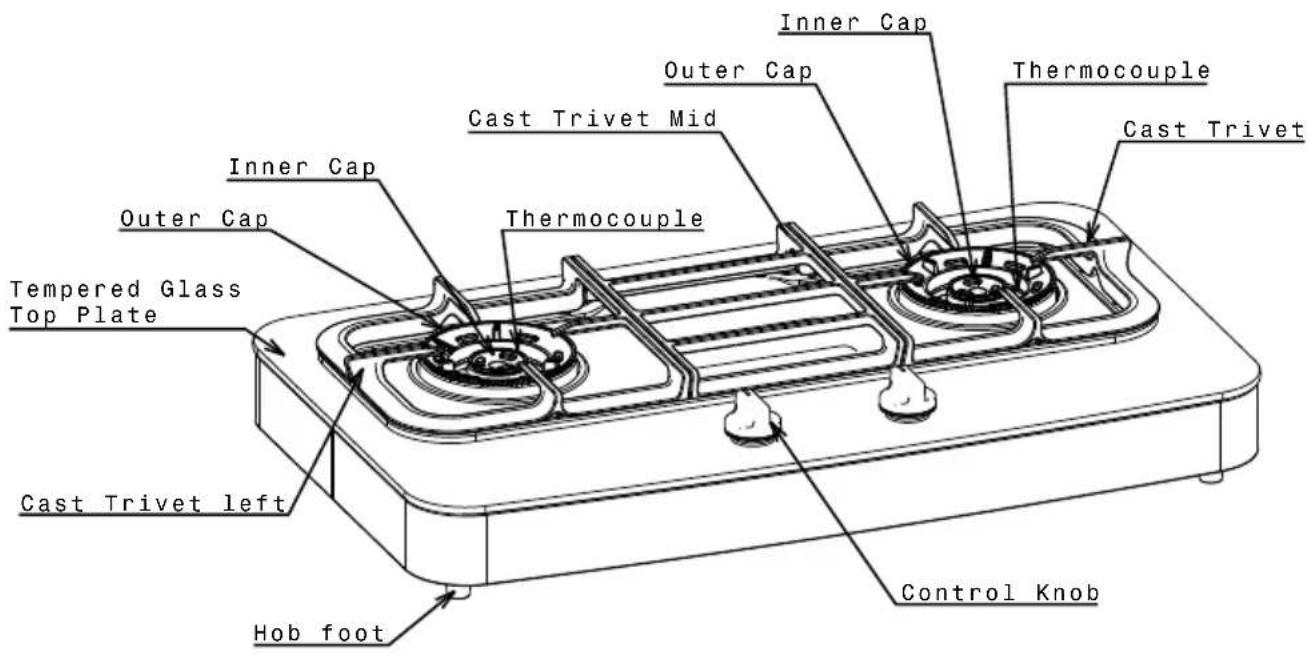

PART IDENTIFICATION

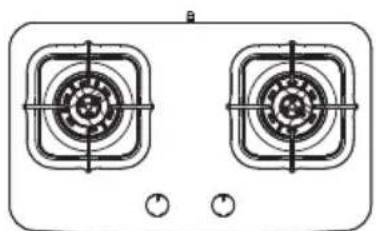

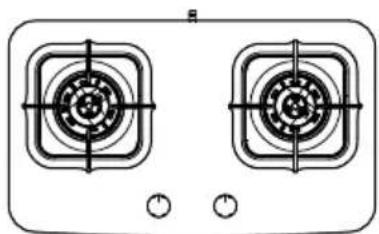

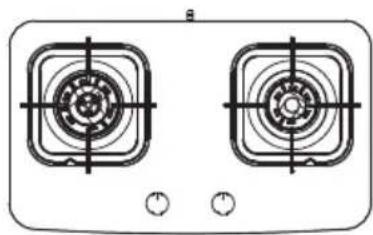

ETG7296GKR

ETG7286GKR

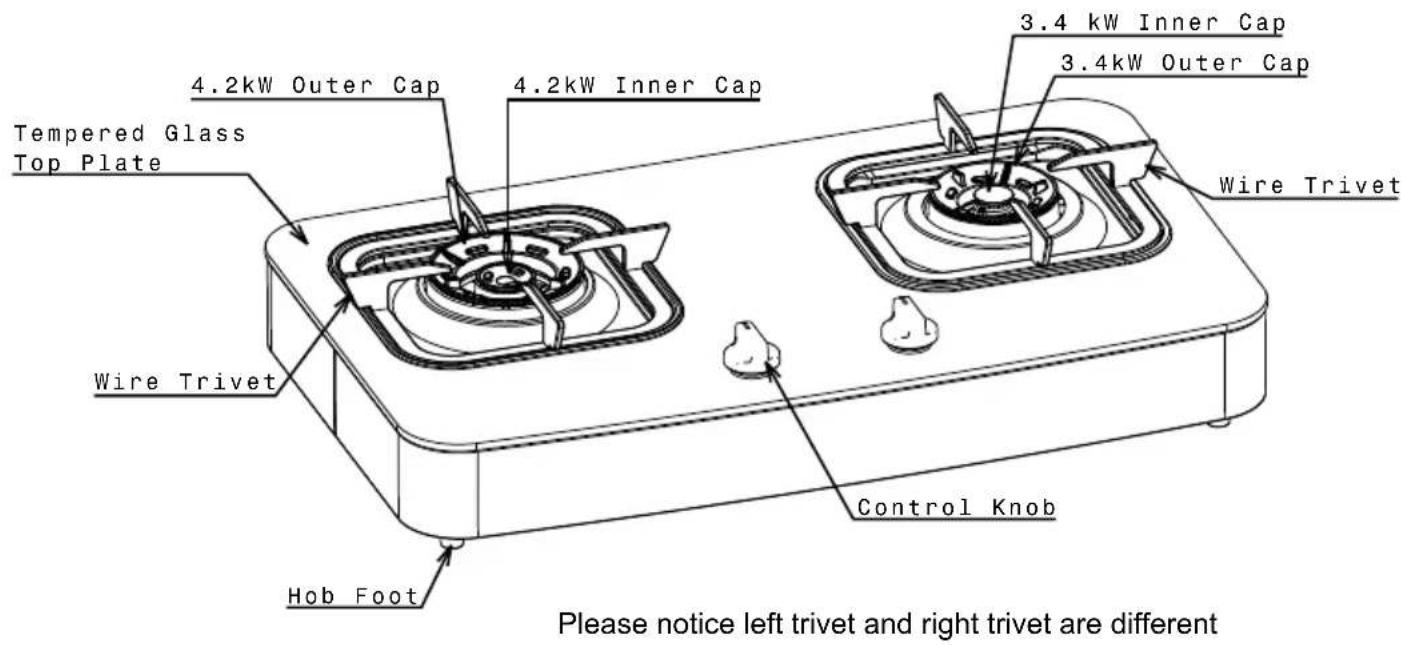

PART IDENTIFICATION

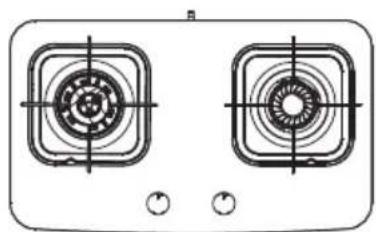

ETG7276GKR

ETG7266GKR

*Please note that the left trivet and right trivet are different.

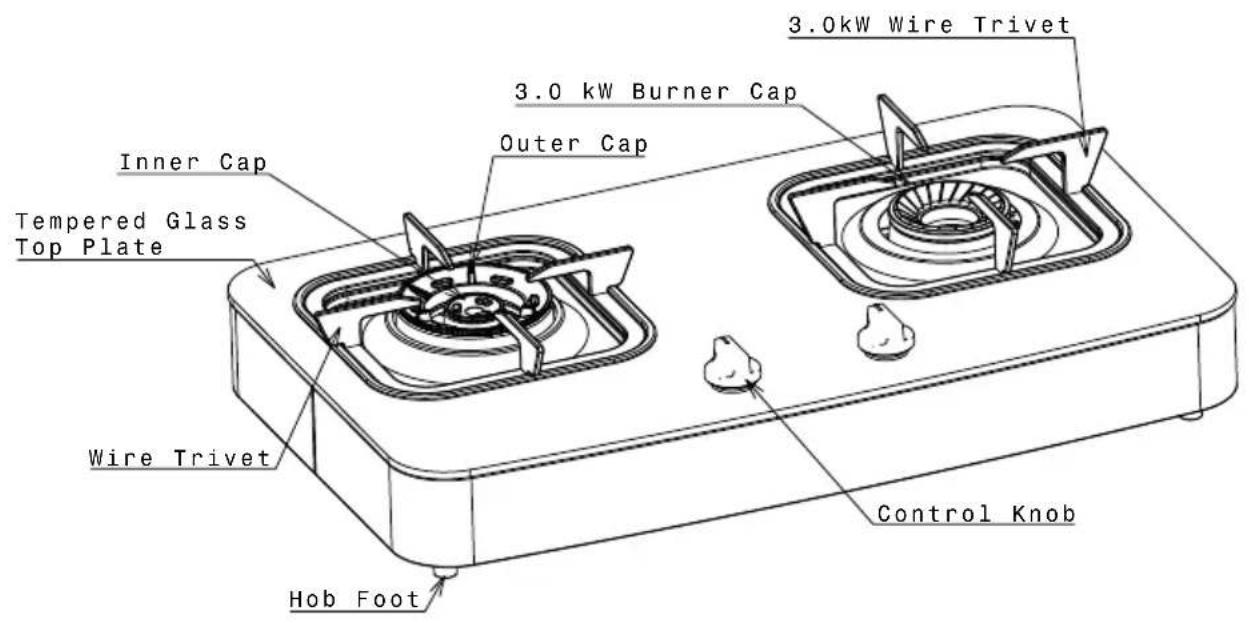

PART IDENTIFICATION

ETG7256GKR

Installation instructions

Follow the steps below to install the appliance.

1. Open the package, take out the polystyrene foam, and place it on an even surface.

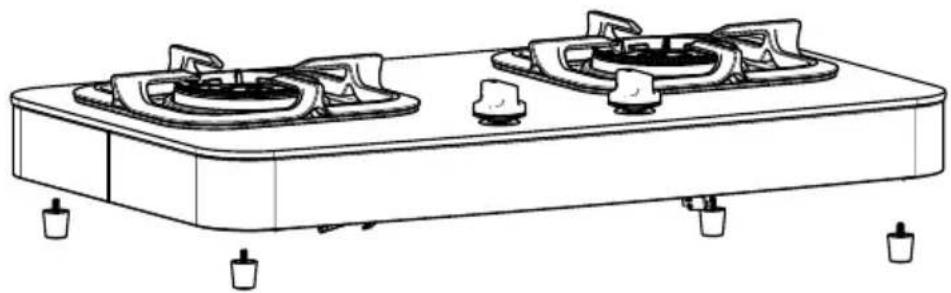

2. Install the 4 hob support legs (supplied in the accessory bag) on the 4 square corners using the nuts, as shown in the picture below. Make sure the glass panel is well protected when assembling the hob feet, and do not contact any sharp edges.

1. Assemble the burner caps in the correct positions, and assemble the trivets in the correct positions.

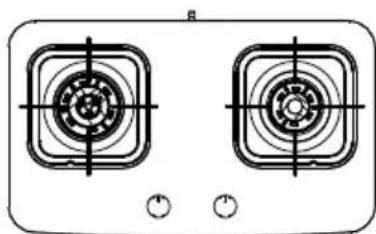

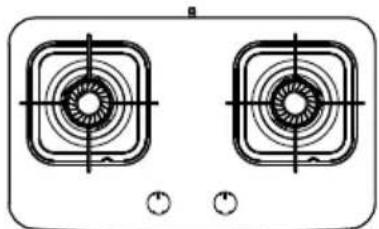

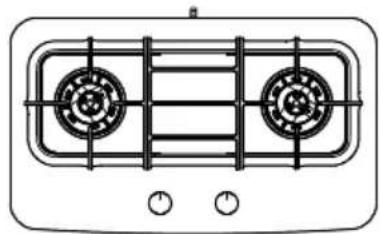

ETG7296GKR

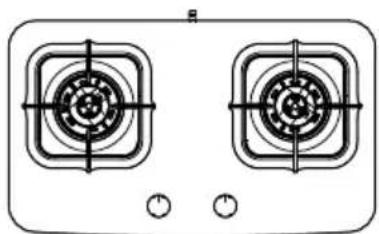

ETG7286GKR

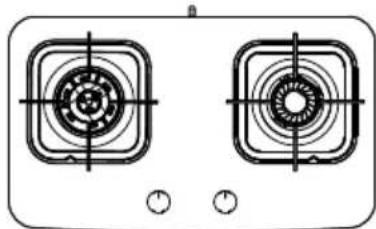

ETG7276GKR

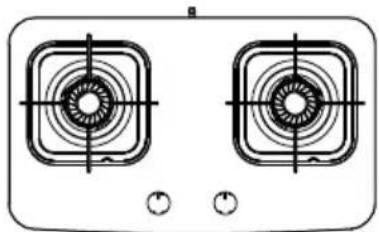

ETG7266GKR

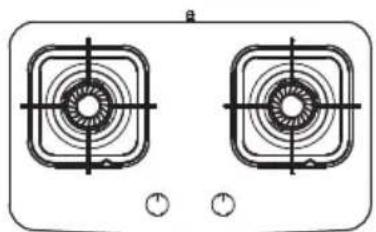

ETG7256GKR

Please note that on ETG7276GKR and ETG7266GKR, the left trivet and right trivet are not the same. Please note the location when assembling the trivets.

Location on trivet / Location on spill bowl

Please note that on ETG7276GKR, the left burner inner cap and right burner inner cap are not the same. DO NOT MISUSE.

Inner cap left burner

Inner cap right burner

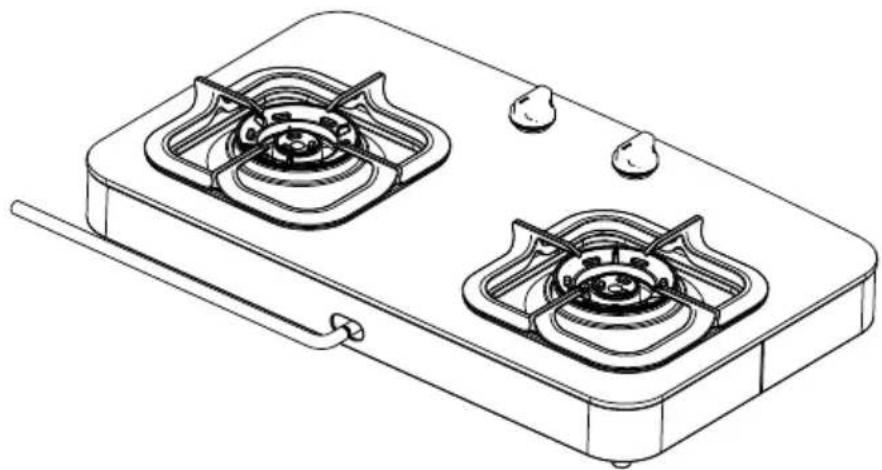

1. Connect the gas pipe to the inlet and fasten the connection by turning the clamp clockwise.

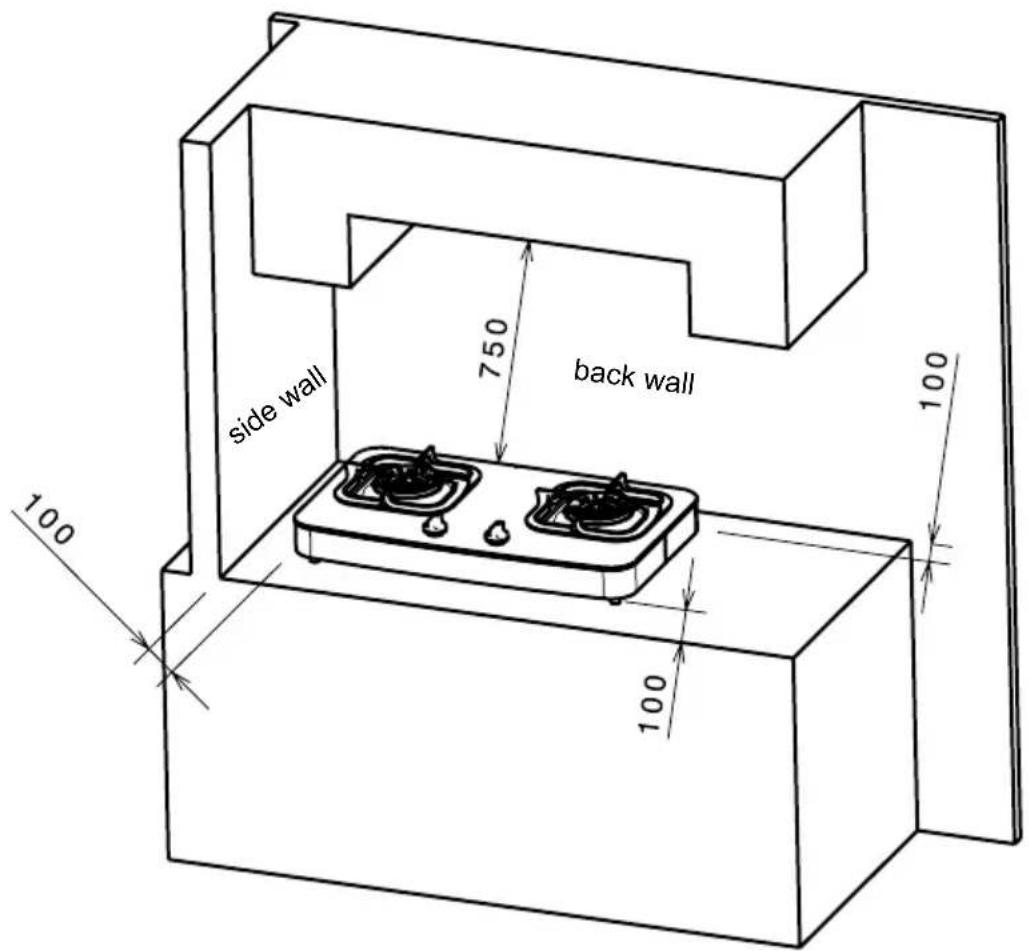

1. If the clearance between side/back walls and the hob is less than 100 mm, the walls must be protected with a non-combustible material. Horizontal surfaces less than 750 mm vertically above the cooktop must also be protected.

1. Check for leaks: Turn the gas on and check for leaks using soap solution and a brush around all joints and connections.

Test and operate

1. Test the appliance

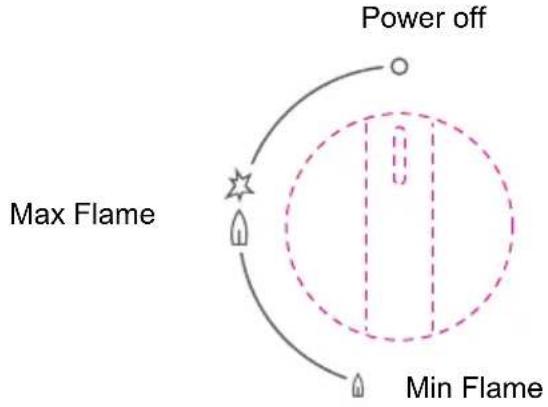

Press the control knob and turn to the full flame setting to activate the electric igniter. The burner will ignite. Adjust the control knob to the desired setting. On initial usage, you may have to repeat this ignition function several times (to allow air to be purged from the gas supply system). No adjustment should be necessary. If any problem occurs, refer to the servicing instructions or the fault-finding chart.

Please note that ETG7296GKR and ETG7286GKR have flame failure devices. Push down as far as possible for approximately 5 seconds. If the flame goes out when the knob is released, simply depress the knob again, this time holding it down with slightly more force for the same length of time.

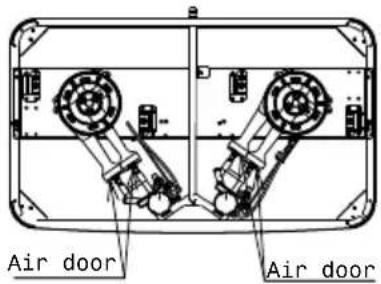

2. Adjust air door

Normal and good performance flame should be blue with a very small yellow flame at the flame tip. If you find the flame is too yellow, you can adjust the valve air door to get the desired flame.

Normal flame

Flame too short Air door open too much

Flame too long Air door open not enough

WARNING

Air door has been set at the factory, it is not recommended for the user to adjust by themselves. Ask a qualified technician or installer to adjust if necessary. When adjusting the air door, make sure the gas pipe is well connected.

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a bottom fitting the size of the burner used, so that the flame will not spread beyond the bottom of the vessel. Recommended pot size is from 120mm to 280mm.

Technical specifications

Model Gas	Type	Gas Pressure	Product Dimension (LxWxH) mm	Nominal Heat Input(kW)	Injector Size mm
ETG7296GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right:4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7286GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right: 4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7276GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.4	Left:0.85+0.51Right: 0.79+0.42
ETG7266GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.0	Left:0.85+0.51Right: 0.83
ETG7256GKR LPG 30	mbar 700X41	0X150 Left: 3.0		Right: 3.0	Left:0.85+0.51Right: 0.83

Glass top

• Persistent stains may require vigorous rubbing with a nylon scourer or creamed powder cleansers. Household enamel cleaners are available; follow the manufacturer's instructions in their use. Harsh abrasive cleaners, powder cleaners, steel wool, or wax polishes should not be used.
• Do not use the glass top as a work table.

Burner Cap

These can all be lifted off and removed for separate cleaning.

• Ensure burner caps are thoroughly dried after cleaning or spillage.
• When cleaning the burner, ensure that all the flame ports are free of any blockage.

WARNING

When refitting the burner caps, ensure that they are correctly seated. When refitting the trivets, ensure the trivets are correctly seated on the hob.

TROUBLESHOOTING

Phenomenon Reason Solution
Burner will not light... Burner not fitted correctly Fit burner in correct position
Flames uneven or tending to lift	Burner cap incorrectly fitted. Ensure this component is fitted correctly
	Burner cap blocked or wet. Clean or dry burner cap.
Yellow flame Burner cap dirt Clean burner cap
Flames not staying on when knob is released	Knob not held down long enough in ‘Max’ position for flame safeguard to engage.	Repeat lighting procedure and hold knob down for 5 seconds in ‘Max position.
	Dirt or spillage on flame safeguard sensor.	Clean flame safeguard sensor tip.
