| Product Type | Built-in Dishwasher |
| Brand | Electrolux |
| Model | ESI6180X |
| Color | Stainless Steel |
| Width | 60 cm (23.6 inches) |
| Height | 85 cm (33.5 inches) |
| Depth | 60 cm (23.6 inches) |
| Weight | 45 kg (99 lbs) |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Energy Rating | Class E (estimated) |
| Place Settings | 14 place settings |
| Number of Programs | 5 (Eco, Auto, Intensive, Quick, Glass) |
| Noise Level | 46 dB(A) |
| Water Consumption | 9.5 L per cycle (Eco) |
| Energy Consumption | 0.92 kWh per cycle (Eco) |
| Drying Technology | Integrated heat exchanger |
| Adjustable Rack | Height-adjustable upper basket |
| Delay Start | Yes, up to 24 hours |
| Child Lock | Yes |
| Self-Cleaning Filter | Yes, automatic |
| Salt & Rinse Aid Indicator | Yes |
| Spare Parts Availability | Racks, filters, spray arms, detergent dispenser |
Frequently Asked Questions - ESI6180X ELECTROLUX
How do I start a wash cycle on the Electrolux ESI6180X?
Press the Power button, select your desired program using the program button, close the door, and press Start.
What does the error code E10 mean?
E10 indicates a water supply issue. Check that the water tap is open and the inlet hose is not kinked.

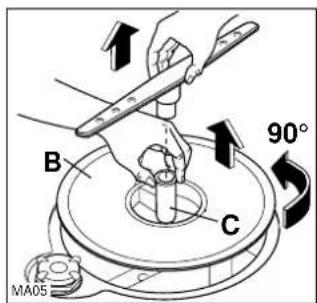

How do I clean the filters?
Remove the lower basket, twist the filter assembly counterclockwise, lift it out, rinse under running water, and reassemble.
Can I use regular dish soap?
No, use only dishwasher detergent. Regular soap causes excessive suds and damage.
How do I adjust the upper basket height?
Pull the basket out, lift the side levers, and lower or raise the basket to the desired level.
What is the energy consumption of the Eco program?
The Eco program uses approximately 0.92 kWh and 9.5 L of water.

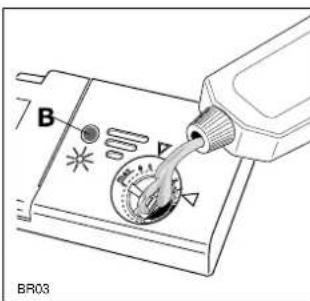

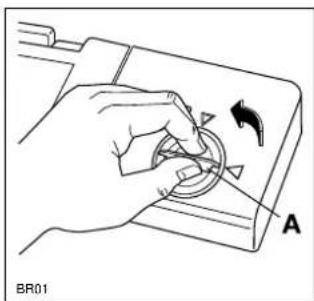

How often should I add rinse aid?
Refill rinse aid when the rinse aid indicator lights up on the control panel.
The dishes are not drying properly, what should I do?
Ensure rinse aid is filled and select a program with drying function. Open the door slightly after cycle for better air circulation.

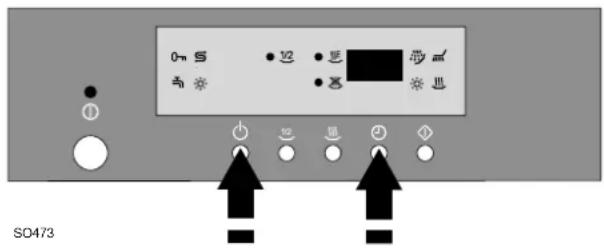

How do I activate child lock?
Press and hold the Delay and Program buttons simultaneously for 3 seconds until the lock icon appears.
Where can I find spare parts?
Contact Electrolux customer service or visit their official website. Common parts include filters, spray arms, and racks.
