Product Type	Table Top Gas Cooker
Brand	Electrolux
Model	ETG7256GKR
Fuel Type	LPG (Liquefied Petroleum Gas)
Gas Pressure	30 mbar
Product Dimensions (L x W x H)	700 x 410 x 150 mm
Number of Burners	2
Left Burner Power	3.0 kW
Right Burner Power	3.0 kW
Left Injector Size	0.85 + 0.51 mm
Right Injector Size	0.83 mm
Ignition	Electric ignition (press and turn knob)
Top Material	Tempered glass
Trivet Material	Wire trivets
Flame Failure Device	Not equipped
Gas Connection	Rubber hose with hose clamp (1/2" BSP inlet)
Recommended Pot Size	120 mm to 280 mm diameter
Cleaning	Glass top: mild detergent and nylon scourer; Burner caps: removable, wash and dry thoroughly
Safety Features	Automatic gas shut-off? No; Manual knob control
Weight	Approximately 10 kg (estimated)

Frequently Asked Questions - ETG7256GKR ELECTROLUX

How do I install the ETG7256GKR gas cooker?

Unpack the appliance and install the four hob support legs using the nuts provided. Attach the burner caps and trivets in the correct positions. Connect the gas pipe to the inlet and fasten with a hose clamp. Ensure clearance from walls is at least 100 mm, or protect walls with non-combustible material. Test for gas leaks using soap solution.

What type of gas can I use with this model?

This cooker is designed for LPG (Liquefied Petroleum Gas) only, with a supply pressure of 30 mbar. Do not use other gases as specified on the label.

How do I light the burner?

Press and hold the control knob, then turn it to the full flame (MAX) position. The electric igniter will spark and ignite the gas. If it doesn't light immediately, repeat several times to purge air from the gas line. Adjust the knob to the desired flame level.

What should I do if the burner flame is yellow or uneven?

A yellow flame indicates dirt on the burner cap. Clean the cap and ensure it is dry. Uneven flames may be due to an incorrectly fitted cap or blocked flame ports. Check that the cap is seated correctly and ports are clear. If the problem persists, consult a qualified technician.

Can I use a wok with this cooker?

Yes, but only use a wok support supplied or recommended by the manufacturer. Do not place a wok directly on the trivet as it may concentrate heat and damage the hotplate.

How do I clean the glass top and burner caps?

For the glass top, use a mild cream cleaner or nylon scourer. Avoid harsh abrasives, steel wool, or wax polishes. For burner caps, remove them, wash with mild detergent, and dry thoroughly before replacing. Ensure all flame ports are clear.

Why does the burner go out when I release the knob?

This cooker does not have a flame failure device. The flame must be manually held. Make sure you hold the knob in the MAX position for about 5 seconds after ignition to stabilize the flame. If it still goes out, check for drafts or low gas pressure.

What is the recommended pot size for the burners?

For efficient cooking, use pots with a diameter between 120 mm and 280 mm. Ensure the pot sits centrally on the trivet and does not overhang the appliance to avoid heat damage.

How do I check for gas leaks?

Turn on the gas supply and apply a soap solution (soap and water) to all joints and connections. If bubbles appear, there is a leak. Tighten the connection or replace the hose. Do not use a flame to check for leaks.

Where can I get service or support?

Contact Electrolux Customer Care in your region. For Indonesia: 08041119999; Malaysia: [phone]; Philippines: 1-800-10-845-CARE; Singapore: [phone]; Thailand: [phone]; Vietnam: 1800-58-88-99. Or visit the Electrolux website for your country.

USER MANUAL ETG7256GKR ELECTROLUX

READ THIS MANUAL CAREFULLY BEFORE PUTTING THIS APPLIANCE INTO OPERATION.

Table Top Gas Cooker

User Manual

Enjoy peace of mind. Register your appliance today.

Stay updated on better living services, safety notices and shop for accessories.

1. Open the camera app on your smartphone and point at the QR code to scan.

Product Registration QR code is located on the top surface or underside of your appliance.

1. Tap the notification or link to open the registration form.
2. Complete your details and enjoy peace of mind.

CONGRATULATIONS

Dear customer,

Thanks for choosing and using Electrolux home appliances

Electrolux Group of Sweden is one of the world largest home appliances companies, with more than 65 million Electrolux products being used by millions of households worldwide each year, it is also the world largest manufacturer of kitchen electrical appliances. The group has sold more than 56 million kitchen products, which is equivalent to the combined height of 5 Mount Everest, besides that, more than 2/3 of the word star hotel use Electrolux Drotessional kitchen equipment.

Clearly, the excellent achievement of Electrolux over the last 80 years has been recognized by 450 million families al over the world. Now we are please to make some of the best products from this renowned brand available to consumer in Southeast Asia. To us not only is Electrolux one of the most reliable brands in dealing with home appliances, it is also brand that promises to bring innovative lifestyles to all families through its cutting edge technologies and excellent designs. For not only to add & tough of elegance to your kitchen, but Electrolux products also makes cooking easier, more enjoyable and something to share with.

Enjoy happy cookingnow with Electrolux kitchen appliances.

IMPORTANT INSTRUCTIONS

Before installing or using this appliance, please read this instruction book carefully and pay particular attention to the warming in the following page.

To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

SAFE INSTRUCTIONS

Do not use gas other than that which is specified on the label attached.

Do not place anything (e.g. flame tamer or asbestos mat) between the pan and pan support, as serious damage to the appliance may result.

Do not remove the pan support and enclose the burner with a wok stand, as this will concentrate and deflect the heat onto the hotplate.

Do not use large pots or heavy weights that can bend the pan support or deflect flame onto the hotplate

Locate pan centrally over the burner so that it is stable and does not overhang the appliance

Use only a wok support supplied or recommended by the manufacturer of the appliance

The unit to be used for cooking only. Do not dry towels, clothes, etc., over it. If this is done, there is danger of fire

If a gas leak is found, close stopcock, open up all windows and call your dealer. Do refrain from turning an electric switch on or off, lighting a match, smoking or using a lighter.

Use the appliance in a well-ventilated room.

Do not use vinyl gas hose. It is liable to be softened by heat. Use only a rubber hose.

Be sure to turn off the ignition knob and regulator of the cylinder after use.

Avoid touching the burner, pan stand etc., immediately after use. Otherwise you will get burnt.

Ensure that the rubber hose does not touch any part of the unit or lies underneath it.

Connect the rubber hose to the gas inlet and fasten it with a hose clamp.

Prohibition sign with a laptop and keyboard inside a circle (no text or symbols)

Prohibition sign showing a bowl on a tray with diagonal lines (no text or symbols)

Symbol of a cooking pot with diagonal lines indicating no cooking restrictions (no text or numbers present)

Simple line drawing of a laboratory funnel with a stand inside a circle (no text or symbols)

prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

the adjustment conditions for this appliance are stated on the label

this appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation

CAUTION

In the event of the burner flames being accidentally extinguished, turn off the burner control knob and do not attempt to re-ignite the burner for at least 1 minute.

In case of hotplate glass breakage:

-shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply.

-do not touch the appliance surface,

-do not use the appliance.

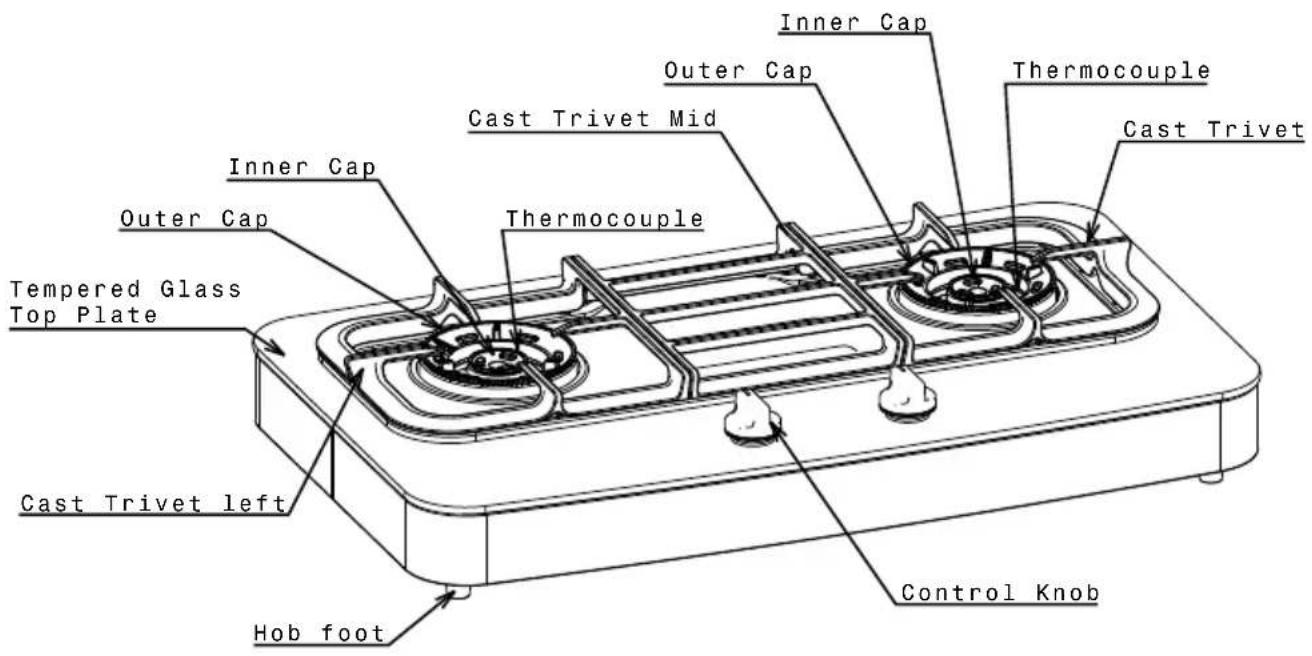

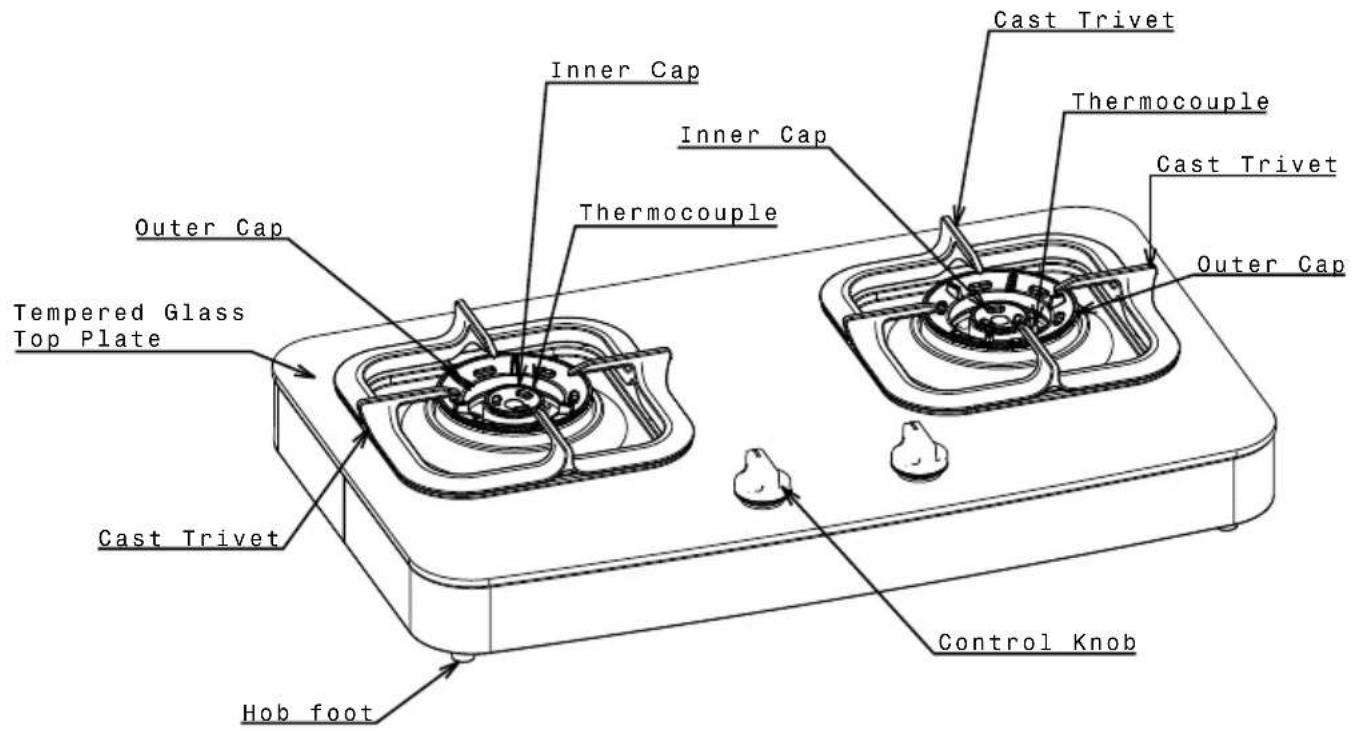

PART IDENTIFICATION

ETG7296GKR

ETG7286GKR

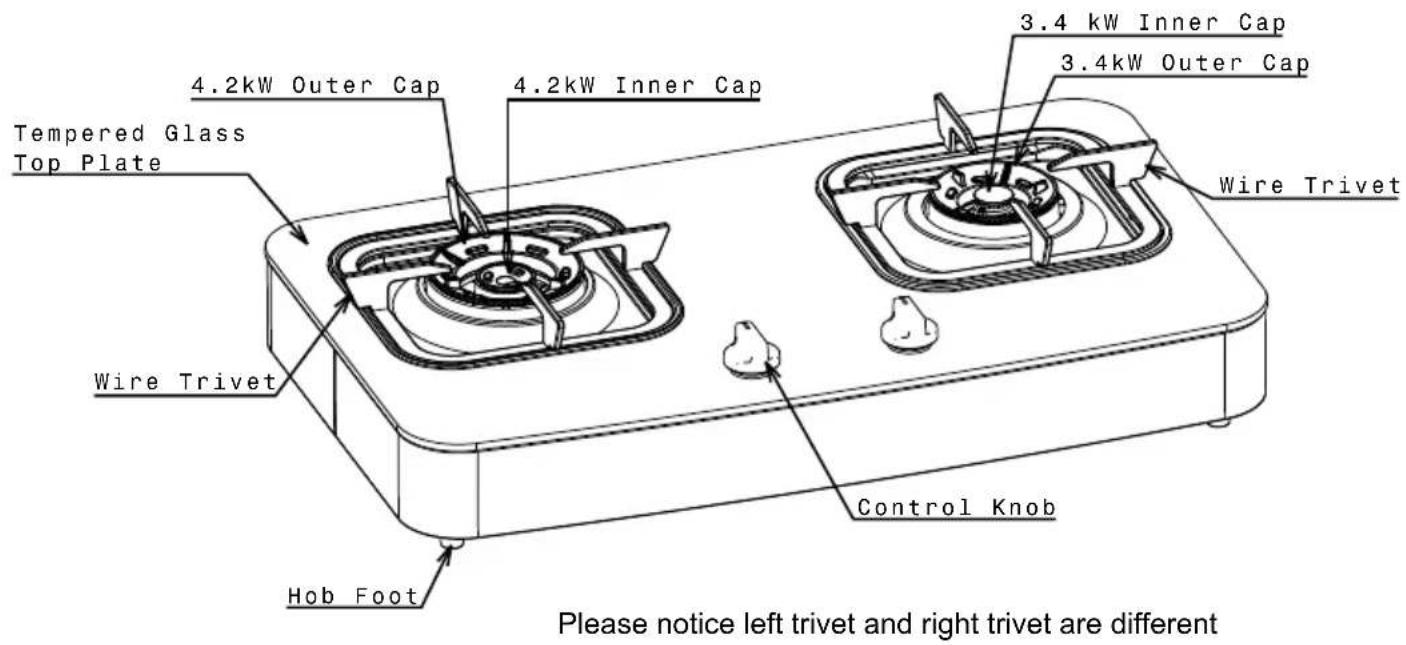

PART IDENTIFICATION

ETG7276GKR

ETG7266GKR

*Please notice left trivet and right trivet are different

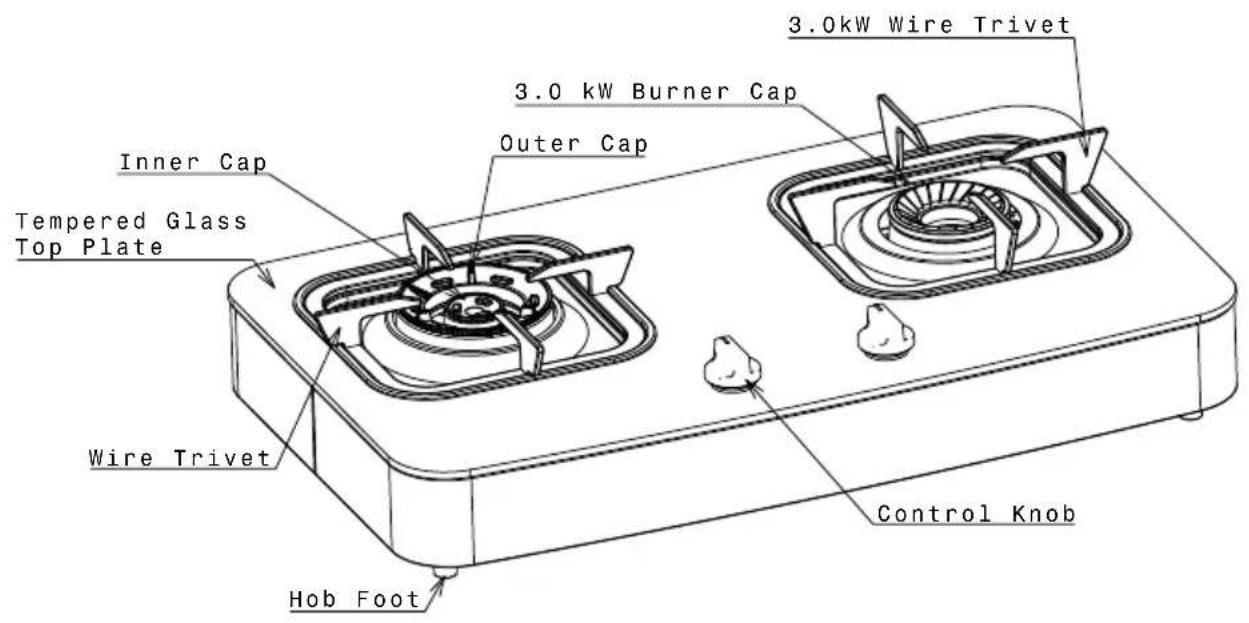

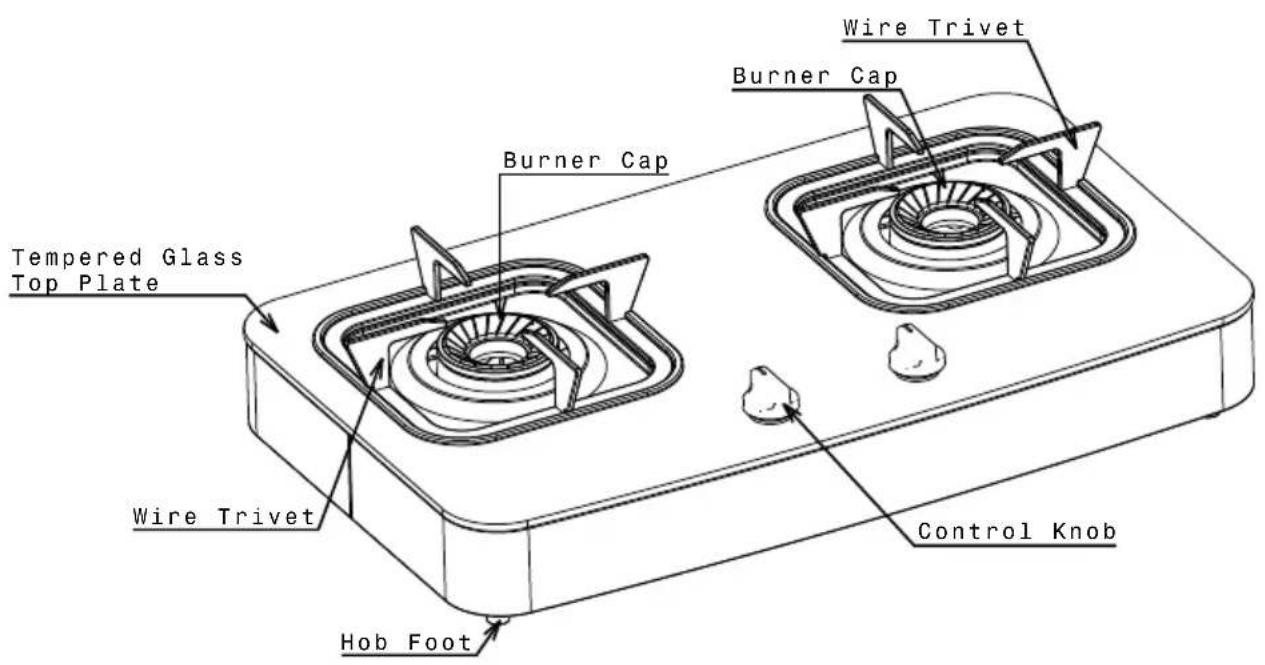

PART IDENTIFICATION

ETG7256GKR

Installation instructions

Follow below steps to install the appliance.

1. Open the package, take out the ployfoam and place them on the even ground.

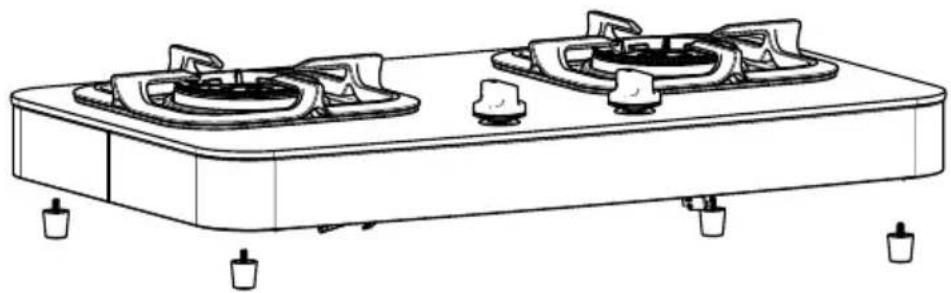

2. Install 4 hob support legs(supplied in accessory bag) on the 4 square yard by nut as below picture shows. Make sure the glass panel is well protected when you assemble the hob feet, NOT contact any sharp edge.

Line drawing of a portable stove with two fans and three legs (no text or symbols)

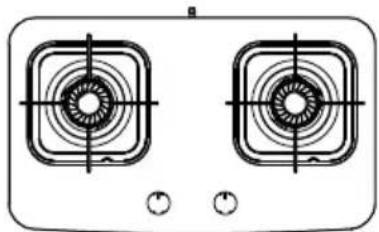

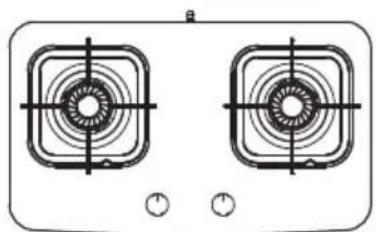

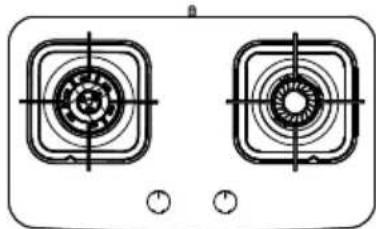

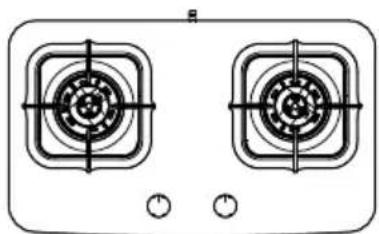

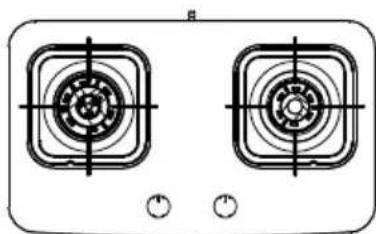

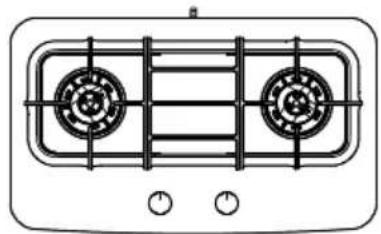

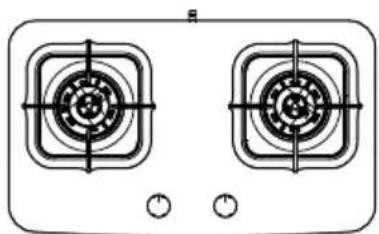

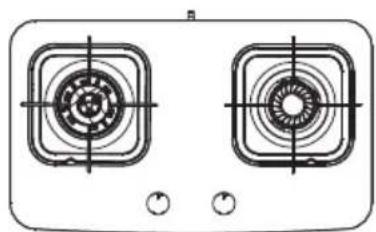

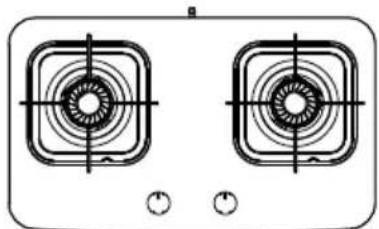

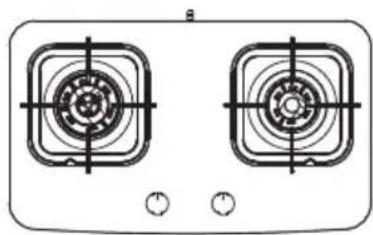

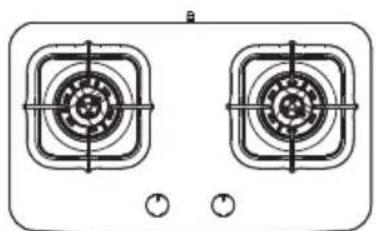

1. Assemble the burner caps on right position, assemble the trivets on right position

Line drawing of a two-panel air conditioner unit with two fans and control buttons (no text or symbols)

ETG7296GKR

Simple line drawing of two identical gas stove fans with control knobs and indicator lights (no text or symbols)

ETG7286GKR

Technical line drawing of two identical air purifiers with circular vent patterns and control buttons (no text or symbols)

ETG7276GKR

Technical line drawing of two identical air purifiers with circular vent patterns and control buttons (no text or symbols)

ETG7266GKR

Simple line drawing of two identical fan-shaped appliances with circular blades and radial lines, no text or symbols present.

ETG7256GKR

Please notice on ETG7276GKR and ETG7266GKR left trivet and right trivet are not the same, please notice the location when you assemble the trivets.

Technical line drawing of two mechanical components with labeled parts (no text or symbols present)

Location on trivet
Location on spill bowl

Please notice on ETG7276GKR left burner inner cap and right burner inner cap are not the same,DO NOT MISUSE

Inner cap
left burner

Inner cap
right burner

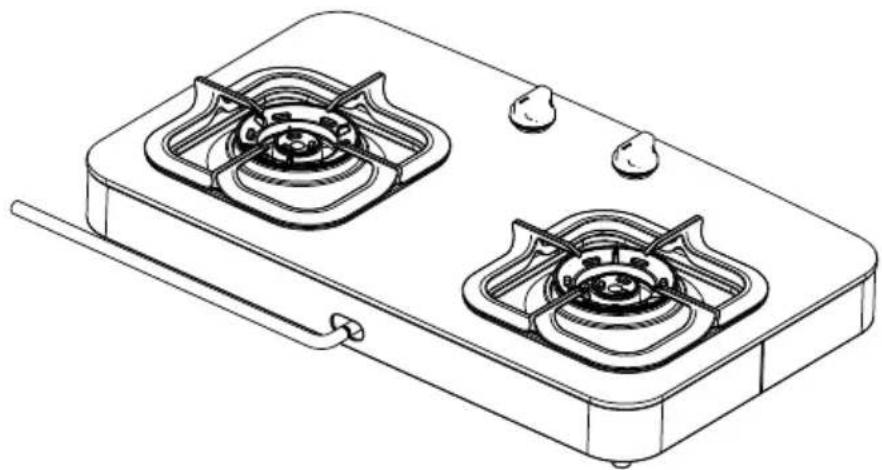

1. Connect gas pipe to the inlet and fasten the connection by turning the clamp clockwise.

Line drawing of a two-burned gas stove with two flanges and a handle (no text or symbols)

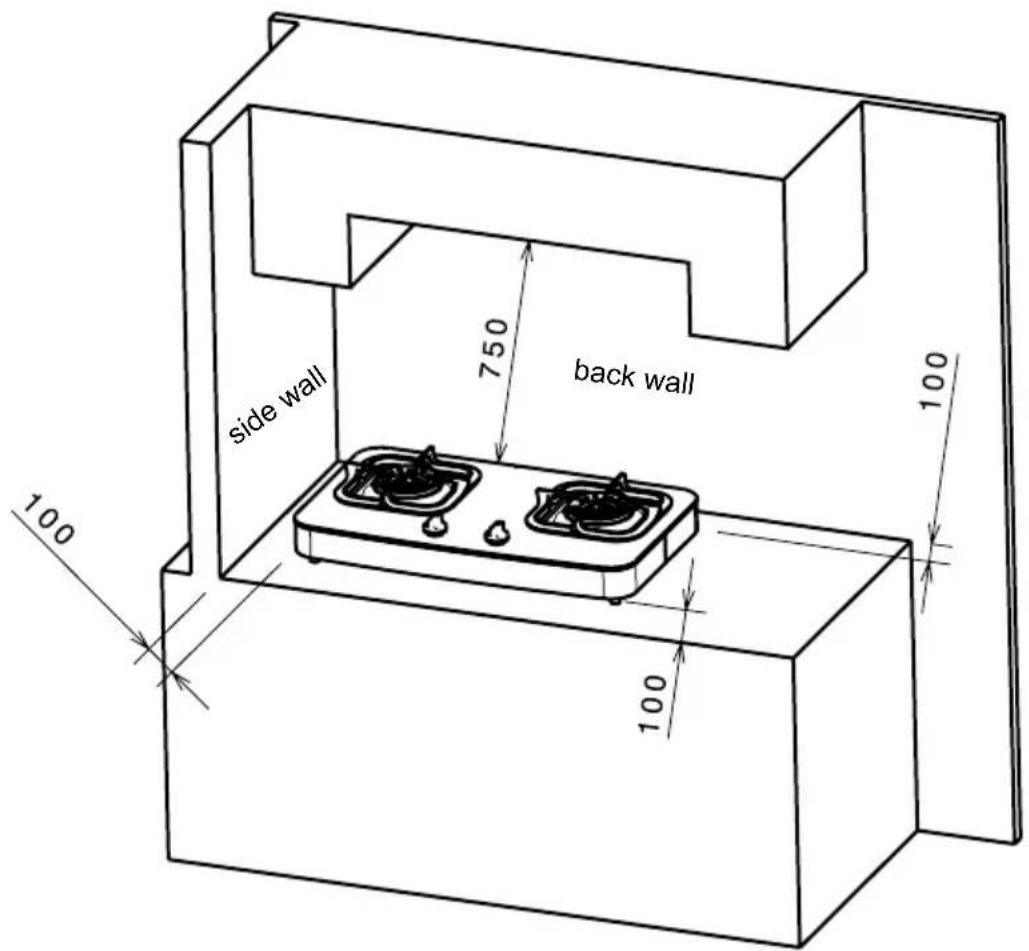

1. If clearance between side/back walls and hob is less than 100mm, the walls must be protected with a non-combustible material. Horizontal surfaces less than 750mm vertically above the cooktop must also be protected.

1. Check the leakage, Turn the gas on and check for leaks using soap solution and brush around all the joints and connection.

Test and operate

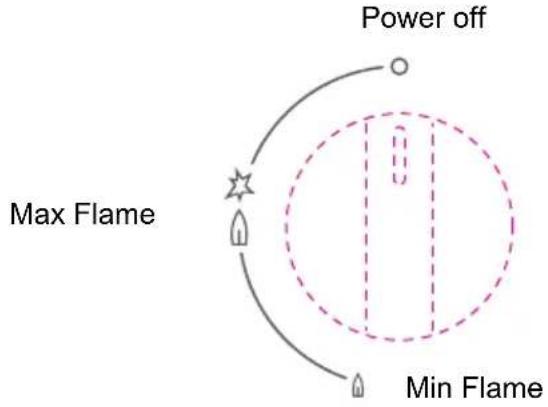

1. Test the appliance

press the control knob and turn to full flame setting to activate the electric igniter. The burner will ignite. Adjust control knob to the desired setting. On initial usage you may have to repeat this ignition function several times (to allow air to be purged from the gas supply system). No adjustment should be necessary. If any problem occur, refer to the servicing instructions or the fault finding chart.

Please notice ETG7296GKR and ETG7286GKR have flame failure devices, pushed down as far as possible for approximately 5 seconds. If the flame goes out when the knob is released simply depress the knob again, this time holding it down with slightly more force for the same length of time.

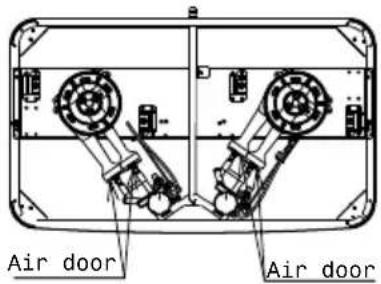

2. Adjust air door

Normal and good performance flame should be blue and very small yellow flame at the flame tip. if you find the flame is too much yellow, you can adjust the valve air door to get the desired flame.

Illustration of a pen with two curved quillips above it (no text or symbols)

Normal flame

flame too short airdoor open too much

Illustration of a ruler with two curved quill pen handles, no text or symbols present

flame too long airdoor open not enough

WARNING

Air door has been set at the factory, it is not recommended the user to adjust by themselves. Ask qualified technician or installer to adjust if necessary. When adjust the air door, make sure the gas pipe is well connected.

Using the hob correctly

To ensure maximum burner efficiency, it is strongly recommended that you use only pots and pans with a bottom fitting the size of the burner used, so that the flame will not spread beyond the bottom of the vessel. Recommended pot size is from 120mm to 280mm.

Technical specifications

Model Gas	Type	Gas Pressure	Product Dimension (LxWxH) mm	Nominal Heat Input(kW)	Injector Size mm
ETG7296GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right:4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7286GKR LPG 30	mbar 700X41	0X120 Left:4.2		Right: 4.2	Left:0.85+0.51Right: 0.85+0.51
ETG7276GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.4	Left:0.85+0.51Right: 0.79+0.42
ETG7266GKR LPG 30	mbar 700X41	0X150 Left:4.2		Right:3.0	Left:0.85+0.51Right: 0.83
ETG7256GKR LPG 30	mbar 700X41	0X150 Left: 3.0		Right: 3.0	Left:0.85+0.51Right: 0.83

Glass top

• Persistent stains may require vigorous rubbing with nylon scourer or creamed powder cleansers. Household enamel cleaners are available, follow the manufacturer instructions in their use. Harsh abrasive cleaners, powder cleaners, steel wool or wax polishes should not be used.
• Do not use the glass top as a work table.

Burner Cap

These can all be lifted off and removed for separate cleaning.

• Ensure burner caps are thoroughly dried after cleaning or spillage.
• When cleaning the burner, ensure that all the flame ports are free of any blockage.

WARNING

When refitting the burner caps, ensure that they are correctly seated. When refitting the trivets, ensure the trivets are correctly seated on the hob.

TROUBLESHOOTING

Phenomenon Reason Solution
Burner will not light... Burner not fitted correctly Fit burner in correct position
Flames uneven or tending to lift	Burner cap incorrectly fitted. Ensure this component is fitted correctly
	Burner cap blocked or wet. Clean or dry burner cap.
Yellow flame Burner cap dirt Clean burner cap
Flames not staying on when knob is released	Knob not held down long enough in ‘Max’ position for flame safeguard to engage.	Repeat lighting procedure and hold knob down for 5 seconds in ‘Max position.
	Dirt or spillage on flame safeguard sensor.	Clean flame safeguard sensor tip.
