Product Type	Door Handle / Lockset
Brand	Dormakaba
Model	Studio Rondo
Material	Stainless Steel / Zinc Alloy
Finish	Polished Chrome, Satin Stainless, Matte Black
Overall Dimensions (Handle)	140 mm (L) x 55 mm (W) x 30 mm (D)
Rose Diameter	52 mm
Weight	Approx. 0.8 kg (pair)
Backset	Adjustable 55 mm / 60 mm
Door Thickness	35 - 45 mm
Centers	72 mm or 89 mm (optional)
Latch Type	Spring latch with deadbolt (optional)
Keying	Keyed Alike or Master Keyed (optional)
Security Grade	ANSI/BHMA Grade 2
Fire Rating	Up to 3 hours (with appropriate fire door)
Installation	Universal handed, non-handed lever
Warranty	Mechanical: 10 years; Finish: 5 years
Certifications	CE, UKCA, EN 1906 (Grade 4)
Cleaning	Wipe with damp cloth, avoid abrasive cleaners
Spare Parts Availability	Yes, through Dormakaba authorized distributors
Typical Application	Interior and exterior residential or light commercial doors

Frequently Asked Questions - Studio Rondo Dormakaba

What is the door thickness range for the Studio Rondo handle?

The Studio Rondo is designed for doors with thickness between 35 mm and 45 mm. For doors outside this range, additional adapter plates may be required.

Is the Studio Rondo handle suitable for both left and right handed doors?

Yes, the handle is non-handed and can be installed on both left and right handed doors without any additional parts.

What tools are needed for installation?

You will need a Phillips screwdriver, a tape measure, a pencil, and a drill with appropriate bits for the latch and screw holes.

Can the Studio Rondo be used on fire-rated doors?

Yes, it has a fire rating of up to 3 hours when installed on a compatible fire door assembly. Ensure the door and frame are fire-rated.

How do I clean and maintain the Studio Rondo handle?

Clean regularly with a soft damp cloth and mild soap. Avoid using abrasive cleaners or solvents. For stubborn stains, use a mild detergent. Dry thoroughly after cleaning.

What is the warranty coverage?

Dormakaba offers a 10-year mechanical warranty and a 5-year finish warranty against tarnishing and peeling, under normal use.

Are spare parts available for the Studio Rondo?

Yes, spare parts such as springs, screws, and rose covers are available through Dormakaba's authorized distributors or directly from their website.

What is the backset adjustment range?

The latch backset is adjustable between 55 mm and 60 mm to fit common door preparations.

Can I key the Studio Rondo to match other Dormakaba locks?

Yes, the lock cylinders can be keyed alike or master keyed to match your existing Dormakaba system. Contact your supplier for keying options.

Is the Studio Rondo suitable for outdoor use?

It is designed for internal and sheltered external doors. For fully exposed outdoor doors, consider a more weather-resistant finish like stainless steel and apply periodic lubrication.

USER MANUAL Studio Rondo Dormakaba

All glass clamping areas have to be cleaned with standard glass cleaning products prior to installation.

Technical line drawing of a mechanical component with circular ports and a central handle (no text or symbols)

Studio Classic

Technical line drawing of a mechanical bracket with mounting holes and a central circular component (no text or symbols)

ARCOS Studio

Line drawing of a door handle with two circular cutouts and a handle (no text or symbols)

Lieferumfang: Scope of delivery:

Exploded view diagram of a mechanical device showing internal components and assembly (no text or labels)

Step-by-step installation instruction for all listed lock types.

Pictured: Studio Rondo

1. Schritt:

2. Step:

Spring-strength reduction when using knobs.

Turn bolt with slotted screwdriver.

1. Schritt:
2. Step:

DETAIL X

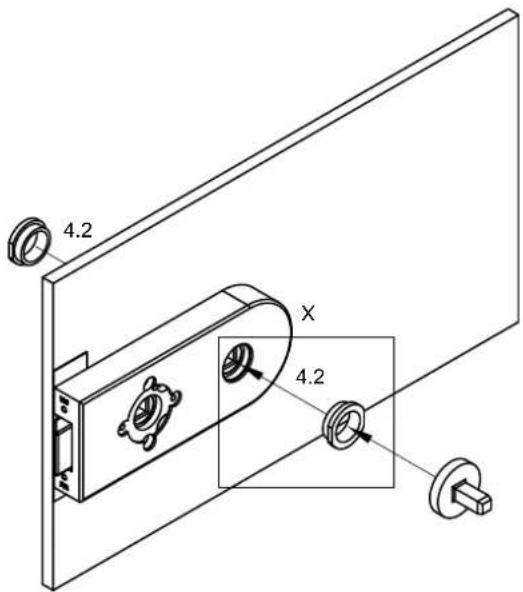

4.2 Einschrauben
4.2 screw in

1. Schritt:
2. Step:

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

1. Schritt:
2. Step:

1. Schritt:
2. Step:
