Product Type	Interior Glass Door System, Telescopic
Brand	Dormakaba
Model	MUTO Premium Telescopic
Max Door Height	118" (3000 mm)
Door Width Range (without handle, without DORMOTION)	23 5/8" - 47 1/4" (600 - 1200 mm)
Glass Thickness	5/16" - 1/2" (8 - 12 mm)
Wood Door Thickness	Up to 1 31/32" (50 mm)
Height Adjustment	+/- 3/16" (5 mm)
Max Weight Capacity (2 panels)	330 lb (150 kg)
Max Weight Per Panel	176 lb (80 kg)
Glass Type	Tempered Laminated / Monolithic
Mounting Options	Ceiling, Wall, Glass
Door Configuration	Single or Bi-Parting (2 or 4 panels)
Finishes	150 Standard Finishes, Satin Aluminum, 113 Similar to Satin Stainless, Custom Anodized, 200+ RAL Colors
Optional Features	DORMOTION Damping, Moving Floor Guides, Sidelites, Door Position Indicator
Power Supply	None (Manual Operation)
Maintenance & Cleaning	Clean with mild soap and water; avoid abrasive cleaners
Safety	Tempered glass; weight limits; DORMOTION for soft close
Spare Parts	Contact Dormakaba for replacement parts
Manufacturer Contact	DORMA USA: 800.523.8483; DORMA Canada: 800.387.4938

Frequently Asked Questions - MUTO Telescopic Dormakaba

What is the maximum door height for the MUTO Premium Telescopic system?

The maximum door height is 118 inches (3000 mm).

What glass thickness is compatible?

Glass thickness can range from 5/16 inch to 1/2 inch (8-12 mm). Tempered laminated or monolithic glass is supported.

Can I use wood doors with this system?

Yes, wood doors up to 1 31/32 inches (50 mm) thick are compatible.

What is the weight limit per door panel?

Each door panel can support up to 176 lb (80 kg). The total for two panels is 330 lb (150 kg).

What mounting options are available?

The system can be mounted to the ceiling, wall, or directly to the glass.

Does the system require power?

No, the MUTO Telescopic is a manual system. Optional DORMOTION damping is mechanical, not electric.

What finishes are available?

Standard finishes include satin aluminum and 113 similar to satin stainless. Custom anodized and over 200 RAL colors are also available.

How do I adjust the door height after installation?

You can make quick height adjustments from the front of the system, up to +/- 3/16 inch (5 mm).

Is the DORMOTION damping mechanism easy to retrofit?

Yes, DORMOTION clamps directly to the door panel for easy retrofit.

How do I clean the glass or hardware?

Clean with a mild soap and water solution. Avoid abrasive cleaners that may damage the finish.

USER MANUAL MUTO Telescopic Dormakaba

Interior Glass Systems MUTO Premium Telescopic

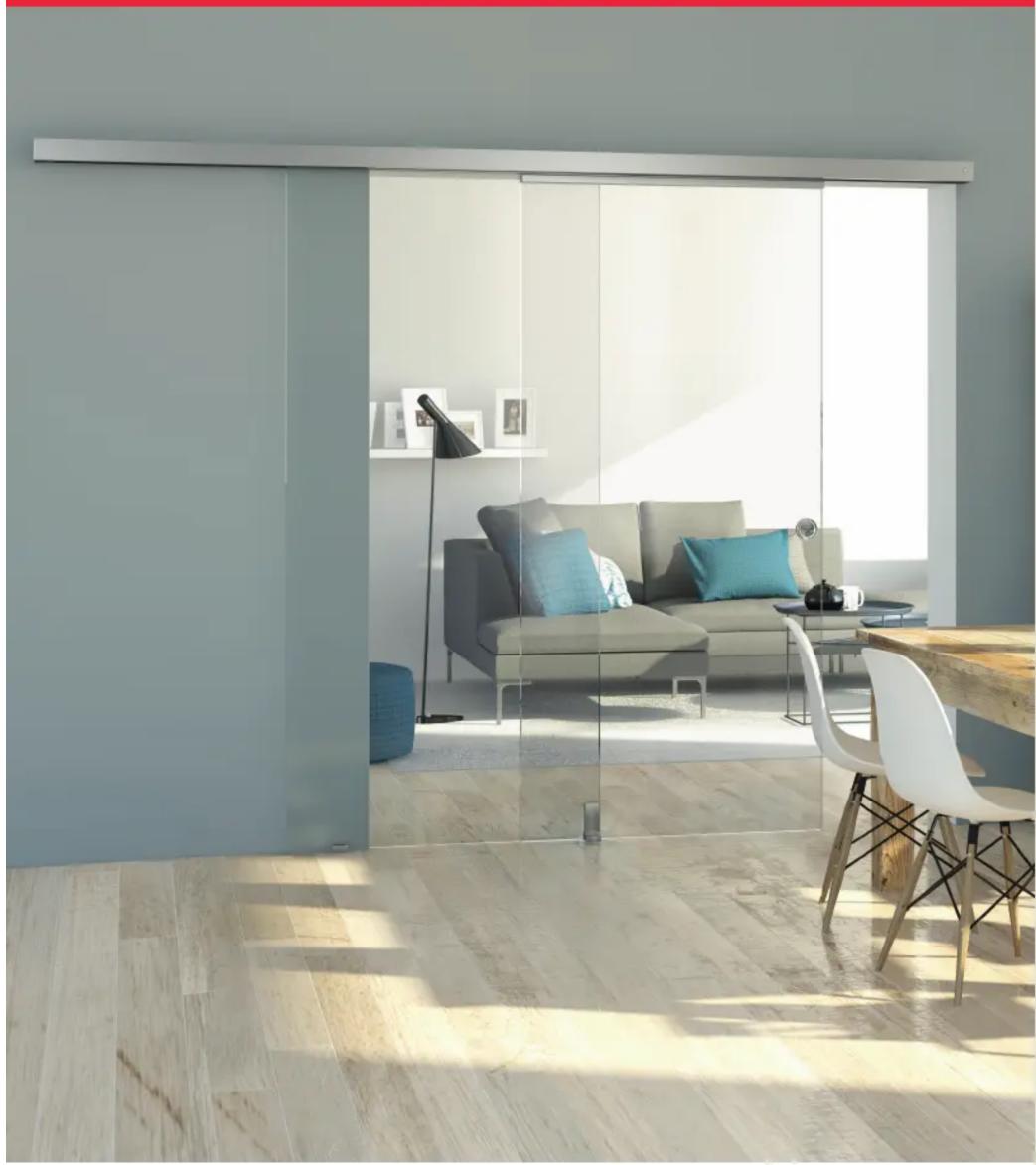

Modern minimalist living room interior with glass partition, beige sofa, blue cushions, and wooden furniture (no visible text or symbols)

Specifications

Max weight capacity (2 panels) 330 lb (150 kg)

Height adjustment + /− 3/16" (5)

Door height 118" (3000)

Tempered laminated/monolithic glass Yes

Glass thickness 5/16"–1/2" (8–12)

Wood door thickness Up to 1-31/32" (50)

Standard Finishes 150

Satin aluminum

113 Similar to satin stainless

Expand openings with MUTO Premium Telescopic.

Telescopic works with single or bi-parting door panels and provides wider openings when space is limited. Like all MUTO systems, Telescopic can be wall, ceiling, or glass mounted and comes with a range of optional features to ease operation and increase convenience.

Benefits include:

• Suitable for monolithic glass, tempered laminated glass, and wood doors.
  • Supports door weights up to 176 lb (80 kg) per door panel.
  • Synchronized panel movement.
• Easy to install and adjust.
• Unparalleled design in multiple finishes; choose from aluminum, similar to satin stainless, custom anodized, or over 200 custom RAL colors.

Requiring limited glass prep*, MUTO Premium Telescopic offers user-friendly installation, with ceiling, wall, or glass mounted options. Post installation, you can make quick and hassle-free height adjustments from the front. DORMOTION is easy to retrofit—the mechanism clamps directly to the door panel.

* Minimal glass prep required with a single panel when using moving floor guides.

MUTO Premium Telescopic

Simple architectural diagram showing two adjacent rectangular panels with vertical dividers and a horizontal beam, no text or symbols present.

Simple architectural diagram showing three vertical panels with a small door and scale bar (no text or symbols)

Architectural elevation drawing of a double door with vertical window and side supports (no text or symbols)

Options

• Moving floor guides
• With or without handle
• Sidelites
• Single or bi-parting doors (2-panel and 4-panel)
• DORMOTION damping mechanism (DORMA SoftClose®)
  • Door position status indicator

The easy MUTO Telescopic ordering process makes it simple to specify numerous solutions for single or bi-parting door systems, with or without sidelites.

Door widths

Without DORMOTION

• Without handle:
  23-5/8"-47-1/4" (600-1200)
  (for both quick mover and slow mover panels)
• With handle:
  26-1/8"-49-3/4" (664-1264)
  (for slow mover panel)

With DORMOTION

• Without handle:
  31-1/8"-47-1/4" (791-1200)
  (for both quick mover and slow mover panels)
• With handle:
  33-5/8"-49-3/4" (854-1264)
  (for quick mover panel)
  28-1/2"-44-5/8" (724-1133)
  (for slow mover panel)

Exterior view of a modern glass-framed door with metal railings (no text or symbols visible)

DORMA USA, Inc

Dorma Drive, Drawer AC

Reamstown, PA 17567

800.523.8483

DORMA Canada

1680 Courtney Park Dr

Unit 13

Mississauga, ON L5T 1R4

800.387.4938

Standard options

Mount Direction Panels Sidelite Ref. Number
Ceiling	Left	2		836.704
	Right 836.706		●
	Bi-parting 4 836.711
	Left - 836.703
	Right - 836.705
Wall	Left	2		836.701
	Right 836.702		-
	Bi-parting 4 836.709
Glass	Left	2		836.707
	Right 836.708		●
	Bi-parting 4 836.712

• yes — no
