Product Type	Air Purifier
Brand	Electrolux
Model	Flow A3 FA31-200WT
Power Supply	100-240V AC, 50/60Hz (via included adapter)
Fan Speeds	Adjustable (Low to Max)
Sleep Mode	Yes, ultra-quiet operation with dimmed indicators
Filter Type	Multi-layer composite filter (replaceable)
Filter Replacement Indicator	Red LED alerts; reset by holding power button 5 seconds
Control Type	Touch-sensitive buttons on top panel
Airflow Direction	360° air intake and upper outlet
Installation	Freestanding on level surface
Cleaning	Wipe with damp cloth; vacuum filter area
Filter Maintenance	Replace filter when indicator lights up; do not wash
Safety Precautions	Do not use extension cord; avoid water ingress; unplug before cleaning
Warranty	Refer to manufacturer

Frequently Asked Questions - Flow A3 FA31-200WT ELECTROLUX

How do I replace the filter?

First, turn off and unplug the unit. Open the base by rotating it anticlockwise. Remove the old filter and discard it. Insert the new filter (any orientation) ensuring it is centered. Close the base by rotating clockwise until secure. Plug in and reset the filter change indicator by holding the power button for 5 seconds.

What should I do if the filter change indicator lights up?

If the indicator flickers red, replace the filter soon. If it is steady red, replace the filter immediately. After replacing, reset the indicator by pressing and holding the power button for 5 seconds until the red light goes off.

Can I wash the filter?

No, the multi-layer composite filter cannot be washed. It must be replaced when dirty. Only the pre-filter (if accessible) can be wiped, but the manual does not mention a separate pre-filter; refer to the product for details. Always replace the filter as per the indicator.

Why is my air purifier making noise?

Excessive noise can occur if the unit is not on a level surface or if the filter is not properly inserted. Ensure the unit is placed on a flat, stable surface and that the filter is centered in the cavity and the base is securely locked.

The control panel is not responding. What can I do?

First, check that the power cord is firmly connected to both the unit and the wall outlet. Then, reopen the base and adjust the filter so it is centrally placed, then close and lock the base. If the issue persists, it may be a fan motor failure; contact an authorized Electrolux servicer.

How do I reset the filter change indicator?

After replacing the filter, press and hold the power button on the control panel for 5 seconds. The red filter change indicator light will turn off, indicating the reset is complete.

Can I use an extension cord?

No, do not use an extension cord or adapter plug. This can cause fire hazard or electric shock. Plug the unit directly into a properly grounded outlet.

How do I clean the air purifier?

Unplug the unit before cleaning. Use a damp cloth or a vacuum cleaner with a soft brush to clean the exterior and grilles. Do not use harsh cleaners, wax, or polish. Avoid getting water into the controls.

What is the sleep mode?

Sleep mode allows the unit to operate at a low noise level. When activated, all indicators except the sleep icon turn off. To activate, press the sleep button (© icon). The fan will run at its lowest speed for quiet operation.

What should I do if the unit emits a burning smell?

If you notice sparks or a burning smell, immediately stop operation, disconnect the power cord, and contact an authorized Electrolux servicer. Do not attempt to use the unit until it has been inspected.

USER MANUAL Flow A3 FA31-200WT ELECTROLUX

Abstract geometric logo with white and dark blue shapes forming a stylized 'K' (no text or symbols)

Instruction Book

คู่มือการใช้งาน

FLOW A3

Exterior view of a modern electric vacuum cleaner with ventilation grille (no visible text or symbols)

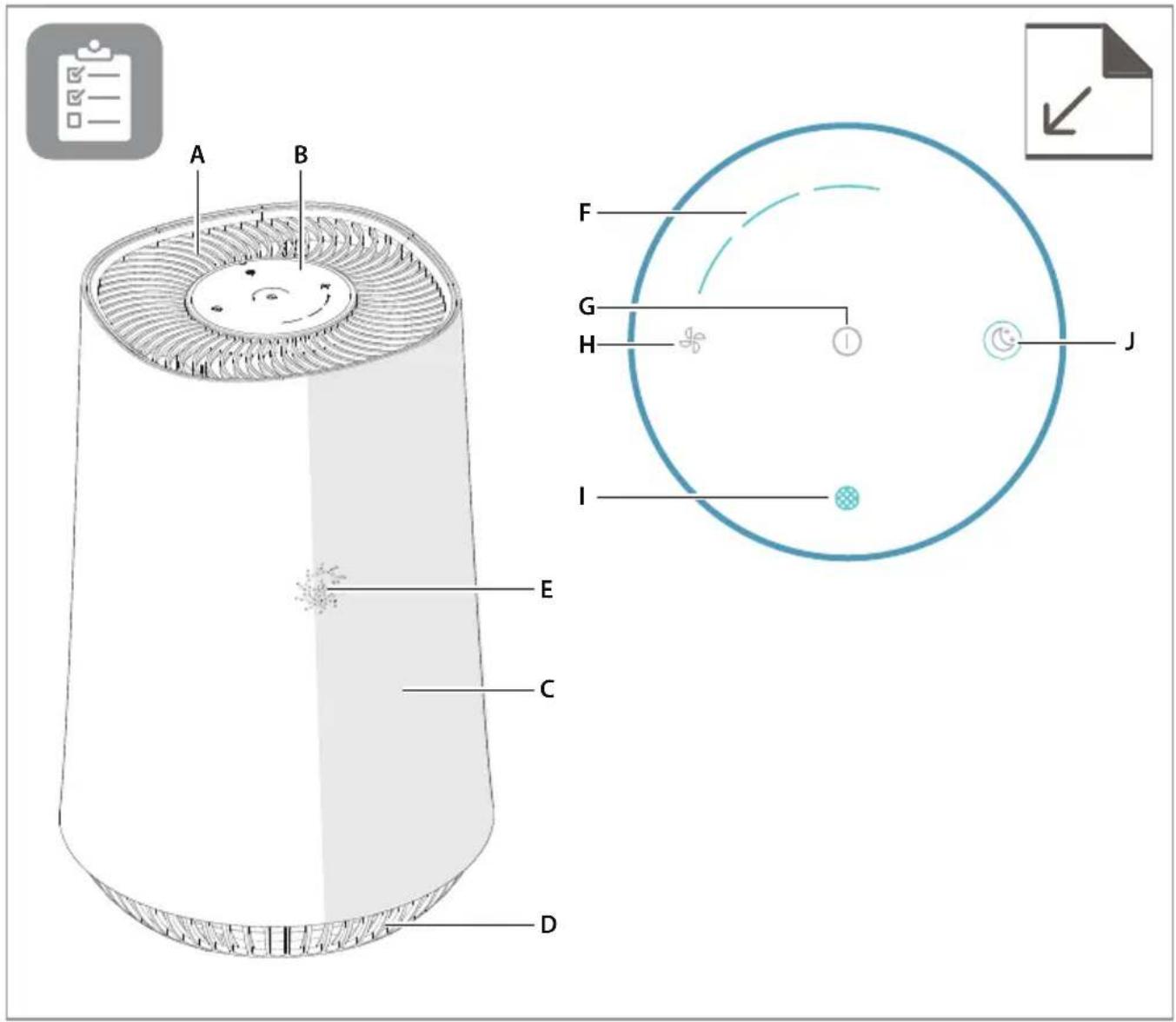

EN DESCRIPTION OF YOUR AIR PURIFIER FLOW A3

Appliance:

A. Air outlet
B. UI panel
C. Main body
D. Base
E. Adapter jack

Control panel:

F. Fan speed indicator
G. Power on/off
H. Fan speed control
I. Filter change indicator
J. Sleep mode button & indicator

Diagram of a cylindrical object with a blue arrow indicating rotational motion (no text or symbols)

Illustration of a cylindrical container with a blue arrow indicating upward motion (no text or symbols)

Illustration of a cylindrical container with an arrow indicating upward motion, and a woven basket below (no text or symbols)

Diagram of a cylindrical device with a side view showing internal components and a blue rotation arrow (no text or symbols)

Diagram showing a device connected to an electrical outlet with a blue arrow indicating direction (no text or symbols present)

SAFETY INFORMATION

This USER MANUAL provides specific operating instructions for your model. Use the unit only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

WARNING! Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. This appliance can be used in 50Hz or 60Hz power supply without any change.

Do not under any circumstances, cut, remove or bypass the grounding prong.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.

Do not touch the fan blade when removing the filter.

Children and Vulnerable People Safety

WARNING! Risk of suffocation, injury or permanent disability.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children under 3 years of age should be kept away from the appliance unless continuously supervised.

Keep all packaging away from children.

If the appliance has a child safety device, we recommend you activate it.

Electrical Information

WARNING! Avoid fire hazard or electric shock.

If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances.

Do not use an extension cord or an adapter plug.

Never unplug the unit by pulling on the power cord.

Always grip the plug firmly and pull straight out from the receptacle.

Do not pinch, bend, or knot the power cord.

Do not cut or damage the power cord. If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer. This unit contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

The air purifier is only to be used with the power supply unit provided with the air purifier.

Safety Precautions

CAUTION! Avoid Serious Injury or Death.

Do not insert or place fingers or objects into the air discharge area or front grille of the unit.

Do not start or stop the unit by unplugging the power cord or turning off the power at the electrical box.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.

Do not operate the unit with wet hands.

Do not pull on the power cord.

CAUTION! Avoid Injury or damage to the unit or other property.

Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.

Do not climb on or place objects on the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the unit at the power source when it will not be used for an extended period of time.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is 30 cm away from the unit.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste..

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

ENGLISH

Thank you for choosing the Electrolux air purifier.

Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

SET UP

The filters have to be installed before use.

Caution: Switch off the device before installing filters.

1 Open the base of the filter

Open the product by rotating the base in anticlockwise direction with the handle provided at the bottom till it comes loose (ref. picture 1).

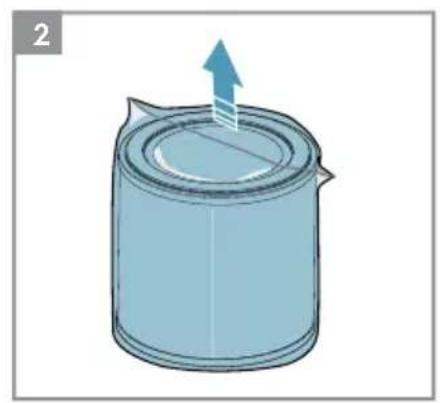

2 Take out the filter and remove the filter bag

Carefully remove the filter including plastic packaging from the unit and break open the plastic bag and discard appropriately (ref. picture 2).

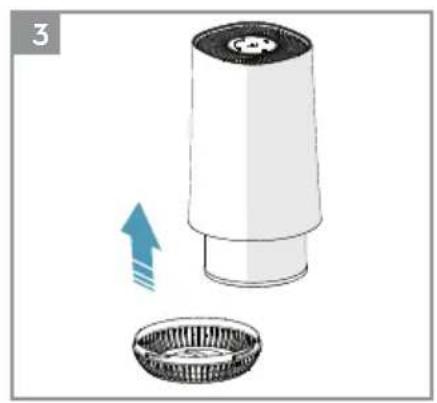

3 Install the filter

Carefully insert the filter back into the product without the plastic packaging (either end of the filter works). Take care that the filter is placed in the center of the cavity (ref. picture 3).

4 Close the base

Close the product by rotating the base in clockwise direction with the handle provided at the bottom till it is securely in place. (ref. picture 4).

OPERATION

Caution: Please ensure the filters are correctly inserted in the filter compartment, the equipment is installed on a level surface and the power plug is firmly connected.

5 Connect the power plug.

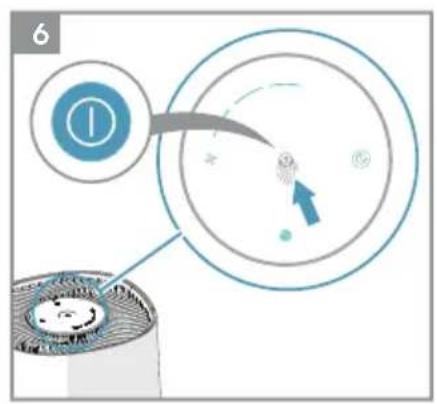

6 Power on

Power on the product by gently touching the ON/OFF icon on the center of the product (ref. picture 6).

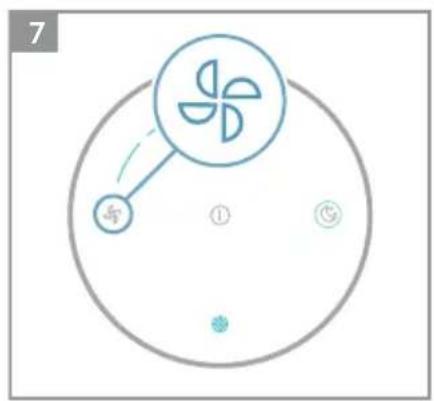

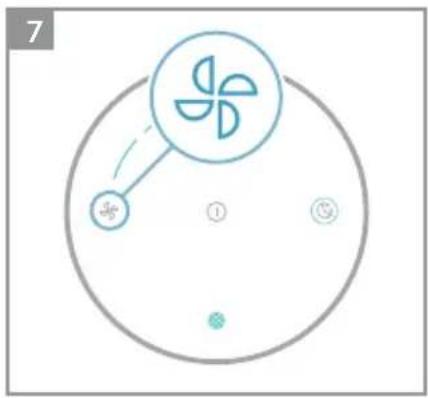

7 Air speed control

Change the fan speed by gently touching fan icon on the product. Low speed as default setting and if select Max fan speed, it will reach the Max fan speed within 20s. (ref. picture 7).

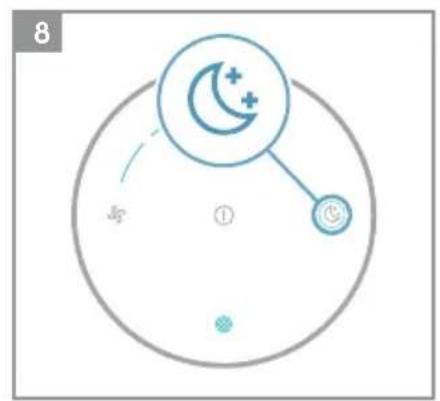

8 Sleep mode

Chose the SLEEP mode by gently touching "©" icon on the product. In SLEEP mode unit will operate at the low noise level and all indicators except for SLEEP icon will go off. (ref. picture 8).

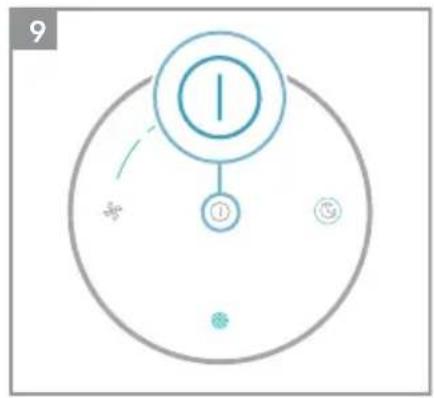

9 Power off

Power down the product by gently touching the ON/OFF icon on the center of the product (ref. picture 9)

FILTER CHANGE INDICATOR

10 The filter change indicator will light up to remind you to change the filter.

• When filter change indicator flicker with red light, please replace the filter and reset the filter change indicator.
• When filter change indicator stop flicker and the red light fix, please replace the filter immediately and reset the filter change indicator.

11 Filter change indicator reset operation

Press the ON/OFF button "①" for 5s and filter change indicator will reset, then red light will go off.

CARE AND CLEANING

12 Unplug the appliance before cleaning to prevent shock or fire hazards. Use a damp cloth or a vacuum cleaner with soft brush to clean your air purifier.
13 The plastic part of the cabinet and top may be cleaned with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the appliance.
14 Never use harsh cleaners, wax or polish when cleaning the unit.

STORAGE

15 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.

NOTE: The multi-layer filter can not be washed, it can only be replaced.

CAUTION!

Do not touch the fan blade when removing the multi-layer filter.

ERROR CODE

16 Fan failure error code, when fan failure occurs, the light of screen will all go off and the unit can't be operated then.

TROUBLESHOOTING

When fault indicators show that the system is not operating properly, perform the following check.

Commonly Asked Questions & Topics

Carry out the operations below for commonly-occurring questions or faults.

Questions or Faults Corrective	Possible Diagnosis
Can the filters be washed?	NO	Replace the compound filter instead of wash, the pre-filter can be wiped.
The control panel does not seem to work.	Power cord issueFilter compartment issueFan Motor Failure	Please ensure power cord is firmly attached to the unit as well as socket on the wall and then retry pressing the ON/OFF icon.Please reopen bottom of the unit, readjust the filter so it is centrally placed in cavity and close the bottom. Ensure bottom is firmly in place & locked and then retry operating the unit.If above two steps do not resolve this issue, then the unit has experienced a fan motor failure and will not operate. Please contact Electrolux authorized servicer for further troubleshooting or repairs.
The equipment emits a lot of noise.	The installation location is not at even level or the filter is not properly inserted.	Install the equipment on a level surface and re-confirm filter installation position and order.
The equipment operates normally but the outgoing air volume is significantly reduced.	The outlet might be blocked by a foreign object or the filter has not been replaced in a timely manner.	Please re-adjust the equipment installation position to ensure enough space is reserved, and confirm that filter have been replaced according to filter replacement indicator status.
If the fault encountered is not listed above, please call the Customer Service Hotline.

The software in the air purifier is partly based on free and open source software. To see the full copyright information and applicable license terms, please visit: www.electrolux.com
