Product Type	Humidifier
Brand	Electrolux
Model	EXD20DN3W
Dimensions (H x W x D)	25 x 15 x 30 cm
Weight	2.5 kg
Power Supply	220-240V, 50Hz
Power Consumption	30 W
Water Tank Capacity	4 L
Humidification Capacity	300 ml/h
Noise Level	≤ 35 dB
Coverage Area	Up to 30 m²
Humidification Technology	Ultrasonic
Functions	Auto shut-off, timer, adjustable mist output
Filter Type	Filterless (ceramic transducer)
Cleaning	Weekly cleaning of tank and transducer recommended
Safety Features	Auto shut-off when water empty, overheat protection
Spare Parts	Replacement transducer, water tank
Energy Efficiency	Low power consumption, energy saving
Warranty	2 years

Frequently Asked Questions - EXD20DN3W ELECTROLUX

How do I clean the Electrolux EXD20DN3W humidifier?

Unplug the device and remove the water tank. Clean the tank with a mild detergent and rinse thoroughly. Wipe the transducer with a soft cloth to remove mineral deposits. Regular cleaning prevents bacteria growth.

What type of water should I use in the humidifier?

Use distilled or demineralized water to reduce mineral buildup and white dust. Tap water can be used but may require more frequent cleaning.

Why does my humidifier produce white dust?

White dust occurs when minerals in tap water are released into the air. Using distilled water or a demineralization cartridge (if compatible) can eliminate this issue.

How often should I change the water in the tank?

It is recommended to empty and refill the tank daily to prevent bacterial growth. Do not let water sit for more than 24 hours.

Can I run the humidifier continuously?

Yes, the humidifier can run continuously, but it will auto-shut off when the water tank is empty. Use the timer function to automatically turn it off after a set period.

What is the ideal humidity level for a room?

The ideal indoor humidity level is between 40% and 60%. Use a hygrometer to monitor and adjust the humidifier settings accordingly.

How do I adjust the mist output?

The EXD20DN3W has a control knob or button to adjust the mist output from low to high. Refer to the user manual for exact operation.

Is the humidifier safe for babies or pets?

Yes, the ultrasonic operation is quiet and safe. Keep the unit out of reach of children and pets, and avoid placing it near electronics.

What should I do if the humidifier stops working?

Check if the water tank is empty (auto shut-off activated). Ensure the power cord is plugged in and the outlet is working. If the problem persists, contact Electrolux customer support.

Where can I find replacement parts for the EXD20DN3W?

Replacement parts such as the transducer or water tank can be ordered from Electrolux authorized dealers or online spare parts stores. Use the model number EXD20DN3W.

USER MANUAL EXD20DN3W ELECTROLUX

WE'RE THINKING OF YOL

I thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

This USER MANUAL provides specific operating instructions for your model. Use the dehumidifier only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

WARNING!

Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

- Do not, under any circumstances, cut, remove or bypass the grounding prong.

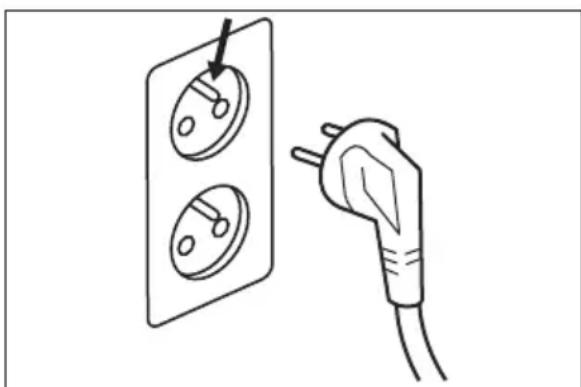

Line drawing of a hand holding an electrical plug, next to two wall-mounted socket (no text or symbols)

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.
• Discard water from bucket. Water is not potable and cannot be used for drinking.

1.1 Children and Vulnerable People Safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.

• Children of less than 3 years should be kept away unless continuously supervised.

• Keep all packaging away from children.

• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

12 Electrical Information

WARNING!

Avoid fire hazard or electric shock.

• If you are not sure the outlet is adequatelyg rounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances. Do not use an extension cord or an adapter plug.
• Never unplug the dehumidifier by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Do not pinch, bend, or knot the power cord.

2. SAFETY INSTRUCTION

2.1 Safety Precautions

CAUTION!

Avoid Serious Injury or Death

• This dehumidifier contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
• Do not insert or place fingers or objects into the air discharge area or front grille of the unit.

• Do not start or stop the dehumidifier by unplugging the power cord or turning off the power at the electrical box.

• Do not cut or damage the power cord.

• If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.
• In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.
• Do not operate the dehumidifier with wet hands.
• Do not pull on the power cord.
• Do not drink any water from the dehumidifier.

CAUTION!

Avoid Injury or damage to the unit or other property

• Do not direct airfbw at fireplaces or other heat related sources as this could cause flare ups.
• Do not climb on or place objects on the unit.
• Do not hang objects off the unit.
• Do not place containers with liquids on the unit.

3. BEFORE FIRST USE

3.1 Selecting a Location

Important

1. Dehumidifier must be operated in an enclosed area to be most effective. Close all doors, windows, and other outside openings to the room. The effectiveness of the dehumidifier depends on the rate at which new moisture-laden air enters the room.
2. Place dehumidifier in a location that does not restrict airflow through the front of the unit.
3. A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. It may be necessary to install a second dehumidifier in the enclosed area for satisfactory drying.
4. The de hum idifier must be installed on a level floor that will support it with a full bucket of water.

4.1 Connect the Unit to Power

Allow the unit to reach room temperature before operating.

Unit must be upright for one hour prior to operating.

To begin operating the dehumidifier, follow these steps:

• Turn off the de hum idifer at the power source when it will not be used for an extended period of time.
• Operate the unit with air filter in place.
• Do not block or cover the intake grille, discharge area and outlet ports.
• Ensure that any electrical/electronic equipment is one yard away from the unit.

• Do not use or store flammable gases near the unit.

• There should be a minimum of 12 inches clearance around the dehumidifier.

3.2 How It Works

When the unit is started, the fan begins to pull moisture-laden air across the dehumidifying coils. The coils condense or draw moisture from the air, and air flows into the room as dry, warm air. Moisture removed from air is collected in a bucket on the front of the dehumidifier. The unit is designed to operate between 5°C (41°F) and 35°C (96°F). The unit will not work properly if the temperature is out of this temperature range, or the performance of the unit will fall greatly. The "Compressor" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. Make sure the tank is fitted correctly otherwise unit will not turn on.

1. Plug the power cord into a properly grounded 220-240V AC outlet.
2. If the BUCKET FULL light is on, remove the bucket and re-install to reset the float switch.

4.2 To Run in Continuous Mode

1. Press the ON/OFF button.
2. Pressing the Option button until the Cont. indicator light.

4.3 To Set Desired Humidity

After a few days when the Relative Humidity has declined, press the HUMIDITY — or + buttons to choose a value between 35% to 85%, so the room is kept at a comfortable humidity. Pressing the — or + buttons will change the humidity selection in 5% increments. After you have set the desired humidity, the readout will display the actual room humidity.

4.4 Change the Fan Speed

You can use the Tub obutton to change the fan speed to HIGH or LOW. In the high fan speed, the indicator which above the turbo button will light. A higher fan speed will result in quicker moisture removal.

4.5 ION Function

Press the Ion button ⚠ to activate the ionizer. Anions air automatically generated by ionization. The anions deactive the airborne chemical vapors and dust particles. When the Ion function is activated the indicator which above the Ion button will light. Press the Ion button again to stop the function.

4.6 SMD mode

At smart dehumidifying mode, the unit will automatically control room humidity in a comfortable range 45%\~55% according to the room temperature. The humidity setting function will be invalid. To activate the SMD mode, press the Option button until the SMD indicator light.

During the SMD mode the humidity is controlled by the unit automatically, no need to change the setting humidity manually.

4.7 Dryer Mode

The unit can reach the MAX dehumidification performance when it is under the Dryer mode. The fan speed is fixed at high fan speed. The humidity level is automatically controlled according to the actual room humidity. The unit will quit dryer mode after a maximum 10 hours' operation.

To activate the Dryer mode, press the Option button :until the Dryeri indicator light

1) Air flow direction; 2) Wet clothes.

NOTE:

• The Dryer mode must be operated in a dose room, do not open the door and window.
  • To make the best effective dehumidification, please first dehydrate the wet clothes.

- Make sure to direct airflow at the wet clothes shown as picture below.

- For thick and heavy wet clothes may not get the best effective dehumidification.

CAUTION!

- Do not cover the air outlet of the unit with clothes. It may cause excessive heat, fire or failure of unit.

- Do not place the wet clothes on the top of the unit and do not make the water drop into the unit. It may cause electric shock, creepage or failure of unit.

4.8 How to Use Timer Function

The TIMER function enables you to either Delay Start or Delay Stop the unit in the choice from 05hour to 24 hours.

When the unit is on, first press the Timer button, the Timer Off indicator light illuminates. It indicates the Auto Stop program \$ initiated. Press it again in the Time On indicator light illuminates .It indicates the Auto Start is initiated.

Press or hold the + or - pad to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.

The selected time will register in 5 seconds and the system will automatically revert back to display the previous humidity setting.

When the Auto start & Auto stop times are set, within the same program sequence, I IMERONOFF indicator lights illuminate identifying both ON and OFF times are now programmed.

Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop function. When LED display window displays the code of P2, the Auto Start/Stop function will also be cancelled.

NOTE:

• Before entering TIMER setting, make sure power is being supplied to the unit.
• Before entering TIMER setting, make sure pressing HUMIDITY or button sets one desired room humidity first.

4.9 Fault Codes

AS- Humidity sensor error--Unplug the unit and plug it back in. If error repeats, call for service.
ES- Temperature sensor error-- Unplug the unit and plug it back in. If error repeats, call for service.
P1 - Unit is defrosting-- Allow the unit time to automatically defrost. The protection will clear after the unit self defrosts.
P2- Bucket is full or bucket is not in right position-- Empty the bucket and replace it in the right position.
E3- Unit malfunction-- Unplug the unit and plug it back in. If error repeats, call for service.
EC- Refrigerant leak age detection-- With this new technology, the display area will appear EC when the unit detects refrigerant leakage, call for service.

4.10 Removing collected water

There are two ways to remove collected water.

Use the bucket

When the unit is off, if the bucket is full, the unit will beep 8 times and the Full indicator light will flash, the digital display shows P2

When the unit is on, if the bucket is full, the compressor turns off and the fan turns off after 30 seconds for drying the water of the condenser, then the unit will beep 8 times and the Full indicator light will flash, the digital display shows P2.

Follow the step below to remove the collected water from the bucket

1. Grip the left and right handles securely, then pull out the bucket a little.

Line drawing of a device with a handle and circular component, showing motion lines (no text or symbols)

1. Hold both sides of the bucket with even strength, and pull it out from the unit.

Line drawing of a hand inserting a bag into a device, with an upward arrow indicating motion (no text or symbols)

1. Throw away the water and replace the bucket. The bucket must be in place and securely seated for the dehumidifier to operate.

The unit will restart when the bucket is restored in its correct position.

• Do not put the tank on the floor because the bottom of the bucket is uneven. Otherwise the bucket will fall and cause the water to spill.
• When you remove the bucket, do not touch any parts inside of the unit. Doing so may damage the product.
• Be sure to push the bucket gently all the way into the unit. Banging the

bucket against anything or failing to push it in securely may cause the unit not to operate.

- Discard water from bucket. Water is not potable and cannot be used for drinking.

Continuous Drainage

Water can be automatically emptied into a floor drain by attaching the unit with a water hose (not included).

1. Out the cover down from the back drain hose outlet.
2. Insert a drain hose (ID=13.5mm) onto the drain connector of the unit. Make sure the hose is secure so there are no leaks
3. Direct he hose toward the drain, making sure that there are no kinks that will stop the water flowing.
4. Place the end of the hose into the drain and make sure the end of the hose is level or down to let the water flow smoothly.

Line drawing of a portable air purifier with attached tubing and control panel (no text or symbols)

i

• Check the seal between the hose and the drain connector. If there is a small leak then replace the hose gasket and re-tighten the hose.
• If the mode of continuous drainage is not chosen, the drain cap must be screwed securely to prevent leakage.

5. CARE AND CLEANING

5.1 To Clean the Filter

WARNING! Before cleaning the unit, make sure to disconnect the unit from power source.

1. Clean the G rille and Case
2. Use water and a mild detergent. Do not use bleach or abrasives.
3. Do not splash water directly onto the main unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust
4. The air intake and outlet grilles get soiled easily, so use a vacuum attachment or brush to clean.
5. Clean the bucket

Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Partially fill the bucket with clean water and add a little mild detergent. Swish it around in the bucket, empty and rinse.

NOTE Do not use a dishwasher to clean the bucket. After clean, the bucket must be in place and securely seated for the dehumidifier to operate.

1. Clean the air filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary

NOTE: DO NOT RINSE OR PUT THE FILTER IN AN AUTOMATIC DIS HWASHER.

6.9WHAT TO DO IF...

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are

a. Grip the tab on the filter and pull it upward, then pull it out as shown below.

b. Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.
c. Insert the air filter into the unit from underside to upside.
4. Re-install the filter, then replace bucket.

NOTE: Please insert the filter with the front side outwards.

CAUTION!

DO NOT operate the dehumidifier without a filter because dirt and lint will cb g it and reduce performance.

- This unit contains a R134A refrigerant fluid with a GWP equal to 1430. Refrigerant weight: 0.105/0.12KG (depending on different models)

not the result of defective workmanship or materials in this appliance.

Occurrence	Solution
Dehumidifier does not operate	Wall plug disconnected. Push plug firmly into wall outlet.
	House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset cir- cuit breaker
	I he dryness level you selected has been reached. Dehumidifier automatically shuts off when selected amount of moisture has been removed from the air. If you want to remove more moisture, Select CONTINUOUS by using the humidity button or knob. After the dehu- midifier starts, reset the control to the desired setting.
	Bucket not installed properly. See “Removing Collected Water”.
	Water in the bucket has reached its preset lev- el. Dehumidifier automatically turns of when this occurs. Empty bucket and return bucket to position.
	Dehumidifier is not turned on. Turn unit on.
	BUCKET FULL light is on. Remove bucket, empty water and re-install correctly.
Dehumidifier runs too much	Windows or doors near dehumidifier are open to outdoors. Close all windows or doors to outside.
	Area to be dehumidified is too large. Check with your dealer to see if capacity is adequate.
	Air movement through dehumidifier is blocked. Grill may be dirty. Use brush attachment of vacuum cleaner to clean grill. See “Care and Cleaning”. Dehumidifier must be placed in a space that does not restrict air flowing into the rear coil or out of the front grill.
	Dehumidifier has been installed or restarted recently. The higher the moisture in the room, the longer the dehumidifier will operate.
	Dehumidifier is in the CONTINUOUS mode and will remain on in this mode, use the humidity button or knob to set a RH% higher level.
Dehumidifier is operating, but room is not dry enough.	Humidity setting is too high. Press the HUMIDI- TY button or rotate knob to a lower setting or choose CONTINUOUS for maximum dryness.
	Dehumidifier has been installed or restarted re- cently. The higher the moisture in the room air, the longer it takes for the room air to become dry.
	Dehumidifier does not have sufficient clearance to operate. Air flow to front grill is blocked. See “Selecting a Location”.
	Room temperature is too low. Unit will not op- erate satisfactorily if the room tempera- ture is below 5°C (41°F). See “Operating Conditions”.
	Refer to causes under DEHUMIDIFIER RUNS TOO MUCH.
frost appears on coils above buc ket.	Dehumidifier has been turned on recently. This is normal due to refrigerant rushing through the coil. Frost will usually disappear within 60 minutes.
Fan noise.	Room Temperature is too low. All models will operate satisfactorily at temperatures greater than 5°C (41°F).
	Air is moving through the dehumidifier. This is a normal sound.

7. ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

SOMMAIRE

1. INFORMATIONS SUR LA SÉCURITÉ. 13
2. CONSIGNES DE SÉCURITÉ 14
3. AVANT LA PREMIÈRE UTILISATION.... 15
4. NOTICE D'UTILISATION.... 16
5. ENTRETIEN ET NETTOYAGE 20
6. QUE FAIRESI 21
7. EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT.... 23

NOUS PENSONS À VOUS

Line drawing of a hand holding an electrical plug next to two wall-mounted socket (no text or symbols)

4.5 Fonction ION

4.7 Mode Dryer (Séchage)

Line drawing of a container with internal flow and a circular object inside, showing fluid movement (no text or symbols)

Line drawing of a hand inserting a device into a container with an upward arrow (no text or symbols)

Line drawing of a portable air purifier with a hose and outlet tube (no text or symbols)

i

Illustration of a hand holding an electrical plug next to two circular socket covers (no text or symbols)

Line drawing of a container with a circular object inside, showing fluid flow and an arrow indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a container with an upward arrow (no text or symbols)

Line drawing of a portable air conditioner unit with a hose and outlet tube (no text or symbols)

i

6. COSA FARE SE...

Abstract geometric composition with two overlapping white circles on a light gray background (no text or symbols)
