Product Type	Rotisserie / Electric Barbecue Grill
Brand	Emerio
Model	BG-114472
Power Consumption	2200 W
Operating Voltage	220-240 V ~ 50 Hz
Heating Element	With control box, removable
Grilling Positions	Low and high (adjustable grid height)
Water Reservoir	Integrated in main body, max fill line
Wind Shield	Included
Control Knob	Variable temperature (0 to MAX) with indicator light
Safety Features	Safety switch on control box; overheat protection via water reservoir
Materials	Main body: plastic/metal; barbecue grid: metal; heating element: metal
Cleaning Instructions	Heating element and control box: dry cloth only. Other parts: warm water and mild detergent. Do not immerse.
Use Restrictions	Not for charcoal or solid fuels; not for commercial use
Preheat Time	Approximately 5-10 minutes
Guarantee Period	2 years (subject to conditions)
Disposal	Recycle according to EU Directive 2012/19/EU
Customer Service Contact	Emerio Deutschland GmbH, T: [phone], E: [e-mail]
Included Accessories	Main body, barbecue grill, heating element with control box, wind shield, instruction manual

Frequently Asked Questions - BG-114472 Emerio

How should I use the rotisserie for the first time?

Remove all packaging. Remove the grill and heating element, then clean the parts as instructed. Run the appliance empty for 5 minutes to burn off production residues. A slight smell is normal.

Can I use charcoal or other solid fuels in this rotisserie?

No, the manual explicitly warns that charcoal or similar combustible fuels must not be used with this appliance.

How do I clean the heating element and control box?

Never immerse them in water. Use a clean, dry cloth to wipe them after the appliance has cooled down completely.

What should I do if the appliance does not heat up?

First, ensure the control box is correctly seated and the safety switch is activated. Then check the power cord and outlet. If it still does not heat, contact customer service.

Is there a water tray and how do I fill it?

Yes, the main body contains a water reservoir. Fill with cold water up to the Max line before use. During operation, water evaporates; refill if needed, taking care not to drip water on the heating element.

Can I place aluminum foil or other accessories on the grill?

No, to avoid heat accumulation, do not place aluminum foil or any other barbecue accessories on the barbecue grill.

How long does it take to preheat the rotisserie?

Preheating takes approximately 5 to 10 minutes. The indicator light tells you when the element is heating.

Can children use this appliance?

Children aged 8 years and above can use it if supervised, but they must not clean or maintain it unless older than 8 and supervised. Keep the appliance and cord away from children under 8.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Do not use the appliance until repaired.

What is the guarantee period and conditions?

The guarantee is 2 years from the day of sale. It covers manufacturing defects but not damage from improper use, unauthorized repairs, or wear and tear. Keep your receipt as proof of purchase.

USER MANUAL BG-114472 Emerio

Black electric stove grater with a flat-screen cooling grille and a small control unit (no visible text or symbols)

Barbecue-Grill (DE)

Barbecue-Grill (EN)

Žar (SI)

Barbecue-Grill (HU)

Barbecue-Gril (SK)

Barbecue-Gril (CZ)

Barbecue – Grill (RO)

Grill (PL)

Instruction manual – English ...... - 8 -

Close-up of a black oven with a grating and ventilation grille (no visible text or symbols)

(Niedrige Grillposition)

Close-up of a car air conditioner grille with cooling pipes and ventilation slots (no text or symbols visible)

(Hohe Grillposition)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. The appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

9. The supply cord should be regularly examined for signs of damage and the appliance is not to be used if the cord is damaged.

10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Always plug the appliance into an earthed plug socket.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
24. Danger! Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
25. Switch off the appliance before disconnect from the mains.

26. Before use, the appliance must be placed on a firm, flat surface and at least 50 cm away from the nearest wall or any flammable objects.

27. Attention! The appliance is become very hot! It must cool down completely, before its surface can be touched. Removing and cleaning of the barbecue grill, the control unit or main body may only be done after the appliance has cooled down completely.

28. Burn hazard! Be careful when handling hot oil and fat. Beware of spitting oil and hot steam!

29. Do not move the appliance during use.

30. Due to safety reasons, if the control unit is removed from the body of the appliance, the barbecue must not be switched on.

31. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

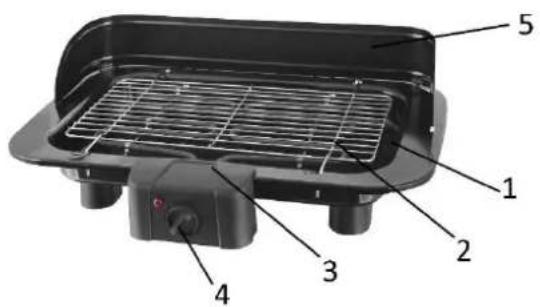

PARTS DESCRIPTION

1. Main body
2. Barbecue grill
3. Heating element with control box
4. Control knob
5. Wind shield

BEFORE FIRST USE

1. Remove all packaging.
2. Lift the barbecue grill, then remove the heating element with the control box. Clean the appliance, as described in Cleaning and Maintenance.
3. Switch the barbecue on for 5 minutes without food on it before first use, so that possible production residues are removed. During that time, a smell might occur but this is not a defect of the appliance.

OPERATION

1. Install the wind shield onto the main body. Fill the main body with cold water. Do not add water over the Max line inside the main body.

During use the water in the main body will evaporate and should be refilled. Otherwise the product will get too hot.

Note: Make sure you do not drip water on to the element.

1. Place the heating element with the control box onto the main body. First insert two rods in the other end of the heating element into the two small holes in the main body, then rest the control box on the main body. Make sure the control box is fixed firmly onto the main body, so that the safety switch is activated. Otherwise, the appliance cannot be switched on.
2. Place the barbecue grill onto the main body. Fix the barbecue grill into the slots to choose a high or a low grilling position (refer to below pictures). Attention! The barbecue grill must not touch the heating element under any circumstances.

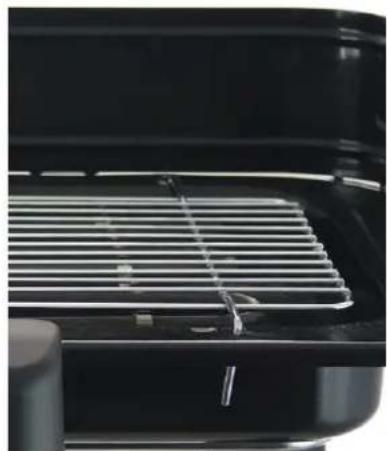

Close-up of a kitchen grater with a mesh grille and handle, no visible text or symbols

(Low grilling position)

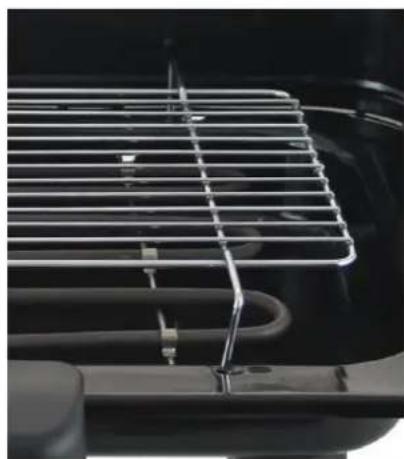

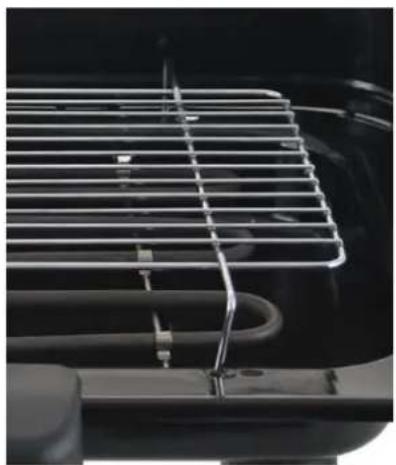

Close-up of a car air conditioner grille and handle (no text or symbols visible)

(High grilling position)

1. Connect the power plug into a suitable outlet.

2. Turn the control knob to the "MAX" position, the indicator light will illuminate to indicate the heating element is heating up.

3. After approximately 5-10 minutes, the heating element reaches the suitable temperature. Please place your food on the barbecue grill for grilling. During use, you can turn the control knob back to choose your desired position. Deep frozen food should be defrosted completely before barbecuing.

4. To grill food evenly, it should be turned several times during the barbecue. The barbecuing time depends on the food to be grilled.

5. Caution! To avoid a heat accumulation, do not place aluminum foil or other barbecue accessories on the barbecue grill.

6. During use the water in the main body will evaporate and should be refilled. Otherwise the product will get too hot.

Note: Make sure you do not drip water on to the element.

1. To switch off the appliance, turn the control knob to "0" position and unplug the power cord from outlet.

2. The barbecue grill, the heating element and the control box and other parts must be removed only after the appliance has cooled down completely.

CLEANING AND MAINTENANCE

• Before cleaning, unplug and allow the appliance to cool down.
• Never immerse the heating element and the control box into water or other liquid. Clean them with a clean dry cloth only.
• The other barbecue components can be cleaned with warm water and mild detergent.
• Let the appliance dry completely before it is reconnected to the supply.
• Use no sharp or abrasive cleaning agents.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50 Hz

Power consumption: 2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

VARNOSTNA OPOZORILA

PRED PRVO UPORABO

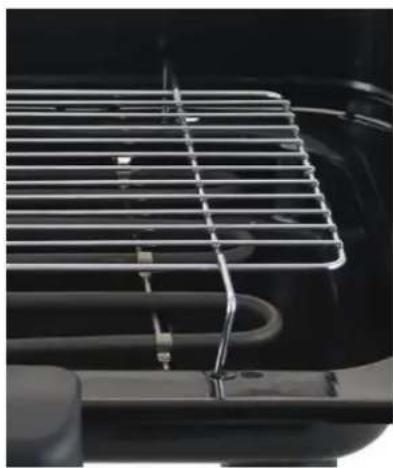

Close-up of a kitchen grater with a mesh grille and lid (no visible text or symbols)

(nizek položaj žara)

Close-up of a car grille with visible cooling pipes and ventilation slots (no text or symbols)

(visok položaj žara)

ELSŐ HASZNÁLAT ELŐTT

Close-up of a kitchen grater with a white mesh grille and a black oven (no text or symbols visible)

Close-up of a white grating grille mounted on a black appliance (no visible text or symbols)

Pred prvým použitím

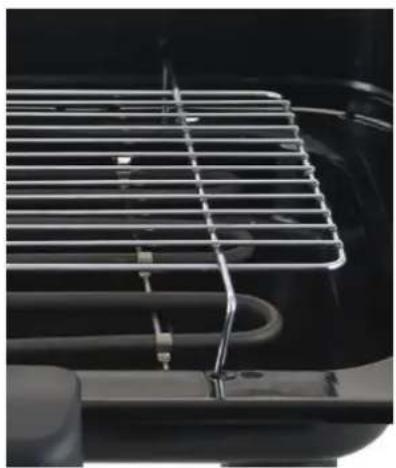

Close-up of a kitchen oven with a grater inside (no visible text or symbols)

(nízka poloha grilu)

Close-up of a car's front grille and exhaust pipe system (no text or symbols visible)

PŘED PRVNÍM POUŽITÍM

Close-up of a kitchen grater with a mesh grille and lid, no visible text or symbols

Close-up of a car's front grille and side panel (no visible text or symbols)

PRIJE PRVOG KORIŠTENJA

1. Uklonite sav ambalažni materijal.
2. Podignite rešetku roštilja, a zatim uklonite grijač s upravljačkom kutijom. Očistite uređaj kao što je opisano pod poglavljem „Čišćenje i njega“.
3. Prije prvog korištenja uključite roštilj 5 minuta bez namirnica, kako bi sagorjeli ostaci korišteni u procesu proizvodnje. Tijekom toga može doći do mirisa, što ne predstavlja kvar uređaja.

KORIŠTENJE

1. Pričvrstite zaštitu od vjetra na uređaj. Ulijte vodu u glavnu jedinicu. Ulijte vodu u glavnu jedinicu do oznake maksimalne količine.

Close-up of a black oven with a white grating grille and a side panel (no visible text or symbols)

Close-up of a car air conditioner grille and exhaust pipe (no text or symbols visible)

INTRUCTIUNI DE SIGURANTĂ

ÎNAINTE DE PRIMA UTILIZARE

Close-up of a kitchen appliance showing a grater rack and lid (no text or symbols visible)

Close-up of a white grating rack with metal fittings and connectors, mounted on a dark surface (no text or symbols visible)

Close-up of a kitchen oven with a grater rack and lid (no visible text or symbols)

Close-up of a white grating rack with metal bands and connectors, mounted on a black vehicle (no visible text or symbols)
