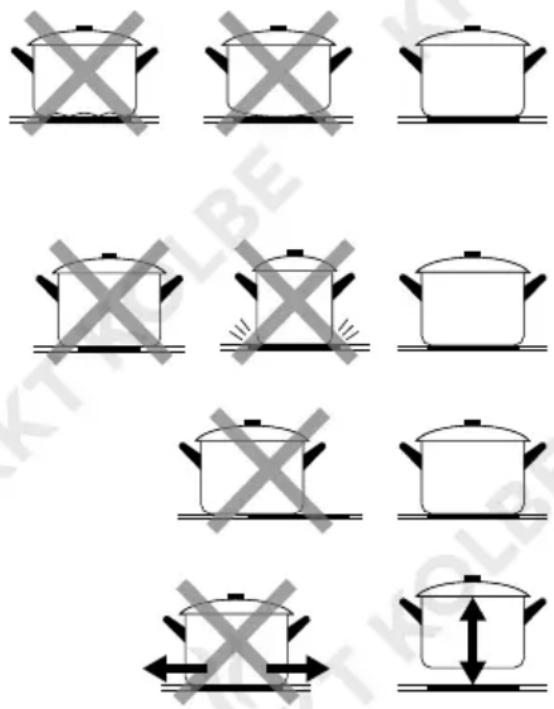

Three identical cooking pots with crossed-out x marks, placed on a surface (no text or symbols)

Three identical cooking pots with crossed-out handles, shown in different orientations (no text or symbols)

Two identical cooking pots with crossed-out handles, no text or symbols present

Diagram showing two cooking pots with cross symbols indicating heating or cooling conditions, likely illustrating a cooking or cooking process.

Diagram illustrating a cooking step with a hand pointing to a cooking pot, plus a finger pointing at a timer and plus another finger pointing at a timer.

Abstract line drawings of abstract shapes with no text or symbols

Abstract line drawings of branching structures with no text or symbols

Diagram showing two rectangular panels with dotted grid lines and labeled axes, likely for coordinate or measurement purposes.

P P

Two identical circles with side handles, no text or symbols present

P

P

1-7 P

P 1-7

Simple line drawing of a cylindrical object with a label 'P' on its side (no additional text or symbols)

B T H h X t X b X X

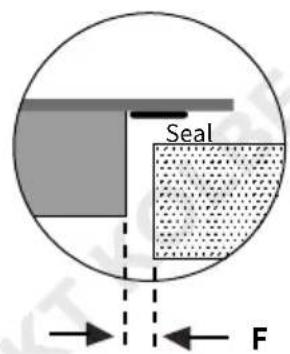

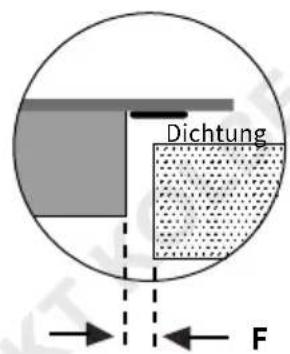

Dichtung F

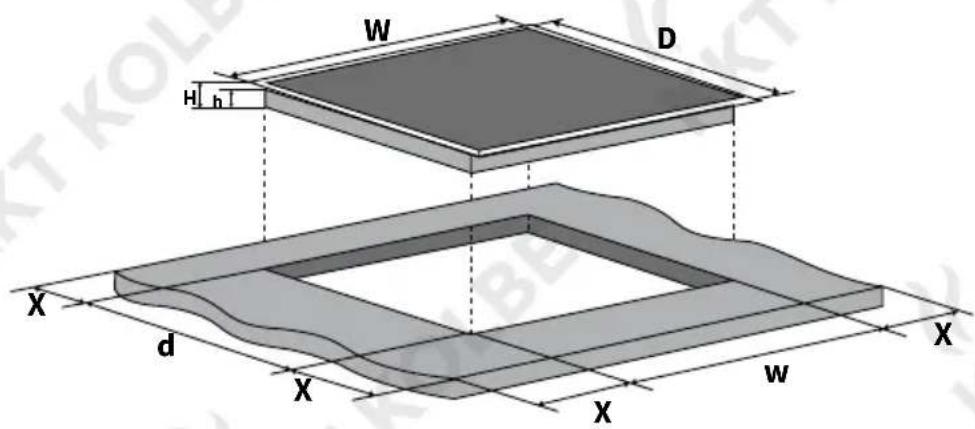

B (mm) T (mm) H (mm) h (mm) b (mm) t (mm) X (mm) F (mm)

590 520 62 58 560

^+4+1 490^+4+1 min. 50 min. 3

Technical diagram showing three-step mechanical assembly or machining process with arrows indicating direction of movement

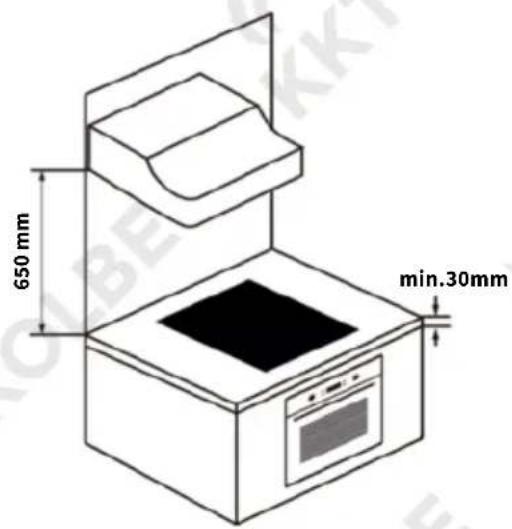

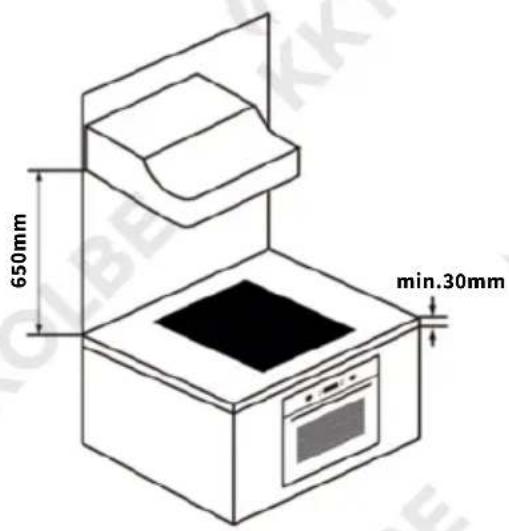

650 mm min.30mm

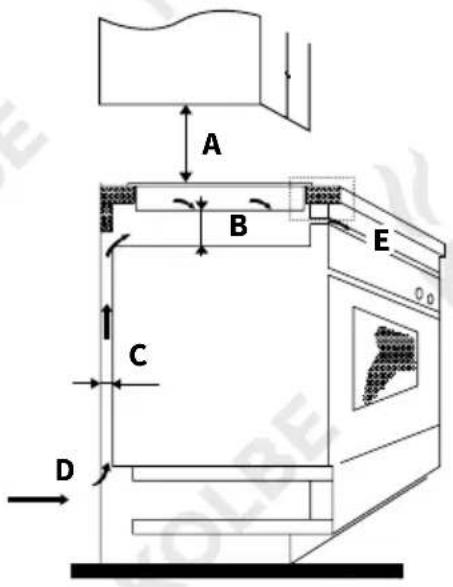

A (mm) B (mm) C (mm) D E

Technical line drawing of a mechanical or electronic component with two fans and a central shaft (no text or symbols)

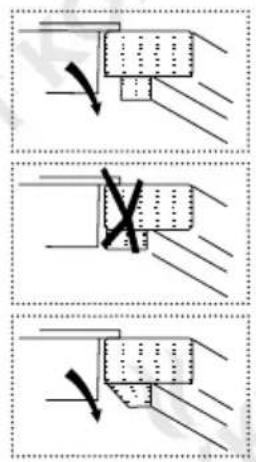

min.50mm max.5mmmax.5mm

Zone 4: 1800 W / Booster 2000 W

KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE

User Manual

for your induction hob

Modell: IH5900RL

KKT KOLBE INDUCTION

Thank you for your confidence and congratulations on the purchase of your new induction hob.

Read this manual thoroughly, before unpacking the appliance.

It contains important information about safe installation, use and maintenance, as well as important warnings about the use of your appliance.

Mark the passages that are important for you, keep the manual so that you can refer to it at any time and also pass it on to other users, as well as to the installer of the appliance.

In view of the constant further development, we reserve the right to make any necessary modifications to the appliance and/or the manual in order to better meet the requirements of user-friendliness, user protection and the current technical standard.

You will find the latest version of your user's manual as well as further data, documents and information on the corresponding product page or in the "Questions & Answers" section of our online shop at www.kolbe.de.

You have chosen a good appliance that will serve you for many years with proper operation and care.

Should you have any complaints despite our thorough quality control, please contact our in-house customer service.

They will be happy to help you.

For a smooth process in the event of any queries, we recommend that you note the 20-digit serial number of your product in the field below.

This is located on the underside of the hob.

Your KKT KOLBE Team

Serial number of my appliance:

KKT KOLBE

User's manual

Built-in induction hob, Model: IH5900RL

Version 1.4

KKT KOLBE is a registered trademark.

Overview

Important safety instructions 46

Notes and icons 56

1. Product overview 58

1.1 How the induction hob works

1. Before use 59

2.1 Notes on using the touch controls

2.2 Choosing the right cookware and its use

1. Using the hob 62

3.1 Starting to cook

3.2 Finishing the cooking

3.3 The booster function

1. Using the timer function 66

4.1 Setting the timer with automatic switch-off

4.2 Setting the timer as a minute minder

1. Safety 68

5.1 Child lock / Key lock

5.2 Further safety features

1. Cooking guidelines 70

6.1 Cooking tips

6.2 Power settings

1. Cleaning the hob 71

2. Troubleshooting 72

8.1 Problems, possible causes and what to do

8.2 Error codes

1. Installation 78

9.1 Important notes and installation requirements

9.2 Cutting the worktop

9.3 Ventilation and safety distances

9.4 Inserting the hob

9.5 Connecting the hob to the mains

1. Technical data 81

Important safety instructions

This manual is the basis for handling the appliance. Read and follow the instructions carefully before installing and operating the appliance.

The manufacturer is not responsible for any injury, damage or problems caused by failure to follow the instructions, incorrect installation or improper handling.

Intended use

To avoid injury or damage and to ensure trouble-free operation of the appliance, follow the instructions below:

• Keep children under 8 years and pets at a safe distance from the appliance and its cord.
• Children aged from 8 years and above or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must not use, clean or generally maintain this appliance unless they are supervised or have been given instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved.

• Do not allow children to play with the appliance, its components or near the appliance.

• Do not keep objects of interest to children above or behind the appliance.

• Children who climb onto the hob can be seriously injured.
• The appliance is only intended for installation in suitable kitchen furniture.
  To do this, follow the installation instructions and do not use the hob until it has been properly installed.
• The appliance is designed for private use in a domestic environment and is intended for preparing, heating and keeping food and drinks warm.
  Use it exclusively for its intended purpose.
• The appliance is intended for use up to a maximum altitude of 2000 metres above sea level.
• Always use heat-resistant cookware suitable for induction hobs to prepare your food.
• The appliance is not intended for operation via a separate remote control or operation via an external timer.
• When using the hob for the first time, there may be an odour and also a slight build-up of fumes.
  This is normal and harmless.
  Keep the room well ventilated until these have dissipated (max. 30 min.).

- Unused electrical equipment is a safety hazard. Do not leave the appliance switched on unused and disconnect it from the power supply if you are not going to use it for a long period of time.

Important Warnings

Danger to life and injury

- This appliance may only be installed, connected and earthed by a suitably qualified professional in compliance with the applicable regulations to ensure the necessary safety.

To do this, disconnect the appliance from the power supply.

The installer is responsible for the proper functioning on site.

• Keep all packaging materials, assembly accessories and small parts out of the reach of children and pets! These can be very dangerous if, for example, they are pulled over the head or swallowed.
• This appliance complies with electromagnetic safety standards. However, if you are a wearer of a pacemaker or other electrical implant (such as insulin pumps), consult your doctor or implant manufacturer before using this appliance to ensure that it is not affected by the electromagnetic field of the appliance.

Failure to follow this advice may result in death!

- Using defective or damaged appliances can be very dangerous.

Before use, make sure that the product and its components are in complete and perfect condition.

In the event of malfunction or damage, do not use the appliance, disconnect it immediately from the electricity supply and contact customer service or appropriately qualified personnel.

- Replacing the mains cable, repairs and maintenance on the appliance are dangerous for unqualified persons and may only be carried out by a suitably certified specialist.

For this purpose, the appliance must be disconnected from the electricity supply.

Never attempt to make any changes to the appliance, its cable or other components on your own and do not disassemble it.

- Edges and components can be sharp-edged and cause injuries. Exercise appropriate caution during installation and protect yourself if necessary, e.g. with work gloves.

- Only use hob scrapers with extreme caution when cleaning the hob and keep them safe and out of the reach of children to avoid injury.

Risk of electric shock

• To avoid electric shock and damage, disconnect the appliance from the power supply during installation, maintenance or other work on it.
• Check whether the technical data on the rating plate of the appliance are compatible with the local conditions (voltage in V and frequency in Hz).

If this is not the case, return the appliance to the point of sale.

If you are unsure, contact your electricity supplier.

- The installer must ensure that the appliance is connected to an intact earthing system in compliance with all applicable regulations and that there is an easily accessible tested disconnector (fuse) with a contact opening width of min.

3 mm, which allows the appliance to be completely disconnected from the mains if necessary.

- Modifications tot the power supply system may only be carried out by a certified electrician.

There is a risk of life-threatening electric shock for un-qualified persons!

- Do not use multiple sockets or extension cables to connect the hob. These do not provide the necessary safety.

• To avoid damage to the power cable and associated hazards, make sure that it is not bent or crushed and cannot come into contact with hot surfaces, sharp edges, etc. . Do not pull the plug out of the socket by the cable, but grasp it directly.
• To avoid possible electric shock due to creeping current, do not operate the appliance with wet or damp hands and wear footwear during operation.
• Contact of liquids or moisture with live parts may cause a short circuit or electric shock.

Do not use pressure washers or steam cleaners to clean the appliance.

Risk of burns

- Appliance parts and cookware can be very hot, even after operation.

To avoid burns, always keep all body parts, clothing, etc. at a safe distance from hot surfaces and keep children away from the appliance, until the residual will have switched off.

- Cooking utensils and handles of cookware can become hot during use.

Make sure that they do not protrude over cooking zones in operation and protect yourself with oven gloves or oven mitts if necessary.

Also note that wet or damp textiles conduct heat better and can cause burns.

• To avoid hazards from spilling hot food, do not use deformed or unstable cookware and make sure that handles do not protrude over the edge of the worktop.
• Pay attention to magnetisable metal objects worn on the body, as they may become hot near the hob during use. Gold and silver jewellery are not affected.
• Do not place metal objects such as cutlery or lids on the hob as they may heat up due to induction.

Fire hazard

- The hob becomes very hot during operation. Strictly observe the safety distances and instructions given in this manual.

- Never leave the hob unattended when in use! Food can boil over, burn, cause harmful smoke or catch fire. Heated food containing fat, oil or alcohol in particular can ignite quickly. Therefore, heat them as slowly as possible.

- In case of fire, cut off the gas and electricity supply and carefully smother the flames with a lid, fire blanket or similar.

Never extinguish burning oil or grease with water. After extinguishing, have the appliance checked by a suitably qualified professional.

• Do not heat sealed containers or tins on the hob.
  These can explode due to the overpres sure created during heating.
• Do not place any objects on the hob that are not fire-proof, such as plastic utensils, and do not cover it with textiles, for example, for protection.
  These may catch fire, melt, become deformed or damaged when the hob is switched on or in operation.
  Also keep appliances and their cables at a safe distance from the hob.
• To avoid associated hazards, never leave the cooking zones or the hob on when you are not using them.
  To do this, use the on/off button and do not rely on the automatic deactivation when cookware is not detected.
• Food residues, grease and other residues can catch fire, burn in or cause harmful smoke.
  Before each use, remove coarse soiling from the cooking surface and accessories.
• Do not store highly flammable or explosive materials near the hob to avoid fire hazard due to increased ambient temperature during operation.

Causes of damage and functional impairment

• Make sure that all packaging and transport protection material has been removed before using the appliance to avoid damage during operation, e.g. due to burning or melting.
• When the hob is in use, heat and moisture are generated in its vicinity, which can cause long-term damage to surfaces.

Make sure that the room is well ventilated.

Use the facilities provided for this or install an extraction system (e.g. an extractor bonnet) if necessary.

Do not install the hob behind a door or furniture front.

• Do not install the hob in an environment with higher temperatures, near a gas cooker or a paraffin cooker.
• Ensure that there is sufficient distance between the cookware and the controls and the edge of the hob to avoid heat damage caused by this.
• Do not heat the cookware without any contents and make sure that it does not boil empty.

The bottom of the cookware may be deformed and the hob surface may be damaged by the heat transfer.

- Do not pour cold liquids onto the hob when the surface is hot. The resulting thermal shock can damage the appliance.

- To avoid damaging the cooking surface, take care not to touch it with jewellery, pointed or shar p-edged objects or cooking utensils and only use cookware with a clean, smooth base.

Lift the cookware to move it to avoid scratches or abrasion marks.

• Do not use the appliance as a storage, shelving or work surface. Do not place heavy objects on it and be careful not to drop anything on it.
• Soiling and food residues can damage the hob and its components over time. Always keep it clean.

In particular, always remove sugary stains as soon as possible to prevent them from sticking.

- Do not use aggressive or abrasive cleaning agents to clean the hob, as this may damage the surface, especially in the area of the control panel.

Follow the instructions for cleaning and maintenance in the relevant chapter.

- Keep magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) away from the hob as they could be affected by the electromagnetic field of the appliance.

Notes and icons

Icons and illustrations in this manual

Warning of danger to persons

Pay special attention to safety instructions marked with this icon and act with appropriate caution to avoid danger to life and health. Pass on these warnings to other users also.

Beware of damage

Follow the instructions marked with this icon especially to avoid damage to the appliance or objects. Also pass on these safety instructions to all users.

Informations and tips

Following the instructions marked with this icon will provide you with useful information, facilitate the respective procedure and may save you from many a problem.

Note on illustrations

The figures in this manual are for illustrative purposes and may occasionally differ slightly from the appearance.

Icons on appliances, components and accessories

EU conformity

The product complies with the applicable EU requirements regarding safety, environmental protection and health protection.

Follow the instructions for use provided

Read this manual carefully, especially the relevant sections, before using the product and pass on the relevant information to other users.

Environmental protection and disposal

Icons on the appliance and packaging

No disposal in household waste (WEEE marking)

Do not dispose of the product as unsorted waste.

Take it to a collection point for the recycling of electrical and electronic equipment for reuse and recovery.

To do this, disconnect the mains cable.

Recyclable material (Möbius loop)

Separate the relevant components of the product by type from the residual waste and dispose of them in accordance with local regulations.

Recyclable material (Triman icon)

Separate the product from residual waste for disposal according to the accompanying sorting instructions.

General notes on disposal

• The environment and health are endangered by incorrect disposal.
  By ensuring that the appliance and its packaging are disposed of properly, you help to avoid possible hazards.
• The materials used are selected carefully and should be recycled in order to reduce the use of raw materials and waste.
  Separate their components by type and dispose of them accordingly.
• For informations on current disposal methods and recycling,
  contact your local council, your waste disposal company or the seller.

Note on environmental protection by saving energy

- Follow the cooking tips in this manual to save energy by using the appliance efficiently, thus helping to protect the environment.

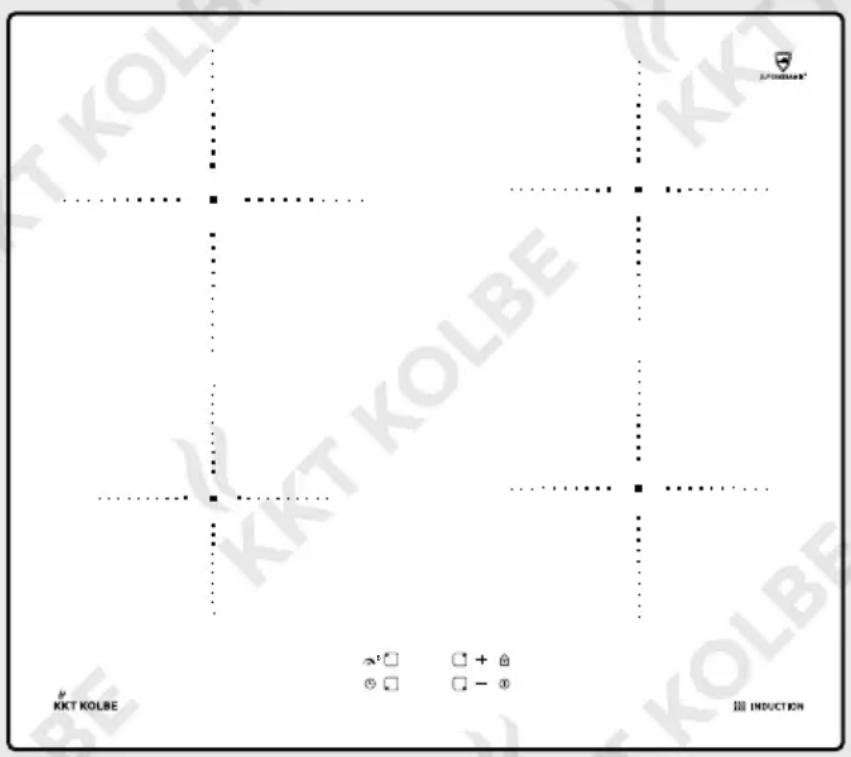

1. Product overview

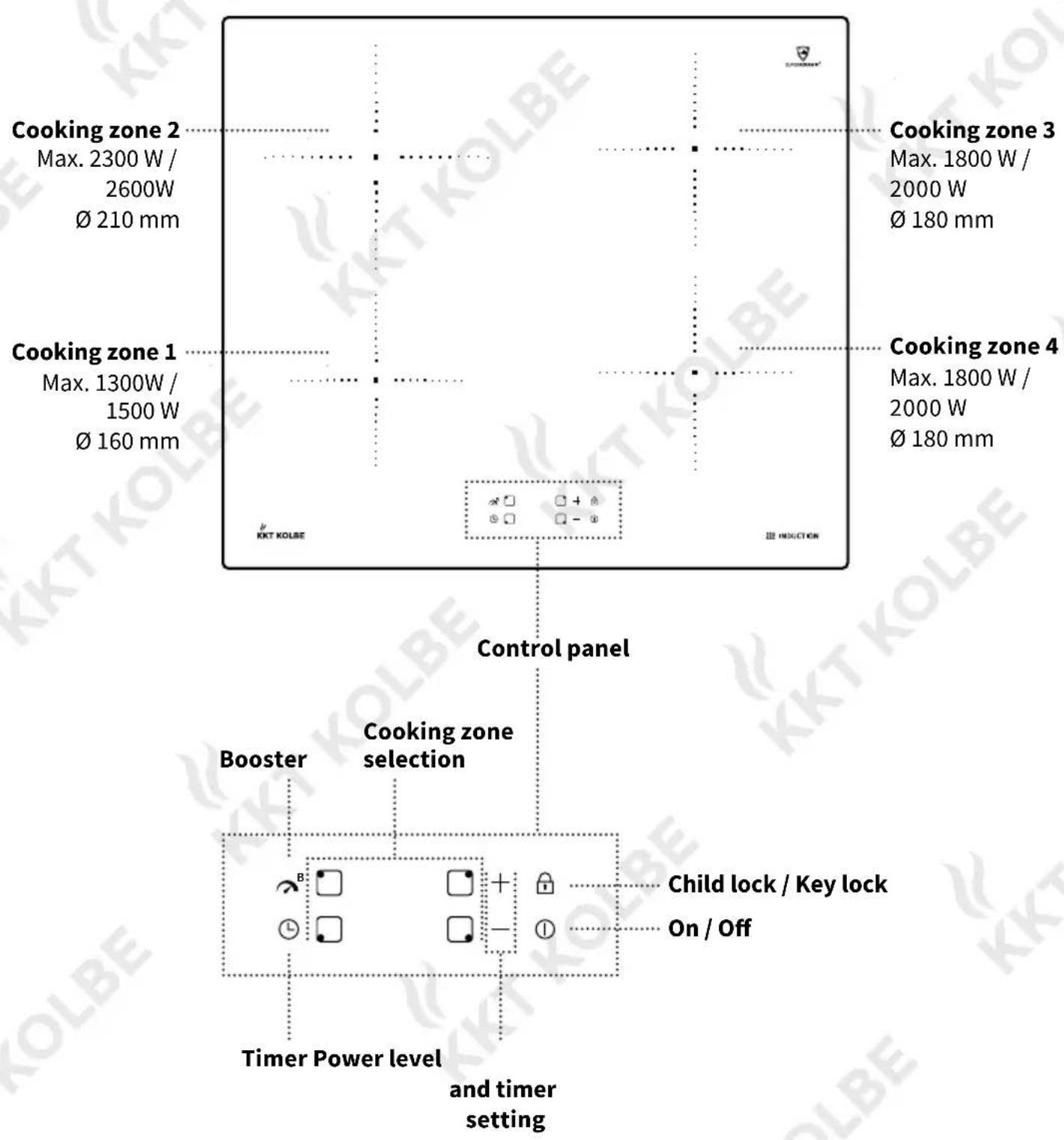

Cooking zone 2 Max. 2300 W / 2600W Ø 210 mm Cooking zone 1 Max. 1300W / 1500 W Ø 160 mm Cooking zone 3 Max. 1800 W / 2000 W Ø 180 mm Cooking zone 4 Max. 1800 W / 2000 W Ø 180 mm KKT KOLBE Control panel Booster Cooking zone selection Timer Power level and timer setting Child lock / Key lock On / Off

1.2 How the induction hob works

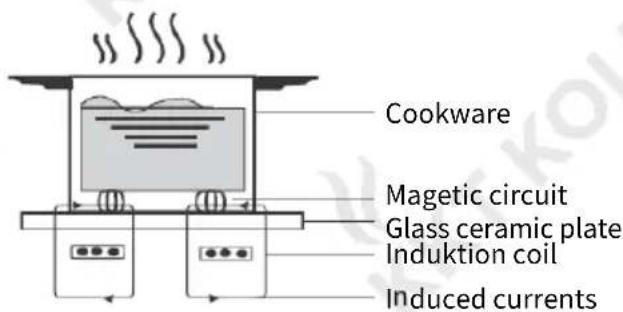

Induction cooking is a safe, advanced, efficient, and economical cooking technology. The heat is generated directly in the metal of the cookware by electromagnetic vibrations and not indirectly by heating the glass surface. The glass only becomes hot because it is finally heated by the cookware.

Cookware Magnetic circuit Glass ceramic plate Induktion coil Induced currents

2. Before use

• Read this guide, taking special note of the Safety instructions section.
• Remove any protective film that may still be on your ceramic hob.

Note: When the hob is used for the first time, production residues may cause an odour and even slight smoke to develop.

This is normal and harmless.

Keep the room well ventilated until these have disappeared (max. 30 min.).

2.1 Notes on using the touch controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure that the controls are always clean and dry. Even a thin film of water can make them difficult or impossible to operate.
• Avoid placing objects on the control panel, dragging anything over it or wiping it. This may cause the hob to switch on or off unintentionally.

Diagram showing two hand positions on a line with checkmark and cross symbols, likely indicating correct and incorrect states.

2.2 Choosing the right cookware and its use

Only use cookware suitable for induction operation. Pay attention to the labelling when buying it.

As a reminder: magnetic cookware is also suitable for induction.

Warning symbol and cooking pot icon with exclamation mark

Note:

The proportion of magnetic metal particles varies with different types of cookware. The higher the proportion, the more efficient the heating and the better the automatic detection of the hob of cookware (described in the following). Even induction cookware of inferior quality (e.g. aluminium pots with glued-on magnetic base plates) can impair the function.

Automatic detection of suitable cookware

The hob has an automatic recognition system for suitable cookware. If no cookware suitable for induction is detected on a cooking zone, this is indicated by the icon on the corresponding cooking zone display.

This can have the following reasons:

• The cookware used is not suitable for induction.
• The cookware was not placed on the selected cooking zone.
• The cookware was not placed in the middle of the cooking zone.
  • The cookware is too small.

If no suitable cookware is detected, the operation of the corresponding cooking zone does not start. After one minute it is automatically switched off.

Correct use of the cookware

Note: Before using the cookware, make sure that its base is clean. Soiling such as sand residue from peeling potatoes can damage the cooking surface.

• Make sure that the base of your pan is smooth and sits flat against the glass.
• Do not use cookware with jagged edges or a curved base.
• Use cookware with a minimum base diameter according to the following table.
• For best efficiency, always place the cookware in the middle of the cooking zone.
  • Always lift pans off the hob. Do not slide, or they may scratch the glass.

Optimal cookware dimensions

The bottom of your cookware should have a certain size according to the cooking zone:

Base diameter of the cookware (mm)

Cooking zone Minimum Maximum

1 120 160

2 160 210

3,4 140 180

3. Using the hob

3.1 Starting to cook

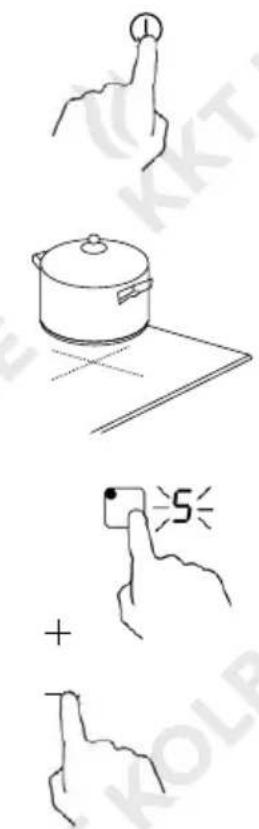

- Press the ON/OFF button. After switching on, a signal tone sounds, all d isplays light up for about one second and show or . The hob is in standby mode.

- Now place suitable cookware centrally on the desired cooking zone(s).

• Make sure that the surface of the hob and the bottom of the cookware are clean and dry!

- Touch the selection control of the desired cooking zone. The display next to the key will flash and indicate the power level 5.

- Use the - and keys to set the desired power level from 0 to 9.

Note:

If there is no suitable cookware on the select cooking zone (display: ∪, see chapter on cookware), it will switch off automatically after one minute.

- You can also change the power at any time during cooking by first selecting the desired cooking zone and then using the +and keys.

Diagram showing hand gesture application with a cooking pot, plus indicator for 5°C and KOLP label

3.2 Finishing the cooking

- To turn off a cooking zone, press the corresponding selection key and keep pressing the -key until the power display of the cooking zone shows "0", or press the +and keys and simultaneously to switch off the cooking zone immediately.

- To switch off the hob, press the On/Off button. The hob will switch to standby mode then.

Beware of hot surfaces

If a cooking zone is still too hot to touch after use and there is a risk of injury, this is indicated by an "H" on the corresponding cooking zone display, which will disappear again when the surface will have cooled down to a safe temperature.

This can also be used as an energy saving function: If you want to heat further cooking utensils, use a hot zone.

Abstract line drawing with irregular shapes and a central vertical line (no text or symbols)

3.3 The booster function A^B

With the booster function you can maximize the power of any cooking zone for 5 minutes.

Activating the booster function

- Press the selection control of the cooking zone for which you want to activate the booster.

- Press the booster key a^B . The power of the cooking zone is maximized; the corresponding power display shows P .

• After 5 minutes the cooking zone switches back to the previously set power level. If the booster was activated at power level 0, the cooking zone switches to level 9 after 5 minutes.

Canceling the booster function

- To stop the booster and return to the previously set power level, press either the — key or again the booster key A^B .

- To switch off the cooking zone completely, press the +and keys simultaneously. The booster is also stopped then.

B 6 P

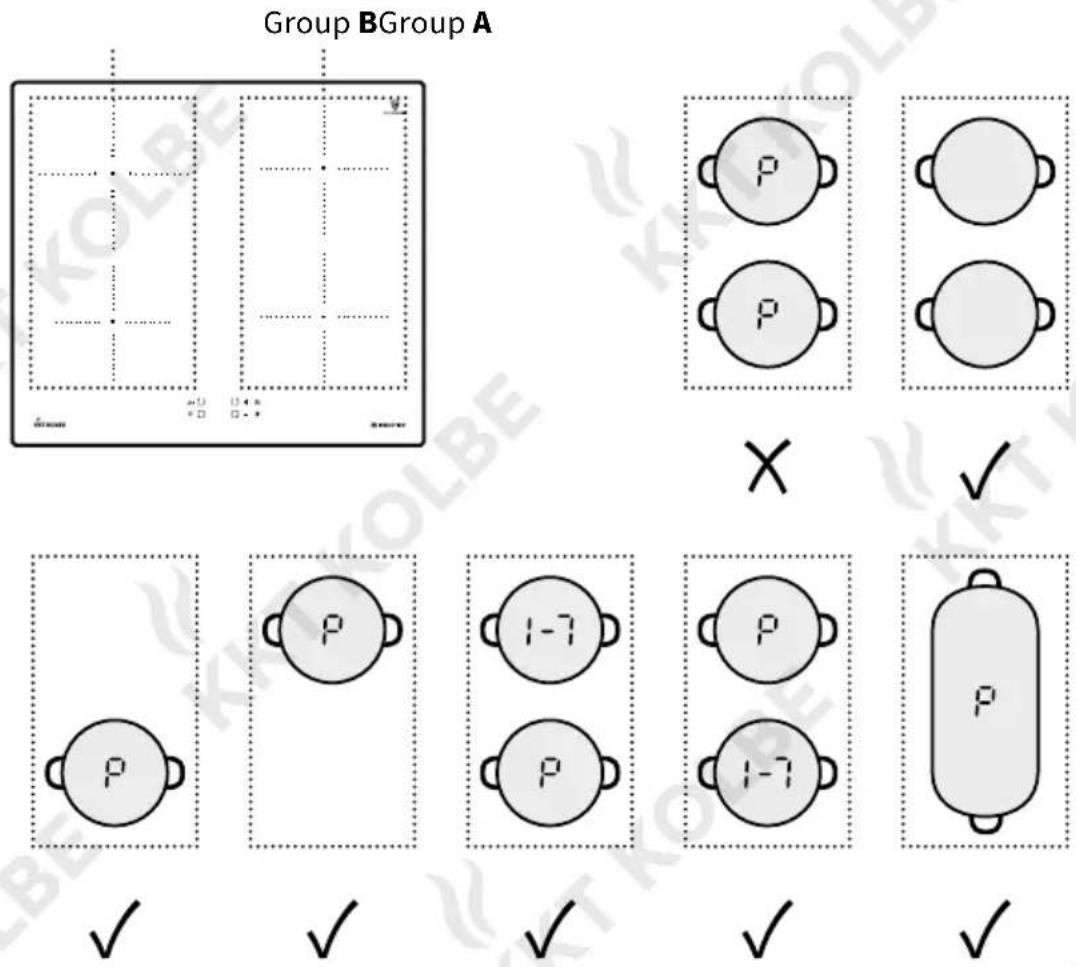

Network safety restriction for the booster function

Basically all cooking zones are boost-capable.

However, the cooktop is divided into two groups for power distribution reasons.

For both groups A and B applies:

• It is not possible to operate both zones of one group with the booster function.
• If the booster is activated for a cooking zone, the second zone of the same group can only be operated up to max. power level 7.

Group BGroup A ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ P P P P P P P P

4. Using the timer function Ⓛ

4.1 Setting the timer with automatic switch-off of one cooking zone

• Select the desired cooking zone with the corresponding selection control.
• Then press the timer key .① The timer display will flash and show 10 min.
• Using the -and keys, you can now set a period of time between 1 and 99 minutes after which the corresponding cooking zone is automatically switched off.

Notes:

• Each time you press the ☐ or ☑ key, the time setting i will increase or decrease by 1 minute at a time; holding them down will increase or decrease the time setting in 10 minute increments.
- If the time setting exceeds 99 minutes, the display returns to 0.

- After the timer has been set, its display will continue to flash for 5 seconds, then the set time will be automatically confirmed. The countdown will start and the timer display will show the remaining time.

A dot next to the corresponding power indicator lights up to mark the selected zone.

- After the set time has expired, the corresponding cooking zone is automatically switched off. The timer display will show "-"

6 10 32

Note: Other previously set cooking zones remain unaffected by the timer and remain in operation..

Canceling and changing the time setting

• To cancel the time setting, press the and keys simultaneously. The display will show " -".
• If you want to change the set time after setting the timer, you must cancel the setting and start again with the first step of the setting.

- - ①

4.2 Setting the timer as a minute minder with beep signal without switching off any zone

- Press the timer key without having selected any cooking zone before. The timer display will show "10".

- Set the timer as described before.

• After this time has elapsed, a beep sounds for 30 seconds. Active cooking zones remain in operation.

10 32 -- +

5. Safety

5.1 Child lock / Key lock

You can lock the control panel to prevent unauthorised use (e.g. by children accidentally switching on the cooking zones).

Even if the control panel is locked, the On / Off key remains active. You can thus switch off the hob at any time in an emergency.

Locking the control panel

• Touch the child lock / key lock key
• The timer display will show "Lo". The control panel is locked except for the on/off key.

Unlocking the control panel

• Make sure that the hob is switched on.
• Press and hold child lock / key lock key for a moment.
• The "Lo" display will disappear. You can now use the hob again normally.

5.2 Further safety features

Overheating protection

A temperature sensor equipped can monitor the temperature inside the hob.

When an excessive temperature is monitored, the hob will stop operation automatically.

Residual heat warning

When a cooking zone has been operating for some time, there will be some residual heat.

To warn you to keep away from it, an "H" will be displayed on the corresponding cooking zone indicator.

Magnet monitoring

If small objects (e.g. knife, fork, key) or unsuitable cookware (made of non-magnetic material such as aluminium or of unsuitable size) are placed on the hob, the hob automatically switches to standby mode after 1 minute.

The fan cools down the induction hob for another rminute.

Automatic shutdown

To prevent cooking zones from being forgotten, they switch off automatically after a set time (see table).

Power level Automatic switch-off time (h)

1 - 3 8

4 - 6 4

7 - 9 2

6. Cooking guidelines

Fire hazard!

Be careful when heating oils and fats or food containing oil or fat. These heat up quickly and can easily self-ignite at extremely high temperatures.

6.1 Cooking tips

• When food comes to the boil, reduce the temperature setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

6.2 Power settings

Power setting Suitability

1-2	Delicate warming for small amounts of foodMelting chocolate, butter and foods that burn quicklyGertle simmeringSlow warming
3-4	ReheatingRapid simmeringCooking rice
5-6	Pancakes
7-8	SauteingCooking pasta
9	Stir-fryingSearingBringing soup to the boil, boiling water

7. Cleaning the hob

Type of soiling How to proceed Important!

Everyday soiling of the glass surface (fingerprints, marks, stains left by food or non-sugary spill-overs)

• Switch off the hob.
• Apply a cooktop cleaner while the glass is still warm (but not hot!)
• Clean the glass with a soft cloth.
• Rinse thoroughly and remove all cleaning residues.

• Dry the cooking surface with a clean textile or paper towel.

• Make sure that the hob is not hot.

• Scrubbing sponges, some nylon sponges and harsh / abrasive cleaning agents scratch the glass.

Check the manufacturer's specifications for suitability for glass surfaces.

• Always remove cleaning residues completely.

The cooking surface may otherwise be damaged.

Boilovers, melts and hot sugary spills on the glas surface

Remove these immediately with a spatula, scraper or razor blade scraper suitable for glass ceramic cooktops:

• Switch off the hob.
• Hold the scraper at a 30° angle to the hob and scrape the soiling onto a cool part of the hob. (Carefully crush any hardened encrustations before, if necessary.)
• Remove the soiling with a dishcloth or paper towel.

• Clean, rinse and dry the glass as described under "Everyday soiling".

• Be careful not to burn yours of on heated cooking zones.
  • Note that the blades of the scrapers are extremely sharp and can cause injury. Keep them out of the reach of children.

• Remove this type of soiling as soon as possible to prevent it from sticking and damaging the glass.

Type of soiling How to proceed Important!

Spillovers on the touch controls

• Switch off the hob.
  • Absorb liquids with a soft cloth.
• Wipe the touch control area with a clean, damp cloth or soft sponge.

• Dry the area completely with a textile or paper towel.

• If the control panel is soiled, the hob may switch off.

• The touch panel may not function as long as there is liquid on it. Make sure that you have wiped the area completely dry before you switch the hob back on.

8. Troubleshooting

Never repair or modify the hob or disassemble it yourself! If the following suggested solutions cannot solve a problem, contact a certified electrician.

8.1 Problems, possible causes and what to do

Problem Possib e cause What toldo

The hob cannot be turned on.	No power Make sure that the hob is properly connected to the power supply and that it is intact.
		Check whether there is a power outage in your home or area.
The touch controls are unresponsive.	The control is locked / The key lock has been activated.	Unlock the control panel.See safety chapter.
The touch controls are difficult to operate.	There is a slight film of water on the controls.	Make sure the touch control area is clean and dry.
	The fingertip is used for operation.	Use the ball of your finger when touching the controls.

Problem Possible cause What to do

The cookware is not heated and theicon is displayed.	The cookware is not suitable for induction or is not detected.	Use induction-suitable cookware in a size suitable for the desired cooking zone and position it correctly.See cookware chapter.
Operation stops suddenly and theicon is displayed.	Overheating of the hob	Wait until the hob has cooled down and then switch it on again.
	The automatic detection function has failed.	Contact a certified electrician
Theicon is displayed for two cooking zones placed one behind the other (1+2 / 3+4)	Technical error Contact a certified electrician
Heating takes an unusually long time.	Unsuitable cookware is used.	Use cookware with a high proportion of magnetic particles (see chapter on cookware).
	Fluctuations in the power supply system	Even fluctuations of 10 volts in the mains supply can lead to a much longer cooking time.
The power indicator is working, but the heating process does not start.	Overheating of the hob	Ensure free ventilation and an appropriate ambient temperature.Make sure that the cookware does not protrude over the cooking zone markings in the direction of the control panel to prevent it from overheating.
The hob switches off unexpectedly.	Moisture / spilled liquid or staining on the control panel	Clean and dry the control panel and then switch the hob on again.
The hob switches off or off unexpectedly.	The control panel has been touched in an uncontrolled way	Take care not to place anything on the control panel and not to drag or wipe anything over it.If necessary, switch the hob back on and use it as described.

Problem Possible cause What to do

Scratches on the glass surface	Metal abrasion or other soiling may appear like scratches.	Glass ceramic is more abrasion resistant than steel. Abrasion marks caused by this do not represent damage and can be removed with an appropriate cleaning agent.
	Unsuitable cookware is used.	Use cookware with a clean, even and smooth bottom (see chapter on cookware).
	Unsuitable cleaning agents or utensils are used.	Only use cleaning agents and utensils suitable for glass surfaces (see cleaning chapter).
Some pans or pots make crackling or clicking noises.	The cookware consists of different metal layers.	The metal layers of the cookware vibrate differently when heated. This is harmless and normal.
A slight humming noise can be heard when operating at high power.	This can be caused by induction technology.	This is normal, but the noise should quieten down or disappear completely by reducing the power level.
Fan noise A cooling fan integrated in the hob prevents the electronics from overheating. If necessary, it continues to run even after the hob is switched off.		This is normal and necessary for error-free operation. Do not disconnect the appliance from the power supply while the fan is running. To avoid functional restrictions, ensure that the ambient temperature is appropriate and that there is good ventilation.
abnormal fan noise The cooling fan is damaged.		Contact a certified electrician
Malfunction / Display of an error code	Fluctuations in the power supply system	Disconnect the hob from the power supply for about 20 minutes (switch off the fuse) and then switch it on again.
	Technical error / Code meaning see following table	Note down the error code, disconnect the hob from the power supply and contact a certified electrician.

8.2 Error codes

Error code Meaning What to do

E1	Temperature sensor failure / open circuit	Contact a certified electrician.
E2	Temperature sensor failure / short circuit
E6	Temperature sensor failure
E3	Sensor overheating Wait until the hob has cooled down and then switch it on again.
E4	IGBT temperature sensor failure / open circuit	Contact a certified electrician.
E5	IGBT temperature sensor failure / short circuit
E6	IGBT overheating Wai until the IGBT temperature has dropped to a normal level and then switch the hob back on. If the cooling fan does not function normally, it must be replaced by a certified electrician.
E7	The supply voltage is below the rated voltage.	Make sure that the power supply is normal.
E8	The supply voltage is above the rated voltage.	Then switch the hob back on.
U1	Communication error Contact a certified electrician.

9. Installation

9.1 Important notes and installation requirements

• The hob must be installed by a qualified electrician.
• A circuit breaker (fuse) providing full disconnection from the mains power supply must be integrated into the permanent wiring and comply with local regulations.
• This fuse must be tested and have at least 3 mm clearance around all poles (or around all active [phases] conductors, if provided for in the regulations).
• The fuse must be easily accessible.
• Contact a suitably qualified professional, if you are not sure about the installation.
• The work top must be made of insulating and heat-resistant material to prevent electric shocks and deformation caused by heat radiation. Wood and similar fibrous or hygroscopic material must not be used as a material for the worktop unless it is impregnated.
• The worktop must be flat and horizontal and nothing must protrude into the work area.
• The wall above the work surface, adjacent and surrounding surfaces, and any adhesives used must be heat-resistant up to 90°C.
• If the hob is installed above a drawer, furniture compartment, etc. or is accessible from below, a thermal protection barrier must be fitted below the base of the hob (described in the following).
• Use surfaces that are easy to clean (e.g. ceramic tiles) as wall surfaces around the cooking area.
• The hob must not be installed on cooling equipment, dishwashers or drum dryers.
• The hob must be installed in such a way that good heat radiation can be guaranteed to ensure proper functioning.
• Under any circumstances, make sure that the hob is well ventilated and that the supply and exhaust air is not blocked. To do this, follow the instructions described in the following.

9.2 Cutting the worktop

- Cut out the work surface according to the sizes shown in the following drawing.

Note: Before carving, check that the dimensions indicated correspond to the dimensions of the product.

• Be sure the thickness of the work surface is at least 30 mm. Choose a heat-resistant work surface material.
• The safety distance between the sides of the hob and the inner surfaces of the worktop must be at least 3 mm.
• For the purposes of installation and use, at least 5 cm space must be kept around the cut-out.

W D H h X d X X W X

Seal F

W (mm) D (mm) H (mm) h (mm) w (mm) d (mm) X (mm) F (mm)

590 520 62 58 560

^+4+1 490^+4+1

min. 50 min. 3

9.3 Ventilation and safety distances

- Make absolutely sure that the following conditions are met for adequate ventilation of the hob and that the supply and exhaust air is not blocked:

A B C D E 0.0

Technical diagram showing three steps of a mechanical or structural assembly with arrows indicating direction and cross marks.

650mm min.30mm

A (mm) B (mm) C (mm) D E

Cooker hood: min. 650

resp. headroom hood: min. 500

Hanging furniture: min. 760

min. 50 min. 20

Air gap / Exhaust air

intake min. 5 mm

• The safety distance from the hob to the cooker hood must be at least 650 mm, and at least 760 mm to wall units, shelves etc. hanging above the hob.
• If the hob is installed above an oven, the oven must have its own fan. The safety distance between the bottom of the hob and the oven must be at least 50 mm.
• The installation must comply with all distance regulations and other regulations.

9.4 Inserting the hob

Note: On the outside of the hob there are ventilation openings. When inserting the hob, make absolutely sure that they are not blocked by the worktop.

Fixing the hob using the mounting brackets

• Place the hob on a stable, smooth surface (For example, use the packaging as a base).
  • Make sure that no pressure is exerted on the elements protruding from the hob.

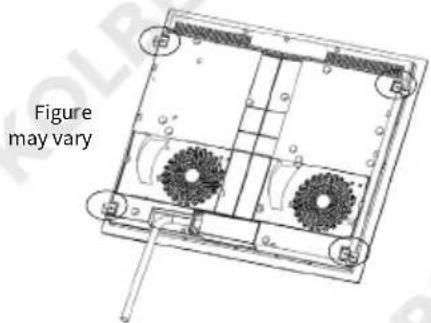

• Screw 4 mounting brackets to the underside of the hob as shown in the figure:

- Select the position of the brackets according to the worktop thickness.

• Make sure that the brackets do not touch the inner surfaces of the worktop.

Figure may vary

A B C

A B C

A: Hob
B: Worktop
C: Mounting bracket

Installation of heat protection below the hob

If the hob is installed above a drawer, furniture compartment or similar, or if the hob is accessible from below:

- Install a protective plate of heat-resistant material (e.g. made of perforated plate to ensure ventilation) at a minimum distance of at least 50 mm below the hob (see illustration).

- When using adhesive, make sure that the temperature resistance is 150^ C .

min.50mm max.5mmmax.5mm

9.5 Connecting the hob to the mains

• Make sure, that the data on the rating plate (V) match your supply voltage.
• The connection to the power supply must be carried out by a qualified electrician in accordance with the relevant standard or with a single-pole circuit breaker, as described below:

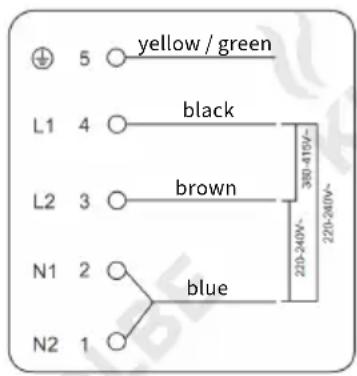

5 yellow / green L1 4 black L2 3 brown N1 2 blue N2 1 380-410V~ 220-240V~

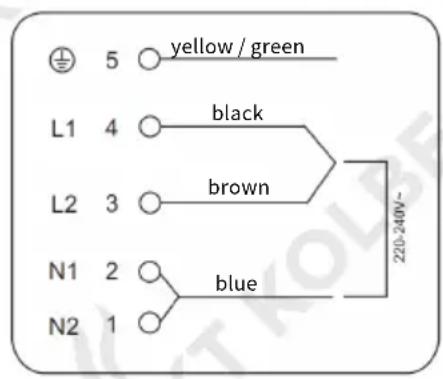

5 yellow / green L1 4 black L2 3 brown N1 2 blue N2 1 220-240V~

220-240V~ L N ↓ 25A~

• The electrical connection must be made properly and in accordance with the applicable safety regulations.
• To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.
• The cable must not be kinked or pinched.
• The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.
• The cable must be checked regularly.
• If the cable is damaged or needs to be replaced, this must be done by a qualified electrician with the correct tools.
• The mains cable supplied must be used for installation. It may only be replaced by one of the same type.

After installation, the connection cable and the underside of the hob must no longer be accessible.

10. Technical data

Model

IH5900RL

Cooking zones 4

Power of cooking zones Zone 1: 1300 W / Booster 1500 W

Zone 2: 2300 W / Booster 2600 W

Zone 3: 1800 W / Booster 2000 W

Zone 4: 1800 W / Booster 2000 W

Electrical power 7200 W

Supply Voltage 220 - 240 V \~ 50 Hz - 60 Hz

Product size, W×D×H 590 × 520 × 62

Built-in dimensions, W×D 560 × 490

Weight 8.57 kg

Note on the EC Declaration of Conformity

CE

Product Description:

IND5900RL

Induction hob

Manufacturer:

For the product described in this manual, the corresponding EC Declaration of Conformity is available.

Some of the relevant documents can be viewed and downloaded from our website on the relevant product page.

You are welcome to obtain the complete documents on written request via the adjacent contact address.

Jan Kolbe

Head of Product Management

Please contact us if you have technical questions about your appliance:

KKT KOLBE Customer service

Tel. [phone]

Mail: [e-mail]

www: www.kolbe.de

→ You can find further data and documents on our website at Questions & Answers.

KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KKT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE KFT KOLTBE

KKT KOLBE

Thanks for reading. We wish you much fun while cooking.
