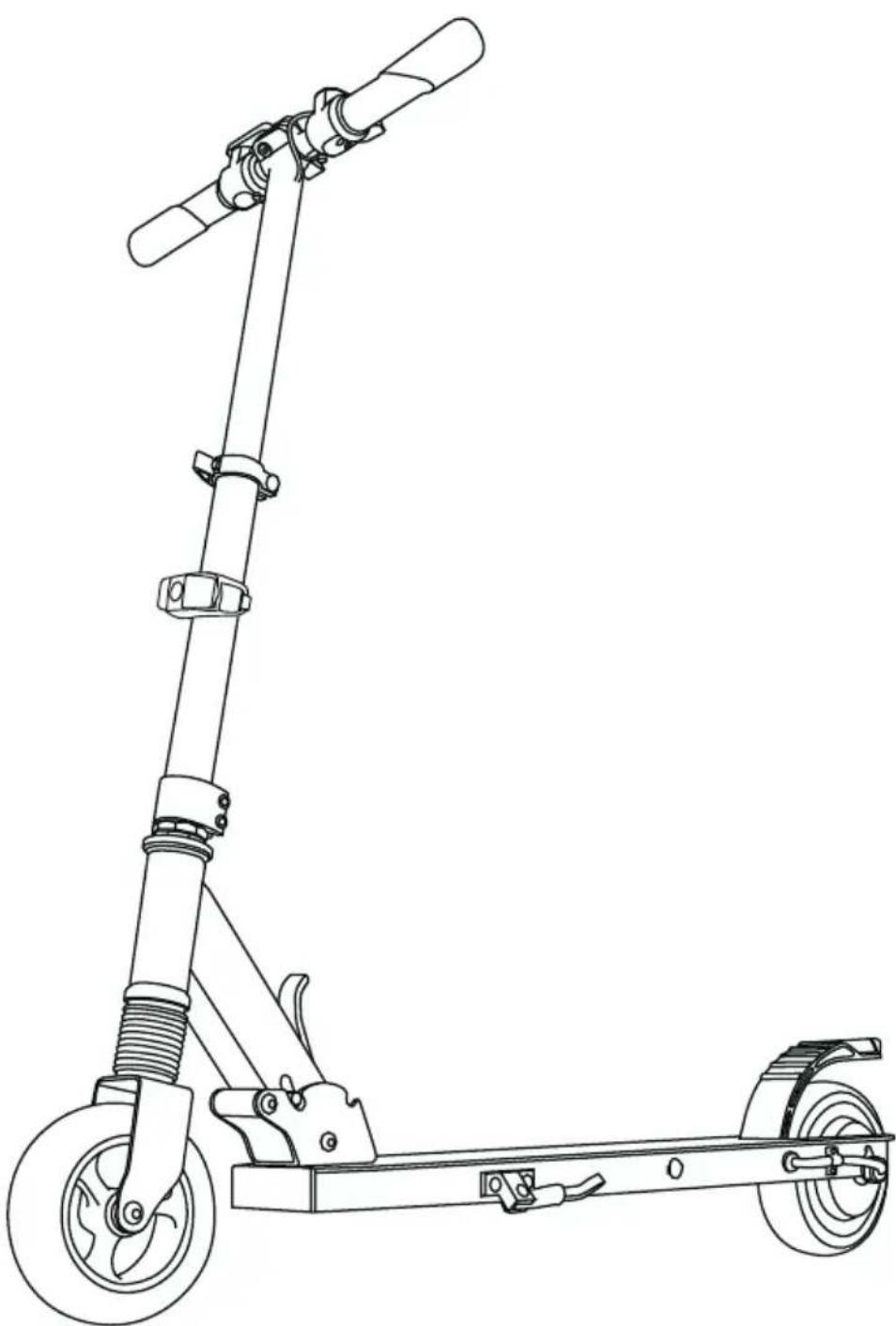

USER MANUAL E-scooter S5000 Lamax
DE - BENUtzErhaNDBUch
CONTENTS
- Package Contents......2
- Product Layout ....2
- Assembling and Folding the Scooter ....3
- Adjusting Handlebar Height....3
- Multifunction Display....3
-
Operating the Scooter 4
-
LED Headlight ....5
- Specification 6
- Charging the battery....6
- Battery – Precautions....6
- Inspection, Maintenance, Storage ....7
- Safety Precautions and Warnings....8
1. Package contents
LAMAX E-Scooter S5000
Charger
Instruction Manual

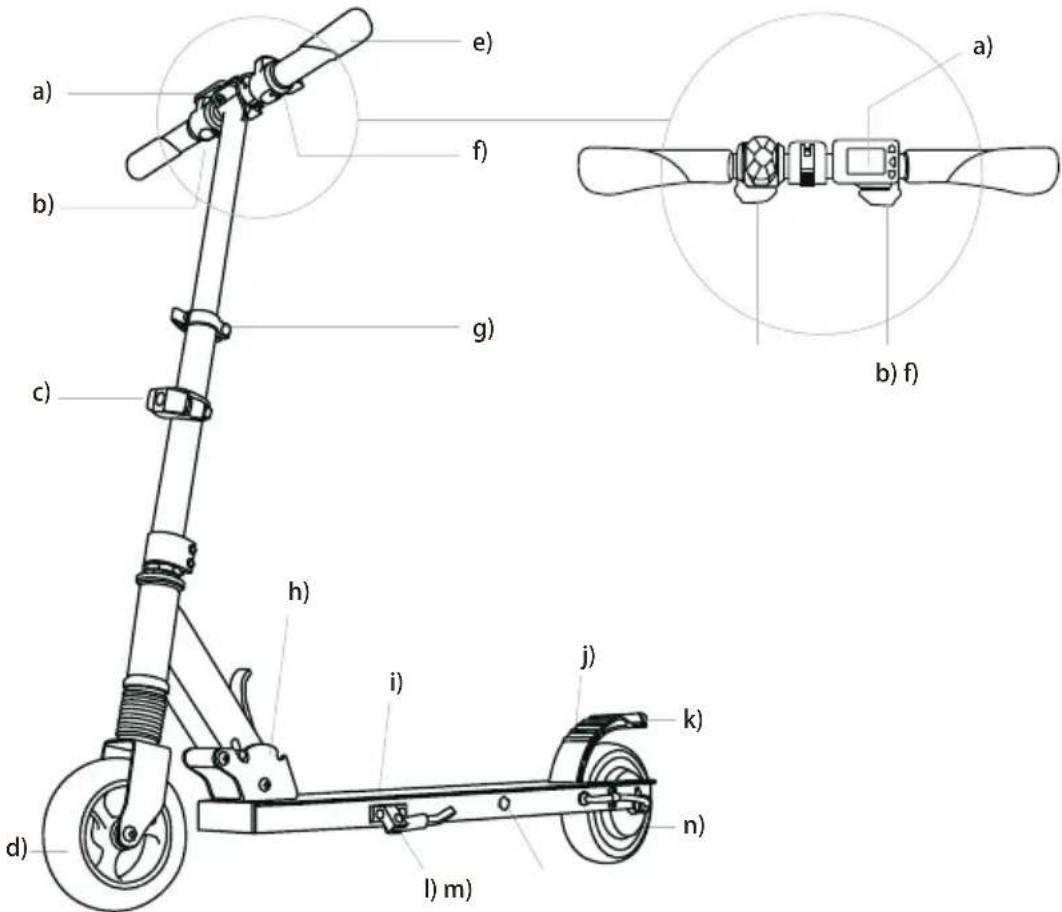

2. Product Layout
-Push down on the latch and unfold the scooter as shown. The locking screw snaps into the front socket (the scooter is now unfolded). Make sure the handlebar stem is securely held in place.

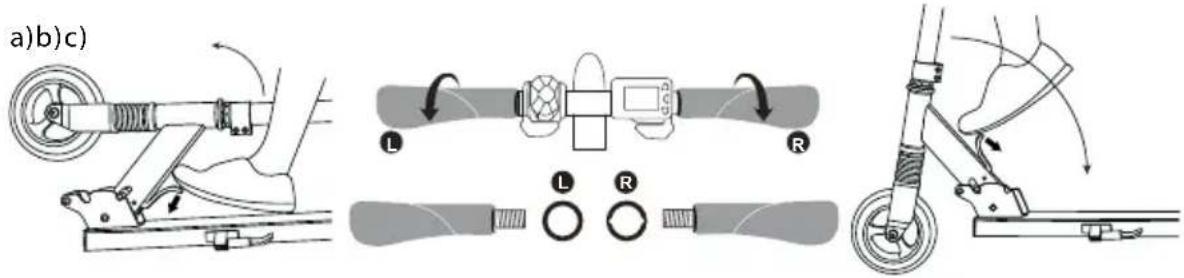

b) Installing the handlebars
Attach the handlebars as shown and screw in firmly. Make sure that the right (R) and left (L) handles are correctly positioned as shown. In the event of incorrect assembly, the thread and thus the handlebars may be damaged.
c) Folding
- Push down the latch and fold the scooter as shown. The locking screw snaps into the rear socket (the scooter is now folded).

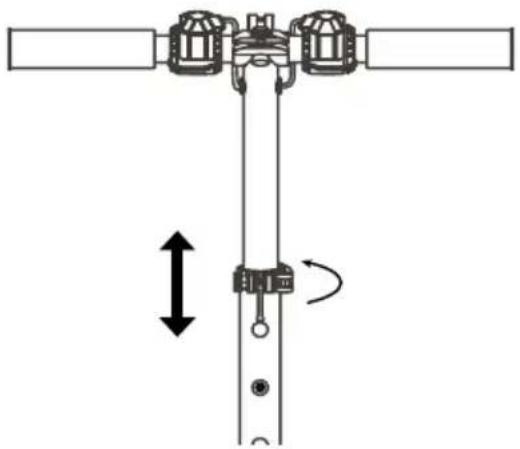

Release the collar clamp, push the catch inside the stem and pull the handlebars up or down until the catch inside the stem snaps into one of three holes (3 height levels). Then retighten the collar clamp.
a) Button functions
SPEED+ button increases scooter speed
POWER button ⏻ hold to turn the scooter on/off, tap to switch between display modes
SPEED- button decreases scooter speed

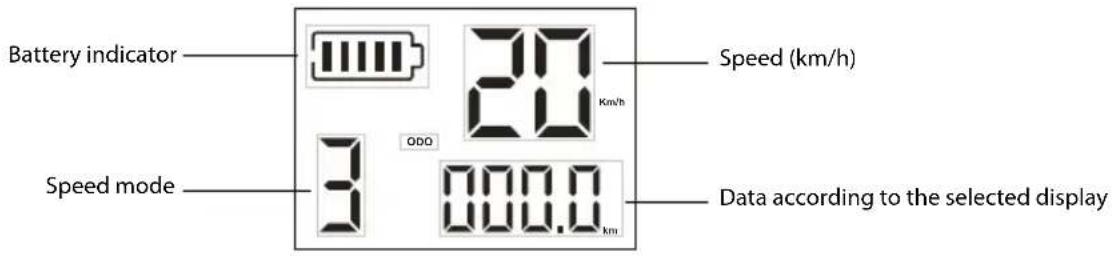

b) Displayed information
c) Speed mode
1-- MAX 6 km/h 2-- MAX 12 km/h 3-- MAX 24 km/h
d) Display mode
You can choose between five display modes, depending on what you want shown on the display
— ODO – total distance travelled
- VOL - battery voltage (V)
- TIME - driving time
- DIS - distance
— RPM – motor revolutions per minute
6. OPERATING THE SCOOTER
NOTE:
Whenever you ride a scooter, there is always a risk of falling off and possible injury, so always wear a helmet as well as knee and elbow protection.
a) Turn on the scooter by holding down the POWER button ⏻ for two seconds and hold the handlebars.
b) Keep both hands on the handlebars at all times.
c) As soon as the scooter is on, raise one foot onto the scooter deck and start pushing with the other foot. After reaching a speed of 5 ~km / h , place the other foot onto the scooter deck for greater stability and press the throttle lever (accelerator). You can now regulate the scooter speed by pressing or releasing the throttle lever.
d) To stop, release the throttle lever and apply the electric brake on the handlebars. To stop faster use the electric brake in combination with the rear auxiliary brake by placing one foot on the rear auxiliary brake*.
e) After completing your journey, turn off the scooter by holding down the POWER button.
*NOTE: The rear auxiliary brake should only be used when you need to stop as quickly as possible, or when the front brake is not working properly. Frequent use of the rear auxiliary brake may result in tire wear and damage
a)
b)c)
d)
Press the button on the LED headlight to choose between three types of lighting. The LED headlight should always be switched on in low visibility.
a) Press the first time to make the LED headlight blink at short intervals
b) Press a second time to makes the LED headlight blink at longer intervals
c) Press a third time to switch it on permanently
| Weight: 8,4 kg | |
| Maximum load: 90 kg | |
| Maximum speed: 24 km/h | |
| Maximum range: 12–16 km | |
| Maximum climb angle: 15° | |
| Battery: Lithium, 5.0 Ah, 25.2 V | |
| Motor: 250 W | |
| Dimensions (folded): 83 × 43 × 28 cm | |
| Dimensions (unfolded): 93 × 43 × (93.5–103) cm | |
| Base plate height: 9 cm | |
| Wheels: 6" front, 5.5" rear (tubeless tires) | |
| Height of person on scooter: | 130–190 cm |
| Weight of person on scooter: | 30–120 kg |
| Age of person on scooter: | 10–60 years |
Battery specifications
| Type battery: | Lithium |
| Charging time: | 3–4 hours |
| (V): | 24 V |
| Battery capacity: | 5000 mAh |
| Operating temperature: 5 °C–50 °C | |
| Charging temperature: | 0 °C–40 °C |
| Storage temperature: | 5 °C–25 °C |
| Storage humidity: | 5%–85%, do not condense Affairs |
9. CHARGING THE BATTERY
— To charge the battery, use only the original charger supplied with the scooter.
— If the battery indicator shows low battery capacity, connect the scooter to the charger.
— Always ensure that the charging port is clean and dry before charging. If the charger is not connected to the scooter, the power inlet must always be covered with a rubber cap to prevent dust or other substances from entering the inlet.
- Connect the power cord to the charger and then plug the charger into a wall outlet, making sure that the light on the charger is GREEN.
- Insert the charger plug into the power input on the scooter. Thelight chargershould turn RED charging. When the lamp lights up GREEN, the scooter fully charged. The time to fully charge is approximately 3–4 hours.
— After charging the scooter, disconnect the charger from the electrical outlet and the power cord from the scooter.
— Do not leave the scooter connected to the charger overnight. Never leave the scooter connected to the charger unattended.
10. BATTERY – PRECAUTIONS
— Fully charge the battery before first use.
— Use only the charger designed for this type of battery
— Use standard charging cables, otherwise the device may be damaged.
Operating temperature may affect the overall battery life.
- Never connect mechanically damaged or bloated batteries to the charger. Do not use the batteries in this state at all, there is a risk of explosion.
Do not use any damaged AC adapter or charger.
Charge at room temperature, never charge below 0^ C or above 40^ C.
Do not drop, puncture or damage the battery. Do not repair a damaged battery.
Do not expose the charger or battery to moisture, water, rain, snow, or spray.
- Do not leave the battery in a vehicle, expose it to sunlight, or place it near heat sources. Strong light or high temperatures can damage the battery.
—Never leave batteries unattended while charging, short-circuiting or accidentally overcharging (battery unsuitable for quick charging or being charged by excessive current or in the event of charger failure) can cause leakage of aggressive chemicals, explosion or fire!
- Disconnect the battery immediately if the battery overheats whilst charging.
-Do not place the charger and the rechargeable battery on or near flammable objects while charging. Beware of curtains, carpets, tablecloths, etc.
For safety reasons, unplug the device when it is fully charged.
Keep the battery away from children and animals.
Never disassemble the charger or battery.
If the battery is integrated, never disassemble the device unless otherwise specified. Any such attempt is risky and may result in damage to the product and consequently void the warranty.
- Do not dispose of worn or damaged batteries in the trash, fire or heating equipment, but hand them over to a hazardous waste collection point.
Failure to observe this policy will assume full responsibility for the damage incurred.
11. INSPECTION, MAINTENANCE, STORAGE
The scooter needs to be inspected and undergo maintenance just like a bike or motorcycle. Always make sure that the scooter is turned off and the power cord is disconnected before performing the following tasks.
Checking and cleaning the scooter
Disconnect the charger and turn off the scooter.
-Check the body and tyres regularly for damage or excessive wear. If there is excessive wear on the tyre, it must be replaced. Do not use water or other liquids or cleaning agents for cleaning. Dampen a clean cloth with clean soapy water and apply it to the scooter body, then rinse the cloth thoroughly and wipe down the scooter. Do not allow water to enter the battery cover, charging port, display or tyres.
Maintenance and service
The scooter requires regular maintenance and regular service just like a bicycle. We recommend servicing the scooter at least once a year.
Storing the scooter
-Fully charge the battery before storing it. When storing the scooter for an extended period, fully charge the battery at least once every 30 days. If this is not done, it is very likely that the equipment will fail, which is not covered under warranty.
- If the storage temperature is below 0^ C, do not charge the scooter immediately. Before charging, the scooter must be placed in a warmer environment ( 5^ C - 40^ C) for at least 2 hours. To prevent dust from entering the scooter, pack it up in the original box and close with tape. Store the scooter indoors, in a dry place and at the correct storage temperature.
12. saFety Precautions and Warnings
—Failure to comply with the basic instructions and any of the following precautions could result in damage to the scooter, loss of manufacturer's warranty, other property damage, serious injury, and even death. Always use original accessories, including the battery. Using incompatible accessories may void your warranty and cause damage to the equipment.
-Respect your surroundings and comply with the applicable laws and regulations of the state in which you are located. The user must observe the applicable local traffic regulations when riding the electric scooter. In the case of unauthorized use on public roads, including cycle paths, the user runs the risk of a fine or even criminal prosecution in the event of an accident.
Read the manual carefully.
Check the technical condition of the scooter before each use.
- Always check the brakes and the condition and inflation level of the tyres before riding. Check that there are no objects obstructing the wheel.
When riding a scooter, wear all appropriate safety and protective gear (especially a helmet).
Never ride without holding the handlebars.
Wear sturdy, closed shoes when riding a scooter.
-Look where you are going and look at the road conditions, people, places, property and objects around you.
Operate the scooter with regard to pedestrians, cars and cyclists.
-Pay full attention to riding when on your journey. Do not use the scooter while talking, making phone calls, sending SMS messages, or otherwise handling your phone or other device that may distract you.
Do not ride on a scooter unless permitted to do so.
Always follow local regulations.
Do not drive on motorways or 1st and 2nd class roads.
Do not drive in areas with a large number of pedestrians.
Do not remove scooter reflectors or LED lights.
Never drive in the rain.
Do not hang bags, backpacks or other objects on the scooter.
As a general rule, do not attempt to disassemble, repair or modify the device. Disassembling, modifying, or attempting to repair the product will void the warranty and may result in damage to the unit or even injury or property damage.
Do not use the device under the influence of alcohol, drugs or other addictive substances and substances affecting coordination ability and response time.
Do not use the scooter if you are tired or sleepy.
Use your best judgment to avoid dangerous situations with your scooter.
- Do not ride your scooter on ramps or in a skate park, empty swimming pool or skateboarding area.
Do not ride railings, scooter jumps or attempt to overcome obstacles.
Do not turn sharply, especially at high speeds.
- Do not drive into or near puddles of water, mud, sand, stones, gravel, or in rough and rugged terrain.
This may damage the scooter. If you encounter an uneven sidewalk, lift the scooter and go past the obstacle.
-Do not drive in bad weather: snow, rain, hail, on icy roads or in extreme heat. On damp or wet roads, skidding, it is much easier to fall or lose your balance.
Do not drive near pools or other large bodies of water.
-Bend your knees when riding on bumpy or uneven surfaces to absorb shocks and vibrations and help you maintain stability. If you are unsure whether you can safely ride on a particular terrain, get off the scooter and push it.
Do not ride over bumps or objects higher than 1.5 cm.
Any changes made to the software voids the warranty.
Handle the scooter with care when indoors.
On a scooter, do not ride on an incline steeper than 15^ (always kick on a steep climb).
The scooter is designed to be used by one person, NEVER ride with two people on board.
Women who are pregnant should not operate the scooter
€children should only operate or otherwise handle the scooter under the supervision of a competent adult. The same is true for people with reduced mobility.
Always consider longer braking distances at higher speeds.
Do not jump the scooter while riding.
Do not jump on the scooter while riding.
Do not attempt stunts or tricks with your scooter.
Do not ride the scooter in dark or poorly lit areas.
Do not use a scooter out of designated places.
Do not exceed the maximum load capacity of the scooter.
-Avoid driving near hazardous substances: flammable gas, steam, dust and water that could cause a scooter fire.
Under ideal conditions and with a fully charged battery, the scooter can travel 15 to 22 km.
Factors that affect the maximum range of the scooter: terrain, weight, ambient temperature, speed and driving style.
Learn more
1) For households: The symbol (crossed-out wheelie bin) on the product or in the accompanying documentation means that used electrical or electronic products must not be disposed of along with household waste. In order to dispose of the product properly, hand it over to a designated collection point for free collection. The correct disposal of this product will help save valuable natural resources and help prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling. Contact your local authority or nearest collection point for more details. Penalties may be applicable for incorrect disposal of this type of waste, in accordance with national regulations. Information for users on the disposal of electrical and electronic equipment (Corporate and Business Use): For proper disposal of electrical and electronic equipment, request detailed information from your dealer or supplier. Information for users on the disposal of electrical and electronic equipment in other countries outside the European Union: The above symbol (crossed out bin) is only valid in the European Union. For proper disposal of electrical and electronic equipment, please request detailed information from your local authorities or the retailer. This is expressed by the crossed-out bin symbol on the product, packaging or printed materials.
2) Warranty repairs should be carried out at your dealer. If you have technical problems or questions, please contact your dealer for further information. Observe the rules for working with electrical equipment. The user is not authorized to disassemble the device or replace any part of it. There is a risk of electric shock when you open or remove covers. You may also be exposed to an electric shock if the unit is assembled incorrectly and reconnected.
The warranty period for products is 24 months, unless stated otherwise. The warranty does not cover damage caused by non-standard use, mechanical damage, exposure to aggressive conditions, handling contrary to the manual and normal wear and tear. The warranty period on the battery is 24 months, and its capacity is 6 months.
The manufacturer, importer and distributor are not responsible for any damages caused by the assembly or misuse of the product.
Declaration of Conformity
Hereby, elem6 sro declares that all LAMAX equipment is in compliance with the essential requirements and other relevant provisions of Directives 2014/532014/302014/35/EU,/EU,/EU and 2006/42/EC. The products are intended for sale without restrictions in Germany, the Czech Republic, Slovakia, Poland, Hungary and other EU member states. The warranty period for products is 24 months, unless stated otherwise. The warranty period on the battery is 24 months, and its capacity is 6 months. The Declaration of Conformity can be downloaded from www.lamax-electronics.com/support/doc.
Manufacturer:
elem6 s.r.o., Braškovská 308/15, 16100 Prague 6, Czech Republic www.lamax-electronics.com
Subject to printing errors and changes to the manual.
CE RoHS
LAMAX
E-Scooter S5000
Mechanical assembly diagram showing a vertical rod with two horizontal bars and a central rotating component, no text or symbols present.5. MULTIFUNKTIONSDISPLAY
a) Tastenfunktionen
Line drawing of two hands holding a device with a screen (no text or symbols)
d)
Mechanical assembly diagram showing a vertical rod with attached components and a bidirectional arrow indicating motion (no text or symbols)5. MULTIFUNKČNÍ DISPLEJ
a) Funkce tlačítek
Line drawing of two hands holding a device with a screen (no text or symbols)
d)
Diagram of a mechanical assembly with bidirectional arrow indicating rotation (no text or symbols)5. MULTIFUNKČNÝ DISPLEJ
Line drawing of two hands holding a device with a screen and antenna (no text or symbols)
d)
Diagram of a mechanical assembly with bidirectional arrow indicating rotation (no text or symbols)5. WYŚWIETLACZ WIELOFUNKCYJNY
Line drawing of two hands holding a device with a screen (no text or symbols)
d)
Diagram of a mechanical assembly with bidirectional arrow indicating rotation (no text or symbols)5. TÖBBFUNKCIÓS KIJELZÖ
Line drawing of two hands holding a wristwatch and a digital display (no text or symbols)
d)
- CONTENTS
- Package contents
- Product Layout
- b) Installing the handlebars
- c) Folding
- MULTIFUNCTION DISPLAY
- a) Button functions
- d) Display mode
- OPERATING THE SCOOTER
- Led headLight
- SPECIFICATION
- Battery specifications
- CHARGING THE BATTERY
- BATTERY – PRECAUTIONS
- INSPECTION, MAINTENANCE, STORAGE
- Checking and cleaning the scooter
- Maintenance and service
- Storing the scooter
- saFety Precautions and Warnings
- Learn more
- Declaration of Conformity
- Manufacturer:
- LAMAX
- E-Scooter S5000
- MULTIFUNKTIONSDISPLAY
- a) Tastenfunktionen
- Led-beLeuchtung
- SPEZIFIKATION
- MULTIFUNKČNÍ DISPLEJ
- a) Funkce tlačítek
- Led osVětLení
- SPECIFIKACE
- MULTIFUNKČNÝ DISPLEJ
- Led osVetLenie
- ŠPECIFIKÁCIA
- WYŚWIETLACZ WIELOFUNKCYJNY
- Led oŚWietLenie
- SPECYFIKACJA
- TÖBBFUNKCIÓS KIJELZÖ
- Led LámPa
- SPECIFIKÁCIÓ
Brand : Lamax
Model : E-scooter S5000
Category : Electric scooter
