USER MANUAL KTE1040B Kluge

Line drawing of a standard oven with front panel and top handles (no text or symbols)

KTE1040B

Technical line drawing of a mechanical assembly with no visible text or symbols

O D M C 7 7 7 7

Simple dark gray square with a small white sun icon in the center (no text or symbols)

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Simple icon of a propeller inside a circle on a dark background, with a horizontal line at the bottom (no text or symbols)

Simple geometric diagram with a wavy line above a black square (no text or symbols)

Simple 3D-rendered dark square with a white zigzag line above it, no text or symbols present.

Simple icon of a ship or turbine with a propeller inside, no text or symbols present.

Close-up of a kitchen appliance control panel with a dial and handle (no visible text or symbols)

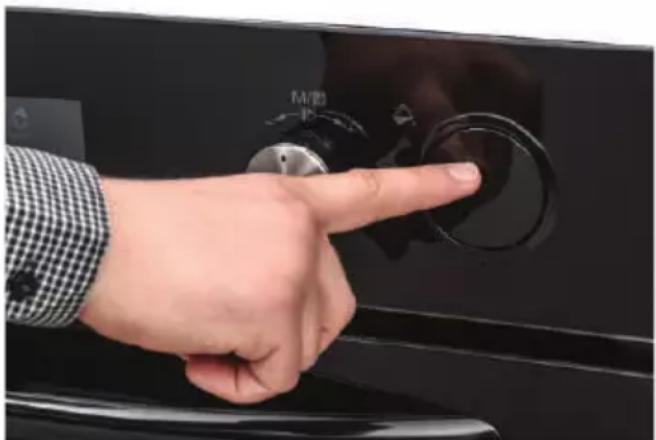

Close-up of a hand pressing a circular button on a black appliance (no visible text or symbols)

Close-up of a hand holding a black knob on a kitchen appliance (no visible text or symbols)

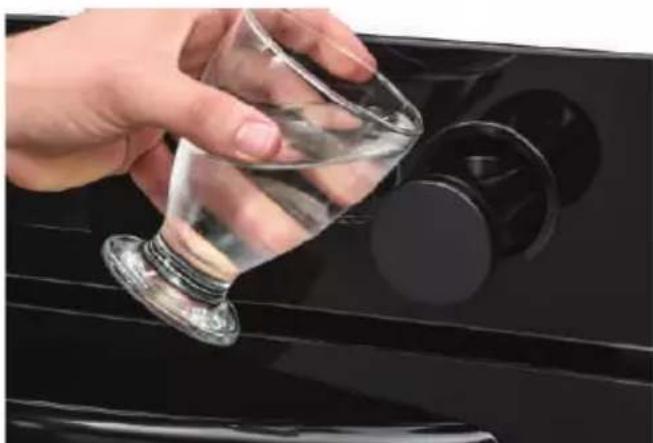

Hand pouring liquid into a glass bottle on a black stovetop (no text or symbols visible)

Close-up of a hand pressing a black control knob on a kitchen appliance (no visible text or symbols)

Interior view of a refrigerator oven with thermal lighting and a star-shaped logo on the tray (no readable text or symbols)

Interior view of a modern kitchen oven with illuminated ceiling and star-shaped vent (no visible text or symbols)

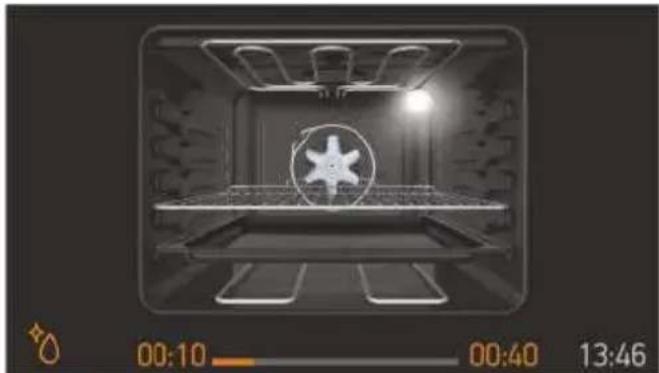

Animovaný displej

Interior view of a microwave oven with cooling lights and a fan blade (no text or symbols on the diagram itself)

Animovaný displej

Interior view of a modern oven with a star-shaped ceiling and illuminated top panel (no visible text or symbols)

Animovaný displej

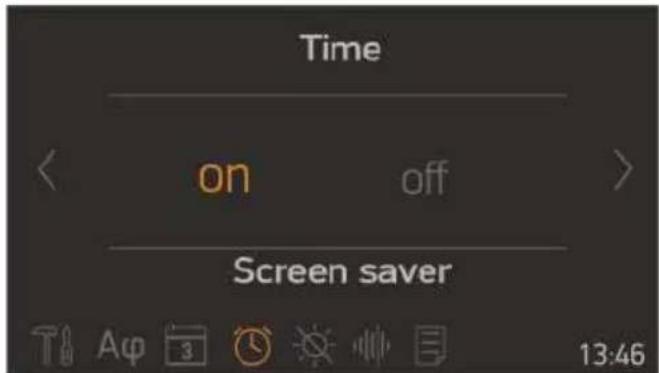

Time < on off > Screen saver T Ag 2 13:46

Technical line drawing of a square frame with bolt holes and a central hole (no text or symbols)

PRVNÍ NA SVĚTĚ

Technical line drawing of an open industrial furnace or oven unit (no text or symbols)

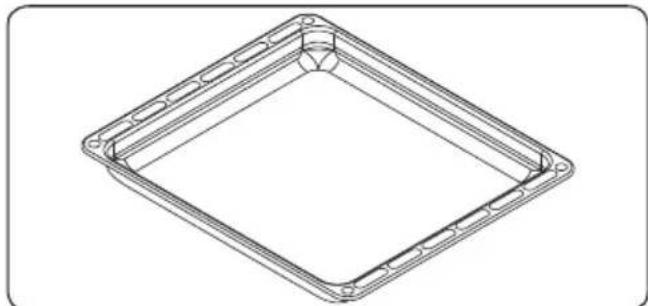

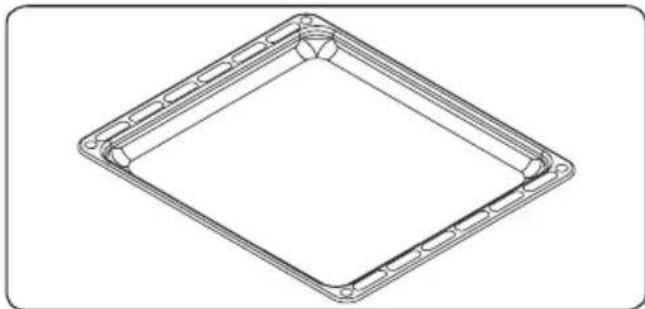

Mělký plech

Pure technical line drawing of a square frame with mounting holes and a central circular hole (no text or symbols)

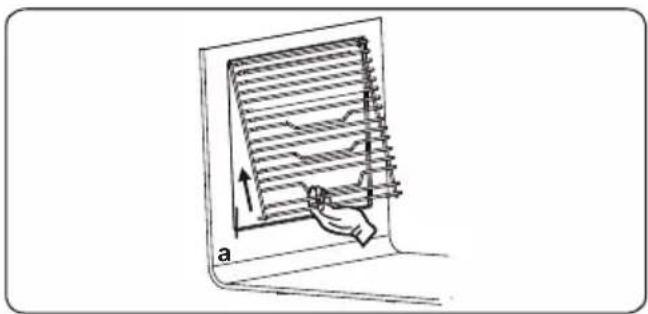

Drátěná mřížka

Isometric line drawing of a metal grate or rack with evenly spaced slats and two side clips (no text or symbols)

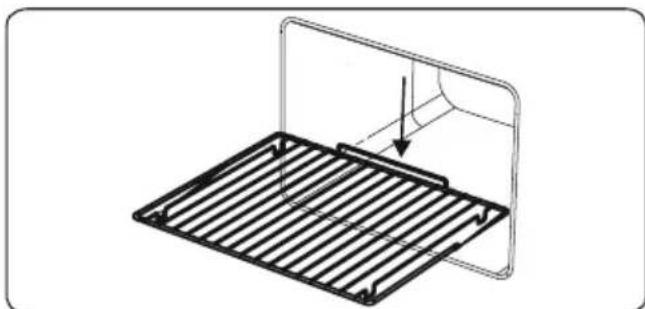

VAROVÁNÍ

Technical line drawing of a metal grate with a curved top and an arrow indicating direction (no text or symbols)

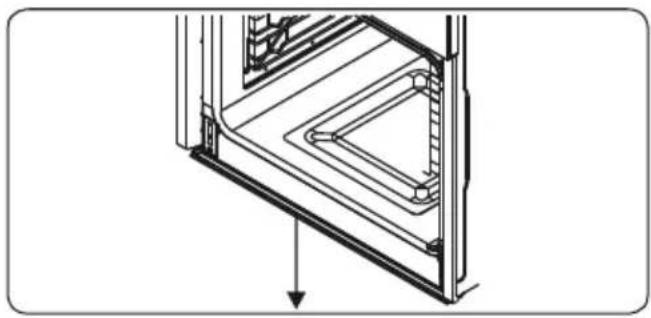

Kolektor na vodu

Technical line drawing of a mechanical component with no visible text or symbols

5. ČIŠTĚNÍ A ÚDRŽBA

5.1 Čištění

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a laptop with a screen showing a grid pattern and an arrow indicating direction (no text or symbols)

5.2 Údržba

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....4
1.1 General Safety Warnings ....4
1.2 Installation Warnings ....6
1.3 During Usage 7
1.4 During Cleaning and Maintenance 9
2.INSTALLATION AND PREPARATION FOR USE....11
2.1 Instructions for the Installer 11
2.2 Installation of the Oven....11
2.3 Electrical Connection and Safety....12
3.PRODUCT FEATURES....14
4.USE OF PRODUCT 15
4.1 Oven Controls....15
4.2 Cooking Table....17
4.3 Use of the Smart LCD Control Unit 17
4.4 Accessories 28
5.CLEANING AND MAINTENANCE....30
5.1 Cleaning 30
5.2 Maintenance 31
6.TROUBLESHOOTING&TRANSPORT 33
6.1 Troubleshooting....33
6.2 Transport 33

1. SAFETY INSTRUCTIONS

• Read these instructions carefully and completely before using your appliance and keep them in a convenient place for reference when necessary.
• This manual is prepared for more than one model. Your appliance may not have some of the features described in this manual. Pay particular attention to any figures while you are reading the operating manual.

1.1 general safety Warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continuously supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️ ⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance by means of an external timer or separate remote-control system.

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.

• During use handles held for short periods in normal use may get hot.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface. They can scratch the surface which may result in shattering of the glass or damage to the surface.
• Do not use steam cleaners for cleaning the appliance.

WARNING: To avoid the possibility of electric shocks, make sure that the appliance is switched off before replacing the lamp.
⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

- Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for

non-domestic use or in a commercial environment or room heating.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 installa ti On Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow,

excessive humidity etc.

• The material around the appliance (cabinet) must be able to withstand a minimum temperature of 100^ .
• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 during usage

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that before using your oven for the first time you leave it empty, and set at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
  • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
  • Always use oven gloves to remove and replace food in the oven.
• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

• Make sure the appliance control knobs are always in the “0” (stop) position when it is not used.
• The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the ovens.
• Do not place anything on the oven door when it is open. This could disrupt the balance of the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.
• It is recommended to use soft water to avoid excess amount of limescale residue in steam generating system over time. To check the softness of water please use the test paper given with the product and the table below. Test paper is kept in water for 3 seconds, and taken out after a minute stripes become visible on the paper.

Test Stripes Hardness of the Water
5-4 blue stripes Soft
1 red stripe Slightly Hard
2 red stripes Medium Hard
3 red stripes Hard
4-5 red stripes Very Hard

• If the correct water hardness level is not set, this could affect appliance operation and its useful life.
• Do not use other liquids than still water.
• Do not use hot water.
• Keep the water tank closed when the oven is operating.
• When oven is hot and oven door is opened, hot air steam may come over so stand away and also keep children away while opening oven door.
• To avoid limescale residual in the cavity, clean the cavity after each use.

- After the cooking process, the remaining water in the system should be removed. To do that please select “Yes” when automatically asked on the screen after cooking process. Do not leave anything in the oven during this operation.

1.4 during cleaning and maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

2.1 instructi Ons f Or the installer General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage,

do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

2.2 installa ti On Of the Oven

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max. F (mm) 560/580
B (mm)	550 min. G (mm) 555
C (mm)	595 min. H/I (mm) 600/590
D (mm)	575	min. J/K (mm) 5/10
E (mm)	574

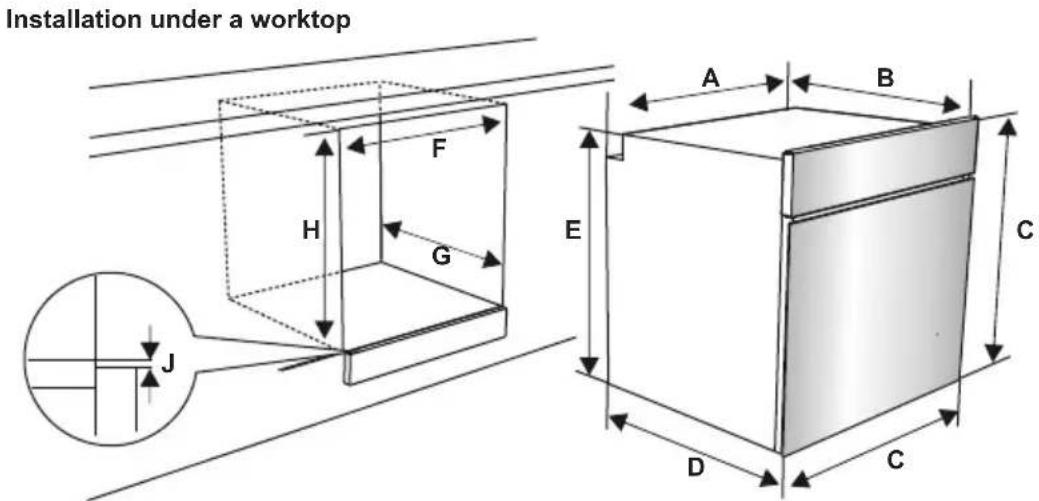

Installation under a worktop A B H F G E J C D C

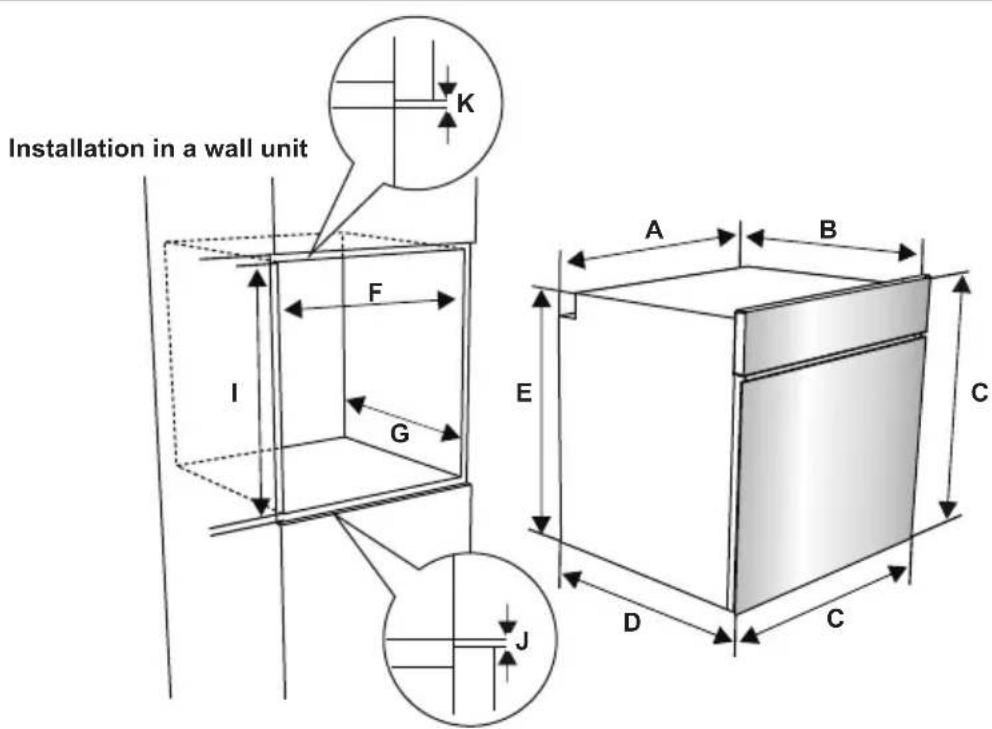

Installation in a wall unit K F I G A B E C D C J

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Diagram of a device with a top-mounted component and directional arrows indicating flow or movement (no text or symbols)

2.3 electrical cConnecti On and safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

- Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the

appliance's power rating (also indicated on the identification plate).

- During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.

- Do not use adaptors, multiple sockets and/or extension leads.

- The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.

- If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.

- The appliance is designed for a power supply of 220-240V \~ and 380-415V 3N\~. If your supply is different, contact the authorised service person or a qualified electrician.

- The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.

- Ensure all connections are adequately tightened.

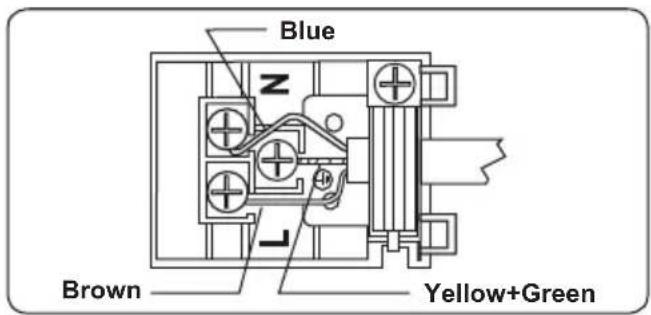

• Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

Blue Brown Yellow+Green

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1 2 3

1. Control Panel
2. Oven Door Handle
3. Oven Door

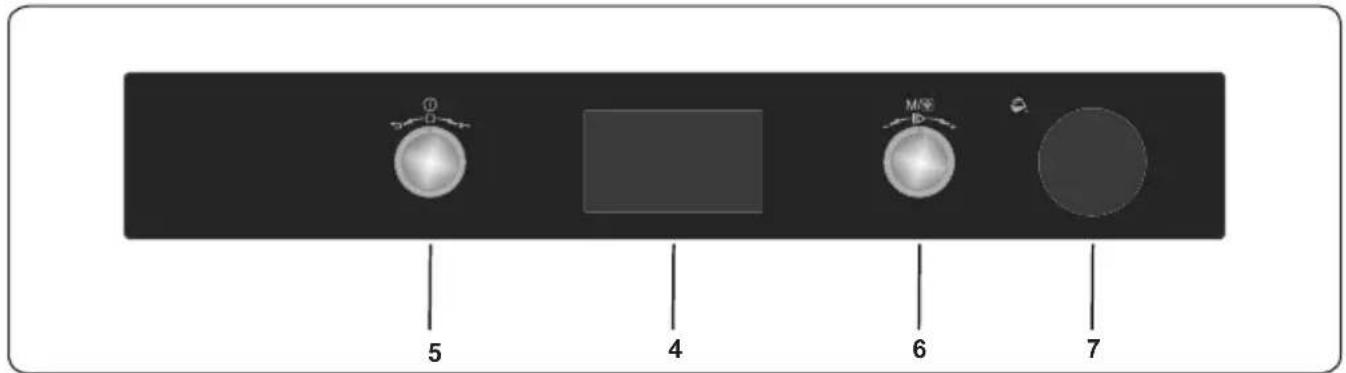

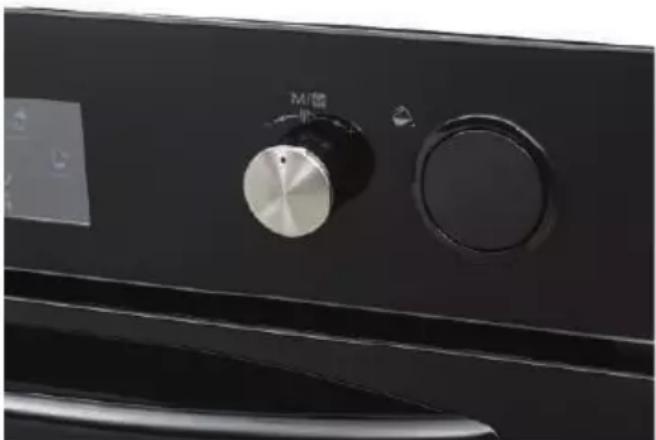

Control Panel

O D D 5 4 M E 6 7

1. Timer
2. Left knob
3. Right knob
4. Water Tank Cover

4. USE OF PRODUCT

4.1 Oven cOntr Ols

Left knob

• Long push: Switch on / off
• Short push: Pause cooking
• Turn right: Key lock
• Turn left: Undo / Go to previous menu

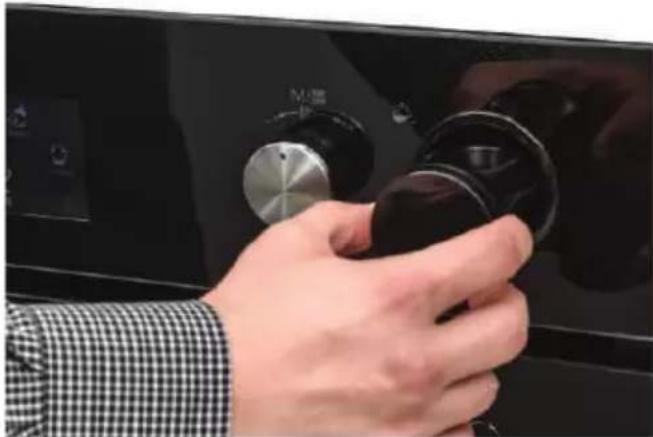

Right knob

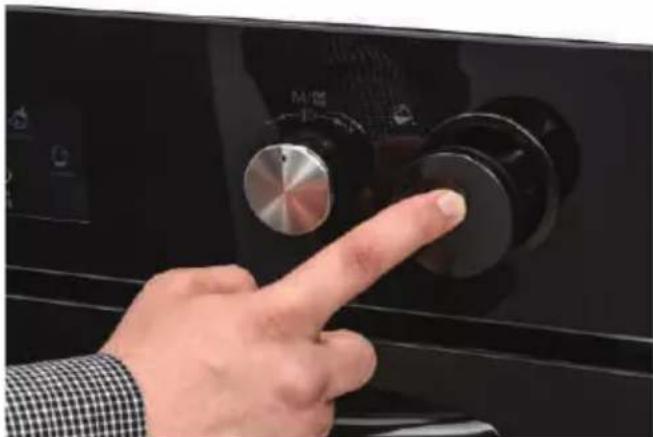

• Push: Select / Start Cooking / Start manual steam operation

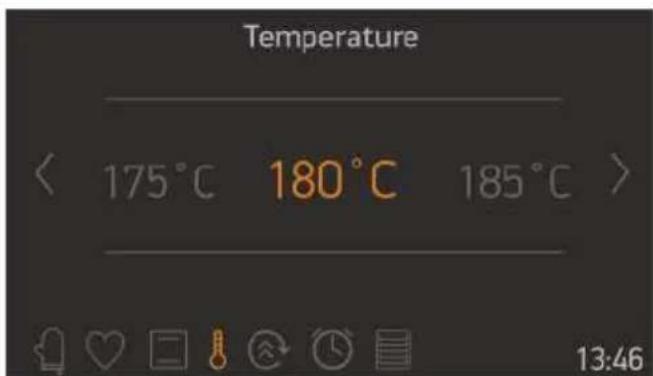

• Turn Right: Menu Navigation / Increase Temperature
• Turn Left: Menu Navigation / Decrease Temperature

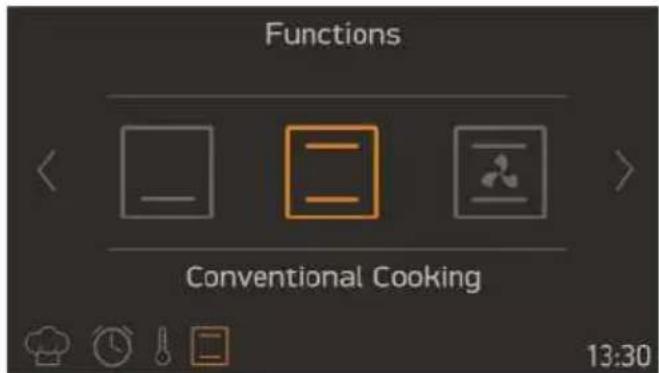

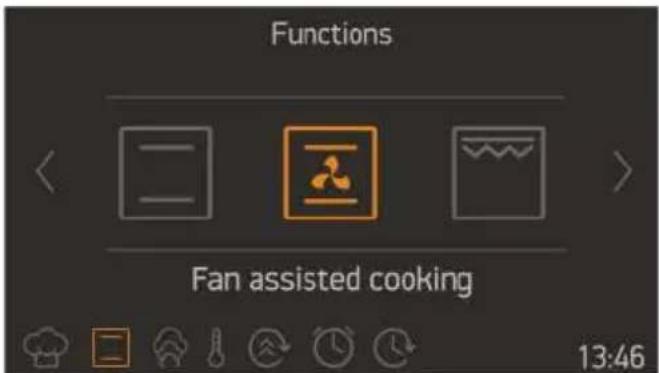

Oven Functions

* The functions of your oven may be different due to the model of your product.

Simple dark square with a small white sun icon in the top-right corner (no text or symbols)

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Abstract geometric symbol resembling a stylized flower or impeller inside a dark square frame (no text or symbols)

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Turbo Function: The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Static Cooking Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a dark square (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes. The fan and lower heating function is ideal for baking food, such as pizza, evenly in a short period of time. The fan evenly disperses the heat of the oven, while the lower heating element bakes the food.

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Pizza Function: The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function

is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Simple 3D wireframe cube with a wavy top line inside, no text or symbols present.

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple 3D-rendered dark square with a white wavy line above it, no text or symbols present.

Faster Grilling

Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190°C.

Simple icon of a ship or turbine with a propeller inside, no text or symbols present.

Double Grill and Fan

Function: The oven's thermostat and warning lights will switch on, and the grill, upper heating elements and fan will start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^

• Crispy and shiny surface on foods
  • Minimum loss of water
• Almost no loss of nutrients
• Low-fat cooking

You can select the desired function and steam density. Steam density table is on the next page.

Filling the Water Tank

Close-up of a kitchen appliance control panel with a dial and LCD screen (no visible text or symbols)

- The water tank volume is 300 ml. This amount allows 3 cycles of steam aiding. For each cycle around 100 ml water is used.

Close-up of a hand pressing a black control knob on a black appliance (no visible text or symbols)

- Push the tank cover to open

Manual Aiding Steam Function:

This function can be used any other cooking together with functions.

It is used for cooking all types of vegetables, smaller chunks of meat, fruit, and side dishes (rice, pasta).

The advantages;

Close-up of a hand holding a black knob on a kitchen appliance (no visible text or symbols)

- Pull the water tank out slightly.

The tank must not be taken out

Hand pouring liquid into a glass bottle on a black stove burner (no text or symbols visible)

- Add the minimum 100 ml water into the tank before usage.

The maximum water level is indicated as "MAX" on the tank.

Steam Density Water	Amounts
1 steam injection Add	100 ml water
2 steam injection Add	200 ml water
3 steam injection Add	300 ml water
Auto steam injection Add	100 ml water

Close-up of a hand pressing a black knob on a kitchen appliance (no visible text or symbols)

- Push on the tank cover to close.

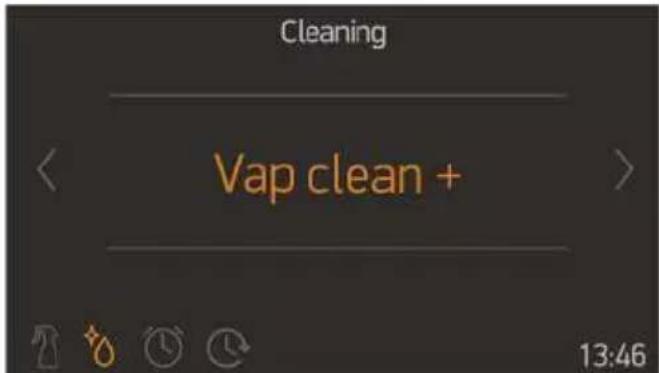

Vap clean+ function:

Vapclean+ function provides easy cleaning. You will find this function under 'Cleaning' menu. Before running this function please add 300 ml water into the tank. For adding water please follow the instruction given under title 'Filling Water Tank'.

4.2 cOOking table

Function	Dishes			min.
Static	Puff Pastry 2-3	-4 170-190	35-45
	Cake 2-3-4	170-190 30	40
	Cookie 2-3-4	170-190 30	-40
	Stew 2	175-200 40	-50
	Chicken	2-3-4	200	45-60
Fan	Puff Pastry 2-3	-4 170-190	25-35
	Cake 2-3-4	150-170 25	35
	Cookie 2-3-4	150-170 25	-35
	Stew 2	175-200 40	-50
	Chicken	2-3-4	200	45-60
Turbo	Puff Pastry 2-3	-4 170-190	35-45
	Cake 2-3-4	150-170 30	40
	Cookie 2-3-4	150-170 25	-35
	Stew 2	175-200 40	-50
Grilling	Grilled meatballs	7	200	10-15
	Chicken	*	190	50-60
	Chop	6-7	200	15-25
	Beefsteak	6-7	200	15-25

*If available cook with roast chicken skewer.

4.3 use Of the smart lcd cOntr OI unit

Ready Cook is designed to help home users to implement professional cooking recipes easily using the built-in auto cooking functions.

The Ready Cook menus, such as Manual Cooking, Auto Cooking, Favourites, Cleaning, and Settings, are described below.

Manual cooking

You can adjust every cooking setting in

Manual Cooking mode, including the 7 different cooking functions, the temperature, the boost function, the cooking duration, and the cooking end time. Follow the steps listed below to navigate the Manual Cooking menu.

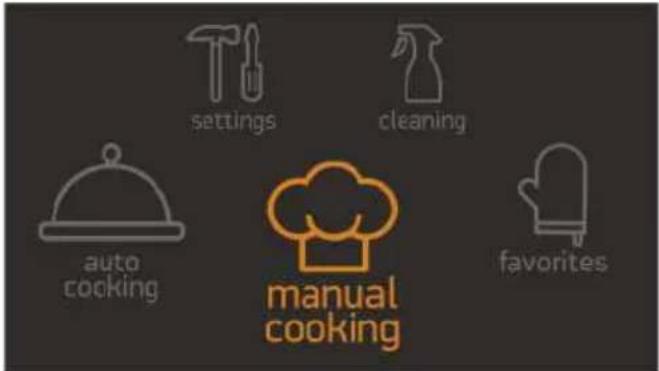

settings cleaning auto cooking manual cooking favorites

The main menu

• Rotate the right knob in either direction until "Manual Cooking" is highlighted.
• Press the right knob to select the highlighted option.

Functions Fan assisted cooking 13:46

Oven function

• Rotate the right knob in either direction to navigate between the available oven functions.
• Press the right knob to select the highlighted option.

Steam function < on off > 13:46

Steam Aid Cooking

• Rotate the right knob in either direction to highlight Steam aid cooking "ON" or "OFF".
• Press the right knob to select the highlighted option.

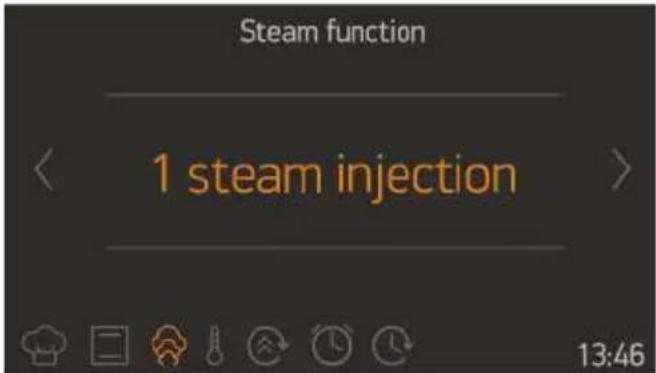

Steam function 1 steam injection 13:46

- Press the right knob to select to "1 steam injection".

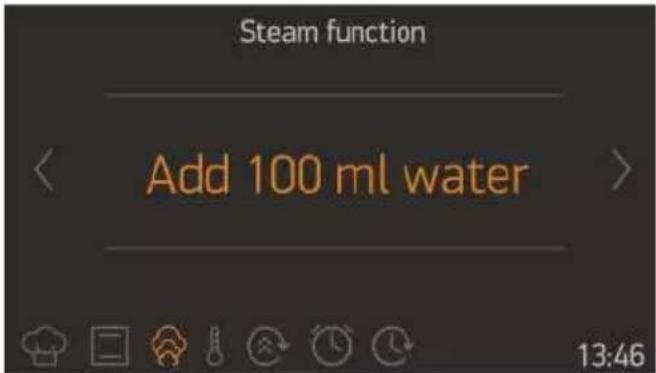

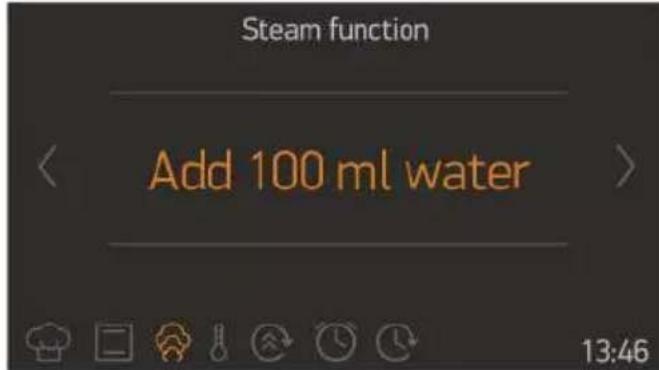

Steam function Add 100 ml water 13:46

• Add 100 ml of water into the water tank.
• Press the right knob to select to "Add 100 ml water".

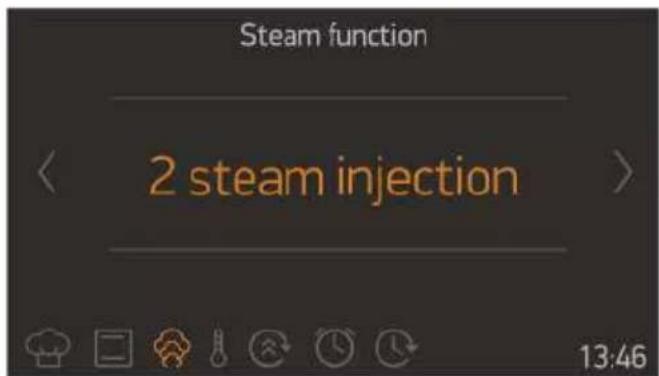

Steam function 2 steam injection 13:46

• Rotate one times the right knob to 2 steam injection.

• Press the right knob to select the highlighted option.

• Add 300 ml of water into the water tank.

• Press the right knob to Add 300 ml water.

Steam function Add 200 ml water 13:46

• Add 200 ml of water into the water tank.
• Press the right knob to Add 200 ml water.

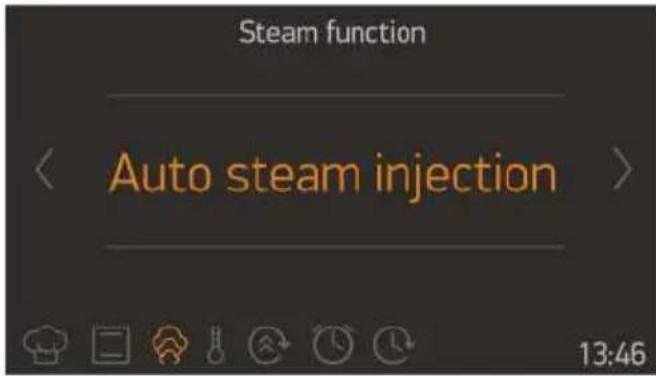

Steam function < Auto steam injection > 13:46

• Rotate two times the right knob to auto steam injection.
• Press the right knob to select the highlighted option.

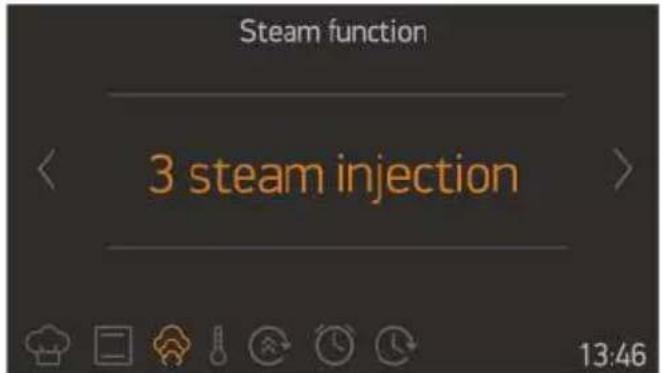

Steam function 3 steam injection 13:46

• Rotate two times the right knob to 3 steam injection.
• Press the right knob to select the highlighted option.

Steam function Add 100 ml water 13:46

• Add 100ml of water into the water tank.
• Press the right knob to Add 100 ml water.

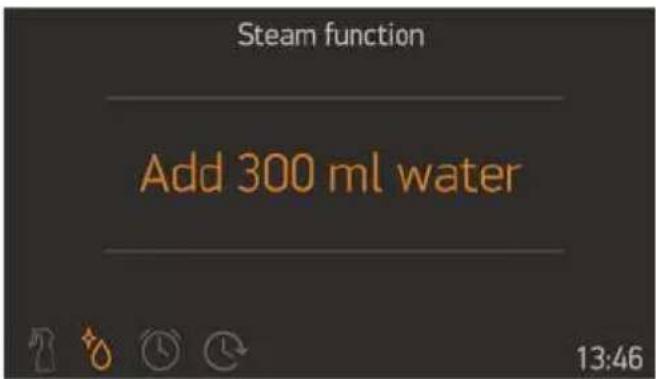

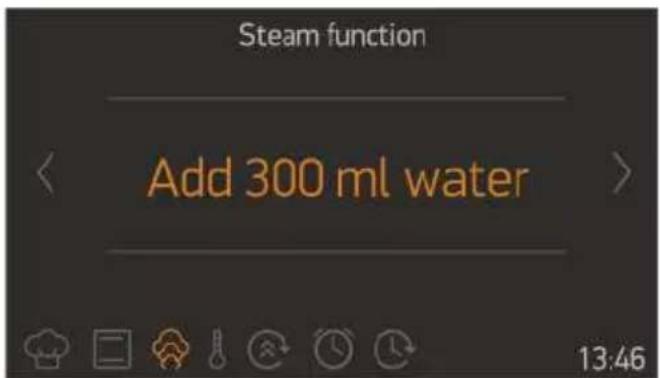

Steam function Add 300 ml water 13:46

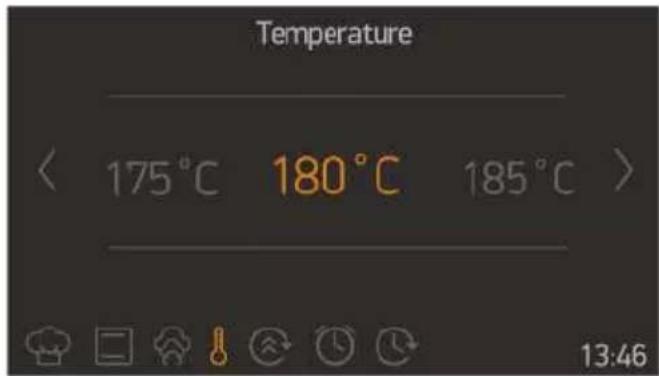

Temperature < 175°C 180°C 185°C > 13:46

Temperature

• Rotate the right knob in either direction to navigate between the available temperature settings.
• Press the right knob to select the highlighted option.

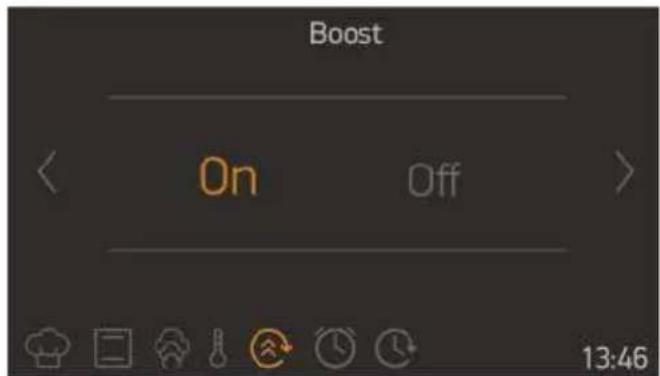

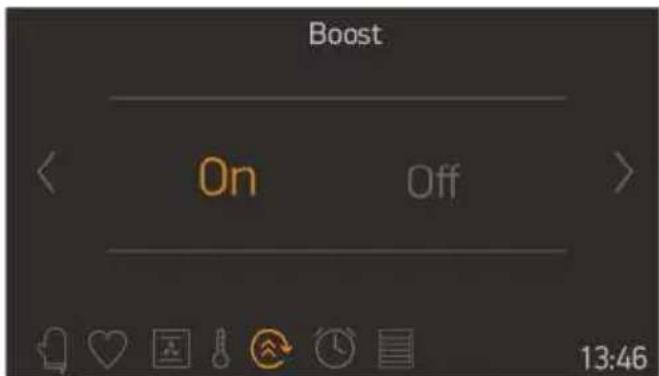

Boost On Off 13:46

Boost

• Rotate the right knob in either direction to highlight Boost "ON" or "OFF".
• Press the right knob to select the highlighted option.
• Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking.

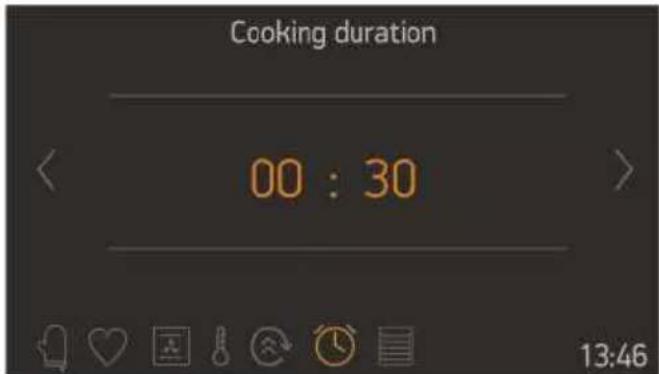

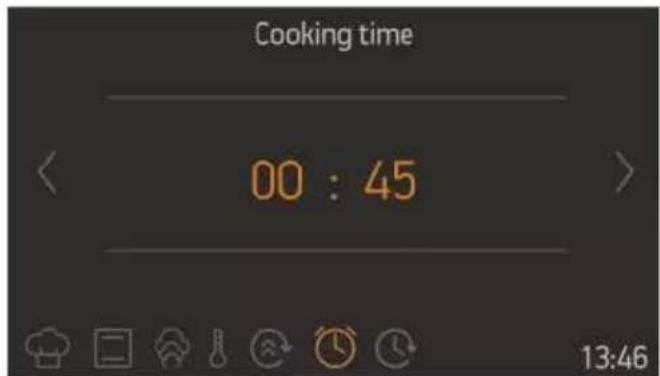

Cooking time 00 : 45 13:46

Cooking duration

- Rotate the right knob in either direction

to change the cooking duration.

• Press the right knob to set the cooking duration.
• NOTE: If the cooking duration is set to 00:00, cooking will continue until you manually stop it.

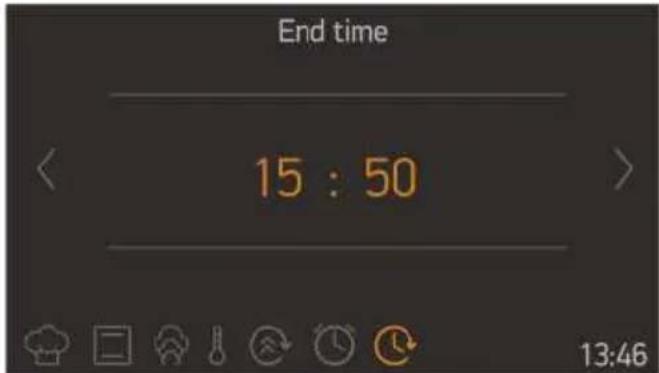

End time 15 : 50 13:46

Cooking end time

• Rotate the right knob in either direction to change the cooking end time.
• Press the right knob to set the cooking end time.

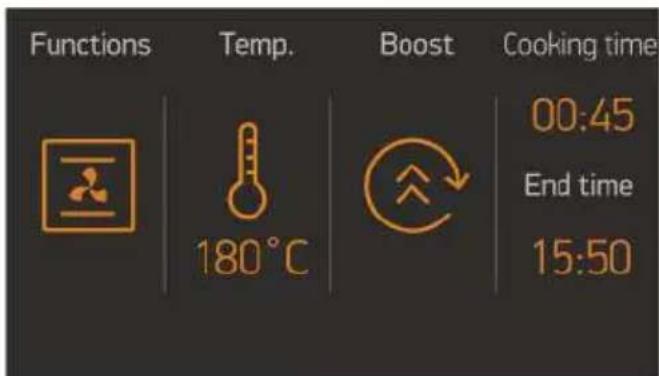

Functions Temp. Boost Cooking time 00:45 End time 15:50 180°C

The information screen

• Cooking will begin within 10 seconds of the last action, or when the right knob is pressed.
- Rotate the left knob anti-clockwise to go back to the previous setting.

Interior view of a modern oven with a star-shaped ceiling and illuminated top panel (no readable text or symbols)

The animation screen displays:

• Cooking time
• Temperature
  • Cooking start and end time
  • Cooking function information.

Functions Conventional Cooking 13:30

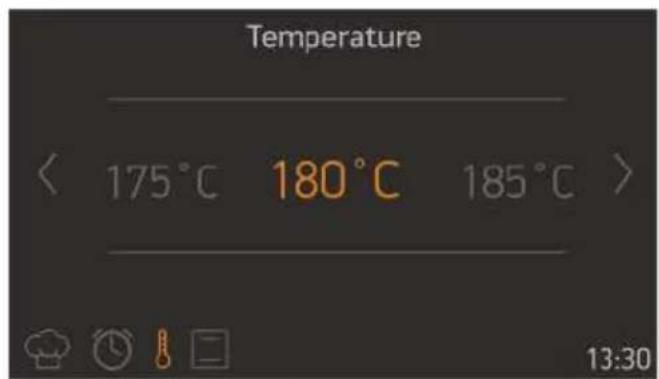

Temperature < 175°C 180°C 185°C > 13:30

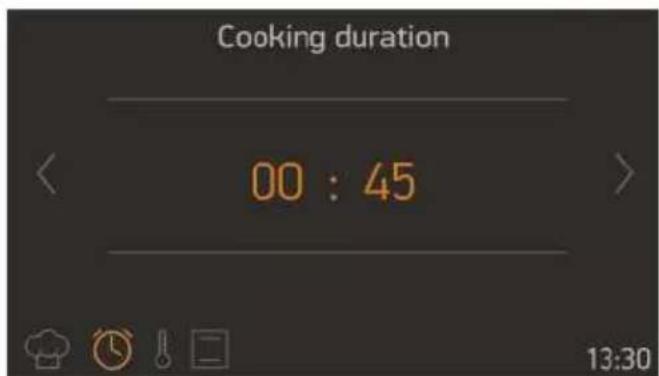

Cooking duration 00 : 45 13:30

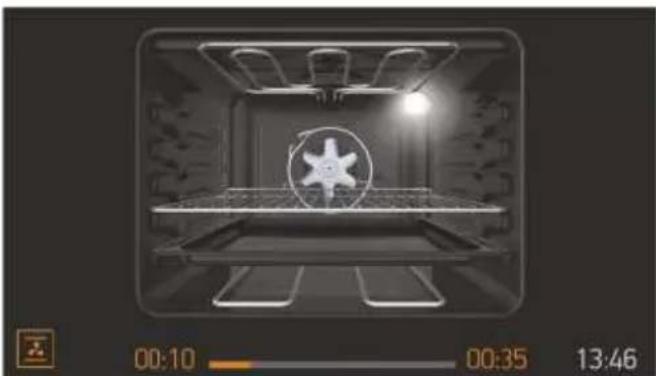

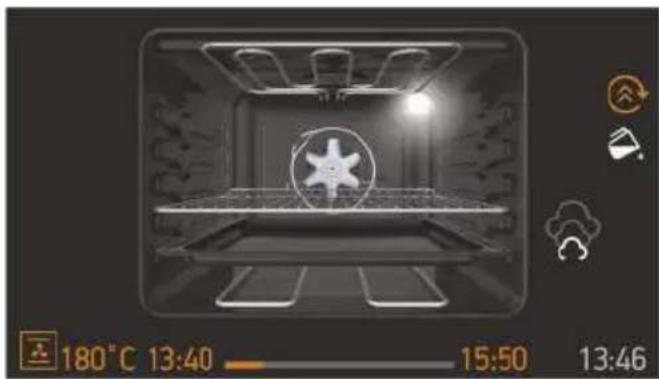

The animation screen

- Press the left knob to stop cooking.

• Press the right knob to start / continue cooking.
• Rotate the right knob in either direction to change the temperature.
• Rotate the left knob anti-clockwise, while any cooking function is active, to display the oven function, temperature, and cooking time setting screen.
• To stop cooking and return to the main menu, press the left knob then rotate it anti-clockwise.

Auto Cooking

Ready Cook has built-in, previously determined, recipe functions that can be selected in the Auto Cooking menu. You will only be able to select the name of the desired meal. It will not be possible to alter any of the recipe settings, including cooking duration and temperature, as these are automatically set by Ready Cook.

Follow the steps below to perform auto cooking.

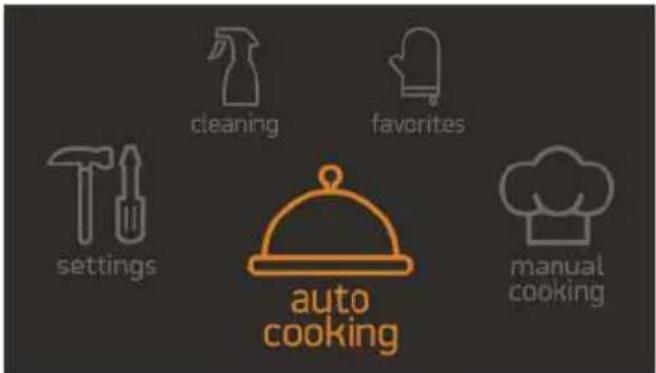

cleaning favorites settings auto cooking manual cooking

The main menu

• Rotate the right knob in either direction until "Auto Cooking" is highlighted.
• Press the right knob to select the highlighted option.

Plate of roasted poultry with garnish and vegetable, no visible text or symbols

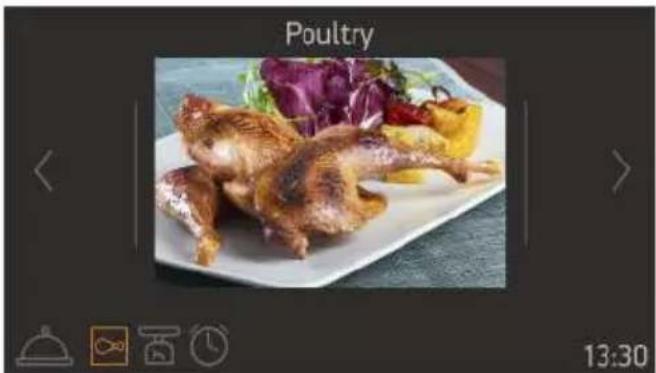

Food categories

- Rotate the right knob in either direction

to navigate between the available recipes.

- Press the right knob to select the highlighted option.

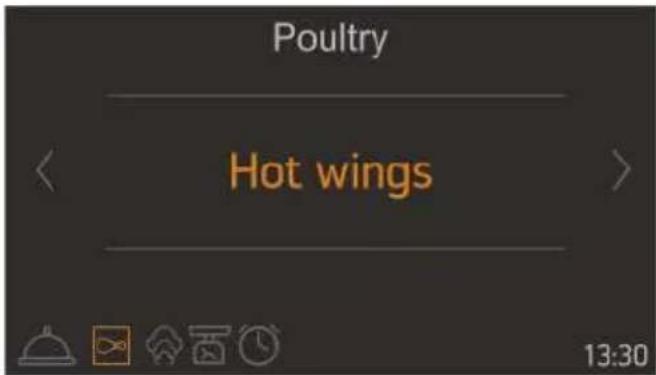

Poultry Hot wings 13:30

Recipe selection

• Rotate the right knob in either direction to navigate between the available recipes.
• Press the right knob to select the highlighted option.

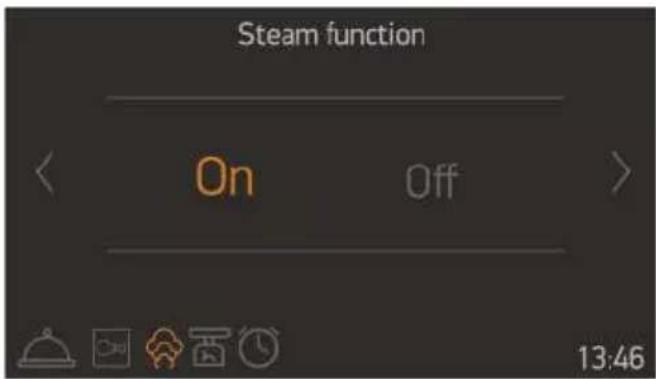

Steam function On Off 13:46

Steam injection

• Rotate the right knob in either direction to highlight Steam injection On or Off.
• Press the right knob to select the highlighted option.

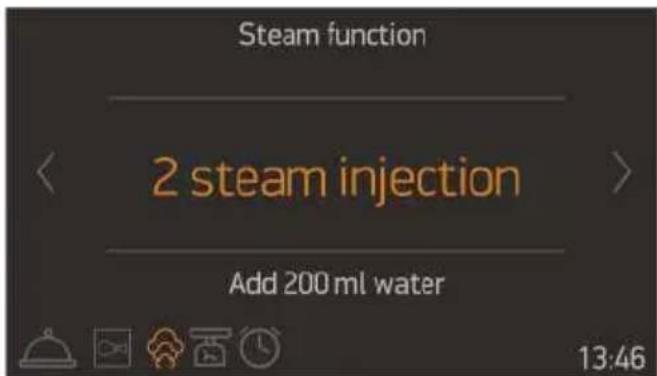

Steam function 2 steam injection Add 200 ml water 13:46

• Add 200 ml of water into the water tank.
• Press the right knob to Add 200 ml water.

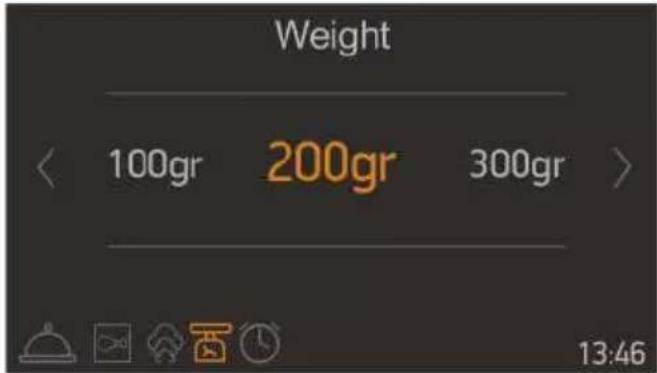

Weight 100gr 200gr 300gr 13:46

Food weight

• Rotate the right knob in either direction to change the weight value.
• Press the right knob to set the weight.

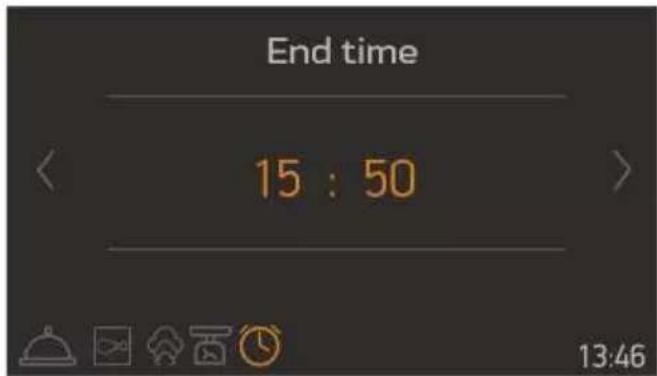

End time 15 : 50 13:46

Cooking end time

• Rotate the right knob in either direction to change the cooking end time.
• Press the right knob to set the cooking end time.

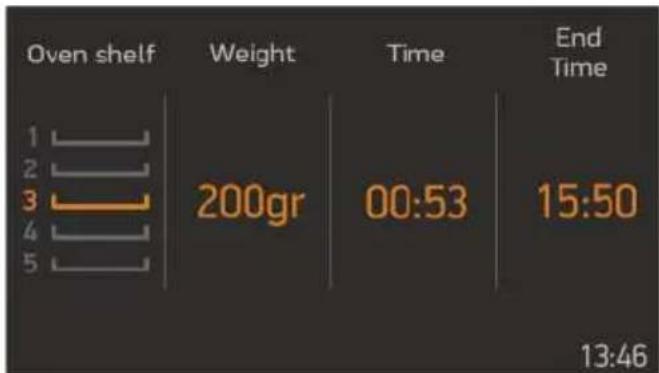

The information screen

• Cooking will start within 10 seconds of no activity, or when the right knob is pressed.
- Rotate the left knob anti-clockwise to go back through the previous setting screens.
- Place food on the middle shelf to achieve the best cooking results.

Interior view of a microwave oven with a star-shaped ceiling and illuminated top panel (no text or symbols visible)

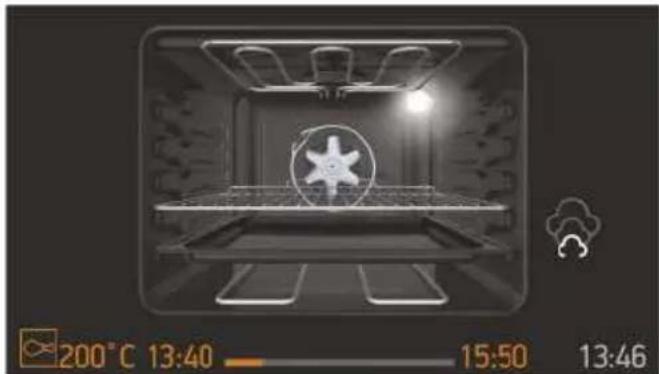

The animation screen

• Press the left knob to stop cooking.
• Press the right knob to start and continue cooking.
• To stop cooking and return to the main menu, press the left knob and rotate it anti-clockwise.

Favourites

It is possible to save your manual cooking settings, allowing you to quickly select the same cooking settings at any time. At the end of the Manual Cooking menu, after the cooking duration setting, you will be asked whether you want to save the settings to your favourites.

To create a favourite cooking setting, use the edit function in the Favourites menu.

To select and begin a favourite function, follow the steps below.

Auto Cooking Settings Manual Cooking Favorite Cleaning

On the main menu

• Rotate the right knob in either direction until 'Favourites' is highlighted.
• Press the right knob to select the highlighted option.

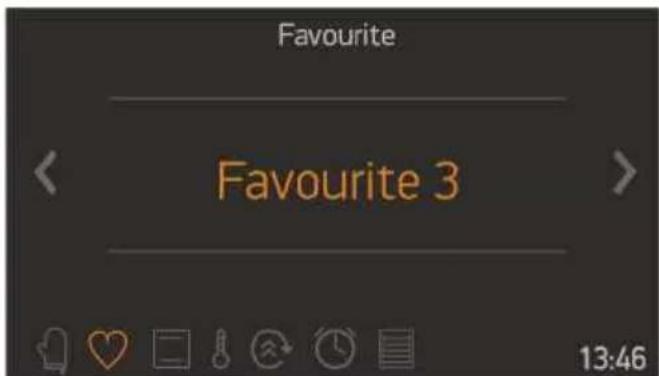

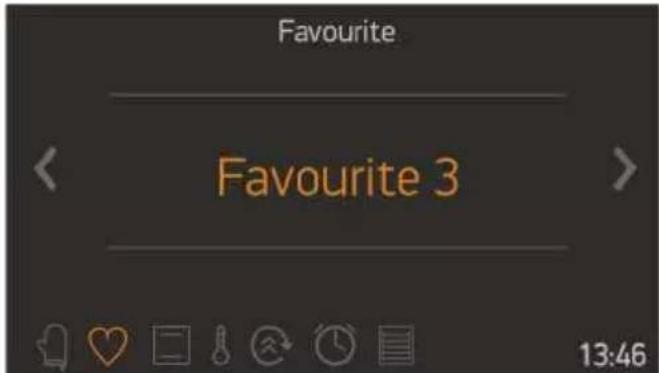

Favourite Favourite 3 13:46

Favourites

• Rotate the right knob in either direction to navigate between the available options.
• Press the right knob to select the highlighted option.
• The settings stored in the favourite will be displayed at the bottom of the screen.

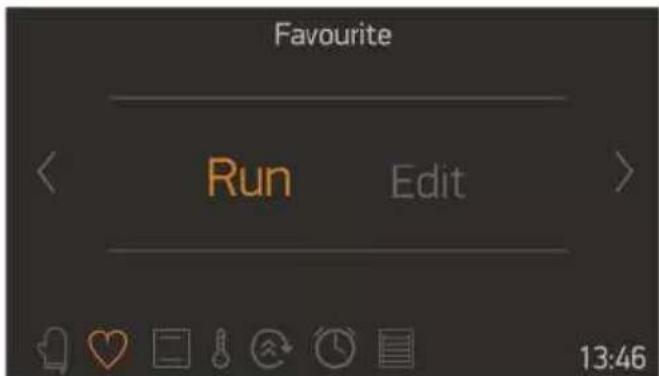

Favourite Run Edit 13:46

The run/edit screen

• Rotate the right knob to highlight "Run".
• Press the right knob to select "Run".

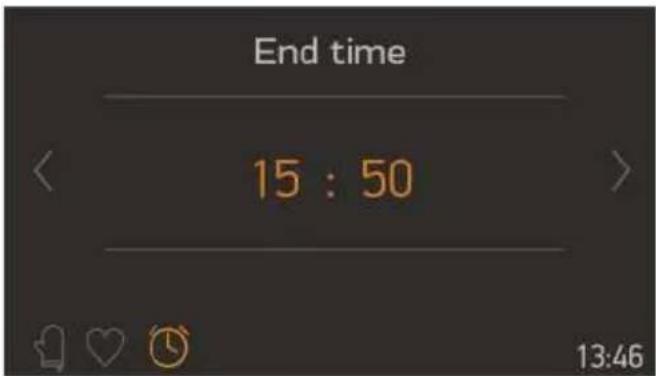

End time 15 : 50 13:46

Cooking end time

• Rotate the right knob in either direction to change the cooking end time.
• Press the right knob to set the cooking end time.

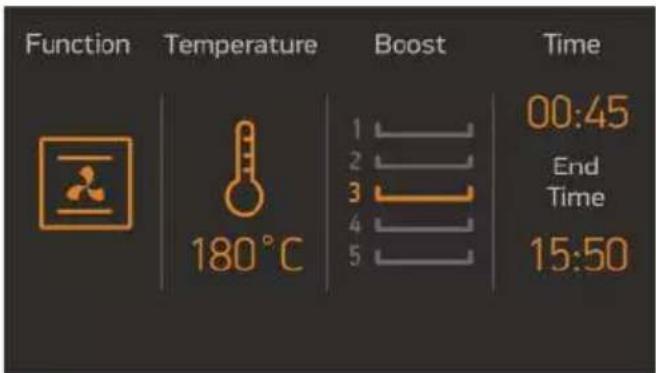

Function Temperature Boost Time 180°C 1 2 3 4 5 00:45 End Time 15:50

The information screen

• Cooking will start within 10 seconds of no activity, or when the right knob is pressed.
- Rotate the left knob anti-clockwise to go back through the previous setting screens.
- Place food on the middle shelf to achieve the best cooking results.

Interior view of a modern oven with a star-shaped ceiling light and digital clock display (no readable text or symbols)

The animation screen

• Press the left knob to stop cooking.
• Press the right knob to start and

continue cooking.

- To stop cooking and return to the main menu, press the left knob and rotate it anti-clockwise.

To edit any Favourites settings, follow the steps below.

Auto Cooking Settings Manual Cooking Favorite Cleaning

The main menu

• Rotate the right knob in either direction until "Favourites" is highlighted.
• Press the right knob to select the highlighted option.

Favourite Favourite 3 13:46

Favourites

• Rotate the right knob in either direction to navigate between the available options.
• Press the right knob to select the highlighted option.
• The settings stored in the selected 'Favourite' will be displayed at the bottom of the screen.

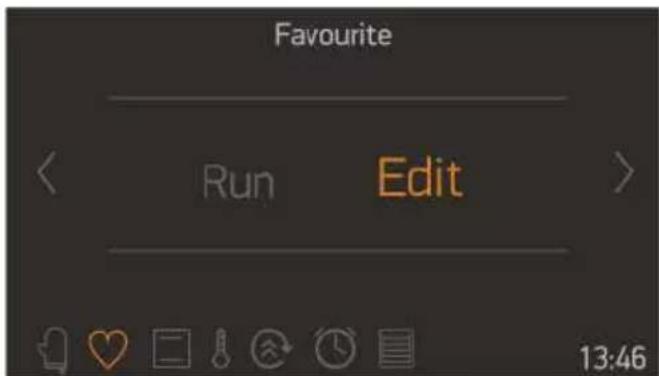

Favourite Run Edit 13:46

The run/edit screen

• Rotate the right knob to highlight "Edit".
• Press the right knob to select "Edit".

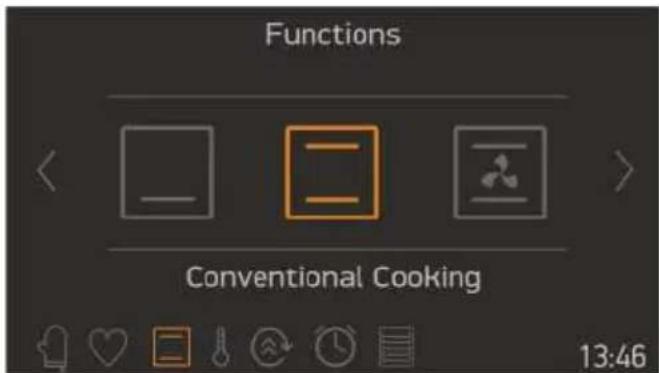

Functions Conventional Cooking 13:46

Oven function

• Rotate the right knob in either direction to navigate between the available oven functions.
• Press the right knob to select the highlighted option.

Temperature < 175°C 180°C 185°C > 13:46

Temperature

• Rotate the right knob in either direction to navigate between the available temperature settings.
• Press the right knob to select the highlighted option.

Boost On Off 13:46

Boost

• Rotate the right knob in either direction to highlight Boost "ON" or "OFF".
• Press the right knob to select the highlighted option.
• Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking.

Cooking duration 00 : 30 13:46

Cooking duration

• Rotate the right knob in either direction to change the cooking duration.
• Press the right knob to set the cooking duration.

Oven shelf 13:46

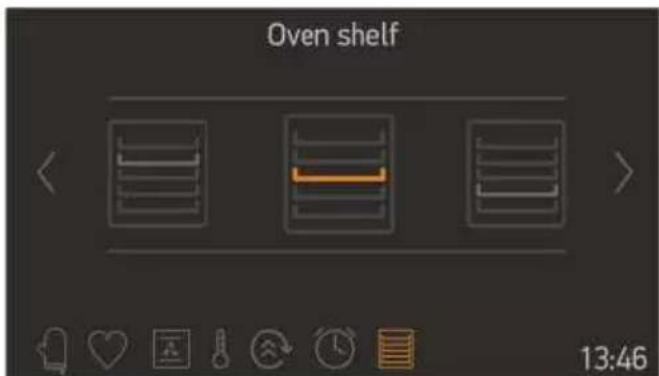

Oven shelf

- Rotate the right knob in either direction to navigate between the available oven shelves.

• Press the right knob to select the shelf
• For the same cooking results each time, oven shelf information is important.

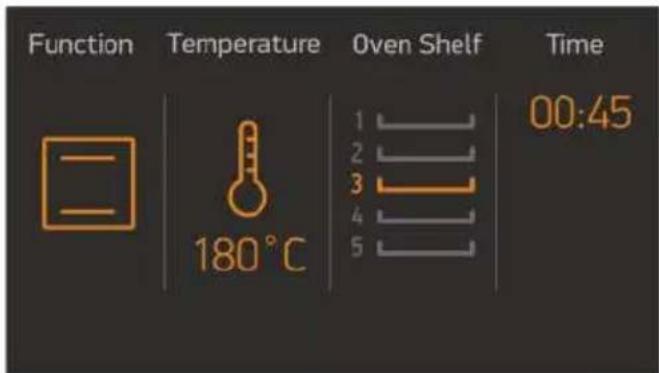

Function Temperature Oven Shelf Time 180 °C 1 2 3 4 5 00:45

The information screen

- Rotate the left knob anti-clockwise to go back through the previous setting screens.

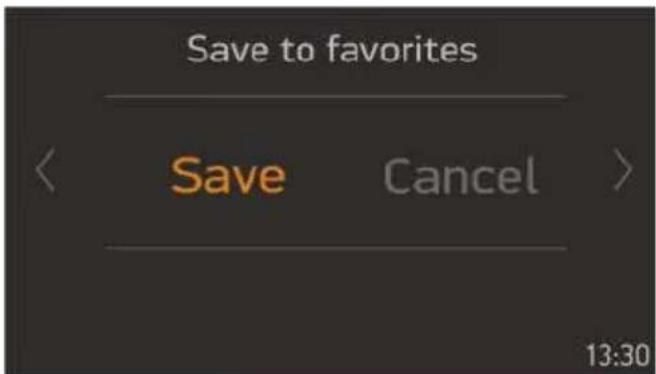

Save to favorites Save Cancel 13:30

Save to favourites

• Rotate the right knob to highlight "Save" (to save the settings) or "Cancel" (to discard the settings).
• Press the right knob to select the highlighted option.

Cleaning

With the Vapclean function, dried residue within the oven will be softened with vapour. To perform Vapclean, pour a glass of water onto the oven shelf at the bottom of the oven, then follow the steps listed below.

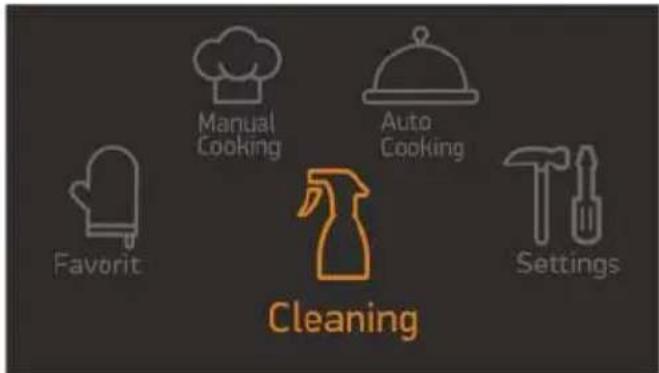

Manual Cooking Auto Cooking Favorit Cleaning Settings

On the main menu

• Rotate the right knob in either direction until "Cleaning" is highlighted.
• Press the right knob to select the highlighted option.

Cleaning Vap clean + 13:46

The function selection screen

Press the right knob to select "Vapclean".

Steam function Add 300 ml water 13:46

Steam injection

• Add 300 ml of water into the water tank.
• Press the right knob to Add 300 ml water.

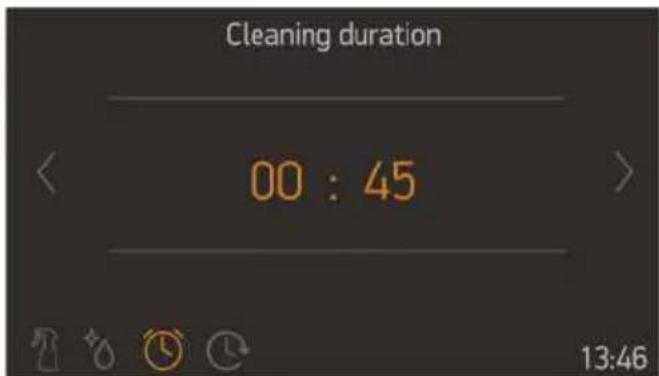

Cleaning duration 00 : 45 13:46

Cleaning duration

• Rotate the right knob in either direction to change the cleaning duration.
• Press the right knob to set the cleaning duration.

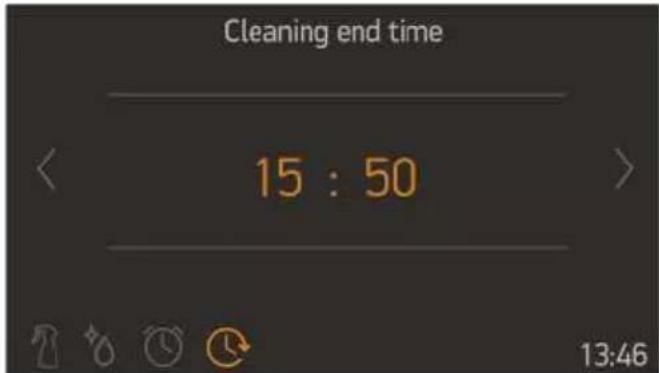

Cleaning end time 15 : 50 13:46

Cleaning end time

• Rotate the right knob in either direction to change the cleaning end time.
• Press the right knob to set the cleaning end time.

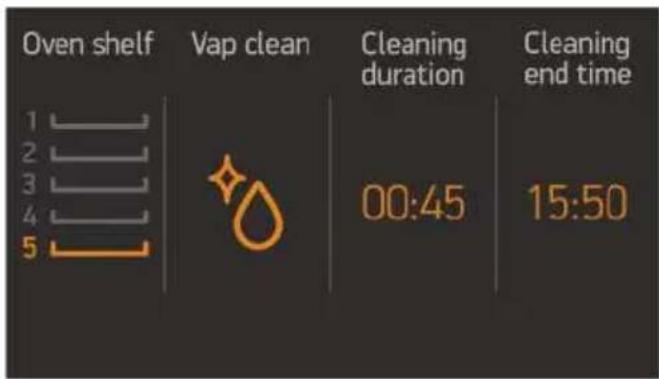

Oven shelf Vap clean Cleaning duration Cleaning end time 1 2 3 4 5 00:45 15:50

The information screen

• Cleaning will start within 10 seconds of no activity, or when the right knob is pushed.
• Rotate the left knob anti-clockwise to go back through the previous setting screens.

Interior view of a modern kitchen oven with a star-shaped ceiling and illuminated ceiling light (no visible text or symbols)

The animation screen

• Press the left knob to stop cleaning.
• Press the right knob to start and continue cleaning.
• To stop cleaning and return to the main menu, press the left knob and rotate it anti-clockwise.

Settings

The settings menu allows you to change and set the date, time, screen brightness, buzzer tone, and language option.

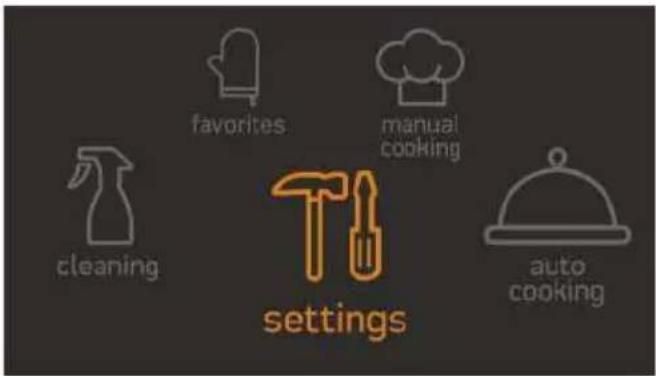

favorites manual cooking cleaning settings auto cooking

The main menu

• Rotate the right knob in either direction until 'Settings' is highlighted.
• Press the right knob to select the highlighted option.

Time < on off > Screen saver 13:46

• After setting the clock,secreensaver settings menu is shown on the display for standby.
- Rotate the right knob in either direction to highlight Secreensaver "ON" or "OFF".
- Press the right knob to select the highlighted option.

16:06 04.05.2020

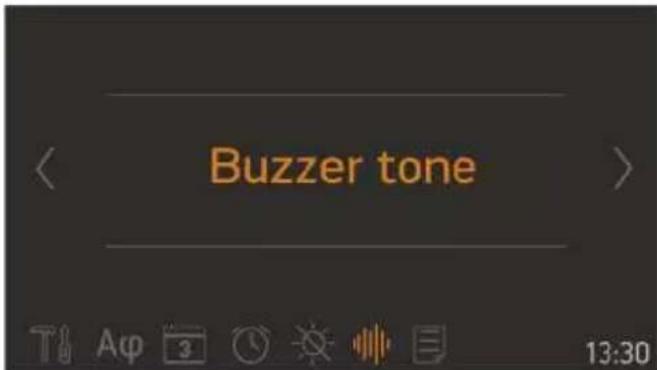

Buzzer tone 13:30

On the buzzer tone menu

• Rotate the right knob in either direction to choose from 3 different buzzer tones.
• Press the right knob to set the desired buzzer tone.

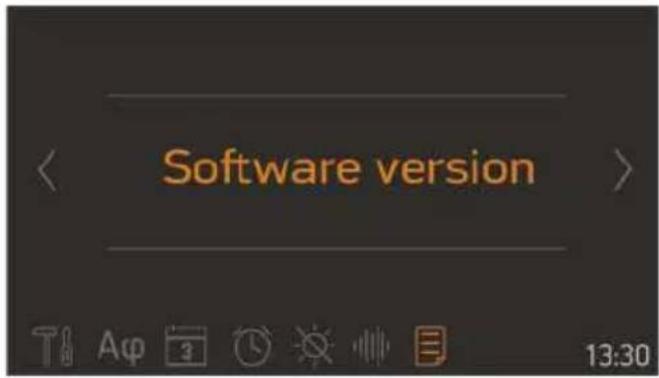

Software version 13:30

The software version menu

- The software version will be displayed as information only. It cannot be changed.

Key lock

The key lock is used to avoid unintentional changes being made to the oven settings. To activate or deactivate the key lock, rotate the left knob anti-clockwise and hold it for 3 seconds. While the key lock is active, only the "ON/OFF" button can be activated. All other buttons will be locked.

4.4 accessOries

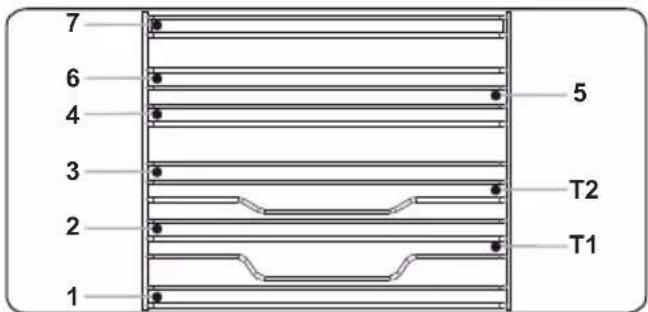

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

7 6 4 3 2 1 5 T2 T1

• Insert the accessory to the correct position inside the oven.
• Allow at least a 1 cm space between the fan cover and accessories.
  • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
• The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
• Trays and wire grids can be positioned

on any level from of 1 to 7.

• Telescopic rail can be positioned on levels T1, T2, 3, 4, 5, 6, 7.
• Level 3 is recommended for single level cooking.
• Level T2 is recommended for single level cooking with the telescopic rails.
• Level 2 and Level 4 are recommended for double level cooking.
• The turnspit wire grid must be positioned on Level 3.
• Level T2 is used for turnspit wire grid positioning with the telescopic rails.

****Accessories may vary depending on the model purchased.

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with mounting holes and a central circular hole (no text or symbols)

FIRST IN THE WORLD

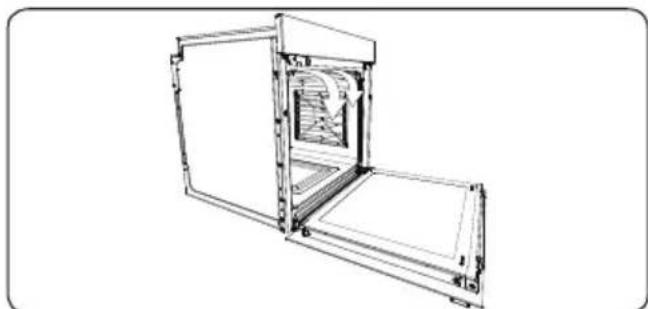

Hot Air Shield System in Built-in Ovens

The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened.

Line drawing of an open industrial furnace or oven with internal structure (no text or symbols)

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal rack with an arrow indicating force or movement (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a door frame structure with an arrow indicating direction (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 cleaning

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts ur appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

x A B

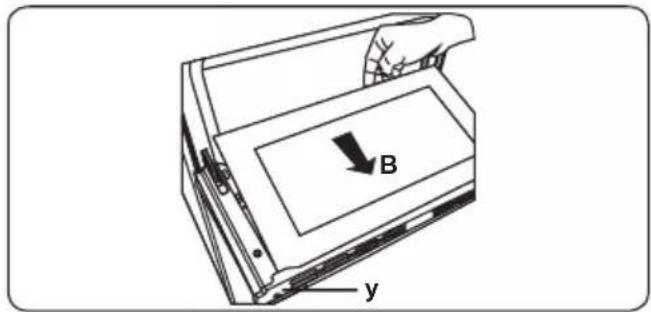

To replace the inner glass:

1. Push the glass towards and under the location bracket (y), in the direction of B.

B y

1. Place the glass under the location bracket (x) in the direction of C.

x C

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second's layer.

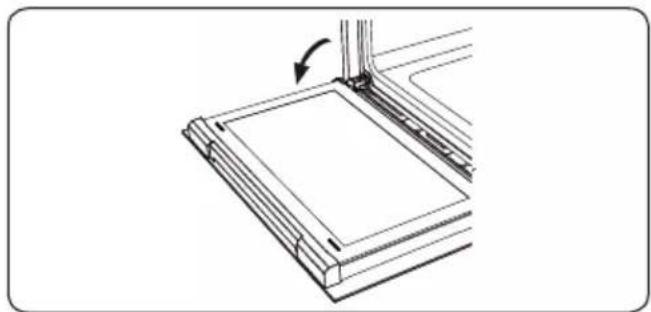

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

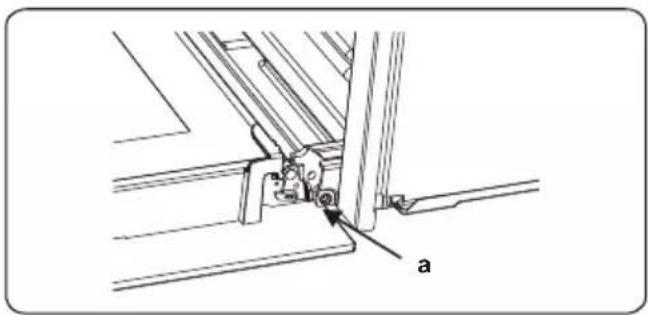

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

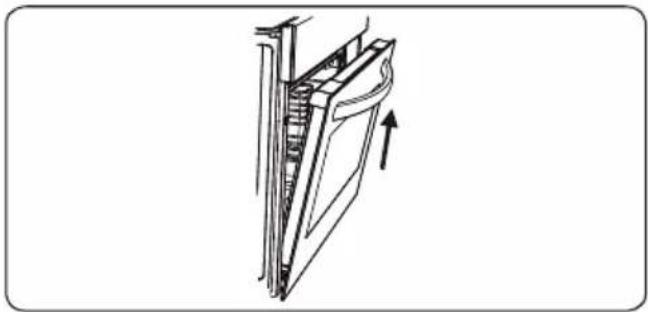

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Diagram of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 maintenance

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed
• Replace the glass lens, and your oven is ready for use.

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination.

6. TROUBLESHOOTING&TRANSPORT

6.1 t r Oublesh OOting

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on. Power is switched off.		Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.
The cooling fan continues to operate after the oven is switched off.	Electronically-controlled oven fan automatically runs for a certain amount of time to cool the oven.	The fan switches off automatically when the electronic components have cooled sufficiently.
The oven has switched itself off.	Electronically-controlled ovens switch off automatically if no function is in operation.	The oven will switch itself off automatically to save energy if no other action is taken within a certain time frame after switching it on or after the end of a cooking programme.
If the door is opened during a fan-assisted function, the internal fan will stop.	Electronically-controlled ovens with a door switch will stop cooking if the oven door is opened.	It is a normal operation of the appliance, useful when cooking foods in order to avoid excessive heat escaping. When the door is closed, the oven will restart to normal operation.

6.2 t ransp Ort

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

2.3 ELEKTRICKÉ PRIPOJENIE A BEZPEČNOSŤ

O D D 5 4 M E 6 7

Dark rectangular frame with a small white sun icon in the top-right corner (no text or symbols)

Abstract geometric symbol with a circular element resembling a three-blade fan or impeller inside a square frame (no text or symbols)

Simple dark square with two horizontal white lines on top and bottom (no text or symbols)

Pure electrical circuit lines without any symbols

Simple geometric shape with a wavy line inside a square frame (no text or symbols)

Simple icon of a computer monitor with a wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Close-up of a kitchen appliance control panel with a rotary knob and digital display (no visible text or symbols)

Close-up of a hand pressing a button on a black appliance (no visible text or symbols)

Close-up of a hand holding a black rotary knob and dial, with no visible text or symbols on the knob itself.

Hand pouring liquid into a glass bottle on a black stove burner (no text or symbols visible)

Close-up of a hand pressing a black knob on a kitchen appliance (no visible text or symbols)

Interior view of a refrigerator oven with a ceiling-mounted unit and thermal monitoring display (no readable text or symbols)

Zobrazenie na obrazovke animácií:

Interior view of a futuristic spacecraft or spacecraft with a star emblem on the roof, shown in a digital interface (no readable text or symbols)

Obrazovka animácií

Interior view of a refrigerator with airflow visualization and temperature settings (no readable text or symbols)

Obrazovka animácií

Interior view of a 3D printer or scanner device with a star-shaped logo and control buttons (no readable text or symbols)

Obrazovka animácií

Time < on off > Screen saver 13:46

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

PRVÝ NA SVETE

Technical line drawing of a mechanical device with open door and internal compartments (no text or symbols)

Plytký plech

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

Mriežka

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

VÝSTRAHA

Diagram of a metal rack with a curved panel and an arrow indicating force or movement (no text or symbols)

Zberač vody

Technical line drawing of a door frame with internal channels and an arrow indicating direction (no text or symbols)

5. ČISTENIE A ÚDRŽBA

5.1 čiČistenie

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

1. Zatvorte dvere, pokým nebudú takmer úplne zatvorené, a vytiahnite ich smerom k sebe.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram of a hand holding a grid-like object with an arrow indicating direction, no text or symbols present

5.2 ÚDRŽBA
