USER MANUAL Pleasure (2014) HERO

Thank you for selecting a Hero MotoCorp PLEASURE. We wish you many miles of continued riding pleasure in the years ahead.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment performance on a continual basis, as an intrinsic element of our corporate philosophy. To achieve this we commit ourselves to continue product innovations to improve environment compatibility, comply with all applicable legislation including environment legislation and strengthen the green supply chain.

Your Scooter is conforming to latest (Bharat Stage-III norms) regulation for emission, safety & noise levels. We are also using non asbestos brake shoes and engine gaskets which are environment friendly in nature.

This booklet is your guide to the basic operation and maintenance of your new Hero MotoCorp PLEASURE. Please take time to read it carefully. As with any fine machine, proper care and maintenance is essential for trouble-free operation and optimum performance.

Your Authorised Hero MotoCorp dealer will be glad to provide further information or assistance and is equipped to handle your future service needs.

Let us make this world a safer, healthier and more environment friendly place.

NOTE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS, SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED. Hero MotoCorp Ltd. RESERVES THE RIGHT TO MAKE CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero MotoCorp ‘PLEASURE’ COMPLIES WITH THE LATEST EMISSION NORMS.

CONTENTS

Pg. No.
SCOOTER IDENTIFICATION 1
PRODUCT SPECIFICATION 2
SCOOTER SAFETY 4
• IMPORTANT SAFETY INFORMATION 4
• PROTECTIVE APPAREL 5
- LOAD LIMITS AND GUIDELINES 7
- ACCESSORIES AND MODIFICATIONS 9
TIPS FOR HEALTHY ENVIRONMENT 10
DESCRIPTION 11
PARTS FUNCTION 14
• INSTRUMENTS AND INDICATORS 14
- FUEL GAUGE 14
MAJOR COMPONENTS 15
• BRAKES (INTEGRATED BRAKING) 15
• FUEL 18
• TYRES (TUBELESS) 20
ESSENTIAL INDIVIDUAL COMPONENTS 24
- IGNITION SWITCH 24
• RIGHT HANDLE BAR CONTROLS 25
• LEFT HANDLE BAR CONTROLS 25
FEATURES 26
• STEERING LOCK 26
- SEAT LOCK 26
• CENTER COMPARTMENT 27
• LUGGAGE HOOK 28
- FRONT INNER BOX 28
- MOBILE CHARGING SOCKET 28
- BOOT LAMP/BOOT LAMP SWITCH 29
• SIDE STAND INDICATOR/SIDE STAND
SWITCH 29
BODY PARTS REMOVAL 30
• CENTER COMPARTMENT 30
- BODY COVER 31
• CENTER COVER 32
- FRONT UPPER COVER 32
- REAR VIEW MIRROR 33
• HEADLAMP CASE 33
• HEADLAMP FOCUS 34

OPERATIONS 35

• PRE-RIDE INSPECTION 35
  • STARTING THE ENGINE 36
• RUNNING IN 37
• RIDING 38
• PARKING 43
  • ANTI-THEFT TIPS / STEERING LOCK 44

TOOL KIT 44

FIRST AID KIT / MAINTENANCE 45

• IMPORTANCE OF MAINTENANCE 45
• MAINTENANCE SAFETY 46
• SAFETY PRECAUTIONS 47
• MAINTENANCE SCHEDULE 48
• AIR CLEANER 51
• SECONDARY AIR SUPPLY SYSTEM 52
- DRAIN TUBE 53
• ENGINE OIL 53
• ENGINE OIL REPLACEMENT 54
• OIL STRAINER CLEANING 54
- SPARK PLUG 56
• IDLE SPEED / BRAKE SHOE WEAR 58
- BATTERY 59
- FUSE REPLACEMENT 61
- SIDE STAND 62
• BULB REPLACEMENT 63
- CLEANING 65
- WASHING 65
- POLISHING 66

STORAGE GUIDE 67

• STORAGE 67
• REMOVAL FROM STORAGE/ AIR SUCTION VALVE 68

ROAD SIGNS 69

WARRANTY DETAILS

SCOOTER IDENTIFICATION

MBLXXXXEJYZXYYYYY

Vehicle Identification Number (VIN)

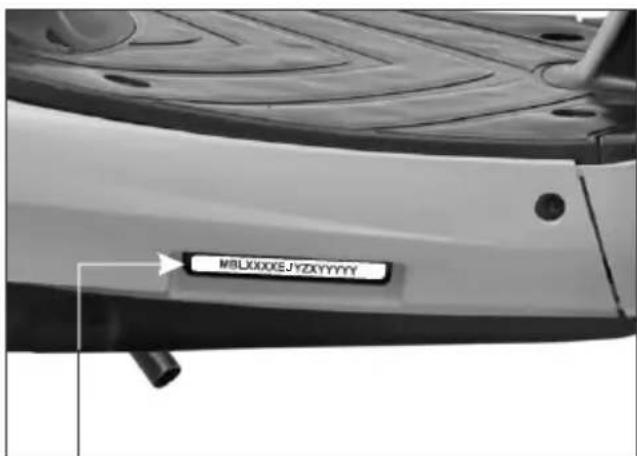

Location: Stamped on the lower right side of the frame, visible from the window provided on right floor side cover.

VIN:MBLXXXXEJYZXYYYYYY

MBLManufacturerCode

XXXXEJVehicleDescription

YYear ofMfg.

ZAssemblyPlant

XMonth ofMfg.

YYYYYSerialNumber

Model Code :

Model Engine	VIN
Pleasure - Sheet Metal Wheel / Integrated Braking	EH	EC
Pleasure - Cast Wheel / Integrated Braking	EJ	EC

XXXXECY ZXYYYYY

Engine No.

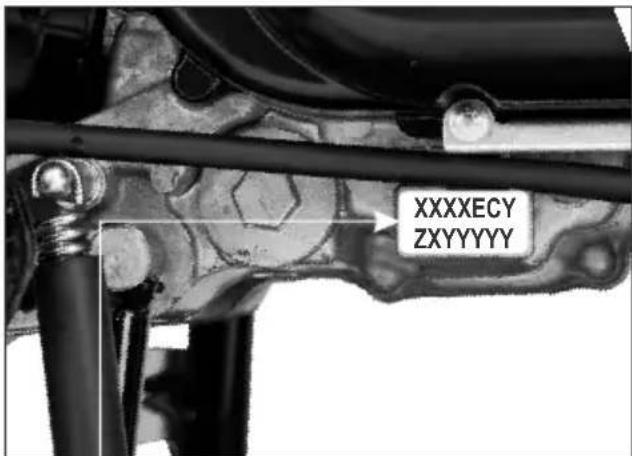

Location: Stamped on the lower side of the left crankcase.

Engine No.: XXXXECYZXYYYYY

XXXXECEngineDescription

YYear ofMfg.

ZAssemblyPlant

XMonth ofMfg.

YYYYYSerialNumber

VIN and Engine no. may be required:

1. During registration of the Scooter.
2. For dealing with Legal & Insurance Department.

PRODUCT SPECIFICATION

ITEM SPECIFICATIONS
DIMENSIONS
Overall Length	1750 mm
Overall Width	705 mm
Overall Height	1115 mm
Wheelbase	1240 mm
Saddle Height	760 mm
Ground Clearance	125 mm
WEIGHT
Kerb Weight	103 kg
CAPACITIES
Engine Oil	0.80 litre at disassembly
	0.70 litre at draining
Transmission oil	0.12 litre at disassembly
	0.10 litre at draining
Fuel Tank	5.0 litres (Min)
ENGINE
Maximum Power	5.03 kW @ 7000 r/min
Maximum Torque	7.85 N-m @ 5000 r/min
Bore and Stroke	50.0 x 52.0 mm
Compression Ratio	9.0:1
Displacement	102 cc
Spark Plug	Champion - PRZ 9 HC (Federal Mogul)
Spark Plug Gap	0.7 - 0.8 mm
Valve Clearance (Cold)	Intake : 0.14 mm / Exhaust : 0.14 mm
Idle Speed	1700 ± 100 r/min
ITEM	SPECIFICATIONS
CHASIS AND SUSPENSIONChassis Type High Rigidity Under boneFront Suspension Bottom Link with Hydraulic DamperRear Suspension Unit Swing with Hydraulic DamperCaster 27 30'Tyre size, front 90 / 100 x 10 - 53 J (Tubeless Tyre)Tyre size, rear 90 / 100 x 10 - 53 J (Tubeless Tyre)Front / Rear brake Drum Type (Integrated braking)	Spring Loaded
	0
POWER TRANSMISSIONPrimary Reduction Variomatic (2.51 - 0.85)Final ReductionClutch System Dry, Automatic Centrifugal Clutch	50/20 x 49/13 (9.423)
ELECTRICALBatteryAlternator 110 WStarting system Kick / Electric StartHeadlamp (High / Low)Tail/Stop lampTurn signal lampPosition lamp 12V 5W x 2 nos.Meter illuminationTurn signal indicatorHigh beam indicatorSide stand indicator 12V 1.7W	12V - 4Ah **MF Battery12V 35W/35W Halogen Bulb, MFR*12V 5/21 W - MFR*12V 10W x 4 nos.(MFR*-Clear Lens-Amberbulb)12V 1.7Wx2 nos.12V 3.0Wx2 nos.12V 1.7W
Fuse 2A, 10A

* MFR stands for Multifocal Reflector Type ** MF stands for Maintenance Free

SCOOTER SAFETY IMPORTANT SAFETY INFORMATION

Hero RideSafe

Your scooter can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet on the road.

There is much that you can do to protect yourself when you ride. You will find many helpful recommendations through out this manual. Following are a few that we consider most important.

Always wear a helmet

It is a proven fact, Helmets significantly reduces the number and severity of head injuries. So always wear a helmet and make sure your pillion rider does the same. We also recommend that you wear eye protection, sturdy boots, gloves and other protective gear (page 5).

Make yourself easily visible

Some drivers do not see scooters because they are not looking for them. To make yourself more visible, wear bright reflective clothing, position yourself so that others can see you, signal before turning or changing lanes, and use horn which will help others to notice you.

Ride within your limits

Pushing the limits is another major cause of scooter accidents. Never ride beyond your personal abilities or faster than conditions demand. Remember that alcohol, drugs, fatigue and inattention can significantly reduce your ability to make good judgements and ride safely.

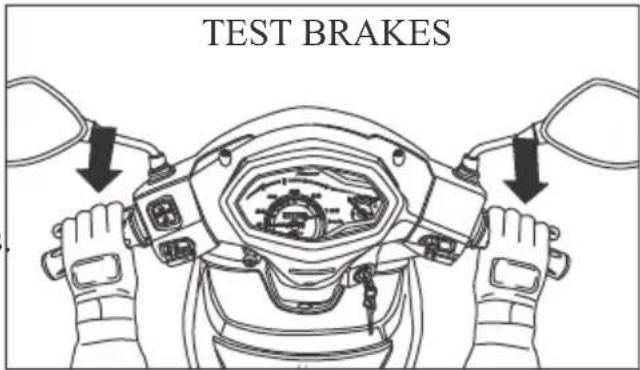

Keep your scooter in safe condition

For safe riding, its important to inspect your scooter before every ride and perform all recommended maintenance. Never exceed load limits, and use accessories that have been recommended by Hero MotoCorp for this vehicle. See (pages 7 & 8) for more details.

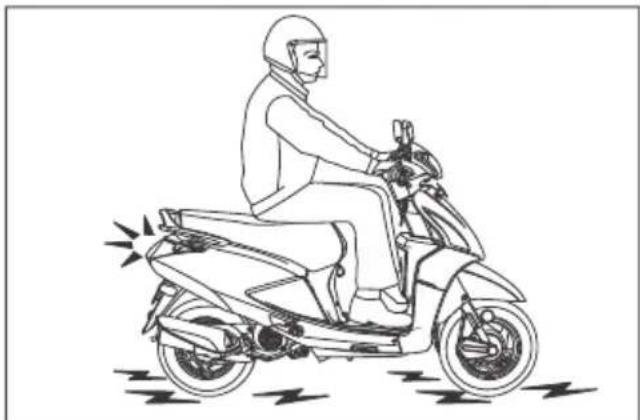

NOTE

To make yourself more visible, wear bright reflective clothing that fits well.

PROTECTIVE APPAREL

For your safety, we strongly recommend that you always wear an approved helmet (ISI marked), eye protection, boots, gloves, long pants and a long sleeve shirt or jacket whenever you ride. Take care of loose / hanging clothes while solo / pillion riding. Although complete protection is not possible, wearing proper gear can reduce the chance of injury when you ride.

Following are suggestions to help you choose proper riding gear.

WARNING

• Not wearing a helmet increases the chance of serious injury or death in a crash.
• Be sure you and your passenger always wear a helmet, eye protection and other protective apparel when you ride.

Helmets and eye protection

Your Helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright coloured helmet can make you more noticeable in traffic, as can reflective strips.

An open-face helmet offers some protection, but a full-face helmet offers more. Always were face shield or goggles to protect your eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection, we also recommend:

• Sturdy boots with non-slip soles to help protect your feet and ankles.
• Leather gloves to keep your hands warm and help prevent blisters, cuts, burns, and bruises.
• A two wheeler riding suit or jacket for comfort as well as protection. Bright coloured reflective clothing can help make you more noticeable in traffic. Be sure to avoid loose clothes that could get caught on any part of your scooter.

PROTECTIVE APPAREL

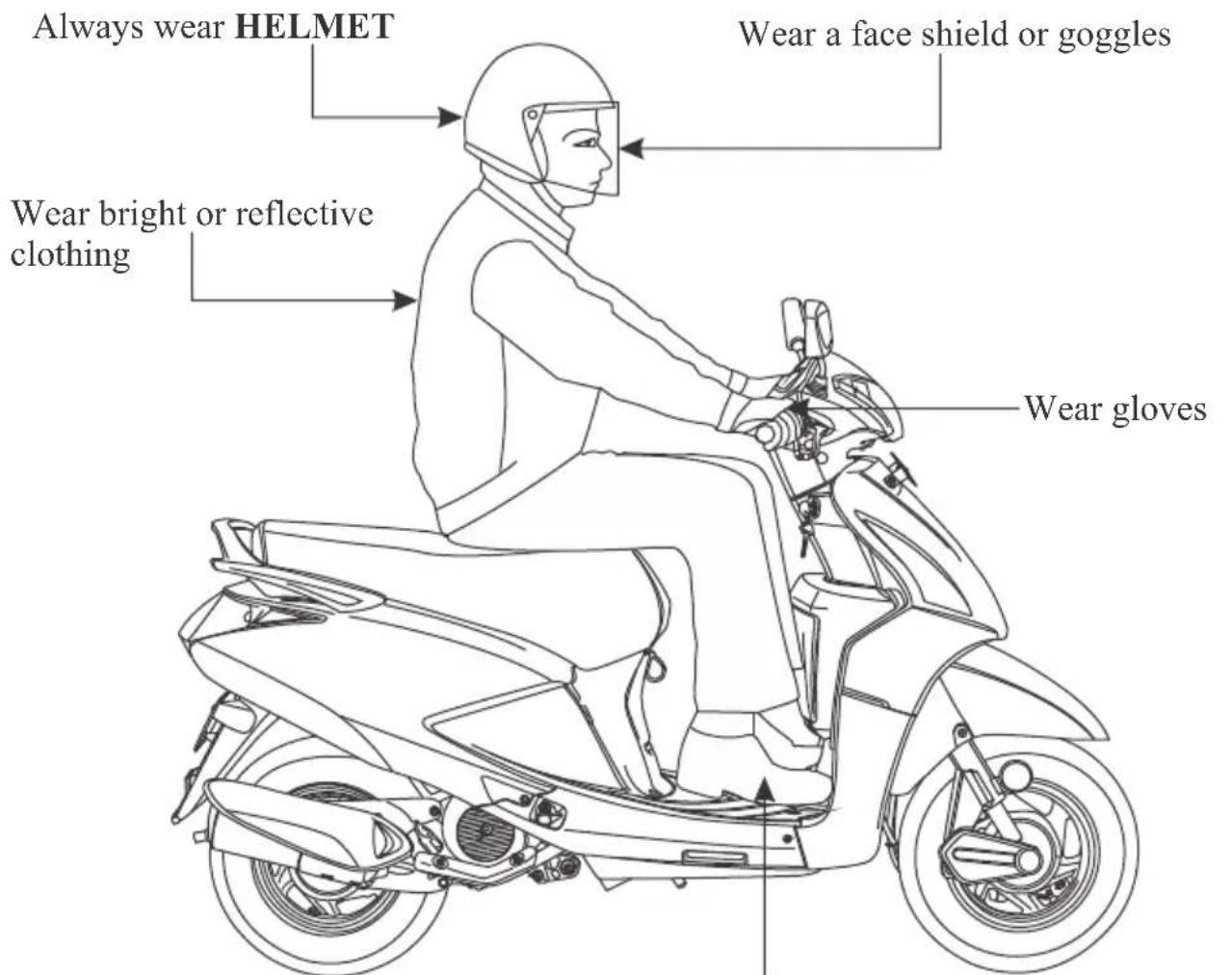

Always wear HELMET Wear a face shield or goggles Wear bright or reflective clothing Wear gloves

Shoes should be close fitting, low heels and offer ankle protection

LOAD LIMITS AND GUIDELINES

Your scooter has been designed to carry you, one pillion and limited amount of cargo. When you add cargo or carry a passenger, you may feel some difference during acceleration and braking. But so long as you keep your scooter well maintained, with good tyres and brakes, you can safely carry loads within the limits and guidelines.

However exceeding the weight limit or carrying an unbalanced load can seriously affect your scooter's handling, braking and stability. Non Hero

MotoCorp accessories, modifications, and poor maintenance can reduce your safety margin.

The following pages give more specific information on loading, accessories and modifications.

Loading

How much weight you put on your scooter, and how you load it, are important to your safety. Anytime you ride with a pillion or cargo you should be aware of the following information.

WARNING

• Overloading or improper loading can cause a crash and you can be seriously injured.
- Follow all load limits and other loading guidelines in this manual.

Load limits

Following are the load limits for your scooter:

Maximum weight capacity: 130 kg

Includes the weight of the rider, pillion, all cargo and all accessories.

Putting too much weight in individual storage compartments can also affect stability and handling. So be sure to stay within the limits given below :

Maximum weight :

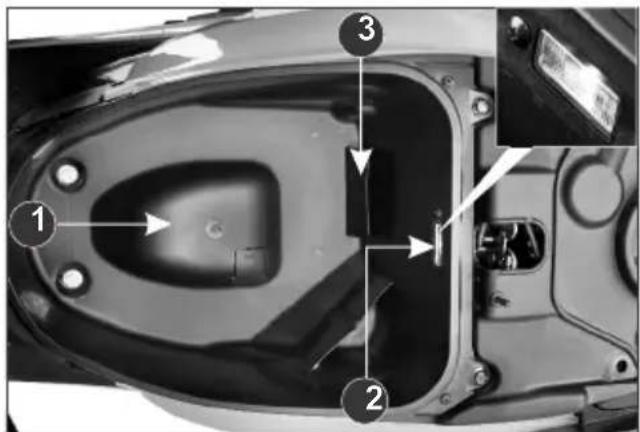

Center compartment :10.0 kg

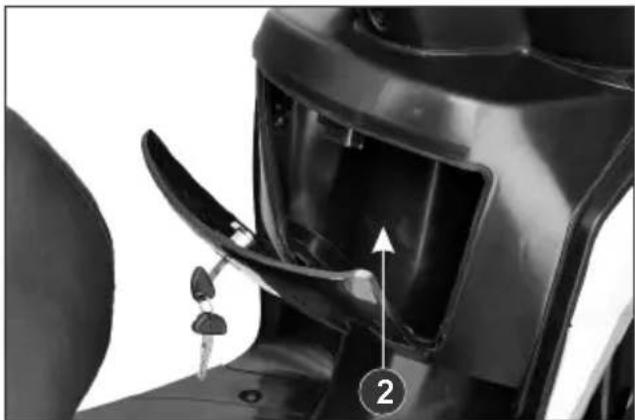

Front inner box : 1.5 kg

Luggage hook : 1.5 kg

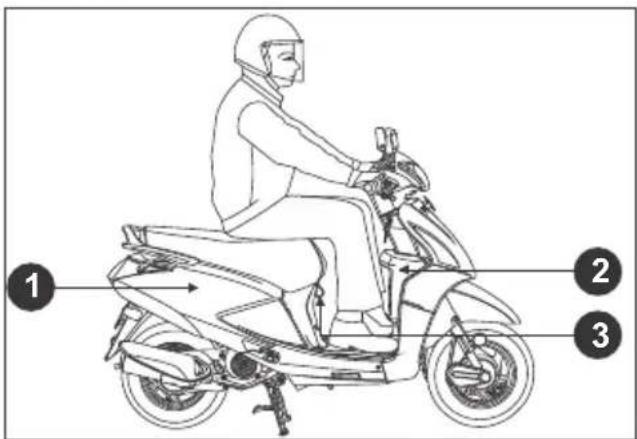

Diagram of a person riding an electric scooter with numbered parts labeled 1, 2, and 3.

(1) Center compartment (2) Front inner box
(3) Luggage Hook

Loading guidelines

Your scooter is primarily intended for transporting you and a pillion.

If you wish to carry more cargo, check with your Authorised Hero MotoCorp workshop for advice and be sure to read the information regarding accessories on (page 9).

Improperly loading your scooter can affect its stability and handling. Even if your scooter is properly loaded, you should ride at reduced speeds whenever carrying cargo.

Follow these guidelines whenever you carry a pillion or cargo:

• Check that both tyres are properly inflated.
• To prevent loose items from creating a hazard, make sure the center compartment is closed and that any other cargo is securely tide down before you ride away.
• Place cargo weight as close to the center of the scooter as possible.
  • Balance cargo weight evenly on both sides.

ACCESSORIES & MODIFICATIONS

Modifying your scooter or using non-Hero MotoCorp accessories can make your scooter unsafe. Before you consider making any modifications or adding any accessory, be sure to read the following information.

WARNING

Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed. Follow all instructions in this owner's manual regarding accessories and modifications.

Accessories

We strongly recommend that you use only genuine Hero MotoCorp accessories that have been specifically designed and tested for your scooter. Hero MotoCorp cannot test all other accessories, you must be personally responsible for proper selection, installation and use of non-Hero MotoCorp accessories. Check with your dealer for assistance and always follow these guidelines:

• Make sure the accessories does not obstruct any lamps, reduce ground clearance and banking angle, limit suspension travel or steering travel, alter your riding position or interfere with operating any controls.
• Be sure electrical equipment does not exceed the scooter's electrical system capacity (page 3). A blown fuse can cause loss of lights.
• Do not pull a trailer or sidecar with your scooter. This scooter is not designed for these attachments, and their use can seriously impair your scooter handling.

Modifications

We strongly advise you not to remove any original equipment or modify your scooter in any way that would change its design or operation. Such changes could seriously impair your scooter's handling, stability and braking, making it unsafe to ride.

Removing or modifying your lamps, muffler, emission control system or other equipment can also make your scooter not meeting the emission standards.

TIPS FOR HEALTHY ENVIRONMENT

The following tips shall ensure a healthy scooter, healthy environment, and a healthy you.

1. Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be tuned regularly, which will also help reduce pollution and improve vehicle performance.
2. Regular Servicing: Get your scooter serviced at an Authorised service station, as per the service schedule, for an optimum performance and keep the emission level under check.
3. Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or incompatible spares and accessories can upset or deteriorate your scooter's running condition.
4. Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil recommended by Hero MotoCorp and make sure you change it every 6000 kms. (with top up every 3000 kilometres) to keep the engine fit and environment healthy.
5. Noise Pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or defective mufflers, excessive noise will cause headaches and discomfort.
6. Emission Pollution: Get emission of your scooter checked by Authorised agencies at least once every 3 months or as notified by the government from time to time.
7. Fuel Saving & Reduce Pollution: Switch "OFF" the engine while waiting at traffic signal points to save fuel and reduce pollution, if the waiting period is long.

DESCRIPTION

Labeled diagram of a motorcycle head with numbered parts for identification and assembly reference.

(1) Choke knob
(2) Horn switch
(3) Turn signal switch
(4) Integrated brake lever
(5) Parking lever
(6) Rear view mirror
(7) Dimmer switch
(8) Odometer
(9) Speedometer

(10) Side stand indicator
(11) Hi-beam indicator
(12) Turn signal indicator
(13) Fuel gauge
(14) Headlamp switch
(15) Front brake lever
(16) Throttle grip
(17) Starter switch
(18) Ignition switch with steering lock

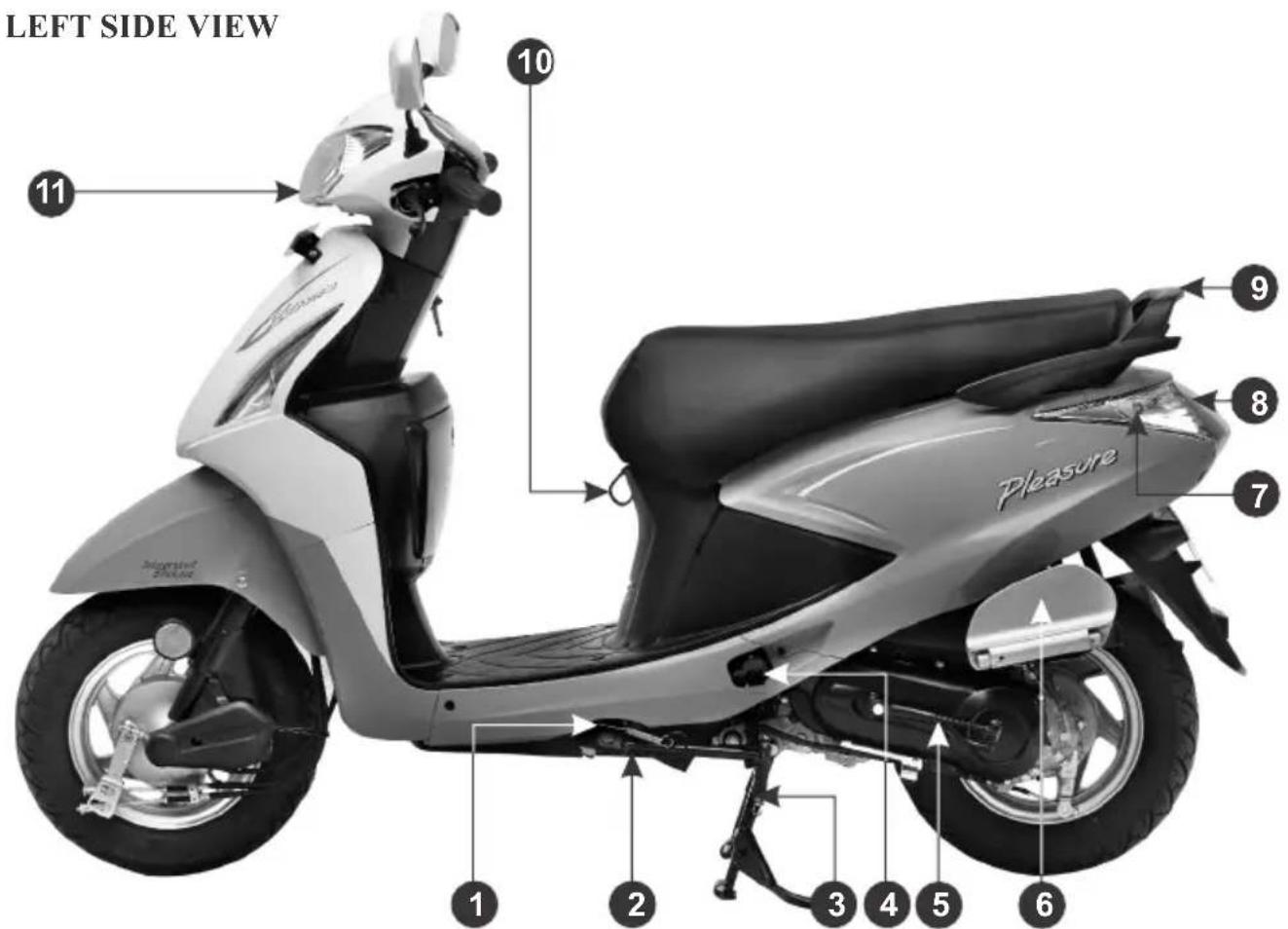

LEFT SIDE VIEW 10 9 8 7 Pleasure 1 2 3 4 5 6

(1) Side stand switch
(2) Side stand
(3) Main stand
(4) Pillion step
(5) Kick starter pedal

(6) Women pillion step (Optional)
(7) Rear turn signal lamp
(8) Tail/ stop lamp
(9) Rear grip
(10) Luggage hook
(11) Headlamp

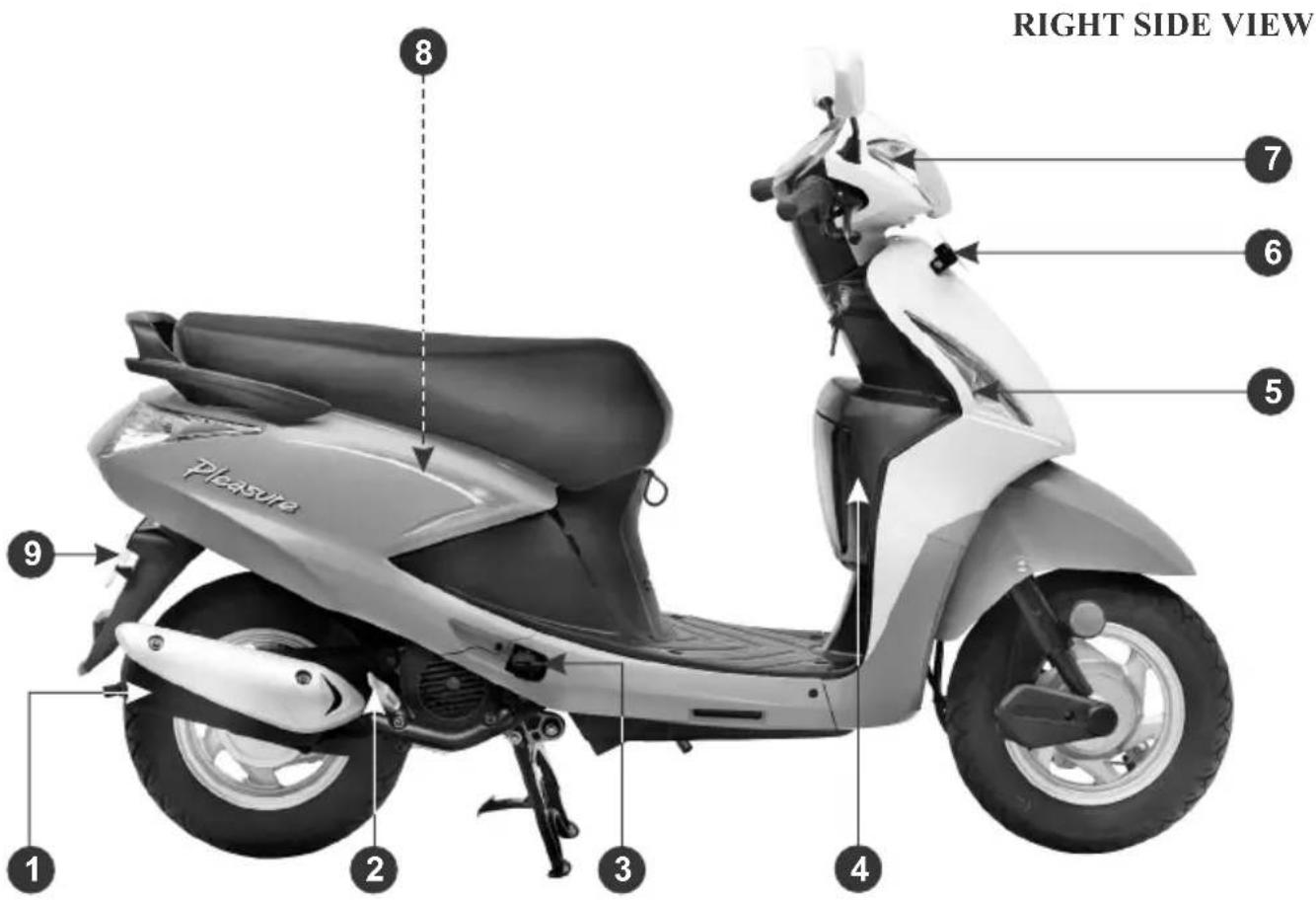

RIGHT SIDE VIEW 8 7 6 5 Pleasure 9 1 2 3 4

(1) Exhaust muffler
(2) Oil level dipstick
(3) Pillion step
(4) Front inner box

(5) Front turn signal lamp
(6) Front number plate
(7) Position lamp
(8) Center compartment (inside)
(9) Rear number plate

PARTS FUNCTION INSTRUMENTS AND INDICATORS

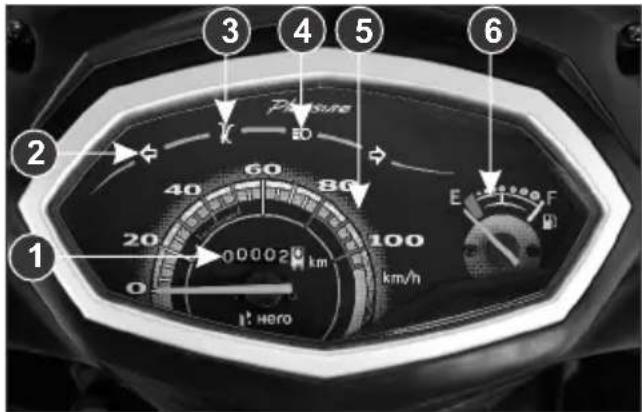

The indicators are in the speedometer panel above the headlamp. The functions are as below :

1 2 3 4 5 6 Pressure ED 40 60 80 E F 20 00002 km 100 km/h O 1° Hero

Sl. No.	Description Function
1	Odometer Shows accumulated mileage
2	Turn signal indicator	Flashes when turn signal switch is operated

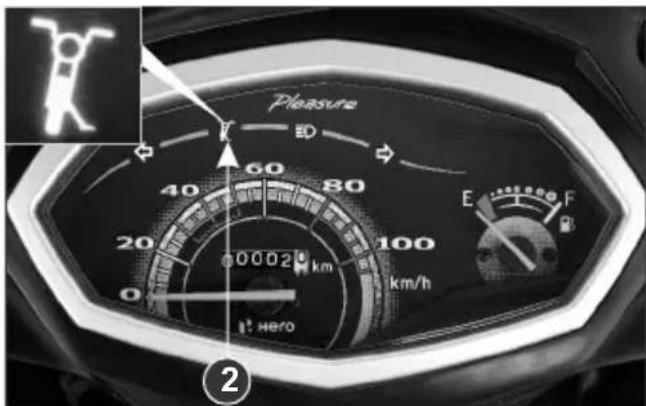

3	Side stand indicator	Light glows when the side stand is down
4	Hi beam indicator	Light glows when headlamp is in Hi beam
5	Speedometer Indicates driving speed
6	Fuel gauge Indicates approximate fuel quantity

FUEL GAUGE

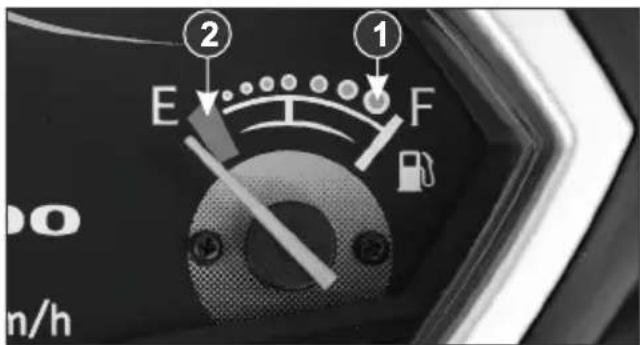

When the fuel gauge (1) needle enters the red band (2), fuel will be low and you should refill the tank as soon as possible. The amount of fuel left in the tank when the needle enters the red band is approximately 1.2 Litres.

E 2 1 F n/h

(1) Fuel gauge
(2) Red band

MAJOR COMPONENTS

(Information you need to operate this scooter)

BRAKES (Integrated braking)

Brakes are items of personal safety and should always be maintained with proper adjustments.

When one applies the left lever, front & rear brakes activate jointly.

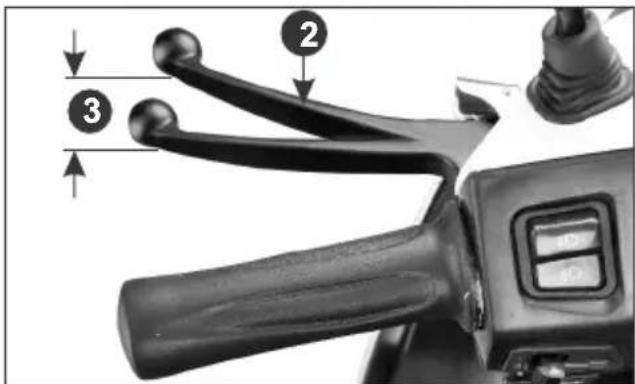

The distance, the front brake lever (1) and integrated brake lever (2) moves before each brake starts to engage is called free play (3).

Measured at the tip of brake levers, free play should be maintained at 10-20 mm.

Technical diagram showing three labeled parts of a mechanical tool or bracket with arrows indicating direction or movement.

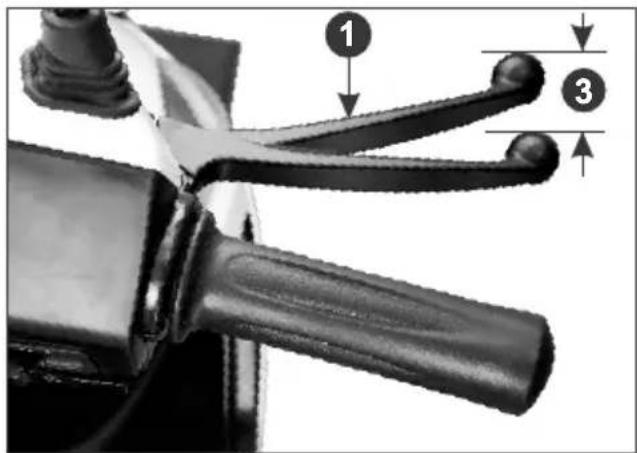

(1) Front brake lever
(3) Free play 10-20 mm

Diagram of a mechanical lever with labeled parts and directional arrows indicating motion or positioning.

(2) Integrated brake lever
(3) Free play 10-20 mm

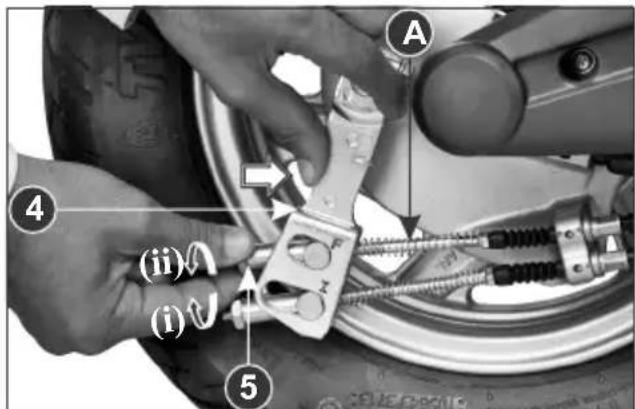

Adjustment:

Right hand front brake cable (A) on "F" side

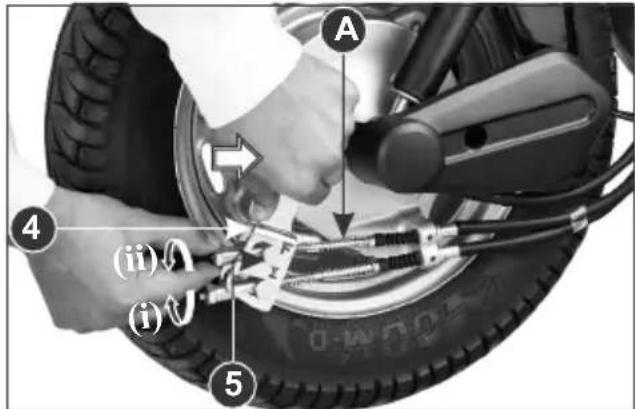

1. Push the integrated brake arm (4) by hand in the direction as shown.
2. Turn the first adjuster nut (5) till you cannot turn it by hand.

Cast Wheel Version

A (ii) (i) 5

(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play

Sheet Metal Wheel Version

A (ii) (i) 5

(4) Integrated brake arm (5) First adjuster nut

(I) Decrease free play (ii) Increase free play

NOTE

“F” & “I” is marked on integrated brake arm.

1. Check the free play of right lever.

FREE PLAY : 10-20 mm

1. If the free play is more than 20 mm further turn the adjuster nut to obtain desired free play.

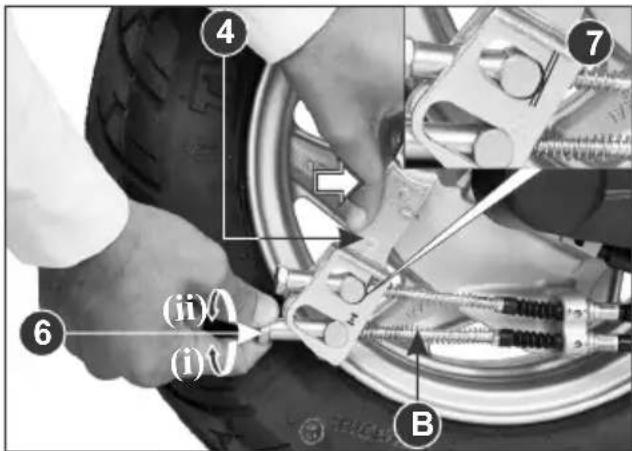

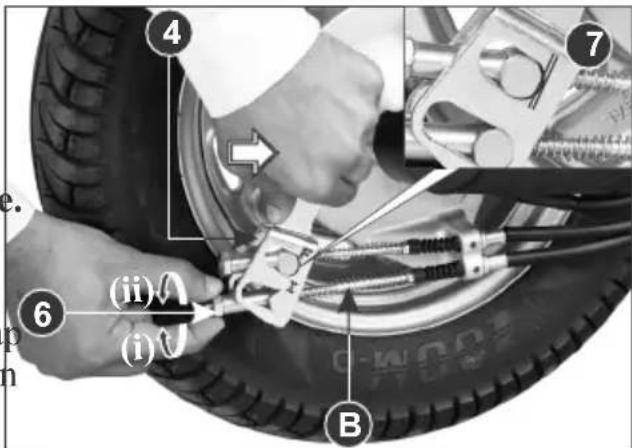

Left hand front brake cable (B) on "I" side.

1. Push the integrated brake arm (4) by hand in the direction as shown.

2. Turn the second adjuster nut (6) until a gap is created between joint (7) and the slot on the first side in integrated brake arm.

3. After ensuring the gap, turn the second adjuster nut counterclockwise by half rotation.

Cast Wheel Version

Mechanical diagram showing a car tire with labeled parts and tool tips, including numbered annotations (i) and (ii).

(6) Second adjuster nut
(I) Decrease free play (ii) Increase free play

Sheet Metal Wheel Version

Diagram showing car tire repair instructions with numbered labels and mechanical components

(6) Second adjuster nut
(I) Decrease free play (ii) Increase free play

Rear brake

1. Make free play adjustment by turning the adjuster nut (8) in the brake arm (9).
2. Check the free play of integrated brake lever.

FREE PLAY : 10-20 mm

1. If the free play is more than 20 mm further turn the adjuster nut to obtain desired free play.

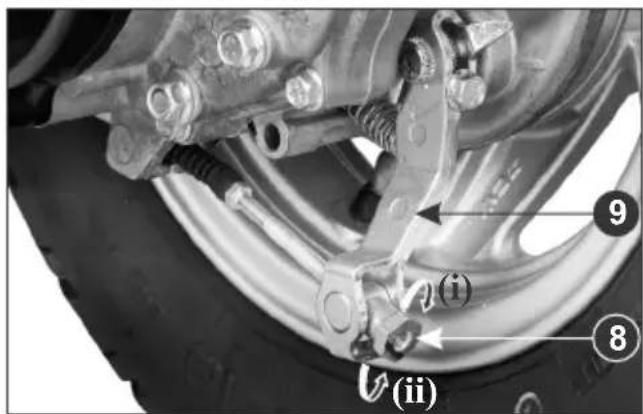

Cast Wheel Version

Technical diagram of a car brake system with numbered components and directional arrows indicating motion or assembly.

(8) Adjuster nut

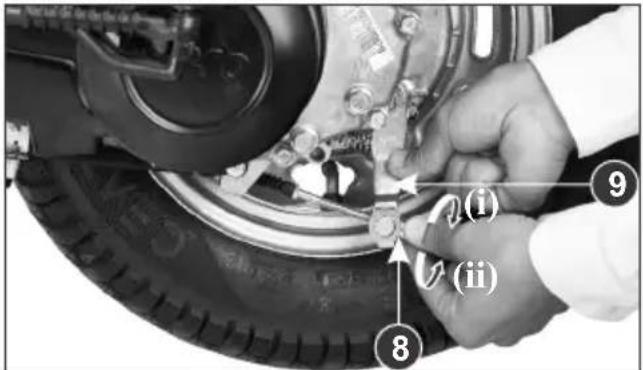

(9) Brake arm
(i) Decrease free play
(ii) Increase free play

Sheet Metal Wheel Version

Close-up of a car tire repair or maintenance procedure with numbered annotations indicating components and steps

(8) Adjuster nut
(9) Brake arm

(i) Decrease free play (ii) Increase free play Make sure the cut-out on the adjusting nut (1) is seated on the brake joint pin (2) after making final freeplay adjustment.

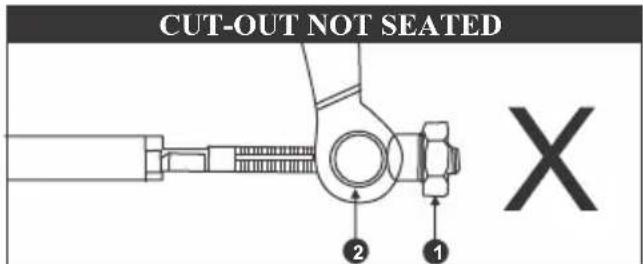

CUT-OUT NOT SEATED ② ① X

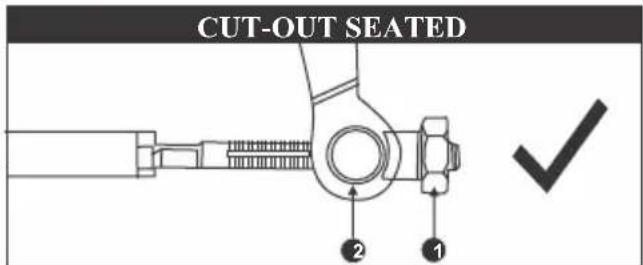

CUT-OUT SEATED ② ①

(1) Adjusting nut
(2) Brake joint pin

If proper adjustment cannot be obtained by this method, visit your Authorised Hero MotoCorp workshop.

Other checks:

Check brake cable for kinks or signs of wear that could cause sticking or failure. Make sure the brake arm spring and fasteners are in good condition.

NOTE

Apply the brake several times and check for free wheel rotation after the brake lever is released.

FUEL

Fuel tank

The fuel tank is located under the seat. The fuel tank capacity is 5.0 litres.

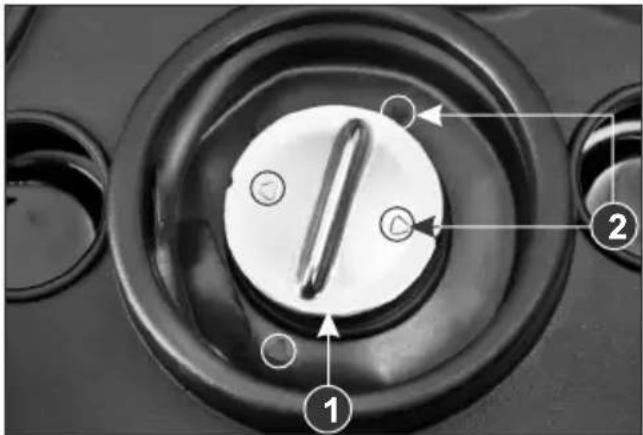

To open the fuel filler cap (1), unlock and lift up the seat (page 26), then remove the fuel filler cap by turning it counterclockwise.

Do not overfill the tank. There should be no fuel in the filler neck (3).

After refueling, be sure to tighten the fuel filler cap firmly by turning it clockwise.

Make sure the arrow marks (2) on the fuel filler cap and the fuel tank are aligned.

Close-up of a mechanical knob with numbered annotations pointing to specific parts, likely for assembly or inspection purposes.

(1) Fuel filler cap
(2) Arrow Marks

3 4

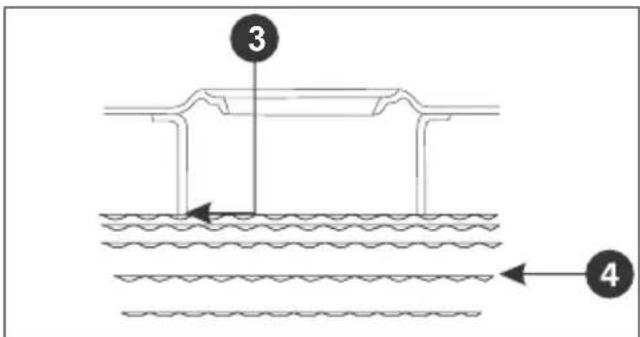

(3) Filler neck
(4) Fuel

We recommend that you use unleaded petrol because the muffler in the scooter is fitted with a catalytic convertor, it also produces lesser deposits in engine and on spark plug, which extends the life of exhaust system and other components.

NOTE

If "Spark knock" or "pinking" occurs at a steady engine speed under normal load, change petrol brand. If the same still persists, consult your Authorised Hero MotoCorp workshop. Failure to do so is considered misuse, and damage caused by misuse is not covered under Hero MotoCorp warranty policy.

Petrol containing alcohol

If you decide to use a petrol containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by Hero MotoCorp.

There are two types of "gasohol", one containing ethanol, and the other containing methanol.

Do not use petrol that contains more than 10% of ethanol.

Do not use petrol containing methanol (methyl or wood alcohol) that does not contain cosolvents and corrosion inhibitors for methanol.

Never use petrol containing more than 5% methanol, even if it has cosolvents and corrosion inhibitors.

• When certain type of petrol containing alcohols are used, problems such as hard starting, poor performance, etc. may occur.
• If you notice any undesirable operating symptoms while using the petrol that contains alcohol, try another station or switch to another brand of petrol.
• When a problem resulting from the use of petrol containing alcohol occurs, contact your Authorised Hero MotoCorp workshop.

CAUTION

- Please note that the approximate quantity of petrol is 1.2 litres in the fuel tank, once the fuel level indicator reaches the red band in the fuel gauge.

•Please fill petrol once the fuel level indicator reaches the red band.

WARNING

Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks and flame away.
  • Refuel only outdoors.
• Wipe off spills immediately.

TYRES (TUBELESS)

The tyres fitted on your scooter are of TUBELESS type.

To safely operate your scooter, your tyres must be of the proper type and size in good condition with adequate tread and correctly inflated for the load you are carrying. The following pages give more detailed information on how and when to check the air pressure, how to inspect your tyres for damage and what to do when your tyres need to be repaired or replaced.

WARNING

• Using tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
• Follow all instructions in this owner's manual regarding tyres inflation and maintenance.

Air pressure

Keeping your tyres properly inflated provides the best combination of handling, tread life and riding comfort. Generally, under-inflated tyres wear unevenly, adversely affect handling and are more likely to fail from being overheated.

Over-inflated tyres make your scooter ride harshly are more prone to damage from road hazards and wear unevenly.

We recommend that you visually check your tyres before every ride and use a gauge to measure air pressure at least once a month or any time you think the tyre pressure might be low.

Tubeless tyres have some self-sealing ability if they are punctured. However, because leakage is often very slow, you should look closely for punctures whenever a tyre is not fully inflated.

Always check air pressure when your tyres are "cold" - when the scooter has been parked for at least three hours. If you check air pressure when your tyres are "warm" - when the scooter has been ridden for even a few kms - the readings will be higher than if the tyres were "cold". This is normal, so do not let air out of the tyres to match the recommended cold air pressures given below. If you do, the tyres will be under-inflated.

The recommended "cold" tyre pressures are:

	Rider only	Rider and Pillion
Front	1.50 kgf/cm2or 22 psi	1.50 kgf/cm2or 22 psi
Rear	2.00 kgf/cm2or 29 psi	2.50 kgf/cm2or 36 psi

Close-up of a hand adjusting a tire with a pressure gauge, no visible text or symbols

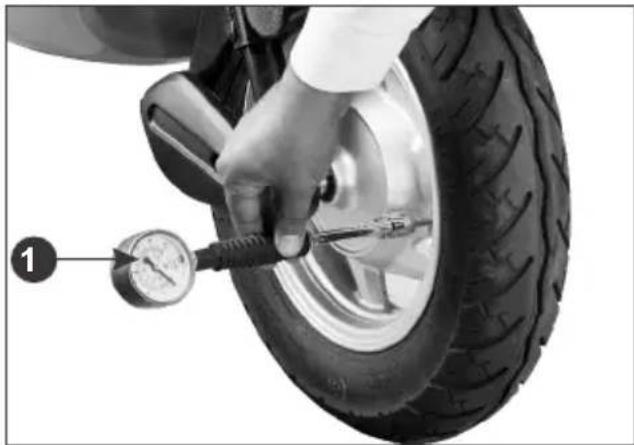

(1) Air Pressure Gauge

CAUTION

Over inflation / Under inflation will affect the performance.

Inspection

Whenever you check the tyre pressure, you should also examine tyre treads & side walls for wear, damage & foreign objects.

Look for :

Bumps or bulges in the side of the tyre

- or the tread. Replace the tyre if you find any bumps or bulges.

Cuts, splits or cracks in the tyre. Replace

• the tyre if you can see fabric or cord.

Excessive tread wear.

• Carefully inspect the tyres for any

- damage, if the scooter hits a pothole or hard object.

Tread wear

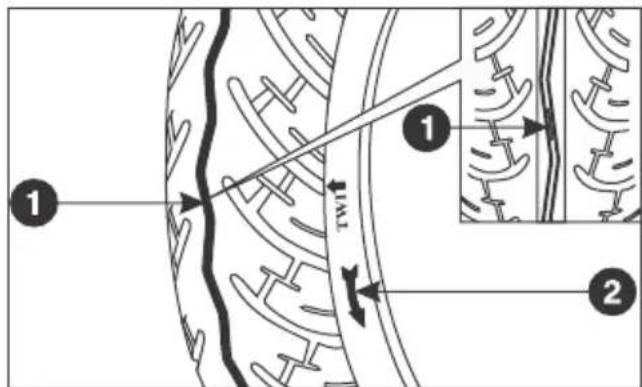

Replace tyres immediately when the wear indicator (1) appears on the tyre. The tread limits are :

Minimum tread depth: Front: 1.5 mm

Rear: 1.5 mm

Check the tread wear indicator for tyre wear.

Technical diagram showing mechanical components with numbered annotations and directional arrows indicating motion or flow.

(1) Tyre wear indicator

(2) Arrow mark

Unidirectional tyres

Whenever the tyre is removed and put back in case of puncture, ensure the arrow mark on the tyre is in the same direction as that of forward rotation of wheel.

Tyre repair

Repairing a puncture or removing a wheel requires special tools and technical expertise. If a tyre is punctured or damaged, it is advised to visit nearest tyre manufacture, authorised Hero MotoCorp dealer/workshop or the tyre repair shop who has expertise in repairing methods of tubeless tyre.

A tyre that is repaired either temporarily or permanently, will have lower speed and performance limits than a new tyre. After an emergency repair, always have the tyre inspected/replaced at our authorised dealer and replace the tyre if suggested.

You should not exceed 70 km/hour for the 1st 24 hours or 105 km/hour at any time thereafter. In addition, you may not be able to safely carry as much load as with a new tyre.

If you decide to have a tyre replace be sure the wheel is balanced before you ride.

Tyre replacement

The tyres that were installed on your scooter were designed to match the performance capabilities of your scooter and provide the best combination of handling, braking, durability and comfort.

WARNING

• Using tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt and killed.
• Operation with excessively worn tyres is hazardous and will adversely affect traction and handling.
• Follow all instruction in this owner's manual regarding tyre inflation and maintenance.
• Under-inflation may result in the tyre slipping on or tyre coming off the rim.
  • Always use the size and type of tyres recommended in this owner's manual.

The recommended tyre for your scooter are :

Front: 90/100 x 10 -53J (Tubeless Tyre)

For repair and replacement of tyre it is advised to visit your Authorised Hero MotoCorp workshop.

Important safety reminders

• Do not install a tube inside a tubeless tyre on this scooter. Excessive heat buildup can cause the tube to burst.
• Use only tubeless tyres on this scooter. The rims are designed for tubeless tyres and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.

ESSENTIAL INDIVIDUAL COMPONENTS IGNITION SWITCH

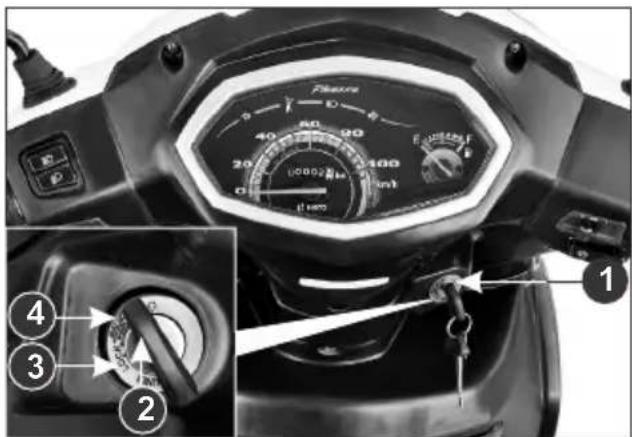

The ignition switch (1) is on the right side below the steering.

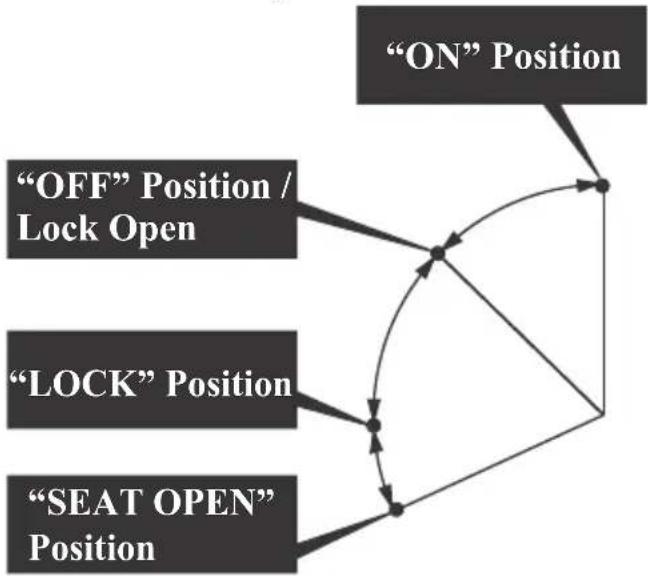


Close-up of a scooter front panel with labeled parts and a close-up inset showing the steering wheel dial and key adjustment.

(1) Ignition switch
(2) Ignition key
(3) Steering lock position
(4) Seat open

Key Position	Function	Key removal
"ON"	The engine can be started, winkers, horn, stop lamp and fuel gauge can be operated	Key cannot be removed
"OFF"	Engine cannot be started and cannot be opened	Key can be removed
“LOCK”	Steering can be locked	Key can be removed
“SEAT OPEN”	Seat can be open by rotating the key anticlockwise.	Key can be removed

RIGHT HANDLEBAR CONTROLS

1. Headlamp switch

The switch has two positions.

“☀️”, “💡” and “○” marked by white dot.

Position	Action
	“OFF”
	Following is “ON”• Position lamp• Tail / Stop lamp• Fuel gauge lamp• Speedometer lamp
	Headlamp “ON”

The Headlamp operates only when the engine is running.

2. Starter switch

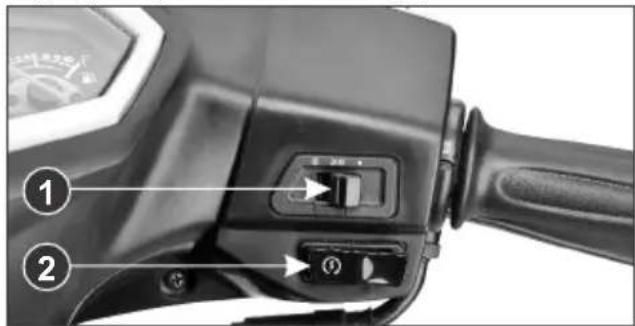

The starter switch (2) is next to the throttle grip.

When the starter switch is pressed, the starter motor cranks the engine. See (page 35) for the starting procedure.

Close-up of a scooter control panel with labeled buttons and adjustment knob

(1) Headlamp switch
(2) Starter switch

LEFT HANDLEBAR CONTROLS

1. Dimmer switch

Press the switch upwards for High Beam and downwards for Low Beam.

2. Turn signal switch

Shift the turn signal switch sideways for Right/Left indications and leave it to come back to its normal position on its own.

IMPORTANT : To switch "OFF" the turn signal after completing the turn, gently push inside as directed on the switch.

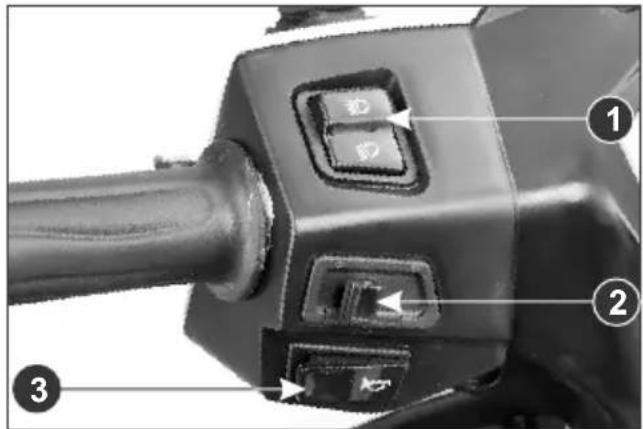

3. Horn switch

Press the switch to operate the horn.

Close-up of a mechanical component with labeled buttons and ports, showing numbered parts 1, 2, and 3.

(1) Dimmer switch
(2) Turn signal switch
(3) Horn switch

FEATURES

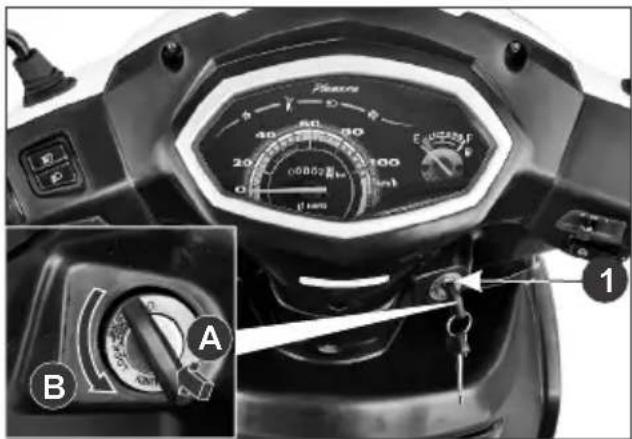

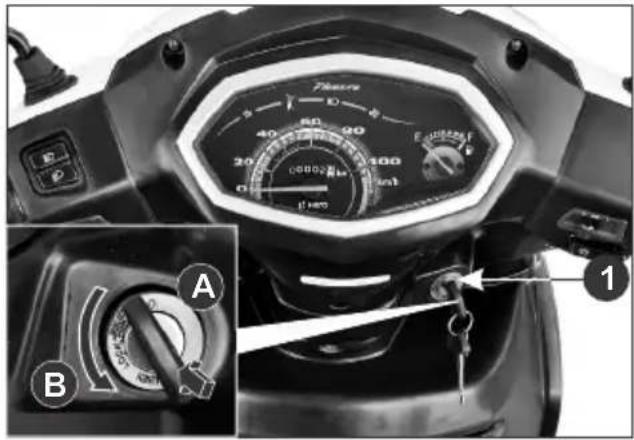

STEERING LOCK

To lock the steering, turn the handle bar all the way to the left, turn the key (1) to "LOCK" position while pushing in and remove the key.

Pione 40 80 90 100 20 (0.00025km) (1km) A B 1

(1) Ignition switch
(A) Push in
(B) Turn to lock

CAUTION

Do not try to turn the key to "LOCK" position while riding the scooter, which may lead to loss of vehicle control.

SEAT LOCK

The seat lock is provided along with the ignition switch (1).

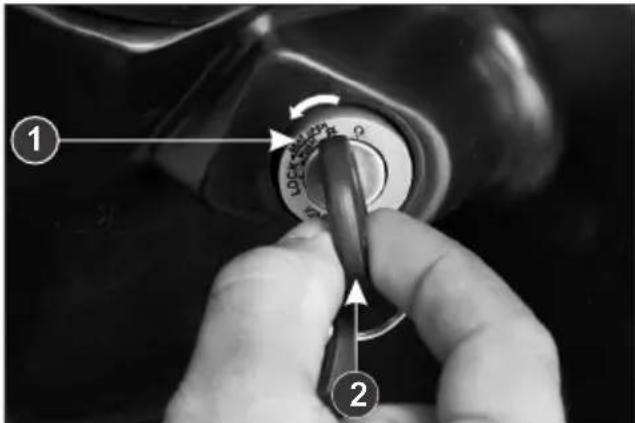

To lift the seat, insert the key (2) and turn it anti-clockwise to unlock the seat. The seat will release from its latch.

To lock the seat, push down until it locks. Make sure the seat is secure before riding.

Close-up of a hand holding a rotary knob with labeled parts and directional arrows indicating rotation or adjustment.

(1) Ignition switch

(2) Ignition key

CAUTION

Gently close the seat by hand. Sudden dropping of the seat may result in breaking the seat lock and malfunction of the lock.

CENTER COMPARTMENT

The center compartment (1) is below the seat. A boot lamp (2) is provided in the center compartment. This boot lamp will be functional only when the seat is open.

Opening and closing the Seat Lock, see (page 26).

MAXIMUM WEIGHT LIMIT: 10 kg

Never exceed the maximum weight limit, handling and stability may be severely affected.

The center compartment may become heated by the engine. Do not store food and other articles which are flammable or susceptible to heat damage

Do not direct pressurised water spray against the center compartment as water may enter into the compartment.

Technical diagram of a car door panel with numbered components and an inset showing a close-up view of the component.

(1) Center compartment (2) Boot lamp

(3) Document compartment

The document compartment (3) and first aid kit / tool kit holder (4) is located in the center compartment below the seat.

The owner's manual, other documents, first aid kit/ tool kit can be stored in it.

NOTE

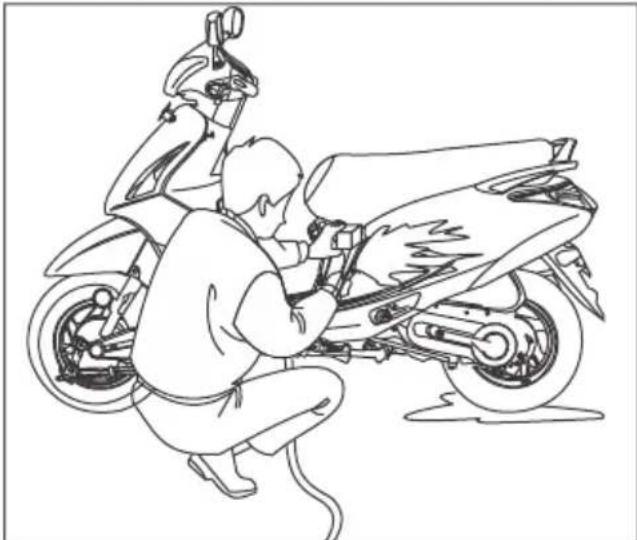

When washing your scooter, be careful not to flood this area with water.

Close-up of a car engine compartment with a bag labeled 'HERO' and an arrow pointing to it, no readable text or symbols beyond the label.

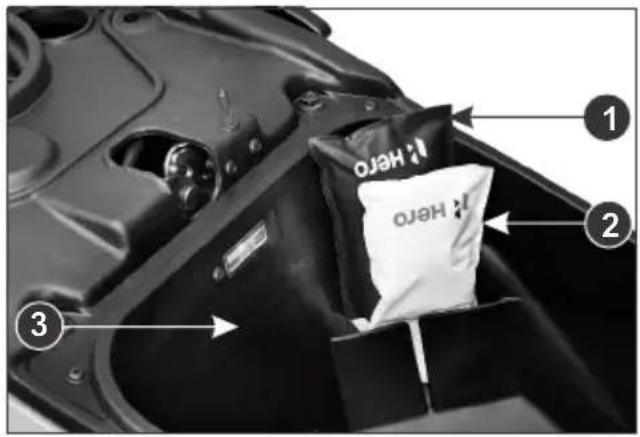

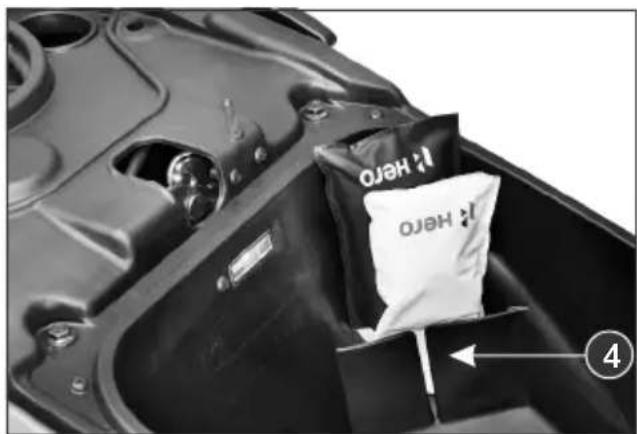

(4) First aid kit / Tool kit holder

CAUTION

Before the vehicle is pressure washed the items kept inside the center compartment should be removed to prevent consequential damage.

LUGGAGE HOOK

The luggage hook (1) is provided at the front of the rider.

MAXIMUM WEIGHT LIMIT : 1.5 kg

Do not hang large luggage to the hook, that would hang out from the scooter and or interfere with the movement of your feet.

Technical diagram showing a mechanical clamp device with labeled component '1' and an inset detail view of the clamp mechanism.

(1) Luggage hook

FRONT INNER BOX

The front inner box (2) is provided on the inner cover to carry some valuable items, documents, etc.

MAXIMUM WEIGHT LIMIT: 1.5 kg

Never exceed the maximum weight limit of the front inner box otherwise handling and stability may be severely affected.

Close-up of a scooter's seat assembly showing key inserted and part opening (no text or symbols visible)

(2) Front inner box

MOBILE CHARGING SOCKET

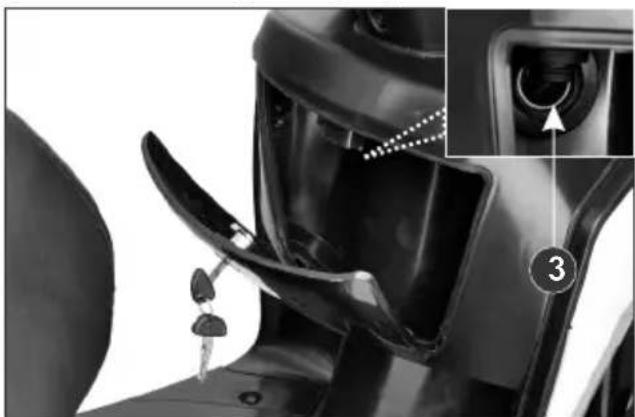

Mobile charging socket (3) is provided in the front inner box (2) to charge the mobile during a ride, so that your mobile is safely protected during charging.

Close-up of a car's front seat and dashboard compartment with key inserted, showing internal components and a numbered inset (no text or symbols)

(3) Mobile charging socket

BOOT LAMP

A boot lamp (1) is provided in the center compartment. This boot lamp will be functional only when the seat is open.

Opening and closing the Seat Lock, see (page 26).

Interior view of a vehicle's internal components, showing labeled parts and an inset view of a car (no text or symbols present)

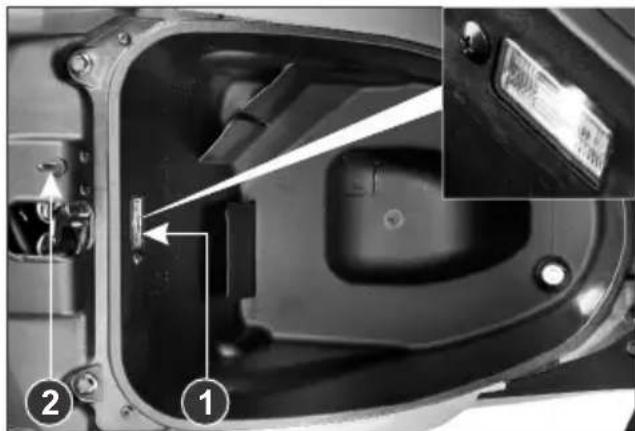

(1) Boot lamp
(2) Switch

BOOT LAMP SWITCH

A automated switch (2) is provided on the center compartment, which enables the boot lamp to glow when the seat is in open condition and goes off automatically when the seat is closed.

SIDE STAND INDICATOR

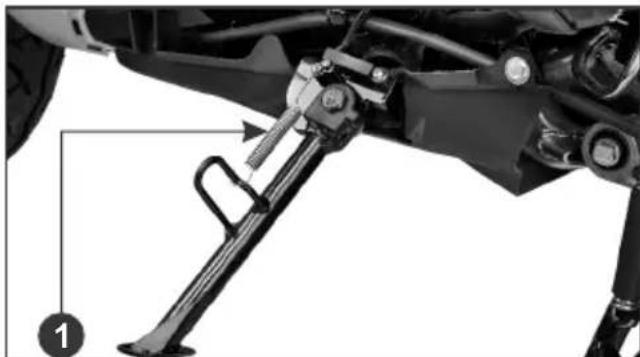

For the safety of the customer a side stand indicator (1) is provided.

If the side stand is down (Ignition switch "ON"), an indicator lamp glows in the speedometer panel. Side stand switch

Pleasure ID 60 80 40 20 100 0 0 0 0 20 km km/h E F 1: Hero

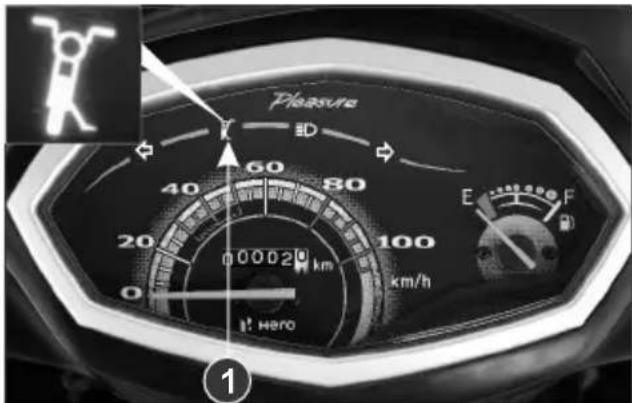

(1) Side stand indicator

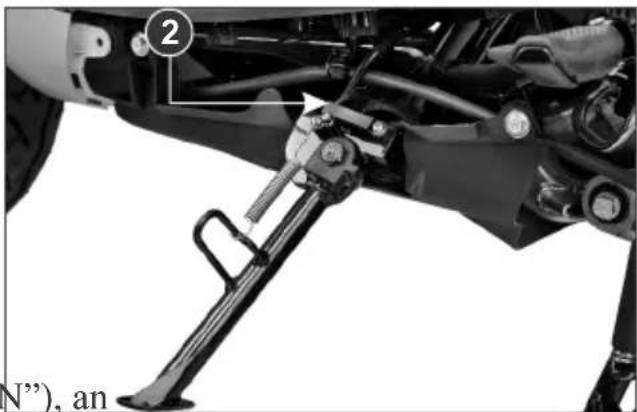

SIDE STAND SWITCH

A side stand switch (2) is provided on the side stand, if the side stand is down (Ignition switch “ON”), the switch enables the side stand indicator lamp to glow on the speedometer panel.

② N"), an

BODY PARTS REMOVAL

Center compartment

Removal

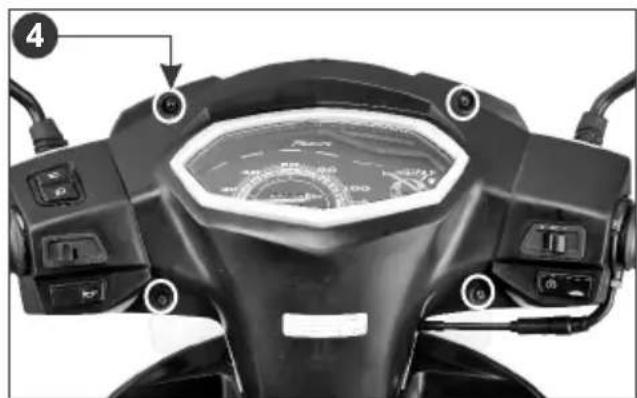

1. Open the seat (page 26)

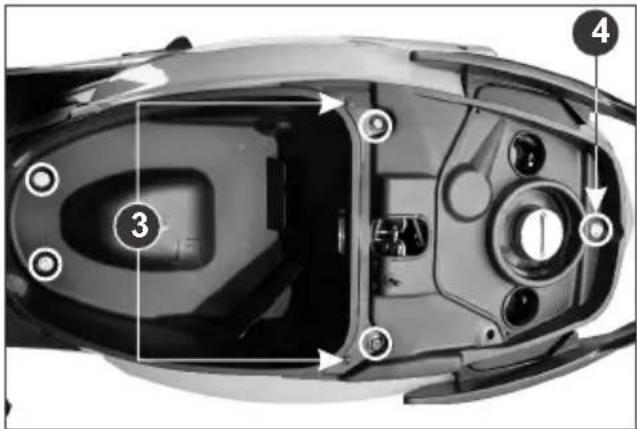

2. Remove screws/washers (1) from both sides of the body cover (2).
3. Remove screws/washers (3) from the center compartment.
4. Remove the bolts (4).
5. Slightly lift up the center compartment from the rear and disconnect the boot lamp connector (5).
6. Remove the center compartment (6).

PLESSIO 1 2

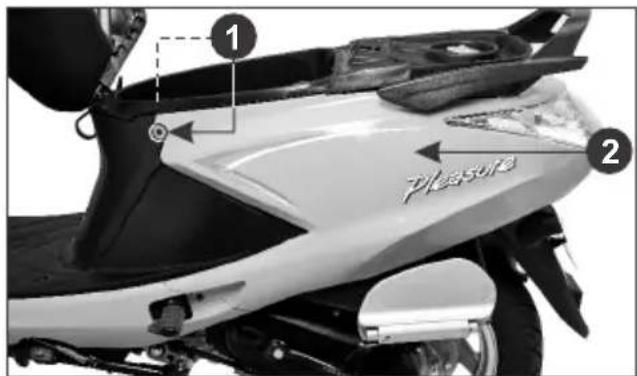

(1) Screws
(2) Body cover

Top-down diagram of a car's front engine compartment with numbered parts and directional arrows indicating components.

(3) Screws

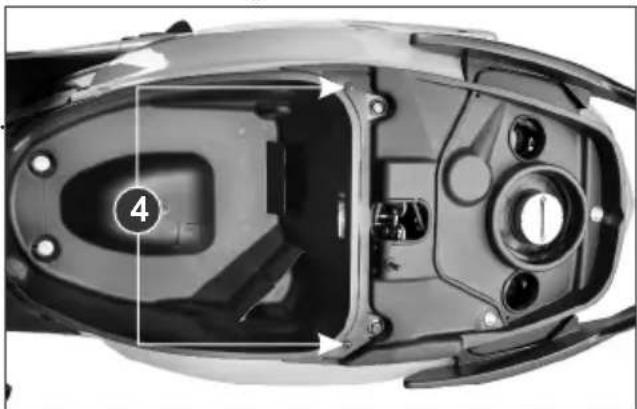

(4) Bolts

Close-up of a car engine bay with numbered annotations pointing to parts of the hood and engine compartment

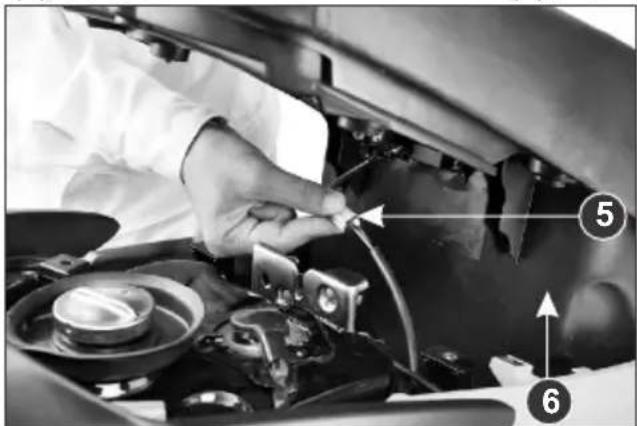

(5) Boot lamp connector (6) Center compartment

Installation

Installation can be done in the reverse order of removal.

NOTE

Park the scooter on its main stand when servicing the scooter with the center compartment removed.

Body cover

Removal

1. Open the seat (page 26)
2. Remove the screws/washers (1) from rear center cover and remove the cover (2)

Technical diagram of a car's front and rear components with numbered labels pointing to key parts.

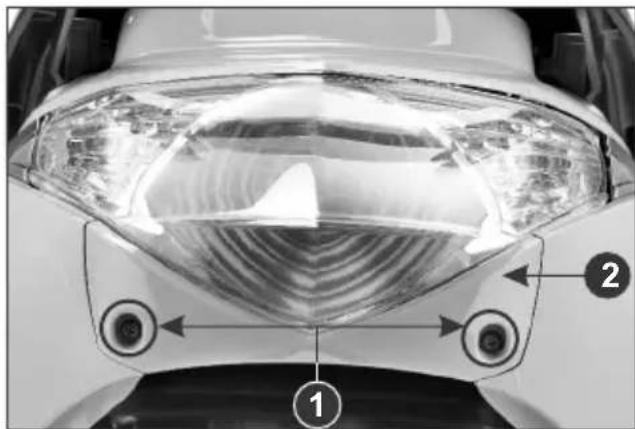

(1) Screws/washers (2) Rear center cover

Close-up of a car's head with transparent glass lens and mounting fixtures (no visible text or symbols)

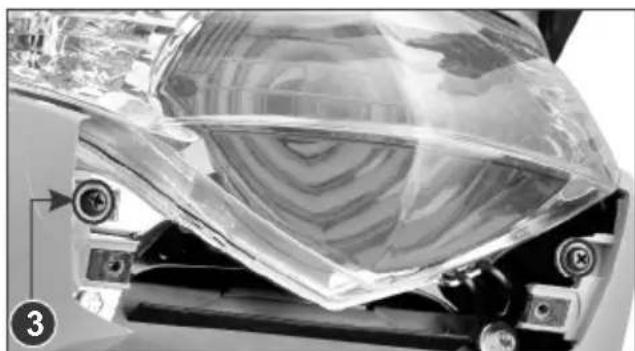

(3) Screws

1. Remove the screws/washers (3) from the rear side of the body cover.

2. Remove the screws/washers (4) from the center compartment.

Top-down view of a car's internal engine compartment with labeled parts (no text or symbols beyond numbers)

(4) Screws/washers

1. Remove the screws/washers (5) from both the side of the body cover (6).

5 Pleasure 6 7

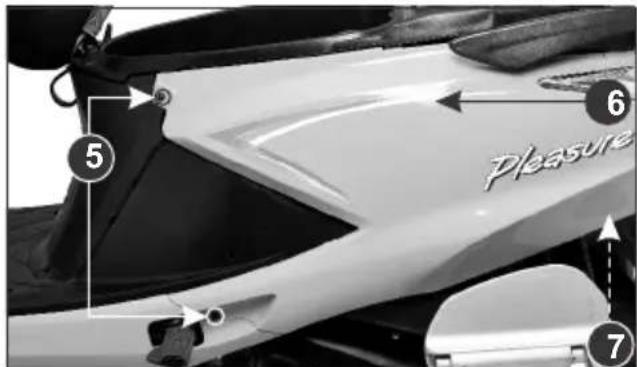

(5) Screws/washers (6) Body cover (7) Clip

1. Remove the clip (7) from both the side of the vehicle.
2. Remove the body covers.

Installation

Installation can be done in the reverse order of removal.

NOTE

Park the scooter on its main stand when servicing the scooter with the body cover removed.

Center cover

Removal

1. Open the seat (page 26)
2. Remove screws/washers (1) from left and right side body cover.
3. Remove screws (2) from center cover.
4. Remove the center cover.

Installation

Installation is in the reverse order of removal.

Technical diagram of a mechanical component with numbered annotations indicating parts of the body and edge.

(1) Body cover screws/washers
(2) Center cover screws

Front upper cover

Removal

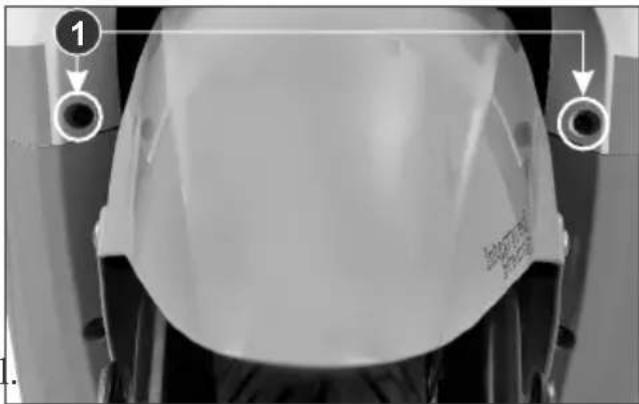

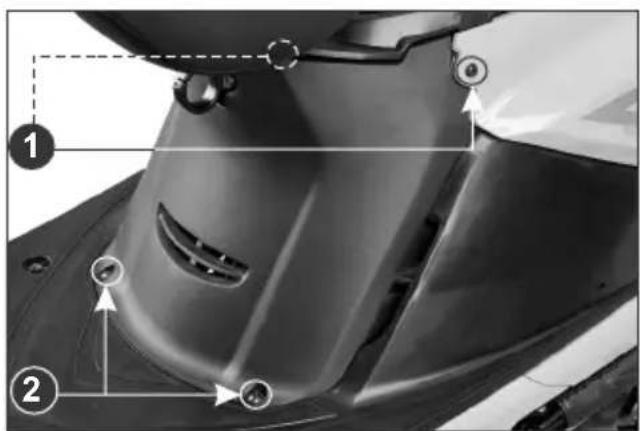

1. Remove screws/washers (1) from the front end of the scooter.

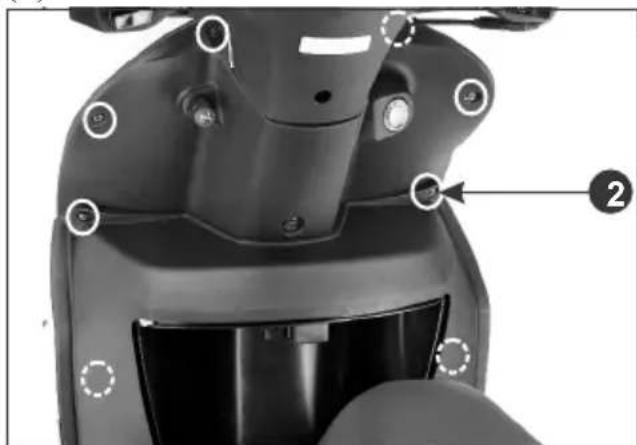

2. Remove screws/washers (2) from the front inner box side and from the inner side of the box.

1 2000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

(1) Screws/washers

Close-up of a motorcycle's front panel and side panel with numbered annotations (no readable text or symbols)

(2) Screws/washers

1. Disconnect the left and right turn signal lamp wiring connector (3) from the front upper cover (4).

Black-and-white photo showing a person in protective gear working on an automotive engine component with numbered annotations (3 and 4)

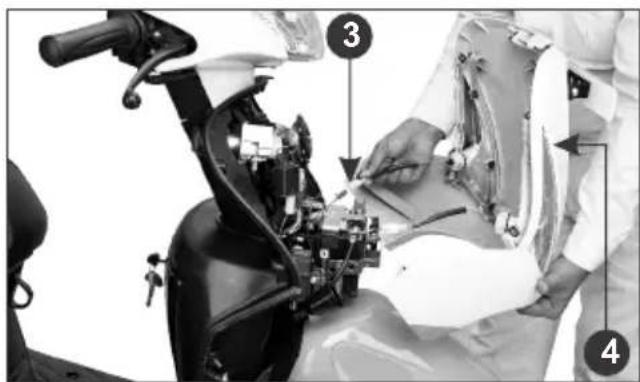

(3) Connector
(4) Front upper cover

Installation

Installation can be done in the reverse order of removal.

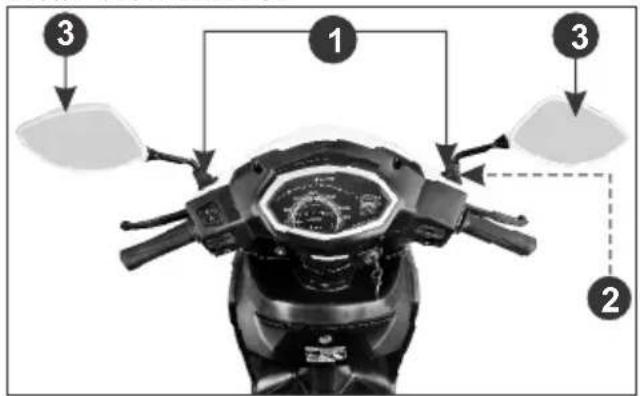

Rear view mirror

Diagram of a motorcycle's front wheel and side mirror with numbered labels indicating parts of the head and blade.

(1) Dust cover
(2) Lock nut
(3) Rear view mirror

Removal

1. Slide the dust cover (1).
2. Loosen the lock nut (2) until it will no longer turn.
3. Loosen the rear view mirror (3) and remove it.

Installation

1. Install the rear view mirror until it will no longer turn.
2. Loo sen the rear view mirror approximately 2 turns.
3. Adjust the rear view mirror.
4. Tighten the lock nut.

NOTE

To open the right side rear view mirror the threads are to be loosened in clockwise direction and tightened in counter clockwise direction.

Headlamp case

Removal

1. Remove the rear view mirror.

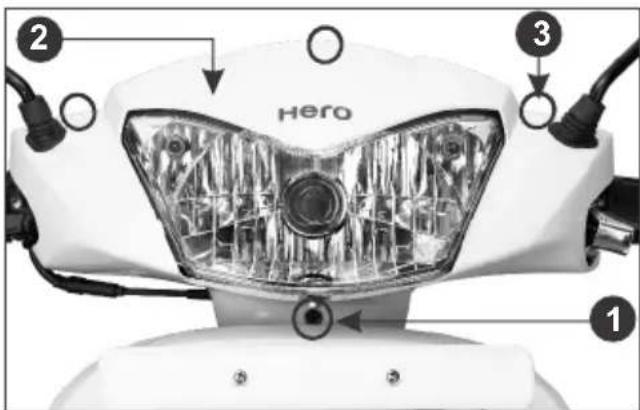

2. Remove screw (1).

2 Hero 3 1

(1) Screw
(2) Headlamp case
(3) Tabs

1. Remove the screws (4).

2. Pull the headlamp case (2) slightly up, carefully release the tabs (3) from the slots.

Top-down view of a scooter's front bumper with labeled parts and control buttons

(4) Screws

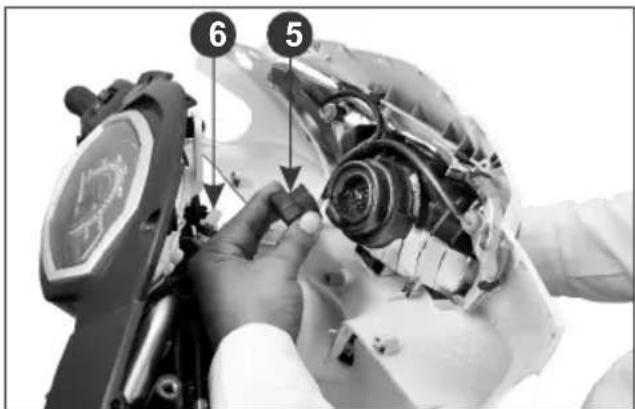

1. Disconnect the headlamp connector (5), position lamp connector (6) and remove the headlamp case.

6 5

(5) Headlamp connector
(6) Position lamp connector

Installation

Installation can be done in the reverse order of removal.

Headlamp focus

Vertical adjustment

Headlamp focus is factory preset.

However in case of adjustment required please follow the steps as given below.

A B 1

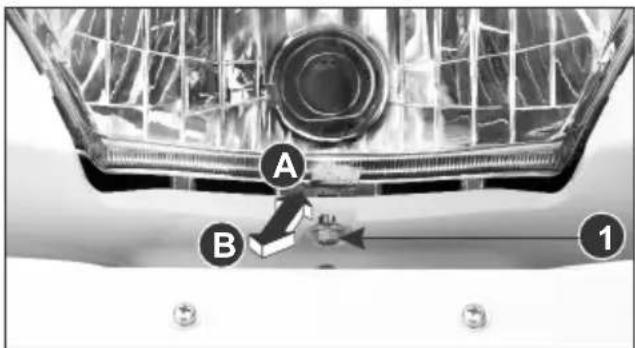

(1) Bolt
(A) Up
(B) Down

1. Park the scooter on main stand on a level ground in front of a wall.
2. Loosen the bolt (1) and move the headlamp up or down for correct focus.

WARNING

An improperly adjusted headlamp may blind oncoming driver or it may fail to light the road for safe distance.

OPERATIONS

PRE-RIDE INSPECTION

For your safety, it is very important to take a few moments before each ride to walk around your scooter and check its condition. If you detect any problem, be sure you take care of it or have it corrected by your Authorised Hero MotoCorp workshop.

WARNING

• Improper maintenance or failing to correct a problem before riding can cause a crash in which you can be seriously injured.

• Always perform a pre-ride inspection before every ride and correct if any problem.

• Engine oil level- Add engine oil if required (page 53). Check for leaks.

• Fuel level - Fill fuel tank when necessary (page 18). Check for leaks.
• Front and Integrated brakes - Check operation and if necessary, adjust free play (pages 15 to 17).
• Tyres - Check condition and pressure (pages 20).
• Throttle - Check for smooth opening and full closing in all steering positions.
• Lamps and horn - Check that headlamp, tail/ stop lamp, turn signal lamps, indicators and horn function properly.
• Rear view mirror - ensure that the rear view mirror gives a good rear view when you are sitting on the scooter.
• Fitting & fasteners - check & tighten if necessary.
• Steering - check for smooth action for easy maneuverability.
• Air suction valve - make sure all tube connections are secured properly (page 68).
• Side stand indicator - make sure that the side stand is up. If it is in down position the side stand indicator (page 29) will glow on the speedometer panel.

STARTING THE ENGINE

Always follow the proper starting procedure described below. This scooter has an automatic fuel valve.

Operate the kick starter or electric starter switch for slightly longer than usual without opening the throttle if the scooter has been left standing for a long time or when the fuel tank has just been refilled.

Your scooter's exhaust contains poisonous carbon monoxide gas. High levels of carbon monoxide can collect rapidly in enclosed areas such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move your scooter out of the garage.

Do not use the electric starter for more than 5 seconds at a time. Release the starter switch for approximately 10 seconds before pressing it again.

CAUTION

Do not attempt to start the engine and run the vehicle without a battery. This may lead to electrical and electronic components failure.

1. Park the scooter on its main stand.

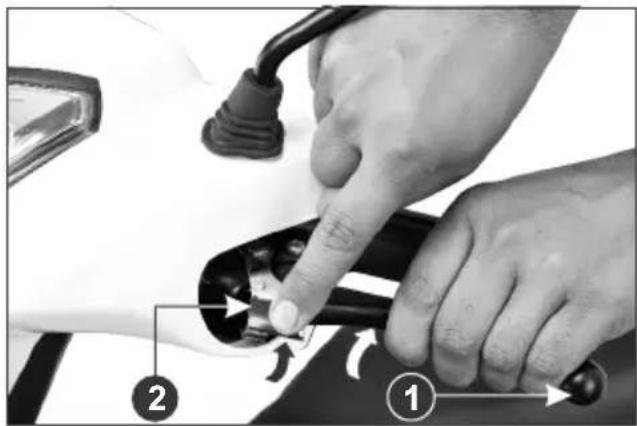

2. Lock the rear wheel by pressing the integrated brake lever (1) and locking the parking lever (2).

WARNING

• Contact with the rotating rear wheel can injure you.
• Set the parking lever when the scooter is on its main stand.

The electric starter will only work when the integrated or front brake lever is operated.

Close-up of hands using a car charger to adjust the plug, with numbered annotations indicating step 1 and step 2.

(1) Integrated brake lever
(2) Parking lever

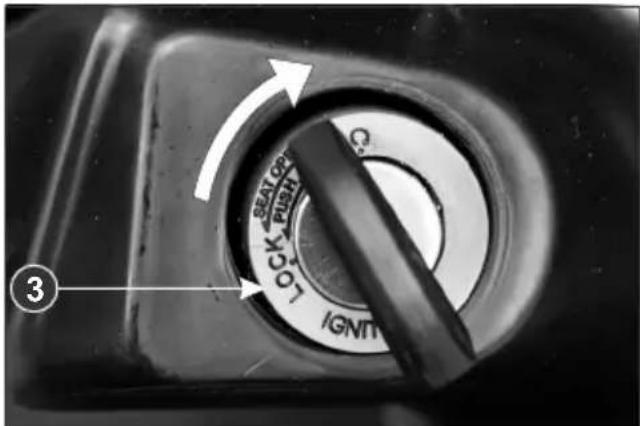

1. Turn the ignition switch (3) to "ON".

LOCK /IGNT ③

(3) Ignition Switch

Cold engine

1. Pull the choke knob (4) out all the way to fully "ON" position (A).

B A Z 4

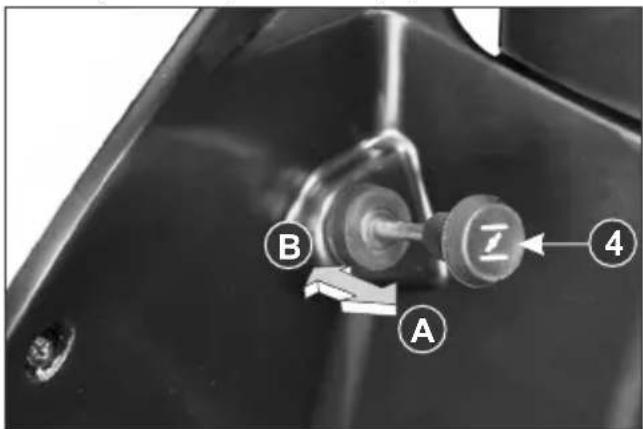

(4) Choke knob

(A) Fully "ON"

(B) Fully "OFF"

1. Use starter switch:

With the throttle closed, press the starter switch.

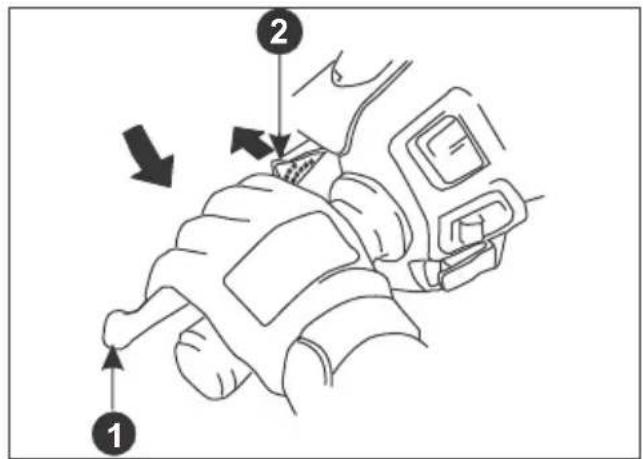

Use kick starter:

With the throttle closed, operate the kick starter with a rapid and continuous motion.

1. Continue warming up the engine until it runs smoothly and responds to the throttle, when the choke knob is at "OFF" position (B).

Warm engine

1. Do not use the choke.
2. Rotate the throttle 1/8-1/4 turn.
3. Start the engine.

RUNNING-IN

Ensure your scooter's future reliability and performance by paying extra attention to how you ride during the first 500 kms.

During this period, avoid full-throttle starts and rapid acceleration.

RIDING

Review Scooter Safety (pages 4-9) before you ride.

1. Make sure the throttle is closed and the integrated brake is locked before moving the scooter off the main stand.

The rear wheel must be locked when moving the scooter off the main stand or it may result in loss of control.

Close-up of hands installing or adjusting a car electrical plug, labeled with step numbers 1 and 2

(1) Integrated brake lever

(2) Parking lever

1. Stand on the left side of the scooter and push it forward off the main stand gripping below the seat using the right hand as shown.

Line drawing of a person standing on a motorcycle with an arrow indicating direction (no text or symbols)

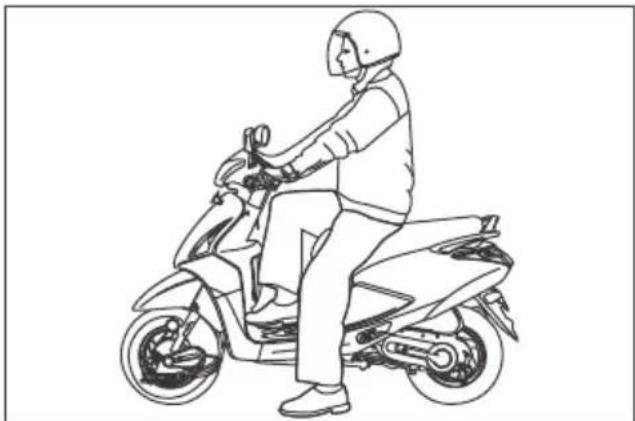

1. Mount the scooter from the left side keeping at least one foot on the ground to steady the scooter.

Line drawing of a person riding a scooter (no text or symbols)

1. Unlock the integrated brake by further pressing the integrated brake lever (1) so as to release the parking lever (2) from the lock. Then release the brake lever.

Diagram showing a hand holding a car seatbelt with labeled parts and directional arrows indicating movement or force.

(1) Integrated brake lever (2) Parking lever

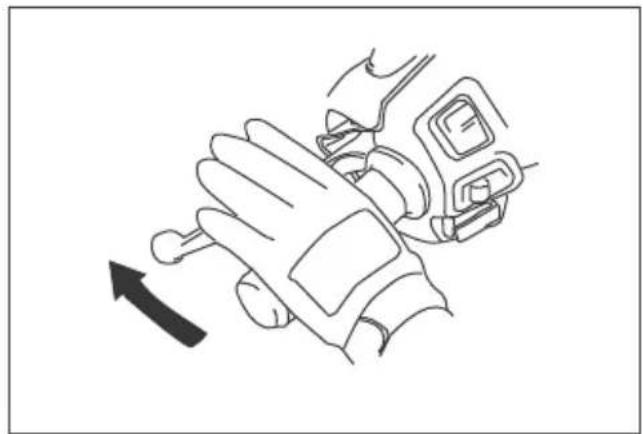

Line drawing of a hand gripping a car seatbelt with a black arrow indicating clockwise motion (no text or symbols)

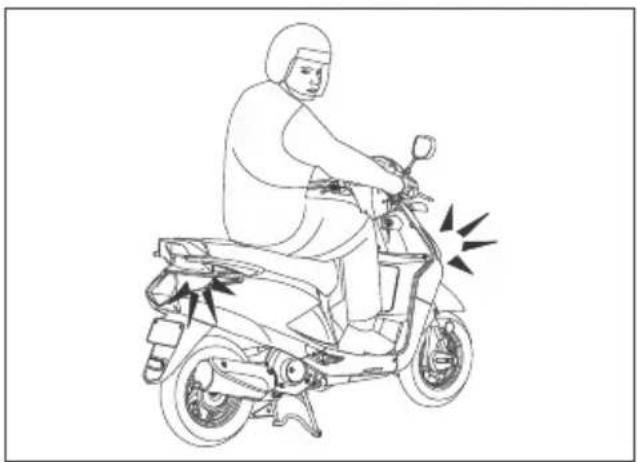

1. Before starting, indicate your direction with the turn signals, and check for safe traffic conditions.

Grab the handle bars firmly with both hands.

Never attempt one-handed operation, this could lead to loss of vehicle control.

Line drawing of a person riding an electric scooter with motion arrows indicating speed (no text or symbols)

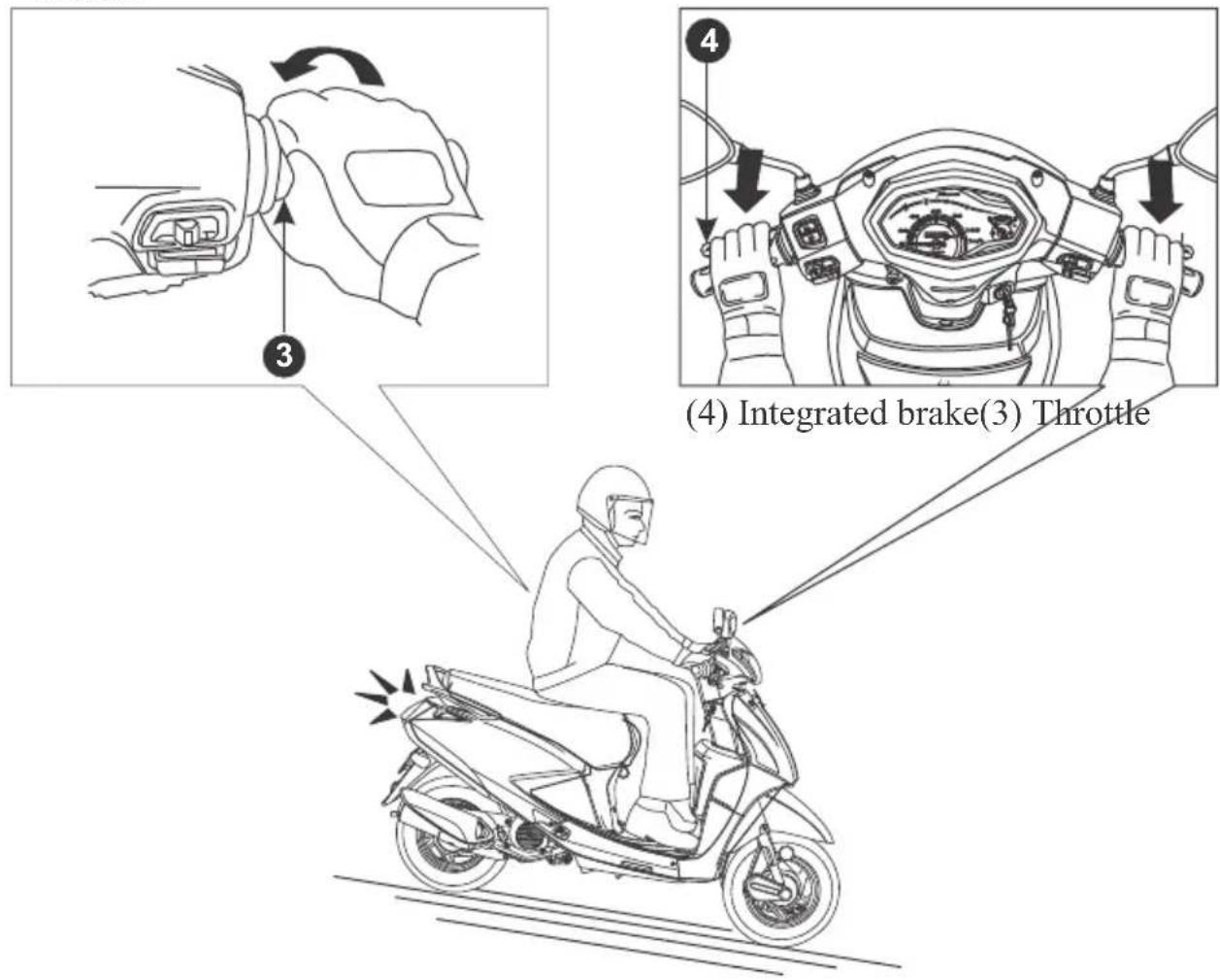

1. To accelerate, open the throttle (3) gradually, the scooter will move forward.

Do not "BLIP" the throttle (open and close rapidly) as the scooter will move forward suddenly, causing possible loss of control and loss of fuel economy.

Do not accelerate with the brakes applied, this may lead to premature wear of brakes and transmission parts.

1. To decelerate, close the throttle.

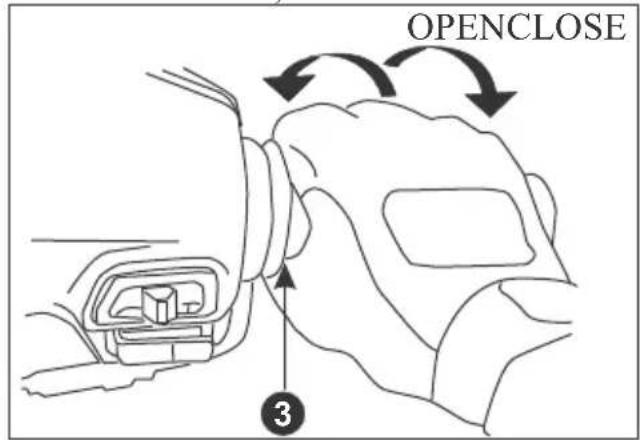

OPENCLOSE ③

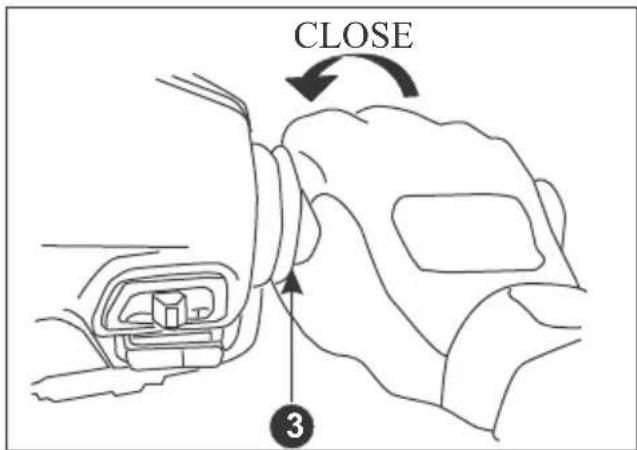

(3) Throttle

1. When slowing down the scooter,

coordination of the throttle (3), front (4) and integrated brake (5) is most important. Since the scooter is equipped with an integrated braking,

by pressing the brake lever provided on the left side of the handlebar would ensure both front and rear brakes applied simultaneously.

Excessive brake application may cause the wheels to lock, reducing control over the scooter.

CLOSE ③

5 4

(4) Front brake
(5) Integrated brake

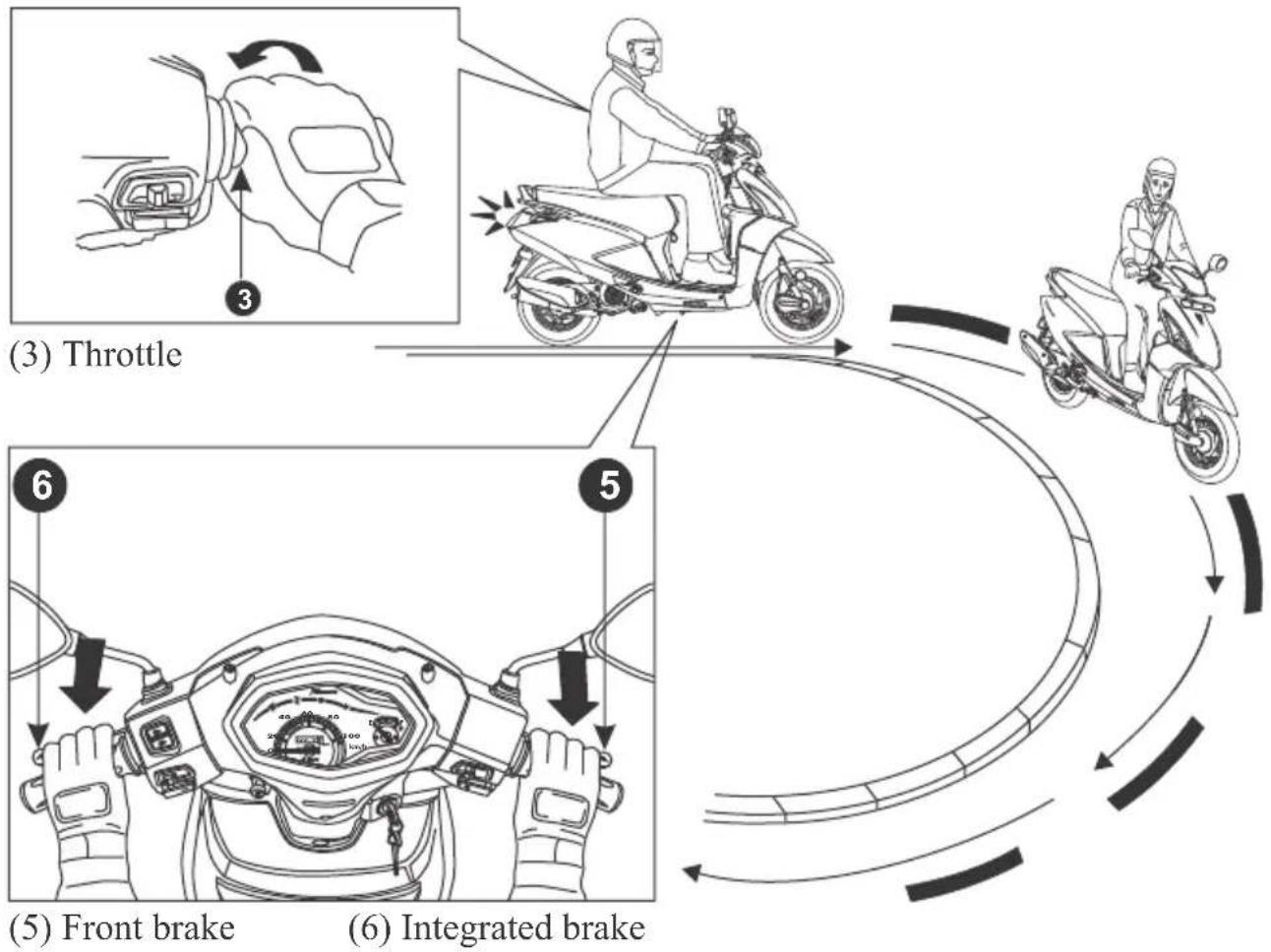

1. When approaching a corner or turn, close the throttle (3) fully, and slow down the scooter by applying integrated brake (6).

2. After completing the turn, open the throttle gradually to accelerate the scooter.

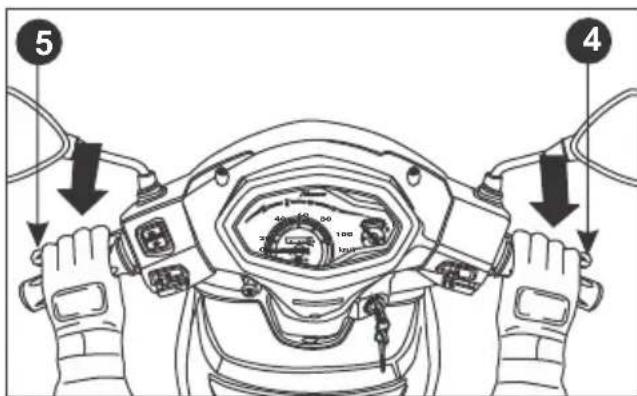

(3) Throttle (5) Front brake (6) Integrated brake

1. When descending a steep gradient, close throttle (3) fully and apply integrated brake (4) to slow down the scooter.

Avoid continuous use of the brakes, which may result in overheating and reduction of braking efficiency.

12. When riding on wet or loose surfaces, be cautious.

When riding in wet or rainy conditions or on loose surfaces, the ability to manoeuver and stop will be reduced.

For your safety:

• Exercise extreme caution when braking, accelerating or turning.
• Ride at slower speeds and allow for extra stopping distance.
• Keep the scooter as upright as possible.
• Be cautious when riding over slippery surfaces such as railway tracks, iron plates, manhole covers, painted lines, etc.

PARKING

1. After stopping the scooter turn the ignition switch to "OFF" position.
2. Use the main stand to support the scooter while parked, lock and remove the key.

NOTE

• Park the scooter on firm, level ground to prevent it from falling over.
• If you must park on a slight incline, aim the front of the scooter uphill to

reduce the possibility of rolling off the main stand or overturing.

1. Lock the steering to prevent theft (page 44).

CAUTION

The exhaust pipe and muffler become very hot during operation and remain sufficiently hot to inflict burns if touched even after turning off the engine.

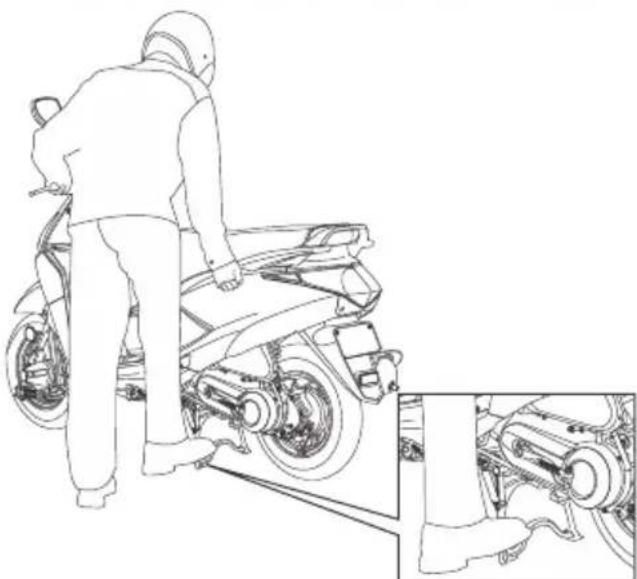

HOW TO USE MAIN STAND

Line drawing of a person on a motorcycle with mechanical components, showing a close-up inset (no text or symbols)

ANTI-THEFT TIPS

1. Always lock the steering and never leave the key in the ignition switch. This sounds simple but people do forget.
2. Be sure the registration information for your scooter is accurate and current.
3. Park your scooter in a locked garage whenever possible.
4. Use an additional anti-theft device of good quality.
5. Never park your scooter in an isolated area. Park as far as possible in a designated parking area.
6. Enter your name, address, and phone number in this Owner's Manual and keep it in your scooter at all times.

Many times stolen scooters are identified by information in the Owner's Manuals that are still with them.

NAME:

ADDRESS:

PHONE NO.:

STEERING LOCK

Taurus 5 D 40 20 30 100 0 E A B 1

(1) Ignition key
(A) Push in
(B) Turn to lock

TOOL KIT

The tool kit (1) is located in the center compartment (3).

Some roadside repairs, minor adjustments and parts replacement can be performed with the tools available in the kit.

• • -- No. 2 driver- 1 No.
• Grip- 1 No.
• Tool bag- 1 No.
  • Wrench plug 16-1 No.
• Spanner 14-1 No.

FIRST AID KIT

The first aid kit (2) is located in the center compartment (3) along with the toolkit. For some emergency first aid can be performed by medicine available in the kit.

• Antiseptic Cream - 1 No.
• Sterilised Dressing - 1 No.
• Water Proof Plaster - 1 No.
• Elastic Bandage - 1 No.
• Gauge (Rolled Bandage) - 1 No.
• Sterilised Elastic Plaster - 1 No.
- First Aid Bag - 1 No.

1 2 3 Hero Hero

(1) Tool kit
(3) Center compartment

(2) First aid kit

MAINTENANCE

IMPORTANCE OF MAINTENANCE

A well-maintained scooter is essential for safe, economical and trouble-free riding. It will also help reduce air pollution.

To help you to take proper care for your scooter, the following pages include a Maintenance Schedule and a Maintenance Record for regular scheduled maintenance.

These instructions are based on the assumption that the scooter will be used exclusively for its designed purpose.

Sustained high speed operation or operation in unusually wet or dusty conditions will require more frequent service than specified in the Maintenance Schedule. Consult your Authorised Hero MotoCorp workshop for recommendations applicable to your individual needs and use.

If your vehicle overturns or is involved in a crash, be sure that you visit your Authorised Hero MotoCorp workshop for detailed inspections.

WARNING

• Improperly maintaining this scooter or failing to correct a problem before you ride can cause an accident in which you can be seriously injured.
• Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

MAINTENANCE SAFETY

This section includes instructions on some important maintenance tasks. You can perform some of these tasks with the tools provided (if you have basic mechanical skills).

Other tasks that are more difficult and require special tools are best performed by professionals. It is recommended that wheel removal should normally be handled by a Hero MotoCorp authorised workshop.

You will come across some of the most important safety precautions in the following pages of this manual.

However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

• Failure to follow maintenance instructions and precautions properly can seriously injure you.
  • Always follow the procedures and precautions in this owner's manual.

SAFETY PRECAUTIONS

- Make sure the engine is turned “OFF” before you begin any maintenance or repair. This will help eliminate several potential hazards:

* Carbon monoxide poisoning from engine exhaust.

Be sure there is adequate ventilation whenever you start the engine.

* Burns from hot parts.

Let the engine and exhaust system cool before touching.

* Injury from moving parts.

Do not run the engine unless instructed to do so.

- Read the instructions before you begin and make sure you have the tools and skills required.

- To prevent the scooter from falling over, park it on a firm, level surface, on the main stand.

• Be sure that the rear brake is locked by parking lever before running the engine, while the scooter is parked on the main stand. This will prevent the rear wheel from rotating and avoid the possibility of someone being injured from contacting the wheel.
• To reduce the possibility of a fire or explosion, be careful when working around petrol or batteries. Use only nonflammable solvent, not petrol, to clean parts. Keep cigarettes, sparks and flames away from the battery and all fuel-related parts.

Remember that your Authorised Hero MotoCorp workshop knows your scooter best and is fully equipped to maintain and repair it.

To ensure best quality and reliability, it is recommended to use Hero MotoCorp genuine parts for repair and replacement.

MAINTENANCE SCHEDULE

Perform the Pre-ride Inspection (page 35) at each scheduled maintenance period.

I: INSPECT C: CLEAN R: REPLACE A: ADJUST L:LUBRICATE

T: TOP UP

The following Maintenance Schedule specifies all maintenance required to keep your scooter in peak operating condition. Maintenance work should be performed in accordance with standards and specifications of Hero MotoCorp by properly trained and equipped technicians. Your Authorised Hero MotoCorp workshop meets all of these requirements.

* Clean carburetor if required after inspection during service.

** Should be serviced by a "Skilled Technician" of your Authorised Hero MotoCorp workshop.

*** In the interest of safety, we recommend these items to be serviced only by your Authorised Hero MotoCorp workshop.

****Replace engine oil once in every 6000 kms. Top up if the oil level is at or near the lower level mark.

# Replace drive belt once in every 24000 kms.

@ Replace once in every 12000 kms.

Note-1: At higher odometer readings, repeat the frequency interval established here.

Note-2: Service more frequently when riding in rain or at full throttle.

Note-3: Service more frequently if the scooter is ridden in unusually wet or dusty areas.

Note-4: Replace once in a year. Replacement requires mechanical skill.

MAINTENANCE SCHEDULE

Dear Customer,

We would strongly recommend the following schedule, to keep your scooter in perfect running condition and healthy environment. Scooter subjected to severe use or ridden in dusty area will require more frequent servicing.

JOB

Whichever is Earlier

During Free Service Period

Free Service

1^st

2^nd

3^rd

4^th

5^th

6^th

After Free Service Once In Every

Days

1^st 60

Next 100

Next 100

Next 100

Next 100

Next 100

Kms Note-1

500 -750

3000-3500

6000-6500

9000-9500

12000-12500

15000-15500

3000

6000

9000

12000

15000

Fuel Line

I I I II

I

I

Throttle Operation**

I,A I,A

I,A

I,A

I,A

I,A

I,A

Carburetor*

I,A I,A

I,A

I,A

I,A

I,A

I,A

Air Cleaner@

C

C

C

C

R

C

C

R

Drain Tube

Note-2

I,C I,C

I,C

I,C

I,C

I,C

I,C

Spark Plug @

I,C,A I,C,A I,C,A

I,C,A

R

I,C,A

I,C,A

R

Valve Clearance**

I,A I,A

I,A

I,A

I,A

I,A

I,A

Engine Oil****

T

R R

T

R

T

T

R

Engine Oil Strainer Screen**

C

C

C

C

Secondary Air Filter

Note-3

C

C

C

C

C

C

C

Belt Case / Kick* Starter Driven Gear

C,L

C,L

C,L

C,L

C,L

C,L

C,L

Drive Belt**#

I

I

I

JOB

Whichever is Earlier

During Free Service Period

Free Service

1^st

2^nd

3^rd

4^th

5^th

6^th

After Free Service Once In Every

Days

1^st 60

Next 100

Next 100

Next 100

Next 100

Next 100

Kms Note -1

500 -750

3000-3500

6000-6500

9000-9500

12000-12500

15000-15500

3000

6000

9000

12000

15000

Final Drive Oil**

Note-4

R

Replace once in every 10000 kms.

Battery Voltage

I I I I I

II

Brake Shoe Wear

I I I I I

II

Pivot Arm

L LLL

LL L

Brake System

L

L L L

L L

Stop Lamp Switch

I I I I I

II

I I II

Headlamp Focus

I I I I I

II

Clutch Shoe Wear***

I

I

I

Suspension

I I I I I

II

IMain Stand /Side Stand

L

L L L

L L

Side Stand Switch

I,C

I,C

I,C

I,C

I,C

I,C

I,C

Fasteners**

I I I I I

II

Wheel/Tyres***

I I I I I

II

Steering Head Bearing***

I,A

I,A

I,A,I,L,A

I,A I,A

I,A

I,L,A

Secondary Air Injection

I

I

I

AIR CLEANER

Refer to the safety precautions (page 47).

The air cleaner element is of Dry Paper Pleated type, it should be serviced at regular intervals (pages 48 to 50). Service more frequently when riding in unusually wet or dusty areas.

1. Remove the body cover (page 31).

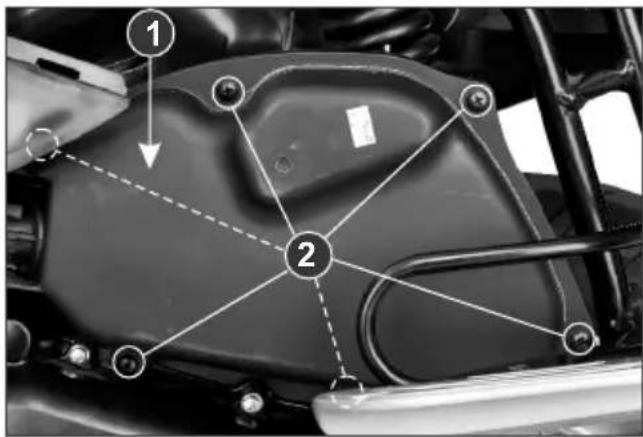

2. Remove the air cleaner cover (1) by removing the screws (2).

Technical diagram of a vehicle engine component with numbered parts and alignment lines

(1) Air cleaner cover
(2) Screws

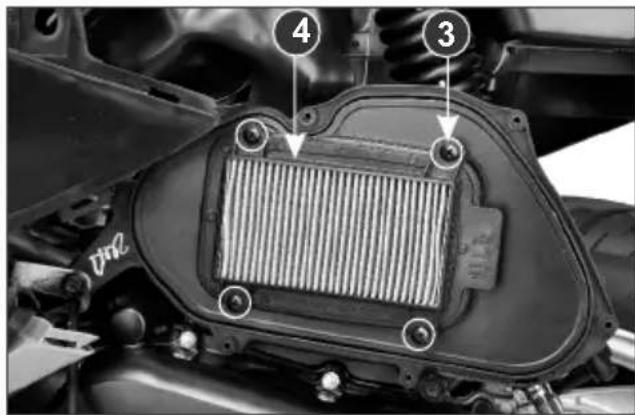

1. Remove the air cleaner element screws

Technical diagram of a vehicle air vent with numbered components and labeled parts

(3) Screws

1. Air cleaner cleaning

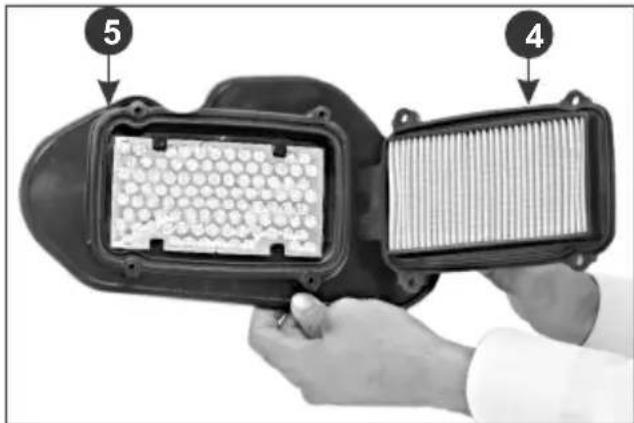

Remove the air cleaner element (4) from housing (5).

Close-up of a hand holding a black plastic device with hexagonal grid and side grating (no text or symbols visible)

(4) Air cleaner element

(5) Air cleaner housing

- Clean the element by tapping it gently to loosen dust.

• Blow away the remaining dust by forcing compressed air using an air nozzle (6) from the housing side (7) of the air cleaner.
  -Replace the air cleaner element if it is excessively dirty, torn or damaged.

• Install the air cleaner element.

• Install the removed parts in the reverse order of removal.

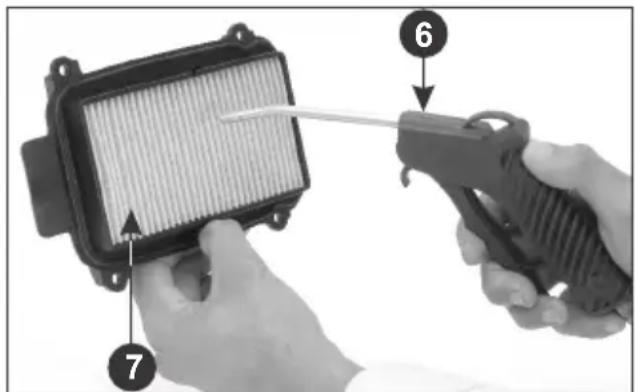

Instructional image showing a hand holding a car air vent with labeled parts 6 and 7, and a tool applying material to the vent.

(6) Air nozzle
(7) Housing side

CAUTION

●Never wash the air cleaner element. Only blow air in the air cleaner element for cleaning dust, as explained. Replace air cleaner element once in every 12000 kms.

-Replace it earlier if it becomes very dirty, damaged on surface or on the sealing area.

SECONDARY AIR SUPPLY SYSTEM

Refer to the safety precautions (page 47).

Air filter cleaning

The air filter should be serviced at regular intervals (pages 48 to 50). Service more frequently when riding in unusually wet or dusty areas.

1. Remove the right side body cover (page 30).
2. Remove the air filter housing cover (1) by removing the screw (2).
3. Remove the air filter (3).
4. Wash the air filter in clean, nonflammable or high flash point solvent and let it dry thoroughly.
5. Soak the air filter in gear oil (SAE-90) until saturated, then squeeze out the excess oil.
6. Install the removed parts in the reverse order of removal.

CAUTION

Never use gasoline or low flash point solvents for cleaning the air filter. A fire or explosion could result.

Technical diagram of a vehicle's lower body and suspension system with numbered components

(1) Air filter housing cover (2) Screw

Close-up of a car engine bay with visible components and wiring (no text or symbols)

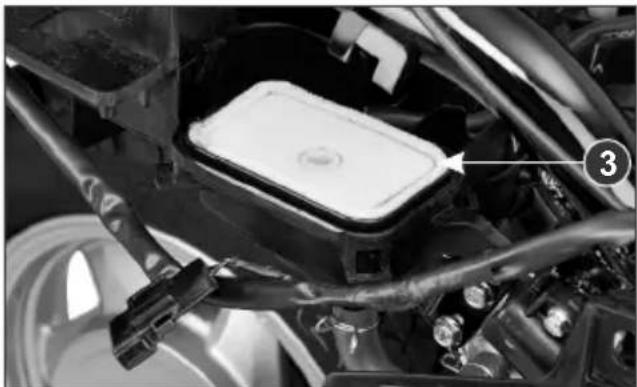

(3) Air filter

DRAIN TUBE

Refer to the safety precautions (page 47).

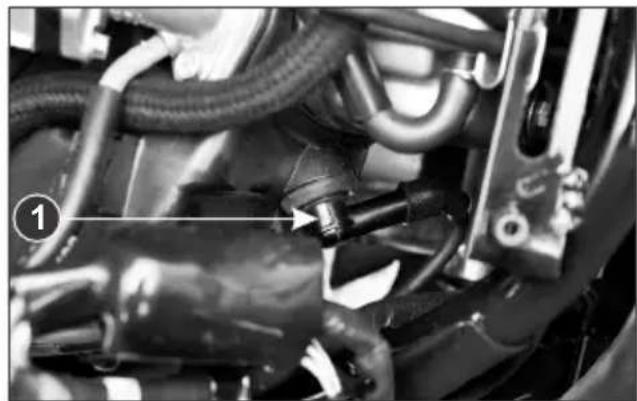

1. Remove the drain tube (1) from the air cleaner assembly (2) and drain deposits in to a suitable container.

2. Reinstall the drain tube.

Service more frequently when riding in rain, at full throttle or after the scooter is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

Technical diagram of a mechanical assembly with numbered components, likely for automotive or industrial identification.

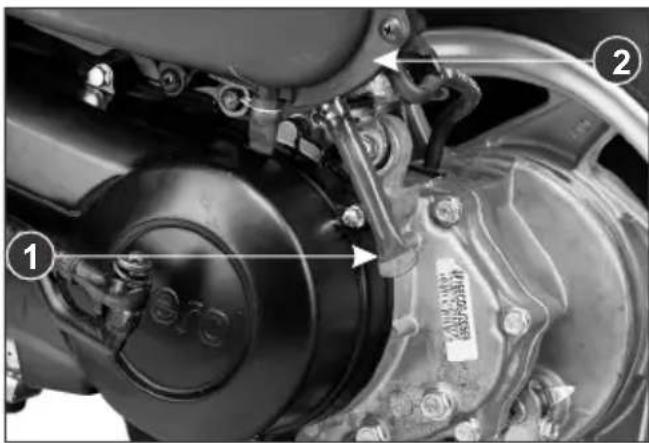

(1) Drain tube (2) Air cleaner assembly

ENGINE OIL

Use hero genuine engine oil o recommended grade oil.

BRAND: Hero 4T plus

GRADE: SAE 10W 30 SL Grade

(JASO MB).

Manufactured by :

1. Tide Water Oil Co. (India) Ltd.

2. Savita Oil Technologies Limited.

3. Bharat Petroleum Corporation Limited.

Engine oil level check

Check the engine oil level each day before riding the scooter.

The level must be maintained between the UPPER (1) and LOWER (2) level marks on the oil level dipstick (3).

1. Start the engine and let it idle for few minutes.
2. Stop the engine and park the scooter on the main stand on a level ground.
3. After a few minutes, remove the oil level dipstick, wipe it clean and reinsert the oil level dipstick without screwing it in. Remove the oil level dipstick and check if the oil level is between the upper and lower marks.
4. If required, add recommended oil up to the upper level mark. Do not overfill.
5. Reinstall the oil level dipstick. Check for oil leaks.

NOTE

• Running the engine with insufficient oil may cause engine damage.
• Top up if required after every 3000 kms.

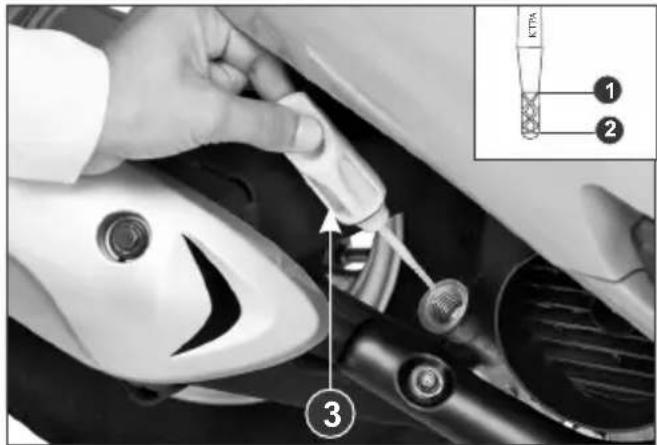

KTPA ① ② ③

(1) UPPER level mark
(2) LOWER level mark
(3) Oil level dipstick

Engine oil replacement / Oil strainer cleaning

Change the engine oil with the engine at normal operating temperature and the scooter on its main stand to assure complete and rapid draining.

1. Remove the oil level dipstick

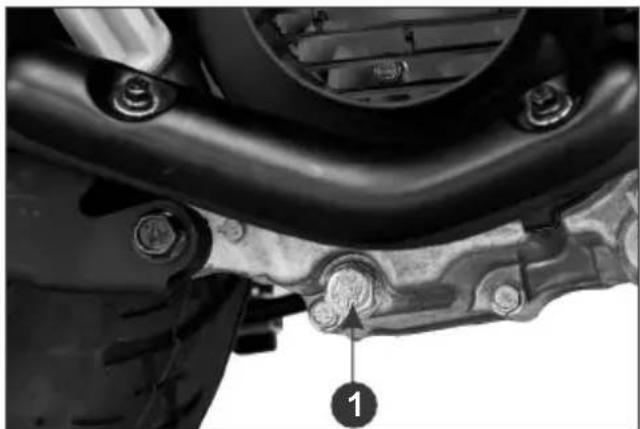

2. Place an oil drain pan under the crankcase and remove the oil drain plug (1).

Close-up of a mechanical assembly with bolts and a numbered component (1), no visible text or symbols.

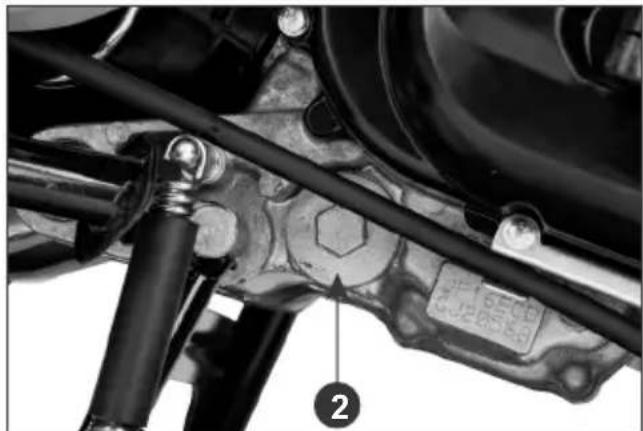

(1) Drain Plug

1. Remove the oil strainer screen cap (2).

Close-up of a mechanical assembly with visible components and a numbered label (2), no readable text or symbols present.

(2) Oil strainer screen cap

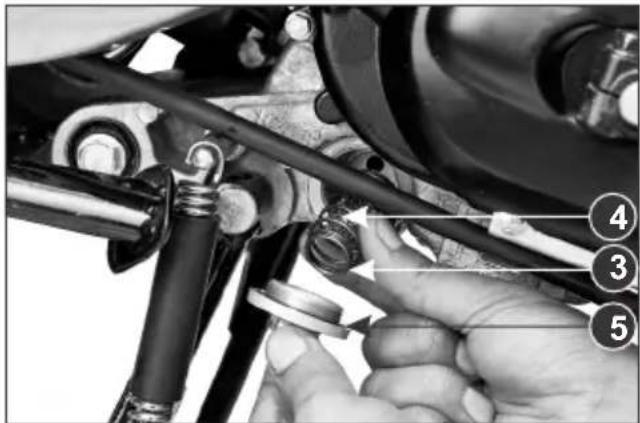

1. The spring (3) and oil strainer screen (4) will come out when the oil strainer screen cap is removed.

Close-up of a mechanical assembly with numbered parts labeled 3, 4, and 5 indicating different components or parts.

(3) Spring

(4) Oil strainer screen

(5) O-ring

1. Clean the oil strainer screen.

2. Check that the oil strainer screen, sealing rubber and cap o-ring (5) are in good condition.

3. Install the oil strainer screen, spring and oil strainer screen cap. Install the drain plug

4. Fill crankcase with the recommended grade of oil :

1. Install the oil level dipstick.

2. Start the engine and let it idle for 2-3 minutes. Stop the engine and ensure that the oil level is at the upper level mark on the oil level dipstick with the scooter upright on flat level surface. Ensure there are no oil leaks.

CAUTION

- Engine oil quality is the chief factor affecting engine service life. Replace and top-up the engine oil as specified in the maintenance schedule (pages 48 to 50).

- When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

WARNING

- Please dispose used engine oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw it in the trash or pour it on the ground or down a drain.

- Used engine oil may cause skin disease if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.

SPARK PLUG

Refer to the safety precautions (page 47). Recommended spark plug.

Champion-PRZ 9 HC (Federal Mogul)

WARNING

Never use a spark plug with an improper heat range. Severe engine damage could result.

1. Remove the center cover (page 32).
2. Disconnect the spark plug cap (1) from the spark plug.
3. Clean any dirt around the spark plug base.

Close-up of automotive engine components including hoses and a connector, no visible text or symbols

(1) Spark plug cap

1. Remove the spark plug using the wrench plug provided in the tool kit.

2. Inspect the electrodes and center porcelain for deposits, erosion or carbon fouling. If the erosion or deposit is heavy, replace the plug. Clean carbon or wet fouled plug with a plug cleaner.

3. Check the spark plug gap using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode (2) carefully.

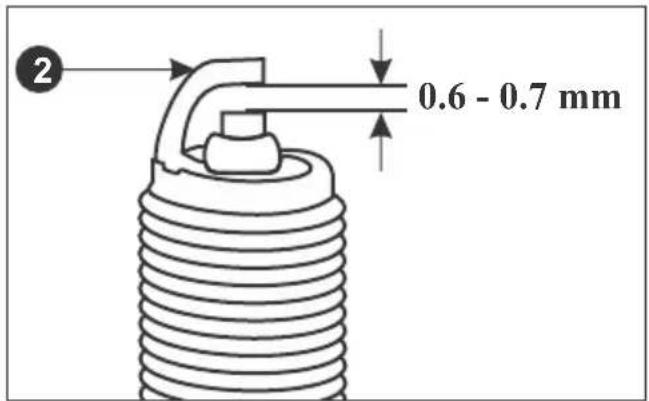

2 0.6 - 0.7 mm

(2) Side electrode

1. With the plug washer attached, thread the spark plug in by hand to prevent cross-threading.

2. Tighten a new spark plug 1/2 turn with a wrench plug to compress the washer. If you are reusing a plug, it should only take 1/8 - 1/4 turn after the plug seats.

WARNING

The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the engine.

1. Reinstall the spark plug cap.

IDLE SPEED

Refer to the safety precautions (page 47).

The engine must be at normal operating temperature for accurate idle speed adjustment. Ten minutes of stop-and-go riding is sufficient.

1. Warm up the engine and park the scooter on its main stand.
2. Open the seat (page 26).

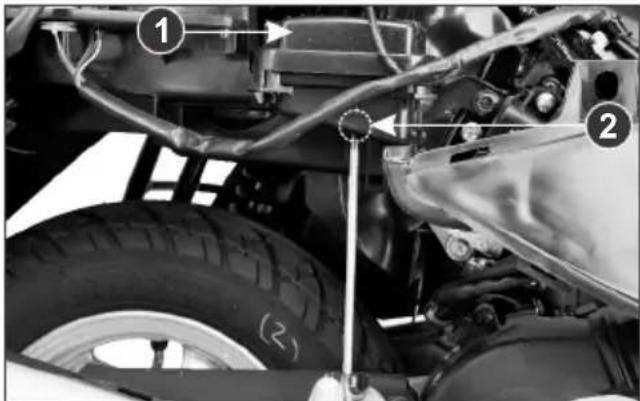

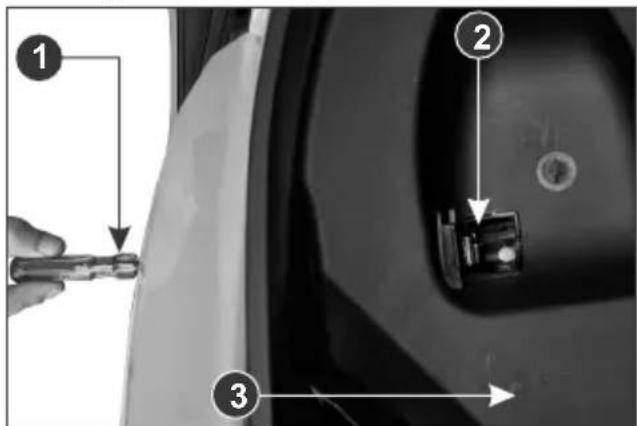

3. Adjust idle speed by adjusting the throttle stop screw by inserting a suitable screw driver (1) from the opening provided in the floor panel as shown.
4. Throttle stop screw is visible from the carburetor maintenance window (2) provided in the center compartment (3).

Idle speed: 1700 + 100 r/min

Diagram showing a tool interacting with a car door, labeled with parts 1, 2, and 3.

(1) Screw driver
(2) Carburetor maintenance window
(3) Center compartment

BRAKE SHOE WEAR

Refer to the safety precautions (page 47). The front and integrated brakes are equipped with brake wear indicators.

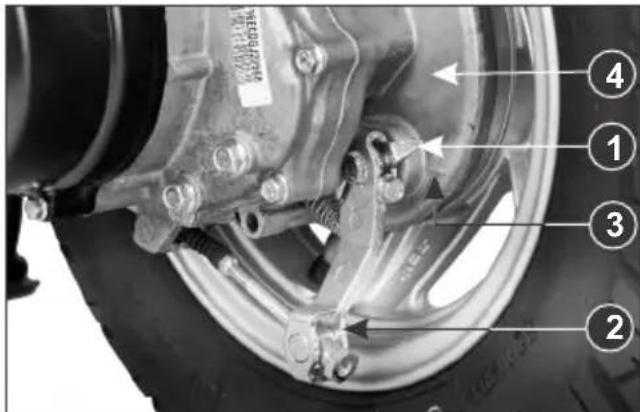

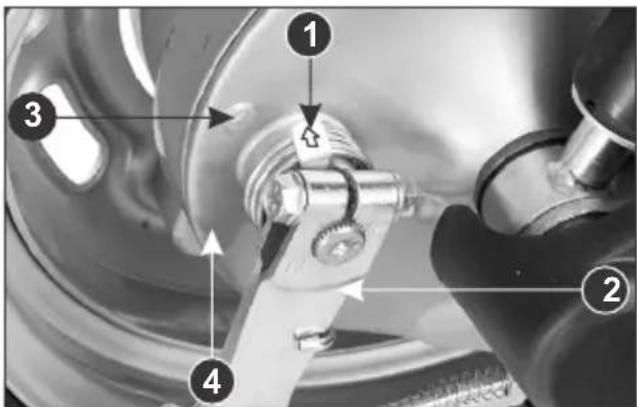

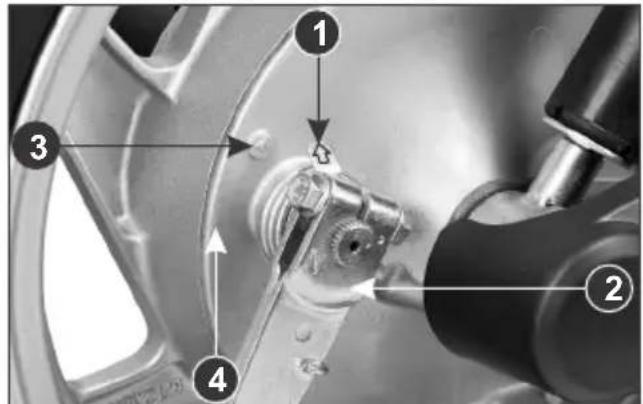

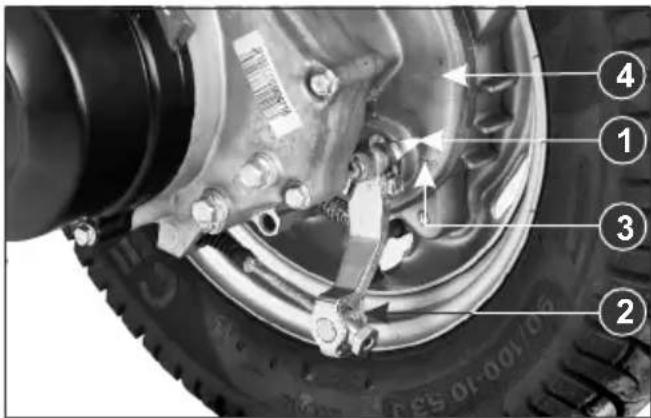

When the brake is applied, an arrow mark (1) on the brake arm (2) moves towards a reference mark (3) on the brake panel (4). If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced.

Visit your Authorised Hero MotoCorp workshop for this service.

INTEGRATED BRAKE

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

(1) Arrow (2) Integrated brake arm

(3) Reference mark (4) Brake panel

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

(1) Arrow (2) Integrated brake arm

(3) Reference mark (4) Brake panel

Technical diagram of a car tire assembly with numbered parts and directional arrows indicating components

(1) Arrow (2) Brake arm

(3) Reference mark (4) Brake panel

REAR BRAKE

Labeled mechanical assembly diagram showing components numbered 1 to 4 with annotations like 'MEF000' and directional arrows.

(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel

BATTERY

Refer to the safety precautions (page 47). Battery is located behind the front upper cover.

Specification

12V - 4Ah, \*MF Battery

It is not necessary to check the battery electrolyte level or add distilled water as the battery is a Maintenance-Free (sealed) type. If your battery seems weak and/or electrolyte is leaking (causing hard starting or other electrical troubles), contact your Authorised Hero MotoCorp workshop.

*MF stands for Maintenance Free

NOTE

This symbol on the battery means that this product must not be treated as household waste.

This symbol on the battery means the old battery must be returned to your Authorised Hero MotoCorp workshop as it must be treated as recyclable material.

• Battery is a Maintenance-Free (sealed) type and can be permanently damaged if the sealing strip is removed.
• An improperly disposed battery can be harmful to the environment and human health. Always confirm local regulations for battery disposal.

WARNING

• The battery gives off explosive hydrogen gas during normal operation.
• A spark or flame can cause the battery to explode with enough force to seriously hurt you.
• Wear protective clothing and a face shield, or have skilled technician to do the battery maintenance.

Battery charging

Always visit your Authorised Hero MotoCorp workshop if you see any symptom of battery discharge as earliest as possible to get the battery charged. The battery has a tendency to discharge rapidly if any additional electrical accessories are fitted on your scooter.

Battery storage

1. If in case your scooter is not used for more then a month remove the battery, fully charge and store in a cool and dry place.
2. If the battery is expected to be stored for more then two months, ensure to fully charge the battery once in a month.
3. Always ensure the battery is fully charged before installation.
4. Ensure the battery leads are properly connected to the battery terminals during installation.

Battery Removal

1. Remove the front upper cover (page 31).
2. Remove the battery clamp (1) by removing the bolt (2).
3. Disconnect the negative (-) terminal lead (3) from the battery first, then disconnect the positive (+) terminal lead (4).
4. Remove the battery (5).

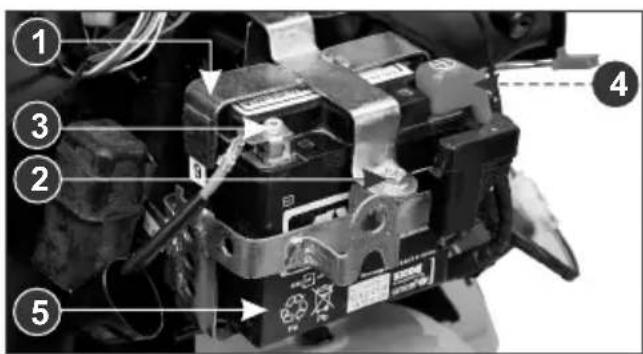

Labeled diagram of an automotive electrical switchgear assembly with numbered parts

(1) Battery clamp (2) Bolt (3) Negative (-) terminal (4) Positive (+) terminal (5) Battery Battery installation

1. Reinstall in the reverse order of removal. Be sure to connect the positive (+) terminal first, then the negative (-) terminal.

2. Check the bolts and other fasteners are secure.

FUSE REPLACEMENT

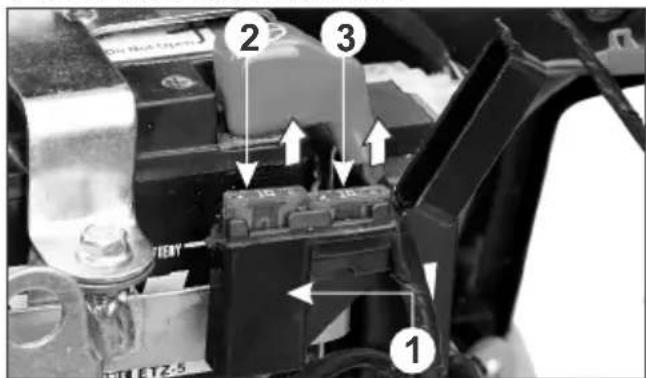

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with directional arrows indicating assembly or movement.

(1) Fuse box (2) In circuit fuse (3) Spare fuse

Fuse Type : Blade fuse Fuse Box (1) : Location : Mounted on the battery tray. In circuit fuse (2): 10A, Spare fuse (3): 10A Fuse Box (4): Location : Mounted on the frame In circuit fuse (5): 2A, Spare fuse (6): 2A

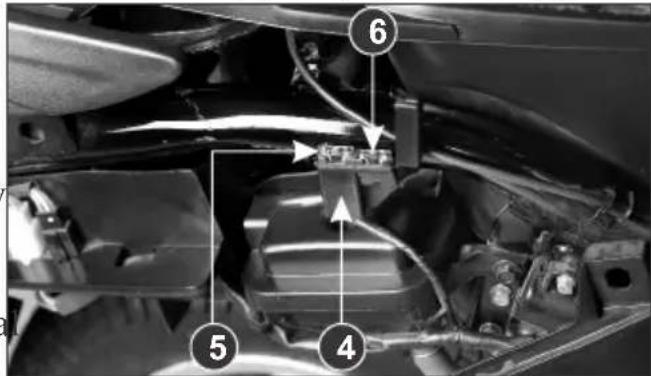

Technical diagram of a vehicle engine compartment with numbered parts labeled 4, 5, and 6

(4) Fuse box (5) In circuit fuse (6) Spare fuse

WARNING

• Never use a fuse with a different rating from that specified. It may lead to serious damage to the electrical system or a fire due to short circuit.
• Battery gives off explosive gases. Keep sparks, flames & cigarettes away.

CAUTION

- Do not attempt to start or ride the scooter without a charged battery, it can cause fusing of the bulbs and permanent use damage to certain electrical components.

- Turn the ignition switch "OFF" before checking or replacing the fuse to prevent accidental short-circuiting.

- If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your scooter. Leave the blown fuse in that circuit and have your scooter checked by your Authorised Hero MotoCorp workshop.

SIDE STAND

Check the side stand for proper function.

1. Check the spring (1) for damage or loss of tension and the side stand assembly for free movement.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

(1) Side stand spring

1. Check whether the side stand indicator (2) glows when the side stand is down.
2. If the side stand is up, the side stand indicator (2) should not glow.
3. If the side stand indicator (2) does not operate as described in steps 2 or 3, please visit your Authorised Hero MotoCorp workshop.

Pleasure ED 60 40 80 E F 20 0 0002 km km/h hero ②

(2) Side stand indicator

CAUTION

Ensure that adequate care should be taken while cleaning the side stand switch.

BULB REPLACEMENT

Refer to the Safety Precautions (page 47).

The bulb becomes very hot while the lamp is “ON”, and remains hot for a while after it is turned “OFF”. Be sure to let it cool down before servicing.

Do not put finger prints on the headlamp bulb, as they may create hot spots on the bulb and cause it to break.

Wear clean gloves while replacing the bulb. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prevent its early failure.

- Be sure to turn the ignition switch "OFF" when replacing the bulb.

- Do not use bulbs other than that specified.

•After installing a new bulb, check that the lamp operates properly.

Headlamp / Position lamp bulb

1. Remove the headlamp case (page 33 & 34)

2. Disconnect the headlamp connector (1).

3. Remove the dust cover (2).

4. Loosen the screw and release the clip (3) from its position.

5. Remove the headlamp bulb (4) without turning.

6. Remove the position lamp bulb (5) from both sides of the headlamp case.

7. Install a new bulb in the reverse order of removal.

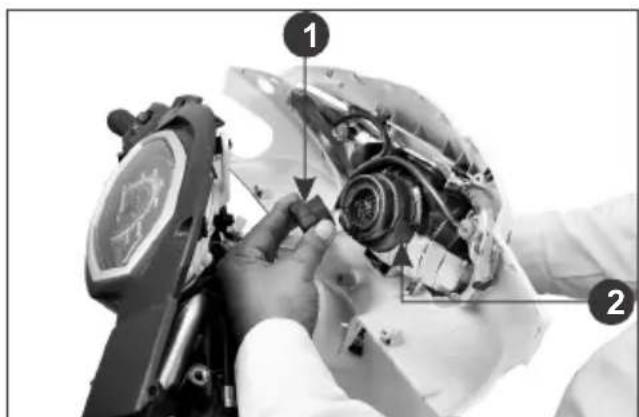

Black-and-white photo showing hands assembling a mechanical component with numbered annotations (1 and 2)

(2) Dust cover

(1) Headlamp connector

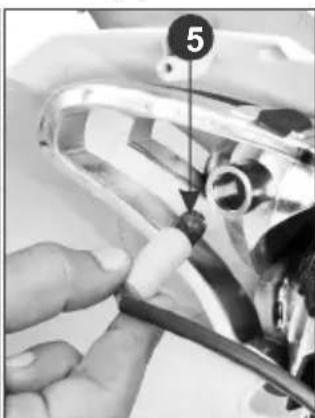

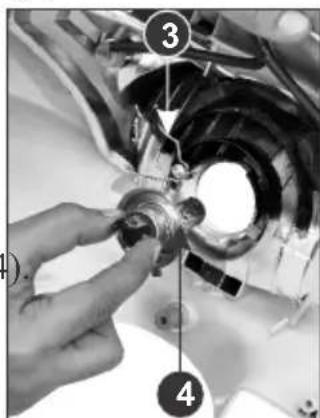

Mechanical assembly diagram showing a hand adjusting a component with numbered parts labeled 3 and 4

5

(3) Clip (4) Headlamp bulb (5) Position lamp bulb

Tail / Stop lamp bulb

1. Open the seat (page 26).
2. Remove body covers (page 31).
3. Dismount the tail / stop lamp unit from the vehicle by removing the bolts (1).

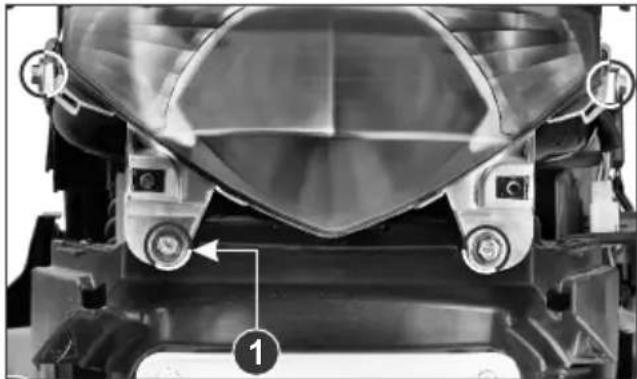

Front view of a vehicle's head and front panel with labeled parts (1 and 7), no visible text or symbols beyond labels.

(1) Bolts

1. Remove the bulb (2) by turning it to counterclockwise direction.

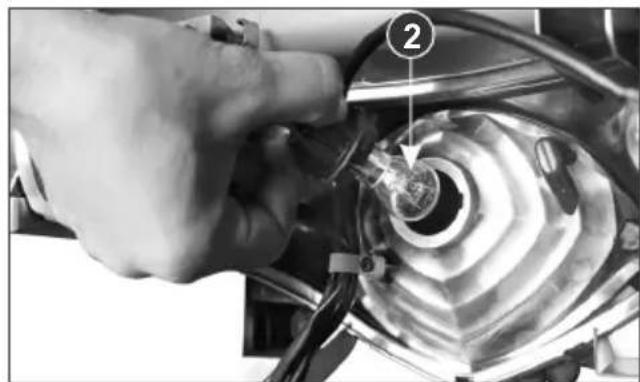

Close-up of a hand adjusting a mechanical component with a numbered callout (no visible text or symbols)

(2) Tail / stop lamp bulb

1. Install a new bulb in the reverse order of removal.

Rear turn signal bulb

1. Follow the above sequence 1,2 & 3.
2. Remove the bulb (1) by turning it to counterclockwise direction.

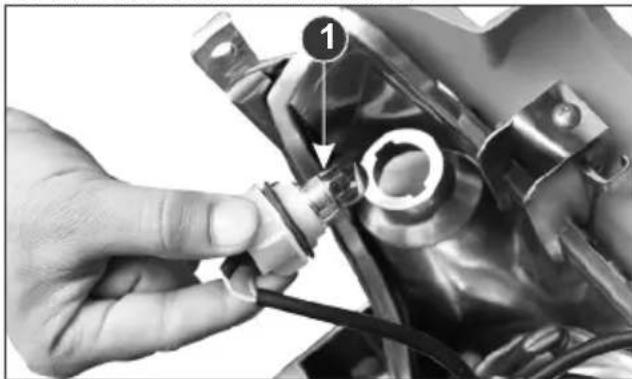

Close-up of a hand adjusting a mechanical component with a numbered callout (no visible text or symbols)

(1) Rear turn signal lamp bulb
3. Install a new bulb in the reverse order of removal.

Front turn signal bulb

1. Remove the front upper cover (page 32).
2. Remove the bulb (1) by turning it to counterclockwise direction.

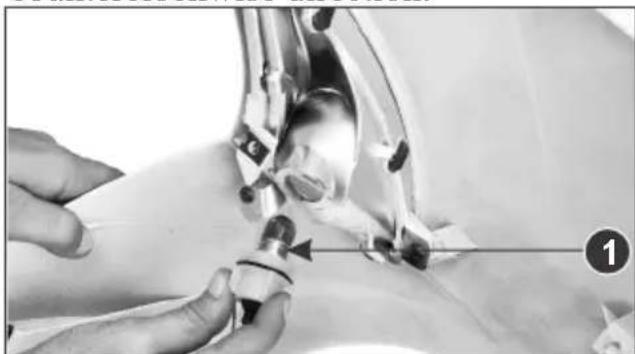

Close-up of a medical procedure showing hands operating a surgical instrument with a tool, no visible text or symbols

(1) Front turn signal lamp bulb

1. Install a new bulb in the reverse order of removal.

CLEANING

Clean your scooter regularly to protect the surface finishes and inspect for damage, wear and oil leakage.

Avoid cleaning products that are not specifically designed for scooter or automobile surfaces.

They may contain harsh detergents or chemical solvents that could damage the metal, paint and plastic parts on your scooter.

If your scooter is still warm from recent operation, give time for the engine and exhaust system to cool down.

We recommend avoiding the use of high pressure water spray.

CAUTION

• take all Our authorised dealership above mentioned precautions like recommended detergents and usage of muffler caps/plugs during wash to ensure quality wash.
• High pressure water (or air) can damage certain parts of the scooter.

WASHING

1. Rinse the scooter thoroughly with water to remove loose dirt.
2. Clean the scooter with a sponge or soft cloth using water.

Avoid directing water to muffler outlets and on electrical parts.

1. Clean the plastic parts using a cloth or sponge dampened with a solution of mild detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.

NOTE

Take care to keep brake fluid or chemical solvents off the scooter. They will damage the plastic and painted surfaces.

The inside of the headlamp lens may be clouded immediately after washing the scooter. Moisture condensation inside the headlamp lens will disappear gradually by lighting the headlamp in high beam.

1. After cleaning, rinse the scooter thoroughly with plenty of clean water. Strong detergent residue can corrode alloy parts.
2. Dry the scooter with pressurized air, start the engine and let it run for several minutes

Line drawing of a person working on a motorcycle with tools, no text or symbols present

1. Test the brakes before riding the scooter. Several applications may be necessary to restore normal braking performance.

Braking efficiency may be temporarily impaired immediately after washing the scooter.

Anticipate longer stopping distance to avoid a possible accident.

TEST BRAKES

Line drawing of a person riding an electric scooter with motion lines indicating speed (no text or symbols)

POLISHING

After washing your scooter, consider using a commercially-available polish/quality liquid or paste wax to finish the job. Use only a non-abrasive polish or wax made specifically for automobiles. Apply the polish or wax according to the instructions on the container.

Removing Road Salt

The road may contain salt which was sprayed as an anti-freezing agent during winter, and the seawater are the causes of rust.

Wash your scooter when run on such conditions by the following the point mentioned below,

Clean the scooter using cold water (page 63). Do not use warm water. This worsens the effect of the salt.

STORAGE GUIDE

Extended storage, such as for winter, requires that you take certain steps to reduce the effects of deterioration from non-use of the scooter. In addition, necessary repairs should be made before storing the scooter, otherwise these repairs may be forgotten by the time the scooter is removed from storage.

STORAGE

1. Change the engine oil.

2. Empty the fuel tank into an approved petrol container using a commercially available hand siphon or an equivalent method. Spray the inside of the tank with an aerosol rust -inhibiting oil.

Reinstall the fuel filler cap on the tank.

If storage lasts more than a month, carburetor draining is very important, to assure proper performance after storage.

WARNING

Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks, and flame away.
  •Refuel only outdoors.

• Wipe up spills immediately.

• To prevent rusting in the cylinder, perform the following:

• Remove the spark plug cap from the spark plug. Using tape or string, secure the cap to any convenient plastic body part so that it is positioned away from the spark plug.

• Remove the spark plug from the engine and store it in a safe place. Do not connect the spark plug to the spark plug cap.

• Pour a tablespoon (15-20 ml) of clean engine oil into the cylinder and cover the spark plug hole with a piece of cloth.

• Crank the engine several times to distribute the oil.
  ●Reinstall the spark plug and spark plug cap.

• Remove the battery. Store in an area protected from freezing temperatures and direct sunlight. Charge the battery once a month.
• Wash and dry the scooter. Wax all painted surfaces. Coat chrome plated parts with rust inhibiting oil.
• Inflate the tyres to their recommended pressures. Park the scooter on blocks to raise both tyres off the ground.
• Cover the scooter (don't use plastic or other coated materials) and store in an unheated area, free of dampness with a minimum of daily temperature variation. Do not store the scooter in direct sunlight.

REMOVAL FROM STORAGE

1. Uncover and clean the scooter. Change the engine oil if the scooter has been stored for more than 4 months.

2. Check the battery voltage and charge the battery as required. Install the battery.

3. Drain any excess aerosol rust - inhibiting oil from the fuel tank. Fill the fuel tank with fresh petrol.

4. Perform all Pre-ride Inspection checks (page 35). Test ride the scooter at low speeds in a safe riding area away from traffic.

AIR SUCTION VALVE

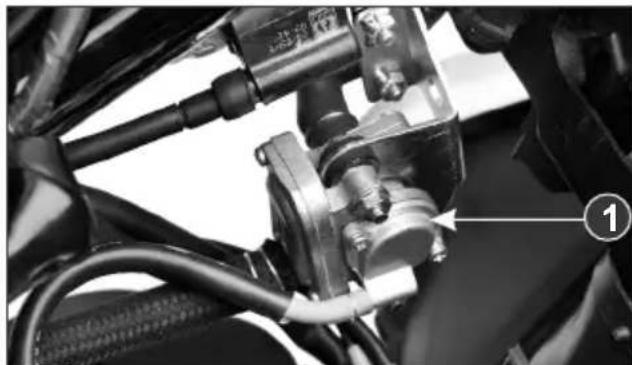

Close-up of a mechanical assembly with hoses and connectors, no visible text or symbols

(1) Air Suction Valve

Further to meet emission standards this scooter is provided with the air suction valve.

Air Suction Valve (1) supplies fresh air from the air filter to the exhaust manifold to convert carbon monoxide to carbon dioxide. This reduces the CO% in the vehicle's exhaust.

ROAD SIGNS

Prohibition symbol with a circle and diagonal line, commonly used to indicate prohibition or exclusion (no text present)

Mandatory signs: These road signs inform drivers/riders of the traffic rules that apply on a certain stretch of road, thereby instructing them on how to drive/ride. Mandatory signs are distinguished by the bright red circle with black and blue markings. It is imperative that all riders follow these signs as they help avoid accidents. Their violation can be penalised under the Motor Vehicle Act.

Mandatory

Stop

Give way

One way

No horn

No bicycles

No automobiles

No hand cart

No pedestrians

No right turn

No 'U' turn

Overtaking prohibited

Speed limit

No stopping or standing

No parking

Length limit

Height limit

Restriction ends

Compulsory-ahead only

Compulsory-turn left

Compulsory-right ahead

Compulsory-ahead or turn right

Compulsory-keep left

Compulsory-bicycle track

Compulsory-sound horn

Simple gray triangle outline on white background (no text or symbols)

Cautionary Signs: These signs inform the driver/rider of the road conditions ahead. Cautionary signs therefore serve as a warning. They are usually in a red triangle with black pictures on a white background. Illustrations, diagrams and symbols are used to forewarn about dangers ahead. Cautionary road signs are as important as mandatory signs. However, the violation of cautionary signs does not attract a penalty.

Cautionary

Right hand curve

Right reverse bend

Incline ahead

Narrow road ahead

Narrow bridge

Pedestrian crossing

School ahead

Gap in median

Cross road

Men at work

Roundabout

Hump Road

Informatory

Informatory Signs : These are facility signs that provide important information about road directions or maps of specific destinations. On highways, they provide information about the location of public telephones, restaurants, hospitals, parking, petrol pumps, resting-places and more. These signs are usually rectangular, with black or white pictures on a blue background.

Destination Sign

Re-assurance sign

Public Telephone

Petrol Pump

Hospital

First Aid Post

Eating Place

Light Refreshment

Place identification sign

Resting place

No through road

No through side road

Park this side

Parking both sides

Taxistand

Signs and Signals are language of the road. Learn them, respect them.

WARRANTY

SCOPE OF WARRANTY

Hero MotoCorp Ltd. (hereinafter called 'Hero MotoCorp') warrants its Pleasure vehicles, assembled/manufactured in its Plants and sold through its channel partners, to be free from any defect-both in material and workmanship, under normal use and conditions, subject to the following terms & conditions.

Terms & conditions

a) Passion Pro vehicle is warranted for a period of 5 years or 50000 Km, whichever is earlier, from the date of purchase.
b) It is advised that the purchaser avails all free and paid services from the Hero MotoCorp's authorized workshop as per the recommended schedule, to be eligible for warranty benefits. Each paid service should be availed within 90 days from the date of previous service or as per the recommended schedule, whichever is earlier.
c) If any problem is observed in Pleasure vehicle, Hero MotoCorp's only obligation/ liability is to repair or replace that part/those parts which is/are considered to be the cause of such , problem provided however that such has not resulted due to misuse/improper handling etc. of problem the vehicle. Any Pleasure vehicle needing repair should be brought along with owner's manual to Hero MotoCorp's authorized workshop for necessary inspection and carrying rectification job.

LIMITATIONS OF WARRANTY THE WARRANTY SHALL NOT APPLY -

(1) If all free services/paid services/oil top-ups are not availed as per the recommended schedule at Hero MotoCorp's authorized workshop.
(2) If any other engine oil which is non compatible with product is used other than SAE 10W30 SL Grade (JASO MB).
(3) To normal wear & tear components including (but not limited to) brake shoes/pads, clutch plates, drive chain & sprockets, bulbs, electrical wiring, filter, spark plug, fasteners, shims, washers, oil seals, gaskets, rubber parts, bush, rubber bellows, plastic parts breakage and wheel rim for misalignment/bend.
(4) If additional wheel(s) is/are fitted and/or any other modification carried out/unauthorized accessories fitted which shall be responsible for malfunction/detoriation of the vehicle.
(5) If Pleasure vehicle has been used in any competitive events like races or rallies or for any commercial purposes as taxi etc.
(6) To any damage on vehicle's painted surface cropping due to industrial pollution or other external factors.
(7) For normal phenomena like noise vibration, oil seepage etc., which do not affect the performance of the vehicle.
(8) To any damage caused due to usage of improper oil/grease, non-genuine parts.
(9) If any defect crops or repairs needed as a result of using adulterated fuel.
(10) If any maintenance/repairs required due to bad road conditions or misuse of Pleasure vehicle.
(11) If any defect crops or repairs needed as a result of Pleasure vehicle meeting to some accident.
(12) For consumables like oil, grease, gasket etc to be used during free services and/or warranty repairs.
(13) To any part of the Pleasure vehicle which has been tampered or repaired in such a manner which has resulted in malfunction of the vehicle.
(14) For Pleasure vehicle not used in accordance with the guidelines given in this Owner's Manual.
(15) To proprietary items like Tyres, Tubes, Batteries etc, as they are subjected to the warranty terms & conditions of respective manufacturers and directly handled by them only.
(16) Any defect(s) developing on account of external factors such as environmental factors; including but not limited to fading/peeling/rusting of paint and/or stripes and/or plated parts, seat leather tearing & cracking, aluminium parts oxidation and cracking & discoloring of control switches etc.
Decision regarding warranty settlement shall be taken by Hero MotoCorp and the same shall be final and binding on all concern.
Subject to DELHI JURISDICTION only.

BATTERY WARRANTY PERIOD

1. 18 months from date of sale of vehicle or 20000 km. or
2. 21 months from the date of charging (whichever is earlier).
3. 3 months idle period is allowed from the date of charging to date of sale on vehicle.

Terms and condition of warranty

1. Batteries are warranted against all defects in material and workmanship. Liability under this warranty is limited to making good of defects rising solely from the use of faulty material or workmanship during manufacturing and developing under proper use.
   The warranty commences from the date of delivery to the original purchase of the vehicle.
2. In the event of any complaint the battery is to be returned complete with electrolyte to nearest battery service station or any OEM dealer. On inspection, battery would be returned or replaced.
3. This warranty card accompanies a battery sold as OEM fitment only. Claims should be supported with vehicle purchase invoice to enable processing.
4. The right to determine whether a battery needs repair or totally replacement lies with the company. In case where the battery is replaced, the defective battery becomes the property of the company and no scrap rebate will be given for it. The warranty period on the battery being repaired/replaced shall commence from the date of sale of the original battery as stated in the original warranty card.
5. All liabilities under this warranty will cease if the battery is used on the vehicle other than that on which the battery was originally fitted and on the expiry of the warranty period as mentioned above.
6. Recharging is not covered under the purview of this warranty and shall be billed as extra. However, FOC battery replacement/ repair includes cost of charging.
7. This warranty does not cover damage to the battery caused by faulty electrical systems, incorrect charging and filling, improper handling of the battery by unauthorized dealers/auto electricians, maintenance, willfull abuse, destruction by fire, collusion, theft or recharging.
8. Breakage of container and cover do not come under the purview of this warranty.
9. Adjudication and settlement of claim will take a couple of days as a battery has to be tested for the reported failure.
   1.0 In case of tempering of the original wiring circuit in any manner whatsoever.
10. If a battery which is not recommended is fitted on the vehicle then such battery will not carry any warranty.
11. The applicable taxes which is leviable on the battery under repair or replacement will be borne by the customer.
12. Customers are deemed to have read, understood and agreed to these conditions at the time of purchase of the vehicle.

EMISSION WARRANTY

Scope of warranty

Hero MotoCorp Ltd. Warrants all its vehicles, assembled/manufactured at its various Plants and sold through its Authorised dealers, to comply with emission standards as specified in S.No. 5 of table in item(i) of sub rule (2) of Rule 115 of Central Motor Vehicles Rules, 1989, which stipulates that "Idle CO (Carbon monoxide) emission limit for all two wheeled petrol driven vehicles shall not exceed 3.0 percent by volume and HC (Hydro Carbon) 3000 ppm, subject to following terms & conditions.

Terms & conditions

a) The emission warranty shall be applicable in India and shall remain valid for a period of 3 years or 30000 kms, whichever occurs earlier, from the date of vehicle purchase.
b) In case any defect is observed in any emission-related component, Hero MotoCorp only obligation/liability shall be to repair and/or replace those part (s) which is/are considered to be the cause of non-compliance with the emission standards.
c) The emission warranty shall be applicable only to those vehicles, which are being regularly maintained at Hero MotoCorp Authorised Dealers/Service Points in accordance with the maintenance schedule provided in the owner's manual.
d) The customer should follow the recommended parts replacement as per the maintenance schedule in order to avail the emission warranty.
e) If any part (s) related to emission characteristics of the vehicles is/are tampered and/or repaired by unauthorised person/workshops etc, then the emission warranty shall stand cancelled.
f) Any part (s) suffering wear and tear under the normal course of running shall not be covered under the emission warranty. Therefore, all such parts should be replaced by the customer from time to time, on payment basis, as per the maintenance schedule provided in owner's manual and dealer's advice.
g) It is recommended to avail the services as per the recommended schedule to be eligible for the emission warranty benefits. Please ensure that each paid service is availed within 90 days from the date of previous services or as per the recommended schedule, whichever is earlier. All service details should be completely filled by the dealer, in the Service Record Sheet given in the owner's manual.
h) It is mandatory to obtain a PUC certificate from the Authorised PUC center. In case of non-compliance with the emission standards please contact the channel partner/authorised workshop immediately alongwith the previous OK certificate, for the necessary rectification. The manufacturer or the dealer is not responsible for any penalty levied on you on account of non-compliance with the emission standards.
i) All decisions regarding emission warranty settlement shall be taken by Hero MotoCorp Ltd. and shall be final binding on all concerned.

Subjected to Delhi jurisdiction only.

Hero

GENUINE PARTS

WHAT ARE THE BENEFITS OF HERO MOTOCORP LTD. GENUINE SPARE PARTS ?

▶ Assures long life
▶ Ensures economy for a long time
▶ Safety of vehicle and rider
▶ Peace of mind
▶ Value for money
▶ Assured quality

Hero

GENUINE PARTS

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Cam Chain Kit	▸ Poor performance▸ Reduced life
Gasket Cylinder Head	▸ Improper sealing▸ Engine knocking▸ Leads to leakage and smoky exhaust▸ Higher emission level
Element Air Cleaner	▸ Improper air filtration resulting in premature engine failure▸ Affects fuel efficiency▸ Poor engine performance

Hero

GENUINE PARTS

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Spark Plug

▸ Frequent stalling of engine▸ Higher emission level▸ Poor engine performance▸ Affects fuel efficiency

ZONAL/REGIONAL/AREA OFFICES

For any of your service related query/requirements you may contact the respective Zonal/Regional/Area Offices

CENTRAL ZONE

Hero MotoCorp Ltd., No. 209-210, Ganpati Plaza, M.I. Road, Jaipur-302001, (Rajasthan). Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Office No. 705-706, 7th Floor, Fun Square, Durga Nursery Road, Udaipur -313001 (Rajasthan). Tel: [phone], 79, E-mail: [e-mail]

Hero MotoCorp Ltd., Office. No.401, 4th Floor, Offizo, Magneto Mall, Labhandi, G.E. Road, Raipur -492001, (Chhattisgarh) Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Third Floor, Alankar Palace, Plot No. 11, Zone II, M.P. Nagar Bhopal-462011, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Maloo-01, 601-602, 6th Floor, Plot No. 26C, Scheme No. 94, Ring Road, Indore, M.P.-452010, Tel: [phone], 70, E-mail: [e-mail]

EAST ZONE

Hero MotoCorp Ltd., Flat No: 1002. 10th Floor, Martin Burn Business Park, BP3, Salt Lake, Sector-V, Kolkata-700091, West Bengal, India. Tel : [phone], E-mail : [e-mail]

Hero MotoCorp Ltd, Odysa Business Centre, Plot no. 30, 30/982, 172/1030, 4th Floor Cuttack, Bhubaneshwar highway road Rasulgarh, Bhubaneswar-751010, Odisha, India. Tel: [phone], 62, 63, 64, E-mail: [e-mail]

Hero MotoCorp Ltd., Yash Heights, 1st Floor Bariatu Road, Above Basudeb Tata Showroom Ranchi-834009, Jharkhand, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Sai Corporate Park, A Block, 6th Floor, Rukanpura, Bailey Road Patna, Bihar – 800014 Tel: [phone] E-mail: [e-mail]

NORTH ZONE

Hero MotoCorp Ltd., 3rd Floor, Tower-A, DLF Centre Court, Sector-42, Golf Course Road, DLF Phase 5, Gurgaon -122002, Haryana, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 602, 6th Floor, Office Tower-1, Plot No BW58, Logix City Center, Sector-32, Noida - 201301. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., S.C.O-367-368, First Floor, Sector-34A, Chandigarh-160022, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Kapoor Towers, Plot No-284, 15-B, Rajpur Road, Dehradun-248001, India. Tel:[phone], E-mail: [e-mail]

ZONAL/REGIONAL/AREA OFFICES

NORTH ZONE

Hero MotoCorp Ltd., Summit Building (10th Floor) Plot No TCG 3/3 Vibhuti Khand, Gomti Nagar Lucknow – 226010, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., C-19/134-B, Third Floor I. P Grand, Lallapura, Sigra, Varanasi, Uttar Pradesh - 221010, India. Tel: +91-, E-mail: [e-mail]0542-2390949,2390241

SOUTH ZONE

Hero MotoCorp Ltd., SKAV 909, 3rd Floor, 9/1, Lavelle Road, Bangalore-560001, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 3-6-289, 3rd Floor, Kareem Manzil, Hyderguda, Hyderabad-500029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 9th Floor Seshachalam Centre No.636/1. Anna Salai, Nandanam, Chennai-600035, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 6-A, DD Trade Tower, (6th Floor), Kaloor-Kadavanthra Road, Kaloor-682 017, Kochi-682017, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., No 1547, 2nd Floor Classic Towers, Trichy Road, Coimbatore - 641018 Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., First Floor VA Kalburgi Mahalakshmi Mansion, Mandakini Hospital Road, New Cotton Market, Hubli-580029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., D.NO. 54-11-18 E, 2nd Floor, Sai Oddessey Building, Opp Executive Club, Near NH-5, Vijayawada-520008, Andhra Pradesh, India. Tel: [phone], E-mail: [e-mail]

WEST ZONE

Hero MotoCorp Ltd., Chrome Building, Sr. No. 33, Hissa-A-1/1/2, Plot - 2, Viman Nagar Avenue 2, Nagar Road, Pune-411014, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 603-604, Gunjan Tower, Off Alembic Gorwa Road, Baroda-390023, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Ground Floor, Block No.2, Vishnu Vaibhav Complex, 222, Palm Road, Civil Lines, Nagpur-440001 India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Astarc House-Third Floor, 76/79, Makwana Lane, Off. Andheri-Kurla Road, Andheri (East), Mumbai-400059, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 604, Kings Plaza, Astron Chowk, Rajkot, Gujarat - 360001 Tel: [phone], E-mail: [e-mail]
