Product Type	Scooter
Brand	Hero
Model	Maestro Edge (2015)
Overall Length	1841 mm
Overall Width	695 mm
Overall Height	1190 mm
Wheelbase	1261 mm
Saddle Height	775 mm
Ground Clearance	155 mm
Kerb Weight (VX Model)	110 kg
Kerb Weight (LX Model)	109 kg
Fuel Tank Capacity	5.5 litres
Engine Displacement	110.9 cc
Maximum Power	6.20 kW @ 8000 r/min
Maximum Torque	8.30 N-m @ 6500 r/min
Compression Ratio	9.5:1
Spark Plug	Champion-PRZ 9 HC, gap 0.6-0.7 mm
Idle Speed	1500 ± 200 r/min
Transmission Type	Variomatic (automatic)
Clutch System	Dry, automatic centrifugal
Front Suspension	Telescopic, hydraulic shock absorber
Rear Suspension	Unit swing with spring loaded hydraulic damper
Brakes	Drum type (130 mm), integrated braking system
Front Tyre	90/90x12-54J (Tubeless)
Rear Tyre	90/100x10-53J (Tubeless)
Battery (VX Model)	12V-4Ah ETZ-5 Maintenance Free
Battery (LX Model)	12V-5Ah Conventional
Headlamp	12V-35/35W Halogen
Starting System	Kick / Electric start
Immobilizer (VX Model)	Yes
USB Charger (LX Model Optional)	Yes
Maximum Load Capacity	130 kg (rider + pillion + cargo)
Engine Oil Recommended	Hero 4T Plus SAE 10W30 SL (JASO MB)
Engine Oil Capacity	0.80 L (disassembly), 0.70 L (drain)
Maintenance Interval	Every 3000 km (oil top-up), every 6000 km (oil change)

Frequently Asked Questions - Maestro Edge (2015) HERO

What is the recommended engine oil for the Hero Maestro Edge 2015?

Hero recommends Hero 4T Plus SAE 10W30 SL grade (JASO MB) engine oil. Change every 6000 km and top up every 3000 km.

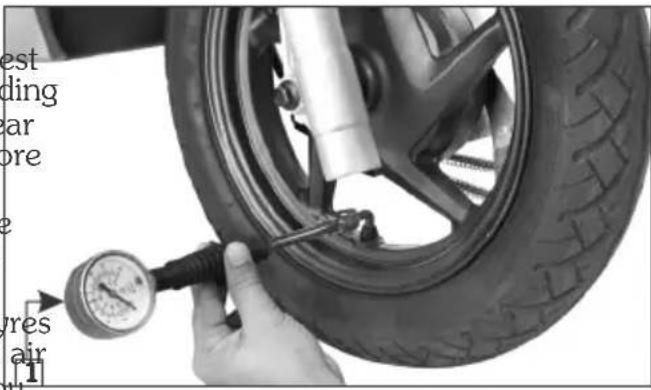

What is the tyre pressure for riding solo?

For solo riding: front 1.50 kgf/cm² (22 psi), rear 2.00 kgf/cm² (29 psi).

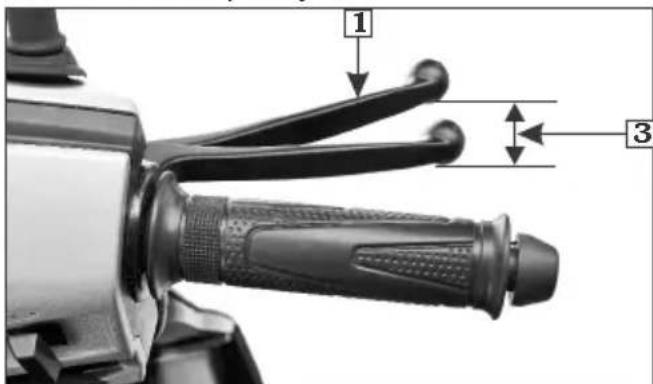

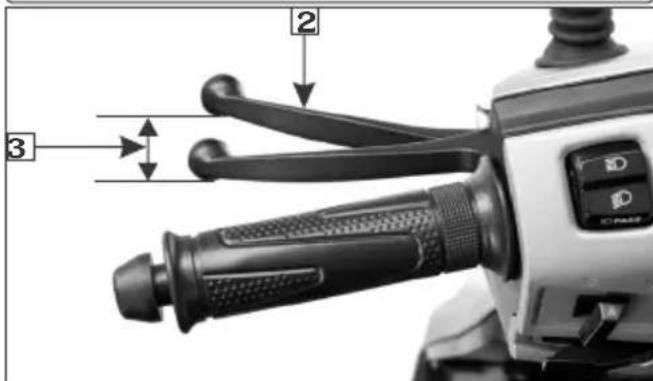

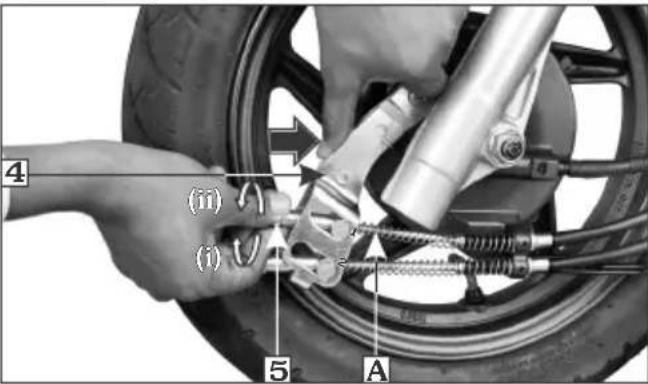

How do I adjust the brake lever free play?

Free play should be 10-20 mm at the tip of the lever. Turn the adjuster nut on the integrated brake arm to increase or decrease play.

What is the maximum load capacity of the Maestro Edge?

The maximum weight capacity is 130 kg including rider, pillion, and cargo.

How does the immobilizer system work?

The immobilizer prevents the engine from starting without an authorized key. If the indicator blinks, contact an authorized dealer.

What is the proper running-in procedure?

For the first 500 km, avoid full-throttle starts and rapid acceleration to ensure future reliability.

How do I use the side stand properly?

Ensure the side stand is fully up before riding. The side stand indicator will glow if it is down. Always check it during pre-ride inspection.

What fuel type should I use?

Use unleaded petrol with octane rating at least as recommended. Do not use petrol with more than 10% ethanol or 5% methanol.

How often should I service the Maestro Edge?

Follow the maintenance schedule: free services at 500-750 km, then every 3000 km or 90 days, whichever comes first.

What should I do if the engine does not start?

Check fuel level, battery, fuse, and side stand position. Refer to the troubleshooting guide in the manual for detailed steps.

USER MANUAL Maestro Edge (2015) HERO

Thank you for selecting a Hero MotoCorp MAESTRO EDGE scooter. We wish you many miles of continued riding pleasure in the years ahead.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment performance on a continual basis, as an intrinsic element of our corporate philosophy. To achieve this we commit ourselves to continue product innovations to improve environment compatibility, comply with all applicable legislation including environment legislation and strengthen the green supply chain.

Your Scooter is conforming to latest (Bharat Stage-III norms) regulation for emission, safety & noise levels. We are also using non asbestos brake shoes and engine gaskets which are environment friendly in nature.

This booklet is your guide to the basic operation and maintenance of your new Hero MotoCorp MAESTRO EDGE scooter. Please take time to read it carefully. As with any fine machine, proper care and maintenance is essential for trouble-free operation and optimum performance.

Your Authorised Hero MotoCorp dealer will be glad to provide further information or assistance and is equipped to handle your future service needs.

Let us make this world a safer, healthier and more environment friendly place.

NOTE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS, SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED. Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero MotoCorp Ltd 'MAESTRO EDGE' COMPLIES WITH THE LATEST EMISSION NORMS.

Pg. No.Pg. No.

SCOOTER IDENTIFICATION

PRODUCT SPECIFICATION

SCOOTER SAFETY

▶ Important safety information

Protective apparel

Load limits and guidelines

Accessories and modifications

TIPS FOR HEALTHY ENVIRONMENT 9

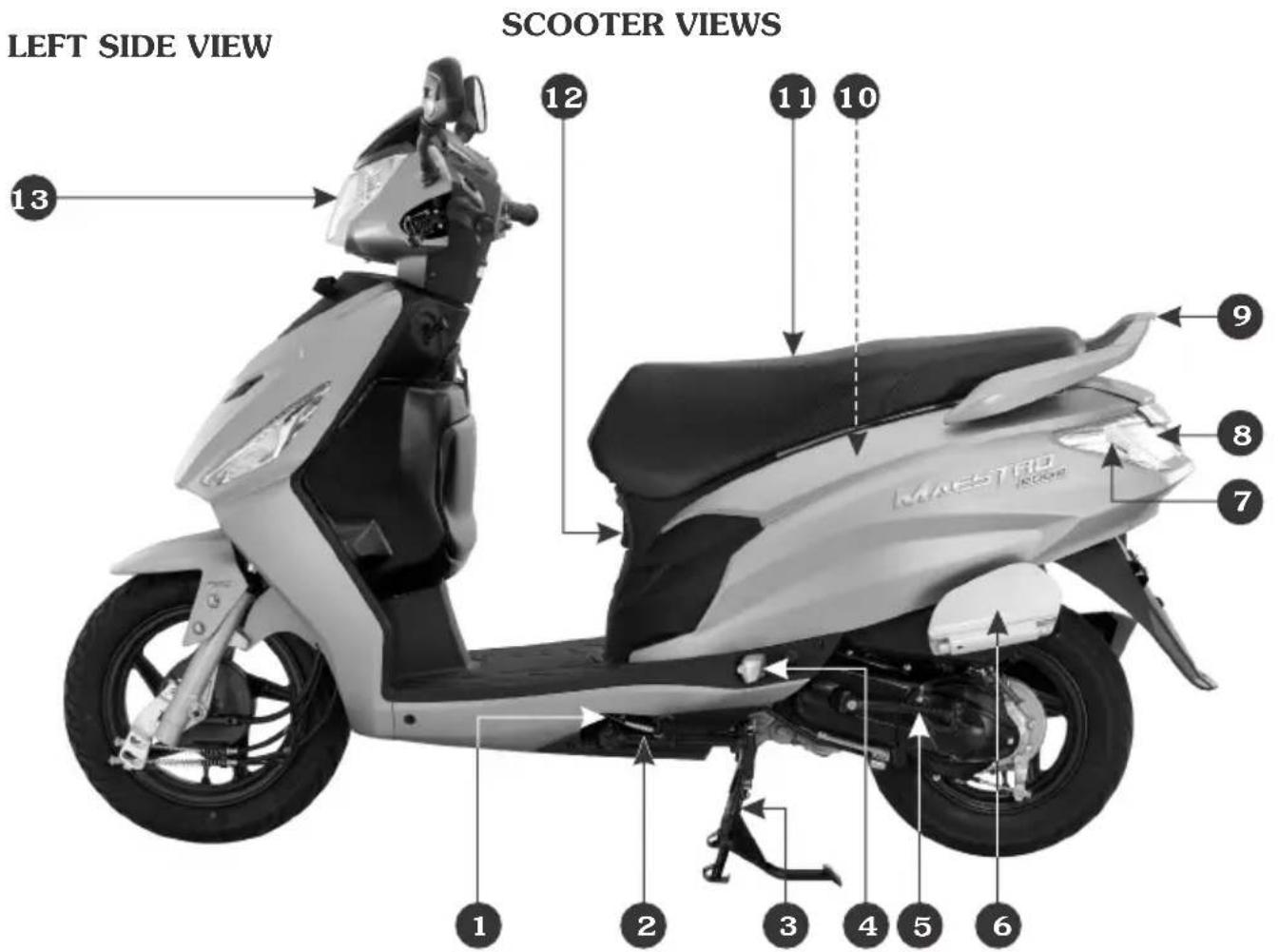

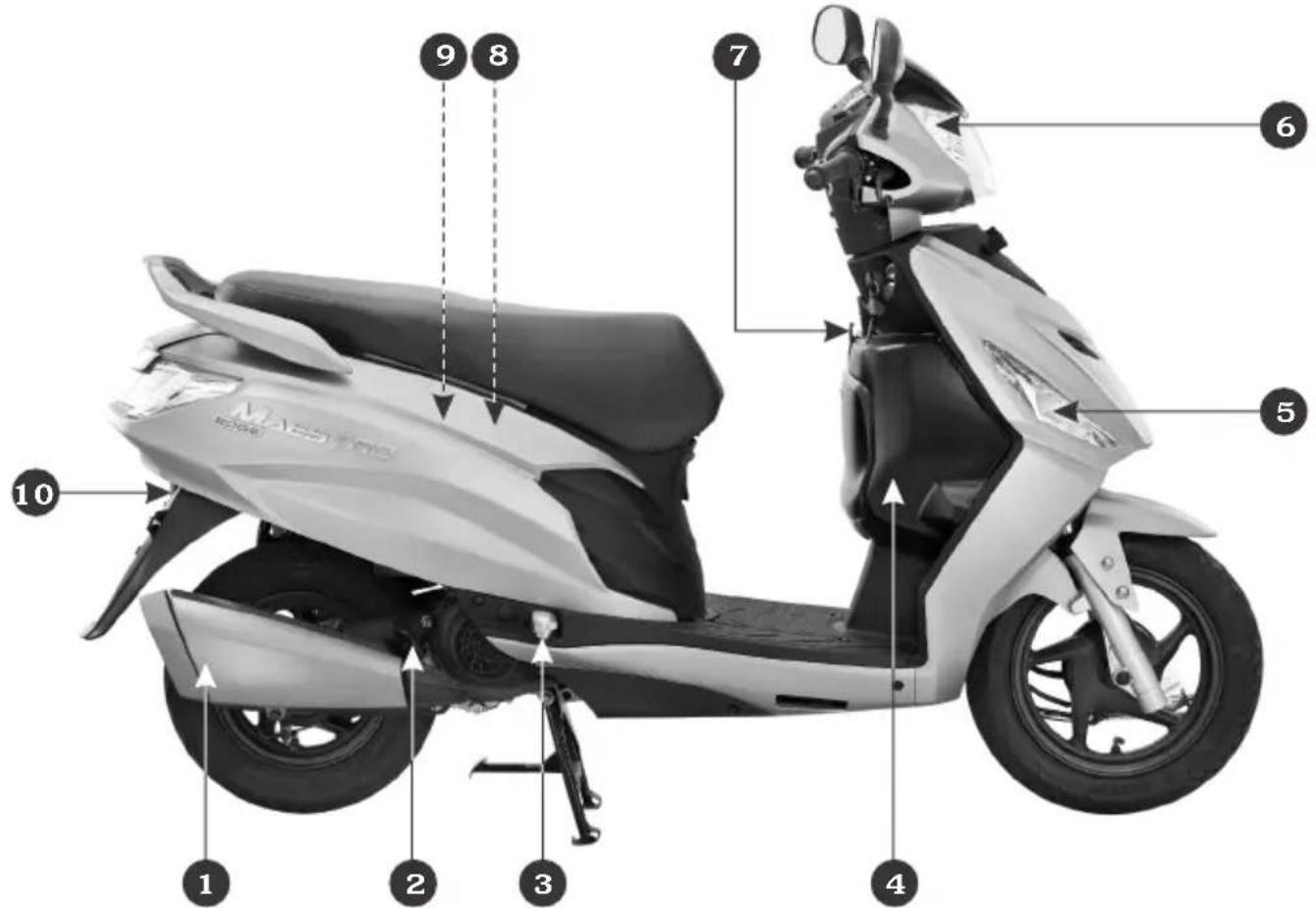

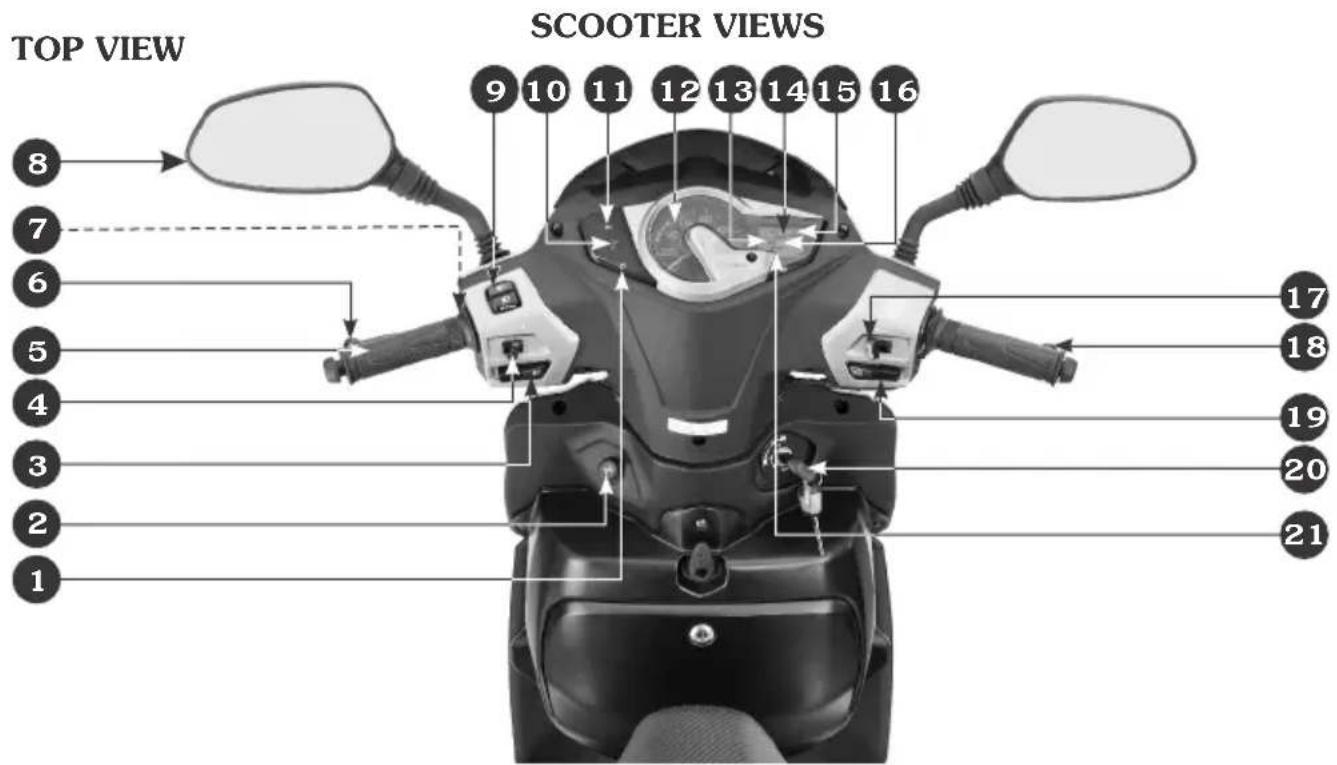

SCOOTER VIEWS

PARTS FUNCTION

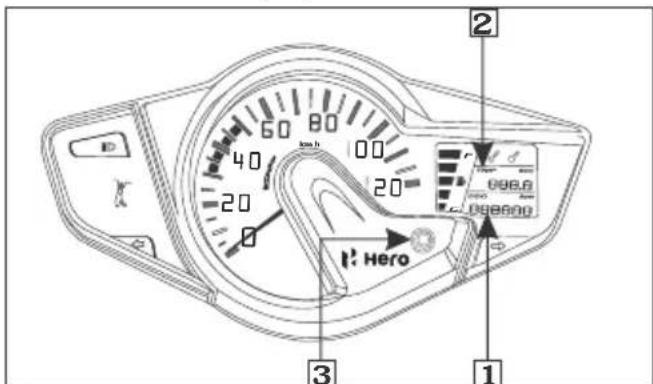

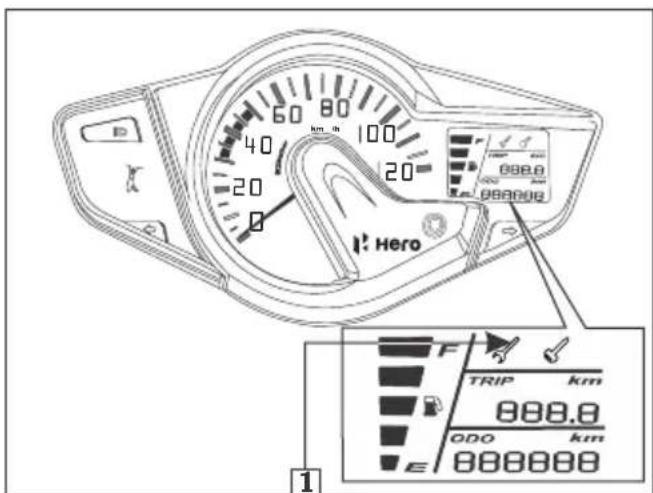

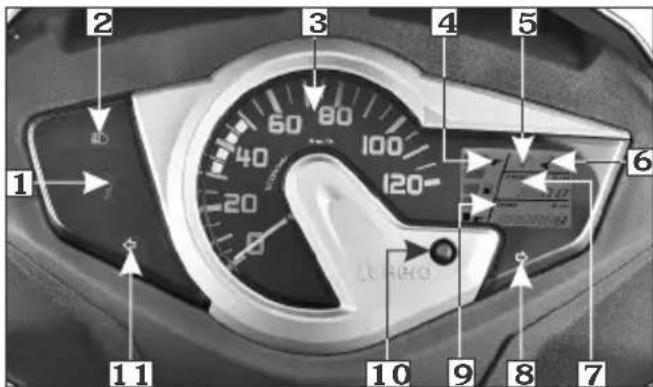

▶ Instruments and indicators

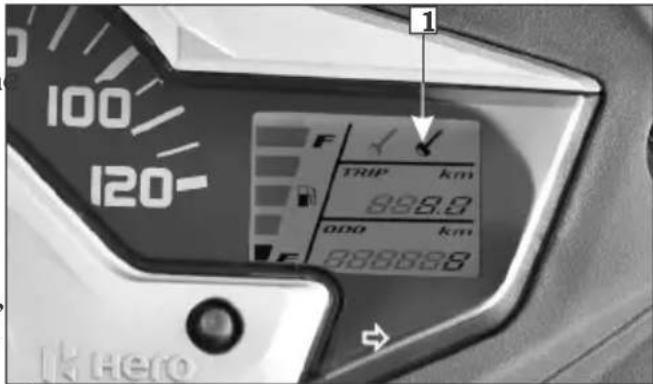

Odometer/Tripmeter

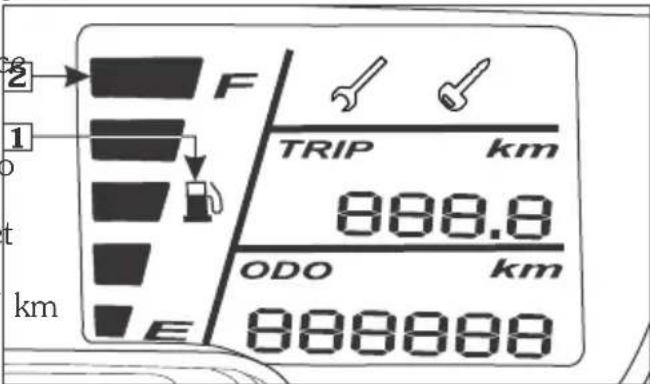

▶ Fuel gauge/Service reminder

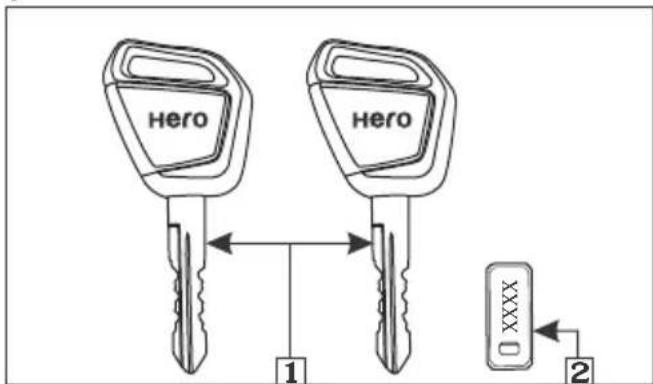

▶ Keys

MAJOR COMPONENTS

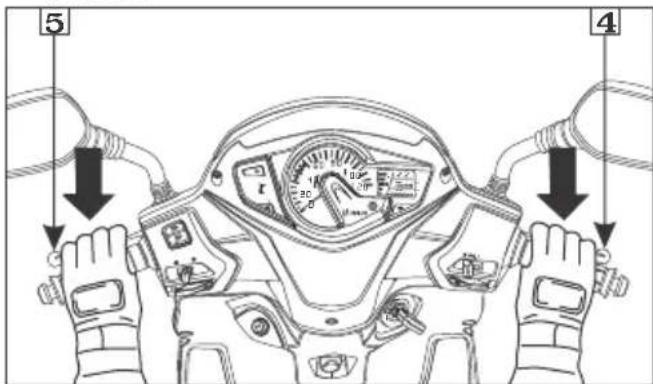

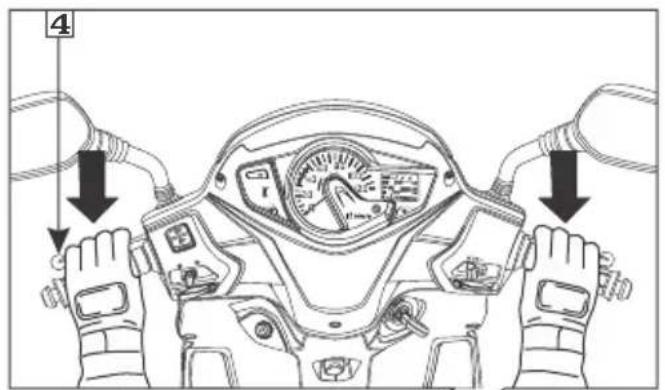

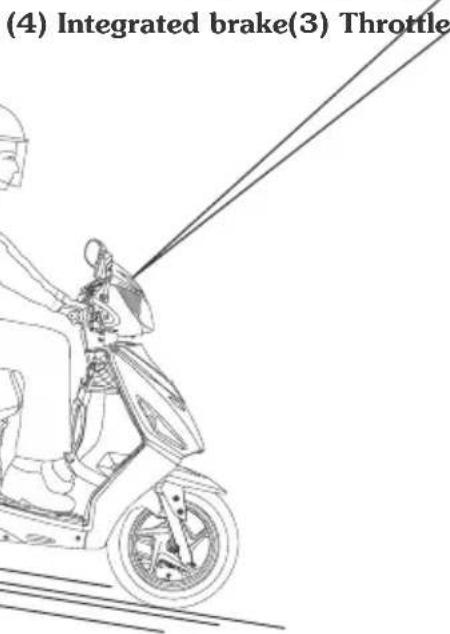

▶ Brakes (integrated braking)

▶ Fuel

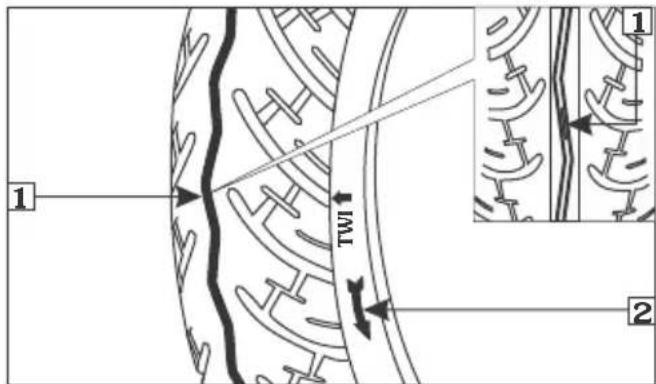

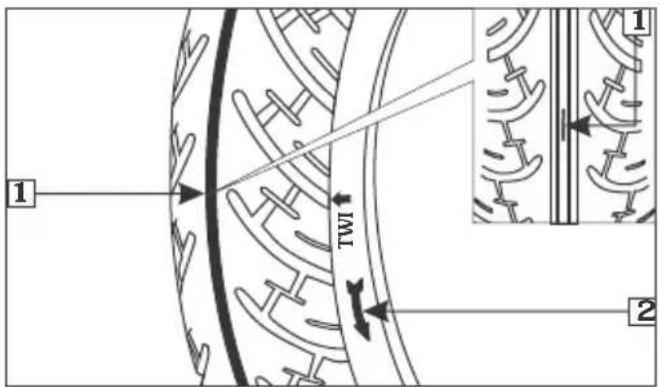

Tyres (Tubeless)

ESSENTIAL INDIVIDUAL COMPONENTS

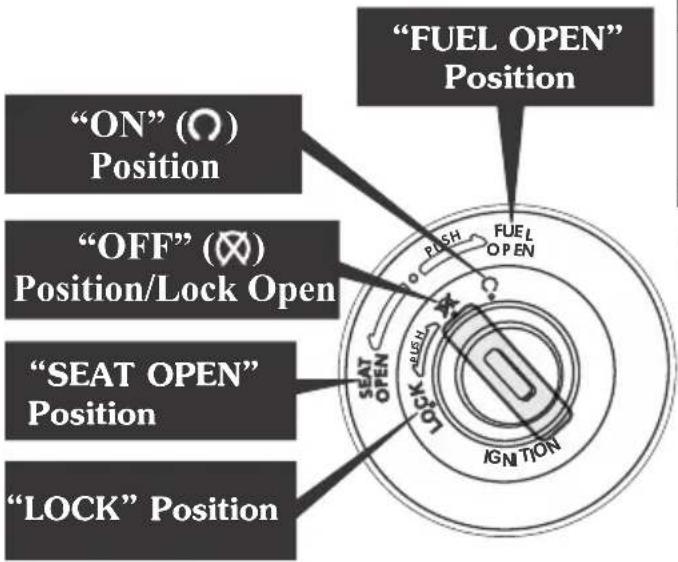

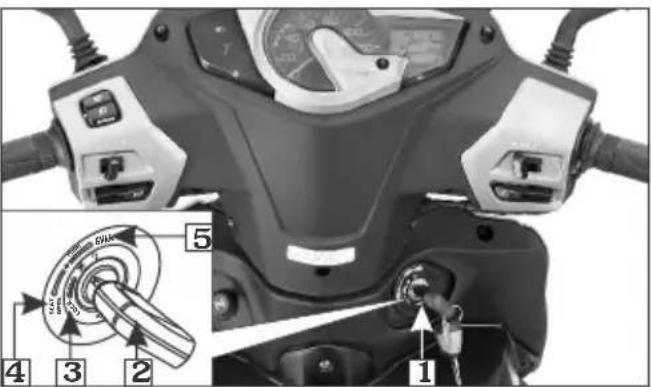

Ignition switch

Right handlebar controls

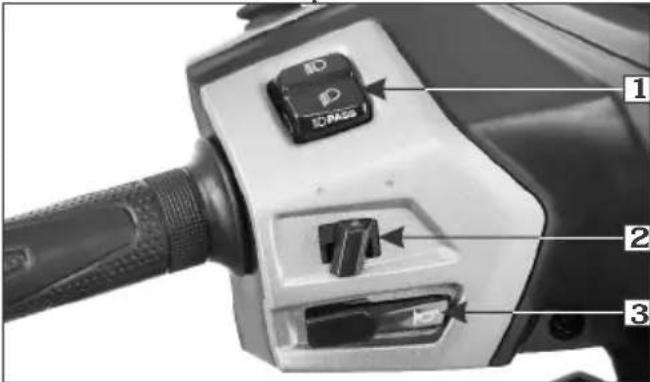

▶ Left handlebar controls

FEATURES

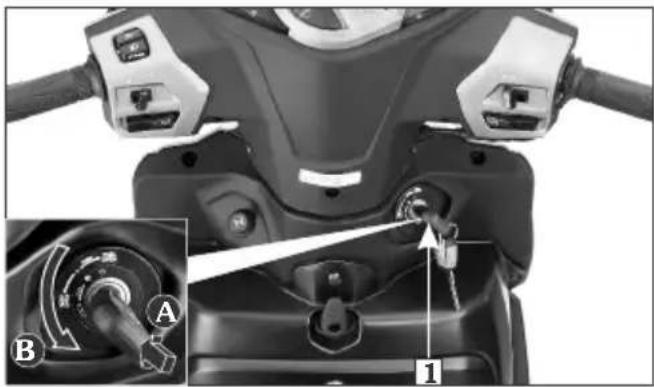

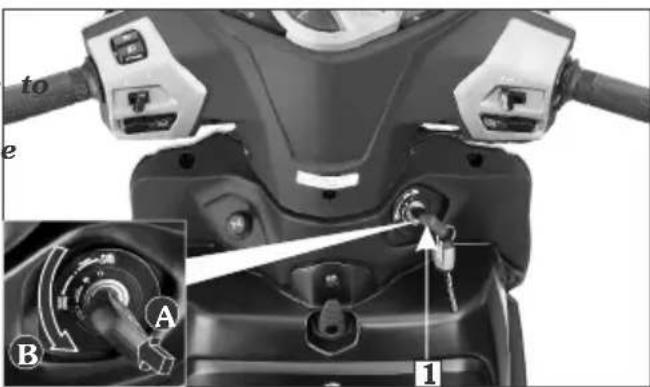

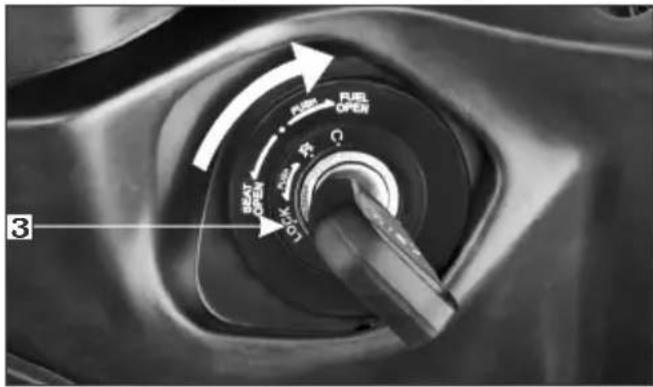

Steering lock/Fuel tank lid lock

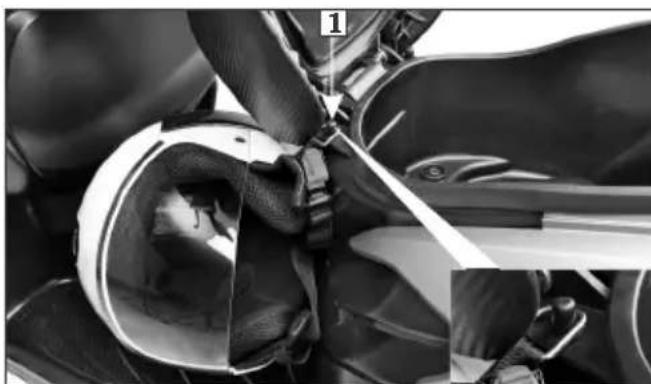

Seat lock/Helmet holder

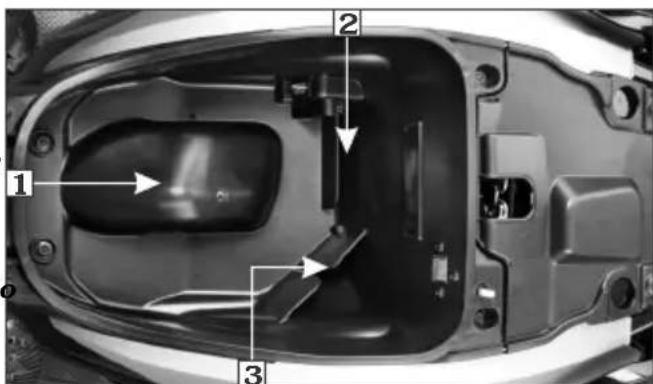

▶ Center compartment

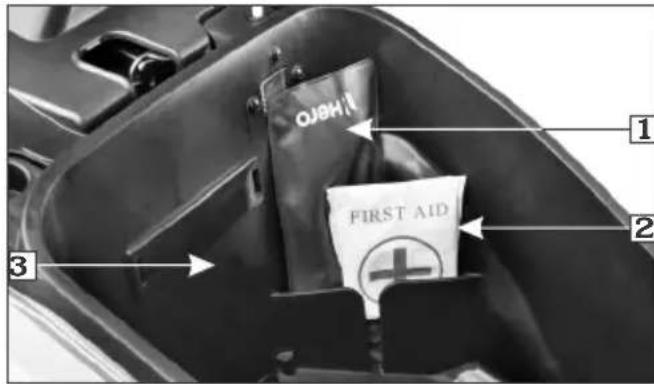

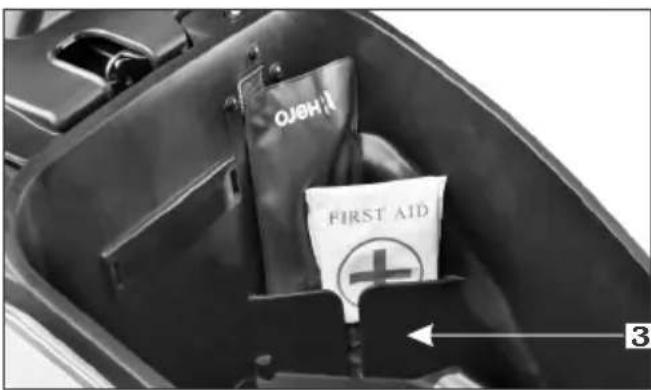

Center compartment/First aid kit/Tool kit holder

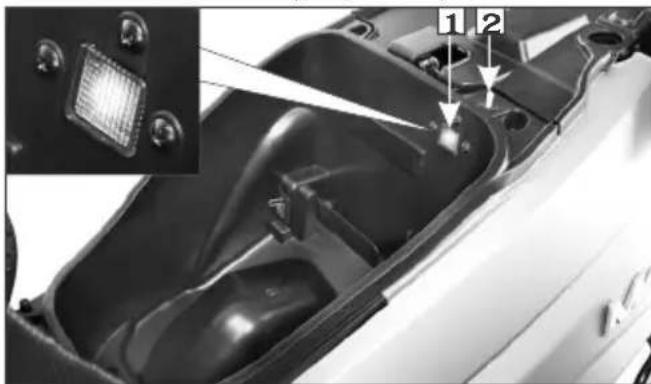

Boot lamp (Optional in LX Model)

Boot lamp switch (Optional in LX Model)

USB charger (Optional in LX Model)

Luggage hooks/Front luggage hook

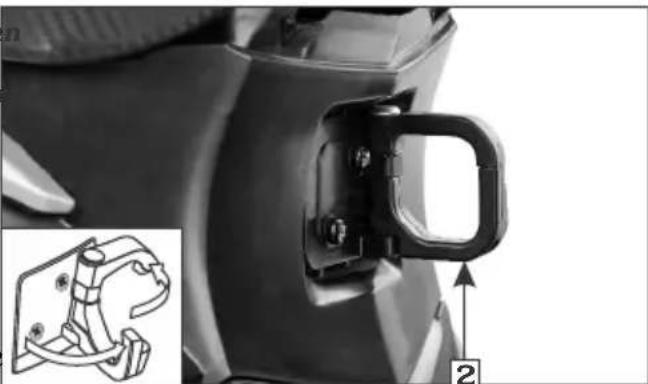

Rear luggage hook (Optional in LX Model)

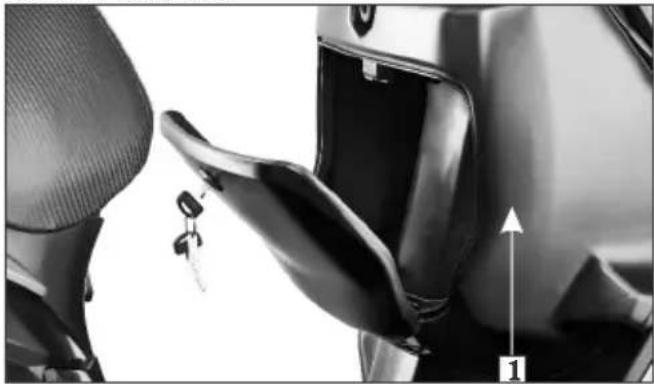

▶ Front inner box (Optional)

Immobilizer (VX Model)

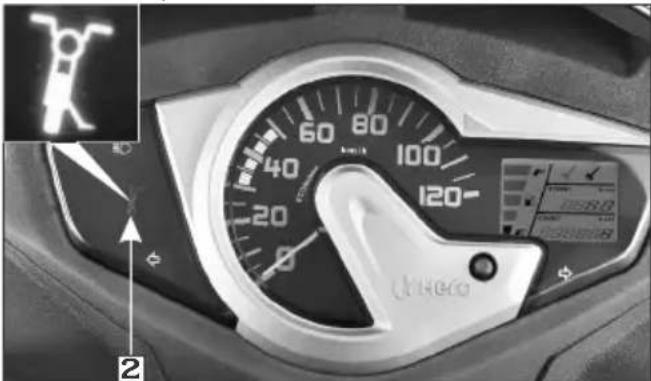

▶ Side stand indicator

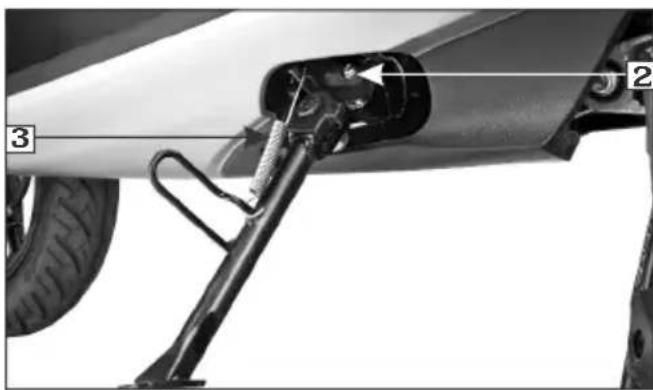

Side stand switch/side stand (Optional)

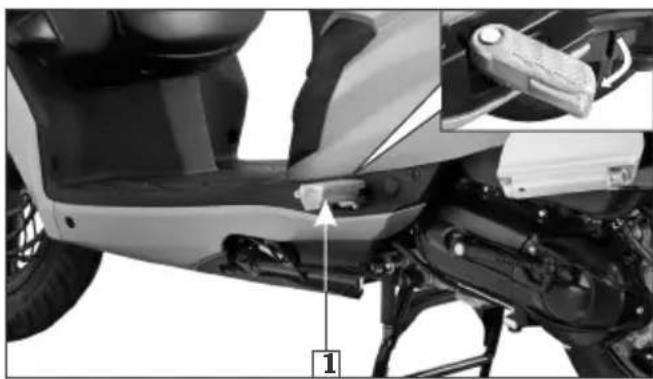

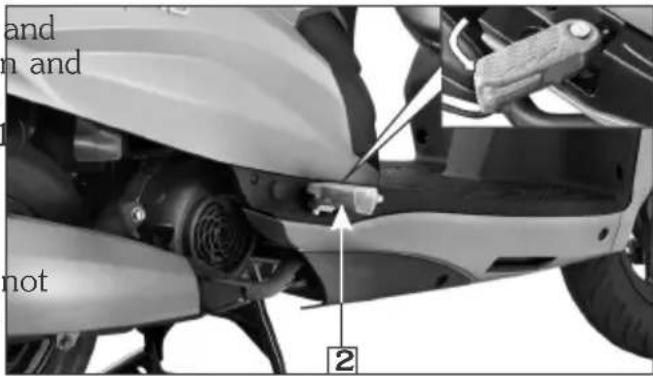

Pillion footrest 31

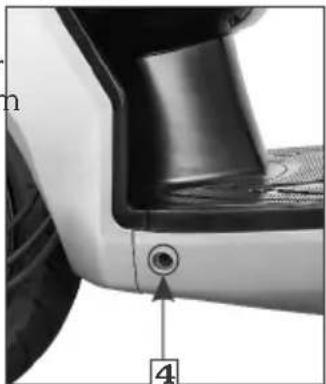

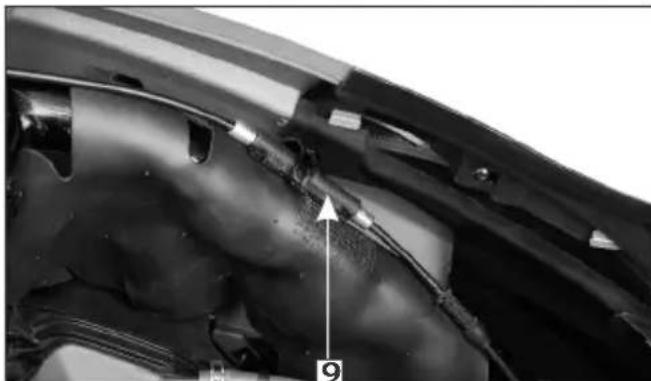

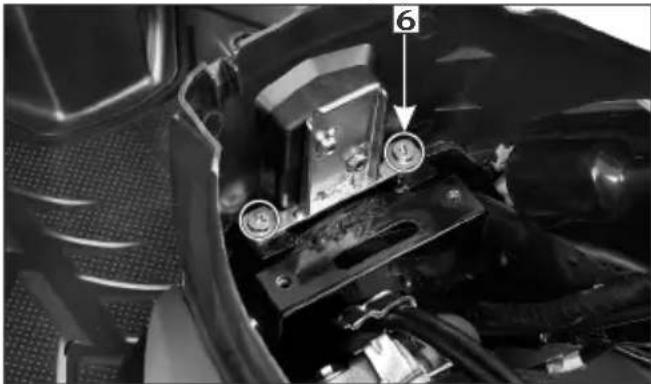

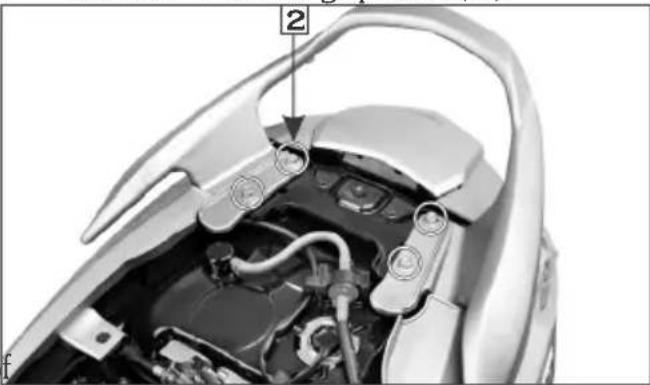

BODY PARTS REMOVAL

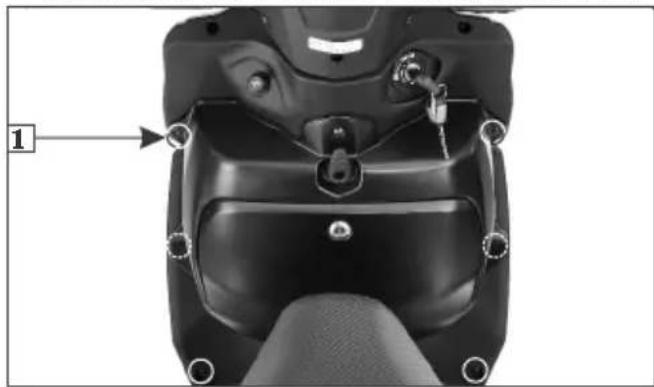

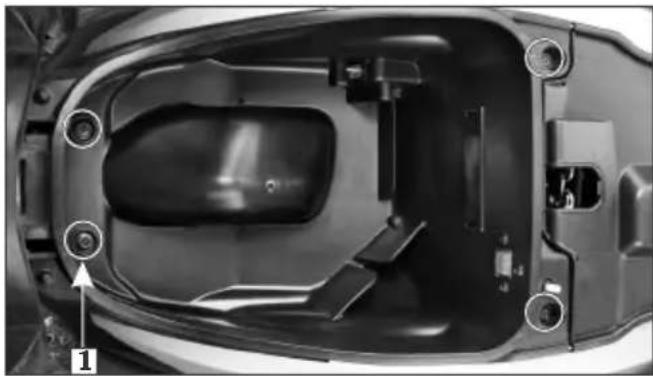

Center compartment

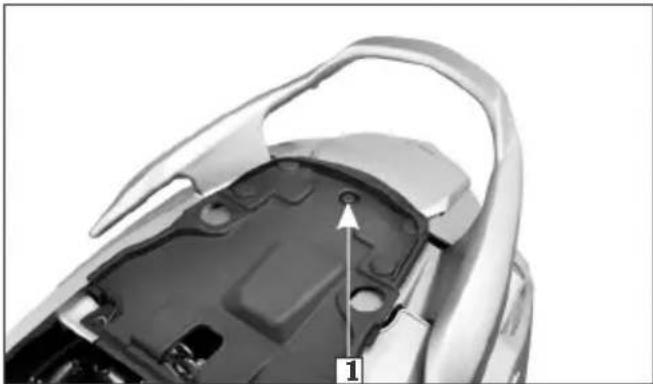

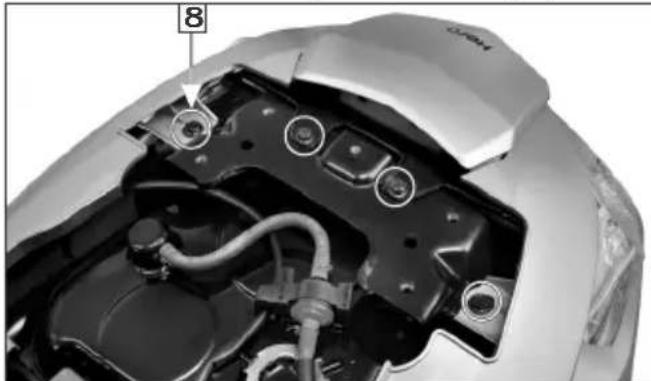

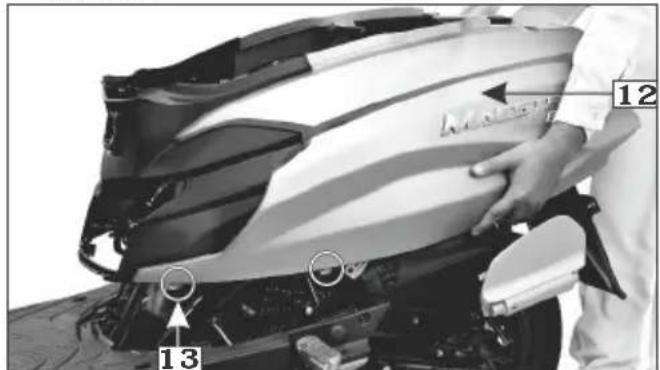

1 ➤ Body cover 32

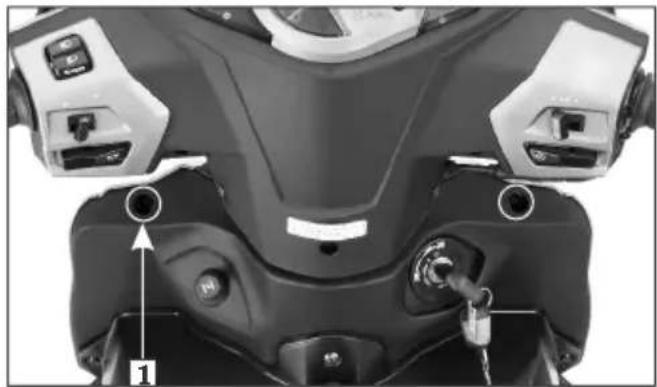

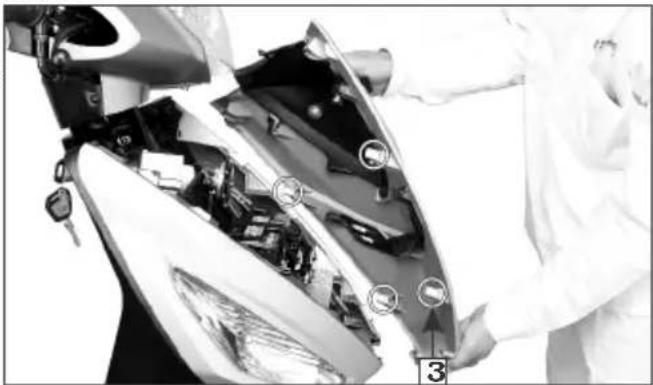

2 ➤ Front center cover 35

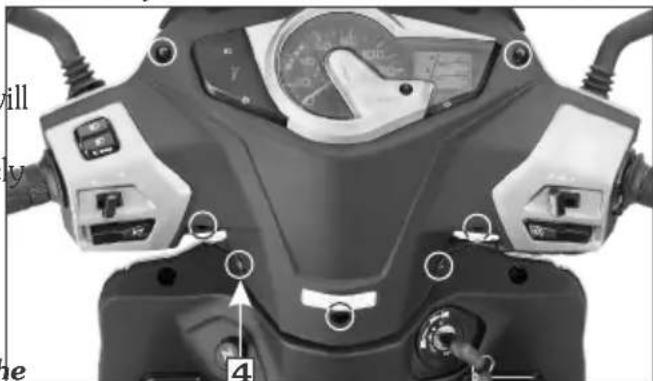

4 ▷ Front cover 36

4 ▷ Rear view mirror/Headlamp case 37

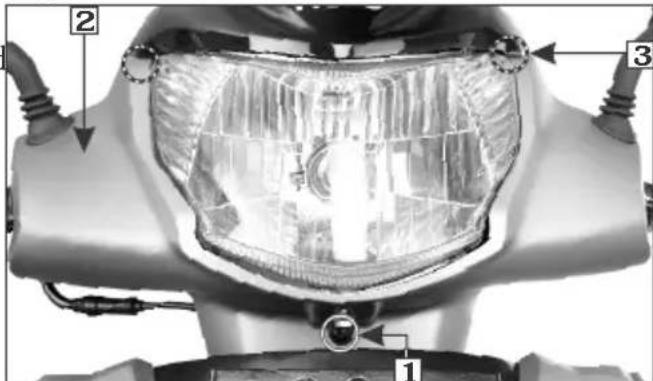

5 ➤ Headlamp focus 38

7 OPERATIONS 38

8 ▷ Pre-ride inspection 38

Anti-theft tips/Starting the engine 39

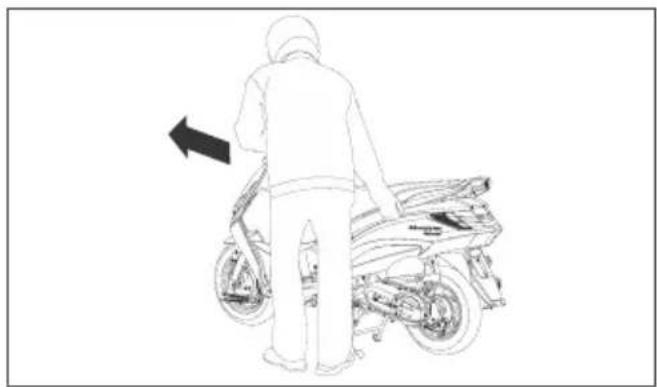

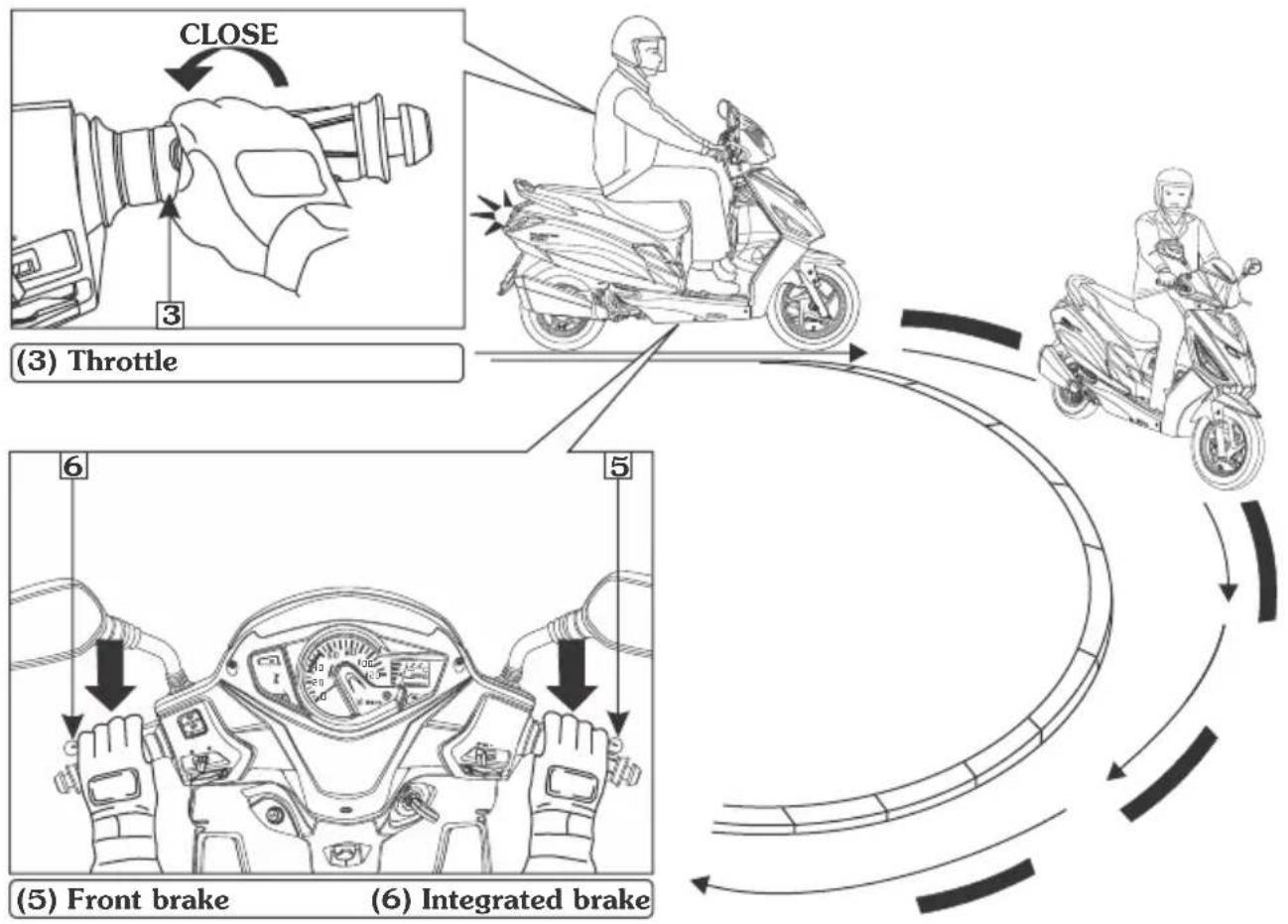

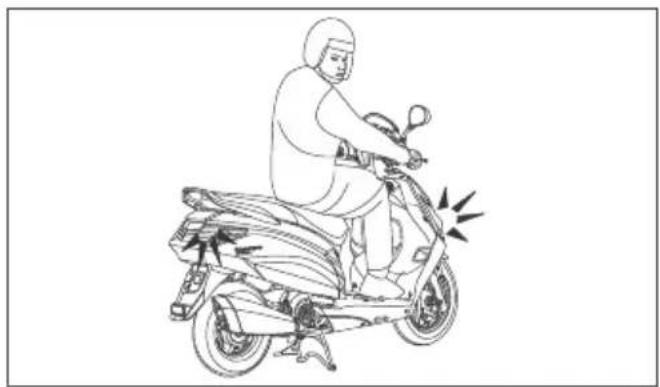

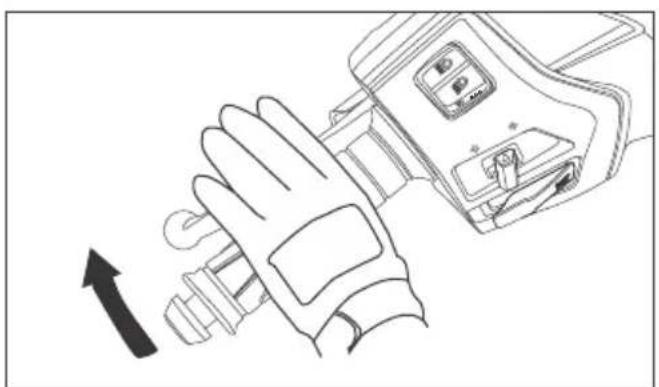

) ▷ Running in/Riding 41

3 ▷ Parking/Steering lock 46

3 TOOL KIT/FIRST AID KIT 47

14 MAINTENANCE 47

14 ➤ Importance of maintenance 47

15 ➤ Maintenance safety/Safety precautions 48

6 ▷ Maintenance schedule 49

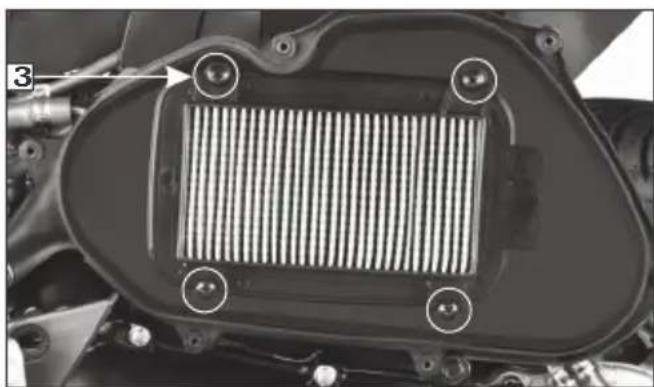

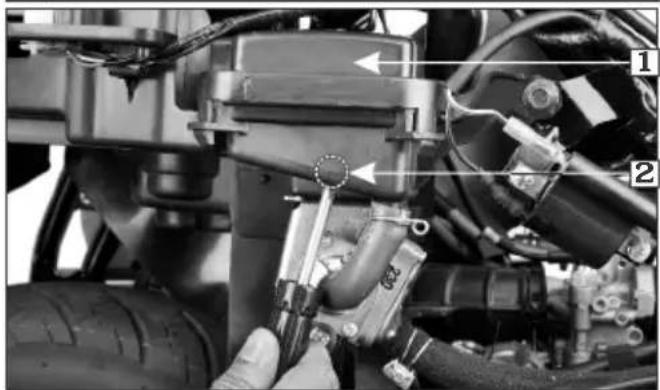

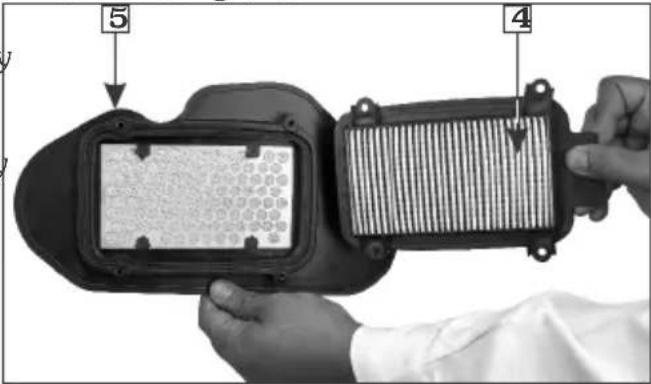

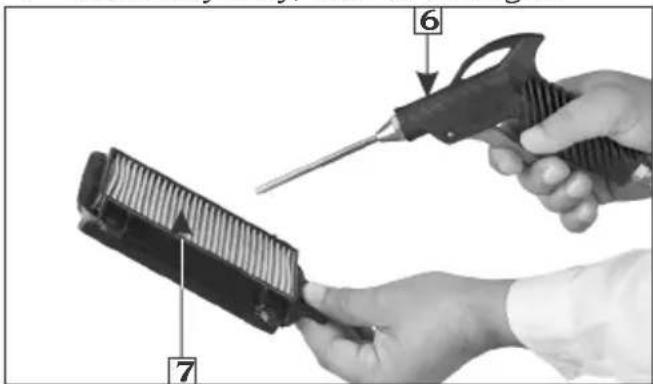

16 ▷ Air cleaner 52

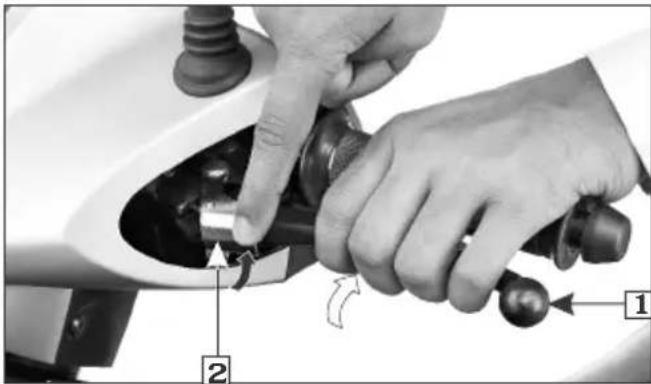

17 ▷ Throttle operation 53

19 ▷ Secondary air supply system 53

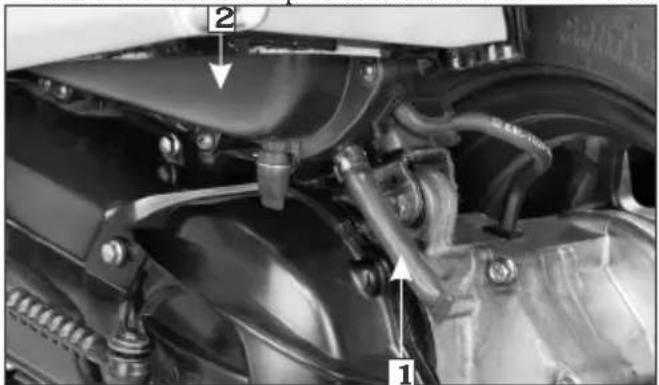

3 ▷ Drain tube/Engine oil 54

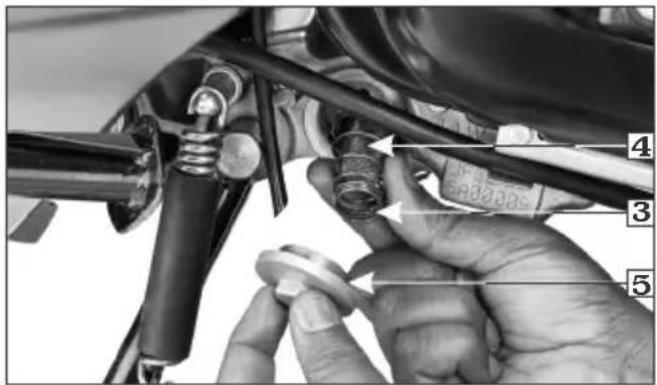

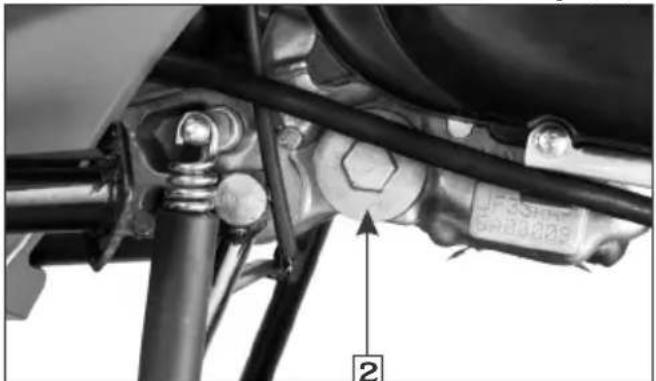

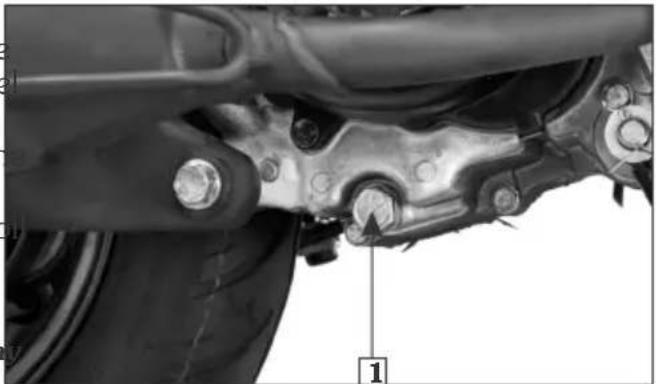

23 ➤ Engine oil replacement/Oil strainer cleaning 55

24 ➤ Final drive oil replacement 56

24 ▷ Spark plug 57

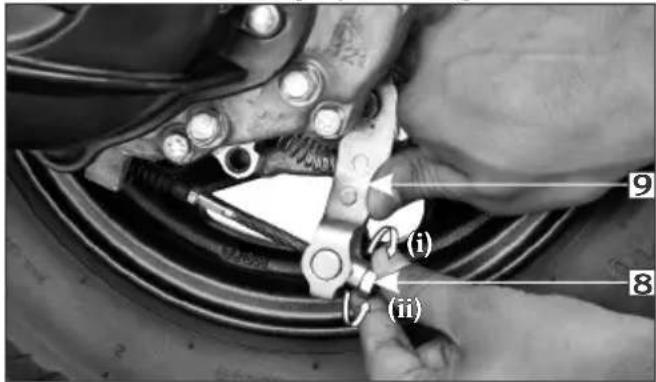

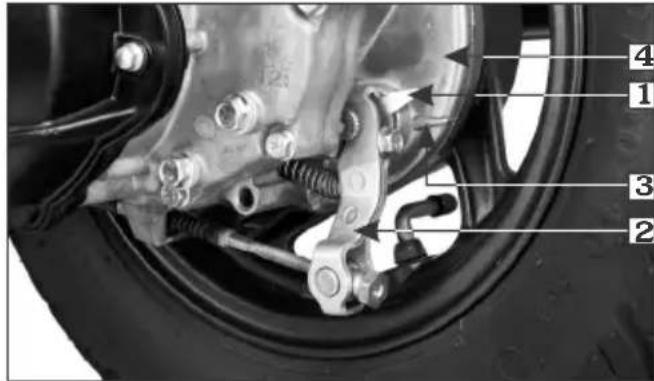

5 ▷ Idle speed/Brake shoe wear 58

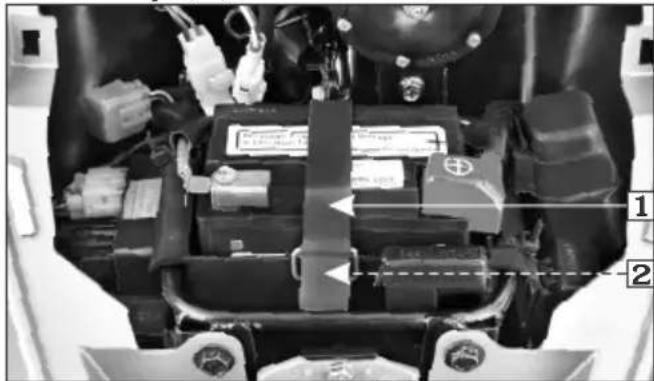

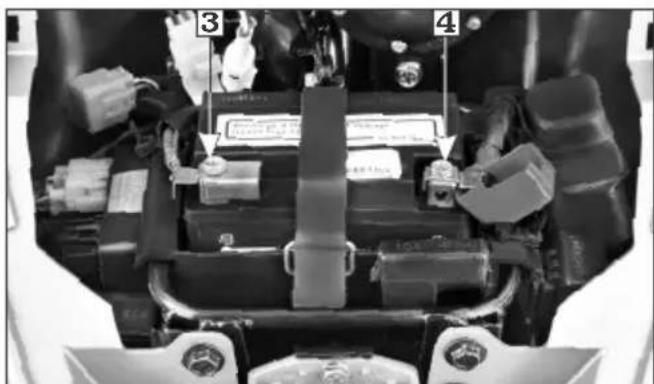

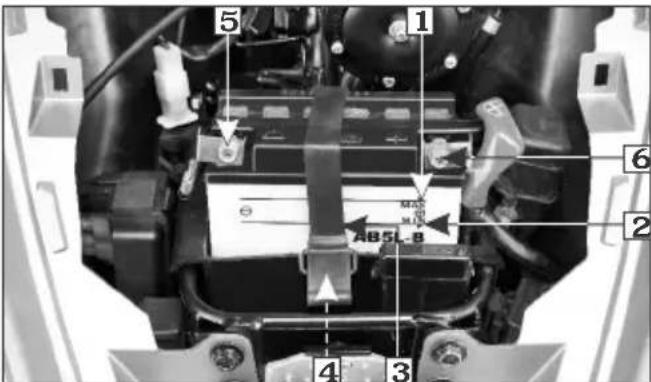

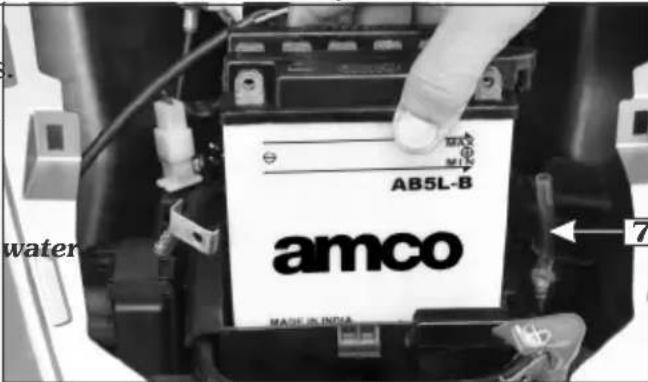

25 ➤ Battery 59

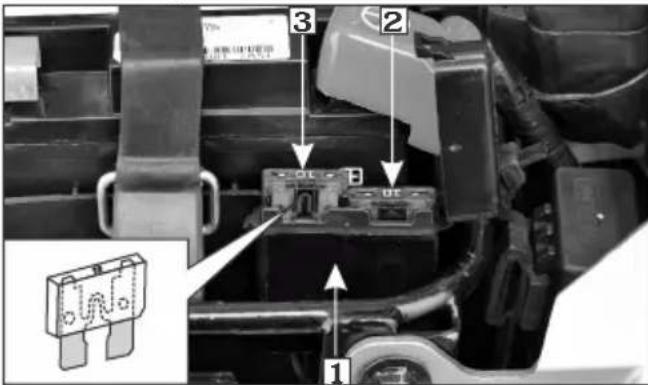

25 ➤ Fuse replacement 61

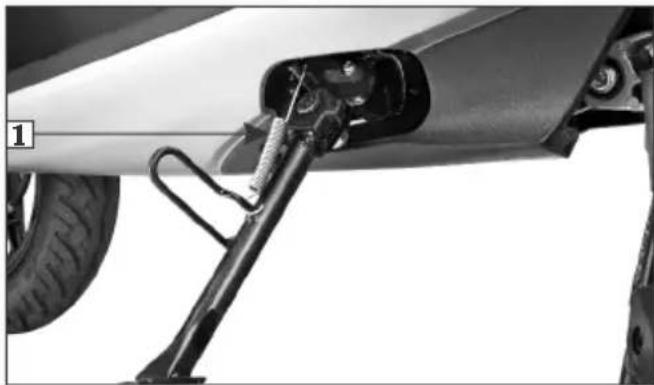

26 ▷ Side stand 62

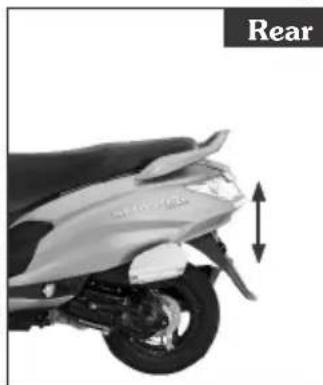

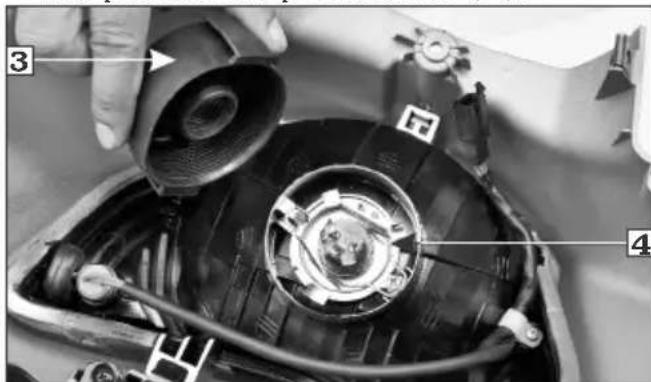

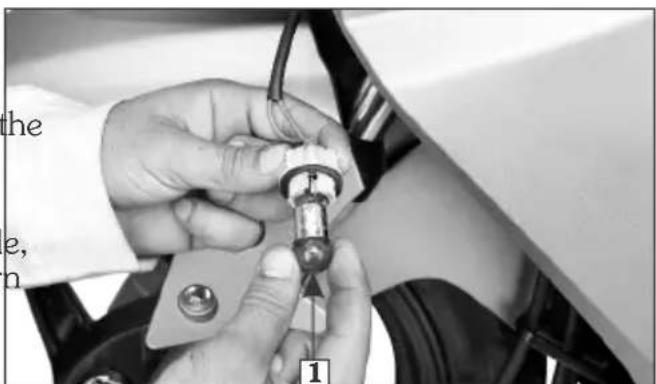

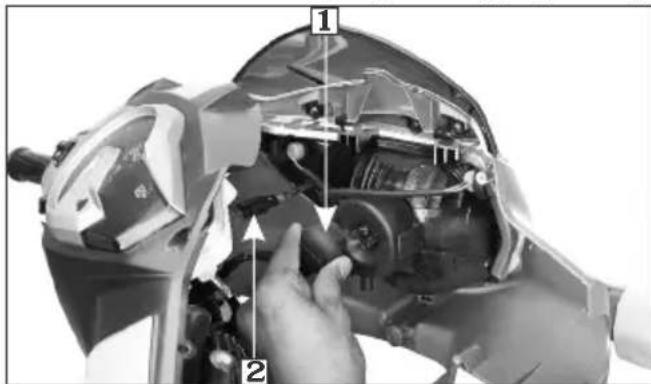

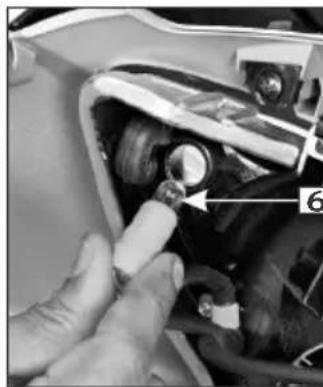

6 ▷ Suspension/Bulb replacement 63

27 ▷ Cleaning 65

27 ▷ Washing 66

27 ▷ Polishing 67

28 STORAGE GUIDE 67

28 ➤ Storage 67

29 ▷ Removal from storage/Catalytic converter 68

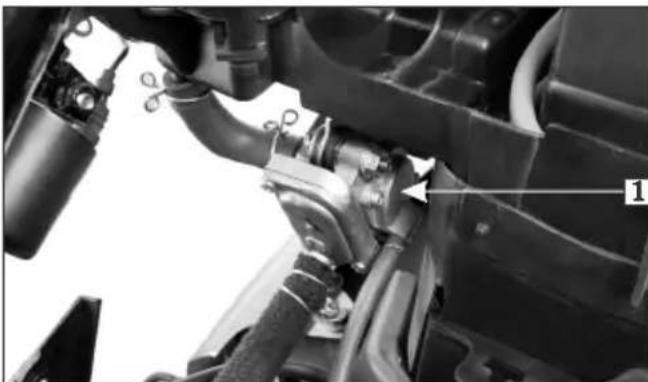

29 ▷ Air suction valve 69

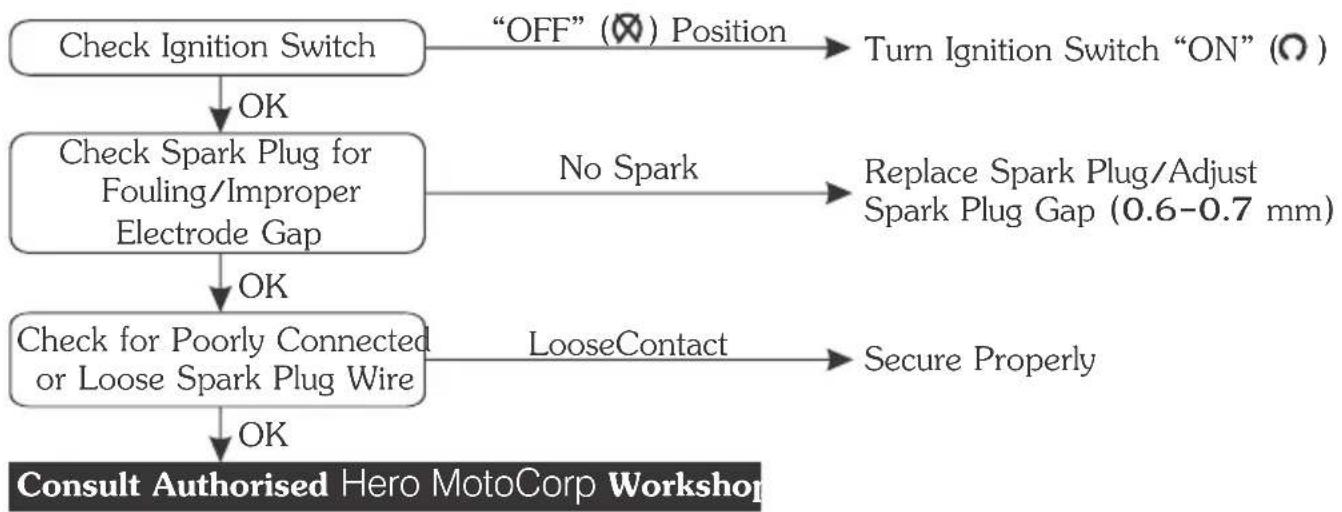

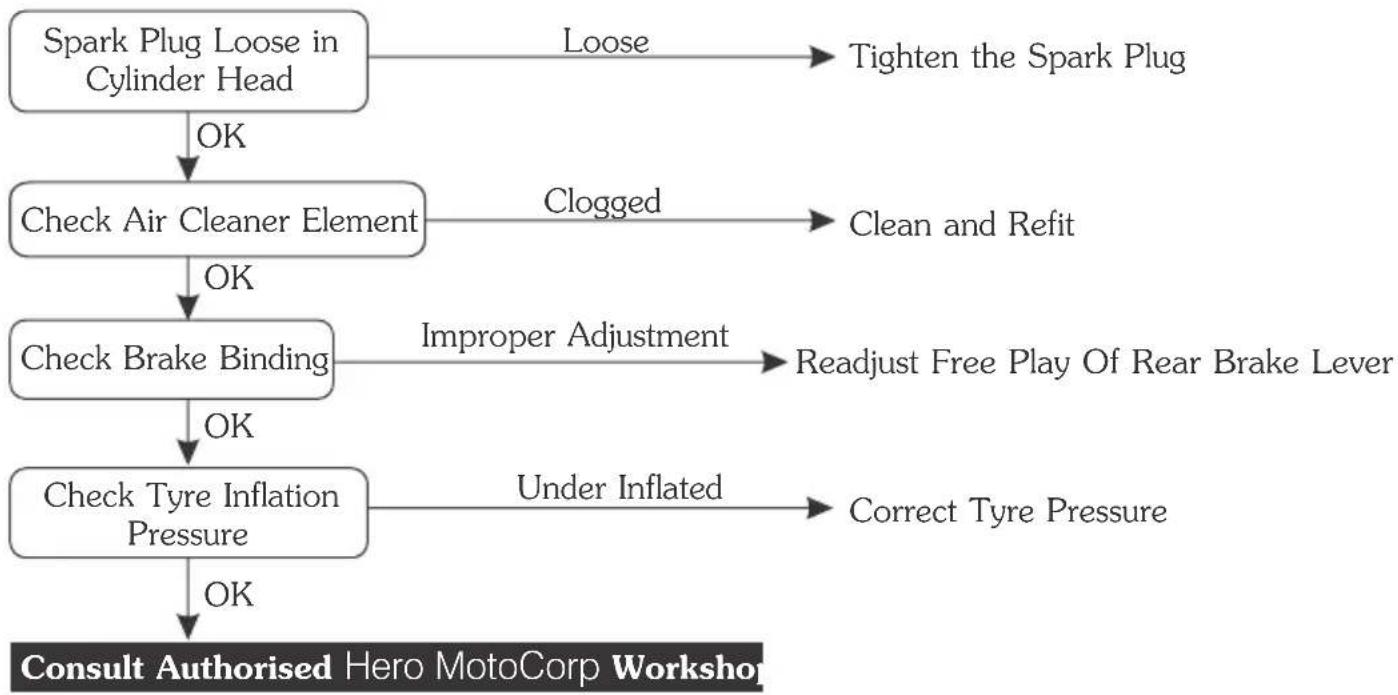

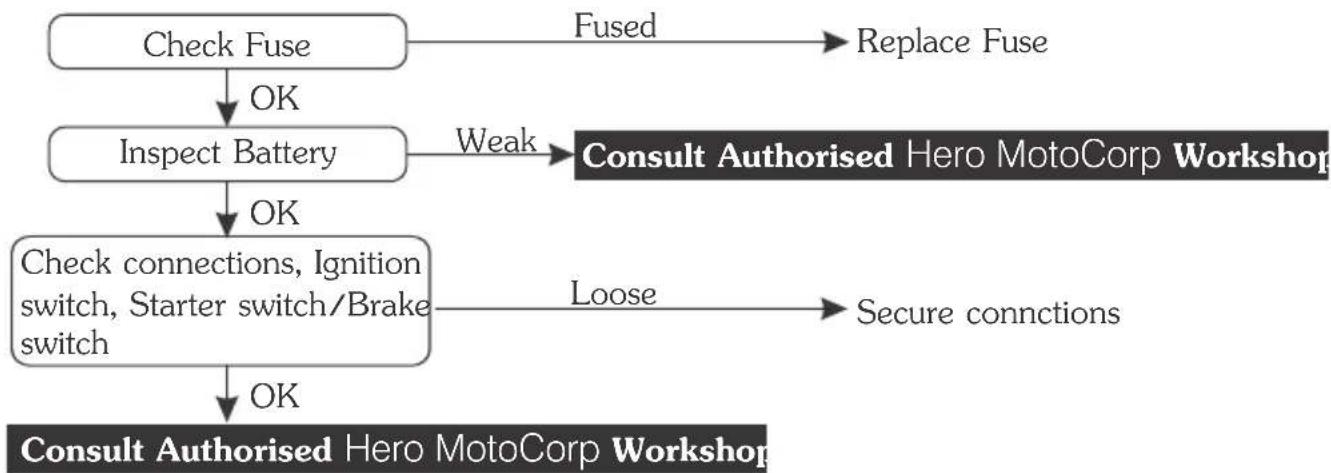

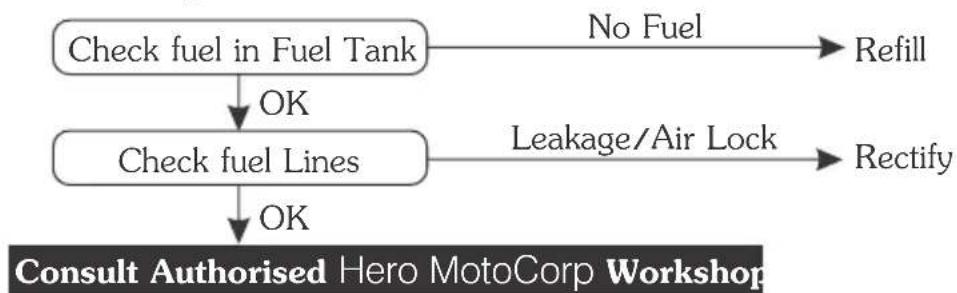

30 BASIC TROUBLESHOOTING 70

30 ROAD SIGNS 74

WARRANTY DETAILS

31 HERO GENUINE PARTS

31 ZONAL/REGIONAL/AREA OFFICES

SCOOTER IDENTIFICATION

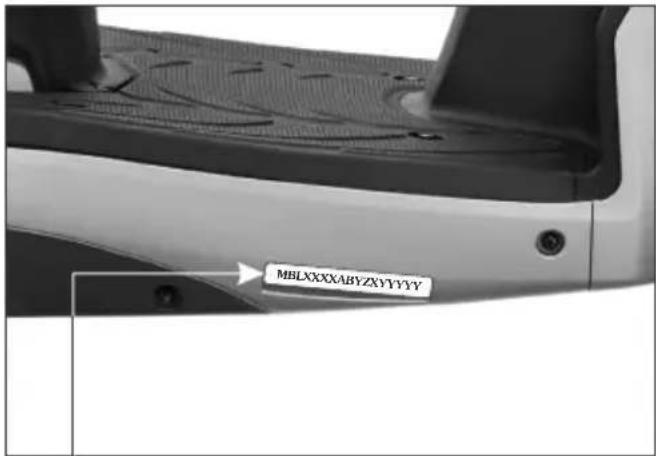

Vehicle Identification Number (VIN)

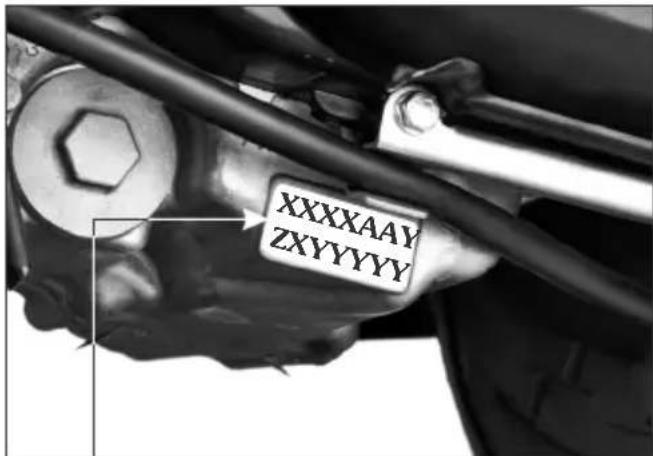

Engine No.

Location: Stamped on the lower right side of Location: Stamped on the lower side of the frame, visible from the window provided the left crankcase. on right floor side cover.

VIN: MBLXXXXABYZXYYYYY

MBL XXXXAB Y Z				X YYYY
Manufacturer code	Vehicle Description	Year of Manufacturing	Assembly Plant	Month of Manufacturing	Serial Number

Engine No.: XXXXAAYZXYYYYY

XXXXAA Y	Z X YYYY
Engine Description	Year of Manufacturing	Assembly Plant	Month of Manufacturing	Serial Number

Model: Maestro EDGE

Variants	VIN	Engine
Cast wheel/Integrated brakes (VX)	AA	AA
Sheet metal wheel/Integrated brakes (LX)	AB	AA

VIN and Engine number may be required:

1. During registration of the scooter.
2. For dealing with Legal & Insurance Departments.

PRODUCT SPECIFICATION

		SPECIFICATIONSITEM
Dimensions
Overall length		1841 mm
Overall width		695 mm
Overall height		1190 mm
Wheelbase		1261 mm
Saddle height		775 mm
Ground clearance (Under cover)		155 mm
Weight
Kerb weight	VX Model	110 Kg
	LX Model	109 Kg
Capacities
Engine oil		0.80 litre at disassembly and 0.70 litre at draining
Transmission oil		0.12 litre at disassembly
		0.10 litre at draining
Fuel tank		5.5 litres (Minimum)
Engine
Maximum power		6.20 kW @ 8000 r/min
Maximum torque		8.30 N-m @ 6500 r/min
Bore and stroke		50.0x56.5 mm
Compression ratio		9.5:1
Displacement		110.9 cc
Spark plug		Champion-PRZ 9 HC (Federal Mogul)

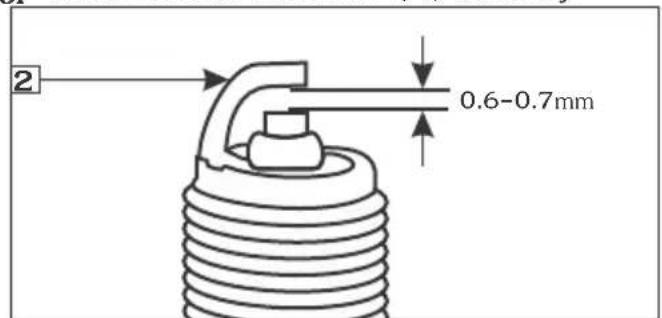

Spark plug gap		0.6-0.7 mm
Valve clearance	Intake (cold)	0.14 mm
	Exhaust (cold)	0.14 mm
Idle speed		1500±200 r/min
Chassis and suspension
Chassis Type		High rigidity under bone
Front Suspension		Telescopic, hydraulic shock absorber
Rear Suspension		Unit swing with spring loaded hydraulic damper
Caster angle		28°
Tyre size	Front	90/90x12-54 J (Tubeless Tyre)
	Rear	90/100x10-53 J (Tubeless Tyre)

PRODUCT SPECIFICATION

		SPECIFICATIONSITEM
Front/Rear brake Drum type		Internal expanding shoe type (Dia. 130 mm) (Integrated braking)
Transmission
Primary reduction		Variomatic (2.51-0.85)
Final reduction		50/20x50/12 (10.417)
Clutch system		Dry, Automatic Centrifugal Clutch
Electricals

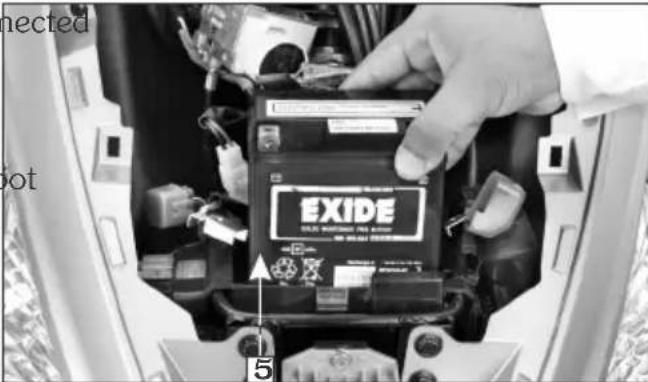

Battery	VX Model	12V-4Ah ETZ-5 *MF Battery
	LX Model	12V-5Ah-Conventional Battery
Alternator		110 W
Starting System		Kick/Electric Start
Headlamp (High/Low)		12V-35/35W Halogen Bulb-MFR**
Tail/Stop lamp	VX Model	12V-0.4W/1.6W
	LX Model	12V-2.6/4.75W
Turn signal lamp		12V-10Wx4 nos.(MFR**-Clear Lens-Amber bulb)
Position lamp		12V-5Wx2 nos. MFR**
Meter Illumination		LED
Turn signal indicator		LED (2 nos.)
Hi Beam indicator		LED
Licence plate		12V-5W

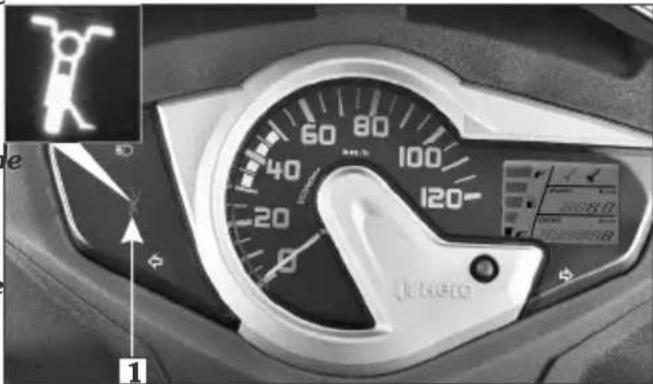

Side stand indicator		LED

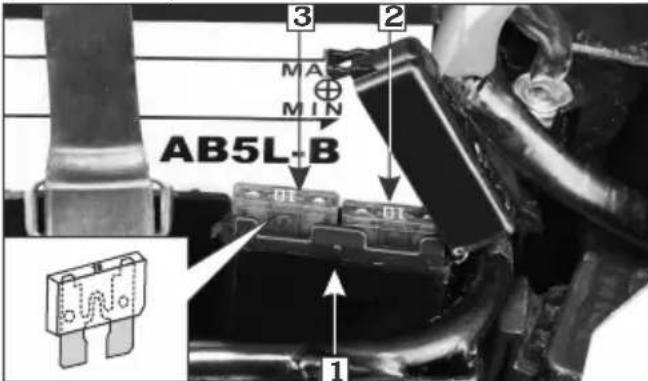

Fuse		10A

* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector

SCOOTER SAFETY IMPORTANT SAFETY INFORMATION

Your scooter can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet on the road. There is much that you can do to protect yourself when you ride. You will find many helpful recommendations through out this manual. Following are a few that we consider most important.

Always wear a helmet

It is a proven fact, Helmet significantly reduces the number and severity of head injuries. So always wear a helmet and make sure your pill rider does the same. We also recommend that you wear eye protection, sturdy boots, gloves and other protective gear (page 6).

Before riding your scooter

Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your pillion are both wearing an approved scooter helmet and protective apparel. Instruct your pillion on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on the foot pegs, even when the scooter is stopped.

Take time to learn & practice your scooter

Even if you have ridden other scooters, practice riding in a safe area to become familiar with how this scooter works and handles, and to become accustomed to the scooter's size and weight.

Ride defensively

Always pay due attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.

Make yourself easily visible

Some drivers do not see scooters because they are not looking for them. To make yourself more visible, wear bright reflective clothing, position yourself so that others can see you, signal before turning or changing lanes, and use horn which will help others to notice you.

Ride within your limits

Pushing the limits is another major cause of scooter accidents. Never ride beyond your personal abilities or faster than conditions demand. Remember that fatigue and negligence can significantly reduce your ability to make good judgements and ride safely.

Do not drink and ride

Riding under the influence of alcohol or drugs is dangerous. Alcohol can reduce your ability to respond to changing conditions and reduce the reaction time. Do not drink and ride.

Keep your scooter in safe condition

For safe riding, its important to inspect your scooter before every ride and perform all recommended maintenance. Never exceed load limits, and use accessories that have been recommended by Hero MotoCorp for this vehicle. See (page 7) for more details.

If you are involved in a crash

Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.

If you decide to continue riding, first evaluate the condition of your scooter. If the engine is still running, turn it off. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, brake levers, brakes, and wheels. Ride slowly and cautiously. Your scooter may have suffered damage that is not immediately apparent. Have your scooter thoroughly checked at a qualified service facility as soon as possible.

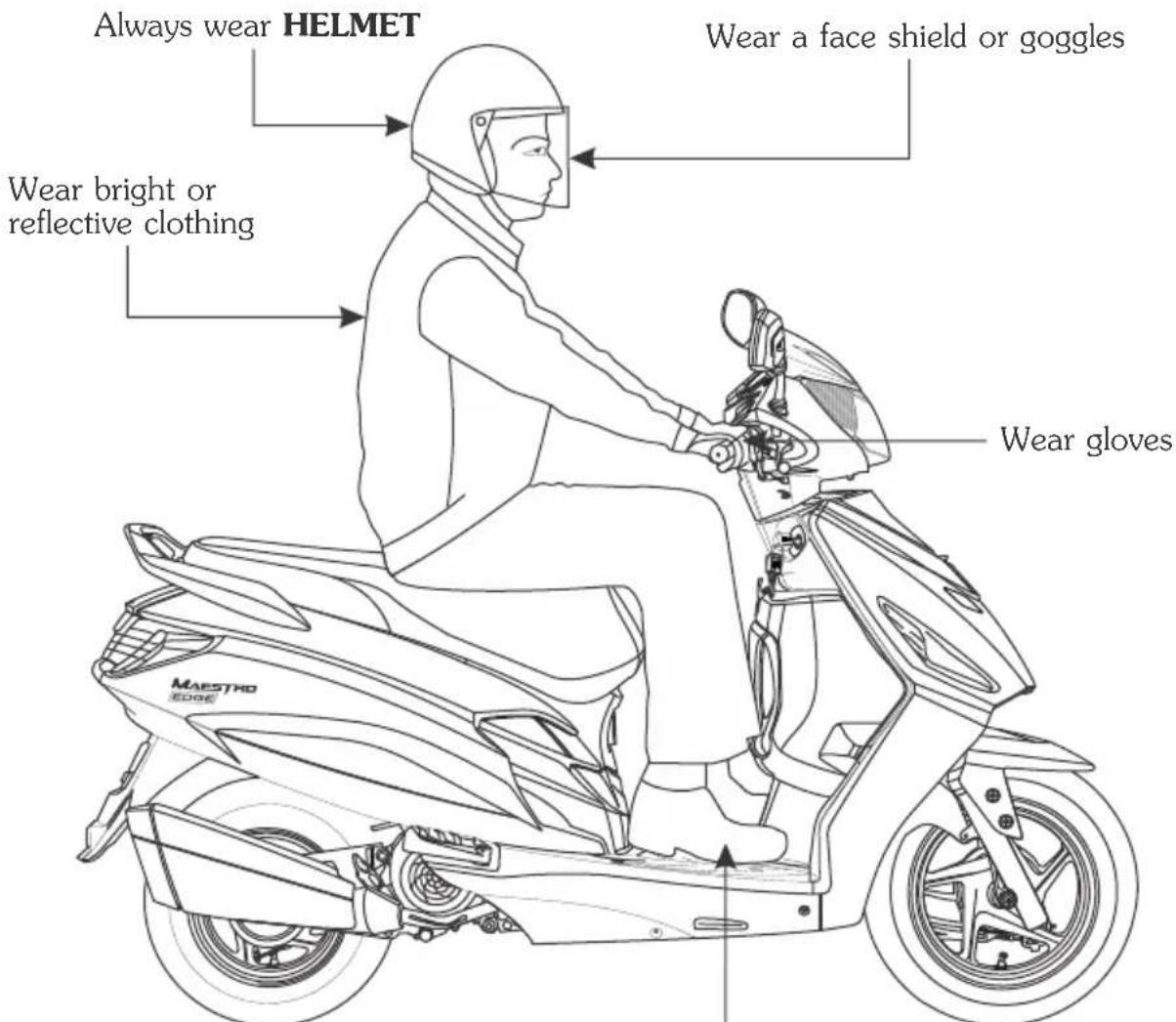

PROTECTIVE APPAREL

For your safety, we strongly recommend that you always wear an approved helmet (ISIA marked), eye protection, boots, gloves, long pants and a long sleeve shirt or jacket whenever you ride. Take care of loose/ hanging clothes while solo/pillion riding. Although complete protection is not possible, wearing proper gear can reduce the chance of injury when you ride.

Following are suggestions to help you choose proper riding gear.

WARNING

Not wearing a helmet increases the chance of serious injury or death in a crash.
Be sure you and your pillion always wear a helmet, eye protection and other protective apparel when you ride.

Helmets and eye protection

Your Helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright coloured helmet can make you more noticeable in traffic, as can reflective strips. An open-face helmet offers some protection, but a full-face helmet offers more. Always wear face shield or goggles to protect your eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection, we also recommend:

Sturdy boots with non-slip soles to help protect your feet and ankles.
▶ Leather gloves to keep your hands warm and help prevent blisters, cuts, burns, and bruises.

A two wheeler riding suit or jacket for comfort as well as protection. Bright coloured reflective clothing can help make you more noticeable in traffic. Be sure to avoid loose clothes that could get caught on any part of your scooter.

PROTECTIVE APPAREL

Shoes should be close fitting, low heels and offer ankle protection

LOAD LIMITS AND GUIDELINES

Your scooter has been designed to carry you, one pillion and limited amount of cargo. When you add cargo or carry a passenger, you may

feel some difference during acceleration and braking. But so long as you keep your scooter well maintained, with good tyres and brakes, you can safely carry loads within the limits and guidelines.

However exceeding the weight limit or carrying an unbalanced load can seriously affect your scooter's handling, braking and stability. Non Hero MotoCorp accessories, modifications, and poor maintenance can reduce your safety margin.

The following pages give more specific information on loading, accessories and modifications.

Loading

How much weight you put on your scooter, and how you load it, are important to your safety. Anytime you ride with a pillion or cargo you should be aware of the following information.

WARNING

Overloading or improper loading can cause a crash and you can be seriously injured.

Follow all load limits and other loading guidelines in this manual.

Load limits

Following are the load limits for your scooter:

Maximum weight capacity: 130 Kg

Includes the weight of the rider, pillion, cargo and all accessories.

Putting too much weight in individual storage compartments can also affect stability and handling. So be sure to stay within the limits given below:

Maximum weight:

Center compartment : 10.0 Kg

Front inner box : 1.5 Kg

Rear luggage hook : 1.5 Kg

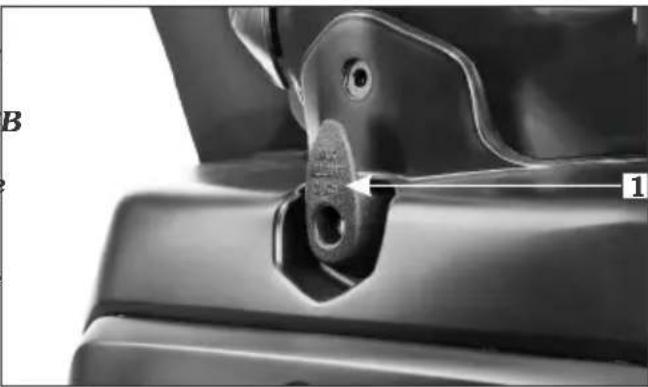

Front luggage hook : 3.0 Kg

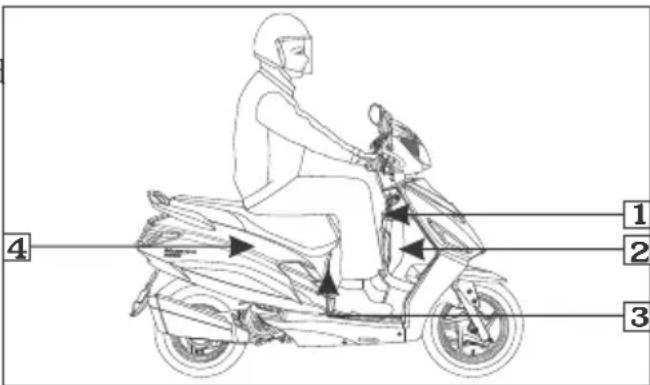

(1) Front luggage hook (2) Front inner box (3) Rear luggage hook (4) Center compartment

Loading guidelines

Your scooter is primarily intended for transporting you and a pillion. If you wish to carry more cargo, check with your Authorised Hero MotoCorp workshop for advice and be sure to read the information regarding accessories on (page 8).

Improperly loading your scooter can affect its stability and handling. Even if your scooter is properly loaded, you should ride at reduced speeds whenever carrying cargo.

Follow these guidelines whenever you carry a ▶ pillion or cargo:

▶ Check that both tyres are properly inflated.
To prevent loose items from creating a hazard, make sure the center compartment is closed and that any other cargo is securely tied down before you ride away.

Place cargo weight as close to the center of the scooter as possible.

Balance cargo weight evenly on both sides.

ACCESSORIES & MODIFICATIONS

Modifying your scooter or using non Hero MotoCorp accessories can make your scooter unsafe. Before you consider making any modifications or adding any accessory, be sure to read the following information.

WARNING

Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's man regarding accessories and modifications.

Make sure the accessories does not obstruct any lamps, reduce ground clearance and banking angle, limit suspension travel or steering travel, alter your riding position or interfere with operating any controls.

Be sure electrical equipment does not exceed the scooter's electrical system capacity (page 3). A blown fuse can cause loss of lights.

Do not pull a trailer or sidecar with your scooter. This scooter is not designed for these attachments, and their use can seriously impair your scooter handling.

Modifications

We strongly advise you not to remove any original equipment or modify your scooter in any way that would change its design or operation. Such changes could seriously impair your scooter's handling, stability and braking, making it unsafe to ride.

Removing or modifying your lamps, muffler, admission control system or other equipment can also make your scooter not meeting the emission standards.

Accessories

We strongly recommend that you use only genuine Hero MotoCorp accessories that have been specifically designed and tested for your scooter. Hero MotoCorp cannot test all other accessories, you must be personally responsible for proper selection, installation and use of non Hero MotoCorp accessories. Check with your dealer for assistance and always follow these guidelines:

TIPS FOR HEALTHY ENVIRONMENT

The following tips shall ensure a healthy scooter, healthy environment, and a healthy you.

Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be tuned regularly, which will also help reduce pollution and improve vehicle performance.
▶ Regular Servicing: Get your scooter serviced at an Authorised service station, as per the service schedule, for an optimum performance and keep the emission level under check.
Genuine Spares: Always insist on Hero MotoCorp genuine parts as spurious or incompatible spares and accessories can upset or deteriorate your scooter's running condition.
Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil recommended by Hero MotoCorp and make sure you change it every 6000 km (with top up every 3000 kilometres) to keep the engine fit and environment healthy.
Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or defective mufflers, excessive noise will cause headaches and discomfort.
Emission Pollution: Get emission of your scooter checked by Authorised agencies atleast once every 3 months or as notified by the government from time to time.
▶ Fuel Saving & Reduce Pollution: Switch "OFF" the engine while waiting at traffic signal points to save fuel and reduce pollution, if the waiting period is long.

(1) Turn signal indicator
(2) Choke knob
(3) Horn switch
(4) Turn signal switch
(5) Throttle grip
(6) Integrated brake lever
(7) Parking lever
(8) Rear view mirror
(9) Dimmer switch/Passing switch
(10) Side stand indicator
(11) Hi beam indicator

(12) Speedometer
(13) Fuel gauge
(14) Service reminder
(15) Immobilizer/Malfunction indicator
(16) Tripmeter
(17) Headlamp switch
(18) Front brake lever
(19) Starter switch
(20) Ignition switch with steering lock
(21) Odometer

Accessories and features shown may not be part of standard fitment.

(1) Side stand switch (optional)
(2) Side stand (optional)
(3) Main stand
(4) Pillion step
(5) Kick starter pedal
(6) Women pillion step (optional
(7) Rear turn signal lamp
(8) Tail/stop lamp
(9) Rear grip
(1)0) Boot lamp* (inside)
(1 1) Seat
(12) Rear luggage hook*
(13) Headlamp

*Optional in LX Model

Accessories and features shown may not be part of standard fitment.

RIGHT SIDE VIEW

SCOOTER VIEWS

(1) Exhaust muffler

(5) Front turn signal lamp

(8) USB charger* (inside)

(2) Oil level dipstick

(6) Position lamp

(9) Center compartment (inside)

(3) Pillion step (7)

Front luggage hook

(10) Rear reflex reflector

(4) Front inner box (optional)

*Optional in LX Model

Accessories and features shown may not be part of standard fitment.

PART FUNCTIONS

Instruments and Indicators

The indicators are in the speedometer panel above the headlamp. The functions are as below.

Sl. No.	Description	Function
1 Side	stand indicator Light glows	when the vehicle is parked on the side stand.
2 High beam indicator	Light glows	when headlamp is in Hi Beam.
3 Speedometer	Indicates riding speed.
4 Fuel	gauge Indicates approximate fuel quantity (page 14).
5 Service reminder	Displays when a service is due (page 14).
6	Immobilizer indicator Light glows and goes off when ignition key is turned “ON”.
7 Tripmeter	Shows the distance traveled since the last reset (page 15).
8 Turn signal indicator (R)	Flashes when right turn signal switch is operated.
9 Odometer	Shows accumulated mileage (page 14).
10	Reset button	Button when long pressed resets tripmeter to zero.
11	Turn signal indicator (L)	Flashes when left turn signal switch is operated.

LCD PANEL

ODOMETER/TRIPMETER

The odometer (1) shows accumulated distanceitres.

traveled.

The tripmeter (2) shows distance traveled since trip meter was reset last time.

Tripmeter displays upto 999.9 km If the tripmeter exceeds "999.9" km it will return to "0.0" km automatically.

When tripmeter is selected long press the reset button (3) will reset tripmeter to zero.

The odometer displays from "0 to 999999"

(1) Odometer

(2) Tripmeter

(3) Reset button

FUEL GAUGE

The fuel gauge (1) is of a Liquid Crysta Display (LCD) type.

The approximate amount of fuel quantity available in the fuel tank is indicated by the number of vertical bars in the display. Each segment display approx. 1.0 litre of fuel.

If all the vertical bars (2) are displayed it means fuel quantity in the fuel tank is 5.5

(1) Fuel gauge
(2) Vertical bars

If only one vertical bar is displayed and blinks, this indicates that the fuel quantity is low and the fuel tank should be refilled as soon as possible.

SERVICE REMINDER

The service reminder (1) is to indicate to an user to bring the vehicle to an Authorised Hero MotoCorp workshop for service.

The service reminder shall start blinking when the vehicle covers kilometers as specified in the maintenance schedule. The service reminder will keep on blinking throughout the kilometer interval for a particular service and will stay "ON" thereafter.

The service reminder can be reset at an Authorised Hero MotoCorp workshop.

(1) Service reminder

TOTAL DISTANCE (Odometer Reading)	Indicator Behaviour
0 km	OFF
500 - 750 km	Blinking
After 750 km	ON
3000 - 3500 km	Blinking
After 3500 km	ON
6000 - 6500 km	Blinking
After 6500 km	ON
•	•
•	•
•	•

NOTE

After getting the vehicle serviced, make sure that the service reminder has been reset.

KEYS

This scooter has two keys and a key number plate.

(1) Keys
(2) Key number plate

You will need the key number if you ever have to replace a key. Store the plate in a safe place.

To reproduce keys, bring all keys, key number plate and scooter to your Authorised Hero MotoCorp workshop.

Up to two keys can be registered with the immobilizer system, including the one in hand.

MAJOR COMPONENTS

(Information you need to operate this scooter)

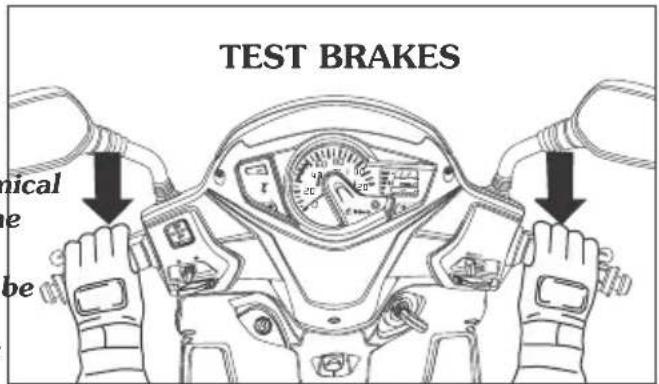

BRAKES (Integrated braking)

Brakes are items of personal safety and should always be maintained with proper adjustments. When one applies the left lever, front & rear brakes activate jointly.

(1) Front brake lever

(2) Integrated brake lever
(3) Free play 10-20 mm

The distance, the front brake lever (1) and integrated brake lever (2) moves before each brake starts to engage is called free play (3).

Measured at the tip of brake levers, free play should be maintained at 10-20 mm.

Adjustment

Right hand front brake cable (A) on "1" side

▶ Push the integrated brake arm (4) by hand in the direction as shown.

▶ Turn the first adjuster nut (5) till you cannot turn it by hand.

(4) Integrated brake arm (5) First adjuster nut (i) Decrease free play (ii) Increase free play

▶ Check the free play of right lever.

FREE PLAY: 10-20 mm

If the free play is more than 20 mm further tu the adjuster nut to obtain desired free play.

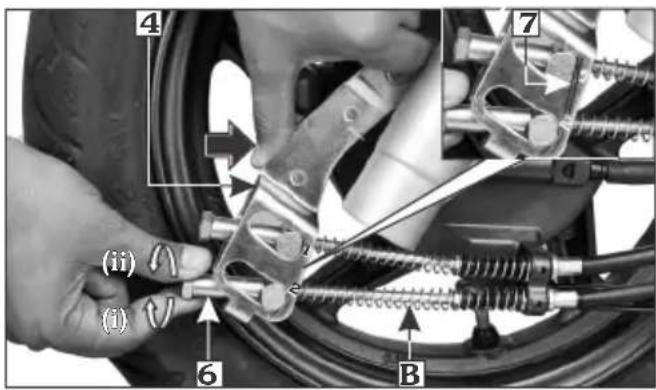

Left hand front brake cable (B) on "2" side.

▶ Push the integrated brake arm (4) by hand in the direction as shown.
▶ Turn the second adjuster nut (6) until a gap is created between joint (7) and the slot on the first side in integrated brake arm.
After ensuring the gap, turn the second adjuster nut counterclockwise by half rotation.

(6) S econd adjuster nut (i) Decrease free play (ii) Increase free play

Rear brake

Make free play adjustment by turning the adjuster nut (8) in the brake arm (9).
▶ Check the free play of integrated brake le

(8) Adjuster nut (9) Brake arm (i) Decrease free play (ii) Increase free play

FREE PLAY: 10-20 mm

If the free play is more than 20 mm further tu the adjuster nut to obtain desired free play. Make sure the cut-out on the adjusting nut (1) is seated on the brake joint pin (2) after making final free play adjustment.

(A) Cut-out not seated

(B) Cut-out seated
(1) Adjusting nut (2) Brake joint pin

If proper adjustment cannot be obtained by this method, visit your Authorised Hero MotoCorp workshop.

Other checks:

Check brake cable for kinks or signs of wear that could cause sticking or failure. Make sure the brake arm spring and fasteners are in good condition.

FUEL

Fuel tank

The fuel tank is located under the seat. The fuel tank capacity is 5.5 litres.

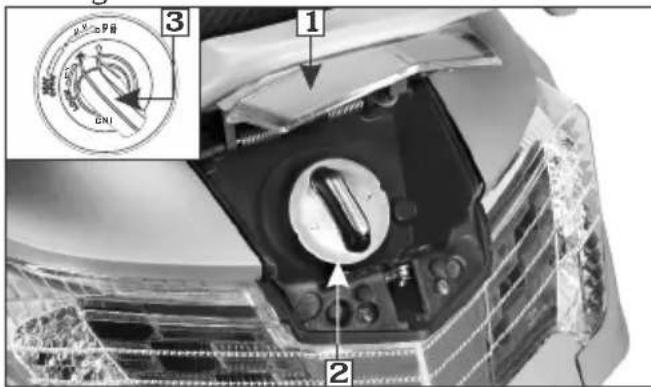

To open the fuel filler cap (2), insert the ignition key (3), push it in and turn the ignition key to "FUEL OPEN" position (page 25). The fuel tank lid (1) will open as shown in the picture. Remove the fuel filler cap by We recommend that you use unleaded petrol because the muffler in the scooter is fitted with a catalytic convertor, it also produces lesser deposits in engine and on spark plug, which extends the life of exhaust system and other components.

(1) Fuel tank lid (2) Fuel filler cap (3) Ignition key

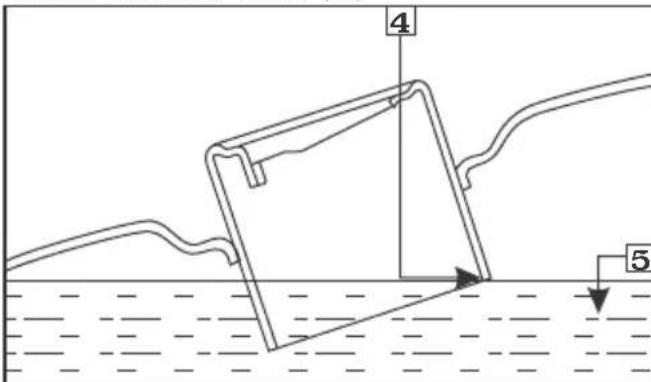

Do not overfill the tank. There should be no fuel in the filler neck (4).

(4) Filler neck (5) Fuel

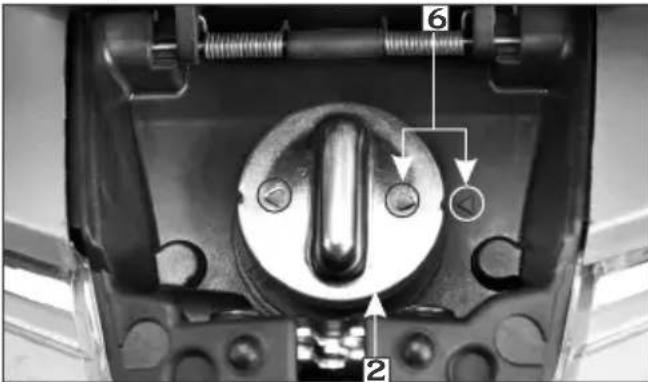

After refueling, be sure to tighten the fuel filler cap firmly by turning it clockwise.

Make sure the arrow marks (6) on the fuel filler cap and the fuel tank are aligned.

(2) Fuel filler cap (6) Arrow Marks

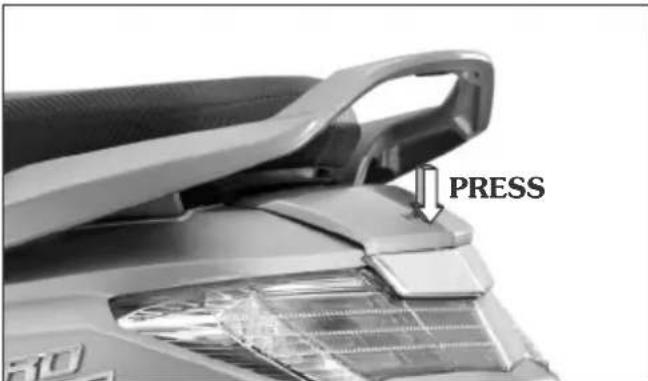

For locking, press the fuel tank lid gently.

NOTE

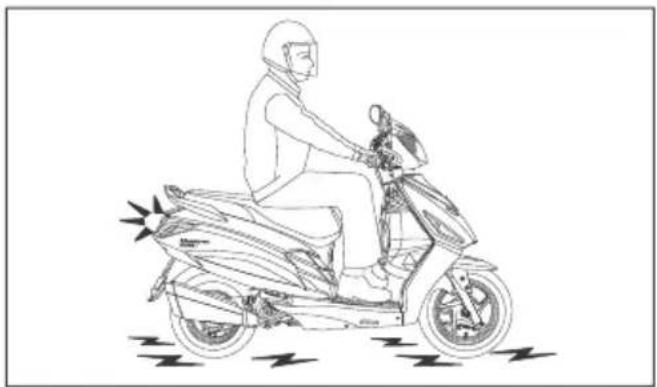

If "Spark knock" or "pinking" occurs at a steady engine speed under normal load, change petrol brand. If the same still persists, consult your Authorised Hero MotoCorp workshop. Failure to do so is considered misuse, and damage caused by misuse is not covered under Hero MotoCorp warranty policy.

Petrol containing alcohol

If you decide to use a petrol containing alcohol (gasohol), be sure its octane rating is at least a high as that recommended by Hero MotoCorp. There are two types of "gasohol", one containing ethanol, and the other containing methanol.

Do not use petrol that contains more than 10% of ethanol.

Do not use petrol containing methanol (methyl or wood alcohol) that does not contain cosolvents and corrosion inhibitors for methanol.

Never use petrol containing more than 5% methanol, even if it has cosolvents and corrosion inhibitors.

When certain type of petrol containing alcohols are used, problems such as ha starting, poor performance, etc. may occur.

If you notice any undesirable operatin symptoms while using the petrol that contains alcohol, try another station or switch to another brand of petrol.

When a problem resulting from the use of petrol containing alcohol occurs, contact your Authorised Hero MotoCorp workshop.

CAUTION

When the fuel level indicator displays the last segment in the fuel gauge, the fuel quantity in the fuel tank is low. Please fill petrol once the fuel level indicator reaches the last segment.

WARNING

Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Stop the engine and keep heat, sparks and flame away. Refuel only outdoors. Wipe off spills immediately.

TYRES (TUBELESS)

The tyres fitted on your scooter are of TUBELESS type. To safely operate your scooter, the tyres must be of the proper type and size in good condition with adequate tread and correctly inflated for the load you are carrying. The following pages give more detailed information on how and when to check the air pressure, how to inspect the tyres for damage and what to do when tyres need to be repaired or replaced.

WARNING

Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed. Follow all instructions in this owner's manual regarding tyres inflation and maintenance.

Air pressure

Keeping tyres properly inflated provides the best combination of handling, tread life and riding comfort. Generally, under-inflated tyres wear unevenly, adversely affect handling and are more likely to fail from being overheated.

Over-inflated tyres make your scooter ride harshly are more prone to damage from road hazards and wear unevenly.

We recommend that you visually check tyres before every ride and use a gauge to measure air pressure at least once a month or any time you think the tyre pressure is low.

Tubeless tyres have some self-sealing ability if Inspection they are punctured. However, because leakage Whenever you check the tyre pressure, you is often very slow, you should look closely for should also examine tyre treads & side walls punctures whenever a tyre is not fully inflated. for wear, damage & foreign objects.

Always check air pressure when your tyres are "cold"-when the scooter has been parked for at least three hours. If you check air pressure when your tyres are "warm"-when the scooter has been ridden for even a few kilometers, the

readings will be higher than if the tyres were > Cuts, splits or cracks in the tyre. Replace the "cold". This is normal, so do not let air out of the tyre if you can see fabric or cord.

tyres to match the recommended cold air pressures given below. If you do, the tyres will be under-inflated.

The recommended "cold" tyre pressures are:

	Rider only Rider and Pillion
Front	1.50 kgf/cm^2 (22 psi)	1.50 kgf/cm^2 (22 psi)
Rear	2.00 kgf/cm^2 (29 psi)	2.50 kgf/cm^2 (36 psi)

CAUTION

Over inflation/Under inflation will affect the performance.

Close-up of a hand adjusting a pressure gauge attached to a tire, with no visible text or symbols.

(1) Air pressure gauge

Inspection

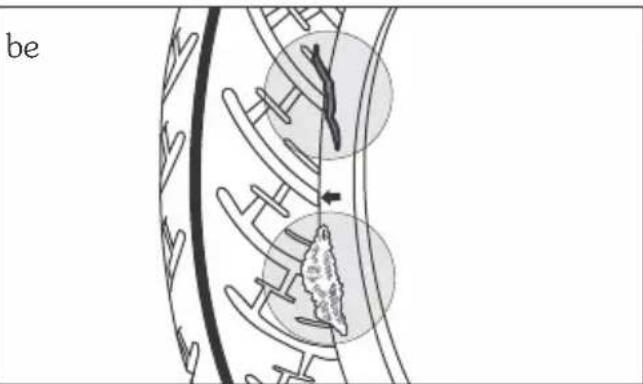

Whenever you check the tyre pressure, you should also examine tyre treads & side walls for wear, damage & foreign objects.

Look for:

Bumps or bulges in the side of the tyre or the tread. Replace the tyre if you find any bumps or bulges.

Cuts, splits or cracks in the tyre. Replace the tyre if you can see fabric or cord.

Excessive tread wear.

Diagram of a mechanical or fluidic component with internal hatching and directional arrows (no text or symbols)

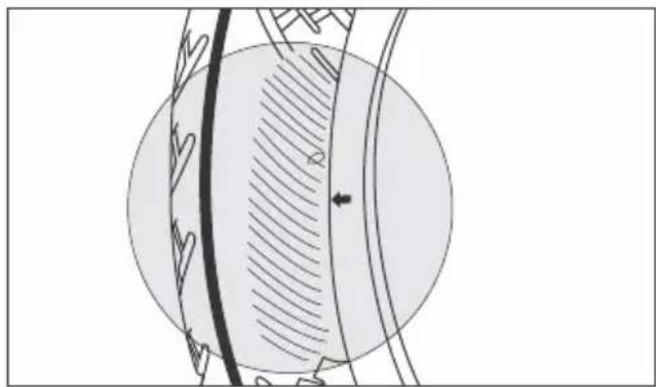

(1) Tyre wear indicator (2) Arrow mark

Carefully inspect the tyres for any damage if the scooter hits a pothole or hard object.

Tread wear

Replace tyres immediately when the wear indicator (1) appears on the tyre. The tread limits are :

Minimum tread depth:

Front: 1.5 mm Rear: 1.5 mm

Check the tread wear indicator for tyre wear.

(1) Tyre wear indicator (2) Arrow mark

Unidirectional tyres

Whenever the tyre is removed and put back in case of puncture, ensure the arrow mark (2) on the tyre is in the same direction as that of forward rotation of wheel.

Tyre repair

Repairing a puncture or removing a wheel requires special tools and technical expertise. If a tyre is punctured or damaged, it is advised to visit nearest tyre manufacture, Hero MotoCorp authorised dealer/workshop or the tyre repair shop who has expertise in repairing methods of tubeless tyre.

A tyre that is repaired either temporarily or permanently, will have lower speed and performance limits than a new tyre. After an emergency repair, always have the tyre inspected/replaced at our authorised dealer and replace the tyre if suggested.

You should not exceed 70 km/hour for the 1st 24 hours or 105 km/hour at any time thereafter. In addition, you may not be able to safely carry as much load as with a new tyre. If you decide to have a tyre replace be sure the wheel is balanced before you ride.

Tyre replacement

The tyres that were installed on your scooter were designed to match the performance capabilities of your scooter and provide the best combination of handling, braking, durability and comfort.

WARNING

Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt and killed.
Operation with excessively worn tyres is hazardous and will adversely affect traction and handling.
Follow all instruction in this owner's manual regarding tyre inflation and maintenance.
Under-inflation may result in the tyre slipping on or tyre coming off the rim.
Always use the size and type of tyres recommended in this owner's manual.

NOTE

The imported tyre(s) if fitted without ISI mark; are in compliance of BIS standard and Central Motor Vehicle Rules 1989, as declared by the Tyre manufacturer.

The recommended tyre for your scooter are:

Front : 90/90x12- 54J (Tubeless Tyre)

Rear : 90/100x10-53J (Tubeless Tyre)

NOTE

For repair and replacement of tyre it is advised to visit your Authorised Hero MotoCorp workshop.

Important safety reminders

Do not install a tube inside a tubeless tyre on this scooter. Excessive heat buildup can cause the tube to burst.
Use only tubeless tyres on this scooter. The rims are designed for tubeless tyres and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.

ESSENTIAL INDIVIDUAL COMPONENTS IGNITION SWITCH

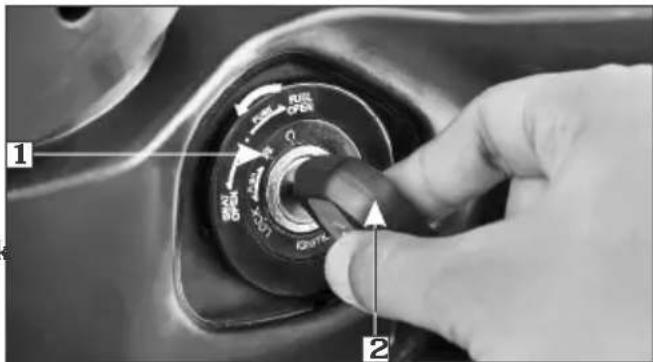

The ignition switch (1) is on the right side below the steering.

(1) Ignition switch
(2) Ignition key
(3) Steering lock position
(4) Seat open
(5) Fuel open

Key Position	Function	Key removal
“ON” (○)	The engine can be started, turn signal lamps, horn, stop lamp and fuel gauge can be operated	Key cannot be removed
“OFF” (⊗)	Engine cannot be started and cannot be operated	Key can be removed
“LOCK”	Steering can be locked by pushing the key in and rotating it counterclockwise	Key can be removed
“SEAT OPEN”	Seat can be opened by rotating the key counterclockwise.	Key can be removed
“FUEL OPEN”	Fuel tank lid can be opened by pushing the key in and rotating it clockwise	Key can be removed

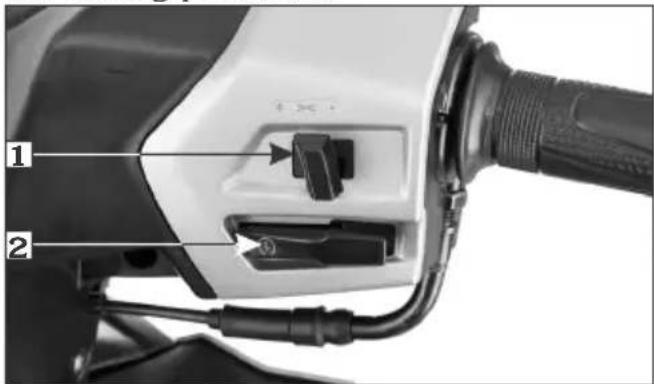

RIGHT HANDLEBAR CONTROLS

1. Headlamp switch

The switch has three positions.

“”,” “” “” marked by White dot.

Position	Action
	“OFF”
	“Following is “ON”➢ Position lamp➢ Tail/Stop lamp➢ Fuel gauge lamp➢ Speedometer lamp
	Headlamp “ON”

The Headlamp operates only when the engine is running.

2. Starter switch (✗)

The starter switch (2) is next to the throttle grip.

When the starter switch is pressed, the starter motor cranks the engine. See (page 39) for the starting procedure.

(1) Headlamp switch (2) Starter switch

LEFT HANDLEBAR CONTROLS

1. Dimmer switch/Passing switch

Press the switch upwards for High Beam "downwards for Low Beam".

Press the switch to "PASS" position to operate the passing lamp.

2. Turn signal switch

Shift the turn signal switch sideways for Right/Left indications and leave it to come back to its normal position on its own.

IMPORTANT: To switch "OFF" the turn signal after completing the turn, gently push inside as directed on the switch.

3. Horn switch (☐)

Press the switch to operate the horn.

(1) Dimmer switch/Passing switch
(2) Turn signal switch
(3) Horn switch

FEATURES

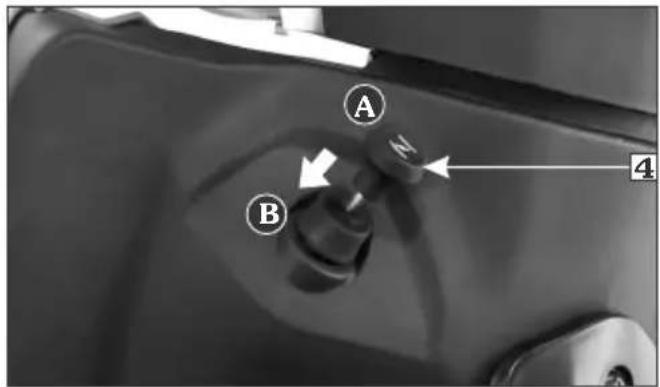

STEERING LOCK

To lock the steering, turn the handlebar all the ignition switch (1).

way to the left, turn the key (1) to "LOCK" To open the seat, insert the key (2) and turn position while pushing in and remove the key.it counterclockwise to "SEAT OPEN"

(1) Ignition switch (A) Push in (B) Turn to lock

CAUTION

Do not try to turn the key to "LOCK" position while riding the scooter, which may lead to loss of vehicle control.

FUEL TANK LID LOCK

The fuel tank lid lock is provided along with ignition switch (1).

To open the lid, insert the key (2) while push in and turn it clockwise to "FUEL OPEN position. The lid will release from its latch.

To lock the lid push down gently until it locks and hear a click sound to ensure the fuel tank lid is secure before riding.

CAUTION

Gently close the lid by hand. Sudden dropping of the lid may result in breaking the lid lock and malfunction of the lock.

SEAT LOCK

The seat lock is provided along with the

eignition switch (1).

To open the seat, insert the key (2) and turn it counterclockwise to "SEAT OPEN"

position. The seat will release from its catch.

To lock the seat, close and push down on the rear of the seat until locks.

Make sure the seat is secure before riding.

(1) Ignition switch (2) Ignition key

CAUTION

Gently close the seat by hand. Sudden dropping of the seat may result in breaking the seat lock and malfunction of the lock.

HELMET HOLDER

Two helmet holders are located under the seat.

To access the holder or to secure a helmet to the holder.

▶ Open the seat.
▶ Attach/Hook the helmet strap or ring to the helmet holder and close the seat.

Close-up of a car seatbelt with visible fasteners and a close-up inset showing the side view (no text or symbols)

(1) Helmet holder

To release the helmet from the holder.

▶ Open the seat (page 25).
Remove the helmet from the holder and close the seat.

WARNING

Riding with a helmet attached to the holder can interfere with the objects and could cause a loss of control/crash in which you can be seriously hurt.
Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

NOTE

Place the helmet inside the center compartment if you wish to carry along with the vehicle.

CENTER COMPARTMENT

The center compartment (1) is below the sea Opening and closing the seat lock, see (page 25).

MAXIMUM WEIGHT LIMIT: 10 Kg

Never exceed the maximum weight limit, handling and stability may be severely affected. The center compartment may become heated by the engine. Do not store food and other articles which are flammable or susceptible to heat damage.

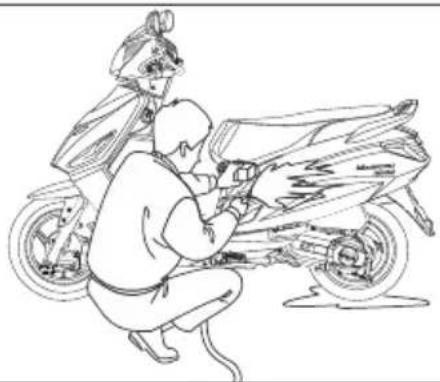

Do not direct pressurised water spray against the center compartment as water may enter into the compartment.

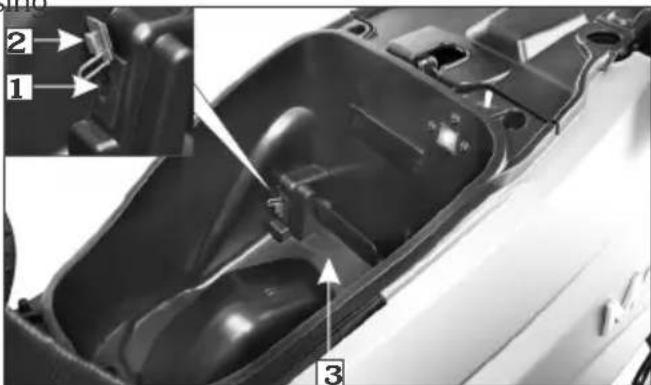

CENTER COMPARTMENT/FIRST AID KIT/TOOL KIT HOLDER

The document compartment (2) and first aid kit/tool kit holder (3) is located in the center compartment below the seat.

(1) Center compartment (2) Document compartment (3) First aid kit/tool kit holder

The owner's manual, other documents, first aid kit/tool kit can be stored in it.

NOTE

When washing your scooter, be careful not to flood this area with water.

(3) First aid kit/Tool kit holder

BOOT LAMP (Optional in LX Model)

A boot lamp (1) is provided in the center compartment. This boot lamp will be functional only when the seat is open. Opening and closing, the bus must be damaged caused due to use of non-standard USB cable.

only when the seat is open. Up the Seat Lock, see (page 25).

Close-up of a car interior showing internal components and a highlighted component (no text or symbols visible)

(1) Boot lamp (2) Switch

BOOT LAMP SWITCH

(Optional in LX Model)

A automated switch (2) is provided on the center compartment, which enables the boot lamp to glow when the seat is in open condition and goes off automatically when the seat is closed.

USB CHARGER (Optional in LX Model)

An USB charger (1) with a cap (2) located inside the center compartment (3) is provided in your scooter to charge your mobile phone safely while riding.

To connect a mobile phone charger cable, first remove the cap from the USB charger and then plug in the charging cable to it.

Use of non-standard USB cable may cause damage to the mobile phones. Hero MotoCorp will not be responsible for damages caused due to use of non-standard USB cable.

(1) USB charger (2) Cap
(3) Center compartment.

CAUTION

Always place the device in a soft clean cloth/towel to avoid any damage due to road shocks while riding.
This port is for charging compatible US devices.
Multiple charging of USB devices have to be avoided, simultaneous charging may lead to slow or no charging.
Do not leave the USB device and USB cable in the center compartment when the scooter is parked.
Charge your device only when the engine is operational/while riding. Charging the USB device when the engine is "OFF" would lead to early discharge of battery.

NOTE

Do not apply any soap solution, oil or grea inside the mobile charging port.
Any personal belongings have to be removed before water washing to avoid damage.
Always keep the USB port cap closed after use to prevent dust or water entry during rains/water wash.
Do not direct water jet towards the port ev with cap closed to avoid any short circuit. Always dry the area using a dry cloth of moisture free compressed air before use.

LUGGAGE HOOKS

Two luggage hooks are provided in your scooter to carry a light luggage like shopping bags or carry bags.

FRONT LUGGAGE HOOK

Front luggage hook is provided below the handlebar.

MAXIMUM WEIGHT LIMIT: 3.0 Kg

Close-up of a mechanical component with a metallic clip and mounting bracket, labeled 'B' and '1' (no readable text or symbols beyond labels)

(1) Front luggage hook

REAR LUGGAGE HOOK (Optional in LX Model)

Rear luggage hook is located below the front send of the seat. To use the hook, turn the hook from its position and open the hook by turning the upper lever as shown. The upper lever will close automatically. Push back the hook to its position after use.

MAXIMUM WEIGHT LIMIT: 1.5 Kg

Close-up of a mechanical component with a bracket and mounting holes, shown with an inset magnified view (no text or symbols)

(2) Rear luggage hook

WARNING

Do not exceed the maximum weight limits for the luggage hooks.
Do not hang large luggage to the hook that would hang out from the scooter and or interfere with the movement of your feet.

FRONT INNER BOX (Optional)

The front inner box (1) is provided on the inner cover to carry some valuable items, documents, etc.

Close-up of a car seatbelt with a key inserted, showing no text or symbols

(1) Front inner box

MAXIMUM WEIGHT LIMIT: 1.5 Kg

Never exceed the maximum weight limit of the front inner box otherwise handling and stability may be severely affected.

IMMOBILIZER (VX model)

Your MAESTRO EDGE scooter is provided with an immobilizer system. This is an anti-theft device built into the ignition system, which prevents the engine to start without an authorised key.

You have been provided with 2 ignition keys the time of purchase of your MAESTRO EDG scooter. While you would be using one ignition key, the other one has to be kept safely.

NOTE

In the eventuality of any one of the ignition key(s) getting lost, you should immediately register a complaint with the local Police and approach the nearest Hero MotoCorp Authorised Dealer with following documents for further assistance
- Vehicle registration copy
- Insurance copy
- Copy of police registered complaint, preferably FIR
- 2^nd Ignition key
You should get the 2^nd ignition key deactivated and request for fresh key. Pairing is to be carried out for both the keys.

An Immobilizer/Malfunction indicator lamp is located on the speedometer panel.

In normal conditions, once the ignition key is turned "ON", the lamp glows and goes "OFF" immediately.

(1) Immobilizer/Malfunction indicator

If there is a malfunction in the Immobilizer system, the Immobilizer/Malfunction indicator (1) would glow continuously and start blinking after 10 seconds after the ignition switch is turned "ON". In this case, contact your nearest Hero MotoCorp Authorised Dealer for assistance.

- Do not play with ignition key as quick turn "OFF" and turn "ON", vigorously, this may result in to false indication in Immobilizer and in Immobilizer/Malfunction indicator lamp.

- Do not drop the ignition keys on hard flooring.

CAUTION

The ignition key is a sensitive electronic instrument. Please take care of following guidelines to avoid any damage to vehicle Immobilizer system:

• Do not place any heavy object on the ignition key(s).
• Do not tamper with ignition key(s).
• Do not put both the ignition keys in the same key ring.
• Do not hang any heavy metal objects in key chain having the ignition key.
• The system may not recognize the key's codes if any other Immobilizer's ignition key is kept near the ignition switch. Engine may not start due to interference of other ignition key(s) with your Immobilizer system. Hence, only registered ignition key(s) should be used to crank the engine otherwise continuous electric starting attempt may lead to battery discharge.

Do not expose the ignition key to high temperature.
Do not place the ignition key near magnetic objects (e.g. speakers).
Do not keep ignition key near equipment having low radio frequency (e.g. TV, walkie-talkie).

SIDE STAND INDICATOR

For the safety of the customer a side stand indicator (1) is provided in the speedometer panel. If the side stand is down (Ignition Switch "ON"), an indicator lamp glows continuously.

(1) Side stand indicator

SIDE STAND SWITCH/SIDE STAND (Optional)

A side stand switch (2) is provided in the side stand, when the side stand is down (Ignition Switch "ON" 0)), the switch enables the side stand indicator lamp to glow on the speedometer panel.

(2) Side stand switch (3) Side stand spring

▶ Check the side stand for proper function the spring (3) for damage or loss of tension the side stand assembly for free movement.

Check whether the side stand indicator (1 glows when the side stand is down.
When the side stand is up, the side stand indicator (1) should not glow.
If the side stand indicator (1) does operate as described in above steps, please visit your Authorised Hero MotoCorp workshop.

! CAUTION

Ensure that adequate care should be taken wh cleaning the side stand switch.

PILLION FOOTREST

Move the right and left footrest in the direction shown by arrows to open. Folding can be done by moving footrest in the reverse direction.

Close-up of a scooter's lower body and side panel, showing mechanical components and a labeled component (no text or symbols visible)

(1) Left footrest

(2) Right footrest

BODY PARTS REMOVAL Center compartment Removal

Open the seat (page 25). Remove the bolts (1) from the center of the compartment.

Interior view of a car's dashboard and engine compartment showing internal components and mounting points (no text or symbols visible)

(1) Bolts

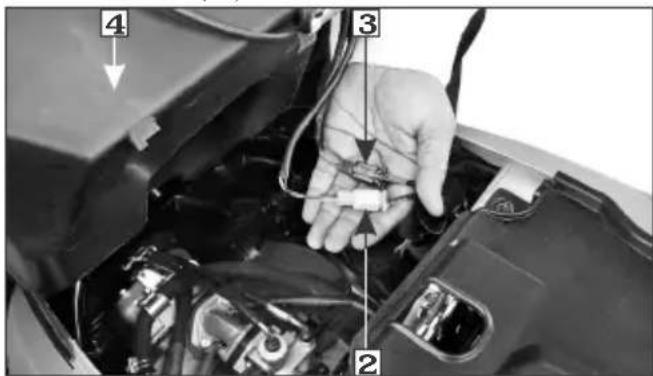

Slightly lift up the center compartment from the rear and disconnect the boot lamp connector (2) and USB charger connector (3).

(2) Boot lamp connector

(3) USB charger connector

(4) Center compartment

Remove the center compartment (4).

Installation

Installation can be done in the reverse order of removal.

NOTE

Park the scooter on its main stand when servicing the scooter with the center compartment removed.

Body cover

Removal

Remove the center compartment (page 31).
Remove the tray fuel sub assembly bolt (1).

Close-up of a mechanical component with a labeled arrow pointing to a feature, no visible text or symbols.

(1) Bolt

Remove the rear grip bolts(2).

Interior view of a car's head and engine compartment showing internal components like hoses and valves (no text or symbols visible)

(2) Bolts

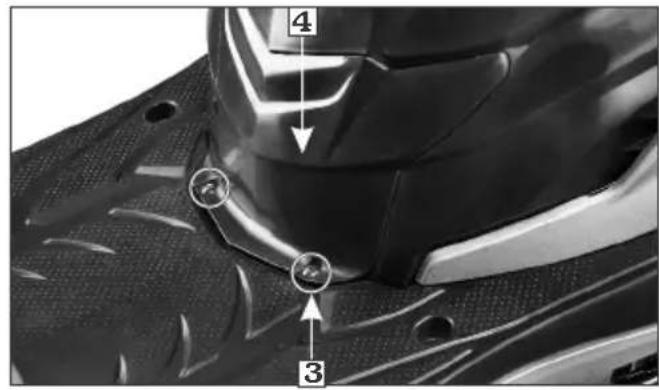

Remove the screws (3) from the center Remove the screws (6).

cover.

Remove the center cover.

(3) Screws
(4) Center cover

Close-up of a car engine compartment with visible wiring and a numbered component (no text or symbols)

(6) Screws

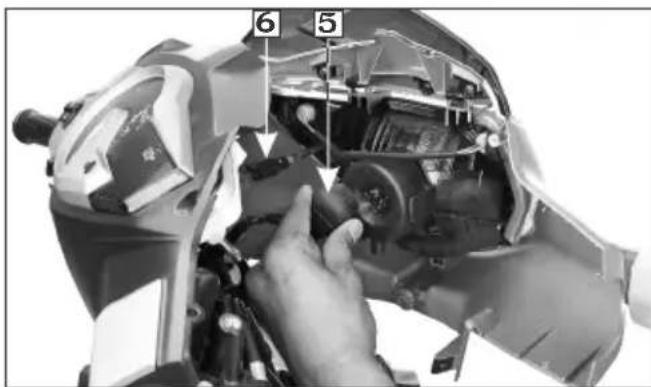

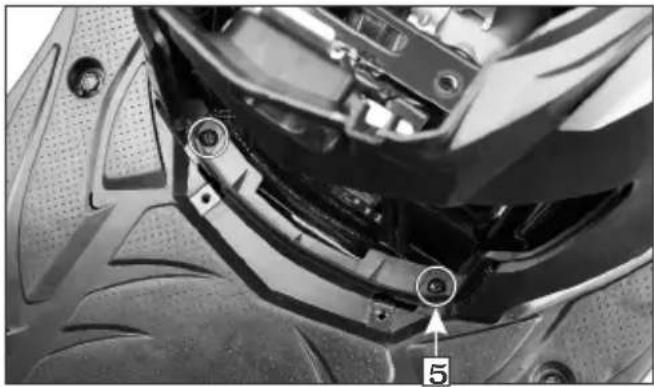

Remove the screws (5).

Close-up of a motorcycle's front wheel and side gear assembly (no visible text or symbols)

(5) Screws

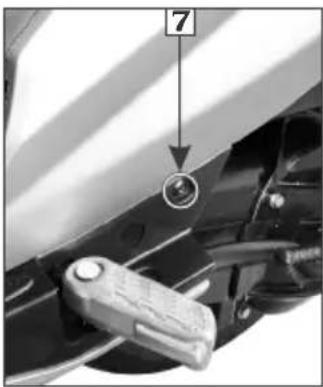

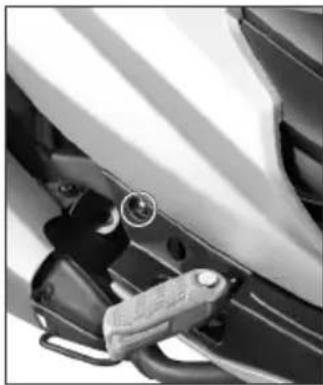

Remove the screws (7) from left and right side of the body cover.

Close-up of a car's front wheel assembly with a circular component and a numbered label (7), no visible text or symbols beyond the number.

(7) Screws

Close-up of a motorcycle's front wheel and side-mounted brake bracket (no visible text or symbols)

Remove the body cover bolts (8).

Interior view of a car's hood and engine compartment showing internal components like valve, hose, and exhaust pipe (no text or symbols visible)

(8) Body cover bolts

▶ Disconnect the fuel tank lid lock cable (9

Close-up of a car's head and side panel showing internal components and a numbered annotation (9), with no readable text or symbols.

(9) Fuel tank lid lock cable

Remove the fuel filler cap (page 18).

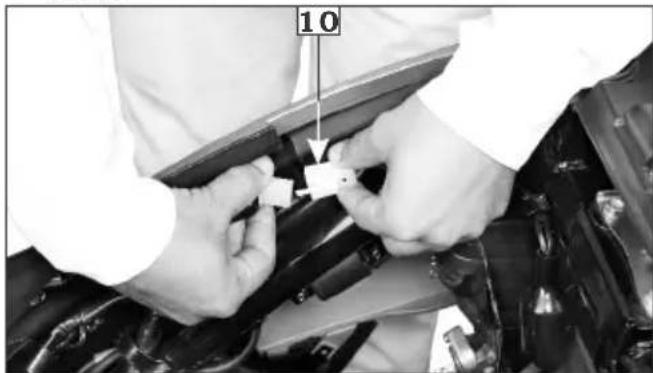

➢ Disconnect the tail/stop lamp connector (10).

Close-up of hands installing or adjusting a component on a vehicle hood, no visible text or symbols

(10) Tail/stop lamp connector

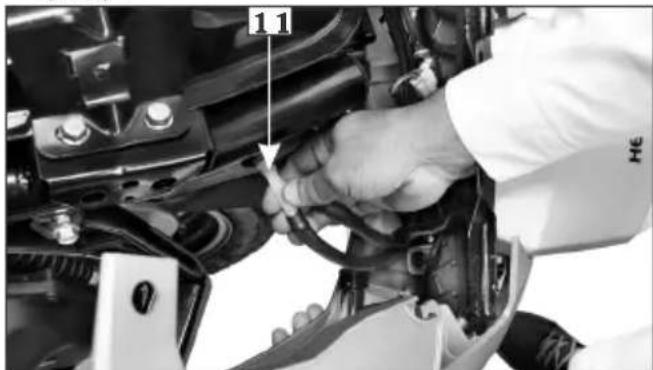

▶ Disconnect the drain tube from the joint (11).

Close-up of a hand adjusting a mechanical component with a numbered label (11), no visible text or symbols beyond the number.

(11) Drain tube

Pull the body cover (12) slightly backwards Remove the two screws (2) near the front and carefully remove the tabs (13) from fender. the slots.

Remove the complete body cover.

Installation

Installation can be done in the reverse order removal.

Front center cover Removal

Remove the two screws (1) on the inner cover side.

Top-down view of a motorcycle's front bumper and side panel (no visible text or symbols)

(1) Screws

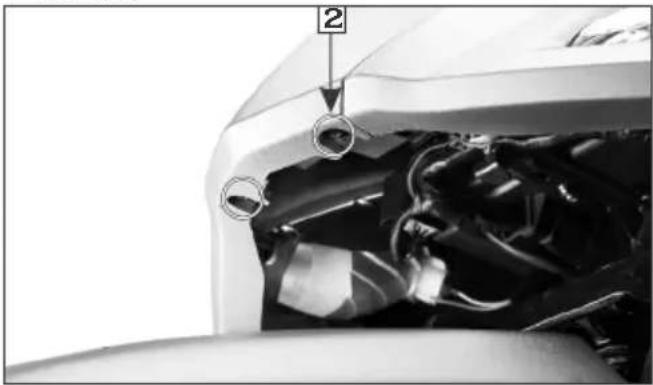

Close-up of a car engine compartment showing internal components and a numbered annotation (2), with no readable text or symbols.

(2) Screws

Release the front center cover lugs (3) from the mounting clips. Remove the front center cover by pulling it axially downwards towards front.

Close-up of a car's front bumper with visible internal components and a person in protective suit (no text or symbols)

(3) Lugs

Installation

Installation can be done in the reverse order of removal.

Front cover

Removal

Remove the front center cover (page 35).
Remove the four screws (1) on the inner cover side and remove two screws from front inner box. Remove front inner box.

Top-down view of a black scooter's front bumper and seat (no text or symbols visible)

(1) Screws

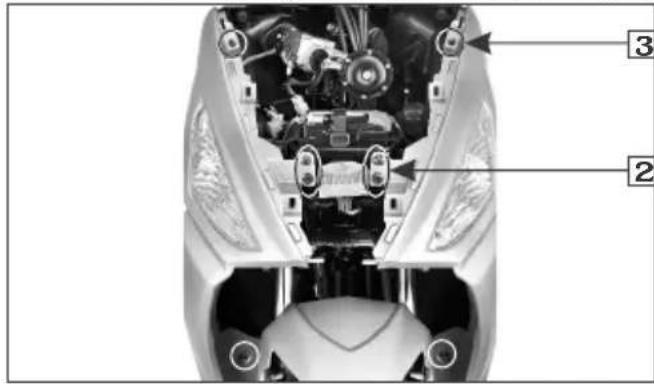

Remove the four bolts (2) from the front cover.
Remove the top and bottom screws (3).

(3) Screws(2) Bolts

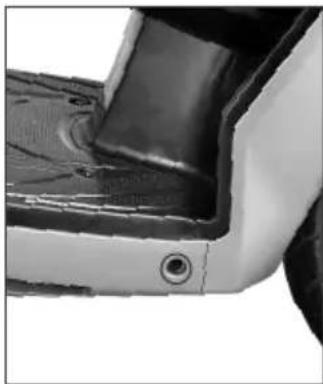

Remove the screws (4) from the floor side covers.

Close-up of a car's side profile showing a circular component with an arrow pointing to it, no visible text or symbols.

Close-up of a mechanical component with a circular bolt and rectangular opening (no visible text or symbols)

(4) Screws

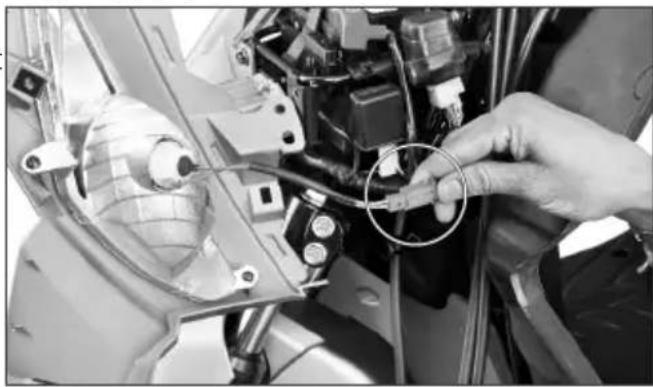

Remove the left and right front covers and disconnect the front turn signal lamp connectors.

Close-up of a hand adjusting a car's front-mounted engine compartment with a circular annotation highlighting the component (no visible text or symbols)

Installation

Installation is in the reverse order of removal.

Rear view mirror

Removal

▶ Slide the dust cover up (1).
Loosen the lock nut (2) until it will longer turn.
Loosen the rear view mirror (3) and remove it.

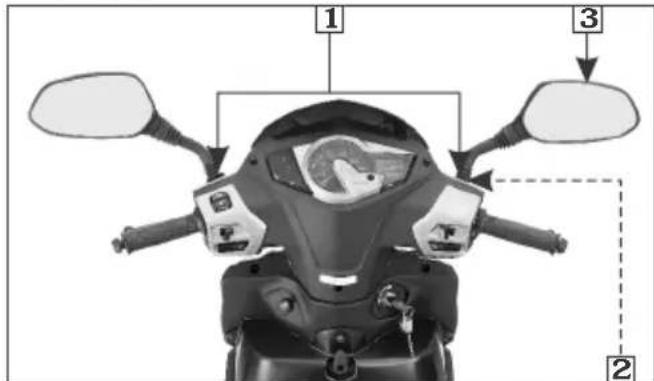

(1) Dust cover
(2) Lock nut
(3) Rear view mirror

Installation

Install the rear view mirror until it will no longer turn.
Loosen the rear view mirror approximately 2 turns.
Adjust the rear view mirror.
▶ Tighten the lock nut.

NOTE

To open the right side rear view mirror threads are to be loosened in clockwise direction and tightened in counter clockwise direction.

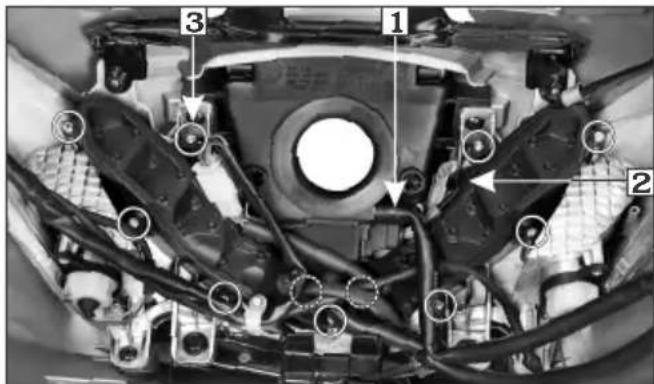

Headlamp case

Removal

Remove the rear view mirror. no Remove screw (1).

(1) Screw (2) Headlamp case (3) Tabs

Remove the screws (4).
▶ Pull the headlamp case (2) slightly up, carefully release the tabs (3) from the slots.

(4) Screws

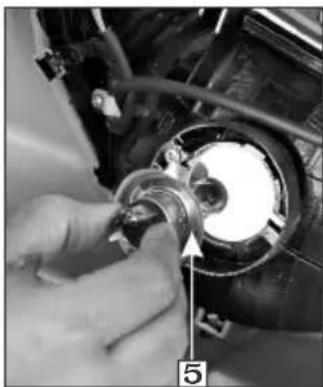

▶ Disconnect the headlamp connector (5), position lamp connector (6) and remove the headlamp case.

(5) Headlamp connector
(6) Position lamp connector

Installation

Installation can be done in the reverse order removal.

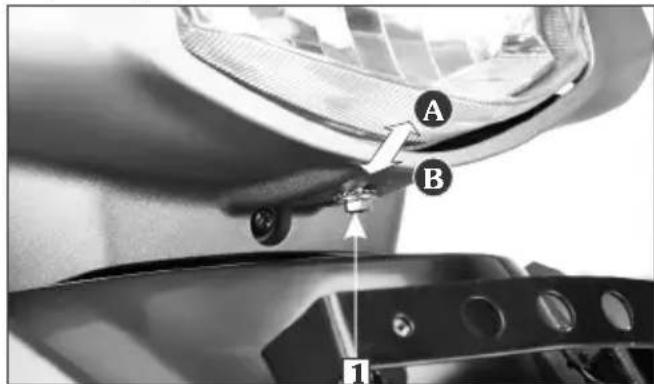

Headlamp focus

Vertical adjustment

Headlamp focus is factory preset. However in case of adjustment required please follow the steps as given below.

(1) Bolt
(A) Up
(B) Down

Park the scooter on main stand on a level surface in front of a wall.
Loosen the bolt (1) and move the headlamp up or down for correct focus.

WARNING

An improperly adjusted headlamp may blind oncoming driver or it may fail to light the road for safe distance.

OPERATIONS

PRE-RIDE INSPECTION

For your safety, it is very important to take a few moments before each ride to walk around your scooter and check its condition. If you detect any problem, be sure you take care of it for have it corrected by your Authorised Hero MotoCorp workshop.

WARNING

Improper maintenance or failing to correct a problem before riding can cause a crash in which you can be seriously injured.
Always perform a pre-ride inspection before every ride and correct if any problem.

Engine oil level-Add engine oil if required (page 54). Check for leaks.
▶ Fuel level-Fill the fuel tank when necessary (page 14). Check for leaks.
Front and Integrated brakes-Check operation and if necessary, adjust free play (page 16).
▶ Tyres-Check condition and pressure (page 19).

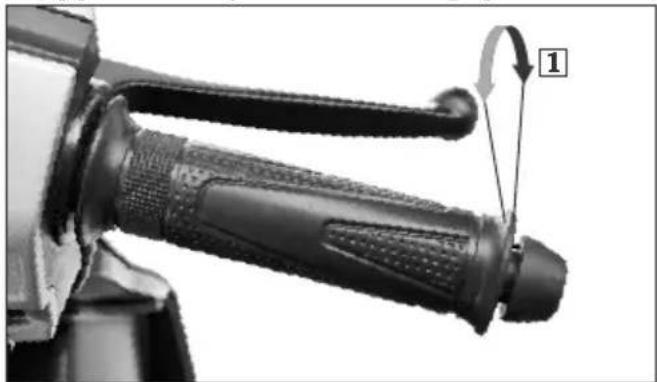

Throttle-Check for smooth opening and full closing in all steering positions.

Lamps and horn-Check that headlamp, NAME : ____ tail/stop lamp, turn signal lamps, indicators ADDRESS : ____ and horn function properly.
Rear view mirror-Ensure that the rear view mirror gives a good rear view when you are sitting on the scooter.
Fitting & fasteners-Check & tighten if necessary.
▶ Steering-Check for smooth action for easy maneuverability.
Air suction valve-Make sure all tube PHONE NO : ____ connections are secured properly (page 69) STARTING THE ENGINE

Side stand indicator-Make sure that the side stand is up. If it is in down position the side stand indicator (page 30) will glow on the speedometer panel. STARTING THE ENGINE Always follow the proper starting procedure described below. This scooter has an automatic fuel valve and option to fit a side stand and Side stand switch.

ANTI-THEFT TIPS

Always lock the steering and never leave the key in the ignition switch. This sounds simple but people do forget.
Be sure the registration information for your scooter is accurate and current. Standing for a long time of when the fuel tank has just been refilled.

your scooter is accurate and current.
Park your scooter in a locked garage whenever possible.
Use an additional anti-theft device of good quality.
Never park your scooter in an isolated area. Park as far as possible in a designated parking area.
Enter your name, address, and phone numberoxide can collect rapidly in enclosed areas in this Owner's Manual and keep it in your such as a garage. Do not run the engine with scooter at all times. Many times stolen the garage door closed. Even with the door scooters are identified by information in the open, run the engine only long enough to Owner's Manuals that are still with them. move your scooter out of the garage.
Do not use the electric starter for more than 5 seconds at a time. Release the starter switch for approximately 10 seconds before pressing it again.
Your scooter's exhaust contains poisonous carbon monoxide gas. High levels of carbon
thenoxide can collect rapidly in enclosed areas such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move your scooter out of the garage.

NOTE

CAUTION

Do not attempt to start the engine and run the vehicle without a battery. This may lead to electrical and electronic components failure.

Park the scooter on its main stand.

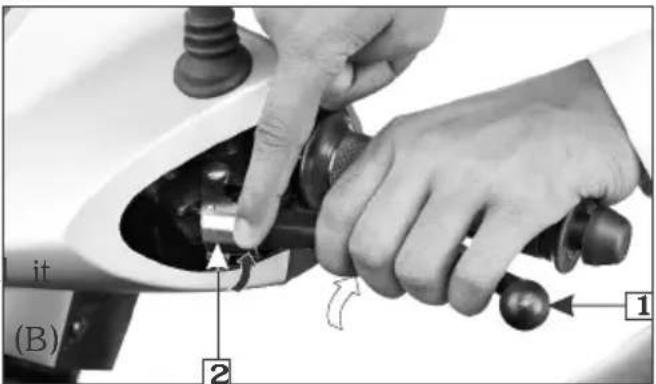

Lock the rear wheel by pressing the integrated brake lever (1) and locking the parking lever (2).

Close-up of hands adjusting a car's keyway with adjustment knob (no text or symbols visible)

(1) Integrated brake lever (2) Parking lever

The electric starter will only work when the integrated or front brake lever is operated.

WARNING

Contact with the rotating rear wheel injure you.
Set the parking lever when the scooter is its main stand.

NOTE

This scooter is equipped with Bystarter system. Do not accelerate while starting the engine by using an electric starter or kick starter.

▶ Turn the ignition switch (3) to "ON".

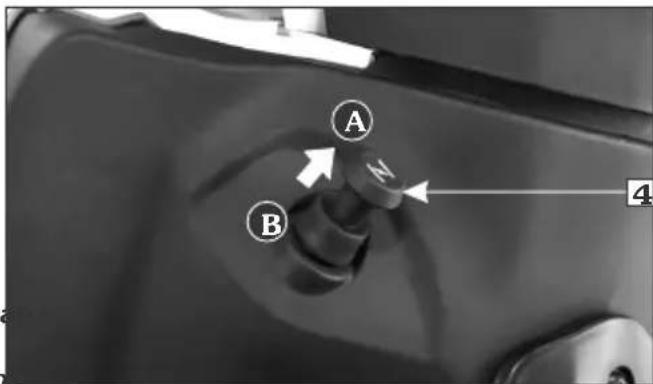

Pull the choke knob (4) out all the way to fully "ON" position (A).

(4) Choke knob
(A) Fully "ON" (B) Fully "OFF"

▶ While using starter switch:

With the throttle closed, press the starter switch.

(4) Choke knob
(A) Fully "ON"
(B) Fully "OFF"

While using kick starter: With the throttle closed, operate the kick starter with a rapid and continuous motion.
Continue warming up the engine until runs smoothly and responds to the throttle, when the choke knob is at "OFF" position

Warm engine

Do not use the choke.

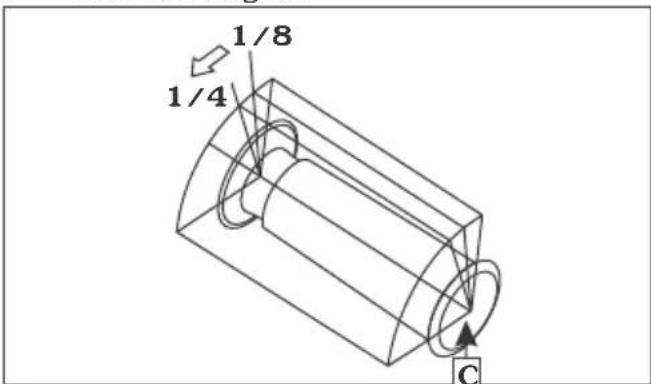

Rotate the throttle 1/8-1/4 turn (C).
Start the engine.

RUNNING-IN

Ensure your scooter's future reliability and performance by paying extra attention to how you ride during the first 500 km.

During this period, avoid full-throttle starts and rapid acceleration.

RIDING

Review Scooter Safety (page 4) before you ride.

(1) Integrated brake lever (2) Parking lever

Make sure the throttle is closed and the integrated brake is locked before moving the scooter off the main stand. The rear wheel must be locked when moving the scooter off the main stand or it may result in loss of control.
Stand on the left side of the scooter and push it forward off the main stand gripping below the seat using the right hand as shown.

Line drawing of a person standing beside a motorcycle, with an arrow pointing to the side (no text or symbols present)

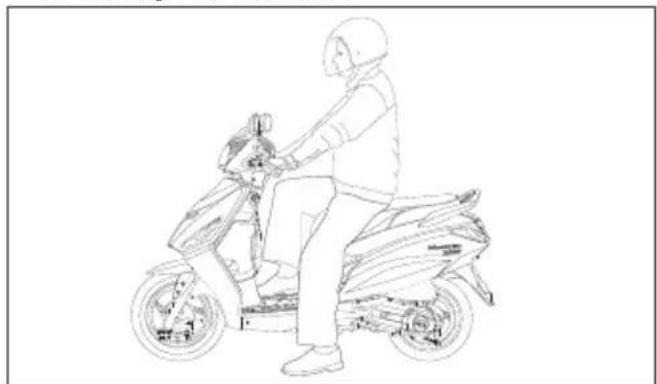

Mount the scooter from the left side keeping at least one foot on the ground to steady the scooter.

Line drawing of a person riding a scooter (no text or symbols)

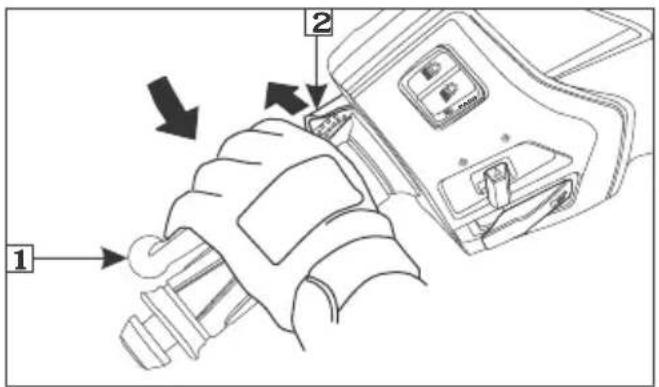

Unlock the integrated brake by further pressing the integrated brake lever (1) so as to release the parking lever (2) from the lock. Then release the brake lever.

(1) Integrated brake lever (2) Parking lever

Line drawing of a hand fastening a car seatbelt switch (no text or symbols)

Before starting, indicate your direction with the turn signals, and check for safe traffic conditions. Grab the handle bars firmly with both hands. Never attempt one-handed operation, this could lead to loss of vehicle control.

Line drawing of a person riding a scooter with motion lines indicating speed or impact (no text or symbols)

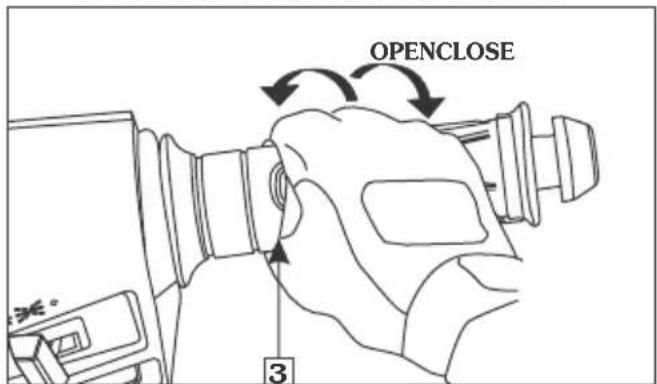

To accelerate, open the throttle (3) gradually, the scooter will move forward. Do not "BLIP" the throttle (open and close rapidly) as the scooter will move forward suddenly, causing possible loss of control and loss of fuel economy.

Do not accelerate with the brakes applied, this may lead to premature wear of brakes and transmission parts.

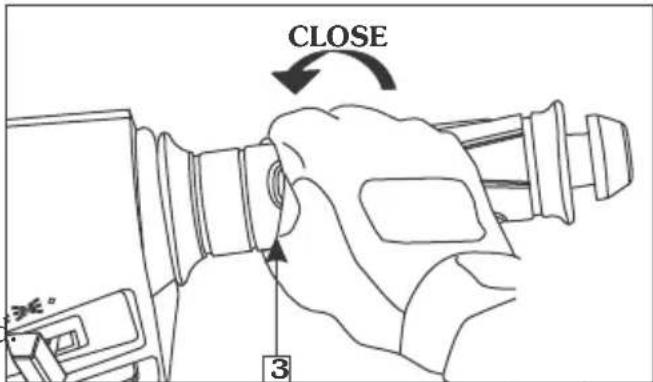

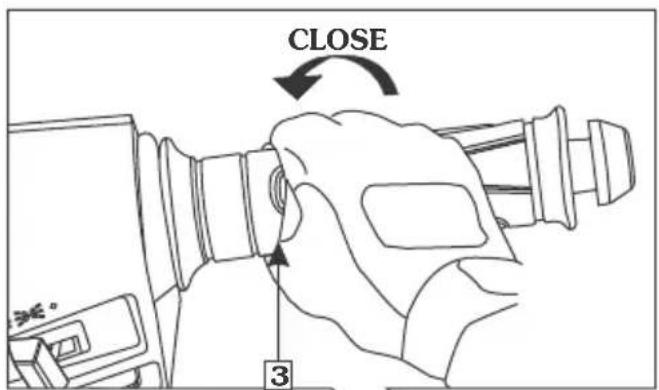

To decelerate, close the throttle.

(3) Throttle

When slowing down the scooter, coordination of the throttle (3), front (4) and integrated brake (5) is most important.

Since the scooter is equipped with an integrated braking, by pressing the brake lever provided on the left side of the handlebar would ensure both front and rear brakes applied simultaneously.

Excessive brake application may cause the wheels to lock, reducing control over the scooter.

(4) Front brake
(5) Integrated brake

When approaching a corner or turn, close the throttle (3) fully, and slow down the scooter by applying integrated brake (6).

After completing the turn, open the throttle gradually to accelerate the scooter.

When descending a steep gradient, Avoid continuous use of the brakes, which close throttle (3) fully and apply integrated brake (4) to slow down the scooter. may result in overheating and reduction of braking efficiency.

When riding on wet or loose surfaces be cautious.

When riding in wet or rainy conditions or on loose surfaces, the ability to manoeuvre and stop will be reduced.

For your safety:

Exercise extreme caution when braking, accelerating or turning.
Ride at slower speeds and allow for extra stopping distance.
Keep the scooter as upright as possible.
Be cautious when riding over slippery surfaces such as railway tracks, iron plates, manhole covers, painted lines, etc.

PARKING

After stopping the scooter turn the ignition switch to "OFF" position.
▶ Use the main stand to support the scooter while parked, lock and remove the key.

NOTE

Park the scooter on firm, level surface prevent it from falling over.
If you must park on a slight incline, aim the front of the scooter uphill to reduce the possibility of rolling off the main stand or overturing.

Lock the steering to prevent theft.

CAUTION

The exhaust pipe and muffler become very hot during operation and remain sufficiently hot to inflict burns if touched even after turning off the engine.

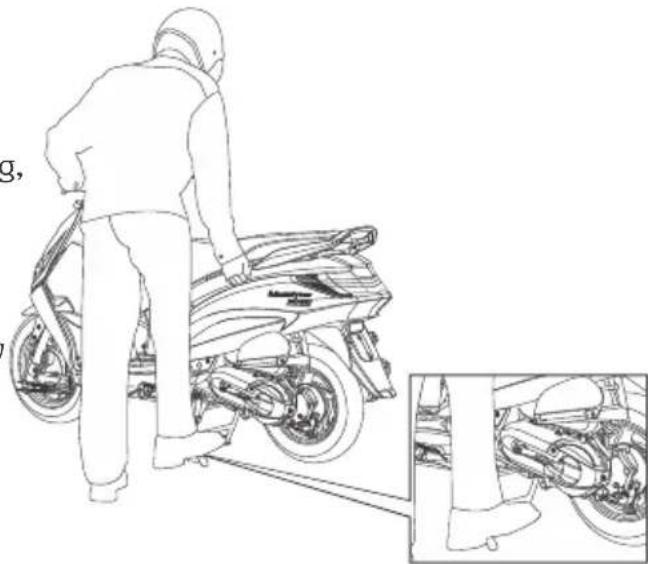

HOW TO USE MAIN STAND

Line drawing of a person standing beside a motorcycle with an inset showing engine components (no text or symbols)

STEERING LOCK

(1) Ignition key (A) Push in (B) Turn to lock

TOOL KIT/FIRST AID KIT

The tool kit (1) is located in the center compartment (3).

Some roadside repairs, minor adjustments and parts replacement can be performed with the tools available in the kit.

▶ Tool bag-1 No.
+,-No. 2 driver-1 No.
Grip-1 No.
Wrench plug 16-1 No.
Spanner 14-1 No.

(1) Tool kit

(2) First aid kit

(3) Center compartment

The first aid kit (2) is located in the center compartment (3) along with the tool kit. For some emergency first aid can be performed by medicine available in the kit.

Antiseptic Cream-1 No.
▶ Sterilised Dressing-1 No.
Water Proof Plaster-1 No.
▶ Elastic Bandage-1 No.

▶ Gauge (Rolled Bandage)-1 No.
▶ Sterilised Elastic Plaster-1 No.
▶ First Aid Bag-1 No.

MAINTENANCE

IMPORTANCE OF MAINTENANCE

A well-maintained scooter is essential for safe, economical and trouble-free riding. It will also help reduce air pollution.

To help you to take proper care for your scooter, the following pages include a Maintenance Schedule and a Maintenance Record for regular scheduled maintenance.

These instructions are based on the assumption that the scooter will be used exclusively for its designed purpose.

Sustained high speed operation or operation in unusually wet or dusty conditions will require more frequent service than specified in the Maintenance Schedule. Consult your Authorised Hero MotoCorp workshop for recommendations applicable to your individual needs and use.

If your vehicle overturns or is involved in a crash, be sure that you visit your Authorised Hero MotoCorp workshop for detailed inspections.

WARNING

Improperly maintaining this scooter or failing to correct a problem before you ride can cause an accident in which you can be seriously injured.
Al ways follow w the inspection and maintenance recommendations and schedules in this owner's manual.

MAINTENANCE SAFETY

This section includes instructions on some important maintenance tasks. You can perform some of these tasks with the tools provided (if you have basic mechanical skills). Other tasks that are more difficult and require special tools are best performed by professionals. It is recommended that wheel removal should normally be handled by a Hero MotoCorp authorised workshop.

You will come across some of the most important safety precautions in the following pages of this manual.

However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

Failure to follow maintenance instructions and precautions properly can seriously injure you.
Always follow the procedures and precautions in this owner's manual.

SAFETY PRECAUTIONS

Make sure the engine is turned “OFF before you begin any maintenance or repair. This will help eliminate several potential hazards:

- Carbon monoxide poisoning from engine exhaust.

Be sure there is adequate ventilation whenever you start the engine.

• Burns from hot parts.

Let the engine and exhaust system cool before touching.

• Injury from moving parts.

Do not run the engine unless instructed to do so.

Read the instructions before you begin and make sure you have the tools and skills required.

To prevent the scooter from falling over, park it on a firm, level surface, on the main stand.

Be sure that the rear brake is locked by parking lever before running the engine, while the scooter is parked on the main stand. This will prevent the rear wheel from rotating and avoid the possibility of someone being injured from contacting the wheel.

To reduce the possibility of a fire or explosion, be careful when working around petrol or batteries. Use only nonflammable solvent, not petrol, to clean parts. Keep cigarettes, sparks and flames away from the battery and all fuel-related parts.

Remember that your Authorised Hero MotoCorp workshop knows your scooter best and is fully equipped to maintain and repair it.

To ensure best quality and reliability, it is recommended to use Hero MotoCorp genuine parts for repair and replacement.

MAINTENANCE SCHEDULE

Perform the Pre-ride Inspection (page 38) at each scheduled maintenance period.

I: INSPECT C: CLEAN R: REPLACE A: ADJUST L:LUBRICATE T: TOP UP

The following Maintenance Schedule specifies all maintenance required to keep your scooter in peak operating condition. Maintenance work should be performed in accordance with standards and specifications of Hero MotoCorp by properly trained and equipped technicians. Your Authorised Hero MotoCorp workshop meets all of these requirements.

Ensure that each paid service is availed within 90 days or 3000km from the date of previous service, whichever is earlier.

* Clean carburetor if required after inspection during service.

** Should be serviced by a "Skilled Technician" of your Authorised Hero MotoCorp workshop.

*** In the interest of safety, we recommend these items to be serviced only by your Authorised Hero MotoCorp workshop.

**** Replace engine oil once in every 6000 km. Top up if the oil level is at or near the lower level mark.

# Replace drive belt once in every 24000 km.

- Check idle CO emission along with idle r/min/idle CO adjustment (if required).

@ Replace once in every 12000 km.

Check battery voltage (for VX model).

Check battery electrolyte level (for LX model).

Note-1: At higher odometer readings, repeat the frequency interval established here.

Note-2: More frequent cleaning may be required when riding in dusty areas. Replace once in every 12000 km.

Note-3: Service more frequently when riding in rain or at full throttle.

Note-4: Service more frequently if the scooter is ridden in unusually wet or dusty areas.

Note-5: Replace once in every 10000 km or once in a year, whichever is earlier. Replacement requires mechanical skill.

Note-6: Inspect if side stand switch is installed.

Note-7: Replace front fork oil once in a every 2 years or 20000 km, whichever is earlier.

Note-8: Inspect the bearings free play, replace if necessary.

Note-9: Inspect for any play in the mounting bushes, replace if necessary.

MAINTENANCE SCHEDULE

Dear Customer,

We would strongly recommend the following schedule, to keep your scooter in perfect running condition and healthy environment. Scooter subjected to severe use or ridden in dusty area will require more frequent servicing.

ITEMS

WHICHEVER COMES FIRST

DURING FREE SERVICE PERIOD

AFTER FREE SERVICE ONCE IN EVERY

SERVICE

1^st

2^nd

3^rd

4^th

5^th

6^th

DAYS

1st 60

Next 100

Next 100

Next 100

Next 100

Next 100

KM NOTE-1

500-750

3000-3500

6000-6500

9000-9500

12000-12500

15000-15500

3000

6000

9000

12000

15000

Fuel Lines

I

I

I

I

I

I

I

Throttle Operation**

I,A

I,A

I,A

I,A

I,A

I,A

I,A

Fuel Lid Cover Operation**

I,A

I,A

I,A

I,A

I,A

I,A

I,A

BystarlaOperation**

I,A I,A

I,A I,A I,A I,A

Air Cleaner Element

NOTE-2

C

C

C

C

R

C

C

R

Drain/Crankcase Breather Tube

NOTE-3

I,C I,C

I,C

I,C

I,C

I,C

I,C

Spark Plug@

R

I,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,Ai,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,C,AI,CG,A

Valve Clearance**

I,A

I,A

I,A

I,A

I,A

I,A

I,A

Engine Oil****

R

T

R

T

R

T

T

R

Engine Oil Strainer Screen**

C

C

C

C

Final Drive Oil**

NOTE-5

R

Engine Idle Speed/Carburetor*

I,A

I,A

I,A

I,A

I,A

I,A

I,A

Secondary Air Injection System

I

I

I

Secondary Air Cleaner Element

NOTE-4

C

C

C

C

C

C

C

Brake System

C,L

C,L

C,L

C,L

C,L

C,L

C,L

Front/Integrated Brake Lever Free Play

I,A I,A

I,A I,A

I,A I,A I,A I,A

Brake Shoe Wear

I

I

I

I

I

I

I

Parking Lock Operation

I

I

I

I

I

I

I

Battery Voltage

I

I

I

I

I

I

I

Battery Electrolyte

I,T I,T

I,T I,T

I,T I,T

I,T I,T

Stop Lamp Switch

I

I

I III

Headlamp Focus

I

I

I

I

I

I

I

Belt Case/Kick Starter Driven Gear

C,L C,I

C,L,C,I,C,I,C,I,C,I,C,I,C,I,C

Drive Belt** #

I

I

I

Clutch Shoe Wear***

I

I

I

Nuts, Bolls & Fasteners**

I

I

I

I

I

I

I

Front Suspension/Oil

NOTE-7

I

I

I

I

I

I

I

Rear Suspension

NOTE-9

I

I

I

I

I

I

I

Wheel/tyres***

I

I

I

I

I

I

I

Wheel Bearings

NOTE-8

I

I

I

I

I

I

I

Steering Head Bearings***

I,A

I,A

I,A

I,A

I,L,A

I,A

I,A

I,L,A

Main Stand

L

L

L

L

L

L

L

Side Stand (Optional)

L

L

L

L

L

L

L

Side Stand Switch (Optional)

NOTE-6

I,C

I,C

I,C

I,C

I,C

I,C

I,C

Muffler (Catalytic Converter)

I,E

I,E

I,E

AIR CLEANER

Refer to the safety precautions (page 48). The air cleaner element is of Dry Paper Pleated type, it should be serviced at regular intervals (pages 50). Service more frequently when riding in unusually wet or dusty areas.

Remove the body cover (page 32).
Remove the air cleaner cover (1) by removing the screws (2).

Close-up of a motorcycle's internal engine compartment with mounting holes and wiring (no visible text or symbols)

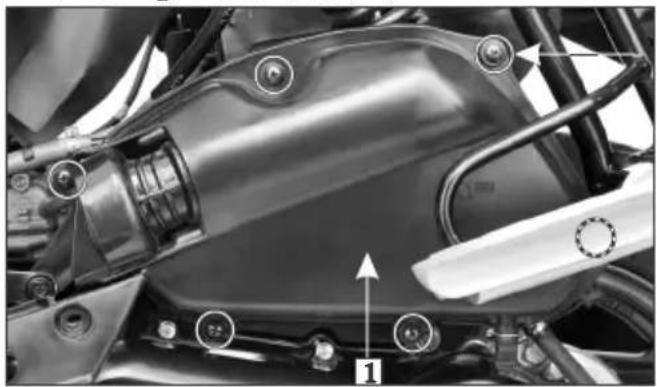

(1) Air cleaner cover
(2) Screws

Remove the air cleaner element screws

Close-up of a mechanical component with a grating grille and mounting holes (no visible text or symbols)

(3) Screws

Air cleaner cleaning Remove the air cleaner element (4) from housing (5).

(4) Air cleaner element (5) Air cleaner housing

• Clean the element by tapping it gently to loosen dust.
• Blow away the remaining dust by forcing compressed moisture-free air using an air nozzle (6) from the housing side (7) of the air cleaner.
• Replace the air cleaner element if it is (3). excessively dirty, torn or damaged.

(6) Air nozzle (7) Housing side

Install the air cleaner element.

Install the removed parts in the rever order of removal.

CAUTION

Never wash the air cleaner element. On blow air in the air cleaner element for cleaning dust, as explained. Replace air cleaner element once in every 12000 kms.
Replace it earlier if it becomes very dirty, damaged on surface or on the sealing area.

THROTTLE OPERATION Cable Inspection

Check for smooth rotation of the throttle grip from the fully open to the fully closed position. Check at full left and full right steering positions. Inspect the condition of the throttle cable from the throttle grip down to the carburetor. If the cable is kinked, chafed or improperly routed, it should be replaced or rerouted. Standard throttle grip free play (1) is approximately 2-6 mm of grip rotation.

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

(1) Free play 2-6 mm

Free Play Adjustment

Slide the grommet (2), loosen the lock nut (3) and turn the adjuster (4).

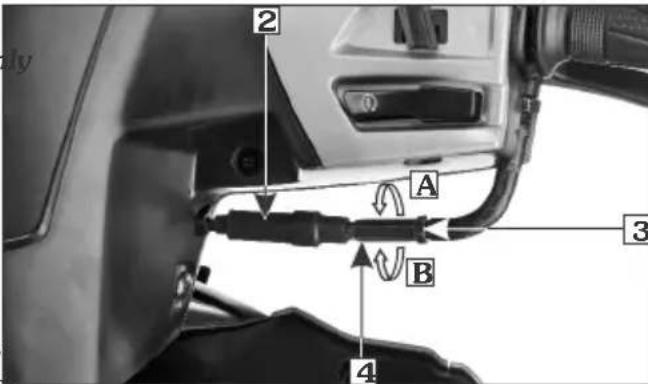

(2) Grommet (3) Lock nut (4) Adjuster (A) Decrease free play (B) Increase free play

SECONDARY AIR SUPPLY SYSTEM

Refer to the safety precautions (page 48).

Secondary air cleaner element cleaning

The air cleaner element should be serviced at regular intervals. Service more (page 50) frequently when riding in unusually wet or dusty areas.

Remove the body cover (page 32).
Remove the air cleaner element housing cover (1) by removing the screw (2).
Remove the air cleaner element (3).
Wash the air cleaner element in clean, nonflammable or high flash point solvent and let it dry thoroughly.
Soak the air cleaner element in gear oil (SAE-90) until saturated, then squeeze out the excess oil.
➢ Install the removed parts in the reverse order of removal.

CAUTION

Never use gasoline or low flash point solvents for cleaning the air cleaner element. A fire or explosion could result.

Close-up of a mechanical assembly with visible components and wiring (no text or symbols)

(1) Air cleaner element housing cover (2) Screw

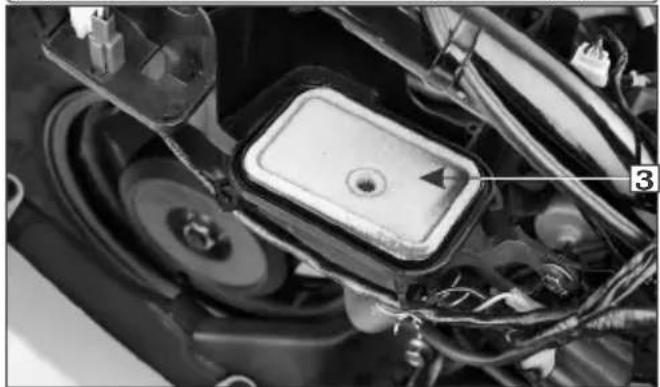

Close-up of a mechanical component with visible wiring and a labeled part (3), no readable text or symbols present.

(3) Air cleaner element

DRAIN TUBE

Refer to the safety precautions (page 48).

Remove the drain tube (1) from the cleaner assembly (2) and drain deposits in to a suitable container.

▶ Reinstall the drain tube.

Service more frequently when riding in rain, at full throttle or after the scooter is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

Close-up of a mechanical assembly with labeled parts (1 and 2), no readable text or symbols beyond labels

(1) Drain tube (2) Air cleaner assembly

ENGINE OIL

Use hero genuine engine oil or recommended grade oil.

BRAND: Hero 4T plus

GRADE: SAE 10W 30 SL Grade (JASO MB).

Manufactured by:

▶ Tide Water Oil Co. (India) Ltd.
Savita Oil Technologies Limited.
Bharat Petroleum Corporation Limited.

Oil Capacity: 0.8 Litre

Engine oil level check

Check the engine oil level each day before riding the scooter.

The level must be maintained between the UPPER (1) and LOWER (2) level marks on the oil level dipstick (3).

Start the engine and let it idle for few minutes.

Stop the engine and park the scooter on the main stand on a level surface.
After a few minutes, remove the oil level dipstick, wipe it clean and reinsert the oil level dipstick without screwing it in. Remove the oil level dipstick and check if the oil level is between the upper and lower marks.
If required, add recommended oil up to the upper level mark. Do not overfill.
Reinstall the oil level dipstick. Check for o leaks.

NOTE

Running the engine with insufficient oil ma cause engine damage.
Top up if required after every 3000 km.

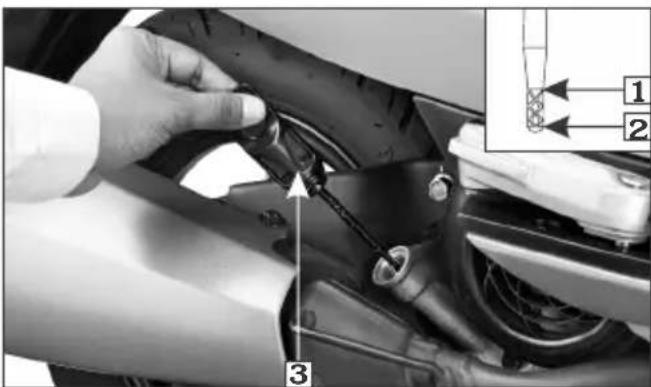

Close-up of a car hood with a hand adjusting a cable, showing mechanical components and wiring details (no text or symbols visible)

(1) UPPER level mark (2) LOWER level mark (3) Oil level dipstick

Engine oil replacement/Oil strainer cleaning

Change the engine oil with the engine at normal operating temperature and the scooter on its ma stand to assure complete and rapid draining.

Remove the oil level dipstick. Place an oil drain pan under the crankcase and remove the oil drain bolt (1).

Mechanical assembly diagram showing a vehicle's suspension system with labeled component (1), no readable text or symbols present.

(1) Drain bolt

Remove the oil strainer screen cap (2).

Close-up of a mechanical assembly with bolts and a numbered component (no readable text or symbols)

(2) Oil strainer screen cap

The spring (3) and oil strainer screen (4) will come out when the oil strainer screen cap is removed.

^94 Clean the oil strainer screen. ^95 Check that the oil strainer screen, sealing rubber and cap O-ring (5) are in good condition.

(3) Spring (4) Oil strainer screen (5) O-ring

Install the oil strainer screen, spring and oil strainer screen cap. Install the drain plug.
Fill crankcase with the recommended grade of oil:

At draining: 0.70 litre

At engine disassembly: 0.80 litre

▶ Install the oil level dipstick.
Start the engine and let it idle for minutes. Stop the engine and ensure that the oil level is at the upper level mark on oil level dipstick with the scooter upright of flat level surface. Ensure there are no oil leaks.

CAUTION

Engine oil quality is the chief factor affecting engine service life. Replace and top-up the engine oil as specified in the maintenance schedule (page 50).
When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

WARNING

Please dispose used engine oil in a manner that is compatible with the environ ment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw it in the trash or pour it on the ground or down a drain.
Used engine oil may cause skin disease if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.

FINAL DRIVE OIL REPLACEMENT

The final drive oil should be replaced as per the maintenance schedule. Replacement requires mechanical skill. It is suggested to get it replaced by authorized Hero Moto Corp workshop.

GRADE : SAE 10W 30 SL Grade

Park the scooter on its main stand.
▶ Start the engine and let it idle for 3-5 minutes.
Stop the engine and wait for 2-3 minutes.
Remove the oil level check bolt.
Remove the drain bolt, slowly turn the rear wheel and drain the oil.
After the oil is completely drained, install the oil drain bolt with a new sealing washer.

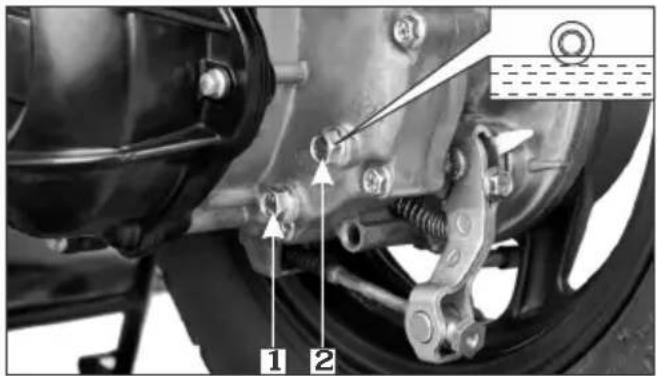

(1) Drain bolt
(2) Check bolt

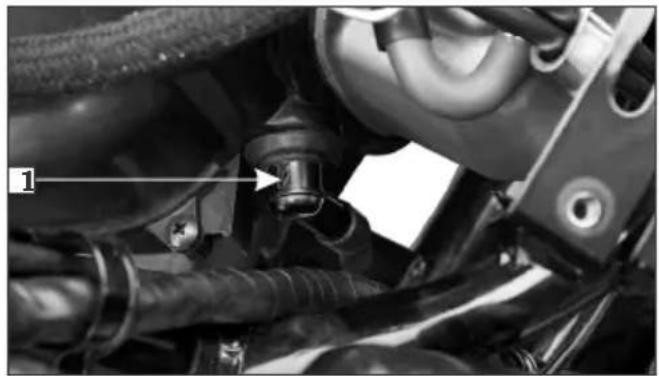

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

(1) Noise suppressor cap

▶ Fill the transmission case with recommended oil through the check bolt hole up to the bottom edge of the bolt hole;

At draining: 0.10 Litre

At Transmission Disassembly: 0.12 Litre

➢ Install the oil level check bolt with a new sealing washer and tighten it.

WARNING

While refilling the oil make sure that foreign material enters the final drive transmission.
Make sure that no oil gets on the tyre wheel.

SPARK PLUG

Refer to the safety precautions (page 48). Recommended spark plug.

Champion-PRZ 9 HC (Federal Mogul)

WARNING

Never use a spark plug with an improper heat range. Severe engine damage could result.

Remove the center cover (page 33).

with Disconnect the noise suppressor cap (1) from the spark plug.

Clean any dirt around the spark plug base. Remove the spark plug using the wrench plug provided in the tool kit.

Inspect the electrodes and center porcelain for deposits, erosion or carbon fouling. If the erosion or deposit is heavy, replace the plug. Clean carbon or wet fouled plug with a plug cleaner.

Check the spark plug gap using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode (2) carefully.

(2) Side electrode

With the plug washer attached, thread the spark plug in by hand to prevent cross-threading.
Tighten a new spark plug 1/2 turn with wrench plug to compress the washer. If you are reusing a plug, it should only take 1/8-1/4 turn after the plug seats.
Reinstall the noise suppressor cap.

WARNING

The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the engine.

IDLE SPEED

Refer to the safety precautions (page 48). The engine must be at normal operating temperature for accurate idle speed adjustment. Ten minutes of stop-and-go riding is sufficient.

Warm up the engine and park the scooter on its main stand.
Remove the centre compartment (page 31).

Close-up of an automotive engine component with hoses and a valve (no visible text or symbols)

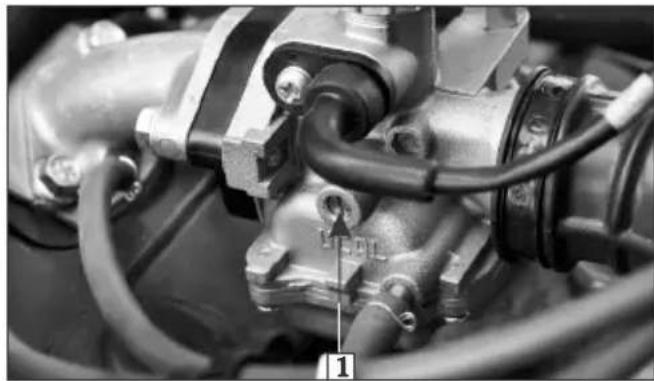

(1) Throttle stop screw

Adjust idle speed by adjusting the throttle stop screw (1) by inserting a suitable screw driver.

Idle speed: 1500+200 r/min

-BRAKE SHOE WEAR

Refer to the safety precautions (page 48). The front and integrated brakes are equipped with brake wear indicators. When the brake is applied, an arrow mark (1) on the brake arm (2) moves towards a reference mark (3) on the brake panel (4). If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced. Visit your Authorised Hero MotoCorp workshop for this service.

INTEGRATED BRAKE

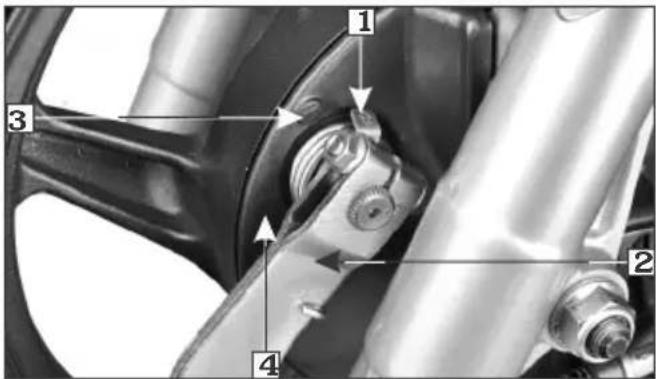

(1) Arrow
(2) Integrated brake arm
(3) Reference mark
(4) Brake panel

Rear brake

(1) Arrow

(2) Brake arm

(3) Reference mark

(4) Brake panel

BATTERY (VX model)

Refer to the Safety Precautions (page 48).

Battery is located behind the front center cover

Specification

\*MF Battery12V-4Ah ETZ-5

It is not necessary to check the battery electrolyte level or add distilled water as the battery is an Maintenance-Free (sealed) type. If your battery seems weak and/or electrolyte is leaking (causing hard starting or other electrical troubles), contact your Authorised Hero MotoCorp workshop.

NOTE

This symbol on the battery means that this product must not be treated as household waste.

*MF stands for Maintenance Free

This symbol on the battery means the old battery must be returned to your Authorised Hero MotoCorp workshop as it must be treated as recyclable material.

Your battery is a Maintenance-Free (sealed) type and can be permanently damaged if the sealing strip is removed.
An improperly disposed battery can be harmful to the environment and human health. always confirm local regulations for battery disposal.

WARNING

The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to exploit with enough force to seriously hurt you.
Wear protective clothing and a face shield, or have skilled mechanic to do the battery maintenance.

Battery charging

Always visit your Authorised Hero MotoCorp workshop if you see any symptom of battery discharge as earliest as possible to get the battery charged. The battery has a tendency to discharge rapidly if any additional electrical accessories are fitted on your scooter.

Battery storage

If in case your scooter is not used for more the a month remove the battery, fully charge and store in a cool and dry place.
If the battery is expected to be stored for more then two months, ensure to fully charge the battery once in a month.
▶ Always ensure the battery is fully charged before installation.

Ensure the battery leads are properly connected to the battery terminals during installation.

Battery Removal

Remove the front center cover (page 35).
Remove the battery band (1) from the boot band clip (2).

Interior view of a vehicle's internal components, showing battery, motors, and wiring (no visible text or symbols)

(1) Battery Band
(2) Boot band clip

(3) Negative (-)ve Terminal
(4) Positive (+)ve Terminal

Disconnect the negative (-)ve terminal lead (3) from the battery first, then disconnect the positive (+)ve terminal lead (4).

(5) Battery

Remove the battery (5).

Battery installation

Reinstall in the reverse order of removal. Be sure to connect the positive (+)ve terminal first, then the negative (-)ve terminal.
▶ Check the bolts and other fasteners are secure.

BATTERY (LX model)

(1) Upper level mark (2) Lower level mark (3) Battery band (4) Boot band clip (5) (-)ve terminal (6) (+)ve terminal

Location

The battery is located behind the front center cover.

Specification:

12V-5Ah Conventional Battery

Maintenance

Check the battery electrolyte. The electrolyte level must be maintained between the upper (1) and the lower (2) level marks on the side of the battery. If the electrolyte level is low, remove battery. Remove the battery filler caps. Carefully add distilled water to the upper level mark using a small plastic funnel.

NOTE

Use only distilled water in the battery. Tap may shorten the service life of the battery.

Dispose off used/old battery to authorised dealer only.
Insufficient electrolyte results in sulphation & plate damage.

Battery Removal

Remove the front center cover (page 35).
Remove the battery band (3) from the boot band clip (4).

Disconnect the negative (-)ve terminal lead (5) from the battery first, then disconnect the positive (+)ve terminal lead (6).
▶ Disconnect the battery breather tube (7). ▶ Remove the battery.

(7) Battery breather tube

CAUTION

When checking battery electrolyte level or adding distilled water, make sure the breather tube is connected to the battery breather outlet.
Do not attempt to start or drive the scooter without a charged battery, it can cause fusing of the bulbs and permanent damage to certain electrical components.
Turn the ignition switch "OFF" before checking or replacing the fuse to prevent accidental short-circuiting.

Battery installation

Reinstall in the reverse order of removal. Be sure to connect the positive (+)ve terminal first, then the negative (-)ve terminal.
Connect the battery breather tube. Check the bolts and other fasteners are secure.

iFUSE REPLACEMENT

The fuse holder (1) is placed adjacent to the battery which consists of main fuse and spare fuse.

The specified fuses are 10A

Fuse : Main fuse (2) 10A

Spare fuse (3) 10A

WARNING

Never use a fuse with a different rating from that specified. It may lead to serious damage to the electrical system or a fire due to short circuit.
Battery gives off explosive gases. Keep sparks, flames & cigarettes away.

GOOD FUSE BLOWN FUSE

Pure electrical connector diagram without any text, numbers, or symbols

Pure electrical connector diagram without any text, numbers, or symbols

(LX model)

(VX model)

(1) Fuse box
(3) Spare fuse 10A
(2) Main fuse 10A

! CAUTION

Do not attempt to start or ride the scooter without a charged battery, it can cause fusing of the bulbs and permanent damage to certain electrical components.
Turn the ignition switch "OFF" before checking or replacing the fuse to prevent accidental short-circuiting.
If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your scooter. Leave the blown fuse in that circuit and have your scooter checked by your Authorised Hero MotoCorp workshop.

SIDE STAND

Check the side stand for proper function.

▶ Check the spring (1) for damage or loss of tension and the side stand assembly for free movement.
▶ If the side stand is up, the side stand indicator (2) should not glow.
▶ Check whether the side stand indicator (2) glows when the side stand is down.

Close-up of a vehicle's lower leg and suspension bracket assembly (no visible text or symbols)

(1) Side stand spring

If the side stand indicator (2) does not operate as described in steps 2 or 3, please visit your Authorised Hero MotoCorp workshop.

(2) Side stand indicator

SUSPENSION

Inspection

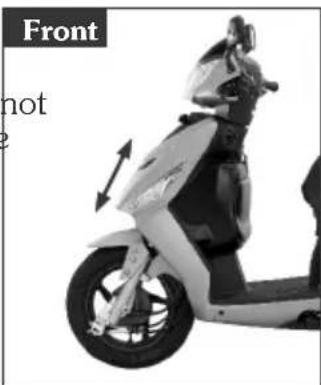

Check the front forks by locking the front brake and pumping the front fork up and down vigorously. The suspension action should be smooth and there should be no oil leakage.
Check the rear shock absorber by pushing hard downwards on rear grip while the scooter is not parked on stand. The scooter action should be smooth and there should be no oil leakage.

Side view of a white electric scooter with visible wheels and side-mounted sensor (no text or symbols)

Side view of a scooter's rear side showing the front wheel and side-mounted sensor (no text or symbols visible)

BULB REPLACEMENT

Refer to the Safety Precautions (page 48). The bulb becomes very hot while the lamp is "ON", and remains hot for a while after it is turned "OFF". Be sure to let it cool down before servicing.

Do not put finger prints on the headlamp bulb, as they may create hot spots on the bulb and cause it to break.

Wear clean gloves while replacing the bulb. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prevent its early failure.

Be sure to turn the ignition switch "OFF" when replacing the bulb.
Do not use bulbs other than that specified.
After installing a new bulb, check that the lamp operates properly.

Headlamp/Position lamp bulb

Remove the headlamp case (page 37).

(1) Headlamp connector (2) Position lamp connector

▶ Disconnect the headlamp connector and position lamp connector (2).

(3) Dust cover (4) Clip

Remove the dust cover (3).

Loosen the screw and release the clip (4) from its position.
Remove the headlamp bulb (5) without turning.
Remove the position lamp bulb (6) from both sides of the headlamp case.

Close-up of a hand adjusting a mechanical component with a numbered label (5) and arrow indicator (no readable text or symbols)

Close-up of a hand adjusting a mechanical component with a knob (no visible text or symbols)

(5) Headlamp bulb (6) Position lamp bulb

(1) Install a new bulb in the reverse order of removal.

Tail/Stop lamp LED unit

Remove the centre compartment (page 31).
Remove the body cover (page 32).
Remove the fuel drain tube (1).
Remove the fuel tank lid lock cable from the guide (2).
➢ Disconnect the tail/stop lamp connectors.
Remove the tail/stop lamp unit from the body cover by removing the screws (3).

(1) Fuel drain tube(2) Guide (3) Screws

Install a new tail/stop lamp unit in reverse order of removal.

Rear turn signal bulb

Insert hand from body cover rear side, above rear fender area and remove turn signal bulb holder (1) by turning counter clockwise.
Remove the bulb (1) by turning it to counterclockwise direction.

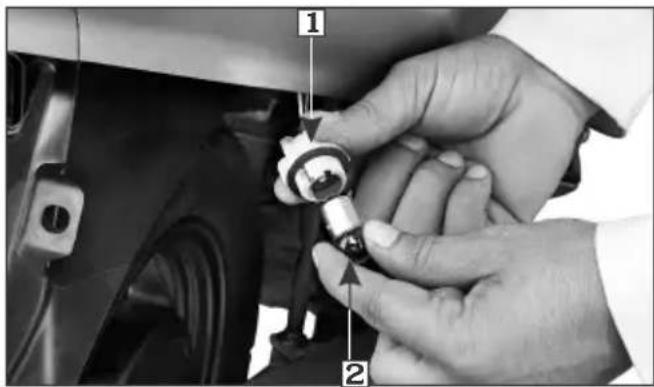

(1) Bulb holder (2) Rear turn signal lamp bulb

➢ Install a new bulb in the reverse order of removal.

Front turn signal bulb

Insert hand from body cover front side, above front fender area and remove turn signal bulb holder (1) by turning counter clockwise.
Remove the bulb (1) by turning it to counterclockwise direction.

Close-up of hands installing a small mechanical component into a car (no visible text or symbols)

(1) Front turn signal lamp bulb

Install a new bulb in the reverse order of removal.

CLEANING

Clean your scooter regularly to protect the surface finishes and inspect for damage, wear and oil leakage.

Avoid cleaning products that are not specifically designed for scooter or automobile surfaces. They may contain harsh detergents or chemical solvents that could damage the metal, paint and plastic parts on your scooter.

If your scooter is still warm from recent operation, give time for the engine and exhaust system to cool down.

We recommend avoiding the use of high pressure water spray.

! CAUTION

take all above Our authorised dealership mentioned precautions like recommended detergents and usage of muffler caps/plugs during wash to ensure quality wash.
High pressure water (or air) can damage certain parts of the scooter.

WASHING

Rinse the scooter thoroughly with water to remove loose dirt.
Clean the scooter with a sponge or soft cloth using water.
- Avoid directing water to muffler outlets and on electrical parts.
Clean the plastic parts using a cloth sponge dampened with a solution of mild detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.

NOTE

Take care to keep brake fluid or chemi solvents off the scooter. They will damage the plastic and painted surfaces.
The inside of the headlamp lens may clouded immediately after washing the scooter. Moisture condensation inside the headlamp lens will disappear gradually by lighting the headlamp in high beam.

After cleaning, rinse the scooter thoroughly with plenty of clean water. Strong detergent residue can corrode alloy parts.
Dry the scooter with pressurized air, start the engine and let it run for several minutes.

Line drawing of a person kneeling beside a motorcycle with visible engine components (no text or symbols)

Test the brakes before riding the scooter. Several applications may be necessary to restore normal braking performance.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

▶ Braking efficiency may be temporarily impaired immediately after washing the scooter.

Anticipate longer stopping distance to avoid a possible accident.

POLISHING

After washing your scooter, wax all painted surfaces (except matte painted surfaces) using a commercially available polish/quality liquid or paste wax to finish the job. Use only a non abrasive polish or wax made specifically for automobiles. Apply the polish or wax according to the instructions on the container.

Wash your scooter when run on such conditions by the following the point mentioned below, Clean the scooter using cold water (page 66). Do not use warm water. This worsens the effect of the salt.

STORAGE GUIDE

Extended storage, such as for winter, requires that you take certain steps to reduce the effects of deterioration from non use of the scooter. In addition, necessary repairs should be made before storing the scooter, otherwise these repairs may be forgotten by the time the scooter is removed from storage.

STORAGE

- Change the engine oil. - Empty the fuel tank into an approved petrol container using a commercially available hand siphon or an equivalent method. Spray the inside of the tank with an aerosol rust-inhibiting oil.

Reinstall the fuel filler cap on the tank. If storage lasts more than a month, carburetor draining is very important, to assure proper performance after storage.

NOTE

Polishing or waxing is not applicable for models having matte paint.

Removing road salt

The road may contain salt which was sprayed as an anti-freezing agent during winter, and the seawater are the causes of rust.

WARNING

Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
Stop the engine and keep heat, sparks, and flame away.
Refuel only outdoors.
Wipe up spills immediately.

To prevent rusting in the cylinder, perform the following:

• Remove the noise suppressor cap from the spark plug. Using tape or string, secure the cap to any convenient plastic body part so that it is positioned away from the spark plug.
• Remove the spark plug from the engine and store it in a safe place. Do not connect the spark plug to the noise suppressor cap.
• Pour a tablespoon (15-20 ml) of clean engine oil into the cylinder and cover the spark plug hole with a piece of cloth.
• Crank the engine several times to distribute the oil.
• Reinstall the spark plug and noise suppressor cap.

Remove the battery. Store in an area protected from freezing temperatures and direct sunlight. Charge the battery once a month.
Wash and dry the scooter. Wax all painted surfaces. Coat chrome plated parts with rust inhibiting oil.
▶ Inflate the tyres to their recommended pressures. Park the scooter on blocks to raise both tyres off the ground.
Cover the scooter (don't use plastic or of coated materials) and store in an unheated area, free of dampness with a minimum of daily temperature variation. Do not store the scooter in direct sunlight.

REMOVAL FROM STORAGE

▶ Uncover and clean the scooter. Change the engine oil if the scooter has been stored for more than 4 months.
▶ Check the battery voltage and charge the battery as required. Install the battery.
Drain any excess aerosol rust-inhibiting oil from the fuel tank. Fill the fuel tank with fresh petrol.
Perform all Pre-ride Inspection checks (page 38). Test ride the scooter at low speeds in a safe riding area away from traffic.

CATALYTIC CONVERTER

This scooter is equipped with a catalytic converter in the muffler.

The catalytic converter contains noble metals that serve as catalyst, promoting chemical reactions to convert CO and HC in the exhaust to CO_2 and H_2O (water vapour).

A defective catalytic converter contributes to air pollution and can impair your engine's performance.

Follow these guidelines to protect your scooter's catalytic converter.

Always use unleaded petrol. Even a small amount of leaded petrol can contaminate the catalyst metals, making the catalytic
herconverter ineffective.
Keep the engine tuned up.

AIR SUCTION VALVE

Mechanical assembly diagram showing a vehicle's suspension system with labeled component (1), no readable text or symbols present.

(1) Air Suction Valve

Further to meet emission standards this scooter is provided with the air suction valve. Air Suction Valve (1) supplies fresh air from the air filter to the exhaust manifold to convert carbon monoxide to carbon dioxide. This reduces the CO% in the vehicle's exhaust.

1. STARTING TROUBLE - ENGINE DOES NOT START

A. Fuel System

B. Electric Starter Not Working

C. No Spark At Spark Plug

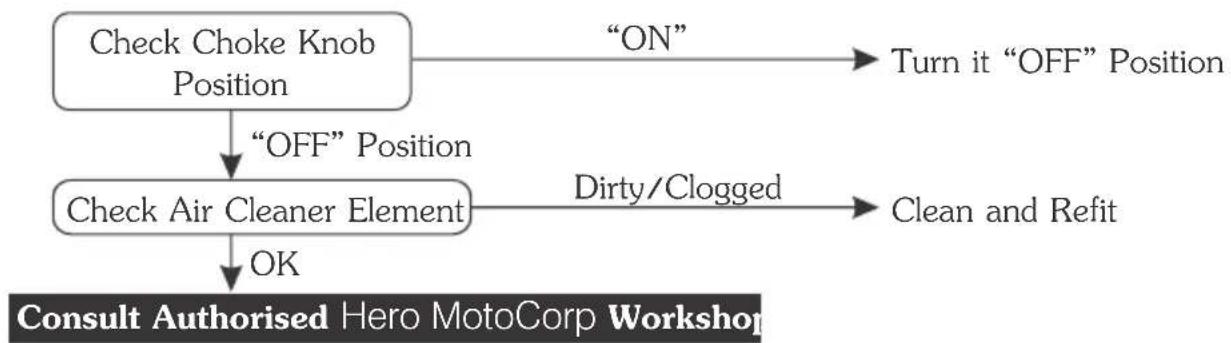

2. ENGINE STARTS BUT STALLS

1. POOR PICK-UP

Symbol of no prohibition, commonly used in public transportation (no text or numbers present)

ROAD SIGNS

Mandatory signs: These road signs inform drivers/riders of the traffic rules that apply on a certain stretch of road, thereby instructing them on how to drive/ride. Mandatory signs are distinguished by the bright red circle with black and blue markings. It is imperative that all riders follow these signs as they help avoid accidents. Their violation can be penalised under the Motor Vehicle Act.

Mandatory

Stop

Give way

One way No horn

No bicycles

No automobiles

No hand craft

No pedestrians

No right turn

No 'U' turn

Overtaking prohibited Speed limit

eed limit

No stopping or standing

No parking Length limit

High limit

Restriction ends

Compulsory-ahead only

Compulsory-turn left

Compulsory-right ahead

Compulsory-ahead or turn right

Compulsory-keep left

Compulsory-bicycle track

Compulsory- sound horn

Simple gray triangle outline on white background (no text or symbols)

Cautionary signs: These signs inform the driver/rider of the road conditions ahead. Cautionary signs therefore serve as a warning. They are usually in a red triangle with black pictures on a white background. Illustrations, diagrams and symbols are used to forewarm about dangers ahead. Cautionary road signs are as important as mandatory signs. However, the violation of cautionary signs does not attract penalty.

Cautionary

Right hand curve

Right reverse bend Incline ahead Narrow road ahead Narrow bridge

Pedestrian crossing

School ahead

Gap in medium Cross road

Men at work Roundabout

Hump Road

Informatory

Informatory signs: These are facility signs that provide important information about road directions are maps of specific destinations. On highways, they provide information about the location of public telephones, restaurants, hospitals, parking, petrol pumps, resting-places and more. These signs are usually rectangular, with black or white pictures on a blue background.

Re-assure sign

Public Telephone

Petrol Pump Hospital

First Aid Post

Eating Place

Light Refreshment

Destination Sign

Place identification sign

Resting place

No through road

No through side road

Park this side

sides

TaxistandParking bc

Signs and Signals are language of the road. Learn them, respect them.

Hero MotoCorp Ltd.

WARRANTY

Scope of warranty

Hero MotoCorp Ltd. (hereinafter called ‘Hero MotoCorp’) warrants its MAESTRO EDGE vehicles, assembled/manufactured in its Plants and sold through its channel partners, to be free from any defect both in material and workmanship, under normal use and conditions, subject to – the following terms & conditions.

TERMS & CONDITIONS

a) MAESTRO EDGE vehicle is warranted for a period of 5 years or 50000 Km, whichever is earlier, from the date of purchase.

b) It is advised that the purchaser avails all free and paid services from the Hero MotoCorp's authorized workshop as per the recommended schedule, to be eligible for warranty benefits. Each paid service should be availed within 90 days from the date of previous service or as per the recommended schedule, whichever is earlier.

c) If any problem is observed in MAESTRO EDGE vehicle, Hero MotoCorp's only obligation/liability is to repair or replace that part/those parts which is/are considered to be the cause of such problem, provided however that such problem, has not resulted due to misuse/improper handling etc. of the vehicle. Any MAESTRO EDGE vehicle needing repair should be brought along with Owner's Manual to Hero MotoCorp's authorised workshop for necessary inspection and carrying rectification job.

Hero MotoCorp Ltd.

LIMITATIONS OF WARRANTY

The warranty shall not apply—

(1) If all free services/paid services/oil top-ups are not availed as per the recommended schedule at Hero MotoCorp's authorized workshop.

(2) If any other engine oil which is non compatible with product is used other than SAE 10W30 SL Grade (JASO MB).

(3) To normal wear & tear components including (but not limited to) brake shoes/pads, clutch plates, drive chain & sprockets, bulbs, electrical wiring, filter, spark plug, fasteners, shims, washers, oil seals, gaskets, rubber parts, bush, rubber bellows, plastic parts breakage and wheel rim for misalignment/bend.

(4) If additional wheel(s) is/are fitted and/or any other modification carried out/unauthorized accessories fitted which shall be responsible for malfunction/detoriation of the vehicle.

(5) If MAESTRO EDGE vehicle has been used in any competitive events like races or rallies or for any commercial purposes as taxi etc.

(6) To any damage on vehicle's painted surface cropping due to industrial pollution or other external factors.

(7) For normal phenomena like noise vibration, oil seepage etc., which do not affect the performance of the .vehicle

(8) To any damage caused due to usage of improper oil/grease, non-genuine parts.

(9) If any defect crops or repairs needed as a result of using adulterated fuel.

(10) If any maintenance/repairs required due to bad road conditions or misuse of MAESTRO EDGE vehicle.

(11) If any defect crops or repairs needed as a result of MAESTRO EDGE vehicle meeting to some accident.

(12) For consumables like oil, grease, gasket etc to be used during free services and/or warranty repairs.

(13) To any part of the MAESTRO EDGE vehicle which has been tampered or repaired in such a manner which has resulted in malfunction of the vehicle.

(14) For MAESTRO EDGE vehicle not used in accordance with the guidelines given in this Owner's Manual.

(15) To proprietary items like Tyres, Tubes, Batteries etc, as they are subjected to the warranty terms & conditions of respective manufacturers and directly handled by them only.

(16) Any defect(s) developing on account of external factors such as environmental factors; including but not limited to fading/peeling/rusting of paint and/or stripes and/or plated parts, seat leather tearing & cracking, aluminium parts oxidation and cracking & discoloring of control switches etc.

Decision regarding warranty settlement shall be taken by Hero MotoCorp and the same shall be final and binding on all concern.

Subject to DELHI JURISDICTION only.

BATTERY WARRANTY CARD

Manufacturing date on battery to be entered here

Name of the owner :....

Vehicle model :

Vehicle registration number :......

Battery make :

Battery type :

Date of purchase of vehicle :......

Kilometers :

Name, Address & Telephone no. of OEM Dealer

◆ Applicable for MF Battery.

Hero MotoCorp Ltd.

BATTERY WARRANTY PERIOD

1. 18 months from date of sale of vehicle or 20000 km. or
2. 21 months from the date of charging (whichever is earlier).
3. 3 months idle period is allowed from the date of charging to date of sale on vehicle.

Terms and condition of warranty

1. Batteries are warranted against all defects in material and workmanship. Liability under this warranty is limited to making good of defects rising solely from the use of faulty material or workmanship during manufacturing and developing under proper use.
   The warranty commences from the date of delivery to the original purchase of the vehicle.
2. In the event of any complaint the battery is to be returned complete with electrolyte to nearest battery service station or any OEM dealer. On inspection, battery would be returned or replaced.
3. This warranty card accompanies a battery sold as OEM fitment only. Claims should be supported with vehicle purchase invoice to enable processing.
4. The right to determine whether a battery needs repair or totally replacement lies with the company. In case where the battery is replaced, the defective battery becomes the property of the company and no scrap rebate will be given for it. The warranty period on the battery being repaired/replaced shall commence from the date of sale of the original battery as stated in the original warranty card.
5. All liabilities under this warranty will cease if the battery is used on the vehicle other than that on which the battery was originally fitted and on the expiry of the warranty period as mentioned above.
6. Recharging is not covered under the purview of this warranty and shall be billed as extra. However, FOC battery replacement/repair includes cost of charging.
7. This warranty does not cover damage to the battery caused by faulty electrical systems, incorrect charging and filling, improper handling of the battery by unauthorized dealers/auto electricians, maintenance, willfull abuse, destruction by fire, collusion, theft or recharging.
8. Breakage of container and cover do not come under the purview of this warranty.
9. Adjudication and settlement of claim will take a couple of days as a battery has to be tested for the reported failure.
10. In case of tempering of the original wiring circuit in any manner whatsoever.
11. If a battery which is not recommended is fitted on the vehicle then such battery will not carry any warranty.
12. The applicable taxes which is leviable on the battery under repair or replacement will be borne by the customer.
13. Customers are deemed to have read, understood and agreed to these conditions at the time of purchase of the vehicle.

Hero MotoCorp Ltd.

EMISSION WARRANTY

Scope of warranty

Hero MotoCorp Ltd. Warrants all its vehicles, assembled/manufactured at its various Plants and sold through its Authorised dealers, to comply with emission standards as specified in S.No. 5 of table in item(i) of sub rule (2) of Rule 115 of Central Motor Vehicles Rules, 1989, which stipulates that "Idle CO (Carbon monoxide) emission limit for all two wheeled petrol driven vehicles shall not exceed 3.0 percent by volume and HC (Hydro Carbon) 3000 ppm, subject to following terms & conditions.

Terms & conditions

a) The emission warranty shall be applicable in India and shall remain valid for a period of 3 years or 30000 kms, whichever occurs earlier, from the date of vehicle purchase.
b) In case any defect is observed in any emission-related component, Hero MotoCorp only obligation/liability shall be to repair and/or replace those part (s) which is/are considered to be the cause of non-compliance with the emission standards.
c) The emission warranty shall be applicable only to those vehicles, which are being regularly maintained at Hero MotoCorp Authorised Dealers/Service Points in accordance with the maintenance schedule provided in the owner's manual.
d) The customer should follow the recommended parts replacement as per the maintenance schedule in order to avail the emission warranty.
e) If any part (s) related to emission characteristics of the vehicles is/are tampered and/or repaired by unauthorised person/workshops etc, then the emission warranty shall stand cancelled.
f) Any part (s) suffering wear and tear under the normal course of running shall not be covered under the emission warranty. Therefore, all such parts should be replaced by the customer from time to time, on payment basis, as per the maintenance schedule provided in owner's manual and dealer's advice.
g) It is recommended to avail the services as per the recommended schedule to be eligible for the emission warranty benefits. Please ensure that each paid service is availed within 90 days from the date of previous services or as per the recommended schedule, whichever is earlier. All service details should be completely filled by the dealer, in the Service Record Sheet given in the owner's manual.
h) It is mandatory to obtain a PUC certificate from the Authorised PUC center. In case of non-compliance with the emission standards please contact the channel partner/authorised workshop immediately alongwith the previous OK certificate, for the necessary rectification. The manufacturer or the dealer is not responsible for any penalty levied on you on account of non-compliance with the emission standards.
i) All decisions regarding emission warranty settlement shall be taken by Hero MotoCorp Ltd. and shall be final binding on all concerned.

Subjected to Delhi jurisdiction only.

Hero

GENUINE PARTS

WHAT ARE THE BENEFITS OF Hero MotoCorp GENUINE SPARE PARTS?

Assures long life
Ensures economy for a long time
▶ Safety of vehicle and rider
Peace of mind
Value for money
Assured quality

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Cam Chain Kit	▸ Poor performance▸ Reduced life▸ Material used is inferior▸ Damages other parts of clutch like, clutch center and outer clutch
Gasket Cylinder Head	▸ Improper sealing▸ Engine knocking▸ Leads to leakage and smoky exhaust▸ Higher emission level
Element Air Cleaner	▸ Improper air filtration resulting in premature engine failure▸ Affects fuel efficiency▸ Poor engine performance
Spark Plug	▸ Frequent stalling of engine▸ Higher emission level▸ Poor engine performance▸ Affects fuel efficiency

GENUINE PARTS

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Element Air Cleaner	▸ Improper air filtration resulting in premature engine failure▸ Affects fuel efficiency▸ Poor engine performance
Spark Plug	▸ Frequent stalling of engine▸ Higher emission level▸ Poor engine performance▸ Affects fuel efficiency
Brake Pads/Shoes	▸ Poor braking efficiency▸ Rider safety-an issue▸ Discs/Drum wear out, resulting in subsequent repair cost
Chain Sprocket Kit	▸ Noisy Operation▸ Failure of chain can cause fatal accident

ZONAL/REGIONAL/AREA OFFICES

For any of your service related query/requirements you may contact the respective Zonal/Regional/Area Offices

CENTRAL ZONE

Hero MotoCorp Ltd., No. 209-210, Ganpati Plaza, M.I. Road, Jaipur-302001, (Rajasthan).

Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Office No. 705-706, 7th Floor, Fun Square, Durga Nursery Road, Udaipur -313001 (Rajasthan).

Tel: [phone], 79, E-mail: [e-mail]

Hero MotoCorp Ltd., Office. No.401, 4th Floor, Offizo, Magneto Mall, Labhandi, G.E. Road, Raipur -492001, (Chhattisgarh)

Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Third Floor, Alankar Palace, Plot No. 11, Zone II, M.P. Nagar Bhopal-462011, India.

Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Maloo-01, 601-602, 6th Floor, Plot No. 26C, Scheme No. 94, Ring Road, Indore, M.P.-452010,

Tel: [phone], 70, E-mail: [e-mail]

EAST ZONE

Hero MotoCorp Ltd., Flat No: 1002. 10th Floor, Martin Burn Business Park, BP3, Salt Lake, Sector-V, Kolkata-700091,

West Bengal, India. Tel : [phone], E-mail : [e-mail]

Hero MotoCorp Ltd, Odysa Business Centre, Plot no. 30, 30/982, 172/1030, 4th Floor Cuttack, Bhubaneshwar highway road,

Rasulgarh, Bhubaneswar-751010, Odisha, India. Tel: [phone], 62, 63, 64, E-mail: [e-mail]

Hero MotoCorp Ltd., Yash Heights, 1st Floor Bariatu Road, Above Basudeb Tata Showroom Ranchi-834009, Jharkhand,

India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Sai Corporate Park, A Block, 6th Floor, Rukanpura, Bailey Road Patna, Bihar – 800014

Tel: [phone] E-mail: [e-mail]

NORTH ZONE

Hero MotoCorp Ltd., 3rd Floor, Tower-A, DLF Centre Court, Sector-42, Golf Course Road, DLF Phase 5,

Gurgaon -122002, Haryana, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 602, 6th Floor, Office Tower-1, Plot No BW58, Logix City Center, Sector-32, Noida - 201301.

Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., S.C.O-367-368, First Floor, Sector-34A, Chandigarh-160022, India.

Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Kapoor Towers, Plot No-284, 15-B, Rajpur Road, Dehradun-248001, India.

Tel:[phone], E-mail: [e-mail]

ZONAL/REGIONAL/AREA OFFICES

NORTH ZONE

Hero MotoCorp Ltd., Summit Building (10th Floor) Plot No TCG 3/3 Vibhuti Khand, Gomti Nagar Lucknow - 226010, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., C-19/134-B, Third Floor I.P Grand, Lallapura, Sigra, Varanasi, Uttar Pradesh - 221010, India. Tel: +91-, E-mail: [e-mail]0542-2390949,2390241

SOUTH ZONE

Hero MotoCorp Ltd., SKAV 909, 3rd Floor, 9/1, Lavelle Road, Bangalore-560001, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 3-6-289, 3rd Floor, Kareem Manzil, Hyderguda, Hyderabad-500029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 9th Floor Seshachalam Centre No.636/1. Anna Salai, Nandanam, Chennai-600035, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 6-A, DD Trade Tower, (6th Floor), Kaloor-Kadavanthra Road, Kaloor-682 017, Kochi-682017, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., No 1547, 2nd Floor Classic Towers, Trichy Road, Coimbatore - 641018 Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., First Floor VA Kalburgi Mahalakshmi Mansion, Mandakini Hospital Road, New Cotton Market, Hubli-580029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., D.NO. 54-11-18 E, 2nd Floor, Sai Oddessey Building, Opp Executive Club, Near NH-5, Vijayawada-520008, Andhra Pradesh, India. Tel: [phone], E-mail: [e-mail]

WEST ZONE

Hero MotoCorp Ltd., Chrome Building, Sr. No. 33, Hissa-A-1/1/2, Plot - 2, Viman Nagar Avenue 2, Nagar Road, Pune-411014, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 603-604, Gunjan Tower, Off Alembic Gorwa Road, Baroda-390023, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Ground Floor, Block No.2, Vishnu Vaibhav Complex, 222, Palm Road, Civil Lines, Nagpur-440001, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Astarc House-Third Floor, 76/79, Makwana Lane, Off. Andheri-Kurla Road, Andheri (East), Mumbai-400059, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 604, Kings Plaza, Astron Chowk, Rajkot, Gujarat - 360001 Tel: [phone], E-mail: [e-mail]
