Maestro Edge 125 (2020) - Scooter HERO - Free user manual and instructions

Product Type	Scooter
Brand	Hero
Model	Maestro Edge 125 (2020)
Engine Displacement	124.6 cc
Engine Type	4-Stroke, Air-Cooled
Max Power	8.5 bhp @ 6500 rpm
Max Torque	10.2 Nm @ 5000 rpm
Transmission	CVT (Continuous Variable Transmission)
Starting System	Electric Start / Kick Start
Fuel System	Carburetor
Fuel Tank Capacity	5.5 L
Frame	Underbone
Front Suspension	Telescopic Forks
Rear Suspension	Unit Swing with Spring Loaded Hydraulic Damper
Front Brake	Disc (190 mm)
Rear Brake	Drum (130 mm)
Front Tyre	90/90-12
Rear Tyre	100/80-12
Wheelbase	1260 mm
Length	1815 mm
Width	710 mm
Height	1160 mm
Seat Height	785 mm
Ground Clearance	155 mm
Dry Weight	112 kg
Lighting	LED Headlight
Instrument Cluster	Digital Speedometer, Odometer, Fuel Gauge
Maintenance	Oil change every 3000 km, air filter cleaning every 6000 km
Spare Parts Availability	Widely available via Hero dealerships and online

Frequently Asked Questions - Maestro Edge 125 (2020) HERO

What is the recommended engine oil for Hero Maestro Edge 125?

The recommended engine oil is 10W-30 or 10W-40 grade, API SL or higher, with a capacity of about 0.9 litres (including filter change). Always use genuine Hero oil if possible.

How often should I change the engine oil?

Engine oil should be changed every 3000 km or 6 months, whichever comes first. The oil filter should be replaced every alternate oil change.

What is the correct tyre pressure for Hero Maestro Edge 125?

Front tyre: 22 psi, Rear tyre: 32 psi. Check when cold. Adjust based on load: increase by 2-3 psi for pillion or heavy loads.

How do I clean the carburetor?

Clean the carburetor every 10,000 km or if you experience hesitation. Use carburetor cleaner spray. It's recommended to have it serviced by a trained mechanic.

What type of fuel should I use?

Use unleaded petrol with an octane rating of 91 (RON) or higher. Avoid using ethanol blends above 10% (E10).

Why does my scooter vibrate at high speeds?

Common causes include unbalanced tyres, loose engine mounting bolts, worn CVT belt, or incorrect tyre pressure. Check and tighten bolts, balance tyres, and inspect belt at service intervals.

How do I adjust the headlight beam?

Locate the adjustment screw behind the headlight unit. Turn clockwise to lower beam, counter-clockwise to raise. Align against a wall 10 metres away with correct voltage.

What is the spark plug gap and replacement interval?

Spark plug gap: 0.7-0.8 mm. Replace every 12,000 km or 12 months. Use NGK CPR8EA-9 or equivalent.

How do I check and refill coolant?

The Maestro Edge 125 is air-cooled, so there is no coolant. Just ensure there is no oil leakage and the cooling fins are clean.

What is the warranty period for Hero Maestro Edge 125?

Hero offers a standard 5-year warranty (2+3 years) on the Maestro Edge 125, covering manufacturing defects. Extended warranty options are available.

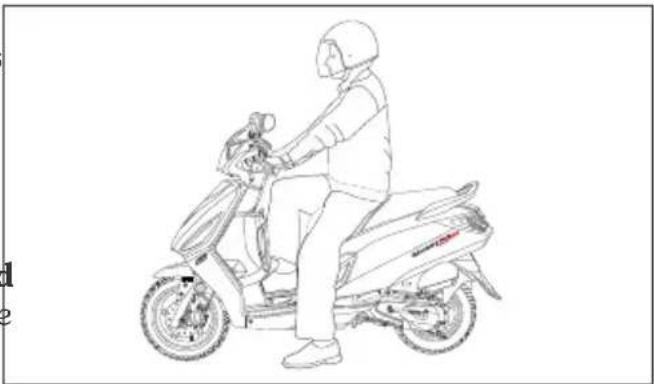

USER MANUAL Maestro Edge 125 (2020) HERO

Thank you for selecting a Hero MotoCorp MAESTRO EDGE 125 PROGRAMMED FI vehicle. We wish you many miles of continued riding pleasure in the years ahead.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment performance on a continual basis, as an intrinsic element of our corporate philosophy. To achieve this we commit ourselves to continue product innovations to improve environment compatibility, comply with and all applicable legislation including environment legislation strengthen the green supply chain.

Your vehicle is conforming to latest (Bharat stage–VI norms) regulation for emission, safety & noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are environment friendly in nature.

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when the engine gets ON.

This booklet is your guide to the basic operation and maintenance of your new Hero MotoCorp MAESTRO EDGE 125 PROGRAMMED FI vehicle. Please take time to read it carefully. As with any fine machine, proper care and maintenance is essential for trouble-free operation and optimum performance.

Your Authorised dealer will be glad to provide further information or Hero MotoCorp assistance and is equipped to handle your future service needs.

Let us make this world a safer, healthier and more environment friendly place.

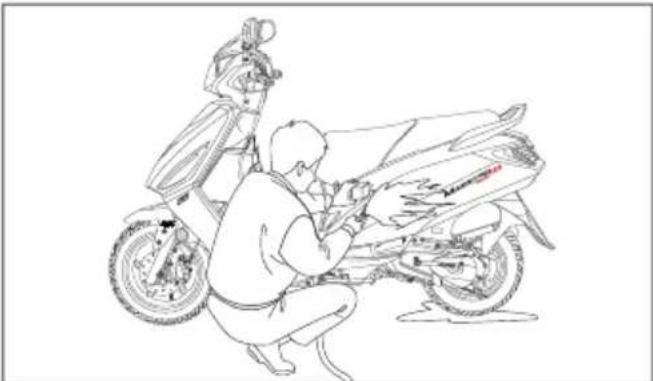

NOTE

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS, SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED. Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Ltd.

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT NOTICE. Hero MotoCorp Ltd ‘MAESTRO EDGE 125 PROGRAMMED FI’ COMPLIES WITH THE LATEST EMISSION NORMS.

ADDENDUM

As per Ministry of Road Transport & Highways (Government of India) vide Notification G.S.R. 540(E), Hemostatic agent is excluded from first aid kit in reduction from existing kit effective from 31st August 2020.

CONTENTS

		Pg. No.Pg. No.
VEHICLE IDENTIFICATION 1	Body cover	38
VEHICLE SPECIFICATION 2	Front center cover	41
VEHICLE SAFETY 4	Front cover	42
• Important safety information 4	Floor side cover	42
• Protective apparel 5	Rear view mirror/Headlamp assembly	44
• Load limits and guidelines 7	Headlamp focus adjustment	45
• Accessories and modifications 8	PRE-RIDE INSPECTION 45
SAFE RIDING TIPS 9	ANTI-THEFT TIPS	46
TIPS FOR HEALTHY ENVIRONMENT 10	STARTING THE ENGINE	47

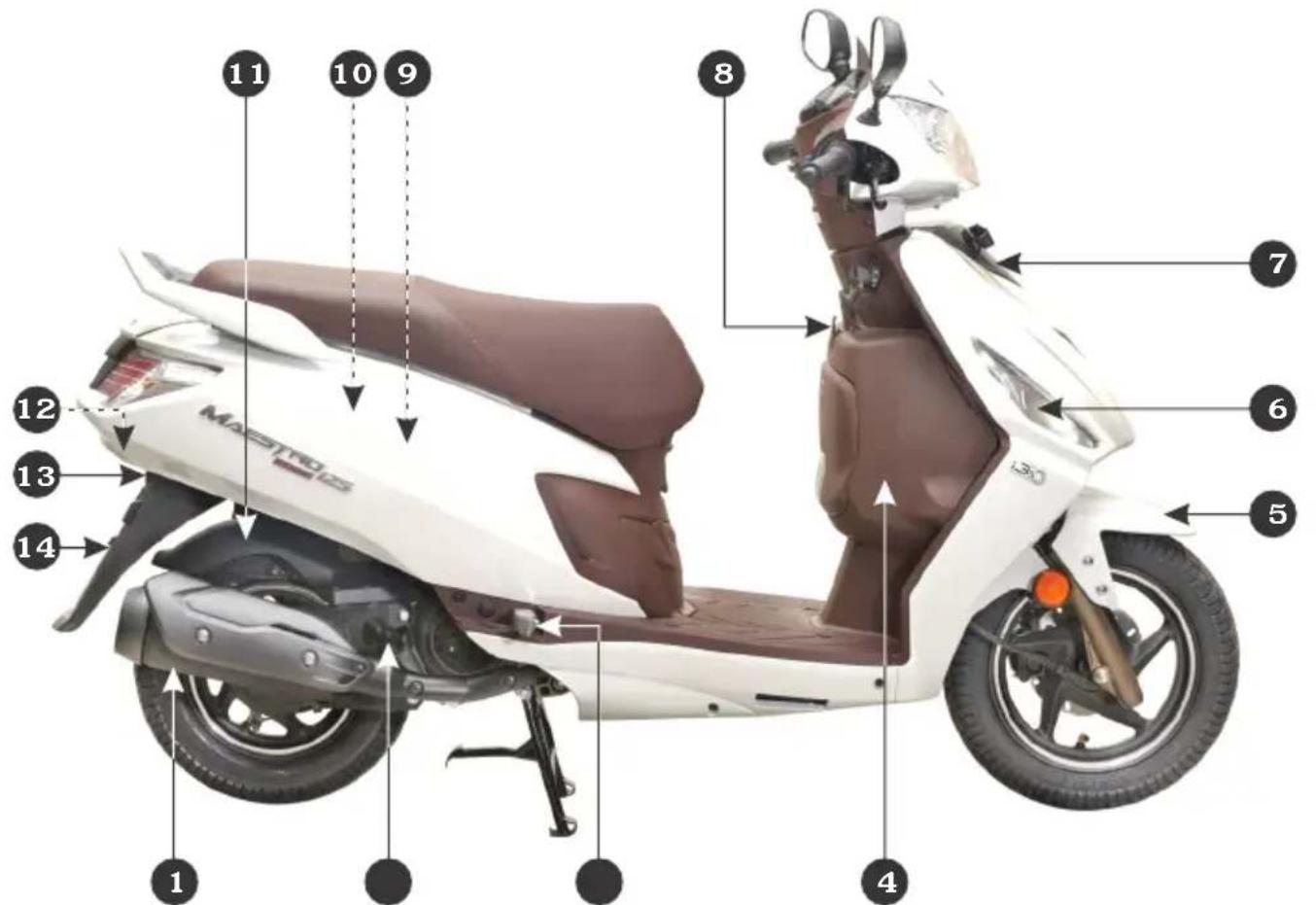

VEHICLE VIEWS 11	RUNNING IN	49
PARTS FUNCTION 14	RIDING	49
• Instruments and indicators 14	PARKING	53
• LCD panel	TOOL KIT/FIRST AID KIT	54
• Keys	CLEANING OF VEHICLE/WASHING OF VEHICLE	54
MAJOR COMPONENTS	MAINTENANCE	56
• Brakes (Integrated Braking)	SAFETY PRECAUTIONS	57
• Fuel 21	MAINTENANCE SCHEDULE	58
• Tyres (Tubeless)	AIR CLEANER ELEMENT	61
ESSENTIAL INDIVIDUAL COMPONENTS	THROTTLE OPERATION	63
• Ignition switch 27	AIR CLEANER DRAIN TUBE CLEANING	64
HANDLEBAR SWITCHES CONTROL	ENGINE OIL	64
FEATURES	FINAL DRIVE OIL REPLACEMENT	66
• i3s (Idle Stop Start System) 28	SPARK PLUG	67
• Steering lock	BRAKE SHOE WEAR/BATTERY	68
• Fuel tank lid lock/Seat lock	FUSE REPLACEMENT	70
• Helmet holder/Center compartment	SUSPENSION/BULB/LED REPLACEMENT	71

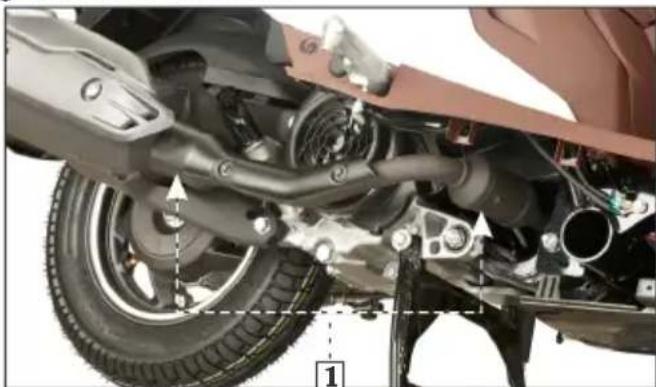

• Document compartment/First aid kit/Tool kit holder	CATALYTIC CONVERTER	74
• Boot lamp/Boot lamp switch/USB charger	EVAPORATIVE EMISSION CONTROL SYSTEM	75
• Luggage hooks	POLISHING OF VEHICLE	75
• Front inner box	REMOVING ROAD SALT	75
• Side stand indicator	STORAGE GUIDE	75
• Side stand switch/Side stand	BASIC TROUBLESHOOTING	77
• Pillion footrest	ROAD SIGNS	80
• Women pillion step	WARRANTY DETAILS
BODY PARTS REMOVAL	HERO GENUINE PARTS
	ZONAL/REGIONAL/AREA OFFICES

• Center compartment 37

VEHICLE IDENTIFICATION

Vehicle Identification Number (VIN)

Engine No.

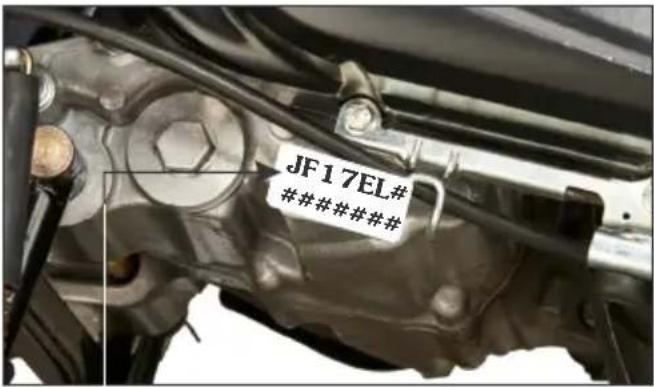

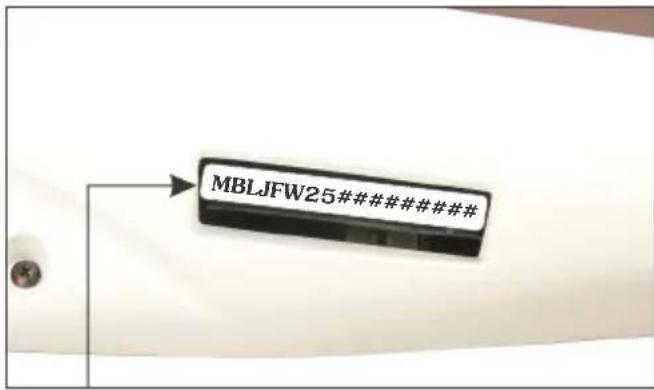

Location: Stamped on the lower right side of Location: Stamped on the lower side of the frame, visible from the window provided the left crankcase. on right floor side cover.

VIN: MBLJFW25######

MBL JFW25 # #		#			# #######
Manufacturer code	Vehicle Description	Check Digit	Model Year	Plant Code	Month of Manufacturing	Production Serial Number

Engine No.: JF17EL######

JF17EL # # ######
Engine Description	Year of Manufacturing	Assembly Plant	Month of Manufacturing	Serial Number

Model: MAESTRO EDGE 125 PROGRAMMED FI

Variant	VIN	Engine
Disc/Cast wheel/Integrated brakes	JFW25	JF17EL
Drum/Cast wheel/Integrated brakes	JFW20	JF17EL

VIN and Engine number may be required:

1. During registration of the vehicle.
2. For dealing with legal & insurance departments.

VEHICLE SPECIFICATION

		SPECIFICATIONSITEM
Dimensions
Overall length		1843 mm
Overall width		718 mm (Disc) & 715 mm (Drum)
Overall height		1188 mm
Wheelbase		1261 mm
Saddle height		775 mm
Ground clearance (Under cover)		155 mm
Weight
Kerb weight	Disc type	112 kg
	Drum type	111 kg
Capacities
Engine oil		0.80 litre at disassembly and 0.70 litre at draining
Transmission oil		0.12 litre at disassembly
		0.10 litre at draining
Fuel tank 5.0 litres
Engine
Maximum power		67 r/min. kW @ 7000
Maximum torque		10. @ 5 00 4 N-m 5 r/min
Bore and stroke		52.4x57.8 mm
Compression ratio		9.8:1
Displacement		124.6 cc
Spark plug		Champion-RG8YC (Federal Mogul)

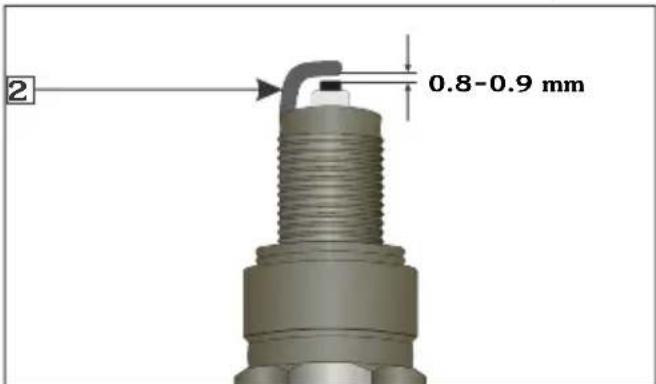

Spark plug gap		0.8-0.9 mm
Valve clearance	Intake (cold)	0.14 mm
	Exhaust (cold)	0.14 mm
Idle speed		1 00± 0 5 10 r/min
Chassis and suspension
Chassis type		High rigidity under bone
Front suspension		Telescopic, hydraulic shock absorber
Rear suspension		Unit swing with spring loaded hydraulic damper
Caster angle		28°

VEHICLE SPECIFICATION

SPECIFICATIONSITEM
Tyre size	Front	90/90-12 54 J (Tubeless tyre)
	Rear	90/100-10 53 J (Tubeless tyre)
Brakes	Front (Disc type)	Dia 190 mm
	Front (Drum type)	Internal expanding shoe type (Dia. 130 mm)
	Rear (Drum type)	Internal expanding shoe type (Dia. 130 mm)
Hydraulic brake fluid		DoT 3 or DoT 4
Transmission
Primary reduction		Variomatic drive, (2.53-0.8)
Final reduction		8.75 (50/20X49/14)
Clutch system		Dry, automatic centrifugal clutch
Electricals
Battery		*MF battery 12V-4Ah/ETZ5
Alternator		1 5 W @ 5000 2 r/min
Starting system		Kick/Electric start
Headlamp (High/Low)		12V-35W/35W Halogen bulb-** MFR
Tail/Stop lamp		12V-0.4W/1.6Wx8 nos. (LED)
Turn signal lamp		12V-10Wx4 nos.(**MFR-Clear lens-Amber bulb)
Position lamp		4.7Wx9nos (LED)
Meter illumination		12V-80mWx3 nos. (LED-Amber)
Turn signal indicator		12V-105mWx2 nos. (LED-Green)
Hi beam indicator		12V-133mW (LED-Blue)
Licence plate		12V-5W
Side stand indicator		12V-80mW (LED-Red)
i3s indicator		12V-133mW (Blue LED)
LCD illumination		12V-135mW (LED-Amber)
Boot lamp		12V-435mW (LED)
Programmed FI malfunction indicator lamp (MIL)		12V-80mW (LED-Amber)
Fuse	Main fuses	15A, 10A, 10A and 10A
	Spare fuses	15A and 10A

* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector

VEHICLE SAFETY

IMPORTANT SAFETY INFORMATION

Your vehicle can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet on the road.

There is much that you can do to prote yourself when you ride. You will find many helpful recommendations through out this manual. Following are a few that we consider most important.

Always wear a helmet

It is a proven fact, Helmet significantly reduces the number and severity of head injuries. So always wear a helmet and make sure your pillion rider does the same. We also recommend that you wear eye protection, sturdy boots, gloves and other protective gear (page 6).

Before riding your vehicle

Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your pillion are both wearing an approved vehicle helmet and protective apparel. Instruct your pillion on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on the footrest, even when the vehicle is stopped.

Take time to learn & practice your vehicle

Even if you have ridden other vehicles, practice riding in a safe area to become familiar with how this vehicle works and handles, and to become accustomed to the vehicle's size and weight.

Ride efensivelyd

Always pay due attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.

Make yourself easily visible

Some drivers do not see vehicles because they are not looking for them. To make yourself more visible, wear bright reflective clothing, position yourself so that others can see you, signal before turning or changing lanes, and use horn which will help others to notice you.

Ride within your limits

Pushing the limits is another major cause of vehicle accidents. Never ride beyond your personal abilities or faster than conditions demand. Remember that fatigue and negligence can significantly reduce your ability to make good judgements and ride safely.

Do not drink and ride

Riding under the influence of alcohol or drugs is dangerous. Alcohol can reduce your ability to respond to changing conditions and reduce the reaction time. Do not drink and ride.

Keep your vehicle in safe condition

For safe riding, its important to inspect your vehicle before every ride and perform all recommended maintenance. Never exceed load limits, and use accessories that have been recommended by Hero MotoCorp for this vehicle. See (page 7) for more details.

If you are involved in a crash

Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.

If you decide to continue riding, first evaluate the condition of your vehicle. If the engine is still running, turn it off. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, brake levers, brakes and wheels. Ride slowly and cautiously. Your vehicle may have suffered damage that is not immediately apparent. Have your vehicle thoroughly checked at a qualified service facility as soon as possible.

PROTECTIVE APPAREL

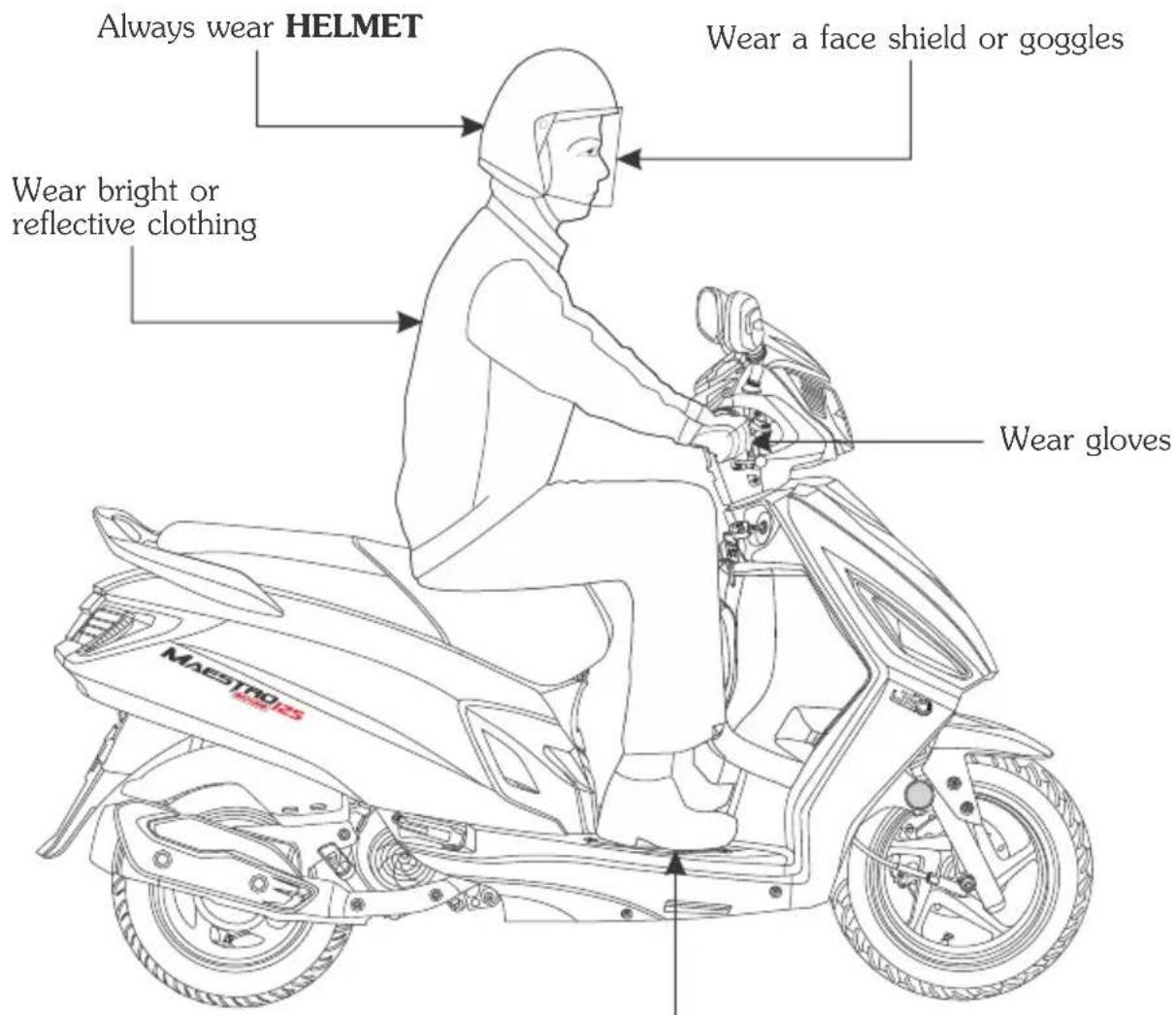

For your safety, we strongly recommend that you always wear an approved helmet (ISI marked), eye protection, boots, gloves, long pants and a long sleeve shirt or jacket whenever you ride. Take care of loose/hanging clothes while solo/pillion riding. Although complete protection is not possible, wearing proper gear can reduce the chance of injury when you ride.

Following are suggestions to help you choose proper riding gear.

WARNING

• Not wearing a helmet increases the chance of serious injury or death in a crash.
• Be sure you and your pillion always wear a helmet, eye protection and other protective apparel when you ride.

Helmets and eye protection

Your helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright coloured helmet can make you more noticeable in traffic, as can reflective strips.

An open-face helmet offers some protection, but a full-face helmet offers more. Always wear face shield or goggles to protect your eyes and help your vision.

Additional riding gear

In addition to a helmet and eye protection, we also recommend:

• Sturdy boots with non-slip soles to help protect your feet and ankles.
• Leather gloves to keep your hands warm and help prevent blisters, cuts, burns, and bruises.
  • A two wheeler riding suit or jacket for comfort as well as protection. Bright coloured reflective clothing can help make you more noticeable in traffic. Be sure to avoid loose clothes that could get caught on any part of your vehicle.

PROTECTIVE APPAREL

Shoes should be close fitting, low heels and offer ankle protection

LOAD LIMITS AND GUIDELINES

Your vehicle has been designed to carry you, one pillion and limited amount of cargo. Whe you add cargo or carry a passenger, you may feel some difference during acceleration and braking. But so long as you keep your vehicle well maintained, with good tyres and brakes, you can safely carry loads within the limits and guidelines.

However exceeding the weight limit or carrying an unbalanced load can seriously affect your vehicle's handling, braking and stability. Non Hero MotoCorp accessories, modifications, and poor maintenance can reduce your safety margin.

The following pages give more specific information on loading, accessories and modifications.

Loading

How much weight you put on your vehicle, and how you load it, are important to your safety. Anytime you ride with a pillion or carg you should be aware of the following information.

! WARNING

• Overloading or improper loading can cause crash and you can be seriously injured.
- Follow all load limits and other loading guidelines in this manual.

Load limits

Following are the load limits for your vehicle:

Maximum weight capacity: 130 Kg

Includes the weight of the rider, pillion, cargo and all accessories.

Putting too much weight in individual storage compartments can also affect stability and handling. So be sure to stay within the limits given below:

Maximum weight:

Center compartment : 10.0 Kg

Front inner box : 1.5 Kg

Rear luggage hook : 1.5 Kg

Front luggage hook : 3.0 Kg

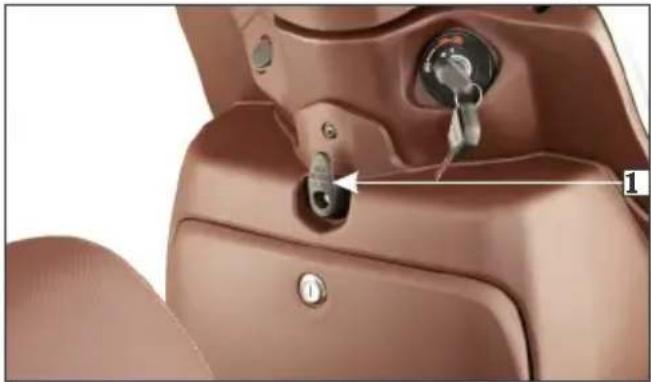

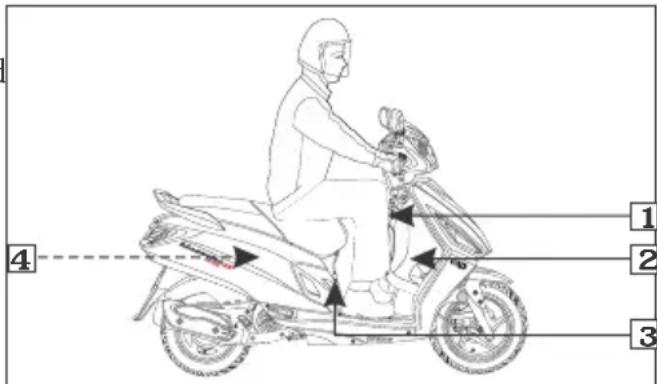

(1) Front luggage hook (2) Front inner box (3) Rear luggage hook (4) Center compartment

Loading guidelines

Your vehicle is primarily intended for transporting you and a pillion. If you wish to carry more cargo, check with your Authorised Hero MotoCorp workshop for advice and be sure to read the information regarding accessories on (page 8).

Improperly loading your vehicle can affect its stability and handling. Even if your vehicle is properly loaded, you should ride at reduced speeds whenever carrying cargo.

Follow these guidelines whenever you carry a pillion or cargo:

• Check that both tyres are properly inflated.
• To prevent loose items from creating a hazard, make sure the center compartment is closed and that any other cargo is securely tide down before you ride away.

- Place cargo weight as close to the center of the vehicle as possible.

• Balance cargo weight evenly on both sides.

ACCESSORIES & MODIFICATIONS

Modifying your vehicle or using non Hero MotoCorp accessories can make your vehicle unsafe. Before you consider making any modifications or adding any accessory, be sure to read the following information.

WARNING

• Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.

• Follow all instructions in this owner's manu regarding accessories and modifications.

• Make sure the accessories does not obstruct any lamps, reduce ground clearance and banking angle, limit suspension travel or steering travel, alter your riding position or interfere with operating any controls.
  Be sure electrical equipment does not exceed the vehicle's electrical system capacity. A blown fuse can cause loss of lights (page 3).

• Do not pull a trailer or sidecar with your vehicle. This vehicle is not designed for these attachments, and their use can seriously impair your vehicle handling.

Modifications

We strongly advise you not to remove any original equipment or modify your vehicle in any way that would change its design or operation. Such changes could seriously impair your vehicle's handling, stability and braking, making it unsafe to ride.

Removing or modifying your lamps, muffler, emission control system or other equipment can also make your vehicle not meeting the emission standards.

Accessories

We strongly recommend that you use only genuine Hero MotoCorp accessories that have been specifically designed and tested for your vehicle. Hero MotoCorp cannot test all other accessories, you must be personally responsible for proper selection, installation and use of non Hero MotoCorp accessories. Check with your dealer for assistance and always follow these guidelines:

SAFE RIDING TIPS

Do's:

• Always conduct simple pre-ride inspection (page 45).

• Always wear a helmet (ISI marked) with chin strap securely fastened and insist on a helmet for your pillion rider.

- While riding, keep your leg closed and sit in a comfortable position.

- Ride defensively and at a steady speed (between 40-50 km/hr).

- To stop the vehicle (in integrated brake system), press the rear brake lever for the application of front and rear brakes simultaneously. However, for more effective braking, it is advised to apply both front and rear brake simultaneously, keeping the throttle in close position.

- Respect road signs and obey traffic rules for your own safety and that of others on the road. (page 80)

- During night time, dip headlamps of your vehicle for oncoming traffic, or when following another vehicle.

- Give way to others on the road and signal before you make a turn.

• To make yourself more visible, wear bright reflective clothing that fits well.

• Take care of loose/hanging clothes while solo/pillion riding.

- Get your vehicle serviced regularly by the Authorised Hero MotoCorp workshop.

- Before riding make sure in which mode you are riding whether with i3s switch "ON" or "OFF".

Don'ts:

- Never use cell phone while riding the h vehicle.

- Avoid sudden acceleration, braking and turning of your vehicle.

- Never touch any part of the hot exhaust system like muffler.

- Never ride under the influence of alcohol or drugs.

• Concentrate on the road and avoid talking to the pillion rider or others on the road.

- Do not litter the road.

- Do not cross the continuous white/yellow line in the center of the road, while overtaking.

- Do not attach large or heavy items to the handlebars.

- Never take your hands off the steering handle while riding.

Hero RideSafe

TIPS FOR HEALTHY ENVIRONMENT

The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.

• Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be tuned regularly, which will also help reduce pollution and improve vehicle performance & fuel efficiency.
• Regular servicing: Get your vehicle serviced at an Authorised Hero MotoCorp workshop, as per the service schedule, for an optimum performance and keep the emission level under check.
• Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or incompatible spares and accessories can upset or deteriorate your vehicle's running condition.
• Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil recommended by Hero MotoCorp and make sure you change it every 6000 km (with top up every 3000 km) to keep the engine fit and environment healthy.
• Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or defective s, excessive noise will cause headaches and discomfort.muffler
• Emission pollution: Get emission of your vehicle checked by Authorised agencies at least once every 3 months or as notified by the government from time to time.
• Fuel saving & Reduce pollution: Switch “OFF” the engine while waiting at traffic signal points to save fuel and reduce pollution, if the waiting period is long.
• BS-VI grade fuel: Always use BS-VI grade fuel to adhere BS-VI norms.

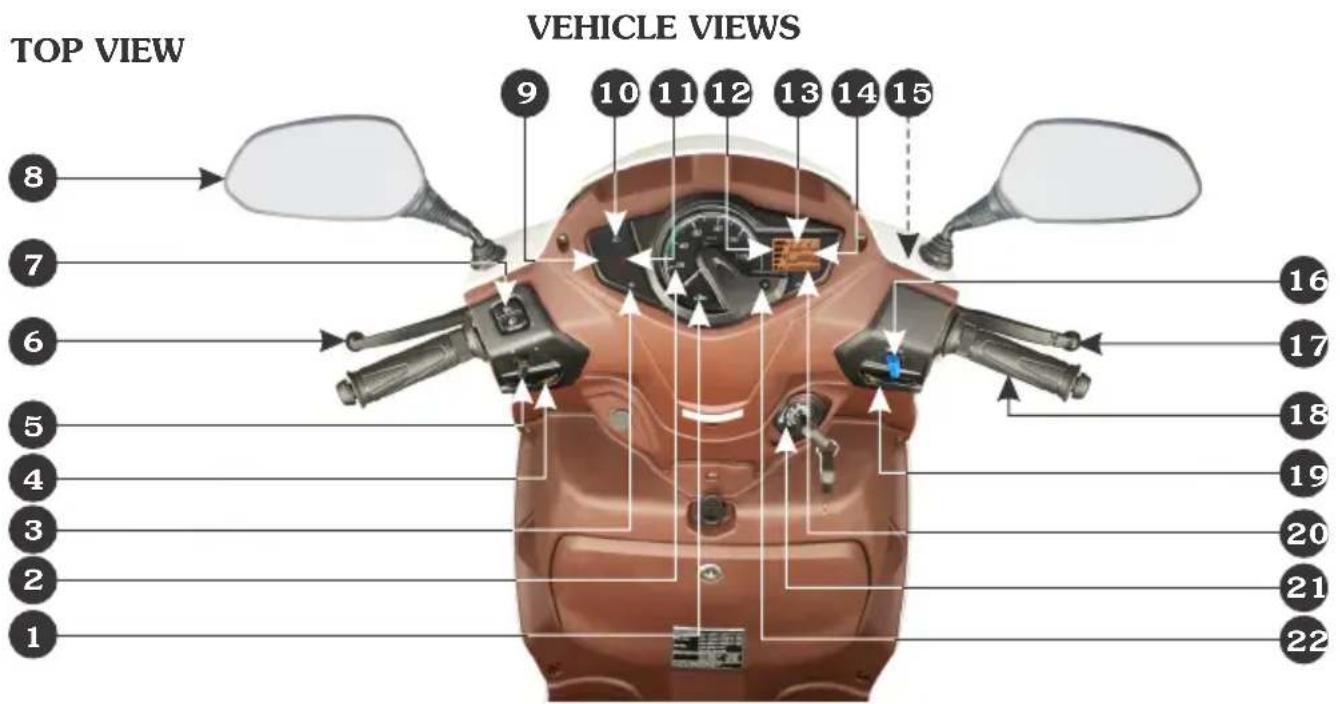

(1) i3s indicator
(2) Speedometer
(3) Turn signal indicator
(4) Horn switch
(5) Turn signal switch
(6) Integrated brake lever

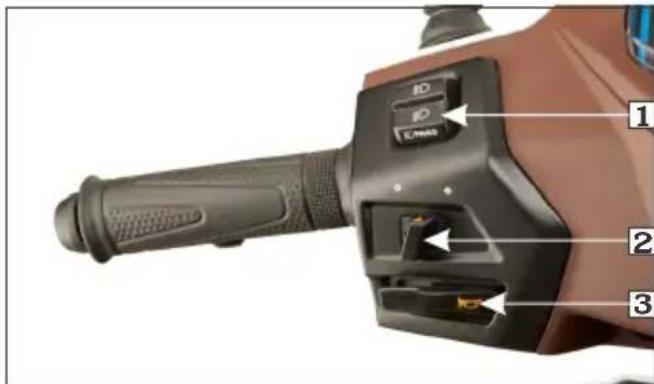

(7) Dimmer switch/Passing switch
(8) Rear view mirror

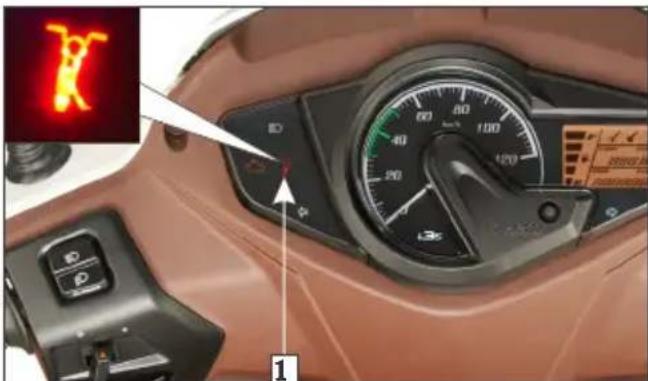

(9) Programmed FI malfunction indicator lamp (MIL)
(10) Hi beam indicator
(1 1) Side stand indicator

(12) Fuel gauge
(13) Service reminder
(14) Tripmeter
(15) Master cylinder (inside) /Reservoir

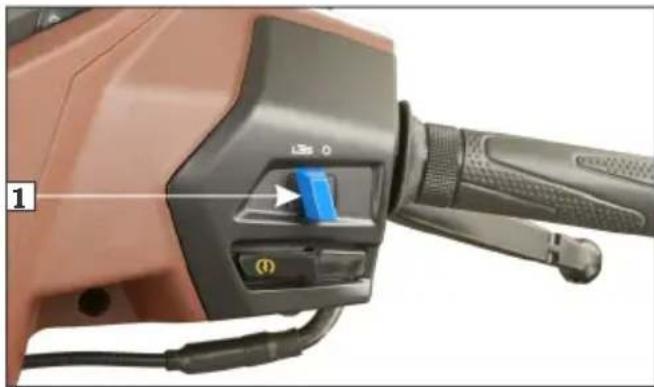

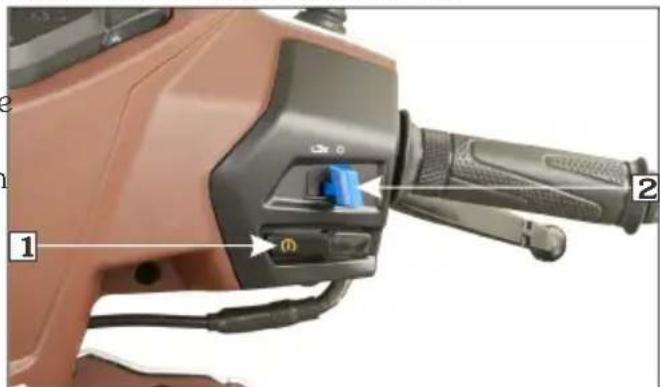

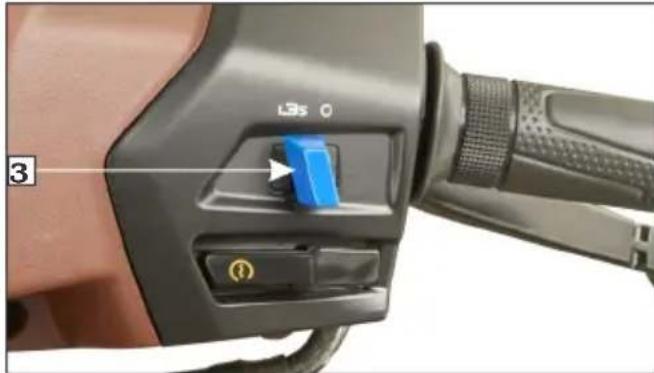

(16) i3s switch
(17) Front brake lever

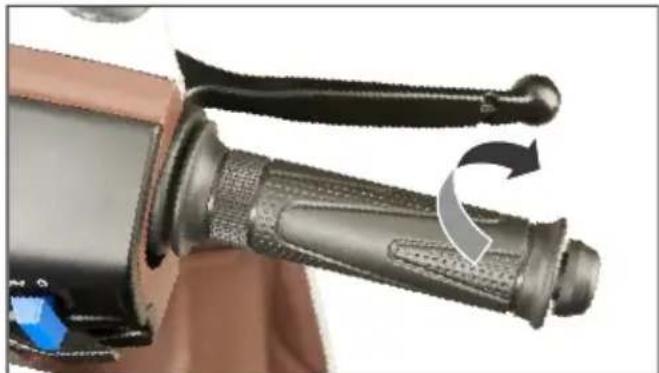

(18) Throttle grip
(19) Electric starter switch
(20) Odometer

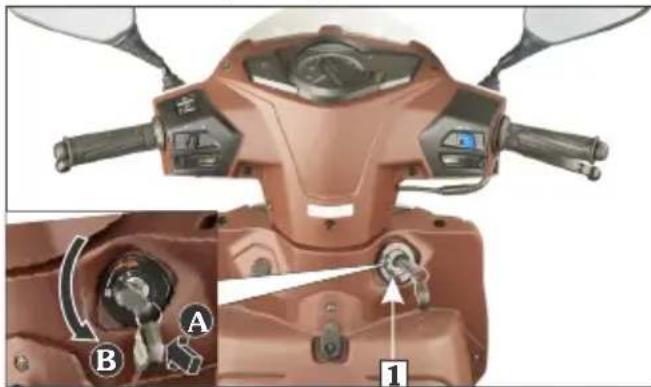

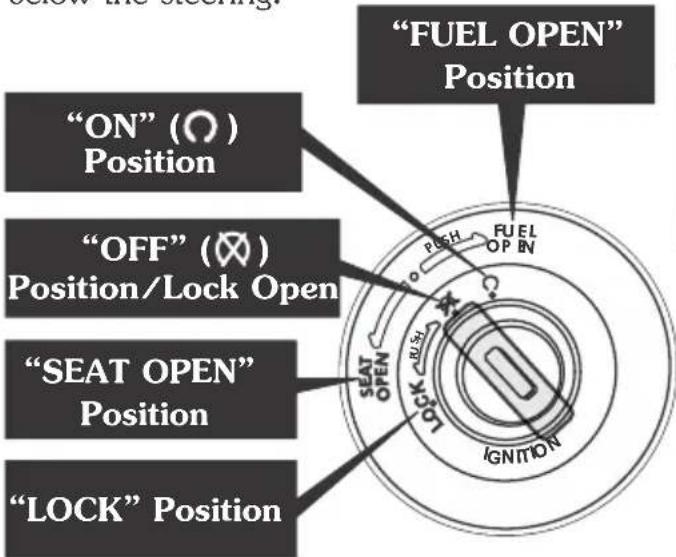

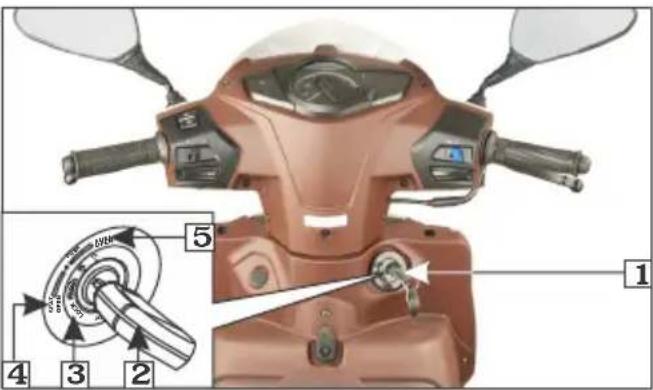

(21) Ignition switch with steering lock, seat lock and fuel lid opener
(22) Mode button

Accessories and features shown may not be part of standard fitment.

LEFT SIDE VIEW

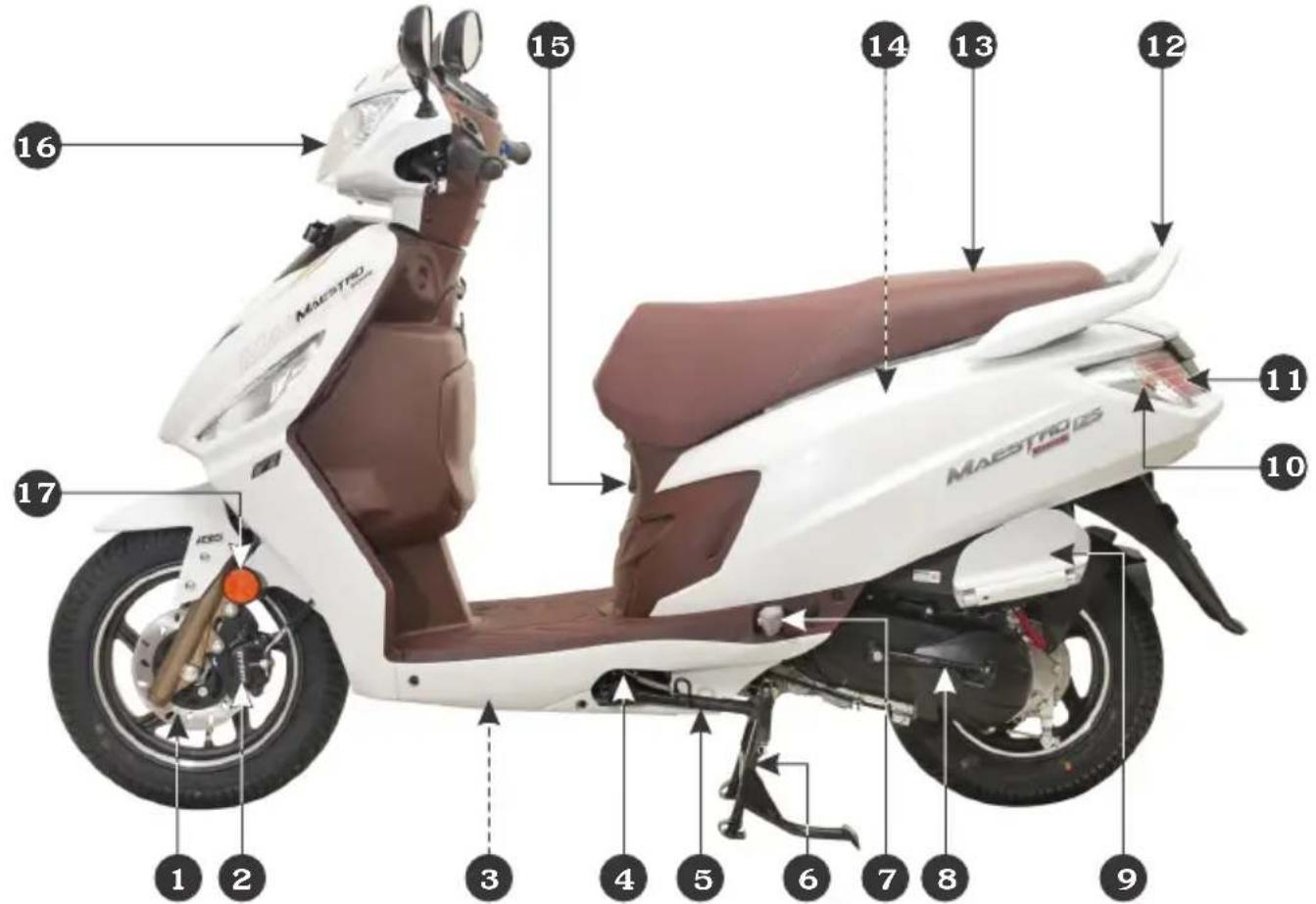

(1) Front brake disc
(2) Caliper assembly
(3) CCB valve (inside)
(4) Side stand switch (optional)
(5) Side stand (optional)
(6) Main stand

(7) Pillion step
(8) Kick starter pedal

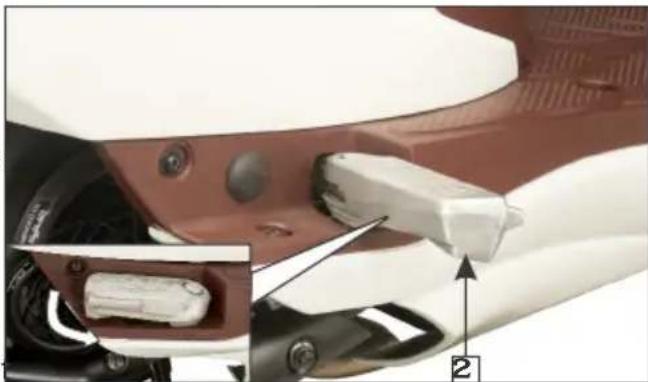

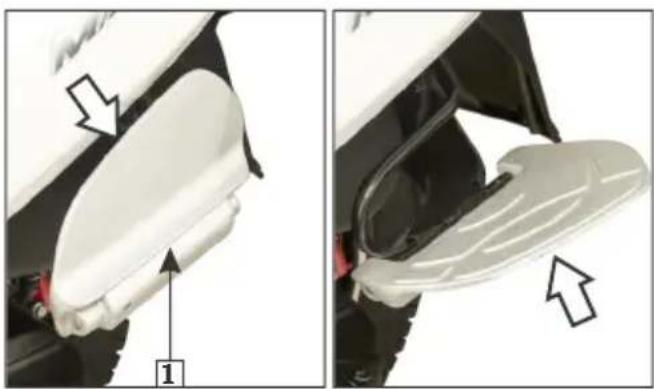

(9) Women pillion step (optional)
(10) Rear turn signal lamp
(1 1) Tail/stop lamp

(12) Rear grip
(13) Seat

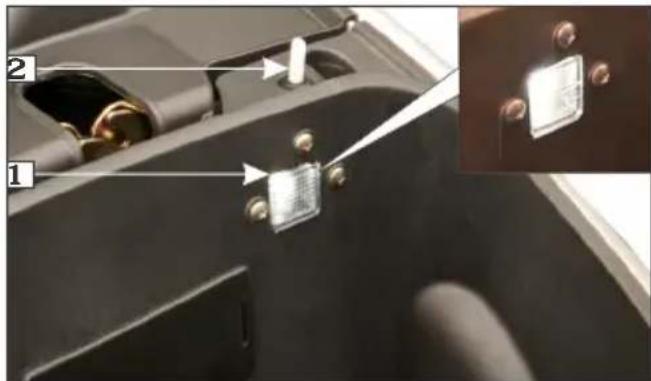

(14) Boot lamp (inside)

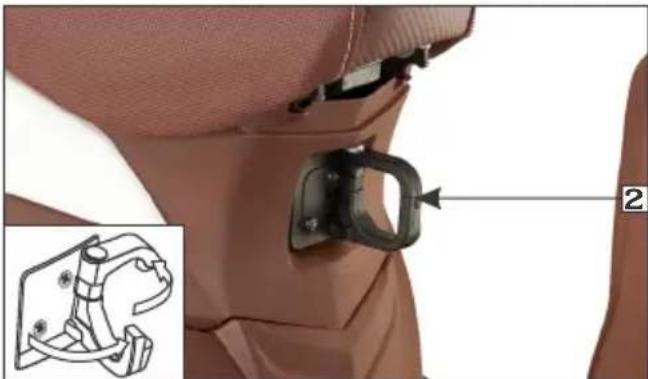

(15) Rear luggage hook
(16) Headlamp
(17) Front reflex reflector

Accessories and features shown may not be part of standard fitment.

RIGHT SIDE VIEW

(1) Exhaust muffler
(2) Oil level dipstick

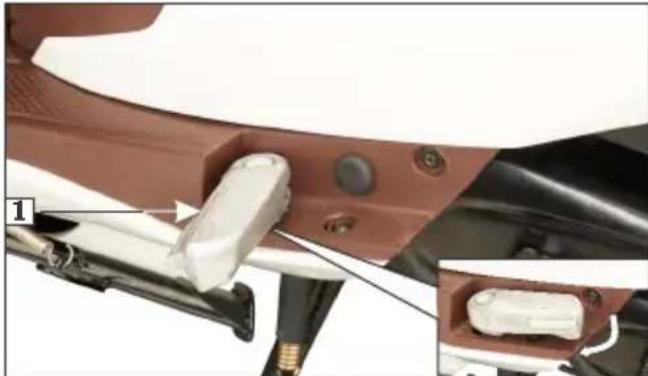

(3) Pillion step

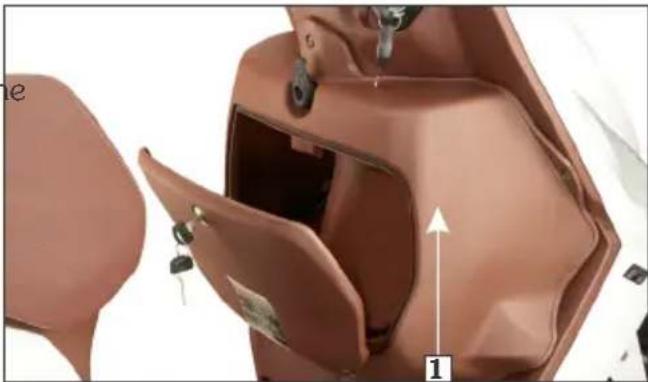

(4) Front inner box (optional)

(5) Front fender
(6) Front turn signal lamp
(7) Position lamp
(8) Front luggage hook
(9) USB charger (inside)

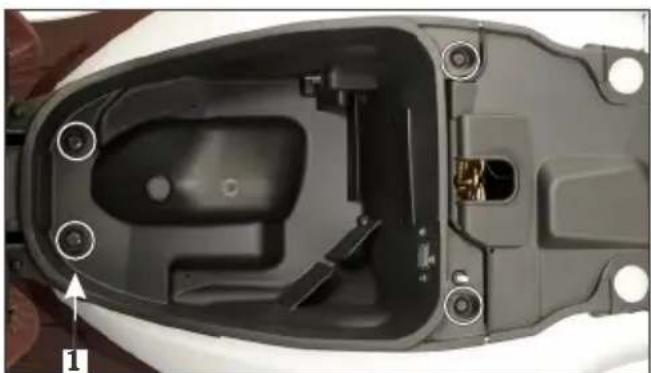

(10) Center compartment (inside)
(1 1) Hugger fender
(12) Licence plate lamp
(13) Rear reflex reflector
(14) Rear fender

Accessories and features shown may not be part of standard fitment.

PARTS FUNCTION

Instruments and Indicators

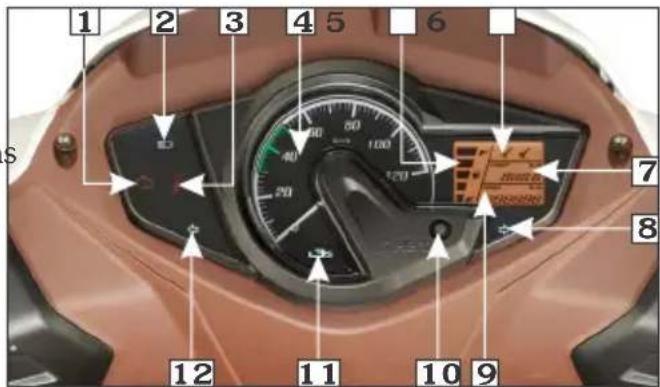

The indicators are in the speedometer panel above the headlamp. The functions are as below.

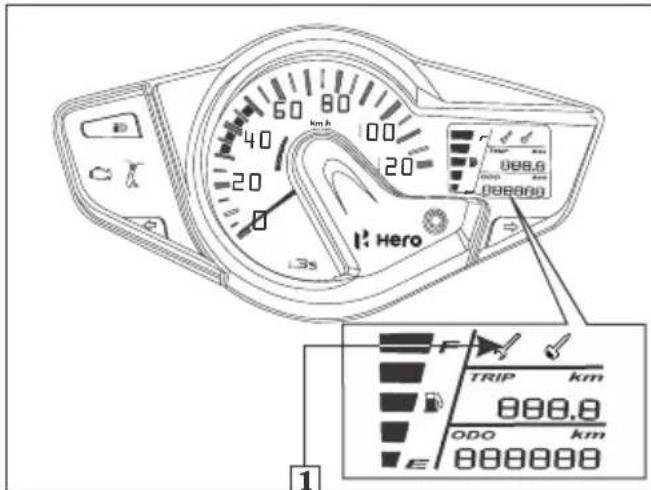

Sl. No.	Description	Function

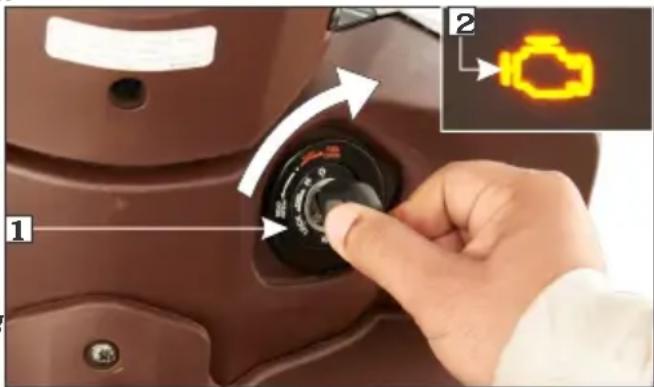

1	Programmed-FI malfunction indicator lamp (MIL)	When the ignition switch is turned “ON” the programmed-FI malfunction indicator lamp (MIL) glows continuously until the vehicle starts. It indicates that programmed FI system is OK. If MIL remains “ON” even if the vehicle is started, there is an abnormality in the programmed FI system. It is recommended to reduce the speed and drive to the Authorised Hero MotoCorp workshop for check-up.
2	High beam indicator Light glows when headlamp is in Hi beam.
3	Side stand indicator	Light glows when the vehicle is parked on the side stand.
4	Speedometer Indicates riding speed.
5	Fuel gauge	Indicates approximate fuel quantity in the form of digital segments. The fuel gauge segments will display its maximum scale on the fuel gauge LCD panel once when the ignition switch it turned “ON”.
6	Service reminder Displays when a service is due (page 17).
7	Tripmeter Shows the distance traveled since the last reset (page 16).
8 Turn signal indicator (R) Flashes when right turn signal switch is operated.
9 Odometer (page 16).Shows accumulated distance travelled
10 Reset button Button when long pressed resets tripmeter to zero.

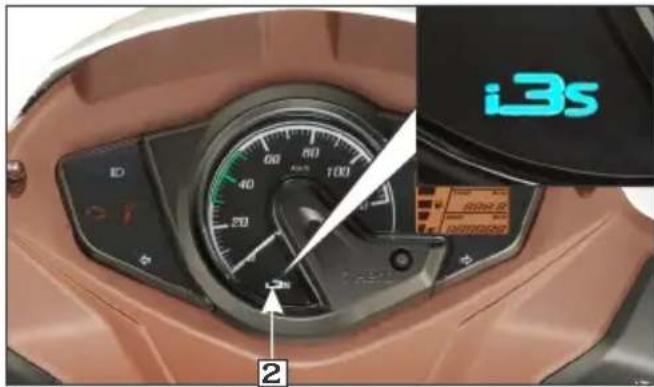

11 i3s indicator indicating that i3s	Indicator glows for 2 seconds and turns “OFF” system is functional.
12 Turn signal indicator (L) Flashes when left turn signal switch is operated.

LCD PANEL

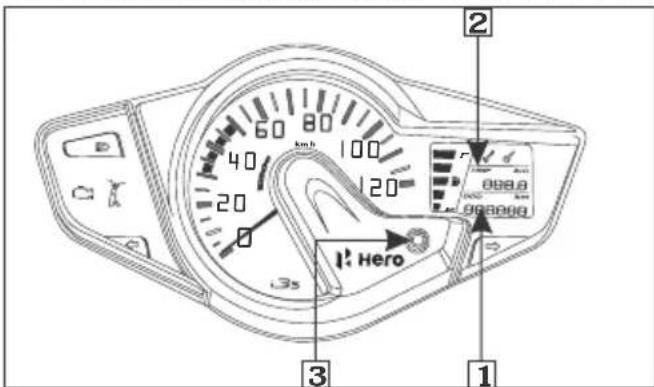

(a) Odometer/Tripmeter

The odometer (1) shows accumulated distance travelled.

The tripmeter (2) shows distance travelled since trip meter was reset last time.

Tripmeter displays upto 999.9 km If the tripmeter exceeds "999.9" km it will return to "0.0" km automatically.

When tripmeter is selected long press the reset button (3) will reset tripmeter to zero.

The odometer displays from "0 to 999999"

(1) Odometer

(2) Tripmeter

(3) Reset button

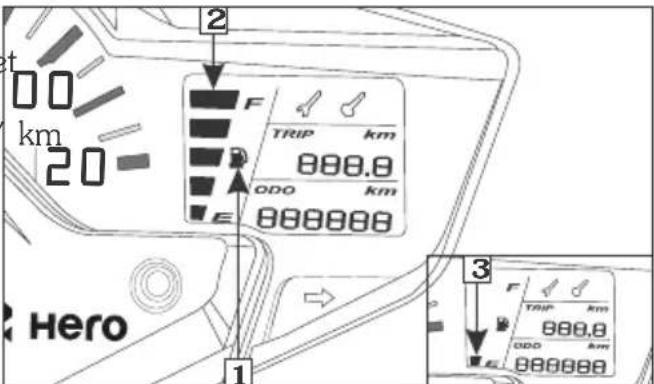

(b) Fuel gauge

The fuel gauge (1) is of a Liquid Crysta Display (LCD) type.

The approximate amount of fuel quantity available in the fuel tank is indicated by the number of segments (2) in the display.

If all the segments are displayed it means fuel quantity in the fuel tank is approximately 5.0 litres.

If only one segment (3) is displayed and start blinking, this indicates that the fuel quantity is low (approx 1 litre of fuel is available in fuel tank). The fuel tank should be refilled as soon as possible.

(1) Fuel gauge

(2) Segments

(3) One Segments

! CAUTION

Please ensure the vehicle is not used continuously when the fuel level indicator reaches the one segment blinking. It will not only result in the vehicle running out of fuel, it may also cause serious damage to the fuel pump. Please ensure fuel is filled up as soon as the fuel level indicator reaches one segment blinking.

NOTE

To check the fuel level indication, the vehicle should be on levelled surface and in stationary condition.

(c) Service reminder

The service reminder (1) is to indicate to a user to bring the vehicle to an Authorised Her MotoCorp workshop for service.

The service reminder shall start blinking when the vehicle covers kilometers as specified in the maintenance schedule. The service reminder will keep on blinking throughout the kilometer interval for a particular service and will stay “ON” thereafter.

The ervice can be reset at an s reminder Authorised workshop.Hero MotoCorp

NOTE

After getting the vehicle serviced, make sure that the service reminder has been reset.

(1) Service reminder

TOTAL DISTANCE (Odometer Reading)	Indicator Behaviour
0 km	OFF
500 - 750 km	Blinking
After 750 km	ON
3000 - 3500 km	Blinking
After 3500 km	ON
6000 - 6500 km	Blinking
After 6500 km	ON
•	•
•	•
•	•

KEYS

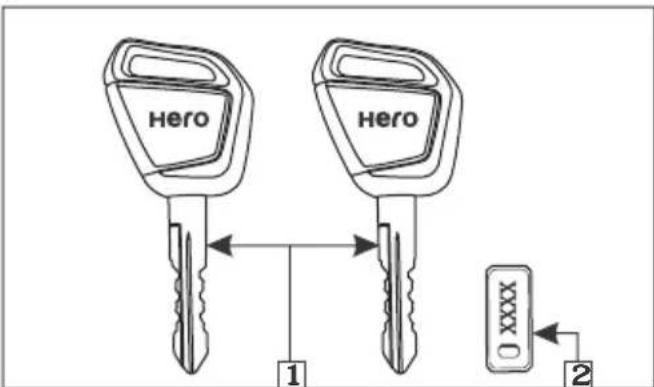

This vehicle has two keys and a key number plate.

You will need the key number if you ever have to replace a key. Store the plate in a safe place.

(1) Keys
(2) Key number plate

MAJOR COMPONENTS

(Information you need to operate this vehicle)

BRAKES (INTEGRATED BRAKING)

Brakes are items of personal safety and should always be maintained with proper adjustments,

Your vehicle is equipped with integrated braking system.

When one applies the left brake lever, front & rear brakes activate jointly.

WARNING

• Independent use of only the front or rear brake increases stopping distance.
• Extreme braking may cause wheel locking and reduce control over the vehicle.
- Wherever possible, reduce speed or apply brake before entering a turn, closing the throttle or braking in mid turn may cause wheel slip. Wheel slip will reduce control over the vehicle.
- When riding in wet or rainy conditions, or on loose surfaces the ability to stop the vehicle reduces.
- All your actions should be smooth under these conditions. Sudden acceleration, braking or turning may cause loss of control. For your safety, exercise extreme caution when braking, accelerating or turning.

(a) Front brake system (Disc type)

Front brake fluid

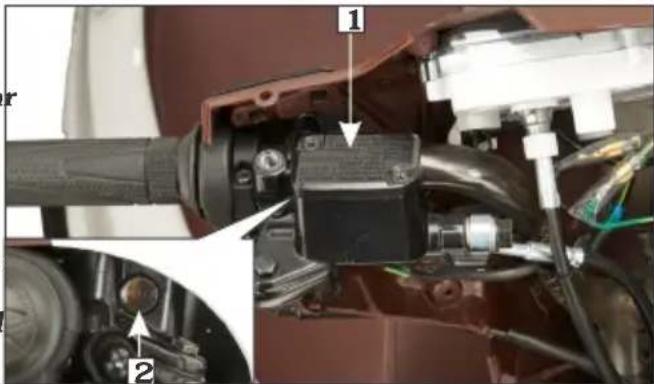

Master cylinder/Reservoir

Location: Right handlebar

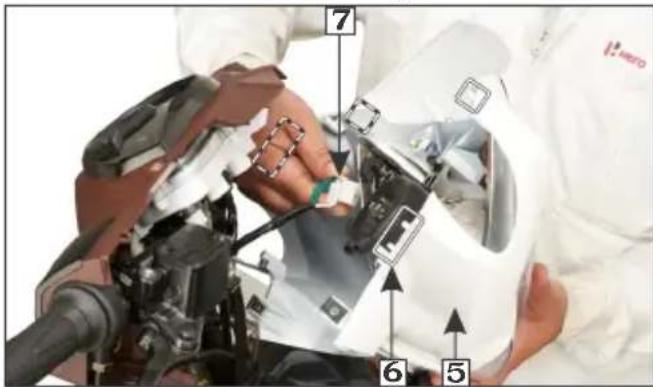

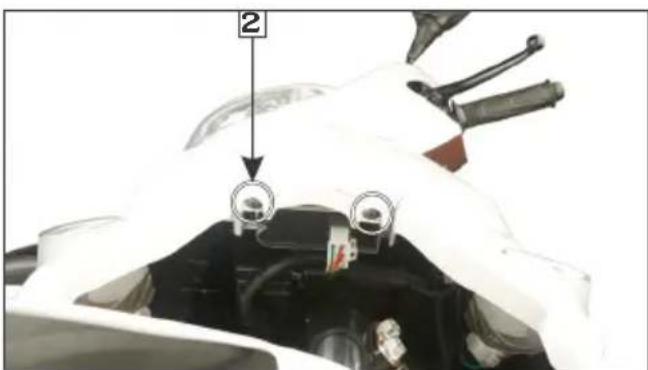

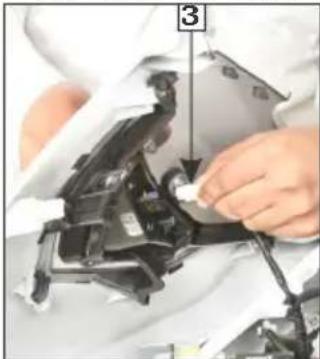

To access the master cylinder (1) remove the headlamp assembly (page 44).

Brake fluid recommended: DoT 3 or DoT 4 Fluid level: Ensure that the brake fluid level does not fall below “MIN” mark (2) on the master cylinder, when checked with the master cylinder parallel to the ground. The level decreases gradually due to piston movement to compensate pad wear. If the level decreases abruptly, check for leakage in the brake system and contact your Authorised Hero MotoCorp workshop.

(1) Master cylinder
(2) "MIN" mark

NOTE

Always contact Hero your Authorised MotoCorp workshop for refilling of master cylinder when necessary. Do not mix DoT 3 and DoT 4 brake fluid.

(b) Brake pad wear

Brake pad wear depends upon the severity of usage, the type of riding & road conditions.

Generally, the pads will wear faster on wet & dirty roads. Inspect the pads at each regular maintenance interval.

Inspection

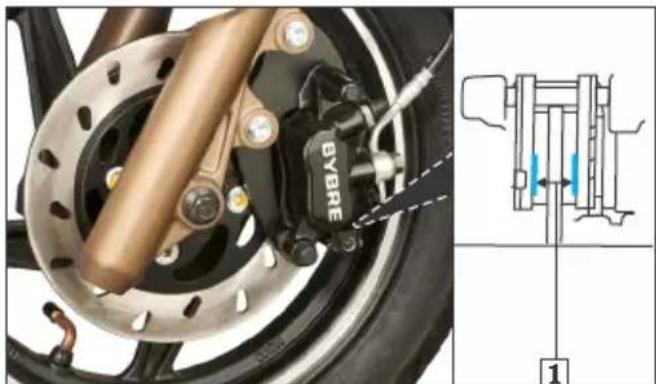

• Check the wear indicator grooves (1) on each pad.
• Check the brake pads for wear by examining the wear limit grooves on each pad.
• Replace the pads if worn out to the bottom of the groove.
  • Always replace both the pads as a set.

Mechanical assembly diagram showing brake caliper and drivetrain components (no text or symbols)

(1) Wear indicator groove

- Visit your Authorised Hero MotoCorp workshop for the brake pad replacement.

(c) Front brake system (Drum type)

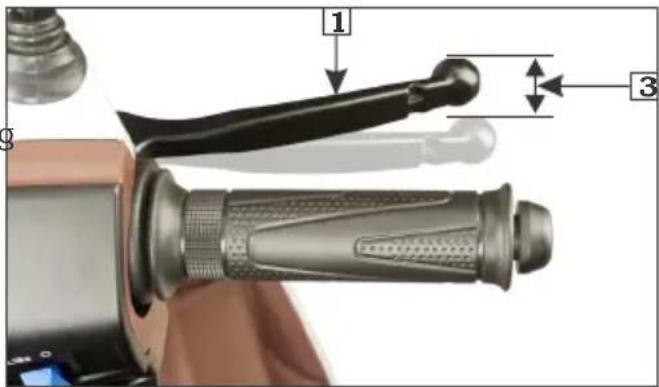

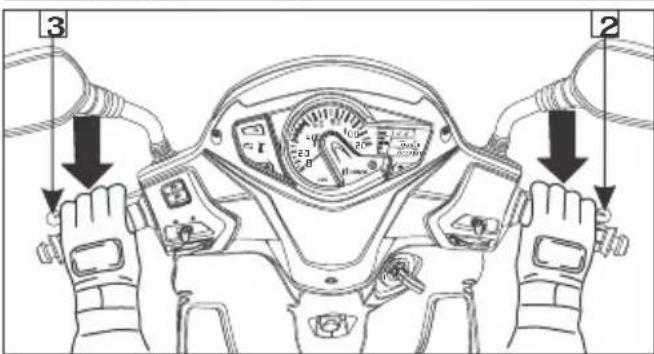

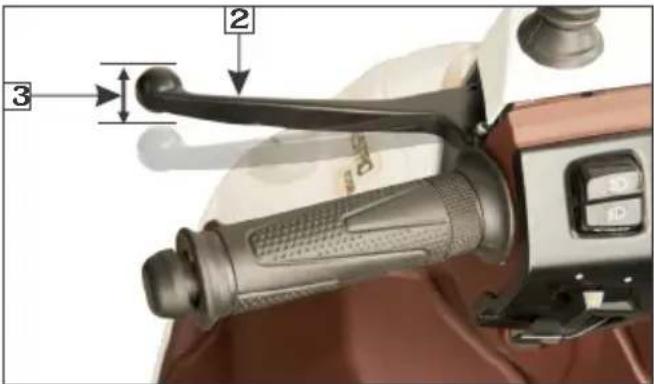

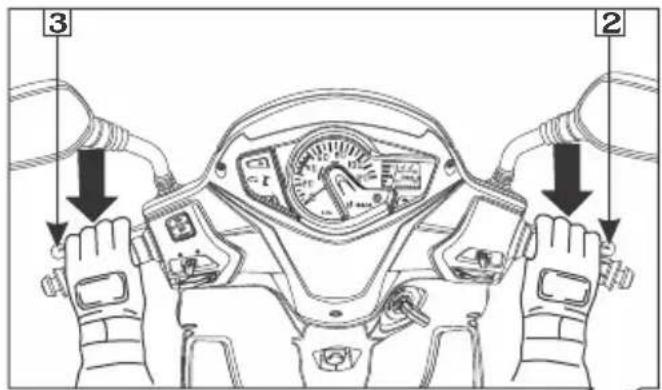

The distance, the front brake lever (1) and integrated brake lever (2) moves before each brake starts to engage is called free play (3). Measured at the tip of brake levers, free play should be maintained at 10-20 mm.

(1) Front brake lever
(3) Free play: 10-20 mm

(1) Integrated brake lever

(3) Free play:10-20 mm

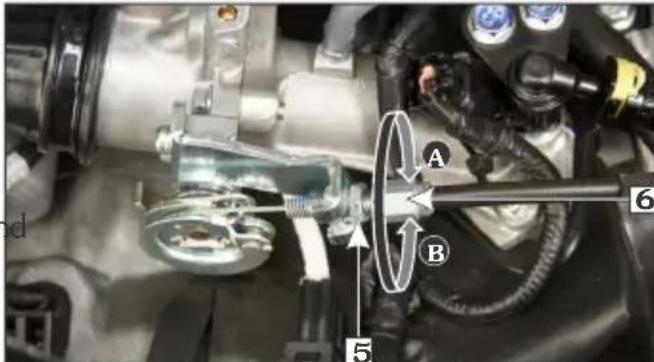

Right hand front brake cable (A) on "1" side

Adjustment

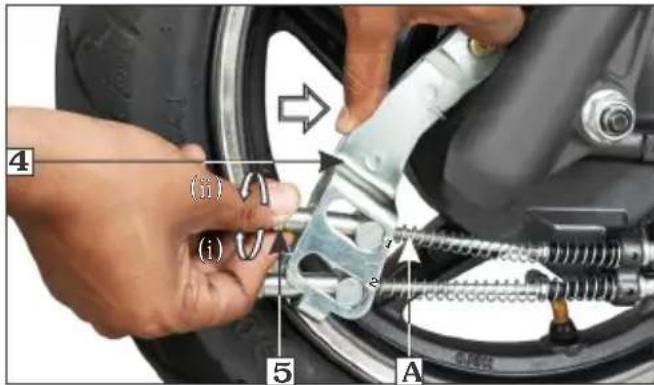

• Push the integrated brake arm (4) by hand in the direction as shown.
• Turn the first adjuster nut (5) till you cannot turn it by hand.

- Check the free play of right lever.

FREE PLAY: 10-20 mm

- If the free play is more than 20 mm further turn the adjuster nut to obtain desired free play.

(4) Integrated brake arm (5) First adjuster nut

(i) Decrease free play (ii) Increase free play

NOTE

"1" & "2" is marked on integrated brake arm.

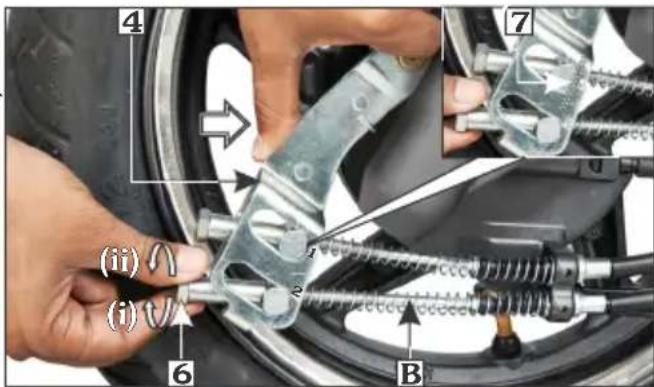

Left hand front brake cable (B) on "2" side.

• Push the integrated brake arm (4) by hand in the direction as shown.
• Turn the second adjuster nut (6) until a gap is created between joint (7) and the slot on the first side in integrated brake arm.
  • After ensuring the gap, turn the second adjuster nut counterclockwise by half rotation.

(6) S econd adjuster nut (7) Joint

(i) Decrease free play (ii) Increase free play

NOTE

"1" & "2" is marked on integrated brake arm.

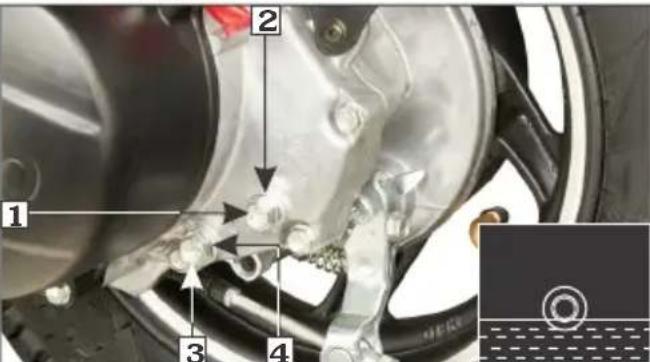

(d) Rear brake

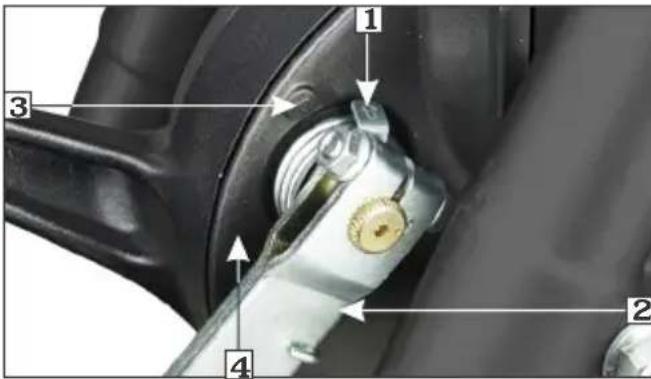

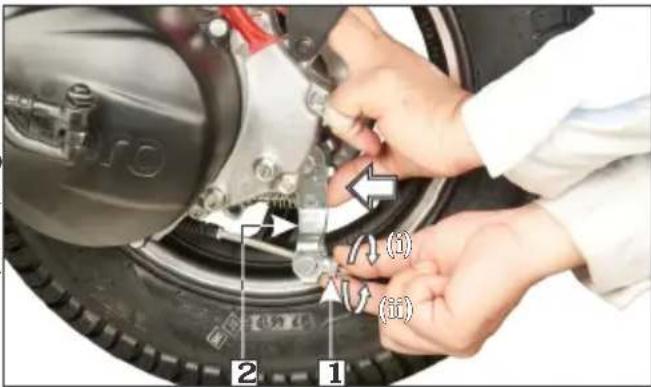

• Make free play adjustment by turning the adjuster nut (1) in the brake arm (2).
- Check the free play of integrated brake lever.

FREE PLAY: 10-20 mm

(1) Adjuster nut (2) Brake arm (i) Decrease free play (ii) Increase free play

- If the free play is more than 20 mm furtherFUEL

turn the adjuster nut to obtain desired free play.

Make sure the cut-out on the adjusting nut (3) is seated on the brake joint pin (4) after making final free play adjustment.

(A) Cut-out not seated (E)

Cut-out seated
(3) Adjusting nut
(4) Brake joint pin

If proper adjustment cannot be obtained by this method, visit your Authorised Hero MotoCorp workshop.

Other checks:

Check brake cable for kinks or signs of wear that could cause sticking or failure.

Make sure the brake arm spring and fasteners are in good condition.

NOTE

Apply the brake several times and check for free wheel rotation after the brake lever is released.

FUEL

(a) Fuel tank

The fuel tank is located under the seat.

The fuel tank capacity is 5.0 litres

(Minimum fuel to be maintained above one segment blinking of fuel level indicator).

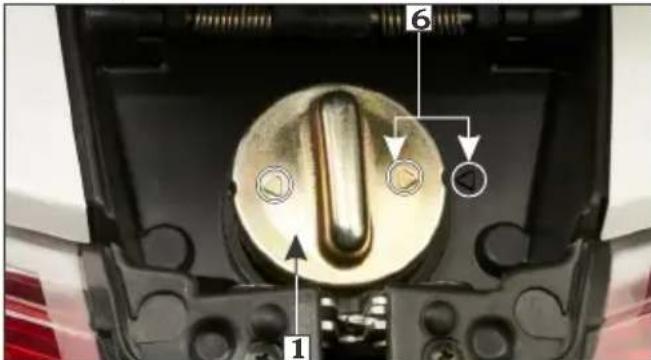

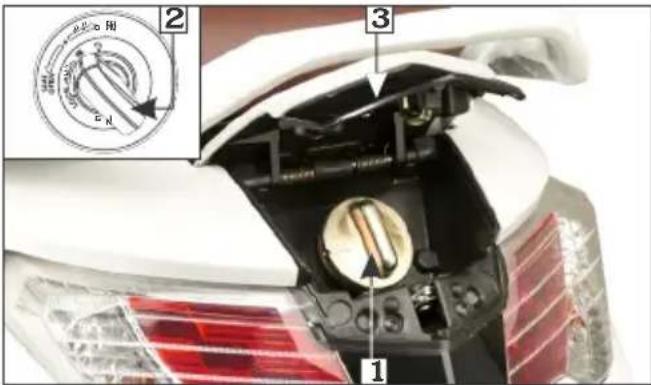

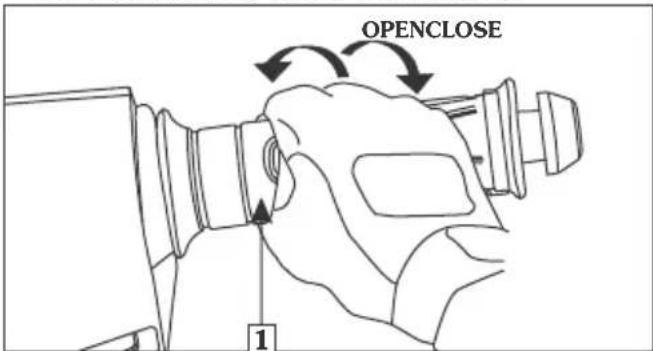

To open the fuel filler cap (), insert the 1 ignition key (), push it in and turn the 2 ignition key to "FUEL OPEN" position

(page 27). The fuel tank lid (3) will open as shown in the picture. Remove the fuel filler cap by turning it counterclockwise.

(1) Fuel filler cap
(3) Fuel tank lid

(2) Ignition key

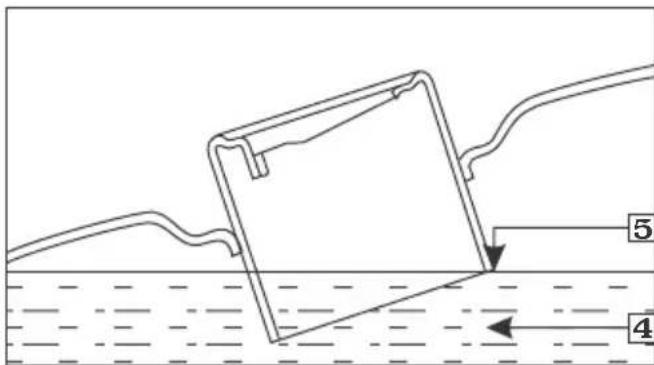

Do not overfill the tank. There should be no fuel (4) in the filler neck (5).

(4) Fuel
(5) Filler neck

We recommend that you use unleaded petrol because the muffler in the vehicle is fitted with a catalytic convertor, it also produces lesser deposits in engine and on spark plug, which extends the life of exhaust system and other components.

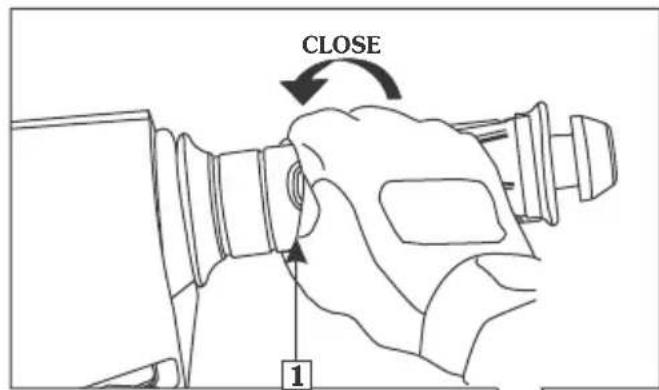

After refueling, be sure to tighten the fuel filler cap firmly by turning it clockwise.

Make sure the arrow marks (6) on the fuel filler cap and the fuel tank are aligned.

(1) Fuel filler cap
(6) Arrow marks

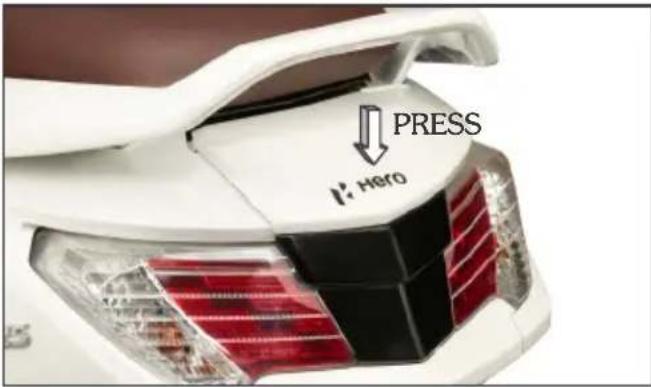

For locking, press the fuel tank lid gently.

NOTE

If "Spark knock" or "pinking" occurs at a steady engine speed under normal load, change petrol brand. If the same still persists, consult your Authorised Hero MotoCorp workshop. Failure to do so is considered misuse, and damage caused by misuse is not covered under Hero MotoCorp warranty policy.

(b) Petrol containing alcohol

If you decide to use a petrol containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by Hero MotoCorp.

There are two types of "gasohol", one containing ethanol, and the other containing methanol.

Do not use petrol that contains more than 10% of ethanol.

Do not use petrol containing methanol (methyl or wood alcohol) that does not contain cosolvents and corrosion inhibitors for methanol.

Never use petrol containing more than 5% methanol, even if it has cosolvents and corrosion inhibitors.

• When certain type of petrol containing alcohols are used, problems such as hard starting, poor performance, etc. may occur.
• If you notice any undesirable operating symptoms while using the petrol that contains alcohol, try another station or switch to another brand of petrol.
• When a problem resulting from the use of petrol containing alcohol occurs, contact your Authorised Hero MotoCorp workshop.

!! CAUTION

Please ensure the vehicle is not used continuously when the fuel level indicator reaches the one segment blinking. It will not only result in the vehicle running out of fuel, it may also cause serious damage to the fuel pump. Please ensure fuel is filled up as soon as the fuel level indicator reaches one segment blinking.

!! WARNING

• Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
• Stop the engine and keep heat, sparks and flame away.
  • Refuel only outdoors.
  • Wipe off spills immediately.

TYRES (TUBELESS)

The tyres fitted on your vehicle are of TUBELESS type. To safely operate your vehicle, the tyres must be of the proper type and size in good condition with adequate tread and correctly inflated for the load you are carrying. The following pages give more detailed information on how and when to check the air pressure, how to inspect the tyres for damage and what to do when tyres need to be repaired or replaced.

WARNING

• Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
• Follow all instructions in this owner's manual regarding tyres inflation and maintenance.

Air pressure

Keeping tyres properly inflated provides the best combination of handling, tread life and riding comfort. Generally, under-inflated tyres wear unevenly, adversely affect handling and are more likely to fail from being overheated.

Over-inflated tyres make your vehicle ride harshly are more prone to damage from road hazards and wear unevenly.

We recommend that you visually check tyres before every ride and use a gauge to measure air pressure at least once a month or any time you think the tyre pressure is low.

Tubeless tyres have some self-sealing ability if they are punctured. However, because

leakage is often very slow, you should look closely for punctures whenever a tyre is not fully inflated.

Always check air pressure when your tyres are "cold"-when the vehicle has been parked for at least three hours. If you check air pressure when your tyres are "warm"-when the vehicle has been ridden for even a few kilometers, the readings will be higher than if the tyres were "cold". This is normal, so do not let air out of the tyres to match the recommended cold air pressures given below. If you do, the tyres will be under-inflated.

The recommended "cold" tyre pressures are:

	Rider only Rider and Pillion
Front	1.50 kgf/cm^2 (22 psi)	1.50 kgf/cm^2 (22 psi)
Rear	2.00 kgf/cm^2 (29 psi)	2.50 kgf/cm^2 (36 psi)

CAUTION

Over inflation/Under inflation will affect the performance.

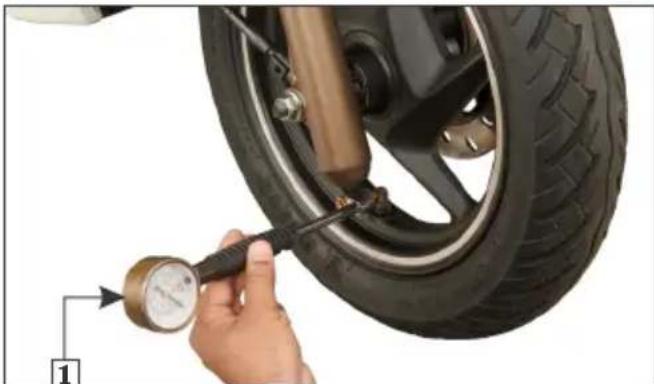

Close-up of a hand using a pressure gauge to measure the wheel's tread, with no visible text or symbols.

(1) Air pressure gauge

Inspection

Whenever you check the tyre pressure, you should also examine tyre treads & side walls for wear, damage & foreign objects.

Look for:

• Bumps or bulges in the side of the tyre or the tread. Replace the tyre if you find any bumps or bulges.
• Cuts, splits or cracks in the tyre. Replace the tyre if you can see fabric or cord.

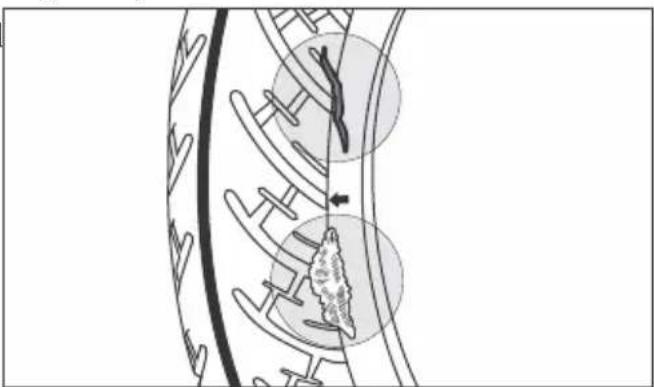

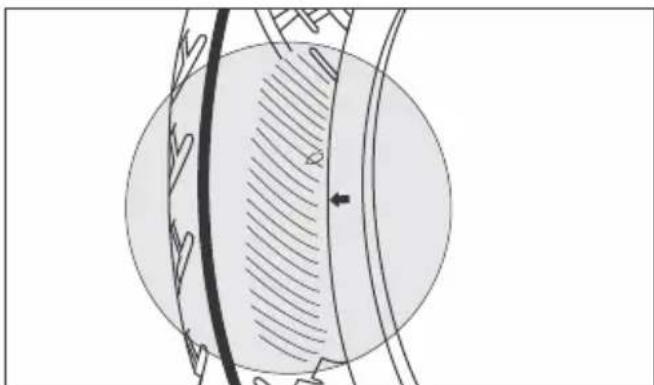

Diagram of a biological or chemical process with curved pathways and circular elements, no visible text or symbols

• Excessive tread wear.

Diagram of a mechanical or fluidic component with internal hatching and directional arrows, no readable text or symbols present.

- Carefully inspect the tyres for any damage, if the vehicle hits a pothole or hard object.

Tread wear

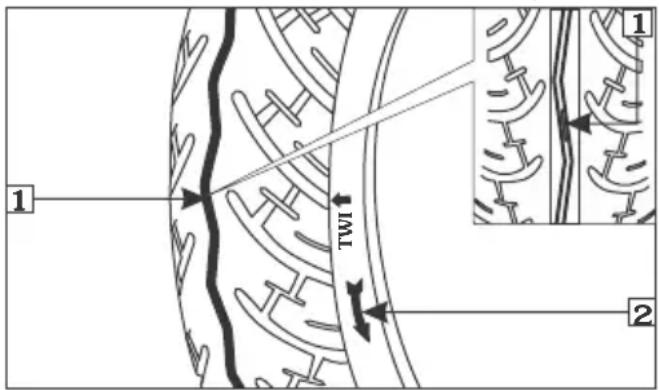

Replace tyres immediately when the wear indicator (1) appears on the tyre. The tread limits are :

Minimum tread depth:

Front: 0.8 mm

Rear: 1.0 mm

Check the tread wear indicator for tyre wear.

(1) Tyre wear indicator
(2) Arrow mark

Unidirectional tyres

Whenever the tyre is removed and put back in case of puncture, ensure the arrow mark (2) on the tyre is in the same direction as that of forward rotation of wheel.

Tyre repair

Repairing a puncture or removing a wheel requires special tools and technical expertise. If a tyre is punctured or damaged, it is advised to visit nearest tyre manufacture, Hero MotoCorp authorised dealer/workshop or the tyre repair shop who has expertise in repairing methods of tubeless tyre.

A tyre that is repaired either temporarily or permanently, will have lower speed and performance limits than a new tyre. After an emergency repair, always have the tyre inspected/replaced at our authorised dealer and replace the tyre if suggested.

You should not exceed 70 km/hour for the 1st 24 hours or 105 km/hour at any time thereafter. In addition, you may not be able to safely carry as much load as with a new tyre. If you decide to have a tyre replace be sure the wheel is balanced before you ride.

WARNING

• Operation with excessively worn tyres is hazardous and will adversely affect traction and handling.
• Under-inflation may result in the tyre slipping on or tyre coming off the rim.
  • Always use the size and type of tyres recommended in this owner's manual.

Tyre replacement

The tyres that were installed on your vehicle were designed to match the performance capabilities of your vehicle and provide the best combination of handling, braking, durability and comfort.

NOTE

The imported tyre(s) if fitted without ISI mark; are in compliance of BIS standard and Central Motor Vehicle Rules 1989, as declared by the Tyre manufacturer.

The recommended tyre for your vehicle are: Front : 90/90-12 54 J (Tubeless tyre) Rear : 90/100-10 53 J (Tubeless tyre)

NOTE

For repair and replacement of tyre it is advised to visit your Authorised Hero MotoCorp workshop.

Important safety reminders

• Do not install a tube inside a tubeless tyre on this vehicle. Excessive heat buildup can cause the tube to burst.
• Use only tubeless tyres on this vehicle. The rims are designed for tubeless tyres and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.

ESSENTIAL INDIVIDUAL COMPONENTS

Ignition switch

The ignition switch (1) is on the right side below the steering.

(1) Ignition switch
(2) Ignition key
(3) Steering lock position
(4) Seat open
(5) Fuel open

Key Position	Function	Key removal
“ON” (○)	The engine can be started, turn signal lamps, horn, tail/stop lamp, fuel gauge and passing lamp can be operated. Programmed FI malfunction indicator lamp (MIL) illuminates and i3s indicator glows for 2 seconds.	Key cannot be removed
“OFF” (⊗)	Engine cannot be started and cannot be operated	Key can be removed
“LOCK”	Steering can be locked by pushing the key in and rotating it counterclockwise.	Key can be removed
“SEAT OPEN”	Seat can be opened by rotating the key counterclockwise.	Key can be removed
“FUEL OPEN”	Fuel tank lid can be opened by pushing the key in and rotating it clockwise.	Key can be removed

HANDLEBAR SWITCHES CONTROL

Left handlebar controls

1. Dimmer switch/Passing switch

Press the switch upwards for high beam "ID" and downwards for low beam ID Press the switch to pass lamp position operate the pass lamp.

2. Turn signal switch

Shift the turn signal switch sideways for right/left indications and leave it to come back to its normal position on its own.

IMPORTANT: To switch "OFF" the turn signal after completing the turn, gently push inside as directed on the switch.

3. Horn switch ( )

Press the horn switch to operate the horn.

(1) Dimmer switch/Passing switch
(2) Turn signal switch (3) Horn switch

Right handlebar controls

1. Electric starter switch(€)

The electric starter switch (1) is next to the throttle grip.

When the starter switch is pressed, the starter motor cranks the engine. see (page 47) for the starting procedure.

2. i3s switch

”. There is an i3s switch (2) provided to enable to the rider for turning i3s mode “ON” or “OFF” based on the traffic conditions.

Close-up of a brown electric motor with a black handle and control knob (no visible text or symbols)

(1) Electric starter switch (2) i3s switch

NOTE

• When cranking the engine by using brake & starter switch or brake & slight throttle, cranking of engine will stop after 5 seconds, if engine does not start. After that, brake & starter switch or brake & slight throttle is required to crank the engine.
  • In case the engine gets started, cranking (starter relay engagement) of engine will stop after engine reaches 900 r/min.

FEATURES

(a) i3s (Idle stop start system)

Starting & Warm up the engine:

• Keep the i3s switch (1) to "OFF" position.
• Turn the ignition key to "ON" ( ) position.

Close-up of a brown electric shock absorber with a blue control knob and black handle (no text or symbols visible)

(1) i3s switch

- The i3s indicator (2) will glow on the meter console for 2 seconds and turn "OFF". For the activation of i3s system, start the engine and let it idle till the engine gets warmed up (Engine oil temperature read by ECU shall be more than 75^ ).

(2) i3s indicator

Initial activation of the i3s system:

• Keep the i3s switch (1) to "ON" position.
• Turn the ignition key to "ON" ( ) position.
• The i3s indicator (2) on the meter console will glow for 2 seconds and turns "OFF".
• Put the vehicle in stand still condition on its main stand (Speedometer pointer is on 0 km/h).
• Start the engine and allow it to run at idle r/min.

Ensure that the r/min should not cross 2000.

The i3s indicator will be continuously “ON” for 11 seconds before engine cuts-off by i3s system (Engine oil temperature read by ECU shall be more than 75°C). After engine cuts-off by i3s, i3s indicator will blink for 500 seconds, waiting user input to start engine by pressing brake & slight throttle, brake & electric start or kick. During this 500 seconds interval, if the vehicle is pushed at speed greater than or equal to 5 km/h, vehicle can be started by applying slight throttle only.

After 500 seconds, i3s indicator will be "OFF" and the vehicle can only be started by using kick or brake & electric starter.

- If engine is stopped by any means other than i3s function, i3s indicator lamp will not glow/blink in the meter console after engine stop. In this condition, vehicle will not start by brake & slight throttle. Vehicle can be started by using kick or electric start.

NOTE

• If for the first time vehicle is started and rid crosses 20 km/h speed. After that, vehicle is kept in idle (Engine r/min less than 220 r/min), vehicle is in stationery condition (Speedometer pointer is on 0 km/h), Engine is warmed up (Engine oil temperature read by ECU shall be more than 75°C) then the engine will be turned "OFF" in 11 seconds.
• The i3s indicator will be continuously "ON" for 11 seconds before engine cuts-off by i3 system (Engine oil temperature read by ECU shall be more than 75^ ). After engine cut-off by i3s, i3s indicator will blink for 500 seconds, waiting user input to start engine pressing brake & slight throttle, brake electric start or kick. During this 500 seconds interval, if the vehicle is pushed at speed greater than or equal to 5km/h vehicle can be started by applying slight throttle only.

After 500 seconds, i3s indicator will be "OFF" and the vehicle can only be started by using kick or brake & electric starter.

• If engine is stopped by any means other than i3s function, i3s indicator lamp will not glow/blink in the meter console after engine stop. In this condition, vehicle will not start by brake & slight throttle. Vehicle can only be started by using kick or self start.
• If i3s switch is put on "OFF" position once the engine is stopped by the i3s system then vehicle can only be started by using kick or brake & electric starter.

Driving with i3s switch in “ON” position: If the engine is stopped by i3s and it remains in “OFF” condition for more than 500 seconds then vehicle can only be started with brake & electric starter switch or kick.

Driving with i3s switch in "OFF" position:

While driving in very dense traffic where the vehicle has to encounter a stop and go situation, the i3s switch can be put to "OFF" position. Once this is done, the i3s system will not work and the vehicle will be in normal operating conditions as other vehicles and no special functions will be performed.

NOTE

• The i3s system will not function if rider puts the i3s switch to "OFF" position.
• If the battery voltage is low and engine r/min is less than 2200, there will be 3 continuos blinks after every 6 secs.
• If the low battery voltage is detected while the ignition key is in "ON" position or engine is in running condition, the i3s function will be deactivated until the rider turns the ignition switch to "OFF" (☒) position and then back to "ON" (☐) position. The rider can start vehicle by using kick.

• If the vehicle is driven without battery or with the dead battery and the engine r/min is less than 2200. The i3s indicator on the speedometer will blink continuously at every 1.5 secs. The rider can start vehicle by using kick.

• If the vehicle has fallen down, i3s function will be deactivated. Before restarting the engine you must turn the ignition switch to "OFF" (☒) position and then back to "ON" (☐) position.

• i3s system will be deactivated if the vehicle battery is low/dead or driven without battery.
• If vehicle diagnoses with any problem in electronic control unit (ECU) the i3s function will not work.
• If the battery is in healthy condition and the i3s system does not work properly, it is recommended to visit your Authorised Hero MotoCorp workshop.

(b) Steering lock

To lock the steering, turn the handle bar all th way to the left, turn the key (1) to "LOCK" position while pushing in and remove the key,

(1) Ignition switch (A) Push in (B) Turn to lock

!! CAUTION

Do not try to turn the key to "LOCK" position while riding the vehicle, which may lead to loss of vehicle control.

(c) Fuel tank lid lock

The fuel tank lid lock is provided along with ignition switch (1).

To open the lid, insert the key (2) while pushing in and turn it clockwise to "FUEL OPEN" position. The lid will release from its latch.

To lock the lid push down gently until it locks and hear a click sound to ensure the fuel tank lid is secure before riding.

!! CAUTION

Gently close the lid by hand. Sudden dropping of the lid may result in breaking the lid lock and malfunction of the lock.

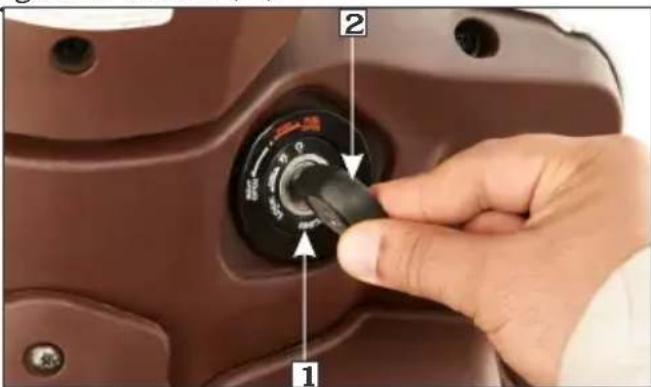

(d) Seat lock

The seat lock is provided along with the ignition switch (1).

(1) Ignition switch (2) Ignition key

To open the seat, insert the key (2) and turn it counterclockwise to "SEAT OPEN" position. The seat will release from its catch. To lock the seat, close and push down on the rear of the seat until locks.

Make sure the seat is secure before riding.

CAUTION

Gently close the seat by hand. Sudden dropping of the seat may result in breaking the seat lock and malfunction of the lock.

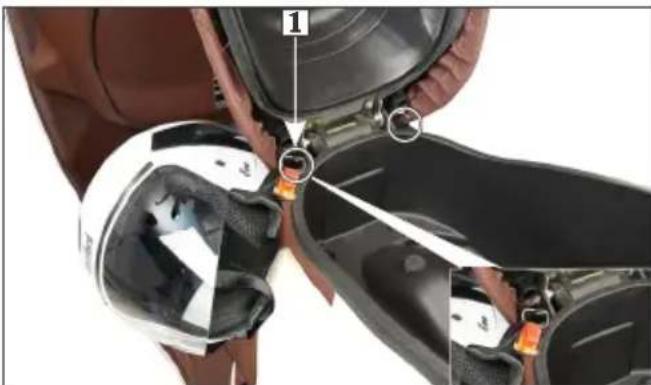

(e) Helmet holder

Two helmet holders (1) are located under the seat.

To access the holder or to secure a helmet (2 to the holder.

• Open the seat.
• Attach/Hook the helmet strap or ring to the helmet holder and close the seat.
  • To release the helmet from the holder.
• Open the seat.
• Remove the helmet from the holder an close the seat.

Close-up of a person's helmet being adjusted for a joint, showing hands and structural details (no text or symbols visible)

(1) Helmet holder

WARNING

• Riding with a helmet attached to the holder can interfere with the objects and could cause a loss of control/crash in which you can be seriously hurt.
  • Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

NOTE

Place the helmet inside the center compartment if you wish to carry along with the vehicle.

(f) Center compartment

The center compartment (1) is below the seat. Opening and closing the seat lock, see (page 31).

MAXIMUM WEIGHT LIMIT: 10 kg

Never exceed the maximum weight limit, handling and stability may be severely affected. The center compartment may become heated by the engine. Do not store food and other articles which are flammable or susceptible to heat damage.

Do not direct pressurised water spray against the center compartment as water may enter into the compartment.

(g) Document compartment /First aid kit /Tool kitholder

The document compartment (2) and first aid kit/tool kit holder (3) is located in the center compartment below the seat.

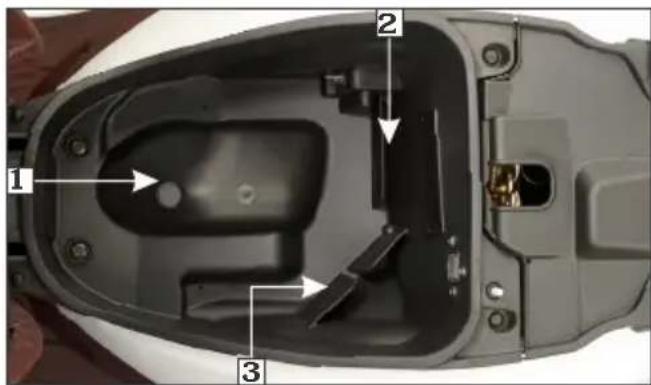

(1) Center compartment (2) Document compartment (3) First aid kit/tool kit holder

The owner's manual, other documents and first aid kit/tool kit can be stored in it.

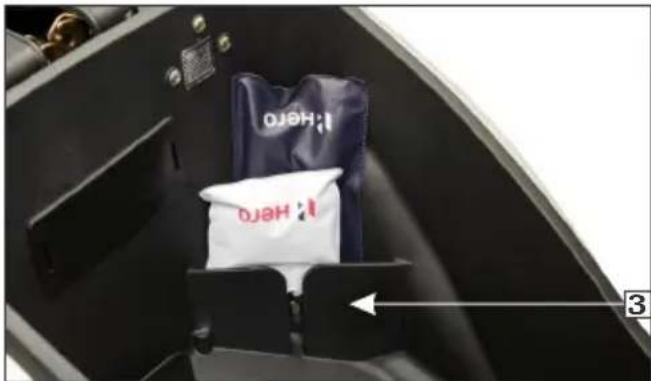

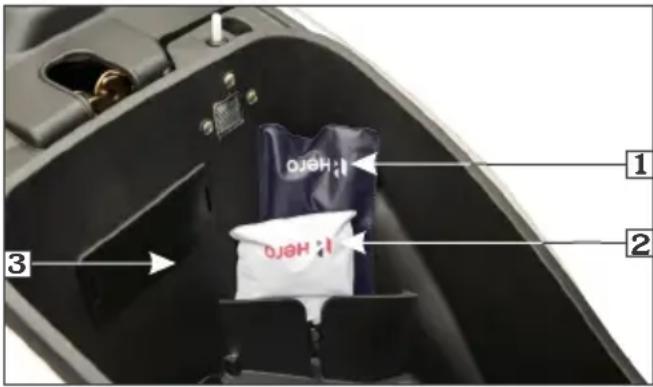

Interior view of a mechanical device with a white packet labeled 'HERO' and a dark blue bag, showing no readable text or symbols.

(3) First aid kit/Tool kit holder

NOTE

When washing your vehicle, be careful not to flood this area with water.

CAUTION

Before the vehicle is pressure washed the items kept inside the center compartment should be removed to prevent consequential damage.

(h) Boot lamp/switch

A boot lamp (1) is provided in the center compartment. This boot lamp will be functional only when the seat is open. Opening and closing the seat lock, see

(page 31).

An automated switch (2) is provided on the center compartment, which enables the boot lamp to glow when the seat is in open condition and goes off automatically when the seat is closed.

Close-up of a device component with labeled parts and an inset showing a close-up of a small electronic component (no readable text or symbols)

(1) Boot lamp (2) Switch

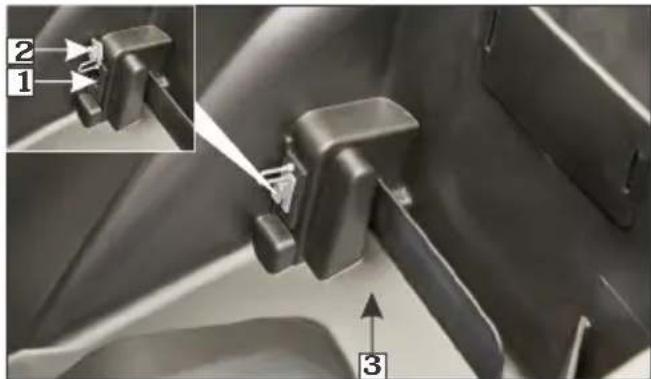

(i) USB charger

A (1) with a cap (2) located USB charger inside the (3) is provided center compartment in your vehicle to charge your mobile phone safely while riding.

(1) USB charger

(2) Cap

(3) Center compartment

To connect a mobile phone charger cable, first remove the cap from the USB charger and then plug in the charging cable to it.

Use of non-standard USB cable may cause damage to the mobile phones. Hero

MotoCorp will not be responsible for damagesFront luggage hook (1) is provided below the caused due to use of non-standard USB cablehandlebar.

!! CAUTION

• Always place the device in a soft clean cloth/towel to avoid any damage due to road shocks while riding.
• This port is for charging compatible USB devices.
- Multiple charging of USB devices have to be avoided, simultaneous charging may lead to slow or no charging.
- Do not leave the USB device and USB cable in the center compartment when the vehicle is parked.
- Charge your device only when the engine is operational/while riding. Charging the USB device when the engine is "OFF" would lead to early discharge of battery.

NOTE

• Do not apply any soap solution, oil or grease inside the USB charger.
• Any personal belongings have to be removed before water washing to avoid damage.
  • Always keep the USB port cap closed after use to prevent dust or water entry during rains/water wash.
• Do not direct water jet towards the port even with cap closed to avoid any short circuit. Always dry the area using a dry cloth or moisture free compressed air before use.

(j) Luggage hook

Two luggage hooks are provided in your vehicle to carry a light luggage like shopping bags or carry bags.

Front luggage hook

^5 Front luggage hook (1) is provided below the handlebar.

MAXIMUM WEIGHT LIMIT: 3.0 Kg

Close-up of a brown automotive seat with two lockers and a numbered component (no visible text or symbols)

(1) Front luggage hook

Rear luggage hook

Rear luggage hook (2) is located below the front end of the seat. To use the hook, turn the hook from its position and open the hook by turning the upper lever as shown. The upper lever will close automatically. After using the hook, push it back to its position.

MAXIMUM WEIGHT LIMIT: 1.5 Kg

WARNING

• Do not exceed the maximum weight limits for the luggage hooks.
• Do not hang large luggage to the hook that would hang out from the vehicle and or interfere with the movement of your feet.

Close-up of a car seatbelt buckle with a black clip attachment, showing part details and an inset view of the bracket (no text or symbols)

(2) Rear luggage hook

(k) Front inner box (Optional)

The front inner box (1) is provided on the inner cover to carry some valuable items, documents, etc.

Interior view of a pink leather jacket with a door open, showing internal compartments and a numbered arrow indicating direction (no text or symbols)

(1) Front inner box

MAXIMUM WEIGHT LIMIT: 1.5 Kg

Never exceed the maximum weight limit of the front inner box otherwise handling and stability may be severely affected.

(1) Side stand indicator

For the safety of the customer, a side stand indicator (1) is provided. If the side stand is down (Ignition switch "ON"), an indicator lamp glows in the speedometer panel.

(1) Side stand indicator

(m) Side stand switch/Side stand (Optional)

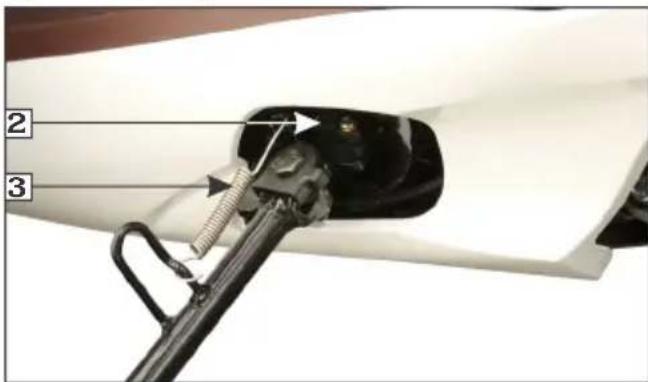

A side stand switch (2) is provided in the side direction shown by arrows to open. Folding stand, when the side stand is down (Ignition can be done by moving footrest in the reverse switch "ON"), the switch enables the sidedirection.

stand indicator lamp to glow on the speedometer panel.

(2) Side stand switch (3) Side stand spring

• Check the side stand for proper function and the spring (3) for damage or loss of tension and the side stand assembly for free movement.
• Check whether the side stand indicator (1) glows when the side stand is down.
• When the side stand is up, the side stand indicator (1) should not glow.
• If the side stand indicator (1) does no operate as described in above steps, please visit your Authorised Hero MotoCorp workshop.

!! CAUTION

Ensure that adequate care should be taken while cleaning the side stand switch.

(n) Pillion footrest

Move the left and right (1 & 2) footrest in the direction shown by arrows to open. Folding can be done by moving footrest in the reverse direction.

Close-up of a mechanical component with attached parts, showing a bracket and housing (no visible text or symbols)

(1) Left footrest

Close-up of a motorcycle's side panel showing internal components and a close-up inset of the jaw (no text or symbols visible)

(2) Right footrest

(o) Women pillion step (Optional)

This vehicle is equipped with women pillion step (1).

Two-panel image showing a white plastic component being inserted into a car's seat, with arrows indicating the direction of movement (no text or symbols present)

(1) Women pillon step

Move the women pillion step to open. Folding can be done by moving the women pillion step in reverse direction.

BODY PARTS REMOVAL

(a) Center compartment Removal

• Open the seat (page 31).
• Remove the bolts (1) from the center compartment.

Top-down view of a device casing with internal components and mounting holes (no text or symbols visible)

(1) Bolts

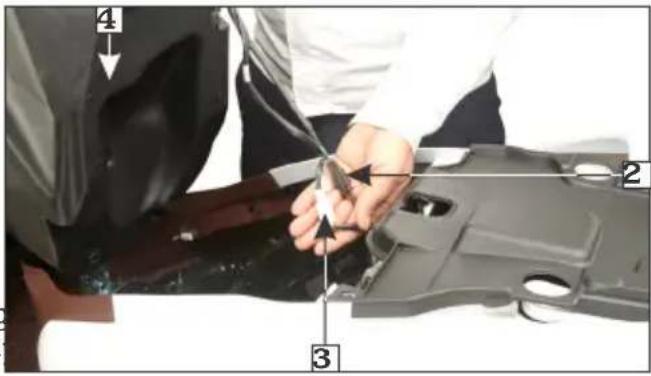

- Slightly lift up the center compartment from the rear and disconnect the boot lamp connector (2) and USB charger connector (3).

(2) Boot lamp connector
(3) USB charger connector
(4) Center compartment

- Remove the center compartment (4).

Installation

Installation is in the reverse order of removal.

NOTE

Park the vehicle on its main stand when servicing the vehicle with the center compartment removed.

(b) Body cover

Removal

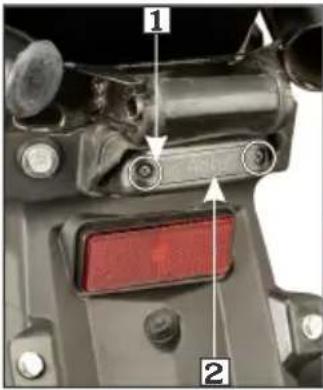

• Remove the center compartment (page 37). Remove the center cover (5).

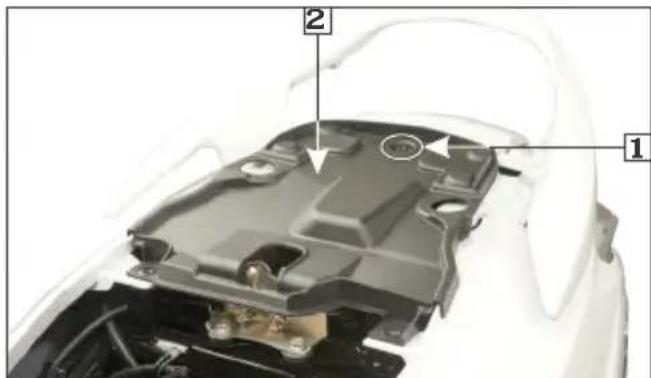

• Remove the fuel tray sub assembly bolt (1).
• Remove the fuel tray sub assembly (2).

(1) Bolt
(2) Fuel tray sub assembly

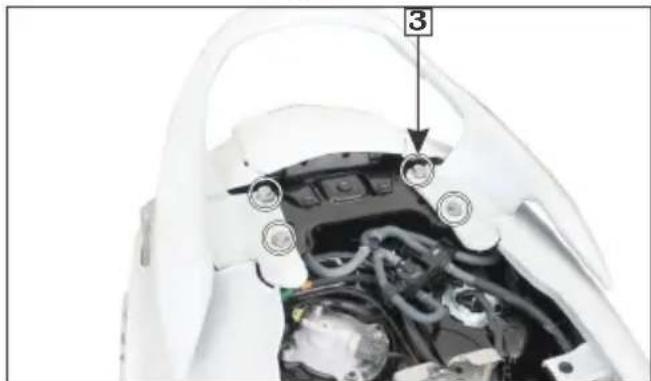

- Remove the rear grip bolts(3).

Interior view of a white car hood with visible engine and circuit components (no text or symbols)

(3) Bolts

(4) Screws

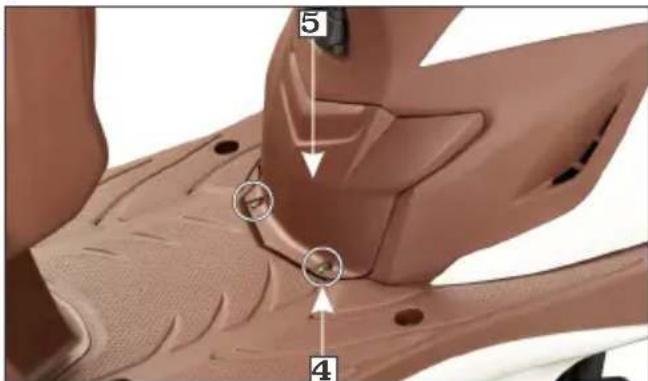

(5) Center cover

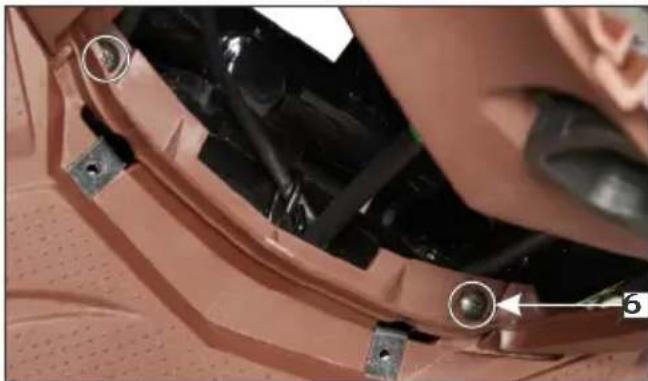

- Remove the screws (6).

Close-up of a mechanical component with mounting holes and a numbered arrow pointing to a circular feature (no visible text or symbols)

(6) Screws

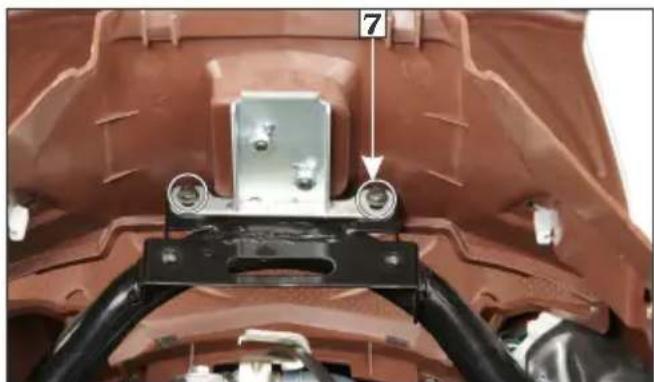

- Remove the bolts (7).

Close-up of a car's front bumper with metal bracket and wiring (no visible text or symbols)

(7) Bolts

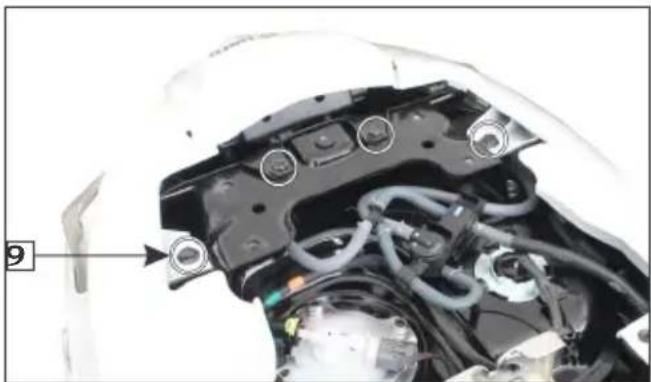

- Remove the body cover bolts (9).

Close-up of a car engine compartment with visible hoses and components (no text or symbols)

(9) Body cover bolts

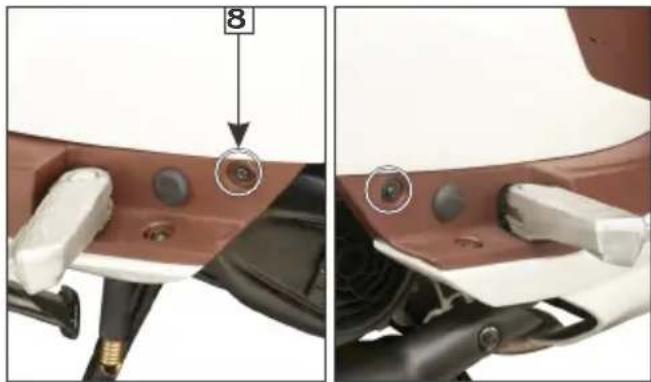

- Remove the screws (8) from left and right side of the body cover.

(8) Screws

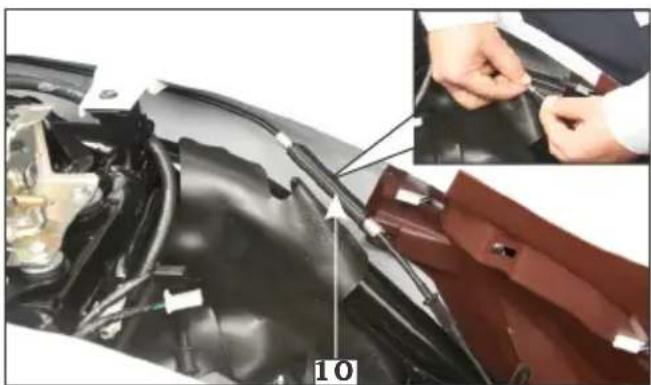

- Disconnect the fuel tank lid lock cable (10).

Close-up of a car hood with attached components and a close-up of hands adjusting parts (no visible text or symbols)

(10) Fuel tank lid lock cable

- Remove the fuel filler cap (page 21). - Disconnect the tail/stop lamp connector (11).

Close-up of hands installing a white plastic component into a black mechanical device (no visible text or symbols)

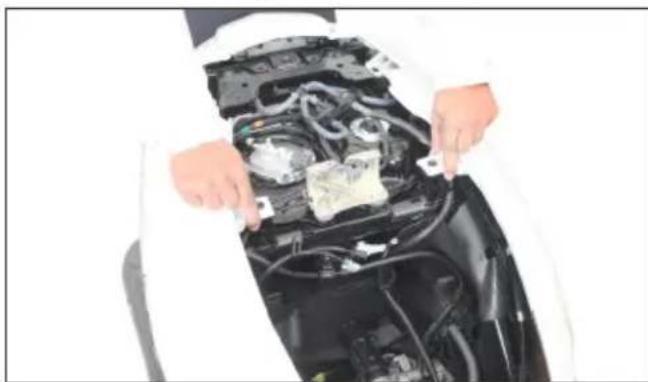

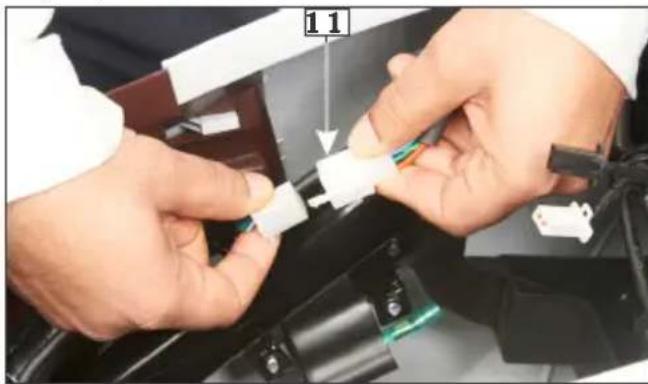

(11) Tail/stop lamp connector

- Release the body cover from its frame.

Person assembling or adjusting a car engine compartment with visible hoses and components (no text or symbols)

- Pull the body cover slightly backwards and release the tabs (12) from it slots (13) from both sides of the vehicle.

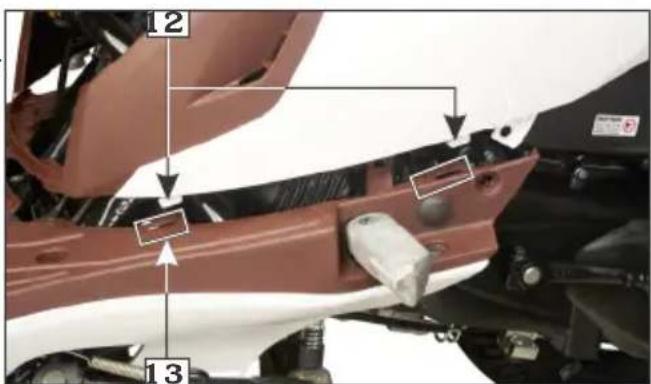

(12) Tabs (13) Slots

- Disconnect the drain tube from the joint (14).

Close-up of a person's hands inserting cables into a car engine compartment, no visible text or symbols

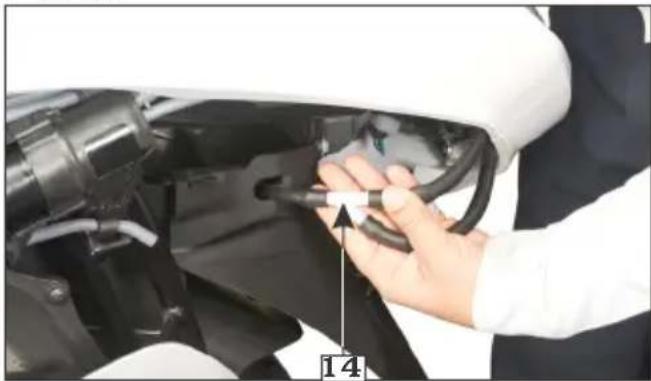

(14) Drain tube

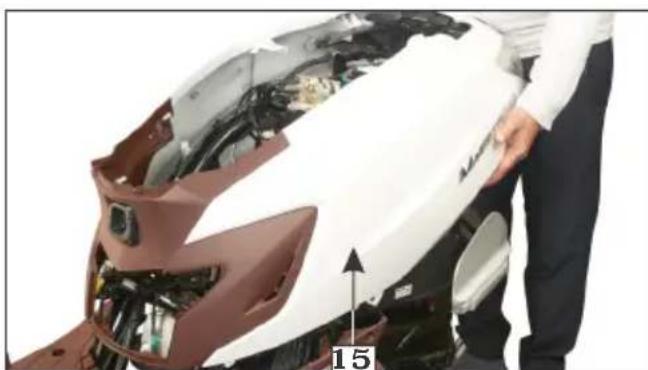

- Remove the complete body cover (15).

Close-up of a white and brown automotive body with visible engine compartment, being handled by a person (no text or symbols)

(15) Body cover

Installation

Installation is in the reverse order of removal.

(c) Front center cover

Removal

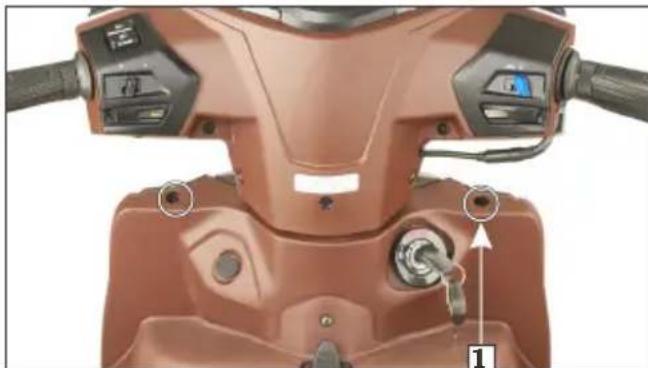

- Remove the two screws (1) on the inner cover side.

Close-up of a brown electric scooter's head and torso showing adjustment knobs and a key (no text or symbols visible)

(1) Screws

- Remove the two screws (2) near the front fender.

Close-up of a white motorcycle's head and dashboard with visible mechanical parts (no text or symbols)

(2) Screws

- Disconnect the position lamp connector (3) and release the front center cover lugs (4) from the mounting clips. Remove the

Close-up of hands assembling a mechanical component with a tool (no visible text or symbols)

(3) Position lamp connector

Close-up of mechanical components with circular annotations and a numbered arrow (no readable text or symbols)

(4) Lugs

NOTE

While removing the front centre cover, make sure to open the cover cautiously to avoid position lamp wire breakage.

front center cover by pulling it axially downwards towards front.

Installation

Installation is in the reverse order of removal.

(d) Front cover

Removal

• Remove the front center cover (page 41).

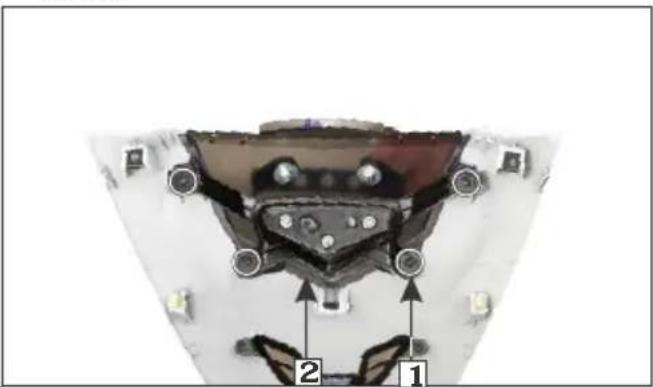

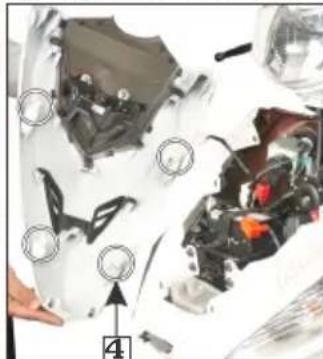

• Remove the four screws (1) on the inner cover side and remove two screws from front inner box. Remove front inner box (2)

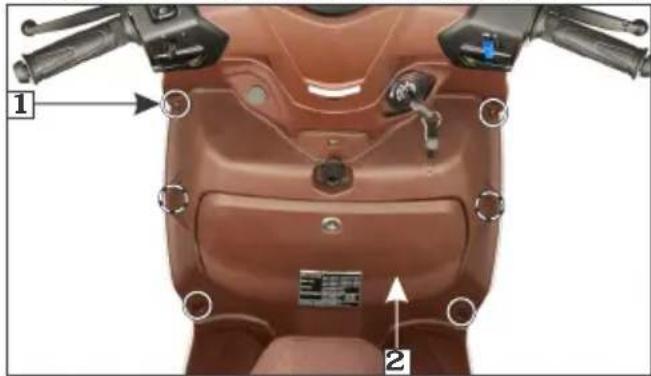

(1) Screws
(2) Front inner box

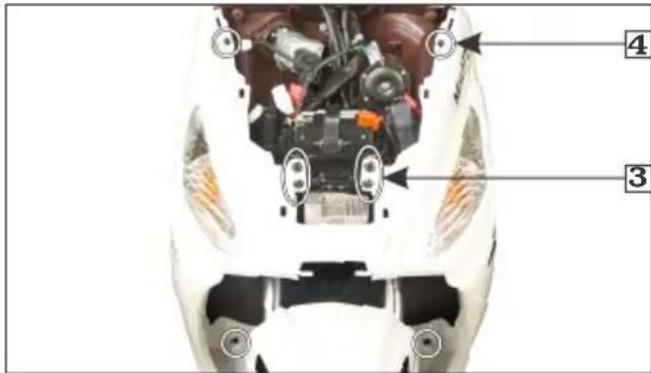

• Remove the four bolts (3) from the front cover.
• Remove the top and bottom screws (4).

(4) Screws

Close-up of a car seat with a circular dial indicator and number 5, no visible text or symbols beyond the number.

Close-up of a mechanical component with a circular button and number 5 annotation (no readable text or symbols)

(5) Screws

- Remove the front cover and disconnect the front turn signal lamp connectors (6).

Close-up of a hand holding a small electronic component with wires, no visible text or symbols

Close-up of a person using a tool to adjust or install electronic components, no visible text or symbols

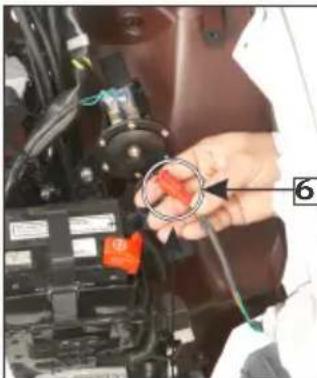

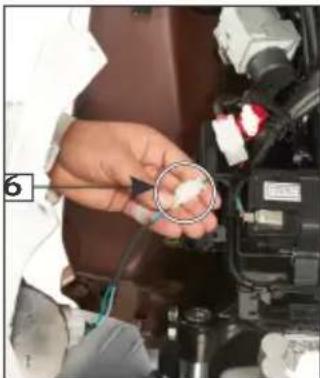

(6) Front turn signal lamp connectors

Installation

Installation is in the reverse order of removal.

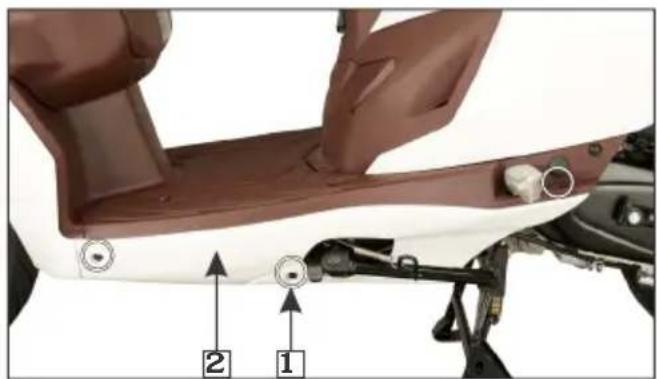

(e) Floor side cover

Right floor side cover Removal

3) Boats the pillion footrest (page 36).

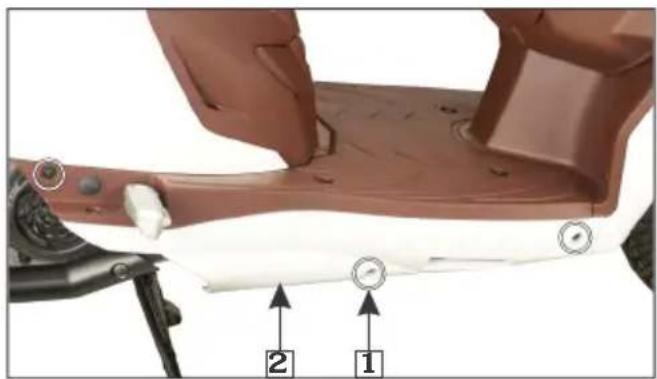

- Remove the three screws (1) from right floor side cover (2).

(1) Screws
(2) Right floor side cover

(1) Screws
(2) Left floor side cover

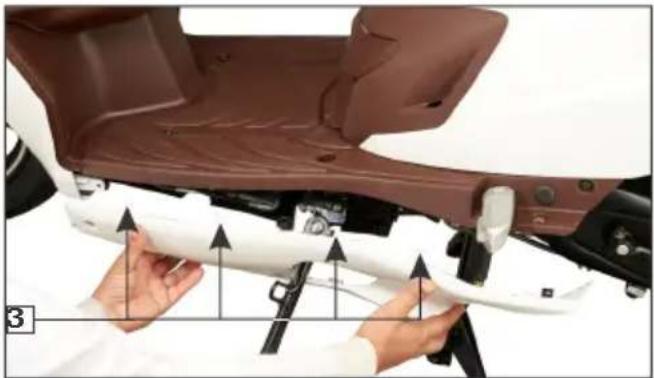

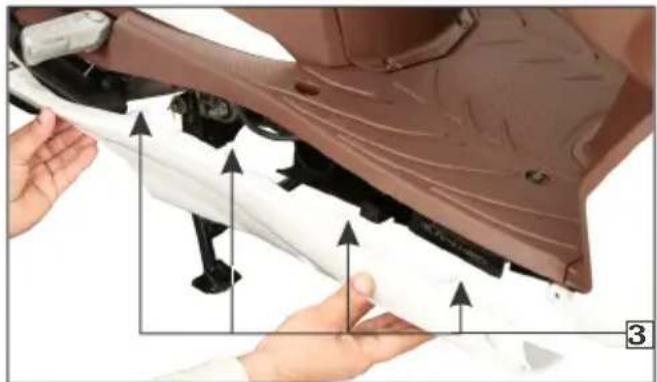

- To dislodge the tabs (3), slide the floor side• To dislodge the tabs (3), slide the floor side covers to the rear side.

Close-up of hands installing or adjusting a car seat panel with arrows indicating movement (no text or symbols visible)

(3) Tabs

- Remove the right floor side cover.

Installation

Installation is in the reverse order of removal.

Left floor side cover

Removal

- Open the pillion footrest (page 36).

- Remove the three screws (1) from left floor side cover (2).

Close-up of a person adjusting a car seat panel with arrows indicating movement (no text or symbols visible)

(3) Tabs

- Remove the left floor side cover.

Installation

Installation is in the reverse order of removal.

NOTE

• To remove the left floor side cover, open the side stand.

- Ensure that the floor side cover tabs are seated properly.

(e) Rear view mirror

Removal

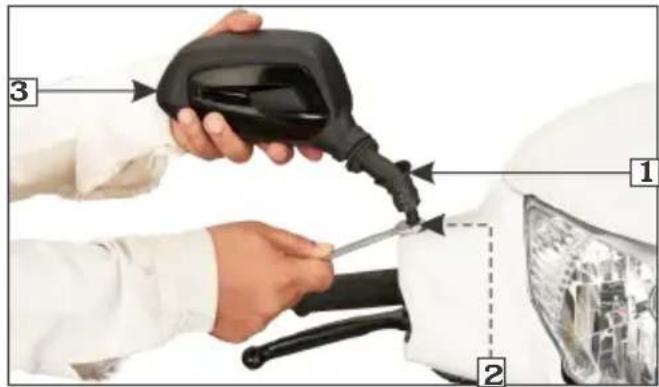

• Slide the dust cover up (1).
• Loosen the lock nut (2) until it will longer turn.
• Loosen the rear view mirror (3) and remove it.

(1) Dust cover
(2) Lock nut
(3) Rear view mirror

Installation

• Install the rear view mirror until it will no longer turn.
- Loosen the rear view mirror approximately 2 turns.
- Adjust the rear view mirror.
- Tighten the lock nut.

NOTE

To open the right side rear view mirror the threads are to be loosened in clockwise direction and tightened in counter clockwise direction.

(f) Headlamp assembly

Removal

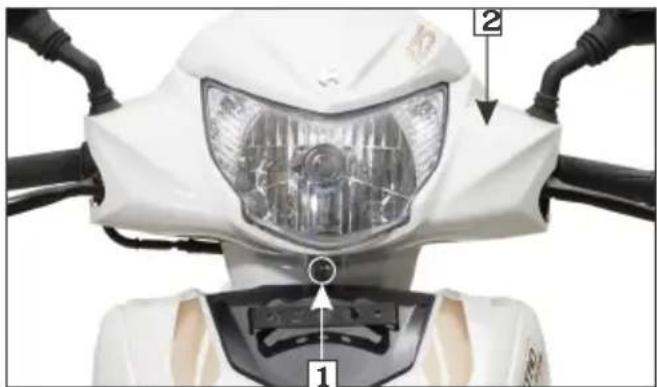

- Remove the rear view mirror. - Remove screw (1) from front handlebar cover (2).

Front view of a white motorcycle head with illuminated headlights and a labeled component (no text or symbols beyond labels)

(1) Screw
(2) Front handlebar cover

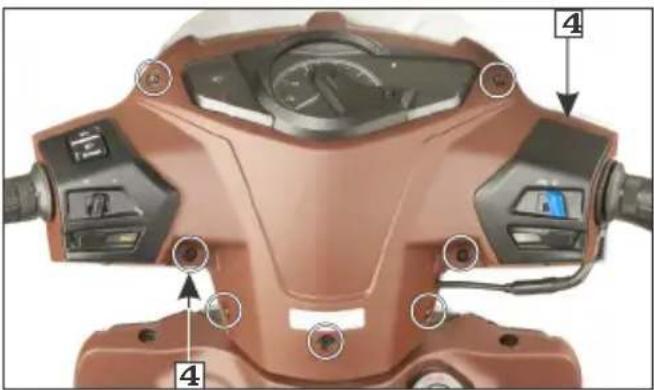

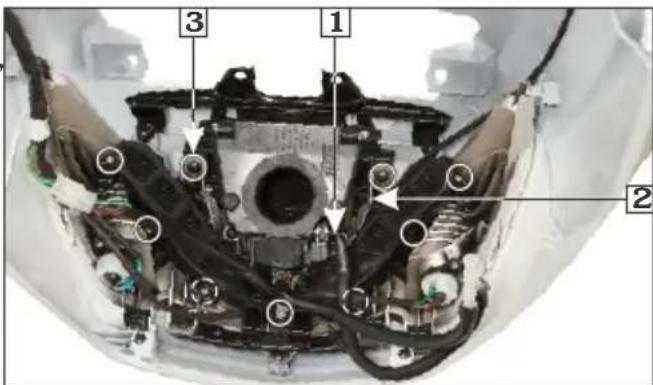

- Remove the screws (3) on rear handlebar case (4).

(3) Screws
(4) Rear handlebar cover

- Pull the headlamp assembly (5) slightly up, carefully release the tabs (6) from the slots.

- Disconnect the headlamp connector (7) and remove the headlamp case.

(5) Headlamp assembly
(7) Headlamp connector

(6) Tabs

Installation

Installation is in the reverse order of removal.

(g) Headlamp focus adjustment Vertical adjustment

Headlamp focus is factory preset. However in case of adjustment required please follow the steps as given below.

- Park the vehicle on its main stand on level surface in front of a wall.

- Turn the ignition switch to "ON" (O) position and start the engine.

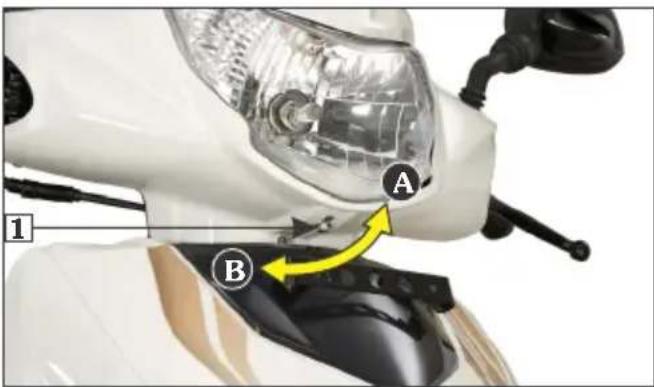

- Adjust the headlamp beam vertically by loosening the bolt (1) and move the headlamp up (A) or down (B) for correct focus.

(1) Bolt

(A) Up

(B) Down

! WARNING

An improperly adjusted headlamp may blind oncoming driver or it may fail to light the road for safe distance.

PRE-RIDE INSPECTION

For your safety, it is very important to take a few moments before each ride to walk around your vehicle and check its condition. If you detect any problem, be sure you take care of it or have it corrected by your Authorised Hero MotoCorp workshop.

WARNING

- Improper maintenance or failing to correct a problem before riding can cause a crash in which you can be seriously injured.

• Always perform a pre-ride inspection before every ride and correct if any problem.

- Engine oil level-Add engine oil if required (page 64). Check for leaks.

- Fuel level-Ensure sufficient fuel is available in your fuel tank for journey. Fuel level segment should be above one segment blinking (page 16). Check for leaks.

- Front brake (Disc type)-Check for correct brake fluid level in the master cylinder (page 18).

- Front and Integrated brakes-Check operation and if necessary, adjust free play (page 19).

- Rear brake-Check operation and if necessary, adjust free play (pages 20).

- Tyres-Check condition and pressure (page 23).

- Throttle-Check for smooth opening and full closing in all steering positions.

- Lamps and horn-Check that headlamp, position lamp, tail/stop lamp, turn signal lamps, indicators and horn function properly.

- Rear view mirror—Ensure that the rear view mirror gives a good rear view when you are sitting on the vehicle.

- i3s switch-Make sure whether the i3s switch is in “ON” or “OFF” position (page 28).

- i3s system-Make sure that i3s system is functional properly (page 28).

- Fitting & fasteners-Check & tighten if necessary.

• Steering-Check for smooth action for easy maneuverability.
• Programmed FI malfunction indicator lamp (MIL)-When the ignition switch is turned “ON” the programmed-FI malfunction indicator lamp (MIL) glows continuously until the vehicle starts.
• Side stand indicator-Make sure that the side stand is up. If it is down kept when ignition key is in “ON” position the side stand indicator (page 35) will glow on the speedometer panel.

ANTI-THEFT TIPS

• Always lock the steering and never leave the key in the ignition switch. This sounds simple but people do forget.

• Be sure the registration information for your vehicle is accurate and current.
• Park your vehicle in a locked garage whenever possible.
• Use an additional anti-theft device of good quality.
• Never park your vehicle in an isolated area. Park as far as possible in a designated parking area.
• Enter your name, address, and phone number in this Owner's Manual and keep it in your vehicle at all times. Many times stolen vehicles are identified by information in the Owner's Manuals that are still with them.

NAME :

ADDRESS :

PHONE NO :

STARTING THE ENGINE

Always follow the proper starting procedure described below. This vehicle has a fuel injected system.

Operate the kick starter or electric starter switch for slightly longer than usual without opening the throttle if the vehicle has been left standing for a long time or when the fuel tank has just been refilled.

NOTE

• When cranking the engine by using brake & starter switch or brake & slight throttle, cranking of engine will stop after 5 seconds, if engine does not start. After that, brake & starter switch or brake & slight throttle is required to crank the engine.
  • In case the engine gets started, cranking (starter relay engagement) of engine will stop after engine reaches 900 r/min.

Your vehicle's exhaust contains poisonous carbon monoxide gas. High levels of carbon monoxide can collect rapidly in enclosed areas such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move your vehicle out of the garage.

CAUTION

Do not attempt to start the engine and run the vehicle without a battery. This may lead to electrical and electronic components failure.

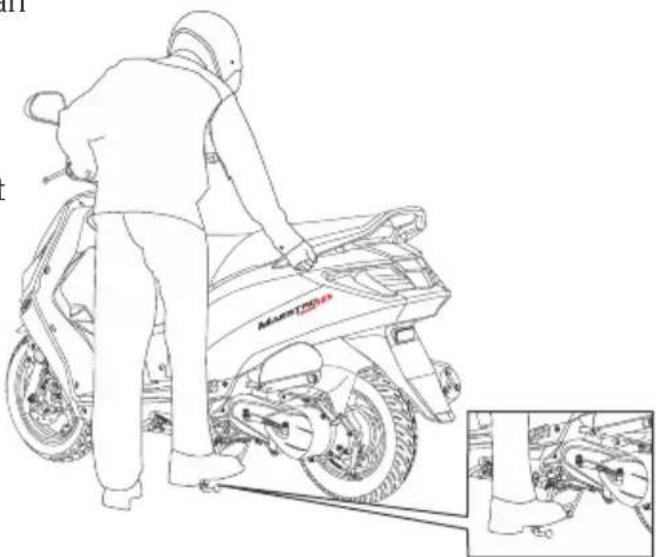

• Park the vehicle on its main stand.
• The electric starter will only work when the front or integrated brake lever is operated.
• Turn the ignition switch (1) to "ON" (Ω) position.

- Confirm that the programmed FI malfunction indicator lamp (MIL) (2) glows continuously and then should go “OFF” once the engine is started.

(1) Ignition switch
(2) Programmed FI
malfunction indicator lamp (MIL)

NOTE

If MIL remains "ON" even if the vehicle started, there is an abnormality in the programmed FI system. It is recommended to reduce the speed and drive to the Authorised Hero MotoCorp workshop for check-up.

- Make sure whether the i3s switch (3) is in "ON" or "OFF" position.

(3) i3s switch

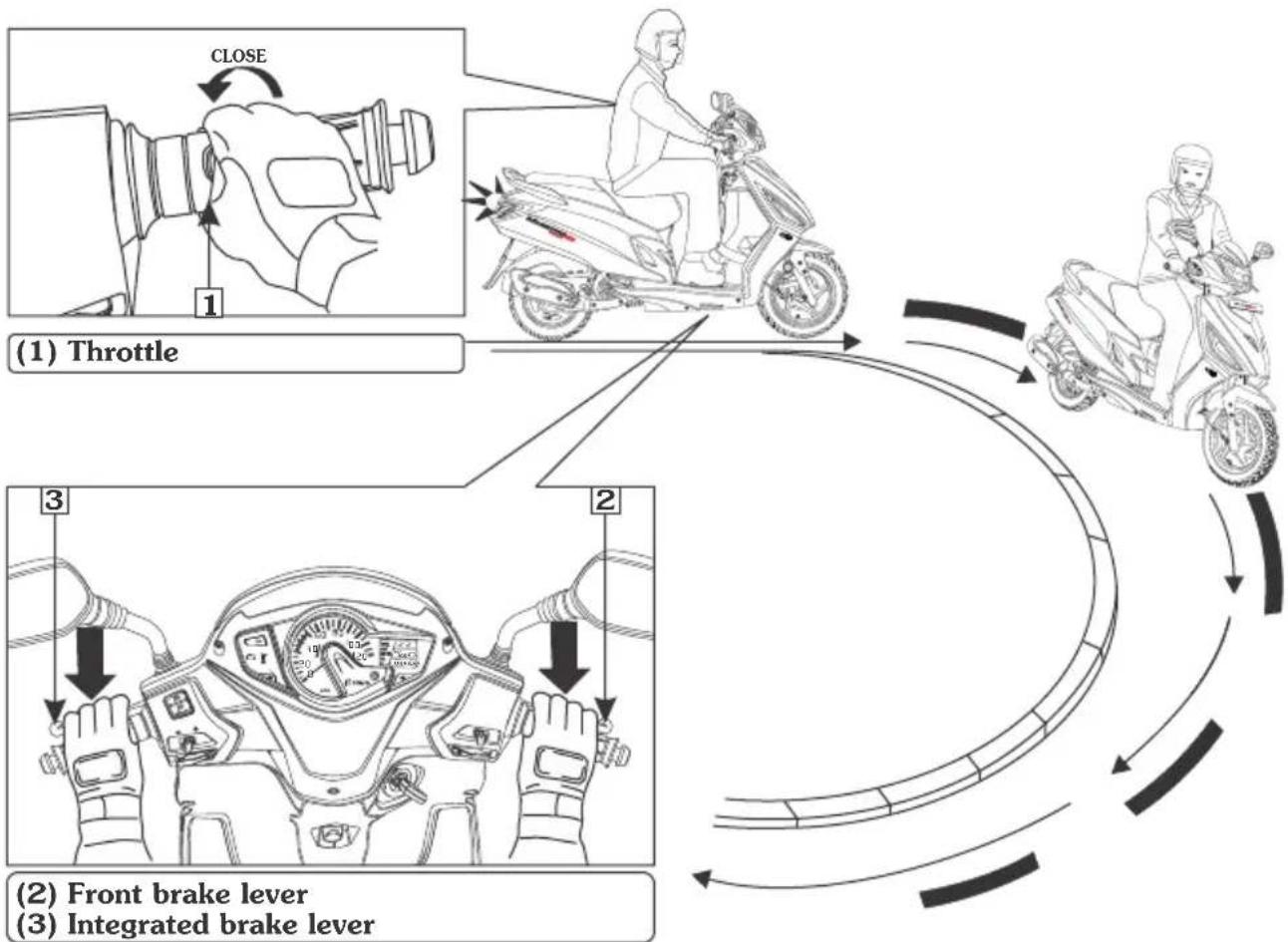

• Use starter switch:

With the throttle closed, press the starter switch.

Close-up of a hand gripping a black wristband with a blue accent, showing a curved arrow indicating rotation (no text or symbols present)

NOTE

is The engine will not start if the throttle is fully opened as programmed FI system will cut off the fuel supply.

- Use kick starter:

With the throttle closed, operate the kick starter with a rapid and continuous motion.

- Continue warming up the engine until it runs smoothly and responds to the throttle.

WARNING

• Do not leave the vehicle unattended while the engine is warming up.

- Snapping the throttle or fast idling for more than 5 minutes at normal air temperature may cause exhaust pipe discolouration.

Starting procedure

At any ambient temperature, turn the ignition switch to "ON" position and press the integrated/rear brake lever, now press the starter switch with the throttle completely closed.

NOTE

- If you plan to ride your vehicle at an altitude above 2000 meter, consult for advice at Authorised Hero MotoCorp workshop.

- While the vehicle is operated at an altitude above 2000 meter, you may not achieve sufficient engine performance. Please visit your Authorised Hero MotoCorp workshop.

• The engine will not start if the throttle is open because the Electronic control unit (ECU) cuts-off the fuel supply.

Ignition cut off

Your vehicle is designed to automatically stop the engine & fuel pump, if vehicle falls down. (Bank angle sensor cuts off the ignition).

NOTE

If the vehicle has fallen down, before restarting the engine you must turn the ignition switch to "OFF" (☒) position and then back to "ON" (☐) position.

RUNNING-IN

Ensure your vehicle's future reliability and performance by paying extra attention to how you ride during the first 500 km.

During this period, avoid full-throttle starts and rapid acceleration.

RIDING

Review vehicle safety (pages 4) before you ride.

• Make sure the throttle is closed and the integrated brake is locked before moving the vehicle off the main stand.

The rear wheel must be locked when moving the vehicle off the main stand or it may result in loss of control.

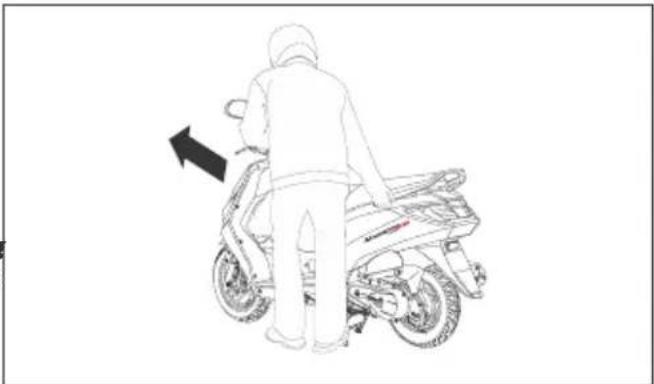

- Stand on the left side of the vehicle

and push it forward off the main stand gripping below the seat using the right hand as shown.

Line drawing of a person standing on a scooter with an arrow indicating direction (no text or symbols)

- Mount the vehicle from the left side keeping at least one foot on the ground to steady the vehicle.

Line drawing of a person riding an electric scooter (no text or symbols)

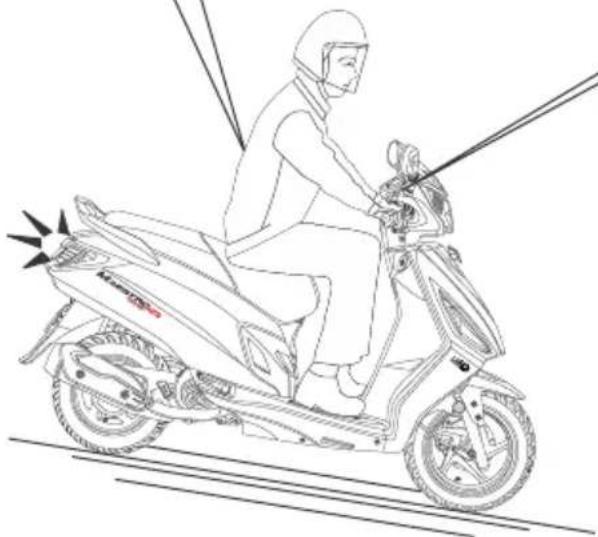

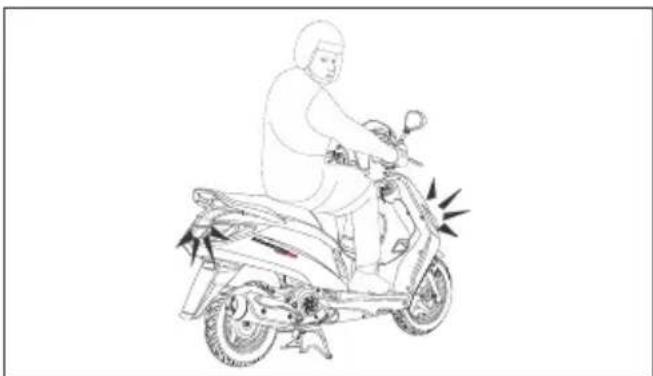

- Before starting, indicate your direction with the turn signals, and check for safe traffic conditions. Grab the handle bars firmly with both hands. Never attempt one-handed operation, this could lead to loss of vehicle control.

Line drawing of a person riding a scooter with motion arrows indicating speed or force (no text or symbols)

- To accelerate, open the throttle (1) gradually, the vehicle will move forward. Do not "BLIP" the throttle (open and close rapidly) as the vehicle will move forward suddenly, causing possible loss of control and loss of fuel economy. Do not accelerate with the brakes applied, this may lead to premature wear of brakes and transmission parts.

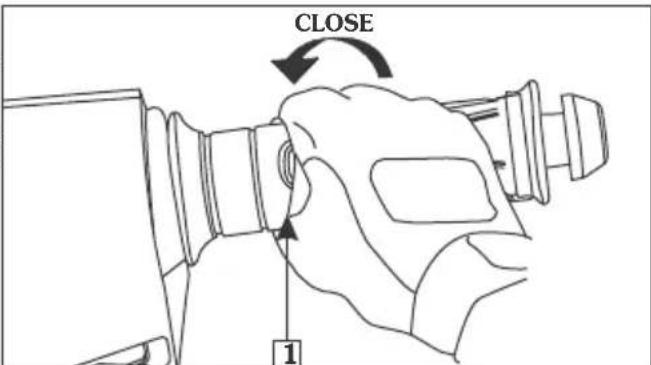

• To decelerate, close the throttle.

(1) Throttle

- When slowing down the vehicle, coordination of the throttle (1), front brake lever (2) and integrated brake lever (3) is

most important. To stop the vehicle (in IBS), press the integrated brake lever for the application of front brake and integrated brake simultaneously. However, for more effective braking, it is advised to apply both front brake and integrated brake simultaneously, keeping the throttle in close position.

Excessive brake application may cause the wheels to lock, reducing control over the vehicle.

(2) Front brake lever
(3) Integrated brake lever

- When approaching a corner or turn,• After completing the turn, open the close the throttle (1) fully, and slow down throttle gradually to accelerate the the vehicle by applying both front brake vehicle. lever (2) and integrated brake lever (3) brakes at the same time.

- When descending a steep gradient, Avoid continuous use of the brakes, which close throttle (1) fully and by applying both may result in overheating and reduction of front brake lever (2) and integrated brake braking efficiency. lever (3) brakes at the same time.

(1) Throttle

(2) Front brake lever

(3) Integrated brake lever

Line drawing of a person riding an electric scooter with motion lines indicating speed (no text or symbols)

- When riding on wet or loose surfaces, be cautious.

When riding in wet or rainy conditions or on loose surfaces, the ability to manoeuvre and stop will be reduced.

For your safety:

• Exercise extreme caution when braking, accelerating or turning.
- Ride at slower speeds and allow for extra stopping distance.
- Keep the vehicle as upright as possible.
- Be cautious when riding over slippery surfaces such as railway tracks, iron plates, manhole covers, painted lines, etc.
- When riding on high altitude.

• If you plan to ride your vehicle at an altitude above 2000 meter, consult for advice at Authorised Hero MotoCorp workshop.
• While the vehicle is operated at an altitude above 2000 meter, you may not achieve sufficient engine performance. Please visit your Authorised Hero MotoCorp workshop.

PARKING

• After stopping the vehicle turn the ignition switch to "OFF" (×) position.
• Use the main stand to support the vehicle while parked, lock and remove the key.
• Lock the steering to prevent theft.

NOTE

• Park the vehicle on firm, level surface to prevent it from falling over.
- If you must park on a slight incline, aim the front of the vehicle uphill to reduce the possibility of rolling off the main stand or overturing.

CAUTION

The exhaust pipe and muffler become very hot during operation and remain sufficiently hot to inflict burns if touched even after turning off the engine.

HOW TO USE MAIN STAND

Line drawing of a person adjusting a motorcycle with visible tire tracks and mechanical components (no text or symbols)

TOOL KIT/FIRST AID KIT

The tool kit (1) is located in the center compartment (3).

Some roadside repairs, minor adjustments and parts replacement can be performed with the tools available in the kit.

• Tool bag-1 No.
  • +,-No. 2 driver-1 No.
• Grip-1 No.
  • Wrench plug 16 mm-1 No.
• Spanner 14 mm-1 No.

(1) Tool kit
(2) First aid kit
(3) Center compartment

The first aid kit (2) is located in the center compartment (3) along with the tool kit. For some emergency first aid can be performed by medicine available in the kit.

• Antiseptic cream-1 No.
• Sterilised dressing-1 No.
  • Water proof plaster-1 No.
• Elastic bandage-1 No.

• Gauze (rolled bandage)-1 No.
• Sterilised elastic plaster-1 No.
- First aid bag-1 No.

CLEANING OF VEHICLE

Clean your vehicle regularly to protect the surface finishes and inspect for damage, wear and oil leakage.

Avoid cleaning products that are not specifically designed for vehicle or automobile surfaces. They may contain harsh detergents or chemical solvents that could damage the metal, paint and plastic parts on your vehicle. If your vehicle is still warm from recent operation, give time for the engine and exhaust system to cool down.

We recommend avoiding the use of high pressure water spray.

!! CAUTION

- Our authorised dealership take all above mentioned precautions like recommended detergents and usage of muffler caps/plugs during wash to ensure quality wash.

High pressure water (or air) can damage certain parts of the vehicle.

WASHING OF VEHICLE

• Rinse the vehicle thoroughly with water to remove loose dirt.
• Clean the vehicle with a sponge or soft cloth using water.
• Avoid directing water to muffler outlets and on electrical parts.

- Clean the plastic parts using a cloth or sponge dampened with a solution of mild detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.

NOTE

• Take care to keep brake fluid or chemical solvents off the vehicle. They will damage the plastic and painted surfaces.
- The inside of the headlamp lens may be clouded immediately after washing the vehicle. Moisture condensation inside the headlamp lens will disappear gradually by lighting the headlamp in high beam.
• After cleaning, rinse the vehicle thoroughly with plenty of clean water. Strong detergent residue can corrode alloy parts.
- Dry the vehicle with pressurized air, start the engine and let it run for several minutes

Line drawing of a person kneeling beside a motorcycle with visible engine components (no text or symbols)

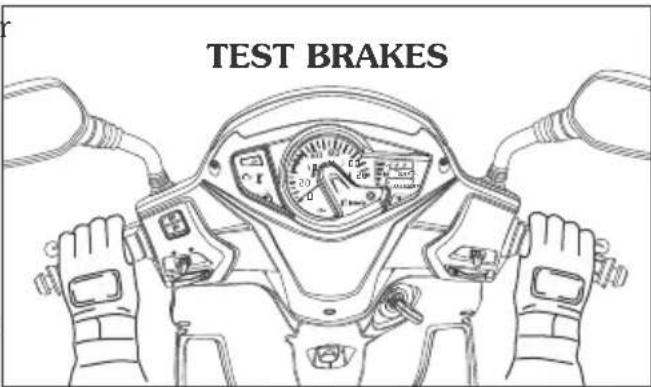

- Test the brakes before riding the vehicle. Several applications may be necessary to restore normal braking performance.

Line drawing of a person riding an electric scooter with visible exhaust plume and wheels (no text or symbols)

• Braking efficiency may be temporarily impaired immediately after washing the vehicle.
• Anticipate longer stopping distance to avoid a possible accident.

MAINTENANCE

Importance of maintenance

A well-maintained vehicle is essential for safe, economical and trouble-free riding. It will also help reduce air pollution.

To help you to take proper care for you vehicle, the following pages include a m s maintenance schedule and a maintenance record for regular scheduled maintenance.

These instructions are based on the assumption that the vehicle will be used exclusively for its designed purpose.

Sustained high speed operation or operation in unusually wet or dusty conditions will require more frequent service than specified in the maintenance schedule. Consult your Authorised Hero MotoCorp workshop for recommendations applicable to your individual needs and use.

If your vehicle overturns or is involved in a crash, be sure that you visit your Authorised Hero MotoCorp workshop for detailed inspections.

! WARNING

• Improperly maintaining this vehicle or failing to correct a problem before you ride can cause an accident in which you can be seriously injured.
  • Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

Maintenance safety

This section includes instructions on some important maintenance tasks. You can perform some of these tasks with the tools provided (if you have basic mechanical skills).

Other tasks that are more difficult and require special tools are best performed by professionals.

It is recommended that wheel removal should normally be handled by a Hero MotoCorp authorised workshop

You will come across some of the most important safety precautions in the following pages of this manual.

However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

• Failure to follow maintenance instructions and precautions properly can seriously injure you.
  • Always follow the procedures and precautions in this owner's manual.

SAFETY PRECAUTIONS

- Make sure the engine is "OFF" before you begin any maintenance or repair. This will help to eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust.

Be sure there is adequate ventilation whenever you operate the engine.

• Burns from hot parts.

Let the engine and exhaust system cool before touching.

• Injury from moving parts.

Do not run the engine unless instructed to do so.

• Read the instruction before you begin and make sure you have the tools and skills required.
• To help prevent the vehicle from falling over, park it on a firm, level surface on the main stand.
• To reduce the possibility of a fire or explosion, be careful when working around petrol or batteries. Use only nonflammable solvent not petrol, to clean parts. Keep cigarettes, sparks and flames away from the battery and all fuel-related parts.

Remember that your Authorised Hero MotoCorp workshop knows your vehicle best and is fully equipped to maintain and repair it. To ensure best quality and reliability, it is recommended to use Hero MotoCorp genuine parts for repair and replacement.

MAINTENANCE SCHEDULE

Perform the pre-ride inspection (page 45) at each scheduled maintenance period.

I: INSPECT C: CLEAN R: REPLACE A: ADJUST L: LUBRICATE T: TOP UP

E: EMISSION CHECK

The following maintenance schedule specifies all maintenance required to keep your vehicle in peak operating condition. Maintenance work should be performed in accordance with standards and specifications of Hero MotoCorp by properly trained and equipped technicians. Your Authorised Hero MotoCorp workshop meets all of these requirements.

Ensure that each paid service is availed within 90 days or 3000 km from the date of previous service, whichever is earlier.

To be serviced by your Authorised Hero MotoCorp workshop unless the owner has the relevant tools, technical information and is technically qualified. In the interest of safety, we recommend that these jobs are carried out only by your Authorised Hero MotoCorp workshop.

Note-1 : At higher odometer readings, repeat the frequency interval established here.

Note-2 : Throttle play to be checked and adjusted as per given specification.

Note-3 : Replace air cleaner element once in every 15000 km or early replacement may be required when riding in dusty areas.

*At 12000 km inspect if air cleaner element (viscous type) is choked. If found choked, replace the air cleaner element to keep the engine healthy.

*Replace at any point of time, if pre foam and viscous element found damaged.

Note-4 : Service more frequently when riding in rain or at full throttle.

Note-5 : Replace once in every 12000 km.

Note-6 : Replace engine oil once in every 6000 km. Top up if the oil level is at or near the lower level mark.

Note-7 : Replace once in every 10000 km or once in a year, whichever is earlier. Replacement requires mechanical skill.

Note-8 : Replace once in every two years or 30000 km, whichever is earlier.

Note-9 : Replace the pinion starter assembly once in every 2 years or 21000 km, whichever is earlier.

Note-10 : Replace drive belt once in every 24000 km.

Note-11 : Replace the front fork oil once in every 2 years or 20000 km, whichever is earlier.

Note-12: Inspect for any play in the rear suspension mounting bushes, replace if necessary.

Note-13: Inspect the bearings free play, replace if necessary.

Note-14: Inspect if side stand switch is installed.

Note-15 : Check CO emission at idle.

Note-16: Inspect the canister hoses for deterioration, damage or loose connections and canister for cracks or other damages.

MAINTENANCE SCHEDULE

Give a missed call to [phone]

or Scan QR code

Dear Customer,

We would strongly recommend the following schedule, to keep your vehicle in perfect running condition and healthy environment. vehicle subjected to severe use or ridden in dusty area will require more frequent servicing.

ITEMS

WHICHEVER COMES FIRST

DURING FREE SERVICE PERIOD

AFTER FREE SERVICE ONCE IN EVERY

SERVICE

1^st

2^nd

3^rd

4^th

5^th

DAYS

1st 60

Next 100

Next 100

Next 100

Next 100

KM Note-1

500-750

3000-3500

6000-6500

9000-9500

12000-12500

3000

6000

9000

12000

15000

Fuel Lines

IIIIII

\

Throttle Operation

Note-2

I, A

I, AI,

AI, AI, AI,

A

×

Engine Idle Speed

IIIIII

i3s System

IIIIII

×

Fuel Tank Lid Cover Operation, A

I, AI,

AI, AI, AI,

A

Air Cleaner Element (Pre foam type)

Note-3

I, CI,

CI, C

I, R*

I, C

I, R*

R

Air Cleaner Element (Viscous type)

Note-3

II

I

I, R*

I

I, R*

Drain/Crankcase Breather Tube

Note-4

I,C I,C

I,C

I,C

I,C

I,C

Spark Plug

Note-5

R

I, C, AI,

C, AI, C,

AI, C, AI, C,

A R

×

Valve Clearance

I, AI,

AI, AI, AI,

AI, A

Engine Oil

Note-6

R

TT

RR

RT

×

Engine Oil Strainer Screen

C

C

C

C

Final Drive Oil

Note-7

R

\

Brake System

C, L

C, L

C, L

C, L

C, L

C, L

Integrated Brake Lever Free Play (Drum type)

I, AI,

AI, AI, A

I, A

I, A

Brake Shoe Wear

I, A

I, A

I, A

I, A

I, A

I, A

×

Disc Wear/Pad Wear

I II II I

×

Brake Fluid

Note-8

I, T

I, T

I, T

I, T

I, T

I, T

Battery Voltage

I II II I

\

Stop Lamp Switch

I

I

I II

\

Headlamp Focus

II

I II

×

Belt Case/Kick Starter Driven Gear

C, L

C, L

C, L

C, L

C, L

C, L

×

Pinion Starter Assembly

Note-9

I

I

×

Drive Belt

Note-10

I

I

I

×

Clutch Shoe Wear

I II

\

Nut, Bolt & Fasteners

II

I II

Front Suspension/Oil

Note-11 I

I II

\

Rear Suspension

Note-12 I

I II

×

Wheel/Tyres

II

I II

×

Wheel Bearings

Note-13 I

I II

×

Steering Head Bearings

I, A

I, A

I, A

I, A

I, L, A

I, A

I, L, A

Main Stand

L LL LL L

Side Stand (Optional)

L LL LL L

Side Stand Switch (Optional)

Note-14

I, C I, CI, CI, CI, CI, C

×

Muffler (Catalytic Converter)

Note-15

I, E

I, E

I, E

\

Evaporative Emission Control System

Note-16

II

II

II

AIR CLEANER ELEMENT

Refer to the safety precautions. (page 57) The air cleaner element is of pre foam and viscous type replaced, it should be at regular intervals (pages 58). Early replacement may be required when riding in unusually wet or dusty areas.

Removal

• (page 38)Remove the body cover .

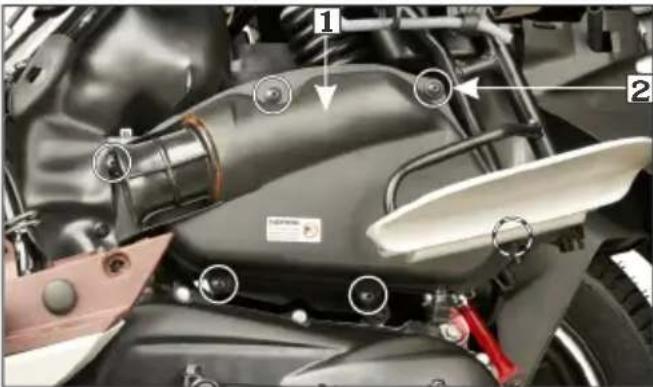

- Remove the air cleaner cover (1) by removing the screws (2)

(1) Air cleaner cover screws
(2) Air cleaner cover

- Remove the air cleaner element holder component (3) from air cleaner sub assembly case (4).

- Separate the pre foam element (5) from the air cleaner assembly.

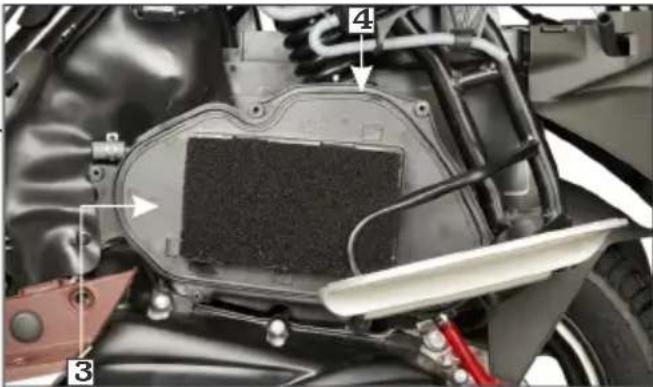

(3) Air cleaner element holder component
(4) Air cleaner sub assembly case

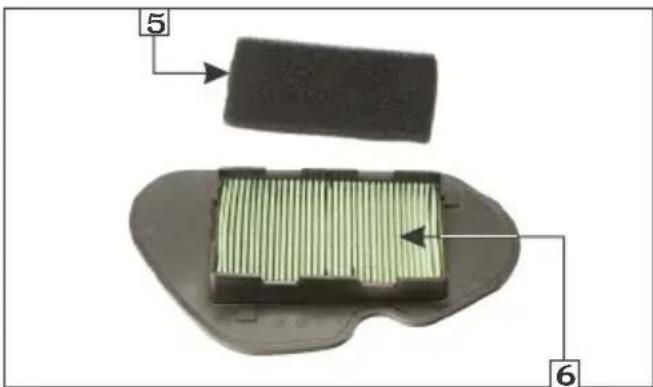

(5) Pre foam element
(6) Viscous air cleaner element

Viscous air cleaner element inspection

• Inspect the viscous air cleaner element (6) for any dust or dirt accumulation.
  • . R Replace maintenance schedule (page 58).

!! CAUTION

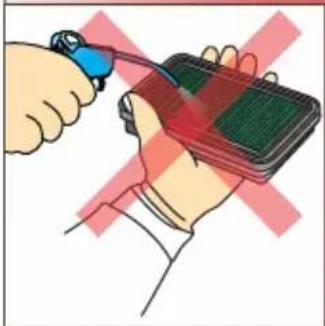

Illustration of a hand holding a device with a blue probe, crossed out by red prohibition signs (no text or symbols)

Illustration of a hand using a red laser to press a device into a blue water tank (no text or symbols)

• Do not blow compressed air.
- Do not wash using any solvent.

Pre oam f element

The pre foam element should be serviced at regular intervals (page 58). Service more frequently when riding in unusually wet or dusty areas.

Cleaning

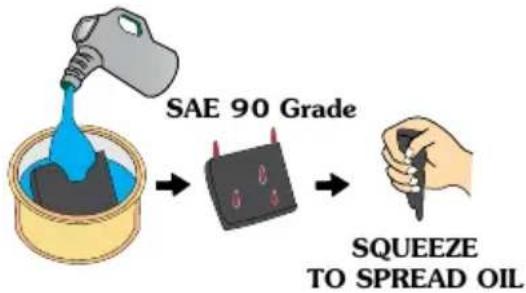

• Wash the pre foam element in kerosene.
• Spread 5ml (4 to 5 drops) of SAE 90 grade at different locations on pre foam element.

WASH IN KEROSENE

- Squeeze it in a manner so that oil will spread on complete surface of pre foam element.

!! CAUTION

Do not wring the filter element with both hands.

NOTE

• Replace air cleaner element once in every 15000 km or early replacement may be required when riding in dusty areas.
• At 12000 km inspect if air cleaneelement (viscous type) is choked. If found choked, replace the air cleaner element to keep the engine healthy.
• Replace pre foam element or viscous element at any point of time, if found damage.

Installation

- Clean the air cleaner sub assembly case (4) using a shop towel. - Install the pre foam element.

• Install the air cleaner element holder component (new, in case of replacement).
• Install the air cleaner cover.
  • body cover (page 38)Install the .

THROTTLE OPERATION Cable Inspection

Check for smooth rotation of the throttle grip from the fully open to the fully closed position. Check at full left and full right steering positions. Inspect the condition of the throttle cable from the throttle grip down to the throttle body. If the cable is kinked, chafed or improperly routed, it should be replaced or rerouted. Standard throttle grip free play (1) is approximately 2-6 mm of grip rotation.

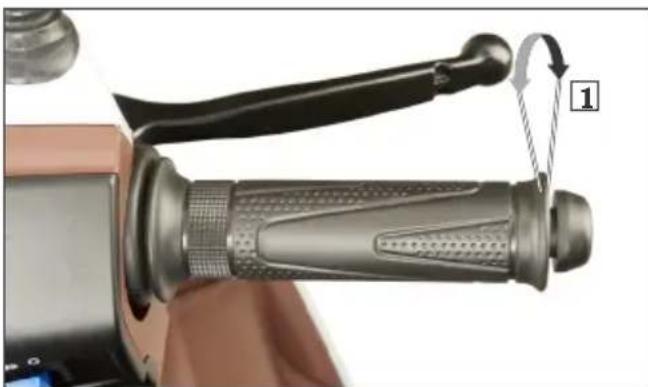

Close-up of a handheld device with a curved arrow indicating motion or adjustment, no visible text or symbols

(1) Free play: 2-6 mm

Free play adjustment (a) At handlebar side

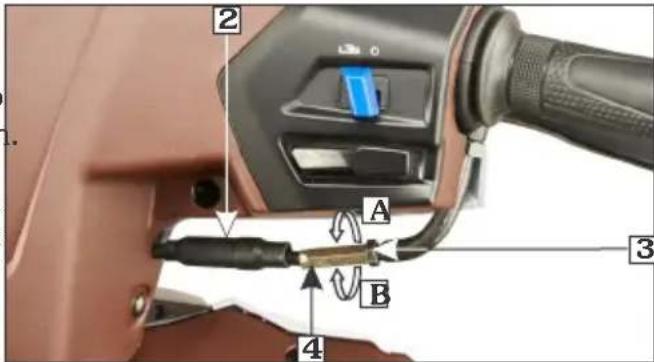

Slide the boot (2), loosen the lock nut (3) and turn the adjuster (4).

(2) Boot (3) Lock nut (4) Adjuster (A) Decrease free play (B) Increase free play

If the specified free play is not achieved, adjust the free play on throttle body side.

(b) At throttle body side

Remove the center compartment (page 37). Loosen the lock nut (5). Turn the adjusting nut (6) to obtain the specified free play. Tighten the lock nut and check the adjustment.

(5) Lock nut (6) Adjusting nut (A) Decrease free play (B) Increase free play

AIR CLEANER DRAIN TUBE CLEANING

• Refer to the safety precautions (page 57).

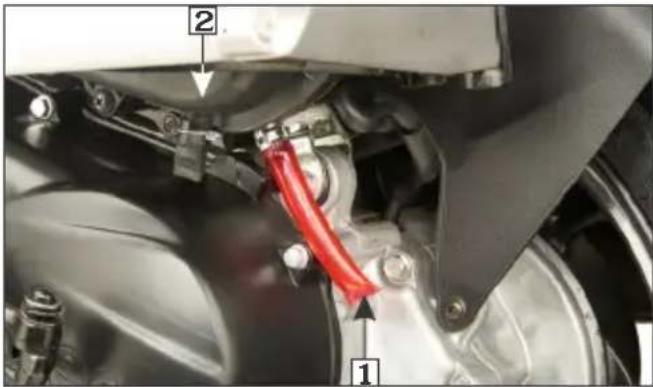

- Remove the drain tube (1) from the cleaner assembly (2) and drain deposits in to a suitable container.
- Reinstall the drain tube.

Service more frequently when riding in rain, a full throttle or after the vehicle is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

(1) Drain tube
(2) Air cleaner assembly

ENGINE OIL

Use hero genuine engine oil or recommended grade oil.

• Tide Water Oil Co. (India) Ltd.
• Savita Oil Technology Limited.
• Bharat Petroleum Corporation Limited.

Oil Capacity: 0.8 Litre

Engine oil level check

Check the engine oil level each day before riding the vehicle.

The level must be maintained between the UPPER (1) and LOWER (2) level marks on the oil level dipstick (3).

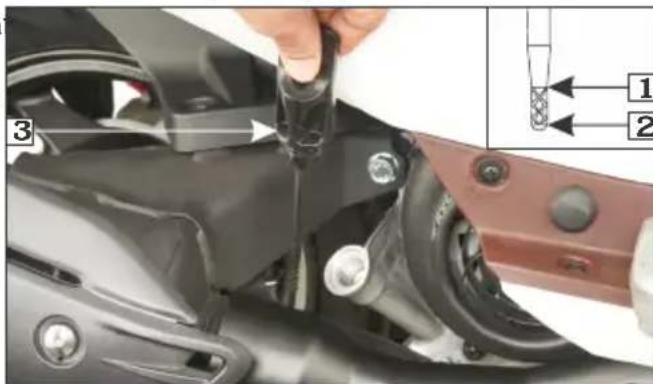

(1) UPPER level mark (3) Oil level dipstick
(2) LOWER level mark

• Park the vehicle on its main stand on a level surface.
• Switch "OFF" the i3s switch.
• Start the engine and let it idle for few minutes.
• Stop the engine and wait for few seconds.
• Remove the oil level dipstick, wipe it clean and reinsert the oil level dipstick without screwing it in.
• Remove the oil level dipstick and check if the oil level is between the upper and lower marks.
• If required, add recommended oil up to the upper level mark. Do not overfill.

- Reinstall the oil level dipstick. Check for oil leaks.

NOTE

• The engine will stall if the i3s switch is in "ON" position during warmup.
• Running the engine with insufficient oil may cause engine damage.
  • Top up if required after every 3000 km.

Engine oil replacement/

Oil strainer cleaning

Change the engine oil with the engine at normal operating temperature and the vehicle on its main stand to assure complete and rapid draining.

• Remove the oil level dipstick.
• Place an oil drain pan under the crankcase and remove the oil drain bolt (1) and sealing washer (2).

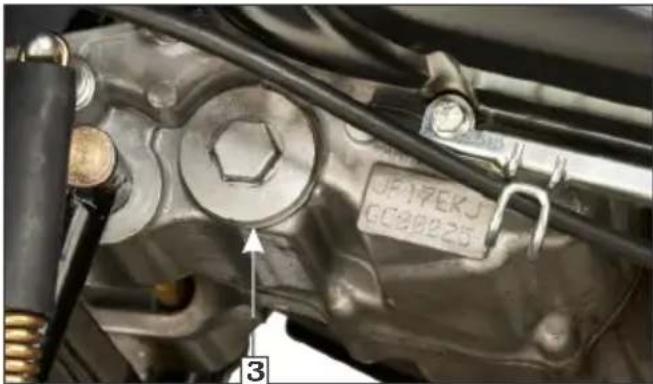

(3) Oil strainer screen cap

• The spring (4) and oil strainer screen (5) will come out when the oil strainer screen cap is removed.
• Clean the oil strainer screen.
• Check that the oil strainer screen, sealing rubber and cap O-ring (6) are in good condition.

Mechanical assembly diagram showing a car wheel and suspension components (no text or symbols visible)

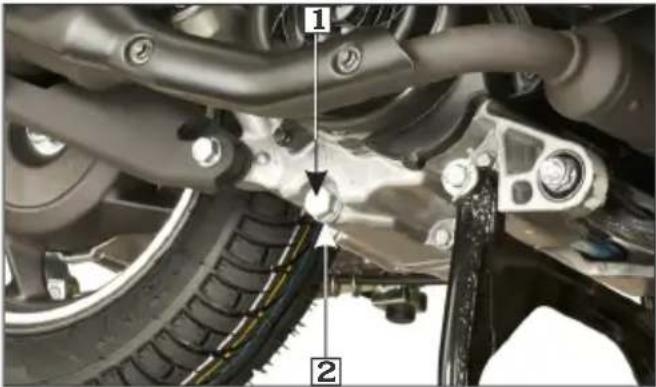

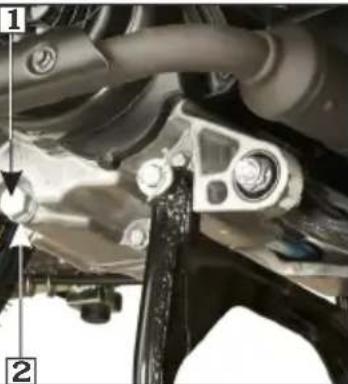

(1) Drain bolt

Close-up of mechanical components with no visible text or symbols

(2) Sealing washer

- Remove the oil strainer screen cap (3).

(4) Spring (5) Oil strainer screen (6) O-ring

• Install the oil strainer screen, spring and oil strainer screen cap. Install the drain bolt with new sealing washer.

- Fill crankcase with the recommended grade of oil:

At draining: 0.70 litre At engine disassembly: 0.80 litre

• Install the oil level dipstick.

- Switch "OFF" the i3s switch.

- Start the engine and let it idle for 2-3 minutes. Stop the engine and ensure that the oil level is at the upper level mark on the

oil level dipstick with the vehicle upright on flat level surface. Ensure there are no oil leaks.

!! CAUTION

- Engine oil quality is the chief factor affecting engine service life. Replace and top-up the engine oil as specified in the maintenance schedule (pages 58).

- When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

4!! WARNING

- Please dispose used engine oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw it in the trash or pour it on the ground or down a drain.

• Used engine oil may cause skin disease if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.

FINAL DRIVE OIL REPLACEMENT

The final drive oil should be replaced as per the maintenance schedule. Replacement requires mechanical skill. It is suggested to get it replaced by Authorised Hero MotoCorp workshop.

3 Park the vehicle on its main stand on a level surface.

Switch "OFF" the i3s switch.

- Start the engine and let it idle for 3-5 minutes.

- Stop the engine and wait for 2-3 minutes.

- Remove the oil level check bolt (1) with sealing washer (2)

- Remove the drain bolt (3) with sealing washer (4), slowly turn the rear wheel and drain the oil.

(1) Check bolt
(3) Drain bolt

(2) Sealing washer

(4) Sealing washer

• After the oil is completely drained, install the oil drain bolt with a new sealing washer.
- Fill the transmission case with recommended oil through the check bolt hole up to the bottom edge of the bolt hole.

GRADE : SAE 10W 30 SL Grade

• Install the oil level check bolt with a new sealing washer and tighten it.

WARNING

• While refilling the oil make sure that foreign material enters the final drive transmission.
  • Make sure that no oil gets on the tyre or wheel.

SPARK PLUG

Refer to the safety precautions (page 57). Recommended spark plug.

Champion-RG8YC (Federal Mogul)

• Remove the center cover (page 38).
• Disconnect the noise suppressor cap (1) from the spark plug.
• Clean any dirt around the spark plug base.

Close-up of industrial piping and mechanical components with no visible text or symbols

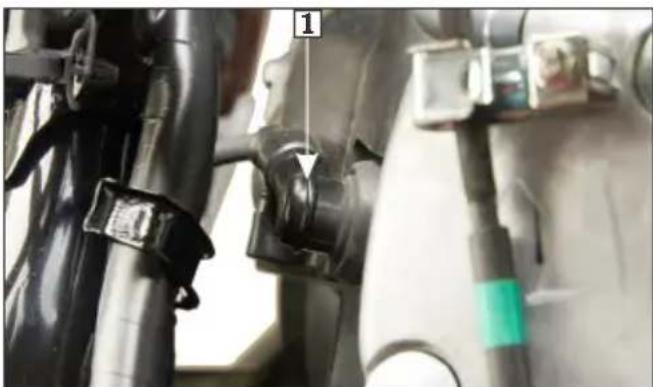

(1) Noise suppressor cap

- Remove the spark plug using the wrench plug provided in the tool kit. - Inspect the electrodes and center porcelain for deposits, erosion or carbon fouling. If the erosion or deposit is heavy, replace the plug. Clean carbon or wet fouled plug with a plug cleaner. - Check the spark plug gap using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode (2) carefully.

(2) Side electrode

• With the plug washer attached, thread the spark plug in by hand to prevent cross threading.
• Tighten a new spark plug 1/2 turn with a wrench plug to compress the washer. If you are reusing a plug, it should only take 1/8-1/4 turn after the plug seats.
• Reinstall the noise suppressor cap.

WARNING

• Never use a spark plug with an improper heat range. Severe engine damage could result.
• The spark plug must be securely tightened. An improperly tightened plug can become very hot and possibly damage the engine.

BRAKE SHOE WEAR

Refer to the safety precautions (page 57).

The front and integrated brakes are equipped with brake wear indicators.

When the brake is applied, an arrow mark (1) on the brake arm (2) moves towards a reference mark (3) on the brake panel (4).

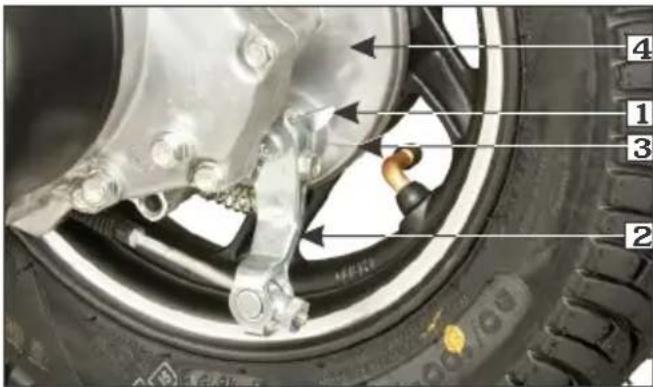

Front/Integrated brake (Drum type)

(1) Arrow
(2) Integrated brake arm
(3) Reference mark
(4) Brake panel

Rear brake

(1) Arrow
(2) Brake arm
(3) Reference mark
(4) Brake panel

If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced. Visit your Authorised Hero MotoCorp workshop for this service.

BATTERY

Battery is located behind the front center cover.

Specification

\*MF Battery 12V-4Ah/ETZ 5

It is not necessary to check the battery electrolyte level or add distilled water as the battery is of Maintenance Free (sealed) type. If your battery seems weak and/or electrolyte is leaking (causing hard starting or other electrical troubles), contact your Authorised Hero MotoCorp workshop.

*MF stands for Maintenance Free

NOTE

This symbol on the battery means that this product must not be treated as household waste.

This symbol on the battery means the old battery must be returned to your Authorised Hero MotoCorp workshop as it must be treated as recyclable material.

• Battery is a Maintenance-Free (sealed) type and can be permanently damaged if the sealing strip is removed.
  • An improperly disposed battery can be harmful to the environment and human health. Always confirm local regulations for battery disposal.

Battery charging

Always visit your Authorised Hero Moto Corp workshop if you see any symptom of battery discharge as earliest as possible to get the battery charged. The battery has a tendency to discharge rapidly if any additional electrical accessories are fitted on your vehicle

Battery storage

• If in case your vehicle is not used for more than a month remove the battery, fully charge and store in a cool and dry place.
• If the battery is expected to be stored for more then two months, ensure to fully charge the battery once in a month.

• Always ensure the battery is fully charged before installation.
- Ensure the battery leads are properly connected to the battery terminals during installation.

Battery removal

• Remove the front center cover (page 41).
• Remove the battery band (1) by removing the (2) boot band clip from both sides of the battery.

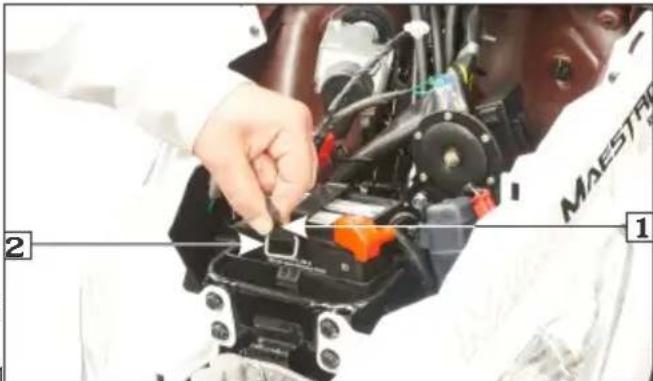

Close-up of a person in white uniform working on a mechanical device with tools, no visible text or symbols

(1) Battery band
(2) Boot band clip

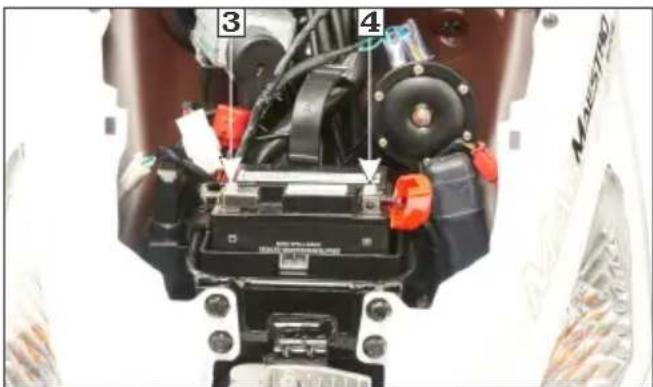

- Disconnect the (-) ve terminal lead (3) from the battery first, then disconnect the (+) ve terminal lead (4).

(3) (-)ve terminal
(4) (+)ve terminal

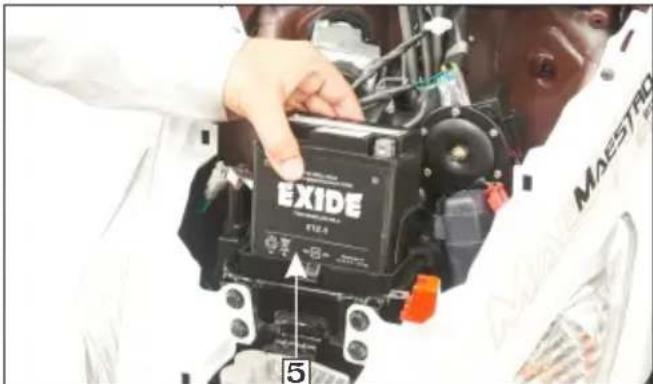

- Remove the battery (5).

(5) Battery

Battery installation

• Reinstall in the reverse order of removal. Be sure to connect the (+)ve terminal first, then the (-)ve terminal.
• Check the bolts and other fasteners are secured.

FUSE REPLACEMENT

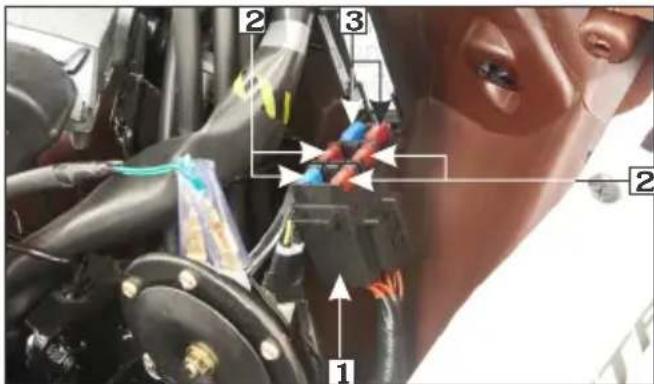

The fuse holder (1) placed adjacent to the battery which consist of main fuses and spare fuses.

Fuse type: Blade fuse

Main fuses (1) : 15A, 10A, 10A and 10ASpare fuses (2) : 15A and 10A

(1) Fuse holder
(2) Main fuse : 15A, 10A, 10A and 10A
(3) Spare fuse: 15A and 10A

GOOD FUSE BLOWN FUSE

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

WARNING

• Never use a fuse with a different rating from that specified. It may lead to serious damage to the electrical system or a fire due to short circuit.
  • Battery gives off explosive gases. Keep sparks, flames & cigarettes away.

CAUTION

• Do not attempt to start or ride the vehicle without a charged battery, it can cause fusing of the bulbs and permanent damage to certain electrical components.
• Turn the ignition switch "OFF" before checking or replacing the fuse to preve accidental short-circuiting.
• If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your vehicle. Leave the blown fuse in that circuit and have your vehicle checked by your Authorised Hero MotoCorp workshop.

SUSPENSION

Inspection

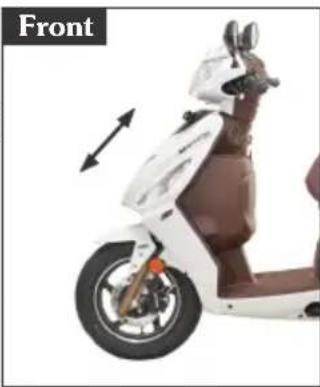

• Check the front forks by locking the front brake and pumping the front fork up and down vigorously. The suspension action should be smooth and there should be no leakage.

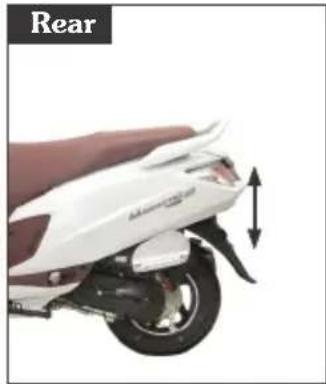

• Check the rear shock absorber by pushing hard downwards on rear grip while the vehicle is not parked on stand. The vehicle action should be smooth and there should be no oil leakage.

Side view of a white electric scooter with brown seat and wheel, showing front side view (no text or symbols)

Close-up of a white sports motorcycle rear view showing the wheel and side arm (no text or symbols visible)

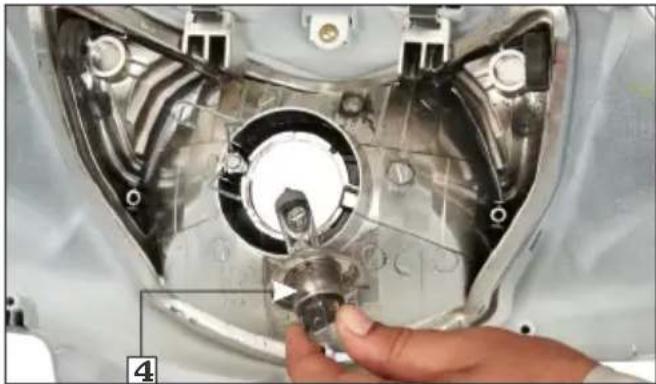

BULB/LED REPLACEMENT

Refer to the safety precautions (page 57).

The bulb becomes very hot while the lamp is "ON", and remains hot for a while after it is turned "OFF". Be sure to let it cool down before servicing.

Do not put finger prints on the headlamp bulb, as they may create hot spots on the bulb and cause it to break.

Wear clean gloves while replacing the bulb. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prevent its early failure.

• Be sure to turn the ignition switch "OFF" when replacing the bulb.
  Do not use bulbs other than that specified.
  • After installing a new bulb, check that the lamp operates properly.

(a) Headlamp

• Remove the headlamp assembly (page 44).
• Disconnect the headlamp connector (1).

Close-up of a robotic arm with exposed mechanical components and wiring (no visible text or symbols)

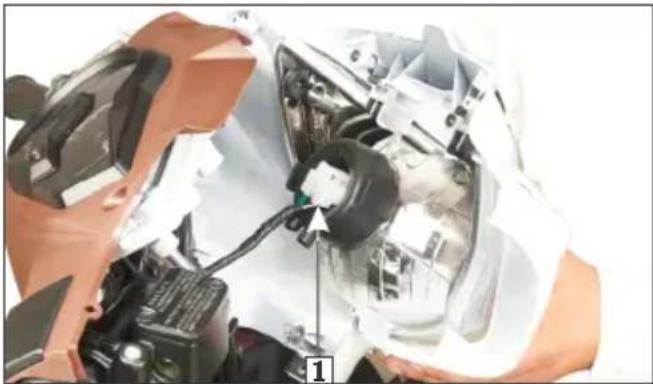

(1) Headlamp connector

• Remove the dust cover (2).
• Loosen the screw and release the clip (3) from its position.

Close-up of a mechanical component with a hand adjusting a circular component, no visible text or symbols

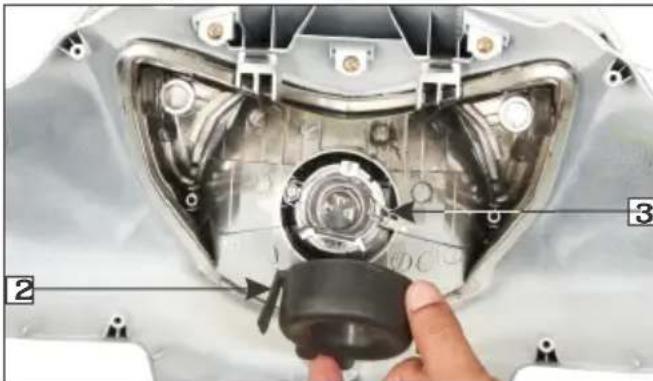

(2) Dust cover
(3) Clip

• Remove the headlamp bulb (4) without turning.
  • Install a new bulb in the reverse order of removal.
  • Install the headlamp assembly (page 44).

Close-up of a hand adjusting a mechanical component with a metallic housing and a tool inserted (no visible text or symbols)

(4) Headlamp bulb

(b) Position lamp assembly

- Remove the front center cover (page 41). - Remove the screws (1) and remove the position lamp assembly (2) from front center cover.

(1) Screws
(2) Position lamp assembly

• Install a position lamp assembly in the reverse order of removal.

(c) Front turn signal bulb

• Insert hand from body cover front side, above front fender area and remove turn signal bulb holder (1) by turning counter clockwise.
• Remove the bulb (2) by turning it to counterclockwise direction.

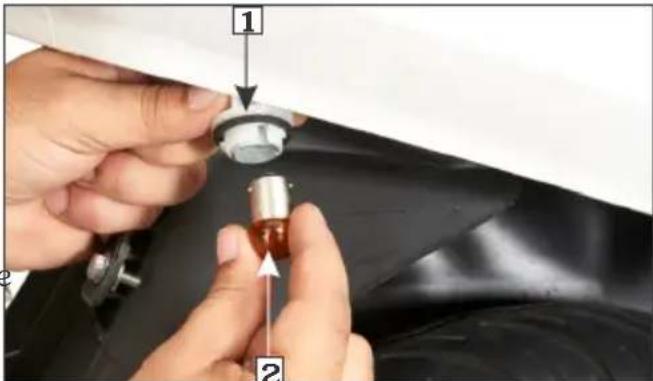

(1) Front turn signal lamp holder

(2) Front turn signal lamp bulb

• Install a new bulb in the reverse order of removal.

• Remove the body cover (page 38).
• Remove the fuel drain tube (1).
• Remove the fuel tank lid lock cable from the guide (2).

- Remove the tail/stop lamp unit from the body cover by removing the screws (3).

• Install a new tail/stop lamp unit in the reverse order of removal.

(1) Fuel drain tube
(2) Guide
(3) Screws

(e) Rear turn signal bulb

• Insert hand from body cover rear side, above rear fender area and remove turn signal bulb holder (1) by turning counter clockwise.
• Remove the rear turn signal bulb (2) by turning it to counterclockwise direction.

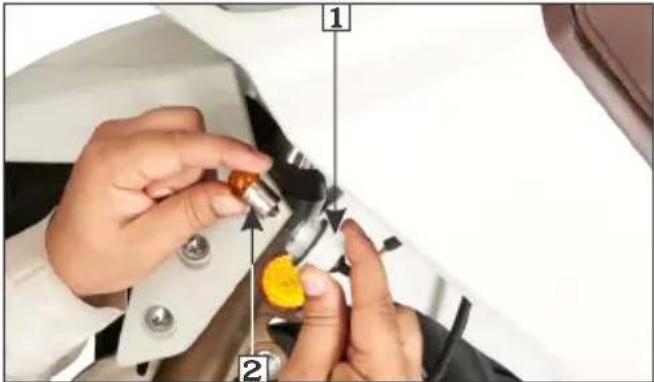

(1) Bulb holder
(2) Rear turn signal bulb

• Install a new bulb in the reverse order of removal.

(f) Licence plate lamp bulb

• Remove the body cover (page 38).
• Remove the screws (1) and the licence plate lamp cover (2).
• Remove the licence plate lamp bulb (3)

Close-up of a hand inserting a small component into a mechanical device (no visible text or symbols)

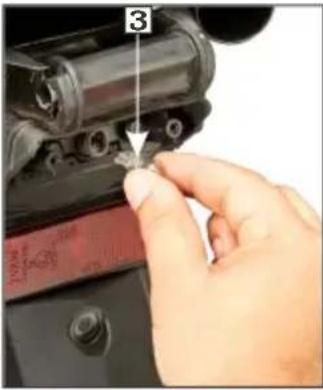

(1) Screws (2) Licence plate lamp cover (3) Licence plate lamp bulb

• Install a new bulb in the reverse order of removal.
• Install the body cover (page 38).

CATALYTIC CONVERTER

This vehicle is equipped with the catalytic converters (1) in the muffler to meet the emission norms.

The catalytic converters contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gasses without affecting the metals. The catalytic converters acts on HC, CO and NOx.

The catalytic converters must operate at a high temperature for the chemical reactions to take place. It can set on fire any combustible

material that come near it. Park your vehicle away from high grasses, dry leaves, or other flammable material.

Mechanical assembly diagram showing a car wheel, suspension components, and mechanical parts (no text or symbols visible)

(1) Catalytic converters

A defective catalytic converter contributes to air pollution and can impair your engine's performance.

Follow these guidelines to protect your vehicle's catalytic converters.

• Always use unleaded petrol. Even a small amount of leaded petrol can contaminate the catalyst metals, making the catalytic converters ineffective.

Keep the engine in good running condition. A poorly running engine can cause the catalytic converters to overheat.

- If your engine is misfiring, backfiring, stalling, or otherwise not running properly, stop riding and turn "OFF" the engine. - Have your vehicle serviced as soon as a possible.

EVAPORATIVE EMISSION CONTROL SYSTEM

This vehicle is equipped with an evaporative emission control system to meet emission standards. During warm weather, the petrol vapours which contain HC evaporates easily into the atmosphere from the fuel tank, if the fuel system is unsealed or open. The evaporative emission control system is used to prevent petrol vapours from escaping into the atmosphere from fuel tank. The canister (1) collects the fuel vapour from the fuel tank and then the fuel vapour is drawn into the engine for re-burning to avoid pollution caused by the fuel vapour diffused into the air.

Side view of a white scooter with brown seat and visible engine components (no text or symbols)

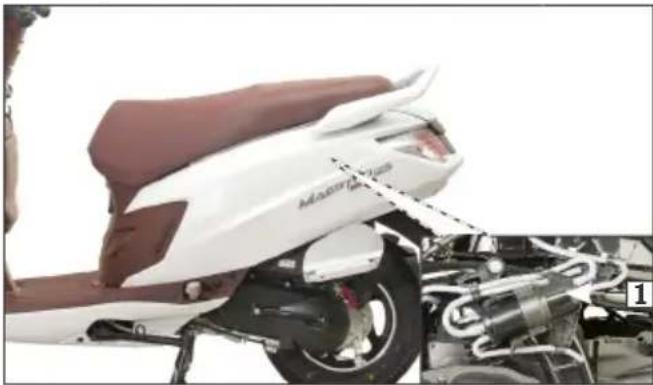

(1) Canister

POLISHING OF VEHICLE

After washing your vehicle, wax all painted surfaces (except matte painted surfaces) using a commercially available polish/quality liquid or paste wax to finish the job. Use only a non abrasive polish or wax made specifically for automobiles. Apply the polish or wax according to the instructions on the container.

NOTE

Polishing or waxing is not applicable for models having matte paint.

REMOVING ROAD SALT

The road may contain salt which was sprayed as an anti freezing agent during winter, and the seawater are the causes of rust.

Wash your vehicle when run on such conditions by the following the point mentioned below, Clean the vehicle using cold water (page 54). Do not use warm water. This worsens the effect of the salt.

STORAGE GUIDE

Extended storage, such as for winter, requires that you take certain steps to reduce the effects of deterioration from non use of the vehicle. In addition, necessary repairs should be made before storing the vehicle, otherwise these repairs may be forgotten by the time the vehicle is removed from storage.

(a) Storage

• Change the engine oil.
• Empty the fuel tank into an approved petrol container using a commercially available hand siphon or an equivalent method.
• Spray the inside of the tank with an aerosol rust inhibiting oil.
• Reinstall the fuel filler cap on the tank.

WARNING

Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks, and flame away.
  • Refuel only outdoors.
  • Wipe up spills immediately.

- To prevent rusting in the cylinder, perform the following:

(a) Remove the noise suppressor cap from the spark plug. Using tape or string secure the cap to any convenient plastic body part so that it is positioned away from the spark plug.

(b) Remove the spark plug from the engine and store it in a safe place. Do not connect the spark plug to the noise suppressor cap.

(c) Pour a tablespoon (15-20 ml) of clean engine oil into the cylinder, and cover the spark plug hole with a piece of cloth.

(d) Crank the engine several times to distribute the oil.

(e) Reinstall the spark plug and noise suppressor cap.

- Remove the battery. Store in an area protected from freezing temperatures and direct sunlight. Charge the battery once a month.

• Wash and dry the vehicle. Wax all painted surfaces. Coat chrome plated parts with rust inhibiting oil.
• Inflate the tyres to their recommended pressures. Park the vehicle on blocks to raise both tyres off the ground.
• Cover the vehicle (don't use plastic or other coated materials) and store in an unheated area, free of dampness with a minimum of daily temperature variation. Do not store the vehicle in direct sunlight.

(b) Removal from storage

- Uncover and clean the vehicle. Change the engine oil if the vehicle has been stored for more than 4 months.

- Check the battery voltage and charge the battery as required. Install the battery.

- Drain any excess aerosol rust inhibiting oil from the fuel tank. Fill the fuel tank with fresh petrol.

Perform all pre-ride inspection checks (page 45). Test ride the vehicle at low speeds in a safe riding area away from traffic.

BASIC TROUBLESHOOTING

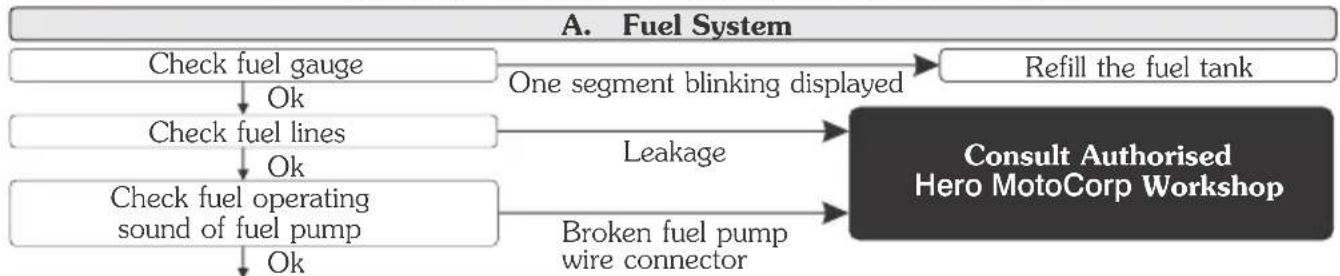

1. STARTING TROUBLE - ENGINE DOES NOT START

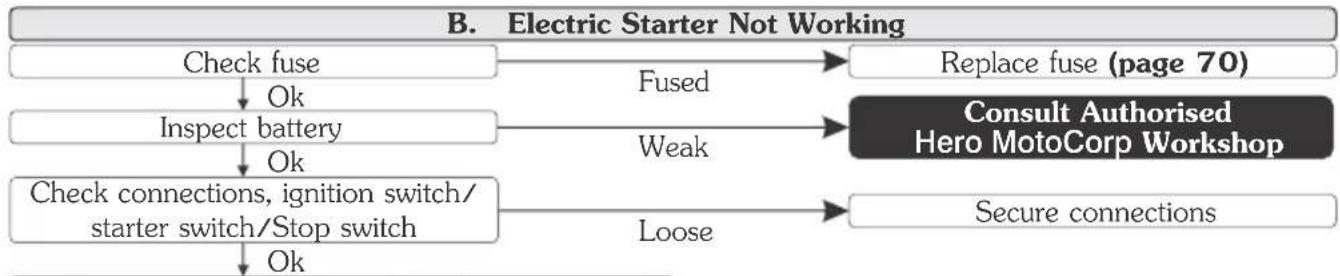

Consult Authorised Hero MotoCorp Workshop

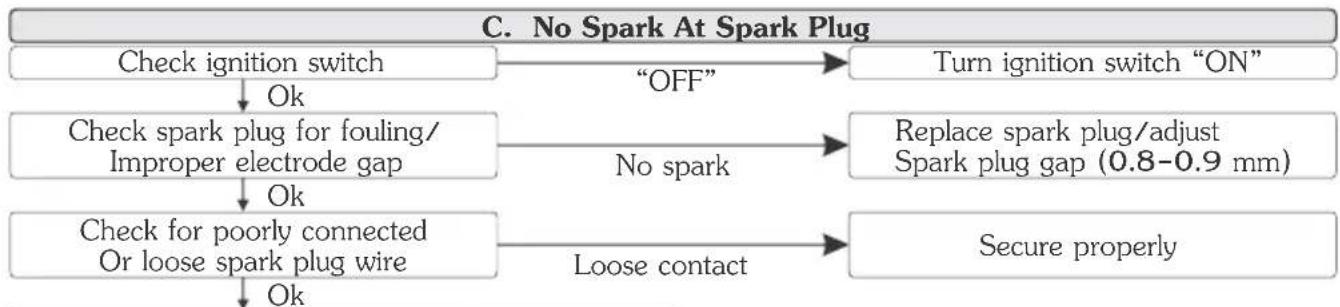

Consult Authorised Hero MotoCorp Workshop

Consult Authorised Hero MotoCorp Workshop

BASIC TROUBLESHOOTING

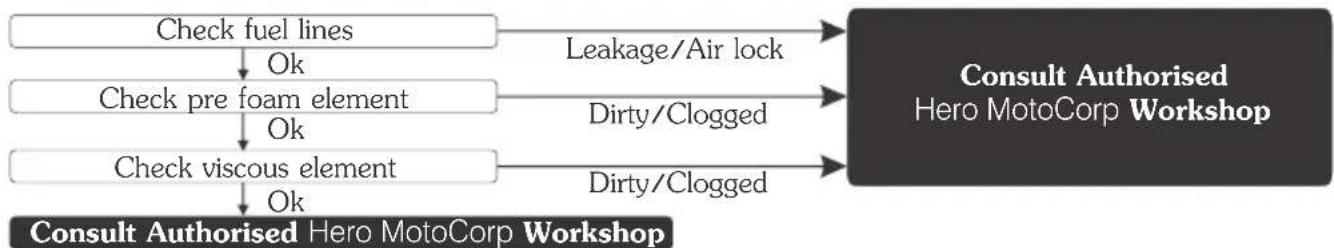

2. ENGINE STARTS BUT STALLS

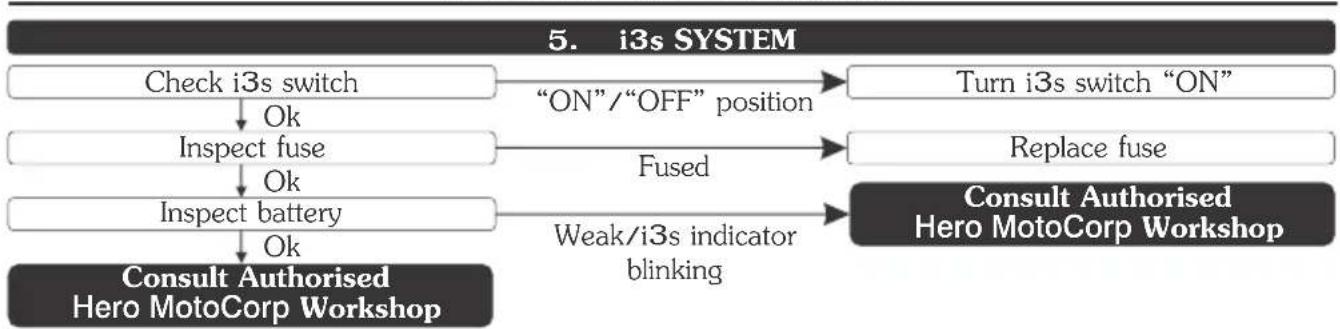

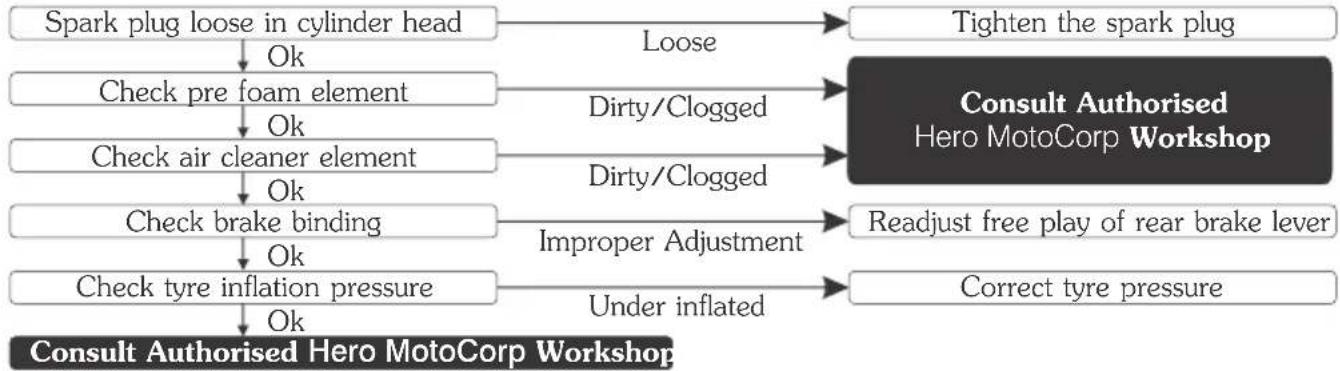

3. POOR PICK UP

    G["Tighten the spark plug"] --> H["Consult Authorised Hero MotoCorp Workshop"]

    I["Loose"] --> J["Dirty/Clogged"]
    K["Dirty/Clogged"] --> L["Improper Adjustment"]
    M["Under inflated"] --> N["Correct tyre pressure"]

    O["Readjust free play of rear brake lever"] --> P["Correct tyre pressure"]

BASIC TROUBLESHOOTING

ROAD SIGNS

Mandatory signs: These road signs inform drivers/riders of the traffic rules that apply on a certain stretch of road, thereby instructing them on how to drive/ride. Mandatory signs are distinguished by the bright red circle with black and blue markings. It is imperative that all riders follow these signs as they help avoid accidents. Their violation can be penalised under the Motor Vehicle Act.

Mandatory

Stop

Give Way One Way

The image contains no text or characters.

No Horn

No Bicycles

No Automobiles

No Hand Craft

No Pedestrians

No Right Turn

No 'U' Turn

Overtaking Prohibited

Speed Limit

No Stopping or Standing

No Parking Length Limit High Limit

imit High Limit

The image contains no text or characters.

Restriction Ends

Compulsory- Ahead Only

Compulsory-Turn Left

Compulsory-Right Ahead

Compulsory-Ahead or Turn Right

Compulsory-Keep Left

Compulsory-Bicycle Track

Compulsory-Sound Horn

ROAD SIGNS

Cautionary signs: These signs inform the driver/rider of the road conditions ahead. Cautionary signs therefore serve as a warning. They are usually in a red triangle with black pictures on a white background. Illustrations, diagrams and symbols are used to forewarn about dangers ahead. Cautionary road signs are as important as mandatory signs. However, the violation of cautionary signs does not attract penalty.

Cautionary

School Ahead
Gap in Medium
Cross Road
Men at Work
Roundabout
Hump Road

ROAD SIGNS

Informatory signs: These are facility signs that provide important information about road directions are maps of specific destinations. On highways, they provide information about the location of public telephones, restaurants, hospitals, parking, petrol pumps, resting-places and more. These signs are usually rectangular, with black or white pictures on a blue background.

Informatory

Hospital

First Aid Post

Petrol Pump

Eating Place

Resting Place

Public Telephone

Delhi

Place Identification Place

Destination Sign

Light Refreshment

Taxi Stand

Parking Both Sides

Parking This Side

No Through Road

No Through Side Road

Re-assure Sign

Signs and Signals are language of the road. Learn them, respect them.

Hero MotoCorp Ltd.

WARRANTY

Scope of warranty

Hero MotoCorp Ltd. (hereinafter called 'Hero MotoCorp') warrants its MAESTRO EDGE 125 PROGRAMMED FI vehicles, assembled/manufactured in its Plants and sold through its channel partners, to be free from any defect – both in material and workmanship, under normal use and conditions, subject to the following terms & conditions.

Terms & conditions

a) MAESTRO EDGE 125 PROGRAMMED FI vehicle is warranted for a period of 5 years or 50000 Km, whichever is earlier, from the date of purchase, emission warranty is separately covered under the head of “Emission Warranty”.

b) It is advised that the purchaser avails all free and paid services from the Hero MotoCorp's authorized workshop as per the recommended schedule, to be eligible for warranty benefits. Each paid service should be availed within 90 days from the date of previous service or as per the recommended schedule, whichever is earlier.

c) If any problem is observed in MAESTRO EDGE 125 PROGRAMMED FI vehicle, Hero MotoCorp's only obligation/liability is to repair or replace that part/those parts which is/are considered to be the cause of such , provided however that such has problem problem not resulted due to misuse/improper handling etc. of the vehicle. Any MAESTRO EDGE 125 PROGRAMMED FI vehicle needing repair should be brought along with owner's manual to Hero MotoCorp's authorized workshop for necessary inspection and carrying rectification job.

LIMITATIONS OF WARRANTY

The warranty shall not apply—

(1) If all free services/paid services/oil top-ups are not availed as per the recommended schedule at Hero MotoCorp's authorized workshop.
(2) If any other engine oil which is non compatible with product is used other than SAE 10W30 SL Grade (JASO MB).
(3) To normal wear & tear components including (but not limited to) brake shoes, clutch shoes, drive belt, bulbs, electrical wiring, filter, spark plug, fasteners, shims, washers, oil seals, gaskets, rubber parts, bush, rubber bellows, plastic parts breakage, wheel rim for misalignment/bend, steering ball race & cone, control cables such as brake cable, fuses (all types), steering handle for bend and sticker peel off.
(4) If additional wheel(s) is/are fitted and/or any other modification carried out/unauthorized accessories fitted which shall be responsible for malfunction/detoriation of the vehicle.
(5) If MAESTRO EDGE 125 PROGRAMMED FI vehicle has been used in any competitive events like races or rallies or for any commercial purposes as taxi etc.
(6) To any damage on vehicle's painted surface cropping due to industrial pollution or other external factors.
(7) For normal phenomena like noise, vibration, oil seepage etc., which do not affect the performance of the vehicle.
(8) To any damage caused due to usage of improper oil/grease, non-genuine parts.
(9) If any defect crops or repairs needed as a result of using adulterated fuel.
(10) If any maintenance/repairs required due to bad road conditions or misuse of MAESTRO EDGE 125 PROGRAMMED FI vehicle.
(11) If any defect crops or repairs needed as a result of MAESTRO EDGE 125 PROGRAMMED FI vehicle meeting to some accident.
(12) For consumables like oil, grease, gasket etc to be used during free services and/or warranty repairs.
(13) To any part of the MAESTRO EDGE 125 PROGRAMMED FI vehicle which has been tampered or repaired in such a manner which has resulted in malfunction of the vehicle.
(14) For MAESTRO EDGE 125 PROGRAMMED FI vehicle not used in accordance with the guidelines given in this Owner's Manual.
(15) To proprietary items like Tyres, Tubes, Batteries etc, as they are subjected to the warranty terms & conditions of respective manufacturers and directly handled by them only.
(16) Any defect(s) developing on account of external factors such as environmental factors; including but not limited to fading/peeling/rusting of paint and/or stripes and/or plated parts, seat leather tearing & cracking, aluminium parts oxidation and cracking & discoloring of control switches etc.

Decision regarding warranty settlement shall be taken by Hero MotoCorp and the same shall be final and binding on all concern.

Subject to DELHI JURISDICTION only.

Hero MotoCorp Ltd.

BATTERY WARRANTY PERIOD

1. 18 months from date of sale of vehicle or 20000 km. or
2. 21 months from the date of charging (whichever is earlier).
3. 3 months idle period is allowed from the date of charging to date of sale on vehicle.

Terms and condition of warranty

1. Batteries are warranted against all defects in material and workmanship. Liability under this warranty is limited to making good of defects rising solely from the use of faulty material or workmanship during manufacturing and developing under proper use.
   The warranty commences from the date of delivery to the original purchase of the vehicle.
2. In the event of any complaint the battery is to be returned complete with electrolyte to nearest battery service station or any OEM dealer. On inspection, battery would be returned or replaced.
3. This warranty card accompanies a battery sold as OEM fitment only. Claims should be supported with vehicle purchase invoice to enable processing.
4. The right to determine whether a battery needs repair or totally replacement lies with the company. In case where the battery is replaced, the defective battery becomes the property of the company and no scrap rebate will be given for it. The warranty period on the battery being repaired/replaced shall commence from the date of sale of the original battery as stated in the original warranty card.
5. All liabilities under this warranty will cease if the battery is used on the vehicle other than that on which the battery was originally fitted and on the expiry of the warranty period as mentioned above.
6. Recharging is not covered under the purview of this warranty and shall be billed as extra. However, FOC battery replacement/repair includes cost of charging.
7. This warranty does not cover damage to the battery caused by faulty electrical systems, incorrect charging and filling, improper handling of the battery by unauthorized dealers/auto electricians, maintenance, willfull abuse, destruction by fire, collusion, theft or recharging.
8. Breakage of container and cover do not come under the purview of this warranty.
9. Adjudication and settlement of claim will take a couple of days as a battery has to be tested for the reported failure.
10. In case of tempering of the original wiring circuit in any manner whatsoever.
11. If a battery which is not recommended is fitted on the vehicle then such battery will not carry any warranty.
12. The applicable taxes which is leviable on the battery under repair or replacement will be borne by the customer.
13. Customers are deemed to have read, understood and agreed to these conditions at the time of purchase of the vehicle.

Hero MotoCorp Ltd.

EMISSION WARRANTY

Scope of warranty

Hero MotoCorp Ltd. Warrants all its vehicles, assembled/manufactured at its various Plants and sold through its channel partners, to comply with emission standards as specified in sub rule (2) of Rule 115 of Central Motor Vehicles Rules, 1989, subject to following terms & conditions.

Terms & conditions

a) The emission warranty shall be applicable in India and shall remain valid for a period of 3 years or 30000 km, whichever occurs earlier, from the date of vehicle purchase.
b) In case any defect is observed in any emission-related component which are covered under emission warranty, Hero MotoCorp only obligation/liability shall be to repair and/or replace those part (s) which is/are considered to be the cause of non-compliance with the emission standards.
c) The method (s) of examination to determine the warranty conditions of the emission warranty related component will be at the sole discretion of Hero MotoCorp Ltd. and / or Channel Partners / service center and result of such examination shall be final and binding. If on examination the warranty conditions of the part (s) is / are not established, Hero MotoCorp Ltd. will have the right to charge all, or part of the cost of such examination / service charges to the customer in addition to the cost of the components.
d) Hero MotoCorp Ltd. shall have the sole discretion to decide to replace the defective components or the entire assembly or any other part required for such repair.
e) The emission warranty shall be applicable only to those vehicles, which are being regularly maintained in accordance with the maintenance schedule provided in the owner's manual.
f) The customer should follow the recommended parts replacement as per the maintenance schedule in order to avail the emission warranty.
g) If any part (s) related to emission characteristics of the vehicles is/are tampered and/or repaired by unauthorized person/workshops etc, then the emission warranty shall stand cancelled.
h) Any part (s) suffering wear and tear under the normal course of running shall not be covered under the emission warranty. Therefore, all such parts should be replaced by the customer from time to time, on payment basis, as per the maintenance schedule provided in owner's manual and dealer's advice
i) It is recommended to avail the services as per the recommended schedule to be eligible for the emission warranty benefits. Please ensure that each paid service is availed within 90 days from the date of previous services or as per the recommended schedule, whichever is earlier. All service details should be completely filled by the dealer, in the Service Record Sheet given in the owner's manual.

Hero MotoCorp Ltd.

EMISSION WARRANTY

j) It is mandatory to obtain a PUC certificate from the Authorised PUC center. In case of non-compliance with the emission standards please contact the channel partner/authorised workshop immediately along with the previous OK certificate, for the necessary rectification. The manufacturer or the dealer is not responsible for any penalty levied on you on account of non-compliance with the emission standards.

k) The parts, which are covered under emission warranty are fuel injector, fuel pump, throttle body, ignition coil, oxygen sensor and muffler.

1) Emission warranty shall not be applicable if

- The vehicle has been subjected to abnormal use, abuse, neglect and improper maintenance or has met with an accident.

- The vehicle, or parts thereof, has been altered, tampered with or modified or replaced in an unauthorized manner.

- The odometer is not functioning or the odometer and/or its reading has been changed/tampered with, so that the actual distance covered cannot be readily determined.

- The vehicle has been used for competitions, races, and rallies or for the purpose of establishing records.

m) All decisions regarding emission warranty settlement shall be taken by Hero MotoCorp Ltd. and shall be final binding on all concerned.

Subject to Delhi jurisdiction only.

Hero

GENUINE PARTS

WHAT ARE THE BENEFITS OF Hero MotoCorp GENUINE SPARE PARTS ?

• Assures long life
- Ensures economy for a long time
• Safety of vehicle and rider
- Peace of mind
- Value for money
• Assured quality

CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS

Cam Chain Kit	·Poor performance ·Reduced life ·Material used is inferior ·Damages other parts of clutch like, clutch center and outer clutch
Gasket Cylinder Head	·Improper sealing ·Engine knocking ·Leads to leakage and smoky exhaust ·Higher emission level
Element Air Cleaner	·Improper air filtration resulting in premature engine failure ·Affects fuel efficiency ·Poor engine performance
Spark Plug	·Frequent stalling of engine ·Higher emission level ·Poor engine performance ·Affects fuel efficiency
Brake Pads/Shoes	·Poor braking efficiency ·Rider safety-an issue ·Discs/Drum wear out, resulting in subsequent repair cost

ZONAL/REGIONAL/AREA OFFICES

For any of your service related query/requirements you may contact the respective Zonal/Regional/Area Offices

CENTRAL ZONE

Hero MotoCorp Ltd., No. 209-210, Ganpati Plaza, M.I. Road, Jaipur-302001, (Rajasthan). Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Office No. 705-706, 7th Floor, Fun Square, Durga Nursery Road, Udaipur -313001 (Rajasthan). Tel: [phone], 79, E-mail: [e-mail]

Hero MotoCorp Ltd., Office. No. 401, 4th Floor, Offizo, Magneto Mall, Labhandi, G.E. Road, Raipur -492001, (Chhattisgarh) Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Third Floor, Alankar Palace, Plot No. 11, Zone II, M.P. Nagar Bhopal-462011, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Maloo-01, 601-602, 6th Floor, Plot No. 26C, Scheme No. 94, Ring Road, Indore, M.P.-452010, Tel: [phone], 70, E-mail: [e-mail]

EAST ZONE

Hero MotoCorp Ltd., Flat No: 1002. 10th Floor, Martin Burn Business Park, BP3, Salt Lake, Sector-V, Kolkata-700091, West Bengal, India. Tel : [phone], E-mail : [e-mail]

Hero MotoCorp Ltd, Odysa Business Centre, Plot no. 30, 30/982, 172/1030, 4th Floor Cuttack, Bhubaneshwar highway road, Rasulgarh, Bhubaneswar-751010, Odisha, India. Tel: [phone], 62, 63, 64, E-mail: bhubaneshwar@herom

Hero MotoCorp Ltd., Yash Heights, 1st Floor Bariatu Road, Above Basudeb Tata Showroom Ranchi-834009, Jharkhand, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Sai Corporate Park, A Block, 6th Floor, Rukanpura, Bailey Road Patna, Bihar – 800014 Tel: [phone] E-mail: [e-mail]

NORTH ZONE

Hero MotoCorp Ltd., 3rd Floor, Tower-A, DLF Centre Court, Sector-42, Golf Course Road, DLF Phase 5, Gurgaon -122002, Haryana, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 602, 6th Floor, Office Tower-1, Plot No BW58, Logix City Center, Sector-32, Noida - 201301. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., S.C.O-367-368, First Floor, Sector-34A, Chandigarh-160022, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Kapoor Towers, Plot No-284, 15-B, Rajpur Road, Dehradun-248001, India. Tel:[phone], E-mail: [e-mail]

otocorp.cc

ZONAL/REGIONAL/AREA OFFICES

NORTH ZONE

Hero MotoCorp Ltd., Summit Building (10th Floor) Plot No TCG 3/3 Vibhuti Khand, Gomti Nagar Lucknow - 226010, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., C-19/134-B ,Third Floor I .P Grand, Lallapura, Sigra, Varanasi, Uttar Pradesh - 221010, India. Tel: +91- , E-mail: [e-mail]0542- 2390949,2390241

SOUTH ZONE

Hero MotoCorp Ltd., SKAV 909, 3rd Floor, 9/1, Lavelle Road, Bangalore-560001, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 3-6-289, 3rd Floor, Kareem Manzil, Hyderguda, Hyderabad-500029, India. Tel:[phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 9th Floor Seshachalam Centre No.636/1. Anna Salai, Nandanam, Chennai-600035, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 6-A, DD Trade Tower, (6th Floor), Kaloor-Kadavanthra Road, Kaloor-682 017, Kochi-682017, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., No 1547, 2nd Floor Classic Towers, Trichy Road, Coimbatore - 641018 Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., First Floor VA Kalburgi Mahalakshmi Mansion, Mandakini Hospital Road, New Cotton Market, Hubli-580029, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., D.NO. 54-11-18 E, 2nd Floor, Sai Oddessey Building, Opp Executive Club, Near NH-5, Vijayawada-520008, Andhra Pradesh, India. Tel: [phone], E-mail: [e-mail]

WEST ZONE

Hero MotoCorp Ltd., Chrome Building, Sr. No. 33, Hissa-A-1/1/2, Plot - 2, Viman Nagar Avenue 2, Nagar Road, Pune-411014, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 603-604, Gunjan Tower, Off Alembic Gorwa Road, Baroda-390023, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Ground Floor, Block No.2, Vishnu Vaibhav Complex, 222, Palm Road, Civil Lines, Nagpur-440001 India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., Astarc House-Third Floor, 76/79, Makwana Lane, Off. Andheri-Kurla Road, Andheri (East), Mumbai-400059, India. Tel: [phone], E-mail: [e-mail]

Hero MotoCorp Ltd., 604, Kings Plaza, Astron Chowk, Rajkot, Gujarat - 360001 Tel: [phone], E-mail: [e-mail]
