| Product Type | Deep Fryer |
| Brand | Tefal |
| Model | Oleoclean FA700430 |
| Oil Capacity | 1 L to 2 L |
| Solid Fat Capacity | 890 g (minimum) to 1785 g (maximum) |
| Bowl Material | Non-stick removable bowl |
| Filtration System | Automatic drainage and filtration via OIL BOX |
| Anti-odour Filter | Carbon filter, replaceable after 80 uses |
| Viewing Window | Yes, with condensation possible |
| Thermostat | Adjustable temperature with indicator light |
| Timer | Electronic timer (battery-powered, type VINNIC L1131 DI) |
| Basket | Removable with release button and locking handle |
| Safety Features | Automatic drain only when cool, lid safety, earthed plug |
| Dishwasher Safe Parts | Basket, lid (with filter), bowl, drain valve, filter grid, housing (without control panel), oil container |
| Cleaning | Dishwasher safe; window clean with sponge |
| Power Supply | Earthed connection, voltage as per rating plate |
| Included Accessories | Oil/fat container (OIL BOX), lid, basket, control panel, cord |
| Warranty | Guarantee applicable for domestic use; repairs by approved service centre |
Frequently Asked Questions - Oleoclean FA700430 TEFAL
User questions about Oleoclean FA700430 TEFAL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Deep fryer in PDF format for free! Find your manual Oleoclean FA700430 - TEFAL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Oleoclean FA700430 by TEFAL.
USER MANUAL Oleoclean FA700430 TEFAL
User Instructions
Руководство для
пользователя
Návod na použitie
Návod k obsluze
Instrukcja obsługi
Használati útmutató
Uputsvo
Navodila za uporabo
User Instructions
Руководство для
пользователя
Návod na použitie
Návod k obsluze
Instrukcja obsługi
Használati útmutató
Uputsvo
Navodila za uporabo
User Instructions
Руководство для
пользователя
Návod na použitie
Návod k obsluze
Instrukcja obsługi
Használati útmutató
Uputsvo
Navodila za uporabo
User Instructions
Руководство для
пользователя
Návod na použitie
Návod k obsluze
Instrukcja obsługi
Használati útmutató
Uputsvo
Navodila za uporabo
Protection of the environment
- Your appliance is intended to work for a long time. However, the day when you decide to replace your appliance, don't forget to think about how you can help to protect the environment.
- Dispose of it at your local waste disposal centre.
Read the directions for use and carefully follow instructions.
Safety instructions
- This appliance complies with safety rules and conditions in force together with Directives :
- 89/336/EEC amended by 93/68/EEC.
- 72/23/ CEE amended by 93/68/EEC.
- Check that the mains voltage corresponds correctly to that shown on the appliance (alternating current).
- Bearing in mind the diversity of standards in existence, if the appliance is used in a different country from that in which it was purchased, have it checked by an approved service centre.
- Use a stable flat work surface away from water splashes.
- Never leave the appliance running without supervision. Do not leave it within the reach of children.
- Do not leave the cord hanging down.
• Always plug the appliance into an earthed connection.
- Do not unplug the appliance by pulling on the cord.
- Do not use the appliance if :
- the appliance or its cord is faulty,
- the appliance has fallen and shows visible damage or signs of faulty operation. In this case, the appliance must be sent to an approved Service Centre.
- This appliance operates at high temperatures which can cause burns. Despite the good heat protection, do not touch the appliance's hot surfaces (filter, viewing window, etc.).
- If the power supply cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to avoid any danger.
• Always unplug the appliance :
- as soon as you have finished using it,
- if you want to move it,
- each time you want to service or clean it.
- Never immerse the appliance in water!
- Do not move the appliance while it contains liquids or hot foods.
- Never try to take the bowl out while the fryer is in operation.
- This product is designed for domestic use only. Any inappropriate use, commercial use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
ENGLISH
Description
1 Lid
2 Viewing window
3a Anti-odour carbon filter
3bFilter handling tabs
4 Basket
5 Basket release button
6 Handle for raising and lowering basket
7 Non-stick removable bowl
8 Bowl fill level marks (1L/2L)
9aFilter grid
9bAutomatic drain valve
10Housing
11 Cord holder
12Lid opening buttons
13Carrying handles when cold
14Container fill tube
15Container lid cap (for emptying)
16“OIL BOX” oil/fat container
17Drain button
18Plug with cord
19Control panel
20Temperature light
21Thermostat
WORLDWIDE EXCLUSIVITY
Filtration, drainage and automatic storage of oil/fat
Oléoclean is fitted with an exclusive and patented system for filtration and automatic drainage, suitable for most types of oils and fats used for cooking.
Thanks to the OIL BOX container, you can store your oil or fat and keep it until you next want to use it.
- The drainage of oil is completely automatic and does not need any special handling, which makes it totally safe.
- Thanks to the automatic filtration system, your oil/fat stays clean and lasts longer for healthier frying.
- Separate OIL BOX containers can be used to store oil/fat used for frying different types of food (chips, fish, doughnuts, etc.) to avoid any transfer of flavours.
Dismantling the fryer
Open the lid by pressing on one of the two buttons and pull it away from the fryer - Fig. 1
Remove the oil/fat container - Fig. 2 Lift the basket handle until you hear a "click" as it locks - Fig. 3
Remove the basket.
After pulling the cord towards the front, remove the control panel - Fig. 4
Take out the bowl from the housing.

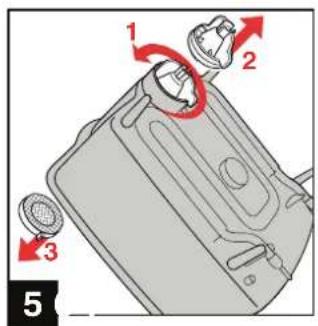

Unscrew (1) the drain valve located on the bottom of the bowl.
Remove the drain valve (2) and filter grid (3) - Fig. 5
Preparation for use
Cleaning the fryer
Remove the protective film from the underside of the viewing window (depending on model).
Clean all parts (except the control panel) with a sponge and washing-up liquid or put them through the dishwasher - Fig. 6 Dry them off.
For good visibility through the window, see chapter Cleaning.
Never immerse the control panel and cord in water.
Ensure that the anti-odour filter is dry before frying.
Reassembling the fryer
Important : while replacing the automatic drain valve ensure that the seal is placed correctly under the 3 lugs designed for this purpose.
Place the filter grid in the bowl (domed side facing you) - Fig. 7

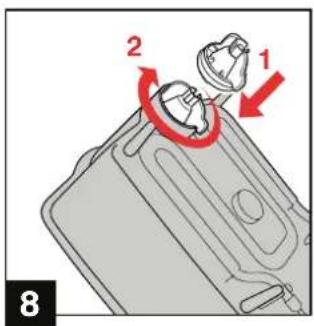

Turn the bowl over holding the filter grid. Place (1) the automatic drain valve flat on position O.
Turn (2) to position I - Fig. 8
Replace the bowl then the control panel.
Position the cord to the right side in the cord channel.

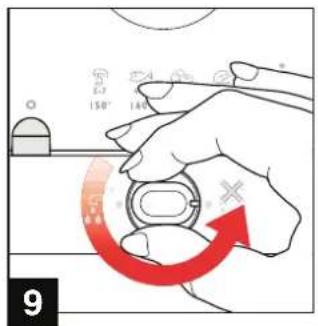

Turn the oil/fat container's drain button anti-clockwise to the closed position ✗ - Fig. 9 and slide the empty container in the fryer.
Follow the diagram shown on the underside of the bowl.
Do not misalign the position of the drain button.
Do not force the drain button.
Oil to use
Use an oil recommended for deep frying. For best results we recommend blended vegetable oil. For sunflower oil, groundnut oil, or soya oil, ensure the oil is changed after every 5 uses.
If you are using a solid vegetable fat: Cut it into pieces and put it at the bottom of the bowl (without the basket).
Place the thermostat on the position 150°C for melting it then follow the manufacturer's recommendations for cooking.
Lard or dripping should not be used under any circumstances and may cause overflowing, smoking or risk of fire. For traditional UK style deep fried foods, especially chips, we do not recommend using olive oil.
Do not mix different types of fat/oil.
You have the possibility of frying your food with 1 litre of fat/oil or 2 litres of fat/oil depending on type of food (see cooking table).
Filling the bowl
Fill the bowl (fitted with its automatic valve) with fat/oil.
Do not exceed the quantity corresponding to the marks for 2 L inside the removable bowl which correspond to 2 litres.
The marks for 1 L in the removable bowl correspond to a volume of 1 litre.

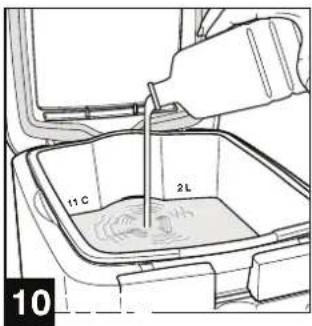

The bowl is also marked in UK cups 5 cps and 11 cps - Fig. 10
| Cooking method | Volume of oil | Solid fat |
| Deep frying | 2 L | 1785 g |
| Minimum deep-frying | 1 L | 890 g |
Adjust the level of oil according to the amount of food being cooked ensuring that you stay within the Minimum and Maximum levels. Check each time before cooking and correct if necessary using the same type of fat/oil.
Frying
Preheating
Check the fryer has oil/fat inside before switching on.
Close the lid - Fig. 11ug in.
Set the thermostat to the position corresponding to the food you are frying (see cooking tables p. 20).
The fryer is heating and the temperature light is on.
Never plug in the deep fryer
without oil/fat inside.
Never exceed the maximum
quantity of food for safety.
Removing the basket
Lift the basket handle until you hear the "click" as it locks - Fig. 12
Fill the basket with food.
Reduce the quantities for frozen foods.

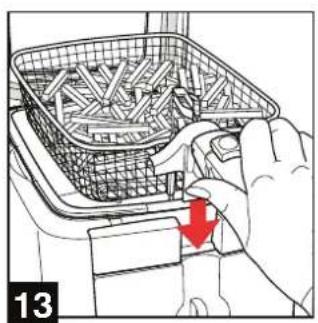

Put the basket in place on the edge of the bowl and leave the handle in the horizontal position - Fig. 13 lose the lid.
| Frying (2 L) Fresh Frozen | chips chips |
| Maximum capacity 1000 g | 750 g |
| Quantity recommended for best results | 550 g 400 g |
Cut foods to the same size so that cook evenly. Avoid using pieces that oo thick.
Shake frozen foods in the basket to detach pieces of ice away from the deep fryer.
Lowering the basket
When the oil has reached the right temperature, the light goes out.

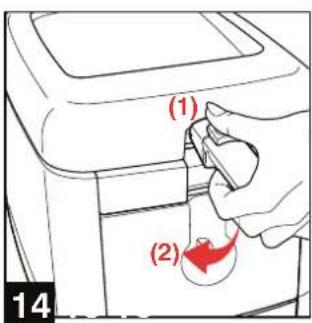

Press on the basket release button (1).
Slowly fold back the handle fully into its slot (2), gently lowering the food into the hot oil - Fig. 14
Do not push on the raising/lowering handle. Always press first on the handle's locking button.
Do not leave the fryer unattended.
Set the cooking time (depending on model)
Press on the timer button to set the time minute by minute - Fig. 15
Release. The selected time (in minutes) is displayed and the countdown starts.
In case of mistake or to delete the selected time, hold the button down for 2 seconds.
To stop the ringing signal, press on the button.
Place the deep fryer:
- on a steady level surface,
- where the lid can open fully and away from overhead cupboards,
- away from water splashes or heat sources,
- out of the reach of children.
Setting the timer is only possible when the temperature of the oil is reached.
Cooking
Watch while cooking
During cooking, it is normal for the temperature light to go on and off.
It is normal for viewing condensation to obscure the window at the start of cooking.
Taking food out
Lift the handle horizontally to raise the basket until you hear a “click” as it locks
- Fig. 3
Open the lid.
Take out the basket making sure that the rod is completely out of the bowl - Fig. 16 Serve.
Do not touch:
- the viewing window, the glass may be hot.
- the steam vented at the back of the fryer, will be hot.
The buzzer can be cancelled by pressing on the timer touchpad.
For a second frying
Correct the level of oil if necessary, with the same type of oil.
Wait until the temperature light goes out before lowering the second batch of food.
To reduce the circulation of smells: don't leave the lid open for too long.
Stopping the appliance
Once frying is completed, place the thermostat/control button on to position O - Fig. 17
For crispier chips, open the lid immediately after draining.
Season food with salt and pepper once out of the fryer to avoid getting into the oil/fat.
Unplug the appliance.
Let the fryer cool down (1 to 2 hours).
Roll the cord behind the fryer.
To move the fryer, use the carrying handles - Fig. 18
For filtering and draining the fat, see chapter Maintenance.
Never move the fryer with hot oil or fat inside.
Maintenance
Draining the oil
Once frying is finished, turn the drain button clockwise to the open position
- Fig. 19
For your safety, the appliance drains automatically when the fat is cool enough (draining process begins after about 2 hours and may take a further 2 hours to complete).
Make sure that the oil container is empty before draining the bowl.
Storing the container of oil In the appliance
The appliance must be carried and transported flat, in a cool dry place away from light.- Place the drain button in the closed position -Fig. 9
Outside of the appliance
Before taking the container out, make sure that the drain button is in the closed position.
Wait at least 2 hours before taking the full container out of the appliance.
Take out the container - Fig. 20
Carry the container with both hands.
Store it in a cool dry place away from light. It is not necessary to store oil in a refrigerator - Fig. 21
Always keep the container in a horizontal position with the lid on top.
You can store your different types of oils/fats in several separate containers which are sold as accessories. Diagrams shown on the container lid help to identify the type of oil contained inside.
Reusing the fat/oil
Hold the container carefully.
For oil:
Remove the cap located on the container lid. Empty the oil in the bowl - Fig. 22
For solid fat:
Remove the lid from the container.
Turn the container over and press on it so as to loosen the fat - Fig. 23
Empty the fat from the container's fill tube.
Cut the fat into pieces then tip them into the bowl, without the basket - Fig. 24
Change the fat/oil every 8 to
12 uses. A “clean” fat preserves the taste quality and lightness of foods as well as limiting smells.
Diagrams on the container's lid show you the different handling operations.
Replacing the container
Refit the lid on the container and close the cap.
Place the drain button in the closed position ✗Fig. 9
Insert the container into the appliance
- Fig. 25
Changing the carbon filter
Open the fryer's lid.
Take out the filter using the holding tabs
- Fig. 26
Replace the new filter in the lid.
For the filter to work properly, change it after every 80 times you fry.
If the filter falls into the hot fat, you have to change the fat and the filter.
Cleaning
Oléoclean is very easy to clean thanks to its exclusive system - Fig. 6
TOTAL MAGICLEAN
You can put the following into the DISHWASHER:
- basket,
- lid (with FILTER),
- bowl,
- automatic drain valve and filter grid,
- housing, after removing the control panel,
- oil/fat container.
Press the red part of the drain button to empty it.
Press the red part of the drain button to empty it.
Take care the dishwasher rotating blades do not damage any of the fryer parts.
Cleaning the window
For good visibility, put the lid through the dishwasher or clean it with a sponge dipped in washing-up liquid - Fig. 27
Leave the window to dry in the surrounding air or wipe it with a clean cotton cloth. Replace the lid.
Clean the window each time the fryer has been used.
Position the lid at 45° in the dishwasher, with the window upwards.
Cleaning the removable bowl
The browning and scratches which may appear after long use are normal.
We guarantee that the non-stick coating complies with regulations concerning materials in contact with foodstuffs.
You can clean your bowl in the dishwasher. Be careful not to damage the coating with the racks in the dishwasher. Avoid distorting your bowl (particularly the outsides) through knocks or a fall.
To retain the non-stick qualities for as long as possible, do not use metal tools.
If however your bowl becomes misshapen, obtain a replacement from your approved Service Centre.
For more thorough cleaning
Cleaning the oil/fat container
Clean the oil/fat container with water to which you have added some washing-up liquid or put it through the dishwasher, removing the lid. Dry it off.
Cleaning the drain valve
Completely immerse the valve in a container of hot water to which you have added some washing-up liquid, pressing on the red part - Fig. 28
Leave to soak for a few minutes.
Press again on the red part to rinse and empty the drain valve.
We recommend that you change the drain button and its seal and/or filter grid if they are damaged.
Cleaning the container's fill tube
To empty solid fat from the fill tube:
Remove the container from the fryer and empty it - Fig. 20
Place the drain button in the open position -Fig. 19
Position the container upright, with the fill tube facing you.
Remove the black cap - Fig. 29
Empty the solidified fat from the tube - Fig. 30
Replace the black cap (according to diagram) - Fig. 31
Replace the drain cap in closed position - Fig. 9
Cooking times
The cooking times and the quantities of fat are only a guide, they may vary depending on quantities and personal taste. For thicker foods (marked with an asterisk) and when cooking with 1 litre of oil, turn the food halfway through frying to ensure even cooking on both sides.
Foods recommended for frying in 1 litre of oil can be cooked in 2 litres of oil if preferred, using the same cooking temperature and time.
Cooks tip : when cooking battered foods or doughnuts, remove the wire basket to prevent food sticking to it. Take great care when handling the food and use tongs. Gradually place the food in the hot oil, submerging it an inch at a time to prevent it from sinking straight away.
Cooking time for fresh foods
| Fresh foods Quantity Tempe- Quantity | Time of oil rature | ||||
| Chips | Maximum quantity | 2 L | 190°C | 1000 g | 14-16 min. |
| Chips | Quantity recommended for best results | 2 L | 190°C | 550 g | 7-9 min. |
| Battered cod fillet 2 L 160°C 2 pieces 6-8 min. | |||||
| Breaded camembert wedges 2 L 190°C 6 pieces 2-4 min. | |||||
| Breaded chicken strips (chicken goujons) | 2 L | 180°C | 8 pieces | 5-6 min. | |
| Breaded plaice fillet | 1 L | 160°C | 1-2 pieces | 5-7 min. | |
| Chicken Kiev | 2 L | 180°C | 2 pieces | 12-14 min. | |
| Fried chicken (leg portion) | 2 L 180°C 2 pieces | 15-20 min. | |||
| Fried whole mushrooms | 2 L | 150°C | 200 g | 4-6 min. | |
| Fried onion rings | 1 L | 160°C | 6-8 pieces | 2-3 min. | |
| Potato chicken croquettes | 2 L | 190°C | 8-10 pieces | 8-9 min. | |
| Ring doughnuts | 2 L 170°C 4 pieces 5-7 min. | ||||
| Scotch eggs | 2 L 170°C 2 pieces 6-8 min. | ||||
| Apple fritters | 2 L 170°C 4 pieces 4-6 min. | ||||
Cooking time for frozen foods
| Frozen foods | Quantity of oil | Tempe-rature | Quantity | Time |
| Chips Maximum quantity | 2 L | 190°C | 750 g | 11-13 min. |
| Chips Quantity recommended for best results | 2 L | 190°C | 400 g | 6-8 min. |
| American style thin cut chips | 2 L | 190°C | 500 g | 9-11 min. |
| Alphabites | 1 L | 190°C | 16 pieces | 3-4 min. |
| Battered cod fillets (large size) | 2 L | 190°C | 2 pieces | 11-13 min. |
| Breaded cod steaks | 2 L | 190°C | 2-3 pieces | 6-8 min. |
| Breaded fish nuggets | 2 L | 190°C | 8 pieces | 4-5 min. |
| Breaded mushrooms | 2 L | 190°C | 16 pieces | 4-5 min. |
| Breaded or battered onion rings | 1 L | 190°C | 9-10 pieces | 4-5 min. |
| Breaded whole plaice | 1 L | 190°C | 1-2 pieces | 7-9 min. |
| Breaded scampi | 2 L | 190°C | 16 pieces | 4-5 min. |
| Chicken nuggets | 1 L | 190°C | 16 pieces | 4-5 min. |
| Fish fingers | 1 L | 190°C | 8 pieces | 4-6 min. |
| Potato croquettes | 2 L | 190°C | 8-10 pieces | 5-6 min. |
If your fryer is not working correctly
| Problems and possible causes | Solutions |
| The fryer is not working-The appliance is not plugged in.-The thermostat button is in the off position (0).-The control panel is wrongly inserted.-The fryer was switched on without any oil or fat in the bowl. | -Plug-in the appliance.-Place the thermostat button onto the temperature you want, check that the temperature light comes on.-Push the control panel firmly in.-Contact our helpline. |
| Emits unpleasant smells-The anti-odour filter is saturated or damaged.-The fat/oil has deteriorated.-The fat/oil is unsuitable. | -Clean the filter, without the lid, or replace it (see p. 4).-Renew the frying oil (8 to 12 max.), more frequently depending on the oil.-Use a good quality blended vegetable oil. |
| Steam is coming out around the lid-The lid is not properly closed.-The seal is faulty.-The food has a high water content. | -Make sure that the lid is properly locked/closed.-Contact our helpline.-A lot of steam is normal with maximum quantities of some foods e.g. chips. |
| The frying oil is overflowing-The maximum fill mark for the bowl has been exceeded.-The basket is too full or misshapen.-Mixture of different oils and fats.-Not changing the oil often enough.-Oil bubbling up too much.-Using the wrong oil. | -Check the oil level (maxi) and take out any surplus.-Check that the basket is not too full.-Change your basket.-Empty and clean the bowl. Refill the bowl with only one type of fat/oil. Change oil every 8 to 12 uses, more frequently depending on the oil.-Shake off loose ice and dry foods well. Lower the basket very gently.-Only use vegetable oil/fats. |
| Foods are not browning and stay soft-They are too thick and contain too much water.-Too much food being cooked at the same time and the cooking oil is not at the right temperature.-The temperature of the frying oil may not be high enough: the thermostat is set incorrectly. | -Experiment by lengthening the cooking time or cut foods thinner.-Fry foods in small quantities (especially when frozen).-Set the thermostat to the recommended temperature. |
| The timer no longer works-The battery is spent. | -Unlock the battery shield on the back of the control panel.-Put a new battery in (ref.: VINNIC L1131 DI).-Dispose of the battery in a specialised collection centre. |
| The bowl does not drain-The temperature of the fat is still too high.-The drain button is not on the open position. -The bowl is wrongly positioned.-The filter grid is blocked or clogged.-The oil/fat container is set or solidified. | -Wait for the temperature to go down.-Place the drain button onto the open position. -Replace the bowl correctly.-Empty the bowl into a container and clean the filter grid.-Warm the fryer for a few minutes (4-5 min.). |
| Oil leaks-The drain valve is not in place.-The oil/fat container is full.-The drain valve is wrongly positioned.-The seal of the drain valve is not in place.-The container's fill tube is blocked.-The fill tube cap is not in place. | -Place the drain valve in the bowl.-Place the drain button onto the closed position, take out the oil container and empty it.-Empty the bowl into a container. Dismantle and refit the valve following the instructions in the directions for use.-Replace the seal.-Put the drain button onto the closed position, take out the container, empty the fill tube following the instructions in the directions for use.-Replace the fill tube cap (see p. 4). |
| Difficult to see through the viewing window-Too much cooking without cleaning the window.-Clean with a non abrasive cloth. | -Put the lid through the dishwasher or clean it with a sponge to which you have added some washing-up liquid.-Leave the window to dry in the surrounding air or wipe it with a clean cotton dishcloth and lemon juice. |
HELPLINE
For any problems or queries please telephone:
0845 602 1454 (UK - calls charged at local rate)
(01) 4751947 (Ireland) or consult our website: www.tefal.co.uk
Any repairs must be carried out only by an approved Service Centre using
original spare parts.
