KFCF 1001 W - Freezer Kernau - Free user manual and instructions

Product Type	Freezer
Brand	Kernau
Model	KFCF 1001 W
Total Volume (approx.)	100 L (based on similar models)
Dimensions (W x D x H)	545 x 545 x 1450 mm
Climate Class	SN, N, ST, T
Refrigerant	R-600a (Isobutane)
Energy Consumption	Not specified, typical for this size: ~200 kWh/year
Noise Level	Not specified, typical: ~40 dB
Freezing Capacity	Up to 12 kg per 24 hours (estimated)
Temperature Control	Electronic with MIN to MAX scale and Super Freeze mode
Super Freeze Function	Yes, automatically deactivates after 52 hours
Defrosting Method	Manual
Interior Light	LED, gravity-controlled switch
Door Handle	Recessed or external (depending on model)
Adjustable Feet	Yes
Power Supply	220-240 V, 50 Hz
Earthing	Required, plug with earth contact
Warranty	Refer to manufacturer

Frequently Asked Questions - KFCF 1001 W Kernau

How do I set the temperature on my Kernau KFCF 1001 W freezer?

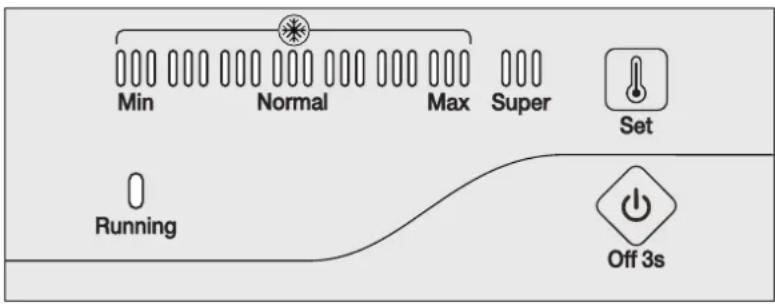

Press the SET button repeatedly to cycle from MIN to MAX on the scale. The temperature is saved automatically 5 seconds after the last press. MAX is the coldest setting.

What is the Super Freeze function and when should I use it?

Super Freeze rapidly lowers the temperature to freeze fresh food quickly. Activate it by pressing SET until the SUPER indicator lights up. It automatically turns off after 52 hours or can be manually deactivated.

How do I turn the freezer on and off?

Press and hold the ON/OFF button for 3 seconds to turn the freezer off or on. When off, all indicators will be off.

Why is the temperature indicator flashing?

A flashing temperature bar indicates a sensor error (disconnection or short circuit). Contact a qualified technician if the alarm persists.

How much fresh food can I freeze at once?

The maximum amount that can be frozen in 12 hours is indicated on the rating plate. For typical models, it is around 12 kg. Do not add more food during the freezing cycle.

How do I defrost the freezer?

Unplug the freezer, remove the drain plug inside, and place a tray under the outer drain dial. Rotate the dial 180° to let water flow out. Wipe dry and reset the temperature after defrosting.

What should I do if the freezer is not cooling enough?

Check if the door is properly closed, the temperature setting is correct, and the condenser is clean. Also ensure the appliance has enough clearance for ventilation.

Can I use the freezer in a garage or unheated room?

The freezer is rated for climate classes SN (10°C to 32°C) to T (16°C to 43°C). It should not be used in temperatures below 10°C unless specified for a lower class.

How do I clean the interior of the freezer?

Unplug the freezer, remove food, and clean with lukewarm water and mild soap. Do not use abrasive cleaners or steam. Dry thoroughly before restocking.

What type of light bulb does the freezer use?

The freezer uses a special use LED lamp that is gravity-controlled. It switches on when the door opens more than 30°. Replacement should be done by a qualified person.

USER MANUAL KFCF 1001 W Kernau

Line drawing of a stainless steel oven with lid and vent, showing internal compartments and ventilation slots (no text or symbols)

www.kernau.com

SZANOWNY KLIENCIE

INSTALACJA ⚠️ WAŻNE:

Diagram of a refrigerator with labeled parts including front panel, lid, and interior compartments

Technical diagram showing a structural assembly with labeled components and numbered annotation

Krok 1

D D D D ③

Krok 2

Blank white image with a thin border and a small dot in the top-right corner (no text or symbols)

Diagram of a device with labeled parts including a door, screw, and pin, marked with numbers 1 and 4.

Krok 3

Simple line drawing of a rectangular container with wheels at both ends (no text or symbols)

⑤ ścia

! UWAGI:

Diagram of a mechanical bearing or coupling mechanism with no visible text or symbols

Line drawing of a stainless steel oven with open lid and internal tray (no text or symbols)

www.kernau.com

DEAR CUSTOMER,

Thank you for your interest in our offer and congratulations on your choice.

Our goal is to offer you high quality products that will meet your expectations. The described device was manufactured in modern factories and thoroughly tested in terms of quality. This manual has been developed to facilitate the operation of the device, which has been manufactured using the latest technology guaranteeing trust and maximum performance. Before using the device, carefully read this manual, as it contains basic information about safe installation, maintenance and operation.

ATTENTION:

The manual contains important information on the use and maintenance of the device, so please read the simple instructions carefully and follow them, which will allow you to achieve excellent results of use. Please also keep the following instructions in a safe place, because they could be used.

The manufacturer is not responsible for any damage to property or persons resulting from incorrect installation or improper use of the device.

CONTENT

CHAPTER 1. SAFETY INFORMATION ...... 24

CHILDREN AND VULNERABLE PEOPLE SAFETY 24

GENERAL SAFETY 24

DAILY USE 26

CARE AND CLEANING 26

INSTALLATION.... 27

SERVICE 27

ENERGY SAVING 27

ENVIRONMENT PROTECTION 28

PACKAGING MATERIALS 28

CHAPTER 2. OVERVIEW ...... 29

CHAPTER 3. INSTALLATION ...... 30

SPACE REQUIEREMENT 30

POSITIONING 31

LOCATION 31

ELECTRICAL CONNECTION 31

CHAPTER 4. DAILY USE ...... 32

FIRST USE / CLEANING THE INTERIOR 32

TEMPERATURE SETTING 32

FREEZING FRESH FOOD 33

STORING FROZEN FOOD 33

THAWING 33

HELPFUL HINTS AND TIPS 34

HINTS FOR STOREAGE OF FROZEN FOOD 34

CLEANING 34

DEFROSTING OF THE FREEZER 35

CHAPTER 5. TROUBLESHOOTING .... 36

REPLACING THE LAMP 37

CHAPTER 6. DISPOSAL OF USED EQUIPMENT ...... 38

CHAPTER 1. SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or close themselves into it.
• If this appliance featuring magnetic door seals os to replace an older device having spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old device. This will prevent it from becoming a death trap for children.

GENERAL SAFETY

WARNING:

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of the obstruction.

WARNING:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant circuit.

WARNING:

Do not use other electrical appliances (such as ice cream makers) inside of the refrigerating apllainces, unless they are approved for this purpose by the manufacturer.

WARNING:

Do not touch the light bulb if it has been on for a long period of time, because it could be very hot.

WARNING:

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as areosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with the level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that nono of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition,

• thoroughly ventilate the room in which the appliance is situated.

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household only.

WARNING:

Any electrical components (plug, power cord, compressor and ect.) must be replaced by a certified service agent or qualified service personnel.

WARNING:

The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.

• Power cord must be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cables.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions of frost/freezer burns.

DAILY USE

- Do not put hot on the plastic parts in the appliance.

- Do not place food products directly against the rear wall.

- Frozen food must not be re-frozen once it has been thawed out.

- Store pre-packed frozen food in accordance with the forzen food manufacture's instructions.

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

- Ice lollies can cause frost burns if consumed straight from the appliance.

- To avoid contamination of food, please respect the following instructions.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible driange systems.

- Clean water tanks if they have not been used for 48h, flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with drip onto other food.

- Two-star frozen food compartments (if they are presented in the apllaince) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two-, and three-star compartments (if they are presented in the appliance) are not suitable for the freezing od fresh food.

- If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the doors open to prevent mount developing within the appliance.

CARE AND CLEANING

- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

- Do not clean the appliance with metal objects.

- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

- Regularly examine the drian in the refrigerator for defrosted water. Of necessary, clean the drian. If the drian is blocked, water will collect in the bottom of the appliance.

INSTALLATION

IMPORTANT:

For electrical connection carefully follow the instructions given in this specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the palce you bought it. In that case ratain packing.
• It is advisable to wait at least 4 hours before connecting the appliance to allow the oil to flow back in to the compressor.
• adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressoc, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plus is accessible after the installation of the appliance.

SERVICE

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

ENERGY SAVING

• Do not put hot food in the appliance.
• Do not pack food close together as this prevents air circulating.
• Make sure food do not touch the back of the compartment.
• If electricity goes off, do not open the doors.
• Do not open the door frequently.
• Do not keep the door open for too long time.
• Do not set the thermostat on exceeding cold temperatures.
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

ENVIRONMENT PROTECTION

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol 📋 are recyclable.

Packaging materials

The materials with the symbol 📊 are recyclable.

Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

CHAPTER 2. OVERVIEW

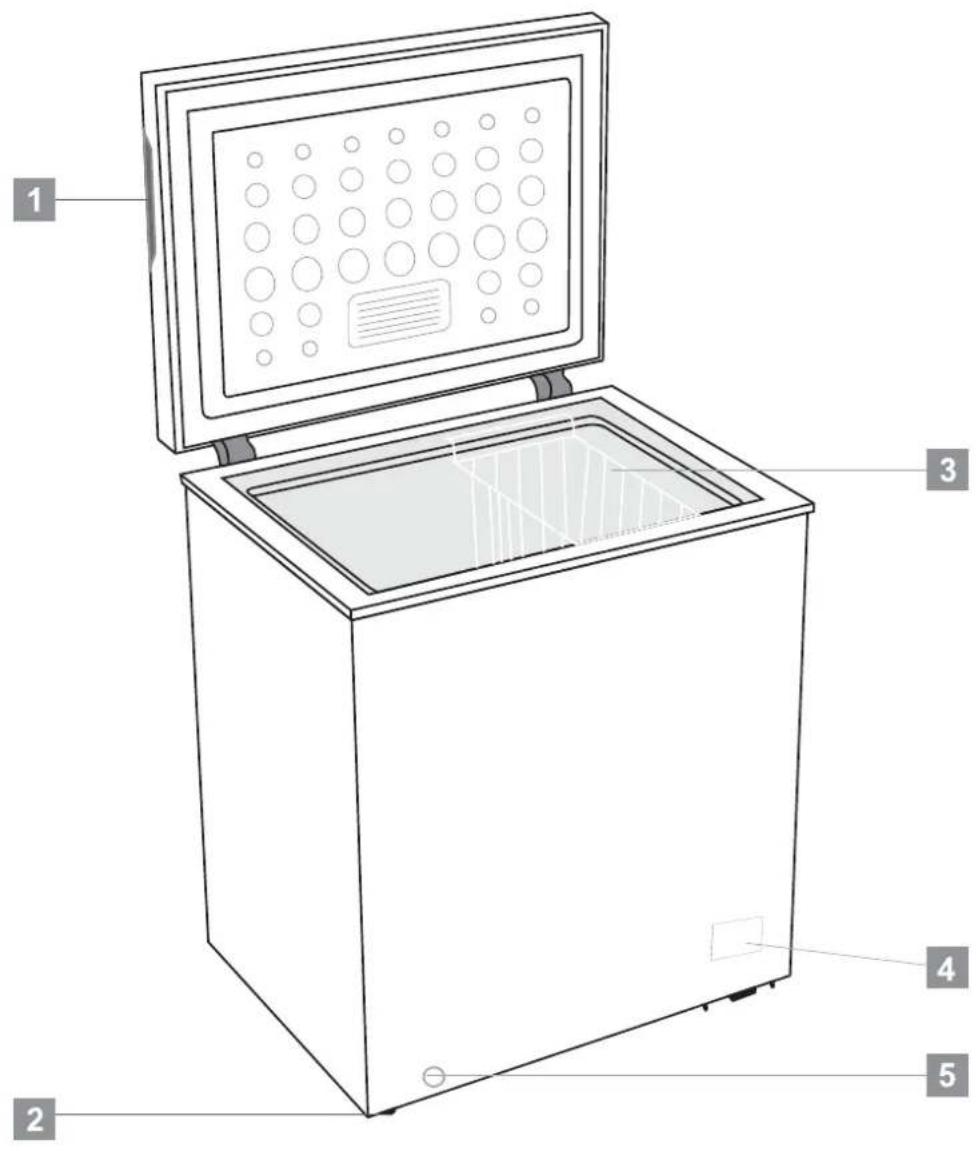

Diagram of a front-loading refrigerator with labeled parts including top, front, side, and interior views

1. Recessed handle or outside handle (in dependence of the model)
2. Wheel (or adjustable foot)
   3.Basket
3. Control panel
   5.Drain hole

ATTENTION

This refrigerating appliance is not intended to be used as build-in appliance. Above picture is for reference only. Real appliance probably is different.

CHAPTER 3. INSTALLATION

Installing door external handle for models: KFCF 2503 EW, KFCF 3103 EW, KFCF 3803 EW

ep 1 ②

Step 1

Take out 4 screws (1) and handle base (2) form accessory bag.

Then fix the handle base (2) with door by 4 screws (1).

D D D D ③

Step 2

Insert handle cover (3) in the handle base (2) until a click.

Blank white image with a thin border and a small mark at the top (no text or symbols)

Diagram of a device with labeled parts and screw base, showing internal components and connection points.

Step 3

Screw lock catch (4) on the freezer cabinet by another 2 screws (1).

Simple line drawing of a rectangular container with wheels at both ends (no text or symbols)

⑤ anor

Notes:

If the lock ring failed to hold the lock when installing handle, please unscrew the round head screws (5) on the back of door and adjust the position of door upper and lower. Then drive the screw to fix the handle.

SPACE REQUIREMENT

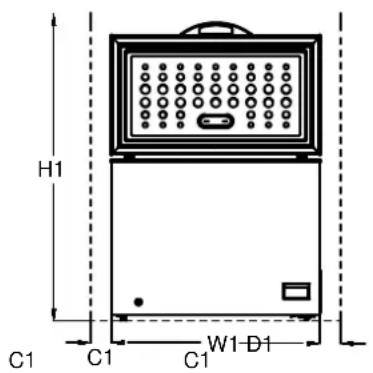

Model	W1 / mmWIDTH	D1 / mmDEPTH	H1 / mmHEIGHT	C1 / mm MINIMUM CLEARANCE
KFCF 1003 EW	545 545 1450			100
KFCF 1403 EW	705 545 1450			100
KFCF 2003 EW	905 545 1450			100
KFCF 2503 EW	954 616 1500			100
KFCF 3103 EW	1120 700 1600			100
KFCF 3803 EW	1300 700 1600			100

NOTE: D1 does not contain the external handle size..

H1 C1 C1 C1 W1-D1

H1

POSITIONING

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

For refrigerating appliances with climate class:

• extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C (SN);
• temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C (N);
• subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C (ST);
• tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43 °C (T);

LOCATION

The appliance should be installed well away from sources of heat such as radators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

NOTE: This refrigerating appliance is not intended to be used as a built-in appliance.

WARNING:

It must be possible to disconnect the appliance from the mains power supply, the plug must therefore be easily accessible after installation.

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on heating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current rewgulations, consulting a qualified electrician.

The manufacturer declines all responsibility of th eabove safety precautions re not observed.

This appliance complies with the E.E.C. Directives.

CHAPTER 4. DAILY USE

FIRST USE / CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewram water and some neutral soap to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT:

Do not use detergents or abrasive powders, as these will damage the finish.

TEMPERATURE SETTING

• Min = minimum
• Normal = Normal
• Max = maximum
• Super = super freezing
• Set = setting
• Running = operation
• Off3's = Turning off for 3 seconds

Electrical connection

After connecting the device to power, all LED indicator lights will blink once. The appliance then returns to the operating mode that was set before the power failure occurred.

Temperature setting

- Setting

Pressing the "SET" button causes the entry into the temperature setting mode. Each time you press, the temperature indicator bar will move up the scale. The setting is made cyclically. The temperature can rise from MIN on the scale to MAX on the scale. MAX on the scale indicates the lowest temperature. The temperature is set automatically 5 seconds after the last button press.

- Super Freezing

Press the "SET" button repeatedly until the "SUPER" mode of freezing at MAX is entered on the scale, the left-hand bar graph will then turn off and the "SUPER" indicator will light up. This mode is set automatically 5 seconds after the last button press.

The compressor will run in "SUPER" freezing mode.

If the operation in the "SUPER" mode is maintained for 52 hours and it is not turned off manually during this time, the system will automatically terminate the operation in this mode and return to operation with the temperature on the scale 5.

Power On & Off

If the device is working, to turn it off, press the "ON / OFF" button for 3 seconds. If the device is not working, to turn it on, press the "ON / OFF" button for 3 seconds.

Indicator Lamps

• Temperature indicator light (light blue): To adjust the temperature from MIN on the scale to MAX on the scale. MAX is the lowest temperature.
• Super Freeze indicator light (light blue): On = "SUPER" mode, light off = exit "SUPER" mode.
• Operation Indicator Lamp (light green): On = compressor running, off = compressor off
• 30 minutes after the end of the last operation, the indicator lamps go to half-light mode.

Resume Function

When the energy supply is restored, the device automatically returns to the mode set before the break.

Temperature Setpoint Error Alarm

In the event of a disconnection or short circuit of the temperature sensor, as an alarm, the bar for the temperature indicator will flash from left to right every 0.5 seconds.

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom of the compartment.
• The maximum amount of food that can be frozen in 12 hours is specified on the rating plate.
• The freezing process lasts 12 hours: during this period do not add other food to be frozen.

STORING FROZEN FOOD

When first starting-up or afetr a perido out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

IMPORTANT:

In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristic chart under "rising time" the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly form the freezer. In this case, cooking will take longer.

HELPFUL HINTS AND TIPS

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food which can be frozen in 12 hours is shown on the rating plate,
• The freezing process takes 12 hours. No further food to be forzen should be added during this period.
• To start the SUPER function 24 hours before placing food in appliance can help the best freezing capacity.

- Only to freeze top quality, fresh and thoroughly cleaned, foodstuffs.

- Prepare foos in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.

- Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.

- Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.

HINTS FOR STORAGE OF FROZEN FOOD

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer.
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.
• Not open the door frequently or leave it open longer than absolutelu necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

• The foodstuffs for long term storage.
• Raw meat, poultry, fish, frozen vegetables, fries, frozen friuts, cakes.

CLEANING

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION:

The appliance may not be connected to the mains during cleaning. Danger of electrical shock!

Before cleaning switch the appliance off and remove the plug form the mains, or switch off or turn out the circuit breaker or fuse.

Never clean the appliance with a steam cleaner.

Moisture could accumulate in electrical components, danger of electrical shock!

Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT:

Etheral oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukerwarm water. Afetr cleaning wipe with fresh water and rub dry.
• Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
  • After everything is dry place appliance back into service.

DEFROSTING OF THE FREEZER

The freezer, however, will become progressively covered with frost. It should be removed.

Never use sharp metal tools to scrape off the frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• Unplug the unit. Remove the drian plug from the inside of the freezer. Defrosting usually takes a few hours. To defrost faster keep the freezer door open.
• For draining, place a tray beneath the outer drian plug. Pull out the drain dial.
• Rotate the drain dial 180 degree. This will let the water flow out in the tray. When done, push the drain dial in. Replug the drianplug inside the freezer compartment. Note: monitor the container under the drain to avoid overflow.
• Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.
• Reset the temperature control to the desired setting.

Hole

Diagram of a mechanical bearing or coupling mechanism with no visible text or symbols

CHAPTER 5. TROUBLESHOOTING

CAUTION:

Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

IMPORTANT:

There are some sounds during normal use (compressor, refrigerant circulation).

PROBLEM	POSSIBLE CAUSE	SOLUTION
Appliance does not work	Mains plug is not plugged in or is loose.	Insert mians plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cols or the appliance runs at MAX setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Dor was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was palced in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the Installation Location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

REPALCE THE LAMP

The switch of LED lamp is gravity controlled, when the angle of door-opening is bigger than 30 degree, light will switch on and off when angle is smaller than 30 degree.

NOTICE:

When LED lamp does not work when door is open, please be released and check as below steps:

• Firstly, loosen the screws on the lamp cover.
  • Secondly, loosen the screws fixed on the lamp electronic parts
• Thirdly, check the cable terminals of electronic parts and terminals of contacting lines for door lamp is loosening or not. Please fix them if they are not fixed. Then, check the light is on or not. If the lamp is switch on please install the lamp cover. If not, please further check the electronic part is intact or not. If necessary, please replace the electronic part to check the lamp is on or not. If the lamp still does not work. Please contact with staff of after-sale service for assistance.

The steps of Led lamp installing

• Fix the cable terminals of electronic parts and contacting lines in the door liner.
  • Install LED electronic part in the door liner and fix on by screws.
  • Install lamp cover on the holder and fix to finish all process.

CHAPTER 6. DISPOSAL OF USED EQUIPMENT

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product.

If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

UŽIVATELSKÝ NÁVOD SKŘÍŇOVÁ MRAZNIČKA

Line drawing of a stainless steel kitchen appliance with a top panel and side-mounted lid (no text or symbols)

www.kernau.com

VÁŽENÝ ZÁKAZNÍKU

POŽADAVKY NA MÍSTO INSTALACE 46

POSTAVENÍ 47

UMÍSTĚNÍ 47

ELEKTRICKÉ PŘIPOJENÍ 47

KAPITOLA 4. KAŽDODENNÍ POUŽÍVÁNÍ 48

PRVNÍ POUŽITÍ / ČIŠTĚNÍ VNITŘKU 48

NASTAVENÍ TEPLOTY 48

ZMRAZOVÁNÍ ČERSTVÝCH POTRAVIN 49

UCHOVÁVÁNÍ ZMRAZENÝCH POTRAVIN 49

ROZMRAZOVÁNÍ 49

TIPY A RADY / RADY PRO ZMRAZOVÁNÍ 50

RADY PRO UCHOVÁVÁNÍ ZMRAZENÝCH POTRAVIN 50

ČIŠTĚNÍ 50

ROZMRAZOVÁNÍ MRAZNIČKY 51

KAPITOLA 5. ODSTRAŇOVÁNÍ PORUCH .... 52

VÝMĚNA ŽÁROVKY OSVĚTLENÍ 53

KAPITOLA 6. LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ ...... 54

KAPITOLA 1. EZPEČNOSTNÍ POKYNY

Diagram of a front-loading refrigerator with labeled parts including top, front, side, and interior views

Pure mechanical assembly diagram without any text, numbers, or symbols

Krok 2

Blank white rectangle with a thin border and a small dot at the top (no text or symbols)

Diagram of a device with labeled parts, showing numbered components and screw connections

Krok 3

Simple line drawing of a rectangular frame with mounting holes and a small bracket on top (no text or symbols)

Technical line drawing of a rectangular enclosure with mounting holes and a labeled component (no text or symbols)

POZNÁMKY:

POŽADAVKY NA MÍSTO INSTALACE

Model	W1 / mm Šířka	D1 / mm Hloubka	H1 / mm Výška	C1 / mm Minimální prostor
KFCF 1003 EW	545 545 1450			100
KFCF 1403 EW	705 545 1450			100
KFCF 2003 EW	905 545 1450			100
KFCF 2503 EW	954 616 1500			100
KFCF 3103 EW	1120 700 1600			100
KFCF 3803 EW	1300 700 1600			100

Diagram of a mechanical gear or pulley system with rotational motion indicated by arrows (no text or symbols)

KAPITOLA 5. ODSTRAŇOVÁNÍ PORUCH

VAROVÁNÍ:

Line drawing of a stainless steel oven with lid and vent, showing internal compartments and ventilation slots (no text or symbols)

www.kernau.com

ШАНОВНИЙ ПОКУПЦЮ!

Diagram of a front-loading refrigerator with labeled parts including top, front, side, and interior views

Technical diagram showing a structural layout with labeled components and a numbered annotation pointing to component ②.

Крок 1

Pure mechanical assembly diagram without any text, numbers, or symbols

Blank white rectangle with a thin border and a small dot at the top (no text or symbols)

Diagram of a device with labeled parts including a door, screw, and pin, marked with numbers 1 and 4.

Крок 2

Simple line drawing of a rectangular frame with wheels at both ends and a small bracket on top (no text or symbols)

Pure technical line drawing of a rectangular enclosure or enclosure with mounting feet and internal components (no text or symbols)

КОМЕНТАРИ:

Diagram of a mechanical bearing or coupling mechanism with no visible text or symbols

Обслуговування
