MS400 - Gps Navitel - Free user manual and instructions

Brand	Navitel
Model	MS400
Product Type	GPS Navigator
Display	5-inch TFT, 480×272 pixels
Processor	MStar MSB2531 800 MHz Cortex-A7
RAM	128 MB DDR3
Internal Storage	4 GB
External Storage	microSDHC up to 32 GB
Operating System	WinCE / Linux
GPS Chipset	MSR2112, 66 channels (22 tracking)
GPS Sensitivity	-165 dBm
GPS Accuracy	10 m (2D RMS), 5 m with WAAS
Update Rate	1 Hz
Battery	Rechargeable Li-Pol, 950 mAh
Charging	12/24V car charger via mini-USB
Speaker	8 Ohm / 1.5 W
Antenna	Internal ceramic (18.4×18.4×2 mm)
Connectivity	Mini-USB, microSD slot, 3.5 mm audio jack
Navigation Software	Navitel Navigator (offline maps)
Map Updates	Via Navitel Navigator Update Center (PC)
Safety Features	Speed camera alerts, lane guidance
Package Contents	Car holder (windscreen), stylus, car charger, mini-USB cable, user manual, warranty card
Dimensions (approx.)	140 × 85 × 15 mm
Weight (approx.)	200 g
Operating Temperature	0 to +35°C
Storage Temperature	+5 to +45°C

Frequently Asked Questions - MS400 Navitel

How do I update the maps on my Navitel MS400?

Connect the device to a PC via USB. Download and run Navitel Navigator Update Center. It will detect your device and show available updates. Select the maps you want and click 'Update' or 'Download'.

Why won't my Navitel MS400 turn on?

First, charge the battery by connecting the car charger for at least 5 minutes. Then press and hold the Power button for 8 seconds. If it still doesn't work, contact support.

How can I improve GPS signal reception?

Ensure the device has a clear view of the sky. Avoid mounting near metallic objects or inside tunnels. The built-in ceramic antenna works best when the device is placed on the dashboard or windscreen with a clear view.

What should I do if the battery drains quickly?

Cold temperatures can reduce battery performance. Charge the battery fully before use. If the issue persists, replace the battery or contact support.

How do I plan a route to a specific address?

Tap 'Menu' then 'Find' and select 'By address'. Enter the country, city, street, and building number. Tap 'Go!' to calculate the route. The device will offer three route options.

No sound from the device – what can I do?

Check that the sound is enabled in the program settings (Menu > Settings > Sound). Also ensure the volume is not set too low. If using headphones, check the connection.

How do I set a starting point manually?

First, turn off the GPS receiver in settings. Tap on the map to mark a point, then press 'Cursor' and select 'Set start' in the properties screen. Then choose a destination as usual.

My microSD card is not recognized – what should I do?

Make sure the card is fully inserted into the slot with the correct orientation. Try using a different card or format the card in FAT32. If it still doesn't work, reboot the device.

How do I clean the display safely?

Turn off the device. Use a soft, dry cloth (microfiber recommended). Avoid paper towels or abrasive materials. Do not apply excessive pressure.

Why does the device shut down immediately after startup?

This usually indicates a critically low battery. Charge the device for at least 5 minutes while keeping the charger connected during operation. The system prevents data loss by shutting down.

USER MANUAL MS400 Navitel

Obr. 1

Obr. 2 Obr. 3

Obr. 4

Obr. 5

Abb. 10 Abb. 11 Abb. 12

Abb. 4

NAVITEL

UPDATE CENTER - NAVITEL MS400

Abb. 3

Abb. 4

NAVITEL

Abb. 5 Abb. 6

NAVITEL

UPDATE CENTER - NAVITEL MS400

Car holder (windscreen)

Stylus

Car charger 12/24 V

Mini-USB — USB cable

User manual

Warranty card

NAVITEL

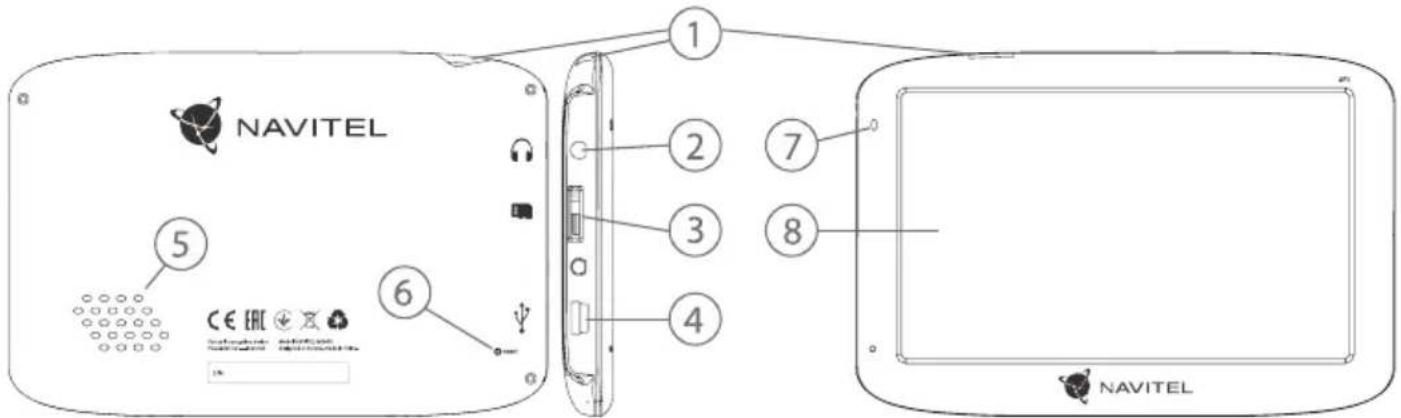

Device Layout

1. On/Off button.
2. 3.5 mm mini jack audio connector.
3. microSD slot.

4. Mini-USB port.

5. Speaker.

6. Reset button.
7. Battery charge indicator.
8. Display.

Safety Information

1. Adjust all the settings required before starting to drive. It is extremely dangerous to manage the device and configure its settings while driving. If you need to modify the navigation settings or device parameters, you should park your car in a safe place in accordance with the driving regulations.
2. Familiarize yourself with the planned route before moving off. If you happen to miss a voice prompt and you need to take a look at the display to catch up, make sure the road conditions are safe enough for that.
3. It is possible that the navigation data and voice prompts don't match the real road condition or driving regulations. You should always pay particular attention to the road conditions, road signs, and pedestrians.
4. Do not use the navigator as a tool for precise measurement of speed and covered distance.
5. Quality of satellite signal reception may vary depending on position of the device in the vehicle. Quality of the signal may suffer inside a tunnel, near multi-storey buildings, or in a densely built up area. Certain weather conditions, such as heavy mist, may cause a negative effect on reception quality of the signal.

6. It is possible that the GPS signals cannot be received close to where an electromagnetic source is situated or inside buildings.

7. If you have not used the device for a long period, it will take significant amount of time to locate your position even if the GPS receiver is getting good signal.

8. Pay particular attention to the place where you intend to install the device. Do not install the device in places where it may interfere with operation of safety bags or block the road view.
9. When attaching a holder to the windscreen of your car, pay attention to surface cleanliness. The area should be clear of dust, dirt, and other impurities, there should also be no bubbles under the vacuum cup since it may affect holding strength. Any damages of the device and other objects inside the vehicle caused by detachment of the holder are sole responsibility of the user and are not covered by the warranty certificate.
10. Do not subject the device to the long-term exposure to sunlight and high temperatures. Battery overheating may cause explosion.
11. Do not expose the device to moisture and quick temperature changes as it may result in water condensation within the device and cause damage. If the device has been exposed to moisture, do not switch it on until it is completely dry.

12. Independent intervention, modification, and opening of the case are prohibited as it may result in the device working incorrectly and in extreme cases can cause damage. Any alterations to the device must be carried out by qualified personnel.

13. The device takes its power from the built-in Li-Pol battery, which can explode or release toxic substances if exploited in an inappropriate way. Do not subject the device to physical impact nor use it close to explosive liquids or gases.

14. Ensure normal ventilation conditions for the power adapter during charging since a lot of heat is released in the process. Do not cover the adapter with paper or other objects that may worsen ventilation.
15. Do not apply too much force when cleaning the display and other parts of the device. Do not use paper napkins or any hard material that can scratch the device for cleaning. Use soft cloth only.
16. Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).

Using Device in Vehicle

Windscreen holder and battery charger are delivered as part of the product package.

Windscreen holder

ATTENTION! Carefully select a place to attach the holder. Do not attach the holder to the windscreen in a way that limits the driver's line of sight. If the car windscreen contains a built-in heating system or UV protection, the quality of signal reception may be lower than usual.

Setting up the windscreen holder

First remove the protective layer from the vacuum cup. Then, select an appropriate place to attach the holder. Make sure the area is clear of dust, dirt, and moisture, and then secure the vacuum cup on the windscreen. Under normal operating conditions, the vacuum cup holder locks the device well. However, if you leave it there overnight, the holding strength may get weaker as a result of moisture condensation due to temperature fall. For this reason, in order to prevent the device and holder from being damaged, it is recommended to remove the device and holder from the windscreen.

Errors and Troubleshooting

Device does not work

• Check whether the device is charged or not. In case the device is not charged, connect the power supply and wait at least 5 minutes;
• Press and hold the Power button for at least 8 seconds;
• Even if the device is charged, connect the power supply and try to start the device again;
• If the device does not work even after recharging, contact our support team or any certified service center.

Device shuts down immediately upon startup

- It is possible that battery charge of the device is critically low. In such cases, the system shuts down automatically in order to prevent complete discharge of the battery, which may result in data loss. Before attempting to turn the device on again, charge it for at least 5 minutes, and keep the adapter plugged during subsequent operation of the device.

Fast battery discharge

- The battery discharges much faster in cold environment.

Battery does not get charged

• Check whether the adapter is connected to a socket;
• Make sure that you use the default power adapter and not the adapter of another device;
• It is possible that battery does not get charged in very hot climate.

Sound does not work

• Make sure the sound is turned on in the program settings;
  • Make sure the volume is not too low.

Device does not recognize the microSD card

• Make sure the card is fully inserted into the correct slot until it is locked into place;
• Check that the card is not inserted the wrong way around;
• Check if the card is damaged. Try to use it in another device;
  • Re-insert the card. Reboot the device;
  • See the installation manual provided with your card.

Cannot copy files

• Check that the connection between your PC/laptop and the device was established properly;
• The device memory usage may be overflowing and requires deleting unnecessary files.

Device Maintenance

Proper maintenance of the device ensures its long and reliable operation

• Do not keep the device in high humidity and hot conditions;
• Prevent the device from being exposed to sun and UV light;
• Do not put or drop anything on top of the device;
• Do not subject the device to physical impacts such as hits and drops;
• Do not subject the device to moisture and quick temperature changes as it may result in water condensation within the device and cause damage. If the device has been exposed to moisture, do not switch it on until it is fully dried out;
• The display of the device is very sensitive to scratches. Avoid touching the display with sharp objects. You can use a protective layer to prevent the display from scratching;
• Never clean the display when the device is on. When cleaning, use soft cloth only;
• Do not use paper napkin or towels for cleaning the display;
• Do not try to disassemble, fix, or modify the device on your own as it may be dangerous for your health as well as result in incorrect operation of the device. This will also cause termination of the warranty.

Safe Driving

• To safely use the device's functions, please, make sure to follow traffic regulations. Moreover, please, remember the general rules of treating your vehicle like a potentially dangerous object;
• In the first place, these rules are determined by the risk of causing harm to the life or health of third parties, damaging their possessions and pets, and harming the environment;
• Whenever you stop the vehicle, always use the parking brake. Keep the parking brake well functioning so that it is able to prevent the car from any movement;
  • Always park your vehicle in an open and well ventilated area;
• Keep the sound in the vehicle relatively low so that you can hear everything that happens outside the vehicle;
• Do not carry out any operations in the device that could possibly distract you from driving.

NAVITEL s.r.o. hereby declares that the NAVITEL MS400 type of radio equipment is compatible with the Directive 2014/53/UE. Full text of the UE Declaration of Conformity is available at the following Internet address:

www.navitel.cz/en/declaration_of_conformity/ms400

Technical Specification

System Specification
CPU MStar MSB2531 800 MHz, Cortex-A7
RAM 128 MB, DDR3
External slot microSDHC up to 32 GB
Internal storage 4 GB
Operating system WinCE / Linux
Basic parameters
Display 5" TFT, 480×272
Speaker 8 Ohm / 1.5 W
Battery type 950 mAh, rechargeable
GPS parameters
GPS MSR2112 32PIN-QFN
Frequency 1.575 GHz
Channel Qty 66 channels (search positioning) / 22 channels (tracking)
C/A CODE 1.023 MHz chip rate
Sensitivity -165 dBm

Location accuracy	10 m, 2D RMS; 5 m 2D RMS, WAAS enable
Rate	0.1 m/s
Update frequency	1 Hz
Renew time	0.1 s
Hot start	2 s (Autonomous)
Warm start	32 s (Autonomous)
Cold start	35 s (Autonomous)
Max altitude 18,000 m
Max rate	515 m/s
Antenna	Internal ceramic antenna; 18.4 mm × 18.4 mm × 2 mm
NMEA	NMEA 0183 standard v3.01
Baud rate	115,200 bps
Port COM1

Note. Characteristics of the device and its external appearance can be modified by the manufacturer without preliminary notification.

NAVITEL

Introduction

Navitel Navigator is an offline multifunctional navigation application used for efficient route search and planning. Key tasks of the program are identification and display of current position on the map, automatic and manual setting of route points, object search, route calculation, display of travel information, and many other things.

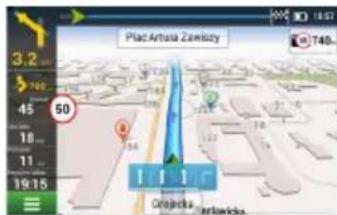

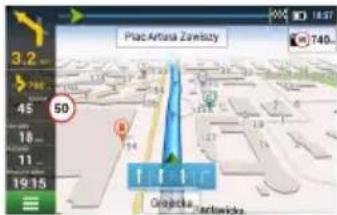

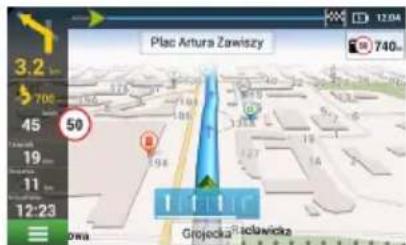

Program Interface

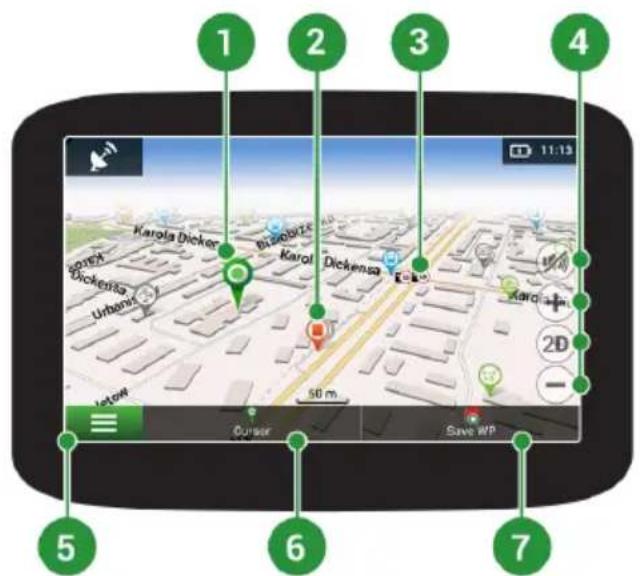

1	Point on the map	Short tapping on the map marks the point for further operations with it, “Cursor” and “Save WP”.
2 POI	This is an example	of how points of interest (POI) are displayed in the program.Different categories of POI have different icons. There is a large variety of icons for particular POIs such as shopping centers, brand shops, gas stations etc.
3 SPEEDCAM	This is an example of how icons of the SPEEDCAM function are displayed on the map. Speedcams are special marks on the map that are meant to warn about speed cameras, radars, dangerous crossroads, speed bumps, and other types of potential obstacles on the road.
4 Map	buttons These are the buttons for controlling the map view modes (2D/3D), map scale, and volume settings.
5 Main menu	Tapping this button will open the main menu of the program.

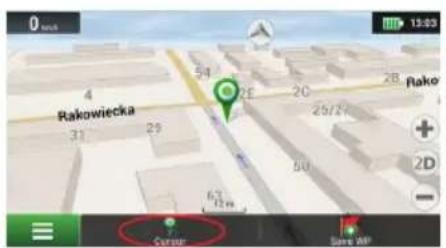

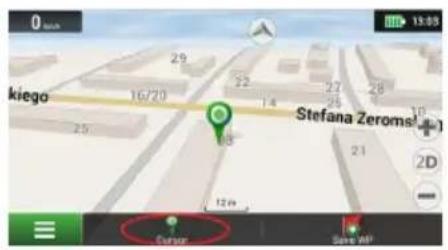

6 Cursor	This button becomes available only when a point is selected on the map. Tapping this button will open the “My route” screen, where you can carry out various operation with the selected point.
7	Save WP	This button becomes available only when a point is selected on the map. Tapping this button will cause the selected point to be saved in the form of a waypoint.

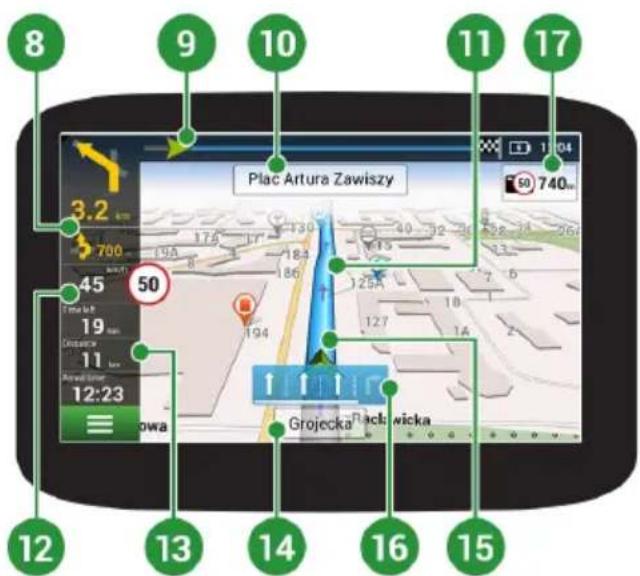

8 Upcoming maneuver		The indication of the distance to the next two upcoming maneuvers. Tapping the sign opens a dialog box with a number of configuration settings.
9 Progress bar This bar indicates the elapsed and remaining part of the route.

NAVITEL

10 Street after maneuver	The name of a street following the maneuver. Please note that if certain conditions are met, the upcoming traffic lanes will be displayed instead.
11 Route Active route.
12 Speed Road speed limit	is displayed next to the current car speed. The program will notify the driver in case of any speed deviations – orange colour block for established speeding level (by default its 10 km/h), red one for higher value of speeding. It is possible to set the speeding level for orange notification up to 30 km/h in the Alerts section of Settings.
13 Information panel	By default, displays a set of gauges that provide information on remaining travel time, distance to the point of destination, and estimated arrival time. The selection of gauges can be changed in the program settings.
14 Current street	The name of the current street (active only when connection with satellites is established). If the map does not contain information about the active street name, the direction of movement is displayed instead (North, South, West, and East).
15 GPS cursor Indicates current position of the device when the GPS receiver is turned on.
16 Indicator of maneuver	When passing the roads with two or more lanes this indicator displays information about the permitted maneuver at the nearest intersection or turning point; progress bar under the indicator displays the distance left to the described maneuver.
17 Road regulations	On the right side of the display program indicates the distance left to the closest driving regulations. When approaching, the program displays the countdown to the closest camera, road sign or marking.

Route to a point selected on the map

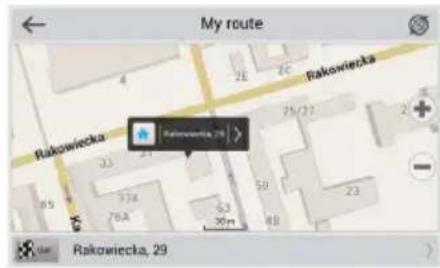

You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The program will offer 3 alternative routes [3]. Select the appropriate and press "Go!".

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [4] – "Find" [5] – "By address" [6], then press "Select country" and start entering the name of a country [7]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [8]. "Select city", "Select street" and «Select a building» become active only if the previous fields were filled out [9]. When all information is entered the object will be shown in the screen [10]. Press "Go!". The program will offer 3 route options from a current location to the indicated address [11]. Now you can follow the route [12].

NAVITEL

3D architectural rendering of a modern building with visible walls, green roof, and scale bar (no text or symbols)

Fig. 4

Fig. 5 Fig. 6

Fig. 12

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press "Cursor" [1] to proceed to the "My route" screen. Tap on the information panel at the bottom of the screen [2]. Press "Set start" in the "Properties" screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on the map: tap on the map to mark the point, press "Cursor" [4] and then press "Go!" in the "My route" screen [5]. The program will offer 3 alternative routes [6]. Select the appropriate and press "Go!".

Fig. 1

Fig. 2

Fig. 3

Setting up the Program

To update your maps and the application, as well as to purchase new maps, you can use a special program that we have designed specifically for these purposes. You can download the program from the "Downloads" section of the official NAVITEL® website. The instructions below will help you to learn how to work with it.

1. Install Navitel Navigator Update Center on your PC.
2. Connect your device to the PC as a USB Flash Drive/Mass Storage.
3. Run Navitel Navigator Update Center. If the device is properly connected, the program will detect it [1].

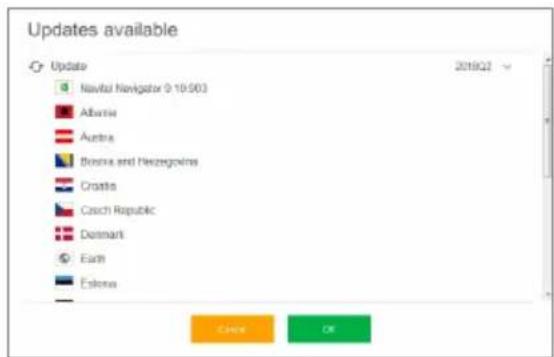

4. If updates are available, Navitel Navigator Update Center will suggest that you update your Navitel Navigator and/or maps [2].

Fig. 1

Fig. 2

NAVITEL

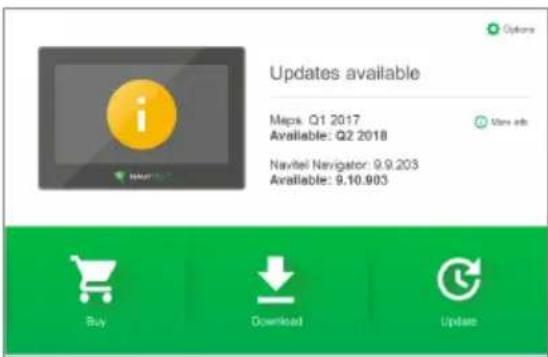

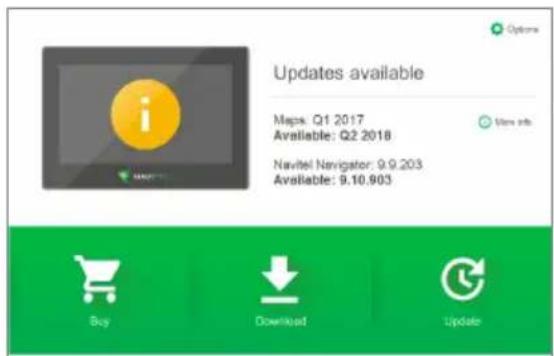

UPDATE CENTER - NAVITEL MS400

Keep in mind that the old maps will be deleted during the update. To continue, press "Update", then "OK".

1. Navitel Navigator Update Center will download and install the updates on your device.
2. After updating, you can download or buy additional maps by pressing "Download" or "Buy" respectively [3].

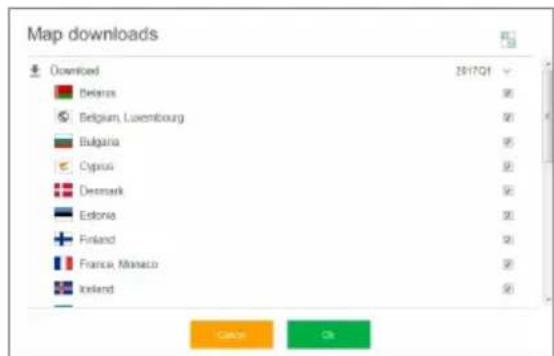

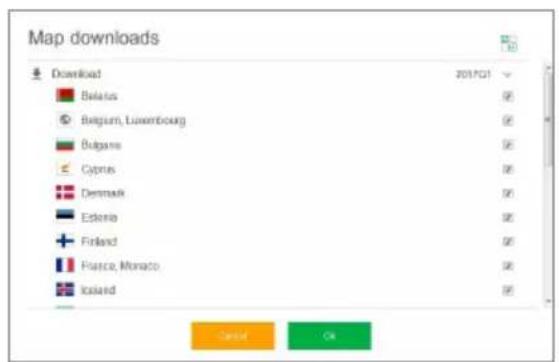

3. To download maps, mark the ones you need in the list and press "OK" [4].

Fig. 3

Fig. 4

NAVITEL

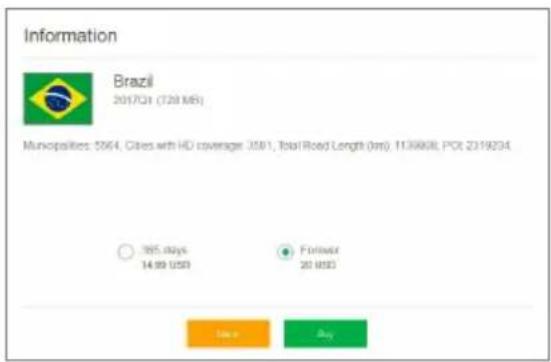

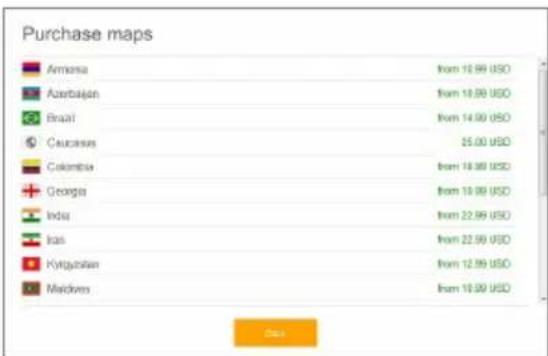

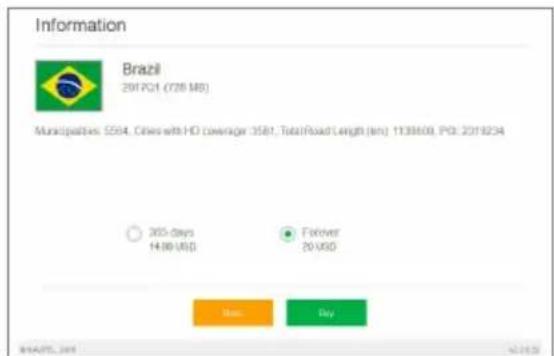

1. To buy a map, press on the entry corresponding to the map you want to buy, select subscription length and press "Buy" [5, 6].

Fig. 5 Fig. 6

1. Run Navitel Navigator on your device.

NAVITEL
