FMS501 - Grinder BLAUPUNKT - Free user manual and instructions

Product Type	Meat Slicer
Brand	Blaupunkt
Model	FMS501
Power Consumption	160 W (max. 200 W)
Power Supply	220-240 V ~ 50/60 Hz
Maximum Continuous Operation Time	7 minutes
Minimum Interval Time Between Uses	30 minutes
Blade Material	Stainless Steel
Adjustable Thickness Range	0 – 20 mm
Switch Positions	0 (Off), I (Momentary), II (Continuous)
Sliding Board	Yes, with lock and handle
Pusher	Yes, included
Non-Slip Feet	Yes
Blade Lock	Yes, for safe removal
Cleaning	Disassemble blade and sliding board; wash with water and dishwashing liquid; wipe body with damp cloth
Safety Features	Blade lock, switch with momentary mode, non-slip feet, overheat protection via interval timer
Intended Use	Domestic use only; for food products (not frozen, bones, hard pips, dry bread, or foil)
Compliance	CE marked, compliant with LVD and EMC directives
Waste Disposal	Do not dispose in household waste; follow local regulations for electronic products

Frequently Asked Questions - FMS501 BLAUPUNKT

What is the maximum continuous operating time for the Blaupunkt FMS501 meat slicer?

The maximum continuous operating time is 7 minutes. After that, allow a minimum interval of 30 minutes before using it again.

Can I slice frozen meat with this slicer?

No, the slicer is not intended for frozen products. It should only be used for food products excluding frozen items, meat with bones, dry bread, fruit with hard pips, and products in aluminium or plastic foil.

How do I clean the blade safely?

First, unplug the slicer and wait for the blade to stop. Turn the thickness knob to 0 mm. Unscrew the blade mounting screw to the right (follow arrow) and carefully remove the blade. Wash with water and dishwashing liquid, dry completely, then reassemble by aligning sprockets and screwing to the left.

What does the switch position II do?

Position II is for continuous operation. It is recommended only for advanced users and requires special care, as the blade runs without holding the switch.

How do I adjust the slice thickness?

Turn the thickness-adjustment knob located on the side of the slicer. The range is from 0 to 20 mm.

Why does the slicer stop automatically?

The slicer may stop if you release the switch in position I (momentary mode) or if it exceeds the maximum operating time. It is designed to prevent overheating by requiring a 30-minute cooldown after 7 minutes of use.

Can I use an extension cord with this slicer?

Yes, but ensure the total power consumption of all devices plugged into the extension cord does not exceed its rating. Arrange the cord to avoid tripping hazards.

How do I disassemble the sliding board for cleaning?

Slide the sliding-board lock towards yourself, then slide the board out of the guides. Wash with water and dishwashing liquid, dry, and reinsert until it locks.

Is the blade removable?

Yes, the blade is removable by unscrewing the mounting screw to the right (blade lock must be engaged). Handle with care as it is sharp.

What should I do if the power cord is damaged?

Immediately stop using the slicer. Do not attempt to repair it yourself. Contact an authorized service professional for replacement to avoid electrocution hazards.

USER MANUAL FMS501 BLAUPUNKT

3D rendering of a silver and silver plate solar water heater with a circular disc, showing internal components and mounting brackets (no text or symbols on the device itself)

Enjoy it.

Meat slicer

Allesschneider

Krajalnica

Kráječ

Elektrický krájač

Szeletelőgép

Rezalnik

Rezač

Διάταξη κοπής

Електрически нож

Maşină de feliat

Pjaustyklé

Toidulõikur

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by

yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The slicer should not operate continuously for more than 7 minutes. Allow intervals of at least 30 minutes between operating periods.

- Do not overload the device with excessive product load, quantity, or pressure.

- Special care must be taken with the slicer blade. Keep fingers, hair, clothes, and tools out of reach of the blade. Failing to do this can result in injury or damage to the appliance.

- Never reach for residuals around the blade while the machine is in operation.

- Before cleaning the slicer, wait until the blade has come to a complete standstill, and disconnect the appliance from the power supply.

- Never use the appliance with the blade or sliding board incorrectly mounted.

- The slicer should be used only for cutting food products, excluding dry bread, meat with bones, frozen products, fruit with hard pips, and products in aluminium or plastic foil.

• The slicer is intended for home use only.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL PARAMETERS

Power: 160W, max 200W

Power supply: 220-240V\~50/60Hz

Maximum continuous operation time KB = 7min

Minimum interval time = 30min

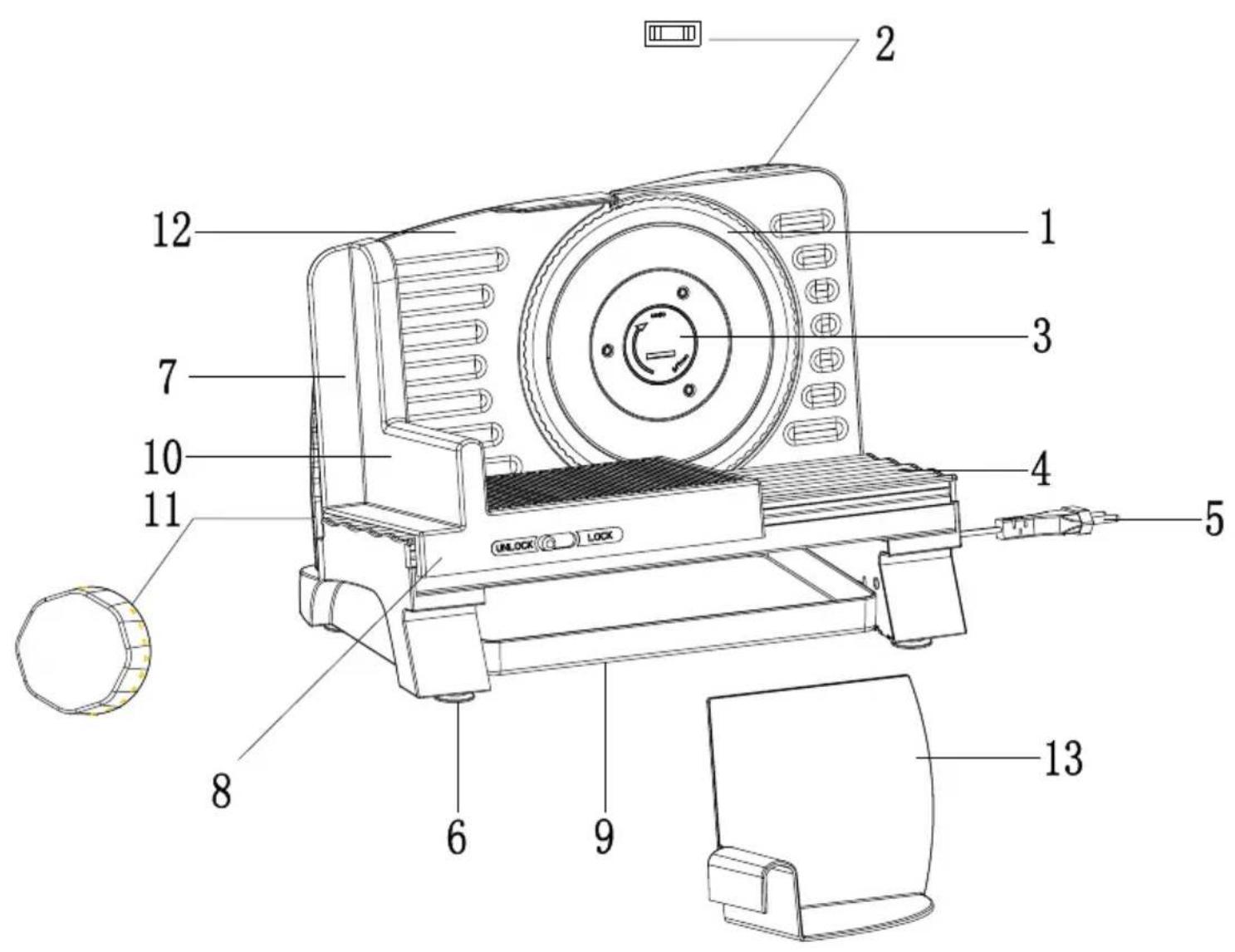

1. Blade
2. Switch (II, 0, I)
3. Blade lock
4. Body
5. Power-cord plug
6. Non-slip feet

7. Sliding-board guide

8. Sliding board

9. Tray
10. Sliding-board handle
11. Thickness-adjustment knob (0-20mm)
12. Size-control board
13. Pusher

BEFORE FIRST USE

1. After unpacking, remove the foil and papers protecting the appliance. Then clean the slicer according to the instructions in the Cleaning and Maintenance section.
2. Place the slicer on a flat top, close to an electrical socket, keeping a distance for convenient access to the switch and pusher.
3. Turn the thickness adjustment knob to 0 mm.
4. Slide the sliding board into the guide until it locks firmly.
5. Slide the pusher onto the sliding board.

USING THE SLICER

1. Slide the sliding board towards yourself, then position the product ready for slicing on the sliding board.
2. Set the desired cutting thickness using the adjustment knob.
3. Plug the power cord into the electrical socket.
4. Run the slicer with your left hand by pressing the switch. It is recommended to use the switch in position I. When the button is released, the slicer switches off. Continuous operation (position II) is recommended only for advanced users, and requires special care.
5. Slowly move the sliding board towards the blade with the right hand, gently pressing the product with the pusher. Then move back the sliding board.
6. After the cutting is finished, turn off the appliance with the switch and wait for the blade to stop. Unplug the power cord from the electric socket. Turn the thickness adjustment knob to 0 mm.
7. Clean the slicer after each use.

CLEANING AND MAINTENANCE

Before cleaning the appliance, make sure that the device is disconnected from the power supply.

Turn the thickness-adjustment knob to 0 mm.

Wipe the slicer body with a slightly damp cloth, then wipe until it is dry. Never immerse the appliance in water, or wash it under running water.

Blade disassembly

Turn the blade-mounting screw to the right (following the arrow) and unscrew it. Carefully remove the blade without touching the sharp surfaces.

Clean the blade with water and dishwashing liquid. Before assembly, make sure that it has fully dried out.

To assemble the blade, insert it while paying attention to the alignment of the sprockets, then screw it to the left with the mounting screw.

Sliding-board disassembly

Slide the sliding-board lock towards yourself, then slide the sliding board out of the guides.

Clean the blade and the pusher with water and dishwashing liquid.

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
