Product Type	Angle Grinder
Model	CO2010
Brand	Blaupunkt
Power Input	800 W
No-Load Speed	11000 rpm
Disc Diameter	115 mm
Spindle Thread	M14
Weight	2.0 kg
Dimensions (L x W x H)	280 x 110 x 100 mm
Voltage	220-240 V ~ 50 Hz
Protection Class	II (Double Insulated)
Soft Start	Yes
Spindle Lock	Yes
Safety Switch	Slide switch with lock-on
Overload Protection	Yes
Restart Protection	Yes
Carbon Brush Replacement	User-replaceable, external caps
Air Ventilation	Optimized airflow channels
Handle Design	Ergonomic, anti-slip
Auxiliary Handle	Included, adjustable position
Spindle Lock	Yes
Wheel Guard	Adjustable, tool-free
Package Contents	Grinder, auxiliary handle, wheel guard, flange set, spanner, manual

Frequently Asked Questions - CO2010 BLAUPUNKT

How do I change the grinding disc on the Blaupunkt CO2010?

Press the spindle lock to prevent rotation, then use the spanner to loosen the flange nut. Replace the disc and tighten the nut securely. Ensure the disc is correctly mounted before use.

What types of discs can I use with the CO2010?

The CO2010 accepts 115 mm discs with a 22.2 mm bore. You can use cutting discs, grinding discs, flap discs, and wire brushes suitable for angle grinders.

How do I turn on the safety lock-off feature?

The slide switch has a lock-off button. Push the lock-off button forward while sliding the switch to the on position. To keep it running, push the switch fully forward until it locks. Release the switch to stop.

What safety precautions should I take when using the grinder?

Always wear safety goggles, gloves, and hearing protection. Ensure the disc guard is in place. Check the disc for damage before use. Do not force the tool; let it reach full speed before cutting. Keep work area well-lit and free of flammable materials.

Why does my grinder overheat and how can I prevent it?

Overheating can occur due to blocked air vents, excessive pressure, or dull discs. Clean the vents regularly, allow the tool to cool down when not in use, and avoid overloading. If the motor shuts off, wait a few minutes before restarting.

How do I replace the carbon brushes?

Disconnect the power. Locate the brush caps on the sides of the motor housing. Unscrew the caps and remove the old brushes. Insert new brushes (same size) and tighten the caps. Run the tool for a few minutes to seat the brushes.

Can I use the grinder for polishing?

Yes, with a suitable polishing pad and backing pad. Reduce speed if possible (the CO2010 is single speed, so use light pressure). Always use the side handle for control.

What is the correct way to store the grinder?

Clean the tool after use, remove the disc, and store in a dry, dust-free location. Keep the power cord loosely coiled. Avoid storing in extreme temperatures or damp areas.

Why does the disc wobble or vibrate excessively?

A wobbly disc may be warped or improperly mounted. Check the disc for damage, ensure the flange is clean and tightened evenly. Also verify that the spindle is not bent. Replace the disc if necessary.

Is the Blaupunkt CO2010 suitable for cutting metal?

Yes, it is designed for cutting metal, stone, and masonry with appropriate discs. Use a thin cutting disc for metal. Always cut in a straight line and avoid twisting the disc.

USER MANUAL CO2010 BLAUPUNKT

Enjoy it.

Еккєвтріко тріßeю Ексцентър шлайфмашина Maşină de şlefuit excentrică Ekscentrinis šlifuoklis Ekstsentriklihvija Ekscentriskă slīpmašina

Orbit Sander Szlifierka mimośrodowa Excentrická bruska Excentrická brúska excentrikus csiszológép Ekscentrični brusilnik Ekscentarska brusilica

Fig. 1

Fig. 2

Fig. 3

Fig. 4

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• Keep your workplace tidy and well lit.
  • Disorder and insufficient lighting lead to accidents.
• Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.
• A moment of carelessness may cause losing control of your tool.
• If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.
• Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.
• Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.
• Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.
• Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating part of the power tool may cause personal injury.
• Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.

- Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.

• Always place and use the power tool on a stable, level and horizontal surface.

- Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.

- Check the grinder housing for damage before each use.

- Ensure that the vents are free from debris.

• The device may only be used in a dry, well-lit environment.

• This tool should not be used by anyone under the age of 16.

• This tool is not suitable for wet sanding.

- Never use the tool if its cable is damaged; have it replaced by a qualified person.

- Do not process materials containing asbestos (asbestos is considered a carcinogen).

• Always disconnect the plug from the power source before adjusting or changing accessories.

- The noise level during operation may exceed 85 dB (A); wear hearing protection.

- Do not continue to use worn, torn or badly clogged grinding plates.

SYMBOLS

• The manual or rating plate on your tool may show symbols.
  • These represent important information about the product or instructions on its use.

	Read the user manual. Wear protective foot
	The product complies with EC safety standards		Use ear protection
			Wear protective glovesGeneral warning
	Dispose of the product in accordance with the WEEE directive		Wear protective clothing
	The product has double electrical insulation		Wear a protective mask
	Fire hazard		Wear safety glasses
	Electric shock hazard		Wear a protective helmet
			Wear respiratory protection

Device is compliant with EU directives:

-Low voltage directive (LVD)

-Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

USE PERSONAL PROTECTIVE EQUIPMENT

- Wear safety glasses according to EN166

- Use protective masks in accordance with EN149

- Use other precision personal protective equipment, depending on the type of work involved.

Unit description (Fig.1)

1. Switch ON.
2. Switch OFF.
3. Sanding sheet.
4. Dust container.
5. Dust container mounting port

PREPARATION FOR USE

Follow the steps below to prepare your unit:

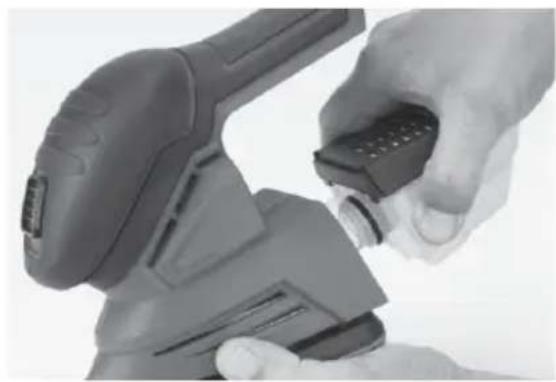

1. Fit the dust container, mount the container adapter in the dust container port and turn counter clockwise (Fig.2). Make sure that the container is properly mounted.

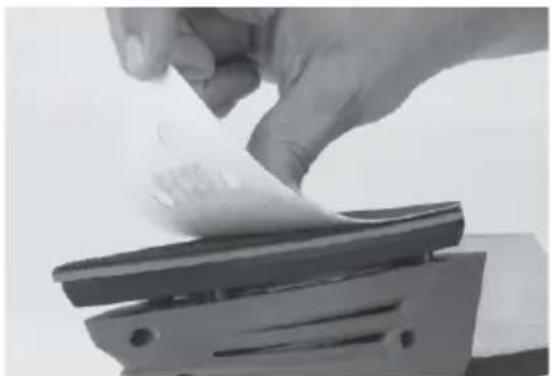

2. Place the appropriate sandpaper on the grinding plate, the sanding sheet is equipped with Velcro and eyelets. This allows a new pad to be applied quickly without the need for a tensioning system. Clean the grinding plate before applying a new sanding sheet on it. Spread the sandpaper over the grinding plate and make sure the holes in the plate and the disc match (Fig.3).

SELECTION OF SANDING PAPER

• Always use the correct sanding paper for the material you want to sand.
• Depending on the grain size, there are degrees of roughness. The thickness is determined by the number on the back of the paper. The higher the number, the finer the grain.
• It is important to use the right paper for the surface. For coarse sanding, use grits up to 80; for soft woods such as larch, pine or spruce, use a grit size of 60 to 150. For dense hardwoods such as beech or maple, grit sizes up to 220 can be used.

Installing the battery pack

Tip: Using a battery pack incompatible with the power tool may result in abnormal performance or failure of the power tool.

Insert the battery pack into the handle until the battery pack latch clicks (the battery pack should be flush with the receptacle edges on the power tool).

CHARGING THE BATTERY

• Insert the charger plug into the battery socket
• Connect the charger to the power source
  • The time to fully charge the battery at 20°C is 3 to 5 hours
• The indicator light may not light up if the battery overheats due to direct sunlight or other factors. If this happens, allow the battery to cool down and then restart the charging process.
• Due to their internal chemical composition, batteries that have never been used or that have not been used for a long time may not reach their full capacity during the first or second use. This is temporary. Repeat the charging process three times to restore optimum battery performance.

OPERATION

CAUTION: Before starting the appliance for the first time, read the warnings at the beginning of this Operating Instructions.

1. Position the entire grinding surface on the workpiece.
2. Switch on the unit using the switch ON (Fig. 4).
3. Run the machine along the surface to be sanded in a circular motion. No additional pressure should be applied to the machine when sanding, the weight of the machine itself is usually sufficient to ensure optimum speed and good results.
4. When you have finished working, switch off the appliance using the switch OFF (Fig. 4).

CLEANING AND MAINTENANCE

Clean the unit with a damp cloth. Do not use cleaning agents containing solvents. Do not immerse the device in water. Do not clean the unit with water from a hose or a pressurised water jet. Switch off the machine before cleaning.

Technical specification:

Oscillation speed (no load): 11000/min

Oscillating motion diameter: 0.7 mm

Pad size: delta shape 140 x 100 mm

Voltage: 18V d.c

Battery type: 18 V Li-Ion; BP1820 2.0Ah (not included), BP1840 4.0 Ah recommended (not included)

Dimensions: 22 x 7 x 15 cm

Weight: 1,1 kg

Noise

Typical A-weighted noise level measured in accordance with EN 62841:

Sound pressure level (LpA): 77 dB (A)

Measurement uncertainty (K): 3 dB (A)

Noise level during operation may exceed: 88 dB (A).

Wear hearing protection!

Vibrations

Total vibration value (triaxial vector sum) measured in accordance with EN 62841:

Vibration emission (ah): 6,7 m/s²

Measurement uncertainty (K): 1,5 m/s²

Operating mode: Sanding

WAŻNE INFORMACJE

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

Electromagnetic compatibility (EMC)

EU – DECLARATION OF CONFORMITY

01/2024/CO2010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Detail Sander

Name:

CO2010

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN 55014-1:2017+A1:2020 | EN IEC 55014-1:2021

EN 55014-2:2015 | EN IEC 55014-2:2021

MD and LVD standards:

EN ISO 12100:2010

EN 62233:2008

EN 62841-1:2015

EN 62841-2-4:2014

RoHS standards:

EN IEC 63000:2018

Warsaw, 03.04.2024

BLAUPUNKT

Blaupunkt Competence Center 2N-Everpol Sp. z o.o.

Registered office:

Puławska 403A

02-801 Warsaw, Poland

Correspondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]
