USER MANUAL Dolce ZOP055720 Zopa

Modern baby boom chair with gray and white coloring, no visible text or symbols

CZ 3

SK 11

EN 19

DE 27

HU 35

PL 43

IT 51

SLO 59

BEZPEČNOSTNÍ POKYNY

CZ

DŮLEŽITÉ! USCHOVEJTE TENTO MANUÁL PRO POZDĚJŠÍ NAHLÉDNUTÍ

VÝSTRAHA

DŮLEŽITÉ UPOZORNĚNÍ

DŮLEŽITÉ: PŘED POUŽITÍM SI POZORNĚ PŘEČTĚTE TENTO NÁVOD, ABYSTE SE VYHLI MOŽNÝM

NEBEZPEČÍM A UCHOVEJTE HO PRO DALŠÍ POUŽITÍ, ŘIĐTE SE PŘESNĚ POKYNY UVEDENÝMI

V TOMTO NÁVODU, ABYSTE NEOHROZILI BEZPEČNOST VAŠEHO DÍTĚTE,

POZOR: PŘED POUŽITÍM ODSTRAŇTE A VYHOĎTE VŠECHNY IGELITOVÉ ŠÁČKY A ČÁSTI OBALU

VÝROBKU, NEBO JE ALESPOŇ UCHOVEJTE MIMO DOSAH DĚTÍ.

DODRŽUJTE POKYNY VÝROBCE

NENECHÁVEJTE DÍTĚ BEZ DOZORU

POSTROJ MUSÍ BÝT VŽDY POUŽIT A SPRÁVNĚ UPEVNĚN - VĚTŠINA ZRANĚNÍ SOUVISEJÍCÍCH

S DĚTSKOU ŽIDLÍ JE ZPŮSOBENA PÁDY

DĚTSKOU ŽIDLI POSTAVTE V DOSTATEČNÉ VZDÁLENOSTI OD PEVNÝCH KONSTRUKCÍ A NÁBYTKU,

ABY NEDOŠLO KE ZRANĚNÍ PŘI PÁDU A ABY BYLY NEBEZPEČNÉ PŘEDMĚTY MIMO DOSAH

OTEVŘENÝ OHEŇ A DALŠÍ SILNÉ ZDROJE TEPLA V BLÍZKOSTI DĚTSKÉ ŽIDLE PŘEDSTAVUJÍ RIZIKO

DĚTSKOU ŽIDLI NEPOUŽÍVEJTE, DOKUD DÍTĚ NEDOKÁŽE SEDĚT VZPŘÍMENĚ

DĚTSKOU ŽIDLI NEPOUŽÍVEJTE, POKUD NEJSOU SPRÁVNĚ NAMONTOVÁNY A SEŘÍZENY VŠECHNY

JEJÍ SOUČÁSTI.

PŘED MONTÁŽÍ A POUŽITÍM DĚTSKÉ ŽIDLE SI PROSTUDUJTE CELÝ NÁVOD. NÁVOD UCHOVEJTE PRO BUDOUCÍ NAHLÉDNUTÍ.

3D rendered image of a baby seat with a white plastic seat and gray cushion (no text or symbols)

Two cylindrical gray objects with pointed tips, possibly lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Zadní horní noha

x4

Close-up of five cylindrical objects with gray and white bands, arranged diagonally (no text or symbols visible)

Spodní noha

x1

White baby bib with rounded corners, isolated on white background (no text or symbols)

Curved white and gray plastic object with segmented edges (no text or symbols)

Opěrka pro nohy

x2

Simple line drawing of a bolt or screw (no text or symbols)

Close-up of a screwdriver with a flat blade and threaded tip (no text or symbols visible)

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

"Otvory pro šrouby"

Simple illustration of a portable stove with legs and a circular vent (no text or symbols)

Close-up of a hand holding a small object next to a chair-like structure (no visible text or symbols)

Close-up of a hand using a tool to apply material to a cylindrical object (no visible text or symbols)

Close-up of a mechanical lever or bracket with a cylindrical shaft and mounting hole (no text or symbols visible)

Montáž noh

Hand holding a white plastic object with a handle, possibly a stand or lamp (no text or symbols visible)

Gray baby boom chair with wooden legs and a circular seat, no text or symbols visible

Close-up of a desk lampshade with adjustable arm and seat (no text or symbols visible)

Hand holding a white cylindrical object with a wooden stick, against a plain background (no text or symbols visible)

PŘESTAVBA DĚTSKÉ ŽIDLE DO REŽIMU NÍZKÉ SEDAČKY

Modern baby food item with gray and white coloring, no visible text or symbols

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or enclosure (no text or symbols visible)

Close-up of a hand holding a white plastic tray over a seated seat (no text or symbols visible)

Bezpečnostní pásy

DÔLEŽITÉ! USCHOVAJTE TENTO MANUÁL NA NESKORŠIE NAHLIADNUTIE

SK

VÝSTRAHA

DÔLEŽITÉ UPOZORNENIA

DÔLEŽITÉ: PRED POUŽITÍM SI POZORNE PREČÍTAJTE TENTO NÁVOD, ABY STE SA VYHLI MOŽNÝM NEBEZPEČENSTVÁM A UCHOVAJTE HO NA ĎDALŠIE POUŽITIE, RIAĎTE SA PRESNE POKYNMI UVEDENÝMI V TOMTO NÁVODE, ABY STE NEOHROZILI BEZPEČNOST VÁŠHO DIĚTATA.

POZOR: PRED POUŽITÍM ODSTRÁNTE A VYHOĐTE VŠETKY IGELITOVÉ VRECÚŠKA A ČASTI OBALU VÝROBKU, ALEBO ICH ASPOŇ UCHOVAJTE MIMO DOSAHU DETÍ.

VÝSTRAHA: DODRŽUJTE POKYNY VÝROBCU

NENECHÁVAJTE DIĚTĚ BEZ DOZORU

POSTROJ MUSÍ BYŤ VŽDY POUŽITÝ A SPRÁVNE UPEVNENÝ – VÄČŠINA ZRANENÍ SÚVISIACICH

S DETSKOU STOLIČKOU JE SPÔSOBENÁ PÁDMI

DETSKÚ STOLIČKU POSTAVTE V DOSTATOČNEJ VZDIALENOSTI OD PEVNÝCH KONŠTRUKCIÍ A NÁBYTKU, ABY NEDOŠLO K ZRANENIU PRI PÁDE A ABY BOLI NEBEZPEČNÉ PREDMETY MIMO DOSAHU OTVORENÝ OHEŇ A ĎALŠIE SILNÉ ZDROJE TEPLA V BLÍZKOSTI DETSKÉJ STOLIČKY PREDSTAVUJÚ RIZIKO DETSKÚ STOLIČKU NEPOUŽÍVAJTE, KÝM DIEŤA NEDOKÁŽE SEDIĚT VZPRIAMENE DETSKÚ STOLIČKU NEPOUŽÍVAJTE, AK NIE SÚ SPRÁVNE NAMONTOVANÉ A NASTAVENÉ VŠETKY JEJ SÚČASTI.

PRED MONTÁŽOU A POUŽITÍM DETSKEJ STOLIČKY SI PREŠTUDUJTE CELÝ NÁVOD. NÁVOD UCHOVAJTE NA BUDÚCE NAHLIADNUTIE.

3D rendered image of a baby seat with a white plastic seat and gray body (no text or symbols)

Two cylindrical gray objects with pointed tips, possibly lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Zadná horná noha

x4

Close-up of five cylindrical objects with gray and white bands, arranged diagonally (no text or symbols visible)

Spodná noha

x1

White plastic bag or clip with rounded corners and a flat body (no text or symbols)

Curved white and gray object resembling a handle or bracket (no text or symbols visible)

Opierka pro nohy

x2

Simple line drawing of a bolt (no text or symbols)

Skrutky (na montáž opierky na nohy)

x1

Close-up of a screwdriver with a flat blade and handle (no text or symbols visible)

Person holding a spatula with a bowl of contents, no visible text or symbols

"Otvory na skrutky"

Simple illustration of a small bowl with a spoon and handles, no text or symbols present.

Close-up of a hand holding a wooden ladder or frame, with no visible text or symbols

Close-up of a hand using a tool to apply material onto a cylindrical object (no visible text or symbols)

Close-up of a mechanical joint or bracket with a cylindrical rod and mounting bracket (no text or symbols visible)

Montáž nôh

Person holding a white plastic object with a handle, viewed from above (no text or symbols visible)

3D rendered image of a baby in a baby chair with a small object on the backrest (no text or symbols)

Close-up of a white office chair with adjustable arm and legs (no visible text or symbols)

Hand holding a cylindrical object with a white substance, possibly a tool or tool (no text or symbols visible)

PRESTAVBA DETSKEJ STOLIČKY DO REŽIMU NÍZKEJ SEDAČKY

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

Close-up of a hand holding a white plastic tray over a seated seat (no text or symbols visible)

Bezpečnostné pásy

ASSOCIATED WITH HIGHCHAIRS ARE CAUSED BY FALLS

PLACE THE HIGHCHAIR AWAY FROM FIXED STRUCTURES AND FURNITURE TO AVOID INJURY FROM FALLING AND SO DANGEROUS OBJECTS ARE OUT OF REACH

OPEN FIRES AND OTHER STRONG HEAT SOURCES NEAR THE HIGHCHAIR ARE A RISK

DO NOT USE THE HIGHCHAIR UNTIL THE CHILD CAN SIT UPRIGHT

DO NOT USE THE HIGHCHAIR IF ALL PARTS ARE NOT CORRECTLY ASSEMBLED AND ADJUSTED.

BEFORE INSTALLING AND USING THE HIGHCHAIR, READ THE ENTIRE MANUAL. KEEP THE INSTRUCTIONS FOR FUTURE REFERENCE.

• ATTENTION: Do not use the highchair unless the child can sit upright on their own.
• The highchair is suitable for children from 6 months to 3 years, with weight up to 15kg .
• Make sure that the people using the highchair are well acquainted with this manual.
• ATTENTION: Before the product is assembled, make sure that none of the product parts have been damaged during transport.
  If yes, the product must not be used and must be stored out of reach of children.

- Do not use the highchair if there are any parts missing, it's torn or there's other damage.

- ATTENTION: Do not use the highchair unless all parts and accessories are properly fitted and attached.

- Do not use accessories, spare parts or parts that are not supplied or authorised by the manufacturer.

- Check that each harness is secure.

• CAUTION: Never leave the child unattended.

- ATTENTION: The use of safety belts is important to ensure the safety of your child.

- WARNING: The table itself does not guarantee the safety of the child in situ. Always use safety belts!

- ATTENTION: Only place the highchair on a horizontal, stable surface. Never place it near stairs or steps.

• Do not let children play unattended or climb on it.
• Do not put more than one child in the highchair.
• Do not put or hang bags or objects on the table or on the skeleton of the highchair, it may cause it to tip over.

- ATTENTION: Never leave the highchair close to electrical appliances, gas ovens or other heat sources. There is a risk of burns or fire. Place the product at a safe distance from electrical wires.

- Do not place the highchair near windows or walls, the child could hang from the curtains,

hangings, or cords from the curtains, possibly choking or strangling them.

• Do not leave the highchair in the sun for a long time. Wait until the chair has cooled before seating.
• Do not leave the highchair for long in the sun: it can cause fading of fabrics and materials. If you do not use the chair, place it out of reach of children.
• When adjusting the table, make sure that no part of the child's body is within the reach of moving parts.
• Do not carry the highchair when a child is sitting there.
  • Use for children under 6 months is not recommended.
• Do not use the highchair if you find any malfunction or defect.
  • This highchair is designed for children weighing up to 17 kg.

PACKAGE CONTENTS

x1

3D rendered image of a baby seat with a white seatbelt and gray backrest (no text or symbols)

Chair frame with padded insert and harness

x2

Two cylindrical gray objects with pointed tips, possibly lit candles or paper (no text or symbols visible)

Front upper legs with pre-drilled holes

x2

Two cylindrical white candles with black bands, no text or symbols visible

Rear upper legs

x4

Close-up of five cylindrical objects with gray and white bands, arranged diagonally (no text or symbols visible)

Lower legs

x1

White baby bib (no text or symbols visible)

Table with tray insert Footrest

x1

Curved white and gray object resembling a mechanical or electronic component (no text or symbols visible)

x2

Simple line drawing of a bolt (no text or symbols)

Screws (for footrest assembly)

x1

Close-up of a screwdriver with a flat blade and handle (no text or symbols visible)

A cross head screwdriver is required (not included)

ASSEMBLY / OPERATING INSTRUCTIONS

Leg and footrest assembly

1. Locate the two front upper legs. Check that the pre-drilled holes are at the front. Insert the screw into the threaded hole in the highchair frame and rotate the leg clockwise until it is firmly tightened. Check that the holes are facing forwards.

Close-up of a hand holding a tool, possibly a tool or device, with no visible text or symbols.

"Screwholes"

Simple grayscale illustration of a portable stove or fire extinguisher with three legs (no text or symbols)

1. Locate the pre-drilled holes in the upper front legs, place the footrest on the holes

Close-up of a hand holding a chair with a cloth, next to a small object (no visible text or symbols)

1. Insert the supplied screws and tighten with a cross-head screwdriver (not included). Do not tighten the screws with excessive force. Repeat on the opposite side.

Close-up of a hand using a tool to apply material to a cylindrical object (no visible text or symbols)

Close-up of a metal bracket with a circular pin and mounting hole (no text or symbols visible)

Leg Assembly

1. Locate the two rear upper legs. Insert the screw into the threaded hole in the highchair frame and rotate the leg clockwise until it is firmly tightened. Do not over tighten. Repeat on the opposite side.

Person using a stand to lift a white plastic cup (no text or symbols visible)

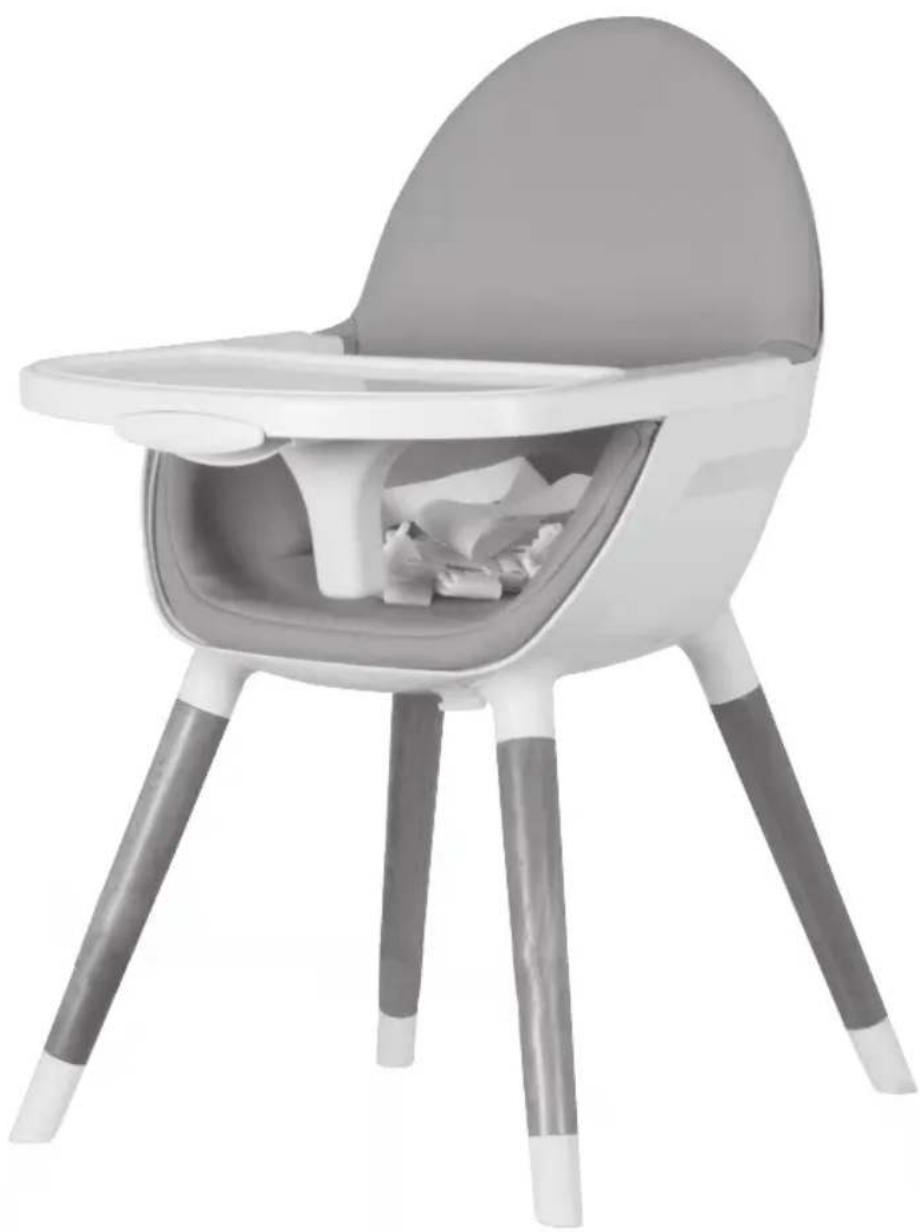

1. The highchair must resemble the image shown.

Gray baby boom chair with a single cushion and small figurine on the backrest (no text or symbols visible)

1. Locate the four lower legs. Insert the screw into the threaded hole in the upper leg and rotate the leg clockwise until firmly tightened. Do not over tighten. Repeat with the remaining three legs.

Close-up of a desk lampshade with adjustable arm and seat (no text or symbols visible)

1. Rotate the plastic covers at the lower end of the legs. Before using the highchair, check that the covers are turned so that their bottom surface is against the floor.

Hand holding a cylindrical object with a white substance, possibly a tool or tool, against a plain background (no text or symbols visible)

CONVERTING THE HIGHCHAIR INTO LOW SEAT MODE

The highchair can also be converted into a low seat by screwing the four lower legs directly into the highchair frame. Do not over tighten.

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Attaching and adjusting the table

Note: The table can be adjusted and has three positions.

1. To attach the table, align it with the armrests, pull the handle under the front of the table and simultaneously slide it along the armrests into the desired position. Release the handle. To adjust the table, pull the handle under the front of the table and slide it in further or to the desired position.

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

1. The table has a tray that can easily be removed by lifting the edge.

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

1. To detach the table, locate the handle under the table as shown in the picture.

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

1. Simply pull the handle towards you while keeping a firm hold on the highchair with the other hand and pull the table out.

Close-up of a hand holding a white plate with a handle, partially open to show interior objects (no text or symbols visible)

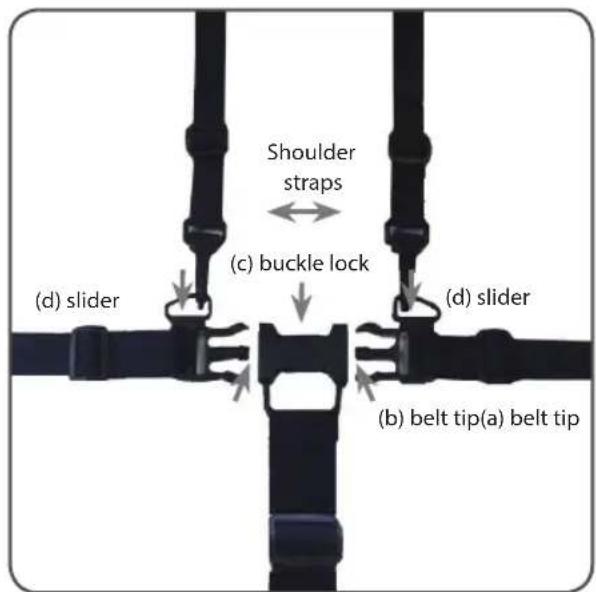

Safety Belt

1. To secure the child in the harness, push buckles (a) and (b) into the locking mechanism (c), until the buckles click into the correct position.
2. Carefully adjust the length of the belt using the slider (d), until the straps are correctly adjusted on the hips, the shoulders and between the legs.
3. To release the buckles, press the upper and lower tips of the buckles until they are released.

To ensure the long life of the highchair, clean it, if necessary, with a cloth moistened with a mild soap solution. Do not use aggressive detergents. Store the product in a clean, dry place.

Maintenance

Regularly check that screws, nuts and other fasteners are still tight – if necessary, tighten or replace. If bent, torn, worn or broken parts are detected, ensure that they are replaced without delay to maintain the safety of the highchair. Use only parts and accessories approved by the manufacturer.

WARRANTY CERTIFICATE

1. The seller provides a product warranty for 24 months from the date of sale to the consumer.
2. The seller is obligated to complete the warranty certificate upon sale with the date and stamp of the store. It is not permitted to date and stamp the warranty certificate after the product is sold.
3. In the event of a complaint, the consumer must present the original Warranty Certificate, the original product purchase receipt and make a record of the claimed event (a description of the circumstances in which the defect occurred or a brief description of the defect with the consumer's request).
4. The product on the claim will only be accepted if it's clean.
5. The warranty period shall be extended when the consumer has filed a claim for warranty repairs until the time the consumer is obliged to take on the product after repairs are completed.
6. The warranty expires if the consumer or other person, after purchase, does not follow instructions during assembly, maintenance, cleaning and use in accordance with the instructions for use contained in these warranty terms. The consumer is not entitled to make any changes to the product.
7. For mechanical damage due to improper use, in particular scratches, breakage of plastic parts, cracked or broken joints, discolouration of cover colours resulting from non-compliant cleaning or brightening caused by exposure of the product to direct sunlight or moisture, a claim will not apply. It is also not possible to claim for cracked parts due to a fall, abrasion or tearing of the cover and wear-and-tear of the product by normal use. The claim cannot be applied if product parts are stolen, lost or damaged by their own fault. These defects will be repaired by the consumer, including shipping costs.
8. The buyer was shown how to assemble the car seat upon purchase or it was assembled by the seller. (Cross out what is not applicable) and the buyer was familiar with the instructions for use when buying the item. The provision of the guarantee is without prejudice to the buyer's rights, which are subject to the purchase of the item in accordance with special legal regulations.

Stamp and signature Date of sale

SICHERHEITSHINWEISE

DE

Illustration of a baby wearing a chair seat with a skull inside (no text or symbols)

Two cylindrical gray objects with pointed tips, resembling lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Obere Hinterbeine

x4

Close-up of five cylindrical objects with gray and white bands, arranged diagonally (no text or symbols visible)

3D rendered image of a curved mechanical component (no text or symbols visible)

x2

Simple line drawing of a bolt (no text or symbols)

Close-up of a screwdriver with a flat blade and cylindrical head (no text or symbols visible)

Close-up of a hand holding a white object with a curved handle, possibly a tool or device (no visible text or symbols)

Simple grayscale illustration of a small outdoor table with a circular top and three legs (no text or symbols)

Close-up of a hand holding a small object with dark bands, next to a food item in a container (no visible text or symbols)

Close-up of a hand using a tool to apply material on a cylindrical object (no visible text or symbols)

Close-up of a mechanical joint or bracket with a cylindrical shaft and flange (no visible text or symbols)

Montage der Beine

Hand holding a white plastic object with a handle, no visible text or symbols

Gray baby boom chair with wooden legs and cushion, no text or symbols visible

Close-up of a baby chair with adjustable arm and seat (no text or symbols visible)

Hand holding a cylindrical object with a white substance, possibly a tool or tool, against a plain background (no text or symbols visible)

UMBAU DES HOCHSTUHLS IN EINEN NIEDRIGEN SITZ

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby's height seat with hands holding the seat (no text or symbols visible)

Close-up of a baby's high chair with a hand placing an object on the seat (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical part, showing internal structure and mounting holes (no text or symbols visible)

Close-up of a hand holding a white plate with a small bowl, partially open to show food inside (no text or symbols visible)

Sicherheitsgurte

3D rendered image of a baby seat with a white seatbelt and gray seat cover (no text or symbols)

Two cylindrical objects with pointed tips, possibly lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Hátsó felső láb

x4

Close-up of five cylindrical objects with metallic caps, arranged diagonally (no text or symbols visible)

White plastic bag or clip with rounded corners and a curved body (no text or symbols)

etetópulttal

x1

Curved white and gray object resembling a handle or bracket (no text or symbols visible)

Lábtartó

x2

Simple line drawing of a bolt (no text or symbols)

Close-up of a screwdriver with a flat blade and handle (no text or symbols visible)

Close-up of a hand holding a tool over a mechanical component (no visible text or symbols)

Simple grayscale illustration of a small fire extinguisher with a circular vent and two legs (no text or symbols)

Close-up of a hand holding a small object, possibly a ladder or frame, with no visible text or symbols.

Close-up of a hand holding a small white object next to a cylindrical object (no text or symbols visible)

Close-up of a mechanical lever or bracket with a cylindrical shaft and mounting bracket (no text or symbols visible)

Close-up of a hand holding a white plastic object with a handle, possibly a stand or holder (no text or symbols visible)

3D rendered image of a baby rocking chair with a cushion and wooden legs (no text or symbols)

Close-up of a desk lamp with adjustable arm and seat (no visible text or symbols)

Close-up of a hand holding a cylindrical object with a white substance, possibly a tool or tool (no text or symbols visible)

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

Close-up of a hand holding a white plastic tray over a seated seat (no text or symbols visible)

Biztonsági hám

3D rendered illustration of a baby seat with a white skull resting inside (no text or symbols)

Two cylindrical gray objects with pointed tips, resembling lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Tylna noga górna

x4

Close-up of five cylindrical objects with metallic bands, arranged in a row (no visible text or symbols)

White plastic bag or clip with rounded corners (no text or symbols)

x1

3D rendered image of a curved mechanical component (no text or symbols visible)

x2

Simple line drawing of a bolt (no text or symbols)

Close-up of a screwdriver with a flat blade and cylindrical head (no text or symbols visible)

Close-up of a hand holding a white object with a dark handle, possibly a tool or device (no visible text or symbols)

Simple grayscale illustration of a small fire extinguisher with a circular vent and two legs (no text or symbols)

Close-up of a hand holding a small object, possibly a ladder or frame, with no visible text or symbols.

Close-up of a hand using a tool to apply material on a cylindrical object (no text or symbols visible)

Close-up of a mechanical lever or bracket with a cylindrical shaft and mounting bracket (no text or symbols visible)

Close-up of a hand holding a white plastic object with a handle, possibly a stand or holder (no text or symbols visible)

3D rendered image of a baby rocking chair with a cushion and wooden legs (no text or symbols)

Close-up of a desk lamp with adjustable arm and seat (no visible text or symbols)

Close-up of a hand holding a cylindrical object with a white substance, possibly a tool or tool (no text or symbols visible)

INSTRUKCJA MONTAŻU/UŻYTKOWANIA

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

Close-up of a hand holding a white plate with a handle, partially open to show interior objects (no text or symbols visible)

3D rendered illustration of a baby seat with a white skull resting inside (no text or symbols)

Two cylindrical gray objects with pointed tips, resembling lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Gambe posteriori superiori

x4

Close-up of five cylindrical objects with metallic bands, arranged in a row (no visible text or symbols)

White plastic bag or clip with rounded corners (no text or symbols)

x1

3D rendered image of a curved mechanical component (no text or symbols visible)

x2

Simple line drawing of a bolt (no text or symbols)

Close-up of a screwdriver with a flat blade and cylindrical head (no text or symbols visible)

Close-up of a hand holding a tool over a mechanical component (no visible text or symbols)

Simple illustration of a small outdoor table with a circular top and two legs, containing a bowl of food (no text or symbols)

Close-up of a hand holding a small object next to a chair (no visible text or symbols)

Close-up of a hand using a tool to apply material to a cylindrical object (no text or symbols visible)

Close-up of a metallic mechanical bracket with a cylindrical shaft and mounting hole (no text or symbols visible)

Close-up of a hand holding a white plastic object with a handle, possibly a stand or holder (no text or symbols visible)

3D rendered image of a baby rocking chair with a cushion and wooden legs (no text or symbols)

Close-up of a desk lamp with adjustable arm and seat (no visible text or symbols)

Close-up of a hand holding a cylindrical object with a white substance, possibly a tool or tool (no text or symbols visible)

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

Close-up of a hand holding a white plate with a small handle, partially open to show interior objects (no text or symbols visible)

3D rendered illustration of a baby seat with a white skull resting inside (no text or symbols)

Okvir stolčka obložen z blazino in pritrdilnimi jermeni

x2

Two cylindrical gray objects with pointed tips, resembling lit candles or paper scrolls (no text or symbols visible)

Two cylindrical gray candles with pointed tips, isolated on white background (no text or symbols)

Zadnja zgornja noga

x4

Close-up of five cylindrical objects with gray and white bands, arranged diagonally (no text or symbols visible)

Okvir stolčka obložen z blazino in pritrdilnimi jermeni

x1

White plastic bag or clip with rounded corners (no text or symbols)

Curved white and gray object resembling a handle or bracket (no text or symbols visible)

x2

Simple line drawing of a bolt (no text or symbols)

Close-up of a screwdriver with a flat blade and cylindrical head (no text or symbols visible)

Close-up of a hand holding a tool over a mechanical component (no visible text or symbols)

Simple illustration of a baby stool with a circular frame and two legs (no text or symbols)

Close-up of a hand holding a small object, possibly a ladder or frame, with no visible text or symbols.

Close-up of a hand using a tool to apply material to a cylindrical object (no text or symbols visible)

Close-up of a mechanical lever or bracket with a cylindrical shaft and mounting bracket (no text or symbols visible)

Montaža nog

Close-up of a hand holding a white plastic object with a handle, possibly a stand or holder (no text or symbols visible)

1. Stolček se mora ujemati s tistim na sliki.

Gray baby chair with a circular seat and wooden legs, no text or symbols visible

Close-up of a desk lamp with adjustable arm and handle (no visible text or symbols)

Close-up of a hand holding a cylindrical object with a white substance, possibly a tool or device (no visible text or symbols)

Modern baby stool with open lid and four legs, showing internal compartments (no text or symbols visible)

Close-up of a baby boom seat with gray and white coloring (no text or symbols visible)

Close-up of a babyhood seat with a hand inserting a plastic cup into the tray (no text or symbols visible)

Close-up of a hand holding a white plastic mechanical component, possibly a housing or frame (no text or symbols visible)

Close-up of a hand holding a white plastic tray over a seated seat (no text or symbols visible)

Varnostni pasovi

QR code image containing encoded data, no visible human-readable text

Distributor: BabyDirekt s.r.o. Masarykova 118, 664 42 Modřice, Czechia e-mail: [e-mail]

www.babydirekt.eu | www.zopadesign.com
