USER MANUAL ER-HGP74 PANASONIC

Operating Instructions

AC/Rechargeable Professional Hair Clipper

Model No. ER-HGP84

ER-HGP74

Line drawing of two hairbrushes with black filter bands and circular cutouts (no text or symbols)

ER-HGP84 ER-HGP74

English	3	Svenska	73	Magyar	143
Español	17	Suomi	87	Română	157
Dansk	31	Polski	101	Türkçe		171
Português	45	Česky 115		Ελληνικά	185
Norsk	59	Slovensky 129

Panasonic

Operating Instructions

AC/Rechargeable Professional Hair Clipper

Model No. ER-HGP84

ER-HGP74

Contents

Safety precautions...... 6

Important information ......9

Parts identification ....10

Charging 10

How to use ......12

Care....12

Troubleshooting 14

Disposal of the appliance ....15

Specifications 16

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

WARNING

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
• Do not use anything other than the supplied AC adaptor and the charging stand for any purpose.
  Also, do not use any other product with the supplied AC adaptor and the charging stand. (See page 10.)
• Keep the appliance dry.

- The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

Make sure to follow these instructions.

To prevent accidents, injuries or damage to property, please follow the instructions below.

■ The following chart indicates the degree of damage caused by improper operation.

DANGER

Indicates potential hazard that will result in serious injury or death.

WARNING

Indicates potential hazard that could result in serious injury or death.

CAUTION

Indicates potential hazard that could result in minor injury or property damage.

WARNING

▶ Power supply

- Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

- Do not immerse the main body, AC adaptor and the charging stand in water or wash it with water.

- Do not place the main body, AC adaptor and the charging stand over or near water filled sink or bathtub.

- Do not use when the AC adaptor is damaged or when the fitting into the household outlet is loose.

- Do not deface, modify, forcefully bend or pull the cord or the power plug. Also, do not place anything heavy on, twist or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

- Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

• Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

• Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

• Always unplug the adaptor from a household outlet when cleaning.

- Failure to do so may cause electric shock or injury.

- Regularly clean the power plug, the appliance plug and the charging plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

WARNING

▶ In case of an abnormality or malfunction

- Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

- The main body, charging stand or AC adaptor is deformed or abnormally hot.

• The main body, charging stand or AC adaptor smells of burning.

• There is an abnormal sound during use or charging of the main body.

- Immediately request inspection or repair to an authorized service centre.

▶ This appliance

- This appliance has a built-in rechargeable battery. Do not throw into fire or apply heat. Do not charge, use or leave in high temperature environment.

- Doing so may cause fluid leak, overheating, or explosion.

- Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change, etc.).

- Never disassemble except when disposing of the appliance.

- Doing so may cause fire, electric shock, or injury.

▶ Preventing accidents

- Do not place within reach of children or infants. Do not let them use it.

- Putting parts or accessories in the mouth may cause an accident or injury.

- If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

- If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

- Failure to do so may result in physical problems.

CAUTION

▶ Protecting the skin

- Do not press the blade strongly against the skin.

- Do not use the appliance for any purpose other than trimming hair.

- Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

- Doing so may cause injury to ears or uneven skin.

- Check that the blades are not damaged or deformed before use.

- Failure to do so may cause skin injury.

CAUTION

▶ Note the following precautions
- Do not allow metal objects or trash to adhere to the power plug, the appliance plug or the charging plug.
- Doing so may cause electric shock or fire due to a short circuit.
- Do not drop or hit against other objects.
- Doing so may cause injury.
- Do not wrap the cord around the adaptor or the charging stand when storing.
- Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.
- Do not disconnect the power plug or the appliance plug by holding the cord when disconnecting it.
- Failure to do so may cause electric shock or injury.
- Disconnect the adaptor from the household outlet when not using.
- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Handling of the removed battery when disposing

!DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other appliances.
• Do not charge the battery after it has been removed from the appliance.
• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
• Never peel off the tube.
• Doing so may cause overheating, ignition, or explosion.

WARNING

• After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

- If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

- Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION

- If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

- Failure to do so may cause inflammation.

Important information

- This appliance is designed for professional use to trim hair. It can be operated on either an AC adaptor or rechargeable battery.

- Apply the lubrication oil to the blade before and after each use.

(See page 14.)

Failure to apply the lubrication oil may cause the following problems.

- The appliance has become blunt.

- Shorter operating time.

- Louder sound.

- The appliance may become warm during operation and/or charging. This is normal.

- Do not use any blade other than the one dedicated as it may cause defect in performance.

- You should not allow permanent wave lotion, hair dyeing or hair spray to come into contact with the main body or the blades.

Doing so may result in cracking or corrosion.

- Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.

- Charge the appliance correctly according to these Operating Instructions. (See page 10 "Charging".)

- This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service centre for the details of repair.

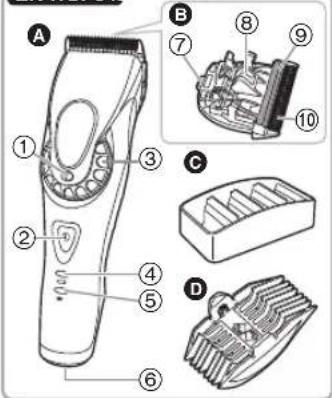

Parts identification

ER-HGP84F

A Main body

① Trimming height indicator

②Power switch

③Dial

(Height adjustment control)

④ Recharge lamp (White)

⑤ Charge status lamp (Red)

⑥Appliance socket

B Blade

⑦Mounting hook
⑧Cleaning lever
⑨ Moving blade
⑩ Stationary blade

©Comb attachment shelves

D 19 mm/25 mm comb attachment ER-HGP84

E 12 mm/15 mm comb attachment
F 6 mm/9 mm comb attachment

G 3 mm/4 mm comb attachment
H Charging stand (RC9-92)

⑪ Charging plug
⑫ Stand socket

① AC adaptor (RE9-82)

⑬Adaptor
⑭ Power plug
⑮ Cord
⑯ Appliance plug

Accessories

J Cleaning brush
K Lubrication oil
L Pouch

Charging

(Illustration: ER-HGP84)

- Turn the appliance off.

1 Connect the appliance plug to the stand socket.
2 Place the appliance on the charging stand.
3 Insert the adaptor into a household outlet.

• Charging is completed after approx. 1 hour.
• Check the charge status lamp (→) glows.

4 Disconnect the power plug after charging is completed.

(For safety and energy saving)

• Charging is required when the recharge lamp blinks.
  • The appliance can be used for approximately 5 minutes after the recharge lamp blinks.

Insert the main body again after removing it from the charging stand.

If the charge status lamp glows and then turns off after 5 seconds, charging is completed.

Notes

• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

• The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.

• The charging time may differ when charging the main body for the first time, or if it has not been used for more than 6 months. The lamp on the main body may not glow for several minutes when first starting charging, but will glow when continuing to charge.

• Recommended ambient temperature for charging is 10^ - 35^ . It may take longer to charge, or the charge status lamp will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• 1 full charge will provide approximately 50 minutes of continuous operation. (Based on dry using at 20^ - 30^ )

The operating time may differ depending on the frequency of use and the operating method.

• The battery used is a lithium-ion, so charging after every use will have no effect on battery life.
  • To keep charging the battery will not affect battery performance.

Charging without the charging stand

1. Connect the appliance plug to the appliance socket.
2. Plug in the adaptor into a household outlet.

AC operation

If you connect the AC adaptor to the appliance in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
  • The battery will be discharged, even with the AC operation.

How to use

(Illustration: ER-HGP84)

• Check that the blades are not damaged or deformed before use.
• Turn the appliance off.
• Apply the lubrication oil to the blade before and after each use. (See page 14.)
• The appliance may not operate in an ambient temperature lower than approximately 5 °C.

1 Set the trimming height.

2 Press the power switch to turn on the appliance.

Setting the trimming height

For a trimming height of 0.8 mm to 2.0 mm, turn the dial to the desired height.

Use an attachment for a trimming height higher than 3 mm or more.

Removing and mounting the comb attachments

▶ Mounting the attachment

1. Select the trimming heights indicated on the insides and sides of the attachments.
2. Set the dial to "0.8" and then mount the attachment to the main body as illustrated.

▶Removing the attachment

Slide one side of the attachment off the mounting in direction indicated with the arrow.

Illustration of a medical device with tubing and force arrows, no text or symbols present

Care

(Illustration: ER-HGP84)

Removing and mounting the blade

- Turn the appliance off.

▶Removing the blade

Hold the main body with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Illustration of a hand holding a small object with an arrow indicating direction, and a magnified inset showing a close-up of the object (no text or symbols)

▶ Mounting the blade

1. Set the dial to "2.0".

1. Fit the mounting hook into the blade mounting on the main body and push in until it clicks.

Illustration showing two-step robotic arm manipulation process, with magnified views of the tool (no text or symbols)

Cleaning

• Clean the main body, blade and the attachment after each use.
  (If not cleaned, the motion will become poor and the sharpness will worsen.)
• Turn the appliance off.
• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body. Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

The symbol on the left means "Do not wash the product with water".

▶ Blade

1. Brush off any hairs from the main body and from around the blade.
2. Brush off the hairs from the blade edge.
3. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever (a) to raise the moving blade.

▶ Charging stand

Use the cleaning brush to clean hair trimmings and dust in the charging plug or in the hole on the bottom surface.

Illustration of a hand holding a small electronic device with a cable inserted (no text or symbols visible)

Illustration of hands inserting a cable into a device component (no text or symbols visible)

Illustration of hands holding a device with cable, no visible text or symbols

Lubrication

- Apply the lubrication oil to the blade before and after each use.

1 Remove the blade. (See page 12.)
2 Apply a drop of the lubrication oil to each indicated point.
3 Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Cross-sectional diagram of a mechanical component with internal parts and directional arrows (no text or labels)

▶ Replacement parts

Replacement part is available at your dealer or Service Centre.

Replacement parts for ER-HGP84/ER-HGP74	Blade WER9920
	Lubrication oil WES003P

• Using other than recommended genuine blade, any warranty claim will expire.
  • We recommend Panasonic lubrication oil WES003P.

Troubleshooting

Problem Action

The appliance has become blunt.Operating time is short.Appliance stopped functioning.	Until problems are solved, please follow each procedure as follows;1. Charge the appliance.(See page 10.)2. Clean the blade and apply lubrication oil.(See pages 13 and 14.)3. Replace the blade.(See pages 12 and 14.)4. Have the battery replaced by an authorized service centre.
The appliance cannot be charged.	Push the main body into the charging stand or appliance plug all the way.Charge within the recommended charging temperature of 10 °C to 35 °C.
Makes a loud sound.	Apply lubrication oil.(See this page.)Confirm that the blade is properly attached.

If the problems still cannot be solved, contact your dealer or a service centre authorized by Panasonic for repair.

Disposal of the appliance

Remove the built-in rechargeable battery before disposing the appliance.

• The battery is to be disposed of safely.
- This figure must only be used when disposing the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it may cause malfunction.

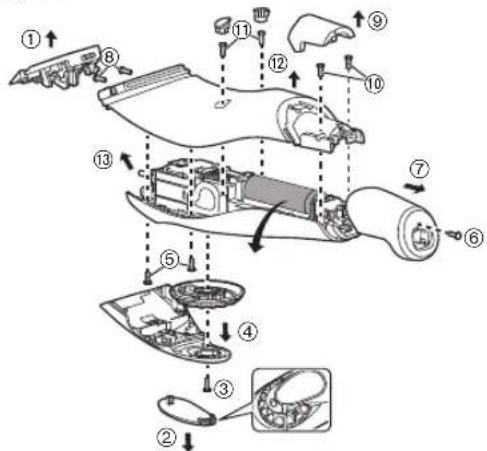

How to remove the battery

• Remove the appliance from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform following steps and lift the battery, and then remove it.
  • Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials This appliance contains a Lithium-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

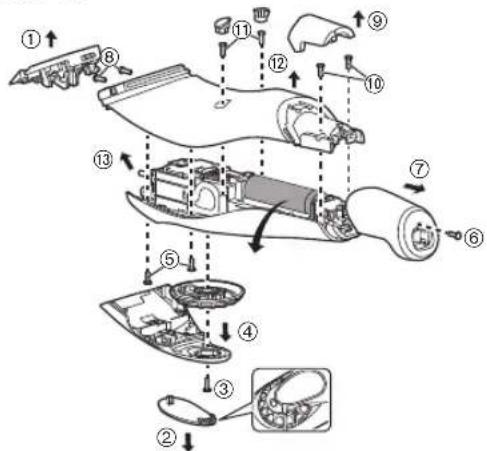

▶ ER-HGP84

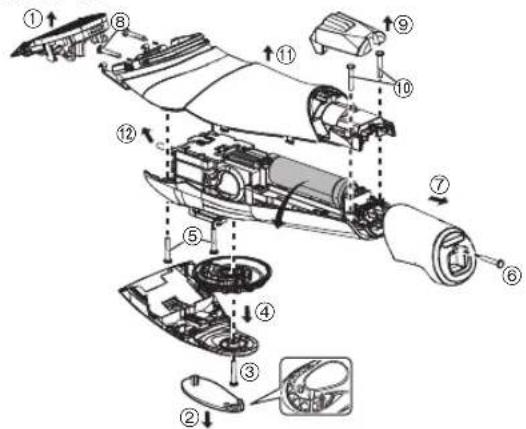

▶ ER-HGP74

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour

For more information about the energy efficiency of the product, please visit our website, www.panasonic.com, and enter the model number in the search box.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Illustration of a medical procedure showing a hand holding a catheter with an arrow indicating force or movement (no text or symbols present)

Cuidados

Illustration of a hand holding a small object with an arrow indicating motion, alongside a magnified inset showing a close-up of the object (no text or symbols)

Illustration showing two hands holding a device with magnified views of internal components (no text or symbols)

Limpieza

Illustration of two hands inserting a component into a device (no text or symbols visible)

Lubricación

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

▶ ER-HGP74

Especificaciones

AApparatets krop

① AC-adapter (RE9-82)

⑬ Adaptor
⑭ Strømstik
⑮ Ledning
⑯ Stik til apparat

Tilbehør

Illustration of a medical procedure showing a catheter insertion into a tube (no text or symbols present)

Vedligeholdelse

(Illustration: ER-HGP84)

Sådan monteres og fjernes bladet

- Sluk for apparatet.

Illustration of a hand holding a small object with an arrow indicating motion, and a magnified inset showing the interior view of a mechanical component (no text or symbols)

Montering af bladet

1. Indstil skiven til "2.0".

Illustration showing two hands holding a device with a magnified inset of internal components (no text or symbols)

Rensning

Hand holding a small electronic device with a screwdriver inserted (no visible text or symbols)

Illustration of hands inserting a cable into a device component (no text or symbols visible)

Illustration of a hand holding a device with a cable, showing internal components and a labeled section (a), no text or symbols present.

Hand using a tool to apply soldering onto an electronic component (no text or symbols visible)

Smøring

Cross-sectional diagram of a vehicle head and dashboard with no visible text or symbols

▶ ER-HGP74

Specifikationer

H

ACorpo principal

① Indicador da altura de corte
②Interruptor de funcionamento

Illustration of a medical procedure showing a hand holding a spring-loaded device with an arrow indicating motion (no text or symbols present)

Cuidado

Illustration of a hand holding a tool with an arrow indicating motion, and a magnified inset showing the blade structure (no text or symbols)

Illustration showing two hands holding a small object, with magnified views of the interior and surface details (no text or symbols)

Limpeza

Illustration of hands inserting a component into a device (no text or symbols visible)

Illustration of hands connecting a connector to a cable, showing internal components and wiring (no text or symbols)

Lubrificação

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

Remova as baterias conforme ilustrado

▶ ER-HGP74

Especificações

A Hoveddeksel

Illustration of a hand holding a medical device with a curved arrow indicating motion (no text or symbols)

Vedlikehold

(Illustrasjon: ER-HGP84)

Illustration of a hand holding a small object with an arrow indicating direction, alongside a magnified inset showing a close-up of the object (no text or symbols present)

Montere bladet

1. Still skiven til "2.0".

Illustration of a hand holding a small object with a magnified inset showing internal components (no text or symbols)

Rengjøring

Hand holding a small electronic device with a cable inserted (no visible text or symbols)

Illustration of hands holding a small electronic component with visible traces (no text or symbols)

Hand using a screwdriver to apply soldering onto an electronic component (no text or symbols visible)

Smøring

Reservedeler forER-HGP84/ER-HGP74	Blad WER9920
	Smøreolje WES003P

Cross-sectional diagram of a mechanical component with internal parts and directional arrows (no text or labels)

▶ ER-HGP74

Spesifikasjoner

Strømkilde	Se merkeplaten påvekselstrømsadapteren.(Automatisk spenningsomformer)
Motorspenning	3,6 V---
Ladetid Omtrent 1 time.

Simple line drawing of a vertical line with three circular shapes and an arrow, no text or symbols present.

Illustration of a medical procedure showing a catheter insertion into a tube (no text or symbols present)

Skötsel

(Illustration: ER-HGP84)

Illustration of a hand holding a tool with an arrow indicating direction, and a magnified inset showing the process (no text or symbols)

Att sätta på bladet

Illustration showing two hands holding small objects with magnified views of internal components (no text or symbols)

Rengöring

Three-step illustration showing hands connecting a device to a cable, with no visible text or symbols.

Close-up of hands holding a computer RAM module with a cable, no visible text or symbols

Hand using a screwdriver to adjust or install an electronic component (no text or symbols visible)

Smörjning

Cross-sectional diagram of a mechanical component with internal parts and directional arrows (no text or labels)

▶ ER-HGP74

Specifikationer

Illustration of a medical procedure showing a hand holding a catheter with an arrow indicating force or movement (no text or symbols present)

Huolto

(Kuva: ER-HGP84)

Illustration of a hand holding a small object with an arrow indicating motion, and a magnified inset showing the interior view (no text or symbols)

▶ Terän asentaminen

Illustration showing two-step robotic arm manipulation process, with magnified views of internal components (no text or symbols)

Puhdistaminen

Hand-drawn sketch of a hand holding a small electronic device with a probe inserted (no text or symbols)

Illustration of hands holding a mechanical component with a tool inserted (no text or symbols visible)

▶ Latausteline

Hand using a screwdriver to apply soldering onto a battery cover (no text or symbols visible)

Voitelu

Cross-sectional diagram of a mechanical component with internal parts and directional arrows (no text or labels)

▶ ER-HGP74

Tekniset tiedot

H

①

A Korpus

Illustration of a medical device with tubing and force arrows, no text or symbols present

Pielęgnacja

Illustration of a hand holding a small object with an arrow indicating direction, and a magnified inset showing a close-up of the object (no text or symbols)

▶ Mocowanie ostrza

Illustration showing two-step steps of a hand holding a small object, with magnified views highlighting internal components (no text or symbols)

Czyszczenie

Hand holding a small electronic device with a cable inserted (no visible text or symbols)

Illustration of hands holding a connector with a cable, showing internal components (no text or symbols)

Hand using a screwdriver to work on an electronic component (no text or symbols visible)

Smarowanie

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

▶ Części zamienne

▶ ER-HGP74

Dane techniczne

H

1

A Hlavní část

Illustration of a medical procedure involving a catheter insertion and force application (no text or symbols)

Péče

(Illustrace: ER-HGP84)

Illustration of a hand holding a small object with an arrow indicating motion, alongside a magnified inset showing the interior view (no text or symbols)

▶ Připevnění čepele

1. Nastavte stupnici na „2.0”.

Illustration showing two-step robotic arm manipulation process, with magnified views of internal components (no text or symbols)

Čištění

Hand-drawn sketch of a hand holding a small electronic device with a cable inserted (no text or symbols)

Illustration of hands holding a cable or connector with visible internal components (no text or symbols)

Cesky

Mazání

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

▶ ER-HGP74

Specifikace

A Hlavná čast'

Illustration of a medical procedure showing a catheter insertion into a tube (no text or symbols present)

Starostlivost'

(Obrázok: ER-HGP84)

Vyberanie a nasadzovanie čepele

- Prístroj vypnite.

▶ Vyberanie čepele

Illustration of a hand holding a small object with an arrow indicating direction, alongside a magnified inset showing a close-up of the object (no text or symbols present)

▶ Nasadzovanie čepele

Illustration showing two hands holding small objects with magnified views of internal components (no text or symbols)

Čistenie

Three-step illustration showing hands connecting a device to a cable, with no visible text or symbols.

Illustration of a hand holding a device with a cable, showing internal components and a downward arrow (no text or symbols)

Mazanie

- Olej na mazanie naneste na čepel' pred a po každom použití.

Cross-sectional diagram of a vehicle head and dashboard with gear and structural components (no text or labels)

Náhradné diely preER-HGP84/ER-HGP74	Čepel' WER9920
	Olej na mazanie	WES003P

▶ ER-HGP74

Technické údaje

Illustration of a medical or surgical procedure showing a tool interacting with a device (no text or symbols visible)

Karbantartás

Illustration of a hand holding a small object with an arrow indicating direction, alongside a magnified inset showing a close-up of the object (no text or symbols present)

Illustration showing two-step robotic arm manipulation process: left to right, with magnified views of internal components (no text or symbols)

Tisztítás

Illustration of a hand holding a small electronic device with a pen inserted (no text or symbols visible)

Illustration of hands holding a cable or connector with a printed component (no text or symbols visible)

Illustration of hands connecting a cable to a connector with labeled parts (a and D), no text or symbols present.

Kenés

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

Hibaelhárítás

Probléma Művelet

▶ ER-HGP74

Műszaki adatok

① Adaptor c.a. (RE9-82)

⑬ Adaptor
⑭ Ștecăr de alimentare
⑮ Cablu
⑯ Štecher aparat

Accesorii

Illustration of a hand holding a spring-loaded tool or device, with no visible text or symbols.

Îngrijire

Illustration of a hand holding a tool with an arrow indicating direction, alongside a magnified inset showing the blade structure (no text or symbols)

▶ Montarea lamei

1. Pozitionati discul la "2.0".

Illustration showing two-step robotic arm manipulation process, with magnified views of the tool (no text or symbols)

Curățare

Illustration of a hand holding a small electronic device with a pen inserted (no text or symbols visible)

Illustration of hands holding a cable or connector with a printed component (no text or symbols visible)

Illustration of hands connecting a connector to a cable, showing internal components and wiring (no text or symbols)

Hand using a screwdriver to adjust or install an electronic component (no text or symbols visible)

Lubrifiere

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

▶ ER-HGP74

Specificații

Illustration of a medical procedure showing a catheter insertion into a patient's neck (no text or symbols present)

Bakım

Illustration of a hand holding a tool with an arrow indicating direction, and a magnified inset showing the process (no text or symbols)

▶ Biçağı takma

Illustration showing two hands holding small objects with magnified views of internal components (no text or symbols)

Temizlemek

Illustration of a hand holding a small electronic device with a pen inserted (no text or symbols visible)

Illustration of hands holding a cable or connector with a printed component (no text or symbols visible)

Hand using a screwdriver to apply soldering onto an electronic component (no text or symbols visible)

Yağlama

Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or labels)

▶ Yedek parçalar

▶ ER-HGP74

Teknik özellikler

A Kúpio σώμα

Illustration of a medical device with tubing and a hand holding a tool (no text or symbols visible)

Φροντίδα

(Eikóva: ER-HGP84)

Illustration of a hand holding a small object with an arrow indicating motion, alongside a magnified inset showing the same object (no text or symbols present)

Illustration showing two-step hand positioning technique: one with magnified views of a wristband, the other with magnified view of a wristwatch (no text or symbols)

Καθαρισμός

Illustration of a hand holding a small electronic device with a pen inserted (no text or symbols visible)

Illustration of hands holding a connector with a cable, no text or symbols present

▶ Βάση φόρτισης

Hand using a screwdriver to apply soldering onto a battery cover (no text or symbols visible)

Λίπανση

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

▶ ER-HGP74

Προδιαγραφές

© Panasonic Corporation 2021

⑤ EN, SP, DA, PT, NB, SV, FI, PL, CS, SK, HU, RO, TR, GR

Printed in Japan

ER9710HGP841E Y0721-0
