Product Type	1U Storage Chassis for ATX/MicroATX Server Board
Form Factor	1U Rackmount
Dimensions (W x H x D)	438 x 43.9 x 530 mm (17.24" x 1.73" x 20.87")
Weight	17 kg (37.5 lbs)
Drive Bays (Front)	4 x hot-pluggable 3.5"/2.5" SAS/SATA HDD trays
Drive Bays (Internal)	2 x 2.5" SATA HDD bays
Optical Drive Bay	1 x slim ODD (default with dummy cover, can hold 7mm SSD)
HDD Backplane (TA version)	Advantech SATA backplane with 6 Gbps per port
HDD Backplane (SA version)	Advantech SAS backplane with 12 Gbps per port
Power Supply Options	350W, 400W, 500W single 1U power supplies
Cooling Fans	Three 4056mm + one 4028mm fans
Front Panel I/O	2 x USB 3.0 ports
Front Panel Controls	Power switch, System reset button
LED Indicators	Power (blue), HDD activity (blue), LAN status (blue), System info (blue); per HDD tray: power (green), activity (green)
Motherboard Support	ATX / MicroATX (ASMB series recommended)
Expansion Slots	1 x full-height, half-length PCIe card via riser (AIMB-RF10F-01A1E)
Construction Material	Stainless steel and SGCC (galvanized steel)
Mounting	Rack mount with included ears and handles; slide rail compatible (optional)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F) (assumed based on typical)
Regulatory Compliance	FCC Part 15 Class A (assumed for industrial), CE (typical)
Warranty	2 years from date of purchase

Frequently Asked Questions - HPC-8104 Advantech

What motherboards are compatible with the HPC-8104?

The HPC-8104 supports ATX and MicroATX motherboards, with Advantech's ASMB series specifically recommended. The chassis provides stub copper standoffs for mounting.

How do I install the motherboard in the HPC-8104?

First, remove the top cover by unscrewing seven screws and sliding it back. Then, install stub copper standoffs at the marked locations for your motherboard (ATX or MicroATX). Place the motherboard on the standoffs and secure it with screws. Refer to the manual for exact positions.

What are the differences between the HPC-8104 TA and SA versions?

The TA version uses a SATA backplane supporting SATA 6 Gbps for front hot-plug HDD bays. The SA version uses a SAS backplane supporting SAS 12 Gbps for higher performance. The TA version also accepts SATA drives, while the SA accepts both SAS and SATA.

How many hard drives can I install in total?

Up to 7 drives: 4 hot-plug 3.5"/2.5" in the front, 2 internal 2.5" SATA HDDs, and 1 slim optical drive (which can be replaced with an additional 2.5" SSD using the ODD bracket).

Can I use a standard ATX power supply with the HPC-8104?

No, the HPC-8104 requires a 1U height power supply sized specifically for the chassis. Advantech offers 350W, 400W, and 500W options. Do not attempt to install a standard ATX PSU.

How do I replace a hot-plug HDD?

Simply remove the HDD tray by pushing the latch and pulling it out. Insert a new SAS/SATA HDD into the tray, secure it with four screws, slide the tray back in, and lock the latch. The drive is automatically detected.

What expansion cards can I install?

The HPC-8104 supports one full-height, half-length PCIe card via the included riser card (model AIMB-RF10F-01A1E). The riser must be purchased separately if not included.

How do I install the slide rails for rack mounting?

First, attach the inner slide members to the chassis using six screws (three per side). Then, mount the outer slide members to the rack cabinet. Finally, insert the chassis into the cabinet, ensuring the ball retainers are fully open, and push until locked.

What do the front panel LEDs indicate?

Five blue LEDs on the top show: Power, HDD activity, LAN1, LAN2, and System info. Each HDD tray has a green power LED and an activity LED (steady green when active).

Is the HPC-8104 compatible with 2.5" hard drives?

Yes, the front hot-plug trays accept both 3.5" and 2.5" SAS/SATA drives. Additionally, there are two dedicated internal 2.5" SATA bays for OS installation.

USER MANUAL HPC-8104 Advantech

Line drawing of a server rack with an Advanced Tech device, showing internal circuit boards and a separate rack unit (no text or symbols on the diagram itself)

HPC-8104

1U Storage Chassis for ATX/MicroATX Server Board with 4 Hot-Pluggable Drive Bays

1U 儲存伺服器適用 ATX/MicroATX

伺服器主機板，支援 4 個熱抽拔硬碟

1U 储存服务器适用 ATX/MicroATX

服务器主板，支持 4 个热抽拔硬盘

The documentation and the software included with this product are copyrighted 2018 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

HPC-8104 is the trademark of Advantech Co., Ltd.

All other product names or trademarks are the properties of their respective owners.

HPC-8104 是研华公司的商标。

For technical support and service, please visit our support website at:

http://support.advantech.com

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. For rack-mount equipment, please firmly install the device with pallets or sliding rails in the rack.
8. Do not leave this equipment in an environment unconditioned where the storage temperature is under 0^ C ( 32^ F) or above 40^ C ( 104^ F), it may damage the equipment.
9. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
10. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
11. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
12. All cautions and warnings on the equipment should be noted.
13. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
14. Never pour any liquid into an opening. This may cause fire or electrical shock.
15. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
16. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. CAUTION: The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacture. Discard used batteries according to the manufacturer's instructions.
2. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

A Message to the Customer/ 致客戶的訊息

Each and every Advantech product is built to the most exacting specifications to ensure reliable performance in the harsh and demanding conditions typical of industrial environments. Whether your new Advantech equipment is destined for the laboratory or the factory floor, you can feel assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech's customer services.

To ensure you get the full benefit of our services, please follow the instructions below carefully.

We want you to get the best performance possible from your products. If you run into technical difficulties, we are here to help. For the most frequently asked questions, you can easily find answers in your product documentation. These answers are normally a lot more detailed than the ones given over the phone.

Please consult this manual first. If you still cannot find the answer, gather all the information or questions that apply to your problem, and with the product close at hand, call your dealer. Our dealers are well trained and ready to give you the support you need to get the most from your Advantech products. In fact, most problems reported are minor and can be easily solved over the phone.

In addition, free technical support is available from Advantech engineers every business day. We are always ready to give advice about application requirements or specific information on the installation and operation of any of our products.

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, please follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

When you open the carton, please make sure that the following materials have been shipped:

Chassis
User Manual
Warranty Card
- Accessory box with a package of screws (for fastening the motherboard, optical disk drive, other disk drivers, riser card, ears and handles, etc.), a stub copper, fan extended cables and a pair of ears and handles.

If any of these items are missing or damaged, contact your distributor or sales representative immediately. We have carefully inspected the product mechanically and electrically before shipment. It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the product, check it for signs of shipping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately. Also, please notify the carrier. Retain the shipping carton and packing material for inspection by the carrier. After inspection, we will make arrangements to repair or replace the unit.

Chapter 1 General Information

概述

產品資訊1

1.1 Introduction/产品简介 / 產品簡介 ..... 2
1.2 Specifications/ 产品规格 / 產品規格 ..... 2
1.3 Power Supply Options/ 电源选项 / 電源選項 ..... 4
Table 1.1: Power Supply Options/ 电源选项 / 電源選項 .....4
1.4 Environmental Specifications/环境规格/環境規格 4
Table 1.2: Environment Specifications/ 环境规格 / 環境規格 ...4
1.5 Dimension Diagram/ 产品尺寸 / 產品尺寸....5
Figure 1.1 Dimension Diagram/ 产品尺寸 / 產品尺寸....5

Chapter 2 System Setup

系统安装

系統安裝7

2.1 Removing the Cover/移除顶盖 / 移除上蓋 8
Figure 2.1 Removing the Cover/ 移除顶盖 / 移除上蓋 .....9
2.2 Installing the Motherboard/ 安装母板 / 安装主機板 ..... 9
Figure 2.2 Stub Copper Locations Indication/ 母板安装铜柱标示 / 主機板安裝銅柱標示....10
Figure 2.3 Fastening the Stub Copper/ 固定铜柱 / 固定銅柱 .. 10
Figure 2.4 Installing a Motherboard/ 安装母板 / 安装主機板...11
2.3 Installing Disk Drives/ 安装磁盘驱动器 / 安装磁碟機....11
2.3.1 Installing SAS/SATA HDD 12
Figure 2.5 Removing the Mobile SAS / SATA HDD Trays/ 移除可移动 SAS/SATA HDD 托架 / 移除可移動 SAS/SATA HDD 托架....12
Figure 2.6 Installing a 2.5" or 3.5" SAS/SATA HDD/安装 2.5" 或 3.5" SAS 或 SATA HDD/安装 2.5" 或 3.5" SAS 或 SATA HDD....13
2.3.2 Installing the Internal 2.5" HDD/ 安装内置 2.5" HDD/ 安装内置 2.5" HDD .... 13
Figure 2.7 Installing the Internal 2.5" HDD / 安装内置 2.5" HDD / 安装内置 2.5" HDD....14
2.3.3 Installing ODD Module/ 安装 ODD 模块 / 安装 ODD 模塊 ..... 14
Figure 2.8 Release the ODD Module Bracket/卸除光驱支架/卸除光碟機支架....15
Figure 2.9 Installing ODD Module/ 安装 ODD 模块 / 安装 ODD 模塊15
2.4 Attaching the Ears and Handles/ 安装耳柄 / 安装耳翼 ..... 15
Figure 2.10 Attaching the Ears and Handles/ 安装耳柄 / 安装耳翼 B
2.5 Installing PCIe Expansion Card/ 安装 PCIe 扩充卡 / 安装 PCIe 擴充卡16
Figure 2.11 Remove PCIe Riser Card / 移除 PCIe 转接卡 / 移除 PCIe 轉接卡....17
Figure 2.12PCIe Riser Assembly / 安装 PCIe 转接卡 / 安装 PCIe 轉接卡....17
Figure 2.13PCIe Riser + Expansion Card Assembly / 安装 PCIe 转接卡与扩展卡 / 安装 PCIe 轉接卡與擴展卡.....18
2.6 Slide Rail or Pallet/ 滑轨或层板 / 滑轨或層板 ..... 18
Figure 2.14 Install Chassis with Inner Slide Rail/ 安装滑轨内轨 / 安

裝滑軌內軌 18

Figure 2.15 Install Chassis with Slide Rail in Cabinet/ 安装滑轨外轨 / 安装滑轨外轨 19

2.6.1 Slide Rail Installation 19

Chapter 3 Operation

操作23

3.1 The Front Panel/ 前面板 24

The HPC-8104 series is a 1U storage chassis with 4 x 3.5"/2.5 hot-plug HDD bays and 2 x internal 2.5" HDD designed for NVR and CMS servers for digital surveillance or cloud storage applications which are storage orientated. Featuring the latest in industrial design, the HPC-8104 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and state-off-the-art platform.

This series supports versatile ATX/MicroATX motherboards, with a highly efficient switching power supply. It provides 4 Hot-plug 3.5"/2.5" drive bays and two internal 2.5" HDD bays for OS installation. There are two HDD Backplanes to support this series. For the HPC-8104 TA version, Advantech's own-design SATA backplane supports 4 SATA 3.5"/2.5" hot-pluggable HDD with SATA 6G signal quality. For the HPC-8104 SA version, Advantech's own-design SAS backplane supports 4 SAS 3.5"/2.5" hot-pluggable HDD with SAS 12G signal quality to offer the best storage performance on HPC-8104. This series also supports a wide range of power supplies from 350W up to 500W single power supplies.

■ Construction: Stainless Steel and SGCC
Disk Drive Capacity: 4 hot-pluggable 3.5"/2.5" HDD trays and one ultra slim optical drive in the front with two internal 2.5" HDD. Ultra slim optical drive default with dummy cover and the ODD bracket supports one 7mm height internal 2.5" SSD.
■ LED Indicators: Single-color LEDs (blue) for Power, HDD activity, LAN status and System Information LED.
■ Switch and Buttons on Front Panel: Power switch, System Reset button
■ Front I/O Interfaces: Dual USB3.0 ports
■ Cooling System: Three 4056 and one 4028
Weight: 17 kg
■ Dimension (W x H x D): 438 x 43.9 x 530 mm (17.24" x 1.73" x 20.87")

This product can accommodate the 1U high power supply. Please see the options listed below.

Caution! Power supply options are subject to the product datasheet on Advantech website.

Note! For more safety information, please reference the Advantech website.

安规认证请参阅研华官网。

安規認證請參閱研華官網。

The following procedures explain how to install a motherboard, a riser card, add-on cards, and disk drives into the chassis. Please also refer to Appendix A, Exploded Diagram and Parts List, for detailed parts of the chassis.

Note! Use caution when installing or operating components with the chassis open. Be sure to turn off the power, unplug the power cord and ground yourself by touching the metal chassis before you handle any components inside the machine.

To remove the cover, please proceed as described below.

1. Unscrew the seven screws on the top cover.
2. Slide the top cover backwards and then lift it up. (see Figure 2.1)

请按照以下步骤移除机箱盖。

Technical line drawings of server rack modules showing internal components and mounting points (no text or labels)

Figure 2.1 Removing the Cover/移除顶盖 / 移除上蓋

2.2 Installing the Motherboard/ 安装母板/ 安装主機板

HPC-8104 supports ATX/MicroATX motherboards. To install the motherboard, please proceed as follows:

1. Figure 2.2 shows the stub copper location for attaching the specific ATX/Micro ATX mother board. Users can find the stub copper in the accessory box (see Figure 2.3). Lock the stub copper into the correct location and then rotate counterclockwise to fasten it into the chassis.

Isometric technical line drawing of a server rack with mounting hardware (no text or symbols)

Figure 2.3 Fastening the Stub Copper/ 固定銅柱 / 固定銅柱

Note!HPC-8104 only supports the ASMB series motherboard.

Isometric technical drawing of a server rack with internal components and mounting points (no text or labels)

HPC-8104 comes with four hot-plug 3.5"/2.5" HDD trays, and two internal 2.5" HDD. Please refer to the following instructions to install disk drives.

HPC-8104 SA accepts SAS and SATA HDD while HPC-8104 TA accepts SATA HDD. Users do not need to remove the chassis cover when installing a SAS / SATA HDD for front HDD bays.

1. Take the HDD tray from the HDD bay
2. Slide one SAS / SATA disk drive into the proper location in the tray and fix it with 4 screws.
3. Return and push the HDD tray to the chassis until the handle on the tray can move back. Right-shift the key latch of the HDD tray to lock the tray.
4. Repeat Steps 1 to 3 if there is the 2nd SAS / SATA HDD to be installed.

Technical line drawing of a mechanical assembly with mounting brackets and a flat plate (no text or symbols)

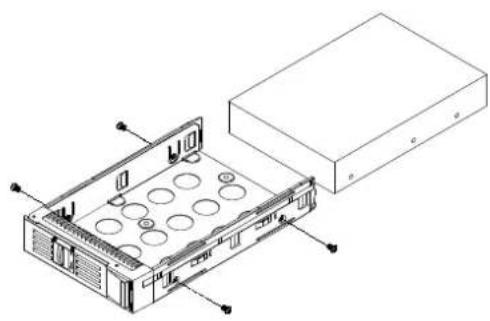

Figure 2.5 Removing the Mobile SAS / SATA HDD Trays/移除可移动SAS/SATA HDD 托架 / 移除可移動 SAS/SATA HDD 托架

Technical line drawing of an electronic device chassis showing internal components and mounting base (no text or symbols)

3.5" HDD

2.5" HDD

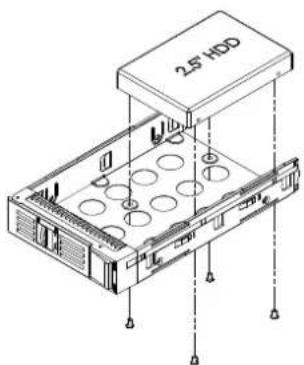

Figure 2.6 Installing a 2.5" or 3.5" SAS/SATA HDD/安装2.5"或3.5"SAS或SATA HDD/安装2.5"或3.5"SAS或SATA HDD

2.3.2 Installing the Internal 2.5" HDD/安装内置2.5" HDD/安装内置2.5" HDD

HPC-8104 provides two internal 2.5" SATA HDD installation.

To install the internal HDD, please follow these steps for installation.

1. To install the 2.5" internal SATA HDD, simply release the screws on top of the disk drive bracket. See Figure 2.7
2. Insert the disk drive into the proper location in the bracket and secure them with the screws provided.
3. Return the disk drive bracket in the original position and fasten it with the screws.
4. Connect the suitable cable from the motherboard to the 2.5" internal SATA HDD. Then plug the power connector into each disk drive.

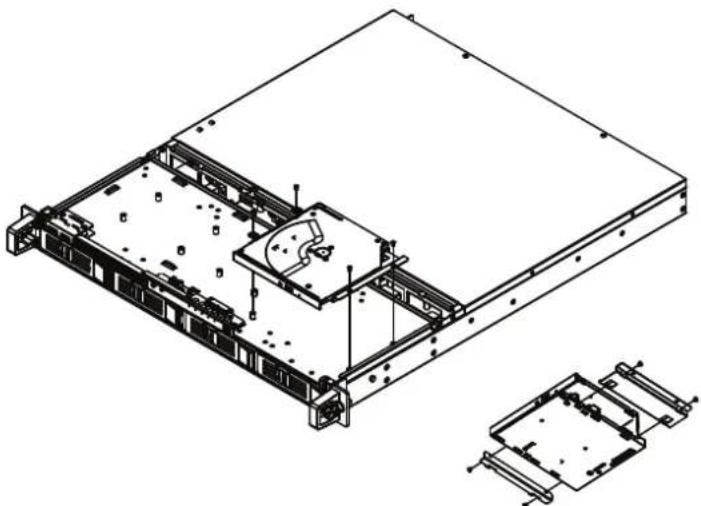

Isometric technical line drawing of a server rack with multiple drive units and mounting hardware (no text or labels)

Figure 2.7 Installing the Internal 2.5" HDD / 安装内置 2.5" HDD / 安装内置 2.5" HDD

HPC-8104 provides one internal slim ODD module. To install the ODD module, please refer to the following instructions.

1. To install the slim ODD module, please release the screws on top of slim ODD brackets. See Figure 2.8.
2. Insert the slim ODD module in to the proper location in the bracket and secure it with the screws provided. See Figure 2.9.
3. Return the slim ODD module with brackets into the original position and fasten it with the screws. See Figure 2.9.
4. Connect the suitable SATA cable and power cable from the motherboard to the slim ODD module.

Isometric technical drawing of a server rack with mounting hardware and internal components (no text or labels)

Figure 2.8 Release the ODD Module Bracket/卸除光驱支架/卸除光碟機支架

Technical line drawing of a server rack with internal components and mounting hardware (no text or symbols)

2.4 Attaching the Ears and Handles/安装耳柄/安装耳翼

There is a pair of ears and handles in the accessory box. If you need to install them, please refer to Figure 2.8 to simply fasten them to the front-right and front-left mounting ears with the screws provided.

Isometric line drawing of a server rack unit with mounting bracket and connectors (no text or symbols)

Figure 2.10 Attaching the Ears and Handles/ 安装耳柄 / 安装耳翼

HPC-8104 supports one full-height/half-length PCIe expansion card. Please refer to the following instructions. (The PCIe riser card must be installed.)

1. To install the PCIe expansion card, please release two screws on the rear panel and pull up the PCIe riser card with bracket. See Figure 2.11.
2. Insert the full-height/half-length PCIe expansion card in to the proper location in the riser card with bracket and secure with the screws provided. See Figure 2.12.
3. Return the PCIe cards with brackets into the original position and fasten with the screws. See Figure 2.13.
4. Connect the suitable cables from the PCIe expansion card to motherboard on the backplane. It depends on the need of PCIe expansion card.

Note! To support the PCIe expansion card, please purchase Advantech PCIe Riser Card. P/N: AIMB-RF10F-01A1E.

Technical line drawing of a server rack with internal components and mounting brackets (no text or labels)

Technical line drawing of a server rack with connectors and mounting brackets (no text or symbols)

Technical line drawing of a server rack with internal components and mounting bracket (no text or labels)

Technical line drawing of a server rack frame with mounting brackets and mounting holes (no text or symbols)

Figure 2.14 Install Chassis with Inner Slide Rail/ 安装滑轨内轨 / 安装滑轨内轨

Technical line drawing of a rack-mounted device with two metal frame units (no text or symbols)

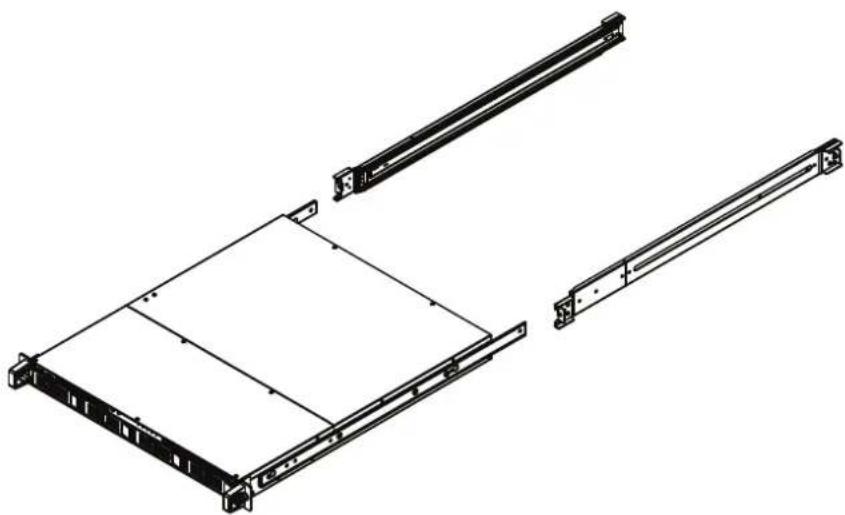

Figure 2.15 Install Chassis with Slide Rail in Cabinet/ 安装滑轨外轨 / 安装滑轨外轨

2.6.1 Slide Rail Installation

2.6.1.1 Remove the Chassis (Inner) Member

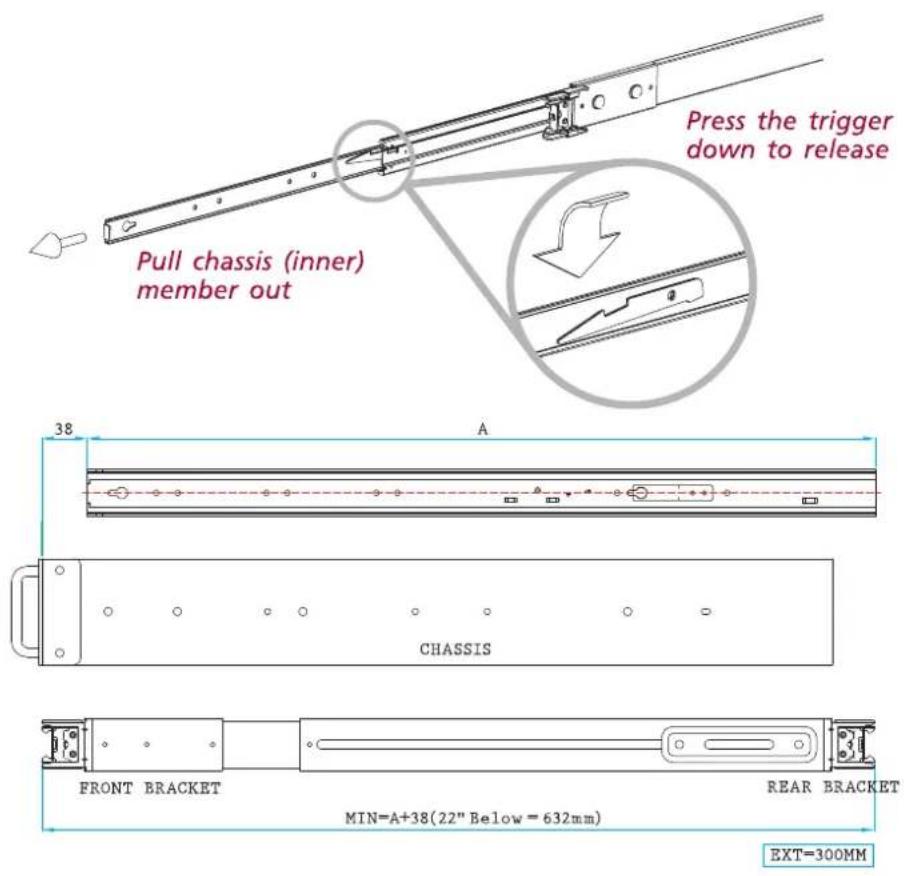

Pull the slide open. Then press the rigger down as show on the drawing and pull the chassis (inner) member out.

2.6.1.2 Mount the Chassis (Inner) Member to the Chassis

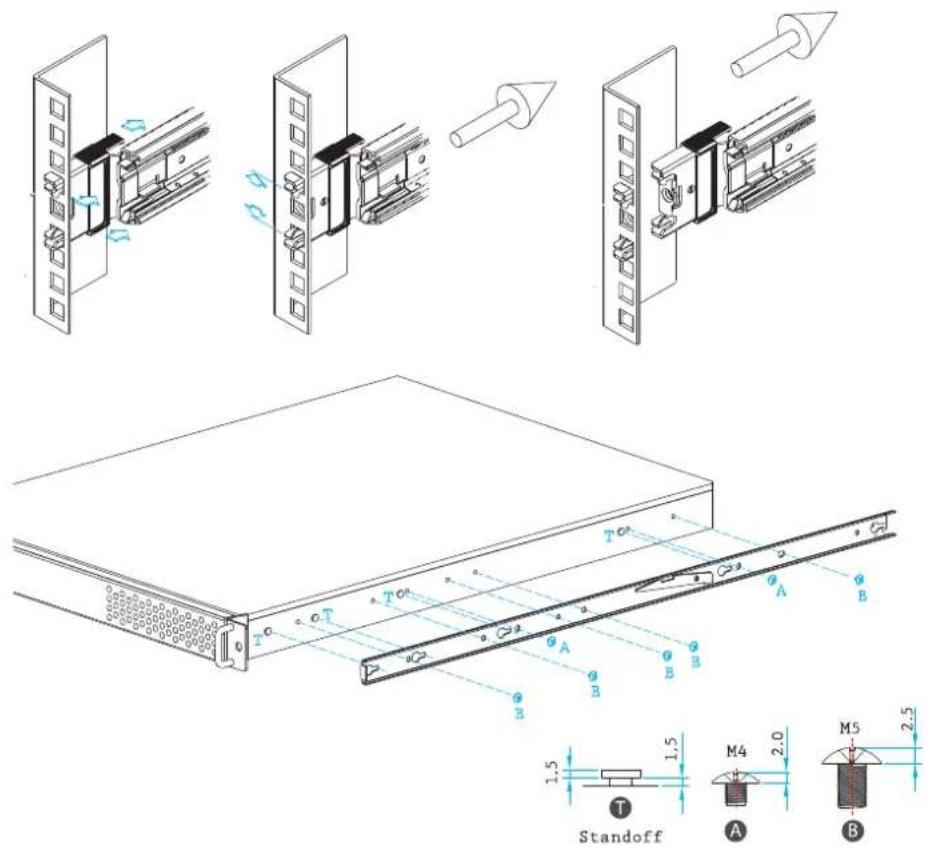

You may opt for an M4 or MS pan head screw. The screw head of either M4 or MS can not exceed 2.0 mm. Alternatively, you may mount the slide member to the chassis through standoffs. Likewise, the head of stand-off may not exceed 2.0 mm. For each side of the chassis it is highly suggested to use 3 of the screws or standoffs for slide attachment.

2.6.1.3 Attach the Cabinet (Outer) Member to the Rail

Insert the stag into the upper and lower square holes on EIA rail from the back of the rail.

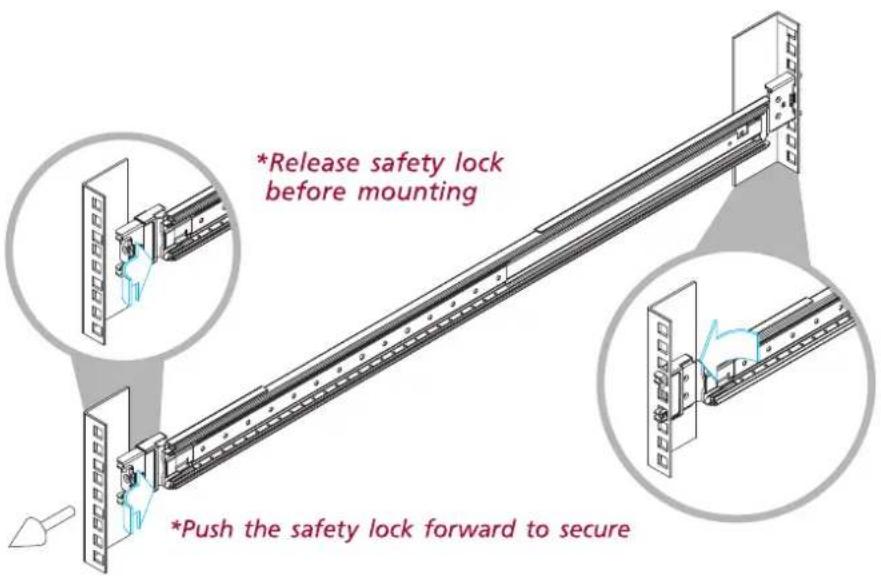

Push the safety lock forward to secure the bracket. It's important to check if the safety lock is in an unlocked position before mounting the brackets.

2.6.1.4 Mount the Chassis into the Cabinet

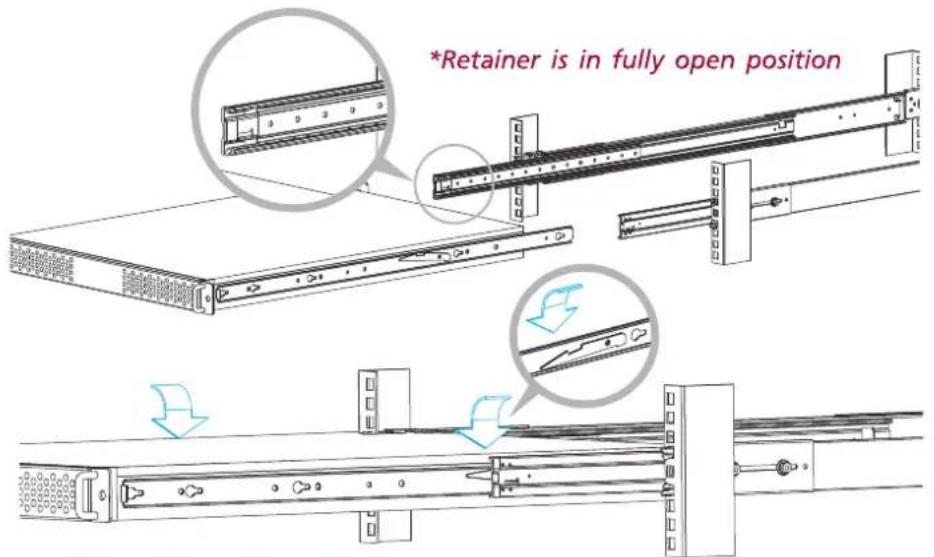

Insert the chassis (inner) member into the cabinet member as shown on the drawing. It's important to check if the ball retainer is in a fully open position before installing the chassis. It might cause catastrophic damage to the chassis if the ball retainer is not in a fully open position while mounting the chassis. While you are pushing the chassis back to the cabinet, you need to release the slide from the locking position by pressing the trigger down.

*Press trigger down to release the slides from locking

Chapter 3

Operation

操作

3.1 The Front Panel/ 前面板

The front panel features five LED indicators, dual USB3.0 ports besides four hot-plug HDD bays. In addition, there is a momentary power switch, a system reset button in the front panel. Specific functions are described below.

Back view of a black server rack with ports, connectors, and ventilation fan (no visible text or labels)

3.1.1 Switch, Buttons and I/O Interfaces/开关和按钮/開關和按鈕

Momentary Power Switch: Press this switch to turn the system power on or off. Please use system shutdown or press this switch for few seconds to turn off the system ATX power.

System Reset button: Press this button to reboot the system.

Dual USB3.0 Ports: For connecting a wide range of USB3.0 devices for data transfer, backup or input.

Five LEDs are placed on the top of the front panel to indicate system power and LAN activity. Refer to Table 3.1 for the LED definition summary.

Note!1. The HDD LED only works for SATA HDD from the motherboard, for example: front SATA1 to SATA 4 of TE and TA version, and internal/rear two 2.5" SATA drives.

Each SAS / SATA HDD tray has a pair of LED indicators for displaying the SAS / SATA HDD power and the activity status. Please refer to Table 3.2 for the LED definition summary.

X: Don't control LED behavior

When the system power is on and the SAS / SATA HDD is well connected, the activity LED glows steady Green. If it fails to light up, check connect the SAS / SATA connection. Ask a technician to inspect the related cables in the chassis if you are unsure.

The rear plate includes 1-slot I/O brackets, and a motherboard I/O opening. (see Figure 3.3).

Back view of a server rack with ports, connectors, and ventilation fan (no visible text or labels)

There is a ground screw with a washer located on the lower right of the rear panel. When properly grounded, this protects the system in case of electrical leakage.

Exploded Diagram & Parts List

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2018

www.advantech.com.cn
