Product Type	Belt-drive turntable (gramophone)
Brand	Thorens
Model	TD170-EV
Dimensions (W x H x D)	440 x 119 x 360 mm
Power Supply	100–240 V AC, 50/60 Hz
Power Consumption	1.5 W
Platter Speeds	33 1/3, 45, 78 rpm
Drive System	Electronic-controlled DC motor with belt drive
Wow and Flutter (DIN/WRMS)	±0.12%
Signal-to-Noise Ratio (unweighted)	46 dB
Signal-to-Noise Ratio (weighted)	68 dB
Effective Tonearm Length	211 mm
Overhang	19.5 mm
Tracking Force (factory cartridge)	15 mN (recommended for Ortofon OMB 10)
Anti-Skating Adjustment	Yes, adjustable with scale
Cartridge (factory installed)	Ortofon OMB 10 with elliptical diamond stylus
Frequency Range	10 Hz – 22,000 Hz
Output Voltage	4 mV / 5 cm/s / 1 kHz
Cartridge Weight	2.5 g
Total Capacitance (tonearm leads + cable)	Approx. 160 pF
Automatic Operation	Automatic start, stop, and tonearm return
Manual Operation	Manual start with lift lever control
Maintenance	Check stylus after ~500 hours of play; replace if worn
Safety	Conforms to IEC 65 and EC 76/499/EWG; do not expose to rain or moisture
General Information	Designed and assembled in Germany; warranty through Thorens dealer

Frequently Asked Questions - TD170-EV THORENS

How do I set up the Thorens TD170-EV turntable?

Unpack the turntable and accessories. Insert the hinges for the dust cover, then attach the dust cover at a 60° angle. Connect the low-voltage plug from the mains transformer to the rear jack. Connect the RCA plugs to your amplifier's phono input and attach the ground wire to the ground screw.

How do I adjust the tracking force?

First, balance the tonearm by adjusting the counterweight until it hovers freely. Then rotate the counterweight to set the desired tracking force, aligning the scale with the mark on the tonearm. For the factory-installed Ortofon OMB 10 cartridge, set to 15 mN.

What is anti-skating and how do I adjust it?

Anti-skating compensates for inward force on the tonearm. Turn the anti-skating knob to the same value as the tracking force. For example, if tracking force is 15 mN (1.5 on the scale), set anti-skating to 1.5.

How do I replace the stylus?

Gently remove the old stylus by pulling it forward. Insert the new stylus until it clicks. For 78 rpm records, use a special conical stylus (e.g., Thorens Nadel 7865 μm). Have the stylus inspected after about 500 hours of playing.

How do I select the correct speed?

Use the speed knob on the left to choose 33 1/3, 45, or 78 rpm. The platter will rotate at the selected speed when the motor starts.

How does automatic start work?

Set the lift lever to UP, then move the start knob to 'Start'. The tonearm will automatically lower onto the record at the correct lead-in groove. For automatic stop, the tonearm lifts and returns to rest when the record finishes.

Can I manually control the tonearm?

Yes. Unlock the tonearm and move it above the desired groove, then lower the lift lever to gently place the stylus. To lift, raise the lift lever. The platter continues to spin during manual operation.

What is covered under the Thorens warranty?

The warranty covers the turntable, motor, power supply, and mains transformer. The tonearm and cartridge are covered by their respective manufacturers. Damage from improper use or shipping is not covered. Contact your Thorens dealer for warranty service.

How should I pack the turntable for shipping?

Always keep the original shipping carton. If shipping, detach the platter and place it on the bottom of the box as originally packed. Ensure the turntable is securely cushioned. Prepay shipping costs to the service center; otherwise, the parcel may be rejected.

What maintenance does the TD170-EV require?

Periodically inspect the stylus for wear (after ~500 hours). Replace stylus if worn to protect your records. Clean the turntable with a soft dry cloth. Do not expose to moisture. Refer to the manual for detailed care.

USER MANUAL TD170-EV THORENS

Top-down view of a THORES 1076 radio tab with visible circuit breaker and disc (no text or symbols on the device body)

TD 170 TD 170-1

Contents Page

Thorens Factory Warranty 2

Technical Specification 3

Unpacking and Assembly 4

Electrical Connections and Installation 4

Tonearm and Pickup Cartridge 5

Vertical alignment 6

Operation of the TD 170 7

Dear THORENS customer,

Thank you very much for your confidence in our product, the record player TD 170. With the purchase of this device you have acquired a precision instrument for the purpose of playing back analogue records. This appliance however requires your attention with respect to set-up, placement and handling in order to achieve a flawless operation. The TD 170 has been designed and assembled completely in Germany which will guarantee you the highest quality to be maintained for years to come. Understandably, you want to listen to your beloved records right away but we strongly advise that you read these instructions attentively before proceeding with the setup, simply to ensure long-lasting listening pleasure. We have spared no efforts to pack all necessary information and comprehensive guidance into this manual, yet in the event that you have any further queries regarding your new record player please do not hesitate to ask your THORENS dealer for further assistance.

Sincerely yours, THORENS TEAM

WARRANTY

Legal warranty directives and regulations are to be applied here. In case a failure or malfunction occurs in your record player during the warranty period please inform your THORENS dealer or general representative and describe the malfunction that has occurred. If the malfunction cannot be remedied on site by sending you the respective user-serviceable spare part, you are kindly requested to send the unit in its original shipping box to the THORENS representative in your country. If the original shipping box is no longer in your possession your THORENS representative will be in the position to supply a new one for a small charge. Shipping costs to THORENS or to an authorized service centre must be prepaid because otherwise the parcel will be rejected upon arrival. After repair or service the unit will be returned to you free of charge.

Any damage or malfunction caused by failure to observe the instructions contained in this manual as well as damages occurred in transport or shipping are not covered by this warranty. This warranty only covers the turntable and motor including power supply and mains transformer. The tone arm and pick-up cartridge are covered by the warranty of the respective manufacturer thereof.

In the event that you have further queries or need assistance please do not hesitate to contact your authorised THORENS service.

WARNING! To prevent fire or shock hazard, do not expose this product rain or moisture

Technical Data

Measured values = typical values

Belt drive	electronic-controlled DC motor
Mains voltage(Mains set)	100 - 240 V (AC)
Line frequency	50 / 60 Hz
Power requirement	1,5 W
Platter speeds	331/3, 45 , 78 U / min
Wow and flutter (DIN/WRMS)	± 0,12 %
Platter	∅ 304 mm
Signal-to-noise ratio (DIN 45 500)Rumble unweighted signal-to-noise ratioRumble weights signal-to noise ratio	46 dB68 dB
Effective tonearm length	211 mm
Offset angle	26°
Overhang	19,5 mm
Tangential tracking error	0,15° / cm Rad.
Cartridge HiFi DIN 45 500rot R right channel Ortofongrün RG right channel ground OMB 10blau GL left channel groundweiß L left channel
Diamant styluselliptical	Nadel 1018 x 8 μm
Diamant stylus for 78 U / minconical	Nadel 7865 μm
Tracking force	15 mN
Frequency range	10 Hz - 22000 Hz
Output	4 mV / 5 cms-1/ 1 kHz
Tracking capability (315 Hz)	80 μm
Cartridge weight	2,5 g
Total capacitanceTonearm leads and audio-cables	ca. 160 pF
Dimensions (W x H x D) (mm)	440 x 119 x 360

Unpacking and set - up

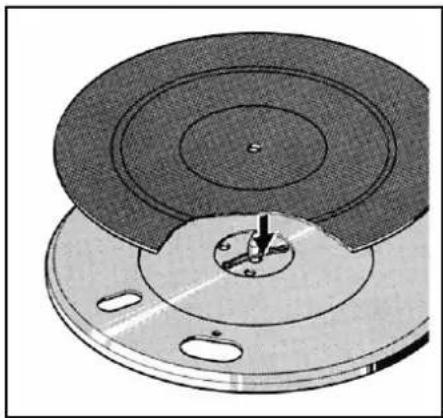

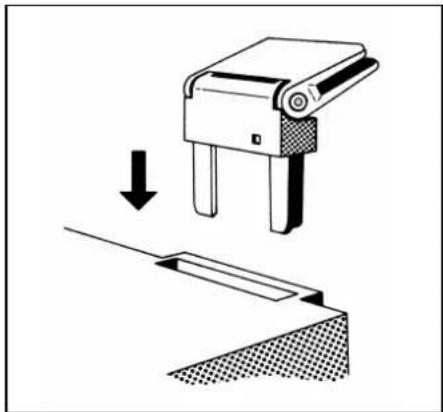

Take the record player and all accessories out of the carton. Insert each hinge into the respective recess (Fig. 3). Hold the dust cover parallel to the hinges (opening angle approximately 60°), insert and push as far as it will go. Being in this position the dust cover may be removed at any time.

Technical illustration of a mechanical component with concentric rings and central hole (no text or symbols)

Fig2

Electrical connections

By choosing the appropriate THORENS mains transformer this record player can be operated from nearly all existing public mains supplies. The low-voltage plug on the cable that is coming from the mains transformer unit is to be inserted into jack 17 (Fig. 4) at the rear side of the record player.

The stereo signal leads have two phono plugs which are also known as "Cinch" or RCA-plugs. They are marked with either the letter "L" for the left channel or "R" for the right channel. If these letters are missing then most likely the right channel is marked red, perhaps by featuring a red plug at both ends, and the left channel is marked white or black accordingly. The RCA-plugs are inserted into the phono input jacks of an amplifier or receiver. The separate single litz-wire is making a connection to ground and is to be fastened underneath the ground screw of the amplifier or receiver.

Diagram showing a mechanical component with an arrow indicating downward motion, and a sloped surface below (no text or symbols)

Fig.3

Fig. 4

IMPORTANT!

ALWAYS KEEP THE SHIPPING CARTON IN A DRY PLACE FOR THE EVENT THAT THE RECORD PLAYER HAS TO BE PACKED AGAIN FOR TRANSPORTATION. IN THIS CASE IT IS IMPORTANT TO DETACH THE PLATTER AND PUT IT ON THE BOTTOM OF THE SHIPPINGBOX, JUST AS IT WAS ORIGINALLY DELIVERED TO YOU.

Adjusting tone arm and pick-up cartridge

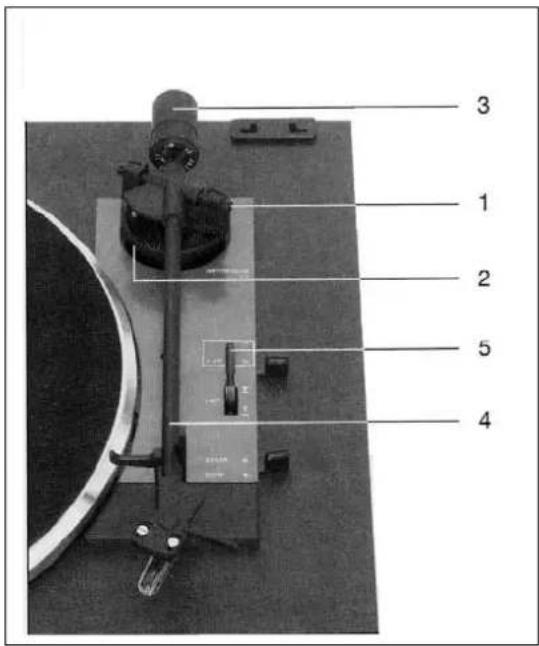

Remove stylus guard carefully. Turn the anti-skating knob (2) counter-clockwise until it stops (Fig. 6).

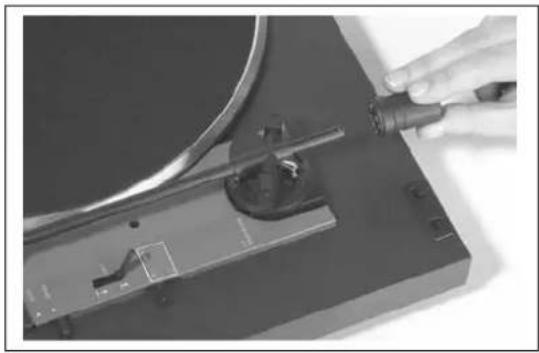

Screw the tonearm counter weight (3) onto the rear tonearm tube (Fig. 5).

Unlock the tone arm (4) a bit towards the centre of the platter. Bring the lift-lever (5) into position ▼ while holding back the tone arm (Fig. 6).

By turning the counter weight (3) the tone arm can be precisely balanced in order to make it hover freely above the platter. Move the tone arm back to its rest.

You can now adjust the tracking force (1) and the anti-skating force (2).

Hold tone arm counterweight and adjust tracking force indicator until "0" is in line with the marking on the tone arm tube.

Slowly rotate the counterweight towards the tone arm's bearing assembly until the required tracking force ist set.

Adjust to 15 mN (Milli-Newton) for the factory-installed pick-up cartridge OMB 10.

As for the required anti-skating force refer to the table below:

Scale Tracking force (1) Anti-skating force (2)

1 = 10,0 mN 1

1,25 = 12,5 mN 1,25

1,5 = 15,0 mN 1,5

2 = 20,0 mN 2

2,5 = 25,0 mN 2,5

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Fig. 5

Fig. 6

Mounting or exchanging a pick-up cartridge

Instead of the factory-supplied pick-up cartridge any other cartridge with standard half-inch mounting holes and a weight between 3 and 10 grams can be installed.

Unscrew the cartridge and carefully remove the coloured signal leads from the cartridge pins with a pair of tweezers. Screw the new cartridge onto the headshell but do not tighten. Attach the leads to the pins while observing the correct coding.

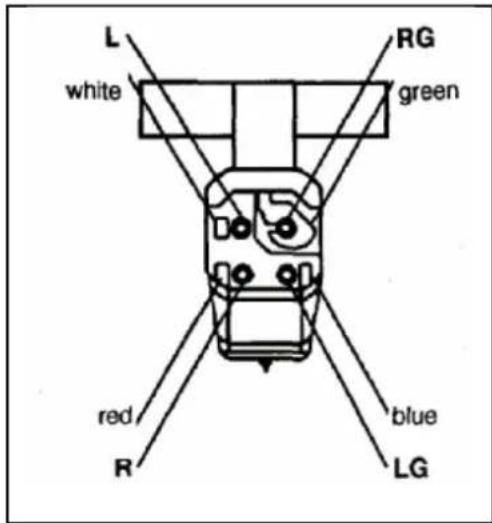

Please note: The example shown in Fig. 8 is applicable only for the pick-up cartridge Ortofon OMB 10!

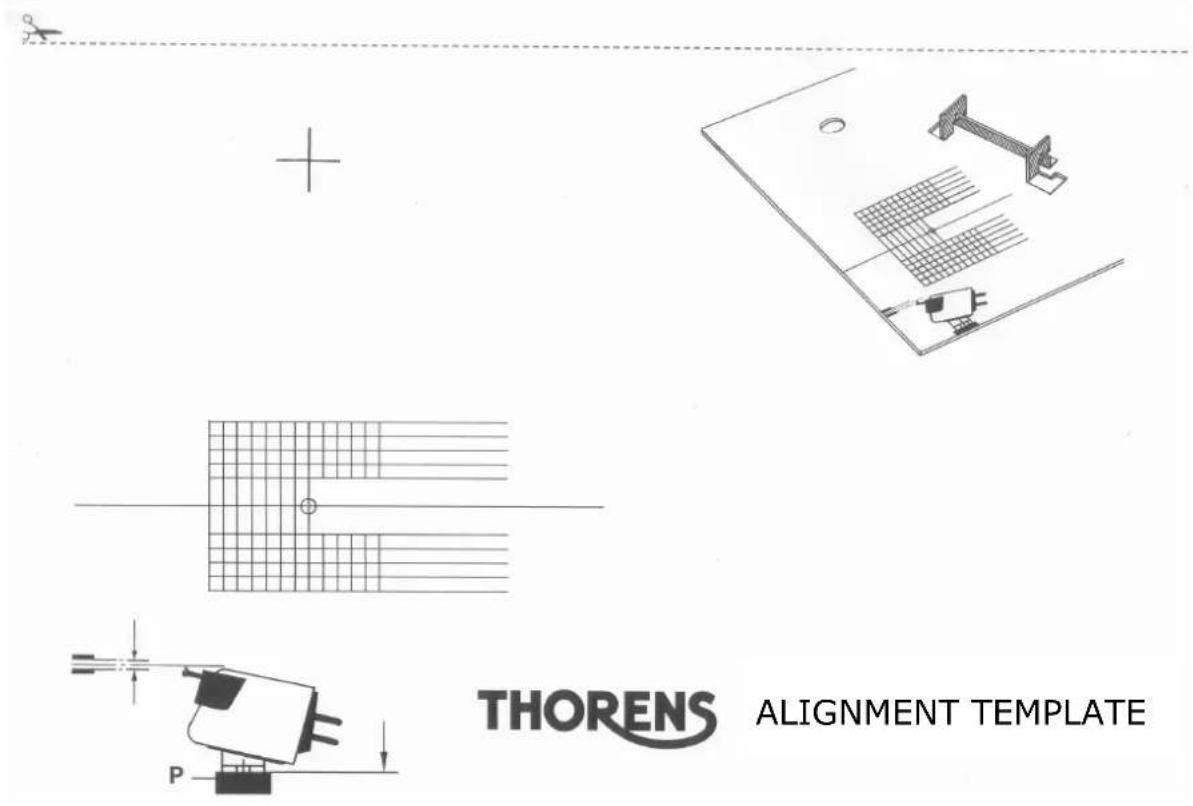

Put the supplied mounting gauge onto the platter and align the cartridge in a way that the stylus tip is exactly above the crossover point of the auxiliary lines and the cartridge body parallel to the auxiliary lines. After the cartridge has been properly adjusted tighten the screws carefully.

Fig. 8

R = red right channel

RG = green right channel ground

L = white left channel

LG = blue left channel ground

Adjusting the start position of the tone arm

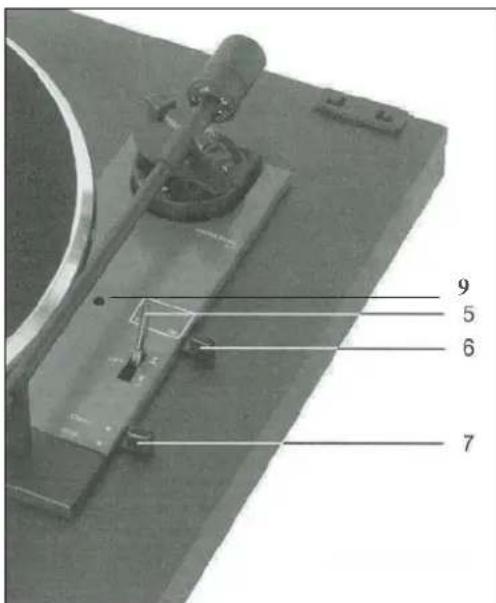

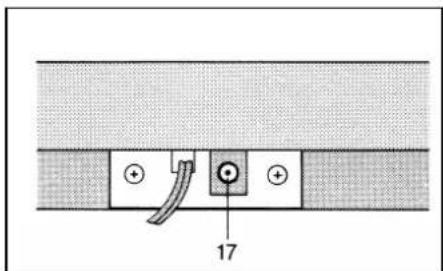

The start position of the tone arm has been adjusted in the factory. However if there is a deviation it may be readjusted by turning screw (9, Fig 11) to either left or right until the stylus can be lowered exactly at the lead-in groove of the record.

Electrical Safety

This device is in conformity with international safety regulations (IEC 65) and EC regulations 76/499/EWG.

ATTENTION!

During these mounting and adjustment procedures you must be very careful not to damage the delicate stylus and cantilever by uncontrolled and brisk movements.

Replacing the stylus

Any stylus is subject to wear even under normal playing conditions. Therefore, it is highly recommended to have the cartridge, respectively its stylus, inspected after about 500 hours of playing. This is because a worn or damaged stylus will eventually damage your precious vinyl records! In order to playback vintage shellac records (78's) with optimal results the original stylus should be exchanged with a suitable special stylus for shellacs. Please consult your THORENS dealer for further information and details.

Selecting Speed

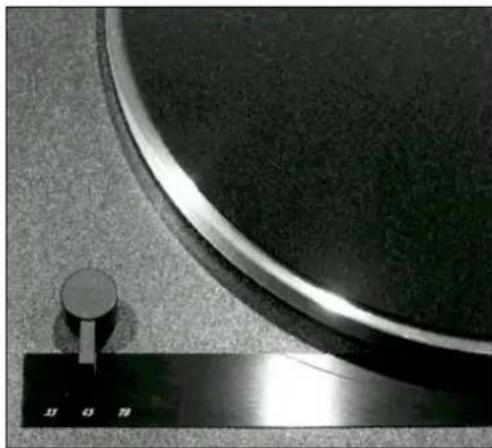

With the knob on the left the speed can be set at 33, 45 und 78rpm (Fig. 10)

Selecting record diameter

With the button (6) on the right near the tone arm, the diameter of the records can be pre-set, whereby 17 cm is used for "Single" and 30 cm for "Long Play (LP)" vinyl records. This function is necessary only when the record player is operated in its automatic mode.

Automatic start

Remove the transparent stylus guard by carefully pulling it towards you The lift lever (5) must be in position UP. Move the knob (7) into position Start and the tone arm will be automatically lowered onto the record (Fig. 11)

Manual start and tone arm lift

Bring the lift-lever (5) into position UP. Unlock the tone arm from its rest and move it above the lead-in groove of the record. The motor and platter will now start turning. By lowering the lift-lever (5) the tone arm gently declines, thus being very kind to your precious records. With the help of the lift-lever the tone arm may be moved up and down again anywhere across the record while the platter keeps turning (Fig. 11)

Stop

After reaching the lead-out groove the tone arm will be automatically lifted up and returned to its rest. The motor is switched off. You can also switch off the record player by either moving knob (7) into position Stop, or by raising lift-lever (5) into position UP ▼ and returning the tone arm manually to its rest Fig. 11)

Close-up of a dark circular object with a metallic rim and a small circular component, placed on a textured surface (no visible text or symbols)

Fig. 10

Fig.11
